Fujitsu Client Computing WB0057 Users Manual

User’s Guide

your Fujitsu LifeBook

Learn how to use

S6520 notebook

Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as

ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents

of this document. We disclaim liability for errors, omissions, or future changes.

United States and other countries.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

PCMCIA is a trademark of the Personal Computer Memory Card International Association.

Bluetooth is a trademark of Bluetooth SIG, Inc., USA.

OmniPass is a trademark of Softex, Inc.

Roxio is a trademark of Roxio, a division of Sonic Solutions.

PowerProducer is a trademark of CyberLink Corp.

ArcSoft is a trademark of ArcSoft Incorporated.

Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States

and/or other countries.

Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other

countries.

The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited

viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.

Intel, Intel Core, Centrino, and Intel Centrino Pro are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the

All other trademarks mentioned herein are the property of their respective owners.

WARNING

LifeBook S6520 notebook

HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE

Sunnyvale, CA 94085

according to FCC Part 15

Complies with Part 15 of the FCC Rules.

DECLARATION OF CONFORMITY

Responsible Party Name: Fujitsu Computer Systems Corporation

Address: 1250 E. Arques Avenue, M/S 122

Telephone: (408) 746-6000

Declares that product: Base Model Configuration:

ASH HANDS AFTER HANDLING.

TATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication

may be stored or transmitted in any electronic form without the written consent of Fujitsu. B5FJ-DRAFT-01EN-00

(1) This device may not cause harmful interference, (2) This device must accept any interference received,

including interference that may cause undesired operation.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:

. DISPOSE OF USED

’S INSTRUCTION.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

OR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND

DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER

BATTERIES ACCORDING TO THE MANUFACTURER

swimming pool.

This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a current

of 4.22A (80 W).

When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and

injury to persons, including the following:

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a

• Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning.

AC adapter output polarity:

local codes for possible special disposal instructions.

• Do not use the modem to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with

• To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as

required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service

provider.

• For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, be sure that the outer shield of the

For Authorized Repair Technicians Only

RATING FUSE

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF

, STATE, OR FEDERAL LAWS.

ACCORDING TO LOCAL

Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural

occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important

that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of

in Canada.

Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery

Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment

by recycling old batteries at no cost to you.

RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the

location nearest you, go to www.RBRC.org or call 1-800-822-8837.

Fujitsu.

www.fujitsu.ca/products/notebooks

If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/)

and search for a convenient disposal location.

Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future

generations.

improperly.

* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or

** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with

System Disposal

Recycling your battery

Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Back Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hard Drive/Optical Drive Access Indicator . . . . . . . . . . . . . . . . . . . . . . . 25

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Preface

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Chapter 1 Getting to Know Your LifeBook

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Touchpad Control Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . 37

Setting up Your LifeBook Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . 40

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Operating Your LifeBook Security/Application Panel. . . . . . . . . . . . . . . . 42

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Uninstalling the Security Panel Application. . . . . . . . . . . . . . . . . . . . . . . . 44

Launching Applications with the Security/Application Panel . . . . . . . . . . 46

Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Closing the Display Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Touchpad Pointing Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Flexible Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

LifeBook Security/Application Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Chapter 2 Getting Started with Your LifeBook

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Starting Windows Vista the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Starting Windows XP the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Registering Your LifeBook notebook with Fujitsu . . . . . . . . . . . . . . . . . . 58

Installing Click Me! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Fujitsu Driver Update Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Power/Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Standby (Sleep) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Hibernation (Save-to-Disk) Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Recharging the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Loading Media on Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Removing Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Using the Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Emergency Optical Drive Tray Release . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Using Media Player on Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Starting Your LifeBook Notebook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Lithium ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Chapter 3 User-Installable Features

. . . . . . . . . . . 111

. . . . . . . . .

Installing Memory Stick/SDxD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Removing A Memory Stick/SD/xD Card. . . . . . . . . . . . . . . . . . . . . . . . . . 78

Installing PC Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Checking the Memory Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Modem (RJ-11) Telephone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

IEEE 1394 Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Headphone/Line-Out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Microphone/Line-In Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

.External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

S-Video Out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Emergency Media Player Drive Tray Release . .

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Memory Stick/Secure Digital/xD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Using PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Chapter 4 Troubleshooting Your LifeBook

Re-installing Individual Drivers and Applications. . . . . . . . . . . . . . . . . . . 112

Restoring the Operating System for Windows XP Systems. . . . . . . . . . . . 113

Restoring the Operating System for Windows Vista Systems . . . . . . . . . . 114

Running Recovery and Utility from the disc . . . . . . . . . . . . . . . . . . . . . . . 116

Automatically Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . 118

Cleaning your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Storing your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Traveling with your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Mass Storage Device Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Restoring Your Pre-installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Caring for your LifeBook Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Chapter 5 Care and Maintenance

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Chapter 6 System Specifications

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Wireless LAN Device Covered by this Document. . . . . . . . . . . . . . . . . . . 163

Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Wireless LAN Modes Using this Device . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Deactivating/Disconnecting the WLAN Device . . . . . . . . . . . . . . . . . . . . 166

Deactivation Using the

Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . . 167

Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Before Using the Optional Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Configuring the WLAN Using Windows Vista . . . . . . . . . . . . . . . . . . . . . 168

Configuring the WLAN Using Windows XP . . . . . . . . . . . . . . . . . . . . . . 169

Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Glossary/Regulatory

Appendix A: WLAN User’s Guide

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 174

Using the Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Appendix B: Fingerprint Sensor Device

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Introducing the Optional Fingerprint Sensor Device . . . . . . . . . . . . . . . . 176

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Index

Preface

About This Guide

The LifeBook S6520 notebook from Fujitsu Computer Systems Corporation provides desktop

performance with a fast, Intel® Core™ 2 processor. Your notebook has a built-in 14.1” TFT WXGA color

display. This system brings the computing power of desktop personal computers (PCs) to a portable

environment.

Your computer comes with Microsoft Windows® XP Professional or Windows Vista Business operating

system pre-installed.

This manual explains how to operate your LifeBook notebook’s hardware and factory-installed system

software.

Conventions Used in the Guide

Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].

Pages with additional information about a specific topic are cross-referenced within the text.

For example: (“See Installation Procedure on page 43”.)

On screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.

DOS commands you enter appear in Courier type. Example: “Shutdown the computer?”

, OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION

- About This Guide

THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF

THE SUBJECT MATERIAL

HE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR

COMPUTER

CAREFULLY

HE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR

IFEBOOK NOTEBOOK, OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.

• Toll free: 1-800-8Fujitsu (1-800-838-5487)

• E-mail: 8fujitsu@us.fujitsu.com

• Website: http://www.computers.us.fujitsu.com/support

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

Before you place the call, you should have the following information ready so that the customer support

representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

- About This Guide

YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

Fujitsu Shopping Online

You can go directly to the online by going to the website at: www.shopfujitsu.com.

Limited Warranty

Your LifeBook notebook is backed by a Fujitsu International Limited Warranty. Check the service kit that

came with your notebook for the Limited Warranty period and terms and conditions.

Figure 1. Fujitsu LifeBook S6520 notebook

Getting to Know Your LifeBook

Chapter 1

Overview

This section describes the

components of your Fujitsu

LifeBook S6520 notebook. We

strongly recommend that you read

it before using your notebook –

even if you are already familiar

with notebook computers.

Display Panel

LifeBook Security/

Application Panel

Status Indicator Panel

Power/Suspend/Resume Button

Stereo Speakers

Keyboard

Touchpad Pointing Device

Status Indicator Panel

- Locating the Controls and Connectors

Latch Button

Display Panel

Figure 2. LifeBook notebook with display open

Locating the Controls and Connectors

Web Camera

Fingerprint Sensor

Bluetooth

Wireless LAN/

On/Off Switch

Headphone Jack

IEEE1394 Jack

S-Video Out Jack

Microphone Jack

- Locating the Controls and Connectors

Top Components

The following is a brief description of your LifeBook notebook’s top components.

Display Panel

The display panel is a color LED panel with back lighting for the display of text and graphics.

LifeBook Security/Application Panel

The LifeBook Security/Application Panel provides hardware security and one-touch application launch

capability. See “LifeBook Security/Application Panel” on page 39.

Status Indicator Panel

The Status Indicator Panel displays symbols that correspond with a specific component of your LifeBook

notebook. See “Status Indicator Panel” on page 23.

Power/Suspend/Resume Button

The Power/Suspend/Resume button allows you to suspend notebook activity without powering off,

resume your LifeBook notebook from suspend mode, and power on your notebook when it has been shut

down from Windows. See “Power/Suspend/Resume Button” on page 60.

Stereo Speakers

The built-in dual speakers allow for stereo sound.

Keyboard

A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 27.

Touchpad Pointing Device

The Touchpad pointing device is a mouse-like cursor control with three buttons: a right button, a left

button, and a scroll button. See “Touchpad Pointing Device” on page 30. Depending upon the

configuration of your system, the scroll button may be configured as a fingerprint sensor device. See

“Appendix B: Fingerprint Sensor Device” on page 176.

- Locating the Controls and Connectors

Display Panel Latch Button

The display panel latch button is used to latch and unlatch the display. See “Opening the Display Panel”

on page 50.

S-Video Out Jack

The S-Video output is used to transmit a higher resolution video signal to a compatible TV or VCR. Note

that in order to use this jack, you must use the S-Video adapter cable that came with your system. See “S-

Video Out Jack” on page 92.

Microphone Jack

The microphone jack allows you to connect an external mono microphone. See “Microphone/Line-In

Jack” on page 91.

Headphone/Line Out Jack

The headphone/line out jack allows you to connect headphones. See “Headphone Jack*” on page 45.

IEEE 1394 (4-pin) Jack

The 4-pin 1394 jack is used to connect between your LifeBook and an IEEE 1394 peripheral such as a

digital video camera. See “Connecting a IEEE 1394 device” on page 88.

Wireless LAN/Bluetooth On/Off Switch

The wireless LAN/Bluetooth on/off switch is used to turn the optional WLAN and Bluetooth devices on

and off. Switching the device off when not in use will help to extend battery life. See “Activating the

WLAN Device” on page 167.

Web Camera

The built-in camera has a resolution of 1.3 megapixels. For instructions on using the camera, see the help

files that are included with the ArcSoft WebCam Companion software application.

PC Card Eject Button

Infrared Port

PC Card Slot

Memory Stick/SD/xD Card Slot

Air Vents

- Locating the Controls and Connectors

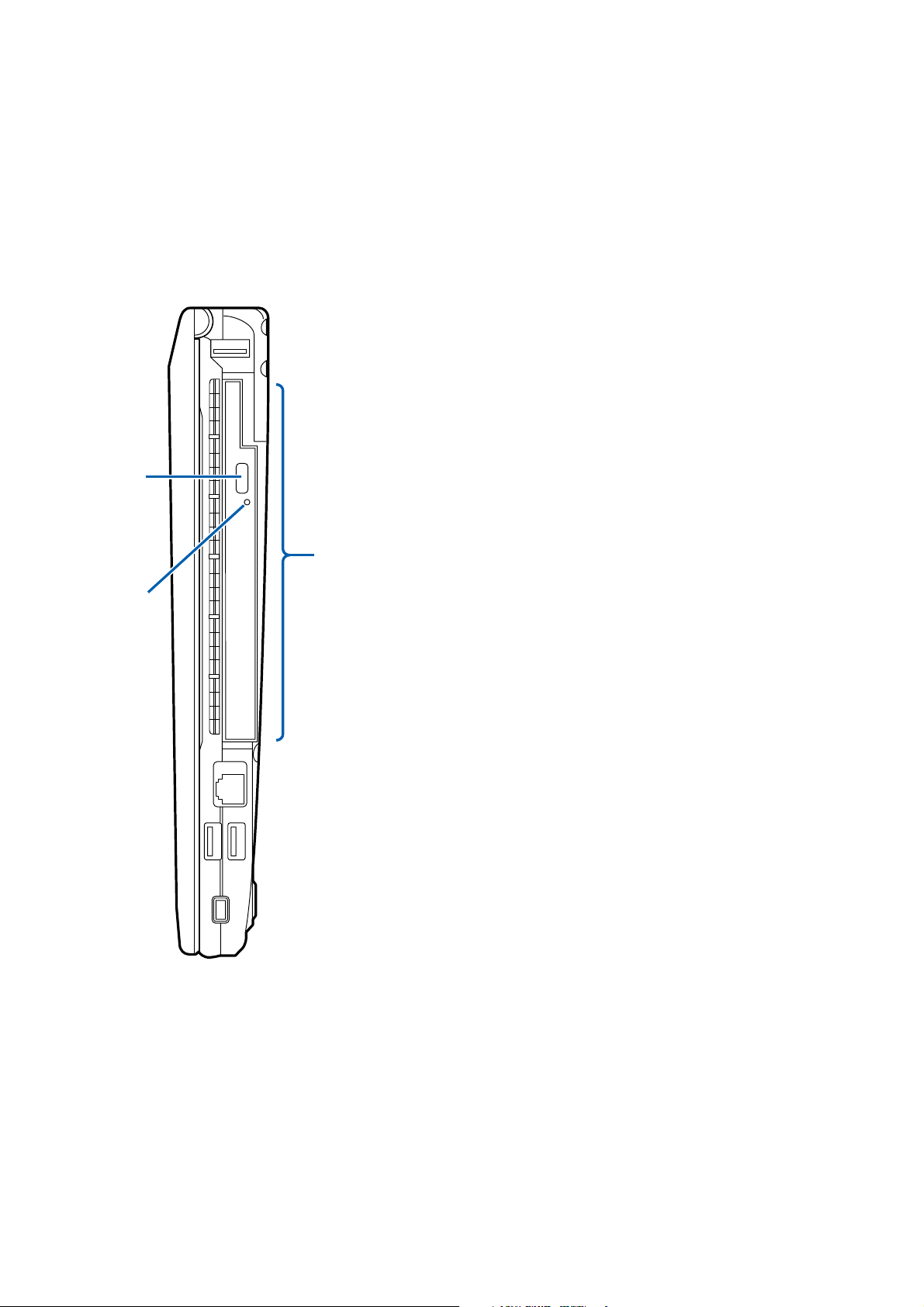

Figure 3. LifeBook notebook left-side panel

LAN (RJ-45) Jack

DC-In Jack

External Video Port

Left-Side Panel Components

The following is a brief description of your LifeBook notebook’s left-side components.

Gigabit LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T)

Ethernet LAN connection. See “Internal LAN (RJ-45) Jack” on page 89.

TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL

, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC

- Locating the Controls and Connectors

, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

CLEANING

AIR ALL VENTS UNOBSTRUCTED

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your LifeBook notebook and charge

the internal Lithium ion battery.

PC Card Slot

The PC Card Slots allow you to install a PC Card. See “Using PC Cards” on page 79.

PC Card Eject Button

The PC Card eject button is used for removing a PC Card from the slot.

Infrared Port

The IrDA-compatible port allows you to communicate with another IrDA-compatible infrared device

without a cable.

Memory Stick/SD/xD Card Slot

The Memory Stick/Secure Digital/xD card slot allows you to install a flash memory card for data storage.

This architecture allows you to transfer data from a variety of different digital devices. See “Memory

Stick/Secure Digital/xD Cards” on page 77.

Air Vents

The air vents allow air to circulate through the system to cool down the components.

External Video Port

The external monitor port allows you to connect an external monitor or LCD projector. See “.External

Video Port” on page 91.

USB Port

Optical Drive

Release Button

Air Vents

Flexible Bay (shown with Optical Drive installed)

- Locating the Controls and Connectors

Figure 4. LifeBook notebook right-side panel

Anti-Theft Lock Slot

Modem Jack

USB Ports

Right-Side Panel Components

The following is a brief description of your LifeBook notebook’s right-side components.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

USB 2.0 Ports

The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480

Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See

“Universal Serial Bus Ports” on page 89.

. THE MAXIMUM SPEED IS 33600 BPS AT UPLOAD, IN

. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR

, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC

DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL

53000 BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION

. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT

FCC REGULATIONS.

, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

- Locating the Controls and Connectors

Modem (RJ-11) Telephone Jack

The Modem (RJ-11) telephone jack is for attaching a telephone line to the internal multinational 56K

modem. See “Modem (RJ-11) Telephone Jack” on page 86.

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT

THE INTERNAL MODEM TO A

DETAILS

YOUR MODEM

MODEM OR YOUR ENTIRE NOTEBOOK

HE INTERNAL MULTINATIONAL MODEM IS DESIGNED TO THE ITU-T V.90/V.92 STANDARD. ITS

MAXIMUM SPEED OF

RATE DEPENDS ON THE LINE CONDITIONS

ACCORDANCE WITH

OR ADDITIONAL INFORMATION ABOUT THE MODEM, REFER TO THE FUJITSU WEBSITE AT:

US.FUJITSU.COM/COMPUTERS.

Air Vents

O PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL

AIR ALL VENTS UNOBSTRUCTED

The air vents allow air to circulate through the system to cool down the components.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

CLEANING

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION

Optical Drive Release Button

The optical drive release button opens the optical drive.

- Locating the Controls and Connectors

• Modular Dual-Layer Multi-Format DVD Writer

• Modular DVD/CD-RW combo drive

• Modular Lithium ion battery

• Weight Saver

Flexible Bay

The flexible bay can accommodate any of the following modular devices. (See “Flexible Bay Devices”

on page 36.)

- Locating the Controls and Connectors

Figure 5. LifeBook notebook back panel

Back Panel Components

Following is a brief description of your LifeBook notebook’s back panel components.

Anti-theft Lock Slot

Anti-Theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

Lithium ion Battery Bay

Battery Release Latches

Flexible Bay Device Lock

Memory Upgrade Compartment

Dust Filter

Air Vents

(multiple locations)

- Locating the Controls and Connectors

Figure 6. LifeBook notebook bottom panel

Bottom Components

The following is a brief description of your LifeBook notebook’s bottom panel components.

Lithium ion Battery Bay

The battery bay contains the internal Lithium ion battery. It can be unlatched for the removal of the battery

when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion

battery. See “Lithium ion Battery” on page 65.

, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE

, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

- Locating the Controls and Connectors

PERIODIC CLEANING

KEEP ALL AIR ALL VENTS UNOBSTRUCTED

TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION

DO NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

Battery Release Latches

The battery release latches are used to lock and release the battery in the battery bay. See “Lithium ion

Battery” on page 65.

Flexible Bay Device Lock

The flexible bay device lock is used to lock and release a modular flexible bay device in the flexible bay.

See “Flexible Bay Devices” on page 36.

Memory Upgrade Compartment

Your notebook comes with high speed Double Data Rate 2 Synchronous Dynamic RAM (DDR2

SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your

notebook, thus improving overall performance. See “Memory Upgrade Module” on page 82. Under

normal circumstances, it should not be necessary to open this compartment.

Dust Filter

The dust filter is used to help prevent dust and dirt from entering your system. (See “Cleaning the dust

filter” on page 122).

Air Vents

The air vents allow air to circulate through the system to cool down the components.

ScrLk

CapsLk

NumLk

Hard Drive/

Optical Drive

Access

Battery 2 Level

Battery 2 Charge

Battery 1 Charge

Power

Battery 1 Level

AC Adapter

Figure 7. Status Indicator Panel

The Status Indicators display symbols that correspond to specific components of your Fujitsu LifeBook

notebook. The LEDs below each symbol tell you how each of those components is operating.

Status Indicator Panel

Power Indicator

The Power indicator symbol states whether your system is operational. It has several different states, each

• Steady On: This means that there is power to your notebook and that it is ready for use.

of which tells you the mode your notebook is in.

- Status Indicator Panel

• Flashing: This means that your notebook is in Standby mode.

Battery Charge Indicators

- Status Indicator Panel

Battery Level Indicators

AC Adapter Indicator

been turned off.

• Steady Off: This means that your system is either in Save-to-Disk mode, or that your notebook has

If you are charging your battery, the Power indicator will remain on even if your notebook is shut off. The

Power indicator will also remain on if you have either adapter connected and are shut down from

Windows.

The AC Adapter indicator states whether your notebook is operating from the AC adapter, Auto/Airline

adapter or battery. This icon has two different states that can tell you what power source your notebook is

using.

• On: This means that either of the adapters are currently in use.

• Off: Power is only coming from the battery and you do not have an adapter connected.

• Orange, solid: Battery is available and system is charging.

• Green, solid: Battery is available and system is fully charged.

Note that there are indicators for the primary battery (Battery 1) and an optional second battery (Battery 2.)

range).

• Orange, blinking: Battery is available and waiting to charge battery (battery is out of thermal

• Off: AC adapter is not plugged in.

1 2

Note that there are indicators for the primary battery (Battery 1) and an optional second battery (Battery 2.)

The Battery Level indicators display the charge level of the indicated battery pack, as follows:

- Status Indicator Panel

the charge level for five seconds after it blinks orange.

switched to standby mode, the indicator will blink. The LED blinks at the rate of one second on/six

seconds off.

• If the battery pack is installed while the power is turned off, the battery level indicator will display

• If the AC adapter is not connected or the battery pack is not fully charged when the computer is

damaged.

• Batteries subjected to shocks, vibration or extreme temperatures can be permanently

• A shorted battery is damaged and must be replaced.

NumLk Indicator

Hard Drive/Optical Drive Access Indicator

The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.

installed).

• Green, solid: Battery is between 51% and 100% charged.

• Orange, solid: Battery is between 13% and 50% charged.

• Red, solid: Battery is 12% or less charged.

• Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is

• Red, blinking: There is a problem with the battery.

• Off: There is no battery installed or the battery has no charge.

The Hard Drive/Optical Drive Access indicator glows green when your internal hard drive is being

accessed. Note that flickering is normal.

- Status Indicator Panel

CapsLock Indicator

The CapsLock indicator states that your keyboard is set to type in all capital letters.

ScrLk Indicator

The ScrLk indicator states that your scroll lock is active.

Application Key Cursor Keys

- Keyboard

Figure 8. Keyboard

Function Keys

Numeric Keypad

(surrounded by heavy line)

characters and as numeric and mathematical keys. The ability to toggle between the standard

character and numerical keys is controlled through the [NumLk] key.

Fn Key Start Key

Using the Keyboard

Your Fujitsu LifeBook notebook has an integral 84-key keyboard. The keys perform all the standard

functions of a 101-key keyboard, including the Windows keys and other special function keys. This

• Numeric keypad: Your notebook allows certain keys to serve dual purposes, both as standard

section describes the following keys.

Keyboard

- Keyboard

the right, left, up, or down within windows, applications and documents.

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to

produce special actions that vary depending on what program is running.

• Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to

the onscreen Start menu button, or the right button on your pointing device.

• Windows keys: These keys work with your Windows operating system and function the same as

Numeric Keypad

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad

keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the

same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ),

subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated

as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to

indicate their secondary functions.

Windows Keys

Your LifeBook notebook has two Windows keys, consisting of a Start key and an Application key. The

Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The

Application key functions the same as your right mouse button and displays shortcut menus for the

selected item. (Please refer to your Windows documentation for additional information regarding the

Windows keys.)

Cursor Keys

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down,

left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the

next item up, down, left, or right).

- Keyboard

Function Keys

Your LifeBook notebook has 12 function keys, F1 through F12. The functions assigned to these keys differ

• The [Fn] key provides extended functions for the notebook and is always used in conjunction with

for each application. You should refer to your software documentation to find out how these keys are used.

another key.

• [Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.

• [Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.

• [Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

notebook.

• [Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LifeBook

• [Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LifeBook

notebook.

• [Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send

your display video. Each time you press the combination of keys you will step to the next choice.

The choices, in order, are: built-in display panel only, external monitor only, and both built-in

display panel and external monitor.

Touchpad Pointing Device

Cursor Control

Left Button

Scroll/Fingerprint Sensor

Right Button

Figure 9. Touchpad pointing device

- Touchpad Pointing Device

The Touchpad pointing device comes built into your Fujitsu LifeBook notebook. It is used to control the

movement of the pointer to select items on your display panel. The Touchpad is composed of a cursor

control, a left button, a right button, and a scroll/fingerprint sensor. The cursor control works the same way

a mouse does, and moves the cursor around the display. It only requires light pressure with the tip of your

finger. The left and right buttons function the same as mouse buttons. The actual functionality of the

buttons may vary depending on the application that is being used.

Note that the fingerprint recognition sensor also functions as a scroll sensor. After logging in, moving your

finger up and down the sensor will act the same as a scroll button. To learn how to use the fingerprint

sensor, see “Appendix B: Fingerprint Sensor Device” on page 176.

Figure 10. Clicking with button

See “BIOS Setup Utility” on page 54.

TOUCHPAD WILL BE DISABLED OR ENABLED DEPENDING ON THE

TOUCHPAD. HOWEVER, IF YOU BOOT THE SYSTEM WITH AN

BIOS SETTINGS.

Figure 11. Clicking with Touchpad

- Touchpad Pointing Device

USED SIMULTANEOUSLY WITH THE

EXTERNAL MOUSE CONNECTED THE

SPECIFICATIONS IN YOUR

Clicking

Clicking means pushing and releasing a button. To

left-click, move the cursor to the item you wish to

select, press the left button once, and then immediately

release it. To right-click, move the mouse cursor to the

item you wish to select, press the right button once,

and then immediately release it. You also have the

option to perform the clicking operation by tapping

lightly on the Touchpad once.

AN EXTERNAL MOUSE CAN BE CONNECTED TO THE USB PORTS ON YOUR LIFEBOOK NOTEBOOK AND

Double-Clicking

Figure 12. Double-clicking with button

Double-clicking means pushing and releasing the left

button twice in rapid succession. This procedure does

not function with the right button. To double-click,

move the cursor to the item you wish to select, press the

left button twice, and immediately release it. You can

also perform the double-click operation by tapping

lightly on the Touchpad twice.

Figure 13. Double-clicking with Touchpad

- Touchpad Pointing Device

Figure 14. Dragging with button

Figure 15. Dragging with Touchpad

- Touchpad Pointing Device

Dragging

Dragging means pressing and holding the left button,

while moving the cursor. To drag, move the cursor to

the item you wish to move. Press and hold the left

button while moving the item to its new location and

then release it. Dragging can also be done using the

Touchpad. First, tap the Touchpad twice over the item

you wish to move making sure to leave your finger on

the pad after the final tap. Next, move the object to its

new location by moving your finger across the

Touchpad, and then release your finger.

Scrolling

using the window’s scroll bars. This is particularly

Using the fingerprint sensor as a scrolling button allows

you to navigate through a document quickly without

useful when you are navigating through on-line pages.

To use the sensor, slide your finger forwards or

backwards, depending upon the direction you want to

scroll. When you have reached the desired section of

Figure 16. Scrolling with fingerprint sensor

- Touchpad Pointing Device

the page, lift your finger.

To use the sensor for fingerprint recognition, see

“Appendix B: Fingerprint Sensor Device” on page 176.

Touchpad Control Adjustment

The Windows Control Panel allows you to customize your Touchpad with selections made from within

the Mouse Properties dialog box.

, THE

- Volume Control

Volume Control

. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE

ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF

HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH

OTHER

YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL

Your Fujitsu LifeBook notebook has multiple volume controls which interact with each other.

THE EXTERNAL VOLUME CONTROL SETTING

Controlling the Volume

The volume can be controlled in several different ways:

[Fn] will decrease the volume of your notebook. Pressing [F9] repeatedly while holding [Fn] will

increase the volume of your notebook.

• Volume can be changed or muted from within the Volume Control in the system tray.

• Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding

repeat the [Fn+F3] procedure.

• Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio,

• Volume can be controlled by many volume controls that are set within individual applications.

controls.

• Certain external audio devices you might connect to your system may have hardware volume

Each source discussed above puts an upper limit on the volume level that must then be followed by the

other sources.

We recommend that you experiment with the various volume controls to discover the optimal sound level.

Flexible Bay Release Button

Emergency Tray Release

Flexible Bay

- Flexible Bay Devices

Figure 17. Flexible Bay

Your Fujitsu LifeBook notebook contains a Flexible Bay. The Flexible Bay can house an optical drive, a

Flexible Bay Devices

audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.

• Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and

Lithium ion battery, or a weight saver.

Your Flexible Bay will have one of the following devices installed.

DVD/CDs as well as to write to CDs.

• Modular DVD/CD-RW combo drive: This allows you to access movies, software, and audio

LifeBook notebook when an adapter is not connected.

• Modular Lithium ion battery: This is a rechargeable battery that can be used to power your

• Weight Saver: This is used to fill the bay when no device is needed.

Removing and Installing Modular Devices

There are two ways to remove and install modular devices in the Flexible Bay:

Flexible Bay

Release Latch

Figure 18. Removing/installing a Flexible Bay device

- Flexible Bay Devices

, DUST OR FOREIGN MATTER MAY ACCUMULATE INSIDE THE NOTEBOOK.

YOU SHOULD NEVER LEAVE YOUR FLEXIBLE BAY EMPTY WHEN THE NOTEBOOK IS IN OPERATION. IF LEFT

EMPTY

icon from your system tray.

• Cold-swapping: swapping devices while your LifeBook notebook is powered off.

• Hot-swapping: swapping devices while your system is active, using the Safely Remove Hardware

Cold-swapping

1 Close any open files.

2 Shut down your LifeBook notebook.

3 Turn your system upside down.

4 As you press the Flexible Bay release

To cold-swap modular devices in your Flexible Bay follow these easy steps:

. This will require light force.

latch as shown in Figure 18, pull out the

Flexible Bay module until it is clear of

the bay

your notebook until it clicks into place.

back on.

device.

5 Slide the device you are installing into

6 It is now safe to turn your notebook

7 You can now access and use the

Your LifeBook notebook will automatically detect the new device and activate it within your system. The

drive letters associated with the device will be created and listed under My Computer and Windows

- Flexible Bay Devices

Explorer.

Hot-swapping

Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in

the system tray. Click on the icon and follow the on-screen instructions.

Button 1

Button 2

Button 3

Button 4

Enter Button

Security Indicator

Figure 19. LifeBook Security/Application Panel

- LifeBook Security/Application Panel

LifeBook Security/Application Panel

A unique feature of your LifeBook notebook is the Security/Application Panel that allows you to secure

your notebook from unauthorized use. The Security/Application Panel also allows you to launch

applications with the touch of a button when your system is on.

If the security system is activated, upon starting your notebook or resuming from suspend mode, the

security system requires you to enter a password code using the buttons on the Security/Application Panel.

After entering a correct password, your notebook resumes system operation.

Setting up Your LifeBook Security Panel

When you receive your LifeBook notebook, the security panel application is pre-installed without any

passwords. The following sections provide detailed information on your security panel, and how to set,

change or remove passwords.

Numbered Buttons

Use these buttons to enter your password.

Enter Button

After entering the button strokes, push this button to enter the password into the LifeBook notebook.

Passwords

The user and supervisor password may be set on this notebook. A supervisor password is typically the

same for all LifeBook notebooks in a working group, office, or company to allow for system management.

• Pushing [4] by itself

• Pushing [2] and [3] at the same time

Individual LifeBook notebooks in a group environment should not use a common password. A password

consists of one to five button strokes plus the [Enter] button. A valid stroke consists of pushing one or up

to four buttons simultaneously. The following are valid button strokes:

• Pushing [1], [2], and [4] at the same time

• Pushing [1], [2], [3], and [4] at the same time

The following are valid passwords. The numbers within braces ({ }) are button strokes using more than

one button.

- LifeBook Security/Application Panel

• {[2]+[3]}, [1], [enter]

• [4], [enter]

• {[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter]

. THE SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE

- LifeBook Security/Application Panel

. YOU MUST SET BOTH THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO

Setting Passwords

When shipped from the factory, no passwords are set. You have a choice of having no password or setting

supervisor and user passwords. You must set the supervisor password before the user password.

HE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE

WORK

THE USER PASSWORD IS FORGOTTEN

SYSTEM

Windows XP:

Setting Supervisor Password

You must have set a supervisor password before setting any user passwords. The supervisor password can

bypass the user password. Depending upon your operating system, use the appropriate procedure below.

1 Go to the Start menu.

2 Click on Run.

ess [Enter]

C:\Program Files\Fujitsu\Security Panel Application\Supervisor\FJSECS.EXE, then

3 Type i n :

4 Follow the on-screen instructions to set the Supervisor password.

Windows Vista:

1 Go to the Start menu.

2 Select All Programs.

3 Select Accessories, then select Run.

ess [Enter]

C:\Program Files\Fujitsu\Security Panel Application\Supervisor\FJSECS.EXE, then

4 Type i n :

5 Follow the on-screen instructions to set the Supervisor password.

- LifeBook Security/Application Panel

OU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS

DEFINED ABOVE

Windows XP:

Setting User Password

1 Go to the Start menu.

Windows Vista:

2 Click on Programs.

3 Click on Security Panel Application and Set User Password.

4 Follow the on-screen instructions to set the user password

1 Go to the Start menu.

2 Select All Programs.

3 Select Security Panel Application and Set User Password.

4 Follow instructions to set the user password.

Operating Your LifeBook Security/Application Panel

The security lock feature is in effect both when the system resumes from Off or suspend state. You will

need to enter the user password right after pressing the Suspend/Resume button. Your system will not boot

or resume from Standby without entering your supervisor/user password.

From Off State

Turn on your system.

is 22222, press button number [2] five times and press [Enter] button.

2 When the Security Indicator flashes, enter the password and press [Enter] button. For example, if the password

3 The notebook will boot to normal operation.

. THE SUPERVISOR

- LifeBook Security/Application Panel

REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IFYOU

FORGET THE PASSWORD YOU WILL NOT BE ABLE TO USE YOUR COMPUTER

PASSWORD CAN OVERRIDE THE USER PASSWORD

Press your Power/Suspend/Resume button.

From Suspend State

2 When the Security Indicator flashes, enter the password and press [Enter] button.

3 The notebook should resume normal operation.

Incorrect Password Entry

If an invalid supervisor or user password is entered three times in succession, the system will “beep” for

about one minute. If a valid password is entered within a minute (while system beeps), the beeping will

stop and the notebook will resume normal operation. If no password (or an invalid one) is entered while

the system beeps, the system will return to its previous locked state (suspend or off) and the Security

Indicator will go off. To reactivate the notebook after a password failure, you must press the

Power/Suspend/Resume button, then enter a correct password.

Precautions

Opening and Closing the Cover

Closing the cover automatically places the notebook into suspend mode. Opening the cover does not

automatically place the notebook into normal operation. Instead, you must enter the proper security

password after pushing the Power/Suspend/Resume button. This setting can be changed in the Power

Options Control Panel.

Low Battery Operations

If your LifeBook notebook has low battery, pushing the Power/Suspend/Resume button only turns on the

Security Indicator. Your notebook does not unlock, the Security Indicator turns off after one minute. To

resume normal operation, first attach a power supply to the notebook. Then you may unlock the notebook.

Uninstalling the Security Panel Application

You have two options when uninstalling the security panel application:

• Uninstall the security panel application software. This will disable all security feature.

to the password.

• Uninstall the security panel application with password still active. This will not allow any changes

Uninstalling the Security Panel Application

Remove passwords when the User wants no password protection whatsoever and doesn’t want to give

anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or

both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords,

follow same procedure in “Setting Passwords” except this time, select [Remove], enter current password

- LifeBook Security/Application Panel

/ADD/REMOVE PASSWORDS. TO CHANGE YOUR PASSWORD YOU MUST REINSTALL THE

EMOVING THE APPLICATIONS DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE UTILITY

APPLICATION

TO CHANGE

Go to Start Menu, Click on Control Panel.

then click [Next]. When asked to confirm, select [Yes].

Removing Security Panel Application with Passwords Still Active

Using this feature will not allow any changes to the password. Depending upon your operating system,

the procedures differ slightly, as noted below.

User:

2 Open Add or Remove Programs (In Vista: Programs and Features) in the Control Panel.

3 Select the Security Panel Application (In Vista: Security Panel) in the list, and click Add/Remove.

4 When the Confirm File Deletion box appears, click Yes .

- LifeBook Security/Application Panel

Supervisor:

Go to Start Menu, Click on Control Panel.

and click Add/Remove.

2 Open Add/Remove Programs Properties in the Control Panel.

3 Select the Security Panel Application for Supervisor (In Vista: Security Panel for Supervisor) in the list,

4 When the Confirm File Deletion box appears, click Yes .

Reinstalling the Security/Application Panel

To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The

Utilities/Security Application Panel folder contains two separate folders: Supervisor and User. The

setup files for supervisor and user security applications are contained in those folders.

Application window will appear. Follow the instructions on the screen.

file. (In Vista, the path is: Utilities/SAP/Vista/Supervisor/SetupS.exe). The Installing Security Panel

1 Go to the Utilities/Security Application Panel/Supervisor folder on the CD and double-click the setupS.exe

Vista, the path is: Utilities/SAP/Vista/Setup.exe) The Installing Security Panel Application window will appear.

Follow the instructions on the screen.

2 Go to the Utilities/Security Application Panel/User folder on the CD and double-click the setup.exe file.(In

Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe

files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor

password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under

Setting Passwords on page 41.

If you forget both passwords, contact Fujitsu Computer Systems Corporation Service and Support at 1-

800-8FUJITSU (1-800-838-5487). Fujitsu Computer Systems Corporation charges a service fee for

unlocking a password restricted LifeBook notebook. When calling please have a valid credit card and

provide proof of ownership. You will then be given instructions on where to ship your notebook.

THE TABS IN APPLICATION PANEL SETUP MAY NOT BE IN THE SAME ORDER AS THE BUTTONS ON YOUR

- LifeBook Security/Application Panel

IFEBOOK NOTEBOOK, PLEASE SELECT THE TAB YOU WISH TO CHANGE CAREFULLY.

Launching Applications with the Security/Application Panel

The security panel also enables you to launch applications with the touch of a button when your system is

on. Pressing any of the buttons will launch a user-defined application. Your notebook is pre-installed with

software utilities that let you operate and configure your LifeBook Security /Application Panel. These

utilities are found in the Control Panel under Application Panel. They include two Application Panel

Setup tabs, E-mail Setup, and Internet Setup.

Click on [Start].

Configuring your LifeBook Application Panel

When you start Windows, the LifeBook Application Panel is automatically activated. As an application

launcher, the LifeBook Application Panel is very flexible, giving you a variety of options. To set up the

Panel to best suit your needs, we have provided the Application Panel Setup utility that quickly and easily

helps you make the most of this valuable feature.

To configure your LifeBook Application Panel with Application Panel Setup:

2 Click on Programs (or Settings in Windows XP).

to the application buttons on the LifeBook Application Panel. When you receive your notebook, these buttons

are pre-configured to launch specific programs, as referenced in Chapter 7 of this document.

3 Click on LifeBook Application Panel (or Application Panel in Windows XP).

4 Click on Application Panel Setup. The Application Panel Setup utility will appear. There are tabs that correspond

To change an application associated with the Application buttons, click on the tab for the button you would

like to reconfigure – for example, Application A. Click on Browse from Start Menu, scroll down the list

of applications, click on the application you wish to launch with this button, and then click OK. The button

will now launch the new application.

- LifeBook Security/Application Panel

, THE BUTTON CAN STILL BE CONFIGURED TO LAUNCH ANY APPLICATION YOU WISH, NOT JUST

The Internet tab is different. It comes set to launch your Windows default Internet browser (Internet

Explorer), unless you have changed this in Windows. In order to reconfigure it to launch another program

follow these easy steps:

INTERNET BROWSER.

LAUNCHER

IF YOUR SYSTEM HAS DEDICATED ONE OF THE APPLICATION LAUNCHER BUTTONS TO BE AN INTERNET

default Internet browser with this button, you need only click on “Default Internet Browser” from the Internet

browser box. Be aware that you will erase the settings for the “other application”. If you wish to go back to

launching the “other application” from this button, you will need to reconfigure it as described above.

1 Click on Other from the Internet browser box.

2 Click on Browse from Start Menu.

3 Scroll down the list of applications, and then click on the application you wish to launch with this button.

4 Click OK. The button will now launch the new application. If you want to return to launching your Windows

When you have finished with Application Panel Setup click OK, and the new settings will take effect. You

can reconfigure your LifeBook Application Panel as often as you like.

Deactivating and Activating the LifeBook Application Panel

To deactivate the LifeBook Application Panel, follow these easy steps:

1 Click on Start.-> Programs.

2 Click on LifeBook Application Panel.

3 Click on Stop Application Panel.

To re-activate, follow the same procedure, except for step 4. Click on Activate Panel instead.

VERY TIME YOU START WINDOWS THE LIFEBOOK APPLICATION PANEL IS ACTIVATED, EVEN IF YOU

DEACTIVATED IT BEFORE YOU SHUT DOWN

DC Power Jack

AC Adapter

Figure 20. Connecting the AC Adapter

Getting Started with Your LifeBook

Chapter 2

Power Sources

Your Fujitsu LifeBook notebook has three possible power sources: a primary Lithium ion battery, an AC

adapter or an optional Auto/Airline adapter.

HE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT

- Power Sources

AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR NOTEBOOK.

EITHER THE

Plug the DC output cable into the DC power jack of your LifeBook notebook.

Connecting the Power Adapters

The AC adapter or optional Auto/Airline adapter provides power for operating your notebook and

charging the batteries.

Connecting the AC Adapter

2 Plug the AC adapter into an AC electrical outlet.

Connecting the Optional Auto/Airline Adapter

Plug the DC output cable into the DC power jack on your notebook.

position.

2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Access

3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

Be sure that you have at least one charged battery installed.

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

2 Remove the AC adapter or the Auto/Airline adapter.

- Display Panel

Figure 21. Opening the Display Panel

Display Panel Latch Button

Your Fujitsu LifeBook notebook contains a display panel that is backlit for easier viewing in bright

environments and maintains top resolution through the use of active-matrix technology.

Opening the Display Panel

1 Press the Display Panel latch button in. This releases the locking mechanism, allowing you to raise the display.

2 Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle.

Display Panel

-LEVEL BY DEFAULT.

Adjusting Display Panel Brightness

Once you have turned on your LifeBook notebook, you may want to adjust the brightness level of the

screen to a more comfortable viewing level. There are two ways to adjust the brightness, by using the

keyboard or the power management utility.

Using the Keyboard

. FOR MAXIMUM BATTERY LIFE, MAKE SURE THAT THE BRIGHTNESS IS SET AS LOW AS

WHEN USING AC POWER YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. WHEN USING

THE HIGHER THE BRIGHTNESS LEVEL, THE MORE POWER THE NOTEBOOK WILL CONSUME AND THE FASTER YOUR

POSSIBLE

BATTERIES WILL DISCHARGE

BATTERY POWER YOUR BRIGHTNESS SETTING IS SET TO APPROXIMATELY MID

■

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.

• [Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Adjusting the brightness using the keyboard changes the setting only temporarily.

Closing the Display Panel

opening unexpectedly.

1 Holding the edge of your display panel, pull it forward until it is flush with the body of your LifeBook notebook.

2 Push down until you hear a click. This will engage the locking mechanism and prevent your display panel from

- Display Panel

, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS

- Starting Your LifeBook Notebook

, AS YOU RISK DAMAGING YOUR NOTEBOOK.

Starting Your LifeBook Notebook

Power On

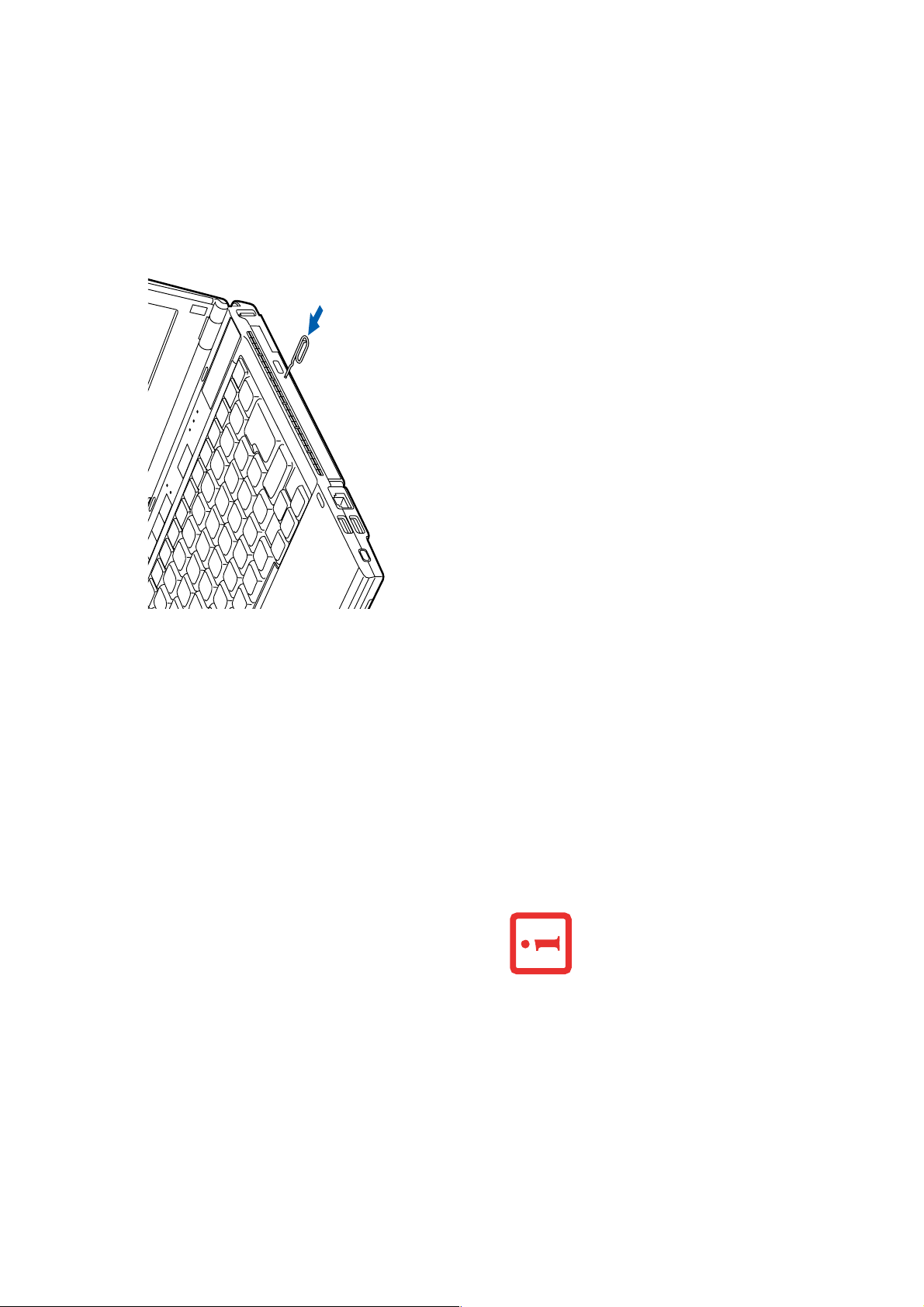

Power/Suspend/Resume Button

The Power/Suspend/Resume button is used to turn on your LifeBook notebook from its off state. Once

you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your

LifeBook notebook.

CONNECTED AND HAS POWER

THAT A BATTERY IS INSTALLED AND CHARGED

WHEN YOU TURN ON YOUR LIFEBOOK NOTEBOOK, BE SURE YOU HAVE A POWER SOURCE. THIS MEANS

To turn on your LifeBook notebook from its off state, press the Power/Suspend/Resume button, located

above the keyboard to the right. When you are done working you can either leave your notebook in

Suspend mode, See “Standby (Sleep) Mode” on page 61, or you can turn it off. See “Powering Off” on

page 63.

O NOT CARRY YOUR LIFEBOOK NOTEBOOK AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS

OR VIBRATION

When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal

parts and configuration for correct functionality. If a fault is found, your LifeBook notebook will emit an

audio warning and/or an error message will be displayed. See “Power On Self Test Messages” on page 106

Depending on the nature of the problem, you may be able to continue by starting the operating system or

by entering the BIOS setup utility and revising the settings.

After satisfactory completion of the POST, your notebook will load your operating system.

LIFEBOOK NOTEBOOK ON THE

- Starting Your LifeBook Notebook

See “Power On Self Test Messages” on page 106

NEXT TIME

NEVER TURN OFF YOUR LIFEBOOK NOTEBOOK DURING THE POWER ON SELF TEST (POST) OR IT WILL

CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR

• You turn on the power to your LifeBook notebook.

• You restart your notebook from the Windows Shut Down dialog box.

• The software initiates a system restart. Example: When you install a new application.

Boot Sequence

The procedure for starting-up your notebook is termed the Bootup sequence and involves your notebook’s

BIOS. When your LifeBook notebook is first turned on, the main system memory is empty, and it needs

to find instructions to start up your notebook. This information is in the BIOS program. Each time you

power up or restart your notebook, it goes through a boot sequence which displays a Fujitsu logo until

your operating system is loaded. During booting, your notebook is performing a standard boot sequence

including a Power On Self Test (POST). When the boot sequence is completed without a failure and

without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.

The boot sequence is executed when:

Hard Disk Drive Passwords

To provide additional security for your data, you can assign passwords to your hard disk drive(s). This

feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about

accessing the utility.

, FUJITSU COMPUTER SYSTEMS WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND

HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE

REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK

PASSWORDS

- Starting Your LifeBook Notebook

BIOS Setup Utility

The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook notebook.

Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change

the BIOS’ environment to operate your notebook.

The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following (or use the TrustedCore Menu, as detailed below):

the main menu of the BIOS Setup Utility with the current settings displayed.

the current settings.

1 Turn on or restart your LifeBook notebook.

2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open

3 Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter

Using the TrustedCore Menu

When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad

button; the TrustedCore Menu will appear.

The TrustedCore Menu provides shortcuts to the following menus and information screens:

• BIOS Setup

• Diagnostic Screen

• Boot Menu

• Patent Information

• System Information

• Continue Booting

. THIS IS NORMAL. AFTER INITIALIZATION, A “SET UP WINDOWS” DIALOG

Clicking on any of the fields will invoke the screen, information, or action described.

The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen.

BIOS Guide

A guide to your notebook’s BIOS is available online. Please visit our service and support website at

http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select

your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide.

Booting the System

We strongly recommend that you not attach any external devices and do not put a DVD/CD in your drive

until you have gone through the initial power on sequence.

When you turn on your notebook for the first time, it will display a Fujitsu logo on the screen. If you do

nothing the system will load the operating system, and then the Windows Welcome will begin.

Depending upon your operating system (Windows Vista or XP edition), there is a different procedure for

stating your system for the first time, as outlined below.

Starting Windows Vista the first time

, OR USE ANY PERIPHERAL DEVICES SUCH AS A MOUSE, KEYBOARD, OR REMOTE CONTROL.

MPORTANT: DURING THE SETUP PROCEDURE, DO NOT DISCONNECT THE POWER SUPPLY, PRESS ANY

THE FIRST TIME YOU INITIALIZE YOUR WINDOWS VISTA SYSTEM, THE SCREEN WILL BE BLANK FOR

APPROXIMATELY TWO MINUTES

BOX WILL APPEAR

BUTTONS

In order to ensure that you receive the most benefits from the Windows Vista operating system, it should

be registered the first time you use it.

- Starting Your LifeBook Notebook

WINDOWS WELCOME PROCESS, EVEN IF

WINDOWS OR TO SHUT DOWN YOUR LIFEBOOK NOTEBOOK.

- Starting Your LifeBook Notebook

AGREEMENTS FOR INFORMATION ON RETURNING

• IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENTS YOU WILL BE ASKED TO REVIEW THE LICENSE

1 First of all, you will need to read and accept the End User License Agreements (EULAs).

YOU SHUT YOUR NOTEBOOK DOWN AND START IT UP AGAIN

PROCESS YOUR NOTEBOOK WILL RETURN TO THE BEGINNING OF THE

• YOU CANNOT USE YOUR NOTEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENTS. IF YOU STOP THE

for your account.

2 You will be prompted to enter your User Name and Password and you will be given a chance to select an icon

recommended settings”. The other two choices are "Install important updates only" and "Ask me later". Select

from the three choices.

3 The next screen asks for a Computer Name and allows you to choose a desktop background.

4 You will next see a "Help protect Windows automatically" screen in which the default choice is "Use

(Default), and Public location.

screens while Windows checks the system performance.

system, the screen will be blank for approximately two minutes. This is normal. During this period, do not

disconnect the power supply, press any buttons, or use any peripheral devices such as mouse, keyboard, or

remote control.

5 On the next screen set your time and date settings.

6 You will next see the "Select your computer's current location" screen. Make your selection from Home, Work

7 The "Thank you" screen follows and an offer for free Norton Internet Security is extended. Following are several

8 Windows will then boot up for the first time. As noted above, the first time you initialize your Windows Vista

After Windows has booted up for the first time, the Control Panel Welcome Center will appear. If the Register

Windows Online icon is not seen in the window, click on “Show all xx items” (where “xx” is the number of topics

in the Welcome Center).

Registering Windows Vista with Microsoft

2 Click on Register Windows Online and follow the instructions that appear to register your copy of Windows.

WINDOWS WELCOME

WINDOWS OR TO SHUT DOWN YOUR LIFEBOOK NOTEBOOK.

- Starting Your LifeBook Notebook

Starting Windows XP the First Time

AGREEMENT FOR INFORMATION ON RETURNING

• IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENT YOU WILL BE ASKED TO REVIEW THE LICENSE

Registering Windows XP with Microsoft

In order to ensure that you receive the most benefits from the Windows operating system, it should be

registered the first time you use it.

After you receive the Windows Welcome screen, you will be prompted to enter registration information

in the following order.

First of all, you will need to read and accept the End User License Agreements (EULAs). After accepting

the EULAs, you will be asked if you want to enable the Automatic Updates feature. Acceptance of this

feature is recommended because it allows your system to be updated automatically whenever an important

change becomes available for your notebook.

ROCESS, EVEN IF YOU SHUT YOUR NOTEBOOK DOWN AND START IT UP AGAIN.

STOP THE PROCESS YOUR NOTEBOOK WILL RETURN TO THE BEGINNING OF THE

• YOU CANNOT USE YOUR LIFEBOOK NOTEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT. IFYOU

Several additional windows will appear, prompting you to enter a name and description for your computer,

an Administrator password, and a domain name. Read the instructions on the screens carefully and fill in

the information as directed.

You will then be automatically connected to the Internet, if you have an appropriate connection available.

If an automatic connection is not possible, you will be asked about how you dial out from where you will

be using your LifeBook notebook. If you are not connected to a phone line and plan to register at a later

time, you may click the Skip button.

Once you are connected to the Internet, you will be asked if you wish to continue with the registration. If

you select Ye s you will then enter your name and address, and email address if desired. Click Next to

complete registration.

. FOR MORE INFORMATION,

ClickMe!

- Starting Your LifeBook Notebook

N ADDITION TO THE APPLICATIONS AND UTILITIES INSTALLED BY CLICKME!, OTHER THIRD-PARTY

BEFORE INSTALLING THE CLICKME! UTILITY, BE SURE THE WIRELESS LAN SWITCH IS TURNED ON.

Installing Click Me!

REFER TO YOUR GETTING STARTED GUIDE.

APPLICATIONS MAY NEED TO BE INSTALLED FROM THE INCLUDED DISCS

Registering Your LifeBook notebook with Fujitsu

You can register your LifeBook by going to our website at: us.fujitsu.com/computers. You will need to

be set up with an Internet Service Provider (ISP) to register online.

Windows Vista Systems

The first time you boot up your system, you will see a “Primary Settings for the PC” window. This window

explains the installations which will be performed by the Click Me! utility. If you click [Execute], Click

Me! will begin installing. If after clicking the button you receive a “User Account Control” window, you

will be asked for your permission to continue. Click [Continue] to continue. If you cancel the operation,

the Click Me! icon will appear on your desktop for later installation.

Windows XP Systems

The first time you boot up your system, you will see an icon called Click Me! in the Start menu. We highl y

recommend that you install the ClickMe! utility the first time you boot up. When you click the Click

Me! icon, your system will automatically create the related icons in the system tray in the bottom right of

the screen. These icons provide links to utilities that you will frequently access, such as wireless LAN

software provided by the wireless LAN manufacturer.

Fujitsu Driver Update Utility

Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can

choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For

more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on

page 118.

- Starting Your LifeBook Notebook

Power Management

Your Fujitsu LifeBook notebook has many options and features for conserving battery power. Some of

these features are automatic and need no user intervention, such as those for the internal modem. However,

others depend on the parameters you set to best suit your operating conditions, such as those for the

display brightness. Internal power management for your notebook may be controlled from settings made

in your operating system, pre-bundled power management application, or from settings made in BIOS

setup utility.

- Power Management

ODE” WILL BE USED.

ISTA. THE TWO TERMS ARE INTERCHANGEABLE. FOR PURPOSES OF THIS DOCUMENT, “STANDBY

PLEASE NOTE THAT “STANDBY MODE” IN WINDOWS XP IS KNOWN AS “SLEEP MODE” IN WINDOWS

Besides the options available for conserving battery power, there are also some things that you can do to

prevent your battery from running down as quickly. For example, you can create an appropriate power

saving profile, put your notebook into Standby (Sleep) mode when it is not performing an operation, and

you can limit the use of high power devices. As with all mobile, battery powered computers, there is a

trade-off between performance and power savings.

Power/Suspend/Resume Button

When your notebook is active, the Power/Suspend/Resume button can be used to manually put the

notebook into Standby (Sleep) mode. Push the Power/Suspend/Resume button when the notebook is

active, but not actively accessing anything, and immediately release the button.

If your notebook is suspended, pushing the Power/Suspend/Resume button returns your notebook to

active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the

indicator is visible and not flashing, your notebook is fully operational. If the indicator is visible and

flashing, your notebook is in Standby mode. If the indicator is not visible, the power is off or your

notebook is in Hibernation mode. (See Hibernation Feature)

. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE

Standby (Sleep) Mode

Standby (Sleep) mode in Windows saves the contents of your system memory during periods of inactivity

by maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other

internal components except those necessary to maintain system memory and for restarting.

• Pressing the Power/Suspend/Resume button when your system is turned on.

• Selecting Standby (“Sleep” in Windows Vista) from the Windows Shut Down menu.

• Timing out from lack of activity.

Your notebook can be put in Standby mode by:

STANDBY MODE, THOUGH NOT AS FAST AS WHEN FULLY OPERATIONAL.

IF RUNNING YOUR NOTEBOOK ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE

DISABLING THE POWER/SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT THE NOTEBOOK INTO

WHILE YOUR NOTEBOOK IS IN

■

• Allowing the battery to reach the Dead Battery Warning condition.

System memory typically stores the files on which you are working, open application information, and

any other data required to support operations in progress. When you resume operation from Standby, your

system will return to where it left off. You must use the Power/Suspend/Resume button to resume

operation, and there must be an adequate power source available, or your notebook will not resume.

- Power Management

STANDBY MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBER-

. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR NOTEBOOK IN A SUSPENDED STATE

PC CARD DOCUMENTATION FOR MORE INFORMATION. WHEN PC CARDS OR EXTERNAL DEVICES ARE IN

TANDBY OR HIBERNATION (SAVE-TO-DISK) MODE. THE BUTTON RESUME FUNCTION CAN’T BE DISABLED.

, HIBERNATION (SAVE-TO-DISK) MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION,

THE STANDBY OR HIBERNATION (SAVE-TO-DISK) MODE SHOULD NOT BE USED WITH CERTAIN PC CARDS. CHECK

USE

YOUR

■

AVE-TO-DISK) MODE, CHANGES TO OPEN FILES ARE NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT

BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.

IF YOUR NOTEBOOK IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER THE STANDBY OR HIBERNATION

■

HE MAIN ADVANTAGE OF USING HIBERNATION (SAVE-TO-DISK) IS THAT POWER IS NOT REQUIRED TO MAINTAIN

NATION MODE.

ACTIVE DURING

POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES

FOR A PROLONGED PERIOD OF TIME

YOUR DATA

Hibernation (Save-to-Disk) Feature

The Hibernation feature saves the contents of your notebook’s system memory to the hard drive as a part

of the Suspend/Resume mode. You can enable or disable this feature.

Enable or Disable the Hibernation Feature

Windows Vista:

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 From the Start menu, select Control Panel.

- Power Management

(Do Nothing, Sleep, Hibernate, or Shut Down).

2 Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections

Windows XP:

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 From the Start menu, select Settings, and then select Control Panel.

2 From the Control Panel select Power Options.

3 Select the Hibernate tab. Select the box to enable or disable this feature.

Windows Power Management

The Power Options icon located in the Windows Control Panel allows you to configure some of the power

management settings. For example, you can use the Power Options to set the timeout values for turning

off the display and hard disks whether you are running the notebook on battery power or one of the

adapters.

, YOU WILL LOSE ANY CHANGES THAT HAVE NOT

- Power Management

10 SECONDS OF THE NOTEBOOK BEING SHUT OFF MAY CAUSE AN ERROR WHEN

, AND MAY CAUSE DISK ERRORS.

Restarting the System

TURNING OFF YOUR LIFEBOOK NOTEBOOK WITHOUT EXITING WINDOWS OR TURNING ON YOUR

NOTEBOOK WITHIN

YOU START THE NEXT TIME

If your system is on and you need to restart it, be sure that you use the following procedure.

Windows Vista:

1 Click the Start button, and then move the mouse over the right arrow.

2 Select the desired action from the list.

Windows XP:

1 Click the Start button, and then click Shut Down.

2 Select the Restart option from within the Windows Shut Down dialog box.

3 Click OK to restart your notebook. Your notebook will shut down and then reboot.

Powering Off

Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off

the power while accessing a disk there is a risk of data loss. To ensure that your notebook shuts down

without error, use the Windows shut down procedure.

E SURE TO CLOSE ALL FILES AND EXIT ALL APPLICATIONS PRIOR TO TURNING OFF THE POWER. IF

BEEN SAVED

FILES ARE OPEN WHEN YOU TURN THE POWER OFF

Using the correct procedure to shut down from Windows allows your notebook to complete its operations

- Power Management

and turn off power in the proper sequence to avoid errors. The proper sequence is:

Windows Vista:

Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-

hand pane. Select Shut Down from the list.

Windows XP:

Click the [Start] button, click Turn Off Computer, and then select the Turn Off option.

If you are going to store your notebook for a month or more, see Care and Maintenance Section.

User-Installable Features

Chapter 3

Your LifeBook notebook has a Lithium ion battery that provides power for operating your notebook when

Lithium ion Battery

temperatures not only reduce charging efficiency, but can also cause battery deterioration. The

Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside

its operating temperature range. See “Status Indicator Panel” on page 23.

• When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme

no external power source is available. The battery is durable and long lasting, but should not be exposed

to extreme temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become shorter if it is used under the following conditions:

UTO/AIRLINE ADAPTER, ANOTHER BATTERY OR YOUR NOTEBOOK ITSELF. IT MAY ALSO PREVENT

DO NOT LEAVE A FAULTY BATTERY IN YOUR NOTEBOOK. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL

DVD/CD-RW combo drive, or the hard drive, using the AC adapter will conserve your battery life.

• When using a high current device such as a modem, Multi-Format DVD Writer, CD-ROM drive,

OPERATION OF YOUR NOTEBOOK BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY

. THE BATTERY CHARGING CAPACITY IS REDUCED AS

1-800-8FUJITSU (1-800-838-5487)

. IF YOU CANNOT FIND THIS INFORMATION ELSEWHERE, CONTACT

, BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES. CD-ROM

MANAGEMENT SETTINGS

• ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, FEATURES, POWER

- Lithium ion Battery

NEW ONE

. PLEASE TAKE CARE OF OUR ENVIRONMENT AND DISPOSE OF BATTERIES

. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING RECYCLING

BATTERY LEVEL INDICATOR ON THE STATUS INDICATOR PANEL.

PROPERLY

YOUR SUPPORT REPRESENTATIVE AT

OR DISPOSING OF OLD BATTERIES

THEM IN THE TRASH

• UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING

Recharging the Batteries

If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator

located on the Status Indicator panel. The indicator changes as the battery level changes.

The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge

the battery make sure the battery that needs to be charged is installed in your LifeBook notebook and

connect the AC or Auto/Airline adapter.

AKE SURE THAT THE BATTERY CHARGING INDICATOR AND THE PERCENTAGE CHARGE IS DISPLAYED

BY THE

There is no memory effect on the Lithium ion battery, therefore you do not need to discharge the battery

completely before recharging. The charge times will be significantly longer if your notebook is in use

while the battery is charging. If you want to charge the battery more quickly, put your notebook into

Standby mode, or turn it off while the adapter is charging the battery. (See Power Management on page

60 for more information on Standby mode and shutdown procedure)

. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD REPLACE IT WITH A

DRIVE, MULTI-FORMAT DVD WRITER, DVD/CD-RW DRIVE COMBO, OR HARD DRIVE USAGE MAY ALSO

THE BATTERY AGES

HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE

LIFEBOOK NOTEBOOK INTO STANDBY MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD

LIFEBOOK NOTEBOOK IS IN STANDBY MODE, ANY DATA THAT HAS

, AN AC POWER ADAPTER, OR AUTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.

- Lithium ion Battery

USING HEAVY CURRENT DEVICES SUCH AS THE MODEM OR FREQUENT DVD/CD-RW/CD-ROM

ACCESSES MAY PREVENT CHARGING COMPLETELY.

Low Battery State

When the battery is running low, a low battery notification message will appear. If you do not respond to

the low battery message, the batteries will continue to discharge until they are too low to operate. When

this happens, your notebook will go into Standby mode. There is no guarantee that your data will be saved

ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE DATA AND PUT

■

once the notebook reaches this point.

WHEN YOU ARE IN STANDBY MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IFYOU

YOUR

PROVIDE A CHARGED BATTERY

NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST

REMOVE ALL POWER SOURCES WHILE YOUR

■

Once your notebook goes into Dead Battery Suspend mode you will be unable to resume operation until

you provide a source of power either from an adapter, or a charged battery. Once you have provided power,

you will need to press the Power/Suspend/Resume button to resume operation.

In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is

not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the

data that was not stored. Once you provide power, you can continue to use your notebook while an adapter

is charging the battery.

Shorted Batteries

The Status Indicator panel uses an LED below the battery outline of the Battery Level indicator to display

the operating level available in that battery. If this display shows a Shorted Battery, it means the battery is

damaged and must be replaced so it does not damage other parts of your LifeBook notebook.

. IF YOU DO NOT

- Lithium ion Battery

Replacing the Battery

With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not

charged. There are two ways to swap batteries, cold-swapping and hot-swapping:

Cold-swapping Batteries

To cold-swap batteries in your battery bay follow these easy steps:

AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.

E SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE

BATTERY PRESENT TO SUPPORT THE SYSTEM WHILE THE BATTERY IS BEING REPLACED

USE AN

battery lift point.

1 Have a charged battery ready to install.

2 Shut down your notebook and disconnect the AC adapter.

3 Orient your system as shown in Figure 22.

4 Push the right battery latch to the right to unlock it.

5 Push the spring-loaded left battery latch to the left. While holding it, lift the battery out of the battery bay at the

6 Insert a new battery into the bay, and press it down so that the latches click into place.

7 Plug in the AC adapter and turn the power on.

Hot-swapping Batteries

To hot-swap batteries in your battery bay follow these easy steps:

1 Plug an AC Adapter into the system and connect it to a power outlet.

Battery Lift Point

Right Battery Latch

YOU MAY NOT BE ABLE TO USE YOUR

Battery Pack

- Lithium ion Battery

Figure 22. Removing a Battery

ITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED

Left Battery Latch

F THE

NOTEBOOK OR CHARGE YOUR BATTERY

2 Follow steps 3 through 6 in “Cold Swapping Batteries”.

Media Tray Eject Button

Emergency Tray Release

Media Holder Tray

- Optical Drive

Figure 23. Optical Drive

or audio DVD/CDs, and to write data onto recordable CD-R and CD-RW discs.

• DVD/CD-RW combo: A DVD/CD-RW combo drive allows you to access movie, software, data,

Optical Drive

There is a variety of media available to use with your system, depending upon the system configuration

you have selected. Multi-Format DVD Writers and DVD/CD-RW Combo drives are collectively known

as “optical drives”.

DVD-R and DVD-RW discs hold up to 4.7 GB of data (DVD-R discs used with Multi-Format Dual-Layer

DVD writer hold up to 8.5 GB). A DVD-R disc can only be written to once; DVD-RW discs can be written

to over and over. DVD-R and DVD-RW discs can be played on most standard players.

CD-R and CD-RW discs hold up to 640 MB of data. A CD-R disc can only be written to once; CD-RW

discs can be written to over and over.

Depending upon your notebook configuration, you may have one of the following optical drives:

- Optical Drive

SING A DRIVE WHEN THE SYSTEM IS NOT LEVEL MAY DAMAGE THE DRIVE OR PREVENT PROPER OPERATION.

YOUR BATTERY LIFE IF NO EXTERNAL POWER SOURCE IS ATTACHED

• DO NOT OPERATE YOUR OPTICAL DRIVE UNLESS YOUR LIFEBOOK NOTEBOOK IS SITTING ON A FLAT SURFACE.

• PROLONGED USE OF THE OPTICAL DRIVE, SUCH AS WATCHING A DVD MOVIE, WILL SUBSTANTIALLY REDUCE

audio DVD/CDs as well as to read and write to CD-R, CD-RW, DVD-R, DVD+R, DVD-RW,

• Dual-Layer Multi-Format DVD Writer: This drive allows you to access movies, software, and

DVD+RW, and DVD RAM discs. The dual-layer architecture allows you to record up to 8.5 GB of

data on DVD+R discs.

media player software you can play DVD movies and music CDs on your LifeBook notebook. The media

player includes controls which allow you to take full advantage of the features of a DVD movie, as well

as standard features such as fast forward, fast reverse, pause, etc. With this drive you can also burn onto

Media Player Software

Dual-Layer Multi-Format DVD Writer model only: With the Dual-Layer Multi-Format DVD Writer and

recordable DVD-R/RW, DVD+R/RW, or CD-R/RW discs.

DVD/CD-RW Combo model only: With the combo drive, you can play DVD movies, read audio CDs, and

of the LifeBook notebook a short distance.

write data onto recordable CD-R or CD-RW discs.

Loading Media on Your Drive

To load a disc into your optical drive:

1 Push and release the eject button on the front of the optical drive to open the holder tray. The tray will come out

2 Gently pull the tray out until a media disc can easily be placed in the tray.

DVD TITLES FOR PUBLICATION IN DIFFERENT AREAS OF THE

• YOU SHOULD PERIODICALLY CHECK THE FUJITSU WEBSITE AT US.FUJITSU.COM/COMPUTERS FOR THE

MOST CURRENT DRIVERS

NORTH AMERICAN MARKET. THE REGION NUMBER IS A REGIONAL RESTRICTION

IS SPECIFIED FOR THE

• ALL LIFEBOOK DVD PLAYERS ARE SET TO PLAY DVD TITLES WITH REGION CODE NUMBER 1 WHICH

DVD FORUM ACTING ON HOLLYWOOD REQUIREMENTS. DIFFERENT REGION

CODE DEFINED BY THE

- Optical Drive

MY COMPUTER OR FROM WITHIN WINDOWS EXPLORER, SINCE YOUR

, THEN PLAYBACK IS IMPOSSIBLE.

. IF THE REGIONAL CODE OF THE DVD PLAYER DOES NOT MATCH THE REGIONAL CODES ON

WORLD

CODES ARE RECORDED ON VIDEO

THE TITLES

• YOU CAN CHANGE THE REGION CODE ON THE DVD PLAYER USING THE PROPERTIES MENU OF THE

SOFTWARE. NOTE, HOWEVER, THAT YOU CAN ONLY CHANGE THE REGION CODE UP TO FOUR

DVD

. AFTER THE 4TH CHANGE, THE LAST CODE ENTERED BECOMES PERMANENT, AND CANNOT BE

CHANGED

TIMES

F YOU HAVE DISABLED THE AUTO INSERT NOTIFICATION FUNCTION, YOU WILL HAVE TO START THE

DRIVE EITHER BY USING

NOTEBOOK WILL NOT AUTOMATICALLY RECOGNIZE THAT MEDIA HAS BEEN LOADED

circle in the center of the tray.

3 Place the media into the tray, label side up, with the hole in the center of the disc. Snap the disc onto the raised

4 Gently push the holder tray back in until you hear a click

Figure 24. Loading/Ejecting Media

- Optical Drive

Removing Media

come out of the LifeBook notebook a short distance.

1 Push and release the eject button on the front of the optical drive. This will stop the drive and the holder tray will

2 Gently pull the tray out until the disc can easily be removed from the tray.

3 Carefully remove the media disc from the holder tray.

4 Gently push the holder tray back in until you hear a click.

Figure 25. Emergency Tray Release

- Optical Drive

-INSTALLED. IF IT IS NOT INSTALLED, REFERENCE THE DOCUMENTATION THAT ACCOMPANIES THE

EPENDING UPON ITS CONFIGURATION, YOUR SYSTEM MAY NOT HAVE THE MEDIA PLAYER SOFTWARE

MEDIA APPLICATION

PRE

Insert the DVD into the optical drive of the notebook. If the CD AutoRun feature activates, skip Step 2.

system to do when discs are inserted (e.g., start automatically or wait for a prompt). Until you make a selection,

you will receive the same prompt whenever you insert a disc.

Emergency Optical

Drive Tray Release

If for some reason the eject button fails, you

can open the media tray with a paper clip or

similar tool inserted into the eject hole in the

right side of the front of the tray as shown in

Figure 25. Straighten one side of a paper clip

and push it gently into the hole. The tray will

pop out.

This procedure will work whether the

system is running or not.

Using the Media Player Software

Starting a DVD Movie

2 The first time you insert a movie into the DVD/CD-RW tray, you will be prompted to select what you want the

3 Click OK to close the About DVD Player Performance dialog box and the movie will begin.

- Optical Drive

Opening the Media Player Control Panel

screen.

With most DVD-ROMs, you have the option of altering how the movie should play and what you wish to

view. You can do this by using the media player control panel and the mouse.

1 Right-click on the movie screen to open a dropdown menu for options.

2 Select View, then Player for all the controls available. This will open the control panel into the bottom of the

Using the Media Player Control Panel

The media player software allows you to watch the movie much like a VCR player. You can pause, rewind,

fast-forward and stop the movie at any point.

the opening screen.

to the ending credits.

1 To pause the movie, click the on-screen button.

2 To rewind the movie, click the  button to rewind to a specific portion of the movie, or the  button to return to

3 To fast-forward the movie, click the  button to forward to a specific portion of the movie, or the button to jump

4 To stop the movie, click the  button.

Exiting the Media Player

Click the U located in the upper right corner of the title bar. This will open a media player dialog box.

2 Click Yes to stop and exit the movie, or No to close the media player dialog box and return to the movie.

Using Media Player on Battery Power

Since optical drives consume a lot of power, your overall battery life will be significantly shorter when

operating the optical drive continuously (such as watching a DVD movie) than during standard operation.

Many movie run-times are longer than your notebook can support on a single charged battery. If you are

watching a DVD movie on battery power you may need to swap in an additional, charged battery or attach

AC power during the movie to view it in its entirety.

- Optical Drive

DVD MOVIE ON BATTERY POWER YOU MAY NEED TO SWAP IN AN ADDITIONAL,

: HTTP://WWW.COMPUTERS.US.FUJITSU.COM OR BY CALLING 1-877-372-3473.

. HOWEVER, IT IS BEST TO BE PREPARED SINCE ACTUAL BATTERY LIFE WHILE

CHARGED BATTERY OR ATTACH AC POWER DURING THE MOVIE TO VIEW IT IN ITS ENTIRETY.

YOU ARE WATCHING A

• MANY MOVIE RUN-TIMES ARE LONGER THAN YOUR SYSTEM CAN SUPPORT ON A SINGLE BATTERY. IF

EITHER ONLINE AT

MOVIES ON BATTERY POWER. IF YOU DON’T HAVE AN ADDITIONAL BATTERY, YOU MAY PURCHASE ONE

• AN ADDITIONAL FULLY-CHARGED BATTERY IS HIGHLY RECOMMENDED IF YOU WILL BE WATCHING DVD

Have an additional full-charged battery or your AC adapter ready for use.

To Watch a Movie on Battery Power:

2 Start watching your DVD movie.

F YOU DO NOT STOP THE MEDIA PLAYER QUICKLY AND THE LIFEBOOK NOTEBOOK ATTEMPTS TO AUTO-

F THIS OCCURS, YOU MAY NEED TO PERFORM A HARD RESET AND FOLLOW THE INSTRUCTIONS, IF ANY,

SUSPEND (CRITICAL BATTERY LOW STATE) THE LIFEBOOK NOTEBOOK WILL SHUT DOWN IMPROPERLY.

3 When the low battery warning occurs, immediately stop the movie and exit the media player.

PRESENTED TO YOU BEFORE THE SYSTEM WILL REBOOT.

do not have an additional battery, you may attach AC power as soon as you see the low battery warning.

entering standby mode.

watching your DVD movie.

4 Power down your notebook and replace the discharged battery with an additional fully-charged battery. If you

5 Resume operation by pressing the Suspend button again. This is not required if you attached AC power without

6 Restart your media player, locate and skip to the chapter of the movie you were last watching, then continue

OME SHORTER DVD MOVIES MAY NOT REQUIRE YOU TO SWAP BATTERIES OR ATTACH AC POWER TO

OPERATING THE OPTICAL DRIVE CANNOT BE GUARANTEED

COMPLETE THEM

Memory Stick

SD Card

xD Card

Figure 27. Installing a Memory Stick/SD/xD Card

Figure 26. Memory Stick, SD Card, xD Card

Your LifeBook notebook supports Memory Sticks, Secure Digital (SD), and xD-Picture cards, on which

you can store and transfer data to and from a variety of digital devices. These cards use flash memory

architecture, which means they don’t need a power source to retain data.

Memory Stick is a flash memory technology that allows you to record, transfer and share digital content,

such as digital pictures, movies, music, voice, and computer data and applications.

Secure Digital (SD) Cards are very similar to Memory Sticks. Like Memory Sticks, SD Cards allow

portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs.

SD Cards transfer data quickly, with low battery consumption. Like the memory stick, it uses flash

memory architecture.

Memory Stick/Secure Digital/xD Cards

/OR YOUR LIFEBOOK NOTEBOOK.

, YOUR LIFEBOOK NOTEBOOK, OR BOTH.

- Memory Stick/Secure Digital/xD Cards

xD-Picture Cards work the same as Memory Sticks and SD Cards, but they are much smaller than either

one. xD-Picture Cards are primarily used to store and transfer images with devices such as cell phones.

SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND

O NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS

YOU MAY PERMANENTLY DAMAGE THE CARD

1 Make sure there is no card currently in the slot. If there is, see Removing a Memory Stick/SD/xD Card.

2 Insert your card into the slot with the product label facing up.

3 Push the card firmly into the slot until it is seated in the connector.

Removing A Memory Stick/SD/xD Card

To remove a Memory Stick, SD, or xD Card, push the card in until it unlatches. It will then eject from the

slot for removal.

INSTALLING OR REMOVING A MEMORY STICK, SD, OR XD CARD DURING YOUR LIFEBOOK NOTEBOOK’S

Installing Memory Stick/SDxD Cards

Memory Stick, SD, and xD Cards are installed in the Memory Stick/SD/xD Card slot. To install a card,

follow these steps:

Eject Button

- Using PC Cards

PC Card Slot

Figure 28. Installing/Removing PC Cards

• Gigabit Ethernet Local area network (LAN) cards

• IEEE1394 cards

• S-ATA II cards

• IEEE802.11n WLAN cards

Your LifeBook notebook supports PC Cards, which can perform a variety of functions depending on

which type of card you install. Some available PC Cards:

For further information, refer to the instructions supplied with your card(s).

Using PC Cards

, YOUR NOTEBOOK, OR BOTH.

/OR YOUR NOTEBOOK.

- Using PC Cards

PROCESS MAY DAMAGE THE CARD AND

CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD

• INSTALLING OR REMOVING A PC CARD DURING YOUR NOTEBOOK’S SHUTDOWN OR BOOTUP

• DO NOT INSERT A PC CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE

ROUP TO COMPLETE THIS PROCEDURE. IF YOUR COMPUTER IS CONNECTED TO A NETWORK,

OU MAY BE REQUIRED TO LOG ON AS ADMINISTRATOR OR A MEMBER OF THE ADMINISTRATOR’S

NETWORK POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.

sure there is no PC Card or PC Card plug currently in the slot. If there is, see Removing PC Cards.

Installing PC Cards

See your PC Card manual for instructions on the installation of your card. Some cards may require that

your notebook is off while installing them.

To install a PC Card, follow these steps:

1 When not in use, you should keep the PC Card plug inserted in the slot to prevent system contamination. Make

2 If the eject button is extended, press it in until it clicks.

3 Insert your PC Card into the slot with the product label facing up.

4 Push the card firmly into the slot until it is seated in the connector.

SAFELY REMOVE HARDWARE ICON IN THE SYSTEM TRAY.

- Using PC Cards

. (REVIEW YOUR OPERATING SYSTEM MANUAL FOR THE CORRECT PROCEDURE.) IT IS GOOD PRACTICE TO

Removing PC Cards

See your PC Card manual for specific instructions on removing your card. Some cards may require your

notebook to be in Standby Mode or Off during removal.

• WINDOWS HAS A SHUTDOWN PROCEDURE FOR PC CARDS THAT MUST BE FOLLOWED BEFORE REMOVING A

CARD

REMOVE DEVICES USING THE

CLOSE ANY OPEN APPLICATIONS AND SHUT DOWN YOUR NOTEBOOK.

• IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR OPEN FILES,

allowing you to remove the card.

To remove a PC Card, follow these steps:

1 Unlock the card or card plug from the slot by pressing the eject button. When pressed, the button will pop out.

2 Firmly press the button again until it is flush with the notebook. This will eject the card slightly out of the slot

, DATA COULD BE LOST OR THE MEMORY

. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR

- Memory Upgrade Module

; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.

O MINIMIZE RISK TO THE MODULE, OBSERVE THE FOLLOWING PRECAUTIONS:

Memory Upgrade Module

Your Fujitsu LifeBook notebook comes with a minimum of 512 MB of high speed Double Data Rate

Synchronous Dynamic RAM (DDR2-667 SDRAM) factory installed. To increase your notebook’s memory

capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-in-

line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from

the Fujitsu web store at www.shopfujitsu.com.

• DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE

ONES SPECIFICALLY SHOWN IN THE DIRECTIONS FOR INSTALLING AND REMOVING THE MEMORY

UPGRADE MODULE

• THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE

EFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC

(ESD). T

-- B

ELECTRICITY BUILT UP IN YOUR BODY

ANY CONTACTS OR CHIPS

-- WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH

E SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES. EVEN

-- B

IF THE SYSTEM IS IN HIBERNATE OR STANDBY STATES

COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM

Installing Memory Upgrade Modules

1 Turn off power to your notebook, remove any power adapter (AC or auto/airline). Remove the battery.

2 Make sure that all the connector covers are closed.

3 Turn the notebook bottom side up, and remove the screw from the memory upgrade module compartment.

4 Remove the cover.

5 Remove the memory upgrade module from the static guarded sleeve.

COMPONENTS

Alignment Keys

Figure 30. Installing a Memory Module

- Memory Upgrade Module

NCE IT IS INSTALLED, YOU CAN LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY

CAPACITY

THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR NOTEBOOK.

upgrade module with the connector slot in the compartment. Be sure the alignment keys line up with thos in the

slot.

Figure 29. Opening the Memory Compartment

6 Align the memory upgrade module with the component side up. Align the connector edge of the memory

7 Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and

into the connector until it lodges under the retaining clip. You’ll hear a click when it is properly in place.

8 Replace the cover and reinstall the screws.

Clip

Memory

Figure 31. Removing memory module

- Memory Upgrade Module

Module.

upgrade module at the same time.

slot by lifting it up and pulling it away from your notebook.

sleeve.

Removing a Memory Upgrade Module

1 Perform steps 1 through 4 of Installing a Memory Upgrade

2 Pull the clips sideways away from each side of the memory

3 While holding the clips out, remove the module from the

4 Store the memory upgrade module in a static guarded

5 Replace the cover and reinstall the screws.

Checking the Memory Capacity

Once you have changed the system memory capacity by replacing the installed module with a larger one,

be sure to check that your notebook has recognized the change.

Windows XP: Check the memory capacity by clicking [Start] -> Settings -> Control Panel, then double-

clicking the System icon. Select the General tab and check the amount of memory under “Computer:”

Windows Vista: Check the memory capacity by clicking [Start] -> Control Panel -> System and

Maintenance -> System. The amount 0f memory is displayed next to “Memory - RAM:”

, SEE TROUBLESHOOTING ON PAGE 93

. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT

CORRECTLY RECOGNIZED

PROPERLY INSTALLED

IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS

- Memory Upgrade Module

There may be a variation between the actual memory size and what is displayed. This is possible if your

system is configured with an integrated Intel Graphics Media Accelerator X3100 which dynamically

allocates system memory to accelerate graphics performance.

Figure 32. Connecting Modem

- Device Ports

Device Ports

Your Fujitsu LifeBook notebook and the optional Port Replicator come equipped with multiple ports to

which you can connect external devices including: disk drives, keyboards, modems, printers, etc.

outlet.

1 Align the connector with the port opening.

2 Push the connector into the port until seated.

3 Plug the other end of the cable into a telephone

The modem sound may be deactivated initially.

To activate modem sound, follow these steps.

Modem (RJ-11) Telephone Jack

The modem (RJ-11) telephone jack is used for an internal modem. To connect the telephone cable follow

these easy steps:

Windows XP:

tray.

1 Right click on the Speaker icon in your system

2 Select Open Volume.

click on Phone and click OK.

3 Select Option/Properties.

4 Under “Show the following volume controls”,

5 Uncheck Mute under Phone Balance.

Windows Vista:

1 Select [Start] -> Control Panel.

and Modem Options window.

2 Select Classic View in the left pane.

3 Double-click Phone and Modems. You may initially need to enter your area code in order to open the Phone

. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT

DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL

LIFEBOOK NOTEBOOK. CONSULT YOUR PBX MANUFACTURER’S

YOU CONNECT YOUR MODEM.

FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS ON THE LINE CONDITIONS. THE

33600BPS AT UPLOAD.

- Device Ports

4 Select the Modems tab, and click the [Properties] button.

HIGHEST ALLOWED BY

• THE INTERNAL MODEM IS DESIGNED TO THE ITU-T V.90 STANDARD. ITS MAXIMUM SPEED OF 53000BPS IS THE

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT

THE INTERNAL MODEM TO A

BEFORE

MODEM OR YOUR ENTIRE

DOCUMENTATION FOR DETAILS

5 Select the Modem tab and adjust the volume as necessary.

TATES AND CANADA. THE MODEM MAY BE CERTIFIED IN OTHER COUNTRIES.

MAXIMUM SPEED IS

• THE INTERNAL MODEM ON ALL LIFEBOOK NOTEBOOKS FROM FUJITSU ARE CERTIFIED FOR USE IN THE UNITED

• A television, radio remote control unit, or a wireless headphone is being used nearby.

• Direct sunlight, fluorescent light, or incandescent light shines directly on the port.

The infrared IrDA port allows for wireless data transfer between your notebook and other IrDA-

compatible devices, such as another computer or a printer, without the use of a cable. (See figure 3 on page 15 for

location)

It is important to keep in mind that while carrying out IR communication, both devices must be placed so

their infrared ports are directly facing each other without obstruction. The devices must be separated by

at least 6" but no more than 36" for maximum performance.

The following conditions may interfere with infrared communications:

Infrared Port

DEGRADE OPERATION

• DO NOT MOVE EITHER DEVICE WHILE COMMUNICATION IS ACTIVE AS IT MAY INTERRUPT DATA TRANSMISSION.

• BE CAREFUL NOT TO SCRATCH THE INFRARED PORT LENS. DIRT, SCRATCHES, OR OTHER SURFACE MARKS CAN

IEEE 1394 Port

The 4-pin 1394 port allows you to connect digital devices that are compliant with IEEE 1394 standard

(also known as “FireWire”). The IEEE 1394 standard is easy to use, connect, and disconnect. This port

allows up to 400 Mbps transfer rate. A third-party application may be required to operate your device with

-PIN CONFIGURATION, YOU WILL NEED TO PURCHASE AN

Figure 33. Connecting a IEEE 1394 device

- Device Ports

THE 1394 PORT USED IN THIS SYSTEM USES A FOUR-PIN CONFIGURATION. IF YOU INTEND TO

ADAPTER

INTERFACE WITH DEVICES WHICH USE A SIX

opening.

is seated.

In order to connect a 1394 device, follow

these steps: (See Figure)

1 Align the connector with the port

the 1394 port.

2 Push the connector into the port until it

Internal LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN

connection. You may need to configure your notebook to work with your particular network. (Please refer

to your network administrator for information on your network configuration.) To connect the LAN cable

follow these easy steps:

Figure 34. Connecting LAN Device

- Device Ports

/OR DRIVERS ARE GUARANTEED TO WORK.

UE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES

AND

opening.

until it is seated.

a LAN outlet.

1 Align the connector with the port

2 Push the connector into the port

3 Plug the other end of the cable into

Universal Serial Bus Ports

The Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external game pads,

pointing devices, keyboards and/or speakers. There are three USB 2.0 ports on the right side of your

notebook.

In order to connect a USB device follow these steps:

1 Align the connector with the port openin, then push the connector into the port until it is seated.

USB 2.0 Ports

- Device Ports

Figure 35. Connecting a USB Device

DISABLED

IF YOU PLUG HEADPHONES INTO THE HEADPHONE JACK, BUILT-IN STEREO SPEAKERS WILL BE

Headphone/Line-Out Jack

The headphone/line-out jack allows you to connect headphones or powered external speakers to your

notebook. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order

to connect headphones or speakers follow these easy steps:

1 Align the connector with the port opening.

2 Push the connector into the port until it is seated.

Figure 36. Connecting an External Video Device

- Device Ports

. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT

, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR

, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.

RESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND

seated.

located on each end of the connector.

The external video port allows you to

connect an external monitor or LCD

projector. In order to connect an external

video device, follow these easy steps:

1 Align the connector with the port opening.

2 Push the connector into the port until it is

Microphone/Line-In Jack

The microphone/line-in jack allows you to connect an external mono microphone. Your microphone must

be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your

notebook. In order to connect a microphone follow these easy steps:

1 Align the connector with the port opening.

2 Push the connector into the port until it is seated

.External Video Port

3 Tighten the two hold-down screws,

ONLY

CHOICE

YOUR DISPLAY VIDEO

Figure 38. Connecting S-Video Device

- Device Ports

S-Video Out Jack

The S-Video Out jack is used to transmit a higher resolution video signal to a compatible TV or VCR. Note

that in order to use this jack, you must use the Mini S-Video Cable Adapter that came with your system.

(Figure 37). To connect the S-Video cable follow these easy steps:

opening.

1 Align the adapter cable connector with the jack

Video cable from the video device.

2 Push the connector into the jack until it is seated.

3 Plug the other end of the cable into a standard S-

Figure 37. Mini S-Video Cable Adapter

Troubleshooting Your LifeBook

Chapter 4

Troubleshooting

There may be occasions when you encounter simple setup or operating problems that you can solve on the

spot, or problems with peripheral devices that can be solved by replacing the device. The information in

slot, thus eliminating it as a possible cause of failure.

disconnect such devices, thus eliminating them as possible causes of failure.

this section helps you isolate and resolve some of these straightforward issues and identify failures that

require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1 Turn off your LifeBook notebook.

2 Make sure the AC adapter is plugged into your notebook and to an active AC power source.

3 Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the

4 Make sure that any devices connected to the external connectors are plugged in properly. You can also

5 Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on.

6 Go through the boot sequence.

- Troubleshooting

7 If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed

troubleshooting information.

IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE

ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE

representative:

8 If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support

Toll free: 1-800-8Fujitsu (1-800-838-5487)

E-mail: 8fujitsu@us.fujitsu.com

Web site: http://www.computers.us.fujitsu.com/support.

Before you place the call, you should have the following information ready so that the customer support

representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

See the Configuration Label on the bottom of your notebook for configuration and serial numbers.

Specific Problems

Using the Troubleshooting Table

When you have problems with your LifeBook notebook, try to find the symptoms under the Problem

column of the troubleshooting table for the feature giving you difficulty. You will find a description of

common causes for that symptom under the column Possible Cause and what, if anything, you can do to

correct the condition under Possible Solutions. All possible causes or solutions may not apply to your

notebook.

Problem Page

USB Device Problems . . . . . . . . . page 99

PC Card Problems . . . . . . . . . . . . page 99

Power Failures . . . . . . . . . . . . . . . page 99

Shutdown and Startup Problems page 102

Video Problems . . . . . . . . . . . . . page 103

Miscellaneous Problems . . . . . . . page 105

- Troubleshooting

Problem Page

Audio Problems . . . . . . . . . . . . . . . . . . page 96

DVD/CD-ROM Drive Problems . . . . . . page 96

Hard Drive Problems . . . . . . . . . . . . . . page 97

Keyboard or Mouse Problems . . . . . . .page 97

Memory Problems . . . . . . . . . . . . . . . . page 98

Troubleshooting Table

Modem Problems . . . . . . . . . . . . . . . . page 98
