Fujitsu XG2000C - Switch Hardware Manual
Preface 1
You have purchased the XG2000C, a compact, 20 port 10 Gigabit Ethernet layer 2 switch that
achieves unsurpassed standards of high throughput and low-latency performance.
This manual explains the procedures required to install your XG2000C and should be read
and understood before you start using your XG2000C.
First edition (June 2007)
All Rights Reserved, Copyright © PFU LIMITED 2007
Preface
2 For Safe Use of the XG2000C
Warnings are included throughout this manual in order to prevent injury to the user and/or
material damage. These are two levels of warnings, both of which are composed of a symbol
and a message describing the issue.
For Safe Use of the XG2000C
This manual contains important information to ensure the safe use of your XG2000C.
Be sure to thoroughly read and understand its contents before attempting to use the XG2000C.
After reading, store this manual in a safe place for future reference.
PFU has made every effort to ensure the safety of the user and others, and to prevent property
damage. When using the XG2000C, follow the instructions given in this manual.
Warning notations
This symbol indicates the possibility of serious or fatal injury if the
XG2000C is not used properly.
This symbol indicates the possibility of minor or moderate personal
injury, as well as damage to the XG2000C and/or to other users and
their property, if the XG2000C is not used properly.
WARNING
CAUTION
For Safe Use of the XG2000C 3
This symbol indicates the possibility of serious or fatal injury if the XG2000C
is not used properly.
For your safety and that of others, please follow these guidelines.
Category Warning
Danger of
electric shock
or fire
Never attempt to disassemble, dismantle, upgrade, or recycle the XG2000C by yourself.
Do not place objects on the XG2000C, as there is a risk of electric shock, fire, and/or damage.
Do not install the XG2000C where it will be exposed to direct sunlight, close to a heating device, or in an
environment with much dust and high humidity, as there is a risk of electric shock and fire.
For XG2000C models with cooling vents, do not block off the vents as these prevent the internal parts of
the XG2000C from reaching high temperature, and there is a risk of fire.
Do not wrap the running XG2000C with a cloth. Doing so keeps the heat in, and may cause a fire.
Avoid getting any liquids (such as coffee) or pieces of metal (such as paper clips) into the XG2000C, as
there is a risk of electric shock and fire. To avoid foreign objects getting into the XG2000C, never place
objects on it.
Do not put your fingers into the LAN jack, as there is a risk of electric shock.
Do not use the XG2000C with any voltage other than that specified on the device, as there is a risk of electric shock and fire.
Should the XG2000C start giving off heat, smoke, and/or a strange smell, immediately disconnect the
power plug from the power outlet. To make this easy, the XG2000C should be located close to the power
outlet (wall socket or power strip), and the power outlet must be readily accessible.
After the power is disconnected, contact the vendor's service department immediately. Continued use of
the XG2000C may cause an electric shock and fire.
Note that in this case, the state of data in transmission is not guaranteed.(P.36)
If the power plug or power socket is dirty, clean it with a dry cloth. Continued use may cause a fire.(P.34)
Do not touch the power plug with wet hands, as there is a risk of electric shock.(P.34)
Insert the power plug completely into the power socket.
A partially inserted power plug may cause an electric shock, give off smoke, and/or catch fire.(P.35)
When you remove a power plug from its outlet, be sure to pull the only power plug itself. Pulling on the
power cord itself may expose the cores or break the cord, and cause electric shock or fire.(P.36)
If the XG2000C is to be left unused for any significant period, remove the power plug from the outlet for
safety reasons. Failure to do so may cause a fire or damage.(P.35)
Do not damage or remodel the power cords, as this may cause electric shock or fire.
Do not place any object on, wrap any object with, pull and/or kick the power cords, as there is a risk of electric shock and fire.(P.34)
Never overload a power outlet with multiple devices.
If too many devices are connected, the power socket may overheat and cause a fire.
When you remove a power plug from an outlet, be sure to pull the power plug itself.
A power plug damaged by incorrect removal may cause an electric shock and fire.
Do not use the XG2000C with a damaged power cord, a damaged power plug, and/or a loose socket.
Continued use under these conditions may cause an electric shock and fire.(P.34)
Do not bundle the power cords. Doing so increases the heat density, and may cause a fire.
Unplug the XG2000C during thunder-storms. Continued use under these conditions risks lightning damage
to the XG2000C, and may cause a fire.(P.35)
Danger of
breakage and
injury
Do not place the XG2000C on its side or stack up multiple XG2000Cs.
Ignoring this may damage the XG2000C or injure the operator.
Do not install the XG2000C in an unstable place (such as on a slanted surface or a place subjected to
vibrations).
Doing so may cause injury or device damage.
Do not place any objects or perform any work on the XG2000C.
Ignoring this may damage the XG2000C or injure the operator.
Never leave the plastic bags the XG2000C was packed in around where children can find them, as they may
suck them into their mouths or place them over their heads in fun, with a severe risk of choking and asphyxia.
Do not dispose the XG2000C with other wastes. If burnt, the XG2000C can explode.
WARNING
4 For Safe Use of the XG2000C
This symbol indicates the possibility of minor or moderate personal injury, as
well as damage to the XG2000C and/or to other users and their property, if
the XG2000C is not used properly.
Category Caution
Danger of device
damage
Do not place the XG2000C on its side or stack up multiple XG2000Cs. Doing so may damage the
XG2000C.
Do not install the XG2000C in an unstable place (such as on a slanted surface or a place subjected to
vibrations). Doing so may damage the XG2000C.
Do not place any objects or perform any work on the XG2000C. Doing so may damage the XG2000C.
Install the XG2000C inside a building. Using the XG2000C outside may damage it.
Do not use the XG2000C in areas of extremely high temperature, low temperature, or a area where the
temperature goes up and down suddenly. Installing the XG2000C in such areas may damage it.
Do not expose the XG2000C to seawater. Installing the XG2000C in such areas may damage it.
Do not use the XG2000C in a place subjected to shock or vibrations. Using the XG2000C in such a
place may damage it.
Do not use the XG2000C in a place where chemicals are being sprayed or may otherwise come in contact with it. Using the XG2000C in such a place may damage it.
Do not use the XG2000C near objects which generate strong magnetic fields, such as microwave ovens.
Using the XG2000C in such place may damage it.
Do not use the XG2000C with foreign objects (liquids and/or pieces of metal) inside it. Using the
XG2000C in such a condition may damage it.
When moving the XG2000C, be sure to remove the power plug from the outlet first. No doing so may
damage it.
Danger of
electromagnetic
interference
Do not use the XG2000C near a radio or a TV.
Doing so can interfere with the radio and TV reception.
Danger of
electric shock
To avoid an electric shock, do not open the cover unless you are a maintenance engineer.
When performing maintenance on the XG2000C, be sure to remove the power plug from the outlet first.
Danger when
rackmounting
Only use the XG2000C if the temperature inside the rack is 40°C or less. Ignoring this may damage the
XG2000C.(P.26)
Ensure that the rack is sufficiently ventilated and that excess heat is properly exhausted.(P.26)
Check that the configuration of devices in the rack does not overload the power supply.(P.26)
To ensure the stability of the rack, fix it to the wall or floor as appropriate.(P.26)
Do not install the XG2000C in a rack if it would make it unstable.(P.26)
Check that all units installed in the rack are correctly connected to a grounded power source.(P.26)

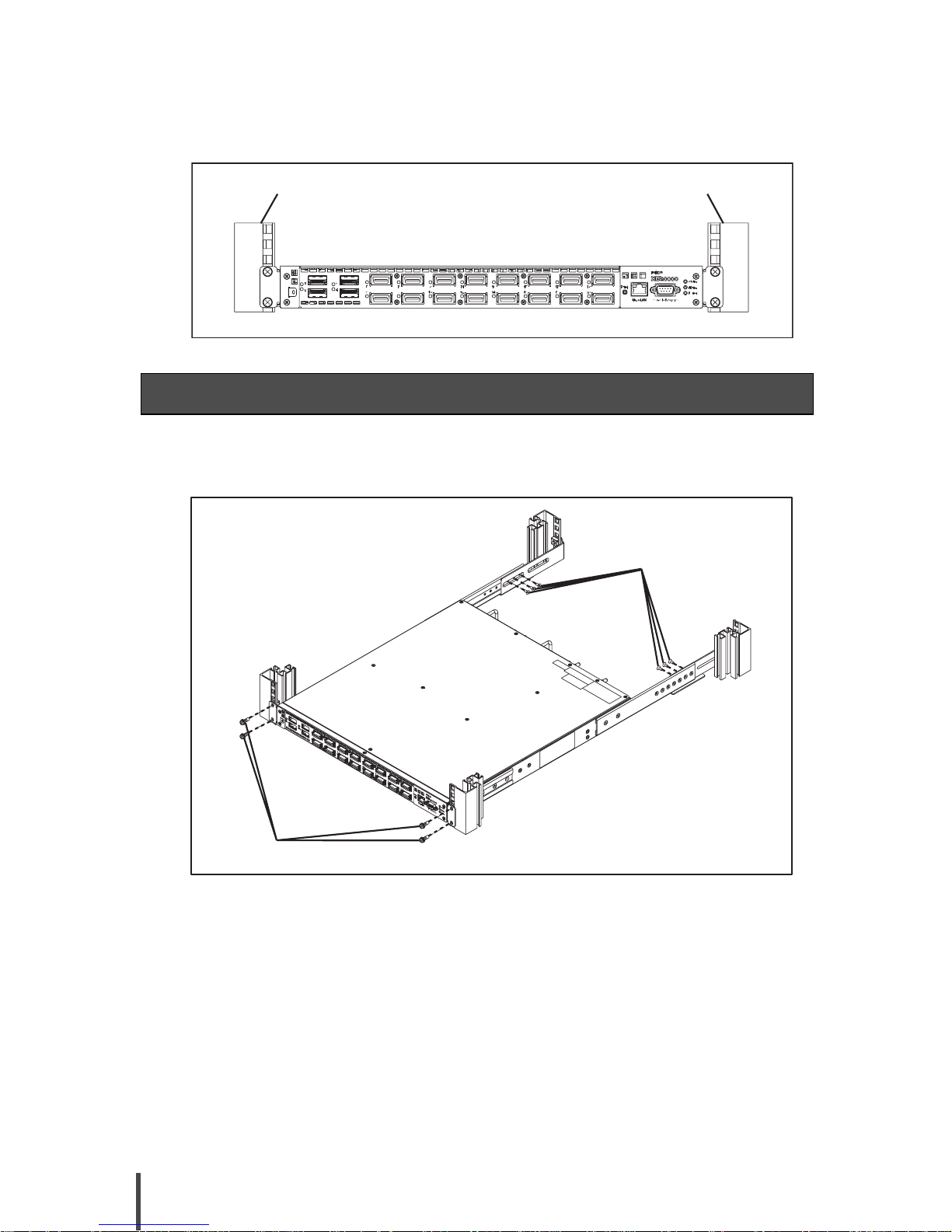

When installing and removing the XG2000C from a rack, be sure to hold it by both sides. At least two
people should work together.(P.26)(P.30)
Danger when
cleaning
When cleaning the XG2000C, only use a soft cloth, and wipe it gently.
CAUTION
For Safe Use of the XG2000C 5
Never attempt to dismantle or modify the XG2000C yourself. This is extremely dangerous
since the XG2000C includes both high voltage and high temperature components.
If maintenance is required, contact the vendor's service department.

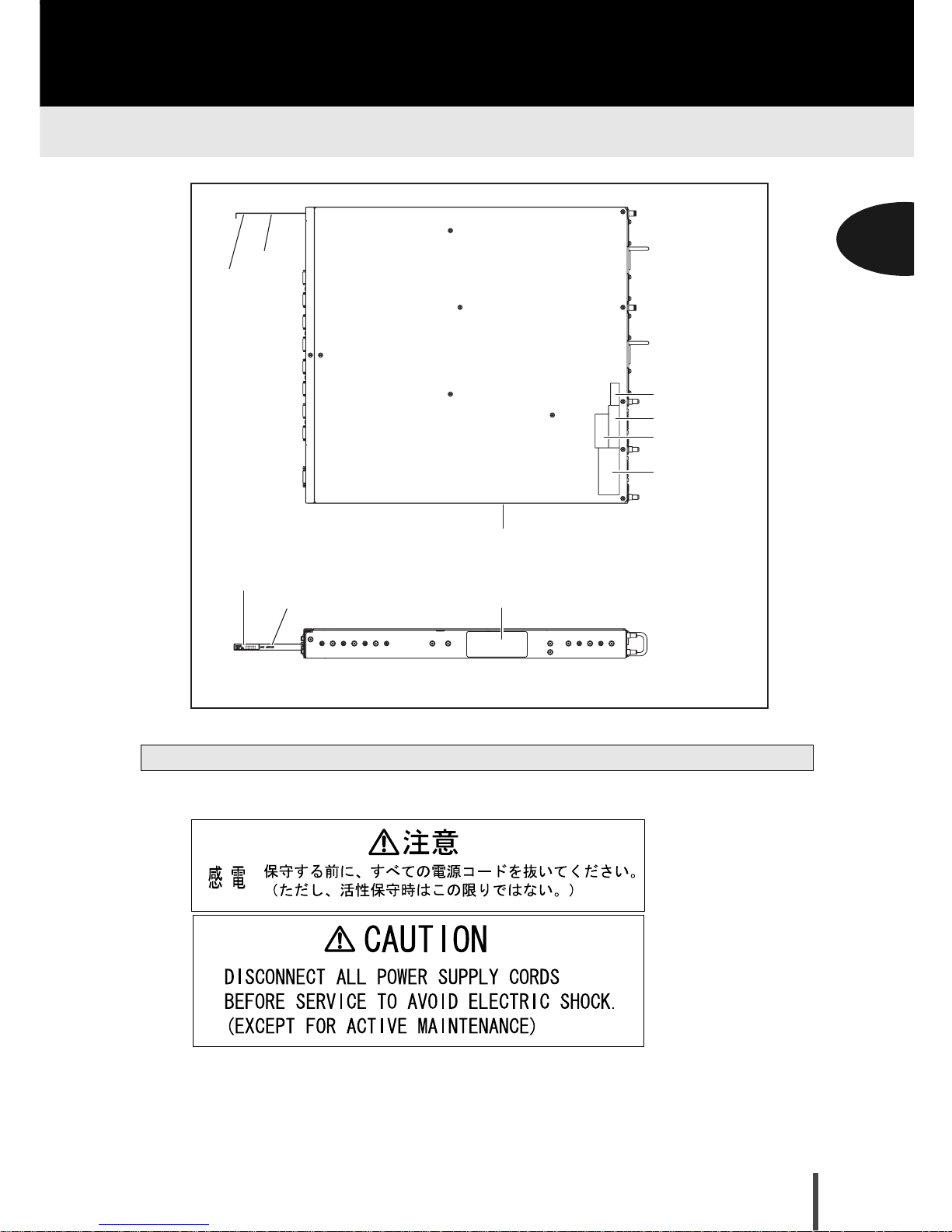

The following warning label may be found on the top of XG2000C. Do not attempt to remove
this warning label. If you cannot read the details written in the warning label because of dirt or
wear, contact the vendor's service department for a replacement label.
• The expected life of the XG2000C is approximately five years, assuming use at an ambient temperature of 25°C.
• Use of this hardware guide, the XG2000C, its firmware, and the management software
are the responsibility of the user.
• Fujitsu and its partners accept no responsibility for any errors or data loss arising from use
of the XG2000C. Before using the XG2000C, it should be understood that the XG2000C is
not guaranteed against failure for any more than the original purchase price.
• Fujitsu and its partners do not approve of any use of the firmware provided with the
XG2000C, or of any authorized firmware upgrades, for any purpose other than installation on the XG2000C. Modification and disassemble are not permitted at all.
• When connecting up the fiber optic cables, check that there is no dust, foreign objects or
fingerprints on the connector surfaces.
A default login password is set before the XG2000C is shipped. For security reasons, a new
password should be chosen before the XG2000C is used.
No self maintenance
Warning label
Safety precautions
For security
6 For Safe Use of the XG2000C

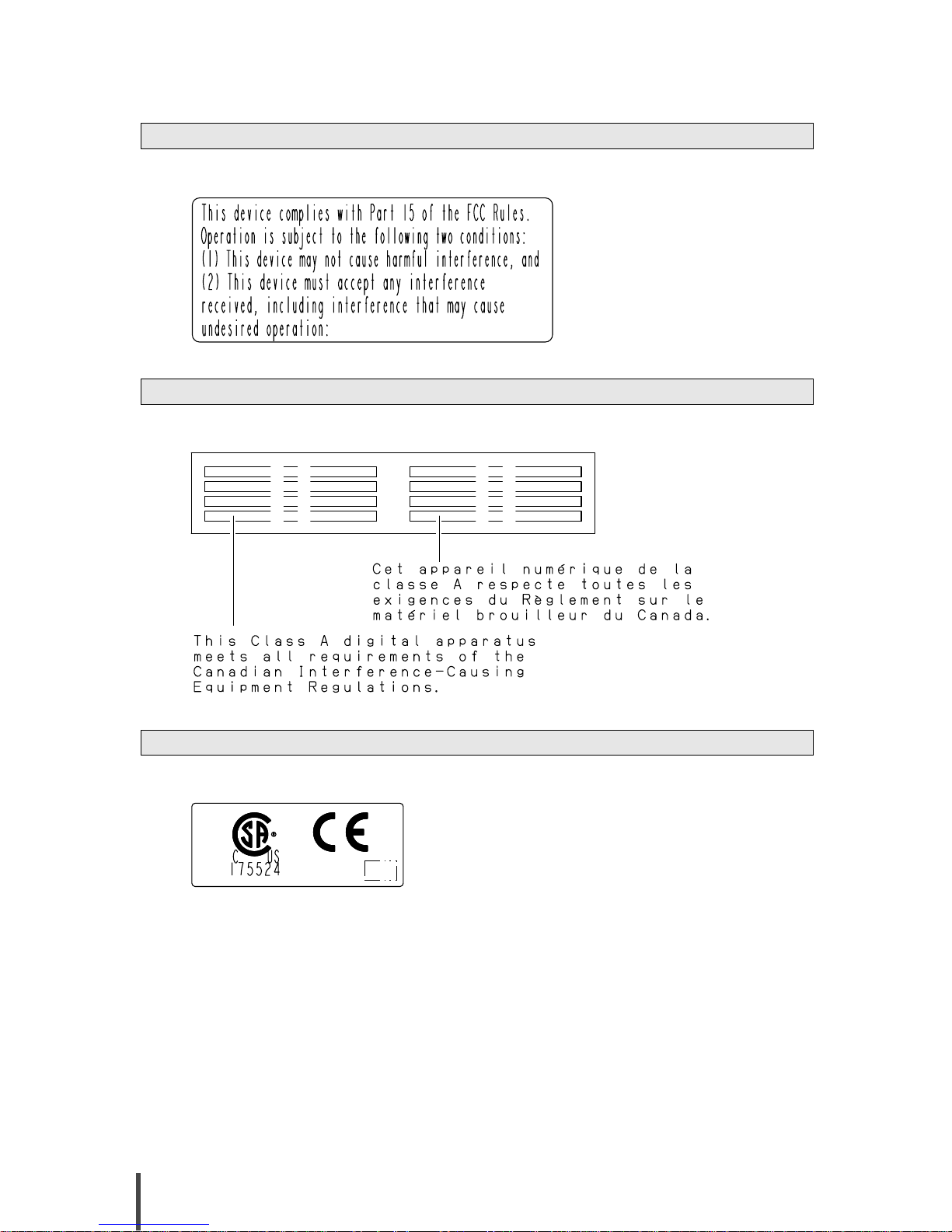

FCC PART 15B (2005) Class A
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates uses, and can radiate radio frequency
energy and. If not installed and used in accordance with the instrucrtion manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Industry Canada Interference-Causing Equipment Standard ICES-003 Class A.
This Class A digital appartatus compies with Canedian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
EN55022(2006) Class A
EN61000-3-2(2000)
EN61000-3-3(1995)+A1(2001)
EN55024(1998) + A1(2001) + A2(2003)
Warning
This is a product which meets Class A of EN55022. In a domestic environment this product may
cause raido interference in which case the user may be required to take adequate meausers.
CAN/CSA C22.2 No. 60950-1, UL60950-1 and EN60950-1
Under certain conditions, twisted pair cables can become charged with static electricity. Connecting a statically charged twisted pair cable to a device can cause the device or its LAN
port to operate falsely or to become damaged.
Use a static removal tool to discharge twisted pair cables to ground immediately before connecting them to devices.
Note that a discharged twisted pair cable that has been left unconnected for a long time may
become statically charged again.
Electromagnetic compatibility (USA)
Electromagnetic compatibility (CANADA)
Electromagnetic compatibility (EU)
Safety
Static electricity
For Safe Use of the XG2000C 7
[Use for the high safety required case]
The XG2000C is designed, developed and manufactured as contemplated for general use,
including without limitation, general office use, personal use, household use, and ordinary
industrial use, but is not designed, developed and manufactured for use in situations with
accompanying fatal risks or dangers that, unless extremely high safety is secured, could lead
directly to death, personal injury, severe physical damage or other loss (hereinafter "High
Safety Required Use"), including without limitation, nuclear reaction control in nuclear facility,
aircraft flight control, air traffic control, mass transport control, medical life support system,
and missile launch control in weapon systems.
Do not use the XG2000C for High Safety Required Use without otherwise ensuring the safety
level required. Fujitsu and its related companies assume no liability whatsoever for damages
arising from use of the XG2000C by the user in high-safety applications, and for any claims or
compensation for damages by the user or a third party.

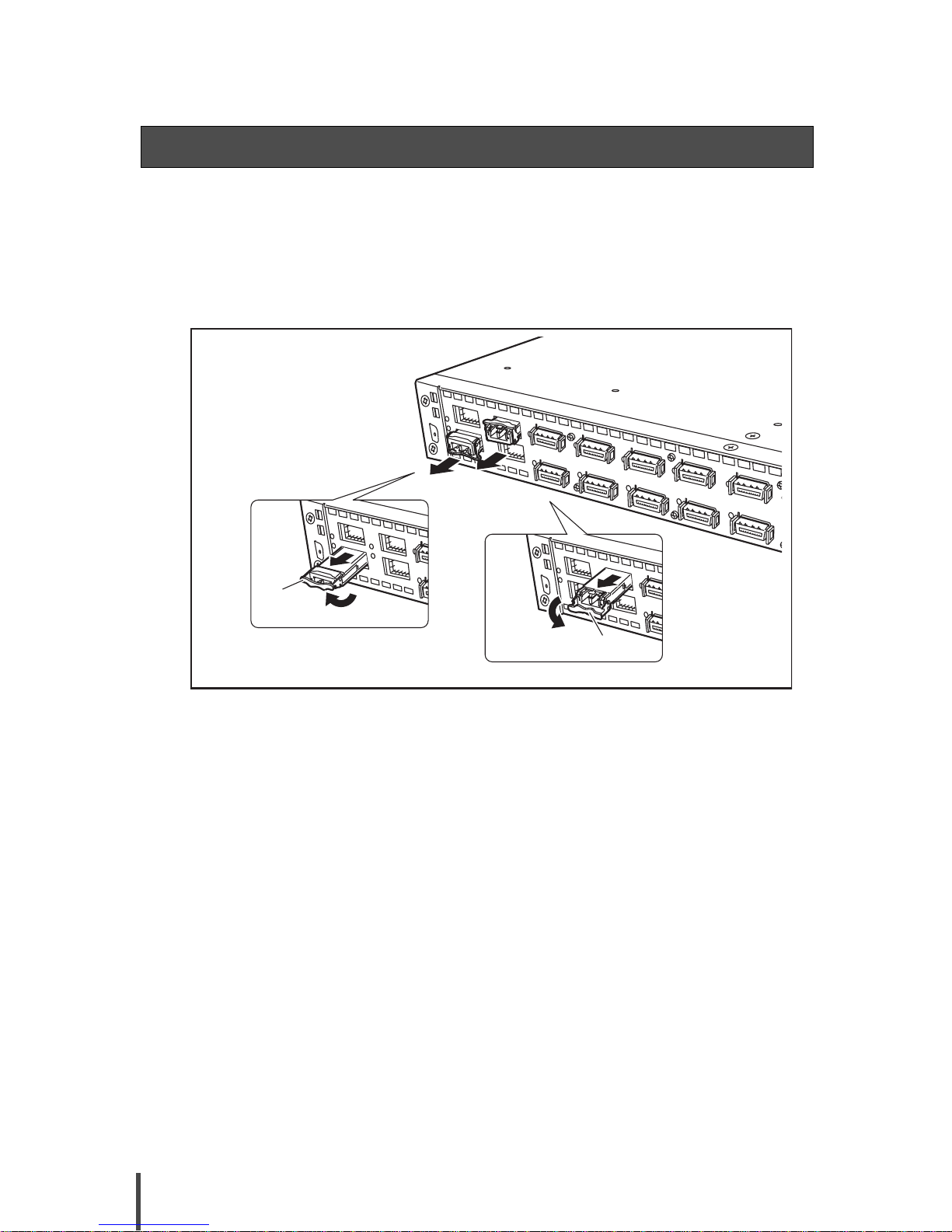

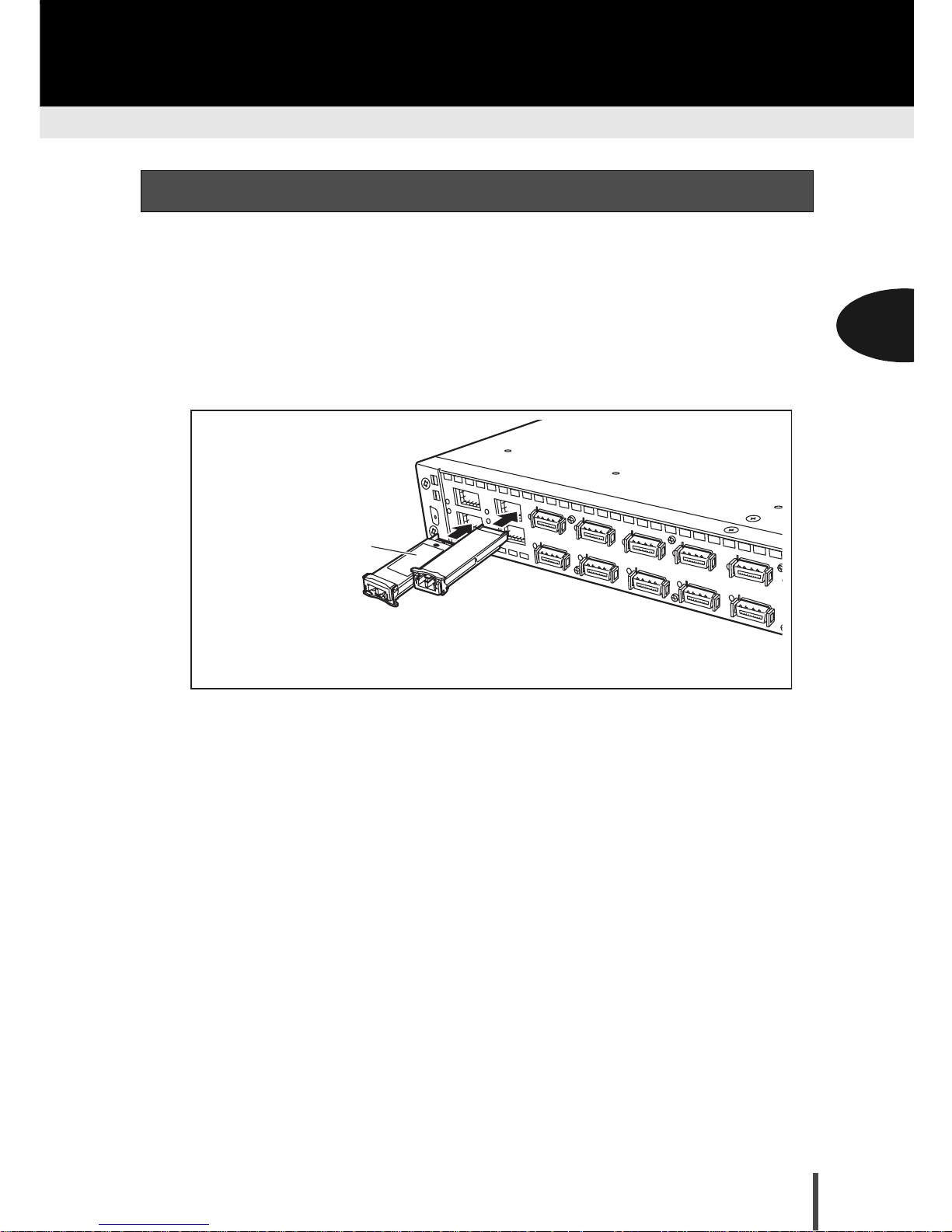

The XG2000C can install a class 1 laser module (XFP module), and can emit invisible laser
light. Do not look into the 10 Gigabit Ethernet port openings. The following warning applies to
the XG2000C’s laser:
• The XG2000C can install XFP modules, which are laser devices.
In the USA, these XFP modules are certified as Class 1 laser products that conform to the
requirements of the Department of Health and Human Services (DHHS) regulation 21 CFR
Subchapter J, and this certification is indicated by a label attached to each XFP module.
Outside the USA, these XFP modules are certified as Class 1 laser products that conform
to the requirements given in IEC825-1 (1993) and Amendment11 (1996) of EN60825-1
(1994).
• Even when cables are not connected, invisible laser light may be still emitted from the
port openings. To avoid this laser light, never peer into the port openings.
* XFP module which install in XG2000C must be selected from our specified. (refer to the
specified module list)
High safety
Laser safety
8 About This Manual
This manual is written for an administrator who has responsibility for network system configuration, maintenance, and management.
Understanding the following knowledge is expected.
• Basic knowledge of networks, intranets and the internet.
• Basic knowledge of system management.
• Basic knowledge of system security.
This manual does not give any explanation of network protocol terms.
This manual is organized as follows.
Chapter 1 Installation
This chapter lists the items that should be in the XG2000C package, describes the
names and functions of the various components of the XG2000C.
Chapter 2 Installation and Operation
This chapter explains how to install, connect, and start the XG2000C.
Chapter 3 Troubleshooting
This chapter describes what you should do when your XG2000C has problems.
Appendix
This appendix explains the specifications of the XG2000C, and should be referred
to as necessary.
The following manuals are related to this manual. Consult them as required.
• XG2000C Hardware Guide (this manual)
This manual describes the hardware of the XG2000C.
• XG2000C User's Guide
This manual describes a variety of operations and procedures, including the installation
and maintenance of the XG2000C.
When referring to the "XG2000C User’s Guide", the manual name is usually abbreviated as
"User's Guide".
The user's guide is an online manual, contained in the "XG2000C User's Guide CD-ROM".
About This Manual
This section explains who this manual is aimed at, describes the layout of the manual, and gives a
description of the symbols used in this manual.
Targeted reader and expected knowledge
Organization
Related manuals
About This Manual 9
This manual uses the following symbols.
Company names and products names referred in this manual are registered trademarks or
trademarks of respective companies.
The trademark ™ and ® have been omitted from this manual.
The latest product information including technical information, update information, are available from the following web site:
http://www.pfu.fujitsu.com/products/xg
Symbols used in this manual
This symbol indicates a point that operator should pay attention to.
This symbol indicates a section which describes related information.
This symbol means "Danger! You are in a situation that could
result in bodily injury". Before continuing, make yourself aware of
the hazards involved and become familiar with common ways of
preventing accidents.
This symbol means "Be careful, or you might do something that
could damage your equipment or result in loss of data".
Trademarks and abbreviations used in this manual
Product Information
AttentionAttention
ReferRefer
WARNING
CAUTION
10 About This Manual
Contents 11
A
1
2
3
A
Contents
Preface ......................................................................................................... 1
For Safe Use of the XG2000C ...................................................................... 2
Warning notations ..............................................................................................2
No self maintenance ..........................................................................................5
Warning label .....................................................................................................5
Safety precautions ............................................................................................. 5
For security ........................................................................................................ 5
Electromagnetic compatibility (USA) .................................................................. 6
Electromagnetic compatibility (CANADA) .......................................................... 6
Electromagnetic compatibility (EU) .................................................................... 6
Safety .................................................................................................................6
Static electricity ..................................................................................................6
High safety .........................................................................................................7
Laser safety ....................................................................................................... 7
About This Manual ........................................................................................8
Targeted reader and expected knowledge ........................................................ 8
Organization ....................................................................................................... 8
Related manuals ................................................................................................8
Symbols used in this manual ............................................................................. 9
Trademarks and abbreviations used in this manual .......................................... 9
Product Information ............................................................................................ 9
Chapter 1 Installation...................................................................... 13

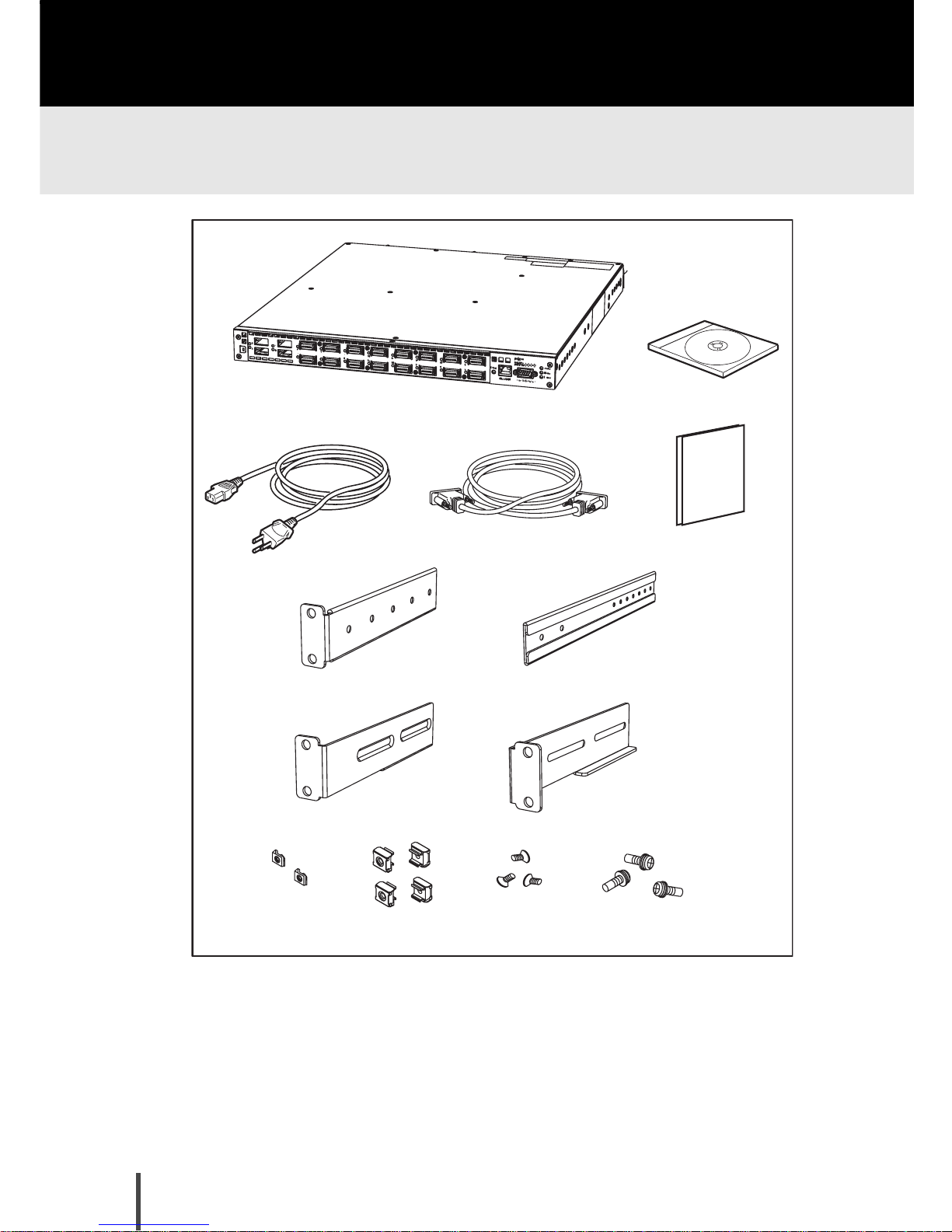

1-1 Parts List .....................................................................................................14

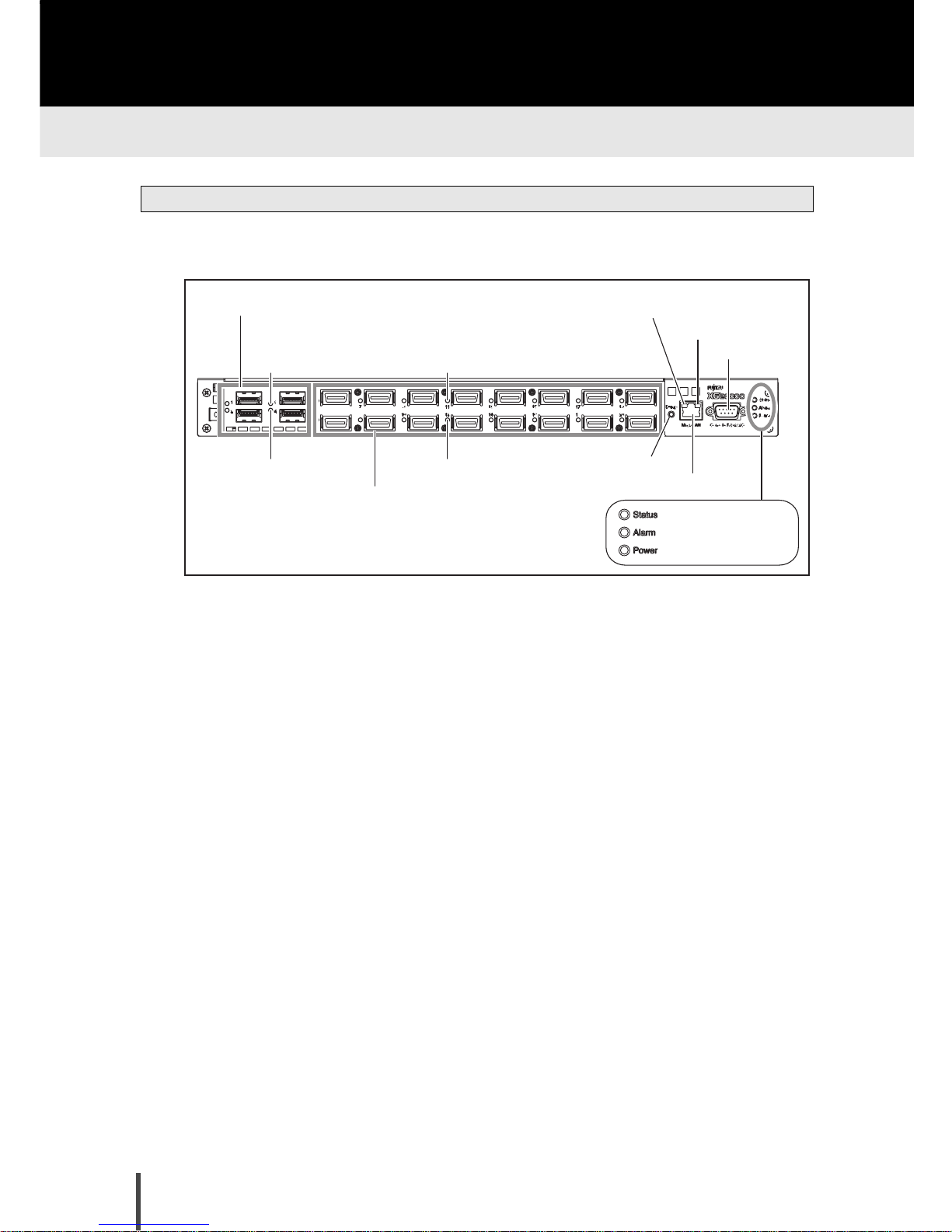

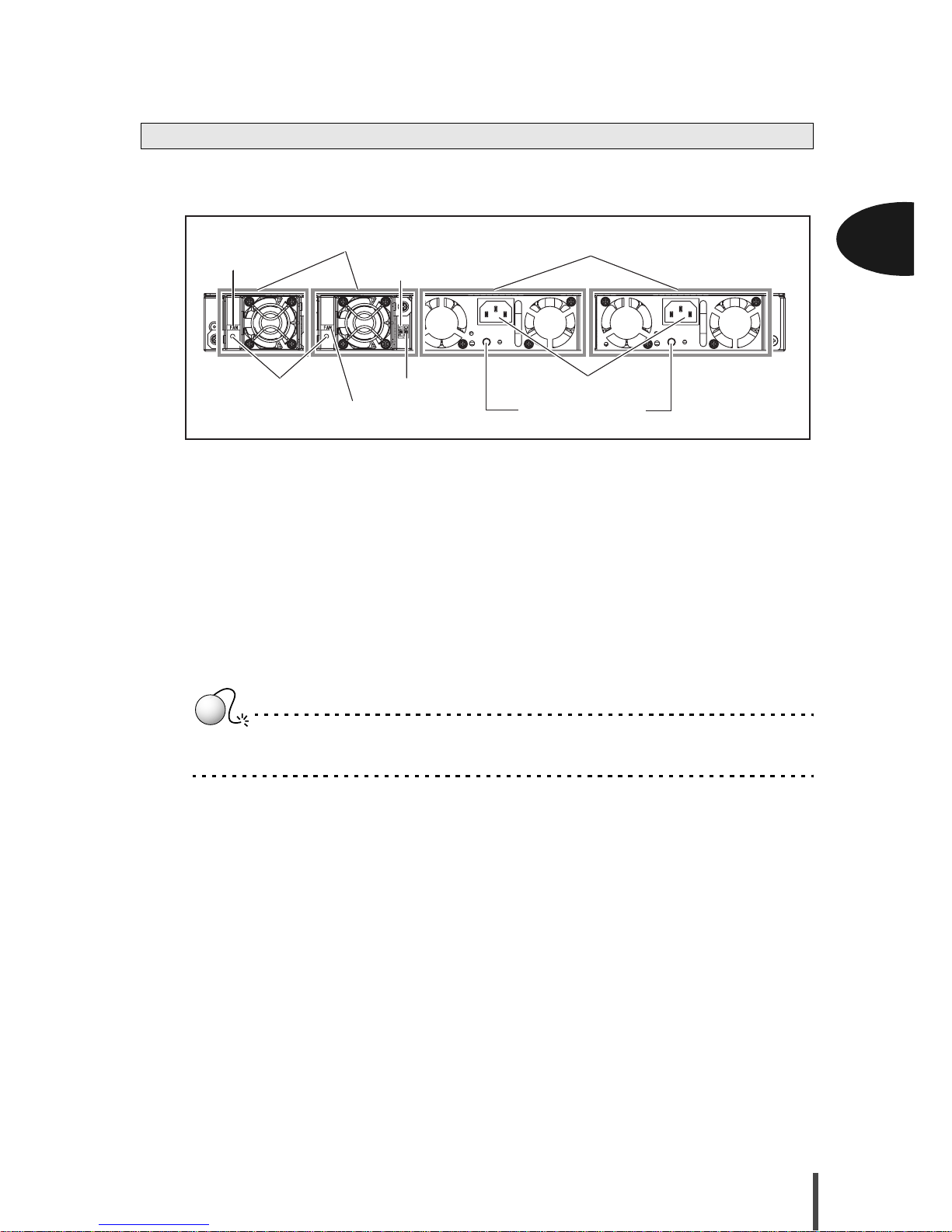

1-2 XG2000C Components ..............................................................................16
1-3 Labels .........................................................................................................19
Chapter 2 Installation and Operation ............................................ 23
2-1 Installation Overview ..................................................................................24
2-2 Installation Procedure ................................................................................. 25
2-2-1 Installation requirements ............................................................................ 25

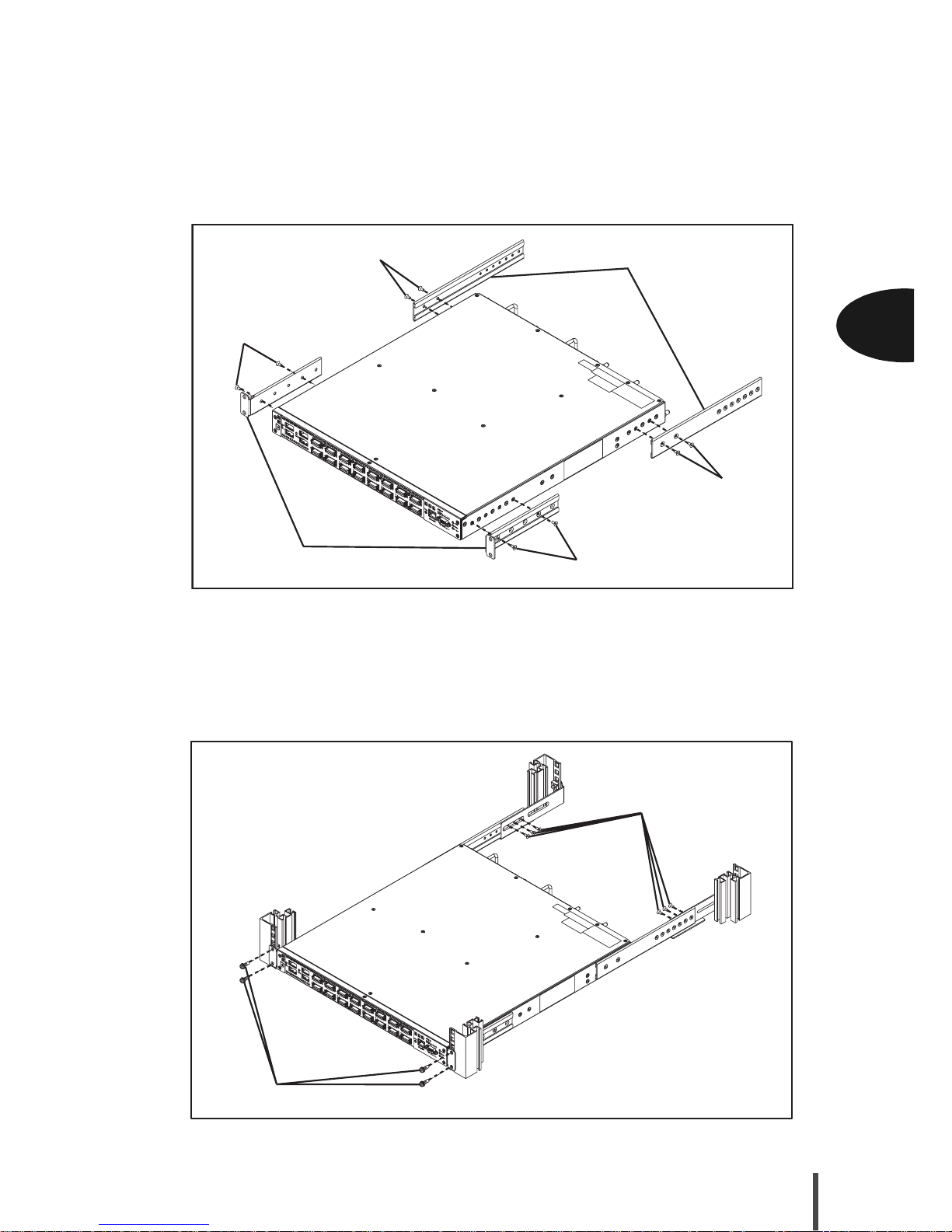

2-2-2 Installing the XG2000C in a rack ................................................................ 26
2-2-3 Uninstalling the XG2000C from a rack ....................................................... 30
2-3 Installation of modules ................................................................................ 31
2-3-1 Installing the XFP modules ......................................................................... 31
2-3-2 Uninstalling the XFP modules ....................................................................32
2-4 Cable Connection .......................................................................................33
2-4-1 Connecting cables ...................................................................................... 33
2-4-2 Connecting the power cords ....................................................................... 34
2-5 Basic Operation ..........................................................................................35
2-5-1 Turning the XG2000C on ........................................................................... 35
2-5-2 Turning the XG2000C off ........................................................................... 36
12 Contents
Chapter 3 Troubleshooting ............................................................ 37
3-1 Start-up Problems .......................................................................................38
3-2 Hardware Problems ....................................................................................39
Appendix............................................................................................. 41
Appendix-A Specifications ...................................................................................42
A.1 Product Specifications ................................................................................42
A.2 Installation Specifications ...........................................................................42
Loading...
