T Series.book Page 65 Thursday, July 14, 2005 2:24 PM

Problem Possible Cause Possible Solutions

Your Tablet PC appears to
change setup parameters
when you start it.

BIOS setup changes were not
saved when you made them
and exited the BIOS setup
utility returning it to
previous settings.

The BIOS CMOS back-up
battery has failed.

Video Problems

The built-in display is blank
when you turn on your
Tablet PC.

The angle of the display and
the brightness settings are not
adequate for your lighting
conditions.

The optional Port Replicator is
attached, an external monitor
is plugged in, and the Tablet
PC is set for an external
monitor only.

Troubleshooting

Make sure you select Save Changes And Exit when
exiting the BIOS setup utility.

Contact your support representative for repairs.
This is not a user-serviceable part.

Move the display and the brightness control until
you have adequate visibility.

Pressing [F10] while holding down the [Fn] key
allows you to change your selection of where to
send your display video. Each time you press the
combination of keys you will step to the next
choice. The choices, in order are: built-in display
only, external monitor only, both built-in display
and external monitor.

The power management
timeouts may be set for very
short intervals and you failed
to notice the display come on
and go off again.

The Tablet PC turned on
with a series of beeps and
your built-in display is
blank.

Your system display won’t
turn on when the system is

Power On Self Test (POST)
has detected a failure which
does not allow the display
to operate.

The system may be password-

protected.
turned on or when the
system has resumed.

The display goes blank by
itself after you have been
using it.

The Tablet PC has gone into

Video Timeout, Standby

Mode, or Hibernate Mode

because you have not used it

for a period of time.

The power management time-

outs may be set for very short

intervals and you failed to

notice the display come on

and go off again.

The display does not close. A foreign object, such as a

paper clip, is stuck between the

display and the keyboard.

Press any button the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. (The display may be shut off by
Standby mode, Auto Suspend or Video Timeout)

Contact your support representative.

Check the status indicator panel to verify that the
Security icon is blinking. If it is blinking, enter your
password.

Press a button on the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. Check your power management
settings, or close your applications and go to the
Power Savings menu of the setup utility to adjust the
timeout values to better suit your operation needs.

See “BIOS Setup Utility” on page 36.

Press any button on the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. (The display may be shut off by
Standby Mode, Auto Suspend or Video Timeout)

Remove all foreign objects from the keyboard.

65

T Series.book Page 66 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Five

Problem Possible Cause Possible Solutions

The display has bright or
dark spots.

If the spots are very tiny and
few in number, this is normal
for a large LCD display.

If the spots are numerous or
large enough to interfere with
your operation needs.

The application display
uses only a portion of your
screen and is surrounded
by a dark frame.

You are running an application
that does not support 800 x
600/1024 x 768 pixel resolution
display and display compres­sion is enabled.

You have connected an
external monitor and it

Your BIOS setup is not set to

enable your external monitor.
does not display any
information.

Your external monitor is not

properly installed.

This is normal; do nothing.

The display needs technical diagnosis; contact your
support representative.

When compensation is disabled, a clearer but
smaller display for applications that do not support
800 x 600/1024 x 768 pixel resolution will result. You
can fill the screen but have less resolution by
changing your compensation setting. (See the Video
Features submenu, located within the Advanced
menu of the BIOS. See “BIOS Setup Utility” on

page 36.

Try toggling the video destination by pressing [Fn]
and [F10] together, or check your BIOS setup and
enable your external monitor. (See the Video
Features submenu, located within the Advanced
Menu of the BIOS. See “BIOS Setup Utility” on

page 36.

Reinstall your device. See “External Video Port” on
page 55.

You have connected an
external monitor and it
does not come on.

Miscellaneous Problems

An error message is
displayed on the screen
during the operation of an
application.

Your operating system soft-

ware is not set up with the

correct software driver for

that device.

Your external monitor may not

be co mpatibl e with your Ta blet

PC.

Application software often has

its own set of error message

displays.

Check your device and operating system
documentation and activate the proper driver.

See your monitor documentation and the External
Monitor Support portions of the Specifications
section. See “Specifications” on page 79.

See your application manual and help displays
screens for more information. Not all messages are
errors some may simply be status.

66

T Series.book Page 67 Thursday, July 14, 2005 2:24 PM

Troubleshooting

POWER ON SELF TEST MESSAGES

The following is an alphabetic list of error-and-status
messages that Phoenix BIOS and/or your operating
system can generate and an explanation of each message.
Error messages are marked with an *. If an error
message is displayed that is not in this list, write it down
and check your operating system documentation both
on screen and in the manual. If you can find no
reference to the message and its meaning is not clear,
contact your support representative for assistance.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kilobytes
successfully tested by the Power On Self Test. (This can
only appear if you have an SRAM PC Card installed.)

*Extended RAM Failed at offset: nnnn

Extended memory not working or not configured prop­erly. If you have an installed memory upgrade module,
verify that the module is properly installed. If it is prop­erly installed, you may want to check your Windows
Setup to be sure it is not using unavailable memory
until you can contact your support representative.

nnnn Extended RAM Passed

Where nnnn is the amount of memory in kilobytes
successfully tested.

*Keyboard controller error

The keyboard controller test failed. You may have to
replace your keyboard or keyboard controller but may
be able to use an external keyboard until then. Contact
your support representative.

*Keyboard error

Keyboard not working. You may have to replace your
keyboard or keyboard controller but may be able to
use an external keyboard until then. Contact your
support representative.

*Keyboard error nn

BIOS discovered a stuck key and displays the scan code
for the stuck key. You may have to replace your keyboard
but may be able to use an external keyboard until then.
Contact your support representative.

*Operating system not found

Operating system cannot be located on either drive A: or
drive C: Enter the setup utility and see if both the fixed
disk, and drive A: are properly identified and that the
boot sequence is set correctly. Unless you have changed
your installation greatly, the operating system should be
on drive C:. If the setup utility is correctly set, your hard
drive may be corrupted and your system may have to be
re-installed from your back up media.

*Failing Bits: nnnn The hex number nnnn

This is a map of the bits at the memory address (in
System, Extended, or Shadow memory) which failed the
memory test. Each 1 (one) in the map indicates a failed
bit. This is a serious fault that may cause you to lose data
if you continue. Contact your support representative.

*Fixed Disk x Failure or Fixed Disk Controller
Failure (where x = 1-4)

The fixed disk is not working or not configured prop­erly. This may mean that the hard drive type identified
in your setup utility does not agree with the type
detected by the Power On Self Test. Run the setup utility
to check for the hard drive type settings and correct
them if necessary. If the settings are OK and the message
appears when you restart the system, there may be a
serious fault which might cause you to lose data if you
continue. Contact your support representative.

*Invalid NVRAM media type

Problem with NVRAM access. In the unlikely case that
you see this message you may have some display prob­lems. You can continue operating but should contact
your support representative for more information.

*Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to
locate the address and display it on the screen. If it
cannot locate the address, it displays “????”. This is a
potentially data destroying failure. Contact your
support representative.

*Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to
locate the address and display it on the screen. If it
cannot locate the address, it displays “????”. This is a
potentially data destroying failure. Contact your
support representative.

*Press <F1> to resume, <F2> to SETUP

Displayed after any recoverable error message. Press
the [F1] key to continue the boot process or the [F2]
key to enter Setup and change any settings.

*Previous boot incomplete –
Default configuration used

Previous Power On Self Test did not complete success­fully. The Power On Self Test will load default values and
offer to run Setup. If the previous failure was caused by
incorrect values and they are not corrected, the next
boot will likely fail also. If using the default settings does
not allow you to complete a successful boot sequence,
you should turn off the power and contact your support
representative.

67

T Series.book Page 68 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Five

*Real time clock error

Real-time clock fails BIOS test. May require board repair.
Contact your support representative.

*Shadow RAM Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at
which the error was detected. You are risking data
corruption if you continue. Contact your support repre­sentative.

nnnn Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes
successfully tested.

*System battery is dead – Replace and run SETUP

The BIOS CMOS RAM memory hold up battery is dead.
This is part of your BIOS and is a board mounted
battery which requires a support representative to
change. You can continue operating but you will have to
use setup utility default values or reconfigure your setup
utility every time you turn off your Tablet PC.

System BIOS shadowed

System BIOS copied to shadow RAM.

*System CMOS checksum bad – run SETUP

BIOS CMOS RAM has been corrupted or modified
incorrectly, perhaps by an application program that
changes data stored in BIOS memory. Run Setup and
reconfigure the system.

MODEM RESULT CODES

The operating system and application software that is
factory installed detects the modem characteristics and
provides the necessary command strings to operate the
modem. The internal modem operation is controlled by
generic AT commands from the operating system and
application software. The standard long form result
codes may, in some cases, be displayed on your screen to
keep you informed of the actions of your modem. The
operating system and application software may suppress
display of the result codes.

Examples of result codes are:

■

OK

■

NO CARRIER

■

NO DIALTONE

■

CONNECT 53000 (Connection complete
at 53,000 bps.)

■

ERROR

■

FAX

■

RING (This means an incoming call.)

■

BUSY

■

NO ANSWER

When using the internal modem with applications that
are not factory installed refer to the application
documentation.

*System RAM Failed at offset: nnnn

System memory failed at offset nnnn of in the 64k block
at which the error was detected. This means that there is
a fault in your built-in memory. If you continue to
operate, you risk corrupting your data. Contact your
support representative for repairs.

nnnn System RAM Passed

Where nnnn is the amount of system memory in
kilobytes successfully tested.

*System timer error

The timer test failed. The main clock that operates the
computer is faulty. Requires repair of system board.
Contact your support representative for repairs.

UMB upper limit segment address: nnnn

Displays the address of the upper limit of Upper
Memory Blocks, indicating released segments of the
BIOS memory which may be reclaimed by a virtual
memory manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

68

T Series.book Page 69 Thursday, July 14, 2005 2:24 PM

Restoring Your
Pre-installed Software

The Drivers and Applications Restore (DAR) DVD
contains sets of device drivers and Fujitsu utilities (in
specific directories) that are unique to your Tablet PC

configuration for use as documented below

In order to install applications and/or
drivers from the DAR DVD, you will need
access to a DVD drive. If you do not have a
built-in modular DVD drive, you will need
to connect an external DVD drive to your
system.

If you have access to the internet, visit the
Fujitsu Support web site at http://
www.computers.us.fujitsu.com/support to
check for the most current information,
drivers and hints on how to perform
recovery and system updates.

RE-INSTALLING INDIVIDUAL
DRIVERS AND APPLICATIONS

The Drivers and Applications CD can be used to selec­tively re-install drivers and/or applications that may have

been un-installed or corrupted.

There may be certain free third-party
applications pre-installed on your system
that are not on the DAR CD. The latest
versions of the applications can be
downloaded from the third-party’s website.

To re-install drivers and/or applications:

1. Boot up the system and insert the DAR CD after
Windows has started. A Fujitsu Installer screen is
displayed after the CD is inserted.

2. After reading the License Agreement, click [I agree].

3. A window will appear containing a list of applica­tions, drivers, and utilities that you can install from
the Drivers and Applications CD.

.

Troubleshooting

The components listed are color-coded in
terms of their install status. Blue indicates
that the component can be installed. Green
indicates that the component needs to be
installed separately. Grey indicates a
component that is already installed; grey
items can be reinstalled, but prior to
installation you will receive a reminder that
the component is already installed and may
need to be uninstalled prior to
reinstallation.

4. In the list, check off all the components you want to
install. If you want to install all components, click
[Select All]. Clicking [Select All] will select all of the
blue-coded components; you must select grey and
green components separately.

5. Once you have selected the components you wish to
install, click [Install Selected Subsystems]; the
components will be installed.

6. After the components are installed, click [OK], then
click [Yes] when asked if you want to reboot the
system.

RESTORING THE FACTORY IMAGE

The Restore Disc that came with your system contains
two utilities:

■

The Recovery utility allows you to restore the original
contents of the C: drive.

■

The Hard Disk Data Delete utility on this disc is used
to delete all data on your hard disk and prevent it from
being reused. Do not use Hard Disk Data Delete unless
you are absolutely certain that you want to erase your
entire hard disk, including all partitions.

• The use of this disc requires that you
have a device capable of reading DVDs
attached to your system. If you do not
have a built-in DVD player, you will need
to attach an external player. For more
information on available external devices,
visit our Web site at: us.fujitsu.com/
computers.

• This disc can only be used with the
system with which it was purchased.

BOOT Priority Change

Before restoring an image, you must first verify that your
system is set up to boot from the DVD drive. To verify/
change the boot-up priority (rather than booting-up
from the hard drive or an external floppy disk drive),
perform the following steps:

69

T Series.book Page 70 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Five

1. Start your system and press the [F2] key when the
Fujitsu logo appears. You will enter the BIOS Setup
Utility.

2. Using the arrow keys, go to the Boot menu.

3. Arrow down to the Boot Device Priority submenu.
Press [Enter].

4. If “Optical Media Drive” or “CD-ROM Drive” is not
at the top of the list, arrow down to the drive in the
list, and press the space bar (or the + key) to move it
to the top of the list. (The system attempts to boot
from the devices in the order in which they are
listed.). Note that the BIOS for some systems will
indicate “CD-ROM Drive”, even when a DVD drive
is connected.

5. If you have an external DVD drive connected,
proceed to the next step; otherwise, proceed to
step 7.

6. If you have an external DVD drive connected:

• Select the Advanced menu in the BIOS window.

• Scroll down to the USB Features submenu and
press the Enter key to open it.

• If Legacy USB Support is disabled, press the space
bar to enable it.

• Scroll down to SCSI SubClass Support and press
the space bar to enable it.

7. Press [F10], then click on [Yes] to exit the BIOS
Setup Utility and return to the boot process.

After you have changed the boot priority, you can restore
a backup image when you are booting up.

Procedure

1. Turn on the power to your system.

2. Ensure that you have a device that can read DVDs

either installed in your system or attached exter­nally to it.

3. Insert the Restore Disc into the drive tray.

4. Reboot your system.

5. After the system reboots, follow the instructions

that appear to either restore your system image or
erase all data from your hard disk.

70

T Series.book Page 71 Thursday, July 14, 2005 2:24 PM

Care and Maintenance

6

71

T Series.book Page 72 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Six

72

T Series.book Page 73 Thursday, July 14, 2005 2:24 PM

Care and Maintenance

If you use your LifeBook T Series Tablet PC carefully,
you will increase its life and reliability. This section
provides some tips for looking after the Tablet PC and

its devices.

Electrical equipment may be hazardous if
misused. Operations of this product or
similar products, must always be supervised
by an adult. Do not allow children access to
the interior of any electrical products and
do not permit them to handle any cables.

LIFEBOOK T SERIES TABLET PC

Caring for your Tablet PC

■

Your Tablet PC is a durable but sensitive electronic
device. Treat it with care.

■

Make a habit of transporting it in a suitable carrying
case.

■

Do not attempt to service the computer yourself. Any
unauthorized service performed on the computer will
void the warranty.

■

To protect your computer from damage and to opti­mize system performance, be sure to keep all air all
vents unobstructed, clean, and clear of debris. This
may require periodic cleaning, depending upon the
environment in which the system is used.

■

Do not operate the computer in areas where the air
vents can be obstructed, such as in tight enclosures or
on soft surfaces like a bed or cushion.

■

Always follow installation instructions closely.

■

Keep it away from food and beverages.

■

If you accidentally spill liquid on your Tablet PC:

1. Turn it off.

2. Position it so that the liquid can run out.

3. Let it dry out for 24 hours, or longer if needed.

4. If your Tablet PC will not boot after it has dried
out, call your support representative.

■

Do not use your Tablet PC in a wet environment (near
a bathtub, swimming pool).

■

Always use the AC adapter and batteries that are
approved for your Tablet PC.

■

Avoid exposure to sand, dust and other environmental
hazards.

■

Do not expose your Tablet PC to direct sunlight for
long periods of time as temperatures above 140° F
(60° C) may damage your Tablet PC.

Care and Maintenance

■

Keep the covers closed on the connectors and slots
when they are not in use.

■

Do not put heavy or sharp objects on the computer.

■

If you are carrying your Tablet PC in a briefcase, or
any other carrying case, make sure that there are no
objects in the case pressing on the lid.

■

Do not drop your Tablet PC.

■

Do not touch the screen with any sharp objects.

Cleaning your Tablet PC

■

Always disconnect the power plug. (Pull the plug, not
the cord.)

■

Clean your Tablet PC with a damp, lint-free cloth. Do
not use abrasives or solvents.

■

Use a soft cloth to remove dust from the screen. Never
use glass cleaners.

Storing your Tablet PC

■

If storing your Tablet PC for a month or longer, turn
the Tablet PC off, fully charge the battery, then remove
and store all Lithium ion batteries.

■

Store your Tablet PC and batteries separately. If you
store your Tablet PC with a battery installed, the bat­tery will discharge, and battery life will be reduced. In
addition, a faulty battery might damage the Tablet PC.

■

Store your Tablet PC in a cool, dry location.
Temperatures should remain between 13º F (-25º C)
and 140º F (60º C).

Traveling with your Tablet PC

■

Do not transport your Tablet PC while it is turned on.

■

Do not check your Tablet PC as baggage. Carry it with
you.

■

When traveling with the hard drive removed, wrap the
drive in a non-conducting materials (cloth or paper).
If you have the drive checked by hand, be ready to
install the drive if needed. Never put your hard drive
through a metal detector. Have your hard drive hand­inspected by security personnel. You can however, put
your hard drive through a properly tuned X-ray
machine.

73

T Series.book Page 74 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Six

■

Take the necessary plug adapters if you're traveling
overseas. Check the following diagram to determine
which adapter you'll need or ask your travel agent.

Outlet Type Location

United States, Canada, Mexico, parts

of Latin America, Japan, Korea, the

Philippines, Taiwan

Russia and the Commonwealth of
Independent States (CIS), most of

Europe, parts of Latin America, the

Middle East, parts of Africa, Hong

Kong, India, most of South Asia

United Kingdom, Ireland, Malaysia,

Singapore, parts of Africa

BATTERIES

Caring for your Batteries

■

Always handle batteries carefully.

■

Do not short-circuit the battery terminals (that is, do
not touch both terminals with a metal object). Do not
carry lose batteries in a pocket or purse where they
may mix with coins, keys, or other metal objects.
Doing so may cause an explosion or fire.

■

Do not drop, puncture, disassemble, mutilate or incin­erate the battery.

■

Recharge batteries only as described in this manual
and only in ventilated areas.

■

Do not leave batteries in hot locations for more than a
day or two. Intense heat can shorten battery life.

■

Do not leave a battery in storage for longer than six
months without recharging it.

China, Australia, New Zealand

Figure 6-1. Outlet types

KEYBOARD

Caring for your Keyboard

The keyboard of your computer is a very sensitive
instrument. It is made up of many switches that are
activated when you press on the keys. The keyboard is a
major component of the heat dissipation system in a
Tablet PC. Due to heat and size considerations the
keyboard is not sealed. Because the keys are so close
together, it is not easy for the user to see when liquids
have fallen onto the circuitry below the keys.

Attempting to clean the keyboard with a spray on
cleaner or rag soaked with cleaner the liquid can drip
onto the circuitry sight unseen. Once the liquid seeps
between the layers of circuitry, it can cause corrosion or
other damage to the circuits. This can result in keys
which no longer operate, or which, when pressed, record
the wrong characters and other similar failures.

There is no repair for this problem other than replace­ment. The solution is to become aware of the issue and
take appropriate steps to protect your keyboard.

Increasing Battery Life

■

Keep brightness to the lowest comfortable level.

■

Set the power management for maximum battery life.

■

Put your Tablet PC in Standby mode when it is turned
on and you are not actually using it.

■

Limit your CD-ROM access.

■

Disable the Windows CD auto insert function.

■

Always use fully charged batteries.

■

Eject PCMCIA cards when not in use.

OPTIONAL FLOPPY DISK DRIVE AND
FLOPPY DISKS

Caring for your Floppy Disks

■

Avoid using floppy disks in damp and dusty locations.

■

Never store a floppy disk near a magnet or magnetic
field.

■

Do not use a pencil or an eraser on a disk or disk label.

■

Avoid storing the floppy disks in extremely hot or cold
locations, or in locations subject to severe temperature
changes. Store at temperatures between 50º F (10º C)
and 125º F (52º C).

■

Do not touch the exposed part of the disk behind the
metal shutter.

To clean the keyboard, use a rag dampened slightly with
cleaning solution. Use extreme care to prevent liquid
from dripping between the keys. Spraying directly on the
keys should be avoided. The spray should be applied first
to the cloth, and then the cloth wiped over the keys.

74

Caring for your Optional Floppy Disk Drive

■

To clean, wipe the floppy disk drive clean with a dry
soft cloth, or with a soft cloth dampened with water or
a solution of neutral detergent. Never use benzene,
paint thinner or other volatile material.

■

Avoid storing the floppy disk drive in extremely hot or
cold locations, or in locations subject to severe

T Series.book Page 75 Thursday, July 14, 2005 2:24 PM

Care and Maintenance

temperature changes. Store at temperatures between
50º F (10º C) and 125º F (52º C).

■

Keep the floppy disk drive out of direct sunlight and
away from heating equipment.

■

Avoid storing the floppy disk drive in locations subject
to shock and vibration.

■

Never use the floppy disk drive with any liquid, metal,
or other foreign matter inside the floppy disk drive
or disk.

■

Never disassemble or dismantle your floppy disk
drive.

OPTIONAL OPTICAL DRIVE AND DISCS

Caring for your discs

CDs and DVD discs are precision devices and will func­tion reliably if given reasonable care.

■

Always store your discs in their case when not in use.

■

Always handle discs by the edges and avoid touching
the surface.

■

Avoid storing any discs in extreme temperatures.

■

Do not bend discs or set heavy objects on them.

■

Do not spill liquids on discs.

■

Do not scratch discs.

■

Do not put a label on discs.

■

Do not get dust on discs.

■

Never write on the label surface with a ballpoint pen
or pencil. Always use a felt pen.

■

If a disc is subjected to a sudden change in tempera­ture, cold to warm condensation may form on the sur­face. Wipe the moisture off with a clean, soft, lint free
cloth and let it dry at room temperature. DO NOT use
a hair dryer or heater to dry discs.

■

If a disc is dirty, use only a disc cleaner or wipe it with
a clean, soft, lint free cloth starting from the inner
edge and wiping to the outer edge.

■

Avoid using or storing the drive where it will be
subjected to shock or vibration.

■

Do not disassemble or dismantle the optical drive.

PC CARDS

Caring for your PC Card Slots

PC Cards are durable, but you must treat them with
care. The documentation supplied with your PC Cards
provides specific information for caring for the cards.

When you don’t have a PC Card inserted in your system,
you should be sure to insert the PC Card slot inserts that
came with your system. These will help to keep dust and
dirt out of your system.

Caring for your Optional Optical Drive

Your optical drive is durable but you must treat it with
care. Please pay attention to the following points:

■

The drive rotates the compact disk at a very high
speed. Do not carry it around or subject it to shock or
vibration with the power on.

■

Avoid using or storing the drive where it will be
exposed to extreme temperatures.

■

Avoid using or storing the drive where it is damp or
dusty.

■

Use of a commercially-available lens cleaner kit is
recommended to maintain the drive lens.

■

Avoid using or storing the drive near magnets or
devices that generate strong magnetic fields.

75

T Series.book Page 76 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Six

76

T Series.book Page 77 Thursday, July 14, 2005 2:24 PM

Specifications

7

77

T Series.book Page 78 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Seven

78

T Series.book Page 79 Thursday, July 14, 2005 2:24 PM

Specifications

Specifications

This section provides the hardware and environmental
specifications for your LifeBook T Series Tablet PC.
Specifications of particular configurations will vary.

CONFIGURATION LABEL

Your LifeBook T Series Tablet PC has a configuration
label located on the bottom. (See figure 2-8 on page 16
for location). This label contains specific information
regarding the options you’ve chosen for your Tablet PC.
Following is an example label and information on how
to read your own configuration label.

Part Number

Configuration P/N: AE2XXXXXXXXXXXX

FPC P/N: FPCXXXXXX

T4210, PM 740, 12.1 XGA, XPTE, 40G, 256M

Processor

Model

Figure 7-1. Configuration Label

LifeBook T Series Tablet PC Specifications

The specifications for your particular model may vary.
To determine the specifications for your system, please
visit our Web site at: us.fujitsu.com/computers.

Dimensions 11.54” w x 9.61” d x 1.38" / 1.48"

CPU/Speed Intel® Pentium® M Processor 740/760

Chip set Intel 915GM - 533 MHz

Memory/Storage Specifications

Main RAM • 256 MB SDRAM (DDR2 533 MHz)

L1 cache
(CPU)

L2 cache 2 MB on-die

Screen
Size

Physical Specifications

(293 mm x 244 mm x 35 / 37.5 mm)

Processing Specifications

• 200-pin SO DIMM slots x 2
256 MB, 512 MB, and 1.0 GB modules

available, with a system maximum of

2.0 GB.

64 KB on-die

Configuration ID

Operating
System

Hard Drive

Memory

LifeBook T Series Tablet PC Specifications (Continued)

Hard disk
drive

Display 12.1" TFT XGA (1024 x 768),

VRAM Intel® Graphics Media Accelerator 915

Integrated
Interfaces

• 2.5” HDD

• Minimum 40 GB IDE (5400 rpm)
Also available:
60 GB (5400 rpm)
80 GB (5400 rpm)

• SATA 150

• Shock-mounted

• SMART Support

Display Specifications

16M colors:

• Color LCD

• Active Digitizer

• 32-bit color

• External monitor support: VGA
(1024 x 768 maximum)

• Dot pitch: 0.240 x 0.240 mm

• Viewing Angle:
Horizontal: 90 degrees (max.)
Vertical: 90 degrees (max.)

• Optional Indoor/Outdoor
Viewability

Optional 12.1" TFT SXGA+ (1400 x

1050), 16M colors:

• Color LCD

• Transmissive indoor display

• Active Digitizer

• 32-bit color

• External monitor support: VGA
(1024 x 768 maximum)

• Dot pitch: 0.175 x 0.175 mm

• Standard Viewing Angle

video graphics. Up to 128 MB shared
video memory using Dynamic Video
Memory Technology (DVMT)

Interface Specifications

• Modem (RJ-11)

• LAN (RJ-45)

• USB 2.0 x 2

•DC-In

•IrDA

• IEEE1394

• Analog RGB, Mini D-SUB 15-pin
connector for external VGA monitor

• Docking connector

BIOS ROM

1 MB (Boot Block Type Flash ROM)

79

T Series.book Page 80 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Seven

LifeBook T Series Tablet PC Specifications (Continued)

Interfaces
on Optional
Port
Replicator

• DC Power

• LAN (RJ-45)

• 15-pin D-SUB connector for external
VGA monitor

• DVI-D for external monitor

• USB 2.0 x 4

•Line Out

• Docking Port

PC Card
Slots

SD/Memory

• One Type I or Type II

• PCMCIA CardBus version 3.0

One slot for SD/Memory Stick card

Stick Slot

Smart Card

Dedicated slot for SmartCard

Slot

Modular Bay
Devices

One of the following devices is pre­installed:

• Dual-Layer Multi-Format

DVD Writer:
8x DVD-ROM, 24x CD-R, 10x CD­RW, 24x CD-ROM, 8x DVD-R, 4x
DVD-RW, 8x DVD+R, 4x DVD+RW,
3x DVD-RAM

•DVD-ROM Drive:

8x DVD-ROM

• DVD/CD-RW Combo Drive:

8x DVD-ROM, 24x CD-R, 24x CD­RW, 24x CD-ROM

• Modular Bay Battery

• Weight Saver

Infrared • System IR Port

• IrDA version 1.1 (FIR, 4 Mbps)

User
Interface
support

• Keyboard
Pitch: 19 mm, Stroke: 3 mm

• TouchPad pointing device with scroll
button or optional fingerprint sensor

• Active digitizer with pen input

• On-screen keyboard

Audio • Sigmatel STAC9753A

• Dual internal microphone array with

background noise cancellation

• Stereo speaker x 2

• Mono microphone and stereo

headphone jacks

• 26 adjustable audio levels

LifeBook T Series Tablet PC Specifications (Continued)

User
Controls

• Programmable Application Buttons,
each with primary and secondary
functions (default applications:
Microsoft Journal and Calculator)

• Security button support

• Trusted Platform Module (TPM)
support (on some models)

• Suspend/Resume button

Status
Indicators
(LCDs)

• Power

•Charge/DC-In

• Battery charging (x 2)

• Battery level (x 2)

• Wireless LAN/Bluetooth Switch

• Optical drive

• Hard disk drive

•Caps Lock

•Num Lock

• Scroll Lock

•Security

Power Specifications

Main Battery • 6-cell

• Removable, Lithium ion

• 10.8 V @5200 mAh, max. 56 WHr

• Warm-swappable

Optional Bay
Battery

•6-cell

• Removable, Lithium ion

• 10.8V @ 3800 mAh, max. 41.0

WHr

Bridge
Battery

• 6-cell NiMH, 35 mAh

• Life (with Suspend-to-RAM on

bridge battery only):
5 minutes from full charge

AC Adapter

Autosensing 100 - 240V, supplying 19
VDC, with a current of 3.15 A

Environmental Specifications

to 60o C)

o

to 95o F (5o to 35o C)

Temperature

Humidity

Operating: 41

Non-operating: 5o to 140o F

o

(-15

Operating:
20 to 80% non-condensing
Non-operating:
8 to 85% non-condensing

80

T Series.book Page 81 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC Specifications (Continued)

Agency Approval Specifications

• EN55022 (CISPR22) Class B

• FCC 15, Class B

• FCC 15C, 15.247

• ICES-003

Emissions

• Canada RSS-210

• ETSI EN 300 328-1 V1.3.1 : 2001

• ETSI EN 300 328-2 V1.2.1 :
2001_12

• ETSI EN 301 498-17 V1.2.1 : 2002

• ETSI EN 301 498-1 V1.4.1 : 2002

Specifications

Immunity

Safety

Telec om

Operating
systems

• EN55024 (1998)

• UL and cUL Listed, UL 60950

• FCC Part 68

• IC CS-03

Additional Specifications

®

Microsoft

Windows®

XP Tablet PC Edition 2005

81

T Series.book Page 82 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Seven

Regulatory Information

Changes or modifications not expressly
approved by Fujitsu could void this user’s
authority to operate the equipment

FCC NOTICES
Notice to Users of Radios and Television

These limits are designed to provide reasonable protec­tion against harmful interference in a residential installa­tion. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a partic­ular installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet that is on a
different circuit than the receiver.

• Consult the dealer or an experienced radio/TV
technician for help.

Shielded interconnect cables must be employed with this
equipment to ensure compliance with the pertinent RF
emission limits governing this device.

Notice to Users of the US Telephone Network

This equipment contains an internal modem (Fujitsu
Media Devices, MBH 7MD33) that complies with Part
68 of the FCC rules. On the bottom of this equipment is
a label that contains, among other information, the FCC
registration number and ringer equivalence number
(REN) for this equipment. If requested, this information
must be provided to the telephone company.

This equipment is designed to be connected to the tele­phone network or premises wiring using a standard jack
type USOC RJ11C. A plug and jack used to connect this
equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A
compliant telephone cord and modular plug is provided
with this product. It is designed to be connected to a
compatible modular jack that is also compliant.

The ringer equivalent number (REN) of this equipment
is 0.1B as shown on the label. The REN is used to deter­mine the number of devices that may be connected to a

telephone line. Excessive RENs on a telephone may
result in the devices not ringing in response to an
incoming call. In most but not all areas, the sum of
RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as
determined by the total RENs, contact the local tele­phone company.

If this equipment causes harm to the telephone network,
the telephone company will notify you in advance that
temporary discontinuance of service may be required.
But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible.
Also, you will be advised of your right to file a complaint
with the FCC if you believe it is necessary.

The telephone company may make changes in its facili­ties, equipment, operations or procedures that could
effect the operation of the equipment. If this happens
the telephone company will provide advance notice in
order for you to make necessary modifications to main­tain uninterrupted service.

If trouble is experienced with this equipment, for repair
or warranty information, please refer to the manual or
contact Fujitsu Computer Systems Corporation,
Customer Service. If the equipment is causing harm to
the telephone network, the telephone company may
request that you disconnect the equipment until the
problem is resolved.

The equipment cannot be used on public coin service
provided by the telephone company. Connection to
party line service is subject to state tariffs. (Contact the
state public utility commission, public service commis­sion or corporation commission for information).

If your home has specially wired alarm equipment
connected to the telephone line, ensure the installation
of this computer does not disable your alarm equip­ment. If you have any questions about what will disable
alarm equipment, consult your telephone company or a
qualified installer.

The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other
electronic device to send any message via a telephone fax
machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or
on the first page of the transmission, the date an time it
is sent and an identification of the business or other
entity, or other individual sending the message and the
telephone number of the sending machine or such busi­ness, other entity, or individual.

82

T Series.book Page 83 Thursday, July 14, 2005 2:24 PM

Regulatory Information

DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of
Canadian Interference-Causing Equipment Regulations.

CET appareil numérique de la class B respecte toutes les
exigence du Réglement sur le matérial brouilleur du
Canada.

Notice to Users of the Canadian Telephone Network

NOTICE: This equipment (Fujitsu Media Devices
modem, MBH 7MD33) meets the applicable Industry
Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The
abbreviation, IC, before the registration number
(4061A-8687) signifies that registration was performed
based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It
does not imply that Industry Canada approved the
equipment.

Before connecting this equipment to a telephone line the
user should ensure that it is permissible to connect this
equipment to the local telecommunication facilities. The
user should be aware that compliance with the certifica­tion standards does not prevent service degradation in
some situations.

Repairs to telecommunication equipment should be
made by a Canadian authorized maintenance facility.
Any repairs or alterations not expressly approved by
Fujitsu or any equipment failures may give the telecom­munication company cause to request the user to
disconnect the equipment from the telephone line.

NOTICE: The Ringer Equivalence Number (REN) for
this terminal equipment is 0.0. The REN assigned to
each terminal equipment provides an indication of the
maximum number of terminals allowed to be connected
to a telephone interface. The termination on an interface
may consist of any combination of devices subject only
to the requirement that the sum of the Ringer Equiva-

lence Numbers of all the devices does not exceed five.

For safety, users should ensure that the
electrical ground of the power utility, the
telephone lines and the metallic water
pipes are connected together. Users should
NOT attempt to make such connections
themselves but should contact the appro­priate electric inspection authority or elec­trician. This may be particularly important
in rural areas.

Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien

AVIS: Le présent matériel est conforme aux spécifica­tions techniques d’Industrie Canada applicables au
matériel terminal. Cette conformité est confirmée par le
numéro d’enregistrement. Le sigle IC, placé devant le
numéro d’enregistrement (4061A-8687), signifie que
l’enregistrement s’est effectué conformément à une
déclaration de conformité et indique que les spécifica­tions techniques d’Industrie Canada ont été respectées.
Il n’implique pas qu’Industrie Canada a approuvé le
matériel.

Avant de connecter cet équipement à une ligne télépho­nique, l’utilisateur doit vérifier s’il est permis de
connecter cet équipement aux installations de télécom­munications locales. L’utilisateur est averti que même la
conformité aux normes de certification ne peut dans
certains cas empêcher la dégradation du service.

Les réparations de l’équipement de télécommunications
doivent être eVectuées par un service de maintenance
agréé au Canada. Toute réparation ou modification, qui
n’est pas expressément approuvée par Fujitsu, ou toute
défaillance de l’équipement peut entraîner la compagnie
de télécommunications à exiger que l’utilisateur décon­necte l’équipement de la ligne téléphonique.

AVIS: L’indice d’équivalence de la sonnerie (IES) du
présent matériel est de 0.0. L’IES assigné à chaque
dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d’une interface peut
consister en une combinaison quelconque de dispositifs,
à la seule condition que la somme d’indices d’équiva-

lence de la sonnerie de tous les dispositifs n’excède pas 5.

Pour assurer la sécurité, les utilisateurs
doivent vérifier que la prise de terre du ser­vice d’électricité, les lignes télphoniques et
les conduites d’eau métalliques sont con­nectées ensemble. Les utilisateurs NE
doivent PAS tenter d’établir ces connex­ions eux-mêmes, mais doivent contacter
les services d’inspection d’installations
électriques appropriés ou un électricien.
Ceci peut être particulièrement important
en régions rurales.

83

T Series.book Page 84 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Seven

84

T Series.book Page 85 Thursday, July 14, 2005 2:24 PM

Glossary

8

85

T Series.book Page 86 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Eight

86

T Series.book Page 87 Thursday, July 14, 2005 2:24 PM

Glossary

Glossary

AC Adapter

A device which converts the AC voltage from a wall
outlet to the DC voltage needed to power your Tablet
PC.

ACPI

Advanced Configuration and Power Interface

Active-Matrix Display

A type of technology for making flat-panel displays
which has a transistor or similar device for every pixel
on the screen.

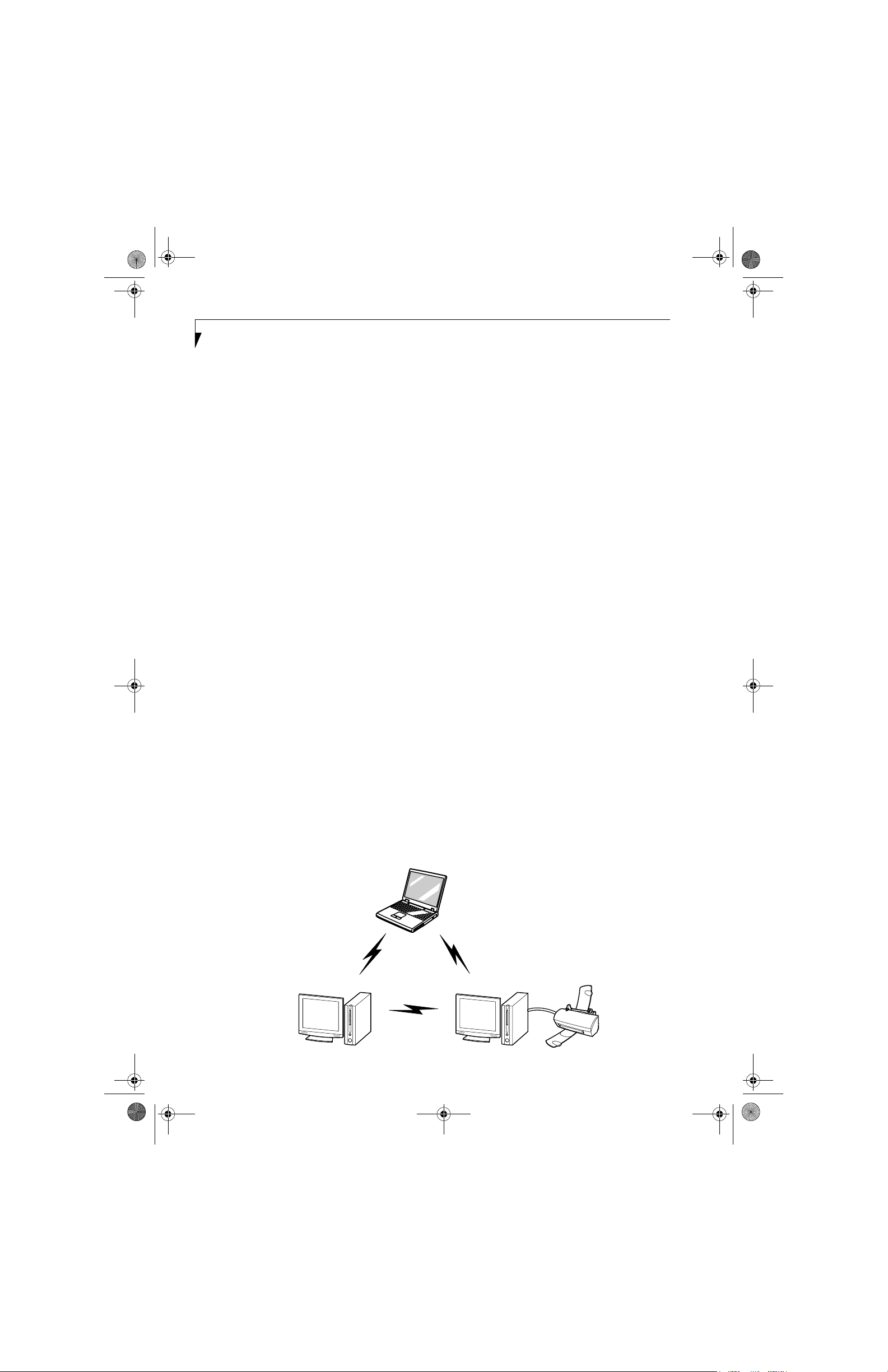

AdHoc

A designation for wireless LAN network configuration.
It indicates a form of communication limited to those
personal computers which have wireless LAN function. .

ADSL

Asymmetric Digital Subscriber Line

Technology for transporting high bit-rate services over
ordinary phone lines.

Auto/Airline Adapter

A device which converts the DC voltage from an auto­mobile cigarette lighter or aircraft DC power outlet to
the DC voltage needed to power your Tablet PC.

BIOS

Basic Input-Output System. A program and set of
default parameters stored in ROM which tests and
operates your Tablet PC when you turn it on until it
loads your installed operating system from disk. Infor­mation from the BIOS is transferred to the installed
operating system to provide it with information on the
configuration and status of the hardware.

Bit

An abbreviation for binary digit. A single piece of
information which is either a one (1) or a zero (0).

bps

An abbreviation for bits per second. Used to describe
data transfer rates.

Boot

To start-up a computer and load its operating system
from disk, ROM or other storage media into RAM.

Bus

An electrical circuit which passes data between the CPU
and the sub-assemblies inside your Tablet PC.

Byte

8 bits of parallel binary information.

Cache Memory

A block of memory built into the micro-processor
which is much faster to access than your system RAM
and used in specially structured ways to make your
overall data handling time faster.

CardBus

A faster, 32-bit version of the PC Card interface which
offers performance similar to the 32-bit PCI
architecture.

CD-ROM

Compact disk read only memory. This is a form of
digital data storage which is read optically with a laser
rather than a magnetic head. A typical CD-ROM can
contain about 600MB of data and is not subject to heads
crashing into the surface and destroying the data when
there is a failure nor to wear from reading.

Channel

The frequency band of wireless LAN to be used in
communications over wireless LAN or at the access
point.

CMOS RAM

Complementary metal oxide semiconductor random
access memory. This is a technology for manufacturing
random access memory which requires very low levels of
power to operate.

Command

An instruction which you give your operating system.
Example: run a particular application or format a floppy
disk.

Configuration

The combination of hardware and software that makes
up your system and how it is allocated for use.

CRT

Cathode Ray Tube. A display device which uses a beam
of electronic particles striking a luminescent screen. It
produces a visual image by varying the position and
intensity of the beam.

Data

The information a system stores and processes.

DC

Direct current. A voltage or current that does not
fluctuate periodically with time.

Default Value

A pre programmed value to be used if you fail to set
your own.

87

T Series.book Page 88 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Eight

DHCP

Dynamic Host Configuration Protocol

A protocol used for automatically fetching communica­tion parameters such as IP addresses. The side which
assigns IP address is called DHCP server and the side
that is assigned it is called DHCP client.

DIMM

Dual-in-line memory module.

Disk

A spinning platter of magnetic data storage media. If the
platter is very stiff it is a hard drive, if it is highly flexible
it is a floppy disk, if it is a floppy disk in a hard housing
with a shutter it is commonly called a diskette.

Disk Drive

The hardware which spins the disk and has the heads
and control circuitry for reading and writing the data
on the disk.

Diskette

A floppy disk in a hard housing with a shutter.

DMA

Direct Memory Access

Special circuitry for memory to memory transfers of
data which do not require CPU action.

DMI

Desktop Management Interface

A standard that provides PC management applications
with a common method of locally or remotely querying
and configuring PC computer systems, hardware and
software components, and peripherals.

DNS

Domain Name System

A function that controls the correspondence of IP
addresses assigned to a computer with the name. Even
for those computers whose IP addresses are unknown, if
their names are known, it is possible to communicate
with them.

DOS

Disk Operating System (MS-DOS is a Microsoft Disk
Operating System).

Driver

A computer program which converts application and
operating system commands to external devices into the
exact form required by a specific brand and model of
device in order to produce the desired results from that
particular equipment.

ECP

Extended Capability Port. A set of standards for high
speed data communication and interconnection
between electronic devices.

Encryption Key (Network Key)

Key information used to encode data for data transfer.

This device uses the same encryption key to encode and
decode the data, and the identical encryption key is
required between the sender and receiver.

ESD

Electro-Static Discharge. The sudden discharge of elec­tricity from a static charge which has built-up slowly.
Example: the shock you get from a doorknob on a dry
day or the sparks you get from brushing hair on a dry
day.

Extended Memory

All memory more than the 640KB recognized by
MS-DOS as system memory.

FCC

Federal Communication Commission.

Floppy Disk

A spinning platter of magnetic data storage media which
is highly flexible.

GB

Gigabyte.

Hard drive

A spinning platter of magnetic data storage media where
the platter is very stiff.

I/O

Input/Output. Data entering and leaving your Tablet PC
in electronic form.

I/O Port

The connector and associated control circuits for data
entering and leaving your Tablet PC in electronic form.

IDE

Intelligent Drive Electronics. A type of control interface
for a hard drive which is inside the hard drive unit.

IEEE 1394

Industry standard that allows you to connect between
your Tablet PC and a peripheral device such as a digital
camera. Also known as “Firewire” or “iLINK”.

88

T Series.book Page 89 Thursday, July 14, 2005 2:24 PM

Glossary

IEEE802.11a

One of the wireless LAN standards prescribed by the 802
committee in charge of establishing standards of LAN
technology in IEEE (Institute of Electrical and Elec­tronic Engineers). This standard allows communica­tions at the maximum speed of 54 Mbps by using a 5
GHz band which can freely be used without radio
communication license.

IEEE802.11b

One of the wireless LAN standards prescribed by 802
committee in charge of establishing standards of LAN
technology in IEEE (Institute of Electrical and Elec­tronic Engineers). It allows communications at the
maximum speed of 11 Mbps by a band of 2.4 GHz (ISM
band) which can freely be used without radio communi­cation license.

IEEE802.11g

One of the wireless LAN standards prescribed by 802
committee in charge of establishing standards of LAN
technology in IEEE (Institute of Electrical and Elec­tronic Engineers). It allows communications at the
maximum speed of 54 Mbps by a band of 2.4 GHz (ISM
band) which can freely be used without radio communi­cation license.

Infrared

Light just beyond the red portion of the visible light
spectrum which is invisible to humans.

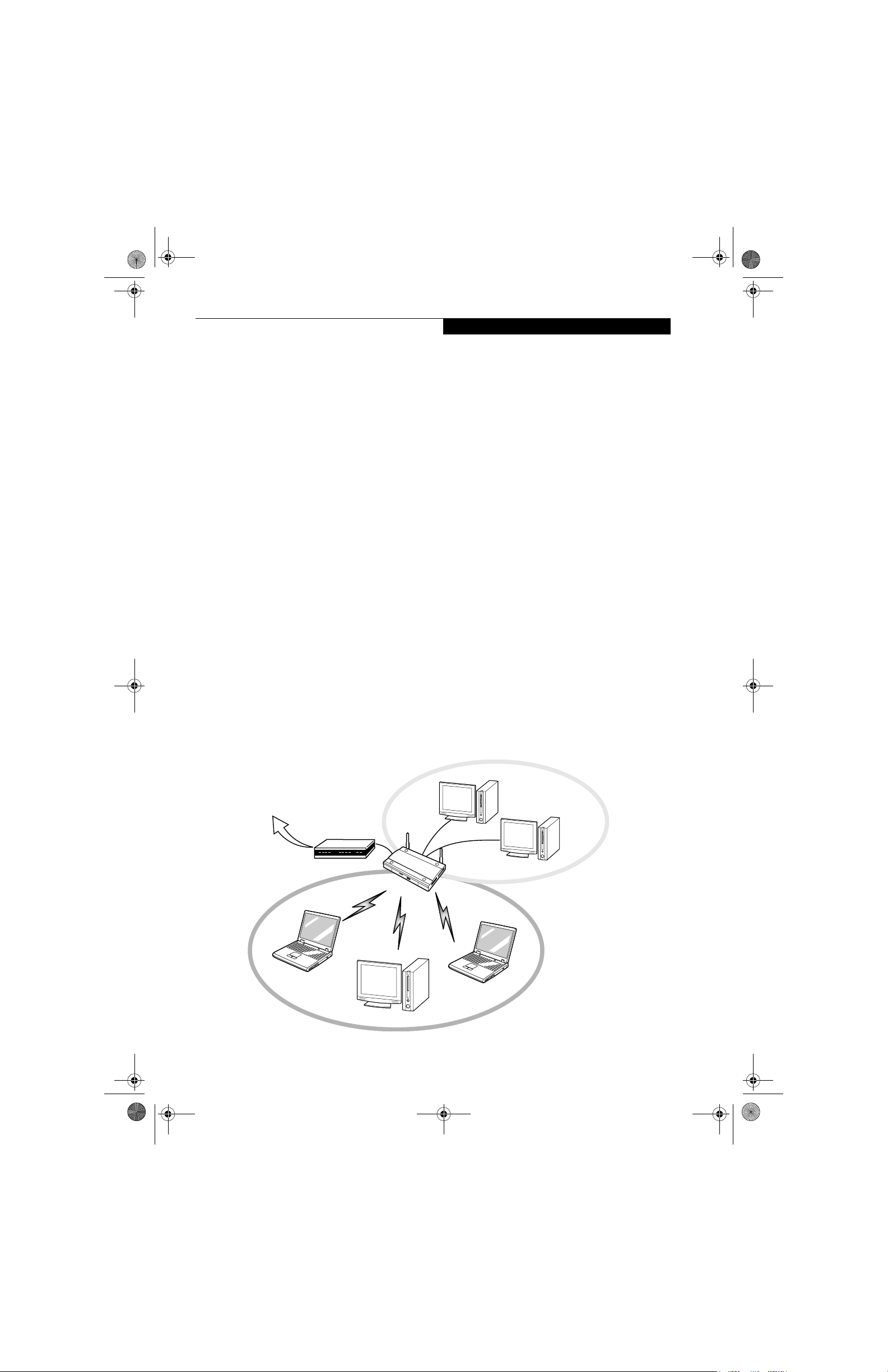

Infrastructure

A designation of Wireless LAN network configurations.
It indicates a form of communication using an Access
Point.

IP Address

An address used for computers to communicate in the
TCP/IP environment.

Current IPv4 (version 4) uses four values in the range
between 1 and 255. (Example: 192.168.100.123).

There are two types of IP address: global address and
private address.

The global address is an only address in the world. It is
controlled by JPNIC (Japan Network Information
Center). A private address is an only address in the
closed network.

IR

An abbreviation for infrared.

IrDA

Infrared Data Association. An organization which
produces standards for communication using infrared
as the carrier.

IRQ

Interrupt Request

An acronym for the hardware signal to the CPU that an
external event has occurred which needs to be
processed.

KB

Kilobyte.

LAN

Local Area Network

An interconnection of computers and peripherals
within a single limited geographic location which can
pass programs and data amongst themselves.

LCD

Liquid Crystal Display

A type of display which makes images by controlling the
orientation of crystals in a crystalline liquid.

Lithium ion Battery

A type of rechargeable battery which has a high power­time life for its size and is not subject to the memory
effect as Nickel Cadmium batteries.

LPT Port

Line Printer Port. A way of referring to parallel interface
ports because historically line printers were the first and
latter the most common device connected to parallel
ports.

MAC Address

Media Access Control Address

A unique physical address of a network card. For
Ethernet, the first three bytes are used as the vendor
code, controlled and assigned by IEEE. The remaining
three bytes are controlled by each vendor (preventing
overlap), therefore, every Ethernet card is given a unique
physical address in the world, being assigned with a
different address from other cards. For Ethernet, frames
are sent and received based on this address.

MB

Megabyte.

Megahertz

1,000,000 cycles per second.

Memory

A repository for data and applications which is readily
accessible to your Tablet PC’s CPU.

MHz

Megahertz.

89

T Series.book Page 90 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Eight

MIDI

Musical Instrument Digital Interface. A standard
communication protocol for exchange of information
between computers and sound producers such as
synthesizers.

Modem

A contraction for MOdulator-DEModulator. The
equipment which connects a computer or other data
terminal to a communication line.

Monaural

A system using one channel to process sound from all
sources.

MPU-401

A standard for MIDI interfaces and connectors.

MTU

Maximum Transmission Unit

The maximum data size that can be transferred at a time
through the Internet or other networks. You can set a
smaller MTU size to obtain successful communication,
if you have difficulty transferring data due to the fact
that the maximum size is too large.

Network authentication

The method of authentication performed by wireless
LAN clients to connect with the access point. There are
two types: open system authentication and shared key
authentication. The type of authentication must be set
to each client and also coincide with the setting of access
point with which to communicate. Network authentica­tion is sometimes called authentication mode.

Network key

Data that is used for encrypting data in data communi­cation. The personal computer uses the same network
key both for data encryption and decryption, therefore,
it is necessary to set the same network key as the other
side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is
performed to avoid interference or data theft. This
grouping is performed with “Network name (SSID)”. In
order to improve security, the network key is set
allowing no communication unless “Network name
(SSID)” coincides with the network key.

NTSC

National TV Standards Commission. The standard for
TV broadcast and reception for the USA.

Open system authentication

One of network authentication types for wireless LAN.
Since there is no check of network key upon authentica­tion, clients can connect to the access point without
submitting correct network keys. However, in case of

actual communications, the same network key must be
set. Open system authentication is sometimes called
Open key authentication.

Operating System

A group of control programs that convert application
commands, including driver programs, into the exact
form required by a specific brand and model of micro­processor in order to produce the desired results from
that particular equipment.

Partition

A block of space on a hard drive which is set aside and
made to appear to the operating system as if it were a
separate disk, and addressed by the operating system
accordingly.

PCI

Peripheral Component Interconnect

Self-configuring PC local bus. Designed by Intel, PCI has
gained wide acceptance as a standard bus design.

PCMCIA

PCMCIA is a trademark of the Personal Computer
Memory Card International Association. The Personal
Computer Memory Card International Association is an
organization that sets standards for add-in cards for
personal computers.

Peripheral Device

A piece of equipment which performs a specific function
associated with but not integral to a computer.
Examples: a printer, a modem, a CD-ROM.

Pitch (keyboard)

The distance between the centers of the letter keys of a
keyboard.

Pixel

The smallest element of a display, a dot of color on your
display screen. The more pixels per area the clearer your
image will appear.

POST

Power On Self Test. A program which is part of the BIOS
which checks the configuration and operating condition
of your hardware whenever power is applied to your
Tablet PC. Status and error messages may be displayed
before the operating system is loaded. If the self test
detects failures that are so serious that operation can not
continue, the operating system will not be loaded.

PPPoE

Point to Point Protocol over Ethernet.

A protocol for Ethernet, using a Point-to-Point Protocol
(PPP), which is used for connection on the phone line.

90

T Series.book Page 91 Thursday, July 14, 2005 2:24 PM

Glossary

Program

An integrated set of coded commands to your
computers telling your hardware what to do and how
and when to do it.

Protocol

Procedures and rules use to send and receive data
between computers.

- Method of sending and receiving data

- Process used to handle communication errors

Conditions required for communication are organized
in procedures for correct transfer of information.

RAM

Random Access Memory. A hardware component of
your Tablet PC that holds binary information (both
program and data) as long as it has the proper power
applied to it.

RAM Module

A printed circuit card with memory and associated
circuitry which allows the user to add additional
memory to the computer without special tools.

Reset

The act of reloading the operating system. A reset erases
all information stored in RAM.

Restart

See Reset.

Resume

To proceed after interruption. In your Tablet PC this
refers to returning to active operation after having been
in one of the suspension states.

ROM

Read Only Memory. A form of memory in which infor­mation is stored by physically altering the material. Data
stored in this way can not be changed by your Tablet PC
and does not require power to maintain it.

SDRAM

Synchronous Dynamic Random Access Memory.

Serial Port

A connection to another device through which data is
transferred one bit at a time on a single wire with any
other wires only for control of the device not for transfer
of data.

Shared key authentication

One of the network authentication types for wireless
LAN. Upon authentication, the access point checks
whether the same network key is set to the client. If the
client uses a wrong network key or the network key itself
is not set, authentication is unsuccessful, allowing no
communications with the access point.

SMART

Self-Monitoring, Analysis and Reporting Technology
(SMART) is an emerging technology that provides near­term failure predictions for hard drives. When SMART
is enabled the hard drive monitors pre-determined drive
attributes that are susceptible to degradation over time.
If a failure is likely to occur, SMART makes a status
report available so that the Tablet PC can prompt the
user to back up the data on the drive. Naturally not all
failures are predictable. SMART predictability is limited
to those attributes which the drive can self-monitor. In
those cases where SMART can give advance warning, a
considerable amount of precious data can be saved.

SRAM

Static random access memory. A specific technology of
making RAM which does not require periodic data
refreshing.

SSID

Service Set Identifier

Specifies which network you are joining. Some systems
allow you to specify any SSID as an option so you can
join any network.

Standby

To make inoperative for a period of time. Your Tablet PC
uses various suspension states to reduce power
consumption and prolong the charge of your battery.

Status Indicator

A display which reports the condition of some portion
of your hardware. On your Tablet PC this is an LCD
screen just above the keyboard.

Stereo (audio)

A system using two channels to process sound from two
different sources.

Subnet mask

TCP-IP network is controlled by being divided into
multiple smaller networks (subnets). IP address consists
of the subnet address and the address of each computer.
Subnet mask defines how many bits of IP address
comprise the subnet address. The same value shall be set
among computers communicating with each other.

SVGA

Super VGA.

S-Video

Super Video. A component video system for driving a
TV or computer monitor.

SXGA+

Short for Super Extended Graphics Array, a display
specification that is capable of displaying 1400 x 1050
resolution.

91

T Series.book Page 92 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Section Eight

System Clock

An oscillator of fixed precise frequency which synchro­nizes the operation of the system and is counted to
provide time of day and date.

TCP/IP

Transmission Control Protocol/Internet Protocol.
A standard Internet protocol that is most widely used.

TFT

Thin Film Transistor – A technology for flat display
panels which uses a thin film matrix of transistors to
control each pixel of the display screen individually.

UL

Underwriters Laboratories – An independent organiza­tion that tests and certifies the electrical safety of devices.

USB

Universal Serial Bus.
Standard that allows you to simultaneously connect up
to 127 USB devices such as game pads, pointing devices,
printers, and keyboards to your computer.

VGA

Video Graphics Array. A video display standard
originally introduced by IBM with the PS/2 series of
personal computers.

XGA

Extended VGA.

Zip Drive

A 100MB or 250MB read/write removable media disk
drive.

VRAM

Video Random Access Memory. A memory dedicated to
video display data and control.

WFM

Wired for Management is Intel’s broad-based initiative
to reduce the total cost of ownership (TCO) of business
computing without sacrificing power and flexibility.

Wi-Fi Compatible

Wi-Fi (Wireless Fidelity) Identifies that the product has
passed the interoperability test, supplied by the WECA
(Wireless Ethernet Compatibility Alliance), which guar­antees the interoperability of wireless IEEE 802.11 LAN
products. For more information on the Wi-Fi standard,
go to the WECA website at: www.wirelessethernet.com.

WLAN

Wireless Local Area Network. A wireless interconnection
of computers and peripherals within a single limited
geographic location which can pass programs and data
amongst themselves.

Write Protect

Prevent alteration of the binary state of all bits in a
storage media. Example: all information on a device
such as a floppy diskette; a block of space in a storage
media such as a partition of a hard drive; a file or direc­tory of floppy diskette or hard drive.

92

T Series.book Page 93 Thursday, July 14, 2005 2:24 PM

Appendix A

Integrated Wireless
LAN* User’s Guide

*Optional Device

93

T Series.book Page 94 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix A

94

T Series.book Page 95 Thursday, July 14, 2005 2:24 PM

Wireless LAN User’s Guide

FCC REGULATORY INFORMATION

Please note the following regulatory information related to the
wireless LAN device.

Regulatory Notes and Statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wire­less LAN (WLAN) devices. The energy levels of these emissions,
however, are far much less than the electromagnetic energy
emissions from wireless devices such as mobile phones. Wire­less LAN devices are safe for use by consumers because they
operate within the guidelines found in radio frequency safety
standards and recommendations. The use of Wireless LAN
devices may be restricted in some situations or environments,
such as:



On board an airplane, or



In an explosive environment, or



In situations where the interference risk to other devices or
services is perceived or identified as harmful.

In cases in which the policy regarding use of Wireless LAN
devices in specific environments is not clear (e.g., airports,
hospitals, chemical/oil/gas industrial plants, hospitals, private
buildings), obtain authorization to use these devices prior to
operating the equipment.

Regulatory Information/Disclaimers

Installation and use of this Wireless LAN device must be in
strict accordance with the instructions included in the user
documentation provided with the product. Any changes or
modifications made to this device that are not expressly
approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for
any radio or television interference caused by unauthorized
modification of this device, or the substitution or attachment of
connecting cables and equipment other than those specified by
the manufacturer. It is the responsibility of the user to correct
any interference caused by such unauthorized modification,
substitution or attachment. The manufacturer and its autho­rized resellers or distributors will assume no liability for any
damage or violation of government regulations arising from
failure to comply with these guidelines.

This device must not be co-located or operating in conjunction
with any other antenna or transmitter.

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This
device may not cause interference, and, (2) This device must
accept any interference, including interference that may cause
undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installa­tion. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio

communications. However, there is no guarantee that interfer­ence will not occur in a particular installation.

If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and the
receiver.

3. Connect the equipment to an outlet on a circuit different
from the one the receiver is connected to.

4. Consult the dealer or an experienced technician for help.

FCC Radio Frequency Exposure statement

The available scientific evidence does not show that any health
problems are associated with using low power wireless devices.
There is no proof, however, that these low power wireless devices are
absolutely safe. Low power wireless devices emit low levels of radio
frequency energy (RF) in the microwave range while being used.
Whereas high levels of RF can produce health effects (by heating
tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low­level RF exposure have not found any biological effects. Some
studies have suggested that some biological effects might occur, but
such findings have not been confirmed by additional research. The
wireless LAN radio device has been tested and found to comply with
FCC radiation exposure limits set forth for an uncontrolled equip­ment and meets the FCC radio frequency (RF) Exposure Guidelines
in Supplement C to OET65.

The maximum SAR value measured from the devices are:



Intel PROSet Wireless LAN(WM3945ABG) : 1.51 W/kg



Intel PROSet WirelessLAN(WM3945ABG)

+ B

luetooth

Simultaneous: 1.29 W/kg



Atheros Wireless LAN (AR5BXB6) : 1.59 W/kg



Atheros Wireless LAN (AR5BXB6 ) + Bluetooth
Simultaneous: 1.32 W/kg

Export restrictions

This product or software contains encryption code which may
not be exported or transferred from the US or Canada without
an approved US Department of Commerce export license. This
device complies with Part 15 of FCC Rules., as well as ICES 003
B / NMB 003 B. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesirable operation.
Modifications not expressly authorized by Fujitsu Computer
Systems Corporation may invalidate the user's right to operate
this equipment.

Canadian Notice

To prevent radio interference to the licensed service, this device
is intended to be operated indoors and away from windows to
provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.

High power radars are allocated as primary users of 5250-5350
MHz and 5650 - 5850 MHz and these radars could cause inter­ference and/or damage to LELAN (license-exempt LAN)
devices operating in these bands.

95

T Series.book Page 96 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

Before Using the Wireless LAN

This manual describes the procedures required to prop­erly setup and configure the integrated Wireless LAN
Mini-PCI device (referred to as "WLAN device" in the
rest of the manual). Before using the WLAN device, read
this manual carefully to ensure it's correct operation.
Keep this manual in a safe place for future reference.

Wireless LAN Devices Covered by this Document

This document is applicable to systems containing one
of the following two devices. Most of the procedures are
identical. Sections that differ between the two devices
have been noted in the text:



Intel PRO/Wireless 3945ABG(WM3945ABG)

Network connection(802.11a+b/g)



Atheros® AR5006EXS(AR5BXB6)Mini-Card Wireless

network card(802.11a+b/g)

Characteristics of the WLAN Device



The WLAN device is a Mini-PCI card attached to the
main board of the mobile computer.



It operates in two license-free RF bands, therefore
eliminating the need to procure an FCC license to
operate. It operates in the 2.4GHz Industrial, Scien­tific, and Medical (ISM) RF band and in the lower and
middle bands of the 5GHz Unlicensed National Infor­mation Infrastructure (UNII) bands.



The WLANs are capable of three operating modes,
IEEE802.11a, IEEE802.11b and IEEE802.11g, wireless
LAN standards governed by the IEEE (Institute of
Electronics and Electrical Engineers).



Encoding of data is modulated using Direct Sequence
Spread Spectrum (DSSS) and Complementary Code
Keying (CCK) when the WLAN device is operating in
IEEE 802.11b mode and Orthogonal Frequency Divi­sion Multiplexing (OFDM) when operating in
IEEE802.11a or IEEE802.11g mode.



The WLAN device is Wi-Fi certified and operates at
the maximum data transfer rate of 54 Mbps in
IEEE802.11a or IEEE802.11g mode and 11 Mbps in
IEEE802.11b mode.



The maximum communication range indoors is
approximately 80 feet (25 meters). However, that
range will increase or decrease depending on factors
such as number of walls, reflective material, or inter­ference from external RF sources.



The WLAN device supports the following encryption
methods - WEP, TKIP, and AES encryption.

WIRELESS LAN MODES USING THIS DEVICE

Ad Hoc Mode

(See Figure A-1)

"Ad Hoc Mode" refers to a wireless network architecture
where wireless network connectivity between multiple
computers is established without a central wireless
network device, typically known as Access Point(s).
Connectivity is accomplished using only client devices in
a peer-to-peer fashion. That is why Ad Hoc networks are
also known as peer-to-peer networks. Ad Hoc networks
are an easy and inexpensive method for establishing
network connectivity between multiple computers.

Ad Hoc mode requires that the SSID, network authenti­cation, and encryption key settings are identically
configured on all computers in the Ad Hoc network.

Figure A-1. Ad Hoc Mode Network

96

T Series.book Page 97 Thursday, July 14, 2005 2:24 PM

Wireless LAN User’s Guide

Access Point (Infrastructure) Mode

(See Figure A-2)

Infrastructure mode refers to a wireless network archi­tecture in which devices communicate with wireless or
wired network devices through an Access Point. In infra­structure mode, wireless devices can communicate with
each other or with a wired network. Corporate wireless
networks operate in infrastructure mode because they
require access to the wired LAN in order to access
computers, devices, and services such as file servers,
printers, and databases.

How to Handle This Device

The WLAN device comes pre-installed in your mobile
computer. Under normal circumstances, it should not be
necessary for you to remove or re-install it. The Oper­ating System that your mobile computer comes with has
been pre-configured to support the WLAN device.

WIRELESS NETWORK CONSIDERATIONS

■

The WLAN devices support IEEE802.11a+b/g.

■

The devices operate in the 2.4GHz ISM band the 5
GHz lower and middle UNII bands.

■

The maximum range of the WLAN device indoors is
typically 80 feet (25 meters). Please note that the max­imum range you achieve may be shorter or longer than
80 feet, depending on factors such as access point

transmit power, number and density of obstructions,
or external RF interference.

■

Microwave ovens will interfere with the operation of
WLAN device as microwave ovens operate in the same

2.4GHz frequency range that IEEE802.11b/g devices
operate in. Interference by microwaves does not occur
with IEEE802.11a radio which operates in the 5 GHz
RF band.

■

Wireless devices that transmit in the 2.4 GHz fre­quency range may interfere with the operation of
WLAN devices in IEEE802.11b/g modes. Interference
symptoms include reduced throughput, intermittent
disconnects, and large amounts of frame errors. It is
HIGHLY recommended that interfering devices be
powered off to ensure proper operation of the WLAN.

DEACTIVATING THE WLAN DEVICE

Deactivation of the WLAN device may be desired in
certain circumstances (to extend battery life) or where
certain environments require it (i.e. hospitals, clinics,
airplanes, etc.). Fujitsu mobile computers employ two
methods with which to deactivate the WLAN device:

■

Using the Wireless On/Off Switch, or,

■

In Windows, using the Intel PROSet Software or

Atheros Client Utility software.

Figure A-2. Access Point (Infrastructure) Mode Network

Internet

ADSL modem,
cable modem,
or similar

Wireless LAN

Wired LAN

Access Point*

*An optional hub for a wired
LAN may be required depending
upon the type of access point used.

97

T Series.book Page 98 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

Deactivation using the Wireless On/Off Switch

The WLAN device can be deactivated quickly and effi­ciently by toggling the Wireless On/Off Switch to the Off
position. (Figure A-3)

The wireless On/Off switch has no effect on non-Wire­less LAN models.

The Wireless LAN/Bluetooth On/Off
Switch will power off both the optional
wireless LAN and Bluetooth devices at the
same time. To enable or disable either one
of the devices individually, perform the
following steps:

1. Slide the Wireless LAN/Bluetooth on/
off switch to On position.

2. In the Control Panel, double-click the
Fujitsu Radio Control icon.

3. In the window that appears, click the
button associated with Bluetooth and/
or Wireless LAN Status to enable or dis­able the individual devices.

4. Click [OK].

The Wireless LAN/Bluetooth On/Off switch has no
effect on systems without wireless devices.

ACTIVATING THE WLAN DEVICE

Activation of the WLAN device can be accomplished
using the same methods as the deactivation process

■

Using the Wireless On/Off Switch

■

In Windows using the Intel PROSet Software or
Atheros Software.

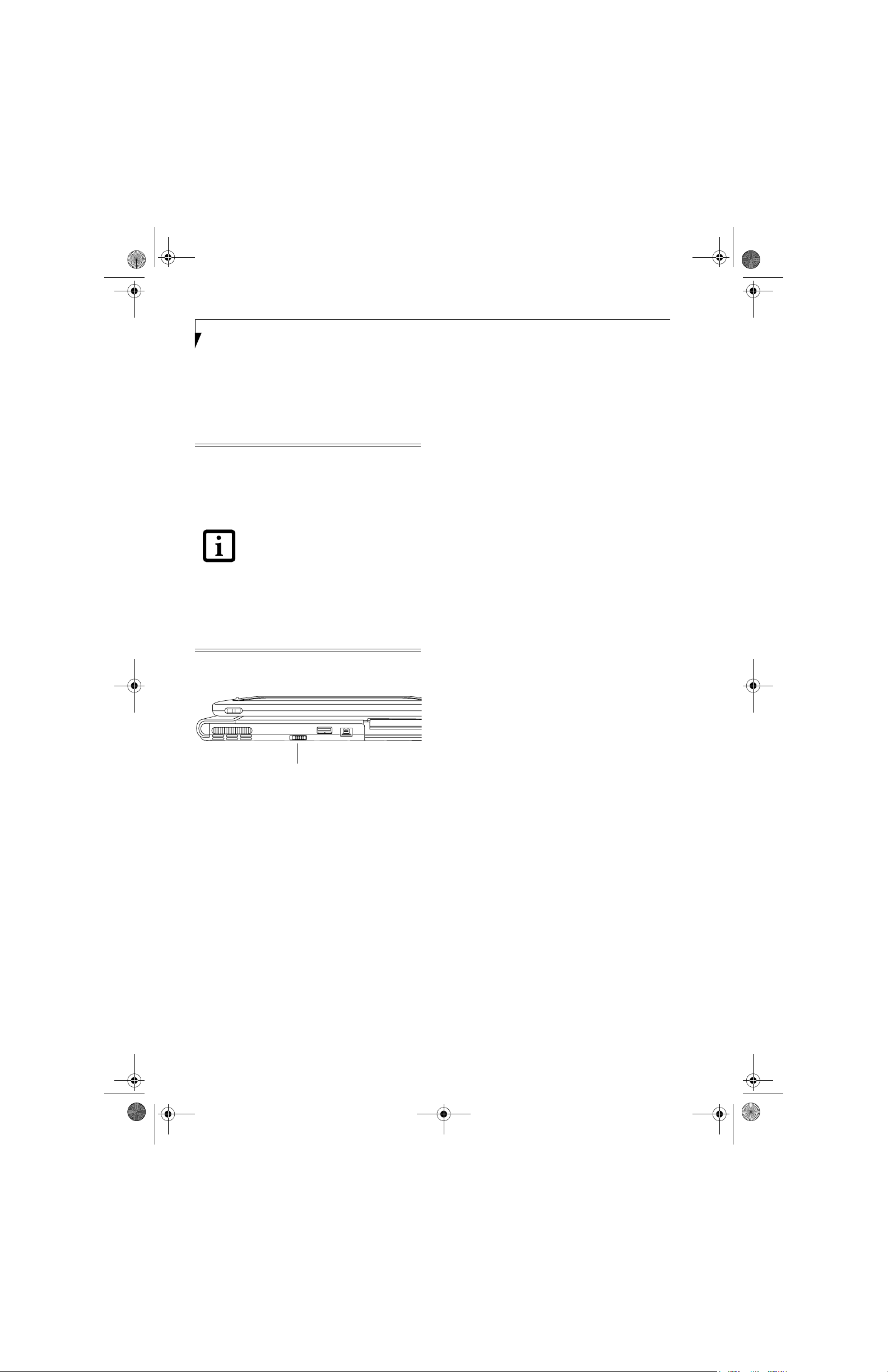

Wireless LAN/Bluetooth
On/Off Switch

Figure A-3. Wireless LAN/Bluetooth Switch

Deactivation using the Intel PROSet Software

The WLAN device can also be deactivated in Windows
using the Intel PROSet Software. The procedure to
accomplish this:

1. Click [Start]-> [All Programs].

2. Select Intel ProSet Wireless, then click on Intel
ProSet Wireless from the menu that appears. The
Intel ProSet Wireless utility will be displayed.

3. At the bottom left corner of the window, select
Wireless Off from the dropdown list.

Deactivation using Atheros Client Utility software

1. Click [Start] -> [Program Files] -> [Atheros] ->
Atheros Client Utility.

2. Choose Action and click Disable Radio.

98

T Series.book Page 99 Thursday, July 14, 2005 2:24 PM

Configuration of the WLAN Device

Wireless LAN User’s Guide

The WLAN Device can be configured to establish wire­less network connectivity using one of the following
tools:

■

Windows XP Wireless Zero Configuration (WZC) ­The WZC allows for multiple profile setup and sup­port for most industry standard security solutions.

■

Intel PROSet Software - The Intel PROSet Software
allows for multiple profile setup and supports auto­matic profile switching. Support for most industry
standard security solutions as well as Cisco Compati­ble Extensions (CCX) is contained in this software.

■

Atheros Client Utility - The Atheros Client Utility soft­ware allows for multiple profile setups and supports
automatic profile switching. Support for most indus­try standard security solutions, as well as Cisco Com­patible Extensions (CCX), is contained in this
software.

FLOW OF OPERATIONS

1. Activate the WLAN Device (See Activating the
WLAN Device on page 98 for more information).

2. Configure the Wireless Network parameters
(Depending upon the configuration tool or utility
you are using, see the appropriate section below).

■

Enter the network name (SSID)

■

Choose the appropriate WLAN architecture (Ad
Hoc or Infrastructure)

■

Choose Authentication method: Open, Shared,
WPA, or WPA-PSK

■

If using static WEP keys, enter static WEP key and
choose key index.

3. Configure network settings (Depending upon the
configuration tool or utility you are using, see the
appropriate section below).

■

TCP/IP settings

■

Workgroup or Domain settings.

CONFIGURATION USING WIRELESS
ZERO CONFIGURATION TOOL

This section explains the procedure to properly
configure the WLAN device using the WZC. Pre-defined
parameters will be required for this procedure. Please
consult with your network administrator for these
parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA­PSK

Procedure

1. Activate the WLAN device using the Wireless On/
Off Switch, the Intel PROSet software, or the
Atheros Client Utility.

2. Click the [Start] button first and then [Control

Pane l].

3. If the Control Panel is in Category view, switch to

Classic view by clicking "Switch to Classic View"
which can be found in the left frame of the Control
Panel window.

4. Double-click the Network Connections icon. A list

of previously configured networks will be dis­played.

5. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis­played.

6. Click the [Wireless Networks] tab.

7. Click [Refresh], then choose the correct SSID from

the [Available Networks] window. Click [Config­ure] and proceed to step 8. Please note that only
wireless networks that broadcast their SSID will be
displayed. If the SSID of the wireless network is not
visible, you must manually add it. This can be
accomplished by clicking [Add]

8. From within the Association tab configure the

appropriate WLAN parameters. Please have ready
the following parameters:

■

Network name (SSID) - ASCII string of up to 33
characters used by the WLAN to logically separate
wireless networks.

■

Authentication Type - Options include Open,
Shared, WPA, or WPA-PSK

■

Network Key - If Authentication Type is Open or
Shared, choices are None or WEP. If Authentica­tion Type is WPA or WPA-PSK, choices are WEP
or TKIP.

Ad Hoc Networks: All computers in an Ad Hoc

network must be assigned with the same SSID and

99

T Series.book Page 100 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

the checkbox for the field [This is a computer to
computer (ad hoc) network, wireless access points
are not used.] must be checked.

Access Point (Infrastructure) Networks: The SSID

must be identical to the SSID of the access point(s)
and the checkbox for the following field must be
unchecked [This is a computer to computer (ad
hoc) network wireless access points are not used.]
Refer to the access point manual, or contact your
network administrator

9. Configure Wireless Network Key parameters (Net­work Authentication and Encryption).

a. Choose the Network Authentication method

appropriate for your wireless LAN. Options
include Open, Shared, WPA, and WPA-PSK.

Ad Hoc Networks: Network Authentication
settings must be identical for all computers in
the Ad Hoc network.

Access Point (Infrastructure Networks):
Network Authentication setting must be config­ured to match the setting of the Access Point(s).
Please contact your network administrator for
this information.

b. Choose the Encryption method appropriate for

your wireless LAN. Options for Open or Shared
Authentication are None or WEP. Options for
WPA or WPA-PSK are WEP or TKIP.

c. If using static WEP keys, clear the check mark

from the [The key is provided for me automati­cally] check box. If using an authentication
method that uses dynamic WEP (e.g., WPA,
WPA-PSK, 802.1x/EAP), the check box should
remain checked. Please contact your network
administrator for the correct settings.

d. Static WEP keys (if applicable) are entered in the

[Network Key] box. Configuration of the
[Network Key] is not required if the [The key is
provided for me automatically] check box is
checked.

■

Static WEP keys entered in ASCII code
format will be either five characters (40-bit)
or thirteen characters (104-bit) in length.
Valid characters are 0 - 9, A - Z.

■

Static WEP keys entered in hexadecimal
code format will be either ten characters
(40-bit) or twenty-six characters (104-bit)
in length. Valid characters are 0 - 9, A - F.

Ad Hoc Networks: Assign the same net-work
key to all the personal computers to be
connected.

Access Point (Infrastructure) Networks:

Assign the identical network key that is
programmed into the access point. Please
contact your network administrator for this
information.

e. If using static WEP keys, confirm the Network

key by re-entering the same data in the [Confirm
network key:] field.

f. The Key index used must be identical to the

transmit key used in the Access Point or other
wireless device. This is only applicable when
static WEP keys are used. Please contact your
network administrator for this information.

10. Access Point (Infrastructure) Networks Only: If
the wireless network you are establishing connec­tivity to implements an access control security
mechanism, configuration of 802.1x parameters
may be necessary. Please contact your network
administrator for these settings. Configuration of
these parameters is not applicable to home users.

11. Click [OK] to close the [Wireless Network] window
which will cause the WLAN device to re-establish
wireless network connectivity using the recently
configured parameters.

CONFIGURATION USING
INTEL PROSET SOFTWARE

This section explains the procedure to properly
configure the WLAN device using the Intel PROSet Soft­ware. Pre-defined parameters will be required for this
procedure. Please consult with your network adminis­trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authenticat ion Type - Open, Shared, WPA, or WPA­PSK

Procedure

1. Activate the WLAN device using either the Wireless
On/Off Switch or the Intel PROSet software.

2. Click the [Start] button first and then [Control
Pane l].

3. If the Control Panel is in Category view, switch to
Classic view by clicking "Switch to Classic View"
which can be found in the left frame of the Control
Panel window.

4. Double-click the icon [Intel PROSet] to execute the
Intel PROSet Software.

5. From the General page, click the Networks tab.

100

T Series.book Page 101 Thursday, July 14, 2005 2:24 PM

Wireless LAN User’s Guide

6. Click the [Add] button. The General Settings dialog
displays.

7. From the General page, click the Networks tab.

8. Click the [Add] button. The General Settings dialog
displays.

9. Enter a profile name in the Profile Name field.

10. Enter the network SSID, in the Network Name
(SSID) field.

11. Click Infrastructure or Ad Hoc for the operating
mode.

12. The Mandatory AP option is only used if Infra­structure mode is selected. Use this option to con­nect to a specific access point. Click the Mandatory
AP button, enter the MAC address for the access
point. Click OK to save the setting and return to the
General Settings page.

13. If you are using Cisco CCX, click the Enable Cisco
Client eXtentions option to enable Cisco CKIP data
encryption on the Security Settings page. If you
have checked the Cisco's "Mixed-Cell" box in the
Advanced Setting, this option must also be
checked.

14. Click Next.

15. Click the Security tab

16. Select Open, Shared, WPA, or WPA-PSK in the
Network Authentication options.

17. Select either None, WEP, CKIP (if Enable Cisco Cli­ent eXtentions is enabled on the General Settings
page), or TKIP for the data encryption.

18. If WEP is selected, select either 64 or 128-bit for the
Encryption Level.

19. Select the key index 1, 2, 3 or 4.

20. Enter the WEP key if required. If your network does
not employ a 802.1x/EAP security mechanism,
please skip to step 24.

21. Click the 802.1x Enabled checkbox to enable the

802.1x security option. Please contact your network
administrator if configuration of this setting is
required.

22. Select the appropriate 802.1x/EAP Type. Please
contact your network administrator if configura­tion of this setting is required.

23. After selecting your authentication type, click the
Configure button to open the Settings dialog. Enter
the user name and password of the user you have
created on the authentication server. The user
name and password do not have to be the same as

name and password of your current Windows user
login. The "Server Identity" can be use the default
setting. The "Client Certificate" should be the one
obtained from your RADIUS server or other certifi­cation server.

24. Click Close to save the settings.

25. From the General settings page, click the new pro­file name shown in the Profile List. Use the up and
down arrows to position the priority of the new
profile in the priority list.

26. Click the Advanced button to set the network con­nection preferences.

27. Click the Connect button to connect to the net­work.

28. Click OK to close the Intel(R) PROSet for Wireless
utility

CONFIGURATION USING ATHEROS
CLIENT UTILITY SOFTWARE

This section explains the procedure to properly
configure the WLAN device using the Atheros Client
Utility. Pre-defined parameters will be required for this
procedure. Please consult with your network adminis­trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA­PSK

Procedure

1. Activate the WLAN device using either the Wireless
On/Off Switch or the Atheros Client Utility

2. Click the [Start] button first and then [Control
Pane l].

3. If the Control Panel is in Category view, switch to
Classic view by clicking "Switch to Classic View"
which can be found in the left frame of the Control
Panel window.

4. Double-click the icon [Atheros Client Utility] to
execute the Atheros Client Utility.

5. From the Current Status page, click the Profile
Management tab.

6. If this is your first time using this utility, highlight
the profile [Default] and Click the [Modify] button,
otherwise Click the [New] button. The General Set­tings dialog displays.

7. From the General page, enter a profile name in the
Profile Name field.

101

T Series.book Page 102 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

8. Enter the network SSID, in the SSID1 field. If you
wish to create a profile that can connect to up to 3
different wireless networks, SSID's can be entered
in the SSID2 and SSID3 fields as well.

9. Click the Security tab.

10. The Security tab allows for the configuration of the
Security modes listed in the table below. Please
select the radio button of the desired security
mode. If these settings are not known to you,
please consult with your network administrator for
the correct settings.

Field Name Description

WPA Enables the use of Wi-Fi Protected

Access. Choosing WPA opens the
WPA EAP drop-down menu.
Options include TLS and PEAP. If
these settings are not known to you,
please consult with your network
administrator for the correct settings.

WPA-PSK Enables WPA-Pre-Shared Key. Click

on the Configure button to enter the
WPA Passphrase. If these settings
are not known to you, please consult
with your network administrator for
the correct settings.

802.1x Enables 802.1x security. If these
settings are not known to you,
please consult with your network
administrator for the correct settings.
Choosing this option opens the

802.1x EAP type drop-down menu.
Options include TLS, PEAP, and LEAP

Pre-Shared Key Enables the use of pre-shared keys

that are defined on both the access
point and the station. This is where
static WEP keys are entered. Click
the Configure button to fill in the
Define Pre-Shared Keys window.

None No security

13. The Advanced tab allows for the configuration of
the options detailed in the table below.

Field Name Description

Power Save
Mode

Network Type Options are AP (Infrastructure) or Ad

802.11b
Preamble

Tra ns mi t P o we r
Level

Wireless Mode Specifies 5 GHz 54 Mbps, 5 GHz 108

Wireless Mode
when Starting
Ad Hoc
Network

Options are Maximum, Normal, or
Off

Hoc

Specifies the preamble setting in

802.11b. The default setting is Short
and Long (Access Point mode),
which allows both short and long
headers in the 802.11b frames. Set
to Long Only to override allowing
short frames.

Options are 100%, 50%, 25%,

12.5% or Lowest transmit power
(0mW)

Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz
54 Mbps operation in an access
point network.

Specifies 5GHz 54 Mbps, 5 GHz 108
Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz
54 Mbps to start an Ad Hoc network
if no matching network name is
found after scanning all available
modes.

14. Click OK

15. If the profile you just created does not activate
immediately, click the Profile Management tab,
highlight the desired Profile, and click Activate.

16. Click OK to close the Atheros Client Utility.

11. Click OK

12. Click the Advanced tab

102

T Series.book Page 103 Thursday, July 14, 2005 2:24 PM

Wireless LAN User’s Guide

CONNECTION TO THE NETWORK

This section explains connection to the network.

If there is an administrator of the network, contact the
network administrator for data settings.

Setting the network

Perform the “Setting TCP/IP” and “Confirming the
computer and work group names” operations required for
network connection.

Setting TCP/IP

To change the setting of the IP address,
you need to be logged in from Windows
as an administrator.

1. Click the [Start] button first and then [Control
Panel].

2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)

3. Double-click [Network Connections]. A list of cur­rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis­played. The [Wireless Network Connection Proper­ties] window will be displayed.

5. Click the [General] tab if it is not already selected.

6. Click [Internet Protocol (TCP/IP] and then click
[Properties]. The [Internet Protocol (TCP/IP)
Properties] window will be displayed.

7. Set the IP address as follows:

■

For ad hoc connection: Select [Use the following
IP address:] and then enter data for [IP address]
and [Subnet mask]. See page 109 for IP address
setting.

■

For access point (infrastructure) connection: If
your network uses DHCP, select [Obtain an IP
address automatically] and [Obtain DNS server
address automatically]. If your network uses static
IP addresses, consult with your network adminis­trator for the correct IP address settings.

8. Click the [OK] button. Processing will return to the

[Wireless Network Connection Properties] window.

9. Click the [OK] button.

10. Close the [Network Connection] window.

Following this operation, confirm the names of the

computer and the workgroup as follows.

Confirming the computer and work group names

To modify the computer name and/or the
work group name, you need to be logged
in from Windows as an administrator.

1. Click the [Start] button, then [Control Panel].

2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)

3. Double-click the [System] icon. The [System Prop­erties] window will be displayed.

4. Click the [Computer Name] tab.

5. Confirm the settings of [Full computer name:] and
[Workgroup:].

a. The setting of [Full computer name:] denotes the

name for identifying the computer. Any name
can be assigned for each personal computer.

To change the name, click [Change] and
then proceed in accordance with the
instruction messages displayed on the
screen.

Enter the desired name in less than 15 ASCII
character code format. Identifiability can be
enhanced by entering the model number, the
user name, and other factors.

b. [Workgroup name] is the group name of the

network. Enter the desired name in less than 15
ASCII character code format.

For ad hoc connection: Assign the same network

name to all personal computers existing on the
network.

For access point (infrastructure) connection:

Assign the name of the work group to be
accessed.

6. Click the [OK] button. If a message is displayed
that requests you to restart the personal computer,
click [Yes] to restart the computer.

Setting the sharing function

Set the sharing function to make file and/or printer sharing
with other network-connected personal computers valid.

This operation is not required unless the sharing func­tion is to be used.

103

T Series.book Page 104 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

The folder and printer for which the sharing function
has been set will be usable from any personal computer
present on the network.

To share a file and/or the connected
printer, you need to be logged in as an
administrator.

Setting the Microsoft network-sharing service

1. Click the [Start] button first and then [Control
Panel].

2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)

3. Double-click [Network Connections]. A list of cur­rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis­played. The [Wireless Network Connection Proper­ties] window will be displayed.

5. If [File and Printer Sharing for Microsoft Net-
works] is displayed, proceed to step 6. If [File and
Printer Sharing for Microsoft Networks] is not dis­played, skip to step 7.

6. Make sure that the [File and Printer Sharing for
Microsoft Networks] check box is checked, and
then click the [OK] button. Skip to “Setting file­sharing function”.

7. Click [Install]. The [Select Network Component
Type] window will be displayed.

8. Click [Service], then click the [Add] button. The
[Select Network Service] window will be displayed.

9. Click [File and Printer Sharing for Microsoft Net­works] and then click the [OK] button. Processing
will return to the [Wireless Network Connection
Properties] window, and [File and Printer Sharing
for Microsoft Networks] will be added to the list.

10. Click the [Close] button.

Setting the file-sharing function

The procedure for setting the file-sharing function
follows, with the “work” folder in drive C: as an
example.

1. Click the [Start] button first and then [My Com-

puter].

2. Double-click [Local disk (C:)].

3. Right-click the “work” folder (or whichever folder
you want to share), and then click [Sharing and
Security...] in the menu displayed. The [Folder

Name Properties] window will be displayed.

Setting the file-sharing function for the file
which has been used to execute Network
Setup Wizard is suggested on the screen.
For the wireless LAN, however, since
security is guaranteed by entry of the
network name (SSID) and the network
key, the steps to be taken to set the file­sharing function easily without using
Network Setup Wizard are given below.

4. Click [Sharing] if it isn’t already selected.

5. Click the link stating “If you understand the secu­rity risks, but want to share files without running
the wizard, click here”.

6. Click “Just enable file sharing” and click [OK].

7. Check the [Share this folder on the network] check

box.

To specify the corresponding folder as a
read-only folder, select the [Read only]
checkbox under the General tab.

8. Click the [OK] button. The folder will be set as a
sharable folder, and the display of the icon for the
“work.” folder will change.

Setting the printer-sharing function

1. Click the [Start] button first and then [Printers and
FAX]. A list of connected printers will be displayed.

2. Right-click the printer for which the sharing func­tion is to be set, and then click [Sharing] in the
menu displayed. The property window correspond-

ing to the selected printer will be displayed.

Setting the printer-sharing function when
Network Setup Wizard has been executed
is suggested on the screen. For the wireless
LAN, however, since security is guaranteed
by entry of the network name (SSID) and
the network key, the steps to be taken to
set the printer-sharing function without
using Network Setup Wizard are laid down
below.

104

T Series.book Page 105 Thursday, July 14, 2005 2:24 PM

Wireless LAN User’s Guide

3. Click the [Sharing] tab.

4. Click [Share this printer].

5. Enter the sharing printer name in [Share name].

6. Click the [OK] button.

Confirming connection

After you have finished the network setup operations,
access the folder whose sharing has been set for other
personal computers. Also, confirm the status of the radio
waves in case of trouble such as a network connection
failure.

In the case of access point (infrastructure)
connection, enter the necessary data for
the access point before confirming
connection. Refer to the manual of the
access point for the access point setup
procedure.

Connecting your personal computer to another
personal computer

1. Click [Start] first and then [My Computer]. The
[My Computer] window will be displayed in the left
frame.

2. Click [My Network Places] in the “Other Places”
list. The window [My Network Places] will be dis­played.

3. Click [View workgroup computers] under Network
Tasks in the left frame.

4. Double-click the personal computer to which your
personal computer is to be connected. The folder
that was specified in “Setting the file-sharing func­tion” on page 104 will be displayed.

■

Mode

Displays the current operating mode. [Infra­structure (AP)] or [Ad Hoc] will be displayed.

■

Security

Displays the current security status of the profile
being used:

None: No encryption used.
WEP: WEP encryption algorithm used.
CKIP: WEP encryption algorithm used.
TKIP: WEP encryption algorithm used.

■

Speed

Displays the highest data rate of the associated
access point in mega-bits-per-second (Mbps)
until data transfer occurs.

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, or

54.

802.11b: 1, 2, 5.5, or 11.

■

Band (Frequency)

Displays the current band and frequency being
used. Displays Out of Range if no band and
frequency is displayed. Displays:

802.11g (2.4 GHz) or 802.11b (2.4 GHz)

■

Channel

Displays the current transmit and receive
channel being used.

■

802.1x Protocol

Displays Enabled if the profile uses 802.1x
authentication. Default is Disabled.

5. Double-click the folder to be accessed.

Confirming the status of the radio

1. Right-click the Intel PRO Wireless icon in the lower

right corner of the screen.

2. Click [Open Intel PROSet for Wireless]. The Intel
PROSet for Wireless window opens.

3. Contained within the General tab and the Details
section (accessed by pressing the [Details] button),
you will find the current operating status of the
radio. (When the radio is turned off or the com­puter is not yet connected, some of the conditions
will not be displayed.)

■

Network Name (SSID)

Displays the Network Name (SSID) currently
used by the radio.

■

Profile Name

The current configuration profile is displayed.

105

T Series.book Page 106 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

Troubleshooting

Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the
following table.

Problem Possible Cause Possible Solution

Unavailable
network
connection

Incorrect network
name (SSID) or
network key

Weak received signal
strength and/or link
quality

The WLAN device
has been deactivated
or disabled

The computer to be
connected is turned
off

RF interference from
Access Points or
other wireless
networks

Ad hoc connection: verify that the network names (SSID’s) and network

keys (WEP) of all computers to be connected have been configured
correctly. SSID’s and WEP key values must be identical on each machine.

Access Point (Infrastructure) connection: set the network name (SSID)
and network key to the same values as those of the access point.

Set the Network Authentication value identically to that of the Access
Point. Please consult your network administrator for this value, if
necessary.

For the method of setting network authentication, refer to the section of
this chapter related to the configuration tool or utility you are using.·

Ad hoc connection: Retry connection after shortening the distance to
the destination computer or removing any obstacles for better sight.

Access Point (Infrastructure) connection: Retry connection after short­ening the distance to the access point or removing any obstacles for
better sight.

(See Confirming connection on page 105 for more information).

Check if the wireless switch is turned ON. Also verify “Disable Radio” is
not checked in “Network setting” window.

Device on page 98 for more information)

Check if the computer to be connected is turned ON.

The use of identical or overlapping RF channels can cause interference
with the operation of the WLAN device. Change the channel of your
Access Point to a channel that does not overlap with the interfering
device.

(See Activating the WLAN

.

106

Wireless network
authentication has
failed

Incorrectly
configured network
settings

Incorrect IP address
configuration

Re-check your Network Authentication, Encryption, and Security
settings. Incorrectly configured security settings such as an incorrectly
typed WEP key, a mis-configured LEAP username, or an incorrectly
chosen authentication method will cause the LAN device to associate
but not authenticate to the wireless network.

Recheck the configuration of your network settings.

For the method of checking, refer to the following page:·“Connection to
the Network” on page 103.

This only applies to networks using static IP addresses. Please contact
your network administrator for the correct settings.

T Series.book Page 107 Thursday, July 14, 2005 2:24 PM

Wireless LAN Glossary

Wireless LAN User’s Guide

Ad Hoc Mode

Ad Hoc Mode refers to a wireless network architecture
where wireless network connectivity between multiple
computers is established without a central wireless
network device, typically known as Access Points.
Connectivity is accomplished using only client devices in
a peer-to-peer fashion. For details, refer to “Ad hoc
connection” on page 96.

Channel

Range of narrow-band frequencies used by the WLAN
device to transmit data. IEEE802.11b/g - 11 channels, 22
MHz wide channels.

DHCP (Dynamic Host Configuration Protocol)

A protocol that provides a means to dynamically allocate
IP addresses to computers on a local area network.

DNS (Domain Name System)

A data query service that provides a mechanism with
which to translate host names into Internet addresses.

IEEE802.11a

Wireless LAN standard that supports a maximum data
rate of 54 Mbps. 802.11a devices operate in the 5 GHz
lower and middle UNII bands.

IEEE802.11b

Wireless LAN standard that supports a maximum data
rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz
ISM band.

Access point

Wireless network device used to bridge wireless and
wired network traffic.

IP address

The logical 32-bit host address defined by the Internet
Protocol that uniquely identifies a computer on a
network. The IP address is usually expressed in dotted
decimal notation.

LAN (Local Area Network)

A LAN or Local Area Network is a computer network (or
data communications network) which is confined to a
limited geographical area.

MAC address (Media Access Control Address)

A MAC address (also called an Ethernet address or IEEE
MAC address) is the 48-bit address (typically written as
twelve hexadecimal digits, 0 through 9 and A through F,
or as six hexadecimal numbers separated by periods or
colons, e.g., 0080002012ef, 0:80:0:2:20:ef) which
uniquely identifies a computer that has an Ethernet
interface.

MTU (Maximum Transmission Unit)

The maximum size of data which can be transmitted at
one time in networks including the Internet. In an envi­ronment whose maximum size of data is too large to
correctly receive data, normal communications can be
restored by setting the size of MTU to a smaller value.

Network key

Data that is used for encrypting data in data communi­cation. The personal computer uses the same network
key both for data encryption and decryption, therefore,
it is necessary to set the same network key as the other
side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is
performed to avoid interference or data theft. This
grouping is performed with “Network name (SSID)”. In
order to improve security, the network key is set
allowing no communication unless “Network name
(SSID)” coincides with the network key.

Open system authentication

Null authentication method specified in the 802.11 stan­dard that performs no authentication checks on a wire­less client before allowing it to associate.

PPPoE (Point to Point Protocol over Ethernet)

A method of allowing the authentication protocol
adopted in telephone line connection (PPP) to be used
over an Ethernet.

Protocol

A procedure or rule of delivering data among
computers. Ordered data communication is allowed by
making all conditions required for communication
including the method of data transmission/reception
and actions upon communication errors into proce­dures.

107

T Series.book Page 108 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

Shared key authentication

802.11 network authentication method in which the AP

sends the client device a challenge text packet that the
client must then encrypt with the correct WEP key and
return to the AP. If the client has the wrong key or no
key, authentication will fail and the client will not be
allowed to associate with the AP. Shared key authentica­tion is not considered secure, because a hacker who
detects both the clear-text challenge and the same chal­lenge encrypted with a WEP key can decipher the WEP
key.

SSID (Service Set Identifier)

Service Set Identifier, a 32-character unique identifier
attached to the header of packets sent over a WLAN that
acts as a password when a mobile device tries to connect
to the BSS. The SSID differentiates one WLAN from
another, so all access points and all devices attempting to
connect to a specific WLAN must use the same SSID. A
device will not be permitted to join the BSS unless it can
provide the unique SSID. Because the SSID is broadcast
in plain text, it does not supply any security to the
network.

Subnet mask

TCP-IP network is controlled by being divided into
multiple smaller networks (subnets). IP address consists
of the subnet address and the address of each computer.
Subnet mask defines how many bits of IP address
comprise the subnet address. The same value shall be set
among computers communicating with each other.

TCP/IP (Transmission Control Protocol/Internet
Protocol)

A standard protocol of the Internet.

Wi-Fi

Wi-Fi, or Wireless Fidelity, is a set of standards for wire­less local area networks (WLAN) based on the IEEE

802.11 specifications. Certified products can use the

official Wi-Fi logo, which indicates that the product is
interoperable with any other product also showing that
logo.

108

T Series.book Page 109 Thursday, July 14, 2005 2:24 PM

IP address information

IP addressing is much more complicated
than can be briefly explained in this
document. You are advised to consult with
your network administrator for additional
information.

If IP address is unknown, set IP address as follows:

If you have an access point (DHCP server) on the
network, set the IP address as follows:

[Obtain an IP address automatically]

A DHCP server is a server that
automatically assigns IP addresses to
computers or other devices in the network.
There is no DHCP server for the AdHoc
network.

Wireless LAN User’s Guide

If the IP address is already assigned to the computer in
the network, ask the network administrator to check the
IP address to be set for the computer.

If no access point is found in the network:

An IP address is expressed with four values in the range
between 1 and 255.

Set the each computer as follows: The value in paren­theses is a subnet mask.

<Example>

Computer A: 192.168.100.2 (255.255.255.0)

Computer B: 192.168.100.3 (255.255.255.0)

Computer C: 192.168.100.4 (255.255.255.0)

:

:

Computer X: 192.168.100.254 (255.255.255.0)

109

T Series.book Page 110 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

Specifications

Item Specification

Type of network Conforms to IEEE 802.11a/802.11b/g (Wi-Fi based)*

Transfer rate (Automatic switching)

IEEE 802.11a/g: 54 Mbps maximum data rate

IEEE 802.11b: 11 Mbps maximum data rate

Active frequency 802.11b/g: 2400~2473 MHz

Number of channels 802.11a: 8 independent channels

Security Encryption Types - WEP, TKIP, AES**

Maximum recommended number of computers to
be connected over wireless LAN (during ad hoc
connection)

802.11a: 4900 ~ 5850 MHz

802.11b/g: 11 channels, 3 non-overlapping channels

WPA 1.0 compliant

Encryption Keylengths Supported: 64 bits, 128 bits, and 152 bits
(Using AES encryption only)

802.1x/EAP

CCX 1.0 compliant

10 units or less ***

* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of
wireless LAN (Wi-Fi Alliance) has been passed.

** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/
104 bits after subtracting the fixed length of 24 bits.

*** Depending on practical environments, the allowable number of computers to be connected may be decreased.

110

T Series.book Page 111 Thursday, July 14, 2005 2:24 PM

Using the Bluetooth Device

The Integrated Bluetooth module (EYTF3CSFT) is an
optional device available for Fujitsu mobile computers.

WHAT IS BLUETOOTH

Bluetooth technology is designed as a short-range wire­less link between mobile devices, such as laptop
computers, phones, printers, and cameras. Bluetooth
technology is used to create Personal Area Networks
(PANs) between devices in short-range of each other.

The Wireless LAN/Bluetooth On/Off
Switch will power off both the optional
wireless LAN and Bluetooth devices at the
same time. To enable or disable either one
of the devices individually, perform the
following steps:

1. Slide the Wireless LAN/Bluetooth on/
off switch to On position.

2. In the Control Panel, double-click the
Fujitsu Radio Control icon.

3. In the window that appears, click the
button associated with Bluetooth and/
or Wireless LAN Status to enable or dis­able the individual devices.

4. Click [OK].

WHERE TO FIND INFORMATION
ABOUT BLUETOOTH

The Bluetooth module contains a robust Help user’s
guide to assist you in learning about operation of the
Bluetooth device.

Wireless LAN User’s Guide

To access the Help file, click [Start] -> All Programs, and
click on Toshiba. Select Bluetooth, then select User’s
Guide.

For additional information about Bluetooth Technology,
visit the Bluetooth Web site at: www.bluetooth.com.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. The
Bluetooth antenna is located at the

the

LCD screen and is exempt from minimum distance

middle of edge of

criteria due to its low power.

The transmitters in this device must not be co-located or
operated in conjunction with any other antenna or
transmitter.

Canadian Notice

To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or
its transmit antenna) that is installed outdoors is subject
to licensing.

Warranty

Users are not authorized to modify this product. Any
modifications invalidate the warranty.

This equipment may not be modified, altered, or
changed in any way without signed written permission
from Fujitsu. Unauthorized modification will void the
equipment authorization from the FCC and Industry
Canada and the warranty.

111

T Series.book Page 112 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Appendix

112

T Series.book Page 113 Thursday, July 14, 2005 2:24 PM

Appendix B

Using the
Fingerprint Sensor*

* Optional Device

113

T Series.book Page 114 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC – Appendix B

114

T Series.book Page 115 Thursday, July 14, 2005 2:24 PM

Using the Fingerprint Sensor

Fingerprint Sensor Device

INTRODUCING THE OPTIONAL
FINGERPRINT SENSOR DEVICE

Your system may have an optional fingerprint sensor
device in the location at which other models have a
scroll button. (Figure B-1)

Figure B-1 Fingerprint sensor

Although the system may have a
fingerprint sensor in place of a scroll
button, the fingerprint sensor can be used
for scrolling. Simply move your fingerprint
over the sensor the same as you would use
a scroll button.

With a fingerprint sensor, you can avoid having to enter
a username and password every time you want to:

■

Log onto Windows

■

Recover from suspend mode

■

Cancel a password-protected screen saver

■

Log into homepages that require a username and pass­word

After you have “enrolled” - or registered - your finger­print, you can simply swipe your fingertip over the
sensor for the system recognize you.

The fingerprint sensor uses Softex OmniPass which
provides password management capabilities to
Microsoft Windows operating systems. OmniPass
enables you to use a "master password" for all Windows,
applications, and on-line passwords.

OmniPass requires users to authenticate themselves
using the fingerprint sensor before granting access to the
Windows desktop. This device results in a secure
authentication system for restricting access to your
computer, applications, web sites, and other password­protected resources.

OmniPass presents a convenient graphical user interface,
through which you can securely manage passwords,
users, and multiple identities for each user.

GETTING STARTED

This section guides you through the preparation of your
system for the OmniPass fingerprint recognition
application. You will be led through the OmniPass
installation process. You will also be led through the
procedure of enrolling your first user into OmniPass.

INSTALLING OMNIPASS

If OmniPass has already been installed on your system,
skip this section and go directly to “User Enrollment” on
page 116. You can determine whether OmniPass has
already been installed by checking to see if the following
are present:

■

The presence of the gold key-shaped OmniPass icon in
the system tray at the bottom right of the screen.

■

The presence of the Softex program group in the
Programs group of the Start menu

System Requirements

The OmniPass application requires space on your hard
drive; it also requires specific Operating Systems (OS’s).
The minimum requirements are as follows:

■

Windows XP Home Edition or Windows XP Profes­sional operating system

■

At least 35 MB available hard disk space

Installing the OmniPass Application

If OmniPass is already installed on your system, go to
“User Enrollment” on page 116. Otherwise continue
with this section on software installation.

For installation, OmniPass requires that the
user installing OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in with an administrator user before
proceeding with OmniPass installation.

To install OmniPass on your system you must:

1. Insert the installation media for the OmniPass appli­cation into the appropriate drive. If you are
installing from CD-ROM or DVD-ROM, you must
find and launch the OmniPass installation program
(setup.exe) from the media.

2. Follow the directions provided in the OmniPass
installation program. Specify a location to which
you would like OmniPass installed
mended that you NOT install OmniPass in the root
directory (e.g. C:\).

3. Once OmniPass has completed installation you will
be prompted to restart you system. Once your
system has rebooted you will be able to use
OmniPass. If you choose not to restart immediately
after installation, OmniPass will not be available for
use until the next reboot.

. It is recom-

115

T Series.book Page 116 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC – Appendix B

The installation program automatically places an icon
(Softex OmniPass) in the Windows Control Panel as well
as a golden key shaped icon in the taskbar.

Verifying Information about OmniPass

After you have completed installing OmniPass and
restarted your system, you may wish to check the version
of OmniPass on your system.

To check the version information of OmniPass:

1. From the Windows Desktop, double-click the key­shaped OmniPass icon in the taskbar (usually
located in the lower right corner of the screen),
or,
Click the Start button, select Settings, and click
Control Panel (if you are using Windows XP you
will see the Control Panel directly in the Start menu;
click it, then click Switch to Classic View). Double­click Softex OmniPass in the Control Panel, and the
OmniPass Control Center will appear. If it does not
appear, then the program is not properly installed,
or,
Click the Start button, select Programs, and from
the submenu select the Softex program group, from
that submenu click OmniPass Control Center.

2. Select the About tab at the top of the OmniPass
Control Panel. The About tab window appears with
version information about OmniPass.

Uninstalling OmniPass

For uninstallation, OmniPass requires that
the user uninstalling OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in with an administrator user before
proceeding with OmniPass uninstallation.

To remove the OmniPass application from your system:

1. Click Start on the Windows taskbar. Select Settings,
and then Control Panel.

2. Double-click Add/Remove Programs.

3. Select OmniPass, and then click Change/Remove.

4. Follow the directions to uninstall the OmniPass
application.

5. Once OmniPass has finished uninstalling, reboot
your system when prompted.

USER ENROLLMENT

Before you can use any OmniPass features you must first
enroll a user into OmniPass.

Master Password Concept

Computer resources are often protected with passwords.
Whether you are logging into your computer, accessing
your email, e-banking, paying bills online, or accessing

116

network resources, you often have to supply credentials
to gain access. This can result in dozens of sets of creden­tials that you have to remember.

During OmniPass user enrollment a "master password”
is created for the enrolled user. This master password
“replaces” all other passwords for sites you register with
OmniPass.

Example: A user, John, installs OmniPass on his system
(his home computer) and enrolls an OmniPass user with
username “John_01” and password “freq14”. He then
goes to his webmail site to log onto his account. He
inputs his webmail credentials as usual (username
“John_02” and password “lifebook”), but instead of
clicking [Submit], he directs OmniPass to Remember
Password. Now whenever he returns to that site,
OmniPass will prompt him to supply access credentials.

John enters his OmniPass user credentials (“John_01”
and “freq14”) in the OmniPass authentication prompt,
and he is allowed into his webmail account. He can do
this with as many web sites or password protected
resources he likes, and he will gain access to all those
sites with his OmniPass user credentials (“John_01” and
“freq14”). This is assuming he is accessing those sites
with the system onto which he enrolled his OmniPass
user. OmniPass does not actually change the credentials
of the password protected resource. If John were to go to
an Internet cafe to access his webmail, he would need to
enter his original webmail credentials (“John_02” and
“lifebook”) to gain access. If he attempts his OmniPass
user credentials on a system other than where he
enrolled that OmniPass user, he will not gain access.

The enrollment procedure assumes you
have no hardware authentication devices
or alternate storage locations that you
wish to integrate with OmniPass. If you
desire such functionality, consult the
appropriate sections of this document.

Basic Enrollment

The Enrollment Wizard will guide you through the
process of enrolling a user. Unless you specified other­wise, after OmniPass installation the Enrollment Wizard
will launch on Windows login. If you do not see the
Enrollment Wizard, you can bring it up by clicking Start
on the Windows taskbar; select Programs; select Softex;
click OmniPass Enrollment Wizard.

1. Click Enroll to proceed to username and password
verification. By default, the OmniPass Enrollment
Wizard enters the credentials of the currently logged
in Windows user.

2. Enter the password you use to log in to Windows.
This will become the “master password” for this
OmniPass user. In most cases, the Domain: value

T Series.book Page 117 Thursday, July 14, 2005 2:24 PM

Using the Fingerprint Sensor

will be your Windows computer name. In a corpo­rate environment, or when accessing corporate
resources, the Domain: may not be your Windows
computer name. Click [Next] to continue.

3. In this step OmniPass captures your fingerprint.
Refer to “Enrolling a Fingerprint” on page 117 for
additional information.

4. Next, choose how OmniPass notifies you of various
events. We recommend you keep Taskbar Tips on
Beginner mode taskbar tips and Audio Tips on at
least Prompt with system beeps only until you get
accustomed to how OmniPass operates. Click [Next]
to proceed with user enrollment. You will then see a
Congratulations screen indicating your completion
of user enrollment.

5. Click [Done] to exit the OmniPass Enrollment
Wizard. You will be asked if you’d like to log in to
OmniPass with your newly enrolled user; click [Yes].

Enrolling a Fingerprint

Enrolling a fingerprint will increase the security of your
system and streamline the authentication procedure.

You enroll fingerprints in the OmniPass Control Center.
With an OmniPass user logged in, double-click the
system tray OmniPass icon. Select the User Settings tab
and click Enrollment under the User Settings area. Click
Enroll Authentication Device and authenticate at the
authentication prompt to start device enrollment.

1. During initial user enrollment, you will be
prompted to select the finger you wish to enroll.
Fingers that have already been enrolled will be
marked by a green check. The finger you select to
enroll at this time will be marked by a red arrow.
OmniPass will allow you re-enroll a finger. If you
choose a finger that has already been enrolled and
continue enrollment, OmniPass will enroll the
fingerprint, overwriting the old fingerprint. Select a
finger to enroll and click [Next].

2. It is now time for OmniPass to capture your selected
fingerprint. It may take a several capture attempts
before OmniPass acquires your fingerprint. Should
OmniPass fail to acquire your fingerprint, or if the
capture screen times out, click [Back] to restart the
fingerprint enrollment process.

Your system has a “swipe” fingerprint sensor (See
Figure B-1). A swipe sensor is small and resembles a
skinny elongated rectangle. To capture a fingerprint,
gently swipe or pull your fingertip over the sensor
(starting at the second knuckle) towards yourself.
Swiping too fast or too slow will result in a failed
capture. The Choose Finger screen has a [Practice]
button; click it to practice capturing your finger­print. When you are comfortable with how your
fingerprint is captured, proceed to enroll a finger.

3. Once OmniPass has successfully acquired the finger­print, the Ver if y F in ge rpr in t screen will automati­cally appear. To verify your enrolled fingerprint,
swipe your fingertip over the sensor four times to
verify. Successful fingerprint verification will show a
green fingerprint in the capture window and the text
Verification Successful under the capture window.
(An unsuccessful swipe will be indicated in red.)

USING OMNIPASS

You are now ready to begin using OmniPass. Used regu­larly, OmniPass will streamline your authentications.

Password Replacement

You will often use the password replacement function.
When you go to a restricted access website (e.g., your
bank, your web-based email, online auction or payment
sites), you are always prompted to enter your login
credentials. OmniPass can detect these prompts and you
can teach OmniPass your login credentials. The next
time you go to that website, you can authenticate with
your fingerprint to gain access.

OmniPass Authentication Toolbar

After installing OmniPass and restarting, you will notice
a dialog you have not seen before at Windows Logon.
This is the OmniPass Authentication Toolbar, and it is
displayed whenever the OmniPass authentication system
is invoked. The OmniPass authentication system may be
invoked frequently: during Windows Logon, during
OmniPass Logon, when unlocking your workstation,
when resuming from standby or hibernate, when
unlocking a password-enabled screensaver, during pass­word replacement for remembered site or application
logins, and more. When you see this toolbar, OmniPass
is prompting you to authenticate.

The Logon Authentication window indicates what
OmniPass-restricted function you are attempting. The
icons in the lower left (fingerprint and key) show what
authentication methods are available to you. Selected
authentication methods are highlighted while unselected
methods are not. When you click the icon for an unse­lected authentication method, the authentication
prompt associated with that method is displayed.

When prompted to authenticate, you must supply the
appropriate credentials: an enrolled finger for the finger­print capture window or your master password for the
master password prompt (the key icon).

Remembering a Password

OmniPass can remember any application, GUI, or pass­word protected resource that has a password prompt.

Using the following procedure, you can store a set of
credentials into OmniPass. These credentials will then be
linked to your “master password” or fingerprint.

117

T Series.book Page 118 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC – Appendix B

Go to a site that requires a login (username and pass­word), but do not log in yet. At the site login prompt,
enter your username and password in the prompted
fields, but do not enter the site (do not hit [Enter],
[Submit], [OK], or Login). Right-click the OmniPass
system tray icon and select Remember Password from
the submenu. The Windows arrow cursor will change to
a golden key OmniPass cursor. Click this OmniPass
cursor in the login prompt area, but do not click the
[Login] or [Submit] button.

Associating a Friendly Name

After clicking the OmniPass key cursor near the login
prompt, OmniPass will prompt you to enter a “friendly
name” for this site. You should enter something that
reminds you of the website, the company, or the service
you are logging into. In its secure database, OmniPass
associates this friendly name with this website.

Additional Settings for Remembering a Site

When OmniPass prompts you to enter a “friendly name”
you also have the opportunity to set how OmniPass
authenticates you to this site. There are three effective
settings for how OmniPass handles a remembered site.

The default setting is Automatically click the “OK” or

“Submit” button for this password protected site once
the user is authenticated. With this setting, each time

you navigate to this site OmniPass will prompt you for
your master password or fingerprint authentication
device. Once you have authenticated with OmniPass,
you will automatically be logged into the site.

Click Finish to complete the remember password proce­dure. The site location, the credentials to access the site,
and the OmniPass authentication settings for the site are
now stored in the OmniPass secure database. The
OmniPass authentication settings (Settings for this Pass-
word Site) can always be changed in Vault Management.

Logging in to a Remembered Site

Whether or not OmniPass prompts you to authenticate
when you return to a remembered site is determined by

Settings for this Password Site and can be changed in
Vault Management.

The following cases are applicable to using OmniPass to
login to: Windows, remembered web sites, and all other
password protected resources.

With Master Password

Once you return to a site you have remembered with
OmniPass, you may be presented with a master pass­word prompt. Enter your master password and you will
be allowed into the site.

Logging into Windows with a Fingerprint Device

When logging into Windows with a fingerprint device,
the fingerprint capture window will now appear next to
the Windows Login screen. Place your enrolled fingertip
on the sensor to authenticate. You will be simultaneously
logged into Windows and OmniPass. The capture
window will also appear if you have used Ctrl-Alt-Del to
lock a system, and the fingerprint device can be used to
log back in as stated above.

Less secure is the option to Automatically enter this

password protected site when it is activated. Do not
prompt for authentication. Check the upper box to get

this setting, and each time you navigate to this site
OmniPass will log you into the site without prompting
you to authenticate

.

This setting is more convenient in that
whenever you go to a site remembered
with this setting, you will bypass any
authentication procedure and gain instant
access to the site. But should you leave
your system unattended with your
OmniPass user logged in, anyone using
your system can browse to your password
protected sites and gain automatic access.

If you uncheck both boxes in Settings for this Password
Site, OmniPass will prompt you for your master pass-

word or fingerprint authentication device. Once you
have authenticated with OmniPass your credentials will
be filled in to the site login prompt, but you will have to
click the website [OK], [Submit], or [Login] button to
gain access to the site.

118

If a machine is locked and OmniPass
detects a different user logging back in
with a fingerprint, the first user will be
logged out and the second user logged in.

In Windows XP, your login options must be set either for
classic login, or for fast user switching and logon screen
to be enabled to use your fingerprint to log on to
Windows. To change this go to Control Panel, select

User Accounts and then click Change the way users log
on or off. If your Windows screensaver is password

protected, the fingerprint capture window will now
appear next to screensaver password dialog during
resume. You can authenticate to your screensaver pass­word prompt with your enrolled finger.

Password Management

OmniPass provides an interface that lets you manage
your passwords. To access this GUI, double-click the
OmniPass key in the system tray. Click Va ul t M a na ge -
ment; you will be prompted to authenticate. Once you
gain access to Vault Management, click Manage Pass-

words under Vault Settings. You will see the Manage
Passwords interface, with a list of friendly names.

T Series.book Page 119 Thursday, July 14, 2005 2:24 PM

Using the Fingerprint Sensor

You can view the credentials stored for any remembered
website by highlighting the desired resource under Pass-
word Protected Dialog and clicking Unmask Values.
Should a password be reset, or an account expire, you
can remove stored credentials from OmniPass. Highlight
the desired resource under Password Protected Dialog
and click Delete Page. You will be prompted to confirm
the password deletion.

The two check boxes in Manage Passwords govern
whether OmniPass prompts you to authenticate or
directly logs you into the remembered site.

OmniPass will overwrite an old set of credentials for a
website if you attempt to use Remember Password on an
already remembered site.

The exception to the above rule is the resetting of your
Windows password. If your password is reset in
Windows, then the next time you login to Windows,
OmniPass will detect the password change and prompt
you to “Update” or “Reconfirm” your password with
OmniPass. Enter your new Windows password in the
prompt(s) and click OK and your OmniPass "master
password" will still be your Windows password.

OmniPass User Identities

Identities allow OmniPass users to have multiple
accounts to the same site (e.g., [e-mail] and
[e-mail]). If OmniPass did not provide
you identities, you would be limited to remembering
one account per site.

To create and manage identities, double-click the
OmniPass key in the system tray. Click Vaul t Ma na ge -
ment; OmniPass will prompt you to authenticate. Once
you gain access to Vault Management, click Manage
Identities under Vault Settings. You can only manage
the identities of the currently logged in OmniPass user

To add a new identity, click New Identity or double-click
Click here to add a new identity. Name the new identity
and click [OK], then click [Apply]. You can now switch
to the new identity and start remembering passwords.

To delete an identity, highlight the identity you want to
delete and click [Delete Identity], then click [Apply]

When you delete an identity, all of its
associated remembered sites and password
protected dialogs are lost.

.

To set the default identity, highlight the identity you
want as default and click [Set as Default]; click [Apply]
to ensure the settings are saved. If you log in to
OmniPass with a fingerprint device, you will automati­cally be logged in to the default identity for that
OmniPass user. You can choose the identity with which
you are logging in if you login using "master password".

Choosing User Identity during Login

To choose your identity during login, type your user­name in the User Name: field. Press [Tab] and see that
the Domain: field self-populates. Click the Password:
field to bring the cursor to it, and you will see the pull­down menu in the Identity: field. Select the identity you
wish to login as and then click OK to login.

Switch User Identity

To switch identities at any time, right-click the
OmniPass system tray icon and click Switch User Iden-
tity from the submenu. The Switch Identity dialog will
appear. Select the desired identity and then click OK.

Identities and Password Management

On the Manage Passwords interface of the Va u l t
Management tab of the OmniPass Control Center, there

is a pull-down selection box labeled, Identity. This field
lets you choose which identity you are managing pass­words for. When you select an identity here, only those
password protected dialogs that are associated with that
identity are shown. You can perform all the functions
explained in “Password Management” on page 118.

CONFIGURING OMNIPASS

This section gives an overview of both the Export/
Import function and the OmniPass Control Center.

Exporting and Importing Users

Using the OmniPass Control Center, you can export and
import users in and out of OmniPass. The export
process backs up all remembered sites, credentials, and
any enrolled fingerprints for an OmniPass user. All
OmniPass data for a user is backed up to a single
encrypted database file. During the import process, the
Windows login of the exported user is required. If the
proper credentials cannot be supplied, the user profile
will not be imported

.

■

You should periodically export your user
profile and store it in a safe place. If
anything happens to your system, you
can import your OmniPass profile to a
new system and have all your remem­bered settings and fingerprints instantly.

■

You don't forget the Windows login
credentials when exporting. When you
examine the importation, you are
prompted for authentication. The
credentials that will allow a user profile
to be imported are the Windows login
credentials of the exported user. They
are the credentials that had to be
submitted when the user profile was
exported. You will need User Name,
Password, and Domai

n.

119

T Series.book Page 120 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC – Appendix B

Exporting an OmniPass User Profile

To export a user, open the OmniPass Control Center,
and click Import/Export User under Manage Users.

Click Exports an OmniPass user profile. OmniPass will
prompt you to authenticate. Upon successfully authenti­cation, you must name the OmniPass user profile and
decide where to save it. An .opi file is generated, and you
should store a copy of it in a safe place.

This .opi file contains all your user specific OmniPass
data, and it is both encrypted and password protected.
This user profile does NOT contain any of your
encrypted data files.

Importing an OmniPass User Profile

You cannot import a user into OmniPass if
there already is a user with the same name
enrolled in OmniPass.

To import an OmniPass user open the OmniPass
Control Center, and click Import/Export User under
Manage Users. Click Imports a new user into OmniPass
and then select OmniPass Import/Export File (*.opi)
and click Next. OmniPass will then prompt you to
browse for the file you had previously exported (.opi
file). When you select the .opi file for importation,
OmniPass will prompt you for authentication. The
credentials that will allow a user profile to be imported
are the Windows login credentials of the exported user.
They are the credentials that had to be submitted when
the user profile was exported. You will need User Name,
Password, and Domain. If you don’t remember the value
for Domain, in a PC or SOHO environment Domain
should be your computer name.

OmniPass will notify you if the user was successfully
imported.

Things to Know Regarding Import/Export

■

Assume you export a local Windows User profile from
OmniPass. You want to import that profile to another
machine that has OmniPass. Before you can import
the profile, a Windows user with the same login cre­dentials must be created on the machine importing the
profile.

Example: I have a Windows user with the username
“Tom” and the password “Sunshine” on my system. I
have enrolled Tom into OmniPass and remembered
passwords. I want to take all my passwords to new sys­tem. I export Tom’s OmniPass user profile. I go to my
new system and using the Control Panel I create a user
with the username "Tom" and the password "Sun­shine". I can now successfully import the OmniPass
user data to the new system.

■

If you export an OmniPass-only user, you can import
that user to any computer running OmniPass, pro­vided that a user with that name is not already
enrolled in OmniPass.

■

If you attempt to import a user profile who has the
same name as a user already enrolled in OmniPass, the
OmniPass import function will fail.

OMNIPASS CONTROL CENTER

This section will serve to explain functions within the
OmniPass Control Center that weren’t explained earlier.

You can access the OmniPass Control Center any of
three ways:

■

Double-click the golden OmniPass key shaped icon in
the Windows taskbar (typically in the lower-right cor­ner of the desktop)

■

Click the Start button; select the Programs group;
select the Softex program group; and click the
OmniPass Control Center selection.

■

Open the Windows Control Panel (accessible via Start
button --> Settings --> Control Panel) and double-
click the Softex OmniPass icon.

User Management

The User Management tab has two major interfaces:
Add/Remove User and Import/Export User. Import/
Export User functionality is documented in “Exporting
and Importing Users” on page 119. Add/Remove User
functionality is straightforward.

If you click Adds a new user to OmniPass you will start
the OmniPass Enrollment Wizard. The Enrollment
Wizard is documented in “User Enrollment” on
page 116.

If you click Removes a user from OmniPass, OmniPass
will prompt you to authenticate. Authenticate with the
credentials (or enrolled fingerprint) of the user you wish
to remove. OmniPass will prompt you to confirm user
removal. Click OK to complete user removal

Removing a user will automatically destroy
all OmniPass data associated with that
user. All identities and credentials
associated with the user will be lost.

If you are sure about removing the user,
we recommend you export the user
profile.

User Settings

The User Settings tab has four interfaces: Audio Settings,
Tas k ba r T i ps , and Enrollment. User settings allow users

to customize OmniPass to suit their individual prefer­ences. Under User Settings (Audio Settings and Ta s kb a r
Tips) you can set how OmniPass notifies the user of
OmniPass events (e.g., successful login, access denied,

.

120

T Series.book Page 121 Thursday, July 14, 2005 2:24 PM

Using the Fingerprint Sensor

etc.). The details of each setting under the Audio
Settings and Tas k ba r T i ps interfaces are self-explana-

tory.

The Enrollment interface allows you to enroll finger­prints. For the procedure to enroll and authentication
device refer to Chapter 2.3. To enroll additional finger­prints, click Enroll Authentication Device, and authen-
ticate with OmniPass. Select the fingerprint recognition
device in the Select Authentication Device screen (it
should already be marked by a green check if you have a
finger enrolled) and click Next.

System Settings

The OmniPass Startup Options interface can be found
in the System Settings tab. With these options you can
specify how your OmniPass Logon is tied to your
Windows Logon.

The first option, Automatically log on to OmniPass as
the current user, will do just as it says; during Windows
login, you will be logged on to OmniPass using your
Windows login credentials. If the user logging into
Windows was never enrolled into OmniPass, upon login
no one will be logged on to OmniPass. This setting is
appropriate for an office setting or any setting where
users must enter a username and password to log into a
computer. This is the default setting.

With the second option, Manually log on to OmniPass
at startup, OmniPass will prompt you to login once you
have logged on to Windows.

With the third option, Do not log on to OmniPass at
startup, OmniPass will not prompt for a user to be
logged on.

You can manually log on to OmniPass by right-clicking
the OmniPass taskbar icon and clicking Log in User
from the right-click menu.

TROUBLESHOOTING

You cannot use OmniPass to create Windows users. You
must first create the Windows user, and you will need
administrative privileges to do that. Once the Windows
user is created, you can add that user to OmniPass using
the same username and password

Cannot add Windows users to OmniPass

If you experience difficulties adding a Windows user
to OmniPass, you may need to adjust your local secu­rity settings. You can do this by going to Start,

Control Panel, Administrative Tools, and Local
Security Settings. Expand Local Policies, expand
Security Options, and double-click Network Access:
Sharing and Security Model for Local Accounts. The

correct setting should be Classic - Local Users Authen­ticate as Themselves.

Cannot add a User with a Blank Password to OmniPass

If you experience difficulties adding a user with a
blank password to OmniPass, you may need to adjust
your local security settings. First attempt the proce­dure explained in the Cannot add Windows user to
OmniPass section. If the difficulties persist, then try
the following procedure.

Click Start, Control Panel, Administrative Tools,
and Local Security Settings. Expand Local Policies,
expand Security Options, and double-click

Accounts: Limit local account use of blank pass­words to console login only. This setting should be

set to Disabled.

Dialog appears after OmniPass authentication during
Windows Logon

After installing OmniPass on your system, you can
choose to logon to Windows using OmniPass. You
authenticate with OmniPass (via master password, or
an enrolled security device) and OmniPass logs you
into Windows. You may, during this OmniPass
authentication, see a Login Error dialog box.

This dialog box occurs when OmniPass was unable to
log you into Windows with the credentials supplied
(username and password). This could happen for any
of the following reasons:

■

Your Windows password has changed

■

Your Windows account has been disabled

If you are having difficulties due to the first reason,
you will need to update OmniPass with your changed
Windows account password. Click Update Password
and you will be prompted with a dialog to reconfirm
your password.

Enter the new password to your Windows user
account and click OK. If the error persists, then it is
unlikely the problem is due to your Windows user
account password changing.

121

T Series.book Page 122 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC – Appendix B

122

T Series.book Page 123 Thursday, July 14, 2005 2:24 PM

Index

Index

A

AC

adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Anti-theft Lock Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 35

B

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

lithium ion battery . . . . . . . . . . . . . . . . . . . . . . . . . . 43

low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 64

recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

shorted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

warm-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

BIOS

guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Bluetooth

Where to Find Information . . . . . . . . . . . . . . . . . .111

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Built-in Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Button Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

C

CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CD-ROM

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Changing Tablet PC Button Functions . . . . . . . . . . .24

Click Me! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Closed Cover Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cold-swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Conventions used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

D

DC in connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DC Output Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 35

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Display Panel Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Drivers and Application Restore CD . . . . . . . . . . . . . 69

E

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

External Monitor Port . . . . . . . . . . . . . . . . . . . . . . 15, 55

F

Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . .115

enrolling a fingerprint . . . . . . . . . . . . . . . . . . . . . .117

getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . .115

logging into a remembered site . . . . . . . . . . . . . . .118

OmniPass authentication toolbar . . . . . . . . . . . . . 117

password replacement . . . . . . . . . . . . . . . . . . . . . .117

remembering a password . . . . . . . . . . . . . . . . . . . 117

uninstalling OmniPass . . . . . . . . . . . . . . . . . . . . . .116

user enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . .116

using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Flexible Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

eject lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Floppy Disk

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Function Key

F10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

123

T Series.book Page 124 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Index

FN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

H

Hard Disk Drive

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 9, 13, 55

Hibernate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

I

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

IrDA/FIR port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

K

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 21

cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

L

LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

LifeBook Security Application Panel

operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

LifeBook Security/Tablet PC Buttons . . . . . . . . . 11, 23

LifeBook T Series Tablet PC

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

LifeBook T Series Tablet PC specifications

additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

agency approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

display specifications . . . . . . . . . . . . . . . . . . . . . . . 79

environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

physical specifications . . . . . . . . . . . . . . . . . 79, 80, 81

power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Local Area Network (LAN) . . . . . . . . . . . . . . . . . . . . 10

M

Memory

capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 45

inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

upgrade module . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Memory Stick

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 9, 12, 55

microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Modem

problems

Troubleshooting

modem 61

modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 15

Modem (RJ-11) Port . . . . . . . . . . . . . . . . . . . . . . . . . .15

Modem Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . .68

Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Mouse

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

See Touchpad

N

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

O

optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Additional Accessories . . . . . . . . . . . . . . . . . . . . . . . .8

additional accessories . . . . . . . . . . . . . . . . . . . . . . . . .8

carrying cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

docking options . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

storage options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

P

PC Card

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PC Card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PC Cards

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

pen

calibrating the pen . . . . . . . . . . . . . . . . . . . . . . . . . .31

installing a pen tether . . . . . . . . . . . . . . . . . . . . . . . .30

replacing the tip . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

using the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Pen and Active Digitizer . . . . . . . . . . . . . . . . . . . . . . . .30

pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

detaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

124

T Series.book Page 125 Thursday, July 14, 2005 2:24 PM

Index

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . 16

Power

AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . .35

failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62, 63

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

power

power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Power Management . . . . . . . . . . . . . . . . . . . . . . . . 38, 39

Power On Self Test . . . . . . . . . . . . . . . . . . . . . . . . .36, 67

R

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Re-Installing Individual Drivers and Applications . .69

Removing a Memory Stick . . . . . . . . . . . . . . . . . . . . . 50

Restarting the system . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Restoring Your Pre-installed Software . . . . . . . . . . . .69

RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 54

Rotation Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

S

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SD Card

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

SD Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 45

Secure Digital Card

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Security lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting up LifeBook Security Panel . . . . . . . . . . . . . . . 24

Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Smart Card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . .12, 17

Suspend Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Suspend/Resume Button . . . . . . . . . . . . . . .9, 11, 38, 52

T

Tablet Dock port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Tablet PC

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Touch Screen

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Touchpad

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

control adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 28

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Touchpad Pointing Device . . . . . . . . . . . . . . . . . . 11, 27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

built-in Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

mouse/keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

U

Universal Serial Bus Port . . . . . . . . . . . . . . . . . . . . . . . 54

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

USB 2.0

ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the Active Digitizer . . . . . . . . . . . . . . . . . . . . . . 31

Using the system as a Tablet . . . . . . . . . . . . . . . . . . . . 19

V

volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

W

Warm-swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Application key . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Start key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Wireless LAN

Before Using the Wireless LAN . . . . . . . . . . . . . . . 96

IP address information . . . . . . . . . . . . . . . . . . . . . 109

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Wireless LAN Glossary . . . . . . . . . . . . . . . . . . . . . 107

Wireless LAN On-Off Switch . . . . . . . . . . . . . . . . . . . 10

WLAN On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . 13

125

T Series.book Page 126 Thursday, July 14, 2005 2:24 PM

LifeBook T Series Tablet PC - Index

126

T Series.book Page 127 Thursday, July 14, 2005 2:24 PM

T Series.book Page 128 Thursday, July 14, 2005 2:24 PM

T Series.book Page 129 Thursday, July 14, 2005 2:24 PM

T Series.book Page 130 Thursday, July 14, 2005 2:24 PM
