USER'S MANUAL

(Specification and Part Names)

WIDE PLASMA DISPLAY

P42VHA40W/P42HHA40W/P50XHA40W/P55XHA40W/

P63XHA40W

P42VHA40U/P42HHA40U/P50XHA40U/P55XHA40U/

P63XHA40U

P42VHA40A/P42HHA40A/P50XHA40A/P55XHA40A/

P63XHA40A

P42VHA40R/P63XHA40R

EnglishDeutschEspañolFrançaisItalianoPortuguês

Contents

Page

Before Use

• CHECKING ACCESSORIES .................................................................................... E-2

• INSTALLATION ........................................................................................................ E-3

Usage

• PART NAMES AND FUNCTIONS ............................................................................ E-4

Others

• OPTIONS.................................................................................................................. E-9

• MAIN SUPPORTED SIGNALS............................................................................... E-10

• SPECIFICATION .................................................................................................... E-12

Before using the display, read the User’s manual (1/2) and the User’s manual (2/2) carefully so that you know how to use the display correctly. Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the safety precautions (see the separate "Safety Precautions" manual). Keep this manual where the user can see it easily. * Installation and removal require special expertise. Consult your product dealer for details. * When "English" is selected at "Language" of the on-screen display, "colour" will be displayed in the case of the R model and "color"

will be displayed for all other models.

The notation used in this users' manual is "color". * All operation items of A model are the same as W model. Please read the description part of "W model" for "A model" in User's manual (2/2). * The residential warranty for "A model" is enclosed in accessories. * The last digit of MODEL NO. (10 digit alphanumeric characters) indicated on the product means the body color indication alphabet or

the management number. * The illustration of external appearance is for 42" model.

Please acknowledge some differences in the actual product of other models.

Póññêèé

÷–Œƒ

日本語

Downloaded From TV-Manual.com Manuals

CHECKING ACCESSORIES

One power cable Two small

ferrite cores

No.:ZCAT1518-0730 Mfr.:TDK

Two AA batteries One residential

Two big

ferrite cores

No.:SFT-72SN Mfr.:TKK

warranty

(for the A model)

Three user's manuals

Manual

One remote control (for the W/A/R models)

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

One remote control

(for the U model)

Carefully check the terminals for position and type before making any connections.

Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

Ferrite cores

These ferrite cores are used to attenuate undesired signals.

Two big ferrite cores

When connecting a cable to the power input terminal, video input terminal, attach one of these ferrite cores to the cable near the terminal.

Power Cable

Ferrite Core

RCA Video Cable

Ferrite Core

Two small ferrite cores

When connecting a cable to the external speaker output terminal attach one of these ferrite cores to the cable near the terminal.

Ferrite Core

Downloaded From TV-Manual.com Manuals

E-2

Ferrite Core

INSTALLATION

To prevent the display's internal components from overheating, make sure that the display is installed in a well-ventilated location.

Be sure to use the optional stand, wall-mounting unit or the other unit when installing the display. Also, be also sure that your dealer performs the installation.

See the appropriate instruction manual for more information on the installation hardware you select.

To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below.

To ensure proper heat radiation, provide at least as much space around the display as shown below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C.

* Never attempt to tilt the display sideways or backward.

* To prevent the power and other cables from being accidentally pulled, make sure that they run along the wall or through corners.

* To prevent accidents and ensure safety in the event of an earthquake, secure the display to prevent it from tipping over.

Display Section

Front Side

Upper

(cm)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Left

Lower

Right

3.5 (for 42”/50”) 5 (for 55”/63”)

Wall

Póññêèé

Note

The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing materials originally supplied with the display when repacking it.

Reference

See P. E-9 for more information on options.

Downloaded From TV-Manual.com Manuals

÷–Œƒ

日本語

E-3

PART NAMES AND FUNCTIONS

DISPLAY SECTION – FRONT

(Right section)

 Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Stand-by state

Lit (green): Power ON state

Flashing (red or green): Malfunction (Flashes differently

depending on the type of malfunction.)

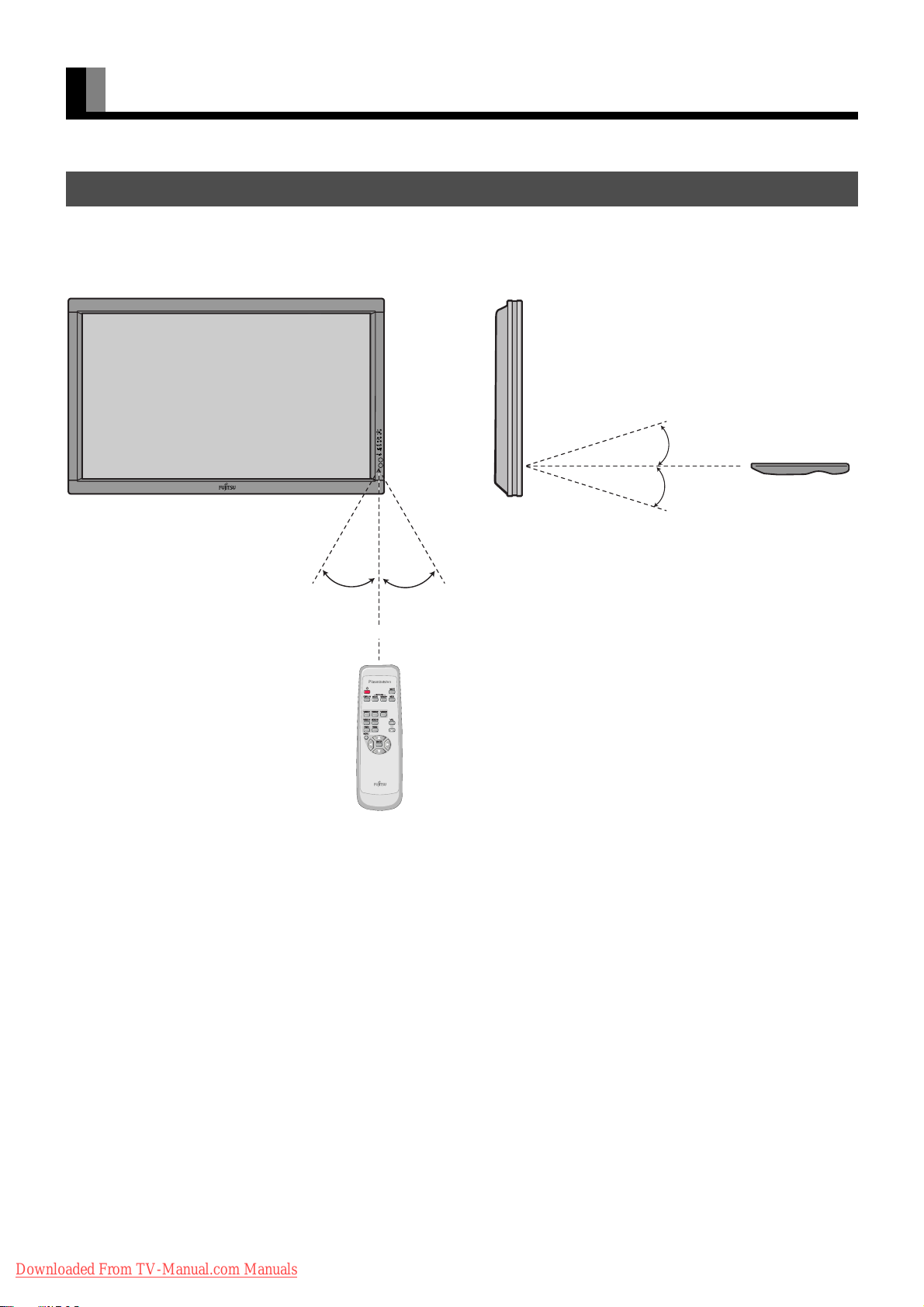

 Remote control signal receiver

Receives signals from the remote control.

 Input mode selector button [MODE]

 Input mode selector button [MODE]

Switches between picture input modes.

 VOL + button

 VOL - button

Adjusts the audio volume.

 Wide screen selector button [WIDE]

Switches the screen over to a desired wide screen.

 ON/OFF button

Turns the power "ON" and "OFF (standby state)".

 Ambient Sensor

Detects the brightness of external light. Do not obstruct it.

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.

Downloaded From TV-Manual.com Manuals

E-4

DISPLAY SECTION – BACK AND BOTTOM PART

EnglishDeutschEspañolFrançaisItalianoPortuguês

Back

 / I power switch

If this button is pressed when the power indicator lamp is off, the indicator lamp will light.

The power can be turned on and the standby mode selected by using the remote control or the control panel of the display.

If this button is pressed when the power indicator lamp is lit, the indicator lamp will go out.

*Power is still supplied to parts of the display even if the indicator lamp is off.

 HDMI input terminal (VIDEO5 INPUT/HDMI) for the U model

Connect this terminal to the HDMI output terminal for DVD, etc.

 RS-232C terminal (RS-232C)

This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.

 RGB1 input terminal (RGB1 INPUT/DVI-D) for the W/U/A models

Connect this terminal to the PC’s display (digital RGB) output terminal.

*The connection cable No.88741-8000 made by molex Inc. is recommanded.

Bottom

Póññêèé

÷–Œƒ

Note

• The illustration of external appearance is for 42" model. Please acknowledge some differences in the actual product of other models.

Downloaded From TV-Manual.com Manuals

日本語

E-5

PART NAMES AND FUNCTIONS (Continued)

 RGB2 input terminal (RGB2 INPUT/mD-sub) for the W/U/A models /

RGB1 input terminal (RGB1 INPUT/mD-sub) for the R model

Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.

 Component video input terminal (VIDEO3 INPUT)

 Component video input terminal (VIDEO4 INPUT)

Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.

 Video input terminal (VIDEO1 INPUT)

Connect this terminal to the video output terminal of your VCR. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

 S-Video input terminal (VIDEO2 INPUT)

Connect this terminal to the S-video output terminal of your VCR.

 Audio3 input terminal (AUDIO3 INPUT)

 Audio2 input terminal (AUDIO2 INPUT)

 Audio1 input terminal (AUDIO1 INPUT)

Connect this terminal to the audio output terminal of your VCR, etc. (See the User’s manual (2/2) for the selection of audio input for video input.)

 External speaker output terminal (EXT SP)

Connect this terminal to the optionally available speaker. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

* See the speaker instruction manual for more information.

 Power input terminal

Connect this terminal to the power cable supplied with the display. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

Downloaded From TV-Manual.com Manuals

E-6

DESCRIPTION OF INPUT TERMINALS

EnglishDeutschEspañolFrançaisItalianoPortuguês

DVI-D terminal (RGB1 INPUT/DVI-D) for the W/U/A models

mD-sub input terminal (RGB2 INPUT/mD-sub) for the W/U/A models (RGB1 INPUT/mD-sub) for the R model

Pin No. Signal Pin No. Signal Pin No. Signal

1 T.M.D.S. Data2– 9 T.M.D.S. Data1– 17 T.M.D.S. Data0–

2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

4— 12— 20—

5— 13— 21—

6 DDC Clock 14 +5V Power 22

7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+

8 — 16 Hot Ploug Detect 24 T.M.D.S. Clock–

Pin No. Input signal Pin No. Input signal

1Red 9—

2 Green 10 Ground

3Blue 11—

4— 12—

5 Ground 13 Horizontal synchronization

6 Ground 14 Vertical synchronization

7 Ground 15 —

8 Ground Frame Ground

T.M.D.S. Data2 Shield

T.M.D.S. Data1 Shield

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield

RS-232C terminal (RS-232C)

Pin No. Signal

1 DCD (Data Carrier Detect)

2 RD (Received Data)

3 TD (Transmit Data)

4 DTR (Data Terminal ready)

5 GND (Ground)

6 DSR (Data Set Ready)

7 RTS (Request To send)

8 CTS (Clear To Send)

9 RI (Ring Indication)

Póññêèé

÷–Œƒ

日本語

Downloaded From TV-Manual.com Manuals

E-7

PART NAMES AND FUNCTIONS (Continued)

HDMI input terminal (VIDEO5 INPUT/HDMI) for the U model

HDMI (High-Definition Multimedia Interface)

HDMI is a standard for home digital interfaces, which can transmit images as well as multichannel audio signals and control signals through one cable.

Pin No. Input signal Pin No. Input signal

1 T.M.D.S. Data2+ 11 T.M.D.S. Clock Shield

2 T.M.D.S. Data2 Shield 12 T.M.D.S. Clock–

3 T.M.D.S. Data2– 13 CEC

4 T.M.D.S. Data1+ 14 Reserve

5 T.M.D.S. Data1 Shield 15 DDC Clock

6 T.M.D.S. Data1– 16 DDC Data

7 T.M.D.S. Data0+ 17 Ground (for +5V)

8 T.M.D.S. Data0 Shield 18 +5V Power

9 T.M.D.S. Data0– 19 Hot Plug Detect

10 T.M.D.S. Clock+ Frame FG

Downloaded From TV-Manual.com Manuals

E-8

OPTIONS

Wall-mounting Bracket 0° to 15° mounting angle P-WB4201 (for 42” model/50” model)

P-WB6300 (for 55” model/63” model)

Ceiling unit 0° to 15° mounting angle P-CT4200 (for 42” model/50” model)

P-CT6300 (for 55” model/63” model)

Desktop Stand unit P-TT4202 (for 42” model/50” model/55”

model)

P-TT6300 (for 63” model)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Speaker (1 set of 2 speakers)

Desktop Speaker Stand (1 set of 2 speaker stands)

* When installing an option, make sure that all installation requirements for that option (as given in the relevant instruction manual) are met.

* The colors of options do not match the display colors perfectly.

* To improve the function and performance of optional accessories, specifications and part names may change. Consult your local dealer

before purchasing.

Warning

To prevent injury, fire, and electric shock, arrange for options to be initially installed (or installed at a different location) by your dealer.

P-SP1000 (for attaching to the display) for 42” model/50” model

P-SP5010 (for attaching to the display) for 55” model

P-SP6300 (for attaching to the display) for 63” model

P-SP4200 (for mounting on the speaker stands) for 42” model

P-SP5010 (for mounting on the speaker stands) for 50” model/55” model P-ST4200 (for P-SP4200)

P-ST5000 (for P-SP5010)

Póññêèé

÷–Œƒ

CAUTION

This display (P42VHA40/P42HHA40/P50XHA40) is for use only with Fujitsu General Limited's option (P-WB4201, P-CT4200, P-TT4202). This display (P55XHA40) is for use only with Fujitsu General Limited's option (P-WB6300, P-CT6300, P-TT4202). This display (P63XHA40) is for use only with Fujitsu General Limited's option (P-WB6300, P-CT6300, P-TT6300). Using this display with other option can cause instability resulting in possible injury.

Downloaded From TV-Manual.com Manuals

日本語

E-9

MAIN SUPPORTED SIGNALS

This display can store the latest four types of signals for RGB adjustment value. The fifth input signal will replace the adjustment value of the first input signal.

To do this, select a desired signal and follow the instructions in “Adjusting Screen Position and Size” on the User’s manual (2/2) to adjust the parameters.

When you finish, the settings will be automatically stored. Thus, when the display receives that signal, pictures will be displayed in accordance with the settings you most recently selected.

Main corresponding signals (RGB mode)

Display (dots x lines)

640 x 480 31.47 59.94 VGA

640 x 480 37.50 75.00 VGA 75 Hz

640 x 480 43.27 85.01 VGA 85 Hz

720 x 400 31.47 70.09 400 lines

800 x 600 37.88 60.32 SVGA 60 Hz

800 x 600 46.88 75.00 SVGA 75 Hz

800 x 600 53.67 85.06 SVGA 85 Hz

1024 x 768 48.36 60.00 XGA 60 Hz

1024 x 768 60.02 75.03 XGA 75 Hz

1024 x 768 68.68 84.99 XGA 85 Hz

1280 x 1024 63.98 60.02 SXGA 60 Hz

1280 x 1024 79.98 75.03 SXGA 75 Hz

848 x 480 31.02 60.00

852 x 480 31.72 59.97

1360 x 768 47.71 60.01

720 x 485 15.73 59.94 60 fields

720 x 575 15.63 50.00 50 fields

Horizontal frequency (kHz)

Vertical frequency (Hz) Signal DVI-D

※

※It doesn’t support the model with 42” display (displayed pixels 852 x 480 dots x lines).

* In the DVI-D mode, the input signal can be restricted partly.

Downloaded From TV-Manual.com Manuals

E-10

In the Comp.video and Video/S-video, the display has been factory-set as follows for different input signals:

Main corresponding signals (Comp.video mode) Main corresponding signals (Video, S-video mode)

Horizontal

frequency (kHz)

15.73 59.94 SDTV 480i 15.73 59.94 NTSC

15.63 50.00 SDTV 576i 15.63 50.00 PAL

31.47 59.94 SDTV 480p 15.63 50.00 SECAM

31.25 50.00 SDTV 576p 15.63 59.52 PAL60

45.00 60.00 HDTV 720p 15.63 50.00 N-PAL

37.50 50.00 HDTV 720p 15.73 59.95 M-PAL

33.75 60.00 HDTV 1080i 15.73 59.94 4.43NTSC

28.13 50.00 HDTV 1080i

Verti cal

frequency (Hz)

Signal HDMI

Horizontal

frequency (kHz)

Ver t ical

frequency (Hz)

Signal

EnglishDeutschEspañolFrançaisItalianoPortuguês

Note

• Depending on the input signal, the display may show pictures of reduced size due to size reduction and interpolation.

• With some input signals, "Out of range" may appear even when the horizontal and vertical frequencies are within their permissible ranges. In this event, match the input signals to another frequency rather than those listed above.

• You can check input signals through "Information" on the FEATURES Menu screen. (See User's Manual (2/2))

• In order to facilitate the explanations, pictures and diagrams in this manual may differ slightly from the actual items.

• All terms (i.e., company and product names) used in this document are trademarks or registered trademarks.

Downloaded From TV-Manual.com Manuals

Póññêèé

÷–Œƒ

日本語

E-11

SPECIFICATION

WIDE PLASMA DISPLAY

Model P42VHA40W/A P42HHA40W/A P50XHA40W/A P55XHA40W/A P63XHA40W/A

Screen size

Aspect ratio 16:9 (wide)

Number of pixels 852 (H) x 480 (V) 1024 (H) x 1024 (V) 1366 (H) x 768 (V)

Weight 31.5 kg / 69 lbs 45 kg / 99 lbs 55 kg / 121 lbs 72 kg / 159 lbs

Outer dimensions 103.9 (W) x 64.0 (H) x 8.7 (D) cm

Power supply 110-240 VAC 50/60 Hz

Current rating 3.2-1.35 A 4.2-1.8 A 4.4-1.9 A 5.8-2.3 A 6.8-2.6 A

External equipment terminals

Video input terminals

PC input terminal RGB1 input DVI-D terminal (EIA/CEA-861B Compliant)

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

Control terminal RS-232C connector (D-sub 9-pin)

External speaker output terminal

Operating conditions

Accessories

42" wide screen:

92.1 cm (W) x 51.8 cm (H) (105.7 cm diagonal)

36.3 inch (W) x 20.4 inch (H) (41.6 inch diagonal)

40.9 (W) x 25.2 (H) x 3.4 (D) inch (does not include outer projections)

VIDEO1 INPUT (Video input) RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) S terminal Y: 1 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) P

RGB2 input mD-sub, 3 rows, 15-pin

500 mVrms/at least 22 kΩ

Max. output: 10 W + 10 W, 6 Ω

Temperature: 0 to 40 °C / 32 to 104 °F Humidity: 20 to 80 %

3 user's manuals, 1 power cable, 2 small ferrite cores, 2 big ferrite cores, 1 remote control, 2 AA batteries, 1 residential warranty (for the A model)

42" wide screen:

92.2 cm (W) x 52.2 cm (H) (106.0 cm diagonal)

36.3 inch (W) x 20.6 inch (H) (41.7 inch diagonal)

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

50" wide screen:

110.6 cm (W) x 62.2 cm (H) (126.9 cm diagonal)

43.5 inch (W) x 24.5 inch (H) (50 inch diagonal)

121.6 (W) x 72.6 (H) x 10.0 (D) cm

47.9 (W) x 28.6 (H) x 3.9 (D) inch (does not include outer projections)

55" wide screen:

122.9 cm (W) x 69.1 cm (H) (140.0 cm diagonal)

48.4 inch (W) x 27.2 inch (H) (55.1 inch diagonal)

138.0 (W) x 80.8 (H) x 12.5 (D) cm

54.3 (W) x 31.8 (H) x 4.9 (D) inch (does not include outer projections)

C: 0.286 Vp-p/75 Ω

B/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

63" wide screen:

139.3 cm (W) x 78.3 cm (H) (159.8 cm diagonal)

54.8 inch (W) x 30.8 inch (H) (62.9 inch diagonal)

150.4 (W) x 89.4 (H) x 12.3 (D) cm

59.2 (W) x 35.2 (H) x 4.8 (D) inch (does not include outer projections)

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

• CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

• AS Safety: IEC60065 EMC: AS/NZS 3548

Downloaded From TV-Manual.com Manuals

E-12

WIDE PLASMA DISPLAY

Model P42VHA40U P42HHA40U P50XHA40U P55XHA40U P63XHA40U

Screen size

Aspect ratio 16:9 (wide)

Number of pixels 852 (H) x 480 (V) 1024 (H) x 1024 (V) 1366 (H) x 768 (V)

Weight 31.5 kg / 69 lbs 45 kg / 99 lbs 55 kg / 121 lbs 72 kg / 159 lbs

Outer dimensions 103.9 (W) x 64.0 (H) x 8.7 (D) cm

Power supply 110-240 VAC 50/60 Hz

Current rating 3.2-1.35 A 4.2-1.8 A 4.4-1.9 A 5.8-2.3 A 6.8-2.6 A

External equipment terminals

Video input terminals

PC input terminal RGB1 input DVI-D terminal (EIA/CEA-861B Compliant)

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

Control terminal RS-232C connector (D-sub 9-pin)

External speaker output terminal

Operating conditions

Accessories

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

• CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

• AS Safety: IEC60065 EMC: AS/NZS 3548

42" wide screen:

92.1 cm (W) x 51.8 cm (H) (105.7 cm diagonal)

36.3 inch (W) x 20.4 inch (H) (41.6 inch diagonal)

40.9 (W) x 25.2 (H) x 3.4 (D) inch (does not include outer projections)

VIDEO1 INPUT (Video input) RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) S terminal Y: 1 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) P

VIDEO5 INPUT HDMI terminal (HDMI type A connector)

RGB2 input mD-sub, 3 rows, 15-pin

500 mVrms/at least 22 kΩ

Max. output: 10 W + 10 W, 6 Ω

Temperature: 0 to 40 °C / 32 to 104 °F Humidity: 20 to 80 %

3 user's manuals, 1 power cable, 2 small ferrite cores, 2 big ferrite cores, 1 remote control, 2 AA batteries

42" wide screen:

92.2 cm (W) x 52.2 cm (H) (106.0 cm diagonal)

36.3 inch (W) x 20.6 inch (H) (41.7 inch diagonal)

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

50" wide screen:

110.6 cm (W) x 62.2 cm (H) (126.9 cm diagonal)

43.5 inch (W) x 24.5 inch (H) (50 inch diagonal)

121.6 (W) x 72.6 (H) x 10.0 (D) cm

47.9 (W) x 28.6 (H) x 3.9 (D) inch (does not include outer projections)

55" wide screen:

122.9 cm (W) x 69.1 cm (H) (140.0 cm diagonal)

48.4 inch (W) x 27.2 inch (H) (55.1 inch diagonal)

138.0 (W) x 80.8 (H) x 12.5 (D) cm

54.3 (W) x 31.8 (H) x 4.9 (D) inch (does not include outer projections)

C: 0.286 Vp-p/75 Ω

B/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

63" wide screen:

139.3 cm (W) x 78.3 cm (H) (159.8 cm diagonal)

54.8 inch (W) x 30.8 inch (H) (62.9 inch diagonal)

150.4 (W) x 89.4 (H) x 12.3 (D) cm

59.2 (W) x 35.2 (H) x 4.8 (D) inch (does not include outer projections)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Póññêèé

÷–Œƒ

Note

• Specifications and external appearance may be change for the sake of improvement.

• Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.6 m or 5.2 feet for 42" / at least

1.9 m or 6.2 feet for 50" / at least 2.1 m or 6.9 feet for 55" / at least 2.4 m or 7.9 feet for 63") from the screen and to look occasionally away while working.

• is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

Downloaded From TV-Manual.com Manuals

日本語

E-13

SPECIFICATION (Continued)

WIDE PLASMA DISPLAY

Model P42VHA40R P63XHA40R

Screen size 42" wide screen:

Aspect ratio 16:9 (wide)

Number of pixels 852 (H) x 480 (V) 1366 (H) x 768 (V)

Weight 31.5 kg / 69 lbs 72 kg / 159 lbs

Outer dimensions 103.9 (W) x 64.0 (H) x 8.7 (D) cm

Power supply 110-240 VAC 50/60 Hz

Current rating 4.2-1.7 A 6.8-2.6 A

External equipment terminals

Video input terminals

PC input terminal RGB1 input mD-sub, 3 rows, 15-pin

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

Control terminal RS-232C connector (D-sub 9-pin)

External speaker output terminal

Operating conditions

Accessories

92.1 cm (W) x 51.8 cm (H) (105.7 cm diagonal)

36.3 inch (W) x 20.4 inch (H) (41.6 inch diagonal)

40.9 (W) x 25.2 (H) x 3.4 (D) inch (does not include outer projections)

VIDEO1 INPUT (Video input) RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) S terminal Y: 1 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) P

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

500 mVrms/at least 22 kΩ

Max. output: 10 W + 10 W, 6 Ω

Temperature: 0 to 40 °C / 32 to 104 °F Humidity: 20 to 80 %

3 user's manuals, 1 power cable, 2 small ferrite cores, 2 big ferrite cores, 1 remote control, 2 AA batteries

63" wide screen:

139.3 cm (W) x 78.3 cm (H) (159.8 cm diagonal)

54.8 inch (W) x 30.8 inch (H) (62.9 inch diagonal)

150.4 (W) x 89.4 (H) x 12.3 (D)

59.2 (W) x 35.2 (H) x 4.8 (D) (does not include outer projections)

C: 0.286 Vp-p/75 Ω

B/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

inch

Regulation

• CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

• AS Safety: IEC60065 EMC: AS/NZS 3548

Note

• Specifications and external appearance may be change for the sake of improvement.

• Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.6 m or 5.2 feet for 42" / at least

1.9 m or 6.2 feet for 50" / at least 2.1 m or 6.9 feet for 55" / at least 2.4 m or 7.9 feet for 63") from the screen and to look occasionally away while working.

• is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

Downloaded From TV-Manual.com Manuals

E-14

USER'S MANUAL

(Precautions and Adjustment Methods)

WIDE PLASMA DISPLAY

EnglishDeutschEspañolFrançaisItalianoPortuguês

Contents

Page Page

Before Use

• INFORMATION ............................................................ E-2

Usage

• USING THE REMOTE CONTROL...............................E-3

• CONNECTING THE DISPLAY TO EXTERNAL

EQUIPMENT ................................................................ E-7

• BASIC OPERATIONS ................................................E-12

• SELECTING INPUT MODE .......................................E-14

• OTHER BASIC OPERATIONS .................................. E-16

• WATCHING PICTURES ON THE WIDE SCREEN.... E-17

Adjustments

• ADJUSTMENT MENU................................................ E-19

• BASIC PROCEDURE OF ADJUSTMENT MENU

OPERATIONS............................................................E-20

• ADJUSTING THE PICTURE ...................................... E-21

• ADJUSTING SCREEN POSITION AND SIZE ...........E-27

• ADJUSTING AUDIO................................................... E-28

"color" will be displayed for all other models. The notation used in this users' manual is "color".

• OTHER ADJUSTMENTS ...........................................E-29

• INITIALIZATION OF USER ADJUSTMENT VALUE ..E-35

Others

• CLEANING AND MAINTENANCE .............................E-36

Pусский

中文

日本語

Downloaded From TV-Manual.com Manuals

+ 35 hidden pages
