Fujitsu S7220 User Manual

User’s Guide

Learn how to use

your Fujitsu LifeBook S7220 notebook

Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.

Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

The ExpressCard word mark and logo are owned by the Personal Computer Memory Card International Association (PCMCIA) and any use of such marks by Fujitsu Computer Systems Corporation is under license.

Bluetooth is a trademark of Bluetooth SIG, Inc., USA.

Adobe, Acrobat, and Acrobat Reader are either a registered trademarks or trademarks of Adobe Systems Inc. in the United States and/or other countries.

Google and Picasa are trademarks or registered trademarks of Google Incorporated.

Realtek is a trademark of Realtek Semiconductor Corporation.

ArcSoft WebCam Companion is a trademark of ArcSoft, Inc.

MakeDisc, PowerProducer, and PowerDVD are trademarks of CyberLink Corp.

Evernote is a registered trademark of Evernote Corporation.

OmniPass is a trademark of Softex, Inc.

Roxio is a trademark of Roxio, a division of Sonic Solutions.

Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other countries.

The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

All other trademarks mentioned herein are the property of their respective owners

WARNING

HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE S

TATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

WASH HANDS AFTER HANDLING.

No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B5FJ-8371-01ENZ0-00

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, M/S 122

Sunnyvale, CA 94085 Telephone: (408) 746-6000 Declares that product: Base Model Configuration:

LifeBook S7220 notebook

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

AC adapter output polarity:

This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a maximum current of 5.27 A (100 W).

When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a

swimming pool.

• Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use the modem to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with

local codes for possible special disposal instructions.

• To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

• For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of

the coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service provider.

SAVE THESE INSTRUCTIONS

For Authorized Repair Technicians Only

DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.

OR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND

RATING FUSE.

System Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF

ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS.

Recycling your battery

Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly.

Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you.

RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to

www.RBRC.org or call 1-800-822-8837.

If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/ and search for a convenient disposal location.

Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future generations.

* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or

www.fujitsu.ca/products/notebooks

** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with Fujitsu.

in Canada.

)

Contents

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1 Getting to Know Your LifeBook

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

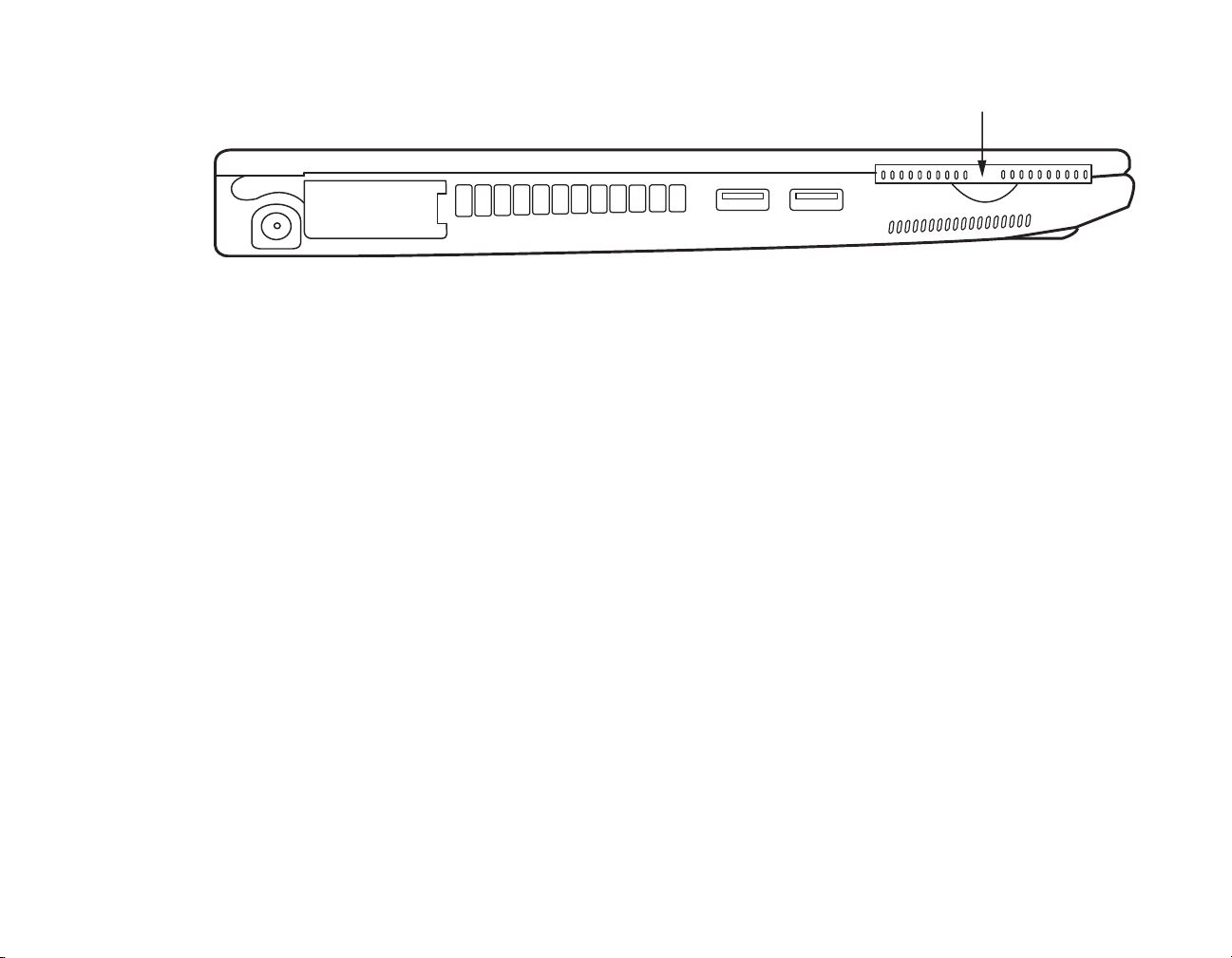

Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Back Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Battery Level Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Battery Charging Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Wireless Radio Emission Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Optical/Hard Drive Access Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

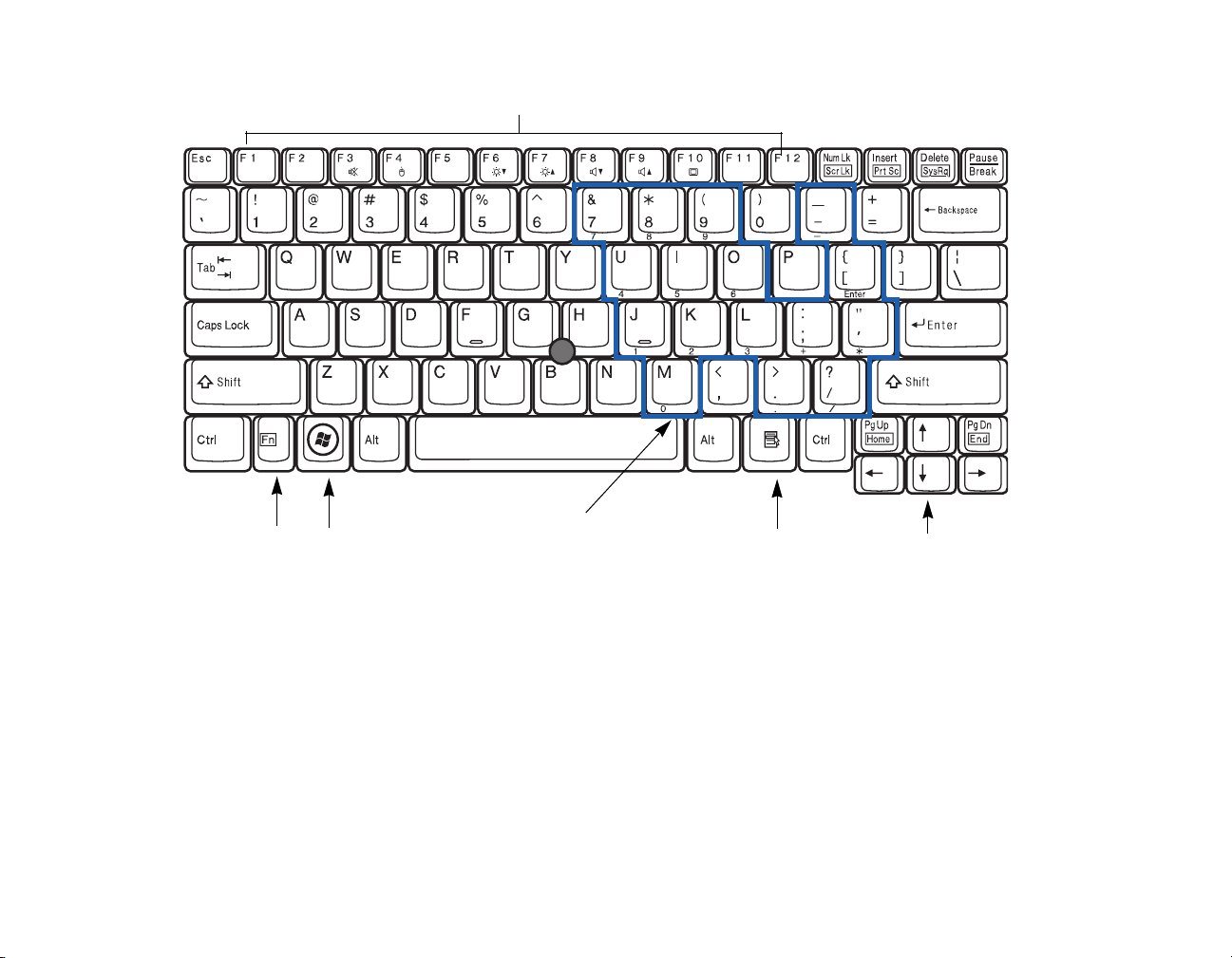

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Touchpad Pointing Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Clicking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Touchpad Control Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Optional Quick Point Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Flexible Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

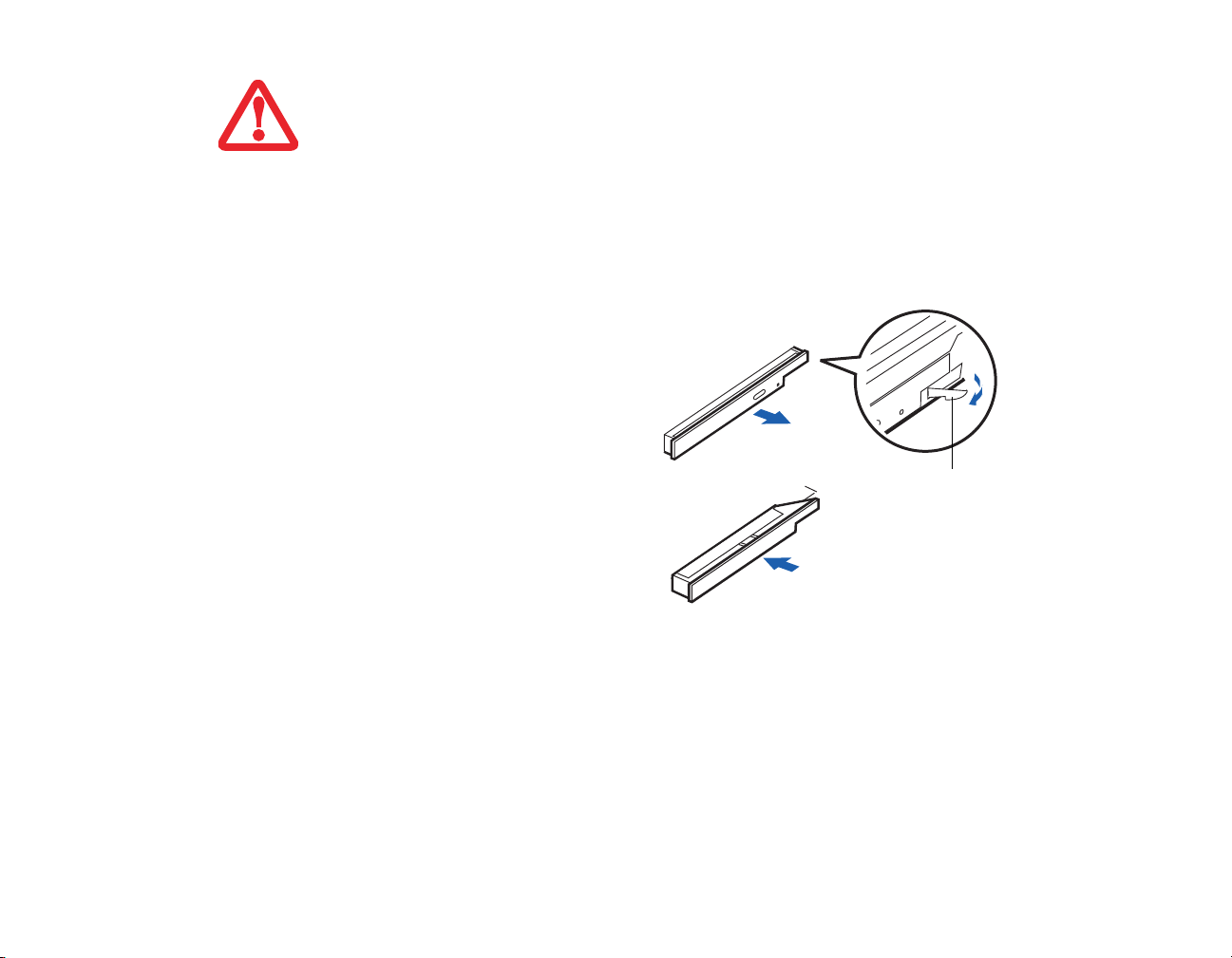

Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . 35

LifeBook Security/Application Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Setting up Your LifeBook Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . 37

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Operating Your LifeBook Security/Application Panel. . . . . . . . . . . . . . . . 39

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Uninstalling the Security Panel Application. . . . . . . . . . . . . . . . . . . . . . . . 41

Launching Applications with the Security/Application Panel . . . . . . . . . . 43

Chapter 2 Getting Started with Your LifeBook

Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

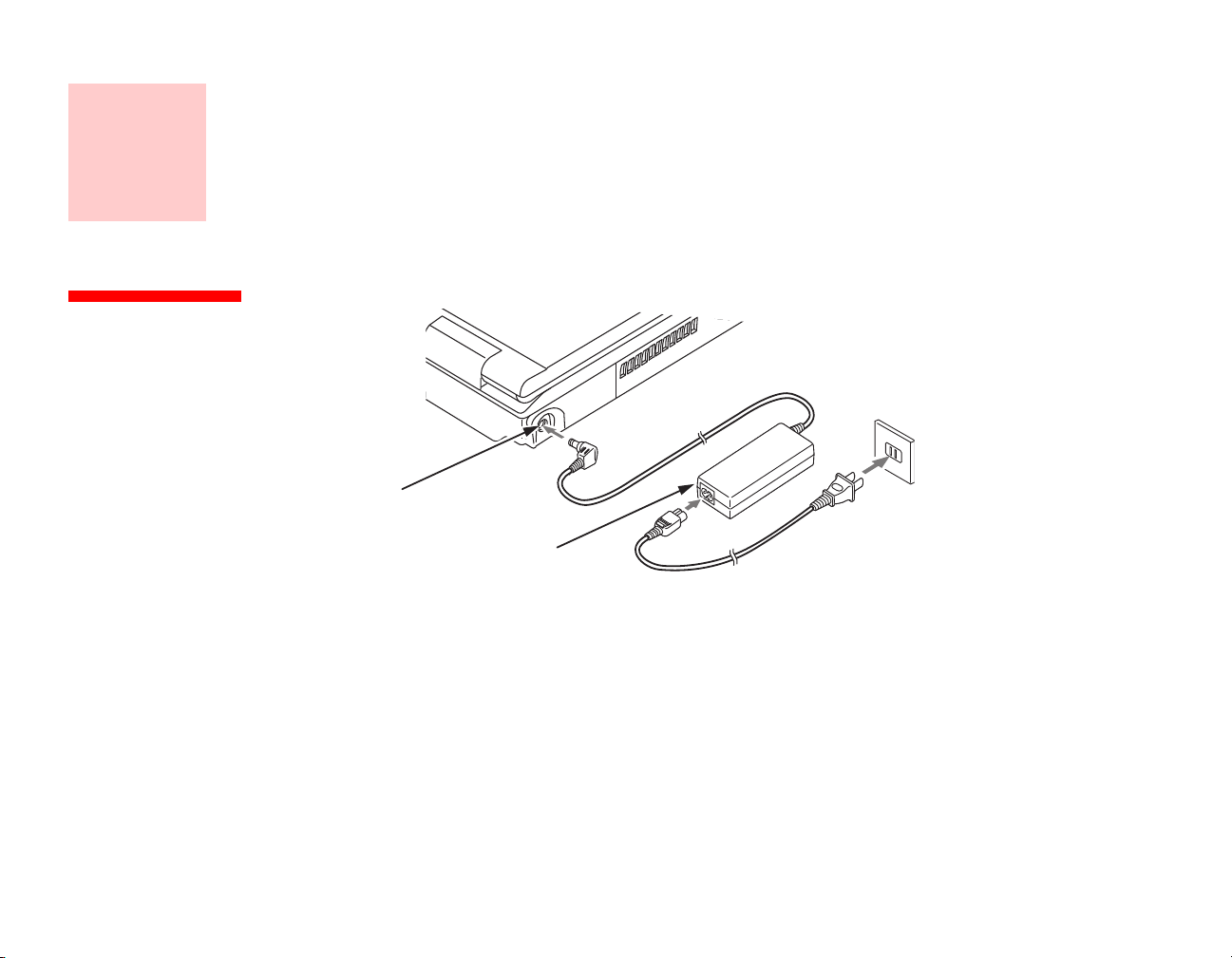

Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Adjusting Display Panel Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Using the Power Options (Windows Vista) . . . . . . . . . . . . . . . . . . . . . . . . 48

Using the Windows Mobility Center (Windows Vista) . . . . . . . . . . . . . . . 48

Closing the Display Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Starting Your LifeBook Notebook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Starting Windows Vista the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Starting Windows XP the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Registering Your LifeBook notebook with Fujitsu . . . . . . . . . . . . . . . . . . 56

Installing Click Me! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Fujitsu Driver Update Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Power/Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Hibernate Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Chapter 3 User-Installable Features

Lithium ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Recharging the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

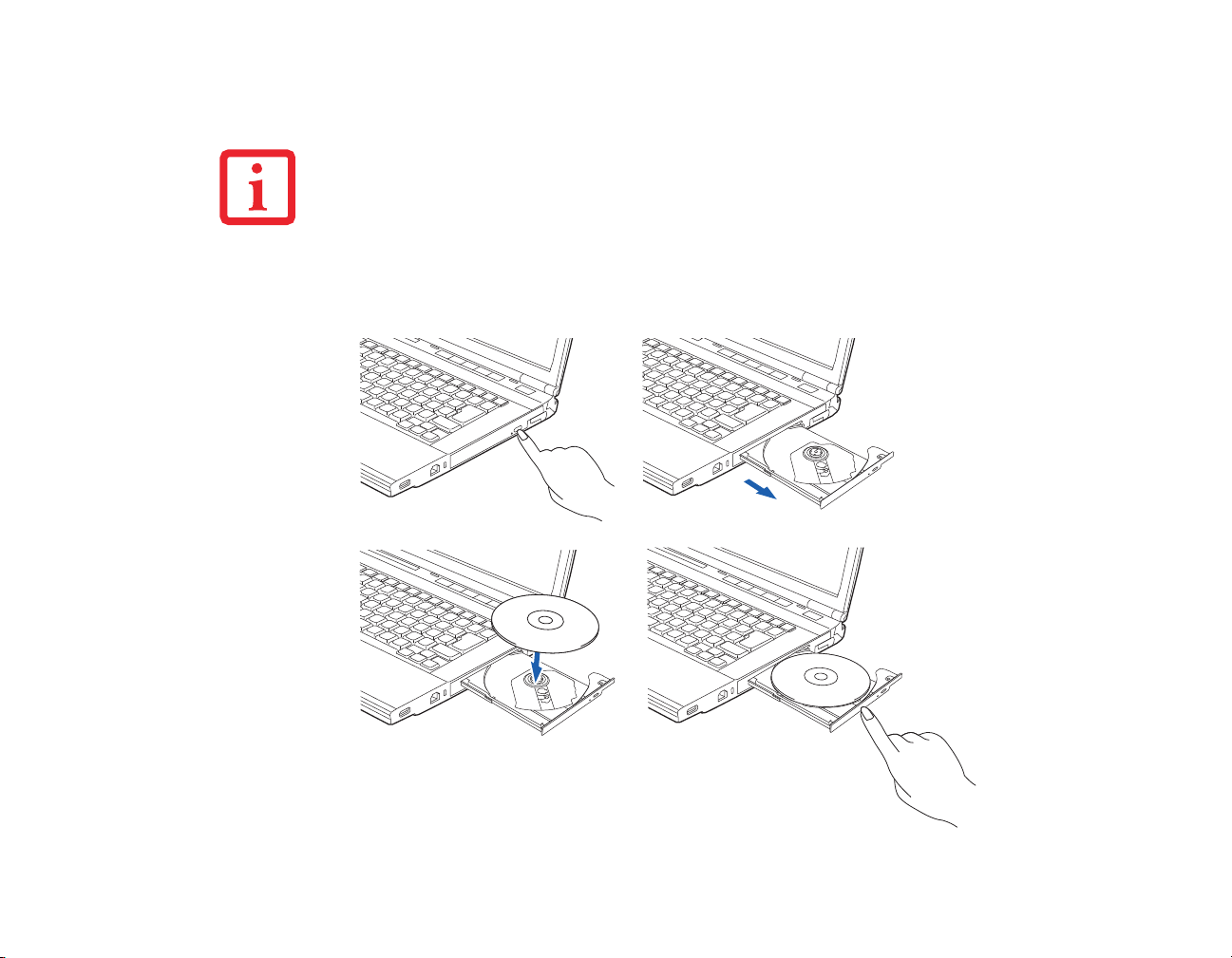

Loading Media on Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Emergency Optical Drive Tray Release . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using the Media Player Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Using Media Player on Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Memory Stick/Secure Digital Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

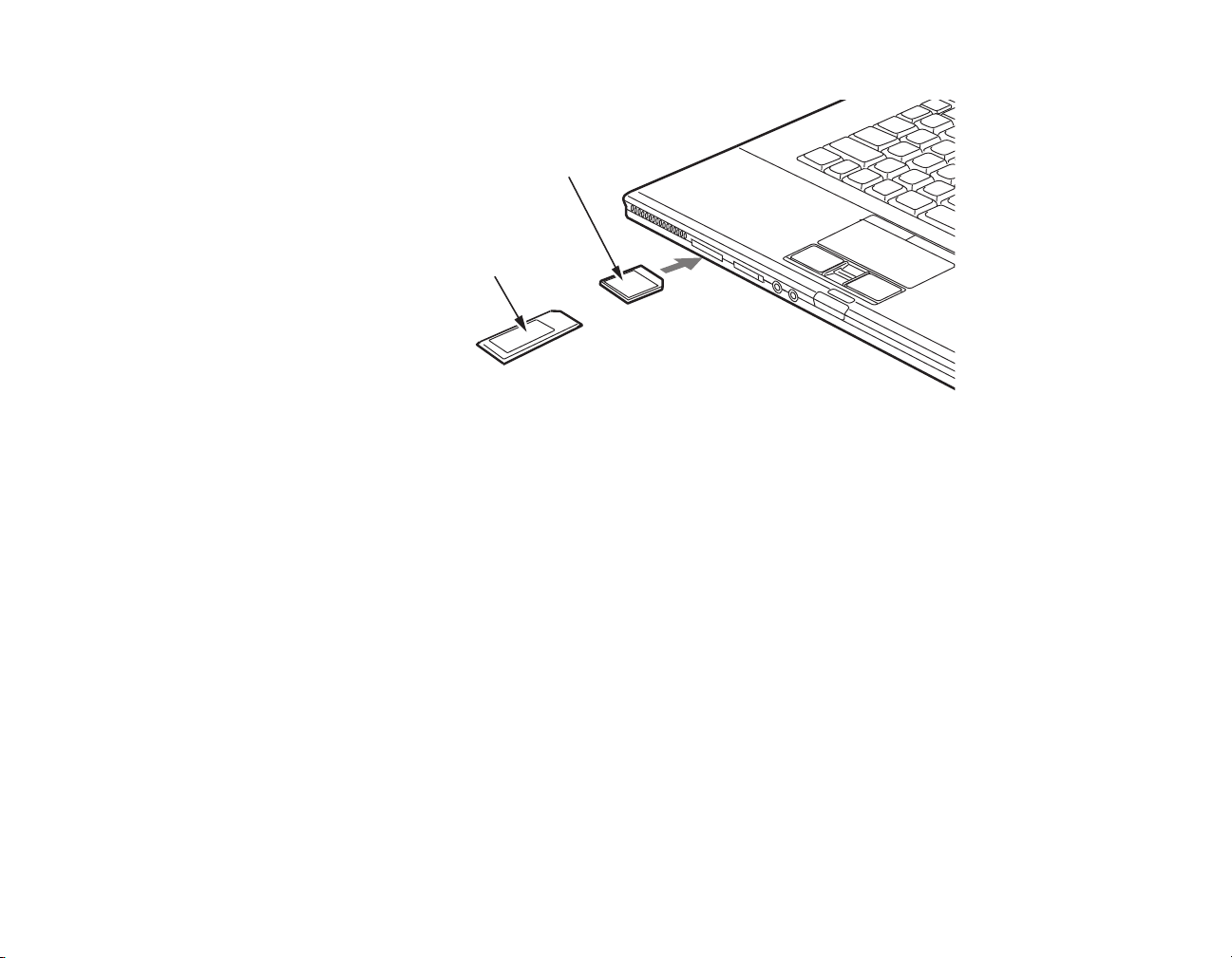

Installing/Removing Memory Stick/SD Cards. . . . . . . . . . . . . . . . . . . . . . 75

ExpressCards™/Smart Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Inserting ExpressCards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Removing ExpressCards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Checking the Memory Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Modem (RJ-11) Telephone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Microphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Chapter 4 Troubleshooting Your LifeBook

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Restoring Your Pre-installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Re-installing Individual Drivers and Applications. . . . . . . . . . . . . . . . . . . 104

Restoring the Operating System for Windows Vista Systems . . . . . . . . . . 105

Restoring the Operating System for Windows XP Systems. . . . . . . . . . . . 108

Automatically Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . 109

Chapter 5 Care and Maintenance

Caring for your LifeBook Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Cleaning your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Storing your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Traveling with your LifeBook notebook . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Chapter 6 System Specifications

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Mass Storage Device Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Glossary/Regulatory

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Appendix A: WLAN User’s Guide

Before Using the Optional Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . 154

Wireless LAN Device Covered by this Document. . . . . . . . . . . . . . . . . . . 154

Characteristics of the WLAN Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Wireless LAN Modes Using this Device . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Wireless Network Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Deactivating/Disconnecting the WLAN Device . . . . . . . . . . . . . . . . . . . . 157

Deactivation Using the Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . 158

Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Configuring the WLAN Using Windows Vista . . . . . . . . . . . . . . . . . . . . . 159

Configuring the WLAN Using Windows XP . . . . . . . . . . . . . . . . . . . . . . 160

Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Using the Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

What is Bluetooth? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 165

Appendix B: Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . . . . 167

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Preface

About This Guide

The LifeBook S7220 notebook from Fujitsu Computer Systems Corporation provides desktop performance with a fast, Intel® Core™ 2 processor. Your notebook has a built-in 14.1” TFT WXGA or WXGA+ color display. This system brings the computing power of desktop personal computers (PCs) to a portable environment.

Your computer comes with Microsoft Windows® Vista Business or Microsoft Windows® XP Professional operating system pre-installed. This manual explains how to operate your LifeBook notebook’s hardware and built-in system software.

Conventions Used in the Guide

Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL]. Pages with additional information about a specific topic are cross-referenced within the text.

For example: (“See Installation Procedure on page 43”.) On screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.

THIS INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF

THE SUBJECT MATERIAL.

THIS CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR

COMPUTER, OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION CAREFULLY.

HIS WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR

IFEBOOK NOTEBOOK, OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

• Toll free: 1-800-8Fujitsu (1-800-838-5487)

• E-mail: 8fujitsu@us.fujitsu.com

• Website: http://www.computers.us.fujitsu.com/support

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

Fujitsu Shopping Online

You can go directly to the online by going to the website at: www.shopfujitsu.com.

YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.

Limited Warranty

Your LifeBook notebook is backed by a Fujitsu International Limited Warranty. Check the service kit that came with your notebook for the Limited Warranty period and terms and conditions.

Chapter 1

Getting to Know Your LifeBook

Overview

This section describes the components of your Fujitsu LifeBook S7220 notebook. We strongly recommend that you read it before using your notebook – even if you are already familiar with notebook computers.

Figure 1. Fujitsu LifeBook E8410 notebook

Locating the Controls and Connectors

Display Panel

Status Indicator Panel

Stereo Speaker

Keyboard

LifeBook Security/

Touchpad Pointing Device

Power/Suspend/

Application Panel

Resume Button

Memory Stick/

On/Off Switch

Wireless LAN/Bluetooth

Stereo Speaker

Optional Quick Point Cursor Control

Display Panel Latch

Optional Built-in Web Camera

Built-in Microphone

Air Vents

Headphone Jack

Microphone Jack

Display Panel Latch Button

SD Card Slot

Figure 2. LifeBook notebook with display open

Top Components

The following is a brief description of your LifeBook notebook’s top components.

Built-in Microphones

The two built-in microphones allow you to record stereo sound.

Optional Built-in Web Camera

Certain configurations have a built-in 1.3 megapixel web camera which allows you to take pictures of yourself to send over the internet. For information on using the web camera, see the documentation associated with the ArcSoft WebCam Companion application.

Display Panel Latch

The display panel latch allows you to release the display panel when opening it.

Display Panel

The display panel is a color LCD panel with back lighting for the display of text and graphics.

LifeBook Security/Application Panel

The LifeBook Security/Application Panel provides hardware security and one-touch application launch capability. See “LifeBook Security/Application Panel” on page 37.

Power/Suspend/Resume Button

The Power/Suspend/Resume button allows you to suspend notebook activity without powering off, resume your notebook from sleep mode, and power on your notebook when it has been shut down from Windows. See “Power/Suspend/Resume Button” on page 50.

Stereo Speakers

The built-in dual speakers allow for stereo sound.

Keyboard

A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 27.

Display Panel Latch Button

The display panel latch button is used to latch and unlatch the display. See “Opening the Display Panel” on page 47.

Microphone Jack

The microphone jack allows you to connect an external stereo microphone.

Headphone Jack

The headphone jack allows you to connect stereo headphones to listen to audio files.

Wireless LAN/Bluetooth On/Off Switch

The wireless LAN/Bluetooth on/off switch is used to turn on and off the optional WLAN and Bluetooth devices. Switching the device off when not in use will help to extend battery life. See “Activating the WLAN Device” on page 158.

Memory Stick/SD Card Slot

The Memory Stick/SD card slot allows you to install a Memory Stick or a Secure Digital (SD) card for data storage. This architecture allows you to transfer data from a variety of different digital devices. See “Installing Memory Stick/SD Cards” on page 75.

Air Vents

The air vents are used to cool the system to prevent overheating.

TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL

AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC

CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

Touchpad Pointing Device

The Touchpad pointing device is a mouse-like cursor control with four buttons: two right mouse-like buttons and two left mouse-like buttons. The upper left and right buttons are for use with the Quick Point cursor control. (See “Touchpad Pointing Device” on page 30.) Additionally, it has a fingerprint/scroll sensor between the lower buttons. See “Introducing the Fingerprint Sensor Device” on page 167.

Status Indicator Panel

The Status Indicator Panel displays symbols that correspond with a specific component of your LifeBook notebook. See “Status Indicator Panel” on page 23.

Figure 3. LifeBook notebook left-side panel

Air Vents

DC Power Jack

ExpressCard Slot

USB 2.0 Ports

External Video Port (behind cover)

Air Vents

Left-Side Panel Components

The following is a brief description of your LifeBook notebook’s left-side components.

External Video Port

The external monitor port allows you to connect an external monitor or LCD projector. See “External Video Port” on page 85.

ExpressCard Slot

The ExpressCard slot allows you to install an ExpressCard. See “ExpressCards™/Smart Cards” on page 76.

Air Vents

The air vents are used to cool the system to prevent overheating.

TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL

AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC

CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

USB 2.0 Ports

The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 84.

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your LifeBook notebook and charge the internal Lithium ion battery.

Right-Side Panel Components

Anti-Theft Lock Slot

Flexible Bay

Flexible Bay Release LatchEject ButtonUSB 2.0 Port

Smart Card Slot Modem (RJ-11) Jack

Emergency Tray Release

The following is a brief description of your LifeBook notebook’s right-side components.

Smart Card Slot

A dedicated Smart Card slot is provided on your notebook. Smart Cards are the same size and shape as credit cards, but they contain an integrated microprocessor chip. In order to use the embedded Smart Card Reader, you must purchase optional third-party software for installation.

Modem (RJ-11) Telephone Jack

The Modem (RJ-11) telephone jack is for attaching a telephone line to the internal multinational 56K modem. See “Modem (RJ-11) Telephone Jack” on page 82.

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT

THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE NOTEBOOK. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT YOUR MODEM.

Figure 4. LifeBook notebook right-side panel

Flexible Bay

The Flexible Bay can accommodate one of the following devices. See “Flexible Bay Devices” on page 35.

• Modular DVD/CD-RW combo drive

• Modular Dual-Layer Multi-Format DVD Writer

• Modular Lithium ion battery

• Modular second hard disk drive

• Weight Saver

Emergency Tray Release

Available on optical drive Flexible Bay devices. The emergency tray release is used to release the tray when power is not available to the system.

Flexible Bay Release Latch

The Flexible Bay release latch releases the Flexible Bay device.

Eject Button

The Eject Button is used on optical drive Flexible Bay devices to open the media tray.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

USB 2.0 Ports

USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 84.

Back Panel Components

Gigabit LAN (RJ-45) Jack

Following is a brief description of your LifeBook notebook’s back panel components.

Gigabit LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. See “Internal LAN (RJ-45) Jack” on page 83.

Figure 5. LifeBook notebook back panel

Memory Upgrade Compartment

Lithium ion Battery Bay

Port Replicator Connector

Battery Bay Lock

Air Vents

(various locations)

Hard Disk Drive Compartment

Battery Bay Lock

Dust Filter

Bottom Components

The following is a brief description of your LifeBook notebook’s bottom panel components.

Memory Upgrade Compartment

Your notebook comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your notebook, thus improving overall performance. See “Memory Upgrade Module” on page 79. Under normal circumstances, it should not be necessary to open this compartment.

Figure 6. LifeBook notebook bottom panel

Hard Disk Drive Compartment

The hard disk drive compartment contains the hard disk drive. Under normal circumstances, it should not be necessary to open this compartment.

Battery Bay Locks

The battery bay locks are used together to secure or remove the Lithium ion battery. See “Replacing the Battery” on page 66.

Port Replicator Connector

This connector allows you to connect the optional Port Replicator to your notebook.

Lithium ion Battery Bay

The battery bay contains the internal Lithium ion battery. It can be opened for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion battery. See “Lithium ion Battery” on page 63.

Dust Filter

The dust filter is used to help prevent dust and dirt from entering your system. See “Storing your LifeBook notebook” on page 115..

Air Vents

The air vents allow air to circulate through the system to cool down the components.

TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO

KEEP ALL AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN

TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

- Getting to Know Your LifeBook

Status Indicator Panel

Power

AC Adapter

NumLk

CapsLk

ScrLk

Security

Battery 2 Indicator

Optical/

Battery1 Indicator

Wireless Radio

Hard Drive

Emission Indicator

The Status Indicator displays symbols that correspond with a specific component of your Fujitsu LifeBook notebook. These symbols tell you how each of those components are operating.

Power Indicator

The Power indicator symbol states whether your system is operational. It has several different states, each of which tells you the mode your notebook is in.

• Steady On: This means that there is power to your LifeBook notebook and that it is ready for use.

• Flashing: This means that your notebook is in sleep mode.

• Steady Off: This means that your notebook is either in Save-to-Disk mode, or it has been turned off.

Figure 7. Status Indicator Panel

AC Adapter Indicator

76%–100% Charging

76%–100%

51%–75%

26%–50%

13%–25%

Low Warning <13%

Critical Low or Dead Battery

Shorted Battery

The AC Adapter indicator shows whether your notebook is operating from the Auto/Airline adapter, AC adapter or battery. This icon has two different states that tell you your notebook’s power source.

• On: This means that either of the adapters are currently in use.

• Off: Power is only coming from the batteries, and you do not have an adapter connected.

Battery Level Indicators

The two Battery Level indicators show whether or not the primary Lithium ion battery and/or the optional second Lithium ion battery are installed (Battery 1 refers to the primary Lithium ion battery, while Battery 2 refers to the optional Flexible Bay second battery). In addition, this symbol states how much charge is available within each installed battery. The symbol will only be displayed for a battery that is currently installed.

Battery Charging Indicators

Located to the left of each Battery Level indicator is a small arrow symbol. This symbol states whether that specific battery is charging. This indicator will flash if the battery is too hot or cold to charge.

BATTERIES SUBJECTED TO SHOCKS, VIBRATION OR EXTREME TEMPERATURES CAN BE PERMANENTLY

DAMAGED.

Wireless Radio Emission Indicator

The Wireless Radio Emission indicator appears when the Wireless LAN or Bluetooth are emitting.

Optical/Hard Drive Access Indicator

The Optical/Hard Drive Drive Access indicator tells you that the hard drive or optical drive is being accessed. If the Auto Insert Notification function is active, the indicator will flash periodically when your system is checking the optical drive. If the Auto Insert Notification function is not active, the indicator will only flash when you access the optical drive.

■

THE AUTO INSERT NOTIFICATION FUNCTION WILL PERIODICALLY CHECK FOR A DISC INSTALLED IN THE

DRIVE, CAUSING THE OPTICAL DRIVE ACCESS INDICATOR TO FLASH. THE AUTO INSERT NOTIFICATION FUNCTION ALLOWS YOUR SYSTEM TO START AN OPTICAL DISC AUTOMATICALLY AS SOON AS IT IS INSERTED IN THE DRIVE AND THE TRAY IS CLOSED. IT WILL BEGIN PLAYING AN AUDIO DVD/CD OR WILL START AN APPLICATION IF THE DISC HAS AN AUTO-RUN FILE

■

THE HARD DRIVE Access indicator does not show which hard drive is being accessed.

NumLk Indicator

The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.

CapsLock Indicator

The CapsLock indicator states that your keyboard is set to type in all capital letters.

ScrLk Indicator

The ScrLk indicator states that your scroll lock is active.

Security Indicator

The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep mode. You must enter the password that was set in the Security Panel before you can resume operation.

Keyboard

Fn Key

Start Key

Function Keys

Numeric Keypad

Application Key

Cursor Keys

(surrounded by heavy line)

Figure 8. Keyboard

Using the Keyboard

Your Fujitsu LifeBook notebook has an integral 84-key keyboard. The keys perform all the standard functions of a 101-key keyboard, including the Windows keys and other special function keys. This section describes the following keys.

• Numeric keypad: Your notebook allows certain keys to serve dual purposes, both as standard

characters and as numeric and mathematical keys. The ability to toggle between the standard character and numerical keys is controlled through the [NumLk] key.

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to

the right, left, up, or down within windows, applications and documents.

• Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to

produce special actions that vary depending on what program is running.

• Windows keys: These keys work with your Windows operating system and function the same as

the onscreen Start menu button, or the right button on your pointing device.

Numeric Keypad

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions.

Windows Keys

Your LifeBook notebook has two Windows keys, consisting of a Start key and an Application key. The Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The Application key functions the same as your right mouse button and displays shortcut menus for the selected item. (Please refer to your Windows documentation for additional information regarding the Windows keys.)

Cursor Keys

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or right).

Function Keys

Your LifeBook notebook has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

• The [Fn] key provides extended functions for the notebook and is always used in conjunction with

another key.

• [Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.

• [Fn+F4]: Pressing [F4] while holding [Fn] will toggle the Quick Point feature on and off. Note that

the [Fn+F4] combination only works if Manual Setting is selected in the BIOS. (See “BIOS Setup Utility” on page 51)

• [Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.

• [Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

• [Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LifeBook

notebook.

• [Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LifeBook

notebook.

• [Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send

your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, external monitor only, and both built-in display panel and external monitor.

Touchpad Pointing Device

Cursor Control

Left Buttons

Right Buttons

Fingerprint/

Optional Quick Point Control

Scroll Sensor

The Touchpad pointing device built into your Fujitsu LifeBook is used to control the movement of the pointer to select items on your display panel. The Touchpad is composed of a cursor control, two left and right buttons, and a fingerprint/scroll sensor.

The cursor control works the same as a mouse, and moves the cursor around the display. It only requires light pressure with the tip of your finger. The left and right buttons function the same as mouse buttons.

The left and right buttons that are located at the top of the Touchpad are designed for use with the optional Quick Point Control, and they function the same as the lower buttons. The actual functionality of the buttons may vary depending on the application that is being used. The fingerprint/scroll sensor can be used either for fingerprint security or for scrolling through pages, without having to use the scroll bars.

Figure 9. Touchpad pointing device

• CERTAIN S7220 LIFEBOOKS ARE EQUIPPED WITH AN OPTIONAL “QUICK POINT” BUTTON FOR MOVING THE

CURSOR. FOR MORE ABOUT QUICK POINT, SEE “OPTIONAL QUICK POINT FEATURE” ON PAGE 33.

• TO READ ABOUT USING THE FINGERPRINT SENSOR, SEE “INTRODUCING THE FINGERPRINT SENSOR DEVICE” ON

PAGE 167.

• AN EXTER NAL MOUSE CAN BE CONNECTED TO EITHER USB OR PS/2 PORTS ON YOUR LIFEBOOK OR THE

OPTIONAL PORT REPLICATOR, AND USED SIMULTANEOUSLY WITH THE TOUCHPAD. NOTE: IF YOU BOOT THE SYSTEM WITH AN EXTERNAL MOUSE CONNECTED THE TOUCHPAD WILL BE DISABLED OR ENABLED DEPENDING ON YOUR BIOS SETTINGS. See “Entering the BIOS Setup Utility” on page 52.

Clicking

Clicking means pushing and releasing a button. To leftclick, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the Touchpad once.

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and immediately release it. You can also perform the doubleclick operation by tapping lightly on the Touchpad twice.

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the Touchpad, and then release your finger.

Touchpad Control Adjustment

The Windows Control Panel allows you to customize your Touchpad with selections made from within the Mouse Properties dialog box.

Scrolling

Using the fingerprint/scroll sensor allows you to navigate through a document quickly without using the window’s scroll bars. This is particularly useful when you are navigating through on-line pages. To use the scroll sensor, slide your finger up or down on the sensor to scroll up or down a page. When you have reached the desired section of the page, release the sensor.

The sensor can also be used as a fingerprint recognition device. See “Introducing the Fingerprint Sensor Device” on page 167.

Optional Quick Point Feature

The optional Quick Point device consists of a cursor control button at the lower center of the keyboard. It is roughly the same size and shape as a pencil eraser. The cursor control works the same way a mouse ball does, and moves the cursor around the display. It only requires light pressure to move; the more pressure you use, the faster the cursor will move.

The left and right buttons that are located at the top of the Touchpad are designed for use with the Quick Point control, and they function in the same manner as the lower buttons.

When used with the Quick Point button, the middle Touchpad button allows you to scroll up and down a screen.

Volume Control

Your Fujitsu LifeBook notebook has multiple volume controls which interact with each other.

Controlling the Volume

The volume can be controlled in several different ways:

• Volume can be changed or muted from within the Volume Control in the system tray.

• Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding

[Fn] will decrease the volume of your notebook. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your notebook.

• Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio,

repeat the [Fn+F3] procedure.

• Volume can be controlled by many volume controls that are set within individual applications.

• Certain external audio devices you might connect to your system may have hardware volume

controls.

ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF

YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE THE EXTERNAL VOLUME CONTROL SETTING.

Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources.

We recommend that you experiment with the various volume controls to discover the optimal sound level.

Flexible Bay Devices

Flexible Bay

Flexible Bay Release Latch

Your notebook has a Flexible Bay that can house one of several devices. Your Flexible Bay will have one of the following devices installed.

• Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and

audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.

• Modular DVD/CD-RW combo drive: This allows you to access movies, software, and audio

DVD/CDs as well as to write to CDs.

• Modular Lithium ion battery: This is a rechargeable battery that can be used to power your

LifeBook notebook when an adapter is not connected.

• Modular second hard disk drive: This allows you to store additional data and applications.

• Weight saver: This is used to fill the bay when no device is needed..

Removing and Installing Modular Devices

There are two ways to remove and install modular devices in the Flexible Bay:

• Cold-swapping: swapping devices while your LifeBook notebook is powered off.

• Hot-swapping: swapping devices while your system is active using the Safely Remove Hardware

icon from your system tray.

Figure 10. Flexible Bay

• YOU SHOULD NEVER LEAVE YOUR FLEXIBLE BAY EMPTY WHEN THE NOTEBOOK IS IN OPERATION. IF

Flexible Bay

Removing/Installing a device in the Flexible Bay

Release Latch

LEFT EMPTY, DUST OR FOREIGN MATTER MAY ACCUMULATE INSIDE THE NOTEBOOK.

• BE CAREFUL WHEN ALIGNING AND SEATING DEVICES IN THE BAY. IF THE FIT IS INCORRECT, YOU MAY

DAMAGE THE BAY OR THE DEVICE. IF THE DEVICE DOES NOT MOVE EASILY IN THE BAY, REMOVE IT, AND CHECK FOR DIRT OR FOREIGN OBJECTS. IT WILL REQUIRE A FIRM PUSH TO LATCH THE DEVICE IN PLACE.

Cold-swapping

To cold-swap modular devices in your Flexible Bay follow these easy steps:

1 Close any open files. 2 Shut down your LifeBook notebook. 3 Pull out the Flexible Bay release latch. This

will push your device out slightly, allowing you to remove it.

4 Slide your device out until it is clear of the

bay. This will require light force.

5 Slide the device you are installing into your

notebook until it clicks into place.

6 It is now safe to turn your notebook back on.

You can now access and use the device.

Your LifeBook notebook will automatically detect the new device and activate it within your system. The drive letters associated with the device will be created and listed under My Computer and Windows Explorer.

Hot-swapping

Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in the system tray. Click on the icon and follow the on-screen instructions.

Figure 11. LifeBook Security/Application Panel

1 2 3 4 Enter

LifeBook Security/Application Panel

A unique feature of your LifeBook notebook is the Security/Application Panel that allows you to secure your notebook from unauthorized use. The Security/Application Panel also allows you to launch applications with the touch of a button when your system is on.

If the security system is activated, upon starting your notebook or resuming from sleep mode the security system requires you to enter a password code using the buttons on the Security/Application Panel. After entering a correct password, your notebook resumes system operation.

Setting up Your LifeBook Security Panel

When you receive your LifeBook notebook, the security panel application is pre-installed without any passwords. The following sections provide detailed information on your security panel, and how to set, change or remove passwords.

Numbered Buttons

Use these buttons to enter your password.

Enter Button

After entering the button strokes, push this button to enter the password into the LifeBook notebook.

Passwords

The user and supervisor password may be set on this notebook. A supervisor password is typically the same for all LifeBook notebooks in a working group, office, or company to allow for system management. Individual LifeBook notebooks in a group environment should not use a common password. A password consists of one to five button strokes plus the [Enter] button. A valid stroke consists of pushing one or up to four buttons simultaneously. The following are valid button strokes:

• Pushing [4] by itself

• Pushing [2] and [3] at the same time

• Pushing [1], [2], and [4] at the same time

• Pushing [1], [2], [3], and [4] at the same time

The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.

• {[2]+[3]}, [1], [enter]

• [4], [enter]

• {[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter]

Setting Passwords

When shipped from the factory, no passwords are set. You have a choice of having no password or setting supervisor and user passwords. You must set the supervisor password before the user password.

THE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE THE

USER PASSWORD IS FORGOTTEN. THE SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE SYSTEM. YOU MUST SET BOTH THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO WORK.

Setting Supervisor Password

You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the user password.

1 Go to the Start menu. 2 Select All Programs. 3 Select Accessories, then select Run. 4 Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\FJSECS.EXE,

then press [Enter]

5 Follow the on-screen instructions to set the Supervisor password.

Setting User Password

1 Go to the Start menu. 2 Select All Programs. 3 Select Security Panel Application and Set User Password. 4 Follow instructions to set the user password.

YOU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS

DEFINED ABOVE.

Operating Your LifeBook Security/Application Panel

The security lock feature is in effect both when the system resumes from Off or sleep state. You will need to enter the user password right after pressing the Suspend/Resume button. Your system will not boot or resume from Sleep without entering your supervisor/user password.

From Off State

1 Turn on your system. 2 When the Security Indicator flashes, enter the password and press [Enter] button. For example, if the password

is 22222, press button number [2] five times and press [Enter] button.

3 The notebook will boot to normal operation.

From Sleep State

1 Press your Power/Suspend/Resume button. 2 When the Security Indicator flashes, enter the password and press [Enter] button. 3 The notebook should resume normal operation.

Incorrect Password Entry

If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the notebook will resume normal operation. If no password (or an invalid one) is entered while the system beeps, the system will return to its previous locked state (sleep or off) and the Security Indicator will go off. To reactivate the notebook after a password failure, you must press the Power/Suspend/Resume button, then enter a correct password.

REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IF YOU

FORGET THE PASSWORD YOU WILL NOT BE ABLE TO USE YOUR COMPUTER. THE SUPERVISOR PASSWORD CAN OVERRIDE THE USER PASSWORD.

Precautions

Opening and Closing the Cover

Closing the cover automatically places the notebook into sleep mode. Opening the cover does not automatically place the notebook into normal operation. Instead, you must enter the proper security password after pushing the Power/Suspend/Resume button. This setting can be changed in the Power Options Control Panel.

Low Battery Operations

If your LifeBook notebook has low battery, pushing the Power/Suspend/Resume button only turns on the Security Indicator. Your notebook does not unlock, the Security Indicator turns off after one minute. To resume normal operation, first attach a power supply to the notebook. Then you may unlock the notebook.

• ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER

SHUTTING DOWN THE SYSTEM, WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF CONDITION (I.E., NO LIGHTS ARE ILLUMINATED).

• IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE

WHEN YOU CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.

• ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE NOTEBOOK DUE TO SHOCK

OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.

Uninstalling the Security Panel Application

You have two options when uninstalling the security panel application:

• Uninstall the security panel application software. This will disable all security feature.

• Uninstall the security panel application with password still active. This will not allow any changes

to the password.

Uninstalling the Security Panel Application

Remove passwords when the User wants no password protection whatsoever and doesn’t want to give anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords, follow same procedure in “Setting Passwords” except this time, select [Remove], enter current password then click [Next]. When asked to confirm, select [Yes].

Removing Security Panel Application with Passwords Still Active

Using this feature will not allow any changes to the password. Depending upon your operating system, the procedures differ slightly, as noted below.

REMOVING THE APPLICATION DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE ABILITY TO

CHANGE/ADD/REMOVE PASSWORDS. TO CHANGE THE PASSWORD YOU MUST REINSTALL THE APPLICATION.

User:

1 Go to Start Menu, Click on Control Panel. 2 Open Programs and Features in the Control Panel. 3 Select the Security Panel in the list, and click Add/Remove. 4 When the Confirm File Deletion box appears, click Yes.

Supervisor:

1 Go to Start Menu, then click on Control Panel. Open Add/Remove Programs Properties in the Control Panel. 2 Select the Security Panel for Supervisor in the list, and click Add/Remove. 3 When the Confirm File Deletion box appears, click Yes.

Reinstalling the Security/Application Panel

To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The Utilities/Security Application Panel folder contains two separate folders: Supervisor and User. The setup files for supervisor and user security applications are contained in those folders.

1 Go to the Utilities/SAP/Vista/Supervisor folder on the CD and double-click the SetupS.exe file.. The Installing

Security Panel Application window will appear. Follow the instructions on the screen.

2 Go to the Utilities/SAP/Vista folder on the CD and double-click the Setup.exe file.(The Installing Security Panel

Application window will appear. Follow the instructions on the screen.

Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on page 38.

If you forget both passwords, contact Fujitsu Computer Systems Corporation Service and Support at 1800-8FUJITSU (1-800-838-5487). Fujitsu Computer Systems Corporation charges a service fee for unlocking a password restricted LifeBook notebook. When calling please have a valid credit card and provide proof of ownership. You will then be given instructions on where to ship your notebook.

Launching Applications with the Security/Application Panel

The security panel also enables you to launch applications with the touch of a button when your system is on. Pressing any of the buttons will launch a user-defined application. Your notebook is pre-installed with software utilities that let you operate and configure your LifeBook Security /Application Panel.

Configuring your LifeBook Application Panel

When you start Windows, the LifeBook Application Panel is automatically activated. As an application launcher, the LifeBook Application Panel is very flexible, giving you a variety of options. To set up the Panel to best suit your needs, we have provided the Application Panel Setup utility that quickly and easily helps you make the most of this valuable feature.

To configure your LifeBook Application Panel with Application Panel Setup:

1 Click on [Start]. 2 Click on Programs. 3 Click on LifeBook Application Panel. 4 Click on Setup of LifeBook Application Panel. The Button Setting utility will appear. There are tabs that

correspond to the application buttons on the LifeBook Application Panel. When you receive your notebook, these buttons are pre-configured to launch specific programs, as referenced in Chapter 7 of this document.

To change an application associated with the Application buttons:

1 Click on the tab for the button you would like to reconfigure – for example, Application A. 2 Select Enable this button, then click on the [Application Registration] button. 3 On the screen that appears, click the Select from Start Menu checkbox, then scroll down the list to select the

application you want to start with the Application A button.

4 Click [Next] -> [Next] -> [Finish]. On the Button Setting window, click [Apply], then click [OK]. The button will now

launch the new application.

The Internet tab is different. It comes set to launch your default Internet browser (Internet Explorer), unless you have changed it in Windows. To reconfigure it to launch another program follow these steps:

1 Click on the Internet tab. 2 Select Enable this button, then click on the [Application Registration] button.

3 Click the Start program checkbox, then click [Next]. 4 On the screen that appears, click the Select from Start Menu checkbox, then scroll down the list to select the

application you want to start with the Internet button.

5 Click [Next] -> [Next] -> [Finish]. On the Button Setting window, click [Apply]. 6 Click OK. The button will now launch the new application. If you want to return to launching your Windows

default Internet browser with this button, you need only click on Start Browser checkbox instead of the Start program checkbox. Be aware that you will erase the settings for the “other application”. If you wish to go back

to launching the “other application” from this button, you will need to reconfigure it as described above.

IF YOUR SYSTEM HAS DEDICATED ONE OF THE APPLICATION LAUNCHER BUTTONS TO BE AN INTERNET

LAUNCHER, THE BUTTON CAN STILL BE CONFIGURED TO LAUNCH ANY APPLICATION YOU WISH, NOT JUST AN INTERNET BROWSER.

When you have finished with button settings, click [OK], and the new settings will take effect. You can reconfigure your LifeBook Application Panel as often as you like.

Chapter 2

DC Power Jack

AC Adapter

Getting Started with Your LifeBook

Figure 12. Connecting the AC Adapter

Power Sources

Your Fujitsu LifeBook notebook has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter.

Connecting the Power Adapters

The AC adapter or optional Auto/Airline adapter provides power for operating your notebook and charging the batteries.

Connecting the AC Adapter

1 Plug the DC output cable into the DC power jack of your LifeBook notebook. 2 Plug the AC adapter into an AC electrical outlet.

Connecting the Optional Auto/Airline Adapter

1 Plug the DC output cable into the DC power jack on your notebook. 2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Access

3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

1 Be sure that you have at least one charged battery installed. 2 Remove the AC adapter or the Auto/Airline adapter.

THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT

EITHER THE AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR NOTEBOOK WHILE THE BATTERY CHARGES.

Display Panel Latch

Display Panel Button

Display Panel

Figure 13. Opening the Display Panel

Your Fujitsu LifeBook notebook contains a display panel that is backlit for easier viewing in bright environments and maintains top resolution through the use of active-matrix technology.

Opening the Display Panel

1 Press the Display Panel latch in. This releases the locking mechanism, allowing you to raise the display. 2 Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle.

Adjusting Display Panel Brightness

Once you have turned on your LifeBook notebook, you may want to adjust the brightness level of the screen to a more comfortable viewing level. In Windows XP systems, the brightness can be adjusted using the keyboard. In Windows Vista systems, there are three ways to adjust the brightness, by using the keyboard, the Power Options, or the Windows Mobility Center.

NOTE THAT WHEN YOU CHANGE THE DISPLAY SETTINGS IN WINDOWS XP SYSTEMS, THE CHANGES

WILL BE RETAINED AFTER STANDBY AND RESTART. IN WINDOWS VISTA SYSTEMS, THE CHANGED SETTINGS ARE TEMPORARY BY DEFAULT, BUT THEY CAN BE MADE PERMANENT BY USING THE POWER

PTIONS UTILITY IN THE CONTROL PANEL.

Using the Keyboard

Adjusting the brightness using the keyboard changes the setting only temporarily.

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.

• [Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Using the Power Options (Windows Vista)

To change the brightness using the Power Options utility, open the Control Panel and double-click on the Power Options icon. Select Adjust the display brightness in the left panel, then drag the brightness bars to the desired level. Note that the settings you make via this utility become permanent until you decide to change them again.

Using the Windows Mobility Center (Windows Vista)

In the Control Panel, double-click the Windows Mobility Center icon. Drag the Display Brightness bar to the desired level.

■

WHEN USING AC POWER YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT.

HEN USING BATTERY POWER YOUR BRIGHTNESS SETTING IS SET TO APPROXIMATELY MID-LEVEL BY

DEFAULT.

■

THE HIGHER THE BRIGHTNESS LEVEL, THE MORE POWER THE NOTEBOOK WILL CONSUME AND THE

FASTER YOUR BATTERIES WILL DISCHARGE. FOR MAXIMUM BATTERY LIFE, MAKE SURE THAT THE BRIGHTNESS IS SET AS LOW AS POSSIBLE.

Closing the Display Panel

1 Holding the edge of your display panel, pull it forward until it is flush with the body of your LifeBook notebook. 2 Push down until you hear a click. This will engage the locking mechanism and prevent your display panel from

opening unexpectedly.

Starting Your LifeBook Notebook

Power On

Power/Suspend/Resume Button

The Power/Suspend/Resume button is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your notebook.

WHEN YOU TURN ON YOUR NOTEBOOK, BE SURE YOU HAVE A POWER SOURCE. THIS MEANS AT LEAST

ONE BATTERY IS INSTALLED AND CHARGED, OR A POWER ADAPTER IS CONNECTED AND HAS POWER.

To turn on your LifeBook notebook from its off state, press the Power/Suspend/Resume button, located above the keyboard to the right. When you are done working you can either leave your notebook in sleep mode, (see “Sleep Mode” on page 59), or you can turn it off, (see “Powering Off” on page 61).

O NOT CARRY YOUR LIFEBOOK NOTEBOOK AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS

OR VIBRATION, AS YOU RISK DAMAGING IT.

When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LifeBook notebook will emit an audio warning and/or an error message will be displayed. (See “Power On Self Test Messages” on page 99.) Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the POST, your notebook will load your operating system.

EVER TURN OFF YOUR LIFEBOOK NOTEBOOK DURING THE POWER ON SELF TEST (POST) OR IT WILL

CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR LIFEBOOK NOTEBOOK ON THE NEXT TIME. See “Power On Self Test Messages” on page 99.

Boot Sequence

The procedure for starting up your notebook is termed the “bootup sequence” and involves your notebook’s Basic Input-Output System (BIOS). When your LifeBook notebook is first turned on, the main system memory is empty, and it needs to find instructions to start up your notebook. This information is in the BIOS program. Each time you power up or restart your notebook, it goes through a boot sequence which displays a Fujitsu logo until your operating system is loaded. During booting, your notebook is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.

The boot sequence is executed when:

• You turn on the power to your LifeBook notebook.

• You restart your notebook from the Windows Shut Down dialog box.

• The software initiates a system restart, such as when you install a new application.

Hard Disk Drive Passwords

To provide additional security for your data, you can assign passwords to your hard disk drive. This feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about accessing the utility.

REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK

PASSWORDS, FUJITSU COMPUTER SYSTEMS WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.

BIOS Setup Utility

The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook notebook. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS environment to operate your notebook.

The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following (or use the TrustedCore Menu, as detailed in the next section):

1 Turn on or restart your LifeBook notebook. 2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open

the main menu of the BIOS Setup Utility with the current settings displayed.

3 Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter

the current settings.

Using the TrustedCore Menu

When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad button; the TrustedCore Menu will appear.

The TrustedCore Menu provides shortcuts to the following menus and information screens:

• BIOS Setup

• Diagnostic Screen

• Boot Menu

• Patent Information

• System Information

• Continue Booting

Clicking on any of the fields will invoke the screen, information, or action described. The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen.

BIOS Guide

A guide to your notebook’s BIOS is available online. Please visit our service and support website at http://www.computers.us.fujitsu.com/support, then select Support, then select Notebooks under User’s Guides. Select LifeBook BIOS Guides from the pull-down menu for your LifeBook series. If you are unsure of your notebook’s BIOS number, refer to your packing slip.

THE BOTTOM OF THIS NOTEBOOK COMPUTER CAN BECOME HOT WHEN USED FOR LONG PERIODS OF

TIME. WHEN USING THE NOTEBOOK, TAKE CAUTION TO LIMIT LONG TERM OR CONTINUOUS USE WHILE RESTING IT ON EXPOSED SKIN, SUCH AS THE LAP.

Booting the System

We strongly recommend that you not attach any external devices and do not put a DVD/CD in your drive until you have gone through the initial power on sequence.

When you turn on your notebook for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin.

Depending upon your operating system (Windows Vista or XP edition), there is a different procedure for starting your system for the first time, as outlined below.

Starting Windows Vista the first time

HE FIRST TIME YOU INITIALIZE YOUR WINDOWS VISTA SYSTEM, THE SCREEN WILL BE BLANK FOR

APPROXIMATELY TWO MINUTES. THIS IS NORMAL. AFTER INITIALIZATION, A “SET UP WINDOWS” DIALOG

BOX WILL APPEAR.

IMPORTANT: DURING THE SETUP PROCEDURE, DO NOT DISCONNECT THE POWER SUPPLY, PRESS ANY

BUTTONS, OR USE ANY PERIPHERAL DEVICES SUCH AS A MOUSE, KEYBOARD, OR REMOTE CONTROL.

In order to ensure that you receive the most benefits from the Windows Vista operating system, it should be registered the first time you use it

1 First of all, you will need to read and accept the End User License Agreements (EULAs).

• IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENTS YOU WILL BE ASKED TO REVIEW THE

LICENSE AGREEMENTS FOR INFORMATION ON RETURNING WINDOWS OR TO SHUT DOWN YOUR

IFEBOOK NOTEBOOK.

• YOU CANNOT USE YOUR NOTEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENTS. IF YOU

STOP THE PROCESS YOUR NOTEBOOK WILL RETURN TO THE BEGINNING OF THE WINDOWS

ELCOME PROCESS, EVEN IF YOU SHUT YOUR NOTEBOOK DOWN AND START IT UP AGAIN.

2 You will be prompted to enter your User Name and Password and you will be given a chance to select an icon

for your account.

3 The next screen asks for a Computer Name and allows you to choose a desktop background. 4 You will next see a "Help protect Windows automatically" screen in which the default choice is "Use

recommended settings”. The other two choices are "Install important updates only" and "Ask me later". Select from the three choices.

5 On the next screen set your time and date settings. 6 You will next see the "Select your computer's current location" screen. Make your selection from Home, Work

(Default), and Public location.

7 The "Thank you" screen follows and an offer for free Norton Internet Security is extended. Following are several

screens while Windows checks the system performance.

8 Windows will then boot up for the first time. As noted above, the first time you initialize your Windows Vista

system, the screen will be blank for approximately two minutes. This is normal. During this period, do not disconnect the power supply, press any buttons, or use any peripheral devices such as mouse, keyboard, or remote control.

Registering Windows Vista with Microsoft

1 After Windows has booted up for the first time, the Control Panel Welcome Center will appear. If the Register

Windows Online icon is not seen in the window, click on “Show all xx items” (where “xx” is the number of topics in the Welcome Center).

2 Click on Register Windows Online and follow the instructions that appear to register your copy of Windows.

Starting Windows XP the First Time

Registering Windows XP with Microsoft

In order to ensure that you receive the most benefits from the Windows operating system, it should be registered the first time you use it.

After you receive the Windows Welcome screen, you will be prompted to enter registration information in the following order.

First of all, you will need to read and accept the End User License Agreements (EULAs). After accepting the EULAs, you will be asked if you want to enable the Automatic Updates feature. Acceptance of this feature is recommended because it allows your system to be updated automatically whenever an important change becomes available for your notebook.

• IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENT YOU WILL BE ASKED TO REVIEW THE LICENSE

AGREEMENT FOR INFORMATION ON RETURNING WINDOWS OR TO SHUT DOWN YOUR LIFEBOOK NOTEBOOK.

• YOU CANNOT USE YOUR LIFEBOOK NOTEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT.

F YOU STOP THE PROCESS YOUR NOTEBOOK WILL RETURN TO THE BEGINNING OF THE WINDOWS

ELCOME PROCESS, EVEN IF YOU SHUT YOUR NOTEBOOK DOWN AND START IT UP AGAIN.

Several additional windows will appear, prompting you to enter a name and description for your computer, an Administrator password, and a domain name. Read the instructions on the screens carefully and fill in the information as directed.

You will then be automatically connected to the Internet, if you have an appropriate connection available. If an automatic connection is not possible, you will be asked about how you dial out from where you will be using your LifeBook notebook. If you are not connected to a phone line and plan to register at a later time, you may click the Skip button.

3 Once you are connected to the Internet, you will be asked if you wish to continue with the registration.

If you select Ye s you will then enter your name and address, and email address if desired. Click Next to complete registration.

Registering Your LifeBook notebook with Fujitsu

You can register your LifeBook by going to our website at: us.fujitsu.com/computers You will need to be set up with an Internet Service Provider (ISP) to register online.

ClickMe!

Windows Vista Systems

Installing Click Me!

BEFORE INSTALLING THE CLICKME! UTILITY, BE SURE THE WIRELESS LAN SWITCH IS TURNED ON.

The first time you boot up your system, you will see a “Primary Settings for the PC” window. This window explains the installations which will be performed by the Click Me! utility. If you click [Execute], Click Me! will begin installing. If after clicking the button you receive a “User Account Control” window, you will be asked for your permission to continue. Click [Continue] to continue. If you cancel the operation, the Click Me! icon will appear on your desktop for later installation.

Windows XP Systems

The first time you boot up your system, you will see an icon called Click Me! in the Start menu. We highly recommend that you install the ClickMe! utility the first time you boot up. When you click the Click

Me! icon, your system will automatically create the related icons in the system tray in the bottom right of the screen. These icons provide links to utilities that you will frequently access, such as wireless LAN software provided by the wireless LAN manufacturer.

THERE MAY BE ADDITIONAL THIRD-PARTY APPLICATIONS THAT ARE NOT INSTALLED BY THE CLICKME!

UTILITY. FOR MORE INFORMATION, REFER TO YOUR GETTING STARTED GUIDE.

Fujitsu Driver Update Utility

Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU,

you can choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on page 118.

Power Management

Your Fujitsu LifeBook notebook has many options and features for conserving battery power. Some of these features are automatic and need no user intervention, such as those for the internal modem. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your notebook may be controlled from settings made in your operating system, pre-bundled power management application, or from settings made in the BIOS setup utility.

Besides the options available for conserving battery power, there are also some things that you can do to prevent your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your notebook into Sleep mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery-powered computers, there is a trade-off between performance and power savings.

Power/Suspend/Resume Button

When your notebook is active, the Power/Suspend/Resume button can be used to manually put the notebook into Sleep mode. Push the Power/Suspend/Resume button when the notebook is active, but not actively accessing anything, and immediately release the button. You will hear two short beeps and the system will enter Sleep mode.

PLEASE NOTE THAT “STANDBY MODE” IN WINDOWS XP IS KNOWN AS “SLEEP MODE” IN WINDOWS V

ISTA. THE TWO TERMS ARE INTERCHANGEABLE. FOR PURPOSES OF THIS DOCUMENT, “SLEEP MODE”

WILL BE USED.

If your notebook is suspended, pushing the Power/Suspend/Resume button returns your notebook to active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the indicator is visible and not flashing, your notebook is fully operational. If the indicator is visible and flashing, your notebook is in Sleep mode. If the indicator is not visible, the power is off or your notebook is in Hibernation mode. (See Hibernation Feature)

Sleep Mode

Sleep mode in Windows saves the contents of your system memory during periods of inactivity by maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal components except those necessary to maintain system memory and for restarting.

Your notebook can be put in Sleep mode by:

• Pressing the Power/Suspend/Resume button when your system is turned on.

• Timing out from lack of activity.

• Allowing the battery to reach the Dead Battery Warning condition.

Your notebook’s system memory typically stores the file on which you are working, open application information, and any other data required to support operations in progress. When you resume operation from Sleep mode, your notebook will return to the point where it left off. You must use the Power/Suspend/Resume button to resume operation, and there must be an adequate power source available, or your notebook will not resume.

• IF RUNNING YOUR NOTEBOOK ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE

WHILE YOUR NOTEBOOK IS IN SLEEP MODE, THOUGH NOT AS FAST AS WHEN FULLY OPERATIONAL.

• DISABLING THE POWER/SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT THE NOTEBOOK INTO

LEEP OR HIBERNATION (SAVE-TO-DISK) MODE. THE BUTTON RESUME FUNCTION CANNOT BE DISABLED.

• THE SLEEP OR HIBERNATION (SAVE-TO-DISK) MODE SHOULD NOT BE USED WITH CERTAIN PC CARDS. CHECK

YOUR PC CARD DOCUMENTATION FOR MORE INFORMATION. WHEN PC CARDS OR EXTER NAL DEVICES ARE IN USE, HIBERNATION (SAVE-TO-DISK) MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION, BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.

• IF YOUR NOTEBOOK IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER SLEEP OR HIBERNATION MODE,

CHANGES TO OPEN FILES ARE NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING SLEEP MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBERNATION MODE.

• THE MAIN ADVANTAGE OF USING HIBERNATION (SAVE-TO-DISK) IS THAT POWER IS NOT REQUIRED TO MAINTAIN

YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR NOTEBOOK IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.

Hibernate Feature

The Hibernation feature saves the contents of your notebook’s system memory to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature.

Enable or Disable the Hibernation Feature

Windows Vista:

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 From the Start menu, select Control Panel, then double-click the Power Options icon.. 2 Select Choose what the power button does or Choose what closing the lid does, then make your

selections (Do Nothing, Sleep, Hibernate, or Shut Down).

Windows XP:

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 From the Start menu, select Settings, and then select Control Panel. 2 From the Control Panel select Power Options. 3 Select the Hibernate tab. Select the box to enable or disable this feature, then click [OK].

Windows Power Management

The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the notebook on battery power or one of the adapters.

Restarting the System

Windows Vista:

1 Click the Start button, and then move the mouse over the small arrow at the bootm right of the menu. 2 Select the Restart from the list.

Windows XP:

1 Click the Start button, and then click Shut Down. 2 Select the Restart option from within the Windows Shut Down dialog box. 3 Click [OK] to restart your notebook. Your notebook will shut down and then reboot.

TURNING OFF YOUR LIFEBOOK NOTEBOOK WITHOUT EXITING WINDOWS OR TURNING ON YOUR

NOTEBOOK WITHIN 10 SECONDS OF THE NOTEBOOK BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT TIME.

Powering Off

Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off the power while accessing a disk there is a risk of data loss. To ensure that your notebook shuts down without error, use the Windows shut down procedure.

E SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.

Using the correct procedure to shut down from Windows allows your notebook to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is:

Windows Vista:

1 Click the Start button, and then move the mouse over the small arrow at the bottom right of the menu. 2 Select Shut Down from the list.

Windows XP:

1 Click the Start button, aand then click Shut Down. 2 Select the Shut Down option from within the Windows Shut Down dialog box

If you are going to store your notebook for a month or more, see the Care and Maintenance Section.

• ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER

SHUTTING DOWN THE SYSTEM, WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF CONDITION

(

I.E., NO LIGHTS ARE ILLUMINATED).

• IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE

WHEN YOU CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.

• ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE NOTEBOOK DUE TO SHOCK

OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.

Chapter 3

User-Installable Features

Lithium ion Battery

Your LifeBook notebook has a Lithium ion battery that provides power for operating your notebook when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become shorter if it is used under the following conditions:

• When used at temperatures that exceed a low of 5°C or a high of 35°C. Extreme temperatures not

only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range. See “Battery Charging Indicators” on page 24.

• When using a high current device such as a modem, Multi-Format DVD Writer, CD-ROM drive,

DVD/CD-RW combo drive, or the hard drive, using the AC adapter will conserve your battery life.

DO NOT LEAVE A FAULTY BATTERY IN YOUR NOTEBOOK. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL A

UTO/AIRLINE ADAPTER, ANOTHER BATTERY OR YOUR NOTEBOOK ITSELF. IT MAY ALSO PREVENT

OPERATION OF YOUR NOTEBOOK BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.

• ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS USED, FEATURES,

POWER MANAGEMENT SETTINGS, BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES. OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD REPLACE IT WITH A NEW ONE.

• UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING

THEM IN THE TRASH. PLEASE TAKE CARE OF OUR ENVIRONMENT AND DISPOSE OF BATTERIES PROPERLY. REFER TO “RECYCLING YOUR BATTERY” ON PAGE 5 FOR INFORMATION ON PROPER DISPOSAL OF YOUR BATTERY.

Recharging the Batteries

If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes. See “Battery Level Indicators” on page 24.

The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your LifeBook notebook and connect the AC or Auto/Airline adapter.

AKE SURE THAT THE BATTERY CHARGING INDICATOR AND THE PERCENTAGE CHARGE IS SHOWN

INSIDE THE BATTERY LEVEL ICON ON THE STATUS INDICATOR PANEL.

There is no memory effect on the Lithium ion battery, therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your notebook is in use while the battery is charging. If you want to charge the battery more quickly, put your notebook into Sleep mode, or turn it off while the adapter is charging the battery. (See Power Management on page 58 for more

information on Sleep mode and shutdown procedure)

SING HEAVY CURRENT DEVICES SUCH AS THE MODEM OR FREQUENT DVD/CD-RW/CD-ROM ACCESSES MAY PREVENT CHARGING COMPLETELY.

Low Battery State

When the battery is running low, a low battery notification message will appear. If you do not respond to the low battery message, the batteries will continue to discharge until they are too low to operate. When this happens, your notebook will go into Sleep mode. There is no guarantee that your data will be saved once the notebook reaches this point.

• ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE

DATA AND PUT YOUR LIFEBOOK NOTEBOOK INTO SLEEP MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD PROVIDE A CHARGED BATTERY, AN AC POWER ADAPTER, OR

UTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.

• WHEN YOU ARE IN SLEEP MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE.

F YOU REMOVE ALL POWER SOURCES WHILE YOUR LIFEBOOK NOTEBOOK IS IN SLEEP MODE, ANY

DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.

Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your notebook goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either from an adapter or a charged battery. Once you have provided power, you will need to press the Power/Suspend/Resume button to resume operation.

In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored. Once you provide power, you can continue to use your notebook while an adapter is charging the battery.

Shorted Batteries

The Status Indicator panel uses a symbol inside the battery outline of the Battery Level indicator to display the operating level available in that battery. If this display shows a Shorted Battery, it means the battery is damaged and must be replaced so it does not damage other parts of your LifeBook notebook.

Replacing the Battery

Battery Release Button

Battery Pack

Battery Lock

Lift Notch

With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not charged. There are two ways to swap batteries, cold-swapping and hot-swapping:

Cold-swapping Batteries

To cold-swap batteries in your battery bay, follow these easy steps:

1 Have a charged battery ready to install. 2 Shut down your notebook and disconnect the AC adapter. 3 While pushing the battery bay release latches towards the battery pack, lift the battery out of the bay using the

latches to lift it.

4 Insert a new battery into the bay, and press it down so that the latches click into place. 5 Plug in the AC adapter and turn the power on.

Figure 14. Removing a Battery

Hot-swapping Batteries

To hot-swap batteries in your battery bay, follow these easy steps:

BE SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE

BATTERY PRESENT TO SUPPORT THE SYSTEM WHILE THE BATTERY IS BEING REPLACED. IF YOU DO NOT USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.

1 Plug an AC Adapter into the system and connect it to a power outlet.

2 Follow steps 3 and 4 in “Cold Swapping Batteries”.

F THE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED, YOU MAY NOT BE ABLE TO USE YOUR

NOTEBOOK OR CHARGE YOUR BATTERY.

Optical Drive

Media Holder Tray

Media Tray Eject Button

Emergency Tray Release

There is a variety of media available to use with your system, depending upon the system configuration you have selected. Multi-Format DVD Writers, DVD/CD-RW Combo drives, and DVD-ROM drives are collectively known as “optical drives”.

DVD-R and DVD-RW discs hold up to 4.7 GB of data (DVD-R discs used with Multi-Format Dual-Layer DVD writer hold up to 8.5 GB). A DVD-R disc can only be written to once; DVD-RW discs can be written to over and over. DVD-R and DVD-RW discs can be played on most standard players.

CD-R and CD-RW discs hold up to 640 MB of data. A CD-R disc can only be written to once; CD-RW discs can be written to over and over.

Figure 15. Optical Drive

Depending upon your notebook configuration, you may have one of the following optical drives:

• DVD/CD-RW combo: A DVD/CD-RW combo drive allows you to access movie, software, data,

or audio DVD/CDs, and to write data onto recordable CD-R and CD-RW discs.

• Dual-Layer Multi-Format DVD Writer: This drive allows you to access movies, software, and

audio DVD/CDs as well as to read and write to CD-R, CD-RW, DVD-R, DVD+R, DVD-RW, DVD+RW, and DVD RAM discs. The dual-layer architecture allows you to record up to 8.5 GB of data on DVD+R discs.

Media Player Software

Dual-Layer Multi-Format DVD Writer model only: With the Dual-Layer Multi-Format DVD Writer and media player software you can play DVD movies and music CDs on your LifeBook notebook. The media player includes controls which allow you to take full advantage of the features of a DVD movie, as well as standard features such as fast forward, fast reverse, pause, etc. With this drive you can also burn onto recordable DVD-R/RW, DVD+R/RW, or CD-R/RW discs.

DVD/CD-RW Combo model only: With the combo drive, you can play DVD movies, read audio CDs, and write data onto recordable CD-R or CD-RW discs.

• DO NOT OPERATE YOUR OPTICAL DRIVE UNLESS YOUR LIFEBOOK NOTEBOOK IS SITTING ON A FLAT

SURFACE. USING A DRIVE WHEN THE SYSTEM IS NOT LEVEL MAY DAMAGE THE DRIVE OR PREVENT PROPER OPERATION.

• PROLONGED USE OF THE OPTICAL DRIVE, SUCH AS WATCHING A DVD MOVIE, WILL SUBSTANTIALLY

REDUCE YOUR BATTERY LIFE IF NO EXTER NAL POWER SOURCE IS ATTACHED.

Loading Media on Your Drive

To load a disc into your optical drive:

1 Push and release the eject button on the front of the optical drive to open the holder tray. The tray will come out

of the LifeBook notebook a short distance.

2 Gently pull the tray out until a media disc can easily be placed in the tray. 3 Place the media into the tray, label side up, with the hole in the center of the disc. Snap the disc onto the raised

circle in the center of the tray.

4 Gently push the holder tray back in until you hear a click. (Figure 16)

• IF YOU HAVE DISABLED THE AUTO INSERT NOTIFICATION FUNCTION (VIA THE AUTOPLAY UTILITY IN THE

ONTROL PANEL), YOU WILL HAVE TO START THE DRIVE FROM YOUR DESKTOP, SINCE YOUR

NOTEBOOK WILL NOT AUTOMATICALLY RECOGNIZE THAT MEDIA HAS BEEN LOADED.

• YOU SHOULD PERIODICALLY CHECK THE FUJITSU WEBSITE AT US.FUJITSU.COM/COMPUTERS FOR THE

MOST CURRENT DRIVERS.

• ALL LIFEBOOK DVD PLAYERS ARE SET TO PLAY DVD TITLES WITH REGION CODE NUMBER 1 WHICH

IS SPECIFIED FOR THE NORTH AMERICAN MARKET. THE REGION NUMBER IS A REGIONAL RESTRICTION CODE DEFINED BY THE DVD FORUM ACTING ON HOLLYWOOD REQUIREMENTS. DIFFERENT REGION CODES ARE RECORDED ON VIDEO DVD TITLES FOR PUBLICATION IN DIFFERENT AREAS OF THE WORLD. IF THE REGIONAL CODE OF THE DVD PLAYER DOES NOT MATCH THE CODES ON THE TITLES, THEN PLAYBACK IS IMPOSSIBLE.

• YOU CAN CHANGE THE REGION CODE ON THE DVD PLAYER USING THE PROPERTIES MENU OF THE

DVD

SOFTWARE. NOTE, HOWEVER, THAT YOU CAN ONLY CHANGE THE REGION CODE UP TO FOUR

TIMES. AFTER THE FOUR TH CHANGE, THE LAST REGION CODE ENTERED BECOMES PERMANENT, AND CANNOT BE CHANGED.

Figure 16. Loading/Ejecting Media

Removing Media

Emergency Release Hole

1 Push and release the eject button on the front of the optical drive. This will stop the drive and the holder tray will

come out of the LifeBook notebook a short distance.

2 Gently pull the tray out until the disc can easily be removed from the tray. 3 Carefully remove the media disc from the holder tray. 4 Gently push the holder tray back in until you hear a click.

Emergency Optical Drive Tray Release

If for some reason the eject button fails, you can open the media tray with a paper clip or similar tool inserted into the eject hole in the right side of the front of the tray. Straighten one side of a paper clip and push it gently into the hole. The tray will pop out.

Figure 17. Emergency Tray Release

Using the Media Player Software

DEPENDING UPON ITS CONFIGURATION, YOUR SYSTEM MAY NOT HAVE THE MEDIA PLAYER SOFTWARE

PRE-INSTALLED. IF IT IS NOT INSTALLED, REFERENCE THE DOCUMENTATION THAT ACCOMPANIES THE MEDIA APPLICATION.

Starting a DVD Movie (DVD Models only)

1 Insert the DVD into the optical drive of the notebook. If the AutoRun feature activates, skip Step 2. 2 The first time you insert a movie into the DVD/CD-RW tray, you may be prompted to select what you want the

system to do when discs are inserted (e.g., start automatically or wait for a prompt). Until you make a selection, you will receive the same prompt whenever you insert a disc.

3 Click OK to close the About DVD Player Performance dialog box and the movie will begin.

Using the Media Player Control Panel

The media player software allows you to watch the movie much like a VCR player. You can pause, rewind, fast-forward and stop the movie at any point.

1 To pause the movie, click the on-screen button. 2 To rewind the movie, click the  button to rewind to a specific portion of the movie, or the  button to return to

the opening screen.

3 To fast-forward the movie, click the  button to forward to a specific portion of the movie, or the button to jump

to the ending credits.

4 To stop the movie, click the  button.

Exiting the Media Player

Click the U located in the upper right corner of the title bar.

Using Media Player on Battery Power

Since optical drives consume a lot of power, your overall battery life will be significantly shorter when operating the optical drive continuously (such as when watching a DVD movie) than during standard operation. Many movie run-times are longer than your notebook can support on a single charged battery.If you are watching a DVD movie on battery power you may need to swap in an additional, charged battery or attach AC power during the movie to view it in its entirety.

• PROLONGED USE OF THE OPTICAL DRIVE, SUCH AS WATCHING A DVD MOVIE, WILL GREATLY REDUCE

YOUR NOTEBOOK’S BATTERY LIFE.

• MANY MOVIE RUN-TIMES ARE LONGER THAN YOUR SYSTEM CAN SUPPORT ON A SINGLE BATTERY. IF

YOU ARE WATCHING A DVD MOVIE ON BATTERY POWER YOU MAY NEED TO SWAP IN AN ADDITIONAL, CHARGED BATTERY OR ATTACH AC POWER DURING THE MOVIE TO VIEW IT IN ITS ENTIRETY.

• AN ADDITIONAL FULLY-CHARGED BATTERY IS HIGHLY RECOMMENDED IF YOU WILL BE WATCHING DVD

MOVIES ON BATTERY POWER. IF YOU DON’T HAVE AN ADDITIONAL BATTERY, YOU MAY PURCHASE ONE EITHER ONLINE AT: HTTP://WWW.COMPUTERS.US.FUJITSU.COM OR BY CALLING 1-877-372-3473.

To Watch a Movie on Battery Power:

1 Have an additional full-charged battery or your AC adapter ready for use. 2 Start watching your DVD movie. 3 When the low battery warning occurs, immediately stop the movie and exit the media player.

F YOU DO NOT STOP THE MEDIA PLAYER QUICKLY AND THE LIFEBOOK NOTEBOOK ATTEMPTS TO AUTO-

SUSPEND (CRITICAL BATTERY LOW STATE) THE LIFEBOOK NOTEBOOK WILL SHUT DOWN IMPROPERLY.

F THIS OCCURS, YOU MAY NEED TO PERFORM A HARD RESET AND FOLLOW THE INSTRUCTIONS, IF ANY,

PRESENTED TO YOU BEFORE THE SYSTEM WILL REBOOT.

4 Power down your notebook and replace the discharged battery with an additional fully-charged battery. If you

do not have an additional battery, you may attach AC power as soon as you see the low battery warning.

5 Resume your LifeBook notebook by pressing the Suspend button again. This is not required if you attached AC

power without entering sleep mode.

6 Restart your media player, locate and skip to the chapter of the movie you were last watching. 7 Continue watching your DVD movie.

OME SHORTER DVD MOVIES MAY NOT REQUIRE YOU TO SWAP BATTERIES OR ATTACH AC POWER TO

COMPLETE THEM. HOWEVER, IT IS BEST TO BE PREPARED SINCE ACTUAL BATTERY LIFE WHILE OPERATING THE OPTICAL DRIVE CANNOT BE GUARANTEED.

Figure 18. Installing a Memory Stick or SD Card

Memory Stick

SD Card

Memory Stick/Secure Digital Cards

Your LifeBook notebook supports Memory Sticks and Secure Digital (SD) cards, on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don’t need a power source to retain data.

Memory Stick is a flash memory technology that allows you to record, transfer and share digital content, such as digital pictures, movies, music, voice, and computer data and applications.

Secure Digital (SD) Cards are very similar to Memory Sticks. Like Memory Sticks, SD Cards allow portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data quickly, with low battery consumption. Like the memory stick, it uses flash memory architecture.

Installing Memory Stick/SD Cards

Memory Stick and SD Cards are installed in the Memory Stick/SD Card slot. To install a Memory Stick or SD Card, follow these steps:

INSTALLING OR REMOVING A MEMORY STICK OR SD CARD DURING YOUR LIFEBOOK NOTEBOOK’S

SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK NOTEBOOK.

O NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK NOTEBOOK, OR BOTH.

1 See your specific card manual for instructions on the installation of your card. Some cards may require that your

notebook is off while installing them.

2 Make sure there is no card currently in the slot. If there is, see “Removing a Memory Stick/SD Card” below. 3 Insert your card into the slot with the product label facing up. 4 Push the card firmly into the slot until it is seated in the connector.

Removing a Memory Stick/SD Card

To remove a Memory Stick or SD Card, follow these easy steps:

EE YOUR CARD MANUAL FOR SPECIFIC INSTRUCTIONS ON THE REMOVAL OF YOUR CARD. SOME CARDS MAY REQUIRE YOUR LIFEBOOK NOTEBOOK TO BE IN SLEEP MODE OR OFF WHILE REMOVING THEM.

Pull the Memory Stick or SD Card firmly from the slot.

Figure 19. Installing/Removing PC Card

ExpressCard Slot

ExpressCards™/Smart Cards

Your LifeBook notebook supports ExpressCardsTM, which can perform a variety of functions depending on which type of card you insert.

Some available ExpressCards:

• Gigabit Ethernet Local area network (LAN) cards

• IEEE1394 cards

• S-ATA II cards

• IEEE802.11n WLAN cards

For further information, refer to the instructions supplied with your card(s).

Inserting ExpressCards

54 mm ExpressCard

34 mm ExpressCard

ExpressCard Slot

There are two different width ExpressCards: 34 mm and 54 mm. The connector inside the slot is located on the left-hand side of the slot. If you insert a 34 mm card, be sure to align it with the left side of the slot when inserting it. Express Cards are inserted in the Express Card slot, as shown on the right.

• INSTALLING OR REMOVING AN EXPRESSCARD DURING YOUR LIFEBOOK NOTEBOOK’S SHUTDOWN

OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK NOTEBOOK.

• DO NOT INSERT AN EXPRESSCARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON

THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK NOTEBOOK, OR BOTH.

OU MAY BE REQUIRED TO LOG ON AS AN ADMINISTRATOR OR MEMBER OF THE ADMINISTRATOR’S

ROUP TO COMPLETE THIS PROCEDURE. IF THE COMPUTER IS CONNECTED TO A NETWORK, NETWORK

POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.

Figure 20. Inserting/Removing ExpressCards

1 See your ExpressCard manual for instructions on the installation of your card. Some cards may require that

your notebook is off while installing them.

2 Make sure there is no ExpressCard currently in the slot. If there is, see “Removing ExpressCards”, below. 3 Insert the card into the slot with the label facing up. 4 Push the card firmly into the slot until it is seated in the connector.

Removing ExpressCards

Dedicated Smart Card slot

See your ExpressCard manual for specific instructions on removing your card. Some cards may require that your notebook be in Sleep Mode or Off during removal.

• WINDOWS HAS A SHUTDOWN PROCEDURE FOR EXPRESSCARDS THAT MUST BE FOLLOWED BEFORE

REMOVING A CARD. (REVIEW YOUR OPERATING SYSTEM MANUAL FOR THE CORRECT PROCEDURE.) IT IS GOOD PRACTICE TO REMOVE DEVICES USING THE SAFELY REMOVE HARDWARE ICON IN THE SYSTEM TRAY.

• IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR

OPEN FILES, CLOSE ANY OPEN APPLICATIONS AND SHUT DOWN YOUR NOTEBOOK.

To remove an ExpressCard, push the card in until it unlatches. It will then pop out slightly, allowing you to remove the card by pulling it straight out.

Smart Card Reader

A dedicated Smart Card Reader is provided on your notebook. Smart Cards are the same size and shape as credit cards, but they contain an integrated microprocessor chip. The chip can hold a variety of information, and provides you with many possible options, such as allowing you to make secure purchases, pay for phone calls, store security information, and provide personal identification and information.

In order to use the Smart Card Reader, you must purchase optional Smart Card third-party software.

Figure 21. Smart Card Slot

Memory Upgrade Module

Your Fujitsu LifeBook notebook comes with a minimum of 1 GB of high speed Double Data Rate Synchronous Dynamic RAM (DDR3-1066 SDRAM) factory installed. To increase your notebook’s memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-inline (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com.

• DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE

ONES SPECIFICALLY SHOWN IN THE DIRECTIONS FOR INSTALLING AND REMOVING THE MEMORY UPGRADE MODULE.

• THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD).

O MINIMIZE RISK TO THE MODULE, OBSERVE THE FOLLOWING PRECAUTIONS:

- B

EFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE

STATIC ELECTRICITY BUILT UP IN YOUR BODY.

- WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH

ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.

- B

E SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES.

VEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR THE MEMORY

COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.

Installing Memory Upgrade Modules

1 Turn off power to your notebook, remove any power adapter (AC or auto/airline). Remove the battery. 2 Make sure that all the connector covers are closed. 3 Turn the notebook bottom side up, and remove the screw from the memory upgrade module compartment. 4 Remove the cover. 5 Remove the new memory upgrade module from the static guarded sleeve. 6 Align the memory upgrade module with the part side up. Align the connector edge of the memory upgrade

module with the connector slot in the compartment.

Retaining Clip Alignment Key

Figure 22. Opening Memory Compartment Figure 23. Installing a 2nd Memory Module

7 Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and

into the connector until it lodges under the retaining clip. You’ll hear a click when it is properly in place.

8 Replace the cover and reinstall the screws.

THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR NOTEBOOK. O

NCE IT IS INSTALLED, YOU CAN LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY

CAPACITY.

Removing a Memory Upgrade Module

1 Perform steps 1 through 4 of Installing a Memory Upgrade Module. 2 Pull the clips sideways away from each side of the memory upgrade module at the same time.

3 While holding the clips out,

Retaining Clip

remove the module from the slot by lifting it up and pulling it away from your notebook.

4 Store the memory upgrade

module in a static guarded sleeve.

5 Replace the cover and reinstall

the screws.

Figure 24. Removing a Memory Upgrade Module

Checking the Memory Capacity

Once you have changed the system memory capacity by replacing the installed module with a larger one, be sure to check that your notebook has recognized the change.

Windows XP: Check the memory capacity by clicking [Start] > Settings > Control Panel > System. Select the General tab and check the amount of memory above the [Support Information] button.

Windows Vista: Check the memory capacity by clicking [Start] -> Control Panel -> System and Maintenance -> System. The amount of memory is displayed next to Memory - RAM. (If you are in

Classic View, access the System icon directly from the Control Panel.) There may be a variation between the actual memory size and what is displayed. This is possible if your

system is configured with an integrated graphics media accelerator which dynamically allocates system memory to accelerate graphics performance.

IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS

PROPERLY INSTALLED. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 86.

Device Ports

Your Fujitsu LifeBook notebook and the optional Port Replicator come equipped with multiple ports to which you can connect external devices including disk drives, keyboards, modems, printers, etc.

Modem (RJ-11) Telephone Jack

The modem (RJ-11) telephone jack is used for an internal modem. To connect the telephone cable follow these easy steps:

1 Align the connector with the port

2 Push the connector into the port until it is

3 Plug the other end of the telephone

The modem sound may initially be deactivated. To activate modem sound follow these easy steps.

Windows XP:

1 Right click on the Speaker icon in your system tray. 2 Select Open Volume Control. 3 Select Options > Properties. 4 Under Show the following volume controls, click on Phone and click [OK]. 5 Uncheck the Mute box under Phone Balance.

opening.

seated.

cable into a telephone outlet.

Figure 25. Connecting a Modem

Windows Vista:

1 Select [Start] > Control Panel. 2 Select Classic View in the left pane. 3 Double-click Phone and Modems. You may initially need to enter your area code in order to open the Phone

and Modem Options window.

4 Select the Modems tab, and click the [Properties] button. 5 Select the Modem tab and adjust the volume as necessary.

THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT

THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE LIFEBOOK NOTEBOOK. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT

BEFORE

YOU CONNECT YOUR MODEM.

• THE INTERNAL MODEM IS DESIGNED TO THE ITU-T V.90 STANDARD. ITS MAXIMUM SPEED OF

53000

BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS ON THE

LINE CONDITIONS. THE MAXIMUM SPEED IS 33600BPS AT UPLOAD.

• THE INTERNAL MODEM ON ALL LIFEBOOK NOTEBOOKS FROM FUJITSU ARE CERTIFIED FOR USE IN THE

NITED STATES AND CANADA. THE MODEM MAY BE CERTIFIED IN OTHER COUNTRIES.

Internal LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/ 100Base-Tx/1000Base-T) Ethernet LAN connection. You may need to configure your notebook to work with your particular network. (Contact your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Plug the other end of the cable into a LAN outlet.

Figure 26. Connecting the LAN

Universal Serial Bus Ports

The Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external game pads, pointing devices, keyboards and/or speakers. There are three USB 2.0 ports on your notebook: two on the left side and one on the right.

To connect a USB device follow these steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

Figure 27. Connecting a USB Device

DUE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES

AND/OR DRIVERS ARE GUARANTEED TO WORK.

Headphone Jack

The headphone jack allows you to connect headphones or powered external speakers to your notebook. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones or speakers follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

IF YOU PLUG HEADPHONES INTO THE HEADPHONE JACK, THE BUILT-IN SPEAKERS WILL BE DISABLED.

Microphone Jack

The microphone jack allows you to connect an external mono microphone. Your microphone must be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your notebook. In order to connect a microphone follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

External Video Port

The external video port allows you to connect an external monitor or LCD projector. In order to connect an external video device, follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Tighten the two hold-down screws, located on each end of the connector.

PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND

YOUR DISPLAY VIDEO. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT CHOICE, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR ONLY, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.

Port Replicator Connector

The port replicator connector is used for the connection of your notebook to an optional port replicator. In order to connect your notebook to this device, follow the instructions that came with your port replicator.

Chapter 4

Troubleshooting Your LifeBook

Troubleshooting

There may be occasions when you encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices that can be solved by replacing the device. The information in this section helps you isolate and resolve some of these straightforward issues and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1 Turn off your LifeBook notebook. 2 Make sure the AC adapter is plugged into your notebook and to an active AC power source. 3 Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the

slot, thus eliminating it as a possible cause of failure.

4 Make sure that any devices connected to the external connectors are plugged in properly. You can also

disconnect such devices, thus eliminating them as possible causes of failure.

5 Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on. 6 Go through the boot sequence. 7 If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed

troubleshooting information.

IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE

ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE.

8 If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support

representative:

Toll free: 1-800-8Fujitsu (1-800-838-5487); E-mail: 8fujitsu@us.fujitsu.com Website: http://www.computers.us.fujitsu.com/support.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

See the Configuration Label on the bottom of your notebook for configuration and serial numbers.

Specific Problems

Using the Troubleshooting Table

When you have problems with your LifeBook, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your notebook.

Troubleshooting Table

Problem Page

Audio Problems . . . . . . . . . . . . . . . . . page 88

DVD/CD-ROM Drive Problems. . . . . . page 89

Port Replicator Problems . . . . . . . . . . page 90

Floppy Disk Drive Problems . . . . . . . . page 90

Hard Drive Problems . . . . . . . . . . . . . page 90

Keyboard or Mouse Problems . . . . . . page 91

Memory Problems . . . . . . . . . . . . . . . page 91

Problem Page

Modem Problems . . . . . . . . . . . . . . . . . . page 91

Parallel, Serial, USB Device Problems . . page 92

ExpressCard Problems . . . . . . . . . . . . . . page 92

Power Failures. . . . . . . . . . . . . . . . . . . . . page 93

Shutdown and Startup Problems. . . . . . . page 95

Video Problems . . . . . . . . . . . . . . . . . . . . page 96

Miscellaneous Problems . . . . . . . . . . . . . page 98

Problem Possible Cause Possible Solutions Audio Problems

There is no sound coming from the built-in speakers.

The volume is turned too low.

The software volume control is set too low.

Adjust the volume control on your notebook and operating system. Use the [Fn+F9] key combination on your keyboard. Pressing [F9] repeatedly while holding [Fn] will increase the volume.

Manually adjusting the volume (i.e. keyboard "hot keys") should dynamically adjust the volume of the operating (see above). If that doesn’t work, adjust the sound volume control settings in your software or application.

Headphones are plugged into your notebook.

Software driver is not configured correctly.

Plugging in headphones disables the built-in speakers, remove the headphones.

The Audio Driver may be installed or reinstalled by using the Drivers and Applications CD that came with your LifeBook. Refer to your application and operating system documentation for help.

Problem Possible Cause Possible Solutions

There is no sound coming from the built-in speakers. (continued)

The speakers have been muted using the Volume icon in the system tray.

DVD/CD-RW/CD-ROM Drive Problems

LifeBook notebook fails to recognize DVD/CDRW/CD-ROM’s.

The disc is not pushed down onto raised center circle of the drive.

Optical drive tray is not latched shut.

Incorrect DVD Player or no DVD Player software is installed.

Wrong drive designator was used for the disc in the application.

DVD/CD-RW/CD-ROM is dirty or defective.

Click on the Volume icon in the tool tray on the bottom right of the screen. (It looks like a speaker). If the Mute box is checked, click on it to uncheck it. You can also use the [Fn+F3] key combination to toggle the volume on and off. Pressing [F3] while holding [Fn] will toggle the audio mute.

Open optical drive tray and re-install the disc properly.

Push on the front of the optical drive tray until it latches. If that doesn’t work, pull out the modular drive latch to remove the device from the bay, then re-insert the drive until it latched; this ensures that the drive is properly seated.

Install DVD Player software. (See “Media Player Software” on

page 69 for more information.)

Verify the drive designator used by the application is the same as the one used by the operating system. When the operating system is booted from a DVD/CD, drive designations are automatically adjusted. Note that the drive designation can be changed with the Disk Management tool located at Administrative Tools -> Computer Management.

Wipe the disc with a non-abrasive CD cleaning cloth and reinsert. It if still will not work try another DVD/CD-RW/CD-ROM in the drive.

The drive access indicator on the Status Indicator Panel blinks at regular intervals with no disc in the tray or the drive is not installed.

The Windows auto insertion function is active and is checking to see if a disc is ready to run.

This is normal. However, you may disable this feature.

Problem Possible Cause Possible Solutions Port Replicator Problems

Note: Be sure to power down your LifeBook notebook before adding a printer to the Port Replicator parallel port.

Notebook does not turn on when installed in the optional Port Replicator

Floppy Disk Drive Problems

You cannot access your optional external floppy disk.

Hard Drive Problems

You cannot access your hard drive.

Port Replicator AC adapter isn’t plugged in.

Notebook is not properly seated in the Port Replicator.

You tried to write to a write protected disk.

Disk is not loaded correctly.

The floppy disk drive may not be properly installed.

Security is set to protect access to floppy disk.

The wrong drive designator was used by an application when a bootable disc was used to start the notebook.

Provide power to the Port Replicator.

Remove and re-dock your LifeBook notebook.

Eject the disk and set it to write enable.

Eject floppy disk, check orientation and re-insert.

Remove and re-install your floppy disk drive.

Verify your password and security settings.

Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted.

Security is set so your operating system cannot be started without a password.

Verify your password and security settings.

Problem Possible Cause Possible Solutions Keyboard or Mouse Problems

The built-in keyboard does not seem to work.

You have installed an external keyboard or mouse, and it does not seem to work.

You have connected an external keyboard or a mouse and it seems to be locking up the system.

Memory Problems

Your System screen does not show the correct amount of installed memory.

The notebook has gone into Sleep mode.

An application has locked out the keyboard.

Your external device is not properly installed.

Your operating system software is not set up with correct software driver for that device.

The system has crashed.

Your memory upgrade module is not properly installed.

You have a memory failure.

Push the Power/Suspend/Resume button.

Try to use your integrated pointing device to restart your system.

Re-install your device. See “Device Ports” on page 82.

Check your device and operating system documentation and activate the proper driver.

Try to restart your notebook. I

Remove and re-install your memory upgrade module. See “Mem-

ory Upgrade Module” on page 79.

Check for Power On Self Test (POST) messages. See “Power On Self Test Messages” on page 99.

Modem Problems

Messages about modem operation.

Modem messages are generated by the modem application being used.

See your application software documentation for additional information.

Problem Possible Cause Possible Solutions USB Device Problems

You have installed a USB device. Your LifeBook notebook does not recognize the device, or the device does not seem to work properly.

ExpressCard Problems

A card inserted in the ExpressCard slot does not work or is locking up the system.

The device is not properly installed.

The device may have been installed while an application was running, so your notebook is not aware of its installation.

Your device may not have the correct software driver active.

The card is not properly installed.

The card may have been installed while an application was running, so your notebook is not aware of its installation.

Your software may not have the correct software driver active.

You may have the wrong I/O address selected for your card device.

Remove and re-install the device. See “Device Ports” on page 82.

Close the application and restart your notebook.

See your software documentation and activate the correct driver.

Remove and re-install the card. See “ExpressCards™/Smart

Cards” on page 76.

Close the application and restart your notebook.

See your software documentation and activate the correct driver.

See your PC Card/ExpressCard documentation to determine the required I/O address. Change the settings in the Device Manager.

Problem Possible Cause Possible Solutions Power Failures

You turn on your LifeBook notebook and nothing seems to happen.

The installed primary battery is completely discharged, there is no optional second battery installed or there is no power adapter installed.

The primary battery is installed but is faulty.

The battery or batteries are low.

The power adapter (AC or auto/airline) is not plugged in properly.

The power adapter (AC or auto/airline) has no power from the AC outlet, airplane seat jack, or car cigarette lighter.

The power adapter (AC or auto/airline) is faulty.

Check the Status Indicator Panel to determine the presence and condition of the batteries. See “Status Indicator Panel” on page 23. Install a charged battery or a Power adapter.

Use the Status Indicator panel to verify the presence and condition of the batteries. See “Status Indicator Panel” on page 23. If a battery is indicating a short, remove that battery and operate from another power source or replace that battery.

Check the Status Indicator Panel to determine the presence and condition of the batteries. See “Status Indicator Panel” on page 23. Use a Power adapter to operate until a battery is charged or install a charged battery.

Verify that your adapter is connected correctly. See “Power

Sources” on page 45.

Move the AC cord to a different outlet, check for a line switch or tripped circuit breaker for the AC outlet. If you are using an auto/airline adapter in a car make sure the ignition switch is in the On or Accessories position.

Try a different Power adapter or install a charged optional second battery.

Your LifeBook notebook turns off all by itself.

The power management parameters are set for auto timeouts which are too short for your operating needs.

Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. Check your power management settings, or close your applications and go to the Power Options Properties located in the Control Panel to adjust the timeout values to better suit your needs.

Problem Possible Cause Possible Solutions

Your LifeBook notebook turns off all by itself. (continued)

Your LifeBook notebook will not work on battery alone.

The batteries seem to discharge too quickly.

You are operating on battery power and

Install a power adapter and then push the Power/Sus-

pend/Resume button. See “Power Sources” on page 45. ignored a low battery alarm until the system has gone into Dead Battery Suspend mode.

You have a battery failure.

Verify the condition of the batteries using the Status Indicator

panel, and replace or remove any batteries that are shorted. See

“Status Indicator Panel” on page 23.

Your power adapter

Make sure the adapter is plugged in and the outlet has power. lost its power source or failed.

The batteries are dead. Replace the battery with a charged one or install a power adapter.

No batteries are

Install a charged battery. installed.

The batteries are improperly installed.

Your installed batteries are faulty.

Verify that the batteries are properly connected by re-installing

them.

Verify the condition of the batteries using the Status Indicator

panel and replace or remove any batteries that are shorted. See

“Status Indicator Panel” on page 23.

The power savings features may be disabled.

Check the Power Options menu settings and adjust according to

your operating needs.

You are running an application that uses a lot of power due to frequent drive access, use of a modem, WLAN, or Bluetooth device.

The brightness is turned all the way up.

Use both the primary battery and an optional second battery

and/or use a power adapter for this application when at all

possible.

Turn down the brightness adjustment. The higher the brightness

the more power your display uses.

Problem Possible Cause Possible Solutions

The batteries seem to discharge too quickly. (continued)

The batteries are old. Replace the batteries.

The batteries have been exposed to high temperatures.

The batteries are too hot or too cold.

Shutdown and Startup Problems

The Suspend/Resume button does not work.

The system powers up, and displays power on information, but fails to load the operating system.

Your system display won’t turn on when the system is turned on or has resumed.

Suspend/Resume button is disabled.

There may be a software conflict

You have a secured system requiring a password to load your operating system.

Internal hard drive was not detected.

You have installed the LifeBook/Security Application panel.

Replace the batteries.

Restore the notebook to normal operating temperature. Charging

icon on the Status Indicator panel will flash when battery is out-

side of operating range.

In Windows XP, enable the button by going to the Control Panel ->

Power Options Properties and clicking on the Advanced tab. In the

Power buttons area, select the option that best suits your needs.

In Windows Vista, select “Choose what the power button does”.

Close all applications and try the button again.

Make sure you have the right password. Enter the setup utility and

verify the Security settings and modify them as accordingly. See

“BIOS Setup Utility” on page 51.

Use the BIOS setup utility or Primary Master submenu, located

within the Main menu, to try to auto detect the internal hard drive.

Check the Status Indicator Panel for presence of the Security icon.

If it is visible, enter your password See “Status Indicator Panel” on

page 23.

An error message is displayed on the screen during the notebook (boot) sequence.

Power On Self Test (POST) has detected a problem.

The BIOS CMOS holdup battery has failed.

See the POST messages to determine the meaning and severity

of the problem. Not all messages are errors; some are simply sta-

tus indicators. See “Power On Self Test Messages” on page 99.

Contact your support representative for repairs. This is not a

user serviceable part but has a normal life of 3 to 5 years.
