Page 1
Color Image Scanner
S510
Operator’s Guide
P3PC-1792-01ENZ0
SCAN
POWER
Page 2
Page 3
Introduction
Thank you for purchasing Color Image Scanner ScanSnap S510 (hereinafter referred to as the
"ScanSnap").
The ScanSnap is a scanner that is capable of double-sided scanning in both monochrome and color.
The ScanSnap has the following advantages:
■ You can turn images on paper into PDF files and made PDF files searchable by just
pressing the [SCAN] button!
You can turn documents cluttering up your desk into PDF files to manage and archive
them on your computer. By using Adobe
you can view, edit, and search PDF files right at your fingertips.
PDF files are easy to print and share scanned images by e-mail.
In addition to the advantages above, the ScanSnap can automatically recognize the type
of documents, color or black-and-white, so that the size of the scanned image file can
be reduced when documents containing both color and black-and-white pages are
scanned. (Moreover, the ScanSnap can automatically remove blank pages from the
document to further reduce the size of the file.)
®
Acrobat®, which comes with the ScanSnap,
■ You can scan documents with speed and efficiency!
Double-sided color documents of A4 or letter size paper can be scanned at a speed of
about 18 sheets/minute (when Scan mode is set to Normal, Color mode is set to Auto,
and Compression rate is set to 3). (*1)
(*1) -Depending on the document, scanning speed may become slower in "B&W
(Black&White)" mode (due to process for converting data scanned in color to
monochrome data).
Example: Scanning color brochures in "B&W" mode
-When "Correct skewed character strings automatically," "Allow automatic image
rotation," and/or automatic text recognition is enabled, scanning speed may become
slower.
■ You can eliminate the nuisance of a bulky device!
Smaller than a sheet of A4 or letter size paper, the ScanSnap can fit unobtrusively on
your desktop all the time.
■ You can file business cards with ease!
With CardMinder
filed and searched for using the OCR function.
™
, which is supplied with the ScanSnap, business cards can be easily
ScanSnap S510 Operator's Guide i
Page 4
■ The Quick menu is newly added for beginners to operate the ScanSnap with
automatic ease!
When the [SCAN] button is pressed, the Quick menu is displayed. What you should do
is to select the action you want to perform on the Quick menu. The Quick menu is
simple enough for first-time use by completely neophytes. (Quick menu mode)
■ You can send off the scanned image by e-mail or output the scanned image to the
printer immediately after scanning!
Without starting applications, you can attach the scanned image to e-mail or make
copies of the scanned image by outputting it to the printer.
■ You can convert paper documents into Word/Excel/PowerPoint files!
With ABBYY FineReader for ScanSnap
directly into the Word/Excel/PowerPoint file.
Note: The ScanSnap does not conform to TWAIN and ISIS standards.
This Operator’s Guide describes how to handle and operate the ScanSnap. Before using the
ScanSnap, be sure to read this document thoroughly for proper operation.
™
, you can convert the scanned document
ii
Page 5
Introduction ................................................................................... i
■ Regulatory Information ........................................................ vi
■ Liability ................................................................................ viii
■ Trademarks ........................................................................... ix
■ Safety Precautions ............................................................... xi
Chapter 1 Before You Start Using the ScanSnap ......................1
1.1 Checking the Contents of the Scanner Package............. 2
1.2 Names and Functions of Components ............................. 3
Chapter 2 Connecting the ScanSnap .......................................... 5
2.1 Installing the Supplied Programs...................................... 6
2.2 Connecting the ScanSnap to your PC............................ 21
Chapter 3 Using the ScanSnap.................................................. 29
3.1 Flow of Operations .......................................................... 30
3.2 Paper Size of Documents to be Scanned ....................... 46
3.3 Loading Documents ......................................................... 49
Chapter 4 Setting the ScanSnap................................................ 63
4.1 About the ScanSnap Icon ................................................ 64
4.2 Changing Scanning Settings........................................... 67
4.3 Saving Scanning Settings................................................ 92
4.4 Using the ScanSnap Quick Menu ................................. 103
4.5 Changing Carrier Sheet Settings .................................. 106
ScanSnap S510 Operator's Guide iii
Page 6
4.6 About Automatic Interaction with Applications........... 111
Chapter 5 About Actions .......................................................... 115
5.1 About Actions in the Action List ................................... 116
5.2 Saving Data in the Specified Folder.............................. 117
5.3 Sending Files by E-Mail ................................................. 129
5.4 Using the ScanSnap as a Copy Machine...................... 145
5.5 Converting into Word / Excel / PowerPoint Files......... 155
Chapter 6 Using the ScanSnap in Various Ways ................... 169
6.1 Using ScanSnap Manager.............................................. 170
6.2 Using Adobe Acrobat ..................................................... 197
6.3 Scanning Business Cards ............................................. 202
6.4 Using ScanSnap Organizer............................................ 208
Chapter 7 Troubleshooting ...................................................... 217
7.1 Clearing Document Jams............................................... 218
7.2 Troubleshooting Checklist ............................................ 220
Chapter 8 Daily Care................................................................. 229
8.1 Cleaning Materials.......................................................... 230
8.2 Cleaning the Scanner Exterior ...................................... 231
iv
8.3 Cleaning the Inside of the Scanner............................... 232
8.4 Cleaning Carrier Sheet ................................................... 235
Page 7
Chapter 9 Replacing Consumables and Carrier Sheet.......... 237
9.1 Replacing Consumables ................................................ 238
9.2 Replacing the Pad ASSY................................................ 240
9.3 Replacing the Pick Roller............................................... 243
9.4 Purchasing the Carrier Sheet ........................................ 250
Appendix A Updating ScanSnap Manager ............................................ 251
Appendix B Uninstalling ScanSnap ....................................................... 253
Appendix C Quick Menu Mode / Left-Click Menu Mode ....................... 255
Appendix D Installation Specifications.................................................. 259
Repairs ..................................................................................................... 261
Index......................................................................................................... 263
ScanSnap S510 Operator's Guide v
Page 8
■ Regulatory Information
FCC declaration
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is located.
• Consult your dealer or an experienced radio/TV technician.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
limits of Part 15 of FCC rules.
ATTENTION
CAUTION
• The use of a shielded interface cable is required to comply with the Class B
• The length of the AC cable must be 3 meters (10 feet) or less.
Canadian DOC Regulations
This digital apparatus does not exceed the Class B limit for radio noise emissions from
digital apparatus set out in the Radio interference Regulations of the Canadian Department
of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites
applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le
brouillage radioélectrique dictées par le Ministère des Communications du Canada.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
vi
Page 9
Bescheinigung des Herstellers / Importeurs
Für den S510 wid folgendes bescheinigt:
•In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört
•Maschinenlärminformationsverordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt
70 dB (A) oder weniger, gemäß EN ISO 7779.
International ENERGY STAR® Program
As an ENERGY STAR® Partner, PFU LIMITED has determined that
this product meets the
efficiency.
The International
international program that promotes energy saving through the
penetration of energy efficient computers and other office equipment.
The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office equipment such as computers,
monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards
and logos are uniform among participating nations.
ENERGY STAR
ENERGY STAR
®
guidelines for energy
®
Office Equipment Program is an
ScanSnap S510 Operator's Guide vii
Page 10
■ Liability
READ ALL OF THIS MANUAL CAREFULLY BEFORE USING THIS PRODUCT. IF
THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY MAY BE
CAUSED TO USERS OR BYSTANDERS.
While all efforts have been made to ensure the accuracy of all information in this manual,
PFU assumes no liability to any party for any damage caused by errors or omissions or by
statements of any kind in this manual, its updates or supplements, whether such errors are
omissions or statements resulting from negligence, accidents, or any other cause. PFU
further assumes no liability arising from the application or use of any product or system
described herein; nor any liability for incidental or consequential damages arising from the
use of this manual. PFU disclaims all warranties regarding the information contained herein,
whether expressed, implied, or statutory.
Use in High-safety Applications
This product has been designed and manufactured on the assumption that it will be used in
office, personal, domestic, regular industrial, and general-purpose applications. It has not
been designed and manufactured for use in applications (simply called "high-safety
applications" from here on) that directly involve danger to life and health when a high degree
of safety is required, for example, in the control of nuclear reactions at nuclear power
facilities, automatic flight control of aircraft, air traffic control, operation control in masstransport systems, medical equipment for sustaining life, and missile firing control in
weapons systems, and when provisionally the safety in question is not ensured. The user
should use this product with adopting measures for ensuring safety in such high-safety
applications. PFU LIMITED assumes no liability whatsoever for damages arising from use
of this product by the user in high-safety applications, and for any claims or compensation
for damages by the user or a third party.
viii
About the use of mercury
Lamp(s) inside this product contain mercury and must be recycled or disposed of
g
H
To avoid unexpected injury, read the following carefully.
Doing the following actions may result in serious personal injuries:
•Do not put the substance in the lamp in your mouth as it contains mercury.
•Do not incinerate, crush, or shred the scanner.
•Do not breathe the chemical liquid contained in the scanner parts.
according to local, state, or federal laws.
Page 11
■ Trademarks
Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation in
the United States and/or other countries.
Word and Excel are the products of Microsoft Corporation.
Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation its
subsidiaries in the United Sates and other countries.
ScanSnap, ScanSnap logo, and CardMinder are the trademarks of PFU LIMITED.
Other product names are the trademarks or registered trademarks of the respective
companies.
ABBYY™ FineReader™ 7.x Engine © ABBYY Software House 2005.
OCR by ABBYY Software House. All rights reserved.
ABBYY, FineReader are trademarks of ABBYY Software House.
How Trademarks Are Indicated In This Manual
ScanSnap: ScanSnap S510
™
CardMinder: CardMinder
References to operating systems (OSs) are indicated as follows:
Windows 2000: Microsoft
Windows XP: Microsoft
Microsoft
Windows Vista: Microsoft
Microsoft
(32-bit)
Microsoft
Microsoft
Windows: Windows 2000, Windows XP, and Windows Vista
Adobe Acrobat: Adobe
®
All descriptions in this manual are based on the premises that Adobe
Acrobat supplied with the ScanSnap is used. Unless otherwise specified,
Adobe Acrobat herein refers to Adobe Acrobat supplied with the
ScanSnap. The version of Adobe Acrobat supplied with the ScanSnap is
subject to change without notice. If the screen examples in this document
differ from actual ones, please refer to "Adobe Acrobat Help."
ABBYY FineReader: ABBYY
PFU TimeStamp: PFU TimeStamp for Adobe
3.0
®
Windows® 2000 Professional operating system
®
Windows® XP Professional operating system (32-bit)
®
Windows® XP Home Edition operating system (32-bit)
®
Windows® Vista™ Home Basic operating system (32-bit)
®
Windows® Vista™ Home Premium operating system
®
Windows® Vista™ Business operating system (32-bit)
®
Windows® Vista™ Ultimate operating system (32-bit)
Acrobat
®
™
FineReader™ for ScanSnap
®
Acrobat®
ATTENTION
The screenshots used in this manual are of Windows XP.
Depending on the operating systems you are using, the screen examples and
operations may differ from the actual ones.
ScanSnap S510 Operator's Guide ix
Page 12
About Mouse Operations
In this manual, mouse operations are defined as follows:
Click: refers to clicking on the left mouse button one time (=> Left-click).
Right-click: refers to clicking on the right mouse button one time.
Double-click: refers to clicking twice in rapid succession on the left mouse button
down.
Manufacturer
PFU LIMITED
International Sales Dept., Imaging Business Division, Products Group
Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan
Phone: (81)(44) 540-4538
All Rights Reserved, Copyright © PFU LIMITED 2007.
x
Page 13
■ Safety Precautions
This manual describes important details for users to use this product safely and correctly.
Read this manual thoroughly before you start using this product.
Be sure to read and fully understand the Safety Precautions in this manual, in particular.
In addition, keep this manual handy during use of this product, so that you can refer to it
quickly when necessary.
Warning Indications Used In This Manual
In this manual, the following signs are used to indicate a risk of physical injury and damage,
so that safe and correct use of this product can be ensured and possible danger and injury to
the operator and other persons can be avoided.
This sign warns the operator that improper use, indicated with this sign,
WARNING
CAUTION
may cause death or severe injury of the operator or people in the
vicinity, if not followed.
This sign warns the operator that improper use, indicated with this sign,
may cause minor injury of the operator, or damage to equipment or
property, if not followed.
Symbols Used In This Manual
In this manual, the following symbols are used to describe operations as well as indicate
warnings.
ATTENTION
HINT
Operation
This symbol alerts operators to particularly important information. Be sure to
read this information.
This symbol alerts operators to helpful advice regarding operations.
This symbol shows operations to perform on your computer.
Operation
This symbol shows operations to perform with your scanner.
ScanSnap S510 Operator's Guide xi
Page 14
A TRIANGLE symbol indicates that special care and attention is required.
The drawing inside the triangle shows the specific caution.
A CIRCLE with a diagonal line inside shows action which users may not perform.
The drawing inside or under the circle shows the specific action that is not
allowed.
Outline characters on a colored background show instructions users should
follow.
R
It may also include the drawing that shows the specific instruction.
About the Hot Surface Hazard Warning Label
The following warning labels are attached to this product.
The area around the part to which this warning label is affixed can become very hot.
Please take serious caution as the heat can cause burns.
ATTENTION
Do NOT remove the warning labels from the scanner. Avoid them from being
stained, so that the warning labels are plainly visible.
Screen Examples In This Manual
The screen examples in this manual are subject to change without notice in the interest of
product improvement.
If actual screens differ from those used as examples in this manual, operate by following the
actual ones referring to the User's Manual of the scanner.
The screenshots used in this manual are for the ScanSnap Manager and the CardMinder
applications.
The screen examples in this manual are created according to Microsoft Corporation’s
Guideline.
About Maintenance
Repairs should be done by properly trained repair technicians.
When this product needs servicing, please contact the store where you purchased it or any
authorized FUJITSU Image Scanner service provider.
xii
Page 15
WARNING
The following describes important warnings described in this manual.
Do not touch the AC cable with wet hands.
Do not touch the power plug with wet hands. Doing so might cause electric
shock.
Do not damage the AC cable.
A damaged AC cable may cause fire or electric shock.
Do not place heavy objects on AC cables, or pull, bend, twist, heat, damage or
modify AC cables.
Do not use damaged AC cables or power plugs, and AC cables or power plugs
when the wall socket is loose.
Use only specified AC cable, AC adapter, and connector cables
Use only the specified AC cable, AC adapter, and connector cables. Failure to
use the correct cables might cause electric shock and equipment failure.
Do not use the AC cable, AC adapter, and connector cables provided with this
scanner for other devices, since this might cause equipment failure and other
troubles or an electric shock.
Use this scanner only at the indicated power voltage. Do not
connect to multiple-power strips.
Use this scanner only at the indicated power voltage and current. Improper
power voltage and current might cause fire or electric shock.
Also, do not connect to multiple-power strips.
Wipe any dust from the power plug.
Wipe off any dust from metal parts on the power plug or metal fittings with a soft,
dry cloth. Accumulated dust might cause fire or electric shock.
ScanSnap S510 Operator's Guide xiii
Page 16
Do not install in locations subject to oil smoke, steam, humidity,
and dust.
Do not install the scanner in locations subject to oil smoke, steam, humidity, and
dust. Doing so might cause a fire or electric shock.
Do not use the scanner if you smell strange odor.
If you detect heat coming from the device or detect other problems such as
smoke, strange smells or noises, immediately turn off the scanner and then
disconnect its power plug.
Make sure that the smoking has stopped, and then contact the store where you
bought the scanner or an authorized FUJITSU scanner service provider.
Turn the scanner OFF if it is damaged.
If the scanner is damaged for any reason, turn off the scanner and unplug the
power cable before contacting the store where you purchased the scanner.
Do not put liquids inside the scanner.
• Do not insert or drop metal objects in to the scanner.
• Do not scan wet documents or documents with paper clips or staples.
• Do not splash or allow the scanner to get wet.
If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner,
immediately turn off the scanner and disconnect the power plug from the power
outlet, then contact the store where you bought the scanner or the Maintenance
Service Center.
Pay particular attention to this warning in households where there are small
children.
Do not touch the inside of the scanner unless necessary.
Do not take apart or modify the scanner. The inside of the scanner contains highvoltage components. Touching these components might cause fire or electric
shock.
xiv
Page 17
CAUTION
The following illustrates important cautions described in this manual.
Do not install the scanner on unstable surfaces.
Install the scanner on a flat, lever surface. Make sure none of the scanner parts
protrudes outside the desktop.
Do not install the scanner on unstable surfaces. Install the scanner on a level
surface that is free of vibration to prevent it from falling.
Install the scanner on a strong surface that will support the weight of the scanner
and other devices.
Firmly insert the power plug.
Firmly insert the power plug into the power outlet as far it can go.
Do not block the ventilation ports.
Do not block the ventilation ports. Blocking the ventilation ports generates heat
inside of scanner, which may results in fire or scanner failure.
Do not place heavy objects or climb on top of the scanner.
Do not place heavy objects on the scanner or use the top surface of the scanner
for performing other work. Improper installation might cause injuries.
Before moving the scanner, unplug the power cord from the
electrical outlet.
Do not move the scanner with the power and interface cables connected as this
might damage the cables, causing fire, electric shock or injuries.
Before moving the scanner, be sure to disconnect the power plug from the power
outlet, and disconnect data cables. Also, make sure that the floor is free of
obstructions.
ScanSnap S510 Operator's Guide xv
Page 18
Protect the scanner from static electricity.
Install the scanner away from strong magnetic fields and other sources of
electronic noise. Also, protect the scanner from static electricity as this might
cause the scanner to malfunction.
Do not use aerosol sprays near the scanner.
Do not use aerosol sprays to clean the scanner. Aerosol sprays cause dirt and
dust to enter the scanner, resulting in scanner failure and malfunction.
Avoid any contact when scanner is working.
Avoid touching any scanner mechanism when scanning as this may cause
injuries.
Unplug the power cord from the electrical outlet when the
scanner is not used for an extended period of time.
For your safety, unplug the power cord from the electrical outlet when the
scanner is not used for an extended period of time.
Do not expose the scanner to direct sunlight.
Do not install the scanner in a location exposed to direct sunlight or near any
heating apparatus. Doing so increases the inside temperature of the scanner,
and a fire or failure may occur. Install the scanner in a well-ventilated location.
Do not use the scanner immediately after moving it from a cold
place into a warm room.
Do not use the device immediately after moving it from a cold place into a warm
room. This may cause condensation, which might lead to scanning errors. Let the
device dry about one or two hours before you use it.
xvi
Page 19
Be careful not to cut your fingers
When handling the paper or Carrier Sheet, be careful not to cut your fingers by
the paper or Carrier Sheet.
ScanSnap S510 Operator's Guide xvii
Page 20
xviii
Page 21
Chapter 1
Before You Start Using the ScanSnap
This chapter describes the necessary preparations for using the ScanSnap.
1
1.1 Checking the Contents of the Scanner Package ................................................. 2
1.2 Names and Functions of Components ................................................................. 3
ScanSnap S510 Operator's Guide 1
Page 22
1.1 Checking the Contents of the Scanner Package
When you unpack the scanner package, find the packaging list first, and then make sure that the
ScanSnap and all items in the packaging list are present.
If anything is missing or damaged, contact the store where you purchased the product.
2
Page 23
1.2 Names and Functions of Components
1.2 Names and Functions of Components
This section describes the names of parts and their functions.
■ Front View
Paper chute
Open the cover to use the scanner.
⇒Opening the cover turns on the scanner.
ADF
(ADF:Automatic Document Feeder)
1
Before You Start Using the ScanSnap
HINT
Paper chute
After opening it, load the documents to be
scanned on this part.
Side guide
Adjust the side guides to the width of
documents so that the scanned images will
not be skewed.
Cover open lever
To open the ADF, pull this lever toward
you.
Operation button
⇒Refer to the next page.
Stacker
Before using the stacker, unfold and extend it as shown above.
You can also use the ScanSnap without unfolding the Stacker.
ScanSnap S510 Operator's Guide 3
Page 24
■ Operation Button
[SCAN] button
Press this button to start the scanning.
[POWER] button
Turns on/off the power.
■ Rear View
SCAN
POWER
Power indicator
Indicates the power status of the scanner.
Blue (Solid): Ready
Blue (Blinking): Scanning
Orange (Solid): Error
Light off: Power off
AC adapter connector
USB connector
Seal (reminds you that the supplied software
has to be installed first)
After installing the software, remove this seal.
Security cable slot
Plug a commercially
available security cable
into this slot (anti-theft).
4
Page 25
Chapter 2
Connecting the ScanSnap
This chapter describes how to connect the ScanSnap to your personal computer.
Before you connect the ScanSnap, install the supplied programs (Adobe Acrobat, ABBYY
FineReader for ScanSnap, ScanSnap Manager, ScanSnap Organizer, CardMinder, and PFU
TimeStamp) on your personal computer.
2
ATTENTION
For details about the installation area for the scanner, refer to "Appendix C Quick Menu Mode /
Left-Click Menu Mode" (page 255).
• Be sure to install ScanSnap Manager before connecting the ScanSnap to your
personal computer.
If you connect the ScanSnap to the personal computer before installing
ScanSnap Manager, the ScanSnap will not operate correctly.
* If you have connected the ScanSnap to the personal computer before

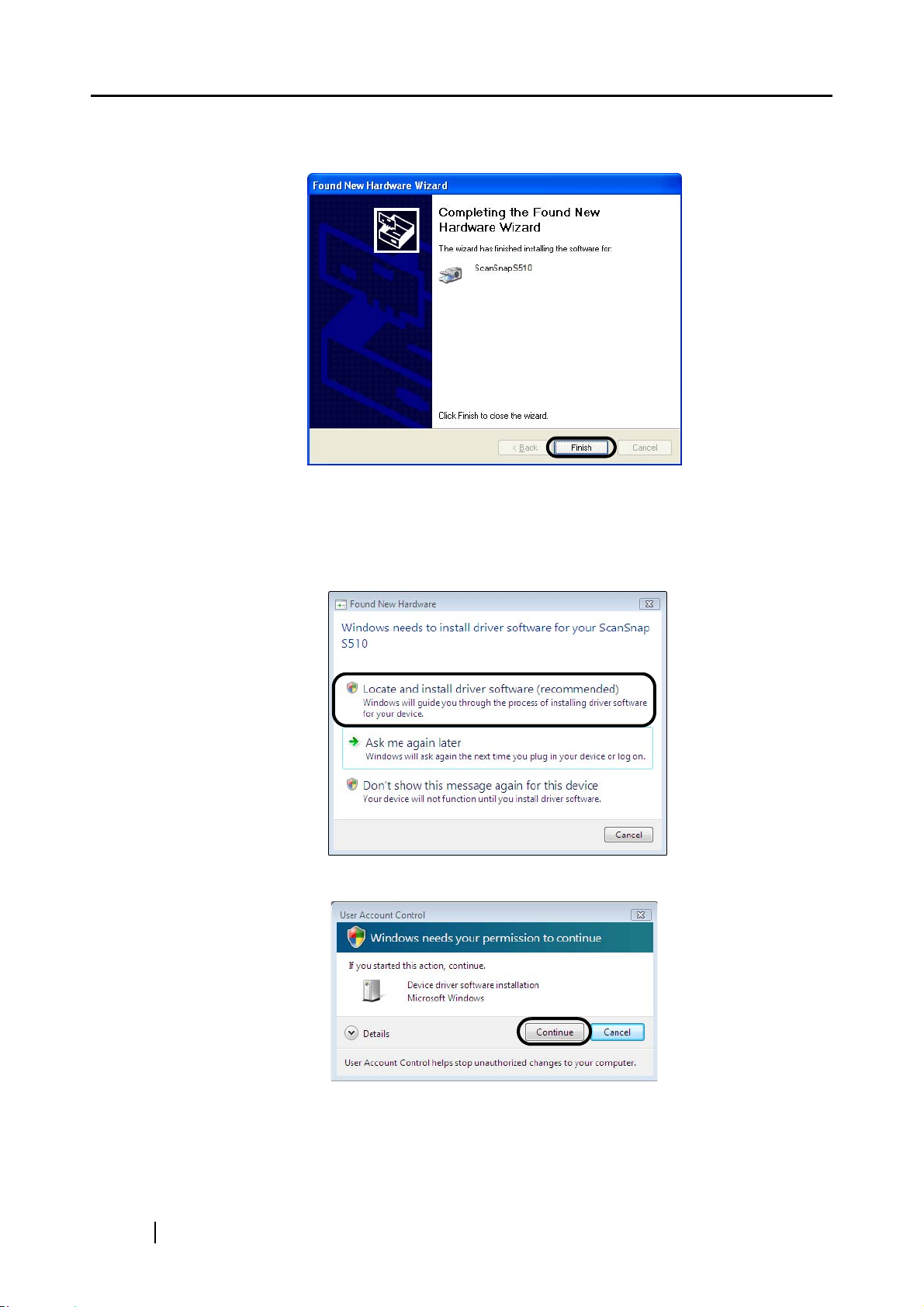

installing ScanSnap Manager, the "Found New Hardware Wizard" dialog box
appears (this dialog box might be slightly different depending on the
operating system running on your personal computer). If this dialog box
appears, click the [Cancel] button to close the Wizard dialog box, and install
ScanSnap Manager first.
• When the ScanSnap is connected to a personal computer, other models (fi-
5110EOX Series or ScanSnap S500) or another S510 cannot be used on the
same personal computer.
2.1 Installing the Supplied Programs.......................................................................... 6
2.2 Connecting the ScanSnap to your PC ................................................................ 21
ScanSnap S510 Operator's Guide 5
Page 26
2.1 Installing the Supplied Programs
"Installation" of programs is the act of copying the program files supplied with the ScanSnap into
the hard disk of your personal computer so that the environment for using the ScanSnap is created
on the personal computer in which you install the program files.
■ Before Installing the Supplied Programs for the ScanSnap
Before installing the supplied programs for the ScanSnap, perform the following preparations:
1. Check your system.
The system requirements for the ScanSnap are as follows:
■ Operating system
One of the following operating systems is required:
• Windows 2000
• Windows XP
• Windows Vista
Windows 2000 Windows XP Windows Vista
ScanSnap Manager
ScanSnap Organizer
CardMinder
Adobe Acrobat
ABBYY FineReader
for ScanSnap
*1:
Service Pack 1 or later must be applied
3
3
3
3
*3
3
*1
3
*1
3
*1
3
3
*2
*1
3
3
3
3
-
3
*2: Service Pack 2 or later must be applied
*3: Service Pack 4 or later must be applied
*4: Search and password functions are based on those of Adobe Acrobat, and,
therefore, not guaranteed to work in Windows Vista.
■ Personal computer
®
• Intel
Pentium®4 1.8 GHz or higher
• CD-ROM drive (used for installation)
• USB port (USB 2.0/1.1)
*4
*4
6
Page 27
2.1 Installing the Supplied Programs
■ RAM
For Windows 2000 and Windows XP:
256 MB or more (512 MB or more is recommended when you scan documents while
sellecting "Excellent" in the "Image quality" drop down list.)
For Windows Vista:
512 MB or more
■ Free disk space
• ScanSnap Manager 280 MB
• ScanSnap Organizer 320 MB
• CardMinder 120 MB
• Adobe
• ABBYY FineReader for ScanSnap 270 MB
Acrobat 670 MB
(plus 270 MB for file cache at installation)
2
Connecting the ScanSnap
ATTENTION
2. Make sure that the ScanSnap is not yet connected to your personal computer.
3. Start up your personal computer.
Log on as a user with "Administrator" privileges (computer administrator privileges when
using Microsoft Windows XP Home Edition operation system).
4. Exit all programs and close all windows.
• The ScanSnap may not function if it is connected to the USB port on the
keyboard or the monitor.
• If you are using a commercially available USB hub, use a type equipped with
an AC adapter.
• To connect the ScanSnap with USB 2.0, it is required that the USB port and
the hub be compliant with USB 2.0. When you connect the ScanSnap with
USB 1.1 port, scanning speed may slow down. Therefore, use the USB 2.0
compatible one if your computer has the USB 2.0 compatible port.
• If the CPU and memory do not meet the required specifications, scanning
speed will slow down.
ScanSnap S510 Operator's Guide 7
Page 28
■ Installing Adobe Acrobat
Install Adobe Acrobat using the following procedure from the "Adobe Acrobat 7.0 CD-ROM"
supplied with the ScanSnap.
ATTENTION
HINT
Operation
Adobe Acrobat can be used on the following operating systems:
• Windows 2000 (Service Pack 4 or later)
Windows XP (Service Pack 2 or later)
Other requirements:
• Internet Explorer 6.05 or later
• Screen Resolution: 1024 x 768 or higher
Adobe Acrobat is required for viewing the "ScanSnap S510 Operator’s
Guide," "ScanSnap Organizer User’s Guide," and "CardMinder User’s Guide."
Adobe Acrobat can also be linked to the ScanSnap for displaying the scanned
images in Adobe Acrobat.
* You do not have to install Adobe Acrobat if it is already installed on your
personal computer.
⇒ Proceed to "Installing ABBYY FineReader for ScanSnap" on page 10.
Prepare the Adobe Acrobat 8.0 CD.
1. Insert the supplied "Adobe Acrobat CD" into the CD-ROM drive.
⇒ The CD-ROM is automatically recognized and the "Adobe Acrobat 8 Standard" window
appears.
HINT
This window is not displayed automatically when the "Auto play" setting of your
computer is deactivated. In this case, run "AutoPlay.exe" of this CD directly
using the "Explore" or "My computer."
8
Page 29
2. Click on the folder icon.
3. Click the [Next] button.
2.1 Installing the Supplied Programs
2
Connecting the ScanSnap
⇒ Installation is started and the setup dialog box appears.
4. Follow the on-screen instructions to install the software.
HINT
Select "How to install" on the "Adobe Acrobat" dialog box (step 2) to learn more
about the installation of Adobe Acrobat.
Refer to "Adobe Acrobat Help" about how to use Adobe Acrobat.
ScanSnap S510 Operator's Guide 9
Page 30
■ Installing ABBYY FineReader for ScanSnap
Install ABBYY FineReader for ScanSnap by using the following procedure from the "ABBYY
FineReader CD" supplied with the ScanSnap.
Operation
Prepare the ABBYY FineReader CD.
1. Insert the "ABBYY FineReader CD" into the CD-ROM drive.
⇒ The "ABBYY FineReader for ScanSnap" screen appears.
ATTENTION
• If Windows XP Service Pack 2 is installed in your computer, you may see the
following dialog box when inserting the CD described above. Click the [Yes]
button to show the "ABBYY FineReader for ScanSnap" screen.
If the "In the future, do not show this message." checkbox is marked, you will
not see this dialog box when inserting a CD that attempts to connect to
Microsoft Internet Explorer in the future.
• You may see [Information Bar] instead of the message above. If so, first, click
the [OK] button and then the yellow part with a warning for options.
Next, select [Allow Blocked Content] from the menu.
10
Page 31

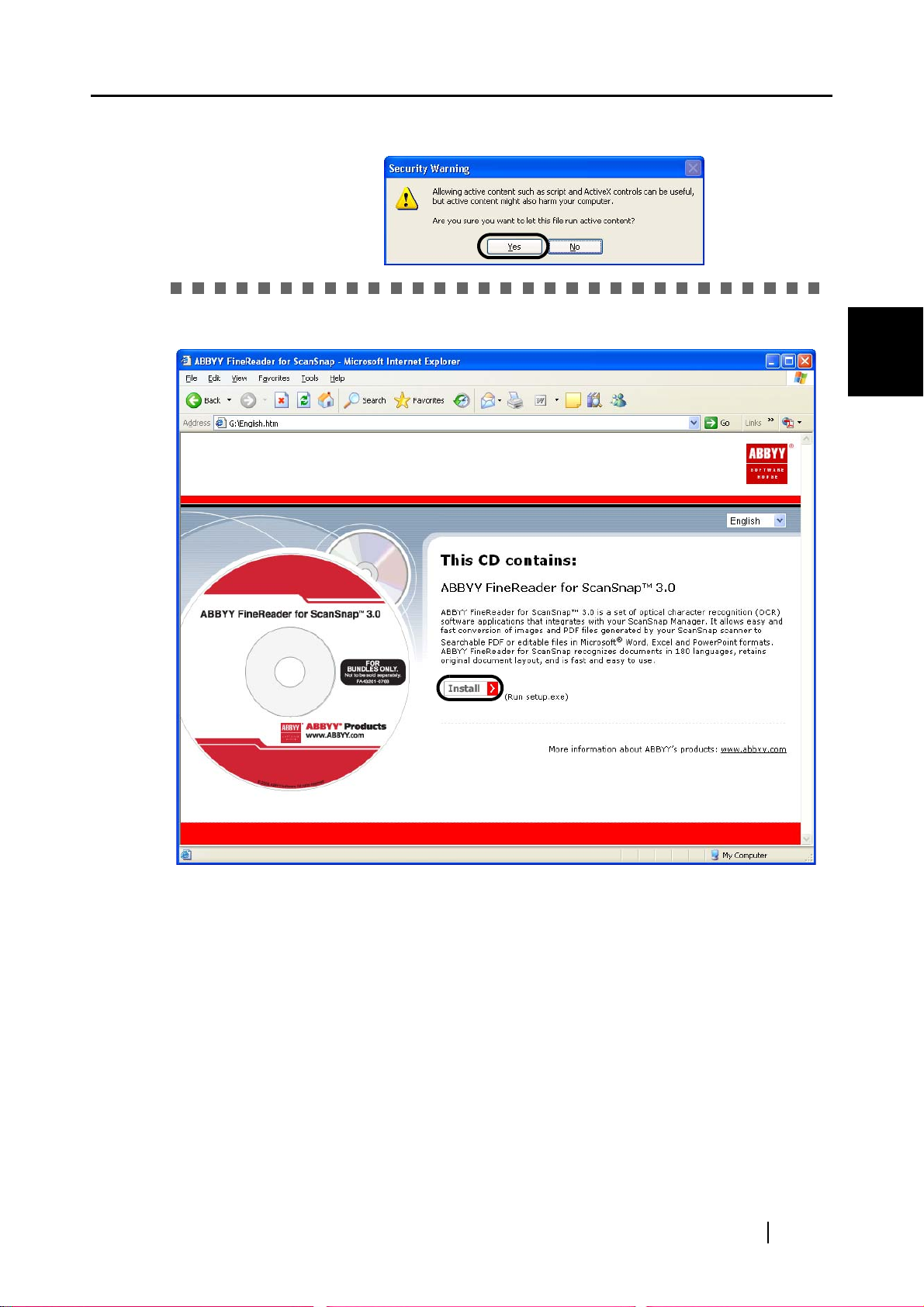

Finally, click the [Yes] button on the "Security Warning" dialog to proceed.
2. Click [Install>] to proceed with installation.
2.1 Installing the Supplied Programs
2
Connecting the ScanSnap
⇒ The file folder containing the setup.exe file appears.
ScanSnap S510 Operator's Guide 11
Page 32

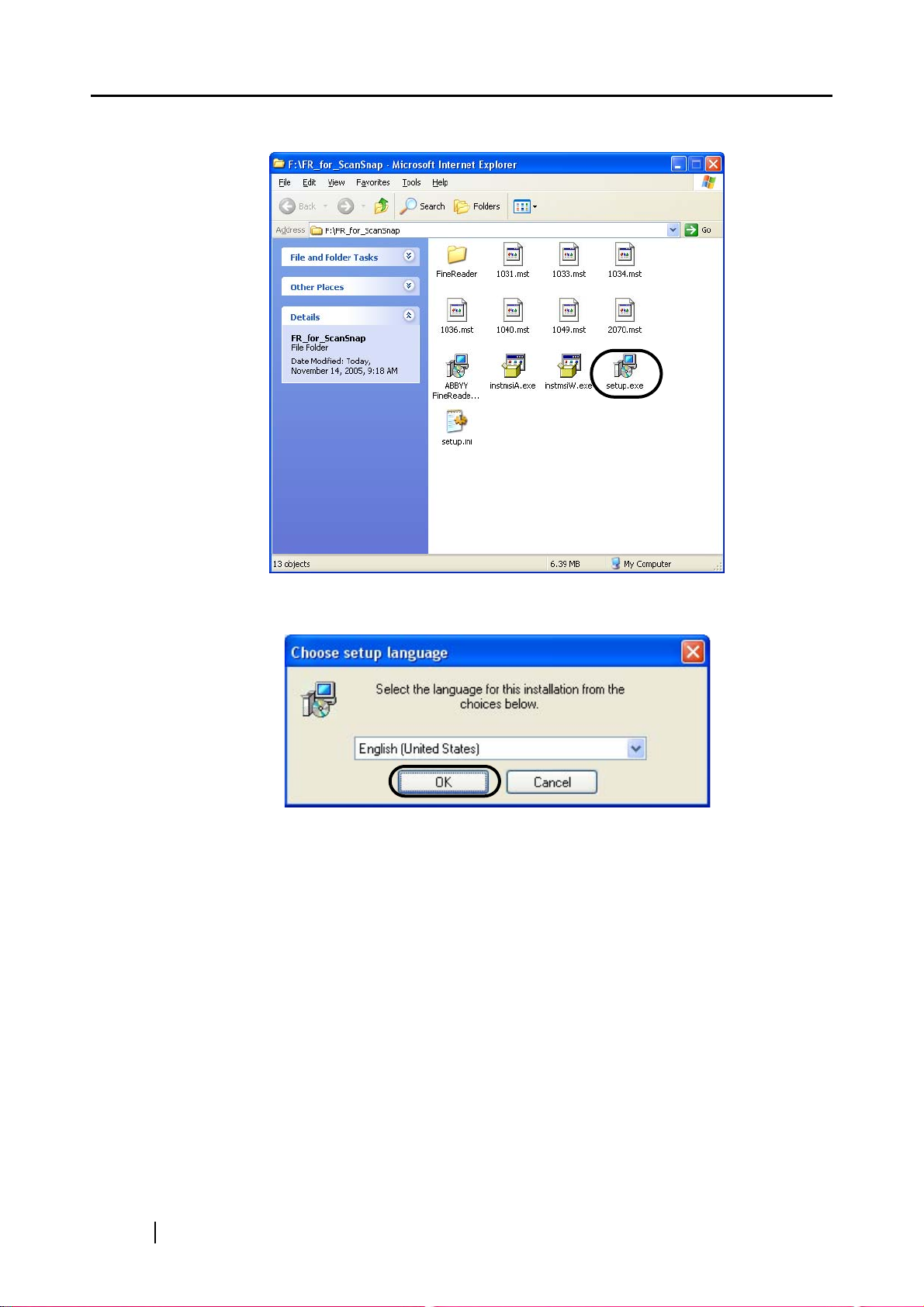

3. Double-click the [Setup.exe] icon.
4. Select the language for this installation and click [OK].
⇒ The InstallShield Wizard for ABBYY FineReader for ScanSnap appears.
12
Page 33
2.1 Installing the Supplied Programs
⇒ Follow the on-screen instructions to install the software.
2
Connecting the ScanSnap
HINT
For information about how to use ABBYY FineReader for ScanSnap, refer to
"ABBYY FineReader for ScanSnap User’s Guide."
Select [Start]
[User’s Guide].
[All Programs] [ABBYY FineReader for ScanSnap
™
3.0]
ScanSnap S510 Operator's Guide 13
Page 34
■ Installing Supplied Programs
Install the supplied programs from the "ScanSnap Setup CD-ROM" that comes with this scanner.
They are:
• ScanSnap Manager
• ScanSnap Organizer
• CardMinder
<Installing ScanSnap Manager, ScanSnap Organizer, and CardMinder>
Following the procedure below, install ScanSnap Manger, ScanSnap Organizer, and
CardMinder.
Operation
1. Insert the "ScanSnap Setup CD-ROM" into the CD-ROM drive.
⇒ The "ScanSnap Installer" starts up, and the "ScanSnap Setup" dialog box appears.
(1)
(2)
(3)
(4)
(5)
(6)
(1) You can read important information on installation and uninstallation as well as how
the contents of the Setup CD-ROM are organized.
(2) You can install or uninstall ScanSnap Manager, ScanSnap Organizer, and
CardMinder.
(3) You can read manuals.
Click the following buttons to view each of the respective manuals.
[ScanSnap Manager] button: displays "ScanSnap Operator’s Guide (this manual)"
[ScanSnap Organizer] button: displays "ScanSnap Organizer User’s Guide" that
explains how to use ScanSnap Organizer.
[CardMinder] button: displays "CardMinder User’s Guide" that explains how to use
CardMinder.
14
Page 35
2.1 Installing the Supplied Programs
(4) You can view the contents of the "Setup CD-ROM."
* If you log on to Windows Vista as a standard user, this button is not available. Use
Explore to view the contents of the "Setup CD-ROM."
(5) You can visit our website and view information about support to this product. In the
displayed window, click the URL, http:scansnap.fujitsu.com. (You must have an
Internet connection.)
(6) You can close this window.
HINT
2. Click the [Readme] button in the "ScanSnap Setup" dialog box.
If the "ScanSnap Setup" dialog box is not displayed even when the Setup CD is
inserted into the CD-ROM drive, find "Setup.exe" in the CD-ROM drive by using
Explore, and then double-click the "Setup.exe" icon.
2
Connecting the ScanSnap
⇒ In the Readme file, things to keep in mind when you install/uninstall programs and how
the Setup CD-ROM is configured are described.
Close the Readme file when you finish reading it.
ScanSnap S510 Operator's Guide 15
Page 36
3. Click the [Install Products] button in the "ScanSnap Setup" dialog box.
Clicking the [Install Products] button installs ScanSnap Manager, ScanSnap Organizer, and
CardMinder.
⇒ The "Welcome to the InstallShield Wizard for ScanSnap" dialog box appears.
4. Click the [Next] button in the "Welcome to the InstallShield Wizard for the ScanSnap"
dialog box.
⇒ The "License Agreement" dialog box is displayed.
16
Page 37
2.1 Installing the Supplied Programs
5. Read the full text of the "License Agreement." If you agree to the terms of this license,
select "I accept the terms of the license agreement" and click the [Next] button.
⇒ The "Choose Destination Location" dialog box is displayed.
2
Connecting the ScanSnap
6. In the "Choose Destination Location" dialog box, choose the destination folder and
click the [Next] button.
To install ScanSnap programs in the default folder, simply click the [Next] button.
In most cases, you do not have to change the directory path. When the selected drive does
not have enough free disk space, change the directory path.
When changing the directory path, click the [Browse] button and display the "Select
Directory" dialog box; select the folder to install ScanSnap programs.
⇒ The "Setup Type" dialog box is displayed.
ScanSnap S510 Operator's Guide 17
Page 38
7. Select "Typical," "Compact," or "Custom" from options and click the [Next] button.
Select [Typical] for ordinary use.
⇒ Clicking the [Next] button displays the "ScanSnap Manager Setting 1" dialog box.
HINT
Depending on the selected options, programs are installed as follows:
• Typical
ScanSnap Manager, ScanSnap Organizer, and CardMinder are installed
along with the manuals for these programs.
• Compact
ScanSnap Manager is installed along with its manual.
• Custom
Only the programs of your choice and the manuals of them are installed.
8. In the "ScanSnap Manager Setting 1" dialog box, specify the method of loading the
document, and then click the [Next] button.
When you want to set the document upside down and face down on the ScanSnap, select the
left radio button.
When you want to set the document face up on the ScanSnap, check the right radio button.
18
Page 39
2.1 Installing the Supplied Programs
⇒ Next, the "ScanSnap Manager Setting 2" dialog box appears.
HINT
9. In the "ScanSnap Manager Setting 2" dialog box, if you want to receive notification
about the scanning result, mark the "Notify scanning result" checkbox, and then click
the [Next] button.
If the checkbox is marked, the message appears after scanning to inform you whether blank
pages are automatically removed or whether images are automatically rotated.
• You can also change the setting after installation.
For details, refer to "- Set the documents with its face up (page 82)" in section
"4.2 Changing Scanning Settings."
• This dialog box will not appear when programs are re-installed. The settings
configured before re-installation remain effective.
2
Connecting the ScanSnap
⇒ Clicking the [Next] button displays the "Start Copying Files" dialog box.
HINT
• You can change this setting after installation.
For details, refer to "Show scanning results" on page 65.
• The dialog box above will not appear when re-installing programs.
The settings configured before the re-installation remain effective.
ScanSnap S510 Operator's Guide 19
Page 40
10. In the "Start Copying Files" dialog box, check the files that will be installed and click
the [Next] button.
⇒ The installation is started. When the installation is complete, the "InstallShield Wizard
Complete" dialog box will appear.
11. In the "InstallShield Wizard Complete" dialog box, click the [Finish] button.
20
⇒ Select "Yes, I want to restart my computer now" to restart your personal computer.
⇒ Select "No, I will restart my computer later." to finish the installation. The "ScanSnap
Setup" dialog box appears; click the [Exit] button to close the "ScanSnap Setup" dialog
box.
(To complete the installation, you have to restart your personal computer.)
HINT
• To view the "ScanSnap S510 Operator’s Guide," "ScanSnap Organizer User's
Guide," and "CardMinder User’s Guide," Adobe Acrobat or Adobe
Reader™ is required. If this software is not installed on the personal computer,
install Adobe Acrobat from the "Adobe Acrobat CD" supplied with the
ScanSnap.
• For how to uninstall these programs, refer to "Appendix B Uninstalling
ScanSnap" on page 253.
®
Acrobat
®
Page 41
2.2 Connecting the ScanSnap to your PC
2.2 Connecting the ScanSnap to your PC
Follow the procedure below to connect the ScanSnap to your personal computer.
1. Connect the ScanSnap to a power outlet with the AC cable.
2. Connect the ScanSnap to your personal computer with the USB cable.
ATTENTION
The following describes each of the above two procedures.
• Be sure to connect the AC cable to an outlet before connecting the USB cable.
• Be sure to install ScanSnap Manager into your personal computer before
connecting the ScanSnap to your personal computer. (For details about the
installation, refer to "Installing the Supplied Programs (page 6)").
■ Connecting the Power Cable
Connect the AC cable and adapter as shown below.
CAUTION
Do not use AC adapters other than the following.
Manufacturer AC-adapter model number
LEI NU40-2160250-I3
SANKEN ELECTRIC CO,. LTD SEB55N2-16.0x (x= A-Z or Blank)
2
Connecting the ScanSnap
Operation
1. Connect the AC cable to the AC adapter (collectively called the power cable).
AC adapter
ATTENTION
AC cable
Use only the supplied AC cable and AC adapter (power cable).
ScanSnap S510 Operator's Guide 21
Page 42
2. Plug the power cable into the power connector on the back side of the ScanSnap, and
the other end to a wall outlet.
Outlet
Power connector
22
Page 43
■ Connecting the USB Cable
DC 16V
Connect the USB cable as shown below.
2.2 Connecting the ScanSnap to your PC
ATTENTION
Operation
1. Remove the seal on the back side of the ScanSnap.
• Use only the USB cable supplied with the Scanner.
• When connecting to a USB hub, be sure to connect the ScanSnap to the hub
nearest your personal computer (first stage). If you connect it to a USB hub
from the second stage onwards, the ScanSnap may not function correctly.
• If you connect the ScanSnap with USB 2.0, it is required that the USB port and
the Hub be compliant with USB 2.0. The scanning speed may slow down
when you connect the ScanSnap with USB 1.1. If your computer has the USB
2.0 compatible port, use it.
USB cable
2
Connecting the ScanSnap
Seal
2. Connect the USB cable to the USB connector on the ScanSnap, and the other end of
the USB cable into the USB port on your personal computer.
Insert the USB cable into the connector all the way to the end.
USB cable
ScanSnap S510 Operator's Guide 23
Page 44
3. Open the paper chute of ScanSnap.
Paper chute
⇒ ScanSnap is automatically turned on and detected by your personal computer.
Operation
4. The ScanSnap is added as new hardware.
How to add hardware varies depending on the operating system running on your computer.
■ Windows 2000
The "Digital Signature Not Found" dialog box appears. Click the [Yes] button.
24
■ Windows XP
1) When the "Found New Hardware Wizard" dialog box appears, select "No, not this
time," and then click the [Next] button.
Page 45
2.2 Connecting the ScanSnap to your PC
ATTENTION
The windows above will not appear unless Windows XP Service Pack 2 is
installed.
2) Click the [Next] button in the following window.
2
Connecting the ScanSnap
ATTENTION
Although the message "If your hardware came with an installation CD or floppy
disk, insert it now." is displayed, you do not have to insert the CD into the CDROM drive.
3) The "Hardware Installation" dialog box appears. Click the [Continue Anyway]
button.
ScanSnap S510 Operator's Guide 25
Page 46
4) When the "Found New Hardware Wizard" dialog box informing you that the
Wizard will end is displayed, click the [Finish] button.
⇒ The ScanSnap is added to your personal computer as new hardware.
■ Windows Vista
1) The "Found New Hardware" dialog box appears; select "Locate and install driver
software (recommended)" in the dialog box.
26
2) The "User Account Control" dialog box appears; click the [continue] button.
Page 47
2.2 Connecting the ScanSnap to your PC
3) The "Windows Security" message appears; select "Install this driver software
anyway."
⇒ The ScanSnap is added as a new hardware device.
2
Connecting the ScanSnap
ATTENTION
HINT
It may take some time for the ScanSnap Manager icon on the task bar to
S
become the ready status.
Press the [POWER] button on the ScanSnap when the icon appears
in not-ready status.
When you turn on/off the ScanSnap, wait for five seconds.
To turn on/off the ScanSnap, press the [POWER] button for longer than one
second.
* To prevent unintended operation, the [POWER] button does not work unless
it is pressed for longer than one second.
The ScanSnap is turned on/off when:
S
S
S
• the paper chute on the ScanSnap is opened/closed.
• the personal computer connected to the ScanSnap is turned on/off.
• the [POWER] button on the scanner is pressed (with the paper chute open).
However, power on/off of the ScanSnap is controlled by opening and closing the
paper chute, and therefore, the ScanSnap will not be turned on unless the
paper chute is open, even if the personal computer is turned on.
Leave the ScanSnap connected to the personal computer, and you can turn on/
off the ScanSnap simply by opening/closing the paper chute when necessary.
ScanSnap S510 Operator's Guide 27
Page 48
28
Page 49
Chapter 3
Using the ScanSnap
This chapter describes the basic operations of the ScanSnap.
3
3.1 Flow of Operations ............................................................................................... 30
3.2 Paper Size of Documents to be Scanned ........................................................... 46
3.3 Loading Documents ............................................................................................. 49
ScanSnap S510 Operator's Guide 29
Page 50
3.1 Flow of Operations
This section describes the flow of operations starting with the scanning of documents on the
ScanSnap to the saving of scanned images in PDF format.
■ Basic Flow of Operations
With the document loaded on the ScanSnap, simply press the [SCAN] button, and you can save the
scanned documents to files, attach them to e-mail, and print them with the printer.
30
The ScanSnap has two buttons as follows:
Simply press this button to scan the document.
To turn on/off the ScanSnap, press this button.
Page 51
3.1 Flow of Operations
With the [SCAN] button , you can scan documents in two different ways. Perform a scan in
a way that suits the preferences of you.
(1) Select an action you want to perform in the ScanSnap Quick Menu after scanning.
(2) Select an application or a profile before scanning.
Use either way according to your preferences.
Select a profile
3
Using the ScanSnap
Select a desired
action in the
ScanSnap Quick
Menu
Scan the document
by pressing the
[SCAN] button
ScanSnap S510 Operator's Guide 31
Page 52
HINT
You can switch between the above two modes by checking and unchecking
[Use ScanSnap Quick Menu] in the Right-Click Menu, which pops up when the
S
ScanSnap Manager icon ( ) on the task bar is right-clicked. For details, refer
to "Use Quick Menu" (page 65).
S
1. The way that you select an action after scanning in the menu.
<Quick Menu Mode>
1) Press the [SCAN] button to scan the
document.
2) The ScanSnap Quick Menu appears after
scanning.
3) Select a desirable action in the ScanSnap
Quick Menu.
HINT
⇒ An application starts up for you to
perform the selected action.
The Quick Menu Mode has the following features:
• You can perform a desirable action with point and click operations by using the
menu simple enough for beginners.
• This way of scanning is suitable when you want to perform various actions
after scanning. You do not have to specify an application in advance.
32
Page 53
3.1 Flow of Operations
2. The way that you scan the document by using a specific application (profile).
<Left-Click Menu Mode>
1) On the Left-Click Menu, select a desirable
application (profile).
2) Press the [SCAN] button to scan the
document.
⇒ The selected application starts up for you
to perform the selected action.
3
Using the ScanSnap
HINT
The following gives you detailed descriptions of a series of operations.
For the combination of ([SCAN] button) and <ScanSnap Quick Menu Mode>, see "Scanning
documents in Quick Menu Mode" on page 35.
For the combination of ([SCAN] button) and <Left-Click Menu Mode>, see "Scanning
documents in Left-Click Menu Mode" on page 40.
The Left-Click Menu Mode has the following features:
• You can scan the document at the press of a button.
• This way of scanning is suitable when you want to scan the document by using
a profile you have configured in advance.
• You can add profiles modified to suit the needs or preferences of you.
ScanSnap S510 Operator's Guide 33
Page 54
■ Preparation
Operation
1. Make sure that the Power cable is connected to the ScanSnap.
2. Make sure that the ScanSnap is connected to your personal computer properly.
HINT
You can turn the personal computer on before connecting the ScanSnap to it.
If the ScanSnap is already connected to your personal computer, you do not
have to disconnect them to reconnect.
3. Turn on your personal computer.
⇒ The ScanSnap Manager icon appears on the task bar when Windows starts.
4. Open the paper chute.
Paper chute
34
S
⇒ The ScanSnap is turned on and the ScanSnap Manager icon will change from to .
HINT
If the ScanSnap is not automatically turned on even when the paper chute is
opened, press the [POWER] button on the ScanSnap.
S
S
S
Page 55
■ Scanning documents in Quick Menu Mode
Operation
1. Check for the ScanSnap Manager icon on the task bar as shown below.
3.1 Flow of Operations
HINT
2. Check that [Use ScanSnap Quick Menu] is marked
the ScanSnap Manager icon is right-clicked.
If the ScanSnap Manager icon is not displayed on the task bar, from the [Start]
menu, select [All Programs]
to start up ScanSnap Manager.
Generally, ScanSnap Manager is registered under "Startup" programs, so that
its icon is displayed on the task bar when Windows starts. If it is not registered
under "Startup" programs, from [Start] menu, select [All Programs]
[ScanSnap Manager]
[ScanSnap Manager] [ScanSnap Manager]
[Startup Register] to register it.
S
S
3
Using the ScanSnap
in the menu that pops up when
HINT
Operation
3. Load the document onto the ScanSnap.
Refer to "3.2 Paper Size of Documents to be Scanned" (page 46) and "3.3 Loading
Documents" (page 49) for more information.
If [Use ScanSnap Quick Menu] is not marked, scanning is performed in LeftClick Menu Mode. For how to scan the document in the Left-Click Menu Mode,
refer to "Scanning documents in Left-Click Menu Mode" (page 40).
ScanSnap S510 Operator's Guide 35
Page 56
4. Press the [SCAN] button on the ScanSnap.
⇒ The scanning is started.
HINT
ATTENTION
• By default, documents are scanned in "Duplex" mode when you press the
[SCAN] button. In the "ScanSnap Manager - Scan and Save Settings" dialog
box, you can switch the scanning mode of the [SCAN] button to "Simplex"
mode.
S
• Scanning can also be started by using the ScanSnap Manager icon on
the task bar.
For details about this operation, refer to "4.1 About the ScanSnap Icon" (page
64).
S
• Do not connect or disconnect other USB devices during the scanning
operation.
• Do not close the paper chute during the scanning operation.
• Do not switch the user to log in during the scanning operation. Otherwise, the
scanning is canceled.
⇒ The power indicator (lamp) on the ScanSnap blinks blue during the scanning operation.
The following window appears to indicate the scanning status.
36
⇒ When the scanning is complete, the ScanSnap Quick Menu appears.
Page 57
3.1 Flow of Operations
Operation
5. Select an action you want to perform in the Action List on the left side of the
ScanSnap Quick Menu.
3
Using the ScanSnap
Action List Descriptions of the selected action
Action List
Action Description
Save data on this computer *1 PDF files are created from the scanned images, and
ScanSnap Organizer is started to display the scanned
images. Those files are saved in a folder (on your
personal computer) specified in ScanSnap Organizer.
Scan2Folder PDF files are created from the scanned images and
saved in a specified folder (shared folder).
⇒ "5.2 Saving Data in the Specified Folder" (page
117)
Scan2E-mail PDF files are created from the scanned images and an
e-mail program is started with the PDF files attached to
e-mail.
⇒ "5.3 Sending Files by E-Mail" (page 129)
Scan2Print Scanned images are printed with a printer.
⇒ "5.4 Using the ScanSnap as a Copy Machine"
(page 145)
ScanSnap S510 Operator's Guide 37
Page 58
ABBYY Scan2Word *2 The scanned images are processed through OCR and
converted into Word files.
⇒ "5.5 Converting into Word / Excel / PowerPoint
Files" (page 155)
ABBYY Scan2Excel *2 The scanned images are processed through OCR and
converted into Excel files.
⇒ "5.5 Converting into Word / Excel / PowerPoint
Files" (page 155)
ABBYY Scan2PowerPoint *2 The scanned images are processed through OCR and
converted into PowerPoint files.
"5.5 Converting into Word / Excel / PowerPoint Files"
(page 155)
*1: This Action button does not appear unless ScanSnap Organizer is installed.
*2: This Action button does not appear unless ABBYY FineReader for ScanSnap 3.0 is
installed.
⇒ An application corresponding to the selected action starts up to perform the selected action.
(If you perform "Save data on this computer," PDF files are created based on the scanned
documents and stored in a folder specified in ScanSnap Organizer. Then, ScanSnap
Organizer starts up to display the stored images.)
38
For details about the settings for the scanning, file name, and destination to save data,
refer to "4.2 Changing Scanning Settings" (page 67).
About the scanning of Business cards, refer to section "6.4 Using ScanSnap Organizer"
(page 208).
Page 59
3.1 Flow of Operations
HINT
• By default, documents are scanned using the settings below.
Image quality: Normal
Color mode: Auto Color Detection
• Before scanning documents of printed or handwritten text, mark the "Setting
for text only document" checkbox. In the ScanSnap Manager - Scan and Save
Settings" dialog box, select the [Scanning] tab, and then the [Option] button to
display the "Read mode option" dialog box in which you can enable the above
function. For details, refer to section "4.2 Changing Scanning Settings" (page
67).
• In the Quick Menu Mode, scanned images cannot be saved in JPEG format.
To save images in JPEG format, use the Left-Click Menu Mode.
For information about how to scan in the Left-Click Menu Mode, refer to "3.1
Flow of Operations" (page 40).
• For details about changing the document scan settings, refer to section "4.2
Changing Scanning Settings" (page 67). In the "ScanSnap Manager - Scan
and Save Settings" dialog box, you can change the following settings:
- Folder in which scanned images are saved
- File name of scanned images
- Scanning mode (whether to perform fast scanning or excellent scanning,
whether to produce sharp text images, whether to automatically remove
blank pages, correct skewed images, change orientation of pages, load
the document face up, and continue scanning another document)
- Whether to text recognize the scanned document to make PDF files
searchable
- Whether to include all scanned pages in a PDF file or create PDF files,
each of which includes a preset number of pages
- Paper size of documents to be scanned
- File size of scanned images (compression rate)
Scanned images may be scaled in some degree.
• When ScanSnap Organizer and/or CardMinder is running and one of these
applications becomes active, the ScanSnap automatically interacts with the
active application. Scanned document images are opened with the active
application. Interaction is disabled when the application becomes inactive or
when it is closed.
For details on the automatic interaction, refer to section "4.6 About Automatic
Interaction with Applications" (page 111).
3
Using the ScanSnap
ATTENTION
• When the ScanSnap Quick Menu is displayed, the ScanSnap does not work
even if you press the [SCAN] button. Select one of actions in the menu and
complete the action before scanning another document.
• Do not move, delete, rename files in other applications when the ScanSnap
Quick Menu is displayed.
ScanSnap S510 Operator's Guide 39
Page 60
■ Scanning documents in Left-Click Menu Mode
Operation
1. Check for the ScanSnap Manager icon on the task bar as shown below.
HINT
2. Unmark
Manager icon is right-clicked.
If the ScanSnap Manager icon is not present on the task bar, from the [Start]
menu, select [All Programs]
to start up ScanSnap Manager.
Generally, ScanSnap Manager is registered with "Startup," so that its icon
appears on the task bar when Windows starts up. If ScanSnap Manager is not
registered with "Startup," from the [Start] menu, select [All Programs]
[ScanSnap Manager]
[Use ScanSnap Quick Menu] in the menu that pops up when the ScanSnap
S
S
[ScanSnap Manager] [ScanSnap Manager]
[Startup Register] to register it.
40
HINT
Operation
• When [Use ScanSnap Quick Menu] is marked, the document is scanned in
Quick Menu Mode. For details about the Quick Menu Mode, refer to "3.1 Flow
of Operations" (page 35).
3. Load the document onto the ScanSnap.
Refer to "3.2 Paper Size of Documents to be Scanned" (page 46) and "3.3 Loading
Documents" (page 49) for more information.
Page 61
4. Press the [SCAN] button on the ScanSnap.
⇒ The scanning is started.
3.1 Flow of Operations
HINT
ATTENTION
• By default, documents are scanned in "Duplex" mode when you press the
[SCAN] button. In the "ScanSnap Manager - Scan and Save Settings" dialog
box, you can switch the scanning mode of the [SCAN] button to "Simplex"
mode.
S
• Scanning can also be started by using the ScanSnap Manager icon on
the task bar.
For details about this operation, refer to section "4.1 About the ScanSnap
Icon" (page 64).
• Do not connect or disconnect other USB devices during the scanning
operation.
• Do not close the paper chute during the scanning operation.
• Do not switch the user to log in during the scanning operation.
S
⇒ The power indicator (lamp) on the ScanSnap blinks blue during the scanning operation.
The following window appears to indicate the scanning status.
3
Using the ScanSnap
ScanSnap S510 Operator's Guide 41
Page 62
⇒ The supplied application (ScanSnap Organizer) becomes active, and you can view the
scanned images.
For details about the settings for the scanning, file name, and destination to save data, refer to
section "4.2 Changing Scanning Settings" (page 67).
About the scanning of Business cards, refer to section "6.3 Scanning Business Cards" (page 202).
42
Page 63
3.1 Flow of Operations
HINT
• By default, documents are scanned using the settings below.
Image quality: Normal
Color mode: Auto Color Detection
• Before scanning documents of printed or handwritten text, mark the "Setting
for text only document" checkbox. In the "ScanSnap Manager - Scan and
Save Settings" dialog box, select the [Scanning] tab, and then the [Option]
button to display the "Read mode option" dialog box in which you can enable
the above function. For details, refer to section "4.2 Changing Scanning
Settings" (page 67).
• The application that starts up automatically after scanning is the one selected
on the [Application] tab of the "ScanSnap Manager - Scan and Save Settings"
dialog box.
For details, refer to section "4.2 Changing Scanning Settings" (page 67).
• Scanned images can also be saved in JPEG format. To save images in JPEG
format, change scanning settings beforehand.
For information about scanning settings, refer to section "4.2 Changing
Scanning Settings" (page 67).
• In the "ScanSnap Manager - Scan and Save Settings" dialog box, you can
change the following
settings:
- Application that interacts with the ScanSnap.
- Folder in which scanned images are saved
- File name of scanned images
- Scanning mode (whether to perform fast scanning or excellent scanning,
whether to produce sharp text images, whether to automatically remove
blank pages, correct skewed images, change orientation of pages, load
the document face up, and continue scanning another document)
- File format of scanned images (*.pdf/*.jpg)
- Whether to text recognize the scanned document to make PDF files
searchable
- Whether to include all scanned pages in a PDF file or create PDF files,
each of which includes a preset number of pages
- Whether to password-protect the created PDF files
- Whether to apply a digital signature/time-stamp
- Paper size of images to be scanned
- File size of scanned images (compression rate)
Scanned images may be scaled in some degree.
• In Adobe Acrobat, you can process scanned images (in PDF format)
as follows.
For details, refer to [Acrobat Help].
- Reduce PDF file size
From the menu, select [File] - [Reduce File Size]
• When ScanSnap Organizer or CardMinder becomes active, the ScanSnap
automatically interacts with the active application. While an application is
interacting with the ScanSnap, the ScanSnap Quick Menu is disabled, and
scanned images are stored in the active application.Scanned document
images are opened with the active application. Interaction is disabled when
the application becomes inactive or when it is closed.
3
Using the ScanSnap
ScanSnap S510 Operator's Guide 43
Page 64
■ Turning the ScanSnap On/Off
You can turn on/off the ScanSnap by doing either of the following:
- Turn on/off the personal computer.
- Open/close the paper chute of the ScanSnap.
The ScanSnap is turned on/off in conjunction with the personal computer connected. Therefore,
you do not have to press the power button on the ScanSnap to turn it on/off.
• When you turn off the personal computer or close the paper chute of the ScanSnap...
⇒ The power indicator goes off and the ScanSnap is turned off.
• When you turn on the personal computer or open the paper chute of the ScanSnap...
⇒ The power indicator illuminates and the ScanSnap is turned on.
To turn off the ScanSnap with the paper chute open, press the [POWER] button on the ScanSnap.
HINT
ATTENTION
To turn on/off the ScanSnap, press the [POWER] button for longer than one
second.
* To prevent unintended operation, the [POWER] button does not work unless
it is pressed for longer than one second.
Depending on specifications of your personal computer, the following
symptoms may occur. Even so, the ScanSnap is not malfunctioning.
• The ScanSnap is initialized several times during startup.
• It may take 2 to 3 minutes until the power indicator goes off after the personal
computer is turned off.
44
Page 65
■ Finishing Scanner Operation
Exiting ScanSnap Manager
Operation
When you do not want ScanSnap Manger to stay resident on your computer, right-clicking the
S
ScanSnap Manager icon
ScanSnap Manger.
S
on the task bar, and select "Exit" in the Right-Click menu to exit
3.1 Flow of Operations
HINT
If you exit ScanSnap Manager, you can no longer use the ScanSnap.
To activate ScanSnap Manager again, from the [Start] menu, select [All
Programs]
[ScanSnap Manager] [ScanSnap Manager].
Disconnecting the ScanSnap
Operation
1. Close the paper chute to turn off the ScanSnap.
⇒ The ScanSnap Manager icon on the task bar changes to the inactive state .
2. Disconnect the USB cable from your personal computer.
3. Disconnect the Power cable from the power outlet.
HINT
The ScanSnap is turned on/off in conjunction with the personal computer or
opening/closing of the paper chute. Ordinarily, you can forget about turning on/
off the ScanSnap being connected to the personal computer.
3
Using the ScanSnap
S
S
ScanSnap S510 Operator's Guide 45
Page 66
3.2 Paper Size of Documents to be Scanned
The ScanSnap can scan any paper size in the table below.
Without Using the Carrier Sheet
Type
Weight
Size
Type
Weight
Standard office paper
Post cards, Business cards
52 g/m2 to 127 g/m2 (14 lb to 34 lb)
Letter
Legal
A4
A5
A6
B5 (JIS)
B6 (JIS)
Post card
Business card
Custom
(8.5 x 11 in. (216 x 279.4 [mm]))
(8.5 x 14 in. (216 x 355.6 [mm]))
(210 × 297 [mm])
(148 × 210 [mm])
(105 × 148 [mm])
(182 × 257 [mm])
(128 × 182 [mm])
(100 × 148 [mm])
(90 × 55 [mm], 55 × 90 [mm])
Width: 50.8 to 216 [mm] (2 to 8.5 [in.])
Length: 50.8 to 360 [mm] (2 to 14.17 [in.])
With the Carrier Sheet
Standard office paper, Post card, Business card,
Photograph, Clipping
Up to 127 g/m2 (Up to 34 lb) *when scanning half fold paper
Up to 63.5 g/m
2
(Up to 17 lb)
Size
A3
A4
A5
A6
B4 (JIS)
B5 (JIS)
B6 (JIS)
Post card
Business card
Letter
11 x 17
Custom
(297 × 420 [mm])
(210 × 297 [mm])
(148 × 210 [mm])
(105 × 148 [mm])
(257 × 364 [mm])
(182 × 257 [mm])
(128 × 182 [mm])
(100 × 148 [mm])
(90 × 55 [mm], 55 × 90 [mm])
(8.5 x 11 [in.] (216 x 279.4 [mm]))
(11 x 17 [in.] (279.4 x 431.8 [mm]))
Width: 50.8 to 216 [mm] (2 to 8.5 [in.])
Length: 50.8 to 297 [mm] (2 to 11.69 [in.])
*For B4, A3 and 11 x 17, fold in two when
scanning
46
Page 67
3.2 Paper Size of Documents to be Scanned
ATTENTION
HINT
• Documents hand-written with a pencil may be smeared during a scan.
It is recommended that the Carrier Sheet be used.
If such documents are scanned without using the Carrier Sheet, the rollers of
the ScanSnap get dirty and multi-feeding may be caused. In the case where
you scan such documents without using Carrier Sheet, clean the rollers as
often as possible. For details, refer to "8.2 Cleaning the Scanner Exterior"
(page 231).
• Carbonless paper contains chemical substances that may damage the Pad
ASSY and/or rollers such as the pick roller. When scanning documents of
carbonless paper, keep in mind the following:
- Clean the Pad ASSY and rollers as frequently as possible.
- The service life of the ScanSnap may be shorter than you use woodfree
paper.
• The pad and/or rollers of the ScanSnap could be damaged if photographs or
sheets of paper affixed to the document come into contact with the pad and/or
rollers during scanning.
3
Using the ScanSnap
Do not scan the following types of documents:
• Documents with paper clips and/or staples (Remove clips and staples to scan
these documents.)
• Documents before ink goes dry (Scan documents after the ink goes dry)
• Documents larger than Legal (width: 8.5 in. length: 14 in.)
• Documents folded in half larger than 216 x 297 mm (W x L) (8.5 x 11.7 in.)
• Materials other than paper such as the fabric, metal foil, transparency, or
plastic card.
If you scan the following types of documents without using the Carrier Sheet,
the documents may be damaged or scanned incorrectly.
It is recommended that the documents be inserted inside the Carrier Sheet
when you scan the documents described below with the ScanSnap.
• Documents smaller than 2 (width) x 2 (length) in.
• Documents thinner than 52 g/m
2
(14 lb) and thicker than 127 g/m2 (34 lb)
• Documents of nonuniform thickness (e.g. envelopes and paper sheets with
other paper sheets affixed)
• Wrinkled or curled documents
• Folded or torn documents
• Tracing paper
• Coated paper
• Photographs (printing paper)
• Perforated or punched documents
• Documents of not-square shaped paper
• Documents including different widths
• Carbonless paper
• Thermal paper
• Carbon paper
• Documents with photographs or sticky notes affixed
ScanSnap S510 Operator's Guide 47
Page 68
In addition, keep in mind the following points when you use the Carrier Sheet.
ATTENTION
• Use the Carrier Sheet only for the ScanSnap.
• Avoid writing letters on, coloring, staining, or cutting the portion striped in black
and white on the Carrier Sheet. Otherwise, the ScanSnap cannot scan the
document with the Carrier Sheet correctly.
• Load the Carrier Sheet one by one on the ScanSnap.
• Do not place the Carrier Sheet upside-down on the ScanSnap. Otherwise, a
paper jam may happen, or the Carrier Sheet may be damaged.
• Do not leave a document on the Carrier Sheet for an extended period of time.
The ink on the document may be transferred onto the Carrier Sheet.
• Do not leave the Carrier Sheet in locations that are exposed to elevated
temperatures; for example, locations exposed to direct sunlight or near a
heating apparatus, for an extended period of time. Do not use the Carrier
Sheet under high-temperature conditions. If used under such a condition, it
may be deformed.
• Do not bend or pull the Carrier Sheet by force.
• Do not use a damaged Carrier Sheet. Otherwise, the ScanSnap may be
damaged or may malfunction.
• To avoid the deformation of the Carrier Sheet, do not put anything heavy on it
and keep it on a level surface when not in use.
• Be careful not to cut your fingers touching the edge of the Carrier Sheet.
• Do not insert more than one small-size material such as the picture and post
card in the Carrier Sheet per scan. Otherwise, a paper jam may occur. It is
recommended small-size materials be scanned one-by-one.
• If a paper jam occurs frequently, feed about 50 sheets of PPC paper or
recycled paper, and then scan the document by using Carrier Sheet.
* You can use either unused or used PPC/recycled paper.
48
Page 69
3.3 Loading Documents
Back
This section describes how to load documents onto the ScanSnap.
■ How to load documents
1. Align the edges of the document.
Align the edges of the document as follows:
1) Straighten the edges of the document.
Straighten both edges of the document stack for scanning it correctly.
2) Check the number of sheets in the document stack.
The maximum number of sheets that can be loaded on the ScanSnap is as follows:
For A4-size paper or smaller, a document stack of 5 mm or less (50 sheets at 64
2
g/m
or at 17 lb).
3.3 Loading Documents
3
Using the ScanSnap
HINT
To prevent paper jams, fan the document as follows:
Scanning accuracy increases when the
document is loaded onto the ScanSnap so
that the leading edges of the paper form a
step-like pattern as shown in the figure.
In the "ScanSnap Manager - Scan and Save Settings" dialog box, select the
[Scanning] tab, and then click the [Option] button. In the "Read mode option"
dialog box displayed, check whether the "Set the documents with its face up"
checkbox is marked. If marked, load the document its face up and the bottom
edge into ADF.
1) Extract the stack of documents of thickness 5 mm or less.
2) Hold the document with both hands and fan it out as shown in the figure below.
Step-like
Back
Scanning direction
3) Turn the document 90 degrees, and then fan it in the different orientation again.
2. Load the document onto the paper chute.
ScanSnap S510 Operator's Guide 49
Page 70
Load the document so that the front side of the two-sided document (the first page when the
ABCDEFG
1234567890
ABCDEFG
1234567890
document contains more than one sheet) faces the paper chute.
Do not load the document beyond the reference marks on the side guide.
1234567890
ABCDEFG
ATTENTION
Reference
mark
In the "ScanSnap Manager -Scan
and Save Settings" dialog box, select
the [Scanning] tab, and then click the
[Option] button. In the "Read mode
option" dialog box displayed, check
whether the "Set the documents with
its face up" checkbox is marked. If
marked, load the document its face
up and the bottom edge into ADF.
Paper chute
Side guide
ABCDEFG
1234567890
50
HINT
Pull out the extension of the paper chute to scan long-size documents.
Extension
Paper chute
Page 71
3.3 Loading Documents
3. Adjust the side guides to the document width.
Move the side guides so that there is no gap between the document edge and side guide on
both sides. Doing so can eliminate skewing of the document during scanning.
HINT
Document
When you use the stacker, scanned document sheets are stacked on the
stacker in the collated order when they have passed through the ScanSnap.
Use the stacker as described below.
1. Pull out the stacker toward you.
Side guide
3
Using the ScanSnap
Stacker
2. Extend the stacker.
ScanSnap S510 Operator's Guide 51
Page 72
■ Loading Documents Using the Carrier Sheet
The Carrier Sheet is a plastic sheet for loading the document specifically for the ScanSnap S510/
S500/fi-5110EOX2 Series. It allows you to scan documents that cannot be scanned as it is. The
document of larger than A4 size, such as A3 and B4 sizes, can be scanned by folding it in half.
Insert the folded document into the Carrier Sheet and scan it in duplex mode.
You can scan documents that can easily get scratched such as photographs or irregular-shaped
documents difficult to load on the ScanSnap; for example, clippings of magazine and newspaper
articles.
The following explains how to insert the document into the Carrier Sheet.
You can use the Carrier Sheet in two different modes according to the type of documents.
Create facing pages in one
image(page 53)
Create front and back images
separately (page 58)
ATTENTION
• To use the Carrier Sheet, select [Automatic Detection] in the Paper size drop-
down list on the [Paper size] tab of the ScanSnap Manager -Scan and Save
Settings" dialog box. When you scan the document in "Create facing pages in
one image" mode, set the Scanning side to "Duplex Scan" on the [Scanning]
tab of the ScanSnap Manager -Scan and Save Settings" dialog box. If you set
the Scanning side to "Simplex Scan," the produced image is the same as the
one produced in "Create front and back images separately" and "Simplex
Scan" mode.
For details on how to change the "Carrier Sheet" Settings, refer to section
"4.5 Changing Carrier Sheet Settings" (page 106).
• When the Carrier Sheet is used for scanning, continuous scanning is not
possible. Scan one piece or one page at one time.
Use this mode for scanning a document larger than
A4 size such as A3 and B4 sizes.
Fold the document in half, scan it in duplex scanning
mode, and then merge both front and back side
images to make a double-page spread image.
Use this mode for scanning a photograph when you
do not want to get scratches on the photograph, or
for scanning an irregular-shaped document such as
the clipping of articles, which is difficult to scan as
is. The scanned image is output in specified size.
52
Page 73
3.3 Loading Documents
To "Create facing pages in one image"
Use this mode for scanning a document larger than A4 size such as A3 and B4 sizes.
Fold the document in half, scan it in duplex scanning mode, and then merge both front and back
side images to make a double-page spread image.
(You can also merge both front and back side images of a document smaller than A4 size to output
a double-page spread image.)
Operation
S
1. Right-click the ScanSnap Manager icon on the task bar, and select "SCAN
Button Settings."
S
3
Using the ScanSnap
2. On the [Paper Size] tab, click the "Carrier Sheet Settings" button.
ScanSnap S510 Operator's Guide 53
Page 74
3. In the "Carrier Sheet Settings" window, select "Create facing pages in one image" in
the "Mode" drop-down list, and then click the [OK] button.
4. Select "Automatic Detection" in the "Paper size" drop-down list on the [Paper size]
tab.
54
Page 75
3.3 Loading Documents
5. Select "Duplex Scan" in the "Scanning side" drop-down list on the [Scanning] tab, and
click the [OK] button.
3
Using the ScanSnap
Operation
6. Fold the sheet to be scanned in half.
Fold the sheet tightly and smooth out the crease. Otherwise, the sheet may be skewed during
scanning.
ScanSnap S510 Operator's Guide 55
Page 76
7. Open the Carrier Sheet and insert the document.
Align the fold with the right edge of the
Carrier Sheet so that the document fits into
the Carrier Sheet at the upper corner.
8. Load the Carrier Sheet onto the ScanSnap.
• Load the Carrier Sheet with the portion
striped in black and white as the leading
edge as shown in the right figure.
• Adjust the side guides to the width of the
Carrier Sheet to avoid skewing.
• When the Carrier Sheet is used for
scanning, continuous scanning is not
possible. Scan one piece or one sheet at
one time.
9. Press the [SCAN] button .
⇒ The front and back side images are merged into a double-page spread image.
SCAN
POWER
56
Page 77
3.3 Loading Documents
ATTENTION
• There may be an interstice between the front and back side images, or a line
may appear on the output image.
When a sheet of thick paper is scanned, images on the both right and left side
may be skewed to a trapezoidal shape.
The degree of skewing varies depending on the condition of the document
(how it is folded or loaded).
Troubleshoot the problem as follows, and the situation may be improved.
- Is the document neatly folded? If not, fold it neatly.
- Is the edge of the document aligned with the edge of the Carrier Sheet?
If not, align the document with the Carrier Sheet.
- Try to scan the document with the front side of the Carrier Sheet facing
the paper chute or vice verse.
• When "Automatic Detection" is selected from the "Output image size" drop-
down list in the "Carrier Sheet Settings" window, the size of the produced
image may be smaller than the original.
(The image is output in A3, B4, or 11" x 17"size, whichever the smallest, so
that all elements on the image are included.)
Example: When you scan the A4 size image printed at the center of an A3 size
paper
A B4 size image is output.
To output an image in the original size, specify the document size in the
[Output image size] drop-down list.
3
Using the ScanSnap
ScanSnap S510 Operator's Guide 57
Page 78
To "Create front and back images separately"
Use this mode for scanning a photograph with the Carrier Sheet when you do not want to get
scratches on the photograph, or for scanning an irregular-shaped document such as the clipping of
articles, which is difficult to scan as is.
Operation
S
1. Right-click the ScanSnap Manager icon on the task bar, and select [Scan Button
Settings].
S
⇒ The "ScanSnap Manager -Scan and Save Settings" dialog box appears.
2. On the [Paper Size] tab, click the [Carrier Sheet Settings] button.
58
Page 79
3.3 Loading Documents
3. On the "Carrier Sheet Settings" window, select "Create front and back images
separately" in the "Mode" drop-down list, and then click the [OK] button.
3
Using the ScanSnap
4. Select "Automatic detection" in the "Paper size" drop-down list on the [Paper size]
tab.
ScanSnap S510 Operator's Guide 59
Page 80
Operation
Back
side
5. Open the Carrier Sheet and insert the material to scan.
Neatly align the top of the material with the
top of the Carrier Sheet.
Center the material so that it is entirely
contained in the Carrier Sheet.
6. Load the Carrier Sheet onto the ScanSnap.
• Load the Carrier Sheet with the portion
striped in black and white as the leading
edge as shown in the right figure.
• Place the Carrier Sheet so that the back
side of it faces up.
• Adjust the side guides to the width of the
Carrier Sheet to avoid skewing.
• When the Carrier Sheet is used for
scanning, continuous scanning is not
possible. Scan one piece or one sheet at
one time.
60
ATTENTION
SCAN
POWER
In the "ScanSnap Manager -Scan and Save Settings" dialog box, select the
[Scanning] tab, and then the [Options] button to display the "Read mode
option" window. When the "Set the documents with its face up" checkbox is
marked in the "Read mode option" window, load the document so that its front
side faces up in the correct orientation.
Page 81
3.3 Loading Documents
7. Press the [SCAN] button .
⇒ Scanning is started and the image data is generated in the specified size.
ATTENTION
HINT
• The image is centered and output in the specified size.
When "Automatic Detection" is selected in the "Output image size" dropdown list of the "Carrier Sheet Settings" window, an optimal size is selected
automatically from the available standard sizes (refer to page 108) and the
image is output.
• In the "Carrier Sheet Settings" window, when "Automatic Detection" is
selected in the "Output image size" drop-down list, the size of the produced
image may be smaller than the original.
Example: When you scan the A5 size image printed at the center of an A4
size paper
A5 size image is output.
To output an image in the original size, specify the document size in the
[Output image size] drop-down list
If the following symptoms are observed, lay the material over a piece of white
paper to scan.
• The output image is not in a suitable size (when [Automatic Detection] is
selected).
• The outline of the material is shaded.
• Black lines appear around the material cut out in an indefinite shape.
3
Using the ScanSnap
white paper
ScanSnap S510 Operator's Guide 61
Page 82
62
Page 83
Chapter 4
Setting the ScanSnap
This chapter describes the basic settings of the ScanSnap.
4
4.1 About the ScanSnap Icon .................................................................................... 64
4.2 Changing Scanning Settings ............................................................................... 67
4.3 Saving Scanning Settings.................................................................................... 92
4.4 Using the ScanSnap Quick Menu...................................................................... 103
4.5 Changing Carrier Sheet Settings....................................................................... 106
ScanSnap S510 Operator's Guide 63
Page 84
4.1 About the ScanSnap Icon
All functional properties on the ScanSnap are managed by ScanSnap Manger.
S
Ordinarily, the ScanSnap Manager icon is added to the task bar at the lower right on the
Windows desktop.
Clicking this icon shows the following menus. You can use either of the menus to start scanning,
change settings, and check the status of consumables.
S
Right-Click Menu Left-Click Menu
64
Page 85
■ Right-Click Menu
This menu appears when the ScanSnap Manager icon is right-clicked.
In this menu, you can perform the following:
Item Function
Duplex scan Both the front and back sides of the document are scanned at the
Simplex scan Only one side of the document is scanned at one time. Scanning
SCAN Button Settings The "ScanSnap Manger - Scan and Save Settings" dialog box
4.1 About the ScanSnap Icon
S
S
same time. Scanning is performed according to the settings
configured in the "ScanSnap Manager - Scan and Save Settings"
dialog box.
is performed according to the SCAN Button Settings.
appears.
Settings configured in this dialog are used when scanning is
performed with a [SCAN] button press.
⇒ Refer to "4.2 Changing Scanning Settings" (page 67).
4
Use Quick Menu You can switch between the Quick Menu Mode and Left-Click
Menu Mode by marking/clearing this.
You can select an operational mode that is enabled upon
scanning with a [SCAN] button press.
⇒ Refer to section "3.1 Flow of Operations" (page 30).
Profile Management The "ScanSnap Manager - Scan and Save Settings" dialog box
appears.
You can edit profiles.
⇒ Refer to "4.3 Saving Scanning Settings" (page 92).
Show scanning results A message appears after scanning to inform you of the scanning
results, whether blank pages are removed (page 81) and/or the
orientation is changed (page 82).
Check consumable
supplies
The "Check consumable status" dialog box appears.
Reset consumable counters to 0 after you replace consumables.
Refer to section "9.1 Replacing Consumables" (page 238).
Setting the ScanSnap
Help You can view the Help topics, the version information of
ScanSnap Manager, and the "Preferences" (page 113) and Online
Update (page 251) dialog boxes.
Exit You can exit ScanSnap Manger.
ScanSnap S510 Operator's Guide 65
Page 86
■ Left-Click Menu
This menu appears when the ScanSnap Manager icon is left-clicked.
Selectable profiles are listed on the Left-Click Menu.
Select a profile name on this menu, and you can switch between profiles previously configured and
added to the profile list.
The selected profile is used for scanning in Left-Click Menu Mode (page 40).
For how to create and edit profiles, refer to section "4.3 Saving Scanning Settings" (page 92).
S
S
HINT
The Left-Click Menu is not displayed in Quick Menu Mode (page 35). When you
want to use the Left-Click Menu, unmark [Use ScanSnap Quick Menu] in the
Right-Click Menu.
66
Page 87
4.2 Changing Scanning Settings
To change scanning settings for the ScanSnap, use the Right-Click Menu.
The following describes how to change the settings.
Operation
S
1. Right-click the ScanSnap Manager icon on the task bar.
When you want to change scanning settings, select [SCAN Button Settings].
S
4.2 Changing Scanning Settings
⇒ The "ScanSnap Manager - Scan and Save Settings" dialog box appears.
4
Setting the ScanSnap
ScanSnap S510 Operator's Guide 67
Page 88
HINT
You can also display the "ScanSnap Manager - Scan and Save Settings" dialog
S
box by double-clicking the ScanSnap Manager icon , or by pressing [Ctrl],
[Shift], and [Space] keys simultaneously.
S
2. Change the scanning settings on each tab of the "ScanSnap Manager - Scan and
Save Settings" dialog box.
The following settings can be changed:
• The application that starts automatically and interacts with ScanSnap
[Application](page 71)
• The destination to save scanned images
•
Scan mode (fast or slow, excellent or normal, color or black-and-white, enable or disable
[Save](page 74)
"setting for text only document," "automatic blank page removal," "correct skewed
character strings automatically," "allow automatic image rotation," and/or "set the document
with its face up," and whether "Continue scanning after current scan is finished" )
[Scanning] (page 78)
• File format for the scanned image [File option](page 83)
(file format, OCR, number of pages per PDF file, and password for PDF files)
• Paper size of the document
[Paper size](page 87)
(Carrier Sheet settings)
• File size for saving scanned images
[Compression](page 90)
ATTENTION
Settings for scanning vary between the Quick Menu Mode and Left-Click Menu
Mode.
In this section, the "Scan and Save Settings" dialog box in the Left-Click Menu
Mode is used as examples.
3. Click the [OK] or [Apply] button.
⇒ Settings on the "Scan and Save Settings" dialog box have been changed.
68
Page 89
4.2 Changing Scanning Settings
<Setting Items>
Each setting item is described below.
Settings you can change for scanning in Quick Menu Mode differ from those in Left-Click
Menu Mode.
For your convenience, each item is marked with a following symbol:
: Items that can be set in Quick Menu Mode
: Items that can be set in Left-Click Menu Mode
* Items with no mark can be changed in both modes.
Select a profile:
You can switch between profiles configured beforehand by selecting a profile in the "Select a
profile" drop-down list.
By default, the following profiles are in the list.
4
Setting the ScanSnap
• Standard
• CardMinder
• Searchable PDF
HINT
You can add profiles configured to suit your needs or preferences.
For details on how to add a profile, refer to "4.3 Saving Scanning Settings"
(page 92).
ScanSnap S510 Operator's Guide 69
Page 90
■ [Add Profile] Button
You can add new profiles configured to meet your preferences.
■ [Edit Profile] Button
Clicking this button displays the "Profile Management" window.
In this window, you can change profile names, delete profiles, and change the order
listed. However, you cannot change or delete the "Standard" profile (a default profile).
70
Page 91
[Application] tab
4.2 Changing Scanning Settings
■ Application:
Specify the application to be linked to the ScanSnap to execute. The specified
application starts up after the document is scanned with the ScanSnap. Click the
drop-down-arrow to select an application.
The selections are as follows:
• No application is started (Save to File)
• ScanSnap Organizer (
• Adobe
• Adobe®Acrobat® Reader™ or Adobe® Reader®
• CardMinder (
• ABBYY Scan2Excel (
• ABBYY Scan2Word (
• ABBYY Scan2PowerPoint (
• Scan2Folder (
• Scan2E-mail (
• Scan2Print (
®
Acrobat
®
page 202)
page 117)
page 129)
page 129)
page 208)
page 155)
page 155)
page 155)
4
Setting the ScanSnap
ScanSnap S510 Operator's Guide 71
Page 92
HINT
• Only the installed applications are selectable.
• If you select "No application is started (Save to File)," the scanned image is
saved to file, but this operation is transparent to you. Scanning results
(scanned images) are not displayed. Select this when you do not want to view
the scanned image every time a document is scanned.
• When you select "CardMinder " in the "Application" drop-down list on the
[Application] tab, the [Save], [File option], [Paper size], and [Compression]
tabs are hidden.
• When CardMinder is active, the application selected in the "Application" drop-
down list on the [Application] tab automatically switches to CardMInder. When
ScanSnap Organizer is active, the application selected in the "Application"
drop-down list on the [Application] tab automatically switches to ScanSnap
Organizer. When either of those applications is deactivated, the application
selected in the "Application" drop-down list on the [Application] tab switches to
the previously selected application.
■ [Applications Settings] button
This button only appears when "Scan2E-mail" or "Scan2Print" is selected in the
"Application" list. With this button, you can change the settings of the selected
application.
■ [Add or Remove] button
Applications can be added to or removed from the "Application" list.
Click the [Add or Remove] button to displayed the dialog box below.
(Up to 10 applications can be added.)
<To add an application>
1) Click the [Add] button.
2) The dialog box below appears.
72
Page 93
4.2 Changing Scanning Settings
• Click the [Browse] button to select an executable file (.exe) or a shortcut file
(.lnk).
⇒ The path to the selected application is displayed in the "Application Path" field.
• Type in a name for the newly selected application.
⇒ The application name is displayed in the "Application" drop-down list.
3) When you have finished the procedure, click the [OK] button.
4) In the dialog box below, the new application appears in the list. Click the [Close]
button to close the window.
HINT
Select an application that handles JPEG (*.jpg) and/or PDF (*.pdf) file format.
Scanned images cannot be displayed properly unless either of these file
formats is supported.
Depending on applications, password-protected or text-recognized (process
through OCR) PDF files may not be opened.
You can check whether the selected application handles the above file formats
by doing the following:
Example: Check that the selected application handles the JPEG file format>
1. Create a shortcut to the application you want to add.
2. Drag a file in JPEG format (*.jpg) onto the shortcut (drag-and-drop action).
⇒ If the application starts up and the file opens, the application handles
<To remove an application>
1) Select an application you want to remove in the "Add or remove application"
window, and then click the [Remove] button.
2) The confirmation message appears. Click the [Yes] button to remove the
application.
3) Make sure that the application is removed, and then click the [Close] button.
4
Setting the ScanSnap
the JPEG file formats.
<To change settings>
1) Select an application you want to change settings (path/name) for in the "Add or
remove application" window, and then click the [Change] button.
2) The "Application Settings" dialog box appears. Change the desired items.
3) After you make changes, click the [OK] button.
4) In the "Add or remove application" window, the application appears with a new
name if you change the name. Click the [Close] button to close the window.
ScanSnap S510 Operator's Guide 73
Page 94
[Save] tab
■ Image saving folder:
Specify a folder to save scanned images.
When you click the [Browse] button, the "Browse for Folder" dialog box appears.
Select a folder to save scanned images, and then click the [OK] button.
74
Page 95
4.2 Changing Scanning Settings
HINT
■ [Filename format] button
When "ScanSnap Organizer" is selected in the [Application] drop-down list,
[Image saving folder] and the [Browse] button are grayed out, and you cannot
specify any folder to save images from this window.
In this case, scanned images are saved in the "My ScanSnap Folder" specified
in ScanSnap Organizer (page 211). (If the operating system is Windows Vista,
the folder will be labeled as the "ScanSnap Folder."
Specify the name of image files to save.
When you click the [File name format] button, the following dialog box appears.
4
Setting the ScanSnap
You can select one of three settings below.
• "Date and time (Use Operating System Setting)"
Files are named according to the settings of the operating system of your personal
computer.
Characters inappropriate for file names (/;+,*”<>|), if used, will be replaced with
"-" (hyphen).
• "Date and time (yyyyMMddHHmmss)"
The date and time are used for file names.
Example:
• "Custom File Name"
A file name is the combination of a text string typed in the "File Name" field and a
number of digits specified in the "Counter" drop-down list.
(An example name in each format is displayed at the bottom of the dialog box
when you select the format.)
A file saved at 19:00:50 on December 27th, 2003, in PDF format will be
20031227190050.pdf
ScanSnap S510 Operator's Guide 75
Page 96
HINT
About "Counter"
• When no file with a name specified in the "File Name" field exists in the save
folder (specified on the [Save] tab), a suffix number combined will be "1" ("001"
if 3 is selected in the "Counter" drop-down list). The number increases in
increments of 1 every time a new file is saved.
• When other files with a name specified in the "File Name" field exist in the
save folder, a number combined will be the smallest available number.
Example: When files, Scan01.pdf, Scan03.pdf, and Scan04.pdf, exist in the
same folder, the file you save next will be Scan02.pdf, and then Scan05.pdf,
Scan06.pdf, Scan07.pdf...as long as you use the same "File Name."
• When the specified number of digits is exceeded (for example, when saving
the 100th file with two digits specified), the number of digits increases by one.
Upon clicking the [OK] button, specified settings take effect.
(An example file name in the format you select is displayed under the [Filename
format] button.)
■ Rename file after scanning
If this checkbox is marked, the "Save scanned image as" dialog box appears after
scanning.
76
Page 97
4.2 Changing Scanning Settings
You can change folders to save the scanned images, or rename files in this window.
HINT
• The file is automatically named with a file name previously specified in the
"File name format" dialog box. If you do not want to rename the file, click the
[Save] button.
• When multiple files are generated per scan, each file name is followed by a
serial number. ( File name + Serial number +.Extension
Example 1: In the "PDF file format option" dialog box (page 85), select
[Generate one PDF file per xx page(s)]. If a scanned document
contains pages exceeding the specified page number, files are
named as follows:
Scan001.pdf, Scan002.pdf, Scan003.pdf...
Example 2: When files are saved in JPEG format, files are named as follows:
Scan001.jpg, Scan002.jpg, Scan003.jpg...
*The example names above are of files named using "Scan" as the file name.
*The number of digits is a number selected in the "File name format" dialog
box.
)
4
Setting the ScanSnap
ScanSnap S510 Operator's Guide 77
Page 98
[Scanning] tab
■ Image quality:
You can specify mode to scan documents, depending on your preferences (whether
you want to scan documents quickly or at high quality.
Select one of the following:
• Normal (Fastest)
• Better (Faster)
• Best (Slow)
• Excellent (Slower)
HINT
Select this mode when you wish to scan documents quickly.
Select this mode when you wish to scan documents at high quality.
Select this mode when you wish to scan documents at higher quality.
Select this mode when you wish to scan documents at the highest quality
The resolution of each mode is as follows:
• Normal: equivalent to 150 dpi (color)/300 dpi (black-and-white)
• Fine: equivalent to 200 dpi (color)/400 dpi (black-and-white)
• Best: equivalent to 300 dpi (color)/600 dpi (black-and-white)
• Excellent: equivalent to 600 dpi(color)/1200 dpi (black-and-white)
Generally, the higher quality you specify, the longer it takes to scan documents
and the larger the file size becomes.
78
Page 99
■ Color mode:
You can specify whether to scan documents in color or black-and-white.
Select one of the following modes:
• Auto Color Detection
The ScanSnap automatically recognizes color pages and black-and-white pages,
and it switches between color and B&W modes automatically.
• Color
The ScanSnap scans the document in color mode.
This setting suits when color pages are scanned.
• B&W
The ScanSnap scans the document in black-and-white mode.
This setting suits when black-and-white pages, mostly containing text, is scanned.
The file sizes are smaller than those scanned in color mode.
• Color high compression
The ScanSnap saves color document images at a high compression rate.
4.2 Changing Scanning Settings
HINT
• Normally, set this setting to "Auto Color Detection," and you do not have to
change the color mode each time you scan a document.
* Note that the following types of documents may be recognized as black-and-
white documents.
- Faintly toned paper
- Partially colored documents
- Documents printed in two colors; many parts of documents are colored in
dark color such as dark gray similar to black
To scan such documents in color mode, select "Color" in the "Color mode"
drop-down list.
• In "Color high compression" mode, characters and backgrounds on the
document are compressed separately, and thus, the file size of the document
that mostly contains text characters becomes smaller while the quality of the
characters is kept high.
However, this mode is not appropriate for scanning photographs or figures
because these graphical materials are recognized as background and
compressed as such, causing degradation in images.
If this setting is specified, the contrast of the image may become higher.
• Depending on the types of documents, file size may increase if you use color
high compression mode than if you do not. The file size of the following types
of documents may become larger.
- Documents that contain many pictures and/or graphics but fewer
characters written in black
- Documents of complex layout (e.g. multiple columns)
- Documents with patterned background
4
Setting the ScanSnap
ScanSnap S510 Operator's Guide 79
Page 100
■ Scanning side:
You can select the sides to be scanned (single-sided or double-sided) by pressing the
[SCAN] button on the ScanSnap.
Select [Duplex Scan] or [Simplex Scan] from the menu.
■ Continue scanning after current scan is finished
If the checkbox is marked, the following message appears after scanning.
To continue scanning, load a document onto the ScanSnap, and then click the
[Continue Scanning] button.
To finish scanning, click the [Finish Scanning] button.
After the [Finish Scanning] button is clicked, the scanned images are saved into one
file.
* It is possible to continue scanning up to 1000 pages for one file.
* The size of a PDF file should be 1Gbyte at the maximum. Although a file larger
than 1Gbyte can be created, such a file may not be opened.
Specifically, when you attempt to open the file with Adobe Acrobat, a message
may appear to tell that the file is corrupted and being fixed.
■ [Option] button
In the dialog box below, you can configure detailed settings.
Clicking the [Option] button displays the "Read mode option" dialog box.
80
Loading...
