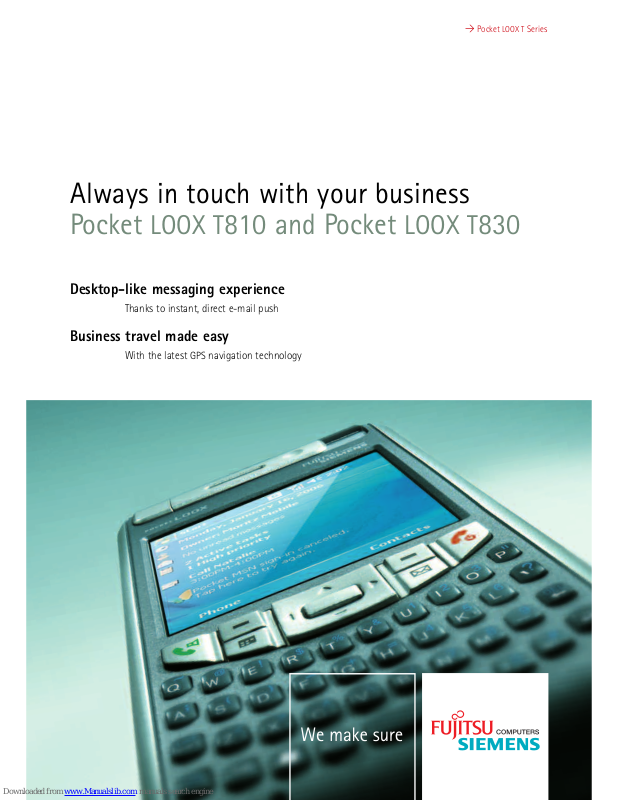

Page 1
Always in touch with your business
Pocket
LOOX T810 and Pocket LOOX T830
Desktop-like messaging experience
Thanks to instant, direct e-mail push
Business travel made easy
With the latest GPS navigation technology
>
P
ocket
LOOX T S
eries
Page 2

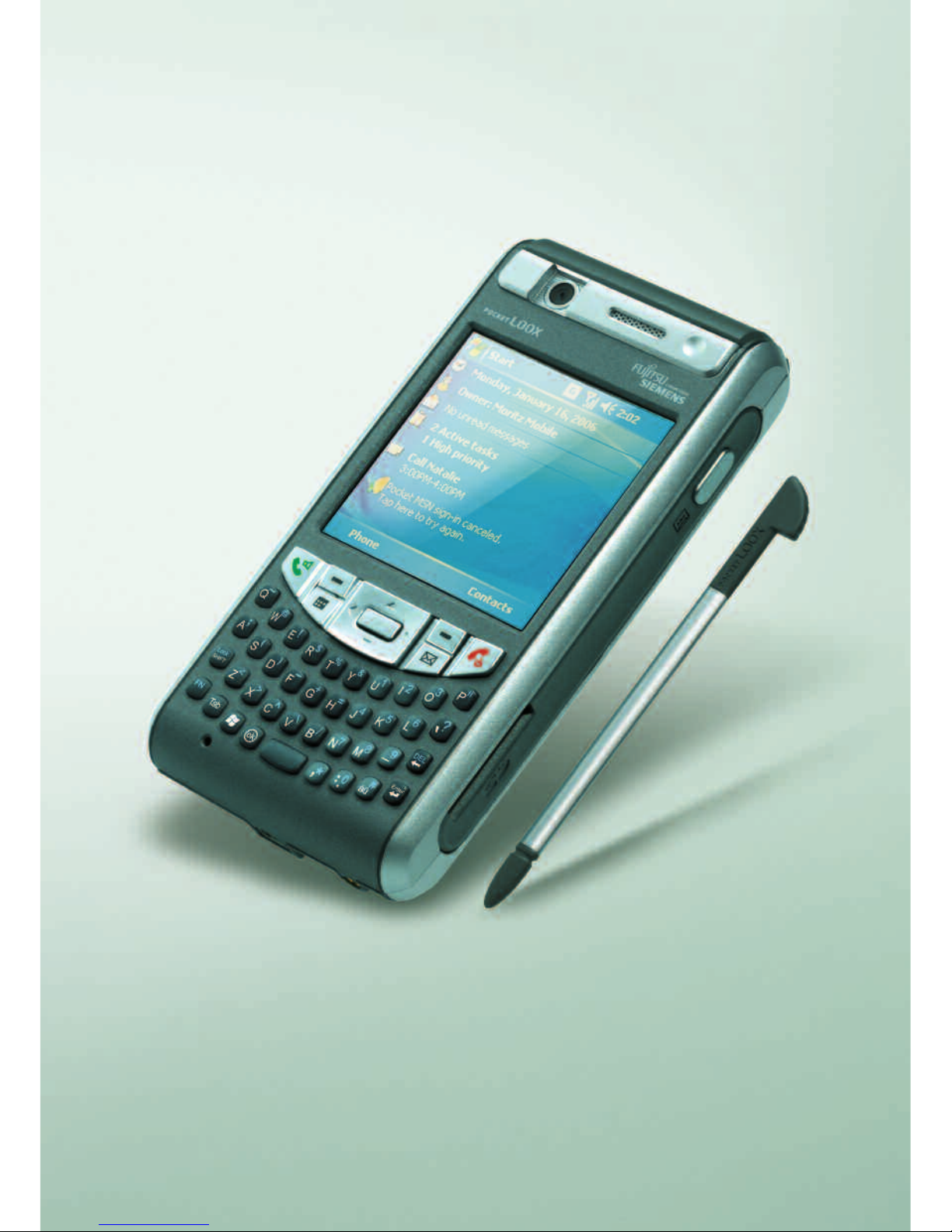

Pocket LOOX T Series:
Mobile phone, navigation system and handheld in one
Easy messaging, thanks to
direct e-mail push
GSM/UMTS VoIP phone
Latest
GPS technology
Microsoft®Windows®
Mobile 5.0 Phone Edition
Two integrated cameras
Ergonomic design
Wireless
LAN and Bluetooth
interfaces
>
P
ocket
LOOX T S
eries
ALWAYS AT YOUR SIDE
24/7 accessibility
Introducing the Pocket LOOX T Series — the first completely integrated communicator from
Fujitsu Siemens Computers. This exceptional three-in-one device replaces your mobile phone,
your navigation system and your handheld device.
A
GSM/UMTS mobile phone with VoIP capability ensures round-the-clock availability with
excellent voice quality. Wireless
LAN and Bluetooth technology lets you access and synchronize
your data 24/7 — no matter where you are or what you’re doing. And the Pocket
LOOX T
Series couldn’t be easier to use. E-mail push ensures an instant, effortless messaging experience.
Combine this with a brilliant
TFT display and the efficiency of a QWERTY keyboard — and you
have a device that will support you wherever your business takes you. Furthermore, with
its integrated
GPS, it will get you there in no time.
Page 3
Page 4
Fujitsu Siemens Computers recommends
Windows®
XP Tablet PC Edition 2005.
ALWAYS CONNECTED
Integrated mobile phone
The built-in GSM/UMTS mobile phone ensures superb voice
quality – and you don’t even need a headset. You can even
capitalize on the cost and convenience benefits of
VoIP,
thanks to the integrated Wireless
LAN and UMTS technology.
The Pocket
LOOX T Series also features two digital cameras,
allowing you to enjoy video telephony via
UMTS with VGA
resolution or to capture the big moments with the 2-megapixel auto-focus camera.
ALWAYS UP-TO-DATEE
E-mail push function
A desktop-like messaging experience helps smooth business travel.
Thanks to Microsoft Windows Mobile 5.0 Phone Edition, all e-mails
are pushed directly to the Pocket
LOOX T Series, removing the
need for you to check your inbox while on the road. Your calendar,
contacts and tasks are also automatically updated. And for maxi
mum convenience, you can also access your corporate address
book anywhere and anytime.
ALWAYS SECURE
Best-in-class reliability features
The Pocket LOOX T Series offers best-in-class security functionality, continuing to protect
your data even if the battery is low. Windows Mobile 5.0 gives administrators a range of new
tools to extend messaging security by enforcing corporate security policies. These include the
ability to set and enforce password policies, lock the device and/or delete data on the device
via remote access. Security settings are even maintained after a hard reset, protecting your
Pocket
LOOX T device from unauthorized entry.
Page 5
ALWAYS ON TRACK
Easy and precise navigation with GPS
The Pocket LOOX T Series features integrated UMTS and GPS,
powerful enough to ensure excellent reception — even in the car.
Now you can say goodbye to tiresome cables and the antenna
flapping in the wind. No matter which direction you take, it gets
you to your destination — swiftly and directly.
We make sure. Our responsibility is to harness the full potential of the latest
mobile technologies to the benefit of your company. As the leading European
IT company, we offer a portfolio of exceptional depth, ranging from mobile
systems and PCs through servers to enterprise-class infrastructure solutions.
www.fujitsu-siemens.com
Actual size
>
P
ocket
LOOX T S
eries
ALWAYS EFFICIENT
In the office or on the move
Experience a new dimension of productivity and convenience with the Pocket LOOX T
Series. Familiar applications from the Windows Mobile 5.0 Mobile Suite maximize
effectiveness on the go. You can access business-critical data from anywhere —
in the blink of an eye and without hunting for cables. Your business is always at
your fingertips — and your hands are free to keep it in good shape.
>
www.fujitsu-siemens.com/pocket_loox_t
Page 6
Copyright
©Fujitsu Siemens Computers 2006
Realization: Pro Design Munich, printed in Germany
Published by
Fujitsu Siemens Computers
Domagkstrasse 28
80807 Munich
Germany
Contact
www
.fujitsu-siemens.com/contact
All rights reserved, including rights created by patent grant or
registration
of a utility model. All designations used in this
document can be trademarks, the use of which by third parties
for their own purposes could violate the rights of their owners.
W
e reserve the right to change delivery options or make tech
nical modifications. Please note that product colors may be
subject to change.
ALWAYS ON THE MOVE
The world in your pocket
The average business day can be hectic. You have to synchronize
your data and quickly upload a presentation before your first appointment. You’re expecting a silent alert for a critical update during
the meeting. And you need to check back with the office on your
way to the next customer. Which is when you find out there’s been
a last-minute change of venue. So you need to reroute — fast!
Then again, it can all be so simple. Provided you’ve got a P
ocket
LOOX
T
device in your pocket.
>
www.fujitsu-siemens.com/pocket_loox_t
Fujitsu Siemens Computers recommends
Windows®
XP Tablet PC Edition 2005.
>
P
ocket
LOOX T S
eries
T
echnical specifications
C
ameras*
–
VGA c
amera (640 x 480) for video telephony via
UMTS
– 2-megapixel auto-focus camera (1600 x1200)
A
pplications processor
– Intel®
P
XA
270 processor, 416 MHz based on
Intel®
X
S
cale™ microarchitecture
M
emory
– System memory (
RAM) 64 MB
– Flash memory (ROM) 128 MB
UMTS
/GSM/GPRS baseband, EMP U250
Transceiver and power amplifier
–
GSM900/1800/1900 MHz
–
UMTS 2100 MHz operations
Ring tones
– Polyphonic and
MP3/WAV
– Built-in silent alert
Integrated
GPS; SiRF GCS3F
Wireless LAN, integrated 802.11b/g, Wi-Fi certified
Integrated Bluetooth 2.0
Keyboard
–
QWERTY k
eyboard and 5-way navigation key,
–
3-way jog dial
– 2 application buttons
D
ocking station
S
oftware voucher
Operating system
– Windows®Mobile 5.0 Phone Edition
Display
2.4-inch, 240 x 240 pixel, 65,536 colors,
transflective TFT touch screen
Battery Li-Ion, 1500 mAh
Dimensions 126 x 64 x 21 mm
Weight approx. 190 g
Supported functions
– e-mail:
POP3/IMAP and e-mail push solution
(Exchange 2003
SP2)
–
VoIP via WLAN and/or UMTS
*only available for Pocket LOOX T830
