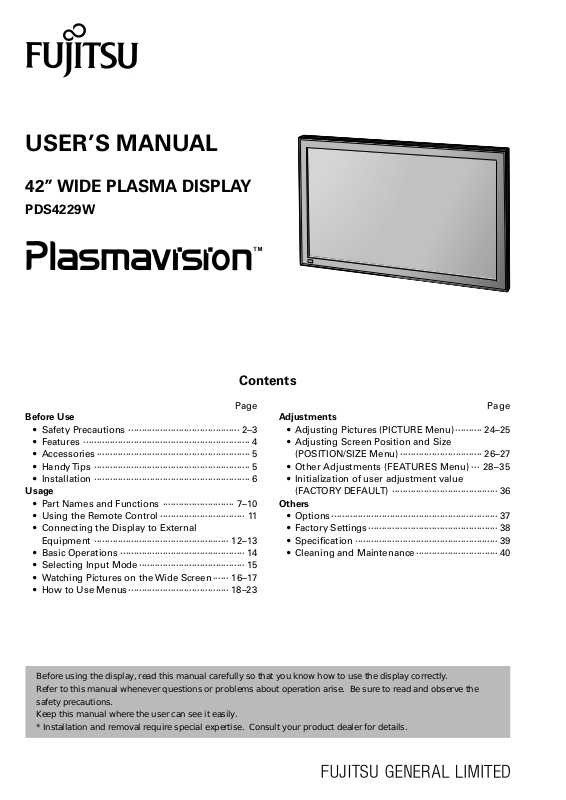

USER’S MANUAL

42” WIDE PLASMA DISPLAY

PDS4229W

Contents

Page Page

Before Use

• Safety Precautions ·········································· 2–3

• Features ······························································· 4

• Accessories ·························································· 5

• Handy Tips ··························································· 5

• Installation ··························································· 6

Usage

• Part Names and Functions ··························· 7–10

• Using the Remote Control ································ 11

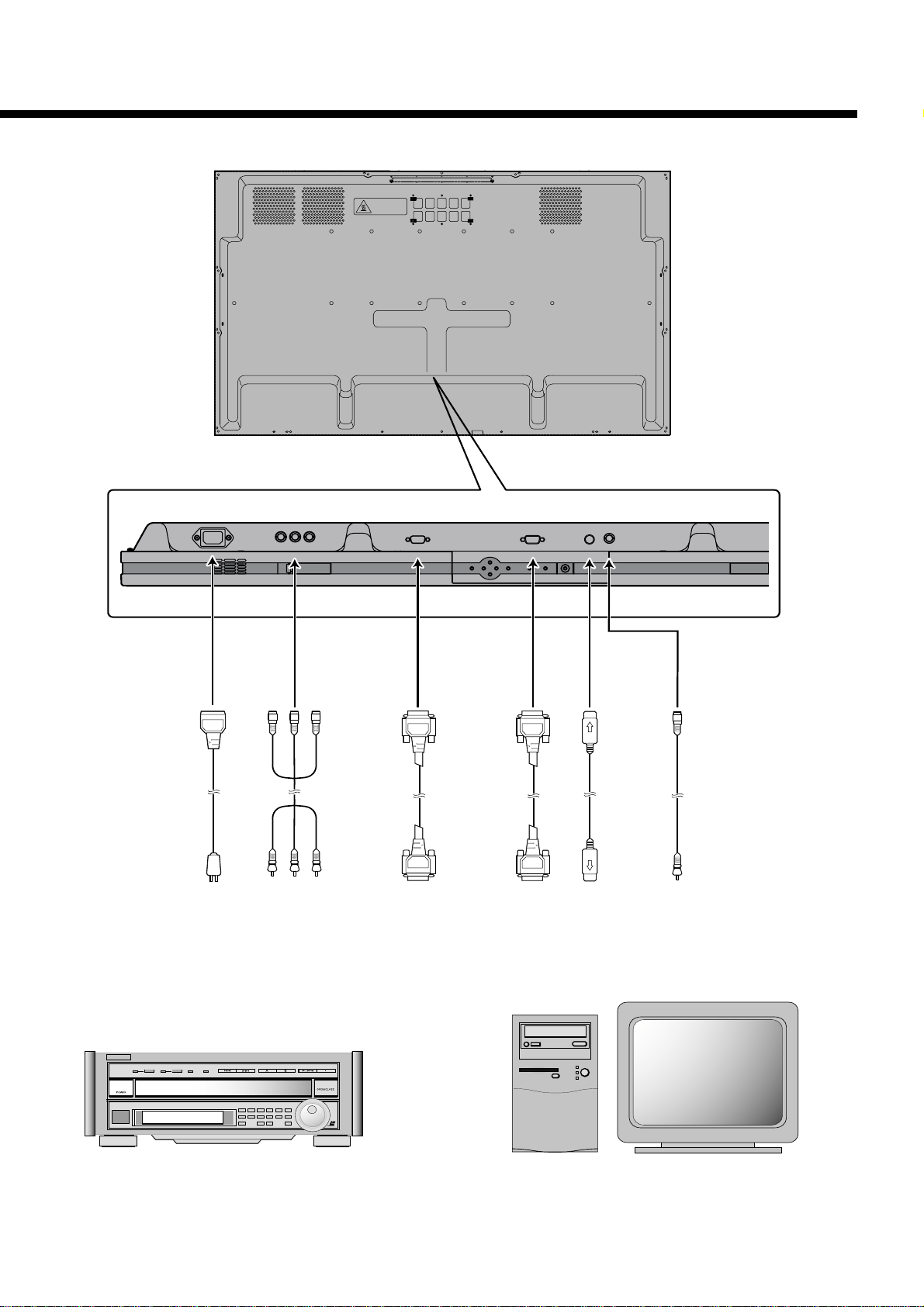

• Connecting the Display to External Equipment ··················································· 12–13

• Basic Operations ··············································· 14

• Selecting Input Mode ········································ 15

• Watching Pictures on the Wide Screen······ 16–17

• How to Use Menus ······································ 18–23

Adjustments

• Adjusting Pictures (PICTURE Menu) ·········· 24–25

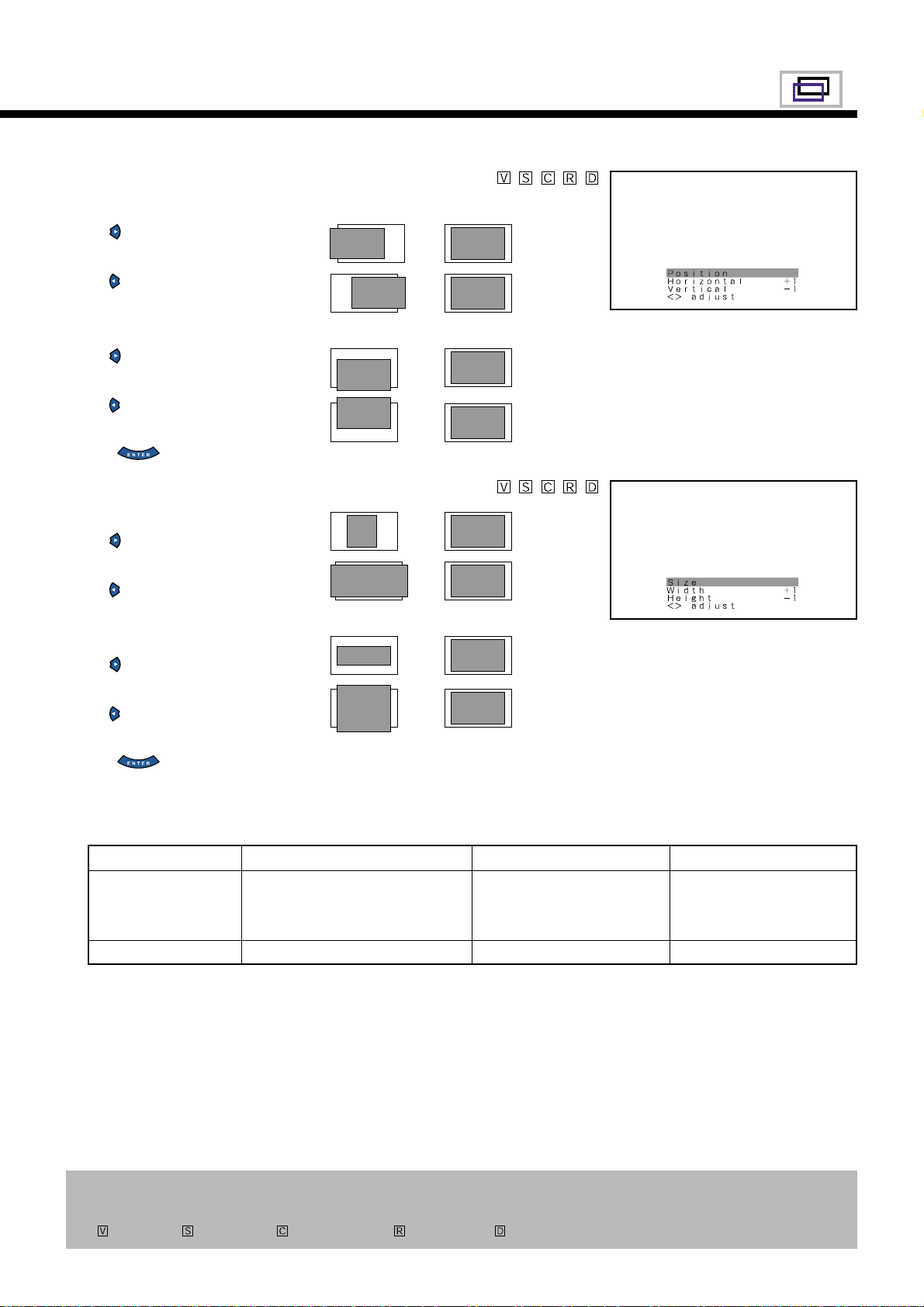

• Adjusting Screen Position and Size (POSITION/SIZE Menu) ······························· 26–27

• Other Adjustments (FEATURES Menu) ··· 28–35

• Initialization of user adjustment value (FACTORY DEFAULT) ········································ 36

Others

• Options ······························································· 37

• Factory Settings················································· 38

• Specification ······················································ 39

• Cleaning and Maintenance ······························· 40

Before using the display, read this manual carefully so that you know how to use the display correctly. Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the safety precautions. Keep this manual where the user can see it easily. * Installation and removal require special expertise. Consult your product dealer for details.

DECLARATION OF CONFORMITY

according to EN45014

Fujitsu General (U.K.) Co. Limited

Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS

Manufacturer: Shinjyo Fujitsu General Limited

702-3 Kanazawa Shinjyo-shi Yamagata Japan

declares under our sole responsibility that the product,

Type: 42” PLASMA DISPLAY Model Name: PDS4229W

to which this declaration relates are in conformity with the following standards;

European Standards:

EMC: a. EN55022 1994/A1:1995/A2:1997/A3:1998 Class A

b. EN61000-3-2 1995 c. EN61000-3-3 1995 d. EN55024 1998

(EN61000-4-2 1995 / EN61000-4-3 1996) (EN61000-4-4 1995 / EN61000-4-5 1995 / EN61000-4-6 1996) (EN61000-4-8 1993 / EN61000-4-11 1994)

Safety: e. EN60950 1992/A1:1993/A2:1993/A3:1995/A4:1997

By conformance with the standard referenced, the product follows

the provisions of the directives listed below.

a. EC Council Directive 89/336/EEC of 3rd, May 1989 b. EC Council Directive 92/31/EEC of 28th, April 1992 c. EC Council Directive 93/68/EEC of 22nd, July 1993 d. EC Council Directive 73/23/EEC of 19th, February 1973

Place of Issue: United Kingdom Date of Issue: Mar. 2001

Signature:

Declaration reference: Fujitsu General (U.K) Co. Limited

Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS Tel: 44-208-421-7000 Fax: 44-208-421-7029

H. Hirosaki, Chief Exective Officer Fujitsu General (U.K) Co. Limited

SAFETY PRECAUTIONS

FCC NOTICE

• PDS4229W: A Class A digital device This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IMPORTANT INFORMATION

WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these “Important Safeguards” carefully before use.

– All the safety and operating instructions should be read before the product is operated. – The safety and operating instructions should be retained for future reference. – All warnings on the product and in the operating instructions should be adhered to. – All operating instructions should be followed. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. – Do not use attachments not recommended by the product manufacturer as they may cause hazards. – Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes

condensation, which may result in fire, electric shock, or other hazards.

– Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious

damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount recommended by the manufacturer.

– When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces

which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

– Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and

protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or other similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.)

For proper ventilation, separate the product from other equipment, which may prevent ventilation, and keep distance more than 10 cm.

– This product should be operated only from the type of power source indicated on the label. If you are not sure of the type of power

supply of your home, consult your product dealer or local power company.

– This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug

into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

– Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay

particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

– For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it

from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.

– Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric

shock.

– Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that

could result in a fire or electric shock. Never spill liquid of any kind on the product.

– Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards.

Refer all service to qualified service personnel.

– Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen on the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the

Operation Manual, as an improper adjustment of other controls may result in damage and will often require extensive work by a

qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way. f) When the product exhibits a distinct change in performance—this indicates a need for service.

– When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with

same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

– Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the

product is in proper operating condition.

– The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products

(including amplifiers) that produce heat.

– When connecting other products such as VCR’s, and personal computers, you should turn off the power of this product for protection

against electric shock.

– Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special

hazards when overheated.

– Use only the accessory cord designed for this product to prevent shock.

The power supply voltage rating of this product is AC100–240 V, and the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC.

Use the standard power plug and cord set of the specified country. Consult your product dealer. When it is used with other power supply voltage, the power cable must be changed. Use the standard power plug and cord set of the specified country. Consult your product dealer.

Power supply voltage:

AC 100–125 V

(Included)

Power cord

AC 200–240 V

(Not included)

AC 240 V (SAA TYPE)

(Not included)

FEATURES

This display uses a plasma display panel and is only 8.5 cm deep. With its high picture quality and performance, it is perfectly suited for multimedia applications.

Variety of input signals

• In addition to video, S-video, and RGB (mD-sub Connector), signals, this display supports input of high-quality video signals such as

DVD and HDTV.

• Depending on the model, the display supports video input for different color television systems as follows: NTSC, PAL, SECAM,

PAL60,4.43NTSC.

• The display has a component video input terminal to receive signals from the DVD player and HDTV equipment as well as digital

broadcasting signals (color difference signals).

• The display has an RGB input terminal to receive signals, including VGA, SVGA, and XGA

5 screen sizes (Video and Decoder input mode) and 3 screen sizes (RGB-PC input mode)

• This display offers a total of five different screen sizes in video and Decoder input mode: Wide1, Wide2, Zoom1, and Zoom2.

A Normal mode is also available for displaying of normal-size (4:3 aspect ratio) pictures.

• Three different screen sizes in RGB-PC input mode (Normal, Wide, and Zoom) are also available.

• The 852 x 480 dot area can be selected from the 1024 x 768 dot display by switching to Zoom display with XGA (Vertical frequency

less than 75Hz) input.

Vertical installation

• The display can be installed vertically, enabling advertisement to be displayed. In this case, you can set up the display so that on-

screen information, such as input modes and menus, is displayed properly.

Power management function

• The display features a DPMS (Display Power Management Signaling) function that ensures automatic power saving capability.

Flexible as part of a system

• You can operate the display by remote control using the RS-232C interface.

• If you have two or more displays, you can assign a unique number to each of them so that you can select which one you want to use.

• Input Priority function for selecting automatic switching to desired mode is provided to avoid troublesome operation.

• Main unit key lock function can prevent mischief and malfunction.

Others

• Troublesome adjustment of clock phase can be avoided by automatic clock phase adjustment function (Automatic Clock Phase

function).

• You can specify the color temperature.

• The white screen and screen orbiter functions are available to minimize phosphor burn-in.

*1 The refresh rate of 60, 70, 75 Hz for XGA (1024 x 768) and those of 60, 72, 75 and 85 Hz for SVGA (800 x 600) are supported.

Note that the XGA and SVGA pictures will be smaller when displayed on the screen.

ACCESSORIES

CHECKING ACCESSORIES

One remote control Two AA batteries One user’s manual

Manual

One power cable

Two ferrite cores

HANDY TIPS

• Pictures may become “burnt” into the screen phosphors if the screen is left on for extended periods. To ensure that the display has a

prolonged service life, be sure to use a screen orbiter, white screen. This will ensure the same picture or pattern is not constantly displayed for long periods. (See P. 33.)

• The plasma display panel, which is built for maximum precision, provides more than 99.99% effective pixels. You may find, however,

that some pixels constantly remain lit or dimmed.

• The display has a fan to prevent its internal temperature from rising.

• Be careful with the air delivered by the fan. It may be very hot.

• Contact your dealer if you find that the display does not seem to function properly when used with other audio-visual equipment.

You may need to move your display if it produces degraded pictures or noise due to electromagnetic radiation, or if the infrared remote control does not function properly.

• Pictures may not be displayed properly if you connect a non-standard PC to the RGB input terminal. In this case, contact your dealer

for more information.

• The protective circuit, built into the display, automatically turns off the power if the display has a problem. In this case, you will see

that the power indicator lamp flashes red.

Warning

If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle to prevent fire or electric shock. Then, check the display in accordance with the instructions given on P. 40, or contact your dealer.

• Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.5 m or 5 feet)

from the screen and to look occasionally away while working.

• Have the display inspected and cleaned by your dealer at regular intervals.

Information

Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these products.

INSTALLATION

To prevent the display’s internal components from overheating, make sure that the display is installed in a well-ventilated location. Be sure to use the optional stand, wall-mounting unit or the other unit when installing the display. Also, be also sure that your dealer

performs the installation. See the appropriate instruction manual for more information on the installation hardware you select. To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below. To ensure proper heat radiation, provide at least as much space around the display as shown below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C. * Never attempt to tilt the display sideways or backward. * To prevent the power and other cables from being accidentally pulled, make sure that they run along the wall or through corners. * The display can be installed with either of its sides facing down.

When using the stand

Front Side

Upper

(cm) (cm)

1. 5

Left

Floor

Right

When using the wall-mounting unit (horizontal type)

Front Side

(cm) (cm)

Left

Upper

Lower

Right

Wall mounting unit

Wall

Floor

When using the wall-mounting unit (vertical type)

Front Side

Upper

Wall

1.5

Left

Lower

(cm)

Wall mounting unit

Right

(cm)

Wall

1. 5

* When installing the display vertically, be sure to rotate

the text.(Refer to OSD Rotate. See P.30) and setup vertical installation. (Refer to Installation. See P.35)

Note

The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing materials originally supplied with the display when repacking it.

Reference

See P. 37 for more information on options.

PART NAMES AND FUNCTIONS

Front

Control Panel (bottom)

56 978

1 Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Standby Lit (green): Power ON Lit (orange): Power saving (DPMS: Power saving

function) mode ON

Flashing (red): Malfunction (Flashes differently depending

on the type of malfunction. See P. 40 for more information.)

2 Remote control signal receiver

Receives signals from the remote control.

3 Power button [POWER]

Turns the power ON or OFF.

4 Input mode selector button [MODE]

Switches between picture input modes.

5 Wide screen selector button [WIDE]

Switches the screen over to a desired wide screen.

6 Menu button [MENU]

Displays picture adjustment menus.

7 Adjustment buttons [

The [

/ ] buttons can also be used to scroll through options

when a menu is displayed.

8 Adjustment buttons [

The [

/ ] buttons can also be used to scroll through options

in a menu, or to change values.

9 Set button [ENTER]

Press this button to finalize the selection of a desired option in a menu.

/ ]

Warning

If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.

PART NAMES AND FUNCTIONS (Continued)

Bottom

12 3 4 5 6

1 Video input terminal (VIDEO INPUT)

Connect this terminal to the video output terminal of your VCR or video disk player.

2 S-video input terminal (S-VIDEO INPUT)

Connect this terminal to the S-video output terminal of your VCR or video disk player.

3 RS-232C terminal (RS-232C)

This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.

When connecting a cable, attach a ferrite core to the cable. (See P. 12.)

* No RS-232C cable is supplied with the display. The type of cable to be used varies depending on the PC model. Contact your

dealer for more information.

4 RGB input terminal (RGB INPUT/mD-sub)

Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.

* No RGB cable is supplied with the display. The type of cable to be used varies depending on the PC model. Contact your dealer

for more information.

5 Component video input terminal (COMPONENT VIDEO INPUT)

Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.

When connecting a cable, attach a ferrite core to the cable. (See P. 12.)

6 Power input terminal

Connect this terminal to the power cable supplied with the display.

Description of Input Terminals

RGB input terminal (RGB INPUT/mD-sub)

RS-232C terminal (RS-232C)

Pin No. Input signal Pin No. Input signal

1 Red 9 — 2 Green 10 Ground 3 Blue 11 — 4 — 12 — 5 Ground 13 Horizontal synchronization (TTL) 6 Ground 14 Vertical synchronization (TTL) 7 Ground 15 — 8 Ground Frame Ground

Pin No. Signal

1 DCD (Data Carrier Detect) 2 RD (Received Data) 3 TD (Transmit Data) 4 DTR (Data Terminal ready) 5 GND (Ground) 6 DSR (Data Set Ready) 7 RTS (Request To send) 8 CTS (Clear To Send) 9 RI (Ring Indication)

PART NAMES AND FUNCTIONS (Continued)

Remote Control

1 Power ON button [POWER ON] ➝ (See P. 14.)

5 4

Turns the power ON.

2 Power OFF button [POWER OFF] ➝ (See P. 14.)

Turns the power OFF.

3 RGB input mode selector button [RGB] ➝ (See P. 15.)

Switches between RGB input modes.

4 Video input mode selector button [VIDEO] ➝ (See P. 15.)

Switches between video input modes.

5 Wide screen selector button [WIDE] ➝ (See P. 16–17.)

Switches the screen over to a desired wide screen.

6 Menu button [MENU] ➝ (See P. 18–36.)

Use this button to display a desired menu for adjusting the picture.

7 Volume adjustment buttons [VOL +/-]

Unused.

8 Adjustment buttons [

Use these buttons to scroll through options in a menu and change values.

9 Enter button [ENTER] ➝ (See P. 18–36.)

Press this button to finalize the selection of a desired menu or option within a menu.

0 Display selector buttons [SHIFT 1–4] ➝ (See P. 34 .)

When you use two or more displays, you can use these buttons to control up to four displays by assigning a unique number to each display.

/ / / ] ➝ (See P. 18–36.)

PUTTING BATTERIES IN THE REMOTE CONTROL

1 To remove the cover, slide it

outwards while pressing it down.

Note

The remote control will not function properly if the batteries are dead. Be sure to replace them as needed. Make sure that you use replace the batteries with new ones; also, be sure to use replacement batteries of the same type as the original ones.

2 Place two AA batteries in the

remote control. Make sure that the batteries are properly oriented.

3 Close the cover until it snaps into

place.

USING THE REMOTE CONTROL

PRECAUTIONS

To prevent malfunction, be sure not to apply any form of severe shock to the remote control.

To prevent malfunction or deformation, be sure not to allow the remote control to become wet; also, keep it away from hot locations or heating equipment.

Be sure not to clean the remote control using a cloth dampened in any volatile solvent, such as benzene or thinner.

EFFECTIVE RANGE FOR THE REMOTE CONTROL

Point the remote control at the display’s signal receiver when using it. Make sure that there are no obstacles between the remote control and the display’s signal receiver.

30°

5 m (Front)

30°

Upper

20°

Lower

RigntLeft

Information

The remote control may not function properly if you use a high-frequency fluorescent lamp. If you experience problems, move the lamp or use the remote control from a different position.

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

Be sure to turn OFF the power to the display and external equipment before making any connections. No cables are supplied with the display for connection to external equipment. The type of cable to be used varies depending on the PC

model. Contact your dealer for more information.

RECEPTACLE

Make sure that the power cable’s grounding wire is grounded. The display comes with a 3-prong power plug; one prong is connected to the grounding wire. If you have only a 2-hole receptacle, you

will need to have it replaced. Contact your dealer for more information.

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

Carefully check the terminals for position and type before making any connections. Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

Terminal Connector

VIDEO INPUT BNC S-VIDEO INPUT S terminal COMPONENT VIDEO INPUT BNC x 3 RGB INPUT mD-sub 15-pin RS-232C D-sub 9-pin

Ferrite cores

These ferrite cores are used to attenuate undesired signals.

Two ferrite cores

When connecting a cable to the component video input terminal, RS-232C terminal, attach one of these ferrite cores to the cable near the terminal.

Ferrite core

POWER INPUT

COMPONENT VIDEO INPUT (color difference input)

RGB INPUT RS-232C

S-VIDEO INPUT

VIDEO INPUT

To receptacle To video

To color

difference

output

terminal

To display

(analog

RGB) output

terminal

To RS-232C

output

terminal

Connection to AV equipment

To S-video

output

terminal

Connection to PC

output

terminal

BASIC OPERATIONS

TURNING ON THE POWER

Press on the remote

control.

When you do so, the power indicator lamp turns green.

Press or to select a desired input mode.

* You can also use the

switches on the display’s control panel to accomplish these steps.

TURNING OFF THE POWER

Press when the power is ON.

The power indicator lamp turns red.

SELECTING INPUT MODE

VIDEO INPUT MODE

Press to select a desired input mode.

Each time you press , a different input mode appears. The sequence is as follows:

* You can also use the

switches on the display’s control panel to accomplish these steps.

RGB INPUT MODE

Video: Displays pictures from equipment

connected to the Video terminal.

S-video: Displays pictures from equipment

connected to the S-video terminal.

Comp.video: Displays pictures from equipment

connected to the component video input terminal.

* You can switch between video input modes

while you are in RGB input mode.

Press to select a desired input mode.

Press the to switch to RGB mode. RGB: Displays pictures from equipment

connected to the RGB (mD-sub) terminal.

* You can switch between RGB input modes

while you are in a video input mode.

S-video mode

Comp.video mode

RGB mode

* You can also use the

switches on the display’s control panel to accomplish these steps.

WATCHING PICTURES ON THE WIDE SCREEN

SWITCHING BETWEEN SCREEN SIZES

* You can also use the

switches on the display’s control panel to accomplish these steps.

Press .

The currently selected mode will appear.

Press to select a desired picture mode.

Each time you press , a different picture mode appears. The sequences used are as follows:

When you are in a video and Decoder input mode

When you are in an RGB-PC input mode

* Depending on the type of signal, some aspects

may not be selected.

Normal mode

Wide1 mode

Note

• Displaying a picture in a 4 x 3 mode for extended periods of time may cause phosphor burn-in.

• A variety of picture modes are available with this display. Remember that if you select a mode with an aspect ratio (ratio of frame width to frame

height) different from that of the TV program or video media, the pictures will appear differently than if you had selected a mode having the same aspect ratio.

• Showing a movie or similar premium event at a different aspect ratio from its original one at any event site, restaurant, or bar for profit-making

purposes or for a public audience may constitute a copyright infringement. For films, try to select a mode having the same aspect ratio as the original picture; this enables the director’s original intentions to be preserved.

Reference

See P. 26–27 for how to adjust the picture size and position.

SCREEN SIZE

Normal

Displays pictures of normal size (i.e., a 4:3 aspect ratio).

Wide1

Displays natural-looking pictures of standard size on the wide screen.

Wide2/Wide

Ideal for displaying vertically extended pictures such as squeezed pictures and recorded HDTV programs.

Zoom1/Zoom

Enlarges horizontally extended pictures equally in all directions to maintain the aspect ratio constant.

Zoom2

Reduces the height of horizontally extended pictures with captions, without eliminating the caption. Only the height of pictures is reduced, not the height of the caption.

(Captions may not be easy to read, however, depending on the picture.)

ASPECT RATIO

The following aspect ratios are available.

Picture of

standard size

Vertically

extended picture

Horizontally

extended picture

Horizontally extended

picture with caption

Wide1

Wide2

Zoom1

Zoom2

4:3 aspect ratio (VHF/UHF broadcasting, BS broadcasting)

1.85:1 aspect ratio (Vista V ision size)

Information

You may find dark areas on top and at the bottom of the screen if you select one of the Zoom modes for media while using the Vista Vision or Cinema Vision size i.e., the sizes used frequently for picture software.

1.85

16:9 aspect ratio (HDTV broadcasting)

2.35:1 aspect ratio (Cinema Vision size)

2.35

HOW TO USE MENUS

SELECTING OPTIONS IN A MENU

Use the [MODE] button on the display or and on the remote control to select a desired input mode.

Press .

The main menu screen will appear.

Press or to switch between sub-menus.

Each time you press or , one of the available menus appears. The corresponding menu screen will appear.

Press or to select an option for adjustment/setup.

Ex.: “PICTURE” selected in the main menu screen

A total of three different menus (PICTURE, POSITION/SIZE, FEATURES, FACTORY DEFAULT) are available. You can easily distinguish between these menus as shown below.

PICTURE POSITION/SIZE FEATURES FACTORY DEFAULT

*Press , , or to make adjustment/setup, and press to store. * Do not change input signals when any of the menus are displayed.

USING THE PICTURE MENU

When you finish selecting a desired option in the PICTURE menu screen, press . At this time, the adjustment/setup screen for that option will appear. You can use or to change the value for the option. Press to store. (See P. 24–25.) Changes you make will be stored only for the selected mode.

PICTURE Menu screen (Video Input Mode) PICTURE Menu screen (RGB Input Mode)

Option

(1) Contrast

(2) Brightness

(3) Color (for Video, S-video, Comp.video)

(4) Tint (for Video, S-video, Comp.video)

(5) Sharpness

(6) Gamma

(7) Color Temp. (8) User Color Temp.

Function

Adjusts picture contrast.

Adjusts screen brightness.

Adjusts color darkness.

Adjusts tint.

Adjusts picture sharpness.

Makes gamma correction.

Adjusts color temperature. Can set up when User is

selected in Color Temp.

Operation

: Higher contrast : Lower contrast

: Brighter screen : Darker screen

: Darker colors : Lighter colors

: More greenish colors : More purplish colors

: Sharper pictures : Less sharp pictures

Use or for switching.

Use or for switching. Press

Green or Blue and press to make adjustment.

or to select Red,

Range

-30 to +30

-60 to +60

-30 to +30 (Video, S-video)

-60 to +60 (Comp.video)

-16 to +16 (Video, S-video, Comp.video, Decoder)

-4 to +4 (RGB-PC) Video, S-video, Comp.video

Dynamic1/Dynamic2/ Dynamic3

RGB

Dynamic1/Dynamic2/

Dynamic3/Static Warm/Standard/Cool/User 0 to 255 for each of Red,

Green and Blue

USING THE POSITION/SIZE MENU

When you finish selecting a desired option in the POSITION/SIZE menu screen, press When you do so, the adjustment screen for that option appears. Press Changes you make will be stored only for the selected mode.

POSITION/SIZE Menu screen

or to select option and press or to make adjustment. Press to store. (See P. 26–27.)

“Position” adjustment screen

Option

(1) Position

Horizontal

(2) Size

Width

Height

Function

Adjusts screen position. Adjusts horizontal position.

Adjusts vertical position.Vertical

Adjusts screen size. Adjusts width.

Adjusts height.

Operation Range

: Moves screen to the right. : Moves screen to the left.

: Moves screen up. : Moves screen down.

: Increases width.

: Reduces width. : Increases height.

: Reduces height.

Video, S-video

Horizontal: -30 to +30

Vertical

Zoom: -15 to +15 Others: -7 to +7

Comp.video: -16 to +16

1080i,720p: -32 to +32 RGB: -150 to + 150

Video, S-video: -7 to +7 Comp.video: -4 to +4 RGB: -25 to +50

HOW TO USE MENUS (Continued)

USING THE FEATURES MENUS

• FEATURES setup screen has 5 options of Adjustment, Function, On Screen, Input Terminal and Others.

• Options with “ ” on the right

When you select an option with “ ”, press . The adjustment/setup screen for that option appears.(See P. 28–36.) You can use

• Options with no “ ” on the right

When you select an option with no “ ”, press or to make selections or changes. Press to store. (See P. 28–36.)

FEATURES Menu

or on this screen to make selections or changes.Press to store.

FEATURES Menu screen (RGB Input Mode)

On Screen Menu screen Input Terminal Menu screen Others(1/2) Menu screen

Adjustment Menu screen Function Menu screen

Adjustment Menu (See P. 29.)

Option

(1) Dot Clock (for RGB)

(2) Clock Phase (for RGB)

(3) Vertical Sync (for RGB)

(4) Clamp Position (for Comp.video, RGB)

(5)Auto Calibration (for RGB)

Function

Adjusts the dot clock.

Adjusts clock phase.

Corrects vertical synchronization signal.

Adjusts clamp pulse phase.

Selects the optimum dynamic range of images.

Operation

Eliminates blur when the optimum value is selected with

or .

Eliminates blur when the optimum value is selected with

or .

Use

or to select the optimum value for eliminating flicker.

Use

or for switching.

Display Auto Calibration screen and press Select Execute, and select Yes and press Auto Calibration.

to execute.

to execute

Range

-60 to +60

Auto/Manual (Can adjust 1 to 32 for

Manual)

-1 to +1

-8 to 8

Execute Yes/No

Function Menu(See P. 30.)

Option

(1) Gradation (for RGB)

Function

Makes gradation correction.

On Screen Menu(See P. 30)

Option

(1) OSD

(2) OSD Rotate

(3) Language

Function

Selects whether to display information other than menus.

Rotates on-screen text.

Selects language used for menus.

Input Terminal Menu(See P. 31–32.)

Option

(1) Video Input (for Video)

(2) S-Video Input (for S-video)

(3) BNC Input

(4) D-SUB Input

Function

Selects video mode.

Can set up Mask of BNCInput (Comp. Video Input)

Selects D-SUB Input signal.

Operation

Use

or for switching.

Operation

Use

or for switching.

Use or for switching.

Display the “Language” selection screen and use

to select a language. Press to display menus in the selected language.

Operation

Use

or for switching.

Use or for switching.

Display D-SUB Input screen and press or to select an option.

or for switching.

Use Use Function to select Decoder and set up Mask.

Range

Motion/Still

Range

On (displayed) Off (not displayed)

-90 Deg. (counterclockwise)/ Normal/ +90 Deg. (clockwise)

English Deutsch (German) Español (Spanish) Français (French) Italiano (Italian) Português (Portuguese)

Range

Auto/NTSC/PAL/SECAM/ PAL60/4.43NTSC

Mask off/5/10/15

Function RGB-PC/Decoder

Mask off/5/10/15

HOW TO USE MENUS (Continued)

Others Menu

Others Menu screen is divided into the following two screens.

Others(1/2) Menu screen

Option

(1) DPMS

(2) Screen Orbiter (for RGB)

(3) Input Priority

(4) Monitor No.

(5) Direct Setting (for RGB)

(6) Code Setting (for RGB)

(7) White Screen (for RGB)

(8) Exhibitation Mode

(9) Installation

(10) Key Lock

(11) Information

Others(2/2) Menu screen

Function

Specifies time before DPMS starts. Can specify the background color when specifying time.

Sets up screen orbiter.

Specifies input mode of highest priority.

Selects display number.

Selects input signal.

Specifies and displays type of input signal directly.

Sets up to display white over the entire screen.

Sets up Exhibition mode.

Sets up whether horizontal or vertical installation.

Locks the main unit button.

Displays system operation status.

Operation

Display DPMS screen and press

or to select an option.

or for switching.

Use Can specify background by setting time to other than Off. Press to store.

Display the “Screen Orbiter” adjustment screen and use

to select an option.

or to switch between

Use available choices for the selected option.

Use or for switching.

Display Code Setting screen and press option. Select Manual to set up Parameter.

Use

Use or for switching.

Display the “Information” screen.

or to select an

or for switching.

Range

Time

Off (disabled)/1 min./ 15 min./45 min./60 min. Background

Black/White

Mode/Time

Off (disabled)

Time (every 1 hr)

Mode (every time mode is

switched)

Moving area

Min.(moves in small range)

Std.(moves in moderate

range)

Max. (moves in wide range) Off/RGB/Video/S-video/

Comp.video 0 (no setup)

1/2/3/4 Auto/VGA/WVGA/480P/

XGA Auto/Manual

On /Off(disabled)

On (Exhibition mode)/ Off(disabled)

Horizontal/Vertical

On (Key Lock)/ Off(disabled)

Display only

USING THE FACTORY DEFAULT MENU

• Select FACTORY DEFAULT and execute to restore the adjustment/setting made in the MENU to factory settings. (See P. 36.)

FACTORY DEFAULT Menu screen Yes/No selection screen

Option

FACTORY DEFAULT

Function

Restores the adjustment/ setting made in the MENU to factory settings.

Operation

Select Execute and Yes, and press ENTER to restore factory settings.

Range

Yes/No

ADJUSTING PICTURES (PICTURE MENU)

BASIC OPERATIONS [EX.: ADJUSTING TINT (Tint)]

You can make changes to all picture adjustment options in the PICTURE Menu. The changes you make will be stored for a selected input mode. Therefore, you need to select a desired input mode before making any

changes.

* You can also use the

switches on the display’s control panel to accomplish these steps.

Press .

The main menu screen will appear.

Press or to select “PICTURE”.

Each time you press or , one of the available menus appears in the following sequence:

PICTURE POSITION/SIZE FEATURES FACTORY DEFAULT

The PICTURE Menu screen will appear.

Press or to select “Tint”.

Press

The “Tint” adjustment screen will appear.

“PICTURE” selected in the main menu screen

“Tint” selected in the PICTURE Menu screen (Video Input Mode)

Press or to change tint values.

: More greenish colors : More purplish colors

Press to store.

Press

* Repeat steps 3, 4, 5, and 6 when you wish to

make changes to other options.

when you finish.

“Tint” adjustment screen

• Adjusting Contrast (Contrast)

Any value between -30 and +30 can be selected.

: Higher contrast

: Lower contrast

Press to store.

• Adjusting Screen Brightness (Brightness)

Any value between -60 and +60 can be selected.

: Brighter screen

: Darker screen

Press to store.

• Adjusting Color Darkness (Color)

Any value between -60 and +60 can be selected.

: Lighter colors

: Darker colors

Press to store.

• Adjusting Tint (Tint)

Any value between -30 and +30 for [ ], and -60 and +60 for [ ] can be selected.

: More greenish colors

: More purplish colors

Press to store.

• Adjusting picture Sharpness (Sharpness)

Any value between -16 and +16 for [ ], and -4 and +4 for [ ], can be selected.

: Sharper pictures

: Less sharp pictures

Press to store.

• Making gamma correction(Gamma)

You can use this option to make a dynamic gamma correction suitable for still or motion pictures. Each time you press or , one of the available choices appears in the following sequence:

Dinamic 1, 2, 3: Suitable for watching a motion picture.(Use either of better picture quality.)

Static: Suitable for watching a still picture. Press to store. * Can select Static only in RGB mode.

• Adjusting Color Temperature (Color temp.)

Use or to specify a desired color temperature. Each time you press or , one of the available choices appears in the following sequence:

Warm: More reddish colors

Standard:Standard color temperature

Cool: More bluish colors

User: User Color Temp. setup

• Setting User Color Temp. (User Color Temp.)

Can set up when User is selected in Color Temp. Press or to select Red, Green or Blue and press or to make adjustment in the range of 0 to 255. * Color Temp. setup is switched to User. The initial value of User Color Temp. is adjusted

individually at the factory.

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

User Color Temp.adjustment screen

ADJUSTING SCREEN POSITION AND SIZE (POSITION/SIZE MENU)

BASIC OPERATION [EX.: ADJUSTING HORIZONTAL DIRECTION OF SCREEN POSITION

You can make changes to all screen adjustment options in the POSITION/SIZE Menu. The changes you make will be stored for the selected input mode. Therefore, you need to select a desired input mode before making any

changes.

Press .

The main menu screen will appear.

Press or to select “POSITION/SIZE”.

Each time you press or , one of the available menus appears in the following sequence:

PICTURE POSITION/SIZE FEATURES FACTORY DEFAULT

The POSITION/SIZE Menu screen will appear.

Press or to select “Position”.

“POSITION/SIZE” selected from the main menu screen

]

* You can also use the

switches on the display’s control panel to accomplish these steps.

Press

The “Position” adjustment screen will appear.

Press or to select “Horizontal” values of screen position.

Press

The “Horizontal” adjustment screen will appear.

Press or to change horizontal values.

: Moves screen to the right. : Moves screen to the left.

Press to store.

“Position” adjustment screen

Press

* Repeat steps 3 to 8 when you wish to make

changes to other options.

when you finish.

Adjusting Screen Position (Position)

Horizontal position (Horizontal)

: Moves screen to the right.

→

: Moves screen to the left.

Vertical position (Vertical)

: Moves screen up.

: Moves screen down.

Press to store.

Adjusting Screen Size (Size)

Screen width (Width)

: Increases width.

: Reduces width.

Screen height (Height)

: Increases height.

: Reduces height.

→

“Position” adjustment screen

→

“Size” adjustment screen

→

Press to store.

Setting Range

Video, S-video mode

Position

Size

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

Horizontal: -30 to +30 Vertical

Zoom: -15 to +15 Others: -7 to +7

-7 to +7

Comp.video mode

-16 to +16

-32 to +32(for1080I,720P)

-4 to +4

RGB mode

-150 to +150

-25 to +50

OTHER ADJUSTMENTS (FEATURES MENU)

BASIC OPERATION [EX.: SELECTING LANGUAGE (Language)]

You can make the following changes in the FEATURES Menu.

* You can also use the

switches on the display’s control panel to accomplish these steps.

Press .

The main menu screen will appear.

Press or to select “FEATURES”.

Each time you press or , one of the available menus appears in the following sequence:

PICTURE POSITION/SIZE FEATURES FACTORY DEFAULT

The FEATURES Menu screen will appear.

Press or to select "On Screen Menu".

• Select a desired option for adjustment/setup from Adjustment, Function, On Screen Menu, Input Terminal and Others.

Press .

• On Screen Menu appears.

“FEATURES” selected in the main menu screen

On Screen Menu screen

Press or to select “Language”.

Press

The “Language” selection screen will appear.

Press or to select the language.

Press

The menu is displayed in the selected language.

Press when you finish.

* Repeat steps 3 to 8 when you wish to make changes

to other options.

“Language” selection screen

• FEATURES setup screen has the following 5 options.

Adjustment : Can make a fine adjustment of pictures such as Dot clock, Clamp position. Function : Can make a function setting such as Gradation. (See P. 30.) On Screen Menu : Can make a display setting such as OSD, Language. (See P. 30) Input Terminal : Can make an input terminal setting such as Video Input. (See P. 31 - 32.) Others : Can make other settings. (See P. 32 - 35.)

ADJUSTMENT

• Adjusting Dot Clock (Dot clock)

You may find that pictures blur, depending on the clock frequency of your PC’s processor. If you experience blurring, you can obtain a clearer picture by adjusting the “Dot Clock”.

Use or to select a value between -60 and +60. Press to store.

• Adjusting Clock Phase (Clock Phase)

You may find that pictures blur, depending on the clock phase of your PC’s processor. If you experience blurring, you can obtain a clearer picture by adjusting the “Clock phase”.

Use or to select "Auto" or "Manual".

Auto: Makes automatic adjustment. Manual: Does not make automatic adjustment.

Use or to specify a value between 1 and 32.

Press to store.

When selecting Manual by Clock Phase

• Eliminating Flicker (Vertical Sync)

Corrects the vertical synchronization signal timing to eliminate vertical flicker. Use or to specify a value between -1 and +1. Press to store.

• Adjusting Clamp Position (Clamp Position)

Adjusts clamp pulse in accordance with the input signal received from connected equipment. Clamp pulse is automatically set at the optimal level when you do not use this option. Use or to specify a value between -8 and 8. Press to store.

• Selecting the Optimum Dynamic Range of Images (Auto Calibration)

Receives a white screen signal and adjusts the dynamic range of images to the optimum. (1) Select Auto Calibration and press .

Auto Calibration screen appears.

(2) Select Execute and press .

Press or to select Yes or No. Yes: Stores the data of Auto Calibration. No: Disables the execution result of Auto Calibration.

(3) Press to execute.

"Auto Calibration" setting screen

"Yes/No" selection screen

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

OTHER ADJUSTMENTS (FEATURES MENU)

FUNCTION

• Correcting gradation (Gradation)

You can use this option to make gradation corrections suitable for still or motion pictures. Each time you press or , one of the available choices appears in the following sequence:

Motion Still

Motion : Suitable for watching motion pictures. Still : Suitable for watching still pictures.

Press to store.

ON SCREEN MENU

• Setting Display Information (OSD) All modes

You can use this option to select whether to display information other than menus. (Error messages are displayed regardless of what choice you make for this option.)

Each time you press , one of the available choices appears in the following sequence:

On Off

On : Displays all information. Off : Displays only menus and error messages.

Press to store.

(Continued)

• When rotating text (for installing the display with one of its sides facing down)

Rotating text (OSD Rotate) All modes

You can use this option to rotate the text. Each time you press or , one of the available choices appears in the following sequence:

-90 Deg. : Displays text from left to right when the display is installed with the power indicator lamp at the top. Normal : Displays text normally. +90 Deg. : Displays text from left to right when the display is installed with the power indicator lamp at the bottom.

Press to store.

• Selecting Language (Language) All modes

You can use this option to select the language displayed on the screen. (1) Select “Language” and press .

The “Language” selection screen will appear.

(2) Press or to select your desired language.

English Deutsch (German) Español (Spanish) Français (French) Italiano (Italian) Português (Portuguese)

(3) Press .

The menu is displayed in the selected language.

"Language" selection screen

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

INPUT TERMINAL

• Selecting Video Mode (Video Input)

You can use this option to select the desired video mode of pictures it will receive to the Video Input terminal.

Each time you press or , one of the available modes appears in the following sequence:

Auto: Automatically selects the video system. (Does not automatically select other signal than NTSC, PAL and SECAM.) Other than Auto: You need to select a system appropriate to the input signal. Press to store.

• Selecting Video Mode (S-Video Input)

You can use this option to select the desired video mode of pictures it will receive to S-Video Input terminal.

Each time you press or , one of the available modes appears in the following sequence:

Auto: Automatically selects the video system.

(Does not automatically select other signal than NTSC, PAL and SECAM.) Other than Auto: You need to select a system appropriate to the input signal. Press to store.

• Masking BNC Input (Comp. Video Input) (BNC-Input) All modes

You can use this option to mask the signal it will receive to BNC-Input Terminal(Comp. Video Input).

Each time you press or , one of the available choices appears in the following sequence:

Off: Does not mask.

Number: Masks the fringe (top, bottom, right and left) of the screen by the number of pixels

specified. Press to store.. * Depending on the input signal, unnecessary information may be displayed in the fringe of the

screen. Setup mask if you do not want to see such information.

"BNC-Input" selection screen

23456789012345678901234567890

This fringe part is masked.

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

OTHER ADJUSTMENTS (FEATURES MENU)(Continued)

INPUT TERMINAL

• Selecting D-SUB Input (D-SUB Input) All modes

You can use this option to select the signal system it will receive to D-SUB Input terminal. (1) Select D-SUB Input and press .

D-SUB Input screen appears.

(2) Select the signal system to receive.

Each time you press or , one of the available choices appears in the following sequence:

RGB-PC Decoder

RGB-PC: For using RGB for PC

Decoder: For using digital broadcast tuner (3) Press or to select Function. (4) Select Decoder by FUNCTION to set up Mask.

Each time you press or , one of the available choices appears in the following sequence:

Off: Does not mask.

Number: Masks the fringe (top, bottom, right and left) of the screen by the number of pixels specified. (5) Press to store.

"D-SUB Input" selection screen

OTHERS MENU

• Selecting time before DPMS starts (DPMS) All modes

You can use this option to select the amount of time before the DPMS function starts. DPMS (which stands for “display power management signaling”) allows the display to maintain an

automatic power saving function. This function causes on-screen information to disappear until the next input operation, if the power

is ON and the display has not received any signals for the predetermined period of time. When DPMS is active, the power indicator lamp turns orange.

(1) Select DPMS and press .

DPMS screen appears. (2) Press or to select Time. (3) Each time you press or , one of the available choices appears in the following sequence:

Off: Disables DPMS

Number: Approximate time before DPMS starts. (Unit: minutes) * The power indicator lamp turns orange while the DPMS is ON. * The power turns ON automatically when the display receives a signal. (4) Can specify background color.

Press or to select background color.

Each time you press or , one of the available choices appears in the following sequence:

Black White

Black: Mutes images in Black background.

White:Mutes images in White background. * Switches approx. 20 seconds after the display stops receiving signals. (5) Press to store.

DPMS selection screen

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

• Minimizing phosphor burn-in (Screen Orbiter)

You can use this option to move the screen position to minimize phosphor-induced “burning”. Follow the steps below. (1) Select “Screen Orbiter” and press .

The “Screen Orbiter” setting screen will appear. (2)Press or to select “Mode/Time”. (3)Select a desired pattern.

Each time you press or , one of the available choices appears in the following sequence:

Off: Disables Screen Orbiter.

Time: Moves the pattern approximately every one hour.

Mode: Moves the pattern when the power is turned ON or when you switch between modes. (4)Press or to select “Moving Area”. (5) Press or to select the range for moving the pattern.

Each time you press or , one of the available choices appears in the following sequence:

Min.: Pattern moves in small range. (About 5 pixels)

Std.: Pattern moves in moderate range. (About 10 pixels)

Max.: Pattern moves in wide range. (About 15 pixels) (6) Press to store.

“Screen Orbiter” setting screen

Using screen protection functions (examples)

The screen protection functions minimize phosphor burn-in but cannot completely eliminate it.

When using the display occasionally

• Select a desired amount of time for “DPMS”. Thus, when the display does not receive a signal, it will automatically display white or black over the entire screen. When the predetermined time elapses, the power will turn OFF.

• Input mode of priority (Input priority) All modes

You can use this option to switch between modes only when a signal is received through the selected input mode terminal. You cannot switch the input mode.

Each time you press or , one of the available choices appears in the following sequence:

Off: Switches between modes normally. Other modes: Displays pictures when a signal is received through the selected input mode terminal.

Press to store.

When using the display continuously

When switching between RGB and video input modes only occasionally

(1) Select “Time” for “Mode/Time” with “Screen Orbiter”. (2) Select a desired range for “Moving Area” with “Screen Orbiter”.

This causes the screen saver pattern to move in the same range at regular intervals.

When switching between RGB and video input modes frequently

(1) Select “Mode” for “Mode/Time” with “Screen Orbiter”. (2) Select a desired range for “Moving Area” with “Screen Orbiter”.

When the mode is switched from Video to RGB, the display position moves.

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

OTHER ADJUSTMENTS (FEATURES MENU)(Continued)

• Assigning Numbers to Displays (Monitor No.) All modes

When you use two or more displays, you can use a single remote control to control individual displays by assigning a unique number to each of the displays.

Each time you press or , one of the available numbers appears in the following sequence:

0: You can normally control displays.

You cannot control displays if you press any of [SHIFT 1] through [SHIFT 4].

1–4: Allows you to control a desired display by pressing the corresponding button (one of

[SHIFT 1] through [SHIFT 4]). When you do not press any of the SHIFT buttons, you can control all displays. Press to store. * You can check the “Monitor No.” on the Information screen.

• Setting RGB Input Signal Compulsorily (Direct Setting)

You can use this option to switch the setting for RGB input signal. Each time you press or , one of the available choices appears in the following sequence:

Auto: Automatically displays the input signal to the optimum. VGA: Fixes the setting for the optimum resolution for VGA. WVGA:Fixes the setting for the optimum resolution for WVGA. 480P: Fixes the setting for the optimum resolution for 480P.

XGA: Fixes the setting for the optimum resolution for XGA. Press to store. * In Auto mode, the resolution of VGA, WVGA, 480P and XGA may not be automatically

distinguished. Switch to the fixed display when the image is not displayed properly.

• Specifying RGB Input Signal Directly (Code Setting)

You can use this option to specify and display the type of RGB input signal directly. Each time you press or , one of the available choices appears in the following sequence:

Auto Manual

Auto: Automatically displays the input signal to the optimum.

Manual: Selects RGB code number. Press to store. * In Auto mode, the optimum resolution may not be set up automatically depending on the type of

signal. Select the type of signal when the image is not displayed properly. However, note that when the type of signal is selected directly, the signal of other resolution may

not be displayed properly.

• Displaying white over entire screen (White screen) All modes

You can use this option to display white over the entire screen, so that brightness adjustments can be performed to minimize phosphor burn-in.

Each time you press or , one of the available choices appears in the following sequence:

On Off

Off: Does not display white. On: Displays a white screen immediately.

Press to execute.

"Code Setting" setting screen

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

• Setting Exhibition Mode (Exhibition Mode) All modes

You can use this option to display the enhanced contrast, which is most suitable for the use by unspecified persons.

Each time you press or , one of the available choices appears in the following sequence:

On Off On: Sets up Exhibition mode.

Off: Sets up normal mode. Press to store. * In Exhibition mode, the display returns to the original setting in about 5 minutes even if the

adjustment is changed.

* The setup will be cancelled when removing the power plug from the receptacle.

• Horizontal/Vertical installation (Installation) All modes

You can use this option to setup the number of fan rotation, etc. for horizontal and vertical installation.

Each time you press or , one of the available choices appears in the following sequence:

Horizontal Vertical

Horizontal:For installing horizontally Vertical:For installing vertically Press to store. * Be sure to make this setup when changing the direction of installation.

• Locking Main Unit Button (Key Lock) All modes

You can use this option to disable the main unit button. Each time you press or , one of the available choices appears in the following sequence:

On Off

On: Disables the main unit button.

Off: Enables the main unit button. Press to store.

• Displaying System Status (Information)

Displays system operation status. Select “Information” and press . The “Information” screen will appear.

Mode: Input mode appears at the upper right corner of the screen.

Monitor No.: Monitor number

Freq. Scan Mode: Frequency scanning

Input Signal: Video mode

Input sync.: Signal type

Freq.: Frequency and polarity (fH, fV)

Preset No.: RGB code number ( , only)

* On-screen information disappears if you do not take any action for about 60 seconds. * The following abbreviations used in this document represent input modes in which you can make adjustments:

: Video mode, : S-video mode, : Comp.video mode, : RGB-PC mode, : Decoder mode

Information screen (Video Input Mode)

Information screen (RGB Input Mode)

INITIALIZATION OF USER ADJUSTMENT VALUE(FACTORY DEFAULT)

You can restore the values of the adjustment/setting made in the MENU to factory settings.

* You can also use the

switches on the display’s control panel to accomplish these steps.

Press .

The main menu screen will appear.

Press or to select “FACTORY DEFAULT”.

Each time you press or , one of the available menus appears in the following sequence:

PICTURE POSITION/SIZE FEATURES FACTORY DEFAULT

The FEATURES Menu screen will appear.

Press .

• Displays the message of whether to proceed with the initialization.

Press or to select the Yes.

“FACTORY DEFAULT” selected in the main menu screen

Displays the message of whether to proceed the initialization

Press

• The message of having completed the initialization will be displayed after initializing.

Press when you finish.

Displays the message of having completed the initialization

OPTIONS

Wall-mounting unit Vertical: 0° to 5° mounting angle P-42WB12 (for both vertical and horizontal) Horizontal: 0° to 15° mounting angle

Hanging unit 0° to 15° mounting angle (variable) P-42CT11

The pipe is not supplied with the ceilinghanging unit, so consult your produce dealer.

Stand P-42TT29

* When installing an option, make sure that all installation requirements for that option (as given in the relevant instruction manual) are met. * The colors of options do not match the display colors perfectly.

Warning

To prevent injury, fire, and electric shock, arrange for options to be initially installed (or installed at a different location) by your dealer.

FACTORY SETTINGS

This display can store parameter settings for four additional signals for RGB. To do this, select a desired signal and follow the instructions in “Adjusting Screen Position and Size” on P. 26–27 to adjust the

parameters. When you finish, the settings will be automatically stored. Thus, when the display receives that signal, pictures will be displayed in accordance with the settings you most recently selected.

Main corresponding signals (RGB-PC mode)

Display (dots x lines)

852 x 480 31.72 59.97 When a dedicated graphics card is used 640 x 480 31.47 59.94 VGA 640 x 480 37.86 72.81 VGA 72 Hz 640 x 480 37.50 75.00 VGA 75 Hz 640 x 480 43.27 85.01 VGA 85 Hz 720 x 400 31.47 70.09 VGA 400 lines 800 x 600 37.88 60.32 SVGA 60 Hz 800 x 600 48.08 72.19 SVGA 72 Hz 800 x 600 48.88 75.00 SVGA 75 Hz 800 x 600 53.67 85.06 SVGA 85 Hz 1024 x 768 48.36 60.00 XGA 60 Hz 1024 x 768 56.48 70.07 XGA 70 Hz 1024 x 768 60.02 75.03 XGA 75 Hz 640 x 480 35.00 66.67 MAC 13RGB 848 x 480 31.02 60.00 640 x 480 15.73 59.94 60 fields 640 x 480 15.63 50.00 50 fields 640 x 400 31.50 70.15 NEC 31 kHz

* With some input signals, “Out of range” may appear even when the horizontal and vertical frequencies are within their permissible ranges. Make

sure that the vertical frequency of the input signal is 85 Hz or less for SVGA and 75 Hz for XGA.

Horizontal frequency (kHz) Vertical frequency (Hz)

Signal

In the Comp.video and Video/S-video modes, the display has been factory-set as follows for different input signals:

Main corresponding signals (Comp.Video, Decoder mode)

Horizontal

frequency (kHz)

15.73 59.94 SDTV 480I

15.63 50.00 SDTV 576I

31.47 59.94 SDTV 480P

31.25 50.00 SDTV 576P

45.00 60.00 HDTV 720P

37.50 50.00 HDTV 720P

33.75 60.00 HDTV 1080I

28.13 50.00 HDTV 1080I

• With the 800 x 600 and 1024 x 768 modes, pictures of reduced size are displayed on the screen, using size reduction and interpolation. Note also that on-screen information is also displayed in reduced size.

•“Out of range” appears if the display receives a signal whose characteristic does not fall within the display’s permissible range.

• You can check input signals through “Information” on the FEATURES Menu screen. (See P. 35.)

• All terms (i.e., company and product names) used in this document are trademarks or registered trademarks.

Vertical

frequency (Hz)

Signal

Main corresponding signals (Video, S-Video mode)

Horizontal

frequency (kHz)

15.73 59.94 NTSC

15.63 50.00 PAL

15.63 50.00 SECAM

15.73 59.94 PAL60

15.73 59.97 4.43NTSC

Vertical

frequency (Hz)

Signal

SPECIFICATION

Model PDS4229W

Screen size 42" wide screen: 92.0 cm (W) x 51.8 cm (H) (105.6 cm diagonal)

36.2 inch (W) x 20.4 inch (H) (41.6 inch diagonal) Aspect ratio 16:9 (wide) Weight 28.5 kg / 62.8 lbs Outer dimensions 103.5 (W) x 64.0 (H) x 8.5 (D) cm / 40.7 (W) x 25.2 (H) x 3.3 (D) inch Power supply 100–240 VAC 50/60 Hz Power consumption 3.5 A (800 VA: Power ON, instantaneous power when outputting picture) Screen dimensions 92.0 (W) x 51.8 (H) cm / 36.2 (W) x 20.4 (H) inch Number of pixels 852 (H) x 480 (V) Display modes Video, S-Video input: Normal/Wide1/Wide2/Zoom1/Zoom2

Component Video input: Normal/Wide1/Wide2/Zoom1/Zoom2 RGB-PC: Normal/Wide/Zoom

Decoder: Normal/Wide1/Wide2/Zoom1/Zoom2 Colors 16.77 million (for each of 256 RGB gradations) External equipment terminals

Video input terminals Video input 1 BNC terminal 1 Vp-p/75 Ω

S-video input 1 S terminal Y: 1 Vp-p/75 Ω

C: 0.3 Vp-p/75 Ω

Component video input (color difference input) 3 BNC terminals Y: 1 Vp-p/75 Ω

Pb/B-Y: 0.7 Vp-p/75 Ω

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Applicable systems NTSC/PAL/SECAM/PAL60/4.43NTSC PC input terminal RGB input terminal mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal: TTL level

Control terminal 1 RS-232C connector (D-sub 9-pin)

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 90 % Accessories 1 remote control, 2AA batteries, 1 instruction manual, 1 power cable, 2 ferrite cores

Pr/R-Y: 0.7 Vp-p/75 Ω

Regulation PDS4229W

• UL, CSA Safety: UL1950/CSA C22.2 No.950

EMC: FCC Part 15 Class A, ICES-003 Class A

• CE Safety: EN60950 1992, A1: 1993, A2: 1993, A3: 1995, A4: 1997

EMC: EN55022 1994, Class A

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

• AS Safety: IEC60950 A1/A2/A3/A4

EMC: AS/NZS 3548

• Specifications and external appearance may be change for the sake of improvement.

• is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

CLEANING AND MAINTENANCE

Precautions

Be sure to remove the power plug from the receptacle before cleaning the display.

Be sure not to clean the display using a cloth dampened with volatile solvents, such as benzene or thinner. Such solvents can harm the display’s cabinet, the filter at the screen front, and the remote control. They can also cause paint to come off these

sections.

Cleaning the Cabinet and Remote Control

Use a soft cloth for cleaning. If the cabinet or remote control is heavily stained, soak a soft cloth

in a mixture of water and detergent and squeeze it dry before wiping off the stains. Use a soft, dry cloth for final cleaning.

Cleaning the Screen

Clean the screen gently with a soft cloth. The screen surface is fragile. Never attempt to clean it with a hard

material, press on it forcefully, or tap it.

Cleaning the ventilation grille

Remove dust from the ventilation grille in the rear of the main unit periodically with a vacuum cleaner as the accumulated dust can increase the internal temperature of the main unit causing machine failure or fire hazard.

HANDY TIPS

In the event of problems with the display, check the following explanations before contacting your dealer for servicing.

Problem

• Power does not turn ON.

• No pictures are displayed.

• Remote control does not function properly.

• The display makes a snapping sound.

• The display makes a buzzing sound.

• There are spots on the screen.

• Degraded colors/tints

• Improper screen position/size

• If “Invalid operation” appears.

• If “Out of range” appears, the display is

receiving a signal whose picture or signal cannot be reproduced by the display.

• The screen turns to black and white.

• If “Error message Condition 1” appears,

the fan is defective.

• If “Error message Condition 2” appears,

the display’s internal components are extremely hot.

• If the power indicator lamp flashes red.

• Check whether the power plug is securely inserted into the receptacle.

• Check cables for disconnection.

• Check whether the power for all input equipment is ON.

• Check for connection to wrong terminals or for wrong input mode.

• Check whether the input mode display is colored pink.Special setup may have been

made. Return to original setup or initialize the User adjustment value.

• Check for incorrect battery orientation.

• Check for dead batteries.

• Check for distance from the display.

• Check whether you are pointing the remote control transmitter properly at the display’s

receiver.

• Check for any obstacle between the remote control and the display.

• This sound is produced when the cabinet expands or contracts due to variations in

temperature. This sound does not indicate that the display has a problem.

• The display has a fan to maintain the temperature of internal components at a constant level. This sound is produced by the fan as it rotates.

• Check whether your AV equipment is affected by interference from automobiles, trains, high-voltage transmission lines, neon signs or other potential sources of interference.

• Check whether all picture adjustments have been properly made. (See “Adjusting Pictures” on P. 24–25.)

• Check whether screen position and size have been properly adjusted. (See “Adjusting Screen Position and Size” on P. 26–27.)

• Check whether you have selected “Input Priority”.(See “Features” on P. 33.)

• Input proper signals.

Make sure that the vertical frequency of the input signal is 85 Hz or less for SVGA and 75 Hz or less for XGA.

• Input proper signals. Make sure that the vertical frequency of the input signal is 85 Hz or less for SVGA and 75 Hz or less for XGA.

• Remove the power plug from the receptacle, and contact your dealer for repairs.

• Remove the power plug from the receptacle. (You can turn the power back ON again

when the components have cooled sufficiently.) If the message appears again when you turn the power back on, remove the power plug from the receptacle, and contact your dealer for a repairs.

• Remove the power plug from the receptacle, and inform your dealer about how the lamp flashed. As explained below, the power indicator lamp flashes differently depending on the type of problem:

– Flashes repeatedly: Improper supply voltage level – Flashes once: Malfunction by the fan – Flashes twice: Excessive temperature – Flashes three times or more: Other problems

Action

1116, Suenaga, Takatsu-ku, Kawasaki 213-8502, Japan

Printed in Japan

8111602007

Fujitsu PDS4229W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY PRECAUTIONS

FEATURES

ACCESSORIES

HANDY TIPS

INSTALLATION

PART NAMES AND FUNCTIONS

USING THE REMOTE CONTROL

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

BASIC OPERATIONS

SELECTING INPUT MODE

WATCHING PICTURES ON THE WIDE SCREEN

HOW TO USE MENUS

ADJUSTING PICTURES (PICTURE MENU)

ADJUSTING SCREEN POSITION AND SIZE (POSITION/SIZE MENU)

OTHER ADJUSTMENTS (FEATURES MENU)

INITIALIZATION OF USER ADJUSTMENT VALUE(FACTORY DEFAULT)

OPTIONS

FACTORY SETTINGS

SPECIFICATION

CLEANING AND MAINTENANCE
