Fujitsu P63XHA30WS User's Guide

Before using the display, read the User’s manual (1/2) and the User’s manual (2/2) carefully so that you know how to use the display correctly. Refer to these manuals whenever questions or problems about operation arise. Be sure to read and observe the safety precautions. Keep these manuals where the user can access them readily. * Installation and removal require special expertise. Consult your product dealer for details.

USER’S MANUAL (1/2)

(Specification and Part Names)

WIDE PLASMA DISPLAY

P63XHA30W/P63XHA30A/ P55XHA30W/P55XHA30A/ P50XHA30W/P50XHA30A/ P42HHA30W/P42HHA30A/ P42VHA30W/P42VHA30A/ P42VHA31W/P42VHA31A

• Accessories ······················································ E-2

• Part Names and Functions ······················· E-3–E-5

• Installation ······················································· E-6

• Options ····························································· E-7

• Main Supported Signals ································· E-8

• Specification ··········································· E-9–E-12

Before Use

• Safety Precautions ··············· User’s manual (2/2)

Usage

• Handy Tips ···························· User’s manual (2/2)

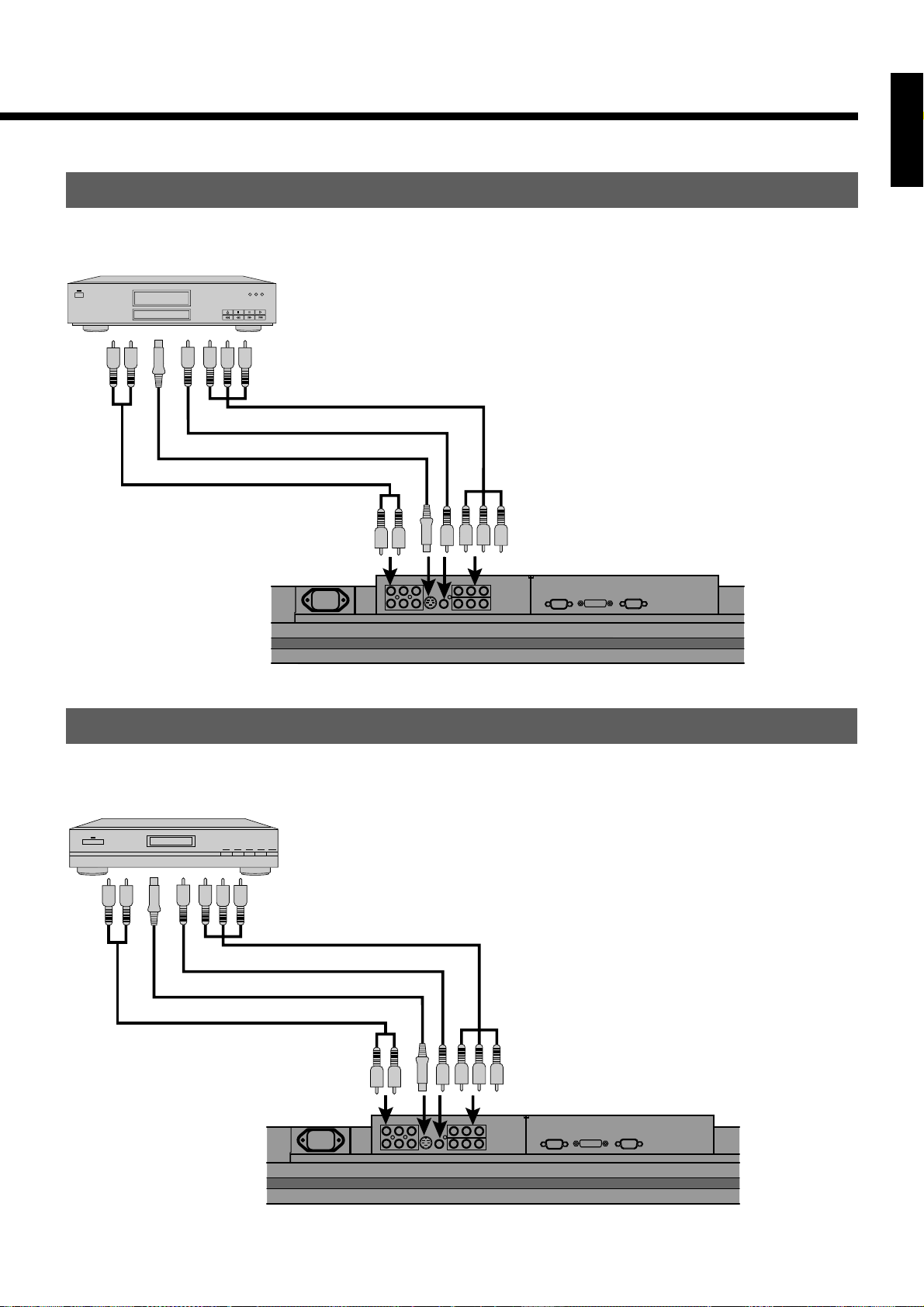

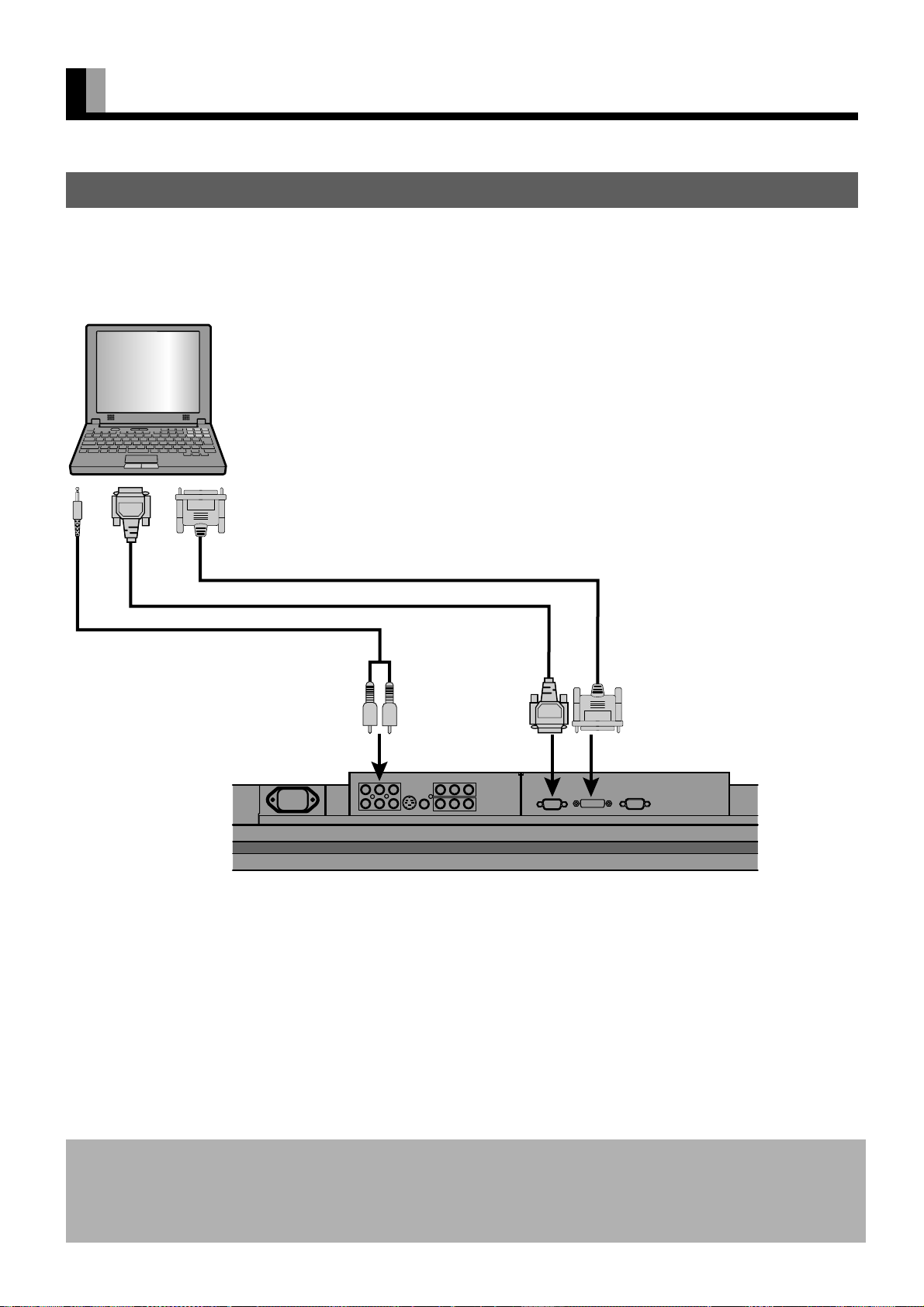

• Connecting the Display to External Equipment ···························· User’s manual (2/2)

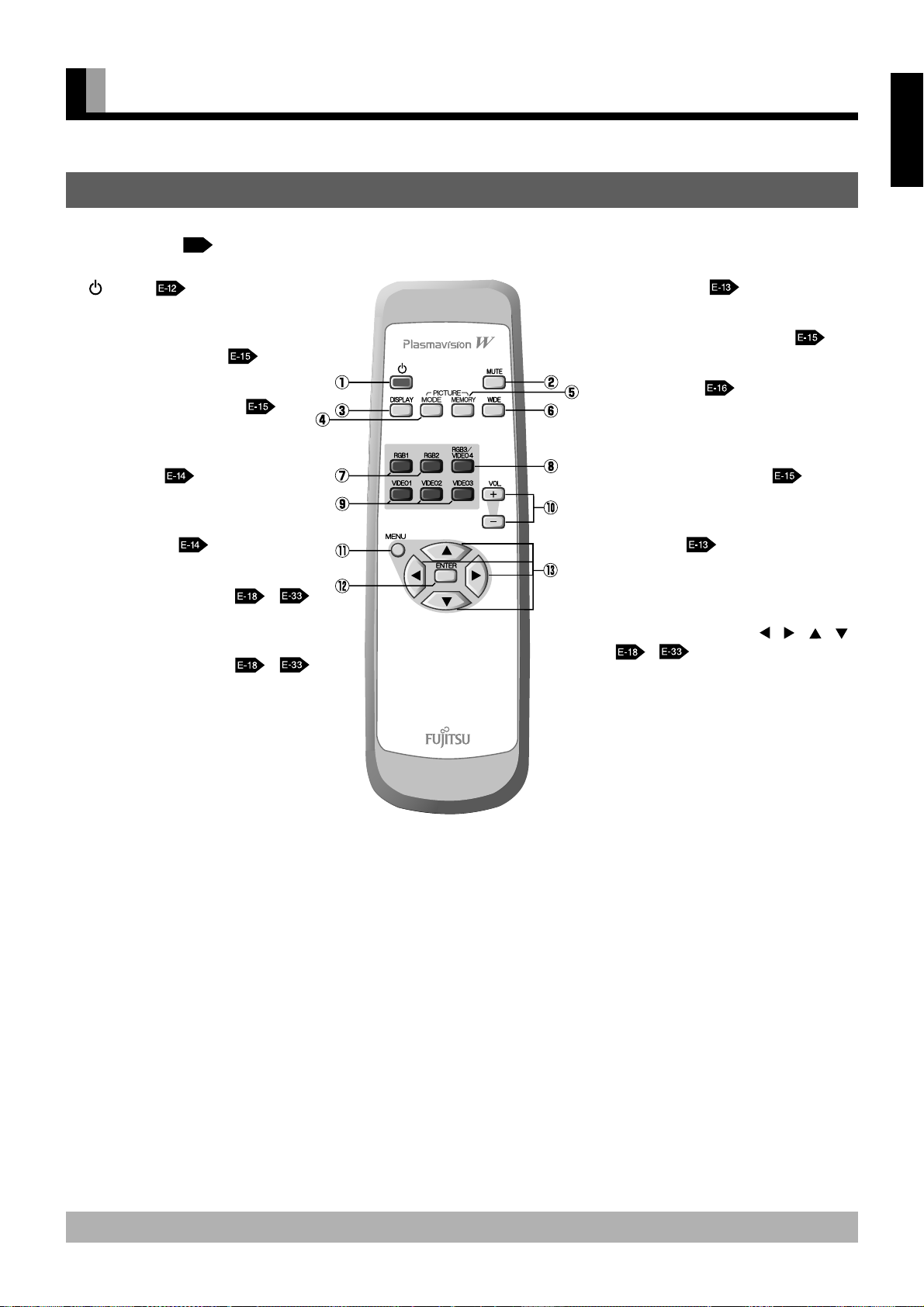

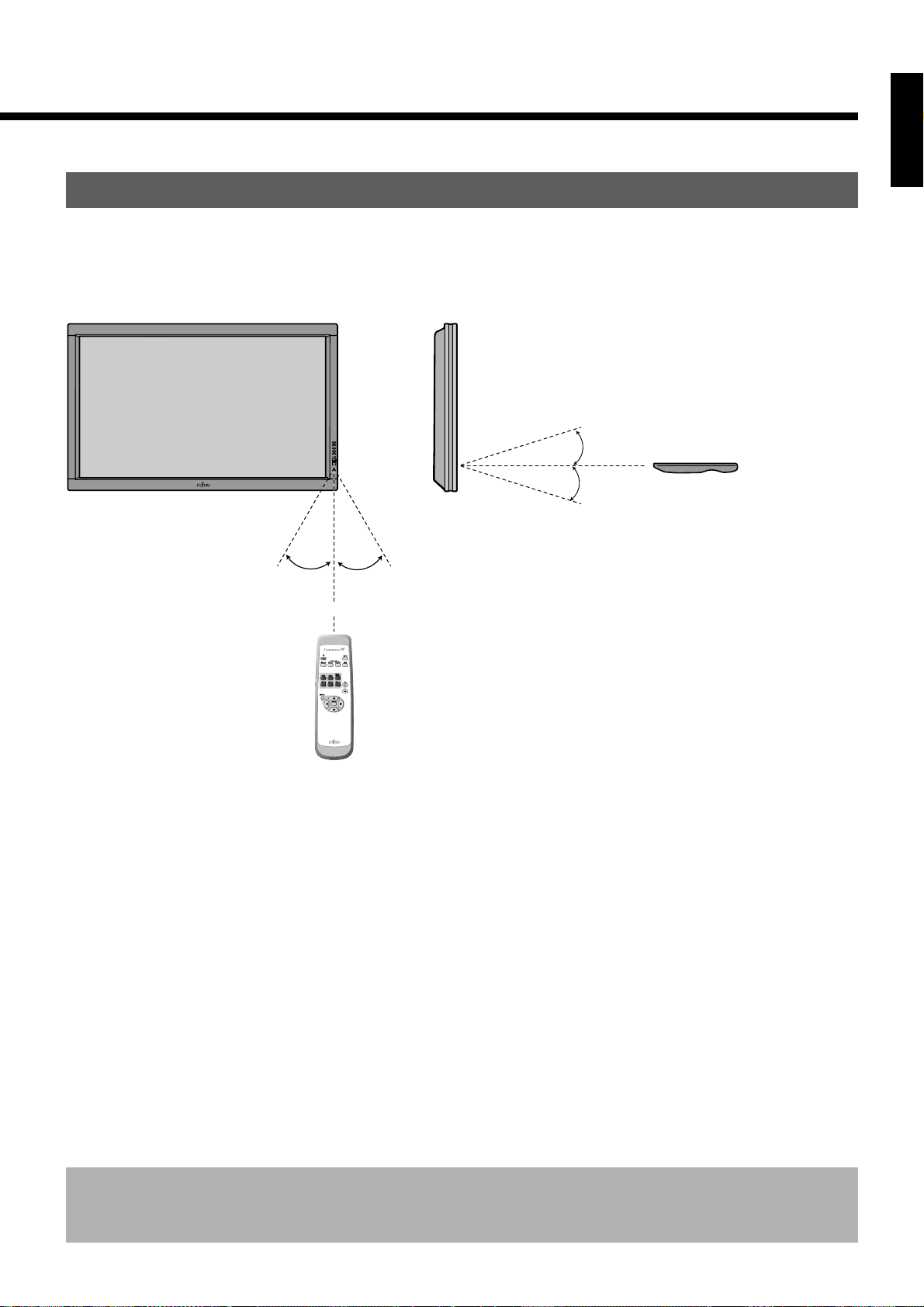

• Using the Remote Control ··· User’s manual (2/2)

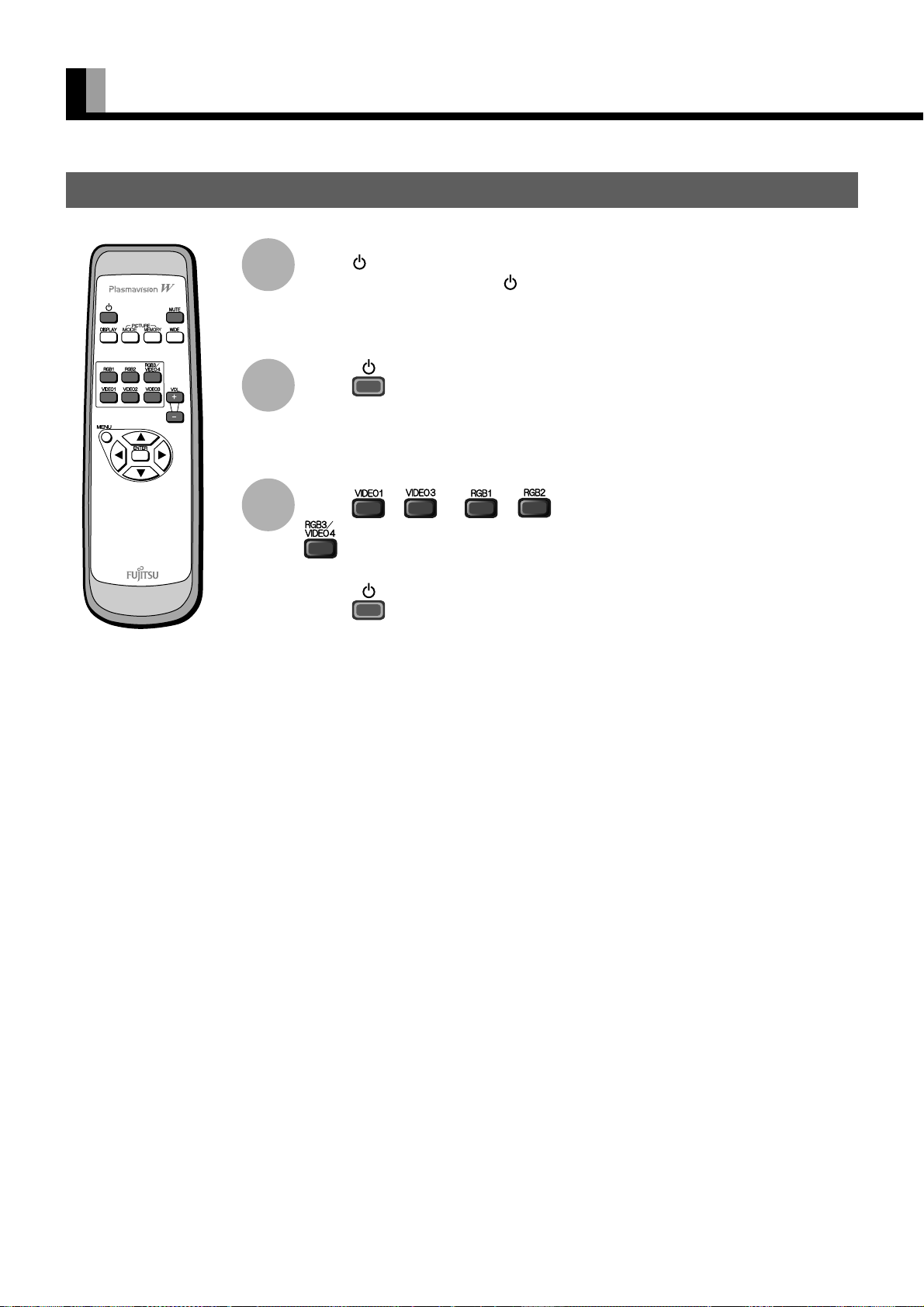

• Basic Operations ·················· User’s manual (2/2)

• Selecting Input Mode··········· User’s manual (2/2)

• Other Basic Operations········ User’s manual (2/2)

•Watching Pictures on the Wide Screen

··············································· User’s manual (2/2)

Adjustments

• Ajustment Menu··················· User’s manual (2/2)

• Adjusting Pictures (PICTURE Menu)

··············································· User’s manual (2/2)

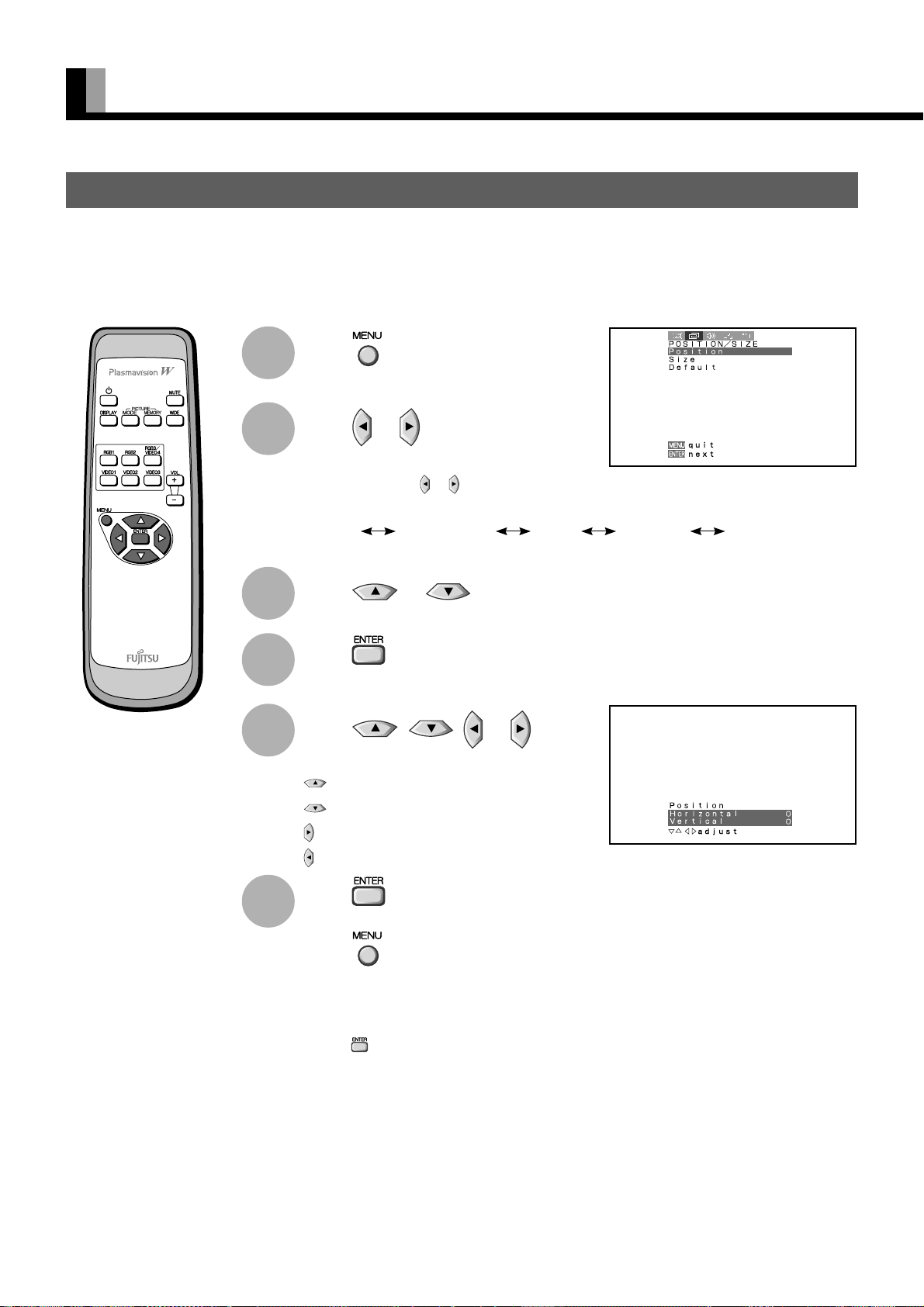

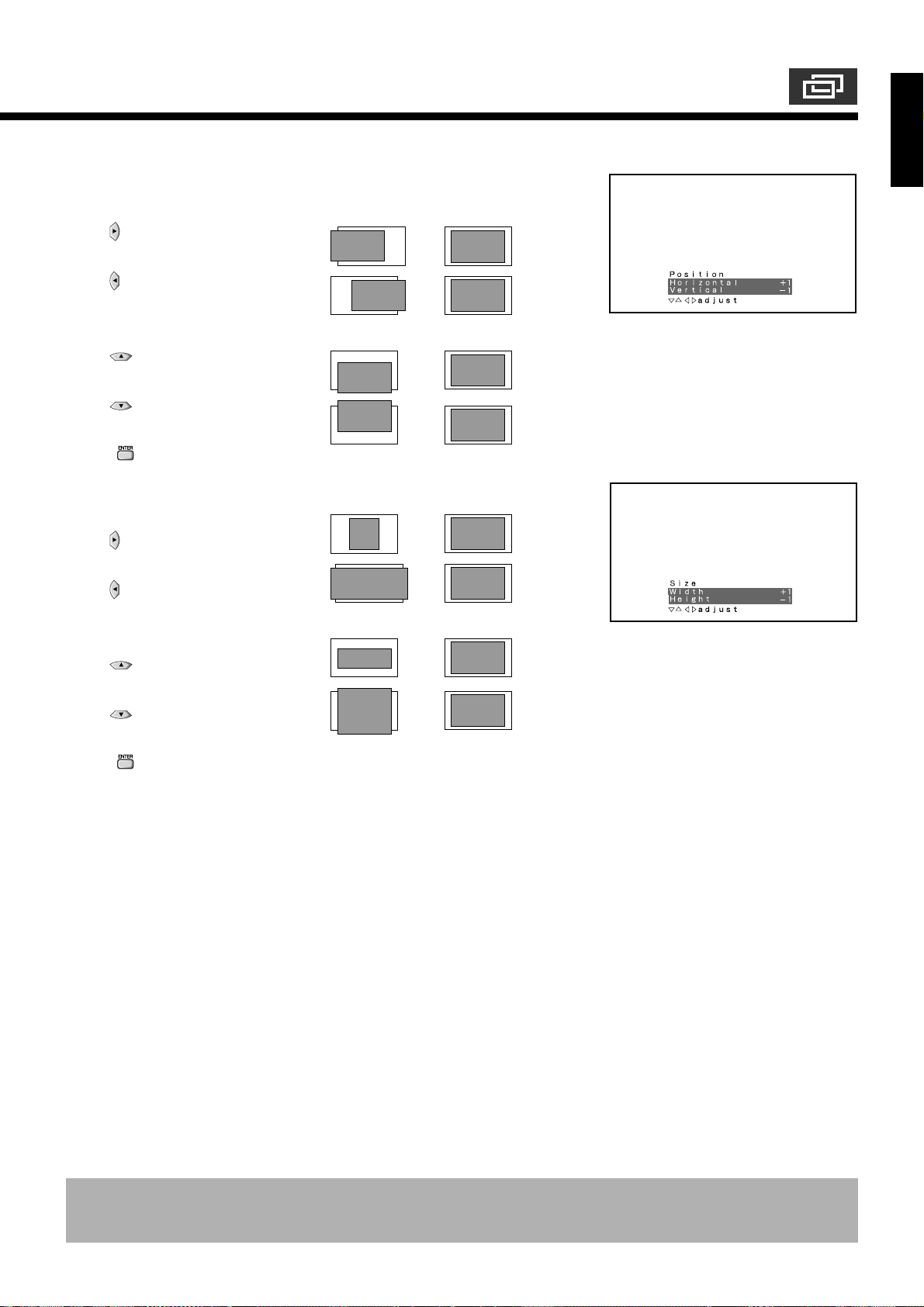

• Adjusting Screen Position and Size (POSITION/SIZE Menu) ········ User’s manual (2/2)

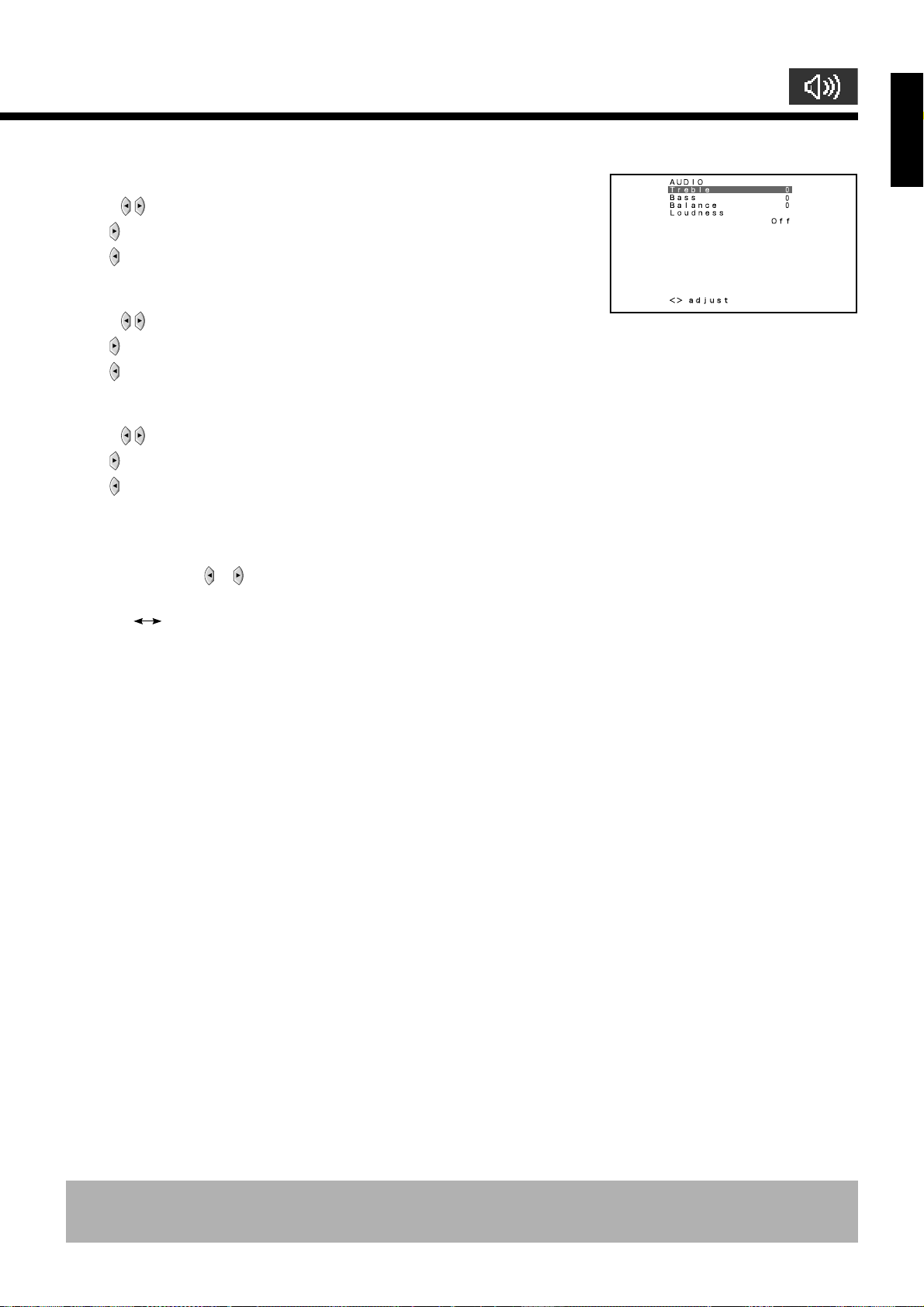

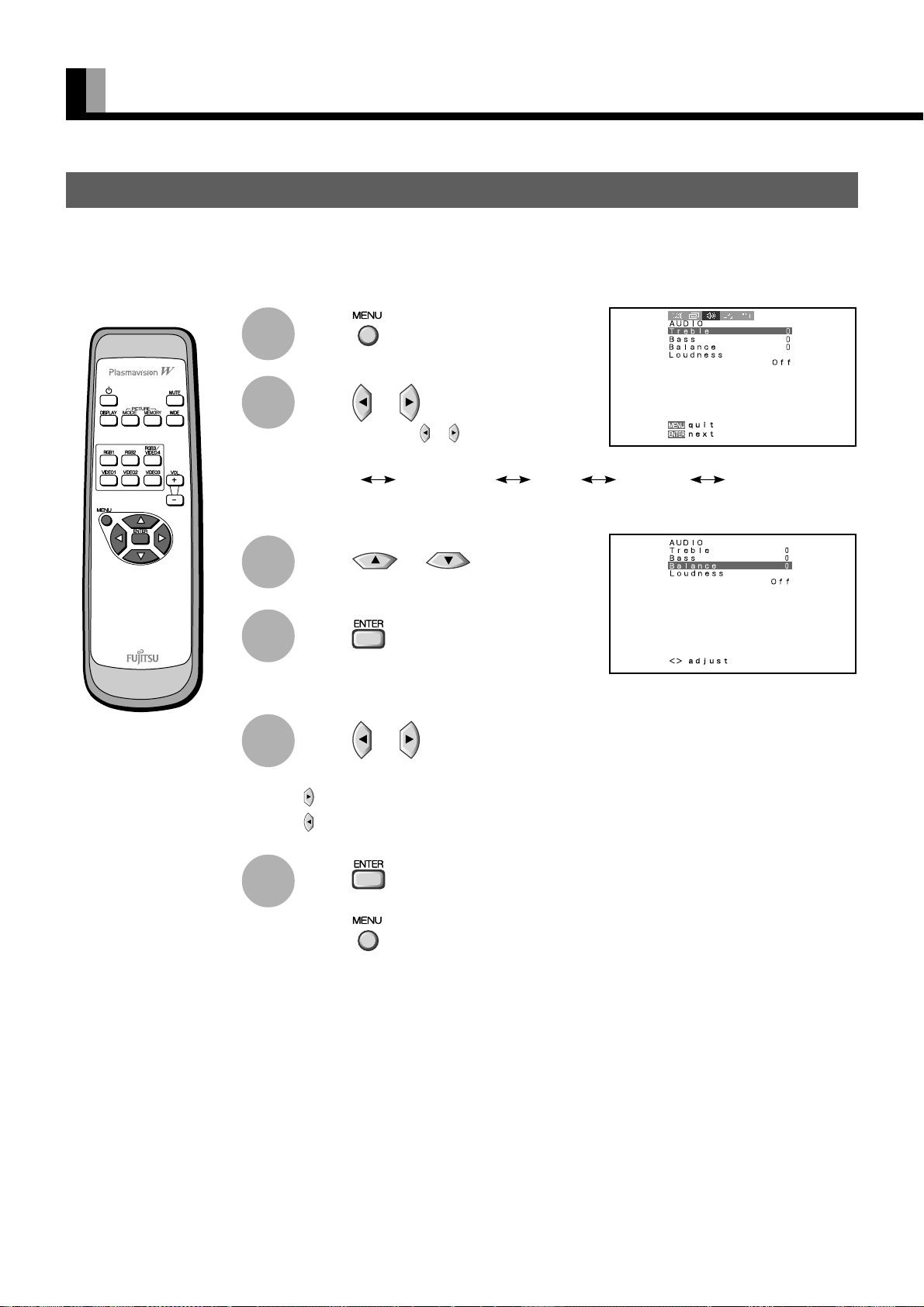

• Adjusting Audio (AUDIO Menu)

··············································· User’s manual (2/2)

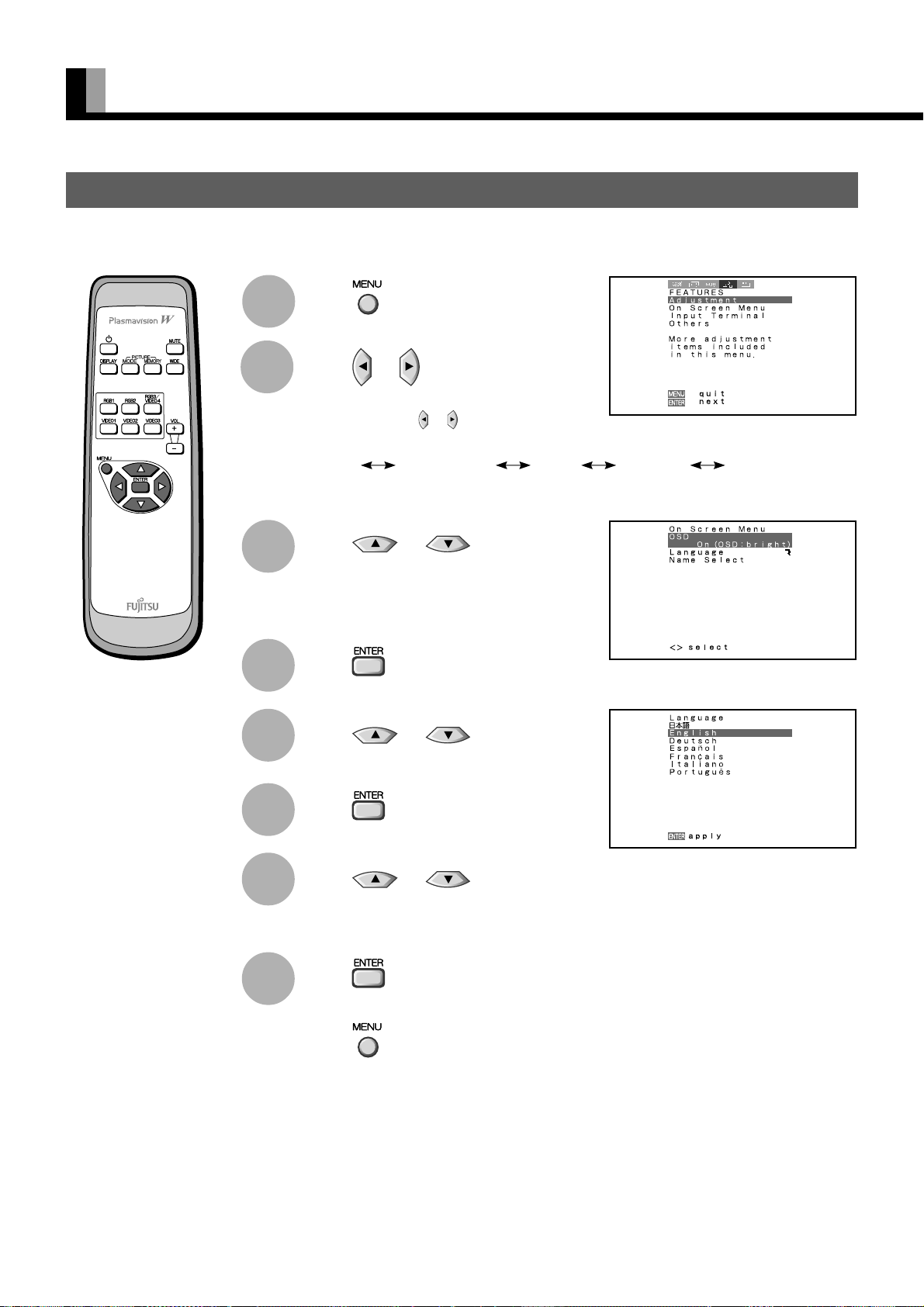

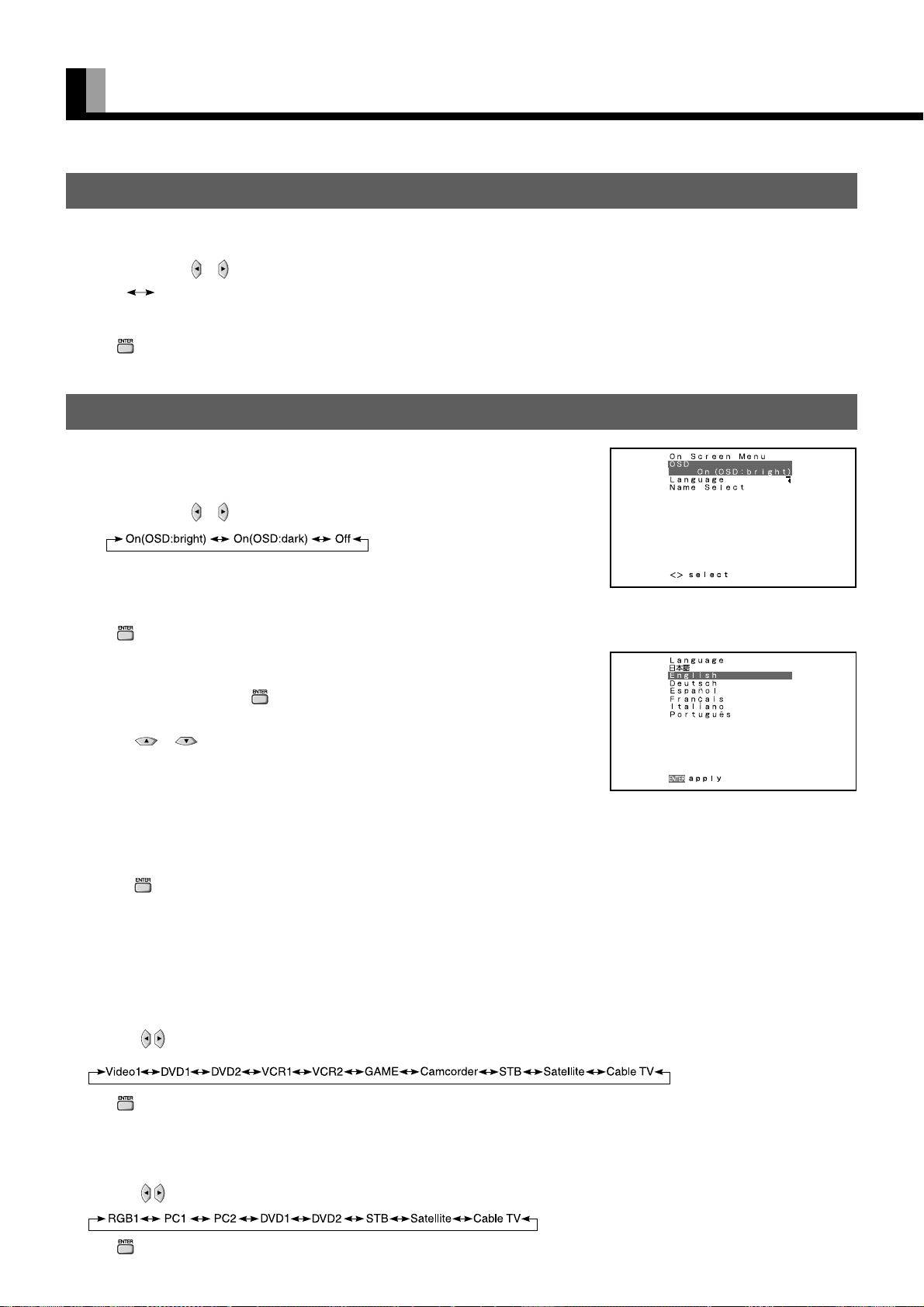

• Other Adjustments (FEATURES Menu) ··············· User’s manual (2/2)

• Initialization of User Adjustment Value (FACTORY DEFAULT) ··········· User’s manual (2/2)

• Cleaning and Maintenance ··· User’s manual (2/2)

Page

English

E-2

ACCESSORIES

CHECKING ACCESSORIES

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

Carefully check the terminals for position and type before making any connections.

Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

Ferrite cores

These ferrite cores are used to attenuate undesired signals.

Two big ferrite cores

When connecting a cable to the power input terminal, RS-232C terminal, attach one of these ferrite cores to the cable near the terminal.

Two small ferrite cores

When connecting a cable to the external speaker output terminal attach one of these ferrite cores to the cable near the terminal.

RS-232C Cable

Ferrite Core

Power Cable

Ferrite Core

One power cableTwo user’s manuals



Two AA batteriesOne remote control Two big ferrite

cores

Two small ferrite

cores

(W Type)

(A Type)

E-3

English

PART NAMES AND FUNCTIONS

⑨

①

②

DISPLAY SECTION – FRONT

1 Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Stand-by

Lit (green): Power ON

Lit (orange): Power saving (DPMS: Power

saving function) mode ON. (Please refer to E-30 of the User's Manual(2/2).)

Flashing (red or green): Malfunction (Flashes differently

depending on the type of malfunction.)

2 Remote control signal receiver

Receives signals from the remote control.

3 Input mode selector button

[MODE]

4 Input mode selector button

[MODE]

Switches between picture input modes.

5 VOL + button

6 VOL – button

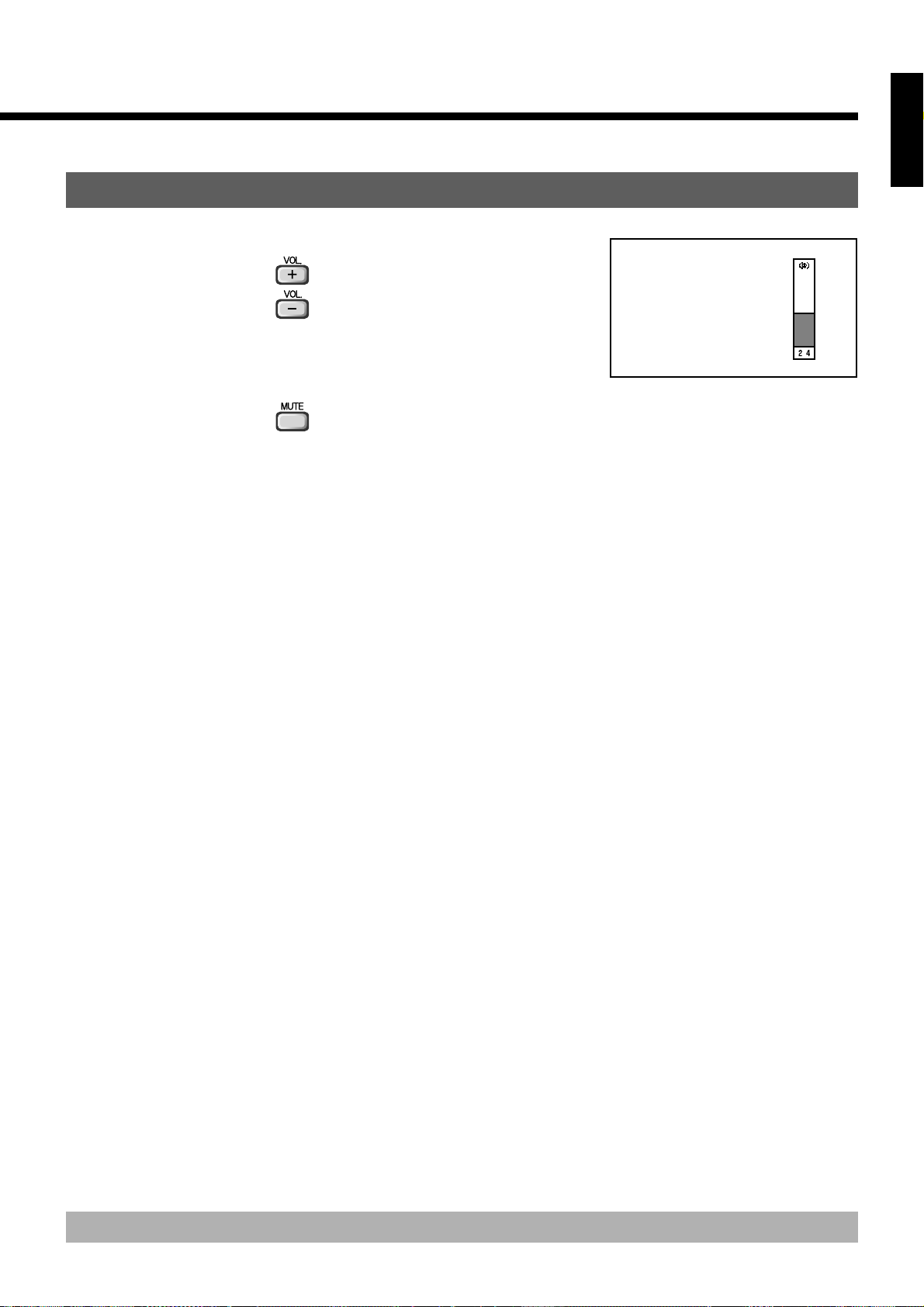

Adjusts the audio volume.

7 Wide screen selector button [WIDE]

Switches the screen over to a desired wide screen.

8 ON/OFF button

Turns the power “ON” and “OFF (standby state)”.

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.

(Right section)

Control Panel (Right side of display)

E-4

1 /I power switch

When pressed while in the “OFF” state, the power indicator lamp lights and the display is placed in the “ON

” state, and the power

can be turned “ON” or “OFF” by the remote control or on the control panel of the display. When pressed while in the “ON

” state,

the power indicator lamp goes out and the display is placed in the “OFF” state where power is still partly supplied.

2 RS-232C terminal (RS-232C)

This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

3 RGB1 input terminal (RGB1 INPUT/DVI-D)

Connect this terminal to the PC’s display (digital RGB) output terminal. *The connection cable No.88741-8000 made by molex Inc. is recommanded.

4 RGB2 input terminal (RGB2 INPUT/mD-sub)

Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.

5 Component video input terminal (VIDEO3 INPUT) 6 Component video input terminal (VIDEO4 INPUT)

Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.

7 Video input terminal (VIDEO1 INPUT)

Connect this terminal to the video output terminal of your VCR.

8 S-Video input terminal (VIDEO2 INPUT)

Connect this terminal to the S-video output terminal of your VCR.

9 Audio3 input terminal (AUDIO3 INPUT) 0 Audio2 input terminal (AUDIO2 INPUT) A Audio1 input terminal (AUDIO1 INPUT)

Connect this terminal to the audio output terminal of your VCR, etc. (See the User’s manual (2/2) for the selection of audio input for video input.)

PART NAMES AND FUNCTIONS (Continued)

Back and bottom

Bottom

Back

E-5

English

Description of Input Terminals

DVI-D terminal (RGB1 INPUT/DVI-D)

Pin No. Input signal Pin No. Input signal

1 Red 9 —

2Green 10 Ground

3 Blue 11 —

4— 12—

5 Ground 13 Horizontal synchronization

6 Ground 14 Vertical synchronization

7 Ground 15 —

8 Ground Frame Ground

RGB2 input terminal (RGB2 INPUT/mD-sub)

Pin No. Signal

1 DCD (Data Carrier Detect)

2 RD (Received Data)

3 TD (Transmit Data)

4DTR (Data Terminal ready)

5 GND (Ground)

6 DSR (Data Set Ready)

7RTS (Request To send)

8 CTS (Clear To Send)

9 RI (Ring Indication)

RS-232C terminal (RS-232C)

B External speaker output terminal (EXT SP)

Connect this terminal to the optionally available speaker. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.) *See the speaker instruction manual for more information.

C Power input terminal

Connect this terminal to the power cable supplied with the display. When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

*Terminal layout may differ and functions may not be available with some models and some device options.

E-6

INSTALLATION

To prevent the display’s internal components from overheating, make sure that the display is installed in a well-ventilated location.

Be sure to use the optional desktop stand, ceiling-mounting unit, wall-mounting unit and other unit when installing this display. Also, be sure that your dealer performs the installation.

See the appropriate instruction manual for more information on the installation hardware you select.

To ensure proper heat radiation, provide at least as much space around the display as shown below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C.

* Install this device in a well-ventilated area. Keep the air vents of the device free from obstruction.

*Never attempt to tilt the display sideways or backward.

*To prevent the power and other cables from being accidentally pulled, be sure to make the wiring work along the wall or through the

corners of floor.

*To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below.

Note

The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing materials originally supplied with the display when repacking it.

Reference

See P.E-7 for more information on options.

Front

Side

(cm) (cm)

Upper

Left

Right

Lower

5 (for 63”/55”)

3.5 (for 50”/42”)

Wall

Horizontal type

English

E-7

Wall-mounting Bracket 0° to 15° mounting angle P-WB6300 (for 63”/55”)

P-WB4201 (for 50”/42”)

Ceiling-mounting unit 0° to 15° mounting angle P-CT6300 (for 63”/55”)

P-CT4200 (for 50”/42”)

Desktop Stand unit P-TT6300 (for 63”/55”)

P-TT4200 (for 50”/42”)

Speaker P-SP6300 (for 63”/55”)

P-SP5000 (for 50”) P-SP4200 (for 42”) (1 set of 2 speakers)

*When installing an option, make sure that all installation requirements for that option (as given in the relevant instruction manual) are met.

*The colors of options do not match the display colors perfectly.

*To improve the function and performance of optional accessories, specifications and part names may change. Consult your local dealer

before purchasing.

Warning

To prevent injury, fire, and electric shock, arrange for options to be initially installed (or installed at a different location) by your dealer.

OPTIONS

CAUTION: This display (P63XHA30, P55XHA30) is for use only with Fujitsu General Limited’s option (P-

WB6300, P-CT6300, P-TT6300). This display (P50XHA30, P42HHA30, P42VHA30, P42VHA31) is for use only with Fujitsu General Limited’s option (P-WB4201, P-CT4200, P-TT4200). Using this display with other option can cause instability resulting in possible injury.

E-8

MAIN SUPPORTED SIGNALS

This display can store the latest four types of signals for RGB adjustment value. The fifth input signal will replace the adjustment value of the first input signal.

To do this, select a desired signal and follow the instructions in “Adjusting Screen Position and Size” on the User’s manual (2/2) to adjust the parameters. When you finish, the settings will be automatically stored. Thus, when the display receives that signal, pictures will be displayed in accordance with the settings you most recently selected.

Main corresponding signals (RGB mode)

*With some input signals, “Out of range” may appear even when the horizontal and vertical frequencies are within their permissible ranges. In this

event, match the input signals to another frequency rather than those listed above.

* In the DVI-D mode, the input signal can be restricted partly.

※It doesn’t support the model with 42” display.

In the Comp.video and Video/S-video modes, the display has been factory-set as follows for different input signals:

Main corresponding signals (Comp.video mode)

15.73 59.94 SDTV 480I

15.63 50.00 SDTV 576I

31.47 59.94 SDTV 480P

31.25 50.00 SDTV 576P

45.00 60.00 HDTV 720P

37.50 50.00 HDTV 720P

33.75 60.00 HDTV 1080I

28.13 50.00 HDTV 1080I

Horizontal

frequency (kHz)

Signal

Ver tical

frequency (Hz)

15.73 59.94 NTSC

15.63 50.00 PAL

15.63 50.00 SECAM

15.63 59.52 PAL60

15.63 50.00 N-PAL

15.73 59.95 M-PAL

15.73 59.94 4.43NTSC

Horizontal

frequency (kHz)

Signal

Ver tical

frequency (Hz)

Main corresponding signals (Video, S-video mode)

•Depending on the input signal, the display may show pictures of reduced size due to size reduction and interpolation.

• “Out of range” appears if the display receives a signal whose characteristic does not fall within the display’s permissible range.

•You can check input signals through “Information” on the FEATURES Menu screen. (See User’s Manual (2/2))

• In order to facilitate the explanations, pictures and diagrams in this manual may differ slightly from the actual items.

• All terms (i.e., company and product names) used in this document are trademarks or registered trademarks.

• Function may be different or unavailable with some models and some device options.

640 x 480 31.47 59.94 VGA

640 x 480 37.50 75.00 VGA 75 Hz

640 x 480 43.27 85.01 VGA 85 Hz

720 x 400 31.47 70.09 400 lines

800 x 600 37.88 60.32 SVGA 60 Hz

800 x 600 46.88 75.00 SVGA 75 Hz

800 x 600 53.67 85.06 SVGA 85 Hz

1024 x 768 48.36 60.00 XGA 60 Hz

1024 x 768 60.02 75.03 XGA 75 Hz

1024 x 768 68.68 84.99 XGA 85 Hz

1280 x 1024 63.98 60.02 SXGA 60 Hz

1280 x 1024 79.98 75.03 SXGA 75 Hz

848 x 480 31.02 60.00

852 x 480 31.72 59.97

1360 x 768 47.71 60.01

720 x 485 15.73 59.94 60 fields

720 x 575 15.63 50.00 50 fields

Signal

Display (dots x lines)

Horizontal frequency (kHz) Vertical frequency (Hz)

DVI-D

※

English

E-9

SPECIFICATION

Model P63XHA30W/A

Screen size 63" wide screen:

139.3 cm (W) x 78.3 cm (H) (159.8 cm diagonal)

54.8 inch (W) x 30.8 inch (H) (62.9 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 72 kg / 159 lbs

Outer dimensions 150.6 (W) x 89.6 (H) x 12.3 (D) cm

59.3 (W) x 35.3 (H) x 4.8 (D) inch (does not include outer projections)

Power supply 110–240 VAC 50/60 Hz

Current rating 7.9–3.0 A

Number of pixels 1366 (H) x 768 (V)

External equipment terminals

Video input terminals VIDEO1 INPUT (Video input) 1 RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) 1 S terminal Y: 1 Vp-p/75 Ω

C: 0.286 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) P

B/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

Applicable systems NTSC/PAL/SECAM/PAL60/N-PAL/M-PAL/4.43NTSC

PC input terminal RGB1 input 1 DVI-D terminal (EIA/CEA-861B Compliant)

RGB2 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

500 mVrms/at least 22 kΩ

Control terminal 1 RS-232C connector (D-sub 9-pin)

External speaker output terminal

Effective max. output: 10 W + 10 W (EIAJ), 6 Ω

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

Accessories 1 remote control, 2AA batteries, 2 user’s manuals, 1 power cable, 2 big ferrite cores,

2 small ferrite cores

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

•CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

•AS Safety: IEC60065 EMC: AS/NZS 3548

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 2.4 m or 7.9 feet for 63”) from the screen and to look occasionally away while working.

E-10

SPECIFICATION (Continued)

Model P55XHA30W/A

Screen size 55" wide screen:

122.9 cm (W) x 69.1 cm (H) (140.0 cm diagonal)

48.4 inch (W) x 27.2 inch (H) (55.1 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 55 kg / 121 lbs

Outer dimensions 137.8 (W) x 81.0 (H) x 12.3 (D) cm

54.3 (W) x 31.9 (H) x 4.8 (D) inch (does not include outer projections)

Power supply 110–240 VAC 50/60 Hz

Current rating 5.9–2.5 A

Number of pixels 1366 (H) x 768 (V)

External equipment terminals

Video input terminals VIDEO1 INPUT (Video input) 1 RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) 1 S terminal Y: 1 Vp-p/75 Ω

C: 0.286 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) PB/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

Applicable systems NTSC/PAL/SECAM/PAL60/N-PAL/M-PAL/4.43NTSC

PC input terminal RGB1 input 1 DVI-D terminal (EIA/CEA-861B Compliant)

RGB2 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

500 mVrms/at least 22 kΩ

Control terminal 1 RS-232C connector (D-sub 9-pin)

External speaker output terminal

Effective max. output: 10 W + 10 W (EIAJ), 6 Ω

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

Accessories 1 remote control, 2AA batteries, 2 user’s manuals, 1 power cable, 2 big ferrite cores,

2 small ferrite cores

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

•CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

•AS Safety: IEC60065 EMC: AS/NZS 3548

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 2.1 m or 6.9 feet for 55”) from the screen and to look occasionally away while working.

E-11

English

Model P50XHA30W/A

Screen size 50" wide screen:

110.6 cm (W) x 62.2 cm (H) (126.9 cm diagonal)

43.5 inch (W) x 24.5 inch (H) (50 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 45 kg / 99 lbs

Outer dimensions 121.4 (W) x 72.8 (H) x 9.8 (D) cm

47.8 (W) x 28.7 (H) x 3.9 (D) inch (does not include outer projections)

Power supply 110–240 VAC 50/60 Hz

Current rating 5.2–2.1 A

Number of pixels 1366 (H) x 768 (V)

External equipment terminals

Video input terminals VIDEO1 INPUT (Video input) 1 RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) 1 S terminal Y: 1 Vp-p/75 Ω

C: 0.286 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) P

B/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

Applicable systems NTSC/PAL/SECAM/PAL60/N-PAL/M-PAL/4.43NTSC

PC input terminal RGB1 input 1 DVI-D terminal (EIA/CEA-861B Compliant)

RGB2 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

500 mVrms/at least 22 kΩ

Control terminal 1 RS-232C connector (D-sub 9-pin)

External speaker output terminal

Effective max. output: 10 W + 10 W (EIAJ), 6 Ω

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

Accessories 1 remote control, 2AA batteries, 2 user’s manuals, 1 power cable, 2 big ferrite cores,

2 small ferrite cores

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

•CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

•AS Safety: IEC60065 EMC: AS/NZS 3548

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.9 m or 6.2 feet for 50”) from the screen and to look occasionally away while working.

E-12

SPECIFICATION (Continued)

Model P42VHA30W/A P42VHA31W/A P42HHA30W/A

Screen size 42" wide screen: 42" wide screen:

92.1 cm (W) x 51.8 cm (H) (105.7 cm diagonal) 92.2 cm (W) x 52.2 cm (H) (106.0 cm diagonal)

36.3 inch (W) x 20.4 inch (H) (41.6 inch diagonal)

36.3 inch (W) x 20.6 inch (H) (41.7 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 30 kg / 66 lbs

Outer dimensions 103.7 (W) x 64.2 (H) x 8.5 (D) cm

40.8 (W) x 25.3 (H) x 3.3 (D) inch (does not include outer projections)

Power supply 110–240 VAC 50/60 Hz

Current rating 3.5–1.35 A 4.2–1.7 A 4.0–1.95 A

Number of pixels 852 (H) x 480 (V) 1024 (H) x 1024 (V)

External equipment terminals

Video input terminals VIDEO1 INPUT (Video input) 1 RCA terminal 1 Vp-p/75 Ω

VIDEO2 INPUT (S-video input) 1 S terminal Y: 1 Vp-p/75 Ω

C: 0.286 Vp-p/75 Ω

VIDEO3/VIDEO4 INPUT 3 RCA terminals Y: 1 Vp-p/75 Ω (Component video input) PB/CB: 0.7 Vp-p/75 Ω

PR/CR: 0.7 Vp-p/75 Ω

Applicable systems NTSC/PAL/SECAM/PAL60/N-PAL/M-PAL/4.43NTSC

PC input terminal RGB1 input 1 DVI-D terminal (EIA/CEA-861B Compliant)

RGB2 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω Synchronization signal:TTL level

Audio terminals 2 audio input pin jacks (L/R) (3 lines)

500 mVrms/at least 22 kΩ

Control terminal 1 RS-232C connector (D-sub 9-pin)

External speaker output terminal

Effective max. output: 10 W + 10 W (EIAJ), 6 Ω

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

Accessories 1 remote control, 2AA batteries, 2 user’s manuals, 1 power cable, 2 big ferrite cores,

2 small ferrite cores

Regulation

• UL, CSA Safety: UL6500, C-UL EMC: FCC Part 15 Class B, ICES-003 Class B

•CE Safety: EN60065 EMC: EN55022 1998, Class B

EN61000-3-2 1995 EN61000-3-3 1995 EN55024 1998 EN61000-4-2 1995 EN61000-4-3 1996 EN61000-4-4 1995 EN61000-4-5 1995 EN61000-4-6 1996 EN61000-4-8 1993 EN61000-4-11 1994

•AS Safety: IEC60065 EMC: AS/NZS 3548

• Specifications and external appearance may be change for the sake of improvement.

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.6 m or 5.2 feet for 42”) from the screen and to look occasionally away while working.

• is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

USER’S MANUAL (2/2)

(Precautions and Adjustment Methods)

WIDE PLASMA DISPLAY

Before Use

• Safety Precautions ···························································································· E-2–E-3

Usage

• Handy Tips ·················································································································E-4

• Connecting the Display to External Equipment ·············································· E-5–E-8

• Using the Remote Control ·············································································· E-9–E-11

• Basic Operations ··························································································· E-12–E-13

• Selecting Input Mode ······························································································ E-14

•

Other Basic Operations ··································································································

E-15

•Watching Pictures on the Wide Screen ······················································· E-16–E-17

Adjustments

• Adjustment Menu ··································································································· E-18

• Adjusting Pictures (PICTURE Menu) ···························································· E-19–E-21

• Adjusting Screen Position and Size (POSITION/SIZE Menu) ···················· E-22–E-23

• Adjusting Audio (AUDIO Menu) ·································································· E-24–E-25

•

Other Adjustments (FEATURES Menu) ································································

E-26–E-32

• Initialization of User Adjustment Value (FACTORY DEFAULT) ···························· E-33

• Cleaning and Maintenance ····················································································· E-34

Page

English

E-2

SAFETY PRECAUTIONS

IMPORTANT INFORMATION

WARNING: This is a Class A and Class B product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

•A Class A digital device This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

•A Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these “Important Safeguards” carefully before use.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifier’s) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

IMPORTANT

+ 32 hidden pages

Fujitsu P63XHA30WS User's Guide

Contents

ACCESSORIES

PART NAMES AND FUNCTIONS

INSTALLATION

OPTIONS

MAIN SUPPORTED SIGNALS

SPECIFICATION

Contents

SAFETY PRECAUTIONS
