USER’S MANUAL
WIDE PLASMA DISPLAY
P42VHA51W SERIES
P42HHA51W SERIES
P50XHA51W SERIES
P55XHA51W SERIES
P63XHA51W SERIES
English
Before using the display, read this manual carefully so that you know how to use the display correctly.
Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the safety precautions
(see the separate "Safety Precautions" manual).
Keep this manual where the user can see it easily.
* Installation and removal require special expertise. Consult your product dealer for details.
* When “English” is selected at “Language” of the on-screen display, “colour” will be displayed in the case of the E model and “color”
will be displayed for all other models.
The notation used in this user’s manual is “color”.
* The last digit of MODEL NO. (10 digit alphanumeric characters) indicated on the product means the body color indication alphabet
or the management number.
* The Illustration of external appearance is for 42” model.
Please acknowledge some differences in the actual product of other models.
CONTENTS
INFORMATION ................................................................E-3
CHECKING ACCESSORIES ................................................ E-3
INSTALLATION ...............................................................E-4
ATTACHING THE FERRITE CORES ................................... E-4
PART NAMES AND FUNCTIONS ...................................E-5
DISPLAY SECTION – FRONT .............................................E-5
DISPLAY SECTION – BACK ................................................ E-5
DISPLAY SECTION – BOTTOM ..........................................E-6
DESCRIPTION OF INPUT TERMINALS ..............................E-7
REMOTE CONTROL ............................................................ E-8
USING THE REMOTE CONTROL...................................E-9
PUTTING BATTERIES IN THE REMOTE CONTROL .........E-9
PRECAUTIONS ....................................................................E-9
EFFECTIVE RANGE FOR THE REMOTE CONTROL ......... E-9
CONNECTING THE DISPLAY TO EXTERNAL
EQUIPMENT ..................................................................E-10
DVD RECORDER/PLAYER, SATELLITE TUNER .............E-10
VCR/PC ..............................................................................E-10
BASIC OPERATIONS....................................................E-11
TURNING THE POWER ON AND STAND-BY ................... E-11
ADJUSTING THE VOLUME ...............................................E-11
VIDEO INPUT MODE .........................................................E-11
RGB INPUT MODE ............................................................. E-12
CONVENIENT FUNCTIONS ..............................................E-12
On-screen information .................................................. E-12
Picture Mode ................................................................E-12
Picture Memory ............................................................E-12
WATCHING PICTURES ON THE WIDE SCREEN........E-13
SWITCHING BETWEEN SCREEN SIZES .........................E-13
SCREEN SIZE .................................................................... E-14
ASPECT RATIO .................................................................. E-14
ADJUSTMENT MENU ...................................................E-15
BASIC PROCEDURE OF ADJUSTMENT MENU .........E-16
ADJUSTING THE PICTURE..........................................E-17
Signal Contrast ...................................................................E-17
Drive Contrast .....................................................................E-17
Brightness ...........................................................................E-17
Color ...................................................................................E-17
Tint ......................................................................................E-17
Sharpness ........................................................................... E-17
Ambient Sensor ..................................................................E-17
Picture Mode ....................................................................... E-18
Color Temp. ........................................................................ E-18
Picture Memory ................................................................... E-18
ADJUSTING SCREEN POSITION AND SIZE...............E-19
Screen Position ................................................................... E-19
Screen Size ........................................................................ E-19
ADJUSTING AUDIO ......................................................E-20
Treble .................................................................................. E-20
Bass .................................................................................... E-20
Balance ............................................................................... E-20
Loudness ............................................................................ E-20
OTHER ADJUSTMENTS ...............................................E-21
ADJUSTMENT .................................................................... E-21
Dot Clock ...................................................................... E-21
Clock Phase .................................................................E-21
Clamp Position .............................................................E-21
Auto Calibration ............................................................ E-21
ON SCREEN MENU ........................................................... E-21
On-screen Display Information (OSD) .......................... E-21
Language (Language) .................................................. E-21
Name Selection (Name Select) ....................................E-22
SETTING THE INPUT TERMINALS ................................... E-22
Selecting the settings of Video/S-video Input Terminal
D-SUB Input Terminal ..................................................E-22
OTHER SETTINGS ............................................................E-23
Auto Off-NO SIG. ......................................................... E-23
Audio Input ...................................................................E-23
Screen Orbiter ............................................................... E-23
Direct Setting................................................................. E-24
Code Setting.................................................................. E-24
White Screen ................................................................ E-24
Background .................................................................. E-24
Information ................................................................... E-24
...E-22
INITIALIZATION OF USER ADJUSTMENT VALUE .....E-25
OPTIONS........................................................................E-26
MAIN SUPPORTED SIGNALS ......................................E-27
SPECIFICATIONS..........................................................E-28
CLEANING AND MAINTENANCE.................................E-30
TRADEMARK INFOMATION
HDMI , the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
E-2
INFORMATION
• Receptacle
Make sure that the power cord’s grounding wire is grounded.
The plasma display comes with a 3-prong power plug; one prong is connected to the grounding wire. If you have only a 2-hole
receptacle, you will need to have it replaced. Contact your dealer for more information.
• Have the plasma display inspected and cleaned by your dealer at regular intervals.
• Do not display the same picture for a long time, because part of the screen may “burn-in” and create a residual image if the same picture
is displayed for an extended period of time. To prolong the life of the plasma display, we recommend the use of the “Screen Orbiter”
settings. (See P. E-23) When a residual image was created, reduce the residual image by using the “White screen” settings. Note that
there may also be cases when it can not be recovered completely. (See P. E-24)
• When the screen size is set to “Normal” and a picture was displayed for a long time, a residual image may be created at the boundary
with the part at which an image is not displayed. We recommend that you use a screen size other than “Normal”. (See P. E-13)
• High-precision technology has been used in the manufacture of the plasma display panel, in which the effective pixels exceeds 99.99%.
However, please be aware, that fewer than 0.01% of the pixels may be missing or remain constantly lit.
• Some models are fitted with a radiator fan to prevent the plasma display’s internal temperature from rising during operation. Be careful
of the air emitted by the radiator fan, as it may be hot.
• Contact your dealer when causing a bad influence to the plasma display and other audio-visual equipment mutually.
You may need to move your plasma display if it produces degraded pictures or noise due to electromagnetic radiation, or if the infrared
remote control does not function properly.
• Pictures may not be displayed properly if you connect a non-standard PC to the RGB input terminal. In this case, contact your dealer for
more information.
• The protective circuit, built into the display, automatically turns off the power if the display has a problem. In this case, you will see that
the power indicator lamp flashes red or green.
EnglishDeutschEspañolFrançaisItalianoPortuguês
Warning
If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to unplug from the
receptacle to prevent fire or electric shock. Then contact your dealer.
• It is important to install the plasma display in a location close to a receptacle, and where the emergency stop button can be easily
reached.
CHECKING ACCESSORIES
Manual
Small ferrite core (2)
No.:ZCAT1518-0730
Mfr.:TDK
Safety Precautions
Manual
Large ferrite core (2)
No.:SFT-72SN
Mfr.:TKK
Remote controlUser’s Manual
AA battery (2)
Power cord
Pусский
中文
Note
• Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these supporting products.
• The pictures and diagrams in this manual are meant to complement the explanations and may differ slightly from the actual items.
• The Illustration of external appearance is for 42” model. Please acknowledge some differences in the actual product of other models.
日 本 語
E-3
INSTALLATION
(cm)
(cm)
• To prevent the plasma display’s internal components from overheating, make sure that the plasma display is installed in a well-ventilated
location.
• Be sure to use the optional stand, wall-mounting unit or the other mounting unit when installing the plasma display. Also, be sure that your
dealer performs the installation.
• See the appropriate instruction manual for additional information on the mounting hardware you select.
• To prevent an accident and ensure safety in the event of an earthquake, fix the plasma display securely into the position as described below.
• Use the diagram below to determine how much space is needed to ensure proper heat radiation. This is a minimum space requirement;
therefore, provide at least as much space as indicated below.
* Make sure that the plasma display is installed in a location where the temperature can be maintained between 0°C and 40°C (between
32°F and 104°F)
* Never attempt to tilt the plasma display sideways or backward.
* To prevent the power cord and other cables from being accidentally pulled, make sure that they run along the wall or through corners.
* To prevent accidents and ensure safety in the event of an earthquake, secure the plasma display to prevent it from tipping over.
Display Section
Front Side
Upper
10
Left
10
5
Lower
10
Right
3.5 (for 42”/50”)
5 (for 55”/63”)
Wall
ATTACHING THE FERRITE CORES
• The ferrite cores are used to reduce noise. Attach them correctly as shown in the following illustrations.
• Be sure to turn off power of the plasma display and external equipment before making any connections.
• Carefully check the terminals for position and type before making any connections.
• Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.
2 large ferrite cores
When connecting the cord to the power input terminal, RS232C input
terminal, attach one of these ferrite cores to the cord and the cable near
the terminal.
2 small ferrite cores
When connecting a cable to the external speaker output terminal attach
one of these ferrite cores to the cable near the terminal.
Power Cord
Ferrite Core
Ferrite Core
RS232C Cable
Ferrite Core
Ferrite Core
Note
• The external view is meant to be a representation of the actual unit and is not to scale; therefore, it may differ from the actual shape and size of the product.
• Due to the fragile and highly precise equipment, it is very important to pack properly before transportation using only the packing materials provided.
Reference
See P. E-26 for more information on options.
E-4
PART NAMES AND FUNCTIONS
DISPLAY SECTION – FRONT
Input mode selection button
Volume button
Wide screen selection button
Power indicator lamp
ON/OFF button
Remote control signal receiver
Ambient Sensor
EnglishDeutschEspañolFrançaisItalianoPortuguês
Switches the input modes (Video mode and RGB mode).
Adjusts the sound volume.
Switches the screen over to a desired wide screen.
This lamp shows the state of the power supply.
Lit (red): Stand-by state
Lit (green): Power ON state
Flashing (red or green): Malfunction (Flashes differently
depending on the type of malfunction.)
Turns the power “ON” and “OFF (standby state)”.
Receives the signals from the remote control.
Detects the brightness of ambient light.
It is important not to obstruct it for full functionality of the feature.
DISPLAY SECTION – BACK
External speaker output terminal (EXT SP)
Connect this terminal to the optionally available speaker.
When connecting a cable, attach a ferrite core to the cable.
(See P. E-4.)
*See the speaker instruction manual for more information.
Warning
If the power indicator lamp flashes red or green, this signifies that the plasma display has developed a problem. When this happens, be sure to remove
the power plug from the receptacle and contact your dealer. In this circumstance, leaving the plasma display power ON can result in fire or electric
shock.
Pусский
中文
日 本 語
E-5
PART NAMES AND FUNCTIONS (Continued)
DISPLAY SECTION – BOTTOM
/ I power switch
If this button is pressed when the power indicator lamp is off, the indicator lamp will light.
The power can be turned on and the standby mode selected by using the remote control or the control panel of the display.
If this button is pressed when the power indicator lamp is lit, the indicator lamp will go out.
*Power is still supplied to parts of the display even if the indicator lamp is off.
HDMI input terminal (VIDEO5 INPUT/HDMI)
HDMI input terminal (VIDEO6 INPUT/HDMI) *Model P42VHA** does not have this terminal.
Connect this terminal to the HDMI output terminal of DVD recorder/player or other video equipment.
If the HDMI output is connected, an Audio signal cable does not need to be connected.
RS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable. (See P. E-4.)
RGB1 input terminal (RGB1 INPUT/mD-sub)
Connect this terminal to the output terminal of a PC, set-top box, game, etc.
Component video input terminal (VIDEO3 INPUT)
Component video input terminal (VIDEO4 INPUT)
Connect this terminal to the Component video output terminal of DVD recorder/player or satellite receiver.
Video input terminal (VIDEO1 INPUT)
Connect this terminal to the video output terminal of your VCR.
S-Video input terminal (VIDEO2 INPUT)
Connect this terminal to the S-video output terminal of your VCR.
Audio3 input terminal (AUDIO3 INPUT)
Audio2 input terminal (AUDIO2 INPUT)
Audio1 input terminal (AUDIO1 INPUT)
Connect this terminal to the audio output terminal of VCR or PC, etc.
" Power input terminal
Connect this terminal to the power cord supplied with the plasma display.
When connecting the cord, attach a ferrite core to the cord. (See P. E-4)
The table below shows the settings of Audio inputs. (Factory setting)
* For changing of Audio input settings, see Audio Input on P. E-23.
Video input Audio input
RGB1(mD-sub) Audio1
Video1(Video) Audio2
Video2(S-video) Audio2
Video3(Component Video) Audio3
Video4(Component Video) Audio3
Video5(HDMI) Audio4(HDMI)
Video6(HDMI) Audio5(HDMI)
Note
• The illustration of external appearance is for 42” model. Please acknowledge some differences in the actual product of other models.
E-6
*Model P42VHA** does not have this terminal.
DESCRIPTION OF INPUT TERMINALS
EnglishDeutschEspañolFrançaisItalianoPortuguês
mD-sub input terminal
(RGB1 INPUT/mD-sub)
RS-232C terminal (RS-232C)
Pin No. Input signal Pin No. Input signal
1Red 9—
2 Green 10 Ground
3Blue 11—
4— 12—
5 Ground 13 Horizontal synchronization
6 Ground 14 Vertical synchronization
7 Ground 15 —
8 Ground Frame Ground
Pin No. Signal
1 DCD (Data Carrier Detect)
2 RD (Received Data)
3 TD (Transmit Data)
4 DTR (Data Terminal ready)
5 GND (Ground)
6 DSR (Data Set Ready)
7 RTS (Request To send)
8 CTS (Clear To Send)
9 RI (Ring Indication)
HDMI input terminal (VIDEO5,6 INPUT/HDMI)
Pin No. Input signal Pin No. Input signal
1 T.M.D.S. Data2+ 11 T.M.D.S. Clock Shield
2 T.M.D.S. Data2 Shield 12 T.M.D.S. Clock–
3 T.M.D.S. Data2– 13 CEC
4 T.M.D.S. Data1+ 14 Reserve
5 T.M.D.S. Data1 Shield 15 DDC Clock
6 T.M.D.S. Data1– 16 DDC Data
7 T.M.D.S. Data0+ 17 Ground (for +5V)
8 T.M.D.S. Data0 Shield 18 +5V Power
9 T.M.D.S. Data0– 19 Hot Plug Detect
10 T.M.D.S. Clock+ Frame FG
Pусский
中文
日 本 語
E-7
PART NAMES AND FUNCTIONS (Continued)
REMOTE CONTROL
For details, see page Î
button Î E-11
Switches between Power On and Standby.
- (MUTE button) Î E-11
Press to temporarily mute the audio.
To return the audio to normal, press this button once again, or press the
2 work also.
3 (DISPLAY button) Î E-12
Press to display the input mode and screen size status.
The status is displayed for about five seconds.
4 (PICTURE MODE button) Î E-12
Press to switch the Picture Mode.
5 (PICTURE MEMORY button) Î E-12
Press to recall a Picture Memory.
1 does the
(WIDE button) Î E-13
Press to switch the screen size.
" – ' (Video input mode selector button) Î E-11
Press to select VIDEO1 - 6.
Press to select VIDEO1 - 5. (Model P42VHA**)
) (RGB input mode selector button) Î E-12
Press to select RGB1.
12 (Volume adjustment buttons) Î E-11
Press to adjust the volume.
; (MENU button) Î E-16–E-25
Press to display or hide the menu screen.
Use for picture or audio adjustment.
< (ENTER button) Î E-16–E-25
Press to confirm the setting you made with the adjustment buttons.
CDEF (Adjustment buttons) Î E-16–E-25
Press to select the adjustment item or adjust the value in the menu screen.
Note
• Functions may not be available with some models and some device options.
E-8

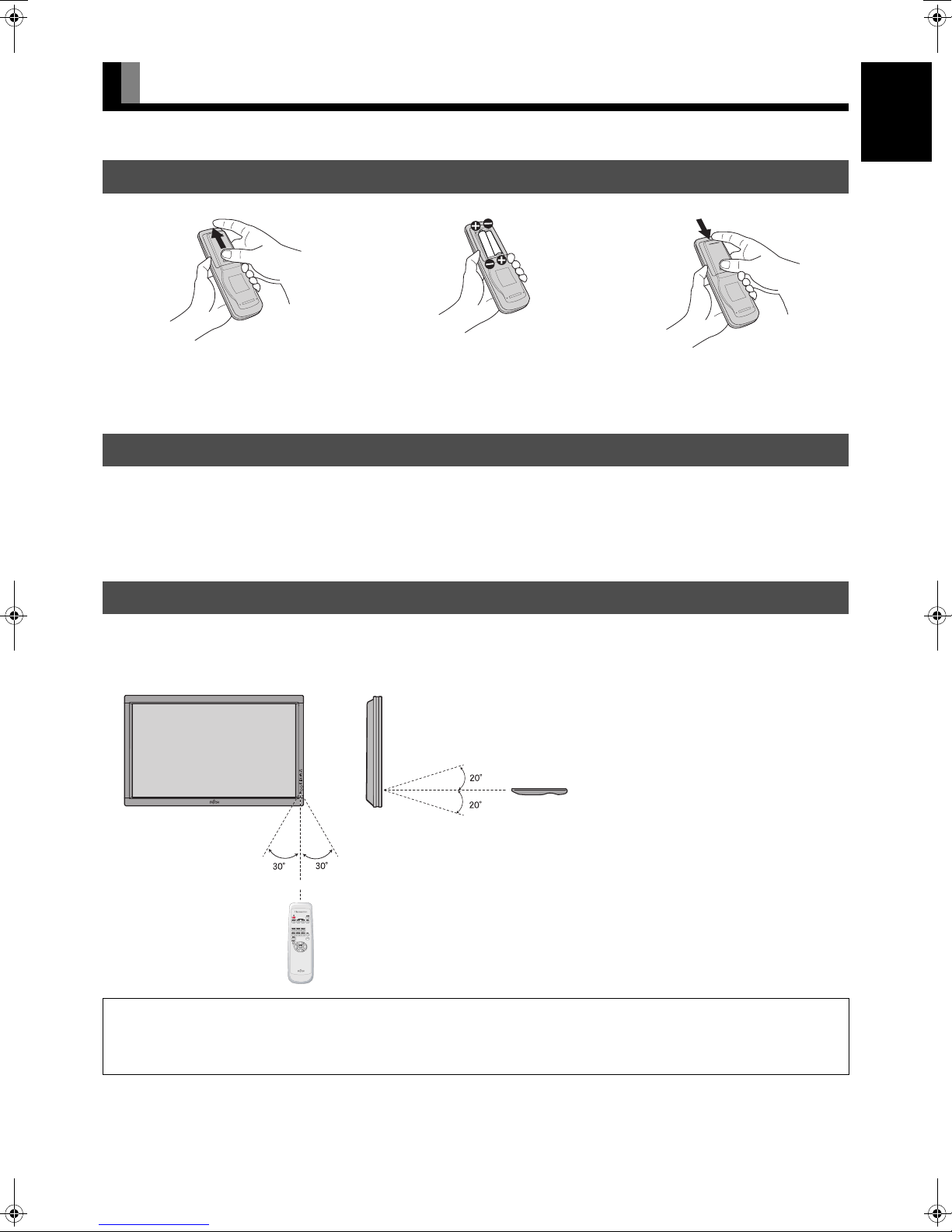

USING THE REMOTE CONTROL
PUTTING BATTERIES IN THE REMOTE CONTROL
EnglishDeutschEspañolFrançaisItalianoPortuguês
(1) To remove the cover, slide it outwards
while pressing it down.
(2) Place two AA batteries in the remote
control. Make sure that the batteries are
properly oriented.
(3) Close the cover until it snaps into place.
PRECAUTIONS
To prevent malfunction, do not apply any form of severe shock to the remote control. To prevent malfunction or deformation, do not allow
the remote control to become wet and keep it away from hot surfaces or heating equipment. Do not clean the remote control using a cloth
dampened in a volatile solvent, such as benzene or thinner.
EFFECTIVE RANGE FOR THE REMOTE CONTROL
When using the remote control, be sure to point it directly at the plasma display's signal receiver. Make sure that there are no obstacles
between the remote control and the plasma display's signal receiver.
Upper
Lower
Display – front Display – side
Pусский
Left
5 m (Front)
CAUTION
It is very important to use replacement batteries of the same type as the originally used. Do not use rechargeable batteries (Ni-Cd, etc.).
When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/
area.
Note
• The remote control will not function properly if the batteries are dead. Be sure to replace them as needed.
• The remote control may not function properly if a high-frequency fluorescent lamp or the like is used. In this case, move the lamp or use the remote
control from a different position.
Right
中文
日 本 語
E-9
Loading...
