Fujitsu P42VCA20, P42VCA21, P42VCA22 User Manual
USER’S MANUAL
42”/50” WIDE PLASMA DISPLAY
P42VCA10/P42HCA10/P50XCA10/P42VCA20/
P42VCA11/P42HCA11/P50XCA11/P42VCA21/
P42VCA12/P42HCA12/P50XCA12/P42VCA22
English
Before Use
• Safety Precautions ··································· E-2–E-3
• Features ····························································E-4
• Accessories ······················································ E-5
• Handy Tips ······················································· E-5
• Installation ······················································· E-6
Usage
• Part Names and Functions ····················· E-7–E-11
• Using the Remote Control ·····························E-12
• Connecting the Display to External
Equipment ············································ E-13–E-15

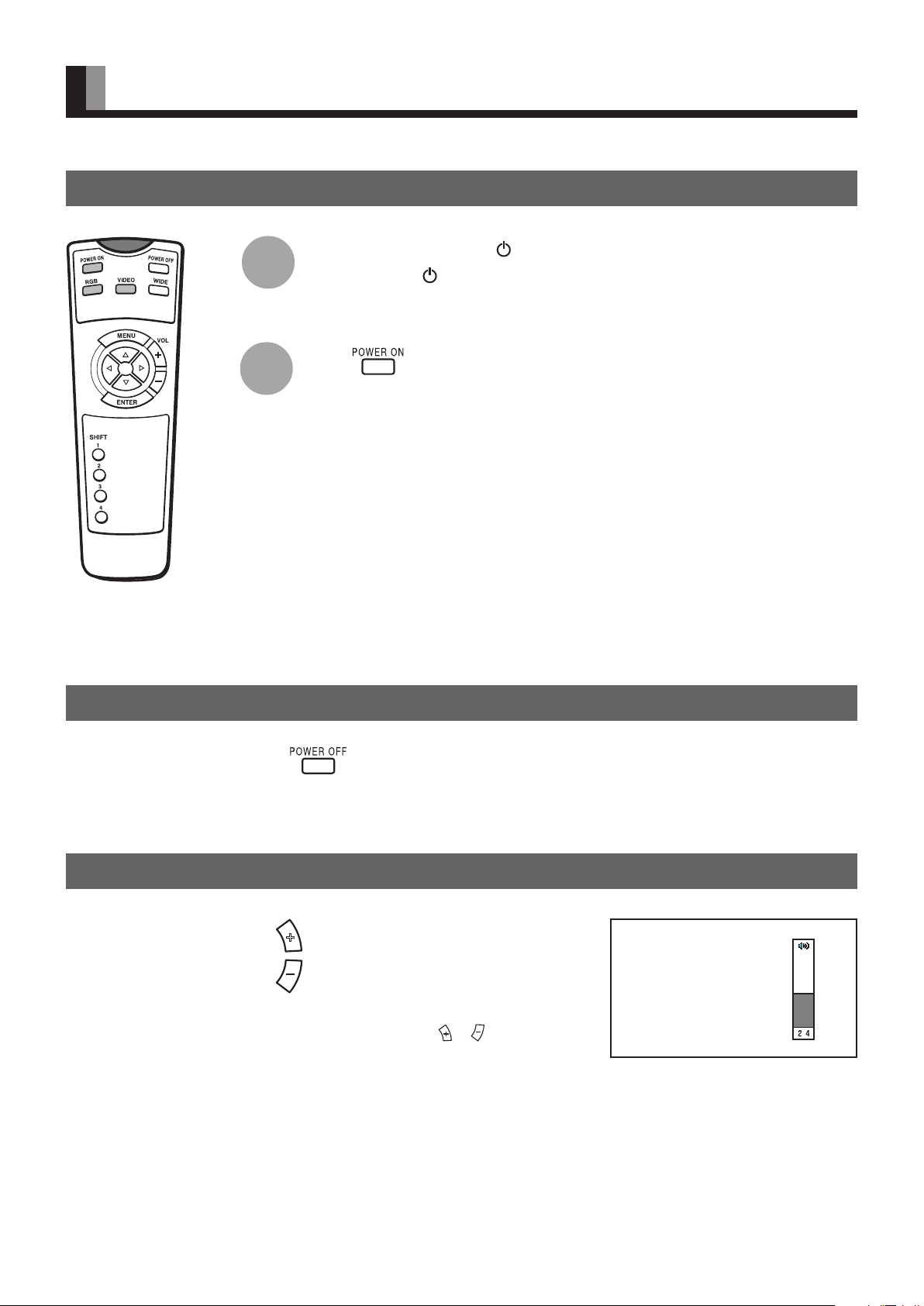

• Basic Operations ············································ E-16
• Selecting Input Mode ·····································E-17
•
Watching Pictures on the Wide Screen ···
E-18–E-19
Contents
Page Page
Adjustments

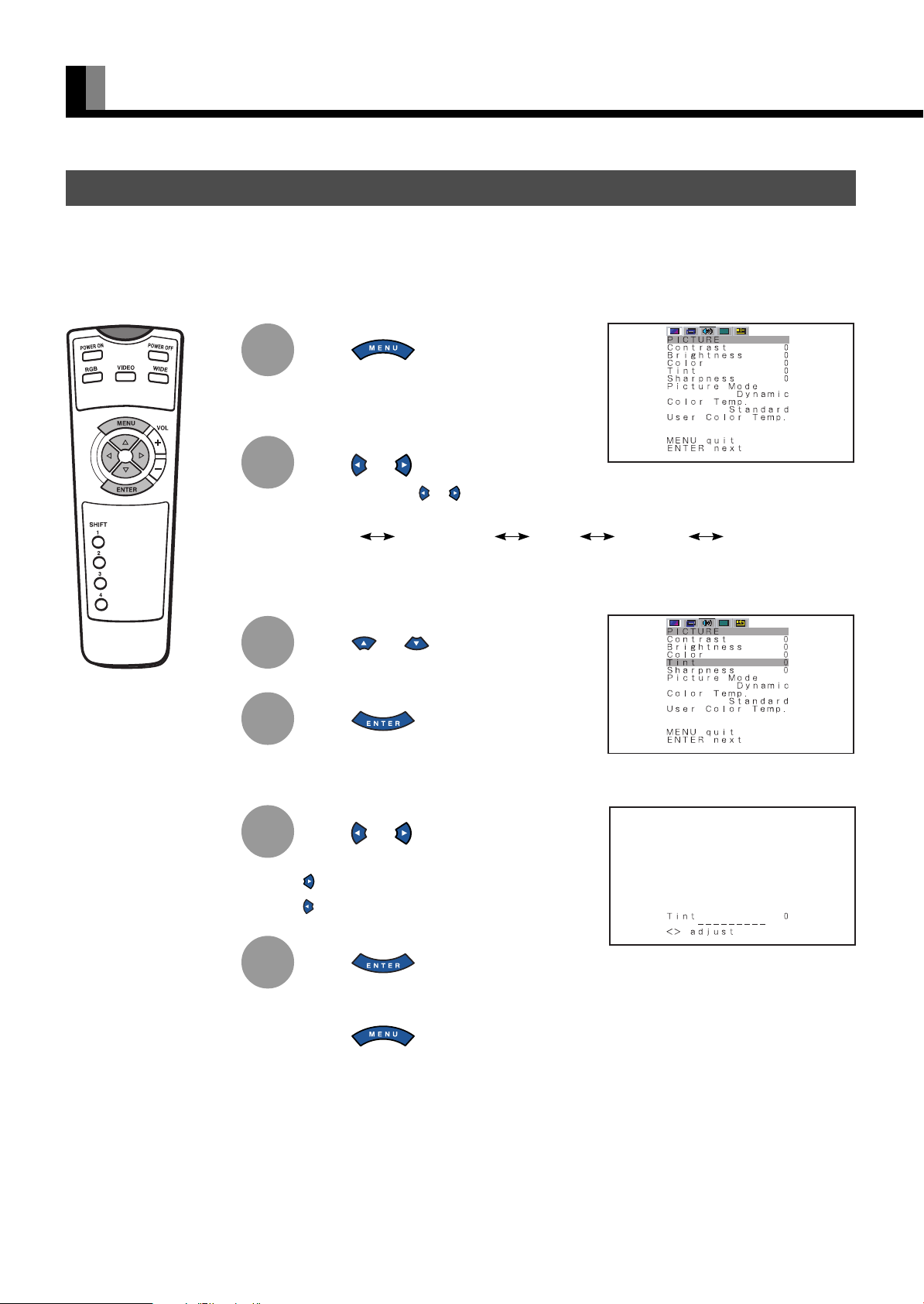

• Adjusting Pictures (PICTURE Menu) ··· E-20–E-21

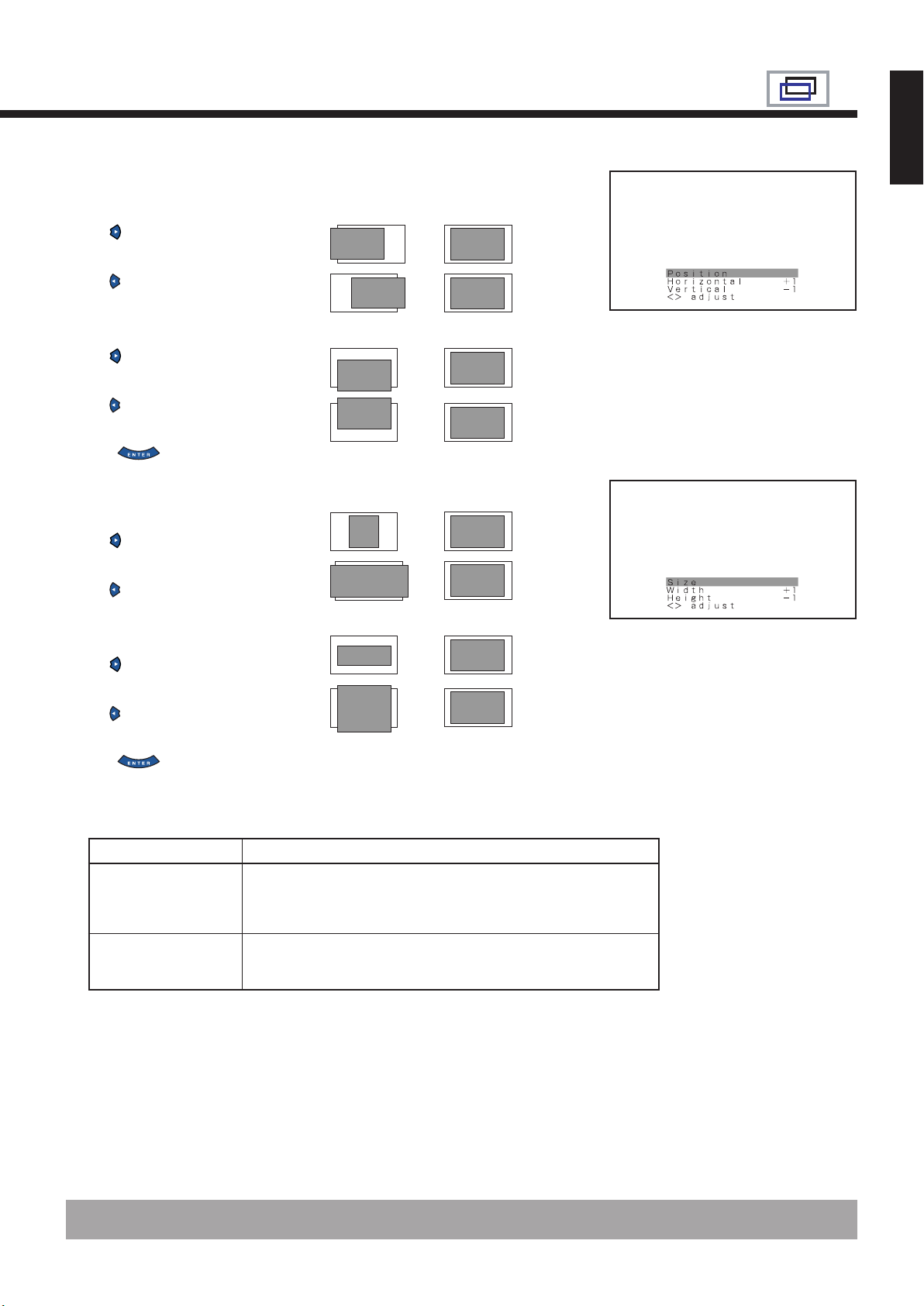

• Adjusting Screen Position and Size
(POSITION/SIZE Menu) ························ E-22–E-23

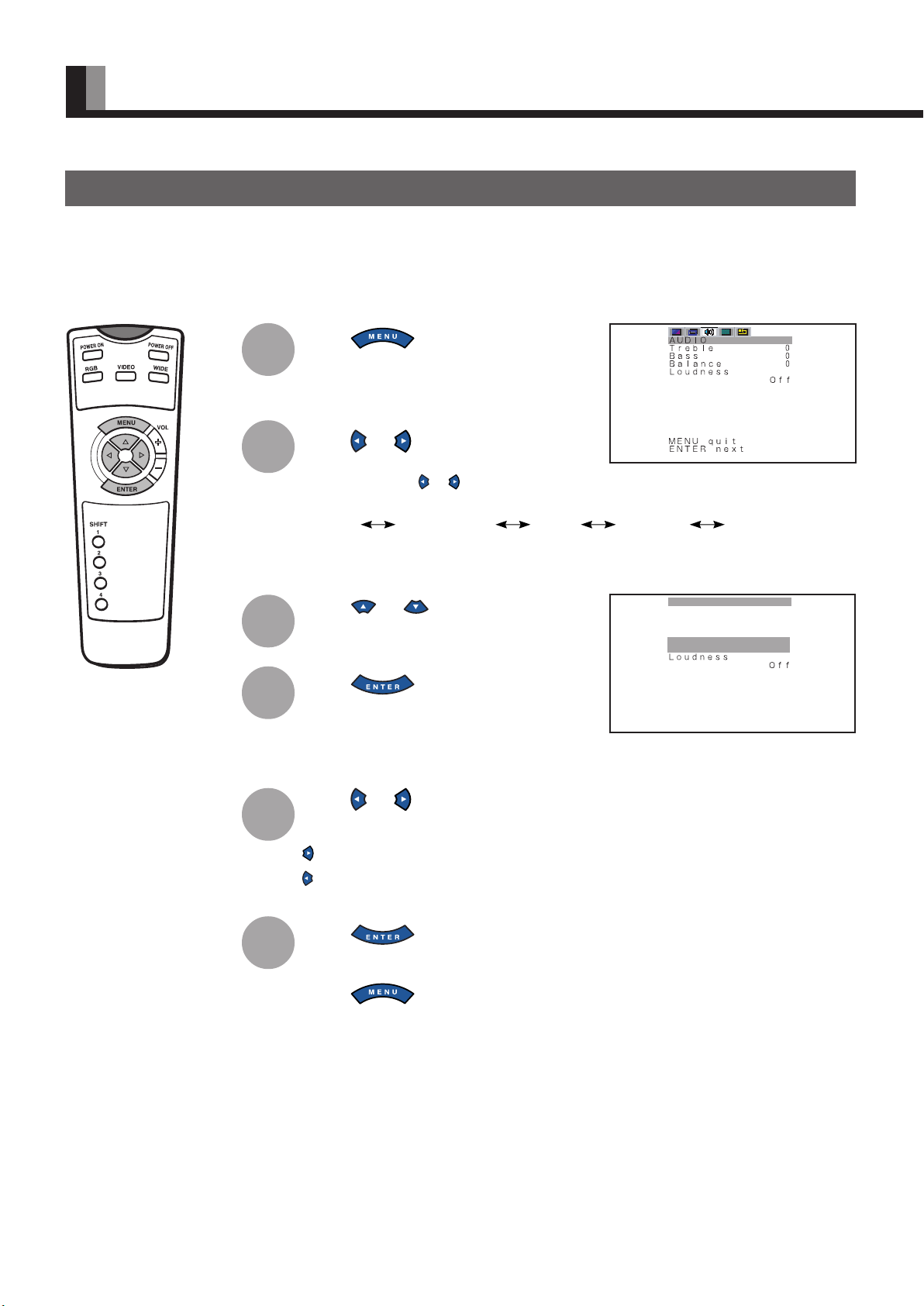

• Adjusting Audio (AUDIO Menu) ········· E-24–E-25
•

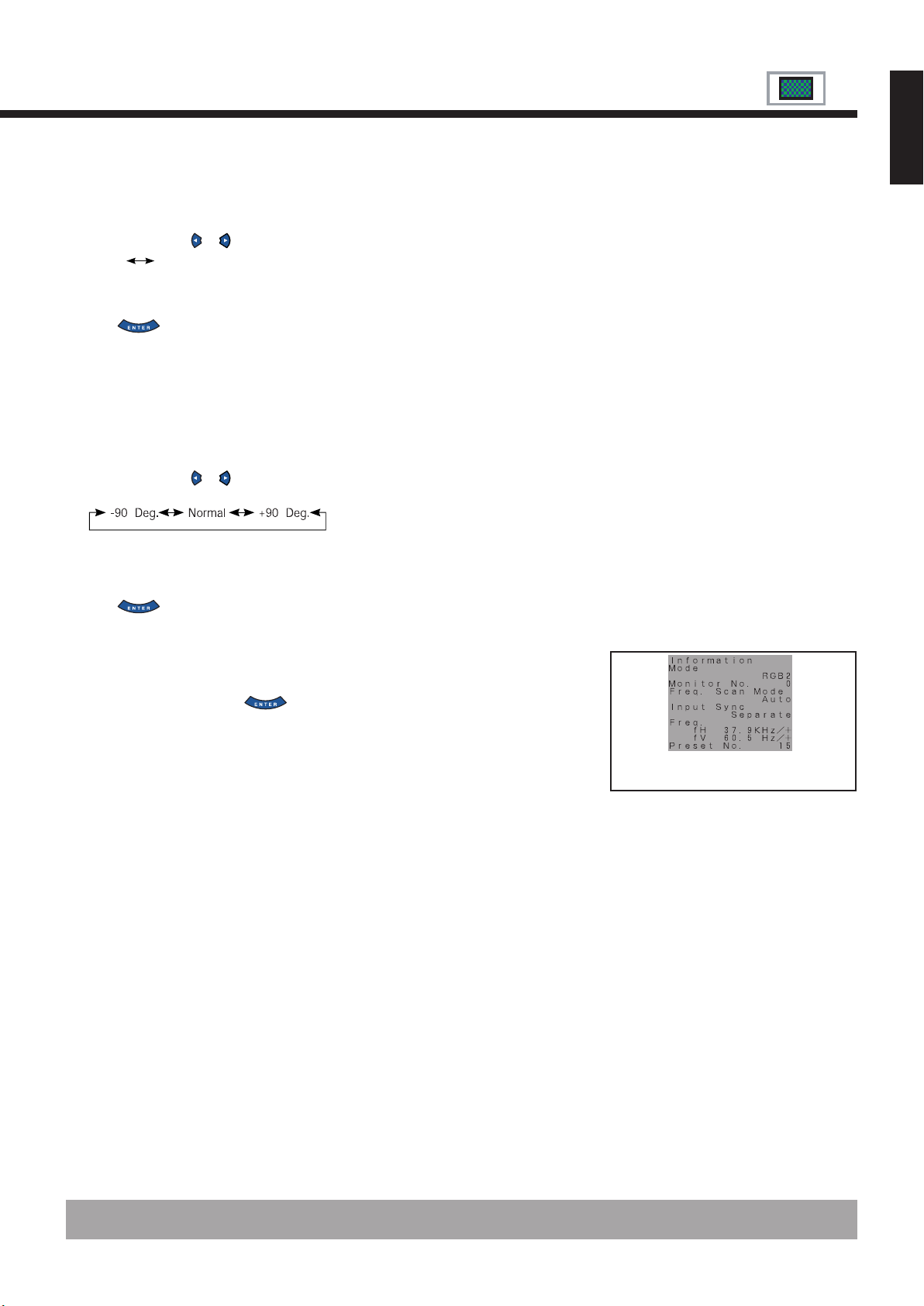

Other Adjustments (FEATURES Menu) ···
• Initialization of User Adjustment Value
(FACTORY DEFAULT) ·····································E-34
Others
• Options ···························································· E-35
• Factory Settings ············································ E-36
• Specification ········································· E-37–E-40
• Cleaning and Maintenance ···························· E-41
E-26–E-33
Before using the display, read this manual carefully so that you know how to use the display correctly.
Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the
safety precautions.
Keep this manual where the user can see it easily.
* Installation and removal require special expertise. Consult your product dealer for details.
SAFETY PRECAUTIONS
IMPORTANT INFORMATION
IMPORTANT
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• P42VCA10/P42HCA10/P50XCA10/P42VCA20: A class A digital device
• P42VCA11/P42HCA11/P50XCA11/P42VCA21: A class A digital device
• P42VCA12/P42HCA12/P50XCA12/P42VCA22: A class A digital device
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But
IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards
incorporated into this product, observe the following basic rules for its installation, use and service. Please read these “Important
Safeguards” carefully before use.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifier’s) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
E-2
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, dose not operate normally, or has been dropped.
– Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
– Do not use attachments not recommended by the product manufacturer as they may cause hazards.
– Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire,
electric shock, or other hazards.
– The apparatus shall not be exposed to dripping or splashing.
– No objects filled with liquids, such as vases, shall be placed on the apparatus.
– Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious
damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount
recommended by the manufacturer.
– When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the
product and cart to overturn, damaging equipment or causing possible injury to the operator.
– Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from
overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed,
sofa, rug, or other similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided and the manufacturer’s instructions have been adhered to.)
For proper ventilation, separate the product from other equipment, which may prevent ventilation, and keep distance more than 10 cm.
– This product should be operated only from the type of power source indicated on the label. If you are not sure of the type of power
supply of your home, consult your product dealer or local power company.
– This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug
into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
– Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay
particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.
– For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.
– Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric
shock.
– Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill liquid of any kind on the product.
– Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards.
Refer all service to qualified service personnel.
–
Unplug this product from the wall outlet and refer service to qualified service personnel if the product does not operate normally by following
the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
– When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with
same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
– Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the
product is in proper operating condition.
– The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products
(including amplifiers) that produce heat.
– When connecting other products such as VCR’s, and personal computers, you should turn off the power of this product for protection
against electric shock.
– Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special
hazards when overheated.
– Use only the accessory cord designed for this product to prevent shock.
The power supply voltage rating of this product is AC110–240 V (42”10/11/12 W/E/A) and AC220–240 V (42”20/21/22 W/E/A, 50” W/
E/A type) and AC 120 V (U type), and the power cord attached conforms to the following power supply voltage. Use only the power
cord designated by our dealer to ensure Safety and EMC.
When it is used with other power supply voltage, the power cable must be changed.
Use the standard power plug and cord set of the specified country.
Power cord
Consult your product dealer.
English
Power supply voltage:
AC 100–125 V
(42”10/11/12W, 42”U, 50”U
Type: Included)
AC 200–240 V
(42”20/21/22W, 42”E, 50”W,
50”E Type: Included)
AC 240 V (SAA TYPE)
(42”A, 50”A Type: Included)
E-3
FEATURES
This display uses a plasma display panel and is only 8.5 cm (42”) /9.8 cm (50”) deep. With its high picture quality and performance, it is
perfectly suited for multimedia applications.
Variety of input signals
• RGB input is compatible with mD-sub terminals and BNC terminals.
• The display has an RGB input terminal to receive signals, including VGA, SVGA, XGA, SXGA and UXGA.
3 screen sizes (RGB input mode)
• Three different screen sizes in RGB input mode (Normal, Wide, and Zoom) are also available.
Vertical installation
• The display can be installed vertically, enabling advertisement to be displayed. In this case, you can set up the display so that on-screen
information, such as input modes and menus, is displayed properly.
Power management function
• The display features a DPMS (Display Power Management Signaling) function that ensures automatic power saving capability.
Flexible as part of a system
• You can operate the display by remote control using the RS-232C interface.
• If you have two or more displays, you can assign a unique number to each of them so that you can select which one you want to use.
• Input Priority function for selecting automatic switching to desired mode is provided to avoid troublesome operation.
Others
• You can specify the color temperature.
• The white screen and screen orbiter functions are available to minimize phosphor burn-in.
E-4
ACCESSORIES
CHECKING ACCESSORIES
English
One remote control Two AA batteries
One user’s manual One power cable Two big ferrite
cores
Manual
(42”10/11/12W,
42”U, 50”U Type)
(42”20/21/22W, 42”E,
50”W, 50”E Type)
(42”A, 50”A Type)
Two small ferrite
cores
(P42VCA11/
P42HCA11/
P50XCA11/
P42VCA21 only)
HANDY TIPS
• Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.5 m or 5 feet (42”)/
1.9 m or 6.3 feet (50”)) from the screen and to look occasionally away while working.
• Have the display inspected and cleaned by your dealer at regular intervals.
• Pictures may become “burnt” into the screen phosphors if the screen is left on for extended periods. To ensure that the display has a
prolonged service life, be sure to use a screen orbiter, white screen. This will ensure the same picture or pattern is not constantly
displayed for long periods. (See P. E-31–E-32.)
• The plasma display panel, which is built for maximum precision, provides more than 99.99% effective pixels. You may find, however,
that some pixels constantly remain lit or dimmed.
• The display has a fan to prevent its internal temperature from rising.
• Be careful with the air delivered by the fan. It may be very hot.
• Contact your dealer if you find that the display does not seem to function properly when used with other audio-visual equipment.
You may need to move your display if it produces degraded pictures or noise due to electromagnetic radiation, or if the infrared remote
control does not function properly.
• Pictures may not be displayed properly if you connect a non-standard PC to the RGB input terminal. In this case, contact your dealer
for more information.
• The protective circuit, built into the display, automatically turns off the power if the display has a problem. In this case, you will see
that the power indicator lamp flashes red.
Warning
If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the
power plug from the receptacle to prevent fire or electric shock. Then, check the display in accordance with the instructions given on
P. E-41, or contact your dealer.
Information
Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these products.
E-5
INSTALLATION
To prevent the display’s internal components from overheating, make sure that the display is installed in a well-ventilated location.
Be sure to use the optional desktop stand, ceiling-mounting unit, wall-mounting unit and other unit when installing this display. Also, be
sure that your dealer performs the installation.
See the appropriate instruction manual for more information on the installation hardware you select.
To ensure proper heat radiation, provide at least as much space around the display as shown below.
* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C.
* Never attempt to tilt the display sideways or backward.
* To prevent the power and other cables from being accidentally pulled, be sure to make the wiring work along the wall or through the
corners of floor.
* To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below.
Horizontal type
Front Side
(cm) (cm)
Upper
10
Left
10
5
Lower
10
Right
Wall
4
Note
The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing
materials originally supplied with the display when repacking it.
Reference
See P.E-35 for more information on options.
E-6
PART NAMES AND FUNCTIONS
Front (both 42" and 50")
①
②
English
1 Power indicator lamp
This lamp shows the state of the power supply.
Lit (red): Power OFF (stand-by)
Lit (green): Power ON
Lit (orange): Power saving (DPMS: Power saving
function) mode ON
Flashing (red): Malfunction (Flashes differently depending
on the type of malfunction. See P. E-41 for
more information.)
2 Remote control signal receiver
Receives signals from the remote control.
Warning
If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the
power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.
E-7
PART NAMES AND FUNCTIONS (Continued)
Bottom (42” VCA 10/11/12 type)
Bottom (42” HCA type)
Bottom (50”)
Bottom (42” VCA 20/21/22 type)
1 OFF/STD-BY switch
OFF :
STD-BY :The power indicator lamp lights red, and the power can be turned on or off by the power button.
2 RS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable. (See P. E-13.)
3 RGB1 input terminal (RGB1 INPUT/mD-sub)
Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.
The power indicator lamp goes off, and the power can’t be turned on by the power button. The power is partly supplied.
E-8
4 Power input terminal
Connect this terminal to the power cable supplied with the display.
When connecting a cable,attach a ferrite core to the cable. (See P. E-13)
5 External speaker output terminal (EXT SP)
Connect this terminal to the optionally available speaker.
(When using other speaker than the optional one, use 4–16 Ω speaker.)
When connecting a cable, attach a ferrite core to the cable. (See P. E-13)
* See the speaker instruction manual for more information.
* P42VCA11/P42HCA11/P50XCA11/P42VCA21 only.
6 Sound 1 input terminal (AUDIO1 INPUT)
7 Sound 2 input terminal (AUDIO2 INPUT)
8 Sound 3 input terminal (AUDIO3 INPUT)
Connect this terminal to the sound output terminal of your computer, etc. (See P.E-30 for the selection of audio input for video input.)
* This terminal is not available for P42VCA10/P42HCA10/P50XCA10/P42VCA20.
9 RGB2 input terminal (RGB2 INPUT/BNC)
Connect this terminal to the PC's display (analog RGB) output terminal or decoder (digital broadcast tuner,etc.) output terminal.
0 RGB2 synchronization switch (SYNC SW TTL/ANALOG (75 Ω))
This switch is used to terminate horizontal (H) terminal and vertical (V) terminal, out of RGB2 input terminals, with 75 Ω .
TTL : Does not terminate.
ANALOG (75 Ω): Terminates.
English
E-9
PART NAMES AND FUNCTIONS (Continued)
Description of Input Terminals
RGB1 terminal (RGB1 INPUT/mD-sub)
RS-232C terminal (RS-232C)
Pin No. Input signal Pin No. Input signal
1 Red 9 —
2 Green 10 Ground
3 Blue 11 —
4— 12—
5 Ground 13 Horizontal synchronization
6 Ground 14 Vertical synchronization
7 Ground 15 —
8 Ground Frame Ground
Pin No. Signal
1 DCD (Data Carrier Detect)
2 RD (Received Data)
3 TD (Transmit Data)
4 DTR (Data Terminal ready)
5 GND (Ground)
6 DSR (Data Set Ready)
7 RTS (Request To send)
8 CTS (Clear To Send)
9 RI (Ring Indication)
E-10
Remote Control
1
3
8
1 Power ON button [POWER ON] ➝ (See P. E-16.)
2 Power OFF button [POWER OFF] ➝ (See P. E-16.)
2
3 RGB input mode selector button [RGB] ➝ (See P. E-17.)
5
4 Video input mode selector button [VIDEO]
4
6
7
9
=
Unused.
5 Wide screen selector button [WIDE] ➝ (See P. E-18–E-19.)
6 Menu button [MENU] ➝ (See P. E-20–E-34.)
Use this button to display a desired menu for adjusting the picture.
7 Volume adjustment buttons [VOL +/-] ➝ (See P. E-16.)
Adjust the volume. Press the + button to increase the volume.
Press the - button to reduce the volume.
* Not used with P42VCA10/P42HCA10/P50XCA10/P42VCA20.
8 Adjustment buttons [
Use these buttons to scroll through options in a menu and change values.
9 Enter button [ENTER] ➝ (See P. E-20–E-34.)
Press this button to finalize the selection of a desired menu or option within a menu.
0 Display selector buttons [SHIFT 1–4] ➝ (See P. E-32.)
When you use two or more displays, you can use these buttons to control up to four displays
by assigning a unique number to each display.
/ / / ] ➝ (See P. E-20–E-34.)
English
PUTTING BATTERIES IN THE REMOTE CONTROL
1 To remove the cover, slide it
outwards while pressing it down.
2 Place two AA batteries in the
remote control. Make sure that the
batteries are properly oriented.
CAUTION: Be sure to use replacement batteries of the same type as the original ones.
When disposing of used batteries, please comply with governmental regulations or environmental
public institution’s rules that apply in your country/area.
3 Close the cover until it snaps into
place.
Note
The remote control will not function properly if the batteries are dead. Be sure to replace them as needed.
Do not use rechargeable batteries (Ni-Cd).
E-11
USING THE REMOTE CONTROL
PRECAUTIONS
To prevent malfunction, be sure not to apply any form of severe shock to the remote control.
To prevent malfunction or deformation, be sure not to allow the remote control to become wet; also, keep it away from hot locations or
heating equipment.
Be sure not to clean the remote control using a cloth dampened in any volatile solvent, such as benzene or thinner.
EFFECTIVE RANGE FOR THE REMOTE CONTROL
Point the remote control at the display’s signal receiver when using it.
Make sure that there are no obstacles between the remote control and the display’s signal receiver.
30°
5 m (Front)
30°
Upper
20°
20°
Lower
RightLeft
Information
The remote control may not function properly if you use a high-frequency fluorescent lamp. If you experience problems, move the lamp or use the
remote control from a different position.
E-12
CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT
Be sure to turn OFF the power to the display and external equipment before making any connections.
No cables are supplied with the display for connection to external equipment. The type of cable to be used varies depending on the PC
model. Contact your dealer for more information.
RECEPTACLE
Make sure that the power cable’s grounding wire is grounded.
The display comes with a 3-prong power plug; one prong is connected to the grounding wire. If you have only a 2-hole receptacle, you
will need to have it replaced. Contact your dealer for more information.
CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT
Carefully check the terminals for position and type before making any connections.
Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.
English
Ferrite cores
These ferrite cores are used to attenuate undesired signals.
Two big ferrite cores
When connecting a cable to the power input terminal, RS-232C terminal, attach one of these ferrite cores to the cable near the terminal.
Power Cable
Ferrite Core
Two small ferrite cores
When connecting a cable to the external speaker output terminal attach one of these ferrite cores to the cable near the terminal.
(P42VCA11/P42HCA11/P50XCA11/P42VCA21 only.)
Ferrite Core
RS-232C Cable
Ferrite Core
Ferrite Core
E-13
