Fujitsu P42HTS40G, P50XTS40G User Manual

USER’S MANUAL

WIDE PLASMA DISPLAY

P42HTS40G / P50XTS40G

AV SELECTOR FOR WIDE PLASMA DISPLAY P-TU4240G / P-TU5040G

EnglishDeutschEspañolFrançaisItalianoPortuguês

Contents

Page Page

Before Use

• INFORMATION ............................................................E-2

• INSTALLATION............................................................E-4

Usage

• PART NAMES AND FUNCTIONS ...............................E-5

• USING THE REMOTE CONTROL.............................E-12

• CONNECTING THE DISPLAY TO EXTERNAL

EQUIPMENT..............................................................E-14

• BASIC OPERATIONS ................................................E-24

• SELECTING INPUT MODE .......................................E-26

• OTHER BASIC OPERATIONS ..................................E-29

• WATCHING PICTURES ON THE WIDE SCREEN.... E-30

Adjustments

• ADJUSTMENT MENU................................................E-32

• BASIC PROCEDURE OF ADJUSTMENT MENU

OPERATIONS............................................................E-33

• ADJUSTING THE PICTURE......................................E-34

• ADJUSTING SCREEN POSITION AND SIZE ...........E-36

• ADJUSTING AUDIO...................................................E-37

Before using the display, read this manual carefully so that you know how to use the display correctly. Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the safety precautions (see the separate "Safety Precautions" manual). Keep this manual where the user can see it easily. * Installation and removal require special expertise. Consult your product dealer for details. * When "English" is selected at "Language" of the on-screen display, "colour" will be displayed but "color" is described in this

manual.

* The last digit of MODEL NO. (10 digit alphanumeric characters) indicated on the product means the body color indication

alphabet or the management number.

• OTHER ADJUSTMENTS ...........................................E-38

• INITIALIZATION OF USER ADJUSTMENT VALUE ..E-44

Others

• OPTIONS ...................................................................E-45

• MAIN SUPPORTED SIGNALS...................................E-46

• TABLE OF TV FREQUENCIES..................................E-47

• SPECIFICATION ........................................................E-48

• CLEANING AND MAINTENANCE ............................. E-50

Póññêèé

中文

日本語

INFORMATION

• Receptacle

Make sure that the power cable’s grounding wire is grounded.

The display comes with a 3-prong power plug; one prong is connected to the grounding wire. If you have only a 2-hole receptacle, you will need to have it replaced. Contact your dealer for more information.

• Have the display inspected and cleaned by your dealer at regular intervals.

• Pictures may become “burnt” into the screen phosphors if the screen is left on for extended periods. To ensure that the display has a prolonged service life, be sure to use a screen orbiter, white screen. This will ensure the same picture or pattern is not constantly displayed for long periods. (See P. E-42.)

• Extremely high-precision technology has been used in the manufacture of the plasma display panel, with the effective pixel elements exceeding 99.99%. Please be aware, however, that fewer than 0.01% of the pixels may be missing or remain constantly lit.

• Some models are fitted with a radiator fan to prevent the display’s internal temperature from rising during operation. Be careful of the air emitted by the radiator fan, as it may be hot.

• Contact your dealer if you find that the display does not seem to function properly when used with other audio-visual equipment.

You may need to move your display if it produces degraded pictures or noise due to electromagnetic radiation, or if the infrared remote control does not function properly.

• Pictures may not be displayed properly if you connect a non-standard PC to the RGB input terminal. In this case, contact your dealer for more information.

• The protective circuit, built into the display, automatically turns off the power if the display has a problem. In this case, you will see that the power indicator lamp flashes red or green.

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle to prevent fire or electric shock. Then contact your dealer.

• Install the display in a location close to a main power supply outlet, and where the emergency stop button can be easily reached.

Note

• Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these products.

• In order to facilitate the explanations, pictures and diagrams in this manual may differ slightly from the actual items.

E-2

CHECKING ACCESSORIES

Display Section

One power cable One System cable

(picture)

One System cable

(audio)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Two small ferrite cores One big ferrite core

AV Selector Section

Manual

One big ferrite core

No.:SFT-72SN Mfr.:TKK

Manual

No.:ZCAT1518-0730 Mfr.:TDK

Two AA batteriesOne remote control One power cable Two user's manuals

No.:SFT-72SN Mfr.:TKK

E-3

Póññêèé

中文

日本語

INSTALLATION

(cm)

To prevent the display's internal components from overheating, make sure that the display is installed in a well-ventilated location.

Be sure to use the optional stand, wall-mounting unit or the other unit when installing the display. Also, be also sure that your dealer performs the installation.

See the appropriate instruction manual for more information on the installation hardware you select.

To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below.

To ensure proper heat radiation, provide at least as much space around the display as shown below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C.

* Never attempt to tilt the display sideways or backward.

* To prevent the power and other cables from being accidentally pulled, make sure that they run along the wall or through corners.

* To prevent accidents and ensure safety in the event of an earthquake, secure the display to prevent it from tipping over.

Display Section

Front Side

Upper

(cm)

Left

AV Selector section

Left

Lower

Right

Wall

3.5

Front Side

Upper

Right

Floor

Upper

Rear

Floor

Note

The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing materials originally supplied with the display when repacking it.

Reference

See P. E-45 for more information on options.

E-4

PART NAMES AND FUNCTIONS

DISPLAY SECTION – FRONT

EnglishDeutschEspañolFrançaisItalianoPortuguês

(Right section)

 Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Stand-by state

Lit (green): Power ON state

Flashing (red or green): Malfunction (Flashes differently

depending on the type of malfunction.)

 Remote control signal receiver

Receives signals from the remote control.

 Input mode selector button [MODE]

 Input mode selector button [MODE]

Switches between picture input modes.

 VOL + button

 VOL - button

Adjusts the audio volume.

 Wide screen selector button [WIDE]

Switches the screen over to a desired wide screen.

 ON/OFF button

Turns the power "ON" and "OFF (standby state)".

 Ambient Sensor

Detects the brightness of external light. Do not obstruct it.

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.

Póññêèé

中文

日本語

E-5

PART NAMES AND FUNCTIONS (Continued)

DISPLAY SECTION – LOWER PART

  /l power switch

If this button is pressed when the power indicator lamp is off, the indicator lamp will light.

The power can be turned on and the standby mode selected by using the remote control or the control panel of the display.

If this button is pressed when the power indicator lamp is lit, the indicator lamp will go out.

*Power is still supplied to parts of the display even if the indicator lamp is off.

 Display input (picture) terminal

Connect this terminal to the display output (picture) terminal on the AV Selector using the special cable provided.

 Display input (audio) terminal

Connect this terminal to the display output (audio) terminal on the AV Selector using the special cable provided.

 External speaker output terminal (EXT SP)

Connect this terminal to the optionally available speaker.

When connecting a cable, attach a ferrite core to the cable. (See P. E-14.)

*See the speaker user’s manual for more information.

 Power input terminal

Connect this terminal to the power cable supplied with the display.

When connecting a cable, attach a ferrite core to the cable. (See P. E-14.)

E-6

AV SELECTOR SECTION – FRONT

 Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Stand-by

Lit (green): Power ON

Flashing (red or green): Malfunction (Flashes differently depending on the type of malfunction.)

 Remote control signal receiver

Receives signals from the remote control.

  /l power switch

If this button is pressed when the power indicator lamp is off, the indicator lamp will light.

The power can be turned on and the standby mode selected by using the remote control or the control panel of the display.

If this button is pressed when the power indicator lamp is lit, the indicator lamp will go out.

*Power is still supplied to parts even if the indicator lamp is off.

 Video3, S-video input terminal *

Connect this terminal to the S-video output terminal of your video camera, etc.

 Video3, video input terminal *

Connect this terminal to the video output terminal of your video camera, etc.

 Audio input terminals (L/R)

These are the audio input terminals for the Video3 and RGB3 terminals.

Input the audio for the video to be seen here.

 RGB3 input terminal

Connect this terminal to your PC's mD-sub output terminal.

EnglishDeutschEspañolFrançaisItalianoPortuguês

Póññêèé

* On selecting the video input format

(See "SETTING THE INPUT TERMINALS" on P. E-40.)

Warning

中文

日本語

E-7

PART NAMES AND FUNCTIONS (Continued)

AV SELECTOR SECTION – REAR

 Audio input terminals

Input audio through the terminals corresponding to the used video input terminals.

* The digital input terminals can be matched as desired with the remote control. (See P. E-29.)

 Audio output terminals

For use when the audio from an audio system (amplifier) is used.

 Video1 input terminal

 Video2 input terminal

 Video4 input terminal

Connect this terminal to the SCART terminal of your VCR or DVD, etc.

* See "SETTING THE INPUT TERMINALS" on P. E-40.

 Video5 input terminal

 Video6 input terminal

Connect this terminal to the component video output terminal of your DVD, etc.

 Video7 input terminal

Connect this terminal to the HDMI output terminal of your DVD, etc.

 RGB1 input terminal

Connect this terminal to the monitor (DVI-D) output terminal of your PC.

 RGB2 input terminal

Connect this terminal to the monitor (mD-sub) output terminal of your PC.

 Display output terminals (Picture/Audio)

Connect these terminals to the picture input terminal and audio input terminals on the display.

 Power input terminal

Connect this terminal to the power cable supplied with the display.

When connecting a cable, attach a ferrite core to the cable. (See P. E-14.)

 Antenna input terminal

Please connect it to the antenna signal.

E-8

DESCRIPTION OF INPUT TERMINALS

EnglishDeutschEspañolFrançaisItalianoPortuguês

DVI-D terminal (RGB1 INPUT/DVI-D)

mD-sub input terminal (RGB2, 3 INPUT/mD-sub)

Pin No. Signal Pin No. Signal Pin No. Signal

1 T.M.D.S. Data2– 9 T.M.D.S. Data1– 17 T.M.D.S. Data0–

2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

4— 12— 20—

5— 13— 21—

6 DDC Clock 14 +5V Power 22

7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+

8 — 16 Hot Ploug Detect 24 T.M.D.S. Clock–

Pin No. Input signal Pin No. Input signal

1Red 9—

2 Green 10 Ground

3Blue 11—

4— 12—

5 Ground 13 Horizontal synchronization

6 Ground 14 Vertical synchronization

7 Ground 15 —

8 Ground Frame Ground

T.M.D.S. Data2 Shield

T.M.D.S. Data1 Shield

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield

SCART terminal (Video1, 2, 4)

HDMI input terminal (VIDEO7)

Pin No. Input Signal Pin No. Input Signal Pin No. Input Signal

48121620

26101418

159131721

37111519

1— 8— 15

2 Right audio 9 Green ground 16 —

3— 10— 17—

4 Audio ground 11 Green 18

5 Blue ground 12 — 19 —

6 Left audio 13 Red ground 20

7 Blue 14 — 21 Ground

Pin No. Input signal Pin No. Input signal

1 T.M.D.S. Data2+ 11 T.M.D.S. Clock Shield

2 T.M.D.S. Data2 Shield 12 T.M.D.S. Clock–

3 T.M.D.S. Data2– 13 CEC

4 T.M.D.S. Data1+ 14 Reserve

5 T.M.D.S. Data1 Shield 15 DDC Clock

6 T.M.D.S. Data1– 16 DDC Data

7 T.M.D.S. Data0+ 17 Ground (for +5V)

8 T.M.D.S. Data0 Shield 18 +5V Power

9 T.M.D.S. Data0– 19 Hot Plug Detect

10 T.M.D.S. Clock+ Frame FG

Red/chrominance

Composite video ground

Composite video/Y

Póññêèé

中文

HDMI, the HDMI logo and High-Definition Multimedia interface are trademarks or registered trademarks of HDMI Licensing LCC.

日本語

E-9

PART NAMES AND FUNCTIONS (Continued)

REMOTE CONTROL

For details, see page Î.

  button Î E-24

Switches between Power On and Standby.

  (STILL button) Î E-29

Displays the screen being watched as the still picture. To return to normal, press this button once again.



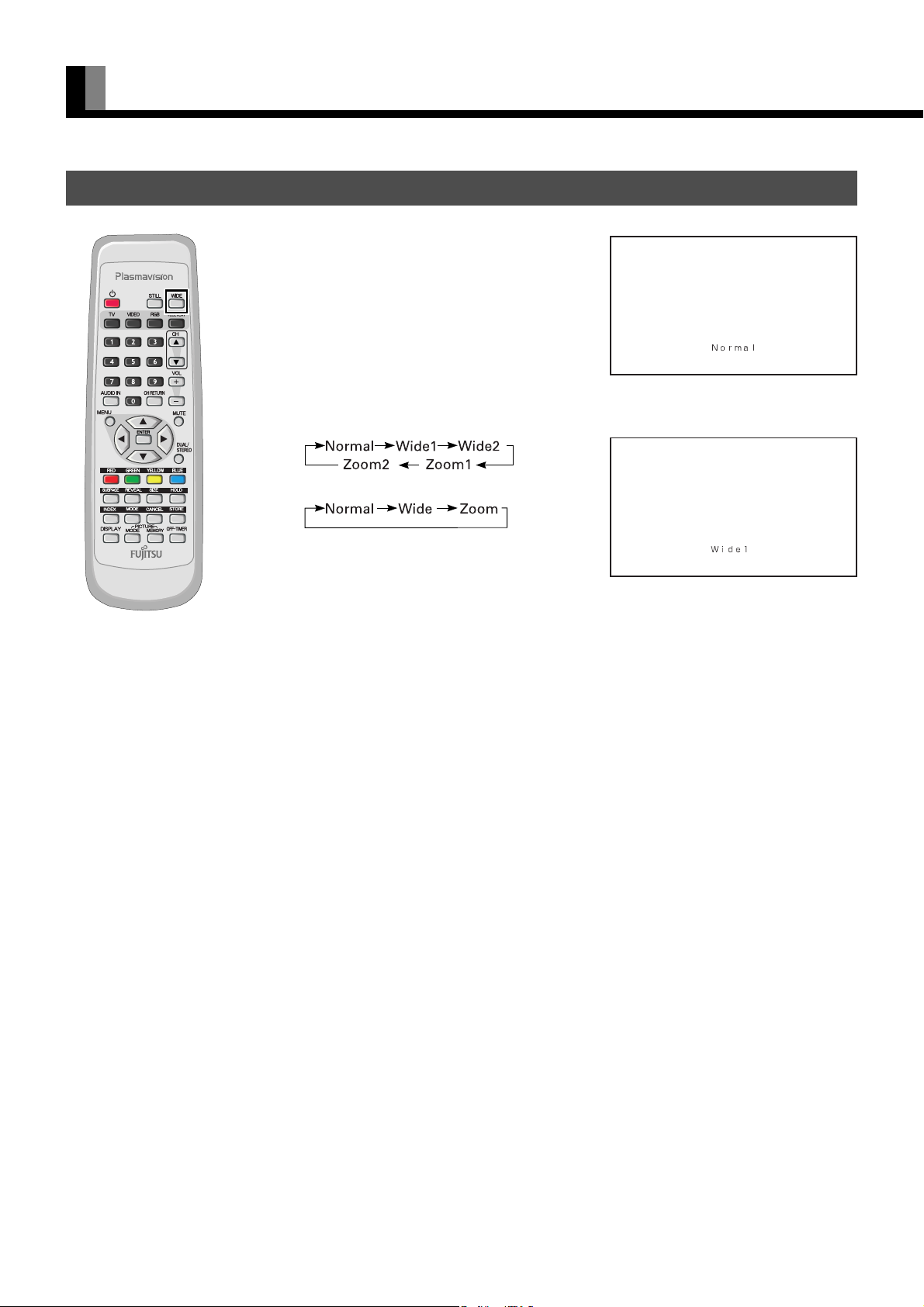

 (WIDE button) Î E-30

Switches the screen size.

  (TV input mode selector button) Î E-26

Press this button to watch terrestrial broadcastings.

  (Video input mode selector button) Î E-28

Press this button to switch through VIDEO1 to VIDEO7.

  (RGB input mode selector button) Î E-28

Press this button to switch through RGB1 to RGB3.

  (TELETEXT input mode selector button) Î E-27

Press this button to switch to the teletext broadcastings. (selectable only when watching the TV.)



 –  (Number buttons) Î E-26

Use these buttons for the Program No. selection directly. In the teletext broadcastings, input the 3 digits for the required teletext page to change the page.



 (Channel Up/Down buttons) Î E-26

Press these buttons to select the preset programs. Use these buttons to scroll through a page in the teletext broadcasting.



 (Volume adjustment buttons) Î E-25

Press these buttons to adjust the volume.



 (AUDIO IN button) Î E-29

Press this button to select the audio input.

  (Channel Return button) Î E-26

Returns to the previous Program No. and input mode immediately.

  (Menu button) Î E-32–E-44

Press this button to display the menu screen for adjusting the picture and/or the audio.

  (MUTE button) Î E-25

Temporarily mutes the audio. To return the audio to normal, press this button once again, or press the

 does the

 work also.

  (Adjustment buttons) Î E-32–E-44

Use these buttons to select the item or adjust the value in the Menu screen. Use these buttons to scroll through the pages and switch among the LIST pages in the teletext broadcasting. (Only

 are used when switching LIST pages.)

E-10

  (Enter button) Î E-32–E-44

Press this button to fix the entry in the ADJUSTMENT MENU.

  (DUAL/STEREO button) Î E-29

Press this button to select the audio mode for stereo/dual-channel audio broadcasting.

  (COLOR button) Î E-27

In the teletext broadcasting, press these buttons to switch through the pages stored to each of the four colors in the LIST mode. Other than the LIST mode, these buttons can also be used for the colored option selected from the four teletext new options displayed at the bottom of the screen.



 (SUBPAGE button)

Press this button to display the SUBPAGE.

  (REVEAL button)

Press this button to display hidden text (such as the answers to quizzes ,etc.).

  (HOLD button)

Press this button to hold the transmission of the teletext program you are currently watching.



 (SIZE button)

Press this button to change the size of the current watching page.

  (INDEX button)

Press this button to return to the INDEX page.

  (MODE button)

Switches to the LIST mode. Press this button once again to return to the current mode.

  (STORE button) Î E-27

In LIST mode, saves the current display to the Favorites page.

  (CANCEL button)

Press this button to watch the terrestrial broadcasting you were watching before you pressed

.

Press it once again to return to the teletext broadcasting.



 (DISPLAY button) Î E-29

Press this button to display the Program No., input mode, and screen size status. The status is displayed for about five seconds.



 (PICTURE MODE button) Î E-29

Use this button to switch the Picture Mode.

  (OFF-TIMER) Î E-29

Use this button to specify the length of time until the power turns off (stand-by state) after the button is pressed.



 (PICTURE MEMORY button) Î E-29

Press this button to access the Picture Memory.

EnglishDeutschEspañolFrançaisItalianoPortuguês

Póññêèé

Note

• Functions may not be available with some models and some device options.

中文

日本語

E-11

USING THE REMOTE CONTROL

PUTTING BATTERIES IN THE REMOTE CONTROL

(1) To remove the cover, slide it outwards

while pressing it down.

(2) Place two AA batteries in the remote

control. Make sure that the batteries are properly oriented.

(3) Close the cover until it snaps into place.

PRECAUTIONS

To prevent malfunction, be sure not to apply any form of severe shock to the remote control.

To prevent malfunction or deformation, be sure not to allow the remote control to become wet; also, keep it away from hot locations or heating equipment.

Be sure not to clean the remote control using a cloth dampened in any volatile solvent, such as benzene or thinner.

CAUTION

Be sure to use replacement batteries of the same type as the original ones. When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/ area.

Note

The remote control will not function properly if the batteries are dead. Be sure to replace them as needed.

Do not use rechargeable batteries (Ni-Cd, etc).

E-12

EFFECTIVE RANGE FOR THE REMOTE CONTROL

Point the remote control at the display’s signal receiver when using it.

Make sure that there are no obstacles between the remote control and the display’s signal receiver.

EnglishDeutschEspañolFrançaisItalianoPortuguês

Left

Display – front

Upper

5 m (Front)

Right

Left

Right

5 m (Front)

Upper

Póññêèé

Lower

Display – side

Note

The remote control may not function properly if you use a high-frequency fluorescent lamp. If you experience problems, move the lamp or use the remote control from a different position.

中文

日本語

E-13

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

Be sure to turn OFF the power to the display and external equipment before making any connections.

No cables are supplied with the display for connection to external equipment. The type of cable to be used varies depending on the PC model. Contact your dealer for more information.

Carefully check the terminals for position and type before making any connections.

Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

These ferrite cores are used to attenuate undesired signals. Attach them correctly as shown in the following illustrations.

Two big ferrite cores (For Display and AV SELECTOR)

When connecting a cable to the power input terminal attach one of these ferrite cores to the cable near the terminal.

Power Cable

Ferrite Core

Two small ferrite cores

When connecting a cable to the external speaker output terminal, attach a ferrite core to the cable near the terminal as illustrated on the right.

E-14

BASIC SYSTEM CONNECTIONS

Antenna (commercially available product)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Display Speaker (optional)

AV Sel e c tor

1. Connect the following items to the AV Selector and the display

(1) AV Selector and display

Connect these two with the provided system connection cable. (For details, see page E-16.)

(2) Antenna line

See page E-17 for further details.

(3) Speakers

For how to connect speakers, see the instructions provided with the speakers.

2. Connecting the power cord

• Connect the power plug of the display and AV Selector power cords to a grounded 3-pin outlet.

To AC outlet

Póññêèé

E-15

中文

日本語

+ 35 hidden pages
