Fujitsu P37FT05AUB Installation Manual

37 / 65

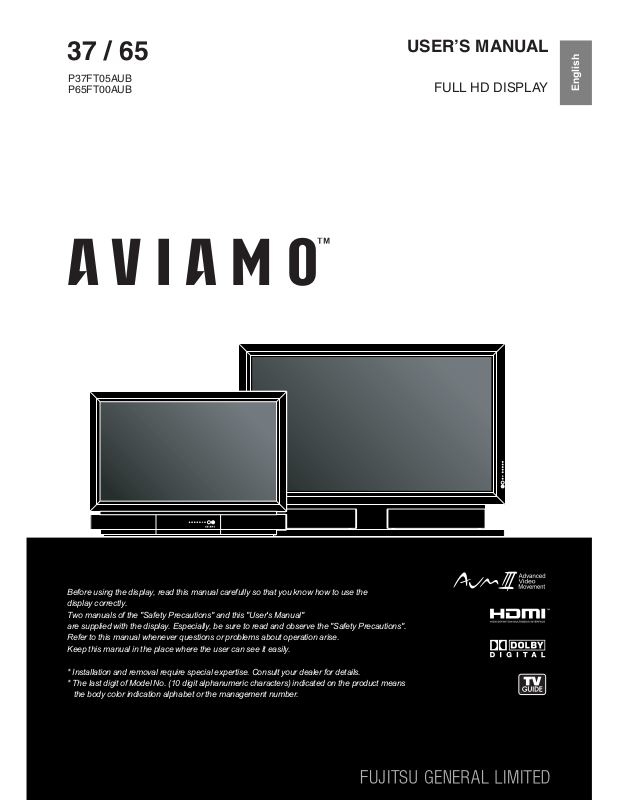

USER’S MANUAL

P37FT05AUB P65FT00AUB

FULL HD DISPLAY

English

Before using the display, read this manual carefully so that you know how to use the display correctly. Two manuals of the "Safety Precautions" and this "User's Manual" are supplied with the display. Especially, be sure to read and observe the "Safety Precautions". Refer to this manual whenever questions or problems about operation arise. Keep this manual in the place where the user can see it easily.

* Installation and removal require special expertise. Consult your dealer for details. * The last digit of Model No. (10 digit alphanumeric characters) indicated on the product means the body color indication alphabet or the management number.

CONTENTS

INFORMATION ...................................................................3

ACCESSORIES ..................................................................4

TRADEMARK INFORMATION ................................................. 4

INSTALLATION ..................................................................5

TOPPLING PREVENTION ....................................................... 6

ATTACHING THE FERRITE CORES....................................... 6

PART NAMES AND FUNCTIONS ...................................... 7

DISPLAY SECTION – FRONT ................................................. 7

DISPLAY SECTION – BACK.................................................... 8

REMOTE CONTROL.............................................................. 10

USING THE REMOTE CONTROL ....................................12

PUTTING BATTERIES IN THE REMOTE CONTROL ........... 12

PRECAUTIONS...................................................................... 12

EFFECTIVE RANGE FOR THE REMOTE CONTROL........... 13

BASIC CONNECTION AND PREPARATION OF THE SYSTEM

CONNECTIONS TO THE DISPLAY....................................... 14

TO RECEIVE CABLE TV PROGRAMS (WITH CableCARD) TO RECEIVE CABLE TV PROGRAMS (WITHOUT CableCARD)

TO RECEIVE TERRESTRIAL TV PROGRAMS..................... 16

.... 14

.... 15

... 16

CONNECTING TO EXTERNAL EQUIPMENT .................. 17

EXAMPLE OF CONNECTING EXTERNAL EQUIPMENT

.... 18

BASIC OPERATIONS .......................................................19

Power ON ............................................................................... 19

Power OFF (standby state)..................................................... 19

VOL (Volume) ......................................................................... 19

MUTE...................................................................................... 19

WATCHING TV, VIDEO, RGB AND IEEE1394 MODE .... 20

TV ........................................................................................... 20

CH RETURN........................................................................... 20

ANTENNA/CABLE.................................................................. 20

VIDEO..................................................................................... 20

RGB ........................................................................................ 20

Link 1394 (IEEE1394)............................................................. 20

CONVENIENT TV AND VIDEO FUNCTIONS .................. 21

FAVORITE (Favorite channels) .............................................. 21

GUIDE (TV Guide On Screen) ................................................ 21

CC (Closed Caption)............................................................... 21

MTS/STEREO......................................................................... 21

TV-INFO (INFORMATION)..................................................... 21

Listening mode NIGHT ........................................................... 21

OTHER BASIC OPERATIONS .........................................22

DISPLAY................................................................................. 22

OFF TIMER............................................................................. 22

PICTURE MODE .................................................................... 22

PICTURE MEMORY............................................................... 22

WIDE....................................................................................... 22

SCREEN SIZE........................................................................ 23

ASPECT RATIO...................................................................... 23

ADJUSTMENT MENU ...................................................... 24

BASIC PROCEDURES OF ADJUSTMENT MENU .......... 25

ADJUSTING TO A DESIRED PICTURE (PICTURE MENU)

Signal Contrast ....................................................................... 26

Drive Contrast......................................................................... 26

Brightness............................................................................... 26

Color ....................................................................................... 26

Tint.......................................................................................... 26

Sharpness............................................................................... 26

Ambient Sensor ...................................................................... 26

Picture Mode........................................................................... 26

Precision Setting..................................................................... 27

Black Level .......................................................................27

Detail Gradation ................................................................27

3D NR ...............................................................................27

CODEC NR ......................................................................27

Image Enhance ................................................................27

Color Temp. ......................................................................27

User Color Temp. .............................................................27

Color Tuning .....................................................................28

Progressive Scan ............................................................. 28

.....26

Gamma ............................................................................. 29

ALC Setting ...................................................................... 29

Picture Memory....................................................................... 30

ADJUSTING TO DESIRED AUDIO (AUDIO MENU) ........31

Treble...................................................................................... 31

Bass........................................................................................ 31

Balance ................................................................................... 31

Loudness ................................................................................ 31

Sound Mode ........................................................................... 31

ADJUSTING SCREEN POSITION AND SIZE (POSITION/SIZE MENU)

Position................................................................................... 32

Size......................................................................................... 32

.....32

OTHER SETTINGS (FEATURES MENU) .........................33

ADJUSTMENT ITEMS............................................................ 33

Dot Clock .......................................................................... 33

Clock Phase ..................................................................... 33

Clamp Position ................................................................. 33

Auto Calibration ................................................................ 33

ON SCREEN MENU SETTING .............................................. 33

OSD .................................................................................. 33

Language ......................................................................... 33

Name Select .....................................................................34

Input Terminal SETTING ........................................................ 34

Selecting the settings of D-SUB Input terminal ................34

Clock Set SETTING................................................................ 34

CC (Closed Caption) Service SETTING ................................. 34

Display .............................................................................. 34

Digital ............................................................................... 35

Auto Lock (Parental Lock) SETTING...................................... 36

Parental Ctrl By Level ....................................................... 36

Parental Ctrl By Ch ........................................................... 37

New Password ................................................................. 37

SETTING OTHERS ................................................................ 38

Auto Off-NO SIG. ............................................................. 38

Audio Input ....................................................................... 38

Digital Audio Format ......................................................... 38

Screen Orbiter .................................................................. 38

Direct Setting .................................................................... 39

Code Setting ..................................................................... 39

White Screen .................................................................... 39

Background ...................................................................... 39

Information ....................................................................... 39

INITIALIZATION OF USER ADJUSTMENT VALUE ........40

TV SETTING (TV MENU) ..................................................41

Channel Setting ...................................................................... 41

Auto Scan ......................................................................... 41

Channel Edit ..................................................................... 41

Favorite Ch ....................................................................... 42

Multi Ch Audio .................................................................. 42

Audio Language ............................................................... 42

Fact Ch Reset ..................................................................42

CableCARD ............................................................................ 42

Emergency Alert ..................................................................... 42

IEEE1394 SETTING (IEEE1394 MENU) ...........................43

STANDBY MODE SETTING .................................................. 43

IEEE1394 CONNECTION AND OPERATION EXAMPLES ... 43 PRECAUTIONS RELATED TO CONNECTION OF IEEE1394 DEVICES

.... 44

INITIALIZING TV GUIDE ON SCREENTM SYSTEM ........45

USING TV GUIDE ON SCREEN

LISTINGS ............................................................................... 50

SEARCH................................................................................. 52

SCHEDULE ............................................................................ 54

RECORDINGS ....................................................................... 56

SETUP.................................................................................... 56

SYSTEM ...................47

OPTIONS ...........................................................................57

MAIN SUPPORTED SIGNALS .........................................58

CLEANING ........................................................................59

MAINTENANCE ................................................................60

SPECIFICATIONS .............................................................61

E-2

INFORMATION

• Receptacle

Make sure that the power cord’s grounding wire is grounded.

The display comes with a 3-prong power plug; one prong is connected to the grounding wire. If you have only a 2-hole receptacle, you will need to have it replaced. Contact your dealer for more information.

• Have the display inspected and cleaned by your dealer at regular intervals.

• When the screen size is set to "Normal" and a picture was displayed for a long time, a residual image may be created at the boundary with the part at which an image is not displayed. We recommend that you use a screen size other than "Normal". (See P. E-22)

• High-precision technology has been used in the manufacture of the plasma display panel, in which the effective pixels exceeds 99.99%. However, please be aware, that fewer than 0.01% of the pixels may be missing or remain constantly lit.

• Some models are fitted with a radiator fan to prevent the display’s internal temperature from rising during operation. Be careful of the air emitted by the radiator fan, as it may be hot.

• Contact your dealer when causing a bad influence to the display and other audio-visual equipment mutually. You may need to move your display if it produces degraded pictures or noise due to electromagnetic radiation, or if the infrared remote control does not function properly.

• Pictures may not be displayed properly if you connect a non-standard PC to the RGB input terminal. In this case, contact your dealer for more information.

• The protective circuit, built into the display, automatically turns off the power if the display has a problem. In this case, you will see that the power indicator lamp flashes red or green.

• Do not display the same picture for a long time, because part of the screen may "burn-in" and create a residual image if the same picture is displayed for an extended period of time. To prolong the life of the plasma display, we recommend the use of the "Screen Orbiter" settings. (See P. E-38) When a residual image was created, reduce the residual image by using the "White screen" settings. Note that there may also be cases when it can not be recovered completely. (See P. E-39)

EnglishDeutschEspañolFrançaisItalianoPortuguês

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to unplug from the receptacle to prevent fire or electric shock. Then contact your dealer.

• The power plug shall be inserted into the receptacle at the place where you get it easily.

Póññêèé

፩ၭ

E-3

ᣣᧄ⺆

ACCESSORIES

غ Safety Precautions غ This manual غ Power Cord

غ Large ferrite core (5)

(for power cord, S-Video cable,

HDMI cable and RS-232C cable)

See P. E-6 for the

installation procedure.

غ Small ferrite core (2)

(for external speaker cable)

See P. E-6 for the

installation procedure.

(for 65" model)

غ Remote Control غ AA Battery (2)

TRADEMARK INFORMATION

Dolby Digital

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI (High-Definition Multimedia Interface)

HDMI , the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

CableCARD

CableCARDTM is a trademark of Cable Television Laboratories, Inc.

TV Guide On Screen

In the United States, TV Guide and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affiliates. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc.

The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide International, Inc. and/ or one of its affiliates.

The TV Guide On Screen system is protected by one or more of the following United States patents 4,908,713; 6,498,895; 6,850,693; 6,396,546; 5,940,073; 6,239,794 to Gemstar-TV Guide International, Inc. and/or its subsidiaries.

Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system.

Note

• Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these supporting products.

• The pictures and diagrams in this manual are meant to complement the explanations and may differ slightly from the actual items.

E-4

INSTALLATION

To prevent the display's internal components from overheating, make sure that the display is installed in a well-ventilated location.

Be sure to use the optional stand, or the other mounting unit when installing the display. Also, be sure that your dealer performs the installation.

See the appropriate instruction manual for additional information on the mounting hardware you select.

To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into the position as described below.

Use the diagram below to determine how much space is needed to ensure proper heat radiation. This is a minimum space requirement; therefore, provide at least as much space as indicated below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C (between 32°F and

104°F)

* Never attempt to tilt the display sideways or backward.

* To prevent the power and other cables from being accidentally pulled, make sure that they run along the wall or through corners.

* To prevent accidents and ensure safety in the event of an earthquake, secure the display to prevent it from tipping over.

* When placing with the display surface down, lay the body on a flat surface covered with a thick towel, etc. so as not to scratch the

display surface. Also be careful that the display does not tip over. Don’t place with the back facing down, because there are projections on the back. (For 65" model)

Display Section

Front Side

Upper

EnglishDeutschEspañolFrançaisItalianoPortuguês

37” model

65” model

Left

Lower

Upper

Left

Lower

Right

Wall

Note

• For models other than 37” model, speaker is optional.

• See P. E-57 for details on the options.

• The external view is meant to be a representation of the actual unit and is not to scale; therefore, it may differ from the actual shape and size of the product.

• Due to the fragile and highly precise equipment, it is very important to pack properly before transportation using only the packing materials provided.

• Cables for connecting the display to external equipment are not supplied. Contact your dealer for more information on these supporting products.

Póññêèé

፩ၭ

ᣣᧄ⺆

E-5

INSTALLATION (Continued)

TOPPLING PREVENTION

There is the danger of the display being toppled by an earthquake or other unexpected shock. To use the display confidently, take toppling prevention

Install reinforcing hooks (commercial product) at the four threaded holes at the back of the display and secure to a stand or pillar using strong wire

ATTACHING THE FERRITE CORES

• The ferrite cores are used to reduce noise. Attach them correctly as shown in the following illustrations.

• Be sure to turn off power of the display and external equipment before making any connections.

• Carefully check the terminals for position and type before making any connections.

• Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

measures.

(commercial product).

5 large ferrite cores

When connecting the cord to the power input terminal, RS232C terminal, S-video input terminal, and HDMI input terminal (2), attach one of these ferrite cores to the cord and the cable near the terminal.

2 small ferrite cores (for 65" model)

When connecting a cable to the external speaker output terminal attach one of these ferrite cores to the cable near the terminal.

Power Cord

Ferrite Core

HDMI Cord

Ferrite Core

Ferrite Core Ferrite Core

S-video cable

Ferrite Core

HDMI Cord

Ferrite Core

RS232C Cable

Ferrite Core

E-6

PART NAMES AND FUNCTIONS

DISPLAY SECTION – FRONT

 Input mode selection button

 Volume button

 Wide screen selection button

 Power indicator lamp

Switches the input modes (Video mode, RGB mode, IEEE1394 mode

and TV mode).

Adjusts the sound volume.

Switches the screen over to a desired wide screen.

This lamp shows the state of the power supply.

Lit (red): Standby state

Lit (green): Power ON state

Flashing (red or green): Malfunction (Flashes differently

depending on the type of malfunction.)

EnglishDeutschEspañolFrançaisItalianoPortuguês

37” model

 ON/OFF button

Turns the power "ON" and "OFF (standby state)".

 Remote control signal receiver

Receives the signals from the remote control.

 Ambient Sensor

Detects the brightness of ambient light. It is important not to obstruct it for full functionality of the feature.

Póññêèé

65” model

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the power plug from the receptacle and contact your dealer. In this circumstance, leaving the display power ON can result in fire or electric shock.

፩ၭ

ᣣᧄ⺆

E-7

PART NAMES AND FUNCTIONS (Continued)

DISPLAY SECTION – BACK

Back of the display (for 37” model)

Back of the display (for 65” model)

 External speaker output terminal (EXT. SP) for 65" model

Connect these terminals to the speakers. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.) * For details, see the speaker unit installation manual.

 Expansion terminal (EXP. PORT)

Currently, this terminal is not functional and is provided to accommodate future technology enhancements. Do not connect any cable to this terminal.

 RS-232C terminal (RS-232C)

This terminal is provided for you to control the display directly from a PC. Connect it to the RS-232C terminal on the PC. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)

 Video6 input terminal (VIDEO6 INPUT/HDMI)

Connect this terminal to the HDMI output terminal of DVD recorder/player or other video source. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)

 Video5 input terminal (VIDEO5 INPUT/HDMI)

Connect this terminal to the HDMI output terminal of DVD recorder/player or other video source. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)

 RGB1 input terminal (RGB1 INPUT/mD-sub)

Connect this terminal to the output terminal of a PC, set-top box, game, etc.

 Digital audio output terminal (AUDIO OUTPUT DIGITAL)

Connect this terminal to the digital audio input terminal of the audio amplifier.

E-8

 Analog audio output terminal (AUDIO OUTPUT ANALOG)

Connect this terminal to the analog audio input terminal of the audio amplifier.

 CABLE CARD slot (CABLE CARD)

To receive cable TV programs insert the card supplied from cable TV provider. (See P. E-15.)

 Audio1 input terminal (AUDIO1 INPUT)

Connect this terminal to the audio output terminal of VCR or PC, etc.

 Audio2 input terminal (AUDIO2 INPUT)

Connect this terminal to the audio output terminal of VCR or PC, etc.

 Audio3 input terminal (AUDIO3 INPUT)

Connect this terminal to the audio output terminal of VCR or PC, etc.

" Link1394 terminal (1394)

Connect this terminal to a STB, DV camera, AVHDD, etc. by IEEE1394 interface.

# Link1394 terminal (1394)

Connect this terminal to a STB, DV camera, AVHDD, etc. by IEEE1394 interface.

$ Video4 input terminal (VIDEO4 INPUT/Y P

Connect this terminal to the Component Video Output terminal of DVD recorder/player or satellite receiver.

% Video3 input terminal (VIDEO3 INPUT/Y P

Connect this terminal to the Component Video Output terminal of DVD recorder/player or satellite receiver.

& Video2 input terminal (VIDEO2 INPUT/S-Video)

Connect this terminal to the S-Video output terminal of VCR or DVD recorder/player. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)

' Video1 input terminal (VIDEO1 INPUT/VIDEO)

Connect this terminal to the Video output terminal of VCR or DVD recorder/player.

( VHF/UHF antenna input terminal (ANTENNA)

Connect this terminal to the VHF/UHF antenna signal.

) Cable TV antenna input terminal (CABLE)

Connect this terminal to the cable TV antenna signal.

* Power input terminal

Connect this terminal to the power cord supplied with the display. When connecting a cable, attach a ferrite core to the cable. (See P. E-6.)

B PR)

EnglishDeutschEspañolFrançaisItalianoPortuguês

E-9

Póññêèé

፩ၭ

ᣣᧄ⺆

PART NAMES AND FUNCTIONS (Continued)

REMOTE CONTROL

For details, see page Î.

  (POWER button) Î E-19

Press to switch between Power On and Standby.

[ (LIGHT button)



Press to light the buttons of the remote control. When no operation is performed, lighting of the buttons goes off after 8 seconds.



4 (FINE mode button) Î E-22

Press to switch the Picture Mode.



 (WIDE button) Î E-22

Press to switch to a desired wide screen.

3 (DISPLAY button) Î E-22



Press to display the channel, input mode, and screen size status. The status is displayed for about five seconds.



5 (PICTURE MEMORY button) Î E-22, E-30

Press to recall the Picture Memory.



7 (OFF-TIMER button) Î E-22

Press to specify the length of time until the power automatically turns off (stand-by state).



_ (INFORMATION button) Î E-21

Press to display the current channel information.

 (TV button) Î E-20



Press to watch TV broadcasting.



 (VIDEO button) Î E-20

Press to switch from VIDEO1 through VIDEO6.

 (RGB button) Î E-20



Press to select RGB1.



 㨪 , ! (Number buttons) Î E-20

Press to directly select a channel.

: (CHANNEL RETURN button) Î E-20

Press to return to the previous channel, Video mode, or RGB mode.

/ or 0 (Channel Up/Down buttons) Î E-20

Press to select the preset programs.

G (MTS/STEREO button) Î E-21

Press to select the audio mode such as MTS (Multi-channel TV Sound) or stereo.

1 or 2 (VOLUME buttons) Î E-19

Press to adjust the volume control.

Note

• When the buttons are lighted by pressing [, the battery life is shortened.

E-10

'  (NIGHT mode button) Î E-21

When viewing at night, lowers the volume to an easy-listening value.

; (MENU button) Î E-24–E-56

(

Press to display or hide the menu screen.

Use for Picture or Audio adjustment.

)

` (GUIDE button) Î E-21, E-45–E-56

Displays and hides the TV Guide On Screen.

- (MUTE button) Î E-19

Press to temporarily mute the audio. To restore the sound, press the button again.

Instead, the

E, F, C, or D (Adjustment buttons) Î E-24–E-56

Use these buttons to select the item or adjust the value of the on screen menu.

< (ENTER button) Î E-24–E-56

Press to confirm the setting you made with the Adjustment buttons.

1 or 2 button can also be pressed.

EnglishDeutschEspañolFrançaisItalianoPortuguês

^ (FAVORITE button) Î E-21

Displays your favorite channel.

 (Link1394 button) Î E-20, E-43–E-44

Selects and controls the devices connected by IEEE1394 interface.

J (EXIT button) Î E-25, E-40

Use to exit from a menu screen.

 (ANTENNA button) Î E-20

Press to switch to the signal input of ANTENNA terminal.

 (CABLE button) Î E-20

Press to switch to the signal input of CABLE terminal.

 (CLOSED CAPTION button) Î E-21

Press to display the closed captions.

Póññêèé

፩ၭ

E-11

ᣣᧄ⺆

USING THE REMOTE CONTROL

PUTTING BATTERIES IN THE REMOTE CONTROL

(1) To remove the cover, slide it outwards

while pressing it down.

(2) Place two AA batteries in the remote

control. Make sure that the batteries are properly oriented.

(3) Close the cover until it snaps into place.

PRECAUTIONS

• To prevent malfunction, do not apply any form of severe shock to the remote control.

• To prevent malfunction or deformation, do not allow the remote control to become wet and keep it away from hot surfaces or heating equipment.

• Do not clean the remote control using a cloth dampened in a volatile solvent, such as benzene or thinner.

CAUTION

It is very important to use replacement batteries of the same type as the originally used. Do not use rechargeable batteries (Ni-Cd, etc.).

When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/ area.

E-12

EFFECTIVE RANGE FOR THE REMOTE CONTROL

When using the remote control, be sure to point it directly at the display’s signal receiver. Make sure that there are no obstacles between the remote control and the display’s signal receiver.

Display – front Display – side

37” model

EnglishDeutschEspañolFrançaisItalianoPortuguês

Upper

Remote Control

Lower

Left

5 m (Front)

Remote Control

Display – front

Right

65” model

Left

5 m (Front)

Display – side

Right

Upper

Lower

Remote Control

Póññêèé

Remote Control

Note

• The remote control will not function properly if the batteries are dead. Be sure to replace them as needed.

• The remote control may not function properly if a high-frequency fluorescent lamp or the like is used. In this case, move the lamp or use the remote control from a different position.

E-13

፩ၭ

ᣣᧄ⺆

BASIC CONNECTION AND PREPARATION OF THE SYSTEM

• Before this display can be operated for the first time, the connections and settings below must be completed.

VHF/UHF antenna

(for 65" model)

To the receptacle for 3-prong power plug with grounding

Rear panel terminal

Back of the display

* For best reception (of terrestrial signal), an outdoor antenna (OTA) is recommended.

CONNECTIONS TO THE DISPLAY

1. Connect a terrestrial antenna (VHF/UHF) to ANTENNA. (Connect the antenna by referring to the figure above.)

* When a terrestrial antenna is not connected, proceed as described below.

2. Connect the cable TV cable to CABLE.

Connect the cable by referring to the figure above.

3. Connect the speakers. (For details, see the manual of optional Speaker Unit. for 65" model)

4. Connect external equipment such as a DVD Player. (For details, see "EXAMPLE OF CONNECTING EXTERNAL EQUIPMENT"

• The subsequent steps of the setting procedure are different between cable TV programs and terrestrial TV programs.

P. E-18.)

E-14

TO RECEIVE CABLE TV PROGRAMS (WITH CableCARD)

* To watch cable TV broadcasts, sign up with a cable-TV provider before installing and connecting the display. For details, contact the

cable-TV provider.

5. Insert the CableCARD.

The cable-TV provider supplies the CableCARD after you sign up for service. (Make sure the cable company knows you are requesting or upgrading to CableCARD service.) Insert the CableCARD into the slot shown in the figure below before turning on the power for the first time after the purchase of the display.

Upper side of the card

* Be sure to insert the CableCARD designated by the cable-TV provider.

6. Connect the power cord coming from the display to the outlet, and turn on the power supply. For further information, observe the content of "Power On" (P. E-19) .

7. Press

8. Press

9. Select a desired program.

10. Press

 to select the TV mode.  to select signal of CABLE.

` to initialize TV Guide On Screen system.

(For details, see "INITIALIZING TV GUIDE ON SCREEN SYSTEM" P. E-45.)

EnglishDeutschEspañolFrançaisItalianoPortuguês

About CableCARD

• The display enables you to watch cable TV broadcasts without the set top box.

• To watch cable TV broadcasts, you need to sign up with a cable-TV provider in your region.

• The cable-TV provider supplies the CableCARD in response to the contract. You can watch cable TV broadcasts by inserting the CableCARD into

the CABLE CARD slot in the display.

Note

• Be sure to use only the CableCARD supplied by the cable-TV provider. Do not insert PCMCIA card other than CableCARD into the CableCARD slot.

• Slowly push in the designated CableCARD until it is locked.

• Insertion of an undesignated card may damage the CableCARD slot.

• Pictures will not display unless CABLE is connected.

• It may take time to obtain channel information.

• When a CableCARD has been inserted into the display, the set's power consumption increases slightly. - in both the standby state and power on state.

• When the power cable is disconnected or broadcasts cannot be received (antenna was disconnected, etc.) after the cable card was inserted/set, it may

be impossible to receive data from the cable TV provider. In this case, it may become impossible to view the contracted programs even if the power is turned on again. When this state occurred, please contact the cable TV provider.

• When upgrading the CableCARD firmware, do not remove the power cable or the CableCARD. The CableCARD may be destroyed. The

CableCARD firmware may be upgraded in either the standby state or power on state. For checking during upgrading, check the messages on the screen in the power on state.

• If you are using a CableCARD and the display is not operating properly, try disconnecting and reconnecting the power cable and turning the display

power on.

• The CableCARD may be hot; remove with caution.

Póññêèé

፩ၭ

ᣣᧄ⺆

E-15

BASIC CONNECTION AND PREPARATION OF THE SYSTEM (Continued)

TO RECEIVE CABLE TV PROGRAMS (WITHOUT CableCARD)

(Continued from page E-14)

* To watch cable TV broadcasts, sign up with a cable-TV provider before installing and connecting the display. For details, contact the

cable-TV provider.

5. Connect the display's power cord to the outlet, and turn on the power. (For details, see "Power ON" (P. E-19).)

6. Press

7. Press

8. Perform Auto Scan. For details, see "TV SETTING (TV MENU) - Channel Setting - Auto Scan" (P. E-41).

9. Select a desired program.

10. Press

 to select the TV mode.  to select signal of CABLE.

` to initialize TV Guide On Screen system.

(For details, see "INITIALIZING TV GUIDE ON SCREEN SYSTEM" P. E-45.)

TO RECEIVE TERRESTRIAL TV PROGRAMS

(Continued from page E-14)

5. Connect the display's power cord to the outlet, and turn on the power. (For details, see "Power ON" (P. E-19).)

6. Press

7. Press

8. Perform Auto Scan. For details, see "TV SETTING (TV MENU) - Channel Setting - Auto Scan" (P. E-41).

9. Select a desired program.

10. Press

 to select the TV mode.  to select signal of ANTENNA.

` to initialize TV Guide On Screen system.

(For details, see "INITIALIZING TV GUIDE ON SCREEN SYSTEM" P. E-45.)

E-16

CONNECTING TO EXTERNAL EQUIPMENT

• Before external equipment is connected, all the power cables must be unplugged.

• For the terminal names, see P. E-8.

• If the equipment to be connected has an HDMI output terminal and component video output terminal, one or the other of the terminals -not

both-

should be connected.

• Refer to instruction manual for the equipment to be connected.

• There are three audio inputs (HDMI audio excluded). Set them according to Audio Input on P. E-38.

• To receive cable-TV programs, contact a desired cable-TV provider.

See P. E-44 for "PRECAUTIONS RELATED TO CONNECTION OF IEEE1394 DEVICES".

EnglishDeutschEspañolFrançaisItalianoPortuguês

Video output

S-Video output

Component Video

output

External equipment (e.g., VCR, DVD recorder/player, or digital tuner)

Audio output

Digital audio input Analog audio input

Audio amplifier

DV camera

DVHS

Audio output

Personal computer

STB

AVHDD

Back of the display

RGB output (Analog)

HDMI output

Póññêèé

HDMI-compatible external

equipment (e.g., DVD player)

E-17

፩ၭ

ᣣᧄ⺆

EXAMPLE OF CONNECTING EXTERNAL EQUIPMENT

• Connect the Video signal cable to the HDMI input terminal, Component Video input terminal, S-Video input terminal, or the Video input

terminal.

• If the equipment to be connected is equipped with HDMI out put terminal and Component Video output terminal, it is recommended to

connect to only one of the terminals. If the HDMI output is connected, an

To Audio output

To Component  Video output

To Component

Video input To HDMI output

To Video output

To S-video output

To Video input

Audio signal cable does not need to be connected.

DVD or VCR

To Audio input

Back of the display

To S-video input

• The table below shows the settings of Audio inputs. (Factory setting) * For changing of Audio input settings, see Audio Input on P. E-38.

Video input Audio input

RGB1(D-sub) No Audio

Video1(Video) Audio1

Video2(S-video) Audio1 Video3(Component Video) Video4(Component Video)

Video5(HDMI) Audio4(HDMI) Video6(HDMI) Audio5(HDMI)

Audio2 Audio3

To HDMI input

Note

• Unplug the power cord from the AC outlet before you connect external equipment.

• You should also refer to the instructions for the equipment to be connected.

E-18

BASIC OPERATIONS

EnglishDeutschEspañolFrançaisItalianoPortuguês

Power ON

Turn "ON" the power.

Press .

The power is turned on, and the power lamp changes from "Red" to "Green."

Select the Video, RGB, TV or IEEE1394 mode to enable ordinary operation.

* Make sure that the power cord is connected to a 3-

core receptacle in advance. (See P. E-14 of "BASIC CONNECTION AND PREPARATION OF THE SYSTEM")

Power OFF (standby state)

Turn "OFF" the power (the display placed in standby state).

Press  when the power is "ON."

The power lamp changes from "Green" to "Red" and the display becomes the standby state.

VOL (Volume)

The volume can be adjusted.

To increase the volume, press

To decrease the volume, press

View when 11 or 2 is pressed

* Note that the volume level remains stored even when

you turn "OFF" the power.

* An audio signal from an audio output terminal

(AUDIO OUTPUT DIGITAL or AUDIO OUTPUT ANALOG) does not change.

MUTE

1. 2 .

The sound can be temporarily muted.

Press -.

The sound is muted.

To restore the original sound volume, press the button again.

The volume can also be restored by pressing

1 or

2 .

* An audio signal from an audio output terminal

(AUDIO OUTPUT DIGITAL or AUDIO OUTPUT ANALOG) does not change.

Póññêèé

፩ၭ

Note

• If the operation is not executed for about 60 seconds, the menu disappears.

• Some functions may not be available depending on the model or optional equipment.

ᣣᧄ⺆

E-19

+ 42 hidden pages
