Fujitsu P300 User Manual

DESKPOWER P300 Series User’s Manual

Fujitsu endeavours to ensure that the information in this document is correct, but accepts no liability
for any error or omission in the same. Any procedures described in this document for operating Fujitsu
products should be read and understood by the operator before such products are used. To ensure
that Fujitsu products function without risk to safety and health, such procedures should be strictly
observed by the operator. The development of Fujitsu products and services is continuous and
published information may not be up to date. Any particular issue of a product may contain facilities
not described herein. It is important to check the current position with Fujitsu. Specifications and
statements as to performance in this document are Fujitsu estimates intended for general guidance.
They may require adjustment in particular circumstances and should therefore not be taken as formal
offers or commitments.

DESKPOWER is a trademark of Fujitsu Limited. The following are registered trademarks of Microsoft
Corporation: MS, MS-DOS, Windows ® NT, Windows ® 98, Windows Millennium, Window ® 2000 and
Windows XP.
Intel and Pentium are registered trademarks of Intel Corporation in the U.S.
Celeron is a registered trademark of Intel Corporation in the U.S.
Other product names are trademarks or registered trademarks of respective companies.
Other products are copyrighted by individual companies.

All other trademarks referenced are trademarks or registered trademarks of their respective owners,
whose protected rights are acknowledged.

Copyright © Fujitsu PC Asia Pacific
All rights, including rights of translation, reproduction by printing, copying or similar methods, in part

or in whole, are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design, are reserved.
Delivery subject to availability. Right of teachnical modification reserved.

DECLARATION OF CONFORMITY

according to FCC Part 15 Class B

This device complies with Part 15 Class B of the FCC Rules. Operations are subject to the following
two conditions:
(1) This device may not be allowed to cause harmful interference, (2) This device must accept any
interference received, including interference that may cause undesired operation.

Wesbite: www.fujitsu-pc-asia.com

i

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully. Save these instructions for future reference.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure
reliable operation of the product and to protect it from overheating, these openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label. If you are
not sure of the type of power available, consult your dealer or local power company.

8. This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin.
This will only plug into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat
the purpose of the grounding-type plug.

9. Do not allow anything to rest on the power cord. Do not locate this product where persons will
walk on the cord.

10. If an extension cord is used with this product, make sure that the total ampere rating of the
equipment plugged into the extension cord does not exceed the extension cord ampere rating.
Also, make sure that the total rating of all products plugged into the wall outlet does not exceed
15 amperes.

11. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not attempt to service this product yourself, as opening or removing covers may expose you
to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

ii

13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under

the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed. Adjust

only those controls that are covered by the operating instructions since improper adjustment
of other controls may result in damage and will often require extensive work by a qualified

technician to restore the product to normal condition.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance, indicating a need for service.

14. CAUTION. When replacing the battery, be sure to install it with the polarities in the correct
position. There is a danger of explosion if the battery is replaced with an incorrect type or
is mistreated. Do not recharge, disassemble or dispose of in fire. Replace only with the
same or equivalent type recommeded by the manufacturer. Dispose of the used battery
according to the manufacturer’s instructions.

15. Use only the proper type of power supply cord set (provided in your accessories box) for this unit.
It should be a detachable type: UL listed/CSA certified, BS1363,ASTA,SS145 certified, rated 10A
250V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

16. NOTE:
Please take extra precaution when connecting the LAN cable; do not connect the LAN cable
to the peripheral device’s connector, that might have excessive voltage.

iii

Before reading this manual

This section describes safety precautions and convention used in this manual. Be sure to read this.

For Safe Operation

This manual contains important information for using the DESKPOWER personal computer.
Read this manual thoroughly before using your PC. In particular, “Safety Precautions” in this manual
must be read and understood.
This manual including “Safety Precautions” must be readily available at all times.

This equipment is compliant with the PC industry standard (PC-11-1988) of the Japan Electronics
and Information Technology Industries Association.

Note

This product is a Class B Information Technology Equipment and conforms to the standard set by
the Voluntary Control Council for Interference by Technology Equipment (VCCI).This product is
designed to be used in a domestic environment, however, it may cause radio interference when
used in the vicinity of a radio or television receiver.
Make sure that you read the manual when using this product.

Fujitsu, as a member of the International Energy Star Program, recognizes that
this equipment is compliant with the standard of the International Energy Star
Program.
The International Energy Star Program is a worldwide program for promoting
energy saving for computers and other office equipment. The program aims at
promoting the development and use of products equipped with the functions that can effectively
reduce energy consumption and uses a voluntary system that allows enterprises to join at their
own discretion. The target products are office equipment including computers, displays, printers,
facsimiles, and copying machines. The standards for individual types of equipment and the mark
( ) prepared by the Program are used commonly among member countries.

Caution

This equipment is class B information technology equipment based on the standard of the Voluntary
Control Council for Interference by Information Technology Equipment (VCCI). Although the
equipment is intended for use in residential environments, it may create interference if placed near
radio or television.
Handle the equipment in accordance with the manual.

iv

Using this Product for High-Safety Applications

This product is for office, personal, home, ordinary industry and other general use. It is not designed
and manufactured for use in high-safety applications.
Do not use this product for such applications without taking measures to satisfy the high-safety
requirements.
High-safety applications require extremely high level of safety, and involve serious hazards to life
and health if the required safety is not assured. High-safety applications include the following.

● Nuclear reaction control in nuclear facilities, automatic aviation control, air traffic control, mass­transportation control, life-supporting medical equipment, and missile launch control.

Some parts (including the CRT display, LCD, or hard disk drive) used on this product have a limited
life. When used continuously for a prolonged period, these parts will need earlier replacement.

Backing Up the Data

The customer is responsible for maintaining the integrity of data (including the basic and application
software) stored or installed on the product. We do not warrant the integrity of data stored or installed
on the personal computer the customer sent for repair. Take appropriate measures such as making
a backup.
We assume no responsibility for loss of data and any direct or incidental damage due to any cause
other than those specified in the warranty.

This computer is designed for use within the country. If you are using it abroad, please do so on
your own responsibility.

This equipment may be adversely affected by the momentary drop of the supplied voltage due to
lightning. Use of an AC uninterruptible power supply is recommended for measures against the
momentary drop of the supplied voltage.
(This message is based on the Japan Electronics and Information Technology Industries
Association’s guidelines for measures against momentary voltage drop in PCs.)

Since this equipment contains special materials controlled by the Foreign Exchange and Foreign
Trade Control Law. Authorization under the law may be required to export this equipment.

v

Microsoft Service Pack

Microsoft Corp. offers Service Pack to provide the users of Microsoft® Windows® with more stable
system operation (http://www.microsoft.com/).
The latest version of the Service Pack helps you configure the most stable system using Microsoft
Windows® provided at that time by Microsoft Corp.
We recommend you to use the latest version.
In some environments, however, the Service Pack may cause unexpected failure. Read
Readme.txt for the Service Pack before use.
Again, we recommend you to make a system backup in case of failed installation.

Components of this product (motherboard, CD-ROM, hard disk, and floppy disk drive) contain
traces of heavy metals (lead and chrome) and chemical (antimony).

®

vi

Conventions Used in This Manual

Introduction

This manual tells you how to put your PC into operation and how to operate it in daily use.
Depending on the configuration level chosen some of the hardware components described may not
be available on your PC. Please observe the notes on your operating system.
You can incorporate operable drives (for example DAT drive) as well as other boards.
Depending on the configuration selected, the operating system is preinstalled on your hard disk (e.g.
Windows XP).
Your PC has a number of security features to ensure that no unauthorised persons can access your
data, for example, you can activate a screen saver with password protection. For example, you can
activate a screen saver with password protection. The security functions in the BIOS Setup also allow
you to protect your data by means of passwords.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

CAUTION

 Text which follows this symbol describes activities that must be performed in the order shown.

Text in this typeface indicates screen outputs.
"Quotation marks" indicate names of chapters or terms.

Indicates information which is important for your health or for preventing
physical damage.

Indicates important information which is required to use the system properly.

vii

Important Notes

In this chapter you will find information regarding safety which is essential to take note of when working
with your PC. The manufacturer's notes contain helpful information on your PC.

 Safety

CAUTION

During installation and before operating the device, please observe the instructions on
environmental conditions in the chapter entitled "Technical data" as well as the instructions in the
chapter "Preparing for Use".

Please check whether the device is correctly set for the local power supply (see "Preparing for
Use" chapter).

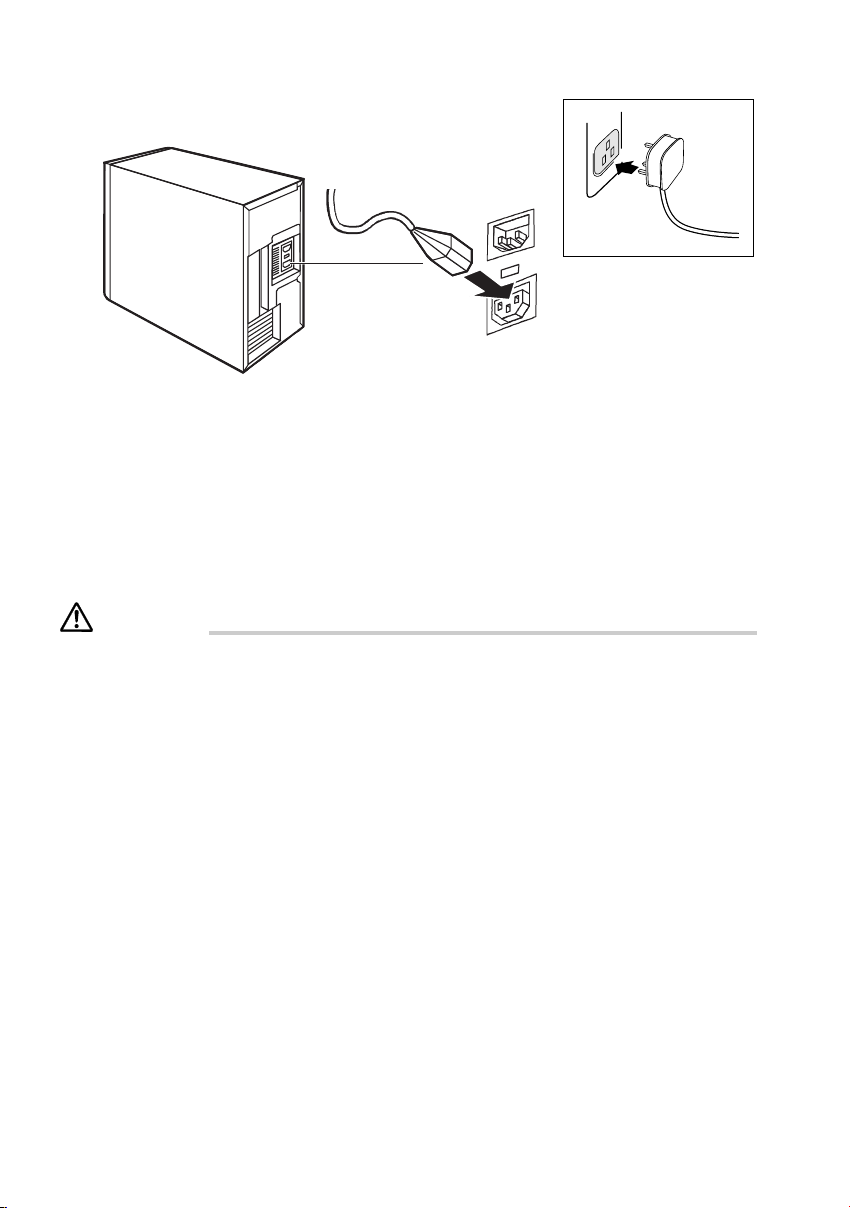

The main switch and the ON/OFF switch do not disconnect the system unit from the mains voltage.
To completely disconnect the mains voltage, remove the power plug from the grounded mains
outlet.

Replace the lithium battery on the system board in accordance with the instructions in the "System
expansions - Replacing lithium battery" chapter.

Caution: components in the system can get very hot.

 Manufacturer’s notes

Keep this operating manual together with your device. If you pass on the device to third parties,
you should include this manual.

 Energy saving

When the PC is delivered, some energy-saving functions are already set

 If you are not using your PC, switch it off.
 In the BIOS Setup you may set further energy-saving functions for the PC.
 Depending on the operating system, you can set additional power-management features.

Energy saving under Windows 2000/XP

The Screen Saver tab allows you to set energy-saving functions for your screen. Select the
following item in the menu: Start → Settings → Control Panel → Display → Display Properties →
Screen Saver → Energy saving features of monitor.

With the default setting Control Panel → Power Options → Advanced additional power
management features of Windows 2000/XP are available.

viii

 FCC Class B Compliance Statement

The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference­Causing Equipment Regulations. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in strict accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Fujitsu is not responsible for any radio or television interference caused by unauthorised
modifications of this equipment or the substitution or attachment of connecting cables and
equipment other than those specified by Fujitsu. The correction of interference caused by such
unauthorised modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.

ix

 Transporting the PC

CAUTION

Transport all parts separately in their original packaging or in a packaging which protects them
from knocks and jolts, to the new site. Do not unpack them until all transportation manoeuvres
are completed.

Never drop the monitor!

 Cleaning the PC

CAUTION

Turn off all power and equipment switches and remove the power plug from the mains supply.
Do not clean any interior parts yourself, leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may corrode plastic.
Ensure that no liquid enters the system.
Ensure that the ventilation areas of the system unit and the monitor are free.

Cleaning the system unit and the monitor

Wipe the system unit and monitor casing with a dry cloth. If particularly dirty, use a cloth that has
been moistened in mild domestic detergent and then carefully wrung out.

Cleaning the keyboard and the mouse

Use disinfectant wipes to clean the keyboard and the mouse.
The mouse mechanism and the mouse ball can be cleaned by removing the retaining ring on the

underside of the mouse.

Additional information can be found in the documentation for your keyboard and mouse.

x

 Disposal and recycling

This device has been manufactured to the highest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging. The device may be taken
back after use to be recycled, provided that it is returned in a condition that is the result of normal use.
Any components not reclaimed will be disposed of in an environmentally acceptable manner.

Do not throw lithium batteries into the household waste. They must be disposed of in accordance
with local regulations concerning special waste.

Reference to products

In this manual, the product names are referred to as follows:
This manual includes information on other operating systems.

Product name Description used in the manual

Microsoft® Windows® XP Professional

Microsoft® Windows® XP Home Edition

Microsoft® Windows® 2000 Professional

Windows XP
Professional

Windows XP
Home Edition

Windows 2000

Windows

XP

Windows*

xi

Warning and caution labels

Your PC bears the warning and caution labels as shown below.
The warning and caution labels must not be removed or damaged.

Rear of the PC main unit

To prevent electric shock,

WARNING

switch off the PC and

Electric shock

connected peripherals and
unplug power cords from
respective outlets before
disassembling the unit and
installing a built-in option.

Inside the PC main unit

WARNING

Electric shock

To prevent electric
shock and/or fire, do
not remove the cover
of this unit, which
includes a high
voltage section.

ATTENTION

WARNING

xii

115V of voltage switch in the power supply corresponds to 100-127V
230V of voltage switch in the power supply corresponds to 200-240V

• Before mounting or dismounting an optional unit in/from your PC, switch off
the PC and all connected units and unplug all power cords from respective
outlets to prevent electric shock.

Organization of This Manual

Before Reading This Manual

This section contains cautions for safe operation, representations and symbols used in this manual.
Be sure to read this first!

Chapter 1 Preparing for Use

This chapter provides the names and functions of individual parts.

Chapter 2 Operation

This section describes the location of installation and installation of the computer.

Chapter 3 Troubleshooting and Tips

This chapter provides the basic information on the PC and operation.

Chapter 4 System Expansion

This chapter provides basic information on how to handle the peripherals installed
(or can be installed) on the PC.

Chapter 5 Technical Data

This chapter describes the specifications of this PC.

xiii

Contents

CHAPTER 1 Preparing for Use

1 Preparing for Use..............................................................................2

Unpacking and Checking the Delivery ............................................................. 2

Steps for Initial Setup ....................................................................................... 2

Setting Up the PC ............................................................................................ 3

Connect the Monitor, Mouse and Keyboard ..................................................... 3

Connecting the PC to the Mains Voltage.......................................................... 5

Initial Switch-on: Software will be Installed....................................................... 6

Connecting External Devices ........................................................................... 8

CHAPTER 2 Operation

1 Operation ......................................................................................... 12

Switching On the PC ...................................................................................... 12

Switching Off the PC ...................................................................................... 13

Indicators on the PC....................................................................................... 14

2 Keyboard .........................................................................................15

3 Floppy Disks ...................................................................................17

Working with Floppy Disks ............................................................................. 17

Settings in BIOS Setup .................................................................................. 18

Property and Data Protection ......................................................................... 18

Access Protection Under Windows ................................................................ 18

BIOS Setup Security Functions ...................................................................... 19

CHAPTER 3 Troubleshooting and Tips

1 Troubleshooting and Tips ..............................................................22

Installing New Software .................................................................................. 22

Power-on Indicator Remains Unlit After You Have Switched on Your Device . 22

No Mouse Pointer Displayed on the Screen ................................................... 24

The Floppy Disk Cannot be Read or Written.................................................. 24

Time and/or Date is Not Correct .................................................................... 25

Tips ................................................................................................................ 25

xiv

CHAPTER 4 System Expansion

1 System Expansions ........................................................................ 28

Information about boards ............................................................................... 28

Opening the casing ........................................................................................ 29

Closing the casing .......................................................................................... 29

Installing and Removing a Board ................................................................... 30

Low-Profiles boards ....................................................................................... 34

Installing an Additional Serial Port ................................................................. 34

Installing and Removing the Hard Disk Drives ............................................... 35

Replacing Lithium Battery .............................................................................. 37

CHAPTER 5 Technical Data

1 Technical Data .................................................................................40

List of Specifications ...................................................................................... 40

Electrical Data ................................................................................................ 42

xv

CHAPTER 1

Preparing for Use

1 Preparing for Use

CAUTION

Please take note of the safety information in the "Important notes" chapter.

■ Unpacking and Checking the Delivery

It is recommended not to throw away the original packaging material! It may be required for
reshipment at some later date.

● Unpack all the individual parts.

● Check the delivery for damage incurred during transportation.

● Check whether the delivery agrees with the details in the delivery note.

Should you discover that the delivery does not correspond to the delivery note, notify your local
sales outlet immediately.

■ Steps for Initial Setup

First-time setup includes the connection of the monitor, mouse and keyboard to the system unit
and the setup of the supplied software.

● External devices

If you have received other devices in addition to your PC (e.g. a printer or a modem), do
not connect these until after the initial installation. The following sections contain a
description of how to connect these external devices: "Connecting external devices to
the serial port" and "Connecting external devices to the parallel port".

● Drives and boards

If you have received drives or boards with your PC, please do not install them until after
first-time setup. How to install drives and boards is described in the chapter "System
expansions".

Perform the following steps in the prescribed order:

1. Decide where you are going to use the PC, and then set it up.

2. Connect the monitor, mouse and keyboard to the PC.

3. Check the rated voltage of the PC and connect it to the mains voltage.

4. Switch the PC on and follow the instructions on the screen.

2
