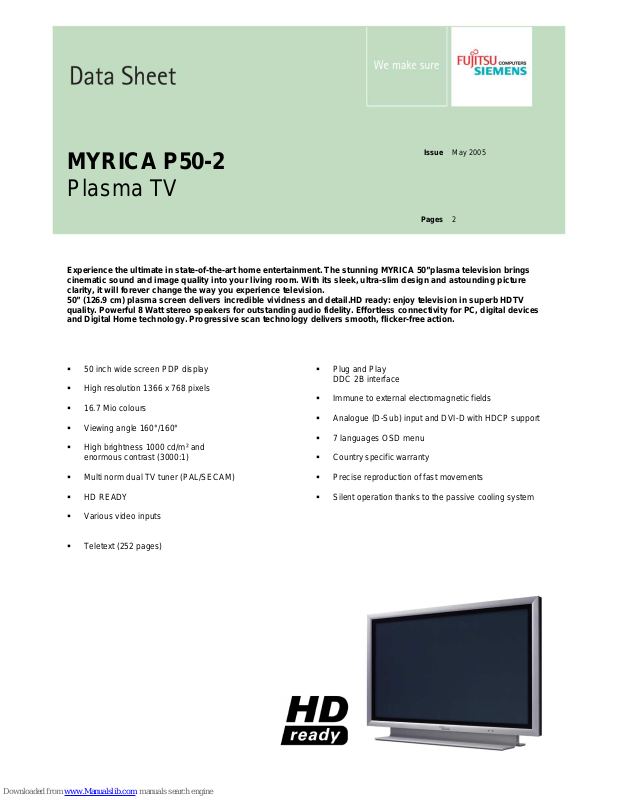

Page 1
Issue May 2005
MYRICA P50-2
Plasma TV
Pages 2
Experience the ultimate in state-of-the-art home entertainment. The stunning MYRICA 50”plasma television brings
cinematic sound and image quality into your living room. With its sleek, ultra-slim design and astounding picture
clarity, it will forever change the way you experience television.
50” (126.9 cm) plasma screen delivers incredible vividness and detail.HD ready: enjoy television in superb HDTV
quality. Powerful 8 Watt stereo speakers for outstanding audio fidelity. Effortless connectivity for PC, digital devices
and Digital Home technology. Progressive scan technology delivers smooth, flicker-free action.
50 inch wide screen PDP display
High resolution 1366 x 768 pixels
16.7 Mio colours
Viewing angle 160° /160°
High brightness 1000 cd/m² and
enormous contrast (3000:1)
Multi norm dual TV tuner (PAL/SECAM)
HD READY
Various video inputs
Teletext (252 pages)
Plug and Play
DDC 2B interface
Immune to external electromagnetic fields
Analogue (D-Sub) input and DVI-D with HDCP support
7 languages OSD menu
Country specific warranty
Precise reproduction of fast movements
Silent operation thanks to the passive cooling system
Page 2
Data Sheet MYRICA P50-2 Plasma-TV Issue April 2005
All rights, including rights created by patent grant or registration of a utility model or design as well
as rights of technical modifications are reserved. Delivery subject to availability. Designations may
be trademarks, the use of which by third parties for their own purposes may violate the rights of the
trademark owners.
Copyright Fujitsu Siemens Computers,09/2004
Published by
Fujitsu Siemens Computers
http://www.fujitsu-siemens.com/
Company stamp
Visible screen diagonal 50 inch (126.9 cm) WXGA
Panel resolution
Pixels 1366 x 768
Pixel pitch 0.81 x 0.81 mm
Picture size 1106.46 x 622.08 mm
Brightness typical 1000 cd/m²
Contrast typical 3000:1
Viewing angle typical
Horizontal 160°
Vertical 160°
Options
TV tuner VHF/UHF/cable
Standard B/G, D/K, I and L/L’
(Multi Europe)
System PAL / SECAM
Sound system mono, stereo, dual tone
Teletext 225 pages (FLOF/TOP)
Video I/O
TV-RF In IEC-connect
DVI-D with HDCP support
D-SUB 15pin
AV1: SCART1 21-pin Scart (CVBS, RGB)
AV2: SCART2 21-pin Scart (CVBS)
AV3: Composite video in RCA type
S-Video (In) (4 pin Dim)
Component video 1/2 6x RCA (Y/Pb/Pr)
Composite video out RCA type
PC (Input)
D-Sub
Horizontal frequency 31.15 – 82 kHz
Vertical frequency 56 – 90 Hz
DVI-D with HDCP support
Horizontal frequency 31.15 – 82 kHz
Vertical frequency 56 – 75 Hz
Resolutions 1280 x 1024 60 Hz
1280 x 768 60 Hz
1280 x 720 60 Hz
1024 x 768 60 - 75 Hz
800 x 600 56 - 75 Hz
640 x 480 60 - 75 Hz
640 x 350 70 Hz
Video 480i, 480p, 576i, 576p,
720p, 1080i with HDCP
Audio characteristics
PC Audio (In) 3.5 mm stereo phone jack
6 x RCA (In) Video/ S-Video, Component (2x)
Earphone (Out) 3.5 mm stereo phone jack
Sub woofer (Out) RCA pin
Volume control digital
Sound output 8 W (L) + 8 W (R)
Electrical values
External AC adapter
Rated voltage 100 - 240 V
Frequency 50 - 60 Hz
Power draw
Operating typical < 500 W
Standby mode < 5 W
Protection class 1
Temperatures/dimensions/weight
Ambient temperature (to IEC721)
Recommended range 15°C to 35°C
Limit 5°C to 35°C
Dimensions
(H x W x D) 730 x 1208 x 108 mm
with base 823 x 1208 x 355 mm
Weight approx. 54 kg (unpacked)
Reliability
MTBF (demonstrated) 20000 h
(brightness > 50 % of original brightness)
Compliance with standards
Product safety EN60950 + IEC guide 112
Ergonomics GS mark
Radiation immunity and CE certification according
RFI suppression to EC Directive
89/336/EEC
(EN55013, EN55020B,
EN55022/B, EN50024,
61000-3-2/-3)
Accessories
Power cable (1.8 m) for wall socket
Euro-Schuko-Type CEE7
plug type IEC-320-C13
Remote control incl. batteries (2x AAA)
User manual multi language
Special features
Wall mounting option
PIP (Picture-In-Picture)
Automatic program search
Automatic sound level adjustment
“Dozing off timer”
Zoom
Order code S26361-K1041-V170
EAN 4045827350651
