MPC3045AH
MPC3065AH
DISK DRIVES
PRODUCT MANUAL
C141-E056-02EN
REVISION RECORD
Edition Date published Revised contents
01 May, 1998
02 Dec., 1998 Pages 1-4, 4-14, 5-9, 5-16, 5-30, 5-35, 5-37, 5-52 to 5-54, 5-63, 5-64, 5-69, 5-81, 6-8, 6-9 to 6-23
revised.
Specification No.: C141-E056-**EN
The contents of this manual is subject to
change without prior notice.
All Rights Reserved.
Copyright 1998 FUJITSU LIMITED
C141-E056-02EN i
This page is intentionally left blank.
PREFACE
This manual describes the MPC3045AH/MPC3065AH, a 3.5-inch hard disk drive with a BUILT-IN
controller that is compatible with the ATA interface.
This manual explains, in detail, how to incorporate the hard disk drives into user systems.
This manual assumes that users have a basic knowledge of hard disk drives and their application in
computer systems.
This manual consists of the following six chapters:
Chapter 1 DEVICE OVERVIEW
Chapter 2 DEVICE CONFIGURATION
Chapter 3 INSTALLATION CONDITIONS
Chapter 4 THEORY OF DEVICE OPERATION
Chapter 5 INTERFACE
Chapter 6 OPERATIONS
In this manual, disk drives may be referred to as drives or devices.
C141-E056-01EN iii
Conventions for Alert Messages
This manual uses the following conventions to show the alert messages. An alert message consists of
an alert signal and alert statements. The alert signal consists of an alert symbol and a signal word or
just a signal word.
The following are the alert signals and their meanings:
This indicates a hazarous situation likely to result in serious personal
injury if the user does not perform the procedure correctly.
This indicates a hazarous situation could result in personal injury if the
user does not perform the porocedure correctly.
This indicates a hazarous situation could result in minor or moderate
personal injury if the user does not perform the procedure correctly.
This alert signal also indicates that damages to the product or other
property, may occur if the user does not perform the procedure
correctly.
This indicates information that could help the user use the product more
efficiently.
In the text, the alert signal is centered, followed below by the indented message. A wider line space
precedes and follows the alert message to show where the alert message begins and ends. The
following is an example:
(Example)
IMPORTANT
HA (host adapter) consists of address decoder, driver, and receiver.
ATA is an abbreviation of "AT attachment". The disk drive is
conformed to the ATA-3 interface
The main alert messages in the text are also listed in the “Important Alert Items.”
iv C141-E056-01EN
LIABILITY EXCEPTION
"Disk drive defects" refers to defects that involve adjustment, repair, or replacement.
Fujitsu is not liable for any other disk drive defects, such as those caused by user misoperation or
mishandling, inappropriate operating environments, defects in the power supply or cable, problems of
the host system, or other causes outside the disk drive.
C141-E056-01EN v
This page is intentionally left blank.
CONTENTS
page
CHAPTER 1 DEVICE OVERVIEW ................................................................................... 1 - 1
1.1 Features ..........................................................................................................................1 - 1
1.1.1 Functions and performance ................................................................ ............................ 1 - 1
1.1.2 Adaptability.................................................................................................................... 1 - 2
1.1.3 Interface.......................................................................................................................... 1 - 2
1.2 Device Specifications ..................................................................................................... 1 - 4
1.2.1 Specifications summary.................................................................................................. 1 - 4
1.2.2 Model and product number ............................................................................................ 1 - 5
1.3 Power Requirements....................................................................................................... 1 - 5
1.4 Environmental Specifications......................................................................................... 1 - 8
1.5 Acoustic Noise ............................................................................................................... 1 - 8
1.6 Shock and Vibration.......................................................................................................1 - 9
1.7 Reliability.......................................................................................................................1 - 9
1.8 Error Rate ....................................................................................................................... 1 - 10
1.9 Media Defects................................................................ .................................................1 - 10
CHAPTER 2 DEVICE CONFIGURATION ....................................................................... 2 - 1
2.1 Device Configuration ................................................................ .....................................2 - 1
2.2 System Configuration..................................................................................................... 2 - 3
2.2.1 ATA interface.................................................................................................................2 - 3
2.2.2 1 drive connection..........................................................................................................2 - 3
2.2.3 2 drives connection......................................................................................................... 2 - 4
CHAPTER 3 INSTALLATION CONDITIONS ................................................................. 3 - 1
3.1 Dimensions..................................................................................................................... 3 - 1
3.2 Mounting........................................................................................................................3 - 3
3.3 Cable Connections................................................................ ..........................................3 - 7
3.3.1 Device connector............................................................................................................3 - 7
3.3.2 Cable connector specifications ....................................................................................... 3 - 8
3.3.3 Device connection..........................................................................................................3 - 8
3.3.4 Power supply connector (CN1) ................................................................ ...................... 3 - 9
3.4 Jumper Settings .............................................................................................................. 3 - 9
C141-E056-02EN vii
3.4.1 Location of setting jumpers............................................................................................3 - 9
3.4.2 Factory default setting....................................................................................................3 - 10
3.4.3 Jumper configuration................................................................ ......................................3 - 10
CHAPTER 4 THEORY OF DEVICE OPERATION .........................................................4 - 1
4.1 Outline............................................................................................................................ 4 - 1
4.2 Subassemblies ................................................................................................................4 - 1
4.2.1 Disk................................................................................................................................4 - 1
4.2.2 Head ............................................................................................................................... 4 - 2
4.2.3 Spindle............................................................................................................................ 4 - 2
4.2.4 Actuator.......................................................................................................................... 4 - 2
4.2.5 Air filter.......................................................................................................................... 4 - 2
4.3 Circuit Configuration...................................................................................................... 4 - 3
4.4 Power-on Sequence ........................................................................................................ 4 - 5
4.5 Self-calibration ............................................................................................................... 4 - 7
4.5.1 Self-calibration contents.................................................................................................4 - 7
4.5.2 Execution timing of self-calibration ............................................................................... 4 - 8
4.5.3 Command processing during self-calibration.................................................................4 - 8
4.6 Read/write Circuit........................................................................................................... 4 - 9
4.6.1 Read/write preamplifier (PreAMP)................................................................................. 4 - 9
4.6.2 Write circuit................................................................ ....................................................4 - 9
4.6.3 Read circuit..................................................................................................................... 4 - 11
4.6.4 Time base generator circuit............................................................................................. 4 - 13
4.7 Servo Control ................................................................ .................................................4 - 14
4.7.1 Servo control circuit ....................................................................................................... 4 - 15
4.7.2 Data-surface servo format...............................................................................................4 - 18
4.7.3 Servo frame format......................................................................................................... 4 - 18
4.7.4 Actuator motor control ................................................................................................... 4 - 19
4.7.5 Spindle motor control..................................................................................................... 4 - 20
CHAPTER 5 INTERFACE................................................................................................... 5 - 1
5.1 Physical Interface ........................................................................................................... 5 - 2
5.1.1 Interface signals.............................................................................................................. 5 - 2
5.1.2 Signal assignment on the connector ............................................................................... 5 - 3
5.2 Logical Interface............................................................................................................. 5 - 6
5.2.1 I/O registers....................................................................................................................5 - 6
C141-E056-02ENviii
5.2.2 Command block registers............................................................................................... 5 - 8
5.2.3 Control block registers ................................................................ ...................................5 - 13
5.3 Host Commands.............................................................................................................5 - 13
5.3.1 Command code and parameters......................................................................................5 - 14
5.3.2 Command descriptions...................................................................................................5 - 16
5.3.3 Error posting................................................................ ...................................................5 - 63
5.4 Command Protocol......................................................................................................... 5 - 64
5.4.1 Data transferring commands from device to host...........................................................5 - 64
5.4.2 Data transferring commands from host to device...........................................................5 - 66
5.4.3 Commands without data transfer.................................................................................... 5 - 68
5.4.4 Other commands............................................................................................................. 5 - 69
5.4.5 DMA data transfer commands........................................................................................ 5 - 69
5.5 Ultra DMA feature set .................................................................................................... 5 - 71
5.5.1 Overview........................................................................................................................5 - 71
5.5.2 Phases of operation................................................................ .........................................5 - 72
5.5.3 Ultra DMA data in commands........................................................................................ 5 - 72
5.5.3.1 Initiating an Ultra DMA data in burst.............................................................................5 - 72
5.5.3.2 The data in transfer................................................................ .........................................5 - 73
5.5.3.3 Pausing an Ultra DMA data in burst............................................................................... 5 - 73
5.5.3.4 Terminating an Ultra DMA data in burst........................................................................5 - 74
5.5.4 Ultra DMA data out commands...................................................................................... 5 - 76
5.5.4.1 Initiating an Ultra DMA data out burst...........................................................................5 - 76
5.5.4.2 The data out transfer................................................................ .......................................5 - 77
5.5.4.3 Pausing an Ultra DMA data out burst............................................................................. 5 - 77
5.5.4.4 Terminating an Ultra DMA data out burst......................................................................5 - 78
5.5.5 Ultra DMA CRC rules.................................................................................................... 5 - 80
5.5.6 Series termination required for Ultra DMA....................................................................5 - 81
5.6 Timing............................................................................................................................5 - 82
5.6.1 PIO data transfer............................................................................................................. 5 - 82
5.6.2 Multiword data transfer .................................................................................................. 5 - 83
5.6.3 Ultra DMA data transfer................................................................ .................................5 - 84
5.6.3.1 Initiating an Ultra DMA data in burst.............................................................................5 - 84
5.6.3.2 Ultra DMA data burst timing requirements....................................................................5 - 85
5.6.3.3 Sustained Ultra DMA data in burst................................................................................. 5 - 87
5.6.3.4 Host pausing an Ultra DMA data in burst ...................................................................... 5 - 88
5.6.3.5 Device terminating an Ultra DMA data in burst............................................................. 5 - 89
C141-E056-02EN ix
5.6.3.6 Host terminating an Ultra DMA data in burst................................................................. 5 - 90
5.6.3.7 Initiating an Ultra DMA data out burst...........................................................................5 - 91
5.6.3.8 Sustained Ultra DMA data out burst............................................................................... 5 - 92
5.6.3.9 Device pausing an Ultra DMA data out burst.................................................................5 - 93
5.6.3.10Host terminating an Ultra DMA data out burst...............................................................5 - 94
5.6.3.11Device terminating an Ultra DMA data in burst............................................................. 5 - 95
5.6.4 Power-on and reset ......................................................................................................... 5 - 96
CHAPTER 6 OPERATIONS................................................................................................6 - 1
6.1 Device Response to the Reset................................................................ ......................... 6 - 1
6.1.1 Response to power-on .................................................................................................... 6 - 2
6.1.2 Response to hardware reset ................................................................ ............................ 6 - 3
6.1.3 Response to software reset.............................................................................................. 6 - 4
6.1.4 Response to diagnostic command ................................................................ .................. 6 - 5
6.2 Address Translation........................................................................................................ 6 - 6
6.2.1 Default parameters..........................................................................................................6 - 6
6.2.2 Logical address............................................................................................................... 6 - 7
6.3 Power Save.....................................................................................................................6 - 8
6.3.1 Power save mode............................................................................................................ 6 - 8
6.3.2 Power commands ................................................................ ...........................................6 - 10
6.4 Defect Management........................................................................................................ 6 - 10
6.4.1 Spare area ....................................................................................................................... 6 - 11
6.4.2 Alternating defective sectors ................................................................ .......................... 6 - 11
6.5 Read-Ahead Cache.........................................................................................................6 - 14
6.5.1 Data buffer configuration ...............................................................................................6 - 14
6.5.2 Caching operation........................................................................................................... 6 - 15
6.5.3 Usage of read segment.................................................................................................... 6 - 16
6.6 Write Cache.................................................................................................................... 6 - 22
C141-E056-02ENx
FIGURES
page
1.1 Current fluctuation (Typ.) when power is turned on....................................................... 1 - 7
2.1 Disk drive outerview ................................................................ ......................................2 - 1
2.2 Configuration of disk media heads................................................................................. 2 - 2
2.3 1 drive system configuration .......................................................................................... 2 - 3
2.4 2 drives configuration..................................................................................................... 2 - 4
3.1 Dimensions..................................................................................................................... 3 - 2
3.2 Orientation...................................................................................................................... 3 - 3
3.3 Limitation of side-mounting........................................................................................... 3 - 4
3.4 Mounting frame structure...............................................................................................3 - 4

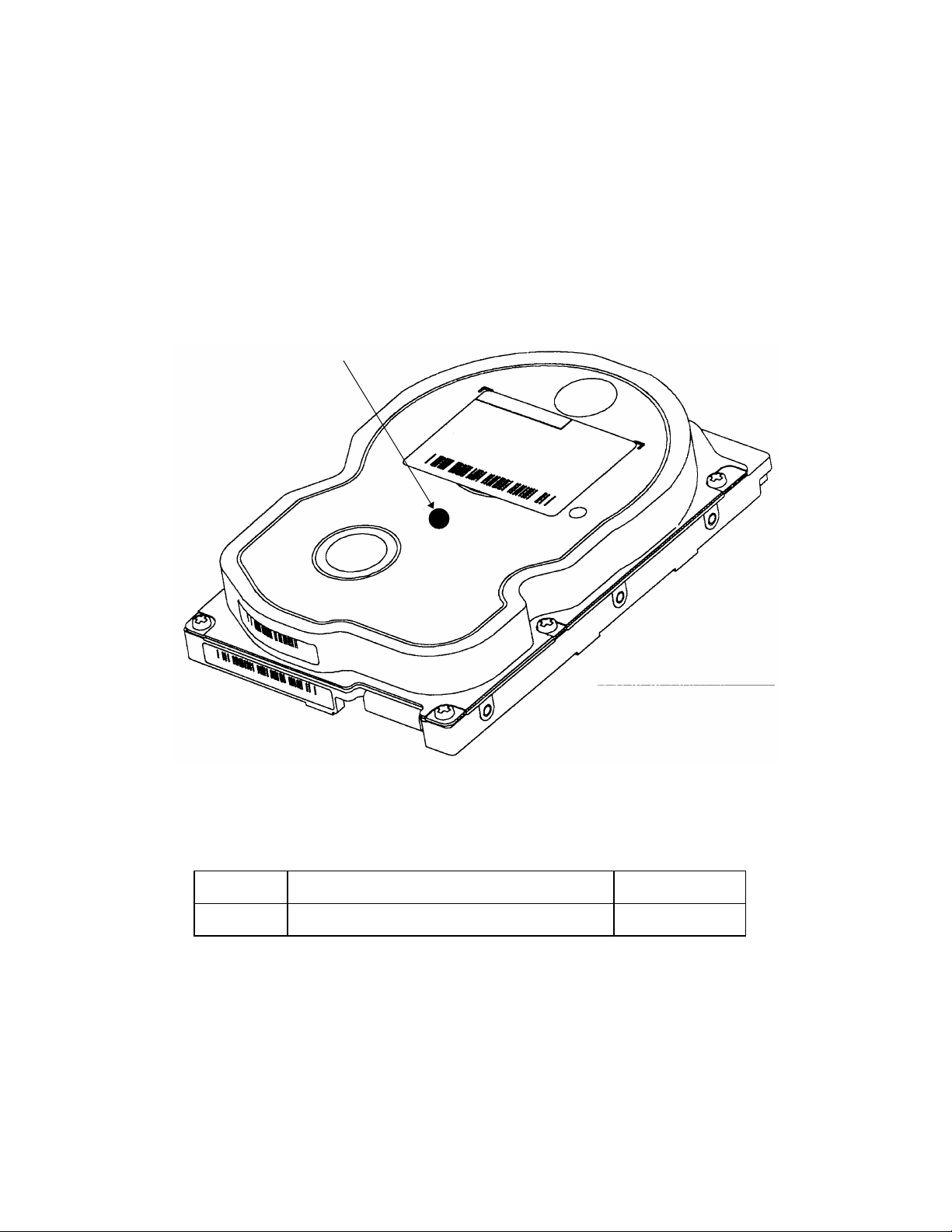

3.5 Surface temperature measurement points ....................................................................... 3 - 5
3.6 Service area .................................................................................................................... 3 - 6
3.7 Connector locations........................................................................................................3 - 7
3.8 Cable connections........................................................................................................... 3 - 8
3.9 Power supply connector pins (CN1)............................................................................... 3 - 9
3.10 Jumper location .............................................................................................................. 3 - 9
3.11 Factory default setting....................................................................................................3 - 10
3.12 Jumper setting of master or slave device........................................................................3 - 10
3.13 Jumper setting of Cable Select ................................................................ ....................... 3 - 11
3.14 Example (1) of Cable Select...........................................................................................3 - 11
3.15 Example (2) of Cable Select...........................................................................................3 - 11
4.1 Head structure................................................................ .................................................4 - 2
4.2 MPC30xxAH Block diagram ......................................................................................... 4 - 4
4.3 Power-on operation sequence.........................................................................................4 - 6
4.4 Read/write circuit block diagram.................................................................................... 4 - 10
4.5 Frequency characteristic of programmable filter ............................................................ 4 - 11
4.6 PR4 signal transfer ......................................................................................................... 4 - 12
4.7 Block diagram of servo control circuit ........................................................................... 4 - 15
4.8 Physical sector servo configuration on disk surface ....................................................... 4 - 16
4.9 Servo frame format.........................................................................................................4 - 18
5.1 Execution example of READ MULTIPLE command .................................................... 5 - 19
5.2 Read Sector(s) command protocol..................................................................................5 - 65
5.3 Protocol for command abort...........................................................................................5 - 66
C141-E056-02EN xi
5.4 WRITE SECTOR(S) command protocol........................................................................ 5 - 67
5.5 Protocol for the command execution without data transfer ............................................ 5 - 68
5.6 Normal DMA data transfer.............................................................................................5 - 70
5.7 Ultra DMA termination with pull-up or pull-down ........................................................ 5 - 81
5.8 PIO data transfer timing.................................................................................................. 5 - 82
5.9 Multiword DMA data transfer timing (mode 2) ............................................................. 5 - 83
5.10 Initiating an Ultra DMA data in burst.............................................................................5 - 84
5.11 Sustained Ultra DMA data in burst................................................................................. 5 - 87
5.12 Host pausing an Ultra DMA data in burst ...................................................................... 5 - 88
5.13 Device terminating an Ultra DMA data in burst............................................................. 5 - 89
5.14 Host terminating an Ultra DMA data in burst................................................................. 5 - 90
5.15 Initiating an Ultra DMA data out burst...........................................................................5 - 91
5.16 Sustained Ultra DMA data out burst............................................................................... 5 - 92
5.17 Device pausing an Ultra DMA data out burst.................................................................5 - 93
5.18 Host terminating an Ultra DMA data out burst............................................................... 5 - 94
5.19 Device terminating an Ultra DMA data out burst........................................................... 5 - 95
5.20 Power-on Reset Timing..................................................................................................5 - 96
6.1 Response to power-on .................................................................................................... 6 - 2
6.2 Response to hardware reset ................................................................ ............................ 6 - 3
6.3 Response to software reset.............................................................................................. 6 - 4
6.4 Response to diagnostic command ................................................................ .................. 6 - 5
6.5 Address translation (example in CHS mode).................................................................. 6 - 7
6.6 Address translation (example in LBA mode) .................................................................6 - 8
6.7 Sector slip processing.....................................................................................................6 - 11
6.8 Track slip processing......................................................................................................6 - 12
6.9 Automatic Alternate assignment..................................................................................... 6 - 13
6.10 Data buffer configuration ...............................................................................................6 - 14
C141-E056-02ENxii
TABLES
page
1.1 Specifications .................................................................................................................1 - 4
1.2 Model names and product numbers................................................................................ 1 - 5
1.3 Current and power dissipation........................................................................................ 1 - 6
1.4 Environmental specifications.......................................................................................... 1 - 8
1.5 Acoustic noise specification ........................................................................................... 1 - 8
1.6 Shock and vibration specification...................................................................................1 - 9
3.1 Surface temperature measurement points and standard values.......................................3 - 5
3.2 Cable connector specifications ....................................................................................... 3 - 8
4.1 Self-calibration execution timechart...............................................................................4 - 8
4.2 Write precompensation algorithm ................................................................ .................. 4 - 9
4.3 Write clock frequency and transfer rate of each zone.....................................................4 - 14
5.1 Interface signals.............................................................................................................. 5 - 2
5.2 Signal assignment on the interface connector................................................................. 5 - 3
5.3 I/O registers .................................................................................................................... 5 - 7
5.4 Command code and parameters......................................................................................5 - 14
5.5 Information to be read by IDENTIFY DEVICE command ............................................ 5 - 30
5.6 Features register values and settable modes ...................................................................5 - 34
5.7 Diagnostic code..............................................................................................................5 - 37
5.8 Features Register values (subcommands) and functions ................................................ 5 - 48
5.9 Format of device attribute value data.............................................................................. 5 - 50
5.10 Format of insurance failure threshold value data............................................................ 5 - 51
5.11 Contents of security password........................................................................................ 5 - 55
5.12 Contents of SECURITY SET PASSWORD data ........................................................... 5 - 60
5.13 Relationship between combination of Identifier and Security level,
and operation of the lock function.................................................................................. 5 - 60
5.14 Command code and parameters......................................................................................5 - 63
5.15 Recommended series termination for Ultra DMA..........................................................5 - 81
5.16 Ultra DMA data burst timing requirements....................................................................5 - 85
6.1 Default parameters.......................................................................................................... 6 - 6
C141-E056-02EN xiii
This page is intentionally left blank.
CHAPTER 1 DEVICE OVERVIEW
1.1 Features
1.2 Device Specifications
1.3 Power Requirements
1.4 Environmental Specifications
1.5 Acoustic Noise
1.6 Shock and Vibration
1.7 Reliability
1.8 Error Rate
1.9 Media Defects
Overview and features are described in this chapter, and specifications and power requirement are
described.
The MPC3045AH, MPC3065AH is a 3.5-inch hard disk drive with a built-in ATA controller. The disk
drive is compact and reliable.
1.1 Features
1.1.1 Functions and performance
(1) Compact
The disk has 1, 2 or 3 disks of 95 mm (3.5 inches) diameter, and its height is 25.4 mm (1
inch).
(2) Large capacity
The disk drive can record up to 2,170 MB (formatted) on one disk using the 8/9 PRML
recording method and 15 recording zone technology. The MPC3045AH and MPC3065AH
have a formatted capacity of 4,551 MB and 6,510 MB respectively.
(3) High-speed Transfer rate
The disk drive has an internal data rate up to 19.18 MB/s. The disk drive supports an external
data rate up to 16.7 MB/s or 33.3 MB/s (ultra DMA mode).
C141-E056-01EN 1 - 1
(4) Average positioning time
Use of a rotary voice coil motor in the head positioning mechanism greatly increases the
positioning speed. The average positioning time is 9 ms (at read).
1.1.2 Adaptability
(1) Power save mode
The power save mode feature for idle operation, stand by and sleep modes makes the disk
drive ideal for applications where power consumption is a factor.
(2) Wide temperature range
The disk drive can be used over a wide temperature range (5°C to 55°C).
(3) Low noise and vibration
In Ready status, the noise of the disk drive is only about 3.9 bels (MPC3065AH, Typical
Sound Power per ISO7779 and ISO9296).
1.1.3 Interface
(1) Connection to interface
With the built-in ATA interface controller, the disk drive can be connected to an ATA
interface of a personal computer.
(2) 256-KB data buffer
The disk drive uses a 512-KB data buffer to transfer data between the host and the disk media.
In combination with the read-ahead cache system described in item (3) and the write cache
described in item (6), the buffer contributes to efficient I/O processing.
(3) Read-ahead cache system
After the execution of a disk read command, the disk drive automatically reads the subsequent
data block and writes it to the data buffer (read ahead operation). This cache system enables
fast data access. The next disk read command would normally cause another disk access.
But, if the read ahead data corresponds to the data requested by the next read command, the
data in the buffer can be transferred instead.
(4) Master/slave
The disk drive can be connected to ATA interface as daisy chain configuration. Drive 0 is a
master device, drive 1 is a slave device.
C141-E056-01EN1 - 2
(5) Error correction and retry by ECC
If a recoverable error occurs, the disk drive itself attempts error recovery. The 24-byte ECC
has improved buffer error correction for correctable data errors.
(6) Write cache
When the disk drive receives a write command, the disk drive posts the command completion
at completion of transferring data to the data buffer completion of writing to the disk media.
This feature reduces the access time at writing.
C141-E056-01EN 1 - 3
1.2 Device Specifications
1.2.1 Specifications summary
Table 1.1 shows the specifications of the disk drive.
Formatted Capacity (*1) 4551.96 MB 6510.55 MB
Number of Heads 4 6
Number of Cylinders
(User + Alternate & SA)
Bytes per Sector 512
Recording Method 8/9 PRML
Track Density 11,000 TPI
Bit Density 162,754 BPI
Rotational Speed 7,200 rpm ± 0.5%
Average Latency 4.17 ms
Positioning time
• Minimum
• Average
• Maximum
Start/Stop time
• Start (0 rpm to Drive
Read)
• Stop (at Power Down)
Interface ATA–3
Data Transfer Rate
• To/From Media 12.65 to 19.18 MB/s
• To/From Host 16.7 MB/s Max. (burst PIO mode 4, burst DMA mode
Data buffer 512 KB
Physical Dimensions
(Height × Width × Depth)
Weight 600 g
*1: Capacity under the LBA mode and the CHS mode.
Under the CHS mode (normal BIOS specification), formatted capacity, number of
cylinders, number of heads, and number of sectors are as follows.
Table 1.1 Specifications
MPC3045AH MPC3065AH
10,424 + 83
2.0 ms typical
(Read) 9 ms typical, (Write) 10 ms typical
(Read) 18 ms typical, (Write) 19 ms typical
Typical: 8 sec., Maximum: 16 sec.
Typical: 20 sec.,Maximum: 30 sec.
(Maximum Cable length: 0.46 m)
2),
33.3 MB/s Max. (burst ultra DMA mode 2)
26.1 mm max. × 101.6 mm × 146.0 mm
(1.03” max. × 4.0” × 5.75”)
Model Formatted Capacity No. of Cylinder No. of Heads No. of Sectors
MPC3045AH 4551.96 9,408 15 63
MPC3065AH 6510.55 13,456 15 63
C141-E056-02EN1 - 4
1.2.2 Model and product number
Table 1.2 lists the model names and product numbers.
Table 1.2 Model names and product numbers
Model Name Capacity
(user area)
MPC3045AH 4551.96 No. 6-32UNC CA01742-B641
MPC3065AH 6510.55 No. 6-32UNC CA01742-B661
1.3 Power Requirements
(1) Input Voltage
• + 5 V ±5 %
• + 12 V ±8 %
(2) Ripple
+12 V +5 V
Maximum 200 mV (peak to peak) 100 mV (peak to peak)
Frequency DC to 1 MHz DC to 1 MHz
Mounting
Screw
Order No. Others
C141-E056-01EN 1 - 5
(3) Current Requirements and Power Dissipation
Table 1.3 lists the current and power dissipation.
Table 1.3 Current and power dissipation
Mode of
Operation
Model All Models All Models All Models
Spin up 1300
Idle (Ready) (*3) 300 380 5.50
R/W (On Track) (*4) 300 430 5.75
Seek (Random) (*5) 510 430 8.27
Standby 4 150 0.8
Sleep 4 150 0.8
Typical RMS current (*1) [mA]
+12 V +5 V
500
1500 peak
600 peak
Typical Power (*2) [watts]
18.1
*1 Current is typical rms except for spin up.
*2 Power requirements reflect nominal values for +12V and +5V power.
*3 Idle mode is in effect when the drive is not reading, writing, seeking, or executing any
commands. A portion of the R/W circuitry is powered down, the spindle motor is up to
speed and the Drive ready condition exists.
*4 R/W mode is defined as 50% read operations and 50% write operations on a single
physical track.
*5 Seek mode is defined as continuous random seek operations with minimum controller
delay.
C141-E056-01EN1 - 6
(4) Current fluctuation (Typ.) when power is turned on
Note:
Maximum current is 1.5 A and is continuance is 1.5 seconds
Figure 1.1 Current fluctuation (Typ.) when power is turned on
(5) Power on/off sequence
The voltage detector circuit monitors +5 V and +12 V. The circuit does not allow a write
signal if either voltage is abnormal. This prevents data from being destroyed and eliminates
the need to be concerned with the power on/off sequence.
C141-E056-01EN 1 - 7
1.4 Environmental Specifications
Table 1.4 lists the environmental specifications.
Table 1.4 Environmental specifications
Temperature
• Operating
• Non-operating
• Thermal Gradient
Humidity
• Operating
• Non-operating
• Maximum Wet Bulb
Altitude (relative to sea level)
• Operating
• Non-operating
1.5 Acoustic Noise
5°C to 55°C (ambient)
5°C to 60°C (disk enclosure surface)
–40°C to 60°C
20°C/h or less
8% to 80%RH (Non-condensing)
5% to 85%RH (Non-condensing)
29°C
–60 to 3,000 m (–200 to 10,000 ft)
–60 to 12,000 m (–200 to 40,000 ft)
Table 1.5 lists the acoustic noise specification.
Table 1.5 Acoustic noise specification
Sound Power
per ISO 7779 and ISO9296
(Typical at 1m)
Sound Pressure
(Typical at 1m)
Idle mode
(DRIVE READY)
Seek mode (Random) 4.4 bels
Idle mode
(DRIVE READY)
Seek mode (Random) 40 dBA
Model
MPC3045AH
MPC3065AH
3.9 bels
34 dBA
C141-E056-01EN1 - 8
1.6 Shock and Vibration
Table 1.6 lists the shock and vibration specification.
Table 1.6 Shock and vibration specification
Vibration (swept sine, one octave per minute)
• Operating
• Non-operating
Shock (half-sine pulse, 11 ms duration)
• Operating
• Non-operating
1.7 Reliability
(1) Mean time between failures (MTBF)
The mean time between failures (MTBF) is 500,000 H or more (operation: 24 hours/day, 7
days/week).
5 to 300 Hz, 0.5G-0-peak
(without non-recovered errors)
5 to 400 Hz, 4G-0-peak (no damage)
10G (without non-recovered errors)
75G (no damage)
This does not include failures occurring during the first three months after installation.
MTBF is defined as follows:
MTBF= (H)
"Disk drive defects" refers to defects that involve repair, readjustment, or replacement. Disk
drive defects do not include failures caused by external factors, such as damage caused by
handling, inappropriate operating environments, defects in the power supply host system, or
interface cable.
(2) Mean time to repair (MTTR)
The mean time to repair (MTTR) is 30 minutes or less, if repaired by a specialist maintenance
staff member.
(3) Service life
In situations where management and handling are correct, the disk drive requires no overhaul
for five years when the DE surface temperature is less than 48°C. When the DE surface
temperature exceeds 48°C, the disk drives requires no overhaul for five years or 20,000 hours
of operation, whichever occurs first. Refer to item (3) in Subsection 3.2 for the measurement
point of the DE surface temperature.
Total operation time in all fields
number of device failure in all fields
C141-E056-01EN 1 - 9
(4) Data assurance in the event of power failure
Except for the data block being written to, the data on the disk media is assured in the event of
any power supply abnormalities. This does not include power supply abnormalities during
disk media initialization (formatting) or processing of defects (alternative block assignment).
1.8 Error Rate
Known defects, for which alternative blocks can be assigned, are not included in the error rate
count below. It is assumed that the data blocks to be accessed are evenly distributed on the
disk media.
(1) Unrecoverable read error
Read errors that cannot be recovered by maximum 126 times read retries without user's retry
and ECC corrections shall occur no more than 10 times when reading data of 10
retries are executed according to the disk drive's error recovery procedure, and include read
retries accompanying head offset operations.
(2) Positioning error
Positioning (seek) errors that can be recovered by one retry shall occur no more than 10 times
in 107 seek operations.
1.9 Media Defects
Defective sectors are replaced with alternates when the disk is formatted prior to shipment
from the factory (low level format). Thus, the host sees a defect-free device.
Alternate sectors are automatically accessed by the disk drive. The user need not be concerned
with access to alternate sectors.
Chapter 6 describes the low level format at shipping.
15
bits. Read
C141-E056-01EN1 - 10
CHAPTER 2 DEVICE CONFIGURATION
2.1 Device Configuration
2.2 System Configuration
2.1 Device Configuration
Figure 2.1 shows the disk drive. The disk drive consists of a disk enclosure (DE), read/write
preamplifier, and controller PCA. The disk enclosure contains the disk media, heads, spindle
motors actuators, and a circulating air filter.
Figure 2.1 Disk drive outerview
C141-E056-01EN 2 - 1
(1) Disk
The outer diameter of the disk is 95 mm. The inner diameter is 25 mm. The number of disks
used varies with the model, as described below. The disks are rated at over 40,000 start/stop
operations.
MPC3045AH: 2 disks
MPC3065AH: 3 disks
(2) Head
The heads are of the contact start/stop (CSS) type. The head touches the disk surface while the
disk is not rotating and automatically lifts when the disk starts.
Figure 2.2 illustrates the configuration of the disks and heads of each model. In the disk
surface, servo information necessary for controlling positioning and read/write and user data
are written. Numerals 0 to 5 indicate read/write heads.
Spindle
Actuator
MPC3065AH ModelMPC3045AH Model
Spindle
Actuator
3
2
1
0
(3) Spindle motor
The disks are rotated by a direct drive Hall-less DC motor.
(4) Actuator
The actuator uses a revolving voice coil motor (VCM) structure which consumes low power
and generates very little heat. The head assembly at the tip of the actuator arm is controlled
and positioned by feedback of the servo information read by the read/write head. If the power
is not on or if the spindle motor is stopped, the head assembly stays in the specific CSS zone
on the disk and is fixed by a mechanical lock.
5
4
3
2
1
0
Figure 2.2 Configuration of disk media heads
C141-E056-01EN2 - 2
(5) Air circulation system
The disk enclosure (DE) is sealed to prevent dust and dirt from entering. The disk enclosure
features a closed loop air circulation system that relies on the blower effect of the rotating
disk. This system continuously circulates the air through the recirculation filter to maintain
the cleanliness of the air in the disk enclosure.
(6) Read/write circuit
The read/write circuit uses a LSI chip for the read/write preamplifier. It improves data
reliability by preventing errors caused by external noise.
(7) Controller circuit
The controller circuit consists of an LSI chip to improve reliability. The high-speed
microprocessor unit (MPU) achieves a high-performance AT controller.
2.2 System Configuration
2.2.1 ATA interface
Figures 2.3 and 2.4 show the ATA interface system configuration. The drive has a 40-pin PC
AT interface connector and supports the PIO transfer till 16.7 MB/s (ATA-3, Mode 4), the
DMA transfer till 16.7 MB/s (ATA-3, Multiword mode 2), and the ultra DMA transfer till 33.3
MB/s (ATA-4, Ultra DMA mode 2).
2.2.2 1 drive connection
Host
AT bus
(Host interface)
HA
(Host adaptor)
ATA interface
Figure 2.3 1 drive system configuration
Disk drive
C141-E056-01EN 2 - 3
2.2.3 2 drives connection
Host
HA
(Host adaptor)
AT bus
(Host interface)
ATA interface
Note:
When the drive that is not conformed to ATA is connected to the disk drive is above
configuration, the operation is not guaranteed.
Figure 2.4 2 drives configuration
IMPORTANT
HA (host adapter) consists of address decoder, driver, and receiver.
ATA is an abbreviation of "AT attachment". The disk drive is
conformed to the ATA-3 interface.
Disk drive #0
Disk drive #1
At high speed data transfer (PIO mode 3, mode 4, DMA mode 2 or
ultra DMA mode 2), occurrence of ringing or crosstalk of the signal
lines (AT bus) between the HA and the disk drive may be a great
cause of the obstruction of system reliability. Thus, it is necessary
that the capacitance of the signal lines including the HA and cable
does not exceed the ATA-3 and ATA-4 standard, and the cable
length between the HA and the disk drive should be as short as
possible.
C141-E056-01EN2 - 4
CHAPTER 3 INSTALLATION CONDITIONS
3.1 Dimensions
3.2 Mounting
3.3 Cable Connections
3.4 Jumper Settings
3.1 Dimensions
Figure 3.1 illustrates the dimensions of the disk drive and positions of the mounting screw
holes. All dimensions are in mm.
C141-E056-01EN 3 - 1
Figure 3.1 Dimensions
C141-E056-01EN3 - 2
3.2 Mounting
(1) Orientation
Figure 3.2 illustrates the allowable orientations for the disk drive. The mounting angle can
vary ±5° from the horizontal.
gravity
(2) Frame
(3) Limitation of side-mounting
(a) Horizontal mounting (b) Vertical mounting –1 (c) Vertical mounting –2
Figure 3.2 Orientation
The disk enclosure (DE) body is connected to signal ground (SG) and the mounting frame is
also connected to signal ground. These are electrically shorted.
Note:
Use No.6-32UNC screw for the mounting screw and the screw length should satisfy the
specification in Figure 3.4.
When the disk drive is mounted using the screw holes on both side of the disk drive, use two
screw holes shown in Figure 3.3.
Do not use the center hole. For screw length, see Figure 3.4.
C141-E056-01EN 3 - 3
Do not use this screw holes
Figure 3.3 Limitation of side-mounting
Use these screw
holes
Bottom surface mounting
2
A
Frame of system
cabinet
4.5 or
less
DE
Details of A
Figure 3.4 Mounting frame structure
Screw
2.5
2.5
Frame of system
cabinet
5.0 or less
Details of B
Side surface
mounting
PCA
Screw
2.5
DE
B
C141-E056-01EN3 - 4
(4) Ambient temperature
The temperature conditions for a disk drive mounted in a cabinet refer to the ambient
temperature at a point 3 cm from the disk drive. Pay attention to the air flow to prevent the
DE surface temperature from exceeding 60°C.
Provide air circulation in the cabinet such that the PCA side, in particular, receives sufficient
cooling. To check the cooling efficiency, measure the surface temperatures of the DE.
Regardless of the ambient temperature, this surface temperature must meet the standards listed
in Table 3.1. Figure 3.5 shows the temperature measurement point.
1
Figure 3.5 Surface temperature measurement points
Table 3.1 Surface temperature measurement points and standard values
No. Measurement point Temperature
1 DE cover 60°C max
C141-E056-01EN 3 - 5
(5) Service area
Figure 3.6 shows how the drive must be accessed (service areas) during and after installation.
- Mounting screw hole
[Q side]
- Mounting screw hole
[P side]
- Cable connection
- Mode setting switches
(6) External magnetic fields
Avoid mounting the disk drive near strong magnetic sources such as loud speakers. Ensure
that the disk drive is not affected by external magnetic fields.
[R side]
- Mounting screw hole
Figure 3.6 Service area
C141-E056-01EN3 - 6
3.3 Cable Connections
3.3.1 Device connector
The disk drive has the connectors and terminals listed below for connecting external devices.
Figure 3.7 shows the locations of these connectors and terminals.
• Power supply connector (CN1)
• ATA interface connector (CN1)
Power supply
connector (CN1)
Mode
Setting
Pins
ATA
interface
connector
Figure 3.7 Connector locations
C141-E056-01EN 3 - 7
3.3.2 Cable connector specifications
ATA interface cable
Power supply cable
DC
Table 3.2 lists the recommended specifications for the cable connectors.
Table 3.2 Cable connector specifications
Name Model Manufacturer
ATA interface cable
(40-pin, CN1)
Power supply cable
(CN1)
Note :
The cable of twisted pairs and neighboring line separated individually is not allowed to use
for the host interface cable. It is because that the location of signal lines in these cables is
not fixed, and so the problem on the crosstalk among signal lines may occur.
3.3.3 Device connection
Figure 3.8 shows how to connect the devices.
Cable socket
(closed-end type)
Cable socket
(through-end type)
Signal cable 445-248-40 SPECTERS STRIP
Cable socket housing 1-480424-0 AMP
Contact 60617-4 AMP
Signal cable AWG 18 to 24
FCN-707B040-AU/B Fujitsu
FCN-707B040-AU/O Fujitsu
Host system
Disk Drive #0
power supply
Disk Drive #1
Figure 3.8 Cable connections
C141-E056-01EN3 - 8
3.3.4 Power supply connector (CN1)
Figure 3.9 shows the pin assignment of the power supply connector (CN1).
4321
(Viewed from cable side)
Figure 3.9 Power supply connector pins (CN1)
3.4 Jumper Settings
3.4.1 Location of setting jumpers
Figure 3.10 shows the location of the jumpers to select drive configuration and functions.
CN1
C01
C04
C01
Power
supply
connector
C04
1
2
3
4
+12VDC
+12V RETURN
+5V RETURN
+5VDC
B01
A01 A02
A39 A40
B02
B06B05 B05/06
B01/02
A01/02
A39/40
Mode setting
Connector
pins
Interface
Connector
Figure 3.10 Jumper location
C141-E056-01EN 3 - 9
3.4.2 Factory default setting
Figure 3.11 shows the default setting position at the factory. (Master device setting)
B02
C01
3.4.3 Jumper configuration
(1) Device type
Master device (device #0) or slave device (device #1) is selected.
C04
B01
B01 05
06
A02
05
Figure 3.11 Factory default setting
06B02
A01
A40
A39
06B02
05B01
(a) Master device (b) Slave device
Figure 3.12 Jumper setting of master or slave device
(2) Cable Select (CSEL)
In Cable Select mode, the device can be configured either master device or slave device. For
use of Cable Select function, Unique interface cable is needed.
C141-E056-01EN3 - 10
06B02
CSEL connected to the interface
B01 05
Cable selection can be done by the
special interface cable.
Figure 3.13 Jumper setting of Cable Select
Figures 3.14 and 3.15 show examples of cable selection using unique interface cables.
By connecting the CSEL of the master device to the CSEL Line (conductor) of the cable and
connecting it to ground further, the CSEL is set to low level. The device is identified as a
master device. At this time, the CSEL of the slave device does not have a conductor. Thus,
since the slave device is not connected to the CSEL conductor, the CSEL is set to high level.
The device is identified as a slave device.
GND
GND
Host system
CSEL conductor
Open
Slave deviceMaster deviceHost system
Figure 3.14 Example (1) of Cable Select
CSEL conductor
Open
Slave device Master device
Figure 3.15 Example (2) of Cable Select
C141-E056-01EN 3 - 11
(3) Special setting 1 (SP1)
The number of cylinders reported by the IDENTIFY DEVICE command is selected.
(a) Default mode
2 4 6
1 3 5
Model No. of cylinders No. of heads No. of sectors
MPC3045AH 9,408 15 63
MPC3065AH 13,456 15 63
(b) Special mode
2 4 6
1 3 5
2 4 6
1 3 5
Slave DeviceMaster Device
2 4 6
1 3 5
Slave DeviceMaster Device
2 4 6
1 3 5
Cable Select
2 4 6
1 3 5
Cable Select
Model No. of cylinders No. of heads No. of sectors
MPC3045AH 4,092 16 63
MPC3065AH 4,092 16 63
C141-E056-01EN3 - 12
CHAPTER 4 THEORY OF DEVICE OPERATION
4.1 Outline
4.2 Subassemblies
4.3 Circuit Configuration
4.4 Power-on sequence
4.5 Self-calibration
4.6 Read/write Circuit
4.7 Servo Control
This chapter explains basic design concepts of the disk drive. Also, this chapter explains
subassemblies of the disk drive, each sequence, servo control, and electrical circuit blocks.
4.1 Outline
This chapter consists of two parts. First part (Section 4.2) explains mechanical assemblies of
the disk drive. Second part (Sections 4.3 through 4.7) explains a servo information recorded
in the disk drive and drive control method.
4.2 Subassemblies
The disk drive consists of a disk enclosure (DE) and printed circuit assembly (PCA).
The DE contains all movable parts in the disk drive, including the disk, spindle, actuator,
read/write head, and air filter. For details, see Subsections 4.2.1 to 4.2.5.
The PCA contains the control circuits for the disk drive. The disk drive has one PCA. For
details, see Sections 4.3.
4.2.1 Disk
The DE contains the disks with an outer diameter of 95 mm. The MPC3045AH has 2 disks.
MPC3065AH has 3 disks.
The head contacts the disk each time the disk rotation stops; the life of the disk is 40,000
contacts or more.
Servo data is recorded on each cylinder (total 54). Servo data written at factory is read out by
the read/write head. For servo data, see Section 4.7.
C141-E056-01EN 4 - 1
4.2.2 Head
Figure 4.1 shows the read/write head structures. The MPC3045AH has 4 read/write heads,
and MPC3065AH has 6. These heads are raised from the disk surface as the spindle motor
approaches the rated rotation speed.
MPC3045AH Model
Spindle
3
2
1
0
4.2.3 Spindle
The spindle consists of a disk stack assembly and spindle motor. The disk stack assembly is
activated by the direct drive sensor-less DC spindle motor, which has a speed of 7,200 rpm
±0.5%. The spindle is controlled with detecting a PHASE signal generated by counter
electromotive voltage of the spindle motor at starting. After that, the rotational speed is kept
with detecting a servo information.
MPC3065AH Model
Actuator
Spindle
5
4
3
2
1
0
Figure 4.1 Head structure
Actuator
4.2.4 Actuator
The actuator consists of a voice coil motor (VCM) and a head carriage. The VCM moves the
head carriage along the inner or outer edge of the disk. The head carriage position is
controlled by feeding back the difference of the target position that is detected and reproduced
from the servo information read by the read/write head.
4.2.5 Air filter
There are two types of air filters: a breather filter and a circulation filter.
The breather filter makes an air in and out of the DE to prevent unnecessary pressure around
the spindle when the disk starts or stops rotating. When disk drives are transported under
conditions where the air pressure changes a lot, filtered air is circulated in the DE.
The circulation filter cleans out dust and dirt from inside the DE. The disk drive cycles air
continuously through the circulation filter through an enclosed loop air cycle system operated
by a blower on the rotating disk.
C141-E056-01EN4 - 2
4.3 Circuit Configuration
Figure 4.2 shows the disk drive circuit configuration.
(1) Read/write circuit
The read/write circuit consists of two LSIs; read/write preamplifier (PreAMP) and read
channel (RDC).
The PreAMP consists of the write current switch circuit, that flows the write current to the
head coil, and the voltage amplifier circuit, that amplitudes the read output from the head.
The RDC is the read demodulation circuit using the partial response class 4 (PR4), and
contains the Viterbi detector, programmable filter, adaptable transversal filter, times base
generator, and data separator circuits. The RDC also contains the 8/9 group coded recording
(GCR) encoder and decoder and servo demodulation circuit.
(2) Servo circuit
The position and speed of the voice coil motor are controlled by 2 closed-loop servo using the
servo information recorded on the data surface. The servo information is an analog signal
converted to digital for processing by a MPU and then reconverted to an analog signal for
control of the voice coil motor.
(3) Spindle motor driver circuit
The circuit measures the interval of a PHASE signal generated by counter-electromotive
voltage of a motor, or servo mark at the MPU and controls the motor speed comparing target
speed.
(4) Controller circuit
Major functions are listed below.
• Data buffer management
• ATA interface control and data transfer control
• Sector format control
• Defect management
• ECC control
• Error recovery and self-diagnosis
C141-E056-01EN 4 - 3
Figure 4.2 MPC30xxAH Block diagram
C141-E056-01EN4 - 4
4.4 Power-on Sequence

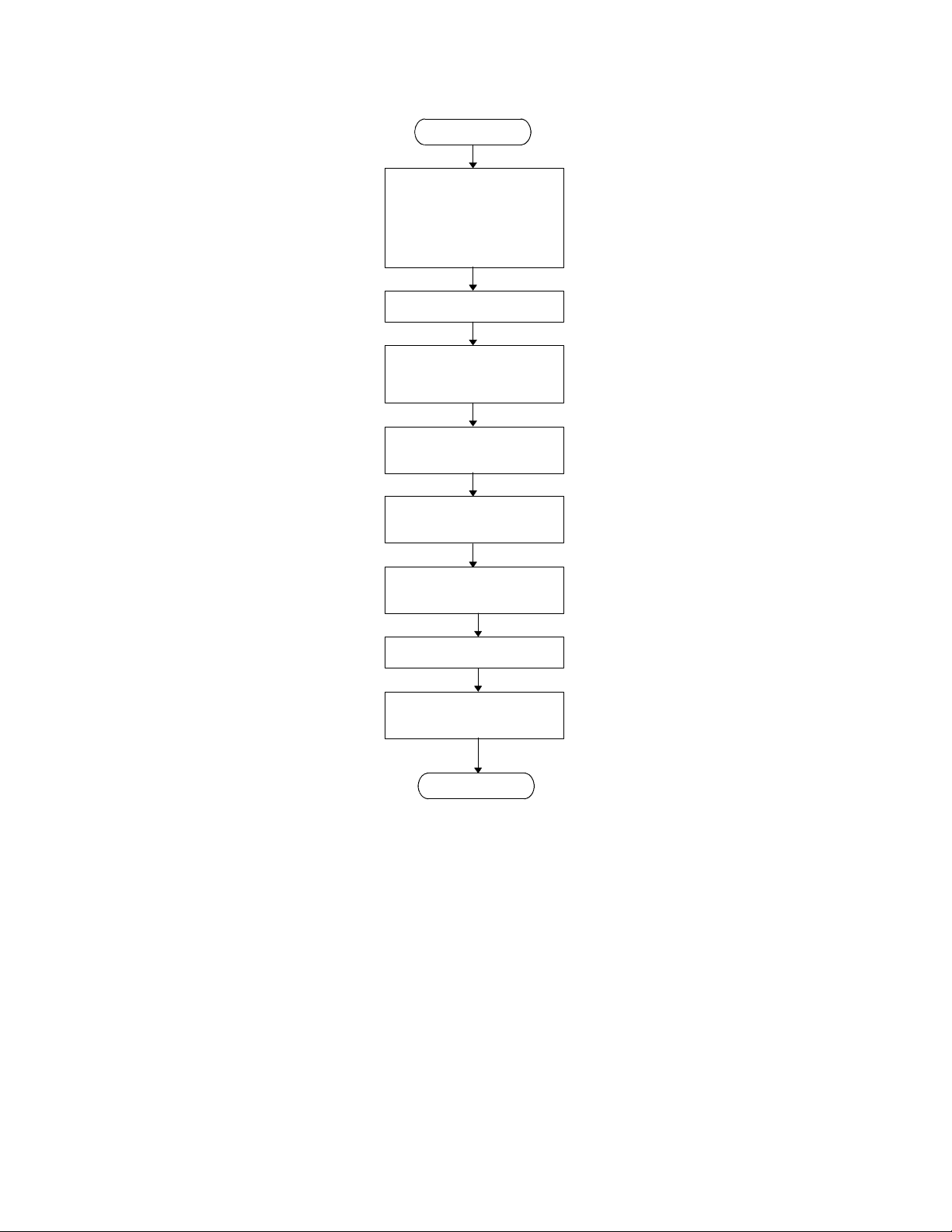

Figure 4.3 describes the operation sequence of the disk drive at power-on. The outline is
described below.
a) After the power is turned on, the disk drive executes the MPU bus test, internal register
read/write test, and work RAM read/write test. When the self-diagnosis terminates
successfully, the disk drive starts the spindle motor.
b) The disk drive executes self-diagnosis (data buffer read/write test) after enabling response
to the ATA bus.
c) After confirming that the spindle motor has reached rated speed, the disk drive releases the
heads from the actuator magnet lock mechanism by applying current to the VCM. This
unlocks the heads which are parked at the inner circumference of the disks.
d) The disk drive positions the heads onto the SA area and reads out the system information.
e) The disk drive executes self-seek-calibration. This collects data for VCM torque and
mechanical external forces applied to the actuator, and updates the calibrating value.
f) The drive becomes ready. The host can issue commands.
C141-E056-01EN 4 - 5
Release heads from
Confirming spindle motor
Self-diagnosis 2
The spindle motor starts.
Self-diagnosis 1
StartPower on
Drive ready state
Execute self-calibration
Initial on-track and read
End
a)
• MPU bus test
• Inner register
write/read test
• Work RAM write/read
test
b)
• Data buffer write/read
test
c)
speed
actuator lock
d)
out of system information
e)
f)
(command waiting state)
Figure 4.3 Power-on operation sequence
C141-E056-01EN4 - 6
4.5 Self-calibration
The disk drive occasionally performs self-calibration in order to sense and calibrate
mechanical external forces on the actuator, and VCM torque. This enables precise seek and
read/write operations.
4.5.1 Self-calibration contents
(1) Sensing and compensating for external forces
The actuator suffers from torque due to the FPC forces and winds accompanying disk
revolution. The torque vary with the disk drive and the cylinder where the head is positioned.
To execute stable fast seek operations, external forces are occasionally sensed.
The firmware of the drive measures and stores the force (value of the actuator motor drive
current) that balances the torque for stopping head stably. This includes the current offset in
the power amplifier circuit and DAC system.
The forces are compensated by adding the measured value to the specified current value to the
power amplifier. This makes the stable servo control.
To compensate torque varying by the cylinder, the disk is divided into 14 areas from the
innermost to the outermost circumference and the compensating value is measured at the
measuring cylinder on each area at factory calibration. The measured values are stored in the
SA cylinder. In the self-calibration, the compensating value is updated using the value in the
SA cylinder.
(2) Compensating open loop gain
Torque constant value of the VCM has a dispersion for each drive, and varies depending on
the cylinder that the head is positioned. To realize the high speed seek operation, the value
that compensates torque constant value change and loop gain change of the whole servo
system due to temperature change is measured and stored.
For sensing, the firmware mixes the disturbance signal to the position signal at the state that
the head is positioned to any cylinder. The firmware calculates the loop gain from the position
signal and stores the compensation value against to the target gain as ratio.
For compensating, the direction current value to the power amplifier is multiplied by the
compensation value. By this compensation, loop gain becomes constant value and the stable
servo control is realized.
To compensate torque constant value change depending on cylinder, whole cylinders from
most inner to most outer cylinder are divided into 14 partitions at calibration in the factory,
and the compensation data is measured for representative cylinder of each partition. This
measured value is stored in the SA area. The compensation value at self-calibration is
calculated using the value in the SA area.
C141-E056-01EN 4 - 7
4.5.2 Execution timing of self-calibration
Self-calibration is executed when:
• The power is turned on.
• The disk drive receives the RECALIBRATE command from the host.
• The self-calibration execution timechart of the disk drive specifies self-calibration.
The disk drive performs self-calibration according to the timechart based on the time elapsed
from power-on. The timechart is shown in Table 4.1. After power-on, self-calibration is
performed about every 30 minutes.
Table 4.1 Self-calibration execution timechart
Time elapsed Time elapsed (accumulated)
1 At power-on Initial calibration
2 About 30 minutes About 30 minutes
3 About 30 minutes About 60 minutes
4 About 30 minutes About 90 minutes
5 About 30 minutes About 120 minutes
6 About 30 minutes About 150 minutes
7
.
.
.
9
4.5.3 Command processing during self-calibration
If the disk drive receives a command execution request from the host while executing selfcalibration according to the timechart, the disk drive terminates self-calibration and starts
executing the command precedingly. In other words, if a disk read or write service is
necessary, the disk drive positions the head to the track requested by the host, reads or writes
data, and restarts calibration.
This enables the host to execute the command without waiting for a long time, even when the
disk drive is performing self-calibration. The command execution wait time is about
maximum 100 ms.
Every about 30 minutes
C141-E056-01EN4 - 8
4.6 Read/write Circuit
The read/write circuit consists of the read/write preamplifier (PreAMP), the write circuit, the
read circuit, and the time base generator in the read channel (RDC). Figure 4.4 is a block
diagram of the read/write circuit.
4.6.1 Read/write preamplifier (PreAMP)
One PreAMP is mounted on the FPC. The PreAMP consists of an 6-channel read preamplifier
and a write current switch and senses a write error. Each channel is connected to each data
head. The head IC switches the heads by the serial port (SDEN, SCLK, SDATA). The IC
generates a write error sense signal (WUS) when a write error occurs due to head short-circuit
or head disconnection.
4.6.2 Write circuit
The write data is output from the hard disk controller (HDC) with the NRZ data format, and
sent to the encoder circuit in the RDC with synchronizing with the write clock. The NRZ
write data is converted from 8-bit data to 9-bit data by the encoder circuit then sent to the
PreAMP, and the data is written onto the media.
(1) 8/9 GCR
The disk drive converts data using the 8/9 (0, 4, 4) group coded recording (GCR) algorithm.
This code format is 0 to 4 code bit "0"s are placed between "1"s.
(2) Write precompensation
Write precompensation compensates, during a write process, for write non-linearity generated
at reading. Table 4.2 shows the write precompensation algorithm.
Table 4.2 Write precompensation algorithm
Bit Bit Bit Compensation
n – 1 n n + 1 Bit n
0 1 1 None
1 1 0 Late
1 1 0 Late
Late: Bit is time shifted (delayed) from its nominal time position towards the
bit n+1 time position.
C141-E056-01EN 4 - 9
Figure 4.4 Read/write circuit block diagram
C141-E056-01EN4 - 10
4.6.3 Read circuit
The head read signal from the PreAMP is regulated by the automatic gain control (AGC)
circuit. Then the output is converted into the sampled read data pulse by the programmable
filter circuit and the adaptive equalizer circuit. This clock signal is converted into the NRZ
data by the 8/9 GCR decoder circuit based on the read data maximum-likelihood-detected by
the Viterbi detection circuit, then is sent to the HDC.
(1) AGC circuit
The AGC circuit automatically regulates the output amplitude to a constant value even when
the input amplitude level fluctuates. The AGC amplifier output is maintained at a constant
level even when the head output fluctuates due to the head characteristics or outer/inner head
positions.
(2) Programmable filter
The programmable filter circuit has a low-pass filter function that eliminates unnecessary high
frequency noise component and a high frequency boost-up function that equalizes the
waveform of the read signal.
Cut-off frequency of the low-pass filter and boost-up gain are controlled from each DAC
circuit in read channel by an instruction of the serial data signal from MPU (M1). The MPU
optimizes the cut-off frequency and boost-up gain according to the transfer frequency of each
zone.
Figure 4.5 shows the frequency characteristic sample of the programmable filter.
Figure 4.5 Frequency characteristic of programmable filter
(3) Adaptive equalizer circuit
This circuit is 3-tap sampled analog transversal filter circuit that cosine-equalizes the head read
signal to the partial response class 4 (PR4) waveform.
C141-E056-01EN 4 - 11
Figure 4.6 PR4 signal transfer
C141-E056-01EN4 - 12
(4) Viterbi detection circuit
The sample hold waveform output from the adaptive equalizer circuit is sent to the Viterbi
detection circuit. The Viterbi detection circuit demodulates data according to the survivor
path sequence.
(5) Data separator circuit
The data separator circuit generates clocks in synchronization with the output of the adaptive
equalizer circuit. To write data, the VFO circuit generates clocks in synchronization with the
clock signals from a synthesizer.
(6) 8/9 GCR decoder
This circuit converts the 9-bit read data into the 8-bit NRZ data.
4.6.4 Time base generator circuit
The drive uses constant density recording to increase total capacity. This is different from the
conventional method of recording data with a fixed data transfer rate at all data area. In the
constant density recording method, data area is divided into zones by radius and the data
transfer rate is set so that the recording density of the inner cylinder of each zone is nearly
constant. The drive divides data area into 15 zones to set the data transfer rate. Table 4.3
describes the data transfer rate and recording density (BPI) of each zone.
C141-E056-01EN 4 - 13
Table 4.3 Write clock frequency and transfer rate of each zone
Zone 0 1 2 3 4 5 6 7
Cylinder 0
to
760
Transfer rate
[MB/s]
Zone 8 9 10 11 12 13 14
Cylinder 5791
Transfer rate
[MB/s]
The MPU transfers the data transfer rate setup data (SDATA/SCLK) to the RDC that includes
the time base generator circuit to change the data transfer rate.
4.7 Servo Control
The actuator motor and the spindle motor are submitted to servo control. The actuator motor
is controlled for moving and positioning the head to the track containing the desired data. To
turn the disk at a constant velocity, the actuator motor is controlled according to the servo data
that is written on the data side beforehand.
19.18 19.18 19.18 19.18 19.18 19.18 18.54 17.91
to
6775
16.86 16.51 15.73 14.96 14.33 13.70 12.65
761
to
1520
6776
to
7105
1521
to
2280
7106
to
7815
2281
to
3040
7816
to
8495
3041
to
3800
8496
to
9045
3801
to
4530
9046
to
9590
4531
to
5165
9591
to
10423
5166
to
5790
C141-E056-01EN4 - 14
4.7.1 Servo control circuit
P.
CSR: Current Sense Resistor
Spindle
DSP
Servo
Spindle
Figure 4.7 is the block diagram of the servo control circuit. The following describes the
functions of the blocks:
(1)
(2) (3) (4)
Head
VCM: Voice Coil Motor
(1) Microprocessor unit (MPU)
burst
capture
Position Sense
Figure 4.7 Block diagram of servo control circuit
MPU
unit
DACADC
motor
control
SVC
(5)
Amp.
(7)(6)
Driver
VCM current
CSR
VCM
motor
The MPU includes DSP unit, etc., and the MPU starts the spindle motor, moves the heads to
the reference cylinders, seeks the specified cylinder, and executes calibration according to the
internal operations of the MPU.
The major internal operations are listed below.
a. Spindle motor start
Starts the spindle motor and accelerates it to normal speed when power is applied.
b. Move head to reference cylinder
Drives the VCM to position the head at the any cylinder in the data area. The logical
initial cylinder is at the outermost circumference (cylinder 0).
C141-E056-01EN 4 - 15
c. Seek to specified cylinder
Drives the VCM to position the head to the specified cylinder.
d. Calibration
Senses and stores the thermal offset between heads and the mechanical forces on the
actuator, and stores the calibration value.
Servo frame
(54 servo frames
revolution)
Figure 4.8 Physical sector servo configuration on disk surface
C141-E056-01EN4 - 16
(2) Servo burst capture circuit
The four servo signals can be synchronously detected by the STROB signal, full-wave
rectified integrated.
(3) A/D converter (ADC)
The A/D converter (ADC) receives the servo signals are integrated, converts them to digital,
and transfers the digital signal to the DSP unit.
(4) D/A converter (DAC)
The D/A converter (DAC) converts the VCM drive current value (digital value) calculated by
the DSP unit into analog values and transfers them to the power amplifier.
(5) Power amplifier
The power amplifier feeds currents, corresponding to the DAC output signal voltage to the
VCM.
(6) Spindle motor control circuit
The spindle motor control circuit controls the sensor-less spindle motor. This circuit detects
number of revolution of the motor by the interrupt generated periodically, compares with the
target revolution speed, then flows the current into the motor coil according to the
differentiation (aberration).
(7) Driver circuit
The driver circuit is a power amplitude circuit that receives signals from the spindle motor
control circuit and feeds currents to the spindle motor.
(8) VCM current sense resistor (CSR)
This resistor controls current at the power amplifier by converting the VCM current into
voltage and feeding back.
C141-E056-01EN 4 - 17
4.7.2 Data-surface servo format
Figure 4.8 describes the physical layout of the servo frame. The three areas indicated by (1) to
(3) in Figure 4.8 are described below.
(1) Inner guard band
The head is in contact with the disk in this space when the spindle starts turning or stops, and
the rotational speed of the spindle can be controlled on this cylinder area for head moving.
(2) Data area
This area is used as the user data area SA area.
(3) Outer guard band
This area is located at outer position of the user data area, and the rotational speed of the
spindle can be controlled on this cylinder area for head moving.
4.7.3 Servo frame format
As the servo information, the drive uses the two-phase servo generated from the gray code and
servo A to D. This servo information is used for positioning operation of radius direction and
position detection of circumstance direction.
The servo frame consists of 5 blocks; write/read recovery, servo mark, gray code, servo A to
D and PAD. Figure 4.9 shows the servo frame format.
Write/read
recovery
Servo
mark
Gray code
Figure 4.9 Servo frame format
Servo
A
Servo
B
Servo
Servo
C
PAD
D
0.54 µs1.80 µs1.80 µs1.80 µs1.74 µs3.06 µs0.54 µs2.76 µs
C141-E056-01EN4 - 18
(1) Write/read recovery
This area is used to absorb the write/read transient and to stabilize the AGC.
(2) Servo mark
This area generates a timing for demodulating the gray code and position-demodulating the
servo A to D by detecting the servo mark.
(3) Gray code (including index bit)
This area is used as cylinder address. The data in this area is converted into the binary data by
the gray code demodulation circuit.
(4) Servo A, servo B, servo C, servo D
This area is used as position signals between tracks, and the IDD control at on-track so that
servo A level equals to servo B level.
(5) PAD
This area is used as a gap between servo and data.
4.7.4 Actuator motor control
The voice coil motor (VCM) is controlled by feeding back the servo data recorded on the data
surface. The MPU fetches the position sense data on the servo frame at a constant interval of
sampling time, executes calculation, and updates the VCM drive current.
The servo control of the actuator includes the operation to move the head to the reference
cylinder, the seek operation to move the head to the target cylinder to read or write data, and
the track-following operation to position the head onto the target track.
(1) Operation to move the head to the reference cylinder
The MPU moves the head to the reference cylinder when the power is turned. The reference
cylinder is in the data area.
When power is applied the heads are moved from the inner circumference shunt zone to the
normal servo data zone in the following sequence:
a) Micro current is fed to the VCM to press the head against the inner circumference.
b) A current is fed to the VCM to move the head toward the outer circumference.
c) When the servo mark is detected the head is moved slowly toward the outer circumference
at a constant speed.
C141-E056-01EN 4 - 19
d) If the head is stopped at the reference cylinder from there. Track following control starts.
(2) Seek operation
Upon a data read/write request from the host, the MPU confirms the necessity of access to the
disk. If a read or instruction is issued, the MPU seeks the desired track.
The MPU feeds the VCM current via the D/A converter and power amplifier to move the
head. The MPU calculates the difference (speed error) between the specified target position
and the current position for each sampling timing during head moving. The MPU then feeds
the VCM drive current by setting the calculated result into the D/A converter. The calculation
is digitally executed by the firmware. When the head arrives at the target cylinder, the track is
followed.
(3) Track following operation
Except during head movement to the reference cylinder and seek operation under the spindle
rotates in steady speed, the MPU does track following control. To position the head at the
center of a track, the DSP drives the VCM by feeding micro current. For each sampling time,
the VCM drive current is determined by filtering the position difference between the target
position and the position clarified by the detected position sense data. The filtering includes
servo compensation. These are digitally controlled by the firmware.
4.7.5 Spindle motor control
Hall-less three-phase eight-pole motor is used for the spindle motor, and the 3-phase full/halfwave analog current control circuit is used as the spindle motor driver (called SVC hereafter).
The firmware operates on the MPU manufactured by Fujitsu. The spindle motor is controlled
by sending several signals from the MPU to the SVC. There are three modes for the spindle
control; start mode, acceleration mode, and stable rotation mode.
(1) Start mode
When power is supplied, the spindle motor is started in the following sequence:
a) After the power is turned on, the MPU sends a signal to the SVC to charge the change
pump capacitor of the SVC. The charged amount defines the current that flows in the
spindle motor.
b) When the charge pump capacitor is charged enough, the MPU sets the SVC to the motor
start mode. Then, a current (approx. 1.3 A) flows into the spindle motor.
c) The SVC generates a phase switching signal by itself, and changes the phase of the current
flowed in the motor in the order of (V-phase to U-phase), (W-phase to U-phase), (W-phase
to V-phase), (U-phase to V-phase), (U-phase to W-phase), and (V-phase to W-phase) (after
that, repeating this order).
d) During phase switching, the spindle motor starts rotating in low speed, and generates a
counter electromotive force. The SVC detects this counter electromotive force and reports
to the MPU using a PHASE signal for speed detection.
C141-E056-01EN4 - 20
e) The MPU is waiting for a PHASE signal. When no phase signal is sent for a specific
period, the MPU resets the SVC and starts from the beginning. When a PHASE signal is
sent, the SVC enters the acceleration mode.
(2) Acceleration mode
In this mode, the MPU stops to send the phase switching signal to the SVC. The SVC starts a
phase switching by itself based on the counter electromotive force. Then, rotation of the
spindle motor accelerates. The MPU calculates a rotational speed of the spindle motor based
on the PHASE signal from the SVC, and accelerates till the rotational speed reaches 5,400
rpm. When the rotational speed reaches 7,200 rpm, the SVC enters the stable rotation mode.
(3) Stable rotation mode
The MPU calculates a time for one revolution of the spindle motor based on the PHASE signal
from the SVC. The MPU takes a difference between the current time and a time for one
revolution at 7,200 rpm that the MPU already recognized. Then, the MPU keeps the rotational
speed to 7,200 rpm by charging or discharging the charge pump for the different time. For
example, when the actual rotational speed is 7,400 rpm, the time for one revolution is 8.108
ms. And, the time for one revolution at 7,200 rpm is 8.333 ms. Therefore, the MPU
discharges the charge pump for 0.225 ms × k (k: constant value). This makes the flowed
current into the motor lower and the rotational speed down. When the actual rotational speed
is later than 7,200 rpm, the MPU charges the pump the other way. This control
(charging/discharging) is performed every 1/6 revolution.
C141-E056-01EN 4 - 21
This page is intentionally left blank.
CHAPTER 5 INTERFACE
5.1 Physical Interface
5.2 Logical Interface
5.3 Host Commands
5.4 Command Protocol
5.5 Ultra DMA feature set
5.6 Timing
C141-E056-01EN 5 - 1
5.1 Physical Interface
5.1.1 Interface signals
Table 5.1 shows the interface signals.
Cable select see note CSEL
Chip select 0
Chip select 1
Data bus bit 0
Data bus bit 1
Data bus bit 2
Data bus bit 3
Data bus bit 4
Data bus bit 5
Data bus bit 6
Data bus bit 7
Data bus bit 8
Data bus bit 9
Data bus bit 10
Data bus bit 11
Data bus bit 12
Data bus bit 13
Data bus bit 14
Data bus bit 15
Device active or slave present see note DASP–
Device address bit 0
Device address bit 1
Device address bit 2
DMA acknowledge
DMA request
Interrupt request
I/O read
DMA ready during Ultra DMA data in bursts
Data strobe during Ultra DMA data out bursts
I/O ready
DMA ready during Ultra DMA data out bursts
Data strobe during Ultra DMA data in bursts
I/O write
Stop during Ultra DMA data bursts
Passed diagnostics see note PDIAG–
Reset
Note See signal descriptions
Table 5.1 Interface signals
Description Host Dir Dev Acrorym
CS0–
→
CS1–
→
→
→
→
→
→
→
→
→
→
→
DD0
DD1
DD2
DD3
DD4
DD5
DD6
DD7
DD8
DD9
DD10
DD11
DD12
DD13
DD14
DD15
DA0
DA1
DA2
DMACK–
DMARQ
INTRQ
DIOR–
HDMARDY–
HSTROBE
IORDY
DDMARDY–
DSTROBE
DIOW–
STOP
RESET–
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
↔
←
←
←
←
←
C141-E056-01EN5 - 2
5.1.2 Signal assignment on the connector
Table 5.2 shows the signal assignment on the interface connector.
Table 5.2 Signal assignment on the interface connector
Pin No. Signal Pin No. Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
RESET–
DATA7
DATA6
DATA5
DATA4
DATA3
DATA2
DATA1
DATA0
GND
DMARQ
DIOW–, STOP
DIOR–, HDMARDY–, HSTROBE
IORDY, DDMARDY–,
DSTROBE
DMACK–
INTRQ
DA1
DA0
CS0–
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
DASP–
[signal] [I/O] [Description]
GND
DATA8
DATA9
DATA10
DATA11
DATA12
DATA13
DATA14
DATA15
(KEY)
GND
GND
GND
CSEL
GND
reserved
PDIAG–
DA2
CS1–
GND
RESET– I Reset signal from the host. This signal is low active and is
asserted for a minimum of 25 µs during power on.
DATA 0-15 I/O Sixteen-bit bi-directional data bus between the host and the
device. These signals are used for data transfer
DIOW–, STOP I DIOW– is the strobe signal asserted by the host to write device
registers or the data port.
DIOW– shall be negated by the host prior to initiation of an Ultra
DMA burst. STOP shall be negated by the host before data is
transferred in an Ultra DMA burst. Assertion of STOP by the host
during an Ultra DMA burst signals the termination of the Ultra
DMA burst.
C141-E056-01EN 5 - 3
[signal] [I/O] [Description]
DIOR– I DIOR– is the strobe signal asserted by the host to read device
registers or the data port.
HDMARDY– I HDMARDY– is a flow control signal for Ultra DMA data in
bursts. This signal is asserted by the host to indicate to the device
that the host is ready to receive Ultra DMA data in bursts.
The host may negate HDMARDY- to pause an Ultra DMA data in
burst.
HSTROBE I HSTROBE is the data out strobe signal from the host for an Ultra
DMA data out burst. Both the rising and falling edge of
HSTROBE latch the data from DATA 0-15 into the device. The
host may stop generating HSTROBE edges to pause an Ultra
DMA data out burst.
INTRQ O Interrupt signal to the host.
This signal is negated in the following cases:
– assertion of RESET– signal
– Reset by SRST of the Device Control register
– Write to the command register by the host
– Read of the status register by the host
– Completion of sector data transfer
(without reading the Status register)
When the device is not selected or interrupt is disabled, the
INTRQ
Signal shall be in a high impedance state.
CS0– I Chip select signal decoded from the host address bus. This signal
is used by the host to select the command block registers.
CS1– I Chip select signal decoded from the host address bus. This signal
is used by the host to select the control block registers.
DA 0-2 I Binary decoded address signals asserted by the host to access task
file registers.
KEY – Key pin for prevention of erroneous connector insertion
PIDAG– I/O This signal is an input mode for the master device and an output
mode for the slave device in a daisy chain configuration. This
signal indicates that the slave device has been completed self
diagnostics.
This signal is pulled up to +5 V through 10 kΩ resistor at each device.
DASP– I/O This is a time-multiplexed signal that indicates that the device is
active and a slave device is present.
This signal is pulled up to +5 V through 10 kΩ resistor at each device.
C141-E056-01EN5 - 4
[signal] [I/O] [Description]
IORDY O This signal is negated to extend the host transfer cycle of any host
register access (Read or Write) when the device is not ready to
respond to a data transfer request.
DDMARDY– O DDMARDY– is a flow control signal for Ultra DMA data out bursts.
This signal is asserted by the device to indicate to the host that the
device is ready to receive Ultra DMA data out bursts. The device may
negate DDMARDY– to pause an Ultra DMA data out burst.
DSTROBE O DSTROBE is the data in strobe signal from the device for an Ultra
DMA data in burst. Both the rising and falling edge of
DSTROBE latch the data from DATA 0-15 into the host. The
device may stop generating DSTROBE edges to pause an Ultra
DMA data in burst.
CSEL I This signal to configure the device as a master or a slave device.
When CSEL signal is grounded, the IDD is a master device.
When CSEL signal is open, the IDD is a slave device.
This signal is pulled up with 240 kΩ resistor.
DMACK– I The host system asserts this signal as a response that the host
system receive data or to indicate that data is valid.
DMARQ O This signal is used for DMA transfer between the host system and
the device. The device asserts this signal when the device
completes the preparation of DMA data transfer to the host system
(at reading) or from the host system (at writing).
The direction of data transfer is controlled by the IOR- and IOW-
signals. In other word, the device negates the DMARQ signal
after the host system asserts the DMACK– signal. When there is
another data to be transferred, the device asserts the DMARQ
signal again.
When the DMA data transfer is performed, IOCW16–, CS0– and
CS1- signals are not asserted. The DMA data transfer is a 16-bit
data transfer.
GND – Grounded
Note:
"I" indicates input signal from the host to the device.
"O" indicates output signal from the device to the host.
"I/O" indicates common output or bi-directional signal between the host and the device.
C141-E056-01EN 5 - 5
5.2 Logical Interface
The device can operate for command execution in either address-specified mode; cylinderhead-sector (CHS) or Logical block address (LBA) mode. The IDENTIFY DEVICE
information indicates whether the device supports the LBA mode. When the host system
specifies the LBA mode by setting bit 6 in the Device/Head register to 1, HS3 to HS0 bits of
the Device/Head register indicates the head No. under the LBA mode, and all bits of the
Cylinder High, Cylinder Low, and Sector Number registers are LBA bits.
The sector No. under the LBA mode proceeds in the ascending order with the start point of
LBA0 (defined as follows).
LBA0 = [Cylinder 0, Head 0, Sector 1]
Even if the host system changes the assignment of the CHS mode by the INITIALIZE
DEVICE PARAMETER command, the sector LBA address is not changed.
LBA = [((Cylinder No.) × (Number of head) + (Head No.)) × (Number of sector/track)]
+ (Sector No.) – 1
5.2.1 I/O registers
Communication between the host system and the device is done through input-output (I/O)
registers of the device.
These I/O registers can be selected by the coded signals, CS0–, CS1–, and DA0 to DA2 from
the host system. Table 5.3. shows the coding address and the function of I/O registers.
C141-E056-01EN5 - 6
Table 5.3 I/O registers
DA0DA1DA2CS1–CS0–
I/O registers
Read operation Write operation
Command block registers
1 0 0 0 0 Data Data X'1F0'
1 0 0 0 1 Error Register Features X'1F1'
1 0 0 1 0 Sector Count Sector Count X'1F2'
1 0 0 1 1 Sector Number Sector Number X'1F3'
1 0 1 0 0 Cylinder Low Cylinder Low X'1F4'
1 0 1 0 1 Cylinder High Cylinder High X'1F5'
1 0 1 1 0 Device/Head Device/Head X'1F6'
1 0 1 1 1 Status Command X'1F7'
1 1 X X X (Invalid) (Invalid) —
Control block registers
0 1 1 1 0 Alternate Status Device Control X'3F6'
Host I/O
address
0 1 1 1 1 — — X'3F7'
Notes:
1. The Data register for read or write operation can be accessed by 16 bit data bus
(DATA0 to DATA15).
2. The registers for read or write operation other than the Data registers can be accessed
by 8 bit data bus (DATA0 to DATA7).
3. When reading the Drive Address register, bit 7 is high-impedance state.
4. The LBA mode is specified, the Device/Head, Cylinder High, Cylinder Low, and
Sector Number registers indicate LBA bits 27 to 24, 23 to 16, 15 to 8, and 7 to 0.
C141-E056-01EN 5 - 7
5.2.2 Command block registers
(1) Data register (X'1F0')
The Data register is a 16-bit register for data block transfer between the device and the host
system. Data transfer mode is PIO or LBA mode.
(2) Error register (X'1F1')
The Error register indicates the status of the command executed by the device. The contents
of this register are valid when the ERR bit of the Status register is 1.
This register contains a diagnostic code after power is turned on, a reset , or the EXECUTIVE
DEVICE DIAGNOSTIC command is executed.
[Status at the completion of command execution other than diagnostic command]
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
ICRC UNC X IDNF X ABRT TK0NF AMNF
X: Unused
- Bit 7: Interface CRC error (ICRC). This bit indicates that an interface CRC error has
occurred during an Ultra DMA data transfer. The content of this bit is not
applicable for Multiword DMA transfers.
- Bit 6: Uncorrectable Data Error (UNC). This bit indicates that an uncorrectable data
error has been encountered.
- Bit 5: Unused
- Bit 4: ID Not Found (IDNF). This bit indicates an error except for, uncorrectable error
and SB not found, and Aborted Command.
- Bit 3: Unused
- Bit 2: Aborted Command (ABRT). This bit indicates that the requested command was
aborted due to a device status error (e.g. Not Ready, Write Fault) or the command
code was invalid.
- Bit 1: Track 0 Not Found (TK0NF). This bit indicates that track 0 was not found
during RECALIBRATE command execution.
- Bit 0: Address Mark Not Found. This bit indicates that an SB not found error has been
encountered.
C141-E056-01EN5 - 8
[Diagnostic code]
X'01': No Error Detected.
X'02': HDC Register Compare Error
X'03': Data Buffer Compare Error.
X'05': ROM Sum Check Error.
X'06': MPU Internal RAM Compare Error
X'80': Device 1 (slave device) Failed.
Error register of the master device is valid under two devices (master and slave)
configuration. If the slave device fails, the master device posts X’80’ OR (the
diagnostic code) with its own status (X'01' to X'05').
However, when the host system selects the slave device, the diagnostic code of the
slave device is posted.
(3) Features register (X'1F1')
The Features register provides specific feature to a command. For instance, it is used with SET
FEATURES command to enable or disable caching.
(4) Sector Count register (X'1F2')
The Sector Count register indicates the number of sectors of data to be transferred in a read or
write operation between the host system and the device. When the value in this register is
X'00', the sector count is 256.
When this register indicates X'00' at the completion of the command execution, this indicates
that the command is completed successfully. If the command is not completed successfully,
this register indicates the number of sectors to be transferred to complete the request from the
host system. That is, this register indicates the number of remaining sectors that the data has
not been transferred due to the error.
The contents of this register has other definition for the following commands; INITIALIZE
DEVICE PARAMETERS, SET FEATURES, IDLE, STANDBY and SET MULTIPLE
MODE.
(5) Sector Number register (X'1F3')
The contents of this register indicates the starting sector number for the subsequent command.
The sector number should be between X'01' and [the number of sectors per track defined by
INITIALIZE DEVICE PARAMETERS command.
Under the LBA mode, this register indicates LBA bits 7 to 0.
C141-E056-02EN 5 - 9
(6) Cylinder Low register (X'1F4')
The contents of this register indicates low-order 8 bits of the starting cylinder address for any
disk-access.
At the end of a command, the contents of this register are updated to the current cylinder
number.
Under the LBA mode, this register indicates LBA bits 15 to 8.
(7) Cylinder High register (X'1F5')
The contents of this register indicates high-order 8 bits of the disk-access start cylinder
address.
At the end of a command, the contents of this register are updated to the current cylinder
number. The high-order 8 bits of the cylinder address are set to the Cylinder High register.
Under the LBA mode, this register indicates LBA bits 23 to 16.
(8) Device/Head register (X'1F6')
The contents of this register indicate the device and the head number.
When executing INITIALIZE DEVICE PARAMETERS command, the contents of this
register defines "the number of heads minus 1".
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X L X DEV HS3 HS2 HS1 HS0
- Bit 7: Unused
- Bit 6: L. 0 for CHS mode and 1 for LBA mode.
- Bit 5: Unused
- Bit 4: DEV bit. 0 for the master device and 1 for the slave device.
- Bit 3: HS3 CHS mode head address 3 (23). LBA bit 27.
- Bit 2: HS2 CHS mode head address 3 (22). LBA bit 26.
- Bit 1: HS1 CHS mode head address 3 (21). LBA bit 25.
- Bit 0: HS0 CHS mode head address 3 (20). LBA bit 24.
C141-E056-01EN5 - 10
(9) Status register (X'1F7')
The contents of this register indicate the status of the device. The contents of this register are
updated at the completion of each command. When the BSY bit is cleared, other bits in this
register should be validated within 400 ns. When the BSY bit is 1, other bits of this register
are invalid. When the host system reads this register while an interrupt is pending, it is
considered to be the Interrupt Acknowledge (the host system acknowledges the interrupt). Any
pending interrupt is cleared (negating INTRQ signal) whenever this register is read.
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
BSY DRDY DF DSC DRQ 0 0 ERR
- Bit 7: Busy (BSY) bit. This bit is set whenever the Command register is accessed.
Then this bit is cleared when the command is completed. However, even if a
command is being executed, this bit is 0 while data transfer is being requested
(DRQ bit = 1).When BSY bit is 1, the host system should not write the command
block registers. If the host system reads any command block register when BSY
bit is 1, the contents of the Status register are posted. This bit is set by the device
under following conditions:
(a) Within 400 ns after RESET- is negated or SRST is set in the Device Control
register, the BSY bit is set. the BSY bit is cleared, when the reset process is
completed.
The BSY bit is set for no longer than 15 seconds after the IDD accepts reset.
(b) Within 400 ns from the host system starts writing to the Command register.
(c) Within 5 µs following transfer of 512 bytes data during execution of the
READ SECTOR(S), WRITE SECTOR(S), FORMAT TRACK, or WRITE
BUFFER command.
Within 5 µs following transfer of 512 bytes of data and the appropriate
number of ECC bytes during execution of READ LONG or WRITE LONG
command.
- Bit 6: Device Ready (DRDY) bit. This bit indicates that the device is capable to
respond to a command.
The IDD checks its status when it receives a command. If an error is detected
(not ready state), the IDD clears this bit to 0. This is cleared to 0 at power-on and
it is cleared until the rotational speed of the spindle motor reaches the steady
speed.
- Bit 5: The Device Write Fault (DF) bit. This bit indicates that a device fault (write
fault) condition has been detected.
If a write fault is detected during command execution, this bit is latched and
retained until the device accepts the next command or reset.
- Bit 4: Device Seek Complete (DSC) bit. This bit indicates that the device heads are
positioned over a track.
In the IDD, this bit is always set to 1 after the spin-up control is completed.
C141-E056-01EN 5 - 11
- Bit 3: Data Request (DRQ) bit. This bit indicates that the device is ready to transfer
data of word unit or byte unit between the host system and the device.
- Bit 2: Always 0.
- Bit 1: Always 0.
- Bit 0: Error (ERR) bit. This bit indicates that an error was detected while the previous
command was being executed. The Error register indicates the additional
information of the cause for the error.
(10) Command register (X'1F7')
The Command register contains a command code being sent to the device. After this register
is written, the command execution starts immediately.
Table 5.3 lists the executable commands and their command codes. This table also lists the
necessary parameters for each command which are written to certain registers before the
Command register is written.
C141-E056-01EN5 - 12
5.2.3 Control block registers
(1) Alternate Status register (X'3F6')
The Alternate Status register contains the same information as the Status register of the
command block register.
The only difference from the Status register is that a read of this register does not imply
Interrupt Acknowledge and INTRQ signal is not reset.
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
BSY DRDY DF DSC DRQ 0 0 ERR
(2) Device Control register (X'3F6')
The Device Control register contains device interrupt and software reset.
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X X SRST nIEN 0
- Bit 2: SRST is the host software reset bit. When this bit is set, the device is held reset
state. When two device are daisy chained on the interface, setting this bit resets
both device simultaneously.
The slave device is not required to execute the DASP- handshake.
- Bit 1: nIEN bit enables an interrupt (INTRQ signal) from the device to the host. When
this bit is 0 and the device is selected, an interruption (INTRQ signal) can be
enabled through a tri-state buffer. When this bit is 1 or the device is not selected,
the INTRQ signal is in the high-impedance state.
5.3 Host Commands
The host system issues a command to the device by writing necessary parameters in related
registers in the command block and writing a command code in the Command register.
The device can accept the command when the BSY bit is 0 (the device is not in the busy
status).
The host system can halt the uncompleted command execution only at execution of hardware
or software reset.
When the BSY bit is 1 or the DRQ bit is 1 (the device is requesting the data transfer) and the
host system writes to the command register, the correct device operation is not guaranteed.
C141-E056-01EN 5 - 13
5.3.1 Command code and parameters
Table 5.4 lists the supported commands, command code and the registers that needed
parameters are written.
Table 5.4 Command code and parameters (1 of 2)
Command name
READ SECTOR(S) 0 0 1 0 0 0 0 R N Y Y Y Y
READ MULTIPLE 1 1 0 0 0 1 0 0 N Y Y Y Y
READ DMA 1 1 0 0 1 0 0 R N Y Y Y Y
READ VERIFY SECTOR(S) 0 1 0 0 0 0 0 R N Y Y Y Y
WRITE MULTIPLE 1 1 0 0 0 1 0 1 N Y Y Y Y
WRITE DMA 1 1 0 0 1 0 1 R N Y Y Y Y
WRITE VERIFY 0 0 1 1 1 1 0 0 N Y Y Y Y
WRITE SECTOR(S) 0 0 1 1 0 0 0 R N Y Y Y Y
RECALIBRATE 0 0 0 1 X X X X N N N N D
SEEK 0 1 1 1 X X X X N N Y Y Y
INITIALIZE DEVICE DIAGNOSTIC 1 0 0 1 0 0 0 1 N Y N N Y
IDENTIFY DEVICE 1 1 1 0 1 1 0 0 N N N N D
IDENTIFY DEVICE DMA 1 1 1 0 1 1 1 0 N N N N D
SET FEATURES 1 1 1 0 1 1 1 1 Y N* N N D
Command code (Bit) Parameters used
7 6 5 4 3 2 1 0 FR SC SN CY DH
SET MULTIPLE MODE 1 1 0 0 0 1 1 0 N Y N N D
EXECUTE DEVICE DIAGNOSTIC 1 0 0 1 0 0 0 0 N N N N D*
FORMAT TRACK 0 1 0 1 0 0 0 0 N N Y* Y Y
READ LONG 0 0 1 0 0 0 1 R N Y Y Y Y
WRITE LONG 0 0 1 1 0 0 1 R N Y Y Y Y
READ BUFFER 1 1 1 0 0 1 0 0 N N N N D
WRITE BUFFER 1 1 1 0 1 0 0 0 N N N N D
IDLE 110101100010111
IDLE IMMEDIATE 110101100010001
STANDBY 110101100010110
C141-E056-01EN5 - 14
N Y N N D
1
N N N N D
1
N Y N N D
0
Table 5.4 Command code and parameters (2 of 2)
Command name
STANDBY IMMEDIATE 110101100010000
SLEEP 110101101001011
CHECK POWER MODE 110101101001000
SMART 1 0 1 1 0 0 0 0 Y Y Y Y D
FLUSH CACHE 1 1 1 0 0 1 1 1 N N N N D
SECURITY DISABLE PASSWORD 1 1 1 1 0 1 1 0 N N N N D
SECURITY ERASE PREPARE 1 1 1 1 0 0 1 1 N N N N D
SECURITY ERASE UNIT 1 1 1 1 0 1 0 0 N N N N D
SECURITY FREEZE LOCK 1 1 1 1 0 1 0 1 N N N N D
SECURITY SET PASSWORD 1 1 1 1 0 0 0 1 N N N N D
SECURITY UNLOCK 1 1 1 1 0 0 1 1 N N N N D
Command code (Bit) Parameters used
7 6 5 4 3 2 1 0 FR SC SN CY DH
N N N N D
0
N N N N D
0
N N N N D
1
Notes:
FR : Features Register CY: Cylinder Registers
SC : Sector Count Register DH : Drive/Head Register
SN : Sector Number Register
R: Retry at error
1 = Without retry 0 = with retry
Y: Necessary to set parameters
Y*: Necessary to set parameters under the LBA mode.
N: Necessary to set parameters (The parameter is ignored if it is set.)
N*: May set parameters
D: The device parameter is valid, and the head parameter is ignored.
D*: The command is addressed to the master device, but both the master device and the
slave device execute it.
X: Do not care
C141-E056-01EN 5 - 15
5.3.2 Command descriptions
The contents of the I/O registers to be necessary for issuing a command and the example
indication of the I/O registers at command completion are shown as following in this
subsection.
Example: READ SECTOR(S)
At command issuance (I/O registers setting contents)
Bit 7 6 5 4 3 2 1 0
1F7H(CM) 0 0 1 0 0 0 0 0
1F6H(DH)
1F5H(CH) Start cylinder address [MSB] / LBA
1F4H(CL) Start cylinder address [LSB] / LBA
1F3H(SN) Start sector No. / LBA [LSB]
1F2H(SC) Transfer sector count
1F1H(FR) xx
At command completion (I/O registers contents to be read)
Bit 7 6 5 4 3 2 1 0
1F7H(ST) Status information
1F6H(DH)
1F5H(CH) End cylinder address [MSB]/ LBA
1F4H(CL) End cylinder address [LSB] / LBA
1F3H(SN) End sector No. / LBA [LSB]
1F2H(SC) X‘00’
L
×
L
×
DV Head No. / LBA [MSB]
×
DV End Head No. / LBA [MSB]
×
1F1H(ER) Error information
CM: Command register FR: Features register
DH: Device/Head register ST: Status register
CH: Cylinder High register ER: Error register
CL: Cylinder Low register L: LBA (logical block address) setting bit
SN: Sector Number register DV: Device address. bit
SC: Sector Count register x, xx: Do not care (no necessary to set)
C141-E056-02EN5 - 16
Note:
1. When the L bit is specified to 1, the lower 4 bits of the DH register and all bits of the
CH, CL and SN registers indicate the LBA bits (bits of the DH register are the MSB
(most significant bit) and bits of the SN register are the LSB (least significant bit).
2. At error occurrence, the SC register indicates the remaining sector count of data transfer.
3. In the table indicating I/O registers contents in this subsection, bit indication is omitted.
(1) READ SECTOR(S) (X'20' or X'21')
This command reads data of sectors specified in the Sector Count register from the address specified
in the Device/Head, Cylinder High, Cylinder Low and Sector Number registers. Number of sectors
can be specified to 256 sectors in maximum. To specify 256 sectors reading, '00' is specified. For
the DRQ, INTRQ, and BSY protocols related to data transfer, see Subsection 5.4.1.
If the head is not on the track specified by the host, the device performs a implied seek. After
the head reaches to the specified track, the device reads the target sector.
The DRQ bit of the Status register is always set prior to the data transfer regardless of an error
condition.
Upon the completion of the command execution, command block registers contain the
cylinder, head, and sector addresses (in the CHS mode) or logical block address (in the LBA
mode) of the last sector read.
If an error occurs in a sector, the read operation is terminated at the sector where the error occurred.
Command block registers contain the cylinder, the head, and the sector addresses of the sector
(in the CHS mode) or the logical block address (in the LBA mode) where the error occurred,
and remaining number of sectors of which data was not transferred.
At command issuance (I/O registers setting contents)
1F7H(CM) 0 0 1 0 0 0 0 R
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
R = 0 or 1
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
C141-E056-01EN 5 - 17
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(2) READ MULTIPLE (X'C4')
This command operates similarly to the READ SECTOR(S) command. The device does not
generate an interrupt (assertion of the INTRQ signal) on each every sector. An interrupt is
generated after the transfer of a block of sectors for which the number is specified by the SET
MULTIPLE MODE command.
The implementation of the READ MULTIPLE command is identical to that of the READ
SECTOR(S) command except that the number of sectors is specified by the SET MULTIPLE
MODE command are transferred without intervening interrupts. In the READ MULTIPLE
command operation, the DRQ bit of the Status register is set only at the start of the data block,
and is not set on each sector.
The number of sectors (block count) to be transferred without interruption is specified by the
SET MULTIPLE MODE command. The SET MULTIPLE MODE command should be
executed prior to the READ MULTIPLE command.
×
L
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
DV End head No. /LBA [MSB]
×
When the READ MULTIPLE command is issued, the Sector Count register contains the number of
sectors requested (not a number of the block count or a number of sectors in a block).
Upon receipt of this command, the device executes this command even if the value of the Sector
Count register is less than the defined block count (the value of the Sector Count should not be 0).
If the number of requested sectors is not divided evenly (having the same number of sectors
[block count]), as many full blocks as possible are transferred, then a final partial block is
transferred. The number of sectors in the partial block to be transferred is n where n =
remainder of ("number of sectors"/"block count").
If the READ MULTIPLE command is issued before the SET MULTIPLE MODE command is
executed or when the READ MULTIPLE command is disabled, the device rejects the READ
MULTIPLE command with an ABORTED COMMAND error.
If an error occurs, reading sector is stopped at the sector where the error occurred. Command
block registers contain the cylinder, the head, the sector addresses (in the CHS mode) or the
logical block address (in the LBA mode) of the sector where the error occurred, and remaining
number of sectors that had not transferred after the sector where the error occurred.
An interrupt is generated when the DRQ bit is set at the beginning of each block or a partial block.
C141-E056-01EN5 - 18
Figure 5.1 shows an example of the execution of the READ MULTIPLE command.
~
Parameter
9
5 6 7 8
1 2 3 4
Partial
Block
Block
Sector
• Block count specified by SET MULTIPLE MODE command = 4 (number of sectors in a
block)
• READ MULTIPLE command specifies;
Number of requested sectors = 9 (Sector Count register = 9)
↓
Number of sectors in incomplete block = remainder of 9/4 =1
Command Issue
Write
BSY
DRDY
INTRQ
DRQ
transferred
Figure 5.1 Execution example of READ MULTIPLE command
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 0 0 0 1 0 0
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
Status readStatus readStatus read
block
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of sectors for which
data was not transferred is set in this register.
L
×
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00
Error information
DV End head No. /LBA [MSB]
×
(*1)
H
C141-E056-01EN 5 - 19
(3) READ DMA (X'C8' or X'C9')
This command operates similarly to the READ SECTOR(S) command except for following
events.
• The data transfer starts at the timing of DMARQ signal assertion.
• The device controls the assertion or negation timing of the DMARQ signal.
• The device posts a status as the result of command execution only once at completion of
the data transfer.
When an error, such as an unrecoverable medium error, that the command execution cannot be
continued is detected, the data transfer is stopped without transferring data of sectors after the erred
sector. The device generates an interrupt using the INTRQ signal and posts a status to the host
system. The format of the error information is the same as the READ SECTOR(S) command.
In LBA mode
The logical block address is specified using the start head No., start cylinder No., and first
sector No. fields. At command completion, the logical block address of the last sector and
remaining number of sectors of which data was not transferred, like in the CHS mode, are set.
The host system can select the DMA transfer mode by using the SET FEATURES command.
1) Multiword DMA transfer mode 2:
Sets the FR register = X'03' and SC register = X'22' by the SET FEATURES command
2) Ultra DMA transfer mode 2:
Sets the FR register = X'03' and SC register = X'42' by the SET FEATURES command
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 0 0 1 0 0 R
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
R = 0 or 1
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
C141-E056-01EN5 - 20
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(4) READ VERIFY SECTOR(S) (X'40' or X'41')
This command operates similarly to the READ SECTOR(S) command except that the data is
not transferred to the host system.
After all requested sectors are verified, the device clears the BSY bit of the Status register and
generates an interrupt. Upon the completion of the command execution, the command block
registers contain the cylinder, head, and sector number of the last sector verified.
If an error occurs, the verify operation is terminated at the sector where the error occurred. The
command block registers contain the cylinder, the head, and the sector addresses (in the CHS
mode) or the logical block address (in the LBA mode) of the sector where the error occurred.
The Sector Count register indicates the number of sectors that have not been verified.
L
×
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
DV End head No. /LBA [MSB]
×
At command issuance (I/O registers setting contents)
1F7H(CM) 0 1 0 0 0 0 0 R
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
R = 0 or 1
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
C141-E056-01EN 5 - 21
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(5) WRITE SECTOR(S) (X'30' or X'31')
This command writes data of sectors from the address specified in the Device/Head, Cylinder
High, Cylinder Low, and Sector Number registers to the address specified in the Sector Count
register. Number of sectors can be specified to 256 sectors in maximum. Data transfer begins
at the sector specified in the Sector Number register. For the DRQ, INTRQ, and BSY
protocols related to data transfer, see Subsection 5.4.2.
If the head is not on the track specified by the host, the device performs a implied seek. After
the head reaches to the specified track, the device writes the target sector.
The data stored in the buffer, and CRC code and ECC bytes are written to the data field of the
corresponding sector(s). Upon the completion of the command execution, the command block
registers contain the cylinder, head, and sector addresses of the last sector written.
L
×
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
×
DV End head No. /LBA [MSB]
If an error occurs during multiple sector write operation, the write operation is terminated at
the sector where the error occurred. Command block registers contain the cylinder, the head,
the sector addresses (in the CHS mode) or the logical block address (in the LBA mode) of the
sector where the error occurred. Then the host can read the command block registers to
determine what error has occurred and on which sector the error has occurred.
At command issuance (I/O registers setting contents)
1F7H(CM) 0 0 1 1 0 0 0 R
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
R = 0 or 1
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
C141-E056-01EN5 - 22
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(6) WRITE MULTIPLE (X'C5')
This command is similar to the WRITE SECTOR(S) command. The device does not generate
interrupts (assertion of the INTRQ signal) on each sector but on the transfer of a block which
contains the number of sectors for which the number is defined by the SET MULTIPLE
MODE command.
The implementation of the WRITE MULTIPLE command is identical to that of the WRITE
SECTOR(S) command except that the number of sectors is specified by the SET MULTIPLE
MODE command are transferred without intervening interrupts. In the WRITE MULTIPLE
command operation, the DRQ bit of the Status register is required to set only at the start of the
data block, not on each sector.
The number of sectors (block count) to be transferred without interruption is specified by the
SET MULTIPLE MODE command. The SET MULTIPLE MODE command should be
executed prior to the WRITE MULTIPLE command.
×
L
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
DV End head No. /LBA [MSB]
×
When the WRITE MULTIPLE command is issued, the Sector Count register contains the number
of sectors requested (not a number of the block count or a number of sectors in a block).
Upon receipt of this command, the device executes this command even if the value of the Sector
Count register is less than the defined block count the value of the Sector Count should not be 0).
If the number of requested sectors is not divided evenly (having the same number of sectors
[block count]), as many full blocks as possible are transferred, then a final partial block is
transferred. The number of sectors in the partial block to be transferred is n where n =
remainder of ("number of sectors"/"block count").
If the WRITE MULTIPLE command is issued before the SET MULTIPLE MODE command
is executed or when WRITE MULTIPLE command is disabled, the device rejects the WRITE
MULTIPLE command with an ABORTED COMMAND error.
Disk errors encountered during execution of the WRITE MULTIPLE command are posted after
attempting to write the block or the partial block that was transferred. Write operation ends at the
sector where the error was encountered even if the sector is in the middle of a block. If an error
occurs, the subsequent block shall not be transferred. Interrupts are generated when the DRQ bit of
the Status register is set at the beginning of each block or partial block.
C141-E056-01EN 5 - 23
The contents of the command block registers related to addresses after the transfer of a data
block containing an erred sector are undefined. To obtain a valid error information, the host
should retry data transfer as an individual requests.
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 0 0 0 1 0 1
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
L
×
DV Start head No. /LBA [MSB]
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
L
×
DV End head No. /LBA [MSB]
×
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00
H
Error information
Note:
When the command terminates due to error, only the DV bit and the error information
field are valid.
(7) WRITE DMA (X'CA' or X'CB')
This command operates similarly to the WRITE SECTOR(S) command except for following
events.
• The data transfer starts at the timing of DMARQ signal assertion.
• The device controls the assertion or negation timing of the DMARQ signal.
• The device posts a status as the result of command execution only once at completion of
the data transfer.
When an error, such as an unrecoverable medium error, that the command execution cannot be
continued is detected, the data transfer is stopped without transferring data of sectors after the
erred sector. The device generates an interrupt using the INTRQ signal and posts a status to
the host system. The format of the error information is the same as the WRITE SECTOR(S)
command.
A host system can be select the following transfer mode using the SET FEATURES
command.
C141-E056-01EN5 - 24
1) Multiword DMA transfer mode 2:
Sets the FR register = X'03' and SC register = X'22' by the SET FEATURES command
2) Ultra DMA transfer mode 2:
Sets the FR register = X'03' and SC register = X'42' by the SET FEATURES command
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 0 0 1 0 1 R
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
R = 0 or 1
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(8) WRITE VERIFY (X'3C')
×
×
L
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
L
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
DV Start head No. /LBA [MSB]
×
DV End head No. /LBA [MSB]
×
This command operates similarly to the WRITE SECTOR(S) command except that the device
verifies each sector immediately after being written. The verify operation is a read and check for
data errors without data transfer. Any error that is detected during the verify operation is posted.
At command issuance (I/O registers setting contents)
1F7H(CM) 0 0 1 1 1 1 0 0
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
L
×
Start cylinder No. [MSB]/ LBA
Start cylinder No. [LSB] / LBA
Start sector No. / LBA [LSB]
Transfer sector count
xx
DV Start head No. /LBA [MSB]
×
C141-E056-01EN 5 - 25
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
*1 If the command is terminated due to an error, the remaining number of
sectors of which data was not transferred is set in this register.
(9) RECALIBRATE (X'1x', x: X'0' to X'F')
This command performs the calibration. Upon receipt of this command, the device sets BSY
bit of the Status register and performs a calibration. When the device completes the
calibration, the device updates the Status register, clears the BSY bit, and generates an
interrupt.
This command can be issued in the LBA mode.
At command issuance (I/O registers setting contents)
1F7H(CM) 0 0 0 1 x x x x
L
×
End cylinder No. [MSB] / LBA
End cylinder No. [LSB] / LBA
End sector No. / LBA [LSB]
00 (*1)
Error information
×
DV End head No. /LBA [MSB]
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
× × ×
× × ×
DV xx
xx
xx
xx
xx
xx
DV xx
xx
xx
xx
xx
Error information
C141-E056-01EN5 - 26
(10) SEEK (X'7x', x : X'0' to X'F')
This command performs a seek operation to the track and selects the head specified in the
command block registers. After completing the seek operation, the device clears the BSY bit
in the Status register and generates an interrupt.
The IDD always sets the DSC bit (Drive Seek Complete status) of the Status register to 1.
In the LBA mode, this command performs the seek operation to the cylinder and head position
in which the sector is specified with the logical block address.
At command issuance (I/O registers setting contents)
1F7H(CM) 0 1 1 1 x x x x
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
L
×
Cylinder No. [MSB] / LBA
Cylinder No. [LSB] / LBA
Sector No. / LBA [LSB]
xx
xx
L
×
Cylinder No. [MSB] / LBA
Cylinder No. [LSB] / LBA
Sector No. / LBA [LSB]
xx
Error information
DV Head No. /LBA [MSB]
×
DV Head No. /LBA [MSB]
×
C141-E056-01EN 5 - 27
(11) INITIALIZE DEVICE PARAMETERS (X'91')
The host system can set the number of sectors per track and the maximum head number
(maximum head number is "number of heads minus 1") per cylinder with this command.
Upon receipt of this command, the device sets the BSY bit of Status register and saves the
parameters. Then the device clears the BSY bit and generates an interrupt.
When the SC register is specified to X'00', an ABORTED COMMAND error is posted. Other
than X'00' is specified, this command terminates normally.
The parameters set by this command are retained even after reset or power save operation
regardless of the setting of disabling the reverting to default setting.
In LBA mode
The device ignores the L bit specification and operates with the CHS mode specification. An
accessible area of this command within head moving in the LBA mode is always within a default
area. It is recommended that the host system refers the addressable user sectors (total number of
sectors) in word 60 to 61 of the parameter information by the IDENTIFY DEVICE command.
At command issuance (I/O registers setting contents)
1F7H(CM) 1 0 0 1 0 0 0 1
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
(12) IDENTIFY DEVICE (X'EC')
The host system issues the IDENTIFY DEVICE command to read parameter information (512
bytes) from the device. Upon receipt of this command, the drive sets the BSY bit of Status
register and sets required parameter information in the sector buffer. The device then sets the
DRQ bit of the Status register, and generates an interrupt. After that, the host system reads the
information out of the sector buffer. Table 5.5 shows the arrangements and values of the
parameter words and the meaning in the buffer.
× × ×
× × ×
DV Max. head No.
xx
xx
xx
Number of sectors/track
xx
DV Max. head No.
xx
xx
xx
xx
Error Information
C141-E056-01EN5 - 28
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 1 0 1 1 0 0
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
× × ×
× × ×
DV xx
xx
xx
xx
xx
xx
DV xx
xx
xx
xx
xx
Error information
C141-E056-01EN 5 - 29
Table 5.5 Information to be read by IDENTIFY DEVICE command (1 of 3)
Word Value Description
0 X‘045A’ General Configuration *1
1 X‘24C0’
X‘3490’
2 X‘0000’ Reserved
3 X‘000F’ Number of Heads
4 X‘0000’ Retired
5 X‘0000’ Retired
6 X‘003F’ Number of sectors per track
7-9 X‘000000000000’ Retired
10-19 – Serial number (ASCII code) *2
20-21 X‘00000000’ Retired
22 X‘0004’ Number of ECC bytes transferred at READ LONG or WRITE LONG command
23-26 – Firmware revision (ASCII code) *3
27-46 – Model number (ASCII code) *4
47 X‘8010’ Maximum number of sectors per interrupt on READ/WRITE MULTIPLE command
48 X‘0000’ Reserved
49 X‘2B00’ Capabilities *5
50 X‘0000’ Reserved
51 X‘0200’ PIO data transfer mode *6
52 X‘0000’ Retired
53 X‘0007’ Enable/disable setting of words 54-58, 64-70 and 88 *7
54 (Variable) Number of current Cylinders
55 (Variable) Number of current Head
56 (Variable) Number of current sectors per track
57-58 (Variable) Total number of current sectors
59 *8 Transfer sector count currently set by READ/WRITE MULTIPLE command
60-61 X‘0087A8C0’
X‘00C20790’
62 X‘0000’ Retired
63 X‘xx07’ Multiword DMA transfer mode *9
64 X‘0003’ Advance PIO transfer mode support status *10
65 X‘0078’ Minimum multiword DMA transfer cycle time per word : 120 [ns]
66 X‘0078’ Manufacturer's recommended DMA transfer cycle time : 120 [ns]
67 X‘0078’ Minimum PIO transfer cycle time without flow control : 120 [ns]
68 X‘0078’ Minimum PIO transfer cycle time with IORDY flow control : 120 [ns]
69-79 X‘00’ Reserved
80 X‘000E’ Major version number *11
81 X‘0000’ Minor version number (not reported)
82 X‘B86B’ Support of command sets *12
83 X‘4000’ Support of command sets (fixed)
84-87 X‘00’ Reserved
88 X‘xx07’ Ultra DMA modes *13
89-127 X‘00’ Reserved
128 X‘xx’ Security Status
129-255 X‘00’ Reserved
Number of cylinders MPC3045AH: X‘24C0’
MPC3065AH: X‘3490’
Total number of user addressable sectors (LBA mode only) MPC3045AH: X‘0087A8C0’
MPC3065AH: X‘00C20790’
C141-E056-02EN5 - 30
Table 5.5 Information to be read by IDENTIFY DEVICE command (2 of 3)
*1 Word 0: General configuration
Bit 15: 0 = ATA device 0
Bit 14-8: Vendor specific 0
Bit 7: 1 = Removable media device 0
Bit 6: 1 = not removable controller and/or device 1
Bit 5-1: Vendor specific 0
Bit 0: Reserved 0
*2 Word 10-19: Serial number; ASCII code (20 characters, right-justified)
*3 Word 23-26: Firmware revision; ASCII code (8 characters, Left-justified)
*4 Word 27-46: Model number;
ASCII code (40 characters, Left-justified), remainder filled with blank code (X'20')
One of three model numbers;
MPC3045AH, MPC3065AH
*5 Word 49: Capabilities
Bit 15-14: Reserved
Bit 13: Standby timer value 1 = Standby timer values as specified in ATA standard are
supported
Bit 12: Reserved
Bit 11: IORDY support 1=Supported
Bit 10: IORDY inhibition 0=Disable inhibition
Bit 9: LBA support 1=Supported
Bit 8: DMA support 1=Supported
Bit 7-0: Vendor specific
*6 Word 51: PIO data transfer mode
Bit 15-8: PIO data transfer mode X'02'=PIO mode 2
Bit 7-0: Vendor specific
*7 Word 53: Enable/disable setting of word 54-58 ,64-70 and 88
Bit 15-3: Reserved
Bit 2: Enable/disable setting of word 88 1=Enable
Bit 1: Enable/disable setting of word 64-70 1=Enable
Bit 0: Enable/disable setting of word 54-58 1=Enable
*8 Word 59: Transfer sector count currently set by READ/WRITE MULTIPLE command
Bit 15-9: Reserved
Bit 8: Multiple sector transfer 1=Enable
Bit 7-0: Transfer sector count currently set by READ/WRITE MULTIPLE without
interrupt supports 2, 4, 8 and 16 sectors.
*9 Word 63: Multiword DMA transfer mode
Bit 15-8: Currently used multiword DMA transfer mode
Bit 7-0: Supportable multiword DMA transfer mode
Bit 2=1 Mode 2
Bit 1=1 Mode 1
Bit 0=1 Mode 0
C141-E056-01EN 5 - 31
Table 5.5 Information to be read by IDENTIFY DEVICE command (3 of 3)
*10 Word 64: Advance PIO transfer mode support status
Bit 15-8: Reserved
Bit 7-0: Advance PIO transfer mode
Bit 1=1 Mode 4
Bit 0=1 Mode 3
*11 Word 80: Major version number
Bit 15-4: Reserved
Bit 3: ATA-3 Supported=1
Bit 2: ATA-2 Supported=1
Bit 1: ATA-1 Supported=1
Bit 0: Undefined
*12 Word 82: Support of command sets
Bit 15: Identify Device DMA command supported = 1
Bit 14: NOP command supported = 0
Bit 13: Read Buffer command supported = 1
Bit 12: Write Buffer command supported = 1
Bit 11: Write Buffer command supported (Old Spec.) = 1
Bit 10: Host Protected Area feature command supported = 0
Bit 9: Device Reset command supported = 0
Bit 8: SERVICE Interrupt supported = 0
Bit 7: Release Interrupt supported = 0
Bit 6: Lock Ahead supported = 1
Bit 5: Write-cache supported = 1
Bit 4: Packet command feature set supported = 0
Bit 3: Power Management feature set supported=1
Bit 2: Removable feature set supported=0
Bit 1: Security feature set supported=1
Bit 0: SMART feature set supported=1
*13 Word 88: Ultra DMA modes
Bit 15-11: Reserved
Bit 10-8: Currently used Ultra DMA transfer modes
Bit 7-3: Reserved
Bit 2-0: Supportable Ultra DMA transfer mode
Bit 2=1 Mode 2
Bit 1=1 Mode 1
Bit 0=1 Mode 0
C141-E056-01EN5 - 32
(13) IDENTIFY DEVICE DMA (X'EE')
When this command is not used to transfer data to the host in DMA mode, this command
functions in the same way as the Identify Device command.
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 1 0 1 1 1 0
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
(14) SET FEATURES (X'EF')
The host system issues the SET FEATURES command to set parameters in the Features
register for the purpose of changing the device features to be executed. For the transfer mode
(Feature register = 03), detail setting can be done using the Sector Count register.
× × ×
× × ×
DV xx
xx
xx
xx
xx
xx
DV xx
xx
xx
xx
xx
Error information
Upon receipt of this command, the device sets the BSY bit of the Status register and saves the
parameters in the Features register. Then, the device clears the BSY bit, and generates an
interrupt.
If the value in the Features register is not supported or it is invalid, the device posts an
ABORTED COMMAND error.
Table 5.6 lists the available values and operational modes that may be set in the Features
register.
C141-E056-01EN 5 - 33
Table 5.6 Features register values and settable modes
Features Register Drive operation mode
X‘02’ Enables the write cache function.
X‘03’ Specifies the transfer mode. Supports PIO mode 4, single word DMA mode
2, and multiword DMA mode regardless of Sector Count register contents.
X‘55’ Disables read cache function.
X‘66’ Disables the reverting to power-on default settings after software reset.
X‘82’ Disables the write cache function.
X‘AA’ Enables the read cache function.
X‘BB’ Specifies the transfer of 4-byte ECC for READ LONG and WRITE LONG
commands.
X‘CC’ Enables the reverting to power-on default settings after software reset.
At power-on or after hardware reset, the default mode is the same as that is set with a value
greater than X‘AA’ (except for write cache). If X‘66’ is specified, it allows the setting value
greater than X‘AA’ which may have been modified to a new value since power-on, to remain
the same even after software reset.
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 1 0 1 1 1 1
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
× × ×
× × ×
DV xx
xx
xx
xx
xx or transfer mode
[See Table 5.6]
DV xx
xx
xx
xx
xx
Error information
C141-E056-01EN5 - 34
The host sets X'03' to the Features register. By issuing this command with setting a value to
the Sector Count register, the transfer mode can be selected. Upper 5 bits of the Sector Count
register defines the transfer type and lower 3 bits specifies the binary mode value.
However, the IDD can operate with the PIO transfer mode 4 and multiword DMA transfer
mode 2 regardless of reception of the SET FEATURES command for transfer mode setting.
The IDD supports following values in the Sector Count register value. If other value than
below is specified, an ABORTED COMMAND error is posted.
PIO default transfer mode 00000 000 (X‘00’)
PIO flow control transfer mode X 00001 000 (X‘08’: Mode 0)
00001 001 (X‘09’: Mode 1)
00001 010 (X‘0A’: Mode 2)
00001 011 (X‘0B’: Mode 3)
00001 100 (X‘0C’: Mode 4)
Multiword DMA transfer mode X 00100 000 (X‘20’: Mode 0)
00100 001 (X‘21’: Mode 1)
00100 010 (X‘22’: Mode 2)
Ultra DMA transfer mode X 01000 000 (X‘40’: Mode 0)
01000 001 (X‘41’: Mode 1)
01000 010 (X‘42’: Mode 2)
Disable IORDY 00000 001 (X‘01’: transfer mode not changed)
(15) SET MULTIPLE MODE (X'C6')
This command enables the device to perform the READ MULTIPLE and WRITE MULTIPLE
commands. The block count (number of sectors in a block) for these commands are also
specified by the SET MULTIPLE MODE command.
The number of sectors per block is written into the Sector Count register. The IDD supports 2,
4, 8 and 16 (sectors) as the block counts.
Upon receipt of this command, the device sets the BSY bit of the Status register and checks
the contents of the Sector Count register. If the contents of the Sector Count register is valid
and is a supported block count, the value is stored for all subsequent READ MULTIPLE and
WRITE MULTIPLE commands. Execution of these commands is then enabled. If the value
of the Sector Count register is not a supported block count, an ABORTED COMMAND error
is posted and the READ MULTIPLE and WRITE MULTIPLE commands are disabled.
If the contents of the Sector Count register is 0 when the SET MULTIPLE MODE command
is issued, the READ MULTIPLE and WRITE MULTIPLE commands are disabled.
When the SET MULTIPLE MODE command operation is completed, the device clears the
BSY bit and generates an interrupt.
C141-E056-02EN 5 - 35
At command issuance (I/O registers setting contents)
1F7H(CM) 1 1 0 0 0 1 1 0
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(FR)
At command completion (I/O registers contents to be read)
1F7H(ST) Status information
1F6H(DH)
1F5H(CH)
1F4H(CL)
1F3H(SN)
1F2H(SC)
1F1H(ER)
After power-on or after hardware reset, the READ MULTIPLE and WRITE MULTIPLE
command operation are disabled as the default mode.
Regarding software reset, the mode set prior to software reset is retained after software reset.
× × ×
× × ×
DV xx
xx
xx
xx
Sector count/block
xx
DV xx
xx
xx
xx
Sector count/block
Error information
The parameters for the multiple commands which are posted to the host system when the
IDENTIFY DEVICE command is issued are listed below. See Subsection 5.3.2 for the
IDENTIFY DEVICE command.
Word 47 = 8010:
Word 59 = 0000:
= 01xx:
Maximum number of sectors that can be transferred per interrupt by the
READ MULTIPLE and WRITE MULTIPLE commands are 16 (fixed).
The READ MULTIPLE and WRITE MULTIPLE commands are
disabled.
The READ MULTIPLE and WRITE MULTIPLE commands are
enabled. "xx" indicates the current setting for number of sectors that can
be transferred per interrupt by the READ MULTIPLE and WRITE
MULTIPLE commands.
e.g. 0110 = Block count of 16 has been set by the SET MULTIPLE
MODE command.
C141-E056-01EN5 - 36
(16) EXECUTE DEVICE DIAGNOSTIC (X'90')
This command performs an internal diagnostic test (self-diagnosis) of the device. This
command usually sets the DRV bit of the Drive/Head register is to 0 (however, the DV bit is
not checked). If two devices are present, both devices execute self-diagnosis.
If device 1 is present:
• Both devices shall execute self-diagnosis.
• The device 0 waits for up to 5 seconds until device 1 asserts the PDIAG- signal.
• If the device 1 does not assert the PDIAG- signal but indicates an error, the device 0 shall
append X‘80’ to its own diagnostic status.
• The device 0 clears the BSY bit of the Status register and generates an interrupt. (The
device 1 does not generate an interrupt.)
• A diagnostic status of the device 0 is read by the host system. When a diagnostic failure
of the device 1 is detected, the host system can read a status of the device 1 by setting the
DV bit (selecting the device 1).
When device 1 is not present:
• The device 0 posts only the results of its own self-diagnosis.
• The device 0 clears the BSY bit of the Status register, and generates an interrupt.
Table 5.7 lists the diagnostic code written in the Error register which is 8-bit code.
If the device 1 fails the self-diagnosis, the device 0 "ORs" X‘80’ with its own status and sets
that code to the Error register.
Table 5.7 Diagnostic code
Code Result of diagnostic
X‘01’
X‘02’
X‘03’
X‘05’
X‘06’
X‘8x’
No error detected.
HDC Register compare error
Data buffer compare error
ROM sum check error
MPU internal RAM compare error
Failure of device 1
C141-E056-02EN 5 - 37
