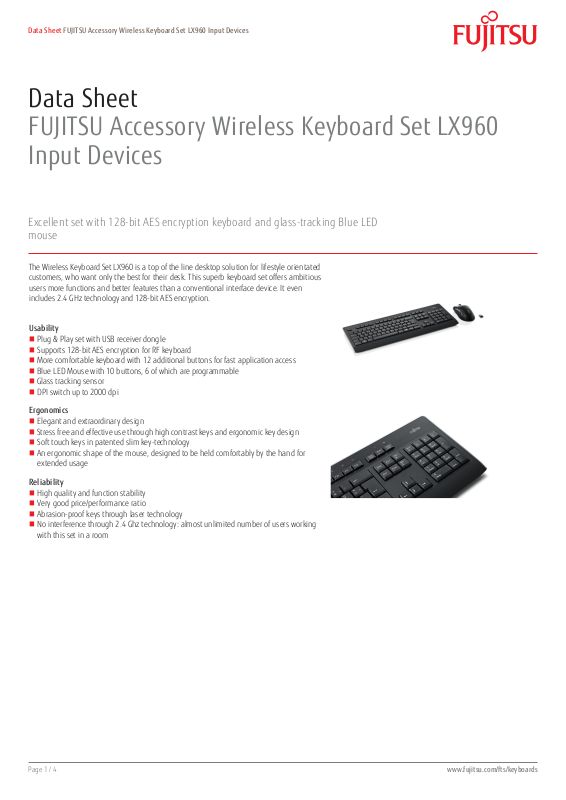

Data Sheet FUJITSU Accessory Wireless Keyboard Set LX960 Input Devices
Data Sheet
FUJITSU Accessory Wireless Keyboard Set LX960 Input Devices
Excellent set with 128-bit AES encryption keyboard and glass-tracking Blue LED mouse
The Wireless Keyboard Set LX960 is a top of the line desktop solution for lifestyle orientated customers, who want only the best for their desk. This superb keyboard set offers ambitious users more functions and better features than a conventional interface device. It even includes 2.4 GHz technology and 128-bit AES encryption.
Usability
Plug & Play set with USB receiver dongle Supports 128-bit AES encryption for RF keyboard More comfortable keyboard with 12 additional buttons for fast application access Blue LED Mouse with 10 buttons, 6 of which are programmable Glass tracking sensor DPI switch up to 2000 dpi
Ergonomics
Elegant and extraordinary design Stress free and effective use through high contrast keys and ergonomic key design Soft touch keys in patented slim key-technology An ergonomic shape of the mouse, designed to be held comfortably by the hand for
extended usage
Reliability
High quality and function stability Very good price/performance ratio Abrasion-proof keys through laser technology No interference through 2.4 Ghz technology: almost unlimited number of users working
with this set in a room
Page 1 / 4 www.fujitsu.com/fts/keyboards
Data Sheet FUJITSU Accessory Wireless Keyboard Set LX960 Input Devices
Wireless Keyboard Set LX960
Technical specications
Technology 2.4 GHz, 16 channels Special features .
Blue LED Mouse 10 button Glass tracking sensor DPI switch 1000/1600/2000 with status LED Low battery LED . 105 key USB keyboard 128-bit AES encryption 1 ACPI/Power key Wake up from S5 with ctrl + ctrl or Power key 11 Multimedia Quickstart buttons 2 status LED:
- Low battery
- Caps lock . FUJITSU recommends to use corded keyboards and mice for security critical applications
Keyboard
Height Adjustment 1.5° and 6° Keyboard Type 105-key RF keyboard Keys additional 1 ACPI / Power key 11 Multimedia Keys Keyboard battery info 1 x AA battery Keyboard radio range max 10 m Power supply keyboard 1 x AA Battery 1.5V Power consumption keyboard max 40 mA (working mode 3 mA) Keyboard dimension (W x D x H) 465 x 179 x 21 mm Keyboard weight 825 g (incl battery)
Mouse
Mouse type Wireless Mouse with Blue LED track on glass sensor Mouse dimension (W x D x H) 73 x 126 x 44 mm Mouse weight 140 g (incl. batteries) Mouse resolution 1,000 dpi, 1,600 dpi, 2,000 dpi Mouse buttons 10 buttons, 6 are programmable Mouse battery info 2 x AA battery Mouse radio range up to 10 m Speed max. max 30 IPS / 125 rps Power supply mouse 2 x AA Battery 3V Power consumption mouse max 50 mA (working mode 8 mA)
Receiver
Receiver type USB A Dongle Power supply receiver USB 5V Power consumption receiver max 100 mA
Dimensions / Weight / Environmental
Dimensions (W x D x H) 507 x 222 x 77 (box) Height Adjustment 1.5° and 6° Weight 1500 g (full set incl box) Operating ambient temperature 0 - 40 °C Storage ambient temperature -25 - 60 °C
Page 2 / 4 www.fujitsu.com/fts/keyboards
Data Sheet FUJITSU Accessory Wireless Keyboard Set LX960 Input Devices
Compliance
Europe CE Compliance link https://sp.ts.fujitsu.com/sites/certicates
System requirements
Required interface USB Supported operating systems Windows 10
Windows 8 Windows 7
Package content
Package content Packed in a white box:
Wireless Keyboard Wireless Mouse USB Receiver 1 x AA Battery for Keyboard 2 x AA Bettery for Mouse Quick Start Guide Safety and Recycling Instructions
Simplied CE declaration of conformity
Order code S26381-K960-L4** (**: Country specic variation)
Warranty
Warranty period 2 years (depending on country) Warranty type Bring-In / Send-In Service Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty Service Weblink http://www.fujitsu.com/fts/services/support
Page 3 / 4 www.fujitsu.com/fts/keyboards
Data Sheet FUJITSU Accessory Wireless Keyboard Set LX960 Input Devices
More information
Fujitsu OPTIMIZATION Services
In addition to FUJITSU Accessory Wireless Keyboard Set LX960, Fujitsu provides a range of platform solutions. They combine reliable Fujitsu products with the best in services, know-how and worldwide partnerships.
Fujitsu Portfolio
Build on industry standards, Fujitsu offers a full portfolio of IT hardware and software products, services, solutions and cloud offering, ranging from clients to datacenter solutions and includes the broad stack of Business Solutions, as well as the full stack of Cloud offering. This allows customers to leverage from alternative sourcing and delivery models to increase their business agility and to improve their IT operation’s reliability.
Computing Products
www.fujitsu.com/global/products/computing/
Software
www.fujitsu.com/software/
More information
Learn more about FUJITSU Accessory Wireless Keyboard Set LX960, please contact your Fujitsu sales representative or Fujitsu Business partner, or visit our website. www.fujitsu.com/fts/keyboards
Fujitsu green policy innovation
Fujitsu Green Policy Innovation is our worldwide project for reducing burdens on the environment. Using our global know-how, we aim to contribute to the creation of a sustainable environment for future generations through IT.
Please nd further information at http://www.
fujitsu.com/global/about/environment/
Copyrights
All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information see http://www. fujitsu.com/fts/resources/navigation/terms-of­use.html Copyright 2018 Fujitsu Technology Solutions GmbH
Disclaimer
Technical data are subject to modication and
delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.
Contact
Fujitsu Technology Solutions GmbH Website: www.fujitsu.com/fts 2019-06-27 EM-EN
Page 4 / 4 www.fujitsu.com/fts/keyboards
