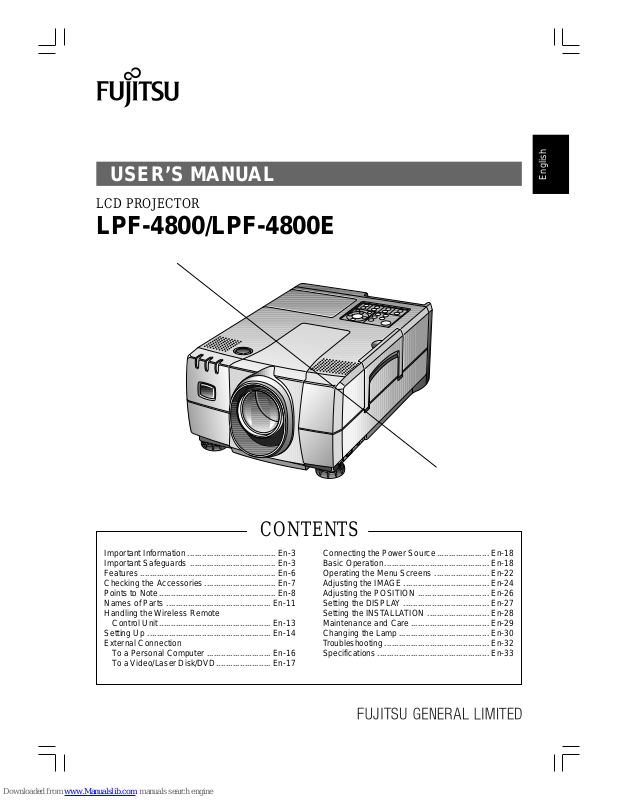

USER’S MANUAL

LCD PROJECTOR

LPF-4800/LPF-4800E

Important Information ..................................... En-3

Important Safeguards .................................... En-3

Features ......................................................... En-6

Checking the Accessories..............................En-7

Points to Note................................................. En-8

Names of Parts ............................................En-11

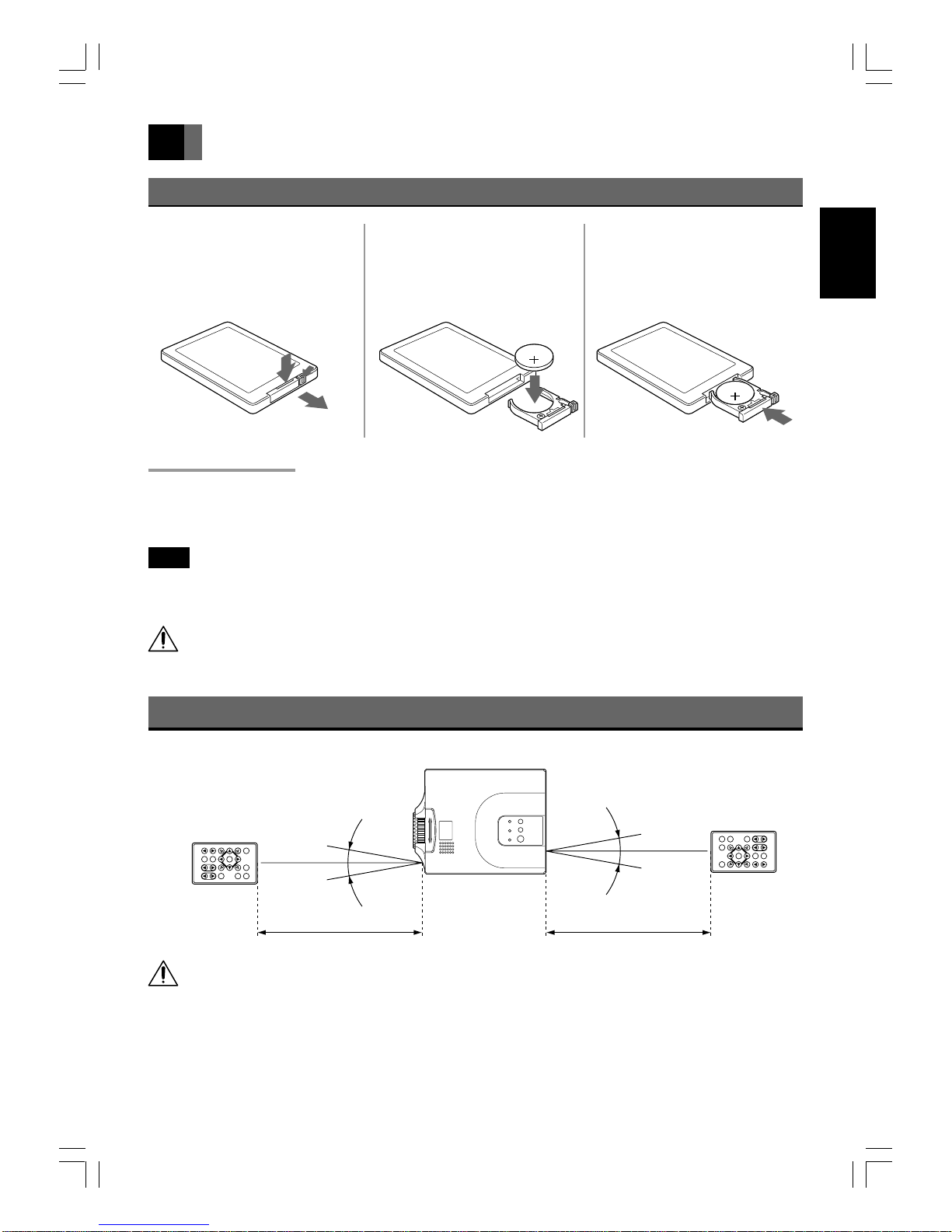

Handling the Wireless Remote

Control Unit............................................... En-13

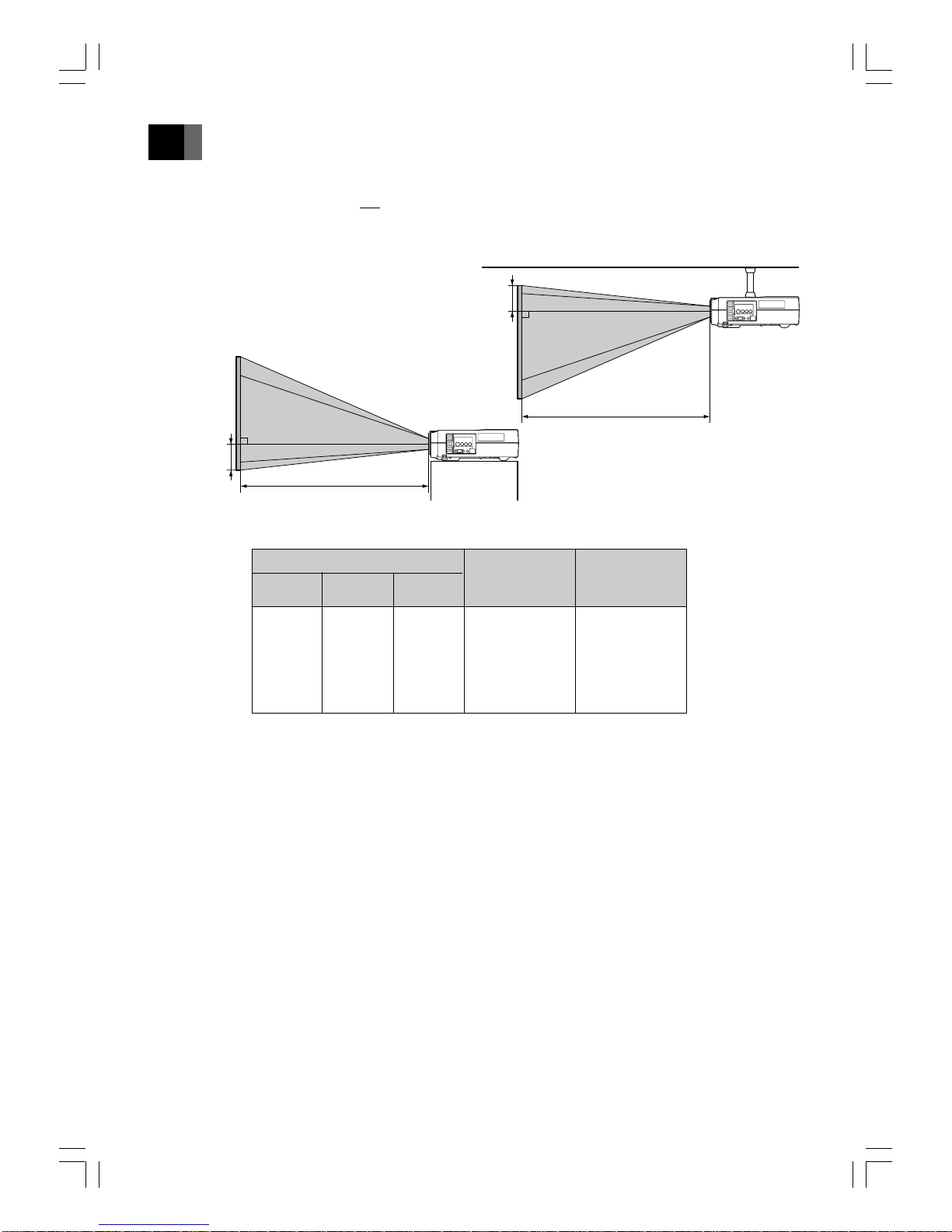

Setting Up ....................................................En-14

External Connection

To a Personal Computer ........................... En-16

To a Video/Laser Disk/DVD....................... En-17

Connecting the Power Source...................... En-18

Basic Operation............................................ En-18

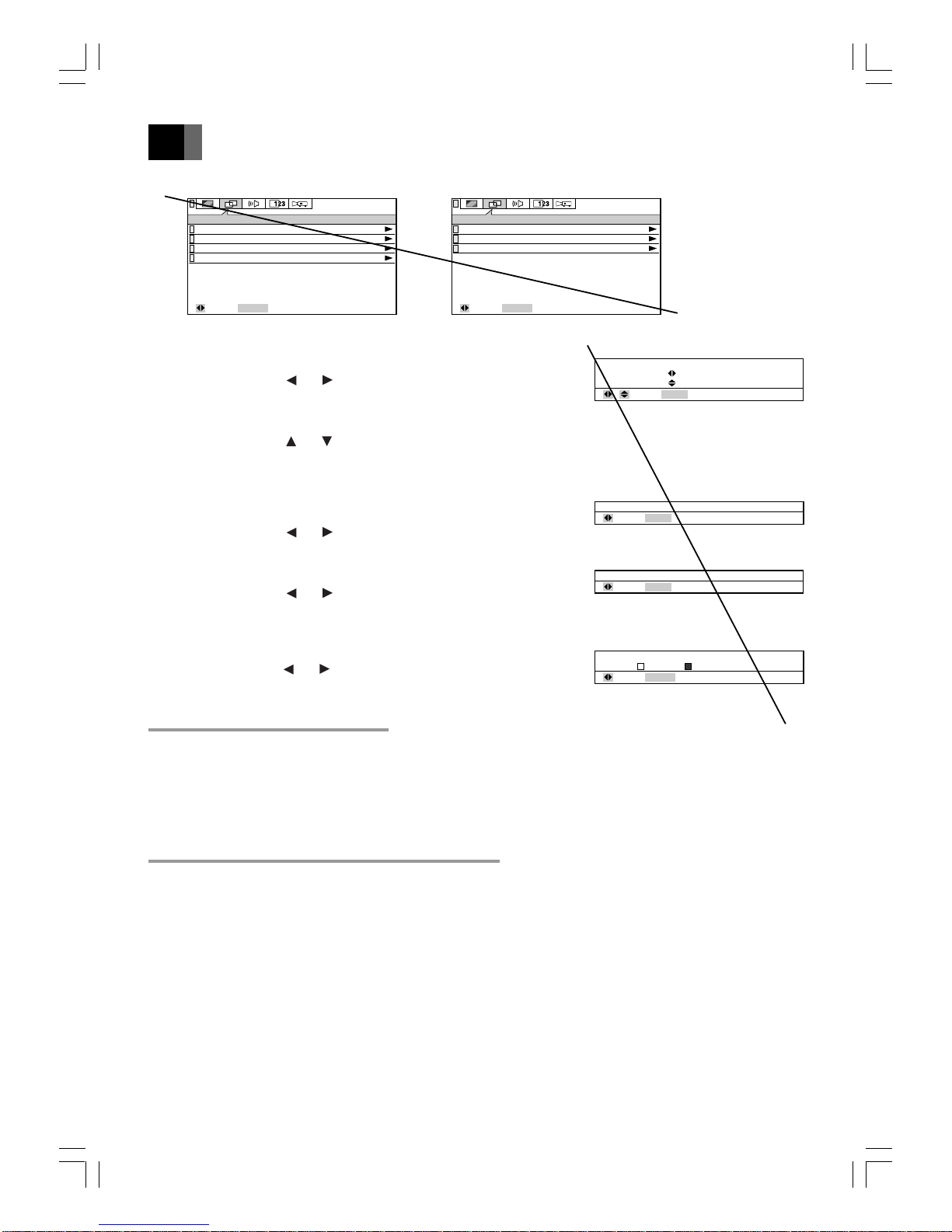

Operating the Menu Screens ....................... En-22

Adjusting the IMAGE.................................... En-24

Adjusting the POSITION .............................. En-26

Setting the DISPLAY .................................... En-27

Setting the INSTALLATION .......................... En-28

Maintenance and Care................................. En-29

Changing the Lamp...................................... En-30

Troubleshooting............................................ En-32

Specifications ............................................... En-33

CONTENTS

En-2

DECLARATION OF CONFORMITY

We : FUJITSU GENERAL (U.K.) CO. LIMITED

Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS
as the representative of
Manufacturer : Shinjyo Fujitsu General Limited

702-3 Kanazawa Shinjyo-shi Yamagata Japan
declares under our sole responsibility that the product
Product Type : LCD Projector
Model Name : LPF-4800, LPF-4800E
to which this declaration relates is in conformity with the following standards :
European standards :

EMC : a. EN 55022 1994, class A

b. EN 61000-3-2 1995
c. EN 61000-3-3 1995
d. EN 50082-1 1992

(IEC 801-2 1991/IEC 801-3 1984/IEC 801-4 1988)

Safety : a. EN 60950 1992/ A1: 1993 / A2: 1993 / A3: 1995 / A4: 1997

By conformance with the standards referenced the product follows the provisions of the directives listed below:

a. EC Council Directive 89/336/EEC of 3 May 1989
b. EC Council Directive 92/31/EEC of 28 April 1992
c. EC Council Directive 93/68/EEC of 22 July 1993

d. EC Council Directive 73/23/EEC of 19 February 1973
Place of Issue : U.K.
Date of Issue : December 2000

Signature :

H.Hirosaki, Chief Executive
FUJITSU GENERAL (U.K.) CO. LIMITED

Declaration Reference : FUJITSU GENERAL (U.K.) CO. LIMITED

Ground Floor, Elstree House, Elstree Way, Borehamwood, Herts WD6 1LS
Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter­ference when the equipment is operated in a commercial environment. This equipment gener ates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications .
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

En-3

EnglishFrançais

Deutsch

Español

Dear Customer:

We have prepared this USER’S MANUAL to assist you in the operation of your new LCD Projector. We thank you for your
purchase and hope you will be satisfied with the quality and performance of this projector.

Please read the instructions carefully, and keep them available for future reference.

Important Information

WARNING: THIS UNIT HAS AN EXTREMELY BRIGHT LIGHT SOURCE. DO NOT

STARE INTO THE BEAM OF LIGHT. BE ESPECIALLY CAREFUL THAT
CHILDREN DO NOT STARE DIRECTLY INTO THE LIGHT.

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

This unit has been engineered and manufactured to assure your personal safety. IMPROPER USE CAN RESULT IN POTENTIAL
ELECTRICAL SHOCK OR FIRE HAZARD.

In order not to defeat the safeguards incorporated into this LCD projector, observe the follo wing basic rules for its installation, use and service.
Please read these “Important Safeguards” carefully before use.

–– All the safety and operating instructions should be read before the product is operated.
–– The safety and operating instructions should be retained for future reference.
–– All warnings on the product and in the operating instructions should be adhered to.
–– All operating instructions should be followed.
–– Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious

damage to the product.

–– When the product is used on a cart, care should be taken to avoid quick stops, excessive

force, and uneven surfaces which may cause the product and cart to overturn, damaging
equipment or causing possible injury to the operator.

–– When connecting other products such as VCR’s and personal computers, you should turn off the power of this product for protection

against electric shock.
–– When using this product, you should connect the enclosed three-wire type power supply cord.
–– When there is an abnormal condition such as smoke or a strange smell in the machine, always pull out the plug from the wall outlet.

If a projected image does not appear or other abnormality occurs, make sure that no smoke comes out of the machine and contact your sales

office. This condition may cause fire or electrical shock.

Important Safeguards

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with the arrowhead
symbol in a triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the prod­uct’s enclosure that may be of suffi­cient magnitude to constitute a risk of
electric shock to persons.

The exclamation point within a trian-gle
is intended to alert the user to the pres­ence of important operating and main­tenance instructions in the literature
accompanying the product.

CAUTION

RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS

EXCEPT IF SPECIFIED USER

SERVICE SCREWS MARKED “

”

En-4

–– Do not insert metallic objects, flammable objects or water in the ventilation holes.

If a foreign object enters the unit, always pull out the electrical plug from the wall outlet and contact your sales office. Th is condition may

cause fire or electrical shock.
–– Do not place any heavy object on the electrical cord.

The cord will be damaged and this condition may cause fire or electrical shock.

–– Do not loosen any screws that are not indicated by the arrow mark.

The unit contains internal parts which have high voltage or high temperatures. Touching these parts may cause electrical shock or severe

burns.
–– Do not touch the electrical plug when there is thunder or lightning.

Touching the projector in this condition may cause electrical shock.
–– Do not place the electrical cord near a heater or other object that generates high temperatures.

Place the electrical cord so it does not touch a heater. This may cause fire or electrical shock.
–– Do not place the projector in an unstable location.

If the projector is placed on a shaky frame or unstable location it may fall and cause injury.
–– Only use the accessory electrical cord.

Fire or electrical shock may occur if a nonstandard cord is used.
–– Contact your sales office when transporting the projector.

If you install or transport the unit by yourself, it may fall and cause a fire, electrical shock or other damage.
–– Clean the electrical plug periodically to prevent dust from accumulating.

Fire or electrical shock may occur if the insulation on the electrical plug becomes defective.
–– If the lamp storage cover is broken when replacing the lamp, do not use the projector and contact your sales office for repair.
–– Always place the projector at a minimum of 30 cm (12 inches) away from a wall.

Place the projector in a well ventilated area because it generates high temperatures. Never place the projector on a carpet or blanket

because this may cause a fire.
–– The electrical plug of the main unit is equipped with a three line plug that contains a ground line. Contact an electrical technician to connect

the ground line when connecting it to a wall outlet with a two core plug.
–– Insert the electrical plug securely to the end of the wall outlet.

If the plug is inserted incorrectly, this may cause fire or electrical shock.
–– Do not place vases, cups or other object containing water or fluids on top of the projector.

Do not use the projector in rain, wind or other inclement weather. Fire or electrical shock may occur if rain or other objects enter the unit.
–– Do not insert metallic objects, or flammable objects such as plastic or paper into the lamp unit or lamp storage unit.

Contact your sales office if a foreign object enters the unit. This may cause fire or electrical shock.
–– When the lamp unit is used, do not drop any object on the unit or subject parts such as the glass surface, connector, connector terminal,

cables and case to impact.

Do not use the unit if it is subjected to shock or scratched. Contact your sales office. This condition may cause a fire or electrical shock.
–– Never cover the ventilation holes.

Do not seal or shut off the ventilation holes on the front, right side and left side of the projector.
–– Do not touch the terminal end of the lamp unit or the screws which secure the connector.

Even if the screws become loose, do not attempt to perform the repair operation yourself and contact your sales of fice. T his condition may

result in fire, electrical shock or other damage.
–– Do not turn on the electricity or the lamp when the lens cap is attached.

The lens cap will become deformed due to the heat of the lamp and may cause fire or severe burns.
–– Do not clean the lens directly.

Looking at the lens during operation is dangerous because it projects a strong light during operation. This may cause severe damage to your

eyes.
–– Always pull out the electrical plug when the unit is not used for a long period of time.

If the plug is not removed, the insulation may deteriorate and cause electrical shock or a fire due to current leakage.
–– Always grasp the plug firmly and never pull on the electrical cord to remove the electrical plug from the wall outlet.

If the cord is pulled, it may be damaged and cause fire or electrical shock.
–– Always turn off the power before connecting the cables and other connections.

Read the instruction manuals of the other equipment connected to the projector thoroughly. Always turn off the main power switch before

connecting any cables. Fire or electrical shock may occur when these operations are performed if the main power is turned on.
–– Do not apply any force on the projector.

If the projector is suspended or a load is applied to it from a heavy object upon it, the projector may fall and be damaged.

Important Safeguards (continued)

En-5

EnglishFrançais

Deutsch

Español

–– Be careful not to expose the projector to any steam, oily smoke, heat or humidity.

Never place the projector in a location subject to steam, oily smoke heat or humidity. This may cause fire or electrical shock.
–– Never place flammable objects such as a cigarette lighter, matches, gas canisters, spray cans, fireworks or plastic materials close to the

lamp ventilation holes. This may cause fire or other damage.
–– Always turn off the power switch before replacing the lamp. Allow the unit to cool off for at least one hour before replacing the lamp.

Replace the lamp according to the directions in the operation manual. Fire, burns or electrical shock may occur if the replacement is

performed incorrectly.
–– A laser beam is projected if the laser button in the accessory wireless remote control is pressed. Never look directly into the laser beam.

The laser beam may cause damage if it enters the eyes directly.
–– As there is the possibility that ozone (O3) will be generated by the lamp power supply, handle the projector correctly according to the

warnings listed in this operation manual.
–– Be careful to avoid condensation.

Dew or moisture condensation may be produced inside the projector if there are temperature differences between the inside and outside of

the unit. Make sure that the projector has warmed up to room temperature before using it. This condition may cause electrical leakage,

shock or fire.
–– Be careful when transporting the projector.

When transporting the projector, always remove the electr ical plug and other cables. Be extremely careful to a void dr opping it or subject-

ing it to any shock or impact as this may cause fire or electrical shock.
–– Never touch the electrical plug with wet hands.

This may cause electrical shock.
–– Do not touch the lamp storage cover interlock mechanism.

Fire, electrical shock or other damage may occur if the interlock mechanism does not operate correctly.
–– This product should be operated only with the type of power source indicated on the label. If you are not sure of the type of power supply

to your home, consult your product dealer or local power company.
–– Use a plug with a ground terminal. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet,

contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
–– Use only the accessory cable designed for this product to prevent shock.

The power supply voltage rating of this product is AC 100 – 240 V, the power cable attached conforms to the following power supply

voltage. Use only the power cable designated by our dealer to ensure Safety and EMC.

When it is used by other power supply voltage, the power cable must be changed.

The included cable differs according to the model.

Power cable

Power supply voltage: AC 100 – 125 V AC 200 – 240 V AC 240 V

About the lithium battery

WARNING

–– Keep the lithium battery out of reach of children. Should the battery be swallowed, immediately consult a doctor.

CAUTION

–– Do not recharge, disassemble, heat or dispose of battery in fire.
–– Use a CR2025 (3 V) lithium battery only. Never use other types of battery with this product.
–– Do not handle the battery with metallic tools.
–– Do not store the lithium battery with metallic materials.
–– When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in

your country/area.
–– Always check carefully that you are loading battery with its (+) and (–) poles facing in the proper directions.

En-6

Features

The LPF-4800/4800E projector enlarges PC or video images and projects them onto a 23 – 249-inch screen (available on
the market).

■ High brightness and high resolution meet every occasion

• Achieves a brightness of 1500 ANSI, the highest level for this class of projector.

• A wide range of resolutions from VGA to SXGA can be met.

■ Functional design

• A4 file size and light weight (approx. 3.6 kg). The projector is easy to carry and set up.

■ Handy pocket-sized card-type remote control unit

• 5 mm-thick card-type remote control unit can easily be carried in your pocket.

■ Simple correction of image trapezoid distortion

• Distortion of the trapezoid caused by the angle of incidence with the screen can be corrected easily using the
keystone correction function.

■ Clear, easy-to-use OSD (on-screen display)

• The input signal status, life of the lamp and present adjustment status can be checked all at once using the status
display function.

En-7

EnglishFrançais

Deutsch

Español

Checking the Accessories

Wireless remote control unit × 1

CR 2025 lithium battery × 1

User’s manual × 1
(this manual)

Power cable × 1

RGB cable × 1
(Parts No. 8110430014)

AV cable × 1
(Parts No. 8302280021)

Lens cap (to protect the lens) × 1

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

En-8

Points to Note

Transporting the projector

Put the projector in the original packaging when transporting. Excessive pressure on the lens may result in damage.

About the lamp

• The lamp is an expendable item. It should be changed when
the “Approaching Recommended Lamp Life!” message is
displayed or when the lamp is nearing the end of its service
life as indicated by failure, a dark image or poor colors.
Replace with a new lamp (available at the store where the
projector was purchased).

• Change the lamp when the warning message shown on the
right is displayed.

• The lamp will fail to light about 100 hours after the message
is displayed.
For instructions on how to change the lamp, see page

En-30.

Note

• Frequent turning on and off the power makes the lamp life shorter.

Precautions when connecting to a PC

• When connecting the projector to a notebook PC

When connecting the projector to a notebook PC, enable the RGB external image output on the PC (simultaneous display
on the LCD and CRT or set on the CRT). For details, see the instruction manual supplied with the PC.

• Setting the PC display

When selecting the type of display on Windows 95/98/2000, etc. or when setting is required, select [Super VGA 800 ×
600], [Super VGA 1024 × 768], [Super VGA 1280 × 1024] or [Standard VGA 640 × 480] on a standard monitor.

Power sequence

• Precautions when turning on power

If the projector is connected to a PC, turn the projector on before turning the PC on. (This is particularly important if
using a Macintosh computer.)

• Precautions when turning off power

If the projector is connected to a PC, turn the PC off before turning the projector off.

Ground connection

•The power plug is a 3-pin plug with ground wire. If using a 2-pin socket, be sure to earth the projector.

• Have an electrician perform the grounding.

• Ground the projector before plugging in to the power source. Before removing the ground connection, be sure to remove
the plug from the power source.

• This projector is a Class A information technology device based on Voluntary Control Council for Interference by

Information Technology Equipment (VCCI) standards. If used in a home environment, it may cause interference
and the user may be required to take appropriate measures.

• This projector conforms to high frequency guidelines.

WARNING

Approaching Recommended Lamp Life!

(Warning message)

The lamp will fail to light and the POWER-ON, TEMP
and LAMP monitors will flash about 100 hours after
this message is displayed.

LAMP

TEMP.

STAND-BY
PO

W

ER-ON

(Power) (Temperature) (Lamp)

▼

En-9

EnglishFrançais

Deutsch

Español

Monitor Display

• Normal or abnormal operation of the internal parts is indicated by the 3
monitors on the front of the projector. (See illustration on right)

• When the power cable is plugged into the socket, the POWER-ON
monitor lights red and the projector is in standby status.

• When the POWER button is pressed in standby status, the POWER-ON
monitor lights green and the lamp comes on.

• When the POWER button is pressed while the lamp is on and “Power
Off” is selected on the confirmation screen, the POWER-ON monitor
lights orange and the lamp cools for about 2 minutes. The POWER-ON
monitor then changes to red and the projector returns to standby status.

• In the event of an abnormality, depending on the fault, the POWER-ON, TEMP and LAMP monitors light or flash red as
shown below and the power is automatically turned off. Follow the instructions below to remedy the fault.

POWER-ON, TEMP and
LAMP monitors are all
flashing.

LAMPTEMP.

STAND-BY
POWER-ON

(Monitor Display)

(Power) (Temperature) (Lamp)

Adjustment of internal
temperature malfunc­tion.

Internal temperature is
abnormally high.

Lamp fails to light.

Fan failure

End of service life of
lamp.

Unplug power cable from socket to cancel display.
Wait until internal parts have cooled, then start up again.
If condition persists, take to store where purchased for
repairs.

If ventilation opening is blocked, remove blockage and
allow projector to cool.
Check air filter and if it is blocked with dirt, clean or
replace. (See page

En-29)
If condition persists, take to store where purchased for
repairs.

Wait 1 minute and start up again. At this time, fan rotates
for about 1 minute to cool internal parts. If condition
persists, take to store where purchased for repairs.

If rotation of the cooling fan is obstructed, remove
obstruction.
Unplug power cable from socket to cancel display.
If condition persists, take to store where purchased for
repairs.

Contact store where purchased and replace with a new
lamp. See page

En-30 for instructions on how to change

the lamp.

As shown left, the monitors light or flash red, or are off.

Monitor Display

Condition

Remedy

(Power) (Temperature) (Lamp)

STAND-BY

-

POWER-ON monitor is on
and TEMP and LAMP
monitors are flashing.

POWER-ON monitor is on
and TEMP monitor is
flashing.

POWER-ON monitor is on
and LAMP monitor is
flashing.

POWER-ON monitor is on
and TEMP and LAMP
monitors flash alternately.

On Flashing Off

En-10

Points to Note (continued)

Illumination around projector

The projector has two wireless remote control unit light receivers, on the front and rear. If the receivers are subjected to
strong light such as from fluorescent lights, the remote control unit may not function properly. In this case, move the
projector away from the fluorescent light or other light source, or position it so that light from the light source does not
shine directly on the receivers.

Moving the projector away
from the light source

Move the projector at least 2 m (6.5 feet) from the fluorescent
light or other light source. Keep the wireless remote control unit
light receivers out of direct sunlight.

To disable the wireless remote
control unit light receivers

Change the remote control input setting using the function
settings.
For details, see page

En-28.

Image characteristics

The projector is equipped with a liquid crystal panel. The colors and contrast of the projected image may differ from the
CRT image on a TV or PC.

Screen

If you are choosing a screen, first check the characteristics carefully and choose one that suits your purpose. Do not use a
polarizing screen with this projector as the image may appear reddish.

Using a mobile phone near the projector

If you use a mobile phone, transceiver or other device that generates radiowaves near the projector, it may cause distortion
of the image or noise from the speaker. Use such devices at a distance from the projector.

Light source

Over 2 m

En-11

EnglishFrançais

Deutsch

Español

Names of Parts

The figures in brackets refer to the relevant page number.

Front

Back

Side

Right side

Wireless remote control
unit light receiver [10, 13]

Projection lens [14]

Adjuster button [15]

Adjuster [15]

Wireless remote
control unit light
receiver [10, 13]

AUDIO

RGB/COMPONENT

AUDIO

S-VIDEO VIDEO

LR

IN

PUT1

IN

PUT1

Built-in security slot

This security slot supports
the MicroSaver Security
System of Kensington
Micorware Inc.

AC 100 – 240 V input
terminal [18, 30]

INPUT 1 terminal

S-VIDEO terminal
VIDEO terminal
AUDIO L/R
terminals [17]

INPUT 2 terminal

RGB/COMPONENT terminal
AUDIO terminal
[16, 17]

En-12

W – ZOOM – T

FOCUS

LAMP

MODE

TEMP.

STAND-BY
POWER-ON

AUTOPOWER

LCD

PROJECTOR

Names of Parts (continued)

The figures in brackets refer to the relevant page number.

Top

Wireless Remote Control Unit

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

Adjustment buttons ( , , , )/
Pointer buttons [19, 20, 22 – 28]

POWER button
[8, 9, 18, 30]

MODE button [18, 19]

AUTO button [19, 21]

POWER button [8, 9, 18, 30]

MENU button [22]

ZOOM-PAN buttons [20]
CANCEL button [20]

MUTE button [20]
MODE button [18, 19]

KEYSTONE buttons [21]

STATUS button [21]

AUTO button [19, 21]

VOLUME buttons [20]

ENTER button [19, 22 – 26]

Wireless remote control unit infrared
light emitting window [13]

Lamp monitor (LAMP)
[8, 9]

Temperature monitor
(TEMP.) [8, 9]

Power monitor
(STAND-BY/OIWER­ON) [8, 9, 18]

Zoom ring [14, 19]

Focus ring [19]

Battery tray [13]

En-13

EnglishFrançais

Deutsch

Español

Handling the Wireless Remote Control Unit

Loading the Battery (CR2025 lithium battery)

1While pushing the lock in the

direction 1, slide the tray out (2)
from the back of the wireless
remote control unit.

2 Insert the battery, making sur e that

the positive and negative poles are
correctly oriented.

3Close the tray.

10°
10°

10°
10°

About the Battery

• Remove the battery if the wireless remote control unit is not used for an extended period of time.

• When changing the batteries, use a CR2025 (3 V) lithium battery.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s
rules that apply in your country/area.

Note

• If the wireless remote control unit is placed face down, the buttons will be pressed and the projector will be put in
operation status, resulting in exhaustion of the battery. Be sure to store the remote control unit face up.

Caution

• T o prevent the battery from exploding, replace only with the same or equivalent type recommended by the manufacturer.

Range of Use of the Wireless Remote Control Unit

Warning

• Do not disassemble or modify the wireless remote control unit supplied with the projector as this may result in

injury or failure.

Within 5 m Within 5 m

1

2

En-14

Setting Up

• There are 3 ways of setting the projector up: front projection, ceiling hanging projection and rear projection.

• By adjusting the zoom ring (see page En-19), you can choose the screen size as shown below.

Offset (O)

Projection distance (L)

* Offset is the distance from the middle of the projection lens to the bottom edge of the screen.
* “Screen Size (inch)” is the diagonal length of the screen.
* 23-inch screen size is available only for wide screen and the projection distance is 1.1 m.

60 91 122 2.4 – 3.0 2.7

80 122 163 3.2 – 4.1 3.63
100 152 203 4.0 – 5.1 4.55
150 229 305 6.0 – 7.7 6.86
200 305 406 8.0 – 10.3 9.16
249 380 506 10.0 XXX

Screen Size

Screen Size

(inch)

Height

(cm)

Width

(cm)

Projection
distance L

(m)

Offset O

(cm)

Projection distance (L)

Offset (O)

(Front projection)

(Ceiling hanging projection)

En-15

EnglishFrançais

Deutsch

Español

Adjustment

• Adjust the height of the projector using the 2 adjusters on the front.

• If the relation between the position of the projector and the screen is not correct, the image will be distorted and blurred.

Release the adjuster buttons to fix the adjusters.

Note

• If you wish to lower the projector to its original position before storing it, press the adjuster buttons and slowly
lower the projector. It can then be stored easily.

Warning

• Place at least 30 cm (12 inches) away from the wall. Do not set up where ventilation is poor as this may lead to
fire.

• Do not place on a carpet or blanket as this may lead to fire.

• Do not block the ventilation holes on the front, right side and left side of the projector, as this may lead to fire.

Adjuster

Adjuster button

Lift the front of the projector, then press the
two adjuster buttons on the sides of the
projector.

The adjuster legs will loosen and extend.

Up

Down

1

Turn the adjusters for fine adjustment.

2

3

En-16

AT Interchangeable Equipment

External Connection

• This projector can be connected to a personal computer, TV, video deck, laser disk player, DVD, video camera, etc.

• Before making any connections or disconnections, make sure that the projector and the equipment to which it is con­nected are turned off. Read the instruction manual supplied with the equipment to which the projector is connected.

To a Personal Computer

Note

• Use an RGB cable that matches the shape of the image output terminal on your PC.

• For details of the PC frequencies suitable for this projector, see the list of RGB-compatible frequencies on page En-35.

• When connecting the projector to a Macintosh computer, be sure to use the optional MAC connector, otherwise a blank

display may result.

• When connecting the projector to a Macintosh notebook computer, in addition to the optional MAC connector, a

special adapter (commercially available) may be necessary.

[Projector Side]

To AUDIO
terminal
(sound can be
produced)

To sound output
terminal

To RGB/
COMPONENT
terminal (this
connection
enables PC
images to be
projected)

To RGB output
terminal

Stereo audio
cable

RGB cable
(supplied)

Macintosh

* MAC connector

[Projector Side]

To AUDIO
terminal
(sound can be
produced)

To sound output
terminal

To RGB/
COMPONENT
terminal (this
connection
enables PC
images to be
projected)

To RGB output
terminal

Stereo audio
cable

RGB cable
(supplied)

* MAC connector

When using a MAC connector, set the dip switches as follows.

VGA/SVGA Mode → Switches 2, 3, 6, 7 ON
Mac 16" Mode (832 x 624) → Switches 1, 3, 6, 7 ON
Mac 19" Mode (1024 x 768) → Switches 1, 2, 6, 7 ON
Mac 21" Mode (1152 x 870) → Switches 1, 2, 3, 4, 6, 7 ON
Mac 16" Multi. scan → Switches 1, 4, 6, 7, 9 ON
Mac 21" Multi. scan → Switches 1, 4, 6, 7, 8 ON

En-17

EnglishFrançais

Deutsch

Español

Note

• When connecting the projector to equipment with stereo sound output, be sure to connect the L/R audio output or

stereo audio cable. When there is no image input (blue background screen), there will be no audio output.

• For component video input, it is necessary to set the component signals separately. For details, see page En-27.

[Projector Side]

To S-VIDEO terminal (used
to connect equipment with S
image output terminal)

To VIDEO & AUDIO L/
R terminals
(this connection
enables image and
sound output)

To S image
output terminal

To video/audio
output terminals

To AUDIO terminal
(used to connect
equipment with
component output
terminal)

To audio output terminal
(on equipment with
component output
terminal)

To RGB/
COMPONENT
terminal
(used to connect
equipment with
component output
terminal)

To Cr, Y, Cb terminal
(on equipment with
component output
terminal)

Laser disk player Video deck

DVD player

AV cable
(supplied)

Stereo audio
cable

RCA-Dsub cable
(optional)

S terminal cable

AV equipment

To a Video/Laser Disk/DVD

En-18

LAMP

MODE

TEMP.

STAND-BY
POWER-ON

AUTOPOWER

LCD

PROJECTOR

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

Turning the Projector On and Off

Turning On

¡ Press the POWER button.

The POWER-ON monitor lights green and the
lamp comes on.

POWER-ON monitor display on projector front

Green : In operation
Red : Standby status
Orange : Lamp cooling

Important

• Always remove the lens cap before turning the
lamp on, otherwise the lens cap may become
deformed.

• The power cannot be turned off by pressing the
POWER button again for 1 minute after the
lamp comes on.

• Turn the projector on before turning the PC on,
otherwise the image display may be adversely
affected.

POWER BUTTON WAS PUSHED!

Push POWER button or
Move the cursor to “Power Off”
and push ENTER button
to turn projector off.

Power Off Cancel

When the button on the unit is pressed:

Basic Operation

Connecting the Power Source

1

Turning Off

¡ Press the POWER button.

The confirmation screen is displayed.

When the button on the remote control unit is
pressed:

2

Plug the power cable (supplied)
into the power terminal on the
back of the projector.

POWER BUTTON WAS PUSHED!

Push POWER button again to turn
projector off.
To cancel, push AUTO button or
MODE button.

ENTER button

Insert the power plug into the
power socket.

The POWER-ON monitor lights red and the
projector is in standby status.

AUTO button

POWER button

MODE button

POWER button

MODE button

AUTO button

Adjustment button

POWER-ON monitor

En-19

EnglishFrançais

Deutsch

Español

Adjusting the Focus

¡ Rotate the Focus ring.

The operation screen is exited soon after making
the adjustment.

➝

Selecting the Desired Image

¡ Press the MODE button.

The input source switches as shown below each
time the MODE button is pressed.

RGB

VIDEO or S-VIDEO

COMPONENT

Important

• When the preojector is turned on, you can only
select [RBG] or [VIDEO or S-VIDEO].
If you want to select [COMPONENT], select
[On] in [Component Selection] on the DIS­PLAY menu. (See page En-27)

• Select [WIDE] or [NORMAL] for the COMPO­NENT input signal. (See page En-27)

The input source display is exited soon after the
selection is made.

If you press the adjustment button on the remote
control unit to select [Power Off] and then press
the ENTER button, the power will be turned off.
You can also press the POWER button again to
turn the power off.
When the power is turned off, the following
operations are performed.

1. The POWER-ON monitor changes from green
to orange. (Lamp is cooling)

2. The cooling fan rotates for 2 minutes. The
buttons on the projector operation panel and the
remote control unit cannot be operated for 1
minute after cooling of the lamp starts. (Opera­tion can berestarted after 1 minute.)

3. When cooling is finished, the fan stops, the
POWER-ON monitor changes from orange to
red, and the projector is in standby status.

Note

• The cooling fan continues to rotate while the
inside of the projector is hot, even after the
POWER button is pressed. Do not unplug the
power cable from the socket while the cooling
fan is rotating (approx. 2 minutes).

➝

➝

Adjusting the Size of the Picture

¡ Rotate the Zoom ring.

Rotate in the direction “W” to increase the size of
the picture.
Rotate in the direction “T” to decrease the size of
the picture.

The operation screen is exited soon after making
the adjustment.

Note

• Match the size of the screen used to the
projection distance. See “Setting Up” on page
En-14.

Zoom ring

Focus ring

En-20

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

Adjusting the Volume

(This function is performed only by the wireless
remote control unit.)

¡ Press the VOLUME buttons

( , ).

The adjustment screen is displayed.

Press

to increase the volume.

Press

to decrease the volume.
The screen is exited soon after completing
adjustment.
The factory default setting is 20.

Muting the Sound and Image

(This function is performed only by the wireless
remote control unit.)

¡ Press the MUTE button.

The sound and image can be temporarily muted by
pressing the MUTE button.
Mute status switches as shown below when the
MUTE button is pressed.

Sound muted ([MUTE] appears on screen)

Sound and image muted

Normal status

Pointer buttons

ZOOM-PAN buttons

CANCEL button

MUTE button

VOLUME buttons

➝➝

50

Volume

➝

Partially Enlarging the Picture

(This function is performed only by the wireless
remote control unit.)

Press the ZOOM-PAN buttons
( , ).

Press to enlarge the image.
Press

to return the enlarged image to its original
size.
The area can be enlarged 1 – 25 times (area ratio)
in 15 stages each time

is pressed.

Move the image to the area you
wish to watch using the pointer
buttons on the remote control
unit.

Note

• Press the CANCEL button to cancel partial

enlargement and return to normal status.

• The mode is canceled when the menu screen is

displayed or when the input source is switched.

1

2

Basic Operation (continued)

En-21

EnglishFrançais

Deutsch

Español

LAMP

MODE

TEMP.

STAND-BY
POWER-ON

AUTOPOWER

LCD

PROJECTOR

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

Displaying Projector Status

(This function is performed only by the wireless
remote control unit.)

¡ Press the STATUS button.

The following statuses are displayed when the
STATUS button is pressed.

1 Image mode in present input source
2 Present input source
3 Lamp timer 4 Resizing status
5 Mute status 6 Volume status
7 Brightness 8 Contrast status

Press the STATUS button again to return to the
original screen.

50Hour
OFF
OFF

INPUT1-RGB

50

0

0

<

Status of This Projector

>

MODE : XGA_60

H-SYNC : 48.3kHz V-SYNC : 60Hz
Lamp Timer

Zoom & Pan
MUTE / V-MUTE
Volume
Brightness
Contrast

Source Input

1

2
3
4
5
6
7
8

Automatically Adjusting the Position

¡ Press the AUTO button.

The horizontal position, vertical position,
picture width and picture blurring are
automatically adjusted.

Adjusting Distortion of the Image Trapezoid

(This function is performed only by the wireless
remote control unit.)

¡ Press the KEYSTONE buttons

( , ).

The adjustment screen is displayed.

When

is pressed, the upper part of the image is

corrected.

When

is pressed, the lower part of the image is

corrected.

The screen is exited soon after adjustment is
completed. (It can also be exited by pressing the
MENU button.)

0

Keystone Correction

AUTO buttons

STATUS buttons

KEYSTONE buttons

AUTO buttons

En-22

POWER

AUTO MUTE

MODE

STATUS

CANCEL

MENU

ENTER

KEYSTONE

VOLUME

ZOOM-PAN

0
0

Luminance Mode
Brightness
Contrast
Factory Default
Next Page

ENTER

: Next

Normal Low

: Select

Operating the Menu Screens

ENTER button

Operating the Menu Screens

MENU button

Adjustment buttons (

, , , )

Example: Select the IMAGE menu.

Press the ENTER button.

The screen for selecting the item you wish to
adjust is displayed.

Note

• The same operation can be performed by
pressing the adjustment button.

Select the item you wish to
adjust with the adjustment

buttons ( , ).

The green button on the left of the selected item
lights up.

Example : Select Brightness.

↔

Operation bar

1

0
0

Luminance Mode
Brightness
Contrast
Factory Default
Next Page

ENTER

: Next

Normal Low

: Select

2

3

4

0
0

Luminance Mode
Brightness
Contrast
Factory Default
Next Page

Normal Low

: Select : Set up

↔

Press the MENU button.

The Menu screen is displayed.

Example: When RGB is selected for the input
source

Note

• The operation bar is displayed at the bottom of
the screen.

Select the menu item you wish
to adjust with the adjustment
buttons ( , ) on the remote
control unit or projector.

The selected menu screen is displayed.
The menu screen switches as shown below each
time the buttons are pressed.

IMAGE (

En-24) POSITION (En-26)

INSTALLATION (En-28) DISPLAY (En-27)

↔

↔

En-23

EnglishFrançais

Deutsch

Español

Making the Desired Adjust/Set
up

5-1 When there is a mark (to next

screen) at the right of the item
you wish to adjust

Example: Select [Contrast].

(1) Press the ENTER button to display the

adjust/select/set up screen.

Note

• The same operation is possible by pressing the

and adjustment buttons.

(2) Make the desired Adjust/Select/Set up

with the adjustment buttons ( , ,

, ).

5-2 When selecting the item you

wish to adjust ([OK/Cancel],
[Onl/Off], etc.)

• Select with the adjustment buttons
( , ).

Example: Select [On/Off] in [Resizing] on the
DISPLAY menu.

0
0

Luminance Mode
Brightness
Contrast
Factory Default
Next Page

: Select

ENTER

: Next

Normal Low

0

Contrast

MENU

: Return : Adjust

5

6

Press the MENU button to re­turn to the previous screen.

Each time the MENU button is pressed, the
display reverts one screen.

Note

• When [ENTER : Decide] is displayed on the
operation bar and ENTER is pressed, the item is
adjusted and the display returns to the previous
screen.

En-24

0

Color Temp.

MENU

: Return : Adjust

You can adjust, select and set up the following items on the IMAGE Menu.

■ Brightness

You can adjust the brightness of the picture.
Press the

adjustment button to make the picture brighter, and the

button to make it darker.

■ Contrast

You can adjust the contrast of the picture.
Press the adjustment button to make the contrast stronger, and the
button to make it weaker.

■ Sharpness (VIDEO only)

You can adjust the image quality.
Press the adjustment button to make the image sharper, and the
buttonto make it softer.

■ Color (VIDEO only)

You can adjust the depth of the colors.
Press the adjustment button to make the colors deeper, and the
buttonto make them paler.

■ Tint (VIDEO only)

You can adjust the tint.
Press the adjustment button for a reddish tint, and the button for a
greenish tint.

■ Color Temp.

You can adjust the color temperature.
Press the adjustment button for a blueish tinge, and the button for
a reddish tinge.

■ Factory Default

You can return the image adjustment values to their standard status
(factory default settings).
Select by pressing the and adjustment buttons, and decide by
pressing the ENTER button.

■ Next Page

Press the ENTER button (or button) to proceed to the second page
of the IMAGE Menu.

■ Before Page

Press the ENTER button (or button or MENU button) to return to
the first page of the IMAGE Menu.

Adjusting the IMAGE

(2nd page of IMAGE Menu)(1st page of RGB IMAGE Menu)

(1st page of VIDEO/COMPONENT IMAGE Menu)

0

Brightness

MENU

: Return : Adjust

0

Contrast

MENU

: Return : Adjust

0

Sharpness

MENU

: Return : Adjust

0

Color

MENU

: Return : Adjust

0

Tint

MENU

: Return : Adjust

0
0

Luminance Mode
Brightness
Contrast
Factory Default
Next Page

ENTER

: Next

Normal Low

: Select

0
0

0
0

0

Luminance Mode
Brightness
Contrast
Sharpness
Color
Tint
Factory Default
Next Page

Normal Low

ENTER

: Next: Select

0
0

0

0

Before Page
Color Temp.
Gain : Red
Gain : Green
Gain : Blue

: Select

ENTER

: Next

ENTER

: Decide

: Set up

OK Cancel

Default Factory Setting?

En-25

EnglishFrançais

Deutsch

Español

■ Gain: Red

You can adjust the strength of the red color.
Press the adjustment button to make it stronger, and the button to
make it weaker.

■ Gain: Green

You can adjust the strength of the green color.
Press the adjustment button to make it stronger, and the button to
make it weaker.

■ Gain: Blue

You can adjust the strength of the blue color.
Press the adjustment button to make it stronger, and the button to
make it weaker.

0

Gain : Blue

MENU

: Return : Adjust

0

Gain : Red

MENU

: Return : Adjust

0

Gain : Green

MENU

: Return : Adjust

En-26

You can adjust, select and set up the following items from the POSITION Menu.

■ Horiz. Position

You can adjust the horizontal position of the image.
Adjust by pressing the and adjustment buttons.

■ Vert. Position

You can adjust the vertical position of the image.
Adjust by pressing the

and adjustment buttons.
(If you move the image up a long way, it may become distorted, but
this is not a failure.)

■ Pixel Tracking (RGB only)

You can adjust the width of the picture.
Adjust by pressing the

and adjustment buttons.

■ Pixel Phase (RGB only)

You can adjust the degree of blurring of the picture.
Adjust by pressing the

and adjustment buttons.

■ Factory Default (VIDEO only)

You can return the position adjustment values to their standard status
(factory default settings).
Select by pressing the

and adjustment buttons, and decide by

pressing the ENTER button.

To reduce blurring and noise

If you adjust the [Pixel Phase] after adjusting [Pixel Tracking], it is easier to find the optimum point at which there is
minimum blurring or noise.
When adjusting [Pixel Tracking], the point at which the vertical belt of noise disappears when you display the [Quit
Windows] screen from the Windows 95/98/2000 Start Menu or the checkered pattern, is the optimum adjustment value.
When adjusting the [Pixel Phase], the point at which the horizontal blurring or noise disappears when you display the [Quit
Windows] screen from the Windows 95/98/2000 Start Menu or the checkered pattern, is the optimum adjustment value.

When automatically adjusting the position

• The horizontal position, vertical position, picture width and picture blurring are adjusted automatically.

• This adjustment will be executed when the following operations are performed.

1) when the power is turned on and the lamp lights

2) when the type of input source signal is changed while the lamp is on

3) when the input selector button is pressed while the lamp is on.

4) when the AUTO button is pressed while the lamp is on.

• The [Auto Setting] message is displayed on the screen during automatic adjustment.

• The picture may appear distorted during automatic adjustment, but this is not a malfunction.

• Correct adjustment may fail to be performed due to the input signal and input image from the PC. In this case, adjust
manually.

• Adjust the position automatically when you have a bright projected image.
Adjustment is only possible when the input source is set. It cannot be performed when there is no signal. ([NO SIGNAL]
is displayed.)

Adjusting the POSITION

0

Pixel Tracking

MENU

: Return : Adjust

0

Pixel Phase

MENU

: Return : Adjust

MENU

: Return : Adjust

Horiz. Position
Vert. Position

POSITION

ENTER

: Decide

: Set up

OK Cancel

Default Factory Setting?

0
0

POSITION
Horiz. Position
Vert. Position
Pixel Tracking
Pixel Phase

ENTER

: Next: Select

POSITION
Horiz. Position
Vert. Position

ENTER

: Next

Factory Default

: Select

(RGB POSITION Menu) (VIDEO/COMPONENT POSITION Menu)

En-27

EnglishFrançais

Deutsch

Español

You can select and set up the following items from the DISPLAY menu.

■ Resizing

You can select whether to display the picture in real mode (with the
same resolution as the input signal) or in resizing mode (converting it
to the same XGA size as the LCD panel).
Select by pressing the

and adjustment buttons.

The factory default setting is [On].

■ Language

You can select the language of the menu display.
Select by pressing the and adjustment buttons.

■ Video Standard (VIDEO only)

You can select the video broadcasting format. For normal use, set on
[AUTO]. Select by pressing the and adjustment buttons.
The factory default setting is [AUTO].

■ Source Status

You can select the method of displaying the status of the input source
as follows.

1) On
The source and mode status are displayed. The display disap
pears after a few seconds. When there is no signal, the [NO
SIGNAL] message is constantly displayed.

2) Off
The input source status is not displayed.

Select by pressing the

and adjustment buttons.

The factory default setting is [On].

■ Overscan (VIDEO only)

When there is interference at the top of the video screen, etc., you can
adjust the picture so that that part is not visible.
Select by pressing the and adjustment buttons.
The factory default setting is [Standard].

■ Component Selection

When you connect the component to the RGB/COMPONENT
terminal, select [On] by pressing the and adjustment buttons and
the [Component Display] menu will appear. Select the component
input signal.

■ Component Display (COMPONENT only)

You can select Normal (480P, 480I) or Wide (720P, 1080I) for the
COMPONENT input signal.
Select by pressing the

and adjustment buttons.

(VIDEO DISPLAY Menu)

(RGB DISPLAY Menu)

DISPLAY
Resizing
INPUT1 Mode

On Off

On Off

Analog Digital

Source Status
Blank Screen

Blue Black

Language

English

: Select

ENTER

: Next

SD HD

DISPLAY
Resizing
Language
Video Standard
Component Input
Source Status
Blank Screen
Overscan
3D Y/C

On
English
AUTO

Off

On Off

On Off
Blue Black

Standard Medium Maximum

: Select

ENTER

: Next

Setting the DISPLAY

(Language)

(Video Standard)

: Select

MENU

: Return

Language
English
Français

Español

Italiano

Deutsch

: Select

MENU

: Return

Video Standard
AUTO
WIDE
NTSC
PAL
SECAM
PAL–M
PAL–N
NTSC4.43

(COMPONENT DISPLAY Menu)

En-28

You can adjust and select the following items from the INSTALLATION Menu.

■ Auto Power Up

You can set whether or not the lamp comes on automatically when the
power plug is inserted in the socket.
Select by pressing the

and adjustment buttons.

The factory default setting is [Auto].

■ Auto Lamp Off

You can set whether or not the lamp goes off when there is no image
input signal for about 20 minutes.
Select by pressing the and adjustment buttons.
The factory default setting is [On].

■ Remote Control

You can select use of the wireless remote control unit light receivers on
the front and rear of the projector from the following.

1) Rear & Front
The remote control signal can be received from the front and rear.

2) Rear
The remote control signal can be received from the rear only.

3) Front
The remote control signal can be received from the front only.

Select by pressing the

and adjustment buttons.

The factory default setting is [Rear & Front].

■ Reverse Mode

You can set vertical or horizontal inversion of the image from the
settings shown on the right.
Select by pressing the and adjustment buttons.
The factory default setting is [Floor & Front].

Setting the INSTALLATION

(Remote Control)

(Reverse Mode)

: Select

MENU

: Return

Remote Control
Rear & Front
Rear
Front

Rear & Front
Normal

INSTALLATION
Auto Power Up
Auto Lamp Off
Remote Control
Reverse Mode

Auto Manual
On Off

: Select

ENTER

: Next

: Select

MENU

: Return

Reverse Mode
Normal
H Invert
V Invert
H/V Invert

En-29

English

Français

Deutsch

Español

About the ventilation holes

• If the ventilation holes become blocked, the temperature inside the projector rises and the lamp will fail to light. Clean the
ventilation holes about once every 6 months. Cleaning will be required more frequently if used in a particularly dusty
environment.

• When the air filter of the ventilation hole becomes hard to clean, it is ready to be changed. Purchase a new air filter.

Cleaning the ventilation holes

Maintenance and Care

1

2

Unplug the power cable from the socket.

Clean the ventilation holes.

Use a vacuum cleaner with a soft brush attached.

Note

• Do not use a vacuum cleaner with a hard attachment or without an attachment, as this may damage the projector.

Care of the cabinet

Wipe lightly with a soft, dry cloth. If the cabinet is very dirty, wipe with a cloth that has been soaked in neutral detergent
diluted with water and wrung out well. Finish with a dry cloth.

Care of the lens

Clean the lens with a commercially available blower or cleaning paper. Use of tissues, etc. may damage the lens. As the
surface of the lens is easily damaged, do not rub or hit with anything hard.

Ventilation holes

Air filter

En-30

• When the lamp reaches the end of its service life, the image becomes dark and the colors lose their vividness. When this
happens, change the lamp unit.

• When the “Approaching Recommended Lamp Life!” message appears, change the lamp unit.

• After removing the old lamp unit, handle with care to avoid breakage. Dispose of as industrial waste.

• Be sure to initialize the lamp timer after changing the lamp unit.

W ARNING

• Do not remove any screws other than those specified ( mark).
The high voltage and high temperature inside the projector may lead to electric shock or burns if touched.

• When changing the lamp unit, be sure to replace with a new lamp unit. Use of a used or second-hand lamp unit may lead
to breakage or failure of the lamp.

Changing the Lamp

Allow the lamp to cool for more than 1 hour after switching off the power before changing.

Remove the 1 screw ( mark)
and remove the lamp cover
from the projector.

For safety reasons, the safety devices are enabled
when changing the lamp to shut off the power.

Press the POWER button and
remove the power connector
from the power terminal.

1

2

Remove power connector

Changing the Lamp

En-31

English

Français

Deutsch

Español

Replace the lamp unit and lamp
cover following the disassembly
procedures in reverse order.

Be sure that the connector of the lamp unit is
correctly connected and the lamp unit is firmly
replaced.

Insert the power connector into
the power terminal.

While pressing the MODE but­ton, press the POWER button
three times.

All the monitors flash for a few seconds.
The lamp timer is initialized to [0 hours].

Loosen the two screws ( mark)
and lift out the lamp unit.

The screws are not taken off from the lamp unit.

Change the lamp unit.

Do not touch the glass inside the unit.
Dirt or fingermarks on the glass may reduce the
brightness of the lamp.

Connector

35

4

6
7

En-32

Symptom Cause

Reference Page

No image or sound Power cable not plugged in properly. En-18

Wires not connected correctly. En-16 – 17
Incorrect setting of input selector. En-19
Brightness adjustment is set on minus (–). En-24
Incorrect arrangement of pins on cable used. En-34
No sound without image input. Input image signal. En-16 – 17
Incorrect PC image output signal.

Check PC settings. –
Mute mode is enabled. En-20

Colors are pale. Color depth and tint not adjusted properly. En-24

Tints are poor.
No color Video input mode for function adjustment not set on [AUTO]. En-27
Image is blurred. Projection distance exceeds focus range. En-14

Lens focus is not correctly adjusted. En-19
Monitor flashes See “Monitor Display”. En-9

or no monitors lit.
Wireless remote control Wireless remote control unit light receiver on projector is En-13

unit does not function. obstructed (Front and rear).

Battery in wireless remote control unit has reached end of En-13

service life.

Wireless remote control unit light receiver is subject to strong light. En-10
The images cannot be Check the PC recommended timing. –

synchronized. PC display mode is on simultaneous display mode. En-32
No image or sound when Incorrect setting of input selector. En-27

connected to the INPUT Check whether [On] is selected in [Component Selection] when a
2 terminal. component is connected, and [Off] when a PC is connected.

Check the setting of the component input signal.

Troubleshooting

PC Output Signal

The projector has been designed with the RGB signals listed on page En-35 in mind. Depending on your PC, the RGB
signals output may be different from the design values. In particular, when the internal LCD panel of the notebook PC and
external CRT are set on simultaneous display, the RGB signal output may be outside the compatible range. In this case, it
may not be possible to display the image normally. Set the PC to “external CRT only” display mode.

En-33

English

Français

Deutsch

Español

Name LCD projector
Model LPF-4800, LPF-4800E
Type 3 LCD panels type
LCD size 0.9 inch
LCD drive system P-Si TFT active matrix
No. of pixels 2,359,296 (1024 × 768 pixels × 3)
Lens Electric powered zoom lens F=1.8 – 2.1 f=36 – 47 mm
Lamp 150 W EHP lamp
Projected picture size 23 inch – 300 inch
Projection distance 1.1 m – 10.0 m
Optical axis shift +8.7°
Picture aspect ratio 4 : 3
Projection format Left/right/up/down with reverse display setting
Rated voltage AC 100 – 240 V
Rated frequency 50/60 Hz
Power consumption 2.8 – 1.2A [270W (Approx. 11 W on standby)]
Working temperature range 5°C – 35°C
Storage temperature –15°C — 60°C
Input terminals Video : RCA pin × 1

S image : S terminal × 1
Analog RGB/Component : 15-pin D-sub terminal × 1
Sound : RCA pin (R/L) × 1

: 3.5ø mini stereo jack × 3

Speaker 1 W (monaural)
Outside dimensions (H)8.9 × (W)23.5 × (D)27.5 cm (3-4/8 × 9-2/8 × 10-7/8 inches)
Weight Approx. 3.6 kg (7.9 lbs)
Accessories Wireless remote control unit × 1, CR2025 (3 V) lithium battery × 1,

RGB cable × 1, AV cable × 1, Power cable × 1, Lens cap × 1,
User’s Manual (this manual) × 1

Specifications

• The specifications and external appearance may be altered for improvement purposes.

• Be sure to connect the earth of the power plug before use.

En-34

Specifications (continued)

RGB Input Terminal

HD-15 (mini D-sub)

Pin No. Signal Pin No. Signal Pin No. Signal

1 Red 7 Green Ground Horizontal synchro-
2 Green 8 Blue Ground 13 nized signal /
3 Blue 9 N/C component (TTL)
4 N/C 10 N/C

14

Vertical synchronized

5 Ground 11 Ground signal (TTL)
6 Red Ground 12 N/C 15 N/C

En-35

English

Français

Deutsch

Español

PC Picture mode

Picture mode Frequency

Horizontal (dot) Vertical (line) Horizontal (kHz) Vertical (Hz)

PCAT VGA 720 400 31.5 70.0
PCAT VGA 640 480 31.5 59.9
PCAT VGA 640 480 37.5 75.0
PCAT VGA 640 480 37.9 72.8
PCAT VGA 640 480 43.3 85.0
PCAT SVGA 800 600 35.2 56.3
PCAT SVGA 800 600 37.9 60.3
PCAT SVGA 800 600 48.1 72.2
PCAT SVGA 800 600 46.9 75.0
PCAT SVGA 800 600 53.7 85.0
PCAT XGA 1024 768 48.4 60.0
PCAT XGA 1024 768 56.5 70.0
PCAT XGA 1024 768 60.0 75.0
PCAT XGA 1024 768 68.7 85.0
PCAT SXGA 1152 864 67.5 75.0
PCAT SXGA 1280 960 60.0 60.0
PCAT SXGA 1280 1024 64.0 60.0
PCAT SXGA 1280 1024 80.0 75.0

MAC 13-inch 640 480 35.0 66.7
MAC 16-inch 832 624 49.7 74.5
MAC 16-inch 832 624 49.1 75.1
MAC 19-inch 1024 768 60.2 74.9
MAC 19-inch 1024 768 48.2 59.3
MAC 21-inch 1152 870 68.7 75.1

• No image may appear even if the resolution and frequency mentioned above are the same.

• PC display mode

When an image signal is input from a PC, the projector automatically selects the mode (resolution and frequency)
and projectsthe picture according to that mode.
The projector fundamentally conforms to VESA (Video Electronics Standards Association) standards, but depend­ing on the typeof PC, a non-VESA signal may be output. In such cases, the projected image will not be correctly
displayed, the overall picture will be blue in color, and the [NO SIGNAL] message will be displayed on the screen.
In this case, reset the image signal from the PC to another compatible mode. For details, refer to the above table
and the instruction manual for the PC.

Note

• All names of companies and products contained in this manual are trademarks or registered trademarks of the
respective companies.

• VGA is a registered trademark of IBM.

• Macintosh is a registered trademark of Apple Computer Inc.

Table of RGB Compatible Frequencies
