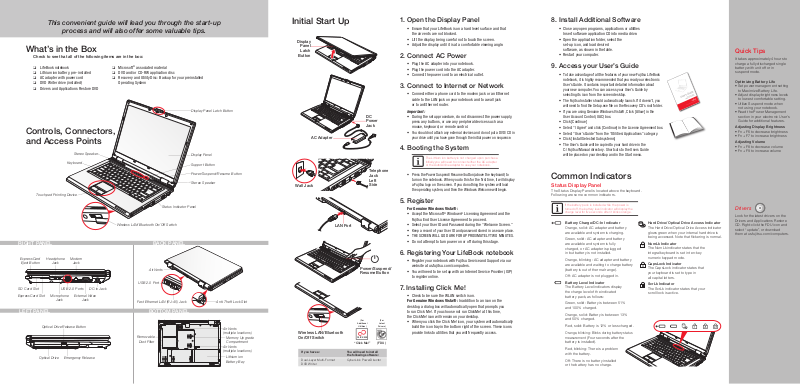

Fujitsu Lifebook V700 Getting Started Guide

This convenient guide will lead you through the start-up

process and will also offer some valuable tips.

What’s in the Box

Check to see that all of the following items are in the box:

❏ LifeBook notebook ❏ Lithium ion bat tery, pre-installed ❏ AC adapter with power cord ❏ DVD Writer drive (installed)

❏ Microsoft® associated material ❏ DVD and /or CD-RW application disc ❏ Recovery and Utility Disc : Backup for your preinstalled

Operating System

❏ Drivers and Applications Restore DVD

Controls, Connectors, and Access Points

Stereo Speaker

Keyboard

Touchpad Pointing Device

Status Indicator Panel

Wireless LAN/Bluetooth On/Off Switch

RIGHT PANEL BACK PANEL

ExpressCard

Eject Button

SD Card Slot

ExpressCard Slot

LEFT PANEL

Headphone

Jack

Microphone

Optical Drive Release Button

Optical Drive Emergency Release

USB 2.0 Ports

Jack

Modem

Jack

DC-in Jack

External Video

Jack

Air Vents

USB 2.0 Port

Fast Ethernet LAN (RJ-45) Jack Anti-Theft Lock Slot

BOTTOM PANEL

Removable

Dust Filter

Display Panel Latch Button

Display Panel

Support Button

Power/Suspend/Resume Button

Stereo Speaker

Air Vents (multiple locations)

Memory Upgrade

Compartment Air Vents (multiple locations)

Lithium ion

Battery Bay

Initial Start Up

Display

Panel Latch

Button

AC Adapter

Wall Jack

LAN Port

Wireless LAN/Bluetooth On/Off Switch

If you ha ve a: You will ne ed to in sta ll the fo llowing sof tware :

Dual- Layer Multi-Format Cybe rLink Po werDirector DVD Writer

CLICK ME

“Click Me!”

DC Power Jack

Tele phone Jack Left Side

Power/Suspend/ Resume Button

(For

Additional

Utilities)

(For

Latest

Drivers)

(FDU)

1. Open the Display Panel

Ensure that your LifeBook is on a hard level surface and that •

the air vents are not blocked. Lift the display, being careful not to touch the screen. • Adjust the display until it is at a comfortable viewing angle.•

2. Connect AC Power

Plug the AC adapter into your notebook.• Plug the power cord into the AC adapter.• Connect the power cord to an electrical outlet.•

3. Connect to Internet or Network

Connect either a phone cord to the modem jack or an Ethernet •

cable to the L AN jack on your notebook and to a wall jack

or to an Ethernet router.

Important:

During the setup procedure, do not disconnect the power supply, •

press any buttons, or use any peripheral devices such as a

mouse, keyboard, or remote control.

•

You should not attach any external devices and do not put a DVD/CD in

your drive until you have gone through the initial power on sequence.

4. Booting the System

The Lit hium io n battery is not c harge d upon pu rchase. Initia lly you w ill need to c onnec t eithe r the AC adapter or the Au to/Air line ad apter to use y our noteb ook.

Press the Power Suspend /Resume/button (above the keyboard) to •

turn on the notebook. When you do this for the ﬁ rst time, it will display

a Fujitsu logo on the screen. If you do nothing the system will load

the operating system, and then the Windows Welcome will begin.

5. Register

For Genuine Windows Vist a®:

Accept the Microsoft•

Fujitsu End User License Agreement to proceed. Select your User ID and Password during the “Welcome Screen.” •

•

Keep a record of your User ID and password stored in a secure place.

•

THE SCREEN WILL GO DARK FOR A PPROXIMATELY TWO MINUTES. Do not attempt to turn power on or off during this stage. •

Windows® Licensing Agreement and the

6. Registering Your LifeBook notebook

website at us.fujitsu.com/computers. You will need to be set up with an Internet Service Provider ( ISP) •

to register online.

7. Installing Click Me!

Check to be sure the WL AN switch is on.•

F or Genuine Windows Vist a®: In addition to an icon on the desktop, a dialog box will automatically open that prompts you to run Click Me!. If you choose not run ClickMe! at this time, the ClickMe! icon will remain on your desktop.

When you click the Click Me! icon, your system will automatically •

build the icon tray in the bottom right of the screen. These icons

provide links to utilities that you will frequently access.

8. Install Additional Software

Close any open programs, applications or utilities•

Insert software application CD into media drive.

Open the application folder, select the •

set-up icon, and load desired software, as shown in the table.

Restart your computer. •

9. Access your User’s Guide

•

To take advantage of all the features of your new Fujitsu LifeBook notebook, it is highly recommended that you read your electronic User’s Guide. It contains important detailed information about your new computer. You can access your User’s Guide by selecting its icon from the screen desktop.

The Fujitsu Installer should automatically launch. If it doesn’t, you •

will need to ﬁ nd the Setup.exe ﬁ le on the Recovery CD’s root folder.

If you are using Genuine Windows Vista®, Click [Allow] in the •

User Account Control (UAC) box. Click [Continue]• Select “I Agree” and click [Continue] in the License Agreement box.• Select “User’s Guide” from the “Utilities/Applications” category.• Click [Install Selected Subsystems]• The User’s Guide will be copied to your hard drive in the •

C:\Fujitsu\Manual directory. Shortcuts to the Users Guide

will be placed on your desktop and in the Start menu.

Common Indicators

Status Display Panel

The Status Display Panel is located above the keyboard. Following are some common indicators.

If the bat ter y pack is in stalle d while t he power i s turne d off, the batter y level indicato r will dis play the charge l evel for ﬁ v e secon ds after i t blinks orange.

Battery Charge/DC-In Indicator

Orange, solid : AC adapter and battery are available and system is charging.

Green, solid: AC adapter and battery are available and system is fully charged, or AC adapter is plugged in but battery is not installed.

Orange, blinking: AC adapter and batter y are available and waiting to charge bat tery (battery is out of thermal range) .

Off: AC adapter is not plugged in.

Battery Level Indicator

The Battery Level indicators display the charge level of the indicated batter y pack, as follows:

Green, solid: Batter y is between 51% and 100% charged.

Orange, solid: Battery is between 13% and 50% charged.

Red, solid: Battery is 12% or less charged.

Orange, blinking: Blinks during bat tery status measurement battery is installed).

Red, blinking: There is a problem with the battery.

Off: There is no batter y installed or the battery has no charge.

(Four seconds after the

Hard Drive /Optical D rive Access Indicator

The Hard Drive /Optical Drive Access indicator glows green when your internal hard drive is being accessed. Note that ﬂ ickering is normal.

NumLk Indicator

The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.

CapsLock Indicator

The CapsLock indicator states that your keyboard is set to type in all capital let ters.

ScrLk Indicator

The ScrLk indicator states that your scroll lock is active.

Quick Tips

It takes approximately 4 hours to charge a fully discharged single batter y with unit off or in suspend mode.

Optimizing Batter y Life

• Set power management setting to Maximize Battery Life.

• Adjust display brightness levels to lowest comfortable setting.

• Utilize Suspend mode when not using your notebook.

• Read the Power Management section in your electronic User’s Guide for additional features.

Adjusting Display Br ightness

• Fn + F6 to decrease brightness

• Fn + F7 to increase brightness

Adjusting Volume

• Fn + F8 to decrease volume

• Fn + F9 to increase volume

Drivers

Look for the latest drivers on the Drivers and Applications Restore CD. Right-click the FDU icon and select “update”, or download them at us.fujitsu.com/computers.

SAVE THESE INSTRUCTIONS

All repairs must be accomplished by an Authorized Repair Technician.

IMPORTANT SAFETY WARNINGS , CAUTIONS and I NSTRUCTIONS

This unit requires an AC adapter to operate.

with a current of 4.22A (80W ).

AC adapter output polarity:

When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of ﬁ re, electr ic shock and injury to persons, including the following :

Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundr y tub, •

in a wet basement or near a swimming pool. Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning.• Do not use the modem to report a gas leak in the vicinity of the leak.• Use only the power cord and bat teries indicated in this manual. Do not dispose of bat teries in a ﬁ re. They may •

explode. Check with local codes for possible special disposal instructions. To reduce the risk of ﬁ re, use only No. 26 AWG or larger UL Listed or CSA Certiﬁ ed Telecommunication •

Line Cord. For TV tuner use : To protect from overvoltages and transients on the Cable Distribution System, be sure that •

the outer shield of the coaxial cable is connected to ear th (grounded ) at the building premise as close to the

point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have

questions about your CATV installation, contact your service provider.

Batteries subjected to shocks, vibration or extreme temperature s can be permanently damaged.•

Caution

A shorted battery is damaged and must be replaced.•

Use only UL Listed I.T.E. Class II AC adapters with an output rating of 19 VDC,

Popular Accessories

Main Lithium ion Battery Auto/Airline Adapter Additional AC Adapter USB Universal Docking Station with Video External USB Floppy Disk Drive USB Optical Mouse

Carrying Cases

• Diplomat (ballistic nylon)

• Tri-pak backpack

• Workstation Plus

• Mobile Lite Wheeled Case

• Mobile Max Wheeled Case

Notebook Guardian™ Lock

Have questions or need help?

• Visit our website at us.fujitsu.com/computers

• Call us anytime at 1.800.8FUJITSU

• Email us at 8fujitsu@us.fujitsu.com

Want more information on Fujitsu products?

• Visit our website at www.shopfujitsu.com

• Call us anytime at 1.800.FUJITSU

Fujitsu Extended Service Plans available.

Visit us.fujitsu.com/computers

to purchase any of these accessories or to get more information.

For Authorized Repair Technicians Only

DANGER OF EXPLOSION IF LITHIUM ( CLOCK) BATTERY IS INCORRECTLY REPLACED. REPL ACE •

ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER.

DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.

Warning

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME •

TYPE AND RATING FUSE.

System Disposal

Fujitsu is very concerned with environmental protection and has enlisted the services of the Re chargeable Batter y Recycle Corporation (RBRC)*, a non-proﬁ t public ser vice organization dedicated to protecting our environment by recycling old batteries at no cost to you.

RBRC has drop-of f points at tens of thousands of locations throughout the United States and Canada. To ﬁ nd the location nearest you, go to ww w.RBRC.org or call 1-899-822-8837.

If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website ( http://EIAE.org/) and search for a convenient disposal location.

Remember—protecting the environment is a cooperative ef fort, and you should make every ef fort to protect it for current and future generations.

To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at

www.shopfujitsu.com

** RBRC is an independent third par ty to which Fujitsu provides funding for battery recycling;

RBRC is in no way afﬁ liated with Fujitsu.

in the U.S.A. or www.fujitsu.ca /products/notebooks in Canada.

Record your notebook serial number here:

Serial #______________________ (see bottom of computer)

Fujitsu Computer Systems Corporation 1250 E. Arques Avenue M/S 122 Sunnyvale, CA 940 85

Fujit su, the Fujit su logo, and Lif eBook are regi stered tra demar ks of Fujits u Limit ed. Micro soft, Wind ows, an d Genu ine Win dows V ista are regi stered tra demar ks or trademar ks of Mic rosoft Cor poration in the United S tate s and /or ot her cou ntries. All ot her tr adema rks mentio ned he rein ar e the pro perty of t heir re spec tive owners. Prod uct descri ption data re presents F ujit su des ign obj ecti ves an d is prov ided fo r comp arat ive pur poses; ac tual r esul ts may v ary b ased o n a vari ety of f acto rs. Spe ciﬁ catio ns are su bject to chan ge without n otic e.

Getting Started

Get Started with your

LifeBook

This guide will lead you through the start-up process for your new LifeBook notebook and will also provide

some valuable tips. To learn about all the exciting fe atures that your new LifeBook notebook has to of fer,

please see the User’s Guide that can be accessed after completing the start-up procedure.

V700 Notebook
