Fujitsu LifeBook T4020, LifeBook T4020D User Guide

Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.

Microsoft, MS-DOS, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

PCMCIA is a trademark of the Personal Computer Memory Card International Association.

Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks mentioned herein are the property of their respective owners.

© Copyright 2005 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation.

B6FH-6901-01EN-00

WARNING

Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu Computer Systems Corporation

Address: 1250 E. Arques Avenue, MS 122

Sunnyvale, CA 94085

Telephone: (408) 746-6000

Declares that product: Model Configuration:

LifeBook T4020 Tablet PC LifeBook T4020D Tablet PC

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.

LifeBook T Series Tablet PC

IMPORTANT SAFETY INSTRUCTIONS

This unit requires an AC adapter to operate. Use only UL Listed Adapters with an output rating of 19 VDC, with a current of 3.15 A.

AC Adapter output polarity:

When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

■

Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

■

Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning.

■

Do not use the modem to report a gas leak in the vicinity of the leak.

■

Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

■

To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

For Authorized Repair Technicians Only

Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instruction.

For continued protection against risk of fire, replace only with the same type and rating fuse.

System Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST

BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS.

SAVE THESE INSTRUCTIONS

Table of Contents

Fujitsu LifeBook® T Series Tablet PC

Table of Contents

PREFACE

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . .3

Fujitsu Contact Information . . . . . . . . . . . . . . . . .3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

GETTING TO KNOW YOUR TABLET PC

Overview

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Optional Accessories . . . . . . . . . . . . . . . . . . . . . .8

Locating the Controls/Connectors

Top and Front Components . . . . . . . . . . . . . . . .11

Left-Side Panel Components . . . . . . . . . . . . . . .13

Right-Side Panel Components . . . . . . . . . . . . . .14

Rear Panel Components . . . . . . . . . . . . . . . . . . .15

Bottom Components . . . . . . . . . . . . . . . . . . . . .16

Status Indicator Panel

Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .17

External Power Indicator. . . . . . . . . . . . . . . . . . .17

Battery Charging/Level Indicators. . . . . . . . . . . .17

Optical Drive Access Indicator . . . . . . . . . . . . . .18

Hard Drive Access Indicator . . . . . . . . . . . . . . . .18

NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . .18

CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . .18

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . .18

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . .18

Display Panel

Opening the Display Panel . . . . . . . . . . . . . . . . .19

Using the System as a Tablet . . . . . . . . . . . . . . .19

Adjusting Display Panel Brightness . . . . . . . . . . .20

Keyboard

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .21

Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .21

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .21

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .21

LifeBook Security/Tablet PC Buttons

Changing Tablet PC Button Functions . . . . . . . .24

Setting up LifeBook Security Panel . . . . . . . . . . .24

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Using Your LifeBook Security Panel . . . . . . . . . .25

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Uninstalling the Security Panel Application . . . . .26

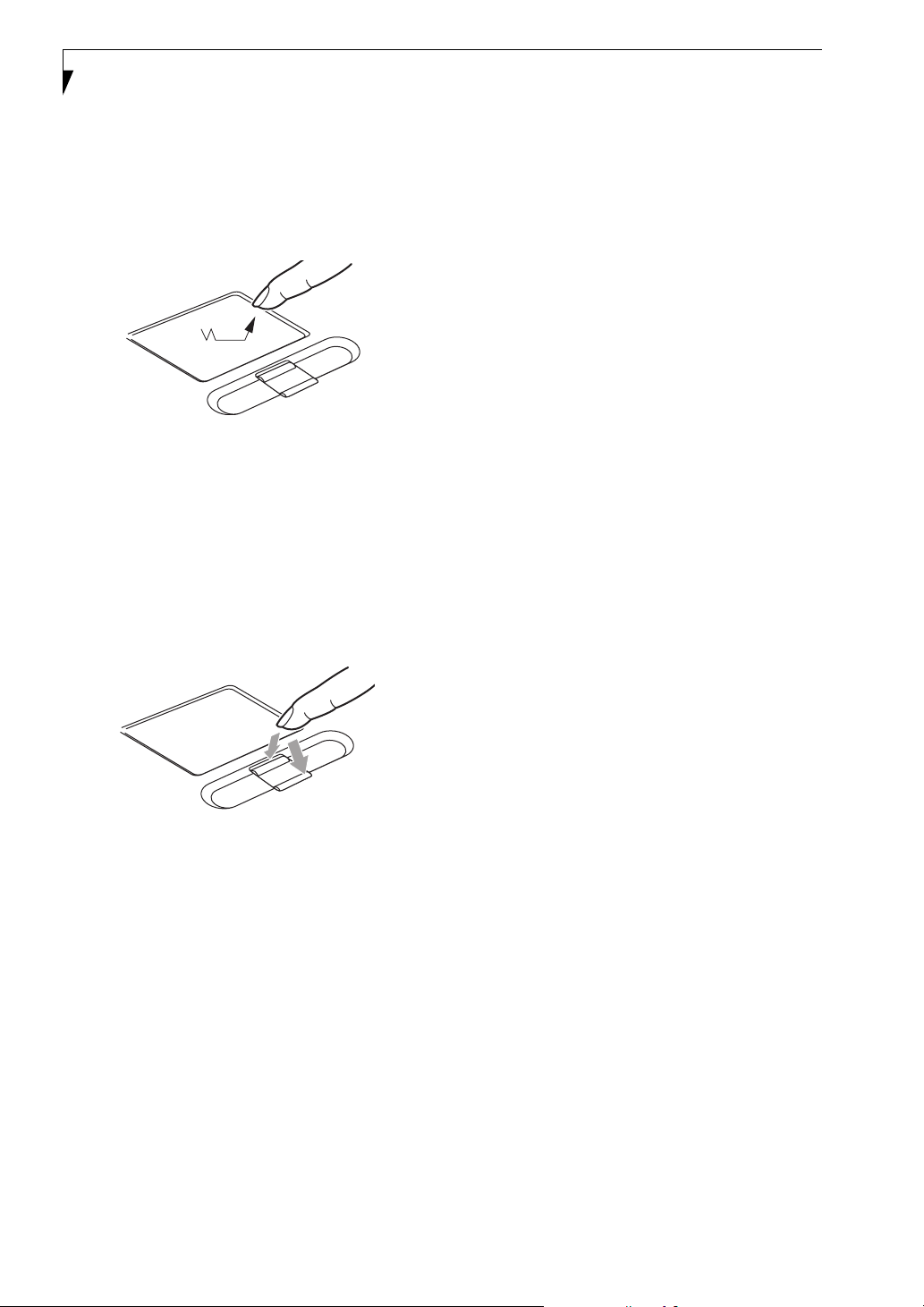

Touchpad Pointing Device

Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . .27

Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Touchpad Control Adjustment . . . . . . . . . . . . . .28

Volume Control

Controlling the Volume . . . . . . . . . . . . . . . . . . .29

Pen and Active Digitizer

Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . .30

Installing a Pen Tether . . . . . . . . . . . . . . . . . . . .30

Calibrating the Pen. . . . . . . . . . . . . . . . . . . . . . .31

Replacing the Pen Tip. . . . . . . . . . . . . . . . . . . . .31

Using the Active Digitizer . . . . . . . . . . . . . . . . . .31

LifeBook T Series Tablet PC

USING YOUR TABLET PC

Power Sources

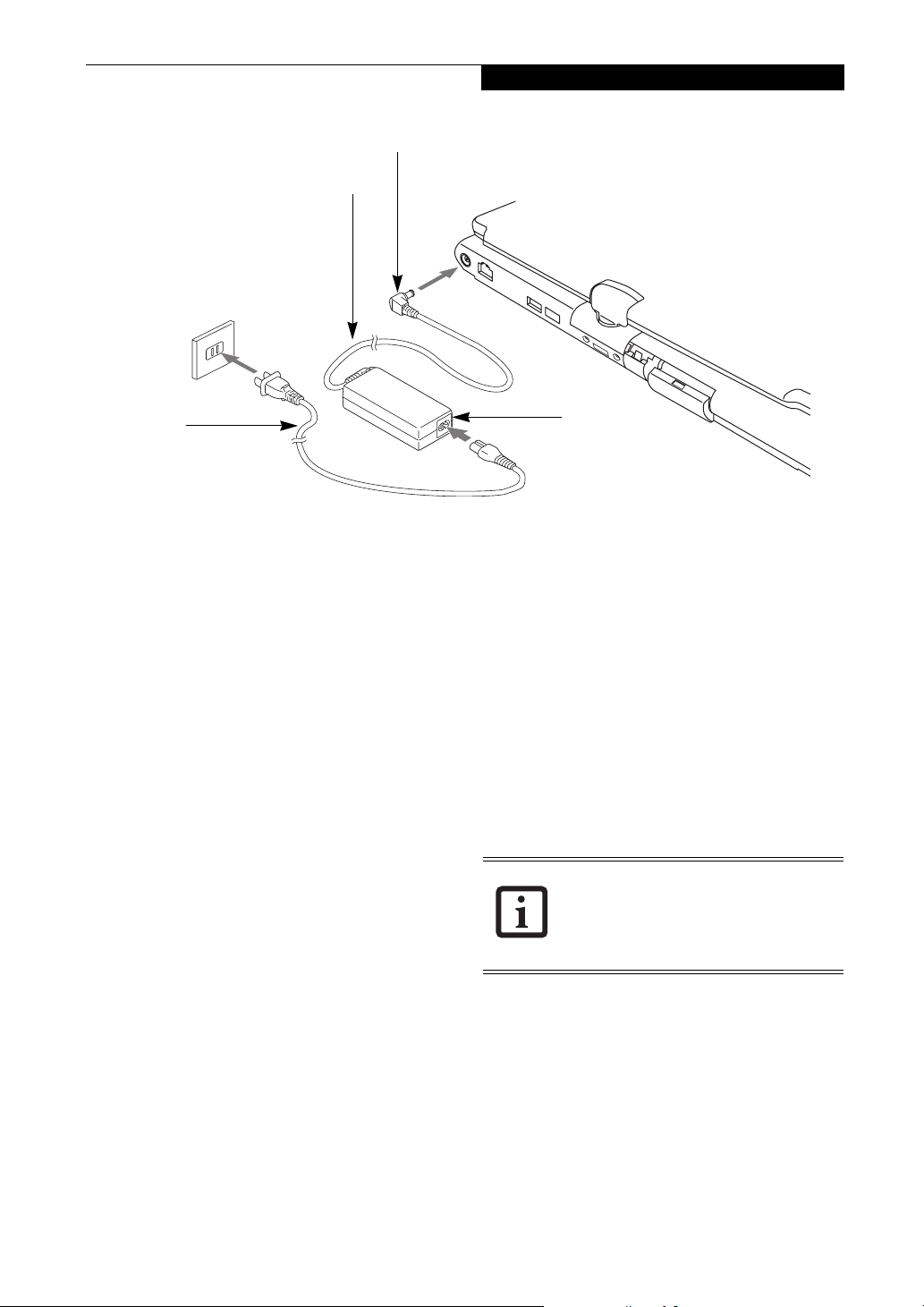

Connecting the Power Adapters. . . . . . . . . . . . . 35

Starting Your Tablet PC

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . 36

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 36

Booting the System . . . . . . . . . . . . . . . . . . . . . . 37

Registering Your LifeBook Tablet PC . . . . . . . . . 37

Installing Click Me!. . . . . . . . . . . . . . . . . . . . . . . 37

Power Management

Suspend/Resume Button . . . . . . . . . . . . . . . . . .38

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Hibernate Mode. . . . . . . . . . . . . . . . . . . . . . . . .39

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 39

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . 39

Windows Power Management . . . . . . . . . . . . . . 39

Restarting the System. . . . . . . . . . . . . . . . . . . . . 39

Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

USER-INSTALLABLE FEATURES

Port Replicator

Rear Panel Components. . . . . . . . . . . . . . . . . . . 51

Front Panel Components . . . . . . . . . . . . . . . . . . 52

Attaching the Port Replicator . . . . . . . . . . . . . . . 53

Detaching the Port Replicator . . . . . . . . . . . . . . 53

Device Ports

Modem (RJ-11) Jack . . . . . . . . . . . . . . . . . . . . . 54

Internal LAN (RJ-45) jack . . . . . . . . . . . . . . . . . . 54

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 54

IEEE 1394 Port . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 55

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 55

External Video Port . . . . . . . . . . . . . . . . . . . . . . 55

External DVI Port . . . . . . . . . . . . . . . . . . . . . . . . 55

TROUBLESHOOTING

Troubleshooting

Identifying the Problem . . . . . . . . . . . . . . . . . . . 59

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . 59

Troubleshooting Table . . . . . . . . . . . . . . . . . . . . 60

Power On Self Test Messages . . . . . . . . . . . . . . 67

Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 68

Lithium ion Battery

Recharging the Battery. . . . . . . . . . . . . . . . . . . .43

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . 44

Memory Upgrade Module

Installing Memory Upgrade Modules . . . . . . . . . 45

Removing a Memory Upgrade Module . . . . . . . 45

Checking the Memory Capacity . . . . . . . . . . . . . 46

Flexible Bay Devices

Fujitsu Tablet Controls - CD/DVD Drive Help. . . 47

Removing and Installing Modular Devices . . . . . 48

PC Cards

Inserting PC Cards . . . . . . . . . . . . . . . . . . . . . . . 49

Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . 49

Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . 49

Memory Stick/Secure Digital Media

Inserting Memory Stick/SD Cards. . . . . . . . . . . .50

Removing A Memory Stick/SD Card . . . . . . . . . 50

Restoring Pre-installed Software

Re-Installing Drivers and Applications . . . . . . . . 69

Restoring the Factory Image . . . . . . . . . . . . . . . 69

CARE AND MAINTENANCE

Care and Maintenance

LifeBook T Series Tablet PC . . . . . . . . . . . . . . . . 73

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Optional Floppy Disk Drive and Floppy Disks. . . 74

Optional Optical Drive and Discs . . . . . . . . . . . . 75

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Table of Contents

SYSTEM SPECIFICATIONS

Specifications

Configuration Label . . . . . . . . . . . . . . . . . . . . . .79

Physical Specifications . . . . . . . . . . . . . . . . . . . .79

Processing Specifications . . . . . . . . . . . . . . . . . .79

Memory/Storage Specifications . . . . . . . . . . . . .79

Display Specifications . . . . . . . . . . . . . . . . . . . . .79

Interface Specifications. . . . . . . . . . . . . . . . . . . .79

Power Specifications. . . . . . . . . . . . . . . . . . . . . .80

Environmental Specifications . . . . . . . . . . . . . . .80

Agency Approval Specifications . . . . . . . . . . . . .81

Additional Specifications. . . . . . . . . . . . . . . . . . .81

Regulatory Information . . . . . . . . . . . . . . . . . . .82

GLOSSARY

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

APPENDIX A: INTEGRATED WIRELESS LAN USER’S GUIDE

Before Using the Wireless LAN

Wireless LAN Modes Using this Device. . . . . . . .96

Wireless Network Considerations . . . . . . . . . . . .97

Deactivating the WLAN Device . . . . . . . . . . . . .97

Activating the WLAN Device . . . . . . . . . . . . . . .98

WLAN Troubleshooting

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .106

Wireless LAN Glossary

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

IP address information

Additional Information . . . . . . . . . . . . . . . . . . .109

WLAN Specifications

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Using the Bluetooth Device

What is Bluetooth. . . . . . . . . . . . . . . . . . . . . . .111

Where to Find Information About Bluetooth . .111

APPENDIX B: USING THE FINGERPRINT SENSOR

Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . .115

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . .115

Installing OmniPass . . . . . . . . . . . . . . . . . . . . .115

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . .116

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . .117

Configuring OmniPass . . . . . . . . . . . . . . . . . . .119

OmniPass Control Center. . . . . . . . . . . . . . . . .120

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .121

INDEX

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Configuration of the WLAN Device

Flow of Operations. . . . . . . . . . . . . . . . . . . . . . .99

Configuration Using Wireless Zero Tool . . . . . . . 99

Configuration Using Intel PROSet Software . . . 100

Configuration Using Atheros Client Utility . . . . 101

Connection to the network. . . . . . . . . . . . . . . .103

LifeBook T Series Tablet PC

Preface

LifeBook T Series Tablet PC

Preface

ABOUT THIS GUIDE

The LifeBook® T Series Tablet PC from Fujitsu Computer Systems Corporation is a powerful convertible computer. It can be used either as a standard notebook using keyboard input, or in tablet configuration using pen input. It is powered by an Intel® microprocessor, has a built-in color display with an active digitizer, and brings the computing power of desktop personal computers (PCs) to a portable and versatile environment.

This manual explains how to operate your LifeBook T Series Tablet PC’s hardware and built-in system software. Your LifeBook T Series Tablet PC comes with Windows® XP Tablet PC Edition 2005 pre-installed.

Your LifeBook T Series Tablet PC is a completely selfcontained unit with an active-matrix (TFT) color LCD display. The display has a wide viewing angle and can be used indoors or outdoors. The tablet has a powerful interface that enables it to support a variety of optional features.

Conventions Used in the Guide

Keyboard keys appear in brackets. Example: [Fn], [F1], [Esc], [Enter] and [Ctl].

Pages with additional information about a specific topic are cross-referenced within the text. Example: (See page xx.)

On screen buttons or menu items appear in bold. Example: Click OK to restart your Tablet PC.

FUJITSU CONTACT INFORMATION

Service and Support

You can contact Fujitsu Computer Systems Service and Support the following ways:

■

Toll free: 1-800-8Fujitsu (1-800-838-5487)

■

Fax: 1-408-764-2724

■

E-mail: 8fujitsu@us.fujitsu.com

■

Web site: http://www.computers.us.fujitsu.com/support

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

■

Product name

■

Product configuration number

■

Product serial number

■

Purchase date

■

Conditions under which the problem occurred

■

Any error messages that have occurred

■

Type of device connected, if any

Fujitsu Online

You can go directly to the online Fujitsu Product catalog for your Tablet PC. Go to Start -> Fujitsu WebLinks -> Pen Accessories Web site.

You can also reach Fujitsu Service and Support online by going to Start -> Fujitsu WebLinks -> Fujitsu Service and Support.

You must have an active internet connection to use the online URL links.

DOS commands you enter appear in Courier type. Example: Shutdown the computer

The information icon highlights information that will enhance your understanding of the subject material.

The caution icon highlights information that is important to the safe operation of your computer, or to the integrity of your files. Please read all caution information carefully.

The warning icon warns you about possible hazards that can occur to you, your system, or your files. Please read all warning information carefully.

WARRANTY

Your LifeBook T Series Tablet PC is backed by an International Limited Warranty and includes toll-free technical support. Check the service kit that came with your Tablet PC for warranty terms and conditions.

LifeBook T Series Tablet PC - Preface

Getting to Know Your Tablet PC

LifeBook T Series Tablet PC

Getting to Know Your Tablet PC

Figure 2-1. Fujitsu LifeBook T Series Tablet PC

Overview

This section describes the components of your Fujitsu LifeBook T Series Tablet PC. We strongly recommend that you read it before using your Tablet PC, even if you are already familiar with mobile computers.

UNPACKING

When you receive your LifeBook T Series Tablet PC, unpack it carefully, and compare the parts you have received with the items listed below.

For a pre-configured model you should have:

■

LifeBook T Series Tablet PC (Figure 2-1)

■

AC adapter with AC power cord (Figure 2-2)

■

Phone/Modem (RJ-11) telephone cable

■

Pen

■

Pen tether

■

Screen protectors (Qty. 2)

■

Driver and Application Restore (DAR) DVD

■

Recovery DVD

■

Getting Started Guide

■

User’s Guide (this document)

■

International Limited Warranty Booklet

■

Certificate of Authenticity

■

Lithium ion battery (pre-installed)

You may also have one or more of the following devices in the box, depending upon the configuration of your system:

■

Port Replicator (Figure 2-3)

■

External USB Floppy Disk Drive

■

Additional battery(s)

■

Application CD(s) for third-party software

Figure 2-2. AC Adapter

Figure 2-3. Optional Port Replicator

LifeBook T Series Tablet PC - Section 2

OPTIONAL ACCESSORIES

The following optional accessories can be used with the LifeBook T Series Tablet PC. Refer to the instructions provided with these accessories for details on their use. For the latest list of accessories available for your LifeBook T Series Tablet PC, be sure to frequently check the Fujitsu Web site at: www.shopfujitsu.com

Docking Options

■

LifeBook T Series Tablet PC port replicator

Carrying Cases

■

Executive leather portfolio

■

Field Mate convertible

■

Duo Travel Bag

■

Director leather carrying case

■

Diplomat carrying case

■

Backpack

Storage Options

■

External USB floppy disk drive

■

Modular DVD/CD-RW Combo Drive

■

Multi-Format DVD Writer

Memory

■

256 MB SDRAM, DDR2-533

■

512 MB SDRAM, DDR2-533

■

1.0 GB SDRAM, DDR2-533

■

128 MB Compact Flash card

■

256 MB Compact Flash card

■

128 MB Secure Digital memory card

Power Options

■

AC Adapter with US cord

■

Main battery

■

Modular bay battery

■

Auto/airline adapter

■

Battery charger with AC Adapter

Input Accessories

■

Replacement pen set (2-pack)

■

USB optical mouse

Additional Accessories

■

4-in-1 PC Card Adapter

■

Compact Flash card adapter

■

Notebook Guardian Lock

■

Screen protectors

■

Deluxe pen tether

Getting to Know Your Tablet PC

Locating the Controls and Connectors

Connectors and peripheral interfaces on the LifeBook T Series Tablet PC and the optional port replicator allow you to connect a variety of devices. Specific locations are illustrated in Figures 2-4 through 2-8. The table below

provides a short description of each icon on the LifeBook T Series Tablet PC. Each of the icons is either molded into or printed on the Tablet PC chassis.

Connection

DC in connector Connect an external power source such as the AC adapter or auto/

SD/Memory Stick Slot

Smart Card Slot The dedicated Smart Card slot allows you to insert a Smart Card on

USB Port Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the

PCMCIA Card slot

Microphone jack Connect an external microphone. The internal microphone is

Headphone jack Connect stereo headphones or powered external speakers. The

Tablet PC

Icon

Purpose

airline adapter.

The Secure Digital (SD) card/Memory Stick slot allows you to insert a flash memory card for data storage. Flash memory cards allow you to transfer data to and from a variety of different digital devices.

which you can store such data as medical information or electronic “cash”.

Tablet PC.

Insert Type I or Type II PC Cards.

disabled when you plug in an external microphone.

internal speaker is disabled when you plug in external headphones or powered speakers.

IrDA/FIR port An infrared transceiver built into the Tablet PC allows you to

communicate with other devices that are compliant with IrDA Standard Rev. 1.1. Effective range for infrared communication is about 3 feet, and within 15 degrees off center. A clear line-of-sight path must exist between the IrDA port on the computer and the IrDA transceiver on the other device.

Modem Connect a telephone line to the internal modem using a standard

RJ-11 telephone plug.

Tablet Dock port Connect the Tablet PC port replicator or other approved docking

device. Refer to documentation accompanying the dock for more information.

Security lock slot The security slot allows you to secure the Tablet PC using

compatible locking devices.

Suspend/Resume button

The Suspend/Resume button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from suspend mode, and power on the system when it has been shut down from Windows.

LifeBook T Series Tablet PC - Section 2

Connection

Local Area Network (LAN)

Tablet PC

Icon

Purpose

The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-T/Tx Ethernet to a Local Area Network (LAN) in your office or home, or broadband devices such as a cable modem, DSL, or satellite Internet.

*1000 Mbps, commonly referred to as Gigabit Ethernet.

Wireless LAN On-Off Switch

The wireless LAN switch allows you to turn power to the optional wireless LAN device on and off.

Display Rotation This icon indicates the direction in which the display should be

rotated when converting to tablet mode.

Table 2-1. System icons

Built-in Microphone

Pen Holder

SD/Memory

Stick Slot

Stereo Speaker

Pen/

Rotation

Hinge

Power

Indicator

Status

Indicator

Panel

Getting to Know Your Tablet PC

Display Panel Latch

Display Panel

Built-in Microphone

LifeBook Security/ Tablet PC Buttons

Suspend/ Resume Button

Keyboard

Touchpad Pointing Device

Headphone

Jack

Microphone

Display Panel Release Button

Jack

* Touchpad may have scroll button or optional fingerprint sensor device.

Figure 2-4. LifeBook T Series Tablet PC with display open

Scroll Button*

TOP AND FRONT COMPONENTS

The following is a brief description of the top and front features of the LifeBook T Series Tablet PC. (Figure 2-4)

Pen/Pen Holder

The pen is used as the interface with the active digitizer display.

Display Panel Latch

The display panel latch locks and releases the display panel.

Display Panel

The display panel is a color LCD panel with back lighting for the display of text and graphics and active digitizer functionality.

Built-in Microphones

The built-in microphones allow you to input mono audio.

LifeBook Security/Tablet PC Buttons

The LifeBook T Series Tablet PC Security/Tablet PC Buttons provide hardware security and application

Stereo Speaker

launch capabilities. See “LifeBook Security/ Tablet PC Buttons” on page 23.

Suspend/Resume Button

The Suspend/Resume button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from standby mode, and power on your system when it has been shut down from the Windows operating system. See “Power On” on page 36.

Keyboard

A full-function keyboard with dedicated Windows keys. See “Keyboard” on page 21.

Touchpad Pointing Device

The Touchpad pointing device consists of two mouselike buttons and one scroll button*. See “Touchpad Pointing Device” on page 27.

* Certain configurations of this system have an optional

fingerprint sensor located in place of the scroll button. See “Fingerprint Sensor Device” on page 115.

LifeBook T Series Tablet PC - Section 2

Stereo Speakers

The stereo speakers allow you to listen to stereo sound from your system.

Display Panel Release Button

The display panel release button allows you to release the display so that it can be opened.

Microphone Jack

The microphone jack allows you to connect an external mono microphone. See “Microphone Jack” on page 55.

Headphone Jack

The headphone jack allows you to connect stereo headphones or powered external speakers. See “Headphone Jack” on page 55.

Power Indicator

The power indicator shows the power state of the system. Solid green indicates that power is on, and blinking green indicates that the system is in suspend mode.

SD Card/Memory Stick

Rotation Hinge

The rotation hinge allows you to transform your Tablet PC from a notebook configuration into a tablet configuration. See “Using the System as a Tablet” on page 19.

Status Indicator Panel

The Status Indicator Panel displays symbols that correspond to specific components of your LifeBook T Series Tablet PC. See “Status Indicator Panel” on page 17.

Getting to Know Your Tablet PC

Pen Tether Attachment Point

Air Vents Wireless LAN/Bluetooth

On/Off Switch

Figure 2-5. LifeBook T Series Tablet PC left-side panel

USB 2.0 Port

LEFT-SIDE PANEL COMPONENTS

Following is a brief description of your Tablet PC’s leftside components. (Figure 2-5)

Pen Tether Attachment Point

The pen tether attachment point is designed to securely hold a pen tether to prevent loss of the pen. See “Installing a Pen Tether” on page 30 for additional information.

USB 2.0 Port

The two USB 2.0 ports (one on rear panel and one on left-side panel) allow you to connect Universal Serial Bus devices. See “Universal Serial Bus Ports” on page 54.

PC Card Slot

The PC Card Slot allows you to insert a Type I or Type II PC Card. The PC Card Eject Button is used when ejecting a PC Card from the slot. See “PC Cards” on page 49.

IEEE 1394 Port

Allows you to connect IEEE 1394 (Firewire) peripherals such as digital video cameras your Tablet PC.

or external hard drives to

PC Card Slot

IEEE 1394 Port

Smart Card Slot

PC Card Eject/ Lock Button

WLAN/Bluetooth On/Off Switch

The wireless LAN/Bluetooth On/Off Switch is used to power off the wireless antenna when not in use.

Smart Card Slot

The dedicated Smart Card slot allows you to insert an optional Smart Card on which you can store such data as medical information or electronic “cash”.

Air Vents

The air vents are used to cool the system to prevent overheating

To protect your computer from damage and to optimize system performance, be sure to keep all air all vents unobstructed, clean, and clear of debris. This may require periodic cleaning, depending upon the environment in which the system is used.

Do not operate the computer in areas where the air vents can be obstructed, such as in tight enclosures or on soft surfaces like a bed or cushion.

LifeBook T Series Tablet PC - Section 2

Anti-theft Lock Slot

Figure 2-6. LifeBook T Series Tablet PC right-side panel

RIGHT-SIDE PANEL COMPONENTS

Following is a brief description of your Tablet PC’s rightside components.

Flexible Bay

The Flexible Bay can accommodate one of the following devices. See “Flexible Bay Devices” on page 47.

■

Modular DVD/CD-RW combo drive

■

Modular Dual-Layer Multi-Format DVD Writer

■

Modular DVD-ROM drive

■

Modular Lithium ion battery

■

Wei g ht S ave r

Flexible Bay

Flexible Bay Eject Lever

The Flexible Bay eject lever releases the Flexible Bay device.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach a optional physical lock-down device.

DC Power

Jack

Modem (RJ-11) Port

Getting to Know Your Tablet PC

Infrared Port

USB 2.0 Port

LAN (RJ-45) Port

Figure 2-7. LifeBook T Series Tablet PC rear panel

REAR PANEL COMPONENTS

DC Power Jack

The DC power jack allows you to plug in the AC adapter or the optional Auto/Airline adapter to power your Tablet PC and charge the internal Lithium ion Battery.

Modem (RJ-11) Telephone Port

The Modem (RJ-11) telephone port is for attaching a telephone line to the internal multinational 56K modem.

The internal multinational modem is not intended for use with Digital PBX systems. Do not connect the internal modem to a Digital PBX as it may cause serious damage to the internal modem or your entire LifeBook T Series Tablet PC. Consult your PBX manufacturer’s documentation for details. Some hotels have Digital PBX systems. Be sure to find out BEFORE you connect your modem.

The internal modem is designed to the ITU-T V.90 standard. Its maximum speed of 53000 bps is the highest allowed by FCC, and its actual connection rate depends on the line conditions. The maximum speed is 33600 bps at upload.

External Video Port

USB 2.0 Ports

The two USB 2.0 ports (one on rear panel and one on left-side panel) allow you to connect Universal Serial Bus devices. See “Universal Serial Bus Ports” on page 54.

Infrared Port

The fast IrDA compatible port allows you to communicate with another IrDA-compatible infrared device without a cable. (See “Infrared Port” on page 54.)

LAN (RJ-45) Port

The internal LAN (RJ-45) port is used for an internal GigaLAN Ethernet (10/100/1000 Base-T/TX) connection. See “Internal LAN (RJ-45) jack” on page 54.

External Video Port

The external monitor port allows you to connect an external monitor or LCD projector. For simultaneous display, this model supports XGA (max. 1024 x 768) or SXGA+ (max 1400 x 1050) resolutions. When running CRT only, UXGA (max 1600 x 1200 resolution) is supported. Note that when the optional Port Replicator is attached to the system, you must use the external monitor port on the Port Replicator rather than the port on the system. See “External Video Port” on page 55.

LifeBook T Series Tablet PC - Section 2

Port Replicator Connector

Main Unit and

Configuration

Label (approximate

Compartment

location)

Battery

Pack

Latch

Lithium ion

Battery

Pack

Latch

Figure 2-8. LifeBook T Series Tablet PC bottom panel

BOTTOM COMPONENTS

Following is a brief description of your Tablet PC’s bottom panel components. (Figure 2-8)

Lithium ion Battery Compartment

The battery compartment contains the internal Lithium ion battery. The battery should be removed when the computer is stored over a long period of time or for swapping a discharged battery with a charged Lithium ion battery. See “Lithium ion Battery” on page 43.

Port Replicator Connector

This connector allows you to connect the optional port replicator.

Main Unit and Configuration Label

The configuration label shows the model number and other information about your LifeBook T Series Tablet PC. In addition, the configuration portion of the label has the serial number and manufacturer information that you will need to give your support representative. It identifies the exact version of various components of your Tablet PC.

Memory Upgrade Compartment

Air Vents (various locations)

Air Vents

The air vents are used to cool the system to prevent over-

heating

Do not operate the computer in areas where the air vents can be obstructed, such as in tight enclosures or on soft surfaces like a bed or cushion.

Memory Upgrade Compartment

Your Tablet PC comes with high speed DDR2 Synchronous Dynamic RAM (SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your Tablet PC, hence improving overall performance. See “Memory Upgrade Module” on page 45.

Getting to Know Your Tablet PC

1 2

Power

External Power

Battery 1 Charging

Battery 1 Level

Battery 2 Charging

Wireless LAN On

Battery 2 Level

Figure 2-9. Status Indicator Panel

Status Indicator Panel

The Status Indicator Panel displays symbols that correspond to specific components of your LifeBook T Series Tablet PC. These symbols tell you how each of those components is operating. (Figure 2-9)

POWER INDICATOR

The Power indicator symbol states whether your system is operational. It has several different states, each of which tells you what mode your Tablet PC is in at that time.

■

Steady On: This means that there is power to your Tablet PC and that it is ready for use.

■

Flashing: This means that your Tablet PC is in Standby mode.

■

Steady Off: This means that your system is either in Hibernate mode, or that your Tablet PC has been turned off.

If you are charging your battery, the Power indicator symbol will remain on even if your LifeBook T Series Tablet PC is shut off. The Power indicator symbol will also remain on if you have either adapter connected and are shut down from Windows.

Hard Drive Access

Optical Drive Access

NumLk

CapsLk

ScrLk

Security Indicator

EXTERNAL POWER INDICATOR

The external power indicator states whether your tablet is operating from the AC adapter, the auto/airline adapter or the batteries. This icon has two different states that can tell you what power source your LifeBook Tablet PC is using.

■

On: This means that either of the adapters are currently in use.

■

Off: Power is only coming from the batteries, and you do not have an adapter connected.

BATTERY CHARGING/

LEVEL INDICATORS

The Battery Charging and Battery Level indicators state whether the Lithium ion battery (Battery 1) or the optional modular battery (Battery 2) are installed and charging, and how much charge is available within the batteries. (Figure 2-10)

Additionally, these indicators display when an overcurrent is detected. If an overcurrent is detected, the battery stops charging and the Battery Level indicator blinks at the rate of once per second. To stop the indicator from blinking, you must disconnect the power adapter.

LifeBook T Series Tablet PC - Section Two

Batteries subjected to shocks, vibration or extreme temperatures can be permanently damaged.

76%–100% Charging

76%–100%

51%–75%

26%–50%

11%–25%

Low Warning <11%

Critical Low or Dead Battery

Shorted Battery

Figure 2-10. Battery Level Indicator

A shorted battery is damaged and must be replaced.

If there is no battery activity and the power adapters are not connected, the Battery Level indicators will also be off.

(Figure 2-10)

WIRELESS LAN/BLUETOOTH

ON INDICATOR

The Wireless LAN/Bluetooth On indicator is displayed when the switch for the optional internal Wireless LAN/ Bluetooth device is switched on.

OPTICAL DRIVE ACCESS INDICATOR

The Optical Drive Access indicator states whether your internal optical drive is being accessed.

HARD DRIVE ACCESS INDICATOR

The Hard Drive Access indicator states whether your internal hard drive is being accessed.

NUMLK INDICATOR

The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.

If there is no battery activity and the power adapters are not connected, the Battery Level indicators will also be off.

CAPSLOCK INDICATOR

The CapsLock indicator states that your keyboard is set to type in all capital letters.

SCRLK INDICATOR

The ScrLk indicator states that your scroll lock is active.

SECURITY INDICATOR

The Security Indicator flashes (if a password was set) when the system resumes from Off or Standby modes. You must enter the password that was set in the Security Panel before your system will resume operation.

Getting to Know Your Tablet PC

Figure 2-11. Opening the display

Display Panel Latch

Latch Release Button

Display Panel

Your LifeBook T Series Tablet PC contains a display panel that is backlit for easier viewing in bright environments. The convertible design of your Tablet PC allows you to open the display fully, rotate it 180 degrees, and lay it face up on the keyboard. This allows you to use the system as a tablet, much as you would a pad of paper.

OPENING THE DISPLAY PANEL

1. Press the latch release button. This releases the locking mechanism. While holding the latch release, lift display cover.

2. Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle. (Figure 2-11)

USING THE SYSTEM AS A TABLET

If you would like to use the system as a tablet, perform the following step

Rotate the system display only in the direction indicated in the procedure.

Turning the display in the incorrect direction could cause hinge damage.

In the following step, be sure to position the display perpendicular to the keyboard, otherwise the keyboard or display cover could get scratched.

(Figure 2-14). Turn the display 180 degrees so that it is facing backwards. (Figure 2-15)

3. Holding the top edge of the display panel, pull it forward until it is lying nearly atop the keyboard.

4. Push the latch towards the display (See “A” in Figure 2-12). The latch will pivot so the top latch disappears, and the bottom latch appears (See “B” in Figure 2-12). Holding the latch down, lay the display flush against the system so that the latch engages. You can now use your system as a tablet. (Figure 2-

16)

Top latch

Bottom latch

Display Side

Figure 2-12. Latching/Unlatching

5. To return the system to notebook configuration, repeat step 3 and 2. Be sure to turn the display in the opposite direction when performing step 2.

1. Lift the display until it is perpendicular to the keyboard. (Figure 2-13).

2. When the display is perpendicular to the keyboard, rotate it clockwise (when viewed from the top). Be very careful to rotate it in the direction indicated.

LifeBook T Series Tablet PC - Section Two

Figure 2-13. Fully open display

Figure 2-16. System in tablet configuration

ADJUSTING DISPLAY PANEL BRIGHTNESS

Once you have turned on your Tablet PC, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are two ways to adjust the brightness, keyboard and power management utility.

Using Keyboard to Adjust Brightness

Adjusting the brightness using the keyboard changes the system setting (i.e., the settings you make via the function keys automatically changes the brightness settings in the system’s Pen and Tablet Settings).

■

[Fn+F6]: Pressing repeatedly will lower the brightness of your display.

■

[Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Figure 2-14. Rotating the display

Figure 2-15. Display rotated completely

Using Power Management to Adjust Brightness

To adjust brightness with the power management utility, click Start -> Control Panel -> Tablet and Pen Settings. Select the Display tab and set the screen brightness slider for battery and AC power scenarios.

Using the Fujitsu Menu to Adjust Brightness

To adjust brightness using the Fujitsu menu, click on the Fujitsu Menu icon in the system tray in the lower right corner of the screen (or double-click the Function button). From the menu that appears, select Brightness Control. The Tablet and Pen Settings window will open. Select the Display tab and set the screen brightness slider for battery and AC power scenarios.

If using AC power your brightness setting is set to its highest level by default. If using battery power your brightness settings is set to approximately mid-level by default.

The higher the brightness level, the more power the Tablet PC will consume and the faster your batteries will discharge. For maximum battery life, make sure that the brightness is set as low as possible.

Function Keys

Getting to Know Your Tablet PC

Start Key

Fn Key

Figure 2-17. Keyboard

Keyboard

USING THE KEYBOARD

Your LifeBook T Series Tablet PC has an integral 84-key keyboard. The keys perform all the standard functions of a 101-key keyboard, including the Windows keys and other special function keys. This section describes the following keys. (Figure 2-17)

■

Numeric keypad: Your Tablet PC allows certain keys to serve dual purposes, both as standard characters and as numeric and mathematical keys. The ability to toggle between the standard character and numerical keys is controlled through the [NumLk] key.

■

Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to the right, left, up, or down within windows, applications and documents.

■

Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to produce special actions that vary depending on what program is running.

■

Windows keys: These keys work with your Windows operating system and function the same as the onscreen Start menu button, or the right button on your pointing device.

Home

Numeric Keypad

(outlined with thick

black line)

Application Key

Cursor Keys

NUMERIC KEYPAD

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. NumLk can be activated by pressing the [NumLk] key. Turning off the NumLk feature is done the same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions. (Figure 2-17)

WINDOWS KEYS

Your LifeBook T Series Tablet PC has two Windows keys: a Start key and an Application key. The Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The Application key functions the same as your right mouse button and displays shortcut menus for the selected item. (Please refer to your Windows documentation for additional information regarding the Windows keys.) (Figure 2-17)

CURSOR KEYS

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left, and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or right). (Figure 2-17)

End

LifeBook T Series Tablet PC - Section Two

FUNCTION KEYS

Your Tablet PC has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

(Figure 2-17)

[Fn] Key

The [Fn] key provides extended functions for the Tablet PC and is always used in conjunction with another key.

■

[Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.

■

[Fn+F4]: Pressing [F4] while holding [Fn] will toggle the built-in pointing device on and off. Note that the [Fn+F4] combination only works if Manual Setting is selected in the BIOS. (See “Entering the BIOS Setup Utility” on page 36)

■

[Fn +F5]: Pressing [F5] while holding [Fn] allows you to toggle between video compensation and no compensation. (Video compensation controls spacing on the display. When it is enabled, displays with less than 1024 x 768 or 800 x 600 pixel resolution will still cover the entire screen.)

■

[Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display. Note that adjusting the brightness using the keyboard changes the system setting.

■

[Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

■

[Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your Tablet PC.

■

[Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your Tablet PC.

■

[Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, both built-in display panel, and external monitor or external monitor only.

Getting to Know Your Tablet PC

Figure 2-18. LifeBook T Series Tablet PC Security/Tablet PC Buttons

(1) Application A Button

(2) Application B Button

(3) Button 3

(4) Button 4

Enter Button

LifeBook Security/ Tablet PC Buttons

A unique feature of your LifeBook T Series Tablet PC is the array of Security and Tablet PC buttons. These buttons allow you to secure your Tablet PC from unauthorized use and to launch specific applications with the touch of a button.

If the security system is activated, upon starting your Tablet PC or resuming from Standby, Hibernate, or shutdown mode the security system will require you to enter a password code using the security buttons. After you enter the correct password, your Tablet PC will resume operation.

The five security/Tablet PC buttons are located on the bottom right-hand side of the display when it is configured to be used as a notebook. (Figure 2-18)

Button Icon Primary Function

Page Down

User-defined Application A

Security functions: All five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and the fifth is used as an Enter button. See the right-hand column of Table 2-2.

Tablet PC functions: All five of the buttons have primary functions. Four of the buttons have secondary functions when used as application buttons. The secondary functions are activated by pressing the Function (Fn) button while pressing the application button. See Table 2-2 for specific functions. The secondary functions of the Application A and B buttons can be changed to launch any application. See “Changing Tablet PC Button Functions” on page 24

When the system is logging on or when it is locked (i.e., when you have the Logon or Computer Locked window showing on your desktop), the A and B buttons act as [Tab] and [Enter] keys, respectively.

Secondary Function

(Fn + Button)

(Default = Calculator)

Security Panel Function

(Pre-boot and resuming

from suspend)

Security Button 1

Page Up

User-Defined Application B

(Default = MS Journal)

Security Button 2

Screen Rotation VGA-Out Security Button 3

Secondary Function

Selection

Fujitsu Menu Utility Security Button 4

Ctl+Alt+Del Button None Security Enter Button

Table 2-2. Security/Tablet PC Button Functions

LifeBook T Series Tablet PC - Section Two

Page Down / Application A Button

When you press the Page Dow n button when the system is running, each press of the button will scroll the screen down one frame. This allows you to navigate quickly through large documents.

When you press the Fn button then press and release the Page Down/Application A button, you will automatically start whichever program is assigned to the button. The default application for this button is Calculator.

See “Changing Tablet PC Button Functions” on page 24 to select a different application for this button.

Page Up / Application B Button

When you press the Page Up button when the system is running, each press of the button will scroll the screen up one frame. This allows you to navigate quickly through large documents.

When you press the Fn button then press and release the Page Up/Application A button, you will automatically start whichever program is assigned to the button. The default application for this button is Microsoft Journal.

See “Changing Tablet PC Button Functions” on page 24 to select a different application for this button.

Screen Rotation / VGA-Out Button

The screen rotation feature would normally be used only when the system is configured as a tablet. When you would like to use the tablet as an eBook, for example, you would use the portrait orientation; when accessing spreadsheets or using the system as a notebook, you would more typically use landscape orientation.

When the system is changed to tablet configuration, the orientation automatically changes to portrait mode by default.

The screen orientation default can be changed by going to the Control Panel and double-clicking on the Fujitsu Display Control icon and selecting the desired defaults from the Display Orientation section. After changing the defaults, click [OK].

When you press the Screen Rotation / VGA-Out button, the system screen orientation changes from portrait (vertical) to landscape (horizontal) or from landscape to portrait.

Function / Fujitsu Menu Utility Button

The Function button works in conjunction with the other application buttons to provide additional functionality for the buttons. Refer to specific details above.

Pressing the Fn button twice in succession causes the Fujitsu Menu Utility to appear on your screen, allowing you to modify certain system settings.

Ctl+Alt+Del Button

Pressing and holding the Ctl-Alt-Del button for up to 750 milliseconds launches the Logon screen or the Windows Task Manager (if the system hasn’t yet been configured).

CHANGING TABLET PC BUTTON FUNCTIONS

The Application A and B buttons can be changed to launch a program or perform an action you select. By default, the Application A button launches the Calculator, and the Application B button launches MS Journal.

To launch different applications or cause the Application A or B buttons to perform a specific action:

1. Double-click on the Tablet and Pen Settings icon in the Control Panel.

2. Select the Tablet Buttons tab and select the button you would like to change from the list.

3. Click [Change] and open the drop down list in the Action: field.

4. Select the action you would like the button to perform. If you want to launch a program, click on Launch an Application then browse to the location of the program.

5. Click [OK], then click [OK] again. The buttons will now perform the actions you have assigned to them.

SETTING UP LIFEBOOK SECURITY PANEL

When you receive your Tablet PC, the security panel application is pre-installed without any passwords. The following sections provide detailed information on your security panel, how to set, change or remove passwords.

Numbered Buttons

Use these buttons to enter your password.(Figure 2-18)

Enter Button

After entering the button strokes, push this button to enter the password into the Tablet PC. (Figure 2-18)

PASSWORDS

The user and supervisor password may be set on this Tablet PC. A supervisor password is typically the same for all tablets and notebooks in a work group, office, or company to allow for system management. Individual computers in a group environment should not use a common password. A password consists of one to five button strokes plus the enter button. A valid stroke consists of pushing one or up to four buttons simultaneously.

Getting to Know Your Tablet PC

The following are valid button strokes:

■

Pushing [4] by itself

■

Pushing [2] and [3] at the same time

■

Pushing [1], [2], and [4] at the same time

■

Pushing [1], [2], [3], and [4] at the same time

The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.

■

{[2]+[3]}, [1], [Enter]

■

[4], [enter]

■

{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]

Setting Passwords

When shipped from the factory, no passwords are set. You have a choice of having no password or setting a supervisor and user password. You must set the supervisor password before the user password.

■

The purpose of supervisor password is to be able to bypass the user password in case the user password is forgotten. The supervisor password alone will not lock the system.

■

You must set the supervisor and user passwords for the security panel to work.

Setting Supervisor Password

You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the user password.

1. Go to the Start menu.

2. Click on Run.

3. Type in:

C:\Program Files\Fujitsu\Security Panel Application\Supervisor\ FJSECS.EXE, then press [Enter]

4. Follow the on-screen instructions to set the Supervisor password.

USING YOUR LIFEBOOK SECURITY PANEL

The security lock feature is in effect both when the system resumes from Off, Standby, or Hibernation state. You always need to push the Security Panel buttons to input the user password. Your system will not begin the boot sequence until you enter your supervisor/user password.

From Off State

1. Turn on your system.

2. When the Security Indicator flashes, enter the password and press Enter button.

For example, if the password is 22222, first press Button 2 five times and press the Enter button. The Tablet PC will boot to normal operation.

From Standby/Hibernation State

1. Press your Suspend/Resume button.

2. When the Security Indicator flashes, enter the password and press Enter button.

The Tablet PC should resume normal operation.

Incorrect Password Entry

If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the Tablet PC will resume normal operation. If no password is entered or an invalid password is entered while the system beeps, the system will return to its previous locked state (standby or off) and the Security Indicator will go off. To reactivate the Tablet PC after a password failure, you must press the Suspend/Resume button, then enter a correct password

Remember the user password you specified on the Security Panel Application. If you forget the password you will not be able to use your computer. The supervisor password can override the user password.

Setting User Password

1 Go to the Start menu.

2. Click on All Programs.

3. Click on Security Panel Application -> Security Panel Application.

4. Follow the on-screen instructions to set the user password

You may change or remove the supervisor or user password by repeating the steps defined above.

PRECAUTIONS

Opening and Closing the Cover

By default, closing the cover automatically places your system into Standby mode. (You can change the action the system takes when the cover is closed by opening the Power Options Properties icon in the Control Panel, and selecting the Advanced tab. Make a choice from the drop down menu for “When I close the lid of my portable computer:” and click the [OK] button.) Opening the cover does not automatically place the Tablet PC into normal operation. Instead, you must enter the proper security password after pushing the Suspend/Resume button.

LifeBook T Series Tablet PC - Section Two

Low Battery Operations

If your Tablet PC has a low battery, pushing the suspend/ resume button only turns on the Security Indicator. Your Tablet PC does not unlock, the Security Indicator turns off after one minute. To resume normal operation, first attach a power supply to the Tablet PC. Then you may unlock the Tablet PC.

UNINSTALLING THE SECURITY PANEL APPLICATION

You have two options when uninstalling the security panel application:

■

Remove passwords and uninstall the security panel application software. This will disable all security features.

■

Uninstall the security panel application with password still active. This will not allow any changes to the password.

Uninstalling the Security Panel Application Software

Remove passwords when User wants no password protection whatsoever and doesn’t want to give anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords, follow same procedure in SETTING PASSWORD CODES except this time, select REMOVE, enter current password then click Next. When asked to confirm select Ye s .

Removing Security Panel Application with Passwords Still Active

Using this feature will not allow any changes to the password.

Removing the applications does not remove the password. It simply removes the utility to change/add/remove passwords. To change your password you must reinstall the application.

User :

1. Go to Start -> Control Panel.

2. Open Add or Remove Programs Properties in the Control Panel.

3. Select the Security Panel Application in the list, and click Change/Remove.

4. When the Confirm File Deletion box appears, click Ye s .

Supervisor:

1. Go to Start -> Control Panel.

2. Open Add or Remove Programs Properties in the Control Panel.

3. Select the Security Panel Application for Supervisor in the list, and click Change/Remove.

4. When the Confirm File Deletion box appears, click Ye s .

Reinstalling the Security Panel Application

To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The Utilities\Security Panel Application folder contains two separate folders: Supervisor and User. The setup files for supervisor and user security applications are contained in those folders.

1. Go to the Utilities\Security Panel Application\

Supervisor folder on the CD and double-click the setup.exe file. The Installing Security Panel Applica-

tion window will appear. Follow the instructions on the screen.

2. Go to the Utilities\Security Panel Application\User folder on the CD and double-click the setup.exe file. The Installing Security Panel Application window will appear. Follow the instructions on the screen.

Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on page 25.

If you forget both passwords, please contact Fujitsu Computer Systems Corporation Service and Support at 1-800-8FUJITSU (1-800-838-5487). Fujitsu Computer Systems Corporation charges a service fee for unlocking a password-restricted Tablet PC. When calling please have a valid credit card and provide proof of ownership. You will then be given instructions on where to ship your Tablet PC.

Left Button

Getting to Know Your Tablet PC

Cursor Control

Scroll Button

Right Button

Figure 2-19. Touchpad pointing device

Touchpad Pointing Device

The Touchpad pointing device built into your Tablet PC is used to control the movement of the cursor to select items on your display panel. The Touchpad is composed of a cursor control, left and right buttons, and a scroll button.

Certain configurations of the LifeBook Tablet PC have an optional fingerprint sensor instead of a scrolling button. For information on using the optional fingerprint sensor, refer to “Fingerprint Sensor Device” on page 115.

The cursor control works the same way a mouse does, and moves the cursor around the display. It only requires light pressure with the tip of your finger. The left and right buttons function the same as left and right mouse buttons. The scroll button allows you to navigate through pages quickly without using the scroll bars. The actual functionality of the buttons may vary depending

on the application that is being used. (Figure 2-19)

CLICKING

Clicking means pushing and releasing a button. To leftclick, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the cursor to the item you wish to select, press the right button once, and then immediately release it. (Figure 2-20)

Figure 2-20. Clicking

DOUBLE-CLICKING

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press and release the left button twice. (Figure 2-21)

Figure 2-21. Double-clicking

■

If the interval between clicks is too long, the double-click will not be executed.

■

Parameters for the Touchpad can be adjusted from the Mouse dialog box located in the Windows Control Panel.

LifeBook T Series Tablet PC - Section Two

DRAGGING

Dragging means pressing and holding the left button while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. (Figure 2-22)

Figure 2-22. Dragging

SCROLLING

Using the scroll button allows you to navigate through a document quickly without having to use the scroll bars. This is particularly useful when you are navigating through online pages. To use the scroll button, press the raised horizontal line at the top or bottom of the button to scroll up or down a page. When you have reached the desired section of the page, release the button.

(Figure 2-23)

Figure 2-23. Scrolling

TOUCHPAD CONTROL ADJUSTMENT

The Windows Control Panel allows you to customize your Touchpad with selections made from within the Mouse Properties dialog box. There are several aspects of Touchpad operation, which you can adjust.

To access the Mouse Properties window, open the Control Panel and double-click the Mouse icon. In the window that appears, you will see a variety of different mouse functions that you can change.

Volume Control

Your Fujitsu Tablet PC has multiple volume controls which interact with each other.

Any software that contains audio files will also contain a volume control of its own. If you install an external audio device that has an independent volume control, the hardware volume control and the software volume control will interact with each other. It should be noted that if you set your software volume to Off, you will override the external volume control setting.

CONTROLLING THE VOLUME

The volume can be controlled in several different ways:

■

Volume can be set from within the Volume Control on the Taskbar.

■

Volume can be controlled with the [F8] and [F9] functions keys. Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your Tablet PC. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your Tablet PC.

Getting to Know Your Tablet PC

There are twenty-six levels through which the function keys cycle.

■

Volume can be controlled by many volume controls that are set within individual applications.

■

Certain external audio devices you might connect to your system may have hardware volume controls.

■

Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources.

We recommend that you experiment with the various volume controls to discover the optimal sound level.

LifeBook T Series Tablet PC - Section Two

Pen and Active Digitizer

USING THE PEN

You can use the LifeBook T Series Tablet PC pen to generate and create electronic “ink”, to select items, and to navigate through programs on the Tablet PC. Programs that support handwriting recognition also allow you to write characters directly on the screen with the pen. You can also use the pen as a drawing tool.

You are advised to use a screen protector on your system display to minimize the chance of its being scratched. Screen protectors are available from the Fujitsu Web site at us.fujitsu.com/computers.

Barrel Switch

Figure 2-24. LifeBook T Series Pen

The LifeBook T Series Tablet PC pen is a high-quality electronic instrument that can be damaged if used improperly. Treat the pen as you would any precision device. Observe the following guidelines:

• Do not tap the pen on surfaces other than the Tablet PC screen.

• Do not try to turn the thumb grip on the pen; it is designed for inserting and removing the pen from the pen holder.

• Never store the pen with the tip bearing the weight of the pen (e.g., sitting tip down in a pencil cup). Storing the pen tip down could distort the internal mechanism over a period of time (especially in higher temperatures), causing the tip to act as if it is always depressed. The pen should be stored in the pen holder when not in use.

The screen reacts when the pen tip is approximately 1/8 inch (3-5 mm) from the screen. The pen has three switches: a tip switch and a barrel button toggle switch with switches at both ends. By default, the tip switch corresponds to the left mouse button, and the front toggle (closest to the pen tip) barrel button switch corresponds to the right mouse button (when used in combi-

Tip S witch

nation with the tip switch). The rear toggle of the barrel button switch acts as an electronic ink “eraser”.

The functions of the rear toggle and the tip click pressure can be changed by clicking [Start] -> Control Panel, and double-clicking the Fujitsu Pen Settings icon.

To change the rear toggle function, select the drop-down list to select a new function, then click [Apply]. If you don’t want the rear toggle to have any function, select Ignore from the list.

Adjusting the click pressure determines how much pressure must be put on the pen tip in order for the screen to react. The softer it is set, less pressure is required; the harder it is set, more pressure is required. To change the click pressure, use the slider bar to make the click pressure harder or softer, then click [Apply].

Use only the pen provided with your Tablet PC. Do not use substitutes that were not designed for the LifeBook T Series Tablet PC.

Here are some hints that may help you use the pen more effectively:

• To activate the tip switch, tap or hold the pen tip against the screen.

• To activate the barrel button switch, press and hold the end of the button you wish to use (front toggle is the right mouse button switch; the rear toggle acts as an electronic “eraser”).

• To move the cursor, hold the pen tip within 1/8 inch (3 - 5 mm) from the screen and move the pen.

• To start a program, double-tap the pen tip (tap the pen tip twice rapidly) on the program icon as you would double-click a mouse.

• To select an object, tap the pen tip on the object once.

• To double-click an object, quickly tap the object twice.

INSTALLING A PEN TETHER

To prevent dropping or losing your pen, you should attach it to your system using the pen tether that is included with the system.

To attach the pen tether to your Tablet PC, perform the following steps:

1. Attach the end of the pen tether with the smaller loop to your pen. To do so, push the end of the tether through the hole in the pen, then thread the opposite end of the tether through the loop. (See Figure 2-25.)

Getting to Know Your Tablet PC

Pen tether

attachment

point

Larger loop

Smaller loop

Figure 2-25. Installing a Pen Tether

2. Attach the end of the pen tether with the larger loop to the attachment point on your tablet. To do so, insert the end of the pen tether through the attachment point, then feed the pen through the large loop in the tether.

CALIBRATING THE PEN

In order to ensure accurate tracking between the pen and cursor, you must run the Touch Screen Calibration Utility before you use the active digitizer for the first time, or after you change the display resolution.

To run the calibration utility:

1. Go to Start -> Control Panel and double-click on the Tabl e t a n d Pe n Se t ti n gs icon.

2. Click Calibrate.

3. Adjust the display of your Tablet PC to a comfortable angle.

4. Using the pen, firmly touch the screen directly on the (+) symbol; the (+) symbol will move to the next location.

5. Repeat step 4 in the four corners, then click OK.

REPLACING THE PEN TIP

With use, the pen tip may become worn or may pick up foreign particles that can scratch the screen. A damaged or worn tip may not move freely, causing unpredictable results when using the pen. If your pen exhibits these problems, you should replace the pen tip. To do so, use the pen tip removal tool included with your pen.

Gap

To remove the tip, position the tip in the gap between the two ends of the tool (Figure 2-26). Pinch the tool together so the tip is firmly clasped, then pull it from the barrel. If the tip is worn or damaged, discard it.

To replace the tip, retrieve one of the new tips that accompanied your pen. Insert the flat end of the tip into the barrel and push it in firmly until it is seated.

If you need more tips, they can be ordered from the Fujitsu Web site at: us.fujitsu.com/computers.

USING THE ACTIVE DIGITIZER

The integrated active digitizer allows you to use the included pen as a pointing device. You can use the pen to click, double-click, drag items and icons, or to draw like a pen or pencil in applications that support this behavior, such as drawing or painting programs. See the documentation that came with your application for details. (Figure 2-27)

Figure 2-27. Using the pen with the screen

To avoid potential scratching and damage, never use anything but the included pen with the display.

To purchase additional or replacement pens, visit the Fujitsu accessories Web site at: http://us.fujitsu.com/computers.

Clicking

To left-click, touch the object you wish to select and then lift the pen tip immediately. (Figure 2-28)

To right-click, press the front button on the barrel switch or touch the pen to the screen for a couple of seconds until the right mouse icon appears at the tip.

Figure 2-26. Tip Removal Tool

LifeBook T Series Tablet PC - Section Two

Figure 2-28. Clicking the screen

Double-Clicking

To double-click, touch the item twice, and then immediately remove the pen tip. (Figure 2-29)

Figure 2-29. Double-clicking the screen

■

If the interval between taps is too long, the double-click will not be executed.

■

Parameters for the screen can be adjusted from the Mouse Properties dialog box located in the Windows Control Panel.

Using Your Tablet PC

LifeBook T Series Tablet PC - Section Three

DC Output Cable

Getting Started

DC Power Plug

AC Cable

Figure 3-1. Connecting the AC Adapter

Power Sources

Your LifeBook T Series Tablet PC has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter or optional Auto/Airline adapter provides power for operating your Tablet PC and charging the battery.

Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack of your Tablet PC.

2. Plug the AC adapter into an AC electrical outlet.

(Figure 3-1)

AC Adapter

Connecting the Optional Auto/Airline Adapter

1. Plug the DC output cable into the DC power jack on your Tablet PC.

2. Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Accessories position.

3. Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

1. Be sure that you have a charged battery installed.

2. Remove the AC adapter or the Auto/Airline adapter.

The Lithium ion battery is partially charged upon purchase. Initially, you should connect either the AC adapter or the Auto/Airline adapter to use your Tablet PC so that it can fully charge.

LifeBook T Series Tablet PC - Section Three

Starting Your Tablet PC

POWER ON

The Suspend/Resume button is used to turn on your LifeBook T Series Tablet PC from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your Tablet PC.

(See figure 2-4 on page 11 for location)

When you turn on your Tablet PC, be sure you have a power source. This means that a battery is installed and charged, or that the AC or Auto/Airline adapter is connected and has power.

Press the Suspend/Resume button to start your system. When you are done working you can either leave your Tablet PC in Standby mode, See “Standby Mode” on page 38, or you can turn it off. See “Power Off” on

page 40

When the system display is closed, the Suspend/Resume button is disabled. This feature prevents the system from being accidentally powered up when not in use.

displays a Fujitsu logo until your operating system is loaded. During booting, your Tablet PC is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.

The boot sequence is executed when:

■

You turn on the power to your Tablet PC.

■

You restart your Tablet PC from the Windows Shut Down dialog box.

■

The software initiates a system restart. Example: When you install a new application.

BIOS SETUP UTILITY

The BIOS Setup Utility is a program that sets up the operating environment for your Tablet PC. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS’ environment to operate your Tablet PC.

The BIOS Setup Utility configures:

■

Device control feature parameters, such as changing I/O addresses and boot devices.

■

System Data Security feature parameters, such as passwords.

When you Power On your Tablet PC, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your Tablet PC will emit an audio warning and/ or an error message will be displayed. See “Power On Self Test Messages” on page 67. Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings.

After satisfactory completion of the Power On Self Test (POST), your Tablet PC will load your operating system

Never turn off your Tablet PC during the Power On Self Test (POST) or it will cause an error message to be displayed when you turn your Tablet PC on the next time.

See “Power On Self Test Messages” on page 67

BOOT SEQUENCE

The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves your Tablet PC’s BIOS. When your Tablet PC is first turned on, the main system memory is empty, and it needs to find instructions to start up your Tablet PC. This information is in the BIOS program. Each time you power up or restart your Tablet PC, it goes through a boot sequence which

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1. Turn on or restart your Tablet PC.

2. Press the [F2] key once the Fujitsu logo appears on the screen. This will open the main menu of the BIOS Setup Utility with the current settings displayed.

3. Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or

alter the current settings.

BIOS Guide

A guide to your Tablet PC’s BIOS is available online. Please visit our service and support Web site at http:// www.computers.us.fujitsu.com/support. Once there, select Support, then select Tablet PCs under User’s Guides. Select LifeBook Tablet PC BIOS Guides from the pull-down menu for your Tablet PC series. If you are unsure of your Tablet PC’s BIOS number, refer to your packing slip.

If your data security settings require it, you may be asked for a password before the BIOS main menu will appear.

Getting Started

BOOTING THE SYSTEM

We strongly recommend that you not attach any external devices and do not put a DVD/CD in your drive until you have gone through the initial power on sequence.

When you turn on your Tablet PC for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin.

Registering Windows with Microsoft

In order to ensure that you receive the most benefits from the Windows operating system, it should be registered the first time you use it.

After you receive the Windows Welcome screen, you will be prompted to enter registration information in the following order.

First of all, you will need to read and accept the End User License Agreements (EULAs). After accepting the EULAs, you will be asked if you want to enable the Automatic Updates feature. Acceptance of this feature is recommended because it allows your system to be updated automatically whenever an important change becomes available for your notebook.

■

If you reject the terms of the license agreement you will be asked to review the license agreement for information on returning Windows or to shut down your Tablet PC.

■

You cannot use your Tablet PC until you have accepted the License Agreement. If you stop the process your computer will return to the beginning of the Windows Welcome Process, even if you shut your tablet down and start it up again.

REGISTERING YOUR LIFEBOOK TABLET PC

How do I register my LifeBook Tablet PC?

You can register your LifeBook by going to our Web site:

us.fujitsu.com/computers

You will need to be set up with an Internet Service Provider (ISP) to register online.

ClickMe!

INSTALLING CLICK ME!

The first time you boot up your system, you will see an icon called Click Me! in the Start menu. When you click the Click Me! icon, your system will automatically build the icon tray in the bottom right of the screen. These icons provide links to utilities that you will frequently access.

Several additional windows will appear, prompting you to enter a name and description for your computer, an Administrator password, and a domain name. Read the instructions on the screens carefully and fill in the information as directed.

You will then be automatically connected to the Internet, if you have an appropriate connection available. If an automatic connection is not possible, you will be asked about how you dial out from where you will be using your Tablet PC. If you are not connected to a phone line and plan to register at a later time, you may click the Skip button.

Once you are connected to the Internet, you will be asked if you wish to continue with the registration. If you select Ye s you will then enter your name and address, and email address if desired. Click Next to complete registration.

LifeBook T Series Tablet PC - Section Three

Power Management

Your LifeBook T Series Tablet PC has many options and features for conserving battery power. Some of these features are automatic and need no user intervention, such as those for the internal modem. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your Tablet PC may be controlled from settings made in your operating system, pre-bundled power management application, or from settings made in BIOS setup utility.

Power Mode System Activity Events causing system to enter mode state

Fully On Mode System is running. CPU, system bus, and

Standby Mode (Suspend-to-RAM)

Hibernation Mode (Suspend-to-Disk)

Power Off System is fully powered off except for

all other interfaces operate at full speed.

Resume system logic remains powered and RAM remains powered to maintain active data. All other devices are turned off.

Windows saves desktop state (including open files and documents) to hard disk. CPU stops. All other devices are turned off.

logic components required for Suspend/ Resume button and real-time clock operation.

Besides the options available for conserving battery power, there are also some things that you can do to prevent your Tablet PC battery from running down as quickly. For example, you can create an appropriate power saving profile, put your Tablet PC into Standby mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off between performance and power savings.

■

From Standby mode: System operation resumed (Suspend/Resume button pressed, resume on modem ring, resume on time).

■

From Hibernation mode: Suspend/Resume button pressed.

■

From Off mode: Suspend/Resume button pressed.

■

Standby timeout occurs.

■

Suspend request issued by software or by pressing the Suspend/Resume button.

■

Low battery.

■

Suspend timeout occurs.

■

Clicking Start -> Shut Down -> Hibernate (It may be necessary to Enable Hibernate Support from Windows Power Options.)

■

Low battery condition

■

System shutdown.

■

Low battery condition

Table 3-1. System Power States

SUSPEND/RESUME BUTTON

When your Tablet PC is active, the Suspend/Resume button can be used to manually put your Tablet PC into Standby mode. Push the Suspend/Resume button when your Tablet PC is active, but not actively accessing anything, and immediately release the button. You will hear two short beeps and your system will enter Standby mode. (See figure 2-6 on page 14 for location).

If your Tablet PC is suspended, pushing the Suspend/ Resume button will return your Tablet PC to active operation. You can tell whether or not your system is in Standby mode by looking at the Power indicator. See “Power Indicator” on page 17. If the indicator is visible and not flashing, your Tablet PC is fully operational. If the indicator is both visible and flashing, your Tablet PC is in Standby mode. If the indicator is not visible at all, the power is off or your Tablet PC is in Hibernate mode

(See Hibernate Mode)

STANDBY MODE

Standby mode in Windows saves the contents of your Tablet PC’s system memory during periods of inactivity by maintaining power to critical parts. This mode will turn off the CPU, the display, the hard drive, and all of the other internal components except those necessary to maintain system memory and allow for restarting. Your Tablet PC can be put in Standby mode by:

■

Pressing the Suspend/Resume button when your system is turned on.

■

Selecting Standby from the Windows Shut Down menu.

■

Timing out from lack of activity.

■

Allowing the battery to reach the Dead Battery Warning condition.

■

Closing the system cover.

Your Tablet PC’s system memory typically stores the file(s) on which you are working, open application(s) information, and any other data required to support the operation(s) in progress. When you resume operation

Getting Started

from Standby mode, your Tablet PC will return to the point where it left off. To resume operation, you must use the Suspend/Resume button to resume operation, and there must be an adequate power source available,

or your Tablet PC will not resume.

If you are running your Tablet PC on battery power, be aware that the battery continues to discharge while your Tablet PC is in Standby mode, though not as fast as when fully operational.

HIBERNATE MODE

The Hibernate mode saves the contents of your Tablet PC’s system memory to the hard drive as a part of the Suspend/Resume mode. Your Tablet PC is preconfigured to perform this function. The Hibernate mode can also be configured through the system BIOS to run in other ways depending on what you need to accomplish. See “BIOS Setup Utility” on page 36.

■

Standby or Hibernate modes should not be used with certain PC Cards. Check your PC Card documentation for more information.

■

Disabling the Suspend/Resume button prevents it from being used to put your Tablet PC in Standby or Hibernate mode. The resume function of the button cannot be disabled.

■

If your Tablet PC is actively accessing information when you enter Standby or Hibernate mode, changes to open files are not lost. The files are left open and memory is kept active during Standby mode or the memory is transferred to the hard drive during Hibernate mode.

■

When PC Cards or external devices are in use, Save-to-Disk mode cannot return to the exact state prior to suspension, because all peripheral devices will be reinitialized when the system restarts.

■

The main advantage of using Hibernate mode is that power is not required to maintain your data. This is very important if you will be leaving your Tablet PC in a suspended state for a prolonged period of time. The drawback of using Hibernate mode is that it lengthens the power down and power up sequences and resets peripheral devices.

Using Hibernate Mode

Hibernate default setting is enabled for Windows XP.

To enable or disable the Hibernation feature follow these easy steps:

1. From the Start menu, select Settings, and then select Control Panel -> Power Options.

2. Select Hibernation, and then select the box to enable or disable this feature.

To use Hibernate mode with your system:

1. Click on the Start button, click Shut Down.

2. Select Hibernate option from the “What do you want the computer to do” list.

DISPLAY TIMEOUT

The Video Timeout is one of the power management parameters. This feature saves power by turning off the display if there is no keyboard or pointer activity for the user selected timeout period. Any keyboard or pointer activity will cause the display to restart automatically. This feature is independent of the Suspend/Resume button and can be enabled and disabled in Windows Power Management.

HARD DISK TIMEOUT

The Hard Disk Timeout is another one of the power management parameters. This feature saves power by turning off the hard drive if there is no hard drive activity for the user selected timeout period. Any attempt to access the hard drive will cause it to restart automatically. This feature is independent of the Suspend/Resume button and can be enabled and disabled in Windows.

WINDOWS POWER MANAGEMENT

The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the Tablet PC on battery power or one of the adapters.

RESTARTING THE SYSTEM

If your system is on and you need to restart it, be sure that you use the following procedure.

1. Click the Start button, and then click Shut Down.

2. Select the Restart option from within the Windows Shut Down dialog box.

3. Click OK. Your Tablet PC will shut down and reboot.

LifeBook T Series Tablet PC - Section Three

Turning off your Tablet PC without exiting Windows or turning on your Tablet PC within 10 seconds of the Tablet PC being shut off may cause an error when you start the next time.

POWER OFF

Before turning off the power by choosing Shut Down from the Windows Start menu, check that the Hard Drive, CD-ROM, PC Card and the Floppy Disk Drive Access indicators are all Off. (See Figure 2-9 on page 17) If you turn off the power while accessing a disk or PC Card there is a risk of data loss. To assure that your Tablet PC shuts down without error, use the Windows shut down procedure.

Using the correct procedure to shut down from Windows, allows your Tablet PC to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is:

1. Click the Start button, and then click Shut Down.

2. Select the Shut Down option from within the Windows Shut Down dialog box.

3. Click OK.

If you are going to store your Tablet PC for a month or more see the Care and Maintenance section.

User-Installable Features

LifeBook T Series Tablet PC - Section Four

User-Installable Features

Lithium ion Battery

Your LifeBook T Series Tablet PC has a Lithium ion battery that provides power for operating your Tablet PC when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become shorter if it is used under the following conditions:

■

When used at temperatures lower than 41° F (5° C) or higher than 95° F (35° C). Extreme temperatures not only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range.

See “Battery Charging/ Level Indicators” on page 17.

■

When using a high current device such as a modem, CD-ROM drive, or hard drive, using the AC adapter will conserve your battery life.

■

Do not leave a faulty battery in your Tablet PC. It may damage your AC adapter, optional Auto/Airline adapter, another battery or your Tablet PC itself. It may also prevent operation of your Tablet PC by draining all available current into the bad battery.

■

Under federal, state, or local law it may be illegal to dispose of batteries by putting them in the trash. Please take care of our environment and dispose of batteries properly. Check with your local government authority for details regarding recycling or disposing of old batteries. If you cannot find this information elsewhere, contact your support representative at 1-800-8Fujitsu.

Actual battery life will vary based on screen brightness, applications, features, power management settings, battery condition and other customer preferences. CD-ROM drive or hard drive usage may also have a significant impact on battery life. The battery charging capacity is reduced as the battery ages. If your battery is running low quickly, you should replace it with a new one.

RECHARGING THE BATTERY

If you want to know the condition of the Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes.

The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your Tablet PC and connect the AC or Auto/ Airline adapt

er.

Make sure that the Battery Charging indicator and the percentage charge is shown inside the Battery Level icon on the Status Indicator Panel.

There is no memory effect on the Lithium ion battery, therefore you do not need to discharge the battery completely before recharging. The charge times will be longer if your Tablet PC is in use while the battery is charging. If you want to charge the battery more quickly, put your Tablet PC into Standby mode, or turn it off while the adapter is charging the battery. See “Power

Management” on page 38.

Using heavy current devices such as a modem or frequent CD-ROM and PCMCIA powered external device accesses may prevent charging completely.

Low Battery State

When the battery is running low, your Tablet PC will beep every 15 seconds and the Battery Level indicator will flash. If you do not respond to the low battery alarm, the batteries will continue to discharge until they are too low to operate. When this happens there will be a multiple beep alarm and the Battery Level indicator will show a dead battery. Your Tablet PC will then go into Standby mode to try and protect your data for as long as possible. There is no guarantee that your data will not be lost once the Tablet PC reaches this point.

■

You may not be able to hear the alarm if the volume control is set too low or is turned off by the hardware or software. However, you will be able to see the Battery Level indicator flash. Once the low battery alarm occurs you must save all your data and put your Tablet PC into Standby mode until you can provide a new power source. You should provide a charged battery or AC or Auto/Airline Adapter as soon as possible.

■

When you are in Standby mode there must always be at least one power source active. If you remove all power sources while your Tablet PC is in Standby mode, any data that has not been saved to the hard drive will be lost.

LifeBook T Series Tablet PC - Section Four

Dead Battery Suspend mode shows on the Status indicator just like the normal Standby mode. Once your Tablet PC goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you will need to press the Suspend/Resume button to resume operation. In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored. Once you provide power, you can continue to use your Tablet PC while an adapter is charging the battery.

Battery Release Latches

Shorted Batteries

The Status Indicator panel uses a symbol inside the battery outline of the Battery Level indicator to display the operating level available in that battery. (See figure on page 17) If this display shows a Shorted Battery, it means that the battery is damaged and must be replaced so it does not damage any other parts of your Tablet PC.

REPLACING THE BATTERY

Your LifeBook T Series Tablet PC comes with one battery pack; you might want to consider purchasing a spare. By keeping a spare battery fully charged, you can immediately swap with one that is not charged.

There are two ways to swap batteries: cold-swapping and warm-swapping. Cold-swapping means swapping batteries when the system has been powered down; warm-swapping is performed when the system is in Standby mode.

Cold-swapping batteries

To cold-swap batteries in your battery compartment, follow these easy steps: (Figure 4-1)

1. Have a charged battery ready to install.

2. Shut down your tablet and disconnect the AC adapter.

3. Press the battery release latches to open the compartment.

4. Remove the battery from the compartment.

5. Slide the new battery into the compartment.

6. Close the compartment and the battery release latches will click into place.

7. Plug in the AC adapter and turn the power on.

Battery Compartment

Figure 4-1. Removing the Battery

Warm-swapping Batteries

To warm-swap batteries in your battery compartment follow these easy steps: (Figure 4-1)

You have only a few minutes to perform a warm-swapping before the internal bridge battery runs out of power. Have

the charged battery nearby when performing a warm battery swap.

1. Close any open files and put your Tablet PC into Standby mode.

2. Press the battery release latches to open the compartment.

3. Remove the battery from the compartment.

4. Slide the new battery into the compartment.

5. Close the compartment and the battery release latches will click into place.

6. Press the Suspend/Resume button to return your Tablet PC to normal operation

If the Lithium ion battery connector is not fully seated, you may not be able to use your Tablet PC or charge your battery.

Memory Upgrade Module

Your Fujitsu LifeBook T Series Tablet PC comes with a minimum of 256 MB of high speed Double Data Rate 2 Synchronous Dynamic RAM (DDR2 SDRAM), 533 MHz factory installed. To increase your system’s memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-in-line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from the Fujitsu web store at us.fujitsu.com/computers

Do not remove any screws from the memory upgrade module compartment except those specifically shown in the directions for installing and removing the module.

INSTALLING MEMORY UPGRADE MODULES

1. Turn off power to your LifeBook Tablet PC and remove any power adapter (AC or auto/airline).

2. Make sure that all the connector covers are closed.

3. Turn the Tablet PC bottom side up, and remove the screws of the memory upgrade module compartment. (Figure 4-2)

4. Remove the cover.

User-Installable Features

Figure 4-3. Installing a Second Memory Module

8. Replace the cover. (Figure 4-4)

9. Replace the screws.

Figure 4-4. Replacing the Memory Compartment Cover

The memory upgrade module is not something you routinely remove from your tablet. Once it is installed, you should leave it in place unless you want to change system memory capacity.

Slot 1

Slot 2

Figure 4-2. Opening the Memory Upgrade Compartment

5. Remove the memory upgrade module from the static guarded sleeve. As noted above, if you are installing a 1 GB memory module by itself or with a smaller module, it must be installed in slot 1.

6. Align the memory upgrade module with the component side up. Align the connector edge of the memory upgrade module with the connector slot in the compartment. (Figure 4-3)

7. Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and into the connector until it lodges under the retaining clip. You will hear a click when it is properly in place.

TO REMOVE A MEMORY UPGRADE MODULE

1. Perform steps 1 through 4 of Installing a Memory Upgrade Module.

2. Pull the clips sideways away from each side of the memory upgrade module at the same time.

3. While holding the clips out, remove the module from the slot by lifting it up and pulling towards the rear of your tablet. (Figure 4-5)

Figure 4-5. Removing a Memory Upgrade Module

4. Store the memory upgrade module in a static guarded sleeve.

5. Replace the cover. (Figure 4-4)

6. Replace the screws.

LifeBook T Series Tablet PC - Section Four

CHECKING THE MEMORY CAPACITY

Once you have changed the system memory capacity by either adding or removing a memory upgrade module, be sure to check that your tablet has recognized the

change.

Your Tablet PC uses Dynamic Video Memory Technology (DVMT), which allows the video driver to dynamically determine the amount of memory that is used. Your Tablet PC can use a maximum of 128 MB of system memory for video functions.

You can check the memory capacity by clicking [Start]

-> Control Panel, then double-clicking the System icon. Select the General tab and check the amount of memory under “Computer.”

The amount of memory displayed should be approximately the total of all memory modules installed. There may be a discrepancy of 8 MB which is allocated for fixed video memory.

If the total memory displayed is incorrect, check that your memory upgrade module is properly installed. (If the module is

properly installed and the capacity is still not correctly recognized, see Troubleshooting on page 60.

Figure 4-6 Flexible Bay

User-Installable Features

Flexible Bay Eject Lever

Flexible Bay

Flexible Bay Devices

Your Fujitsu Tablet PC contains a Flexible Bay. The Flexible Bay can house an optical drive, a Lithium ion battery, or a weight saver. (Figure 4-6)

Your Flexible Bay will have one of the following devices installed.

■

Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.

■

Modular DVD/CD-RW combo drive: This allows you to access movies, software, and audio DVD/CDs as well as to write to CDs.

■

Modular Lithium ion battery: This is a rechargeable battery that can be used to power your Tablet PC when an adapter is not connected.

■

Weight Saver: This is used to fill the bay when no device is needed.

FUJITSU TABLET CONTROLS CD/DVD DRIVE HELP

The CD/DVD Drive tab of the Fujitsu Tablet Controls utility allows you to enable or disable your DVD drive when the Tablet PC is used in “undocked” (i.e., not

connected to a port replicator) tablet mode.

The DVD drive in your Tablet PC is designed to work optimally when the system is lying flat on a stable surface. Using the drive while the system is not on a flat surface could result in damage to the drive and/or the media. SUCH DAMAGE IS NOT COVERED UNDER YOUR WARRANTY. You are strongly advised not to use the drive while the system is in undocked tablet mode. This feature is in effect only when the user is logged-in.

Using the Optical Drive Disabling Feature

The CD/DVD tab of the Fujitsu Tablet Controls window consists of three checkboxes:

■

Lock CD/DVD drive when the unit is in tablet mode

■

Show tray icon when CD/DVD drive is locked.

■

Show notification messages when CD/DVD drive is locked/unlocked

Lock CD/DVD drive when the unit is in tablet mode:

This checkbox should normally be checked (see “Important Notes” above). If you would like to access the DVD drive while your system is in undocked tablet mode, deselect this checkbox. A message will appear asking if you really want to unlock the drive. Click [OK] to proceed, or [Cancel] to return to the utility.

Show tray icon when CD/DVD drive is locked:

This checkbox should normally be checked. If you would not like the Fujitsu Tablet Controls icon to appear in the system tray when the drive is locked, clear this box.

Show notification messages when CD/DVD drive is locked/unlocked:

This checkbox should normally be checked. If you would not like to be prompted when the drive is locked or unlocked, clear this box.

Buttons

■

Click the [OK] button to accept the changes and close the window.

■

Click the [Apply] button to accept the changes and leave the window open.

■

Click the [Cancel] button to close the window without accepting the change.

■

Click the [Help] button to view the help file associated with the selected tab within Fujitsu Tablet Controls.

LifeBook T Series Tablet PC - Section Four

System Tray Icon

When your system is in undocked tablet mode, and the “Lock CD/DVD drive when the unit is in tablet mode” box is checked, a Fujitsu Tablet Controls icon will appear at the bottom right of the display. When you select this icon, a menu will appear containing three items:

■

Unlock CD/DVD Drive for this tablet session

■

Configure

■

About

Unlock CD/DVD Drive for this tablet session

When you click this menu item, you will be asked whether you really want to unlock the drive. To unlock the drive, click [Yes]. Note that enabling the drive in this manner will not change the setting in the Fujitsu Tablet Controls control panel applet.

Configure

When you click this menu item, the Fujitsu Tablet Controls window appears.

About

When you click About, the help file will open.

REMOVING AND INSTALLING MODULAR DEVICES

There are two ways to remove and install modular devices in the Flexible Bay:

■

Cold-swapping: swapping devices while your Tablet PC is powered off.

■

Hot-swapping: swapping devices while your system is active using the Unplug/Eject icon from your taskbar. Note that if the weight saver is installed rather than a modular device, it is not necessary to use BayManager when removing it

You should never leave your Flexible Bay empty when the tablet is in operation. If left empty, dust or foreign matter may accumulate inside the tablet.

Flexible Bay Eject Lever

(a)

(c)

Figure 4-7 Removing/Installing a device in the Flexible Bay

Use care when aligning or seating devices in the bay. If the fit is incorrect, you may damage the bay or device. If the device does not move easily in the bay, remove it and check for dirt or foreign objects. It will require a firm push to latch it in place.

(b)

(d)

5. Slide the device you are installing into your tablet until it clicks into place.

6. It is now safe to turn your tablet back on.

7. You can now access and use the device.

Your Tablet PC will automatically detect the new device and activate it within your system. The drive letters associated with the device will be created and listed under My Computer and Windows Explorer.

Hot-swapping

Hot-swapping is provided through the Unplug or Eject Hardware utility. The icon for the utility appears on the taskbar. Click on the icon and follow the on-screen instructions.

Cold-swapping

To cold-swap modular devices in your Flexible Bay follow these easy steps: (Figure 4-7)

1. Close any open files.

2. Shut down your Tablet PC.

3. Pull out the Flexible Bay eject lever. This will push your device out slightly, allowing you to remove it.

4. Slide your device out until it is clear of the bay. This will require light force.

PC Card

User-Installable Features

PC Card Slot

Smart Card Slot

Eject Button

Figure 4-8. Inserting/Removing PC Cards

PC Cards

Your LifeBook T Series Tablet PC supports Type I and II PC Cards, which can perform a variety of functions.

Some available PC Cards include:

■

Fax/data modem cards.

■

Local area network (LAN) cards.

■

IDE solid-state disk cards.

■

SCSI cards.

■

Other PC Cards that conform to PCMCIA 2.1 or CardBus standards.

For further information, refer to the instructions supplied with your PC Card.

INSERTING PC CARDS

PC Cards are inserted in the PC Card slot. To insert a PC Card, follow these easy steps: (Figure 4-8)

■

inserting or removing a PC Card during your Tablet PC’s shutdown or bootup process may damage the card and/or your Tablet PC.

■

Do not insert a PC Card into the slot if there is water or any other substance on the card as you may permanently damage the card, your Tablet PC, or both.

1. See your PC Card manual for specific instructions on the insertion of your card. Some PC Cards may require your Tablet PC to be Off while inserting them.

2. Make sure there is no PC Card currently in the slot. If there is, see Removing PC Cards.

3. Insert your PC Card into the slot, with the product label facing up.

4. Push the card into the slot firmly until it is seated in the opening.

REMOVING PC CARDS

To remove a PC Card, follow these easy steps:

1. See your PC Card manual for specific instructions on removing your card. Some PC Cards may require your Tablet PC to be in Standby Mode or Off while removing them

If the dialog box states that the device can’t be removed, you must save all open files, close any open applications and shut down your Tablet PC.

2. Push the Eject button until it pops out, and then push it in to eject the card. This will allow you to remove the car

If the PC Card has an external connector and cable, do not pull the cable when removing the card.

SMART CARD READER

An embedded Smart Card Reader and a dedicated Smart Card slot are provided on your Tablet PC. The Smart Card slot is located just below the PC Card slot.

Smart Cards are the same size and shape as credit cards, but they contain an integrated microprocessor chip. The chip can hold a variety of information, and provides the user with many possible options, such as allowing them to make secure purchases, pay for phone calls, store security information, and provide identification and information.

Using the Smart Card functionality of your system requires third-party software. For instructions on using the Smart Card slot, see the instructions that come with the third-party software.

LifeBook T Series Tablet PC - Section Four

Memory Stick

SD Card

Memory Stick/SD Card Slot

Figure 4-9. Inserting a Memory Stick/SD Card

Memory Stick/ Secure Digital Media

Your LifeBook Tablet PC supports Memory Stick/ Memory Stick Pro and Secure Digital (SD) cards, on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don’t need a power source to retain data.

Memory Stick is a flash memory technology developed by Sony Electronics. Memory Stick allows you to record, transfer and share digital content, such as digital pictures, movies, music, voice, and computer data and applications.

Secure Digital (SD) Cards are very similar to Memory Sticks, but they are shorter. Like the Memory Stick, SD Cards allow portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data quickly, with low battery consumption. Like the memory stick, it uses flash memory architecture.

INSERTING MEMORY STICK/SD CARDS

Memory Sticks and SD Cards are inserted in the Memory Stick/SD Card slot (Figure 4-9). To insert a Memory Stick or SD Card, follow these steps

■

inserting or removing a Memory Stick or SD Card during your LifeBook Tablet PC’s shutdown or bootup process may damage the card and/or your LifeBook Tablet PC.

■

Do not insert a card into a slot if there is water or any other substance on the card as you may permanently damage the card, your LifeBook Tablet PC, or both.

1. See your Memory Stick or SD Card manual for instructions on the insertion of your card. Some cards may require that your Tablet PC is off while inserting them.

2. Make sure there is no card currently in the slot. If there is, see Removing a Memory Stick/SD Card.

3. Insert your PC Card into the slot with the product label facing up.

4. Push the card firmly into the slot until it is seated in the connector.

Figure 4-10. Memory Stick (left) and Secure Digital Card (right)

REMOVING A MEMORY STICK/SD CARD

To remove a Memory Stick or SD Card, see your Memory Stick or SD Card manual for instructions. Some cards may require your LifeBook Tablet PC to be in Suspend Mode or Off while removing them.

DC Power Jack

Line Out Jack

USB Ports

LAN (RJ-45) Jack

External Monitor Port

Figure 4-11. Port Replicator rear panel

Port Replicator

An optional Port Replicator is available from Fujitsu to support your LifeBook T Series Tablet PC. The Port Replicator extends the functionality of your Tablet PC by providing ports to connect USB devices, an external monitor, external speaker, or a LAN device. The Port Replicator connects to the bottom of your Tablet PC. See

“Device Ports” on page 54.

REAR PANEL COMPONENTS

Following is a brief description of the optional Port Replicator’s rear panel components.

External Monitor Port

The external monitor port allows you to connect an external monitor. Note that if a Port Replicator is attached, you must use the external monitor port on the Port Replicator. (Figure 4-11)

User-Installable Features

External DVI Port

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your Tablet PC and charge the internal Lithium ion battery.

USB 2.0 Ports

The four USB 2.0 ports allow you to connect USB devices such as game pads, pointing devices, and keyboards. USB 2.0 is downward-compatible with USB

1.1 devices, so older USB devices will work with these ports. USB 2.0 is a much faster design, running 40 times faster than USB 1.1.

Line Out Jack

The line out jack is used for connecting an external speaker. Note that line out does not provide power, so the speaker must be externally powered.

External DVI Port

The external Digital Video Interface (DVI) port allows you to connect an external digital flat-panel monitor or projector. This provides a pure digital video signal for digital monitors.

LAN (RJ-45) Jack

The LAN jack allows you to connect a LAN to the Port Replicator. Note that when the system is attached to the Port Replicator, the LAN Jack on the Port Replicator should be used, not the one on the system.

LifeBook T Series Tablet PC - Section Four

Docking Port

Figure 4-12. Port Replicator front panel

FRONT PANEL COMPONENTS

Following is a brief description of the optional Port Replicator’s front panel components

Docking Port

The docking port connects the Port Replicator to your Tablet PC. (Figure 4-12)

Port Replicator Release Latch

Power On/ Off Button

Port Replicator Release Latch

Slide the Port Replicator Release Latch sideways to remove the Port Replicator from your Tablet PC.

(Figure 4-12)

Power On/Off Button

The Power On/Off button on the port replicator performs the same as the system Suspend/Resume button. The Power On/Off button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from standby mode, and power on your system when it has been shut down from the Windows operating system.

ATTACHING THE PORT REPLICATOR

To attach the Port Replicator, align the Port Replicator connector on the bottom of your Tablet PC with the connector on the Port Replicator and push together at the two corners. (Figure 4-13)

Figure 4-13. Attaching the Port Replicator

User-Installable Features

Figure 4-14. Unlatching the Port Replicator

DETACHING THE PORT REPLICATOR

To d e ta c h t he Po r t R e p li ca to r:

1. Slide the Port Replicator release latch to release the Port Replicator from your Tablet PC. (Figure 4-14)

2. Pull away the Port Replicator to detach it from your Tablet PC. (Figure 4-15)

Figure 4-15. Removing the Port Replicator

LifeBook T Series Tablet PC - Section Four

Device Ports

Your LifeBook T Series Tablet PC and the optional Port Replicator come equipped with multiple Device Ports to which you can connect an external device including: disk drives, keyboards, modems, printers, etc.

MODEM (RJ-11) JACK

The modem (RJ-11) jack is used for an internal modem. To connect the telephone cable follow these easy steps:

(See Figure 2-7 on page 15 for location)

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the telephone cable into a telephone outlet.

The internal modem is not intended for use with Digital PBX systems. Do not connect the internal modem to a Digital PBX as it may cause serious damage to the internal modem or your entire LifeBook T Series Tablet PC. Consult your PBX manufacturer’s documentation for details. Some hotels have Digital PBX systems. Be sure to find out BEFORE you connect your modem.

Note that the optional Port Replicator is designed to cover the LAN jack located on the system. This design ensures that the LAN jack on the Port Replicator is the only one used when the Port Replicator is installed.

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the cable into a LAN outlet.

DOCKING PORT

The docking port is used for the connection of your Tablet PC to an optional port replicator. In order to connect your Tablet PC to one of these devices follow the instructions that came with your port replicator. (See

Figure 2-8 on page 16 for location)

UNIVERSAL SERIAL BUS PORTS

The two Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external floppy disk drives, external DVD drives, game pads, pointing devices, keyboards and/or speakers. USB 2.0 is downward-compatible with USB 1.1 devices, so older USB devices will work with these ports. USB 2.0 is a much faster design, running forty times faster than USB 1.1.

■

The internal modem is designed to the ITU V.90 standard. Its maximum speed of 53000 bps is the highest allowed by FCC, and its actual connection rate depends on the line conditions. The maximum speed is 33600 bps at upload.

■

The internal modem on all LifeBook T Series Tablet PC’s from Fujitsu Computer Systems Corporation are certified for use in the United States and Canada.

■

Depending upon the configuration of your system, your LifeBook Tablet PC may have either a LAN jack or an IEEE 1394 jack.

INTERNAL LAN (RJ-45) JACK

The internal LAN (RJ-45) jack is used for an internal 10/ 100/1000 Base-T/Tx (Gigabit) Ethernet connection. You will need to configure your Tablet PC to work with your particular network. (Please refer to your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps: (See Figure 2-7 on page 15 for location)

In order to connect a USB device, follow these easy steps:

(See Figure 2-7 on page 15 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

IEEE 1394 PORT

The 4-pin 1394 port allows you to connect digital devices that are compliant with the IEEE 1394 standard (also known as “FireWire”). The IEEE 1394 connection is easy to use, connect, and disconnect. This port allows up to 400 Mbps transfer rate. A third-party application may be required to operate your device with the 1394

port

The 1394 port used in this system uses a four-pin configuration. If you intend to interface with devices which use a six-pin configuration, you will need to purchase an adapter.

INFRARED PORT

The Infrared IrDA 1.1 (4 Mbps) port allows for wireless data transfer between your Tablet PC and other IrDAcompatible devices, such as another computer or a printer, without the use of a cable. (See Figure 2-7 on

page 15 for location)

User-Installable Features

It is important to keep in mind that while carrying out this form of communication, both devices must be placed so their infrared ports are directly facing each other without obstruction. The devices must also be separated by at least 6" but no more than 36" for maximum performance.

The following conditions may interfere with infrared communications:

■

A television, radio remote control unit, or a wireless headphone is being used nearby.

■

Direct sunlight, fluorescent light, or incandescent light shines directly on the port.

■

Do not move either device while communication is active as it may interrupt data transmission.

■

Be careful not to scratch the infrared port lens. Scratches, dirt, or other surface marks can degrade operation.

MICROPHONE JACK

The microphone jack allows you to connect an external mono microphone. Your microphone must be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your Tablet PC. In order to connect a microphone follow these easy steps: (See

Figure 2-4 on page 11 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

1. Remove the cover from the port opening, if present.

2. Align the connector with the port opening.

3. Push the connector into the port until it is seated.

4. Tighten the two hold-down screws, located on each side of the connector.

When an external monitor is plugged in, pressing the [Fn] + [F10] keys allows you to change your selection of where to send your display video. Each time you press the key combination, you will step to the next choice, starting with the built-in display panel only, moving to the external monitor only, finally moving to both the built-in display panel and an external monitor.

EXTERNAL DVI PORT

The external Digital Video Interface (DVI) port on the optional port replicator allows you to connect an external digital monitor or projector. In order to connect a DVI monitor follow these easy steps: (See Figure 4-11 on page 51 for location).

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

3. Tighten the two hold-down screws, located on each side of the connector.

HEADPHONE JACK

The headphone jack allows you to connect headphones or powered external speakers to your Tablet PC. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones or speakers follow these easy steps: (See Figure 2-

4 on page 11 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

If you plug headphones into the headphone jack, the built-in stereo speakers will be disabled.

EXTERNAL VIDEO PORT

The external video port allows you to connect an external monitor or LCD projector. In order to connect an external monitor follow these easy steps: (See Figure 2-7 on page 15 for location). There is also an external VGA monitor on the port replicator (See Figure 4-11 on page 51 for location).

LifeBook T Series Tablet PC - Section Four

Troubleshooting

LifeBook T Series Tablet PC - Section Five

Troubleshooting

Your LifeBook T Series Tablet PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service.

IDENTIFYING THE PROBLEM

If you encounter a problem that you are having difficulty in solving, go through the following procedure before pursuing further troubleshooting:

1. Turn off your Tablet PC.

2. Make sure the AC adapter is plugged into your Tablet PC and to an active AC power source.

3. Make sure that any card inserted in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure.

4. Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure.

5. Turn on your Tablet PC. Make sure it has been off at least 10 seconds before you turn it on.

6. Go through the boot sequence.

7. If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed troubleshooting information.

8. If you still have the problem after taking all of the above approaches, please check our Web site at http://www.computers.us.fujitsu.com/support for possible known support issues.

8. If you have tried the solutions suggested in the Troubleshooting Table and checked our Web site for possible solutions without success, contact your support representative:

Toll free: 1-800-8Fujitsu E-mail: 8fujitsu@us.fujitsu.com Web site: http://www.computers.us.fujitsu.com/ support

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

■

Product name

■

Product configuration number

■

Product serial number

■

Purchase date

■

Conditions under which the problem occurred

■

Any error messages that have occurred

■

Type of device connected, if any

See the Configuration Label on the bottom of your Tablet PC for configuration and serial numbers. (See

figure 2-8 on page 16 for location)

SPECIFIC PROBLEMS

Using the Troubleshooting Table

When you have problems with your tablet, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty.

You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your Tablet PC.

■

If you keep notes about what you have tried, your support representative may be able to help you more quickly by giving additional suggestions over the phone.

■

Do not return a failed Tablet PC to your supplier until you have talked to a support representative.

LifeBook T Series Tablet PC - Section Five

TROU BLE SH O OT I NG TABL E

Problem Page

Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 60

Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . page 60

Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 60

Keyboard or Mouse Problems. . . . . . . . . . . . . . . page 60

Pen Input Problems . . . . . . . . . . . . . . . . . . . . . . . page 61

Infrared Problems . . . . . . . . . . . . . . . . . . . . . . . . page 61

Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 61

Problem Possible Cause Possible Solutions

Audio Problems

There is no sound coming from the built-in speakers.

The software volume control is set too low.

Headphones are plugged into your Tablet PC.

Problem Page

Modem Problems. . . . . . . . . . . . . . . . . . . . . . . . . page 61

USB Device Problems . . . . . . . . . . . . . . . . . . . . . page 62

PC Card Problems . . . . . . . . . . . . . . . . . . . . . . . . page 62

Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 62

Shutdown and Startup Problems . . . . . . . . . . . . page 64

Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 65

Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 66

Adjust the sound volume control settings in your software, operating system and applications.

Plugging in headphones disables the built-in speakers, remove the headphones.

Port Replicator Problems

Tablet PC does not turn on when installed in optional Port Replicator

Hard Drive Problems

You cannot access your hard drive.

Keyboard or Mouse Problems

Software driver is not configured correctly.

Sound could have been muted with function keys.

Port Replicator AC adapter is not plugged in.

Tablet PC is not properly seated in the Port Replicator.

The setup utility is incorrectly set for your internal (Primary Master) hard drive.

The wrong drive designator was used by an application when a bootable CD-ROM was used to start the Tablet PC.

Security is set so your operating system cannot be started without a password.

Refer to your application and operating system documentation for help.

Press [F3] while holding the [Fn] key to toggle the sound on and off.

Provide power to the Port Replicator.

Remove and re-dock your Tablet PC.

Revise BIOS settings to set the Primary Master correctly. See “BIOS Setup Utility” on page 36.

Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted.

Verify your password and security settings.

The built-in keyboard does not seem to work.

The Tablet PC has gone into Standby mode.

Your application has locked out your keyboard.

The NumLock key has been toggled on.

Push the Suspend/Resume button.

Try to use your integrated pointing device to restart your system. If this fails, turn your Tablet PC off by pressing the suspend/resume button for 10 seconds or more, and then turn it back on.

Press the NumLock key to toggle it off.

Problem Possible Cause Possible Solutions

You have installed an external keyboard or mouse, and it does not seem to work.

You have connected an external keyboard or a mouse and it seems to be locking up the system.

Pen Input Problems

Cursor is not tracking the pen

Infrared Problems

Infrared data transfer is not working

Memory Problems

Troubleshooting

Your external device is not

Re-install your device. See “Device Ports” on page 54.

properly installed.

Your operating system software is not set up with the

Check your device and operating system documentation and activate the proper driver.

correct driver for that device.

Your operating system software is not set up with the

Check your device and operating system documentation and activate the proper driver.

correct driver for that device.

Your system has crashed. Try to restart your Tablet PC. If that fails, turn off

the power by pressing the suspend/resume button for at least 10 seconds, and then power back on.

The system may be uncalibrated

If the cursor on the screen appears to be misaligned with the pen or is not accurately tracking the pen, calibrate the pen. See “Calibrating the Pen” on page 31.

The IrDA port on the system can’t “see” the IrDA port on

Move the system so that there is a direct line-of-sight path between the two ports.

the other device.

The system and the other device are too far from each

Move the system and the device so that they are three feet or less from each other.

other.

The viewing angle between the devices is too great.

The viewing angle between the system port and the device port cannot be more than 15 degrees from a center line between the IrDA port on the Tablet PC and the IrDA port on the other device.

You are using an old version of IrDA.

There are possibly problems in one or both devices.

The device with which you are trying to communicate must be compliant with IrDA standard 1.1.

Go to Start -> (All) Programs -> Accessories -> Communications -> New Connection Wizard. Verify that “Set up an advanced connection” is checked and follow the on-screen instructions.

Your Power On screen, or Info menu of the BIOS setup utility information, does not show the correct amount of installed memory.

Modem Problems

Messages about modem operation.

Your memory upgrade module is not properly installed.

Turn off your Tablet PC. Remove and re-install your memory upgrade module. See “Memory Upgrade

Module” on page 45.

You have a memory failure. Check for Power On Self Test (POST) messages.

See “Power On Self Test Messages” on page 67.

Messages about modem operation are generated by

See your application software documentation for

additional information. whichever modem application is in use.

LifeBook T Series Tablet PC - Section Five

Problem Possible Cause Possible Solutions

Modem does not appear to work.

Modem may not have been initialized.

USB Device Problems

Verify that the modem has been initialized by the operating system. TO do so, right-click on My Computer and select the Hardware tab. Click [Device Manager] and click on the “+” symbol that appears next to Modems. Verify that your device is listed as installed.

You have installed a USB device, but your Tablet PC does not recognize the device, or the device does not seem to work properly.

PC Card Problems

A card inserted in the PC Card slot does not work or is locking up the system.

Power Failures

You turn on your Tablet PC and nothing seems to happen.

The device is not properly installed.

The device may have been installed while an application was running, so your Tablet PC is not aware of its installation.

Your software may not have the correct software driver active.

Your device and another device are assigned the same I/O address.

The card is not properly inserted.

The card may have been inserted while an application was running, so your Tablet PC is not aware of its insertion.

Your software may not have the correct software driver active.

Your PC Card device and another device are assigned the same I/O address.

The installed battery is completely discharged or there is no power adapter (AC or Auto/Airline) installed.

Remove and re-install the device. See “Device Ports”

on page 54.

Close the application and restart your Tablet PC.

See your software documentation and activate the correct driver.

Check all I/O addresses located within the BIOS setup utility and any other installed hardware or software to make sure there are no duplications.

Remove and re-insert the card. See “PC Cards” on

page 49.

Close the application and restart your Tablet PC.

See your software documentation and activate the correct driver.

Check all I/O addresses located within the BIOS setup utility and any other installed hardware or software to make sure there are no duplications.

Check the Status Indicator Panel to determine the presence and condition of the battery. See “Status Indicator Panel” on page 17. Install a charged battery or a Power adapter.

The battery is installed but is faulty.

Use the Status Indicator Panel to verify the presence and condition of the battery. See “Status Indicator Panel” on page 17. If a battery is indicating a short, remove that battery and operate from another power source or replace that battery.

Problem Possible Cause Possible Solutions

You turn on your Tablet PC and nothing seems to happen.

(continued)

Troubleshooting

The battery is low. Check the Status Indicator Panel to determine the

presence and condition of the battery. See “Status

Indicator Panel” on page 17. Use a Power adapter

until the battery is charged.

The AC or auto/airline adapter is not plugged in properly.

The Power adapter (AC or auto/airline) is faulty.

The Power adapter (AC or auto/airline) has no power from the AC outlet, airplane seat jack, or the car’s cigarette lighter.

Verify that your adapter is connected correctly. See

“Power Sources” on page 35.

Try a different Power adapter or install a charged

optional second battery.

Move the AC cord to a different outlet, check for a

line switch or tripped circuit breaker for the AC

outlet. If you are using an auto/airline adapter in a

car make sure the ignition switch is in the On or

Accessories position.

Your Tablet PC turns off all by itself.

You r Tab l et PC wi ll n ot work on battery alone.

The battery seems to discharge too quickly.

The power management parameters are set for auto timeouts which are too short for your operating needs.

Press any button on the keyboard, or move the

mouse to restore operation. If that fails, push the

Suspend/Resume button. Check your power

management settings, or close your applications

and go to the Power Savings menu of the setup

utility to adjust the timeout values to better suit

your operation needs.

You are operating on battery power only and have ignored a

Install a power adapter and then push the Suspend/

Resume button. See “Power Sources” on page 35. low battery alarm until the battery is at the dead battery state and your machine has gone into Dead Battery Suspend mode.

You have a battery failure. Verify the condition of the battery using the

Status Indicator panel, and replace or remove

any battery that is shorted. See “Status Indicator

Panel” on page 17.

Your power adapter has failed or lost its power source.

Make sure the adapter is plugged in and the outlet

has power.

The battery is dead. Replace the battery with a charged one or install a

Power adapter.

No battery is installed. Install a charged battery.

The battery is improperly installed.

Verify that the battery is properly connected by

re-installing them.

Your battery is faulty. Verify the battery condition using the Status Indi-

cator panel and replace or remove any battery that is

shorted. See “Status Indicator Panel” on page 17.

You are running an application that uses a great deal of power

Use a power adapter for this application when at all

possible. due to frequent hard drive or CD-ROM access, or use of a modem or LAN PC card.

LifeBook T Series Tablet PC - Section Five

Problem Possible Cause Possible Solutions

The battery seems to discharge too quickly.

The power savings features may be disabled.

(continued)

The brightness is turned all the way up.

The battery is very old. Replace the battery.

The battery has been exposed to high temperatures.

The battery is too hot or too cold.

The AC Adapter is defective. Replace with another AC Adapter to see if the

Shutdown and Startup Problems

Check the power management and/or setup utility settings in the Power Savings menu and adjust according to your operating needs.

Turn down the brightness adjustment. The higher the brightness the more power your display uses.

Replace the battery.

Restore the Tablet PC to normal operating temperature. The Charging icon on the Status Indicator panel will flash when the battery is outside its operating range.

problem persists. Replace any defective AC Adapters.

The Suspend/Resume button does not work.

The system powers up, and displays power-on information, but fails to load the operating system.

An error message is displayed on the screen during the Tablet PC boot sequence.

Your system display won’t turn on when the system is turned on or when the system has resumed.

The Suspend/Resume button is disabled from the Advanced submenu of the Power menu of the setup utility.

You did not hold the button in long enough.

There may be a conflict with the application software.

The boot sequence settings of the setup utility are not compatible with your configuration.

You have a secured system requiring a password to load your operating system.

Power On Self Test (POST) has detected a problem.

The system may be passwordprotected.

Enable the button from the setup utility.

Hold the button longer. This may need to be a few seconds if your application is preventing the CPU from checking for button pushes.

Close all applications and try the button again.

Set the operating source by pressing the [F2] key while the Fujitsu logo is on screen, entering the setup utility and adjusting the source settings from the Boot menu. See “BIOS Setup Utility” on page 36.

Make sure you have the right password. Enter the setup utility and verify the Security settings and modify them as accordingly. See “BIOS Setup

Utility” on page 36.

See the Power On Self Test (POST) messages to determine the meaning and severity of the problem. Not all messages are errors; some are simply status indicators. See “Power On Self Test Messages” on

page 67.

Check the status indicator panel to verify that the Security icon is blinking. If it is blinking, enter your password.

Problem Possible Cause Possible Solutions

Your Tablet PC appears to change setup parameters when you start it.

Video Problems

The built-in display is blank when you turn on your Tablet PC.

BIOS setup changes were not saved when you made them and exited the BIOS setup utility returning it to previous settings.

The BIOS CMOS back-up battery has failed.

The angle of the display and the brightness settings are not adequate for your lighting conditions.

The optional Port Replicator is attached, an external monitor is plugged in, and the Tablet PC is set for an external monitor only.

Troubleshooting

Make sure you select Save Changes And Exit when

exiting the BIOS setup utility.

Contact your support representative for repairs.

This is not a user-serviceable part.

Move the display and the brightness control until

you have adequate visibility.

Pressing [F10] while holding down the [Fn] key

allows you to change your selection of where to

send your display video. Each time you press the

combination of keys you will step to the next

choice. The choices, in order are: built-in display

only, external monitor only, both built-in display

and external monitor.

The power management timeouts may be set for very short intervals and you failed to notice the display come on and go off again.

The Tablet PC turned on with a series of beeps and your built-in display is blank.

Your system display won’t turn on when the system is

Power On Self Test (POST) has detected a failure which does not allow the display to operate.

The system may be passwordprotected.

turned on or when the system has resumed.

The display goes blank by itself after you have been using it.

The Tablet PC has gone into Video Timeout, Standby Mode, or Hibernate Mode because you have not used it for a period of time.

The power management timeouts may be set for very short intervals and you failed to notice the display come on and go off again.

The display does not close. A foreign object, such as a

paper clip, is stuck between the display and the keyboard.

Press any button the keyboard, or move the mouse

to restore operation. If that fails, push the Suspend/

Resume button. (The display may be shut off by

Standby mode, Auto Suspend or Video Timeout)

Contact your support representative.

Check the status indicator panel to verify that the

Security icon is blinking. If it is blinking, enter your

password.

Press a button on the keyboard, or move the mouse

to restore operation. If that fails, push the Suspend/

Resume button. Check your power management

settings, or close your applications and go to the

Power Savings menu of the setup utility to adjust the

timeout values to better suit your operation needs.

See “BIOS Setup Utility” on page 36.

Press any button on the keyboard, or move the mouse

to restore operation. If that fails, push the Suspend/

Resume button. (The display may be shut off by

Standby Mode, Auto Suspend or Video Timeout)

Remove all foreign objects from the keyboard.

LifeBook T Series Tablet PC - Section Five

Problem Possible Cause Possible Solutions

The display has bright or dark spots.

If the spots are very tiny and few in number, this is normal for a large LCD display.

If the spots are numerous or large enough to interfere with your operation needs.

The application display uses only a portion of your screen and is surrounded by a dark frame.

You are running an application that does not support 800 x 600/1024 x 768 pixel resolution display and display compression is enabled.

You have connected an external monitor and it

Your BIOS setup is not set to

enable your external monitor. does not display any information.

Your external monitor is not

properly installed.

This is normal; do nothing.

The display needs technical diagnosis; contact your support representative.

When compensation is disabled, a clearer but smaller display for applications that do not support 800 x 600/1024 x 768 pixel resolution will result. You can fill the screen but have less resolution by changing your compensation setting. (See the Video Features submenu, located within the Advanced menu of the BIOS. See “BIOS Setup Utility” on

page 36.

Try toggling the video destination by pressing [Fn] and [F10] together, or check your BIOS setup and enable your external monitor. (See the Video Features submenu, located within the Advanced Menu of the BIOS. See “BIOS Setup Utility” on

page 36.

Reinstall your device. See “External Video Port” on page 55.

You have connected an external monitor and it does not come on.

Miscellaneous Problems

An error message is displayed on the screen during the operation of an application.

Your operating system soft-

ware is not set up with the

correct software driver for

that device.

Your external monitor may not

be co mpatibl e wi th yo ur Tablet

PC.

Application software often has

its own set of error message

displays.

Check your device and operating system documentation and activate the proper driver.

See your monitor documentation and the External Monitor Support portions of the Specifications section. See “Specifications” on page 79.

See your application manual and help displays screens for more information. Not all messages are errors some may simply be status.

Troubleshooting

POWER ON SELF TEST MESSAGES

The following is an alphabetic list of error-and-status messages that Phoenix BIOS and/or your operating system can generate and an explanation of each message. Error messages are marked with an *. If an error message is displayed that is not in this list, write it down and check your operating system documentation both on screen and in the manual. If you can find no reference to the message and its meaning is not clear, contact your support representative for assistance.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kilobytes successfully tested by the Power On Self Test. (This can only appear if you have an SRAM PC Card installed.)

*Extended RAM Failed at offset: nnnn

Extended memory not working or not configured properly. If you have an installed memory upgrade module, verify that the module is properly installed. If it is properly installed, you may want to check your Windows Setup to be sure it is not using unavailable memory until you can contact your support representative.

nnnn Extended RAM Passed

Where nnnn is the amount of memory in kilobytes successfully tested.

*Keyboard controller error

The keyboard controller test failed. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative.

*Keyboard error

Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative.

*Keyboard error nn

BIOS discovered a stuck key and displays the scan code for the stuck key. You may have to replace your keyboard but may be able to use an external keyboard until then. Contact your support representative.

*Operating system not found

Operating system cannot be located on either drive A: or drive C: Enter the setup utility and see if both the fixed disk, and drive A: are properly identified and that the boot sequence is set correctly. Unless you have changed your installation greatly, the operating system should be on drive C:. If the setup utility is correctly set, your hard drive may be corrupted and your system may have to be re-installed from your back up media.

*Failing Bits: nnnn The hex number nnnn

This is a map of the bits at the memory address (in System, Extended, or Shadow memory) which failed the memory test. Each 1 (one) in the map indicates a failed bit. This is a serious fault that may cause you to lose data if you continue. Contact your support representative.

*Fixed Disk x Failure or Fixed Disk Controller Failure (where x = 1-4)

The fixed disk is not working or not configured properly. This may mean that the hard drive type identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the setup utility to check for the hard drive type settings and correct them if necessary. If the settings are OK and the message appears when you restart the system, there may be a serious fault which might cause you to lose data if you continue. Contact your support representative.

*Invalid NVRAM media type

Problem with NVRAM access. In the unlikely case that you see this message you may have some display problems. You can continue operating but should contact your support representative for more information.

*Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays “????”. This is a potentially data destroying failure. Contact your support representative.

*Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays “????”. This is a potentially data destroying failure. Contact your support representative.

*Press <F1> to resume, <F2> to SETUP

Displayed after any recoverable error message. Press the [F1] key to continue the boot process or the [F2] key to enter Setup and change any settings.

*Previous boot incomplete – Default configuration used

Previous Power On Self Test did not complete successfully. The Power On Self Test will load default values and offer to run Setup. If the previous failure was caused by incorrect values and they are not corrected, the next boot will likely fail also. If using the default settings does not allow you to complete a successful boot sequence, you should turn off the power and contact your support representative.

LifeBook T Series Tablet PC - Section Five

*Real time clock error

Real-time clock fails BIOS test. May require board repair. Contact your support representative.

*Shadow RAM Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected. You are risking data corruption if you continue. Contact your support representative.

nnnn Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes successfully tested.

*System battery is dead – Replace and run SETUP

The BIOS CMOS RAM memory hold up battery is dead. This is part of your BIOS and is a board mounted battery which requires a support representative to change. You can continue operating but you will have to use setup utility default values or reconfigure your setup utility every time you turn off your Tablet PC.

System BIOS shadowed

System BIOS copied to shadow RAM.

*System CMOS checksum bad – run SETUP

BIOS CMOS RAM has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in BIOS memory. Run Setup and reconfigure the system.

MODEM RESULT CODES

The operating system and application software that is factory installed detects the modem characteristics and provides the necessary command strings to operate the modem. The internal modem operation is controlled by generic AT commands from the operating system and application software. The standard long form result codes may, in some cases, be displayed on your screen to keep you informed of the actions of your modem. The operating system and application software may suppress display of the result codes.

Examples of result codes are:

■

NO CARRIER

■

NO DIALTONE

■

CONNECT 53000 (Connection complete at 53,000 bps.)

■

ERROR

■

FAX

■

RING (This means an incoming call.)

■

BUSY

■

NO ANSWER

When using the internal modem with applications that are not factory installed refer to the application documentation.

*System RAM Failed at offset: nnnn

System memory failed at offset nnnn of in the 64k block at which the error was detected. This means that there is a fault in your built-in memory. If you continue to operate, you risk corrupting your data. Contact your support representative for repairs.

nnnn System RAM Passed

Where nnnn is the amount of system memory in kilobytes successfully tested.

*System timer error

The timer test failed. The main clock that operates the computer is faulty. Requires repair of system board. Contact your support representative for repairs.

UMB upper limit segment address: nnnn

Displays the address of the upper limit of Upper Memory Blocks, indicating released segments of the BIOS memory which may be reclaimed by a virtual memory manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

Restoring Your Pre-installed Software

The Drivers and Applications Restore (DAR) DVD contains sets of device drivers and Fujitsu utilities (in specific directories) that are unique to your Tablet PC

configuration for use as documented below

In order to install applications and/or drivers from the DAR DVD, you will need access to a DVD drive. If you do not have a built-in modular DVD drive, you will need to connect an external DVD drive to your system.

If you have access to the internet, visit the Fujitsu Support web site at http:// www.computers.us.fujitsu.com/support to check for the most current information, drivers and hints on how to perform recovery and system updates.

RE-INSTALLING INDIVIDUAL DRIVERS AND APPLICATIONS

The Drivers and Applications CD can be used to selectively re-install drivers and/or applications that may have

been un-installed or corrupted.

There may be certain free third-party applications pre-installed on your system that are not on the DAR CD. The latest versions of the applications can be downloaded from the third-party’s website.

To re-install drivers and/or applications:

1. Boot up the system and insert the DAR CD after Windows has started. A Fujitsu Installer screen is displayed after the CD is inserted.

2. After reading the License Agreement, click [I agree].

3. A window will appear containing a list of applications, drivers, and utilities that you can install from the Drivers and Applications CD.

Troubleshooting

The components listed are color-coded in terms of their install status. Blue indicates that the component can be installed. Green indicates that the component needs to be installed separately. Grey indicates a component that is already installed; grey items can be reinstalled, but prior to installation you will receive a reminder that the component is already installed and may need to be uninstalled prior to reinstallation.

4. In the list, check off all the components you want to install. If you want to install all components, click [Select All]. Clicking [Select All] will select all of the blue-coded components; you must select grey and green components separately.

5. Once you have selected the components you wish to install, click [Install Selected Subsystems]; the components will be installed.

6. After the components are installed, click [OK], then click [Yes] when asked if you want to reboot the system.

RESTORING THE FACTORY IMAGE

The Restore Disc that came with your system contains two utilities:

■

The Recovery utility allows you to restore the original contents of the C: drive.

■

The Hard Disk Data Delete utility on this disc is used to delete all data on your hard disk and prevent it from being reused. Do not use Hard Disk Data Delete unless you are absolutely certain that you want to erase your entire hard disk, including all partitions.

• The use of this disc requires that you have a device capable of reading DVDs attached to your system. If you do not have a built-in DVD player, you will need to attach an external player. For more information on available external devices, visit our Web site at: us.fujitsu.com/ computers.

• This disc can only be used with the system with which it was purchased.

BOOT Priority Change

Before restoring an image, you must first verify that your system is set up to boot from the DVD drive. To verify/ change the boot-up priority (rather than booting-up from the hard drive or an external floppy disk drive), perform the following steps:

LifeBook T Series Tablet PC - Section Five

1. Start your system and press the [F2] key when the Fujitsu logo appears. You will enter the BIOS Setup Utility.

2. Using the arrow keys, go to the Boot menu.

3. Arrow down to the Boot Device Priority submenu. Press [Enter].

4. If “Optical Media Drive” or “CD-ROM Drive” is not at the top of the list, arrow down to the drive in the list, and press the space bar (or the + key) to move it to the top of the list. (The system attempts to boot from the devices in the order in which they are listed.). Note that the BIOS for some systems will indicate “CD-ROM Drive”, even when a DVD drive is connected.

5. If you have an external DVD drive connected, proceed to the next step; otherwise, proceed to step 7.

6. If you have an external DVD drive connected:

• Select the Advanced menu in the BIOS window.

• Scroll down to the USB Features submenu and press the Enter key to open it.

• If Legacy USB Support is disabled, press the space bar to enable it.

• Scroll down to SCSI SubClass Support and press the space bar to enable it.

7. Press [F10], then click on [Yes] to exit the BIOS Setup Utility and return to the boot process.

After you have changed the boot priority, you can restore a backup image when you are booting up.

Procedure

1. Turn on the power to your system.

2. Ensure that you have a device that can read DVDs

either installed in your system or attached externally to it.

3. Insert the Restore Disc into the drive tray.

4. Reboot your system.

5. After the system reboots, follow the instructions

that appear to either restore your system image or erase all data from your hard disk.

Care and Maintenance

LifeBook T Series Tablet PC - Section Six

Care and Maintenance

If you use your LifeBook T Series Tablet PC carefully, you will increase its life and reliability. This section provides some tips for looking after the Tablet PC and

its devices.

Electrical equipment may be hazardous if misused. Operations of this product or similar products, must always be supervised by an adult. Do not allow children access to the interior of any electrical products and do not permit them to handle any cables.

LIFEBOOK T SERIES TABLET PC

Caring for your Tablet PC

■

Your Tablet PC is a durable but sensitive electronic device. Treat it with care.

■

Make a habit of transporting it in a suitable carrying case.

■

Do not attempt to service the computer yourself. Any unauthorized service performed on the computer will void the warranty.

■

Do not operate the computer in areas where the air vents can be obstructed, such as in tight enclosures or on soft surfaces like a bed or cushion.

■

Always follow installation instructions closely.

■

Keep it away from food and beverages.

■

If you accidentally spill liquid on your Tablet PC:

1. Turn it off.

2. Position it so that the liquid can run out.

3. Let it dry out for 24 hours, or longer if needed.

4. If your Tablet PC will not boot after it has dried out, call your support representative.

■

Do not use your Tablet PC in a wet environment (near a bathtub, swimming pool).

■

Always use the AC adapter and batteries that are approved for your Tablet PC.

■

Avoid exposure to sand, dust and other environmental hazards.

■

Do not expose your Tablet PC to direct sunlight for long periods of time as temperatures above 140° F (60° C) may damage your Tablet PC.

Care and Maintenance

■

Keep the covers closed on the connectors and slots when they are not in use.

■

Do not put heavy or sharp objects on the computer.

■

If you are carrying your Tablet PC in a briefcase, or any other carrying case, make sure that there are no objects in the case pressing on the lid.

■

Do not drop your Tablet PC.

■

Do not touch the screen with any sharp objects.

Cleaning your Tablet PC

■

Always disconnect the power plug. (Pull the plug, not the cord.)

■

Clean your Tablet PC with a damp, lint-free cloth. Do not use abrasives or solvents.

■

Use a soft cloth to remove dust from the screen. Never use glass cleaners.

Storing your Tablet PC

■

If storing your Tablet PC for a month or longer, turn the Tablet PC off, fully charge the battery, then remove and store all Lithium ion batteries.

■

Store your Tablet PC and batteries separately. If you store your Tablet PC with a battery installed, the battery will discharge, and battery life will be reduced. In addition, a faulty battery might damage the Tablet PC.

■

Store your Tablet PC in a cool, dry location. Temperatures should remain between 13º F (-25º C) and 140º F (60º C).

Traveling with your Tablet PC

■

Do not transport your Tablet PC while it is turned on.

■

Do not check your Tablet PC as baggage. Carry it with you.

■

When traveling with the hard drive removed, wrap the drive in a non-conducting materials (cloth or paper). If you have the drive checked by hand, be ready to install the drive if needed. Never put your hard drive through a metal detector. Have your hard drive handinspected by security personnel. You can however, put your hard drive through a properly tuned X-ray machine.

LifeBook T Series Tablet PC - Section Six

■

Take the necessary plug adapters if you're traveling overseas. Check the following diagram to determine which adapter you'll need or ask your travel agent.

Outlet Type Location

United States, Canada, Mexico, parts

of Latin America, Japan, Korea, the

Philippines, Taiwan

Russia and the Commonwealth of Independent States (CIS), most of

Europe, parts of Latin America, the

Middle East, parts of Africa, Hong

Kong, India, most of South Asia

United Kingdom, Ireland, Malaysia,

Singapore, parts of Africa

China, Australia, New Zealand

Figure 6-1. Outlet types

KEYBOARD

Caring for your Keyboard

The keyboard of your computer is a very sensitive instrument. It is made up of many switches that are activated when you press on the keys. The keyboard is a major component of the heat dissipation system in a Tablet PC. Due to heat and size considerations the keyboard is not sealed. Because the keys are so close together, it is not easy for the user to see when liquids have fallen onto the circuitry below the keys.

Attempting to clean the keyboard with a spray on cleaner or rag soaked with cleaner the liquid can drip onto the circuitry sight unseen. Once the liquid seeps between the layers of circuitry, it can cause corrosion or other damage to the circuits. This can result in keys which no longer operate, or which, when pressed, record the wrong characters and other similar failures.

There is no repair for this problem other than replacement. The solution is to become aware of the issue and take appropriate steps to protect your keyboard.

BATTERIES

Caring for your Batteries

■

Always handle batteries carefully.

■

Do not short-circuit the battery terminals (that is, do not touch both terminals with a metal object). Do not carry lose batteries in a pocket or purse where they may mix with coins, keys, or other metal objects. Doing so may cause an explosion or fire.

■

Do not drop, puncture, disassemble, mutilate or incinerate the battery.

■

Recharge batteries only as described in this manual and only in ventilated areas.

■

Do not leave batteries in hot locations for more than a day or two. Intense heat can shorten battery life.

■

Do not leave a battery in storage for longer than six months without recharging it.

Increasing Battery Life

■

Keep brightness to the lowest comfortable level.

■

Set the power management for maximum battery life.

■

Put your Tablet PC in Standby mode when it is turned on and you are not actually using it.

■

Limit your CD-ROM access.

■

Disable the Windows CD auto insert function.

■

Always use fully charged batteries.

■

Eject PCMCIA cards when not in use.

OPTIONAL FLOPPY DISK DRIVE AND FLOPPY DISKS

Caring for your Floppy Disks

■

Avoid using floppy disks in damp and dusty locations.

■

Never store a floppy disk near a magnet or magnetic field.

■

Do not use a pencil or an eraser on a disk or disk label.

■

Avoid storing the floppy disks in extremely hot or cold locations, or in locations subject to severe temperature changes. Store at temperatures between 50º F (10º C) and 125º F (52º C).

■

Do not touch the exposed part of the disk behind the metal shutter.

To clean the keyboard, use a rag dampened slightly with cleaning solution. Use extreme care to prevent liquid from dripping between the keys. Spraying directly on the keys should be avoided. The spray should be applied first to the cloth, and then the cloth wiped over the keys.

Caring for your Optional Floppy Disk Drive

■

To clean, wipe the floppy disk drive clean with a dry soft cloth, or with a soft cloth dampened with water or a solution of neutral detergent. Never use benzene, paint thinner or other volatile material.

■

Avoid storing the floppy disk drive in extremely hot or cold locations, or in locations subject to severe

Care and Maintenance

temperature changes. Store at temperatures between 50º F (10º C) and 125º F (52º C).

■

Keep the floppy disk drive out of direct sunlight and away from heating equipment.

■

Avoid storing the floppy disk drive in locations subject to shock and vibration.

■

Never use the floppy disk drive with any liquid, metal, or other foreign matter inside the floppy disk drive or disk.

■

Never disassemble or dismantle your floppy disk drive.

OPTIONAL OPTICAL DRIVE AND DISCS

Caring for your discs

CDs and DVD discs are precision devices and will function reliably if given reasonable care.

■

Always store your discs in their case when not in use.

■

Always handle discs by the edges and avoid touching the surface.

■

Avoid storing any discs in extreme temperatures.

■

Do not bend discs or set heavy objects on them.

■

Do not spill liquids on discs.

■

Do not scratch discs.

■

Do not put a label on discs.

■

Do not get dust on discs.

■

Never write on the label surface with a ballpoint pen or pencil. Always use a felt pen.

■

If a disc is subjected to a sudden change in temperature, cold to warm condensation may form on the surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room temperature. DO NOT use a hair dryer or heater to dry discs.

■

If a disc is dirty, use only a disc cleaner or wipe it with a clean, soft, lint free cloth starting from the inner edge and wiping to the outer edge.

■

Avoid using or storing the drive where it will be subjected to shock or vibration.

■

Do not disassemble or dismantle the optical drive.

PC CARDS

Caring for your PC Card Slots

PC Cards are durable, but you must treat them with care. The documentation supplied with your PC Cards provides specific information for caring for the cards.

When you don’t have a PC Card inserted in your system, you should be sure to insert the PC Card slot inserts that came with your system. These will help to keep dust and dirt out of your system.

Caring for your Optional Optical Drive

Your optical drive is durable but you must treat it with care. Please pay attention to the following points:

■

The drive rotates the compact disk at a very high speed. Do not carry it around or subject it to shock or vibration with the power on.

■

Avoid using or storing the drive where it will be exposed to extreme temperatures.

■

Avoid using or storing the drive where it is damp or dusty.

■

Use of a commercially-available lens cleaner kit is recommended to maintain the drive lens.

■

Avoid using or storing the drive near magnets or devices that generate strong magnetic fields.

LifeBook T Series Tablet PC - Section Six

Specifications

LifeBook T Series Tablet PC - Section Seven

Specifications

This section provides the hardware and environmental specifications for your LifeBook T Series Tablet PC. Specifications of particular configurations will vary.

CONFIGURATION LABEL

Your LifeBook T Series Tablet PC has a configuration label located on the bottom. (See figure 2-8 on page 16 for location). This label contains specific information regarding the options you’ve chosen for your Tablet PC. Following is an example label and information on how to read your own configuration label.

Part Number

Configuration P/N: AE2XXXXXXXXXXXX

FPC P/N: FPCXXXXXX

T4020, PM 740, 12.1 XGA, XPTE, 40G, 256M

Processor

Model

Figure 7-1. Configuration Label

LifeBook T Series Tablet PC Specifications

The specifications for your particular model may vary. To determine the specifications for your system, please visit our Web site at: us.fujitsu.com/computers.

Dimensions 11.54” w x 9.61” d x 1.38" / 1.48"

CPU/Speed Intel® Pentium® M Processor 740/760

Chip set Intel 915GM - 533 MHz

Memory/Storage Specifications

Main RAM • 256 MB SDRAM (DDR2 533 MHz)

L1 cache (CPU)

L2 cache 2 MB on-die

Screen Size

Physical Specifications

(293 mm x 244 mm x 35 / 37.5 mm)

Processing Specifications

• 200-pin SO DIMM slots x 2 256 MB, 512 MB, and 1.0 GB modules

available, with a system maximum of

2.0 GB.

64 KB on-die

Configuration ID

Operating System

Hard Drive

Memory

LifeBook T Series Tablet PC Specifications (Continued)

Hard disk drive

Display 12.1" TFT XGA (1024 x 768),

VRAM Intel® Graphics Media Accelerator 915

Integrated Interfaces

• 2.5” HDD

• Minimum 40 GB IDE (5400 rpm) Also available: 60 GB (5400 rpm) 80 GB (5400 rpm)

• SATA 150

• Shock-mounted

• SMART Support

Display Specifications

16M colors:

• Color LCD

• Active Digitizer

• 32-bit color

• External monitor support: VGA (1024 x 768 maximum)

• Dot pitch: 0.240 x 0.240 mm

• Viewing Angle: Horizontal: 90 degrees (max.) Vertical: 90 degrees (max.)

• Optional Indoor/Outdoor Viewability

Optional 12.1" TFT SXGA+ (1400 x

1050), 16M colors:

• Color LCD

• Transmissive indoor display

• Active Digitizer

• 32-bit color

• External monitor support: VGA (1024 x 768 maximum)

• Dot pitch: 0.175 x 0.175 mm

• Standard Viewing Angle

video graphics. Up to 128 MB shared video memory using Dynamic Video Memory Technology (DVMT)

Interface Specifications

• Modem (RJ-11)

• LAN (RJ-45)

• USB 2.0 x 2

•DC-In

•IrDA

• IEEE1394

• Analog RGB, Mini D-SUB 15-pin connector for external VGA monitor

• Docking connector

BIOS ROM

1 MB (Boot Block Type Flash ROM)

LifeBook T Series Tablet PC - Section Seven

LifeBook T Series Tablet PC Specifications (Continued)

Interfaces on Optional Port Replicator

• DC Power

• LAN (RJ-45)

• 15-pin D-SUB connector for external VGA monitor

• DVI-D for external monitor

• USB 2.0 x 4

•Line Out

• Docking Port

PC Card Slots

SD/Memory

• One Type I or Type II

• PCMCIA CardBus version 3.0

One slot for SD/Memory Stick card

Stick Slot

Smart Card

Dedicated slot for SmartCard

Slot

Modular Bay Devices

One of the following devices is preinstalled:

• Dual-Layer Multi-Format

DVD Writer: 8x DVD-ROM, 24x CD-R, 10x CDRW, 24x CD-ROM, 8x DVD-R, 4x DVD-RW, 8x DVD+R, 4x DVD+RW, 3x DVD-RAM

•DVD-ROM Drive:

8x DVD-ROM

• DVD/CD-RW Combo Drive:

8x DVD-ROM, 24x CD-R, 24x CDRW, 24x CD-ROM

• Modular Bay Battery

• Weight Saver

Infrared • System IR Port

• IrDA version 1.1 (FIR, 4 Mbps)

User Interface support

• Keyboard Pitch: 19 mm, Stroke: 3 mm

• TouchPad pointing device with scroll button or optional fingerprint sensor

• Active digitizer with pen input

• On-screen keyboard

Audio • Sigmatel STAC9753A

• Dual internal microphone array with background noise cancellation

• Stereo speaker x 2

• Mono microphone and stereo headphone jacks

• 26 adjustable audio levels

LifeBook T Series Tablet PC Specifications (Continued)

User Controls

• Programmable Application Buttons, each with primary and secondary functions (default applications: Microsoft Journal and Calculator)

• Security button support

• Trusted Platform Module (TPM) support (on some models)

• Suspend/Resume button

Status Indicators (LCDs)

• Power

•Charge/DC-In

• Battery charging (x 2)

• Battery level (x 2)

• Wireless LAN/Bluetooth Switch

• Optical drive

• Hard disk drive

•Caps Lock

•Num Lock

• Scroll Lock

•Security

Power Specifications

Main Battery • 6-cell

• Removable, Lithium ion

• 10.8 V @5200 mAh, max. 56 WHr

• Warm-swappable

Optional Bay Battery

•6-cell

• Removable, Lithium ion

• 10.8V @ 3800 mAh, max. 41.0

WHr

Bridge Battery

• 6-cell NiMH, 35 mAh

• Life (with Suspend-to-RAM on

bridge battery only): 5 minutes from full charge

AC Adapter

Autosensing 100 - 240V, supplying 19 VDC, with a current of 3.15 A

Environmental Specifications

to 60o C)

to 95o F (5o to 35o C)

Temperature

Humidity

Operating: 41

Non-operating: 5o to 140o F

(-15

Operating: 20 to 80% non-condensing Non-operating: 8 to 85% non-condensing

LifeBook T Series Tablet PC Specifications (Continued)

Agency Approval Specifications

• EN55022 (CISPR22) Class B

• FCC 15, Class B

• FCC 15C, 15.247

• ICES-003

Emissions

• Canada RSS-210

• ETSI EN 300 328-1 V1.3.1 : 2001

• ETSI EN 300 328-2 V1.2.1 : 2001_12

• ETSI EN 301 498-17 V1.2.1 : 2002

• ETSI EN 301 498-1 V1.4.1 : 2002

Specifications

Immunity

Safety

Telecom

Operating systems

• EN55024 (1998)

• UL and cUL Listed, UL 60950

• FCC Part 68

• IC CS-03

Additional Specifications

Microsoft

Windows®

XP Tablet PC Edition 2005

LifeBook T Series Tablet PC - Section Seven

Regulatory Information

Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the equipment

FCC NOTICES Notice to Users of Radios and Television

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet that is on a different circuit than the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device.

Notice to Users of the US Telephone Network

This equipment contains an internal modem (Fujitsu Media Devices, MBH 7MD33) that complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment is designed to be connected to the telephone network or premises wiring using a standard jack type USOC RJ11C. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant.

The ringer equivalent number (REN) of this equipment is 0.0B as shown on the label. The REN is used to determine the number of devices that may be connected to a

telephone line. Excessive RENs on a telephone may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could effect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please refer to the manual or contact Fujitsu Computer Systems Corporation, Customer Service. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The equipment cannot be used on public coin service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information).

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this computer does not disable your alarm equipment. If you have any questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date an time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual.

Regulatory Information

DOC (INDUSTRY CANADA) NOTICES Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment Regulations.

CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur du Canada.

Notice to Users of the Canadian Telephone Network

NOTICE: This equipment (Fujitsu Media Devices modem, MBH 7MD33) meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number (4061A-8687) signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

Before connecting this equipment to a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware that compliance with the certification standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian authorized maintenance facility. Any repairs or alterations not expressly approved by Fujitsu or any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equiva-

lence Numbers of all the devices does not exceed five.

For safety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water pipes are connected together. Users should NOT attempt to make such connections themselves but should contact the appropriate electric inspection authority or electrician. This may be particularly important in rural areas.

Avis Aux Utilisateurs Du Réseau Téléphonique Canadien

AVIS: Le présent matériel est conforme aux spécifications techniques d’Industrie Canada applicables au matériel terminal. Cette conformité est confirmée par le numéro d’enregistrement. Le sigle IC, placé devant le numéro d’enregistrement (4061A-8687), signifie que l’enregistrement s’est effectué conformément à une déclaration de conformité et indique que les spécifications techniques d’Industrie Canada ont été respectées. Il n’implique pas qu’Industrie Canada a approuvé le matériel.

Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier s’il est permis de connecter cet équipement aux installations de télécommunications locales. L’utilisateur est averti que même la conformité aux normes de certification ne peut dans certains cas empêcher la dégradation du service.

Les réparations de l’équipement de télécommunications doivent être eVectuées par un service de maintenance agréé au Canada. Toute réparation ou modification, qui n’est pas expressément approuvée par Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.

AVIS: L’indice d’équivalence de la sonnerie (IES) du présent matériel est de 0.0. L’IES assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface téléphonique. La terminaison d’une interface peut consister en une combinaison quelconque de dispositifs, à la seule condition que la somme d’indices d’équiva-

lence de la sonnerie de tous les dispositifs n’excède pas 5.

Pour assurer la sécurité, les utilisateurs doivent vérifier que la prise de terre du service d’électricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées ensemble. Les utilisateurs NE doivent PAS tenter d’établir ces connexions eux-mêmes, mais doivent contacter les services d’inspection d’installations électriques appropriés ou un électricien. Ceci peut être particulièrement important en régions rurales.

LifeBook T Series Tablet PC - Section Seven

Glossary

LifeBook T Series Tablet PC - Section Eight

Glossary

AC Adapter

A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your Tablet PC.

ACPI

Advanced Configuration and Power Interface

Active-Matrix Display

A type of technology for making flat-panel displays which has a transistor or similar device for every pixel on the screen.

AdHoc

A designation for wireless LAN network configuration. It indicates a form of communication limited to those personal computers which have wireless LAN function. .

ADSL

Asymmetric Digital Subscriber Line

Technology for transporting high bit-rate services over ordinary phone lines.

Auto/Airline Adapter

A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power outlet to the DC voltage needed to power your Tablet PC.

BIOS

Basic Input-Output System. A program and set of default parameters stored in ROM which tests and operates your Tablet PC when you turn it on until it loads your installed operating system from disk. Information from the BIOS is transferred to the installed operating system to provide it with information on the configuration and status of the hardware.

Bit

An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0).

bps

An abbreviation for bits per second. Used to describe data transfer rates.

Boot

To start-up a computer and load its operating system from disk, ROM or other storage media into RAM.

Bus

An electrical circuit which passes data between the CPU and the sub-assemblies inside your Tablet PC.

Byte

8 bits of parallel binary information.

Cache Memory

A block of memory built into the micro-processor which is much faster to access than your system RAM and used in specially structured ways to make your overall data handling time faster.

CardBus

A faster, 32-bit version of the PC Card interface which offers performance similar to the 32-bit PCI architecture.

CD-ROM

Compact disk read only memory. This is a form of digital data storage which is read optically with a laser rather than a magnetic head. A typical CD-ROM can contain about 600MB of data and is not subject to heads crashing into the surface and destroying the data when there is a failure nor to wear from reading.

Channel

The frequency band of wireless LAN to be used in communications over wireless LAN or at the access point.

CMOS RAM

Complementary metal oxide semiconductor random access memory. This is a technology for manufacturing random access memory which requires very low levels of power to operate.

Command

An instruction which you give your operating system. Example: run a particular application or format a floppy disk.

Configuration

The combination of hardware and software that makes up your system and how it is allocated for use.

CRT

Cathode Ray Tube. A display device which uses a beam of electronic particles striking a luminescent screen. It produces a visual image by varying the position and intensity of the beam.

Data

The information a system stores and processes.

Direct current. A voltage or current that does not fluctuate periodically with time.

Default Value

A pre programmed value to be used if you fail to set your own.

LifeBook T Series Tablet PC - Section Eight

DHCP

Dynamic Host Configuration Protocol

A protocol used for automatically fetching communication parameters such as IP addresses. The side which assigns IP address is called DHCP server and the side that is assigned it is called DHCP client.

DIMM

Dual-in-line memory module.

Disk

A spinning platter of magnetic data storage media. If the platter is very stiff it is a hard drive, if it is highly flexible it is a floppy disk, if it is a floppy disk in a hard housing with a shutter it is commonly called a diskette.

Disk Drive

The hardware which spins the disk and has the heads and control circuitry for reading and writing the data on the disk.

Diskette

A floppy disk in a hard housing with a shutter.

DMA

Direct Memory Access

Special circuitry for memory to memory transfers of data which do not require CPU action.

DMI

Desktop Management Interface

A standard that provides PC management applications with a common method of locally or remotely querying and configuring PC computer systems, hardware and software components, and peripherals.

DNS

Domain Name System

A function that controls the correspondence of IP addresses assigned to a computer with the name. Even for those computers whose IP addresses are unknown, if their names are known, it is possible to communicate with them.

DOS

Disk Operating System (MS-DOS is a Microsoft Disk Operating System).

Driver

A computer program which converts application and operating system commands to external devices into the exact form required by a specific brand and model of device in order to produce the desired results from that particular equipment.

ECP

Extended Capability Port. A set of standards for high speed data communication and interconnection between electronic devices.

Encryption Key (Network Key)

Key information used to encode data for data transfer.

This device uses the same encryption key to encode and decode the data, and the identical encryption key is required between the sender and receiver.

ESD

Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up slowly. Example: the shock you get from a doorknob on a dry day or the sparks you get from brushing hair on a dry day.

Extended Memory

All memory more than the 640KB recognized by MS-DOS as system memory.

FCC

Federal Communication Commission.

Floppy Disk

A spinning platter of magnetic data storage media which is highly flexible.

Gigabyte.

Hard drive

A spinning platter of magnetic data storage media where the platter is very stiff.

I/O

Input/Output. Data entering and leaving your Tablet PC in electronic form.

I/O Port

The connector and associated control circuits for data entering and leaving your Tablet PC in electronic form.

IDE

Intelligent Drive Electronics. A type of control interface for a hard drive which is inside the hard drive unit.

IEEE 1394

Industry standard that allows you to connect between your Tablet PC and a peripheral device such as a digital camera. Also known as “Firewire” or “iLINK”.

Glossary

IEEE802.11a

One of the wireless LAN standards prescribed by the 802 committee in charge of establishing standards of LAN technology in IEEE (Institute of Electrical and Electronic Engineers). This standard allows communications at the maximum speed of 54 Mbps by using a 5 GHz band which can freely be used without radio communication license.

IEEE802.11b

One of the wireless LAN standards prescribed by 802 committee in charge of establishing standards of LAN technology in IEEE (Institute of Electrical and Electronic Engineers). It allows communications at the maximum speed of 11 Mbps by a band of 2.4 GHz (ISM band) which can freely be used without radio communication license.

IEEE802.11g

One of the wireless LAN standards prescribed by 802 committee in charge of establishing standards of LAN technology in IEEE (Institute of Electrical and Electronic Engineers). It allows communications at the maximum speed of 54 Mbps by a band of 2.4 GHz (ISM band) which can freely be used without radio communication license.

Infrared

Light just beyond the red portion of the visible light spectrum which is invisible to humans.

Infrastructure

A designation of Wireless LAN network configurations. It indicates a form of communication using an Access Point.

IP Address

An address used for computers to communicate in the TCP/IP environment.

Current IPv4 (version 4) uses four values in the range between 1 and 255. (Example: 192.168.100.123).

There are two types of IP address: global address and private address.

The global address is an only address in the world. It is controlled by JPNIC (Japan Network Information Center). A private address is an only address in the closed network.

An abbreviation for infrared.

IrDA

Infrared Data Association. An organization which produces standards for communication using infrared as the carrier.

IRQ

Interrupt Request

An acronym for the hardware signal to the CPU that an external event has occurred which needs to be processed.

Kilobyte.

LAN

Local Area Network

An interconnection of computers and peripherals within a single limited geographic location which can pass programs and data amongst themselves.

LCD

Liquid Crystal Display

A type of display which makes images by controlling the orientation of crystals in a crystalline liquid.

Lithium ion Battery

A type of rechargeable battery which has a high powertime life for its size and is not subject to the memory effect as Nickel Cadmium batteries.

LPT Port

Line Printer Port. A way of referring to parallel interface ports because historically line printers were the first and latter the most common device connected to parallel ports.

MAC Address

Media Access Control Address

A unique physical address of a network card. For Ethernet, the first three bytes are used as the vendor code, controlled and assigned by IEEE. The remaining three bytes are controlled by each vendor (preventing overlap), therefore, every Ethernet card is given a unique physical address in the world, being assigned with a different address from other cards. For Ethernet, frames are sent and received based on this address.

Megabyte.

Megahertz

1,000,000 cycles per second.

Memory

A repository for data and applications which is readily accessible to your Tablet PC’s CPU.

MHz

Megahertz.

LifeBook T Series Tablet PC - Section Eight

MIDI

Musical Instrument Digital Interface. A standard communication protocol for exchange of information between computers and sound producers such as synthesizers.

Modem

A contraction for MOdulator-DEModulator. The equipment which connects a computer or other data terminal to a communication line.

Monaural

A system using one channel to process sound from all sources.

MPU-401

A standard for MIDI interfaces and connectors.

MTU

Maximum Transmission Unit

The maximum data size that can be transferred at a time through the Internet or other networks. You can set a smaller MTU size to obtain successful communication, if you have difficulty transferring data due to the fact that the maximum size is too large.

Network authentication

The method of authentication performed by wireless LAN clients to connect with the access point. There are two types: open system authentication and shared key authentication. The type of authentication must be set to each client and also coincide with the setting of access point with which to communicate. Network authentication is sometimes called authentication mode.

Network key

Data that is used for encrypting data in data communication. The personal computer uses the same network key both for data encryption and decryption, therefore, it is necessary to set the same network key as the other side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is performed to avoid interference or data theft. This grouping is performed with “Network name (SSID)”. In order to improve security, the network key is set allowing no communication unless “Network name (SSID)” coincides with the network key.

NTSC

National TV Standards Commission. The standard for TV broadcast and reception for the USA.

Open system authentication

One of network authentication types for wireless LAN. Since there is no check of network key upon authentication, clients can connect to the access point without submitting correct network keys. However, in case of

actual communications, the same network key must be set. Open system authentication is sometimes called Open key authentication.

Operating System

A group of control programs that convert application commands, including driver programs, into the exact form required by a specific brand and model of microprocessor in order to produce the desired results from that particular equipment.

Partition

A block of space on a hard drive which is set aside and made to appear to the operating system as if it were a separate disk, and addressed by the operating system accordingly.

PCI

Peripheral Component Interconnect

Self-configuring PC local bus. Designed by Intel, PCI has gained wide acceptance as a standard bus design.

PCMCIA

PCMCIA is a trademark of the Personal Computer Memory Card International Association. The Personal Computer Memory Card International Association is an organization that sets standards for add-in cards for personal computers.

Peripheral Device

A piece of equipment which performs a specific function associated with but not integral to a computer. Examples: a printer, a modem, a CD-ROM.

Pitch (keyboard)

The distance between the centers of the letter keys of a keyboard.

Pixel

The smallest element of a display, a dot of color on your display screen. The more pixels per area the clearer your image will appear.

POST

Power On Self Test. A program which is part of the BIOS which checks the configuration and operating condition of your hardware whenever power is applied to your Tablet PC. Status and error messages may be displayed before the operating system is loaded. If the self test detects failures that are so serious that operation can not continue, the operating system will not be loaded.

PPPoE

Point to Point Protocol over Ethernet.

A protocol for Ethernet, using a Point-to-Point Protocol (PPP), which is used for connection on the phone line.

Glossary

Program

An integrated set of coded commands to your computers telling your hardware what to do and how and when to do it.

Protocol

Procedures and rules use to send and receive data between computers.

- Method of sending and receiving data

- Process used to handle communication errors

Conditions required for communication are organized in procedures for correct transfer of information.

RAM

Random Access Memory. A hardware component of your Tablet PC that holds binary information (both program and data) as long as it has the proper power applied to it.

RAM Module

A printed circuit card with memory and associated circuitry which allows the user to add additional memory to the computer without special tools.

Reset

The act of reloading the operating system. A reset erases all information stored in RAM.

Restart

See Reset.

Resume

To proceed after interruption. In your Tablet PC this refers to returning to active operation after having been in one of the suspension states.

ROM

Read Only Memory. A form of memory in which information is stored by physically altering the material. Data stored in this way can not be changed by your Tablet PC and does not require power to maintain it.

SDRAM

Synchronous Dynamic Random Access Memory.

Serial Port

A connection to another device through which data is transferred one bit at a time on a single wire with any other wires only for control of the device not for transfer of data.

Shared key authentication

One of the network authentication types for wireless LAN. Upon authentication, the access point checks whether the same network key is set to the client. If the client uses a wrong network key or the network key itself is not set, authentication is unsuccessful, allowing no communications with the access point.

SMART

Self-Monitoring, Analysis and Reporting Technology (SMART) is an emerging technology that provides nearterm failure predictions for hard drives. When SMART is enabled the hard drive monitors pre-determined drive attributes that are susceptible to degradation over time. If a failure is likely to occur, SMART makes a status report available so that the Tablet PC can prompt the user to back up the data on the drive. Naturally not all failures are predictable. SMART predictability is limited to those attributes which the drive can self-monitor. In those cases where SMART can give advance warning, a considerable amount of precious data can be saved.

SRAM

Static random access memory. A specific technology of making RAM which does not require periodic data refreshing.

SSID

Service Set Identifier

Specifies which network you are joining. Some systems allow you to specify any SSID as an option so you can join any network.

Standby

To make inoperative for a period of time. Your Tablet PC uses various suspension states to reduce power consumption and prolong the charge of your battery.

Status Indicator

A display which reports the condition of some portion of your hardware. On your Tablet PC this is an LCD screen just above the keyboard.

Stereo (audio)

A system using two channels to process sound from two different sources.

Subnet mask

TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address consists of the subnet address and the address of each computer. Subnet mask defines how many bits of IP address comprise the subnet address. The same value shall be set among computers communicating with each other.

SVGA

Super VGA.

S-Video

Super Video. A component video system for driving a TV or computer monitor.

SXGA+

Short for Super Extended Graphics Array, a display specification that is capable of displaying 1400 x 1050 resolution.

LifeBook T Series Tablet PC - Section Eight

System Clock

An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted to provide time of day and date.

TCP/IP

Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely used.

TFT

Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors to control each pixel of the display screen individually.

Underwriters Laboratories – An independent organization that tests and certifies the electrical safety of devices.

USB

Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such as game pads, pointing devices, printers, and keyboards to your computer.

VGA

Video Graphics Array. A video display standard originally introduced by IBM with the PS/2 series of personal computers.

XGA

Extended VGA.

Zip Drive

A 100MB or 250MB read/write removable media disk drive.

VRAM

Video Random Access Memory. A memory dedicated to video display data and control.

WFM

Wired for Management is Intel’s broad-based initiative to reduce the total cost of ownership (TCO) of business computing without sacrificing power and flexibility.

Wi-Fi Compatible

Wi-Fi (Wireless Fidelity) Identifies that the product has passed the interoperability test, supplied by the WECA (Wireless Ethernet Compatibility Alliance), which guarantees the interoperability of wireless IEEE 802.11 LAN products. For more information on the Wi-Fi standard, go to the WECA website at: www.wirelessethernet.com.

WLAN

Wireless Local Area Network. A wireless interconnection of computers and peripherals within a single limited geographic location which can pass programs and data amongst themselves.

Write Protect

Prevent alteration of the binary state of all bits in a storage media. Example: all information on a device such as a floppy diskette; a block of space in a storage media such as a partition of a hard drive; a file or directory of floppy diskette or hard drive.
