Fujitsu LifeBook C352, LifeBook C360 User Guide

Fujitsu PC Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development eﬀorts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu and the Fujitsu logo are registered trademarks and LifeBook is a trademark of Fujitsu Limited.

ErgoTrac is a trademark of Fujitsu PC Corporation.

The following are registered trademarks of IBM Corporation: IBM, IBM PC AT, IBM PS/2.

The following are registered trademarks of Microsoft Corporation: MS, MS-DOS, Windows 98.

PCMCIA is a trademark of the Personal Computer Memory Card International Association.

Phoenix and the Phoenix logo are registered trademarks of Phoenix Technologies, Ltd.

Pentium is a registered trademark and Celeron is a trademark of Intel Corporation.

PC-Doctor is a trademark of Watergate Software, Inc.

LapLink is a registered trademark of Traveling Software Inc.

All other trademarks mentioned herein are the property of their respective owners.

© Copyright 1999 Fujitsu PC Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu PC Corporation. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu PC Corporation.

For general information, please call:

1-888-4-ON-THE-GO.

For Technical Support, please call:

1-800-8-FUJITSU.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu PC Corporation

Address: 598 Gibraltar Drive

Milpitas, CA 95035

Telephone: (408) 935-8800

Declares that product: Model: LifeBook C352

LifeBook C360.

Complies with Part 15

of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations is subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.

David Woo Fujitsu 4/11/99

   

CAUTION

Changes or modiﬁcations not expressly approved by Fujitsu PC Corporation could void this user’s authority to operate the equipment.

Shielded interconnect cables must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device.

Notice to Users of the US Telephone Network

The LifeBook™C Series notebook computers are

supplied with an internal modem which complies with Part 68 of the FCC rules. On this notebook is a label that contains the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment among other information. If requested, the user must provide their telephone company with the following information:

1. The telephone number to which the notebook

is connected.

2. The Ringer Equivalence Number (REN) for

this equipment.

3. That the equipment requires a standard modular

jack type USOC RJ-11C which is FCC Part 68 compliant.

4. The FCC Registration Number.

This equipment is designed to be connected to the telephone network or premises wiring using a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord between the modem and the telephone network with a minimum of 26AWG.

The REN is used to determine the number of devices that you may connect to your telephone line and still have all of those devices ring when your number is called. Too many devices on one line may result in failure to ring in response to an incoming call. In most, but not all, areas the sum of the RENs of all of the devices should not exceed ﬁve (5.0). To be certain of the number of devices you may connect to your line, as determined by the RENs, contact your local telephone company.

If this equipment causes harm to the telephone network, your telephone company may discontinue your service temporarily. If possible, they will notify you in advance. If advance notice is not practical they will notify you as soon as possible. You will also be advised of your right to ﬁle a complaint with the FCC.

This fax modem also complies with fax branding requirements per FCC Part 68.

Your telephone company will probably ask you to disconnect this equipment from the telephone network until the problem is corrected and you are sure that the equipment is not malfunctioning. This equipment may not be used on coin service telephones provided by your telephone company. Connection to party lines is subject to state tariﬀs. Contact your state’s public utility commission, public service commission or corporation commission for more information.

FCC NOTICES

Notice to Users of Radios and Television

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■

Reorient or relocate the receiving antenna.

■

Increase the separation between the equipment and receiver.

■

Connect the equipment into an outlet that is on a diﬀerent circuit than the receiver.

■

Consult the dealer or an experienced radio/TV technician for help.

This equipment includes automatic dialing capability. When programming and/or making test calls to emergency numbers:

■

Remain on the line and brieﬂy explain to the dispatcher the reason for the call.

■

Perform such activities in oﬀ-peak hours, such as early morning or late evening.

FCC rules prohibit the use of non-hearing aid compatible telephones in the following locations or applications:

■

All public or semipublic coin-operated or credit card telephones.

■

Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a person with impaired hearing might be isolated in an emergency.

■

Places where telephones are speciﬁcally installed to alert emergency authorities such as ﬁre, police or medical assistance personnel.

■

Hospital rooms, residential health care facilities, convalescent homes and prisons.

■

Workstations for the hearing impaired.

■

Hotel, motel or apartment lobbies.

■

Stores where telephones are used by patrons to order merchandise.

■

Public transportation terminals where telephones are used to call taxis or to reserve lodging or rental cars.

■

In hotel and motel rooms as at least ten percent of the rooms must contain hearing aid compatible telephones or jacks for plug-in hearing aid compatible telephones which will be provided to hearing impaired customers on request.

DOC (INDUSTRY CANADA) NOTICES

Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur du Canada.

Notice to Users of the Canadian Telephone Network

The Canadian Industry Canada label identiﬁes certiﬁed equipment. This certiﬁcation means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.

The LifeBook C Series notebook computers are supplied with an internal modem which complies with the Industry Canada certiﬁcation standards for telecommunication network protection and safety requirements. Before connecting this equipment to a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware that compliance with the certiﬁcation standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian authorized maintenance facility.Any repairs or alterations not expressly approved by Fujitsu

™

PC Corporation or any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

The connecting arrangement code for this equipment is CA11A.

The Load Number is 1.3.

The Load Number assigned to each telephone terminal device denotes the percentage of the total load to be connected to a telephone loop or circuit which is used by the device to prevent overloading. The termination on a loop may consist of any combination of devices such that the total of the load numbers of all devices does not exceed 100.

Avis Aux Utilisateurs Du Réseau Téléphonique Canadien

L’étiquette canadienne Industrie Canada identiﬁe l’équipement certiﬁé. Cette certiﬁcation signiﬁe que l’équipement satisfait certaines normes de protection, d’exploitation et de sécurité des réseaux de télécommunications. Le département ne garantit pas le fonctionnement de l’équipement à la satisfaction de l’utilisateur.

La série LifeBook C possède un modem interne conforme aux normes de certiﬁcation d’Industrie Canada pour protéger les réseaux de télécommunications et satisfaire aux normes de sécurité. Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vériﬁer s’il est permis de connecter cet équipement aux installations de télécommunications locales. L’utilisateur est averti que même la conformité aux normes de certiﬁcation ne peut dans certains cas empêcher la dégradation du service.

Les réparations de l’équipement de télécommunications doivent être eﬀectuées par un service de maintenance agréé au Canada. Toute réparation ou modiﬁcation, qui n’est pas expressément approuvée par Fujitsu PC Corp.,

CAUTION

For safety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water pipes are connected together. Users should NOT attempt to make such connections themselves but should contact the appropriate electric inspection authority or electrician. This may be particularly important in rural areas.

ou toute défaillance de l’équipement peut entraîner la compagnie de télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.

Le code d’arrangement de connexion de cet équipement est CA11A.

Le numéro de charge est 1.3.

Le numéro de charge assigné à chaque terminal téléphonique indique le pourcentage de la charge totale pouvant être connecté à une boucle ou à un circuit téléphonique, utilisé par ce périphérique aﬁn de prévenir toute surcharge. La terminaison d’une boucle peut être constituée de n’importe quelle combinaison de périphériques de sorte que le total de numéros de charge de tous les périphériques n’excède pas 100.

UL NOTICE (FOR AUTHORIZED REPAIR TECHNICIANS ONLY)

CAUTION: For continued protection against risk of ﬁre, replace only with the same type and rating fuse.

CAUTION: Danger of explosion if CMOS battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.Dispose of used batteries according to the manufacturer’s instruction.

WARNING: CMOS and NiCAD batteries may explode if mistreated. Do not recharge, disassemble or dispose of in ﬁre.

AVERTISSEMENT

Pour assurer la sécurité, les utilisateurs doivent vériﬁer que la prise de terre du service d’électricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées ensemble. Les utilisateurs NE doivent PAS tenter d’établir ces connexions eux-mêmes, mais doivent contacter les services d’inspection d’installations électriques appropriés ou un électricien. Ceci peut être particulièrement important en régions rurales.

Table of Contents

T able of Contents

PREFACE . . . . . . . . . . . . . . . . . . vi

SECTION ONE

SETTING UP YOUR LIFEBOOK C SERIES FROM FUJITSU

Unpacking. . . . . . . . . . . . . . . . . . . . 2

Overview of LifeBook C Series Features . . . . 3

Component Identiﬁcation . . . . . . . . . . . 5

Top and Front Components . . . . . . . . . . 6

Left-side Panel Components . . . . . . . . . . 7

Right-side Panel Components . . . . . . . . . 7

Rear Panel Components . . . . . . . . . . . . 8

Bottom Components . . . . . . . . . . . . . . 9

SECTION TWO

STARTING YOUR LIFEBOOK C SERIES FOR THE FIRST TIME

Power Sources . . . . . . . . . . . . . . . . . 12

Display Panel . . . . . . . . . . . . . . . . . 13

Starting your LifeBook for the First Time . . 13

Registering your LifeBook . . . . . . . . . . 16

Learning About Your Operating System

and Application Software . . . . . . . . . . 17

SECTION THREE

USING YOUR LIFEBOOK C SERIES FROM FUJITSU

Power Button . . . . . . . . . . . . . . . . . 20

Restarting the System . . . . . . . . . . . . . 21

Status Indicator Panel . . . . . . . . . . . . . 22

Batteries . . . . . . . . . . . . . . . . . . . . 26

Integrated ErgoTrac Pointing Device . . . . . 29

Using the Keyboard . . . . . . . . . . . . . . 31

Volume Control . . . . . . . . . . . . . . . . 33

Floppy Disk Drive . . . . . . . . . . . . . . . 33

CD-ROM Drive . . . . . . . . . . . . . . . . 35

Hard Drive. . . . . . . . . . . . . . . . . . . 36

Internal Modem . . . . . . . . . . . . . . . . 37

Power Management . . . . . . . . . . . . . . 38

Data Security . . . . . . . . . . . . . . . . . 43

Pre-installed Software . . . . . . . . . . . . . 44

SECTION FOUR

CONFIGURING YOUR LIFEBOOK C SERIES FROM FUJITSU

Boot Sequence . . . . . . . . . . . . . . . . . 48

Identifying the Drives . . . . . . . . . . . . . 48

BIOS Setup Utility. . . . . . . . . . . . . . . 49

Navigating Through the Setup Utility . . . . 51

Main Menu – Setting Standard

System Parameters. . . . . . . . . . . . . . 52

Advanced Menu – Setting Device

Feature Controls. . . . . . . . . . . . . . . 62

Security Menu – Setting the

Security Features . . . . . . . . . . . . . . 80

T able of Contents

LifeBook C Series from Fujitsu

iii

Power Menu – Setting Power

Management Feature Controls . . . . . . . 85

Boot Menu – Selecting the

Operating System Source . . . . . . . . . . 93

Info Menu – Displaying Basic

System Information. . . . . . . . . . . . . 97

Exit Menu – Leaving the Setup Utility . . . . 99

Setting Up Your Save-To-Disk

File Allocation . . . . . . . . . . . . . . . 102

SECTION FIVE

USER INSTALLABLE FEATURES

Lithium ion Battery . . . . . . . . . . . . . 106

PC Cards . . . . . . . . . . . . . . . . . . . 108

Parallel Port Devices . . . . . . . . . . . . . 110

Serial Port Devices . . . . . . . . . . . . . . 110

USB Devices . . . . . . . . . . . . . . . . . 110

Microphone . . . . . . . . . . . . . . . . . 110

Stereo Line In Devices . . . . . . . . . . . . 110

Headphones . . . . . . . . . . . . . . . . . 110

Telephone Lines . . . . . . . . . . . . . . . 111

Mouse, Keyboard, or Keypad . . . . . . . . 111

External Monitor. . . . . . . . . . . . . . . 111

Theft Prevention Lock . . . . . . . . . . . . 112

Memory Upgrade Module. . . . . . . . . . 112

SECTION SIX

TROUBLESHOOTING

Identifying the Problem . . . . . . . . . . . 118

Speciﬁc Problems . . . . . . . . . . . . . . 119

Power On Self Test Messages . . . . . . . . 138

Emergency CD-ROM

Tray Release . . . . . . . . . . . . . . . . 141

Modem Setup and Commands . . . . . . . 141

Recovery CD-ROM . . . . . . . . . . . . . 142

SECTION SEVEN

CARE AND MAINTENANCE

Caring for Your Notebook . . . . . . . . . . 146

Increasing Battery Life . . . . . . . . . . . . 147

Caring for Your Batteries . . . . . . . . . . 147

APPENDIX A SPECIFICATIONS

Warranty . . . . . . . . . . . . . . . . . . . 150

LifeBook C Series Speciﬁcations . . . . . . 150

Approvals . . . . . . . . . . . . . . . . . . . 153

Popular Accessories . . . . . . . . . . . . . 153

APPENDIX B GLOSSARY

Glossary. . . . . . . . . . . . . . . . . . . . 154

INDEX

Index . . . . . . . . . . . . . . . . . . . . . 161

LifeBook C Series from Fujitsu

Preface

PREFACE

The LifeBook C Series from Fujitsu PC Corporation is a powerful notebook computer. It is powered by an Intel Pentium

II or Celeron microprocessor, has an XGA or SVGA color TFT display, a built-in ﬂoppy drive, a CD-ROM drive and an internal 56K modem with v.90 support. The LifeBook C Series brings the computing power of desktop personal computers (PCs) to a portable environment.

This manual explains how to operate your LifeBook C Series’ hardware and built-in system software. The LifeBook C Series is compatible with the IBM

PC AT. It comes

with Windows 98 pre-installed.

A LifeBook C Series notebook has a powerful interface that enables it to support a variety of optional features and software. (Figure P-1.)

CONVENTIONS USED IN THE GUIDE

Screen examples in this manual are intended as examples only, and screen and ﬁle names may diﬀer in actual use.

Messages displayed by the LifeBook C Series appear in Courier type. Example: Shutdown the computer?

Keyboard keys are shown in boldface Helvetica type. Example: Fn, F1, Esc, and Ctrl.

Pages with additional information about a speciﬁc topic are cross-referenced within the text. Example: (See page xx.)

POINT

The point icon highlights information that will enhance your understanding of the subject material.

CAUTION

The caution icon highlights information that is important for your safety, the safe operation of your computer, or the integrity of your ﬁles. Please read all caution information carefully.

LifeBook C Series from Fujitsu

vii

Figure P-1 LifeBook C Series

with Samples of Fujitsu and

Third Party Options and Accessories

Setting Up Your LifeBook C Series

Section One

Unpacking . . . . . . . . . . . . . . . . . . . 2

Overview of LifeBook C Series Features . . . . 3

Component Identiﬁcation . . . . . . . . . . . 5

Top and Front Components . . . . . . . . . . 6

Left-side Panel Components . . . . . . . . . . 7

Right-side Panel Components . . . . . . . . . 7

Rear Panel Components . . . . . . . . . . . . 8

Bottom Components . . . . . . . . . . . . . . 9

Section One

SETTING UP YOUR LIFEBOOK C SERIES FROM FUJITSU

This section describes how to set up your LifeBook C Series from Fujitsu. We strongly recommend that you read it before using your notebook – even if you are already familiar with notebook computers.

UNPACKING

When you receive your notebook, unpack it carefully, and compare the parts you have received with the items listed below.

For a standard conﬁguration you should have:

■

LifeBook C Series notebook from Fujitsu.

(Figure 1-1.)

■

Product Registration card.

■

Lithium ion battery. (Already installed in the battery bay of your notebook.)

■

AC adapter with AC power cord (located in the Accessories box). (Figure 1-2.)

■

Phone/ Modem(RJ-11) telephone cable (located in the Accessories box).

■

Getting Started Guide.

■

Accessories Catalog.

■

User’s Guide.

■

Microsoft Windows 98 Guide.

■

Microsoft Works Guide.

■

International Limited Warranty Brochure.

■

Recovery CD-ROM (located in the Accessories box).

■

Additional documentation.

Once you have checked and conﬁrmed that your notebook system is complete, read through the following pages to learn about all of your LifeBook’s components.

Figure 1-1 LifeBook C Series Notebook

Figure 1-2 AC Adapter Unit

One

Setting Up Your LifeBook C Series

LifeBook C Series from Fujitsu

OVERVIEW OF LIFEBOOK C SERIES FEATURES

The LifeBook C Series is a compact, yet powerful notebook computer available with standard features including: (See Appendix A,

pages 150–153, for detailed information on individual models.)

■

333MHz Intel Pentium II processor (C360) or 333MHz Intel Celeron processor (C352).

■

64MB SDRAM standard, expandable to 128MB(C360) or 32MB SDRAM standard, expandable to 96MB(C352).

■

13.3" XGA TFT color display(C360), or

12.1" SVGA TFT color display(C352).

■

2MB video RAM.

■

Built-in 4.3 GB hard drive.

■

Lithium ion battery.

■

Internal 56K fax/data/voice modem with v.90 support.

■

Full audio and video features:

■

16-bit SoundBlaster Pro-compatible sound chip.

■

Zoomed Video support for full motion video acceleration.

■

Built-in stereo speakers.

■

Built-in mono microphone.

■

Stereo line in jack.

■

Stereo headphone jack.

■

Microphone jack.

■

Combination PC card slot accommodates 2 Type II or 1 Type III Cards.

■

Integrated ErgoTrac™ pointing device for superb cursor control and comfort.

■

External monitor support with simultaneous display capabilities.

■

Full-size keyboard with three dedicated Windows keys.

■

Hot swappable PS/2 port for external components.

CAUTION

The internal modem is designed to the ITU-T V.90 standard. Its maximum speed of 53000bps is the highest allowed by FCC, and its actual connection rate depends on the line conditions. The maximum speed is 33600bpd at upload.

CAUTION

The internal modem is not intended for use with Digital PBX systems. Do not connect the internal modem to a digital PBX as it may cause serious damage to the internal modem or your entire notebook. Consult your PBX manufacturer’s documentation for details. Some hotels have Digital PBX systems. Be sure to ﬁnd out BEFORE you connect your modem.

Section One

■

Standard user install software:

■

AOL Free Trial.

■

CompuServe.™

■

AT&T WorldNet.™

■

Prodigy Internet

■

Netscape® Communicator.

■

USB device support.

■

Standard pre-installed software:

■

Microsoft Windows 98 operating system.

■

LapLink for ﬁle transfers. (Cable not provided.)

■

Microsoft Works for business applications including word processing, spreadsheets and databases.

■

Quicken Basic 99 for money management.

■

PC-Doctor for system diagnostics.

■

PMSet 98 for system power management.

■

McAfee VirusScan for virus protection.

■

Adobe Acrobat Reader.

■

ESS AudioRack™ for playback of Audio CD and other Audio Controls.

POINT

This unit does not come pre-installed with the Windows 95 or Windows NT operating systems. Windows 98 is the only operating system supported on your notebook.

POINT

Windows 98 comes pre-installed with Internet Explorer 4.01.

One

Setting Up Your LifeBook C Series

LifeBook C Series from Fujitsu

Figure 1-3 LifeBook C352 with Display Open

Display Panel

Status Indicator Panel

Keyboard

ErgoTrac Pointing Device

CD-ROM Drive

Closed Cover Switch

Built-in Microphone

Display Panel Latch

COMPONENT IDENTIFICATION

For detailed speciﬁcations refer to Appendix A on pages 150–153.

Brightness Control

Power and Suspend/Resume Button

Floppy Disk Drive

Left Speaker

Right Speaker

Section One

TOP AND FRONT COMPONENTS

Display Panel Latch

This latch locks and releases the display panel. When the display panel is released it pops up slightly to make it easier to open. (Figure 1-3.)

Display Panel

This is a color LCD panel with back lighting for the display of text and graphics. (Figure 1-3.)

Brightness Control

The brightness control adjusts the overall intensity of the display panel back lighting.

(Figure 1-3.)

Built-in Microphone

The built-in microphone allows mono audio input to your notebook. (Figure 1-3.)

Status Indicator Panel

An LCD display of the status of the power state and source, Suspend mode, battery charge, ﬂoppy disk drive activity, hard drive activity, CD-ROM drive activity, PC Card activity, CapsLock, NumLk and Scr Lk. (Figure 1-3.)

Power and Suspend/Resume Button

The Power button allows you to power on your notebook, suspend notebook activity without powering off, resume your notebook from suspend mode, and power off your notebook. This multi-function button acts as both the suspend/resume control and the power switch.

(See page 20 for more information on the power button.) (Figure 1-3.)

Left and Right Speakers

The built-in dual speakers output stereo sound from the notebook.

(Figure 1-3.)

Closed Cover Switch

The closed cover switch turns off the LCD back lighting when the display panel is closed, thus saving power. To change the functionality of this switch, adjust the settings in the Advanced Features submenu of the Power menu in the BIOS Setup Utility.

(See pages 91-92.) (Figure 1-3.)

Keyboard

A full-size keyboard with dedicated Windows keys for input into the notebook.

(Figure 1-3.)

One

Setting Up Your LifeBook C Series

LifeBook C Series from Fujitsu

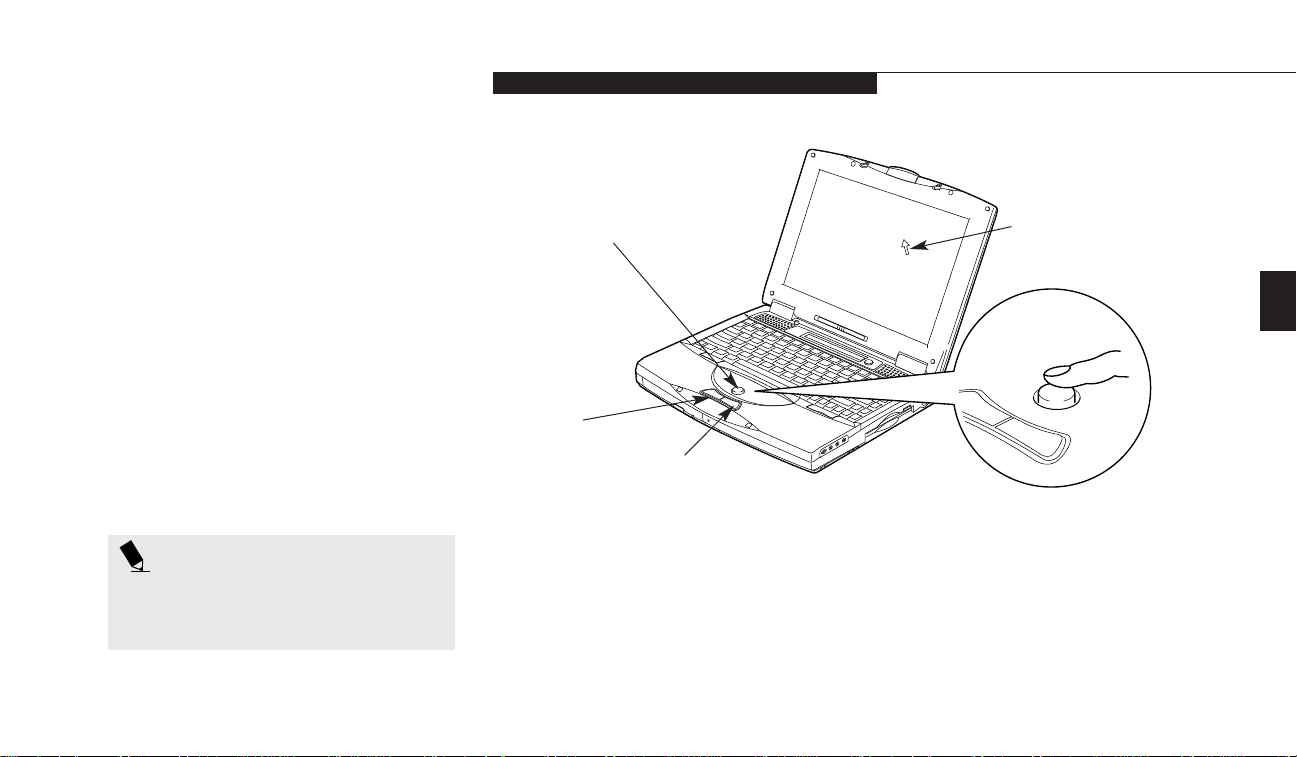

ErgoTrac Pointing Device

The integrated ErgoTrac pointing device is composed of a short, comfortable, dish-shaped ﬁnger mouse and two buttons. Its button-like shape is both responsive and comfortable for your ﬁnger when rocked gently. (Figure 1-3.)

CD-ROM drive

A 24x maximum CD-ROM drive.

(Figure 1-3.)

LEFT-SIDE PANEL COMPONENTS

PC Card Slots

The PC Card Slots allow you to install two Type II PC Cards or one Type III PC Card. (See pages

108-110 for more information on PC Cards.)

The button to the left of the card slots locks the card(s) in place, and the buttons to the right of the slots eject the card(s) from the slots.

(Figure 1-4.)

RIGHT-SIDE PANEL COMPONENTS

Volume Control

The volume control is a knob which provides manual control of the sound level of all audio output from your notebook. (Figure 1-5.)

Headphone Jack

You can connect headphones or powered external speakers to the headphone jack. (Figure 1-5.)

Stereo Line In Jack

The stereo line in jack allows you to connect an external audio source to your notebook, like an audio cassette player. This jack will not support an external microphone. (Figure 1-5.)

Figure 1-4 LifeBook C Series Left-side Panel

PC Card Eject Buttons

PC Card SlotsPC Card Lock

Figure 1-5 LifeBook C Series Right-side Panel

Stereo Line In Jack

Microphone Jack

PS/2 Port

Volume Control

Headphone Jack

Floppy Disk Drive

Section One

CAUTION

Parallel Port

The parallel port allows you to connect parallel devices, such as a parallel printer to your notebook. (This is also sometimes referred to as an LPT port.) (Figure 1-6.)

Microphone Jack

The microphone jack allows you to connect an external mono microphone. (Figure 1-5.)

Floppy Disk Drive

The ﬂoppy disk drive provides removable data storage. (Figure 1-5.)

PS/2 Port

The port allows you to connect an external PS/2 keyboard, mouse, or numeric keypad. (Figure 1-5.)

REAR PANEL COMPONENTS

Reset Button

The Reset button is for restarting your notebook in the event that your operating system has halted and cannot be restarted by the CTRL+ALT+DEL keys. (Figure 1-6.)

CAUTION

There are also software volume controls. The knob setting and the software settings will interact. Be sure to check both the software volume control and the knob on your notebook if you are experiencing problems. (See Volume Control on page

33 for more information.)

Figure 1-6 LifeBook C Series Rear Panel

Reset Button

Parallel Port

Serial Port

Cooling Fan

External Monitor Port

Modem(RJ-11) Jack

DC Power Jack

USB Port

Anti-theft Lock Slot

DC Power Jack

The DC power jack allows you to plug in the AC adapter or the optional auto/airline adapter to power the notebook and charge the internal Lithium ion Battery. (Figure 1-6.)

One

Setting Up Your LifeBook C Series

LifeBook C Series from Fujitsu

BOTTOM COMPONENTS

Main Unit and Conﬁguration Label

This label shows the model number and other information about your notebook. In addition the conﬁguration portion of the label has the

serial number and manufacturer information that you will need to give your support representative so that he or she can help you. It identiﬁes the exact version of various components of your notebook. (Figure 1-7.)

Lithium ion Battery Bay

The Battery Bay contains the internal Lithium ion Battery. It can be opened for the removal of the Battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion Battery. (Figure 1-7.)

Serial Port

The serial port allows you to connect serial RS-232C devices, such as serial printers or serial scanners. (This is also sometimes referred to as a COM port.) (Figure 1-6.)

External Monitor Port

This port allows you to connect an external VGA or SVGA CRT monitor. (Figure 1-6.)

USB Port

The USB port allows you to connect Universal Serial Bus devices, such as external game pads, pointing devices, keyboards and speakers.

(Figure 1-6.)

Modem(RJ-11) Jack

This is the jack for attaching a telephone line to the internal modem. (Figure 1-6.)

Anti-theft Lock Slot

This is a slot that allows you to attach a optional physical lock down device. (Figure 1-6.)

Lithium ion Battery Bay

Main Unit and Conﬁguration Label

Figure 1-7 LifeBook C Series Bottom View

Starting Your LifeBook C Series from Fujitsu

Section Two

Power Sources . . . . . . . . . . . . . . . . 12

Display Panel . . . . . . . . . . . . . . . . . 13

Starting your LifeBook for the First Time . . . 13

Registering your LifeBook . . . . . . . . . . 16

Learning About Your Operating System

and Application Software. . . . . . . . . . 17

Section Two

SECTION TWO

STARTING YOUR LIFEBOOK C SERIES FROM FUJITSU

This section describes the initial power on and setup of your notebook. It provides information on power sources, powering on, shutting down, initial software setup and the registration of your LifeBook C Series.

POWER SOURCES

Your notebook has three possible power sources: the internal Lithium ion battery; the AC adapter; or an optional auto/airline adapter.

Connecting the Power Adapters

The AC adapter or an optional auto/airline adapter provides power for operating your notebook and charging the battery.

(Figure 1-2.)

To Connect the AC Adapter

1. Plug the DC Output cable of the AC

adapter into the DC Power jack on the rear panel of your notebook. (Figure 2-1.)

Figure 2-1 Connecting the AC Adapter

2. Plug the AC adapter into an AC electrical outlet.

To Connect the Optional Auto/airline Adapter

1. Plug the DC Output cable into the DC Power jack on the rear panel of your notebook.

2. Plug the auto/airline adapter plug into the cigarette lighter or accessory plug of a car or other vehicle with the ignition key in the On or the Accessories position or into the DC Power jack on an airplane seat.

To Switch From AC Adapter Power To Battery Power

1. Be sure that you have a charged or partially charged battery installed.

2. Remove the AC or auto/airline adapter from the DC Power jack.

CAUTION

The internal Lithium ion battery is not charged when you purchase your notebook. Initially you will need to connect the AC adapter or the auto/airline adapter to use it. If you purchase a second Lithium ion battery it will not be charged when you get it. You will need to charge it prior to use. It can take up to three (3) hours to charge the battery if your notebook is turned off or is in Suspend mode. If your notebook is in use it can take up to nine (9) hours or more to charge a battery.

Two

Starting Your LifeBook C Series

LifeBook C Series from Fujitsu

DISPLAY PANEL

Opening the Display Panel

Lifting the latch releases the top of the display panel from the front of the notebook body. When the display panel is released it pops up slightly to make it easier to open. Lift the display panel backward until the screen is at a comfortable viewing angle. (Figure 2-2.)

POINT

The higher the brightness level, the more power the notebook will consume and the faster your battery will discharge. For maximum battery life, make sure that the brightness is set as low as possible.

STARTING YOUR LIFEBOOK FOR THE FIRST TIME

Power On

The Power Button is located above your keyboard to the right of the Status Indicator Panel. This button is always used to Power On your notebook from its Off state. Once you have connected your AC adapter or have charged your internal Lithium ion Battery, you can press this button to Power On your notebook.

Figure 2-2 Opening the Display Panel

CAUTION

When you turn on your notebook be sure you have a power source. This means that the internal Lithium ion Battery is installed and charged, or that the AC adapter or the auto/airline adapter is connected and has power.

Section Two

When powered On, your notebook carries out a Power On Self Test (POST) to check the internal parts and conﬁguration. If a fault is found a short series of beeps will sound and/or an error message will be displayed. (See Troubleshooting on pages 138-140.) Depending on the nature of the problem you may be able to continue by starting the operating system or by entering the setup utility and revising the settings.

After satisfactory completion of the Power On Self Test (POST) your notebook will load your operating system. (See Boot Menu on pages 87-90 to see which kind of disk will be the source.)

Figure 2-3 Power On

CAUTION

Do not carry your notebook around with the power on or subject it to shocks or vibration, as you risk damaging your notebook.

through the condition of use process. You must complete this initial process before you will be able to use your notebook. (If you wish to access the BIOS setup utility before you go through the condition of use process you must

press the F2 key while the Fujitsu logo is still visible. If you press the Esc key while the

Fujitsu logo is still present you will get a dialog box which will allow you to select which drive is to be used for ﬁnding the operating system.) If you turn off the power without using the on screen Cancel b utton you will get an error message when you start your notebook again.

Condition of Use Process

The ﬁrst time you start your notebook you

must conﬁrm your acceptance of the copyright limitations for your pre-installed software. After you complete the Condition of Use process these screens will not appear again.

Booting the System

We strongly recommend that you not attach any other external devices and do not put any CD or ﬂoppy disk in your drives until you have gone through the initial power on sequence.

When you turn on your notebook for the ﬁrst time, it will display a Fujitsu logo on the screen. If you do nothing the system will read the hard drive for the operating system software, ﬂash the notebook conﬁguration information on the screen, and then the Windows 98 Setup Wizard Screen will appear. You will then be stepped

Two

Starting Your LifeBook C Series

LifeBook C Series from Fujitsu

You cannot use your notebook until this Condition of Use process is completed. The bottom of each screen has a <Back button, a Next> Button and a Cancel button which are activated by the integrated ErgoTrac cursor control and button click. The <Back button will return you to the previous screen. The Next> button activates any choices or information you have entered and takes you on to the next screen. The Cancel button allows you to stop the setup process.

If you stop the process your notebook will start up at the beginning of the Windows 98 Setup Wizard.

The screens you will be required to respond to are described with the required action.

User Information

Fill in your name and your company name as you want the software licensed. To step from the name ﬁeld to the company ﬁeld press the Tab key. When the information has been entered click on the Next> button. You will not be allowed to continue until you make an entry.

License Agreement

Read the license agreement carefully. You can scroll through the text using the integrated ErgoTrac or TouchPad pointing device to activate the scroll bar or use the up arrow Õ and down arrow Ô keys to move up and down the text one line at a time, or use the Page Up and Page Down keys to move the text one screen at a time. When you ﬁnish reading you must accept or reject the terms of the agreement and then click on the Next> button.

Product Key

Look in the box that your notebook came in and you will ﬁnd a Windows 98 Certiﬁcate of Authenticity shrink wrapped with the Windows

98 Users manual. On the certiﬁcate you will ﬁnd a bar-code with a number above it. This is your product key and the number you should enter on the Product Key screen. When you have entered the number exactly as shown then click on the Next> b utton.

Start Wizard

The Start Wizard screen will appear when you have entered a valid product key. When you click on the Finish button the display will ﬂash various screens as the system identiﬁes what hardware is installed.

Time Zone

When your notebook has completely identiﬁed all of the installed hardware, it will display a dialog box for entering which time zone you wish to set the clock to.

POINT

If you reject the terms of the license agreement you will be asked to review the license agreement for information on returning Windows 98 or to shut down your notebook.

How do I register?

By modem, fax, mail, telephone, or on the web. With Windows 98, you can access the Softbank E-Registration program by selecting the

the ﬁrst time you start Windows 98 after completing the Condition of Use process. To access the Welcome to Windows 98 wizard anytime, double-click on the Welcome to Windows 98 icon on your desktop.

You may also complete the pre-printed registration form and either:

fax it to 1-949-450-9140

or mail it to: Fujitsu PC Corporation

15355 Barranca Pkwy Irvine, CA 92618-9520

or call: 1-800-8fujitsu (1-800-838-5487)

You may also register on our website: www.8fujitsu.com. You will need to be set up with an Internet Service Provider(ISP) to use this option.

Section Two

Printer Setup

When the time zone setup is complete, a dialog box will appear for selecting which printer is to be attached to your notebook. You do not have to select a printer at this time. If you do not wish to select a printer, click on the Cancel button. If you do wish to select a printer click on the Next b utton and answer the questions.

Welcome to Windows 98

When you boot into Windows 98 for the ﬁrst time, you will see a Welcome to Windows 98 dialog box with several options. Select the ﬁrst option, Register Now, to register your LifeBook C Series notebook.

POINT

You will ﬁnd a Emergency Recovery CD-ROM packet in your accessories box. Please store the packet in a safe place in case there is a loss of data and it becomes necessary to re-install your operating system and/or application programs. (See Restoring Your Pre-

installed Software from the Recovery CD-ROM on page 142.)

REGISTERING YOUR LIFEBOOK

What are the beneﬁts of registering?

You will receive an identiﬁcation label for your LifeBook, which, if your LifeBook is ever lost, may help in getting it returned to you. You also receive priority Personal Identiﬁcation Number (PIN), technical support access and useful product mailings. Proof of purchase is not required if you register within 30 days of your purchase.

POINT

Windows 98 will brieﬂy initialize a system device before displaying the Windows desktop for the ﬁrst time.

Two

Starting Your LifeBook C Series

LifeBook C Series from Fujitsu

LEARNING ABOUT YOUR OPERATING SYSTEM AND APPLICATION SOFTWARE

Tutorials

All operating systems and most software applications have tutorials built-in. We highly recommend that you step through the tutorial before you use an application even if you are familiar with the same application on a different machine, an earlier version of the application, or a similar product.

Manuals

In the accessories box you will ﬁnd manuals for Windows 98.

Software manuals of pre-installed software are available online. See the help screens of your pre-installed software. We recommend that you review the on-line documentation for general information on the use of these applications and to get a basic understanding of what is covered and how it is organized, should questions arise as you use the applications.

Links to Fujitsu On-line

You can go directly to the Fujitsu Accessories catalog for your notebook by clicking on the LifeBook Accessories Website option from the Windows Start menu. This will take you to the Web site for Fujitsu Lifebook accessories.

You can also reach the Fujitsu Service and Support Web site on-line by choosing the Service & Support option in the Service and Support folder in the Windows Start menu. Alternately, you may call: 1-800-8fujitsu (1-800-838-5487)

Using Your LifeBook C Series from Fujitsu

Section Three

Power Button . . . . . . . . . . . . . . . . . 20

Restarting the System . . . . . . . . . . . . 21

Status Indicator Panel. . . . . . . . . . . . . 22

Batteries . . . . . . . . . . . . . . . . . . . 26

Integrated ErgoTrac Pointing Device . . . . . 29

Using the Keyboard. . . . . . . . . . . . . . 31

Volume Control. . . . . . . . . . . . . . . . 33

Floppy Disk Drive. . . . . . . . . . . . . . . 33

CD-ROM Drive . . . . . . . . . . . . . . . . 35

Hard Drive . . . . . . . . . . . . . . . . . . 36

Internal Modem . . . . . . . . . . . . . . . 37

Power Management . . . . . . . . . . . . . 38

Data Security . . . . . . . . . . . . . . . . . 43

Pre-installed Software . . . . . . . . . . . . 44

SECTION THREE

USING YOUR LIFEBOOK C SERIES FROM FUJITSU

This section describes the indicators, buttons, connections, operating modes, and software of your LifeBook C Series and their uses.

POWER BUTTON

The power button is located above the keyboard to the right of the Status Indicator Panel. (See Figure 3-1.) It is used like a switch to turn your notebook on and off. It also can suspend and resume your notebook. (For more informa-

tion on suspend and resume features see Power Management pages 38-42.)

You can use the power button to turn on your notebook, to resume from Standby or Save-toDisk mode, to place you notebook in Standby or Save-to-Disk mode or to shut down and power off. You can also turn off your notebook by choosing Shut Down from the Windows 98 Start menu. (For the Power

On procedure see Section Two, page 13.)

Section Three

Shutting down your notebook from Windows 98 lets your notebook shut down operations, and turn off the power in the proper sequence to prevent errors. The sequence is:

1. Go to the Start button menu.

Power Off

Before turning off the power by choosing Shut Down from the Windows 98 Start menu or pressing the power button, check that the Hard Drive, CD-ROM, PC Card and the Floppy Disk Drive Access indicators are all Off. (See Figure 3-3, page 22.) If you turn off the power while accessing a disk or PC Card, there is a risk of loss of data. To ensure that your notebook shuts down without error, use the Windows 98 shut down procedure. You can also power Off your notebook by pressing the power button down for four seconds when you are in the suspend mode. If you are not in suspend mode,

you will need to press the power button once quickly to enter suspend mode, in order to use this method. This is similar to turning a power switch to Off. This method is only recommended if you cannot restart your computer with the CTRL + ALT + DEL keys.

CAUTION

Never turn your notebook off while an application is running. Be sure to close all ﬁles, exit all applications and shut down your operating system prior to turning off the power with the Power Button. If ﬁles are open when you power off, you will lose any changes that have not been saved, and may cause disk errors.

Figure 3-1 The Power Button

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

POINT

If you are going to store your notebook for an extended period of time, take the following precautions:

1. Remove any CD and/or ﬂoppy disk.

2. Shut down with Windows 98 to power Off your notebook.

3. Close your notebook display panel.

4. Disconnect the AC adapter.

5. Remove the battery and store it separately in a cool dry place.

1. Go to the Start button menu.

2. Click on Shut Down.

3. Click on Restart.

4. Verify that Restart is selected and click on Yes.

Windows 98 will shutdown and restart your notebook.

POINT

In Windows 98 pressing the Ctrl+Alt+Del keys simultaneously triggers the Shut Down submenu of the Start menu.

CAUTION

Turning off the power without exiting Windows 98 may cause an error when you start the next time. Turning the power to On when it has been Off for less than 10 seconds may also cause an error when you start the next time.

Figure 3-2 Using the reset button

Reset Button

The Reset button is located on the rear panel to the left of the DC Power jack. This hardware reset button should only be used when your notebook has locked up and you are unable to restart the system using the standard procedure. To use this reset button, take the tip of a pen or a straightened paper clip, depress the button and release it immediately. This will perform a hard reset which is similar to powering off your notebook and then powering it back on.

2. Click on Shut down.

3. Verify that Shut down is selected and click on Yes.

RESTARTING THE SYSTEM FROM WINDOWS 98

When you are in Windows 98 and you wish to restart your system, be sure that you follow this procedure.

Section Three

STATUS INDICATOR PANEL

The Status Indicator panel is located in the recess just above the keyboard. (Figure 3-3.) The appropriate icon will appear to indicate the activity of the corresponding component in your notebook.

Power Indicator

The Power indicator tells you when the system is operational. It is on steady when there is power to your notebook, and blinks when the system is in Suspend mode. It goes off when the system has entered Save-to-Disk mode or has been powered down by Windows 98 or the Power Button.

AC Adapter Indicator

The AC Adapter indicator tells you whether the system is operating on an AC or auto/airline adapter, or the battery alone. The indicator is On when either of the adapters is active and Off when power comes from the battery alone.

Figure 3-3 Status Indicator Panel

Power CD-ROM

Drive Access

Hard Drive AccessAC Adapter Battery

Level

Card

Slot

Identiﬁer

Floppy Disk Drive Access

NumLk

CapsLock

Scr Lk

Battery Charging

PC Card

Access Indicator

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

If a battery is charging, the Power Adapter indicator is active regardless of whether your notebook is On or Off. If there is no battery charging, and your notebook is powered Off, then the AC Adapter indicator and the Battery indicators will all be Off.

Battery Indicator

The battery indicator shows whether or not the Lithium ion battery is installed, and indicates it's condition. (Figure 3-3.)

A small arrow icon (Battery Charging indicator) appears to the left of the Battery Level indicator and above the number (Battery identiﬁer) if the battery is charging. The Battery Charging indicator ﬂashes if the battery is too hot or too cold to charge. (Figure 3-3.) The Battery Charging indicators operate whether the notebook is Off or On.

The symbols inside the battery outline of the Battery Level indicator show the power level, and condition of that battery. (Figure 3-4.)

CAUTION

A shorted battery is damaged and must be replaced. (See Figure 3-4.)

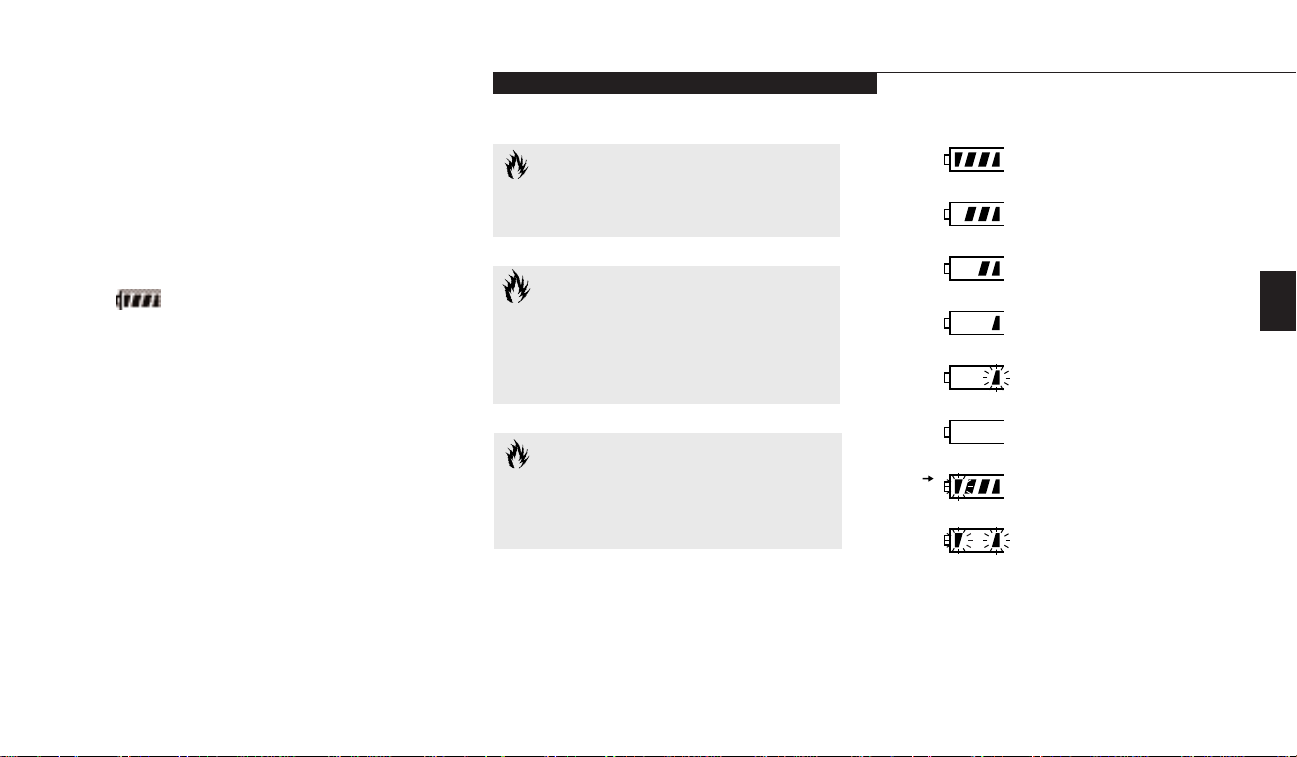

Figure 3-4 Battery Level Indicator

CAUTION

Turning off the power or using the Suspend/Resume button when any of the Access indicators are On may cause loss of data and/or system errors.

76%–100%

51%–75%

26%–50%

11%–25%

Low Warning <11%

Critical Low or Dead Battery

76%–100% Charging

Shorted Battery

CAUTION

Batteries subjected to shocks, vibration temperatures or extreme temperatures can be permanently damaged.

To disable the CD automatic insertion function:

1. Save all data and close all applications.

2. Click on the Start button.

3. Point to Settings.

4. Click on the Control Panel. The control panel window will be displayed.

5. Double click on the System icon. The system properties dialogue box will be displayed.

6. Click on the Device Manager tab. The device list will be displayed.

7. Click on the + to the left of the CD-ROM icon. The CD-ROM drive manufacturer’s name and model will be displayed.

Section Three

POINT

The Windows 98 CD automatic insertion function will periodically check for a CD inserted in the drive, causing the CD-ROM Access indicator to ﬂash. The CD automatic insertion function allows your system to automatically start a CD as soon as it is inserted in the drive and the tray is closed. It will begin playing an audio CD or will start an application if the CD includes an auto run ﬁle.

CD-ROM Drive Access Indicator

The CD-ROM Access indicator tells you that the CD-ROM drive is being accessed. The CD-ROM Access indicator will ﬂash when the software tries to access a CD even if no CD is inserted.

POINT

You can disable the CD automatic insertion function if you wish.

8. Double click on the CD-ROM drive manufacturer’s name and model.

9. The CD-ROM drive manufacturer’s name and model properties dialogue box will be displayed.

10. Click on the Settings tab.

11. Click on the automatic insertion

notiﬁcation box to turn it off.

12. Click on OK.

13. Click on Close in the system properties

dialogue box.

14. Click on Yes in the system settings

change pop-up to restart the computer and activate this change.

You can re-activate the function by repeating the process, except that step 11 will change the setting to on.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

NumLk Indicator

The NumLk indicator tells you the internal keyboard is set in ten-key numeric keypad mode.

(See page 31 for more information on the numeric keypad.) You can activate the NumLk mode by

pressing the NumLk/Scr Lk key while holding down the Shift key. Deactivate the mode the same way that you activated it.

CapsLock Indicator

The CapsLock indicator tells you when the keyboard is set for all capital letters. Activate the all capital letters setting by pressing the CapsLock key on the keyboard. Deactivate the mode the same way that you activated it.

Hard Drive Access Indicator

The Hard Drive Access indicator tells you when the internal hard drive is being accessed.

Floppy Disk Drive Access Indicator

The Floppy Disk Drive Access indicator tells you a ﬂoppy disk drive is being accessed. The Floppy Disk Drive Access indicator will ﬂash when your software tries to access a ﬂoppy disk even if no ﬂoppy disk is installed.

PC Card Access Indicators

The PC Card Access indicators tell you when an installed PC Card is being accessed. Card 1 is the bottom connector inside the slot and Card 2 is the upper connector inside the card slot. Type III cards are always Card 1 only.

Scr Lk Indicator

The Scr Lk indicator tells you when scroll lock

is active. You can activate or deactivate the scroll lock by pressing the NumLk/Scr Lk key. Deactivate the mode the same way that you activated it.

Section Three

BATTERIES

The Lithium ion battery is rechargeable with an operating time of up to 2.5 hours (C352) or 2 hours (C360) depending on active power management features and user activity levels. If the internal Lithium ion Battery goes dead, you must install the AC adapter or shut down and install a charged battery. (See page 107 for

replacing the battery.)

The Lithium ion battery operating time may become shorter than the reference value if it is used under the following conditions:

■

When used at temperatures that exceed a low of 5°C or a high of 35°C. High temperatures not only reduce charging efficiency, but can also cause battery deterioration. (The Charging icon on the Status Indicator panel will ﬂash when you try to charge a battery that is outside its operating temperature range.)

CAUTION

Actual battery life will vary based on screen brightness, applications, features, power management settings, battery condition, and other customer preferences. CD-ROM drive, hard drive, and modem usage may also have a signiﬁcant impact on battery life.

■

The battery charging capacity is reduced as the battery ages. If your battery is running low quickly, you should replace it with a new one.

■

When using a high current device such as a modem, a LAN card, the CD-ROM drive, or the hard drive frequently.

Using the AC adapter will conserve your battery when using a high current device such as a modem, a LAN card, the CD-ROM drive, or the hard drive frequently.

CAUTION

Do not leave a faulty battery in your notebook. It might damage your AC adapter, optional auto/airline adapter, another battery, or your notebook itself. It may also prevent operation of your notebook by draining all available current into the bad battery.

CAUTION

Under federal, state or local law it may be illegal to dispose of batteries by putting them in the trash. Please take care of our environment and dispose of batteries properly. Check with your local government authority for details regarding recycling or disposing of old batteries. If you cannot ﬁnd this information elsewhere, contact your support representative at 1-800-8FUJITSU (1-800-838-5487).

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

Shorted Batteries

If your Status Indicator panel shows a shorted battery, check the installation for that battery by removing and re-installing it. If it still shows that it is shorted, replace it with a new battery.

CAUTION

A shorted battery is damaged and must be replaced so that it does not damage anything else.

The Lithium ion battery is recharged internally using the AC adapter or auto/airline adapter. To recharge a battery:

■

Make sure the battery to be charged is installed in the battery bay of your notebook and the notebook is connected to a power source.

■

Make sure that the Battery Charging indicator to the left of the Battery Level indicator is visible on the Status Indicator panel.

■

Make sure the percentage charge is shown inside the Battery Level icon. (Figure 3-4 on page 23.)

Recharging the Battery

If you want to check the condition of the Lithium ion battery check the Battery Level indicator located on the Status Indicator panel. This indicator changes as the battery level changes.

There is no memory effect on the Lithium ion batteries, which means that you do not need to discharge them completely before recharging. A single fully discharged Lithium ion battery will charge in approximately three (3) hours when your notebook is Off or in Suspend mode. The charging time will be signiﬁcantly longer if your notebook is in use when the battery is charging, (approximately nine (9) hours.)

CAUTION

Using heavy current devices such as LAN cards or frequent CD-ROM accesses may prevent charging completely.

CAUTION

When you are in Suspend mode there must always be at least one power source active. If you turn off the power with the power button, or remove all power sources, battery, AC adapter or auto/ airline adapter, while your notebook is in Suspend mode any data which has not been saved to the hard drive will be lost.

Section Three

Low Battery State

When the battery is running low, your notebook beeps about every 15 seconds and the Battery Level indicator ﬂashes. If you do not respond to the low battery alarm, the battery will continue to discharge until it is too low to operate. When this happens there will be a multiple beep alarm, the Battery Level indicator will show dead battery, and your notebook will go into Suspend mode to try and protect your data as long as possible. Your power management settings do not effect what happens at the dead battery alarm level. Your notebook will go to Suspend mode. (Figure 3-4 on page 23.)

CAUTION

There is no guarantee that data will not be lost once your notebook enters the Dead Battery Suspend mode.

CAUTION

You may not be able to hear the audio alarms if the volume control is set too low or is turned off by either hardware or software but you will still be able to see the Battery Level indicator ﬂash.

When the low battery alarm occurs, you need to save all your active data and put your notebook into Suspend mode until you can provide a new power source. You should provide this power as soon as possible. The new power source can be a charged battery or a power adapter, either AC or auto/airline.

Critical Low Battery Suspend mode shows on the Status indicator just like the normal Suspend mode. Once you have provided power, you will need to press the Suspend/0Resume button to resume operation. In the Suspend mode, your data can be maintained for sometime. If a power source is not provided promptly, the Power indicator will stop ﬂashing and go out, and you will have lost the data that was not stored.

Once you provide power, you can continue to use your notebook while an adapter is charging the battery. However, this charges the battery more slowly. If you want to charge the battery quickly, put your notebook into Suspend Mode, or turn it off while the adapter is charging the battery. (See Power Off on pages 20-21 for

shutdown procedures.)

Once your notebook goes into Critical Low Battery Suspend mode, you will be unable to resume operation until you provide a source of power either from an AC adapter, an optional auto/airline adapter, or a charged battery.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

INTEGRATED ERGOTRAC POINTING DEVICE

The ErgoTrac pointing device is composed of a short, comfortable, dish-shaped pointing device and two buttons located in front of the keyboard. The ErgoTrac pointing device has the function of a mouse, and moves the cursor around on the screen – up, down, left and right. A light pressure with the tip of your ﬁnger is all that is required to operate the ErgoTrac. The more pressure you use, the faster the cursor will move. The second part of the ErgoTrac pointing device – the buttons – function as mouse buttons, and the functions they perform depend on the application you are running. Figure 3-5 shows the position of the ErgoTrac pointing device and buttons.

POINT

An external mouse can be connected to the PS/2 port on the right side of the notebook.

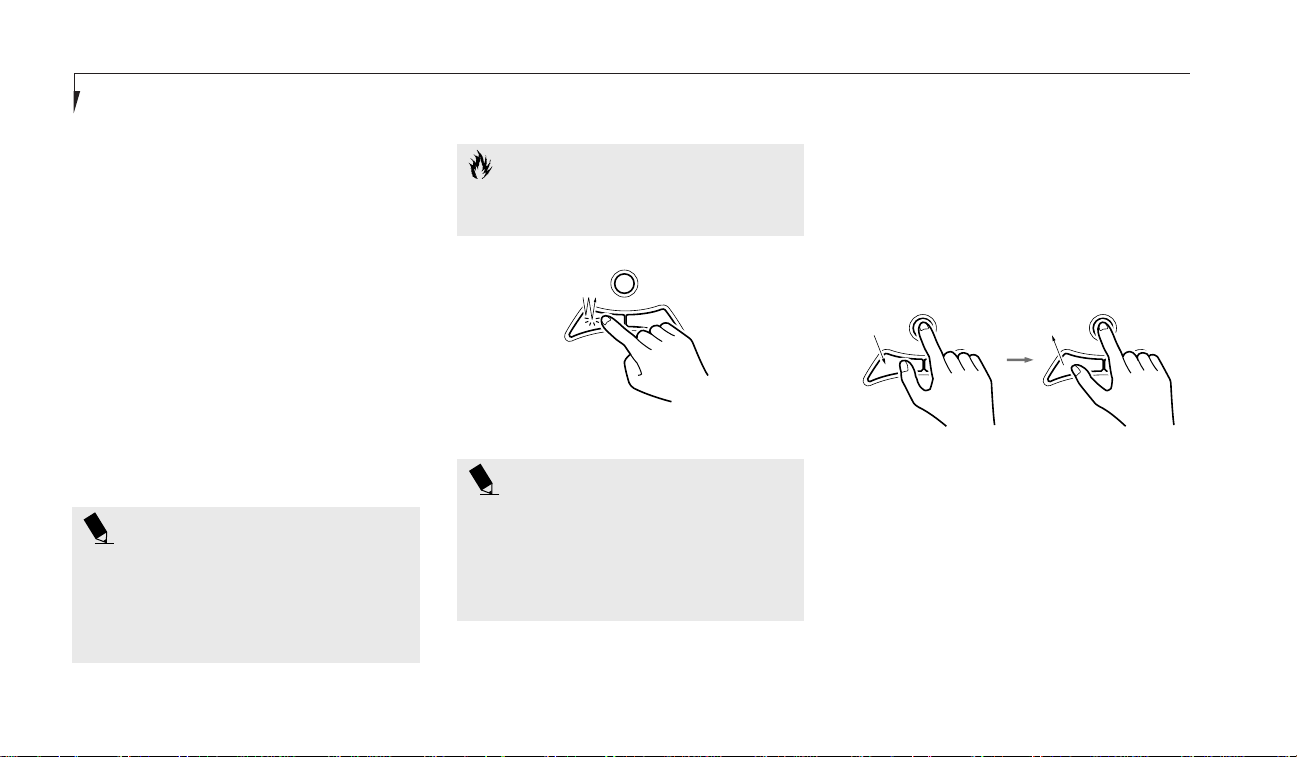

Figure 3-5 ErgoTrac pointing device

Right Button

Left Button

Cursor Control

Cursor

ErgoTrac Pointing Device Control Adjustment

The Mouse Properties in your Windows Control Panel provides customization of your ErgoTrac pointing device. There are four (4) aspects of the ErgoTrac pointing device operation which you can adjust.

Section Three

POINT

The interval between presses for double clicking, and other parameters of pointing and selecting, can be adjusted with the selections in the dialog box of the mouse icon in your Windows Control Panel.

Dragging

Dragging means moving the cursor over an object, pressing the left button – and keeping it pressed – while moving the cursor to the desired new location, then releasing the button. (Figure 3-7.)

Clicking

Clicking means pushing and releasing a button. To left-click move the screen cursor to the item you wish to select, press the left pointing device button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right pointing device button once, and then immediately release it. (Figure 3-6.)

Double-Clicking

Double-clicking means following the preceding Clicking procedure, but pressing the pointing device button twice in rapid succession. Double-clicking can only be done with the left button.

CAUTION

If the interval between clicks is too long, double-clicking will not be executed.

Figure 3-6 Clicking

Figure 3-7 Dragging

POINT

These instructions are for the right-handed setting of the ErgoTrac. Changing to left-handed in the Windows Control Panel will reverse the functions of the two buttons.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

■

Buttons – This lets you set up the buttons for right or left handed operation and set the time interval for double clicking.

■

Pointers – This lets you set up the size and shape of the cursor for different functions.

■

Motion – This lets you set up the relation of the speed of motion of your ﬁnger to the motion of the cursor and to enable a trailing tail for the cursor arrow.

You may want to try practicing with different adjustments until you ﬁnd a combination that is comfortable for you.

USING THE KEYBOARD

Your notebook has an integral 87-key keyboard. (Figure 3-8.) The keys perform all the standard functions of a 101-key keyboard and also include Windows keys and other special function keys. This section describes only those

items speciﬁc to your notebook. They are the numeric keypad, the cursor keys, the function keys, the function extension key (Fn) and the Windows keys.

Numeric Keypad

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. Figure 3-8 highlights these keys. To switch into numeric keypad mode, press the NumLk/Scr Lk while holding down the Shift key. You can now enter numerals 0 through 9, perform addition ( + ), subtraction ( – ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions.

To return these keys to their normal character function, press the NumLk/Scr Lk while holding down the Shift key again.

POINT

When an external numeric keypad is connected to the notebook the NumLk mode enables the external keypad. The built-in keyboard numeric keypad can be used by holding down the Fn key while using the designated keys.

Cursor Keys

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up Õ, down Ô, left Ó and right È as your application allows.

POINT

The integrated ErgoTrac pointing device and/or external mouse are also used for moving the cursor around the screen.

Section Three

Function Keys

Your notebook has 12 function keys, F1 through F12. The functions assigned to these keys differ

for each application. You should refer to your software documentation to ﬁnd out how these keys are used. (Figure 3-8.)

Fn Key

The Fn key provides extended functions for the notebook and is always used in conjunction with another key. (Figure 3-8.)

Pressing F5 while holding down the Fn key allows you to toggle between video compensation and no compensation. (Video compensation controls spacing on the display. When it is enabled, displays with less than 800 x 600 pixel resolution will still cover the entire screen.)

Pressing F10 while holding down the Fn key allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, external monitor only, or both built-in display panel and external monitor.

Figure 3-8 Keyboard

Function Keys Numeric Keypad

Fn Key Start Key Start Key Application Key Cursor Keys

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

Windows Keys

Your notebook has three Windows keys, two Start keys and an Application key. The Start key displays the Start menu. This is the same as the button on the toolbar which is typically at the bottom of your Windows 98 desktop. The Application key has the same function in Windows 98 as the right mouse button, it displays the Shortcut menu for whatever item is selected. See your Windows 98 documentation for additional information. (Figure 3-8.)

VOLUME CONTROL

All system and application functions have multiple volume controls which interact with each other. There is the hardware volume control on the right side panel of your notebook. There is also a volume control in the your operating system Sound Control panel and any other application with sound.

Each setting source puts an upper limit on the volume which can be set by the other sources. For example if the hardware volume control is turned all the way down, your software volume

CAUTION

The operating system volume setting sets the maximum volume level of the hardware volume control knob.

control settings have no effect. By the same token, if the operating system has the sound turned off, adjusting the hardware or other application software volume settings will not produce sound. One easy operating method is to use the hardware and operating system volume controls to set an upper limit on sound level and then make ﬁne adjustments with other application software.

FLOPPY DISK DRIVE

The ﬂoppy disk drive is a 3.5" drive which can read and write on 1.44MB and 720KB ﬂoppy disks. Floppy disk format is controlled from your operating system. (See your software documentation for more information.)

Loading a Floppy Disk

Insert a ﬂoppy disk into the ﬂoppy disk drive –

shutter side ﬁrst and label up – until the Eject

button pops out. (Figure 3-9.)

POINT

When there is no ﬂoppy disk in the drive, the Eject button is ﬂush with the right-side of your notebook.

Section Three

Ejecting a Floppy Disk

To eject a disk, check that the Floppy Disk Drive Access indicator is Off, (see pages 22

and 25) and press the Eject button. (Figure 3-9.)

CAUTION

Formatting a previously used ﬂoppy disk is an effective method of clearing a disk as long as you realize that ALL the information on the disk will be erased.

CAUTION

If you eject the disk while the Floppy Disk Drive Access indicator is On, there is a risk of damaging the disk drive or the data on the disk.

Preparing a Floppy Disk for Use

Before you can use a new ﬂoppy disk, you need to prepare it so your notebook knows where to store information. This preparation is called formatting or initializing a disk. You need to format new 3.5" ﬂoppy disks, unless you purchase preformatted disks. Use your notebook’s operating system software to format a ﬂoppy disk. Please refer to the operating system manual for step-by-step instructions.

To prevent accidental erasure of data stored on a ﬂoppy disk, slide the "write protect" tab on the ﬂoppy disk to open up the small hole. This makes the disk "write protected." When you want to write data to that disk, slide the write protect tab the other way to close the small hole. (See Figure 3-10.)

Figure 3-9 Ejecting a Floppy Disk

Figure 3-10 Floppy Disk Write Protect

Write Enabled

Write Protected

Care of Floppy Disk Drive and Disks

■

Avoid storing the ﬂoppy disk drive and disks in extremely hot and cold locations, or in locations subject to severe temperature changes.

■

Keep the ﬂoppy disk drive and disks out of direct sunlight and away from heating equipment.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

CAUTION

Do not operate your CD-ROM drive unless your notebook is sitting on a ﬂat surface. Using a CD when the drive is not level may damage the drive or prevent proper operation.

■

Avoid storing the ﬂoppy disk drive in locations subject to shock and vibration.

■

Avoid using the ﬂoppy disk drive and disks in damp and dusty locations.

■

Never use the ﬂoppy disk drive with any liquid, metal, or other foreign matter inside the ﬂoppy disk drive or disk.

■

Never store a ﬂoppy disk near a magnet or magnetic ﬁeld.

■

Never disassemble or dismantle your ﬂoppy disk drive. This may cause damage to your system and will void your warranty.

Loading a CD

■

Make sure there is power to your notebook.

■

Push, gently but ﬁrmly, and release the eject button on the front of the CD-ROM drive to open the CD-ROM holder tray, the tray will come out a short distance. (See Figure 3-11.)

■

Gently pull the tray out until a CD-ROM can be easily placed in the tray.

CD-ROM DRIVE

The CD-ROM drive is a 24x maximum CD-ROM reader.

Figure 3-11 Loading the CD-ROM Tray

Care of CD-ROMs

CD-ROMs are precision devices and will function reliably if given reasonable care.

■

Always store your CD-ROM in its case when it is not in use.

■

When removing the CD-ROM from its case, press down on the holder’s center while lifting out the CD-ROM by its edges.

■

Always handle a CD-ROM by the edges and avoid touching the surface.

■

Avoid storing any CD-ROM in extreme temperatures.

Section Three

■

If there was a protective sheet in the tray when it was shipped, make sure it has been removed.

■

Place the CD into the tray, label side up, with the hole in the center of the CD snapped onto the raised circle in the center of the tray.

■

Close the tray.

■

After the CD is loaded, it will take a short time for your notebook to recognize it.

POINT

If you have disabled your CD automatic insertion function (see page 24) you will have to start the CD from your desktop, as your notebook will not automatically recognize that the CD has been loaded.

■

Do not bend CD-ROMs or set heavy objects on them.

■

Never write on the label surface with a ball point pen, pencil or similar device.

■

If a CD-ROM is subjected to sudden changes in temperature, cold to warm condensation may form on the surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room temperature. DO NOT use a hair dryer or heater to dry a CD-ROM.

■

If a CD-ROM is dirty, use only a CD-ROM cleaner or wipe it with a clean, soft, lint free cloth starting from the inner edge and wiping to the outer edge.

HARD DRIVE

Formatting the Hard Drive

The hard drive inside your notebook is formatted (initialized) at the factory. You do not need to format it under normal circumstances. Check your operating system documentation for information on initializing a hard drive if you need to reformat your internal hard drive.

Figure 3-12 CD-ROM Handling

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

CAUTION

The internal modems on all Fujitsu notebooks from Fujitsu PC Corporation are not qualiﬁed for use with telephone systems outside the United States and Canada and may not operate in other countries.

CAUTION

If you reformat the internal hard drive ALL data including the operating system, applications software and data will be erased. Unless data is copied to ﬂoppy disks or other data storage media it will be permanently lost. All software will be need to be re-installed and data ﬁles restored from your back-up disks. See the operating system manual for more information on backing-up your data ﬁles. The factory installed software, including the operating system, can be restored from the Recovery CD-ROM which came in the accessories box when you purchased your notebook. (See Recovery CD-ROM on page 142 for more information.) Any application software which you have purchased and installed will have to be reinstalled from the original source. When doing a recovery remember that you must allocate space for the Save-to-Disk function if you have it enabled. (See Setting

Up Your Save-to-Disk File Allocation on pages 102-103 for more information.)

CAUTION

The internal modem is not intended for use with Digital PBX systems. Do not connect the internal modem to a digital PBX as it may cause serious damage to the internal modem or your entire notebook. Consult your PBX manufacturer’s documentation for details. Some hotels have digital PBX systems. Be sure to ﬁnd out BEFORE you connect your modem.

INTERNAL MODEM

Your internal modem is a 56K fax/data/voice modem with v.90 support that is controlled by Windows 98, LapLink, or other software.

POWER MANAGEMENT

Your LifeBook C Series has many features for conserving power. Some power savings features are automatic and have no user control, such as those for the internal modem, while others depend on the parameters you set to best suit your operating conditions. Other power saving features turn the display brightness down, limit the use of high power devices, activate an appropriate power savings proﬁle, and put your notebook in Suspend mode when not actually performing an operation. As with all mobile, battery-powered computers, there is a trade-off between performance and power savings.

Internal power management for your notebook may be controlled from settings made in the BIOS setup utility, or from settings made in your operating system.

Using the Suspend/Resume Features

When your notebook is active, the Power button, (Figure 1-3 on page 5), can be used to manually put your notebook into Suspend mode. The Power button is located next to the Status

Section Three

Indicator panel above the keyboard of your notebook. (Figure 3-13.) Push the Power button, when your notebook is active but no Access indicators are on and release the button (immediately). You will hear two short beeps and then your system will enter Suspend mode.

If your notebook is suspended, pushing the Power button will return your notebook to active operation at the point where it went into suspension. You can tell whether or not your system is in Suspend mode by looking at the Power indicator. (See page 22.) If it is visible and not ﬂashing, your notebook is fully operational. If it is visible and ﬂashing, your notebook is in Suspend mode. If it is not visible, the power is Off or your notebook is in Save-toDisk mode. (See page 40.) When you receive your LifeBook C Series it will be set to the default in BIOS, which is Suspend mode.

POINT

You can also power Off your notebook by pressing the power button down for

POINT

Disabling the Suspend/Resume function prevents it from being used to put your notebook in Standby or Save-to-Disk mode. The resume function of the button cannot be disabled. (See the Power

Menu of the BIOS setup utility, pages 91-92, for more information.)

Figure 3-13 The Power Button

four seconds when you are in the suspend mode. If you are not in suspend mode, you will need to press the power button once quickly to enter suspend mode, in order to use this method.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

CAUTION

The Standby or Save-to-Disk mode should not be used with certain PC Cards. Check your PC Card documentation for more information.

POINT

If your notebook is active when you enter the Standby or Save-to-Disk mode, changes to open ﬁles are not lost. The ﬁles are left open and memory is kept active during Standby mode or the memory is transferred to the internal hard drive during Save-to-Disk mode.

CAUTION

If you are running your notebook on battery power, be aware that the battery continues to discharge while your notebook is in Suspend mode, though not as fast as when fully operational. With a fully charged internal Lithium ion battery the suspend mode will maintain your status for 24 hours or more.

■

Pressing the Power button when your system is in the On state.

■

Selecting Standby from the Windows Shut Down menu.

■

Timing out from lack of activity.

■

Battery level reaching the Dead Battery Warning condition.

Your notebook’s system memory typically stores the ﬁle(s) on which you are working, the open application(s) and any other data required to support the operation(s) in progress. When you resume operation from Standby mode, it returns to the point in the operation where it left off. You must use the Power button to resume operation, and there must be an adequate power source available, or your notebook will not resume.

Standby Mode

Standby mode, in Windows 98, saves the contents of your notebook’s system memory during periods of inactivity by maintaining power to critical parts while turning off the CPU, the display, the hard drive and all of the other internal components except those necessary to maintain system memory, recognize the Power button and restart. Your notebook can be put in Suspend mode by:

Section Three

Using the Power Button to Perform Save-to-Disk

When your notebook is active, the Power button, (Figure 3-13.), can be used to manually put your notebook into Save-To-Disk mode. However, you must ﬁrst enable Save-to-Disk mode by enabling Save-to-Disk mode in the BIOS Setup utility Power menu. (See pages 85-

89 for more information on the Power menu of the BIOS Setup utility.)

Push the Power button, when your notebook is active but no Access indicators are on and release the button (immediately). You will hear two short beeps and then your system will ﬂash the Save-to-Disk screen, and enter Save-to-Disk mode.

CAUTION

Loss of all power sources, including batteries, while in the Standby mode will cause lost data and inability to return to operation with the Power button.

POINT

If power is lost during Save-to-Disk mode the data will be retrieved automatically as soon as power is returned.

If your notebook is in Save-to-Disk mode, pushing the Power button will return your notebook to active operation at the point where it went into Save-to-Disk mode. You can tell whether or not your system is in Save-to-Disk mode by looking at the Power indicator. (See page 22.) If it is visible and not ﬂashing, your notebook is fully operational. If it is visible and ﬂashing, your notebook is in Suspend mode. If it is not visible, the power is Off or your notebook is in Save-to-Disk mode.

POINT

When PC Cards or external devices are in use, Save-to-Disk mode cannot return to the exact state prior to suspension, because all of the peripheral devices will be re-initialized when the system restarts.

POINT

The main advantage of using the Save-to-Disk function is that power is not required to maintain your data. This is particularly important if you will be leaving your notebook in a suspended state for a prolonged period of time. The drawback of using Save-to-Disk mode is that it lengthens the power down and power up sequences and resets peripheral devices.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

POINT

Save-to-Disk mode requires allocating a signiﬁcant amount of hard drive capacity for saving all system memory, which reduces your usable disk space. When you purchase your notebook it will have space allocated for the memory installed. If you increase the system memory with a memory Upgrade module, you will need to change the size of your Save-toDisk allocation. Use the PHDISK Utility to increase the size of the Save-to-Disk ﬁle, SAVE2DSK.BIN. (Refer to Setting Up

Your Save-to-Disk File Allocation on

pages 102-103 for more information.)

If you need help contact your support representative for recommendations.

Save-to-Disk Mode

The Save-to-Disk function saves the contents of the notebook’s system memory to the hard drive as a part of the Suspend/Resume function. Your notebook is setup to perform this function in one way and can be conﬁgured through the system BIOS to do it in other ways.

Default Method for using Save-to Disk Mode:

■

Press the Fn key together with the Suspend/Resume button when activating the Suspend mode. The Save-to-Disk pop-up will appear on your screen, simply wait until it has ﬁnished and your notebook will go into Save-to-Disk mode.

CAUTION

Be sure you know which settings are active for the Power Button before you use it; misuse can result in data loss. (See

the Power Menu of the BIOS setup utility, pages 85-92, for more information.)

Customer conﬁgured BIOS methods:

■

Press the Power Button until acknowledged with Save-to-Disk mode enabled from the Power menu of the BIOS setup utility.

■

Select Standby from the Windows Shut Down menu with Save-to-Disk enabled by the BIOS Setup Utility.

■

Time out from lack of activity with Save-ToDisk mode enabled from the Power Savings menu of the BIOS setup utility.

Your notebook’s system memory typically stores the ﬁle(s) on which you are working, the open application(s) and any other data required to support the operation(s) in progress. When the Save-to-Disk function is activated your notebook saves the contents of the system memory to a ﬁle on the internal hard drive, and then automatically shuts off power to your notebook. When you resume operation by pressing the Power button, you return to the point in the operation where you left off, before going into Save-to-Disk mode.

POINT

Save-to-Disk mode will not operate when Resume On Modem Ring has been selected in the BIOS.

Section Three

Video Timeout

The Video Timeout is one of the power management parameters which saves power by turning off the display if there is no keyboard or pointer activity for the user selected timeout period. Any keyboard or pointer activity will cause the display to restart automatically. This feature is independent of the Power button. This parameter is enabled and disabled in the BIOS setup utility. (See pages 85-86.)

Hard Disk Timeout

The Hard Disk Timeout is one of the power management parameters which saves power by turning off the hard drive if there is no hard drive access for the timeout period which has

been set in the BIOS setup utility. (See pages

85-86.) Any attempt to access the hard drive will cause the hard drive to restart automatically. This feature is independent of the Suspend/ Resume button. This parameter is enabled

and disabled in the BIOS setup utility.

Idle Mode

Idle mode is one of the power management parameters. When Idle mode is enabled the CPU is put into low-speed operation when there is no activity (keystroke, pointer action, sound generation, video display change, modem transmission or reception, etc.) on your notebook for 16 seconds. Any activity will cause the normal operation to restart| automatically. This feature is independent of the Suspend/Resume modes. This parameter is enabled and disabled in the BIOS setup utility. (See pages 85-86.)

Standby Mode

Standby mode is one of the power management parameters. When Standby mode is activated, your notebook puts the CPU in low-speed operation, shuts off the display and turns off the hard drive when there is no activity (keystroke, pointer action, sound generation, video display change, modem transmission or reception, etc.) on your notebook for the user selected time-out period. (See page 80.) Any activity will cause your notebook to return to normal operation automatically. This feature is independent of the Power button. This parameter is enabled and disabled in the BIOS setup utility.

POINT

Windows 98 has its own integrated power management features that include the functionality of those listed above. (Idle and Standby Mode)

POINT

By holding down the Fn key while pressing the Power Button, it is possible to enter Save-to-Disk mode without enabling it in the BIOS Setup utility.

Three

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

Windows Power Management Control Panels

The Power Management icon in the Windows 98 Control Panel allows you to conﬁgure some of the power management settings that are normally controlled by the BIOS. For instance, you can set timeout values in the Power Management Control Panel for turning off the display and for turning off hard disks. You can specify these timeout values based on whether you are running on batteries or AC.

DATA SECURITY

Your LifeBook C Series has a built-in hardware control password security feature that allows you to protect the data stored in the notebook from unauthorized access. Your operating system and some applications have

software control password security features that allow you to protect all or portions of the data stored in the notebook from unauthorized access.

CAUTION

Make sure you memorize your passwords, both hardware and software. If you forget, you may not be able to use the notebook, and you will have to contact your service provider and arrange to have them reset the hardware system password. See your software documentation for what to do if you forget your software security password(s).

CAUTION

Software security feature passwords may not be the same as the hardware security passwords. Be sure you know which features are controlled from software and which from hardware or you may lock yourself out of your own data or lock up your hardware and not be able to operate your notebook.

Hardware Data Security Features

When you are using your notebook's built-in hardware control password to gain access to the notebook the actual password will not appear on the screen. This is a safety precaution. The hardware control security parameters are set from the BIOS setup utility. (See Security Menu

on pages 80-84 for more information on setting and clearing passwords and enabling and disabling built-in security features.)

Software Data Security Features

The operating system and some applications have security features that are independent of the built-in hardware protection features that are controlled from the BIOS. See your software documentation for more information about these features.

Section Three

McAfee VirusScan

Running your McAfee VirusScan program after loading data or programs from a ﬂoppy disk, CD-ROM or modem data transfer is a precaution that will protect the data on your hard drive from contamination or destruction. See your VirusScan online help screens for information on how and when to run this program. (Located in the Service and Support Software folder.)

PC Doctor

PC Doctor by Watergate Software is primarily for use by your support representative when helping you with trouble shooting. (See page 119 for more information.) (Located in the Service and Support Software folder.)

PRE-INSTALLED SOFTWARE

Your LifeBook C Series comes with preinstalled software for playing audio and video ﬁles of various formats. In addition there is ﬁle transfer and virus protection software.

All of the pre-installed software can be accessed from the Program folder of the Windows 98 Start menu or the following folders above the Program folder in the Start menu: System Management Software, Communications Software, Internet Software, Multi-media Software, Service and Support Software, and Business Software.

LapLink

LapLink by Traveling Software provides direct ﬁle transfers to other computers; data transfers via internal modem, a PC Card modem, a serial cable, or a parallel cable (cables are not included). See the LapLink online help screens for operating instructions. (Located in the Communications Software folder.)

Quicken 99 Basic

Quicken 99 Basic by Intuit is a personal money management program. It has features such as portfolio management, account registries, online banking, and bill paying features. (Located in the Business Software folder.)

Microsoft Works

Microsoft Works is a suite of software containing the basic tools to write letters and reports, track family and friends with address books, manage home ﬁnances, and create a home inventory. (Located in the Business Software folder.)

ESS AudioRack

™

The control of the AudioRack player software (AudioRack32) resembles the front panels of a rack of stereo equipment and is operated in much the same way. There is also AudioRack recorder software (AudioRecorder). Online help screens are accessible from the AudioDrive panel of AudioRack32, click on the Help button for more information. In the AudioRecorder dialog box, click on Help in the top taskbar.

Using Your LifeBook C Series

LifeBook C Series from Fujitsu

In AudioRack32 the AudioDrive panel lets you turn on and off the available functions. When you left-click on a button it will activate. When a function is active, its button on the AudioDrive shows a green dot and its control panel is in the equipment rack. When it is off the dot on the button is black and the control panel is not in the rack. You activate a slider or knob on a control panel by dragging it. The functions available are DAT (Digital Audio Tape player), 3D (3D-Stereo sound control), MIDI, Mixer and CD (Audio CD player).

Three

POINT

Your LIfeBook C Series does not support LCD Backlighting control or CPU Clock control, these options are not selectable in the Power Control tab of PMSet 98.

POINT

For maximum frequency response and bandwidth, leave the graphic equalizer levels at the mid-point (zero level). To customize the frequency response to your personal taste, adjust accordingly.

CAUTION

The ESS AudioRack volume settings set the maximum volume level of the hardware volume control knob for that function.

CAUTION

If you use a speakerphone function, be sure that the microphone setting in the ESS AudioRack is disabled.

PMSet 98

PMSet 98 is a power management application which allows you to monitor battery status. (Located in the System Management Software folder.)

Adobe

Acrobat® Reader

The Adobe Acrobat Reader allows you to view, navigate, and print PDF ﬁles across all major computing platforms. (Located in the Service and Support Software folder.)

Configuring Your LifeBook C Series

Section Four

Boot Sequence . . . . . . . . . . . . . . . . 48

Identifying the Drives. . . . . . . . . . . . . 48

BIOS Setup Utility . . . . . . . . . . . . . . 49

Navigating Through the Setup Utility. . . . . 51

Main Menu – Setting Standard

System Parameters . . . . . . . . . . . . . 52

Advanced Menu – Setting Device

Feature Controls . . . . . . . . . . . . . . 62

Security Menu – Setting the

Security Features . . . . . . . . . . . . . . 80

Power Menu – Setting Power

Management Feature Controls . . . . . . 85

Boot Menu – Selecting the

Operating System Source. . . . . . . . . . 93

Info Menu – Displaying Basic

System Information . . . . . . . . . . . . 97

Exit Menu – Leaving the Setup Utility . . . . 99

Setting Up Your Save-To-Disk

File Allocation . . . . . . . . . . . . . . . 102

Section Four

SECTION FOUR

CONFIGURING YOUR LIFEBOOK C SERIES FROM FUJITSU

This section explains the BIOS setup utility. The BIOS setup utility is used to set the date, time, power management modes, data security passwords and other operating parameters of your notebook.

BOOT SEQUENCE

Each time you power up or restart your LifeBook C Series, it goes through a quiet boot sequence that displays a Fujitsu logo until your operating system is loaded. During quiet boot, your notebook is performing a standard boot sequence including a Power On Self Test (POST). To view this Boot Menu press the Esc key anytime while the Fujitsu logo is displayed. To enter the BIOS setup utility press the F2 key anytime while the Fujitsu logo is displayed. When the boot sequence is completed without a failure and without a request for the setup utility, the system displays the Windows 98 opening screen. The boot sequence is executed when:

IDENTIFYING THE DRIVES

Your notebook uses drive letters (Example A:, B:, C:, D:, E:) to identify internal and external devices such as hard drives, ﬂoppy disk drives, CD-ROM drives and PC Cards. The most com-

monly assigned drive designators are listed below. If you add other devices, the drive designators may be different. See your operating system manual for setting drive designations.

Drive Designators

A: Floppy disk drive.

Installed inside your notebook.

B: Not used with your notebook.

POINT

The BIOS setup utility is entered by pressing the F2 key during the boot process while the Fujitsu logo is on the screen.

■

You turn on power to the system using the power button on your notebook.

(Figure 3-1 on page 20.)

■

You restart your computer from the Windows 98 Shut down dialog box of the Start Menu.

■

The software initiates a system restart. Example: When you install a new application.

■

You reset the system by pressing the three keys Ctrl+Alt+Del at the same time and then restart your computer from the Windows 98 Shut down dialog box.

■

You depress the reset button on the rear panel of your notebook.

POINT

When error messages occur see Section Six, pages 138-140, for help in understanding the meaning and required actions to be taken.

Four

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

C: Hard drive.

Installed inside your notebook.

D: CD-ROM drive.

Installed inside your notebook.

BIOS SETUP UTILITY

The BIOS setup utility is a program that sets the operating environment for your notebook. It is referred to in this publication as the setup utility. Normally, there is no need to change the environment, it is set at the factory for normal operating conditions.

The setup utility conﬁgures:

■

Standard system parameters, such as date and time.

■

Device control feature parameters, such as I/O addresses and boot devices.

■

Power Management parameters that help to conserve your notebook’s batteries.

■

System Data Security feature parameters, such as passwords.

You will only have to change the utility settings if you want to:

■

Change the date or time. (You can also do this without entering the setup utility, through your operating system. See your operating system manual.)

■

Change the primary boot device.

■

Change the power management parameter settings. (Can also be changed in the operating system control panel.)

■

Change a port address or other parameter.

■

Change an audio parameter setting.

■

Change the selection of whether to use the built-in display, an external monitor or both. (Can also be changed in the operating system control panel.)

■

Change the system data security settings.

Routinely Entering the Setup Utility

You can enter the setup utility whenever you turn on or reset the system. To do this:

1. Allow the system to start booting.

2. As soon as the Fujitsu logo appears on the screen, press the F2 key.

3. The Main menu of the setup utility then appears with the current settings of the parameters displayed.

4. If you wish to go to one of the other setup menus, press the Ó or the È key to ﬁnd the menu you require.

Section Four

Error message - please run SETUP program Press <F1> key to continue, <F2> to run SETUP

2. If an error message is displayed on the screen, and you want to continue with the boot process and start the operating system anyway, press the F1 key.

POINT

If your data security settings require it, you may be asked for a password before the operating system will be opened.

POINT

If your data security settings require it, you may be asked for a password before the Main menu will appear.

CAUTION

If your notebook beeps a series of beeps that sounds like a code and the display is blank, please refer to the Troubleshooting Section. The Troubleshooting Section includes a list of error messages and their meanings. (See pages 138-140.)

3. If an error message is displayed on the screen, and you want to enter the setup utility, press the F2 key.

4. When the setup utility starts with a fault present, the system displays the following message:

Warning! Error message [Continue]

5. Press any key to enter the setup utility. The system will then display the Main Menu with current parameters values.

Entering the Setup Utility After a Conﬁguration Change or System Failure

If there has been a change in the system conﬁguration that does not agree with the parameter settings stored in your BIOS memory, or there is a failure in the system, the system beeps and/or displays an error message after the Power On Self Test (POST). If the failure is not too severe, it will give you the opportunity to modify the settings of the setup utility, as described in the following steps:

1. When you turn on or restart the computer there is a beep and/or the following message appears on the screen:

Four

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

NAVIGATING THROUGH THE SETUP UTILITY

The BIOS setup utility consists of seven menus;

Main, Advanced, Security, Power, Boot, Info and Exit. The remainder of Section Three

explains each menu in turn including all submenus and setup items.

The following procedures allow you to navigate the setup utility menus:

1. To select a menu, use the cursor keys: Ó , È.

2. To select a ﬁeld within a menu or a sub-

menu, use the cursor keys: Õ, Ô.

3. To select the different values for each ﬁeld, press the Spacebar or + to change to the next higher selection and F5 or - to go to the next lower selection.

4. To activate a submenu press the Enter key.

POINT

Selecting a ﬁeld causes a help message about that ﬁeld to be displayed on the right-hand side of the screen.

POINT

Pressing the Enter key with the highlight on a selection that is not a submenu or auto selection will cause a list of all options for that item to be displayed. Pressing the Enter key again will select the highlighted choice.

7. Pressing the F9 key resets all items in the BIOS to the default values.

8. Pressing the F10 key saves the current conﬁguration and exits the BIOS Setup Utility.You will be asked to verify this selection before it is executed.

9. Pressing the F1 key gives you a general help screen.

5. To return to a menu from a submenu, press the Esc key.

6. To go to the Exit menu from any other menu, press the Esc key.

POINT

The BIOS Setup screens depicted in this manual are only representations of the actual setup screens. The BIOS Setup screens on your notebook may vary.

Section Four

Figure 4-1 Main Menu

MAIN MENU – SETTING STANDARD SYSTEM PARAMETERS

The Main Menu allows you to set or view the current system parameters. Follow the instructions for Navigating Through The Setup Utility to make any changes. (See page 51.)

Table 4-1 shows the names of the menu ﬁelds for the Main menu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

POINT

System Time and System Date can also be set from your operating system without using the setup utility. Use the calendar and time icon on your Control panel for Windows 98 or type time or date from the MS-DOS prompt.

Main Advanced Security Power Boot Info Exit

System Time: [02:34:56] System Date: [03/31/1999]

Legacy Diskette A: 1.44/1.25 MB, 3

▲

Primary Master [FUJITSU MHF2043AT] Secondary Master [UJDA170]

System Memory: 640 KB Extended Memory: 31 MB

▲

Memory Cache

Language: [English (US)]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

/2"

-/Space Change Values Enter Select Sub-Menu

▲

<Tab>, <Shift-Tab>, or <Enter> selects field.

Item Specific Help

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Menu Field Options Default Description

System Time: — — Sets and displays the current time. Time is in a 24 hour format

of hours:minutes:seconds with 2 digits for each. (HH:MM:SS). Example: 16:45:57. You may change each segment of the time separately. Move between the segments with the Tab key and/or Shift + Tab keys.

System Date: — — Sets and displays the current date. Date is in a month/day/year

numeric format with 2 digits each for month and day and 4 digits for year. (MM/DD/YYYY) for example: 01/01/1999. You may change each segment of the date separately. Move between the segments with the Tab key and/or Shift + Tab keys.

Legacy Diskette A: 1.44/1.25MB, 3.5"

Primary Master: Selects Primary The product # of Display the type of device on this ATA/ATAPI interface, if there is

Master submenu the Hard Drive one. Pressing the Enter key selects the Primary Master submenu

allowing additional device conﬁguration options for this interface.

Secondary Master: The product # of

the CD-ROM

Four

Table 4-1 Fields, Options and Defaults for the Main Menu

Section Four

Table 4-1 Fields, Options and Defaults for the Main Menu

System Memory: — 640 KB Displays the size of system memory, which is detected

automatically and cannot be changed by the setup utility.

Extended Memory: — 31 MB Displays the size of extended memory which is detected

automatically and cannot be changed by the setup utility.

Memory Cache: Selects Memory Cache Conﬁgures external cache.

Submenu.

Language: English, Japanese. [English (US)]

Menu Field Options Default Description

Four

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Primary Master – Submenu

The Primary Master submenu is for the internal hard drive. The drive type is displayed on this menu as well as the Main menu. Your notebook auto-senses the characteristics of the Hard Disk Drive installed. You will not need to modify these settings, they are displayed for your reference. (See page 51.)

Table 4-2 shows the names of the menu ﬁelds for the Primary Master submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Note – actual hard drive label shown may vary.

Figure 4-2 Primary Master Submenu

Main

Primary Master [UJDA170]

Type: [Auto] Cylinders: [8944] Heads: [15] Sectors: [63] Maximum Capacity: 4327 MB

Multi-Sector Transfers: [16 Sectors] LBA Mode Control: [Enabled] Transfer Mode: [Fast PIO 4] Ultra DMA Mode: [Mode 2]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space Enter

Item Specific Help

User = you enter parameters of hard-disk drive installed at this connection. Auto = autotypes ATA/ATAPI drive installed here. CD-ROM = a CD-ROM drive is installed here.

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Section Four

Menu Field Options Default Description

Type: Auto; None; [Auto] Selects the ATA/ATAPI device type. Set to Auto to have the type

CD-ROM; User. automatically identiﬁed by the BIOS at POST. If None is selected,

all of the following Set-up items do not appear. Select CD-ROM if a CD-ROM drive is installed at this connection. If User is selected, you must specify the number of Cylinders, Heads, and Sectors for the drive.

Cylinders: A number between 0 [8944] This item appears only when Auto is selected and the type is

and 65,535. identiﬁed as hard disk, or User is selected. When User is selected,

you can change the value. This ﬁeld is changed by incrementing (pressing the Spacebar) or by typing in the number.

Heads: A number between 1 and 16. [15] This item appears only when Auto is selected and the type is

identiﬁed as hard disk, or User is selected. When User is selected, you can change the value. This ﬁeld is changed by incrementing (pressing the Spacebar) or by typing in the number.

Sectors: A number between 0 and 63. [63] This item appears only when Auto is selected and the type is

identiﬁed as hard disk, or User is selected. When User is selected, you can change the value. This ﬁeld is changed by incrementing (pressing the Spacebar) or by typing in the number.

Table 4-2 Fields, Options and Defaults for the Primary Master Submenu

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Menu Field Options Default Description

Maximum Capacity: Display only. — Displays the maximum capacity of the drive calculated from the

parameters of the hard disk when Auto is selected and the type is identiﬁed as hard disk, or User is selected.

Multi-Sector Transfers: Disabled; 2; 4; 8; 16. 16 Sectors Specify the number of sectors per block for multiple sector

MAX 32; MAX 64; MAX 128. transfer. MAX refers to the size the disk returns when required.

This option cannot be changed when Auto is selected.

LBA Mode Control: Enabled; Disabled. Enabled Enables or disables logical Block Addressing in place of Cylinder,

Head, Sector addressing. This option cannot be changed when Auto is selected.

Transfer Mode:

Standard, Fast PIO 1; Fast PIO 2;

Fast PIO 4/DMA Selects the method for moving data to/from the drive. Autotype Fast PIO 3; Fast PIO 4; the drive to select the optimum transfer mode. This option Fast PIO 3 / DMA; cannot be changed when Auto is selected. Fast PIO 4 / DMA.

Ultra DMA Mode: Disabled; Mode 0; Disabled Selects the method for moving data to/from the drive. Autotype

Mode 1; Mode 2. the drive to select the optimum transfer mode. This option

cannot be changed when Auto is selected.

Four

Table 4-2 Fields, Options and Defaults for the Primary Master Submenu

Section Four

Secondary Master – Submenu

Table 4-3 shows the names of the menu ﬁelds for the Secondary Master submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Note – actual hard drive label shown may vary.

Figure 4-3 Secondary Master Submenu

Main

Primary Master [UJDA170]

Type: [Auto]

Multi-Sector Transfers: [Disabled] LBA Mode Control: [Disabled] Transfer Mode: [Fast PIO 4 DMA] Ultra DMA Mode: [Disabled]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space Enter

Item Specific Help

User = you enter parameters of hard-disk drive installed at this connection. Auto = autotypes ATA/ATAPI drive installed here. CD-ROM = a CD-ROM drive is installed here.

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Menu Field Options Default Description

Type: Auto; None; [Auto] Selects the ATA/ATAPI device type. Set to Auto to have the type

CD-ROM; User. automatically identiﬁed by the BIOS at POST. If None is selected,

Multi-Sector Transfers: Disabled; 2; 4; 8; 16. Disable Specify the number of sectors per block for multiple sector

MAX 32; MAX 64; MAX 128. transfer. MAX refers to the size the disk returns when required.

This option cannot be changed when Auto is selected.

LBA Mode Control: Enabled; Disabled. Disabled Enables or disables logical Block Addressing in place of Cylinder,

Head, Sector addressing. This option cannot be changed when Auto is selected.

Transfer Mode: Standard, Fast PIO 1; Fast PIO 2; Standard Selects the method for moving data to/from the drive. Autotype

Fast PIO 3; Fast PIO 4; the drive to select the optimum transfer mode. This option Fast PIO 3 / DMA; cannot be changed when Auto is selected. Fast PIO 4 / DMA.

Ultra DMA Mode: Disabled; Mode 0; Disabled Selects the method for moving data to/from the drive. Autotype

Mode 1; Mode 2. the drive to select the optimum transfer mode. This option

cannot be changed when Auto is selected.

Four

Table 4-3 Fields, Options and Defaults for the Secondary Master Submenu

Section Four

Memory Cache – Submenu

The Memory Cache submenu provides the ability to enable or disable external cache memory for your processor. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-4 shows the names of the menu ﬁelds for the Memory Cache submenu, all the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-4 Memory Cache Submenu of the Main Menu

Main Advanced Security Power Boot Info Exit

L2 Cache: [Enabled]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

Memory Cache

-/Space Enter

Change Values

▲

Select Sub-Menu

Enables L2 cache.

Item Specific Help

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Menu Field Options Default Description

L2 Cache: Enabled; Disabled. [Enabled] Turns L2 Cache on and off.

Table 4-4 Fields, Options and Defaults for the Memory Cache Submenu

Section Four

Table 4-5 shows the names of the menu ﬁelds for the Advanced Menu, all of the options for each ﬁeld, the default settings and a description

of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

ADVANCED MENU – SETTING DEVICE FEATURE CONTROLS

The Advanced Menu allows you to:

■

Identify Plug and Play O/S.

■

Set the I/O addresses for the serial and parallel ports.

■

Set the communication mode for the parallel port.

■

Set the features of the keyboard/mouse.

■

Set an audio function I/O address, interrupt level and DMA channel.

■

Select between the display panel and an external CRT display.

■

Enable or disable compensation for your display.

■

Set PCI parameters.

Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See page 51.)

Figure 4-5 Advanced Menu

Main Advanced Security Power Boot Info Exit

Plug & Play O/S: [Yes] Secured Setup Configurations: [No]

▲ ▲ ▲ ▲ ▲

I/O Device Configuration: Keyboard/Mouse Features: Multimedia device Configuration: Video Features: PCI Configuration:

▲

DMI Event Logging

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Select 'Yes' if you are using a plug & play capable operating system.

Select 'No' if you need the BIOS to configure non-boot devices.

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Menu Field Options Default Description

Plug & Play O/S: Yes; No. [Yes] Identiﬁes whether installed operating system is plug and play.

Secured Setup Yes; No. [No] This allows the Plug and Play operating system to change default

Conﬁguration: settings. When Yes is selected it will not allow the Plug and Play

operating system to override.

I/O Device Conﬁguration: When selected, opens the I/O Device Conﬁguration submenu

which allows the user to modify settings for parallel and serial ports, the ﬂoppy disk controller, and the local bus IDE adapter.

Keyboard/Mouse Features: When selected, opens the Keyboard/Mouse Features submenu,

with Numlock parameters.

Multimedia Device When selected, opens the Multimedia Device Conﬁguration Conﬁguration: submenu, which allows setting the hardware address and

interrupt levels of audio functions.

Video Features: When selected, opens the Video Features submenu, which allows

setting of the display parameters, including routing of video signals to different displays.

PCI Conﬁguration: When selected, opens the PCI Conﬁguration submenu, which

allows setting of the PCI devices.

Table 4-5 Field Names, Options and Defaults for the Advanced Menu

Section Four

I/O Device Conﬁguration Submenu of the Advanced Menu

The I/O Device Conﬁguration submenu provides the ability to set the I/O addresses and interrupt levels for the parallel and serial ports, and disk drive controllers of your notebook.

Figure 4-6 I/O Device Conﬁguration Submenu

CAUTION

I/O addresses, DMA channels and Interrupt levels can be entered in various ways, including via the BIOS setup utility, the control software for the I/O device, or the hardware. If any two ports or devices, serial or parallel, have the same I/O address assigned your notebook will not function normally. Please keep a record of original settings before making any changes in the event that a restoration is required. See your hardware and software documentation as well as the setup utility to determine settings, limitations, etc.

Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See page 51.)

Advanced

I/O Device Configuration

Serial port A: [Enabled] Base I/O address: [3F8] Interrupt: [IRQ 4] Serial port B: [Enabled] Mode: [FIR] Base I/O address: [2E8] Interrupt: [IRQ 3] Base I/O address: [118] DMA Channel: [DMA 3] Parallel port: [Enabled] Mode: [Bi-directional] Base I/O address: [378] Interrupt: [IRQ 7] Floppy disk controller: [Enabled] Local Bus IDE adapter: [Both]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Configure serial port A using options:

[Disabled] No configuration

[Enabled] User configuration

[Auto] BIOS or OS chooses configuration

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Table 4-6 shows the names of the menu ﬁelds for the I/O Device Conﬁguration submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

POINT

All I/O addresses in Table 4-6 are in hexadecimal.

POINT

To prevent IRQ and address conﬂicts, avoid changing the default settings. If you must change the settings, you can call 1-800-8FUJITSU for technical assistance.

CAUTION

The BIOS will warn you if there is a resource conﬂict by placing a yellow asterisk next to the device(s) reporting a conﬂict.

Section Four

Table 4-6 Fields, Options and Defaults for the I/O Device Conﬁguration Submenu of the Advanced Menu

Menu Field Options Default Description

Serial Port A: Disabled; Enabled; Auto. [Enabled] Conﬁgures the serial port A using either no conﬁguration

(Disabled), a user deﬁned conﬁguration (Enabled), or by allowing the BIOS or OS to choose the conﬁguration (Auto).

Base I/O address: 3F8, 2F8, 3E8, 2E8. [3F8] Allows user to set the serial port base I/O address when port A

is Enabled.

Interrupt: IRQ3, IRQ 4, IRQ 10, IRQ 11 [IRQ 4] Set the interrupt for serial port A.

Serial Port B: Disabled; Enabled; Auto. [Enabled] Conﬁgures the serial port B using either no conﬁguration

(Disabled), a user deﬁned conﬁguration (Enabled), or by allowing the BIOS or OS to choose the conﬁguration (Auto).

Mode: IrDA, FIR. [FIR] Set the mode for serial port B.

Base I/O address: 3F8, 2F8, 3E8, 2E8. [2E8] Allows user to set the serial port base I/O address when port B

is Enabled.

Interrupt: IRQ3, IRQ 4, IRQ 10, IRQ 11. [IRQ 3] Set the interrupt for serial port B.

Base I/O address: 100, 108, 110, 118. [118]

DMA Channel: DMA 1, DMA 3. [DMA 3 ] When Sound is Enabled, this option is available allowing the user

to set the DMA channel for the sound device.

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Table 4-6 Fields, Options and Defaults for the I/O Device Conﬁguration Submenu of the Advanced Menu

Menu Field Options Default Description

Parallel port: Disabled; Enabled; Auto. [Enabled] Conﬁgures the parallel port using either no conﬁguration

(Disabled), a user deﬁned conﬁguration (Enabled), or by allowing the BIOS or OS to choose the conﬁguration (Auto).

Mode: Output Only; [Bi-directiona1] When the parallel port is enabled this option is available allowing

Bi-directional; ECP. the user to set the mode for the parallel port. Bi-directional

allows two-way transfer of information between your notebook and a connected parallel device. Output Only (Half Duplex) allows information to be transferred in only one direction, from your notebook to the printer or similar device. ECP Mode allows communication with the ECP class of parallel I/O devices.

Base I/O address: 378; 278; 3BC. [378] Allows user to set the parallel port base I/O address when the

parallel port is Enabled.

Interrupt: IRQ 5; IRQ 7. [IRQ 7] Allows user to set the parallel port interrupt when the parallel

port is Enabled.

Floppy disk controller: Disabled; Enabled. [Enabled] Enables and disables the ﬂoppy disk drive controller for ﬁxed

ﬂoppy disk drive port.

Local BusIDE adapter: Both; Disabled; [Both] Enables and disables the integrated IDE controller.

Primary; Secondary.

Section Four

Keyboard/Mouse Features Submenu

The Keyboard/Mouse Features submenu is for setting the parameters of the integrated keyboard. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-7 shows the names of the menu ﬁelds for the Keyboard/Mouse Feature submenu, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-7 Keyboard Features Submenu

Advanced Security Power Savings Exit

Keyboard/Mouse Features

Numlock: Hot Plug: Internal Pointing Device:

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

[Auto] [Enabled] [Auto Disabled]

-/Space

Change Values

Enter

Select Sub-Menu

Item Specific Help

Selects Power-on state for Numlock.

▲

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Table 4-7 Fields, Options and Defaults of the Keyboard Submenu of the Advanced Menu

Menu Field Options Default Description

Numlock: Auto; On; Off. [Auto] Sets the NumLock function state when the computer

completes booting.

Hot Plug: Disabled, Enabled. [Enabled] Enables or disables the Keyboard/Mouse Hot Plug functions.

Internal Pointing [Always Enabled, [Auto Disabled] If Always Enabled is selected, the internal pointing device is Device: Auto Disabled]. always enabled. If Auto Disabled is selected, the internal pointing

device is disabled when an external pointing device is connected with the PS/2 port. However, if no external pointing device is connected, the internal pointing device is enabled.

Section Four

Multimedia Device Conﬁguration Submenu

The Multimedia Device Conﬁguration submenu is for setting the features of the built-in audio functions. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-8 shows the names of the menu ﬁelds for the Multimedia Device Conﬁguration submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-8 Multimedia Device Conﬁguration Submenu

POINT

All I/O addresses in Table 4-8 are in hexadecimal.

Main Advanced Security Power Savings Exit

Multimedia Device Configuration

Multimedia device [Enabled] Sound: [Enabled] Base I/O address: [220-22F] FM I/O address: [388-38B] Interrupt: [IRQ 5] DMA channel: [DMA 1] DMA channel: [DMA 5]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Configure Multimedia devices

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Table 4-8 Fields, Options and Defaults of the Multimedia Device Conﬁguration Submenu of the Advanced Menu

Menu Field Options Default Description

Multimedia Device: Disable, Enabled. [Enabled] Conﬁgures multimedia devices.

Sound: Disabled; Enabled; Auto. [Enabled] Allows BIOS support for sound to be enabled or disabled. When

set to Auto, the BIOS or OS will choose the proper sound conﬁguration settings and some of the following items will not appear.

Base I/O address: 220-22F; 240-24F; [220-22F] When Sound is Enabled, this option is available allowing the user

260-26F; 280-28F. to set the base I/O address for the sound device.

FM I/O address: 388-38B; 38C-38F; [388-38B] When Sound is Enabled, this option is available allowing the user

390-393; 394-397. to set the base I/O address for the FM device.

Interrupt: IRQ 5; IRQ 7; IRQ 9; [IRQ 5] When Sound is Enabled, this option is available allowing the user

IRQ 10; IRQ 11. to set the interrupt for the sound device.

1st DMA channel: DMA 0; DMA 1; [DMA 1] When Sound is Enabled, this option is available allowing the user

DMA 3; DMA 5. to set the DMA channel for the sound device.

2nd DMA channel: DMA 0; DMA 1; [DMA 5] When Sound is Enabled, this option is available allowing the user

DMA 3; DMA 5. to set the DMA channel for the sound device.

Section Four

Video Features Submenu

The Video Features Submenu is for setting the display parameters. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-9 shows the names of the menu ﬁelds for the Video Features submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-9 Video Features Submenu

Main Advanced Security Power Savings Exit

Video Features

Display [Flat-Panel] Compensation: [Disabled]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Select display terminal.

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Table 4-9 Fields, Options and Defaults for the Video Features Submenu of the Advanced Menu

Menu Field Options Default Description

Display: Flat-Panel; CRT; [Flat-Panel] Selects where the video signal will be routed.

Simultaneous.

Compensation: Enabled; Disabled. [Disabled] Enables or disables compensation which controls spacing

on the display.

Section Four

PCI Conﬁguration Submenu of the Advanced Menu

The PCI Conﬁguration Submenu is for setting the interrupt options for legacy ISA devices. Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See page 51.)

Table 4-10 shows the names of the menu ﬁelds for the PCI Conﬁguration submenu, all the options for each ﬁeld and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-10 PCI Conﬁguration Submenu

Main Advanced Security Power Savings Exit

PCI Configuration

▲

IRQ Reservation

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Reserve specific IRQs for use by legacy ISA devices.

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Menu Field Options Default Description

IRQ Reservation: Selects the IRQ — This menu allows you to set aside interrupt levels for

Reservation Submenu. legacy ISA devices.

Table 4-10 Fields, Options and Defaults for the PCI Conﬁguration Submenu

Exiting from the Advanced Menu

When you have ﬁnished setting the parameters on the Advanced Menu, you can either exit from setup utility or move to another menu. If you wish to exit from setup utility, press the Esc key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

Section Four

IRQ Reservation Submenu of the PCI Conﬁguration Submenu

The IRQ Reservation submenu of the PCI Conﬁguration submenu allows the user to mark various IRQs as reserved for use by legacy ISA devices. When an IRQ is reserved, the BIOS does not use it for embedded PCI or ISA devices. Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See page 51.)

Table 4-11 shows the names of the menu ﬁelds for the IRQ Reservation submenu of the PCI Conﬁguration submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-11 IRQ Reservation Submenu

Main Advanced Security Power Savings Exit

IRQ Reservation

IRQ 3: [Available] IRQ 4: [Available] IRQ 5: [Available] IRQ 7: [Available] IRQ 9: [Available] IRQ 10: [Available] IRQ 11: [Available]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

Reserve the specified IRQ for use by legacy ISA devices.

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Table 4-11 Fields, Options and Defaults for the IRQ Reservation Submenu of the of the PCI Conﬁguration Submenu of the Advanced Menu

Menu Field Options Default Description

IRQ 3: Available; Reserved. [Available] Reserves IRQ 3. If Reserved is selected, the BIOS reserves IRQ 3

for use by legacy ISA devices and does not use it for embedded PCI or ISA devices. IRQ 3 is removed from the IRQ bitmap in the PCI IRQ routing table.

IRQ 4: Available; Reserved. [Available] Reserves IRQ 4.

IRQ 5: Available; Reserved. [Available] Reserves IRQ 5.

IRQ 7: Available; Reserved. [Available] Reserves IRQ 7.

IRQ 9: Available; Reserved. [Available] Reserves IRQ 9.

IRQ 10: Available; Reserved. [Available] Reserves IRQ 10.

IRQ 11: Available; Reserved. [Available] Reserves IRQ 11.

Four

CAUTION

Only IRQ's 9, 10, & 11 can be reserved without conﬂict.

Section Four

DMI Event Logging Submenu of the Advanced Menu

The DMI Event Logging Submenu is for setting up the logs DMI event logging. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-12 shows the names of the menu ﬁelds for the DMI Event Logging submenu, all the options for each ﬁeld, the default settings and a description of the ﬁeld’s function and any special information needed to help understand the ﬁeld’s use.

Figure 4-12 DMI Event Logging Submenu

Main Advanced Security Power Savings Exit

DMI Event Logging

Event log capacity: Space Available Event log validity: Valid

Clear all DMI event logs: [No]

Event Logging: [Enabled] System Boot Event: [Disabled]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Item Specific Help

'Yes' clears all DMI event logs at next boot. The value is reset to 'No' after clearing logs.

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Menu Field Options Default Description

Event log capacity: Display only. [Space Available]

Event log validity: Display only. [Valid]

Clear all DMI event logs: Yes; No. [No] A Yes selection causes the event logs to clear at the next boot.

Once the logs are cleared this automatically sets to No until reset to yes by selecting yes here.

Event Logging: Enabled; Disabled. [Enabled] Turns event logging on and off for all DMI events.

System Boot Event: Enabled; Disabled. [Disabled] Turns event logging on and off for DMI system boot events.

Four

Table 4-12 Fields, options and Defaults for the DMI Event Logging Submenu

Section Four

SECURITY MENU – SETTING THE SECURITY FEATURES

The Security menu allows you to set up the data security features of your notebook to ﬁt your operating needs and to view the current data security conﬁguration. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-13 shows the names of the menu ﬁelds for the Security menu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld's function and any special information needed to help understand the ﬁeld's use. The default condition is no pass-

words required and no write protection.

Figure 4-13 Security Menu

Main Advanced Security Power Boot Info Exit

Supervisor Password Is: Clear User Password Is: Clear

Set Supervisor Password [Enter] Set User Password [Enter]

Diskette access: [All] Password on boot: [Disabled] Power Management Security [Disabled]

Fixed disk boot sector: [Normal]

Fixed disk secuity Primary Master: [Disabled] Secondary Master: [Disabled]

F1 Help ESC Exit

Select Item Select Menu

PhoenixBIOS Setup Utility

-/Space

Change Values

Enter

▲

Select Sub-Menu

Supervisor Password controls access to the setup utility.

Item Specific Help

F9 Setup Defaults F10 Save and Exit

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

POINT

If you set a password, write it down and keep it in a safe place. If you forget the password you will have to contact your support representative to regain access to your secured functions and data.

CAUTION

Entering a password incorrectly 3 times in a row will cause the keyboard and mouse to be locked out and the warning [System Disabled] to be displayed. If this happens restart the computer by turning off and on the power with the power button and use the correct password on reboot.

POINT

If you make an error when re-entering the password a [Warning] will be displayed on the screen. To try again press the Enter key and then retype the password. Press the Esc key to abort the password setting process.

CAUTION

If the Power Management Security is Enabled and the Password on Boot is Disabled you will not be able to resume operation from the Suspend or Save-toDisk modes.

Section Four

Menu Field Options Default Description

Supervisor Password is: — Clear. A display-only ﬁeld. Set is displayed when the system

supervisor password is set and Clear when it is not.

User Password is: — Clear. A display-only ﬁeld. Set is displayed when the general user

password is set, and Clear when it is not.

Set Supervisor Password: [Enter] — Sets, changes or cancels the Supervisor Password. The Supervisor

Password may be up to eight characters long. To cancel a password press the Enter key instead of entering characters in the Enter New Password ﬁeld and in the Re-enter New Password ﬁeld. When a Supervisor Password is set it must be used to access the BIOS setup utility.

Set User Password: [Enter] — (This ﬁeld can only be accessed if the Supervisor Password is set.)

Sets, changes or cancels the User Password. The User Password may be up to eight characters long, and is not case sensitive. To cancel a password press the Enter key instead of entering characters in the Enter New Password ﬁeld and in the Re-enter New Password ﬁeld. When a User Password is set it must be used to access the BIOS setup utility.

Diskette access: All; Supervisor Only. All. Sets the ﬂoppy disk access to be secured for access only with

Supervisor's password or by all users with a password. The default is all users with a password.

Table 4-13 Fields, Options and Defaults for the Security Menu

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Menu Field Options Default Description

Password on boot: Enabled; Disabled. Disabled. When set to Enabled, a password (User or Supervisor) is required

after the Power On Self Test (POST) before the operating system will be read from a disk. When set to Disabled no password is required. If no Supervisor Password is set this feature is not available and no password is required.

Power Management Enabled; Disabled. Disabled. When set to Enabled, a password, is required upon Resume from Security: Suspend or Save-to-Disk Mode.

Fixed disk boot sector: Normal; Write Protect. [Normal] Write protects boot sector on hard disk to protect against viruses.

Fixed disk security:

Primary Master: Enabled; Disabled. [Disabled] When set to Enabled, a password (User or Supervisor) is required

to access data on the disk drive on the Primary Master interface.

Secondary Master: Enabled; Disabled. [Disabled] When set to Enabled, a password (User or Supervisor) is required

to access data on the Secondary Master interface.

Table 4-13 Fields, Options and Defaults for the Security Menu

Section Four

POINT

Boot sector protection must be set to [Normal] to install or upgrade an operating system.

Exiting from the Security Menu

When you have ﬁnished setting the parameters on the Security Menu, you can either exit from setup utility or move to another menu. If you wish to exit from setup utility, press the Esc key to go to the Exit Menu. If you wish to move to another menu, use the cursor keys.

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

POWER MENU – SETTING POWER MANAGEMENT FEATURE CONTROLS

The Power menu allows you to set and change the power management parameters. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-14 shows the names of the menu ﬁelds for the Power menu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld's function and any special information needed to help understand the ﬁeld's use.

Figure 4-14 Power Menu

POINT

Most power management parameters which are BIOS related can be set from PMSet 98 and the Power Management control panel. Changing PMSet's own options and settings does not change what is stored in the CMOS memory.

Main Advanced Security Power Boot Info Exit

Power Savings: [Customized] Hard Disk Timeout: [Off] Video Timeout: [Off] Idle Mode: [On] Standby Timeout: [4 Minutes] Auto Suspend Timeout: [15 Minutes]

Suspend Mode: [Suspend] Auto Save To Disk: [Off]

Resume On Modem Ring: [Off] Resume On Time: [Off] Resume Time: [00:00:00]

▲

Advanced Features

F1 Help ESC Exit

PhoenixBIOS Setup Utility

Select Item Select Menu

-/Space Enter

Change Values

▲

Select Sub-Menu

Select Power Management Mode. Choosing modes changes system power management settings. Maximum Power Savings conserves the greatest amount of system power while Maximum Performance conserves power but allows greatest system performance. To alter these setting, choose Customize. To turn off power management, choose Disable.

Item Specific Help

F9 Setup Defaults F10 Save and Exit

Section Four

Menu Field Options Default Description

Power Savings: Customized; Maximum [Customized] Sets the power savings parameters to a factory installed

Power Savings; Maximum combination of parameters, a custom set of parameters set by Performance, Disabled. you or no power saving features.

Hard Disk Timeout: 30 seconds to [Off ] Sets the length of time that the hard drive can be inactive before

20 minutes; Off. your notebook automatically turns off the power to the hard

drive controller and drive motor. If you choose a factory installed combination of parameters this ﬁeld will display the setting. If you choose to customize the parameters you will be able to set this yourself. The options available vary from Off, which has no inactivity shutoff, to 20 minutes.

Video Timeout: 2 minutes to [Off]

Sets the length of time without any user input device activity

20 minutes; Off. before the display is turned off. If you choose a factory combina

tion of parameters, this ﬁeld will display the setting. If you choose to customize the parameters, you will

be able to set this yourself.

Off has no inactivity shutoff.

Idle Mode: On; Off. [On] Turns on and off the slow down of the CPU during periods of

inactivity. When this is turned on the CPU clock slows by the amount set in the Advanced submenu when there is no activity for 16 seconds or more. Normal speed resumes automatically as soon as there is any activity.

Table 4-14 Fields, Options and Defaults for the Power Menu

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Menu Field Options Default Description

Standby Timeout: 1 minute to [4 Minutes] Sets the length of time without any user input device activity

16 minutes; Off. before the CPU is set to half speed and the display and the hard

drive are turned off. If you choose a factory combination of parameters this ﬁeld will display the setting. If you choose to customize the parameters you will be able to set this yourself.

Auto Suspend Timeout: 5 to 60 minutes; Off. [15 Minutes]

Sets the length of time without any I/O activity before your notebook goes into Suspend mode. If you choose a factory combination of parameters, this ﬁeld will display that setting. If you choose to customize the parameters you will be able to set this yourself. Off has no inactivity suspension.

Suspend Mode: Suspend; Save-to-Disk. [Suspend] Sets the form of suspension state. If you choose Suspend, you will

suspend operation with power to system memory, and everything else powered down or in a very low power state. If you choose Save-to-Disk your notebook will save all of system memory and the operating parameters to the hard drive before turning your notebook to the pseudo-off condition. Save-to-Disk will not operate if the Resume On Modem Ring feature has been selected.

Auto Save to Disk: Off; After 1 Hour. [Off] When set to After 1 Hour your notebook will auto-

matically save all of system memory and the operating parameters to the hard drive and go to the pseudo-off after being in Suspend mode for a period of time.

Table 4-14 Fields, Options and Defaults for the Power Menu.

Section Four

Menu Field Options Default Description

Resume On On; Off. [Off] Sets whether or not to Resume from a suspension state when a Modem Ring: message is received by telephone line. If this option is selected, the

Save-to-Disk option will not operate. This feature applies to internal and external modems.

Resume On Time: On; Off. [Off] Sets whether or not to resume from a suspension state at a

designated time. This feature is available from either the Suspend mode or the Save-to-Disk mode.

Resume Time: — [00:00:00] Sets the designated time, on a 24-hour clock, when the notebook

is to automatically resume operation from the Suspend state. The format of the clock setting is hours:minutes:seconds. Each segment of the time is set separately, either by incrementing or by typing in the numbers. You move between the segments with the Tab key or the Shift+Tab keys. This only applies when Resume on Time is set to On.

Advanced Features: — — When selected, opens the Advanced Features submenu which

allows setting additional power saving parameters.

Table 4-14 Fields, Options and Defaults for the Power Menu.

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

POINT

When resuming from a Save-to-Disk suspension there will be a delay while the contents of system memory and operating parameters are loaded from the hard drive.

CAUTION

In Save-to-Disk mode there is no indication on the Status Indicator to let you know you are suspended rather than shut off from the power button.

Section Four

Hard Disk Timeout Video Timeout Idle Mode Standby Timeout Auto Suspend

Timeout

Customized (Default): Off. Off. On. 4 Minutes. 15 Minutes.

Maximum 30 Seconds. 2 Minutes. On. 1 Minute. 5 Minutes. Power Savings:

Maximum Off. Off. Off. Off. 15 Minutes. Performance:

Disabled: Off. Off. Off. Off. Off.

Note: This conﬁguration is a sample modiﬁed proﬁle, it does not appear as a default in the BIOS.

Customized: 2 Minutes. 1 Minute. On. 1 Minute. 5 Minutes. (To get even better battery life keep the display and volume settings as low as possible and use the custom setting to set the parameters as shown.)

Table 4-14 Factory Installed Values for Power Saving Proﬁles

Configuring Your LifeBook C Series

LifeBook C Series from Fujitsu

Four

Advanced Features Submenu of the Power Menu

The Advanced Features submenu is for setting some non-time related power saving parameters. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See page 51.)

Table 4-15 shows the names of the menu ﬁelds for the Video Features submenu, all of the options for each ﬁeld, the default settings and a description of the ﬁeld's function and any

special information needed to help understand the ﬁeld's use.

Figure 4-15 Advanced Features Submenu

Power

Advanced Features

SUS/RES Switch: [Enabled] Lid Closure Suspend: [On] Lid Open Resume: [On] APM CPU Idle Mode: [Low Power] Serial Mouse Activity: [Disabled]

F1 Help ESC Exit

PhoenixBIOS Setup Utility

Select Item Select Menu

-/Space

Enter

Item Specific Help

Set the SUS/RES Switch.

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Section Four

Menu Field Options Default Description

SUS/RES Switch: Enabled; Disabled. [Enabled] Sets the function of the Power button when your notebook

is in an active state. The resume function can not be disabled as it works regardless of any other settings.

Lid Closure Suspend: On; Off. [On] Enables and disables having closure of the Display panel put your

notebook in Suspend mode.

Lid Open Resume: On; Off. [On] Enables and disables having opening the Display panel acting as

an automatic resume.

APM CPU Idle Mode: Low Power; Standard. [Low Power] Sets the CPU speed during Idle mode.

Serial Mouse Activity: Enabled; Disabled. [Disabled] Enables and disables having activity on the serial port cause the

system to reactivate from inactivity timeouts.

Table 4-15 Fields, Options and Defaults for the Advanced Features Submenu of the Power Menu

Exiting from the Power Menu

When you have ﬁnished setting the parameters on the Power menu, you can either exit from the Setup utility or move to another menu. If you wish to exit from Setup Utility press the Esc key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

Fujitsu LifeBook C352, LifeBook C360 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
