COPYRIGHT
Fujitsu PC Corporation has made every effort to
ensure the accuracy and completeness of this document.
However, as ongoing development efforts are continually improving the capabilities of our products, we
cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions,
or future changes.
Fujitsu and the Fujitsu logo are registered trademarks
and LifeBook is a trademark of Fujitsu Limited.
Built for Humans and ErgoTrac are trademarks of
Fujitsu PC Corporation.
The following are registered trademarks of
IBM Corporation: IBM, IBM PC AT, IBM PS/2.
The following are registered trademarks of
Microsoft Corporation: MS, MS-DOS, Windows 98.
PCMCIA is a trademark of the Personal Computer
Memory Card International Association.
Phoenix and the Phoenix logo are registered
trademarks of Phoenix Technologies, Ltd.
Pentium is a registered trademark and
MMX technology is a trademark of Intel Corporation.
PC-Doctor is a trademark of Watergate Software, Inc.
LapLink is a registered trademark of
Traveling Software Inc.
All other trademarks mentioned herein are the
property of their respective owners.
We cannot guarantee the accuracy of the contents of
this document. We disclaim liability for errors,
omissions, or future changes.
© Copyright 1998 Fujitsu PC Corporation. All rights
reserved. No part of this publication may be copied,
reproduced, or translated, without prior written
consent of Fujitsu PC Corporation. No part of this
publication may be stored or transmitted in any
electronic form without the written consent of
Fujitsu PC Corporation.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu PC Corporation
Address: 598 Gibraltar Drive
Milpitas, CA 95035
Telephone: (408) 935-8800
Declares that product: Model: LifeBook C340.
LifeBook C350.
Complies with Part 15
of the FCC Rules.
This device complies with Part 15 of the FCC rules.
Operations is subject to the following two conditions:
(1) This device must not be allowed to cause harmful
interference, (2) This device must accept any interference received, including interference that may cause
undesired operation.
David Woo Fujitsu 8/28/98
CAUTION
Changes or modifications not expressly
approved by Fujitsu PC Corporation could void
this user’s authority to operate the equipment.
FCC NOTICES
Notice to Users of Radios and Television
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment
and receiver.
■
Connect the equipment into an outlet that is on
a different circuit than the receiver.
■
Consult the dealer or an experienced radio/TV
technician for help.
Shielded interconnect cables must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing this device.
Notice to Users of the US Telephone Network
The LifeBook™C Series notebook computers are
supplied with an internal modem which complies
with Part 68 of the FCC rules. On this notebook is
a label that contains the FCC Registration Number
and the Ringer Equivalence Number (REN) for this
equipment among other information. If requested,
the user must provide their telephone company with
the following information:
1. The telephone number to which the notebook
is connected.
2. The Ringer Equivalence Number (REN) for
this equipment.
3. That the equipment requires a standard modular
jack type USOC RJ-11C which is FCC
Part 68 compliant.
4. The FCC Registration Number.
This equipment is designed to be connected to the
telephone network or premises wiring using a standard
modular jack type USOC RJ-11C which is FCC Part 68
compliant and a line cord between the modem and the
telephone network with a minimum of 26AWG.
The REN is used to determine the number of devices
that you may connect to your telephone line and still
have all of those devices ring when your number is
called. Too many devices on one line may result in
failure to ring in response to an incoming call. In
most, but not all, areas the sum of the RENs of all of
the devices should not exceed five (5.0). To be certain
of the number of devices you may connect to your
line, as determined by the RENs, contact your local
telephone company.
If this equipment causes harm to the telephone network, your telephone company may discontinue your
service temporarily. If possible, they will notify you
in advance. If advance notice is not practical they will
notify you as soon as possible. You will also be advised
of your right to file a complaint with the FCC.
This fax modem also complies with fax branding
requirements per FCC Part 68.
Your telephone company will probably ask you to disconnect this equipment from the telephone network
until the problem is corrected and you are sure that
the equipment is not malfunctioning. This equipment
may not be used on coin service telephones provided
by your telephone company. Connection to party lines
is subject to state tariffs. Contact your state’s public
utility commission, public service commission or
corporation commission for more information.
This equipment includes automatic dialing capability.
When programming and/or making test calls to
emergency numbers:
■
Remain on the line and briefly explain to the
dispatcher the reason for the call.
■
Perform such activities in off-peak hours, such
as early morning or late evening.
FCC rules prohibit the use of non-hearing aid
compatible telephones in the following locations
or applications:
■
All public or semipublic coin-operated or credit
card telephones.
■
Elevators, highways, tunnels (automobile, subway,
railroad or pedestrian) where a person with
impaired hearing might be isolated in an emergency.
■
Places where telephones are specifically installed
to alert emergency authorities such as fire, police
or medical assistance personnel.
■
Hospital rooms, residential health care facilities,
convalescent homes and prisons.
■
Workstations for the hearing impaired.
■
Hotel, motel or apartment lobbies.
■
Stores where telephones are used by patrons
to order merchandise.
■
Public transportation terminals where telephones
are used to call taxis or to reserve lodging or
rental cars.
■
In hotel and motel rooms as at least ten percent
of the rooms must contain hearing aid compatible
telephones or jacks for plug-in hearing aid compatible telephones which will be provided to hearing
impaired customers on request.
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements
of the Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes
les exigence du Réglement sur le matérial brouilleur
du Canada.
Notice to Users of the Canadian
Telephone Network
The Canadian Industry Canada label identifies certified equipment. This certification means that the
equipment meets certain telecommunications network protective, operational and safety requirements.
The Department does not guarantee the equipment
will operate to the user’s satisfaction.
The LifeBook C Series notebook computers are
supplied with an internal modem which complies
with the Industry Canada certification standards for
telecommunication network protection and safety
requirements. Before connecting this equipment to
a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware
that compliance with the certification standards does
not prevent service degradation in some situations.
Repairs to telecommunication equipment should be
made by a Canadian authorized maintenance facility. Any
repairs or alterations not expressly approved by Fujitsu
™
PC Corporation or any equipment failures may give the
telecommunication company cause to request the user to
disconnect the equipment from the telephone line.
The connecting arrangement code for this equipment
is CA11A.
The Load Number is 0.8.
The Load Number assigned to each telephone terminal
device denotes the percentage of the total load to be
connected to a telephone loop or circuit which is used
by the device to prevent overloading. The termination
on a loop may consist of any combination of devices
such that the total of the load numbers of all devices
does not exceed 100.
CAUT ION
For safety, users should ensure that the
electrical ground of the power utility, the
telephone lines and the metallic water
pipes are connected together. Users
should NOT attempt to make such
connections themselves but should
contact the appropriate electric inspection
authority or electrician. This may be
particularly important in rural areas.
Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien
L’étiquette canadienne Industrie Canada identifie
l’équipement certifié. Cette certification signifie
que l’équipement satisfait certaines normes de
protection, d’exploitation et de sécurité des réseaux
de télécommunications. Le département ne garantit
pas le fonctionnement de l’équipement à la
satisfaction de l’utilisateur.
La série LifeBook C possède un modem
interne conforme aux normes de certification
d’Industrie Canada pour protéger les réseaux
de télécommunications et satisfaire aux normes
de sécurité. Avant de connecter cet équipement à une
ligne téléphonique, l’utilisateur doit vérifier s’il est
permis de connecter cet équipement aux installations
de télécommunications locales. L’utilisateur est averti
que même la conformité aux normes de certification
ne peut dans certains cas empêcher la dégradation
du service.
Les réparations de l’équipement de télécommunications
doivent être effectuées par un service de maintenance
agréé au Canada. Toute réparation ou modification, qui
n’est pas expressément approuvée par Fujitsu PC Corp.,
ou toute défaillance de l’équipement peut entraîner
la compagnie de télécommunications à exiger que
l’utilisateur déconnecte l’équipement de la ligne
téléphonique.
Le code d’arrangement de connexion de cet
équipement est CA11A.
Le numéro de charge est 0.8.
Le numéro de charge assigné à chaque terminal
téléphonique indique le pourcentage de la charge
totale pouvant être connecté à une boucle ou à un
circuit téléphonique, utilisé par ce périphérique afin de
prévenir toute surcharge. La terminaison d’une boucle
peut être constituée de n’importe quelle combinaison
de périphériques de sorte que le total de numéros de
charge de tous les périphériques n’excède pas 100.
A VERTISSEMENT
Pour assurer la sécurité, les utilisateurs
doivent vérifier que la prise de terre du
service d’électricité, les lignes télphoniques
et les conduites d’eau métalliques sont
connectées ensemble. Les utilisateurs NE
doivent PAS tenter d’établir ces connexions
eux-mêmes, mais doivent contacter
les services d’inspection d’installations
électriques appropriés ou un électricien.
Ceci peut être particulièrement important
en régions rurales.
UL NOTICE (FOR AUTHORIZED REPAIR TECHNICIANS ONLY)
CAUTION: For continued protection against risk of fire, replace only
with the same type and rating fuse.
CAUTION: Danger of explosion if CMOS battery is incorrectly
replaced. Replace only with the same or equivalent type recommended
by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.
WARNING: CMOS and NiCAD batteries may explode if mistreated.
Do not recharge, disassemble or dispose of in fire.
Black & White
of Cover
(to come)
Table of Contents
T able of Contents
PREFACE . . . . . . . . . . . . . . . . . . vi
SECTION ONE
SETTING UP YOUR LIFEBOOK C
SERIES FROM FUJITSU
Unpacking. . . . . . . . . . . . . . . . . . . . 2
Overview of LifeBook C Series Features . . . . 3
Component Identification . . . . . . . . . . . 5
Top and Front Components . . . . . . . . . . 6
Left-side Panel Components . . . . . . . . . . 7
Right-side Panel Components . . . . . . . . . 7
Rear Panel Components . . . . . . . . . . . . 8
Bottom Components . . . . . . . . . . . . . . 9
ii
SECTION TWO
STARTING YOUR LIFEBOOK C SERIES
FOR THE FIRST TIME
Power Sources . . . . . . . . . . . . . . . . . 12
Display Panel . . . . . . . . . . . . . . . . . 13
Starting your LifeBook for the First Time . . 13
Registering your LifeBook . . . . . . . . . . 16
Learning About Your Operating System
and Application Software . . . . . . . . . . 17
SECTION THREE
USING YOUR LIFEBOOK C SERIES
FROM FUJITSU

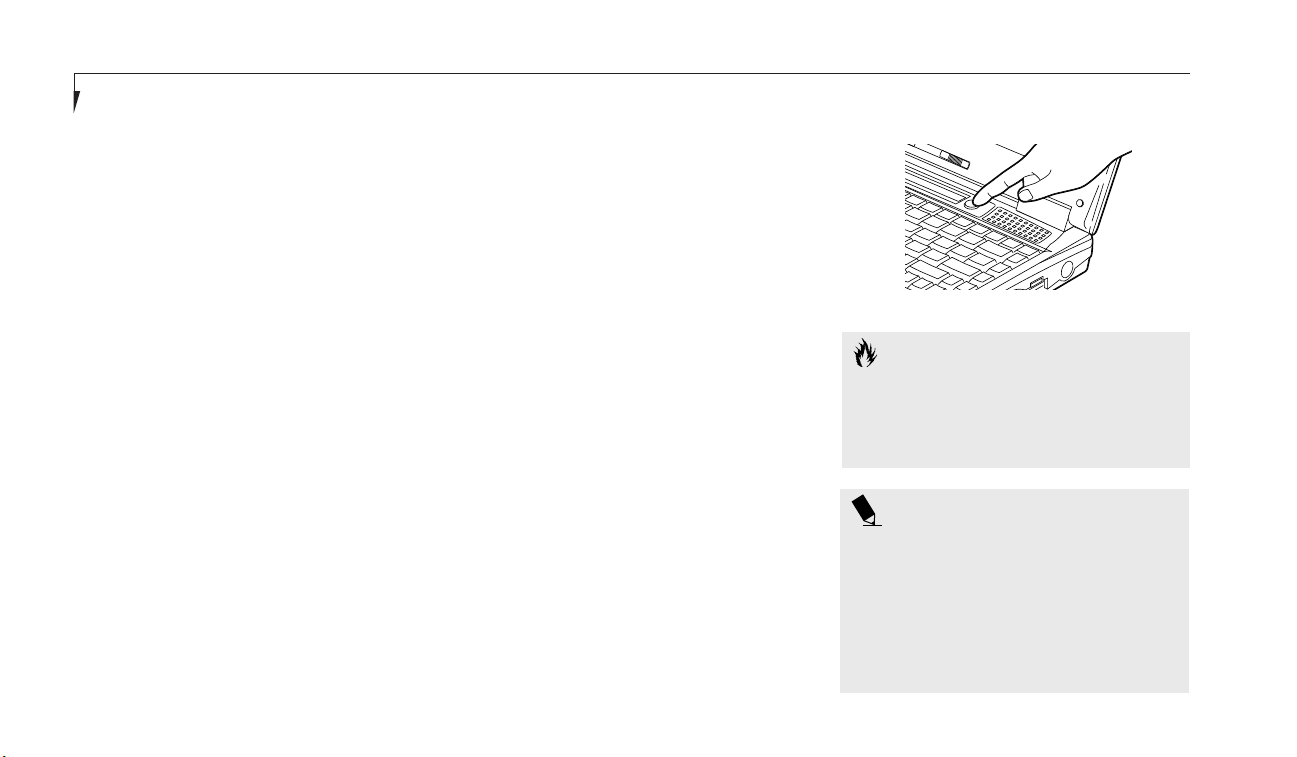

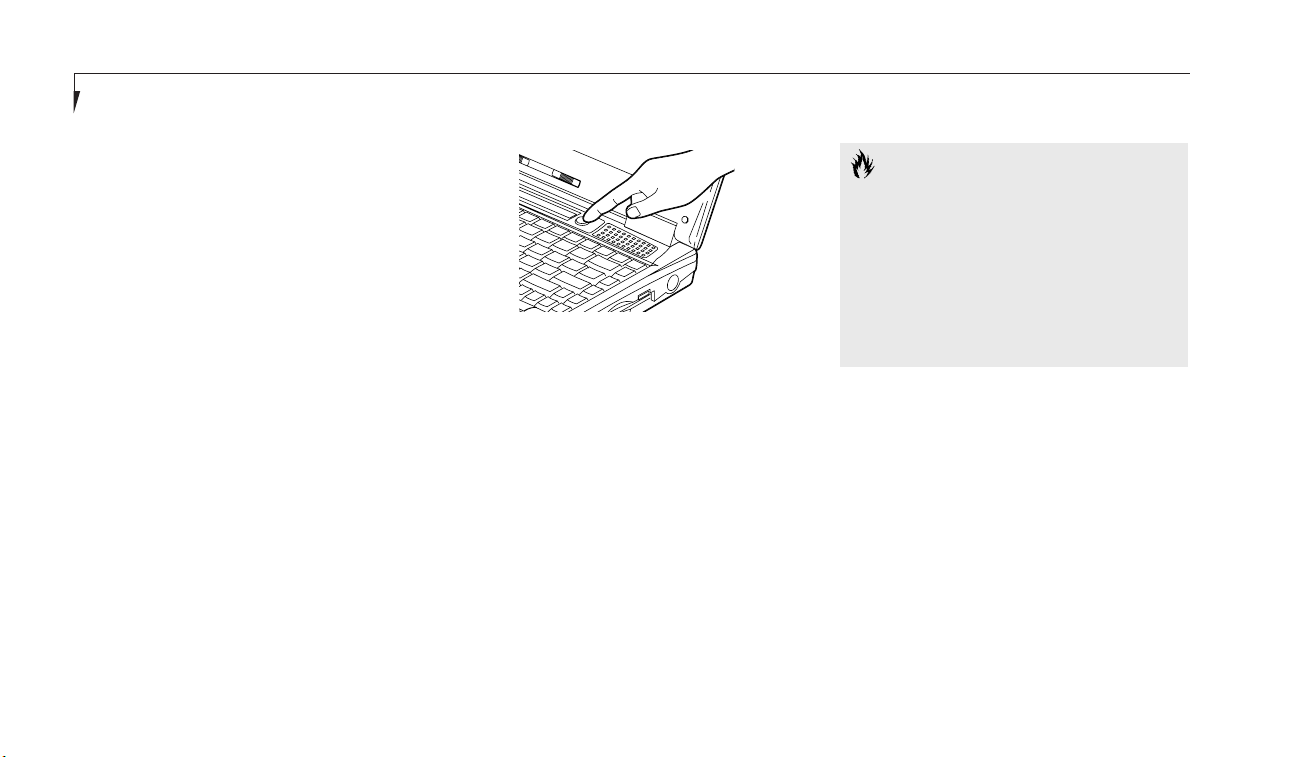

Power Button . . . . . . . . . . . . . . . . . 20
Power Off . . . . . . . . . . . . . . . . . . . 20
Restarting the System . . . . . . . . . . . . . 21

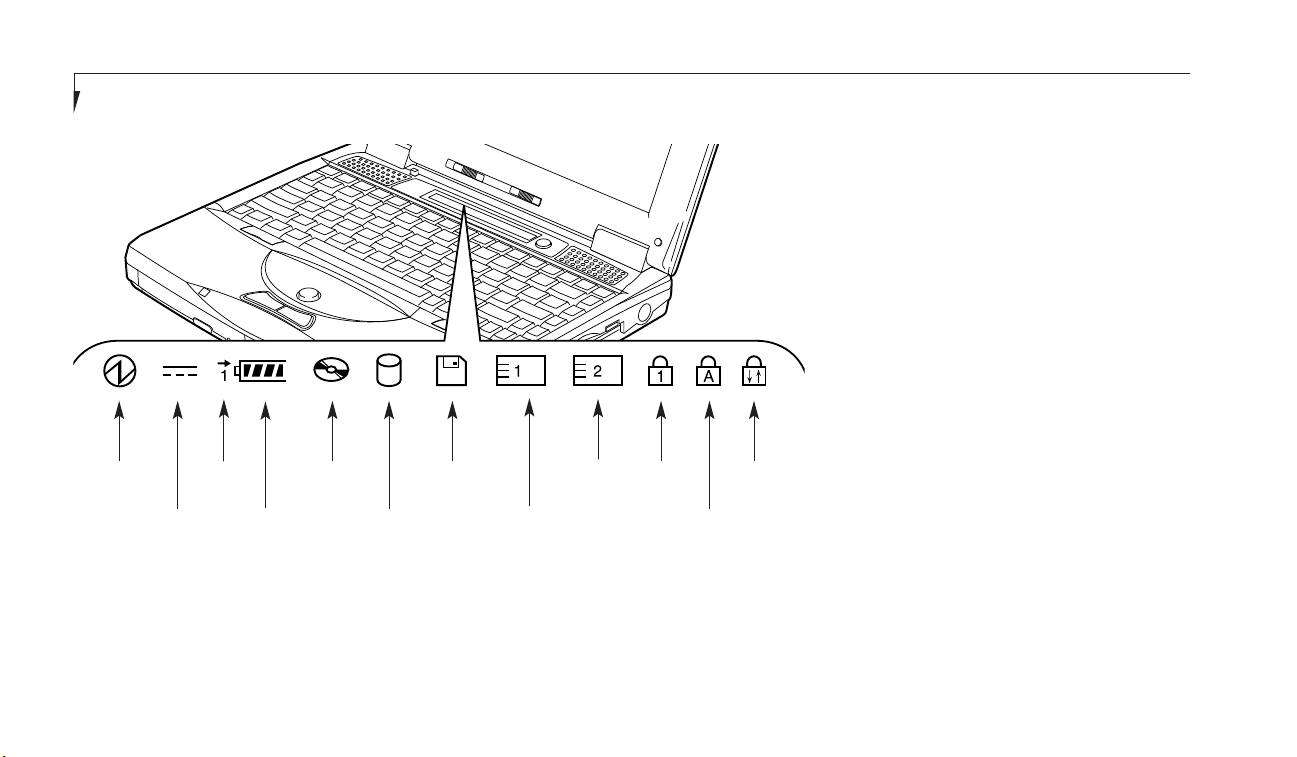

Status Indicator Panel . . . . . . . . . . . . . 22

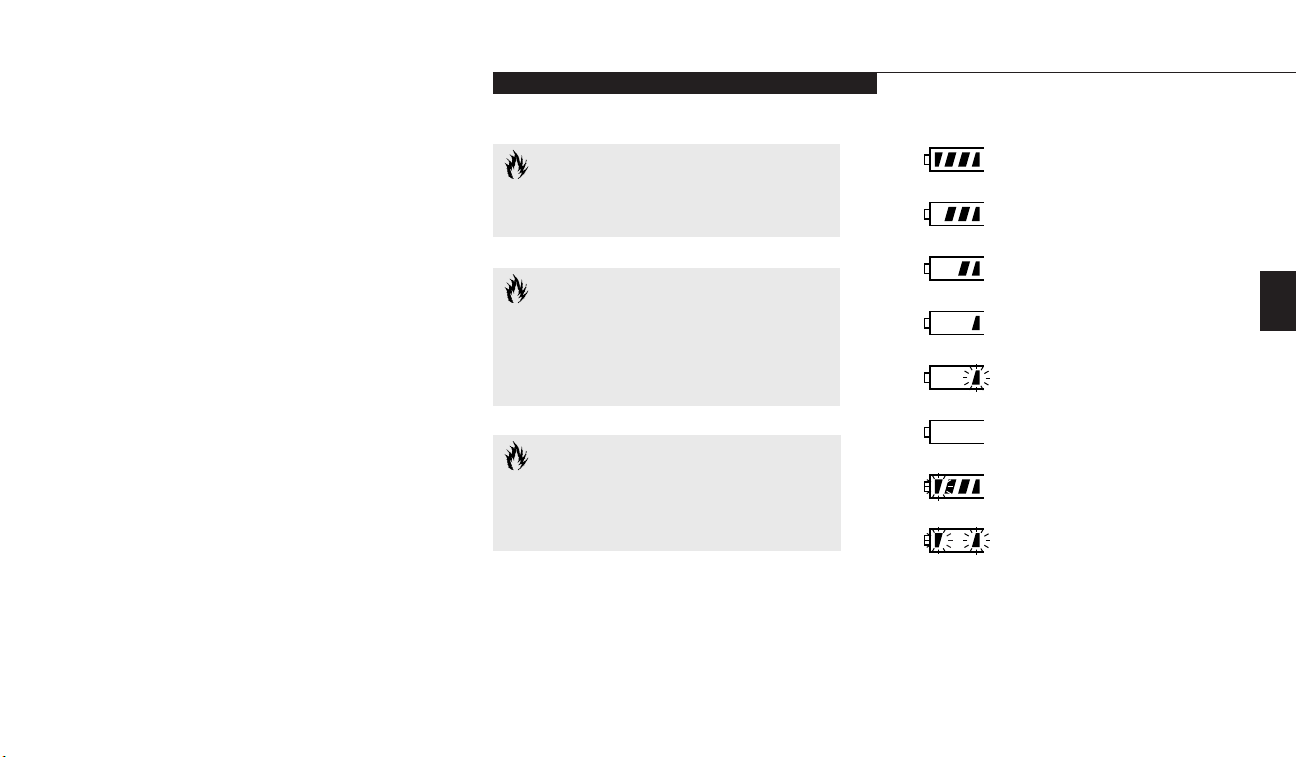

Batteries . . . . . . . . . . . . . . . . . . . . 26
Integrated ErgoTrac Pointing Device . . . . . 29

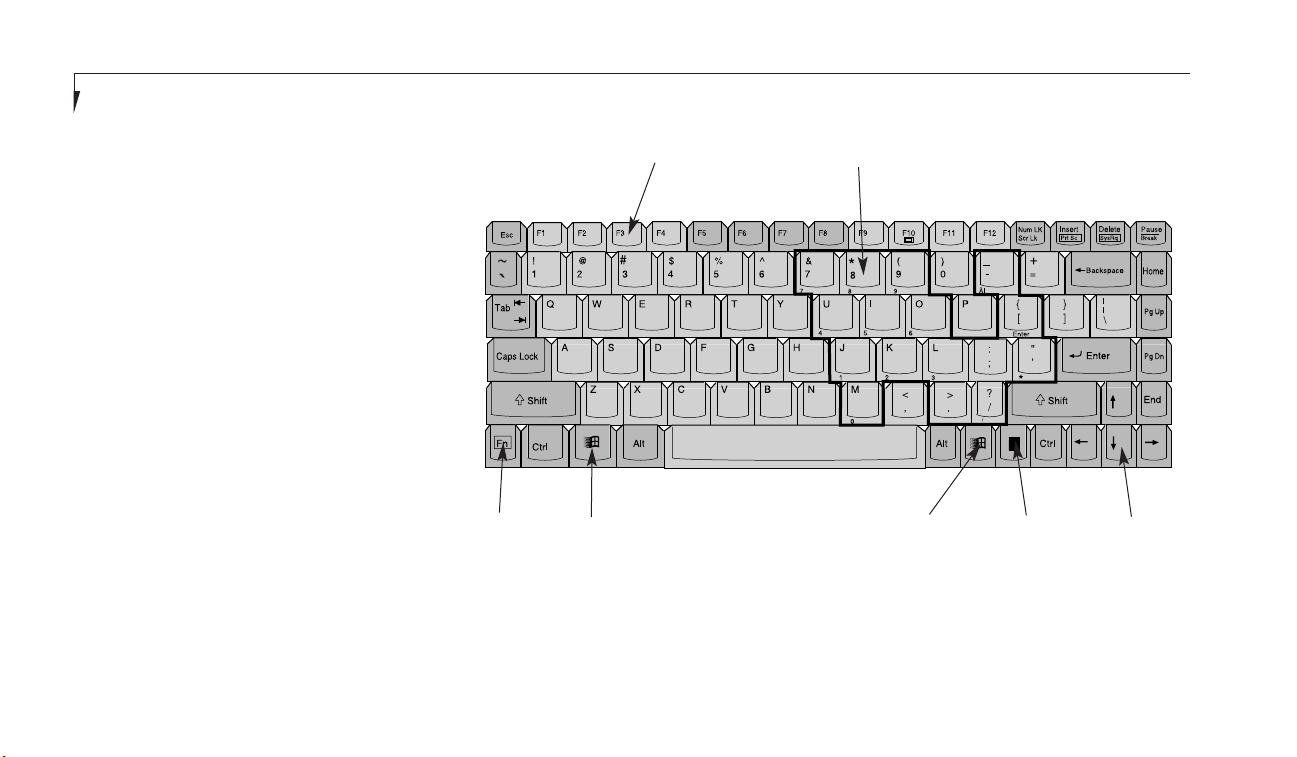

Using the Keyboard . . . . . . . . . . . . . . 31
Volume Control . . . . . . . . . . . . . . . . 33

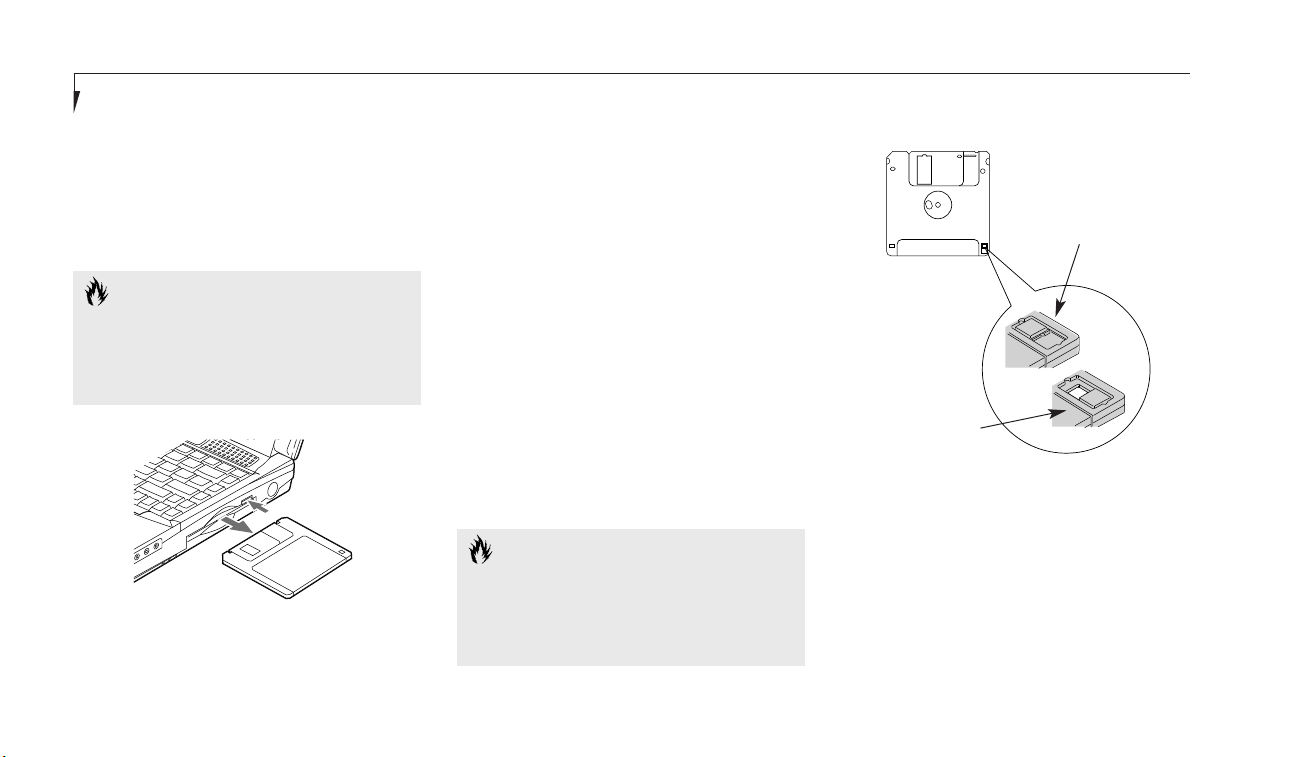

Floppy Disk Drive . . . . . . . . . . . . . . . 33
CD-ROM Drive . . . . . . . . . . . . . . . . 35
Hard Drive. . . . . . . . . . . . . . . . . . . 37
Internal Modem . . . . . . . . . . . . . . . . 37
Power Management . . . . . . . . . . . . . . 38
Data Security . . . . . . . . . . . . . . . . . 43
Pre-installed Software . . . . . . . . . . . . . 44
SECTION FOUR
CONFIGURING YOUR LIFEBOOK C
SERIES FROM FUJITSU
Boot Sequence . . . . . . . . . . . . . . . . . 48
Identifying the Drives . . . . . . . . . . . . . 48
BIOS Setup Utility. . . . . . . . . . . . . . . 49
Navigating Through the Setup Utility . . . . 51
Main Menu – Setting Standard
System Parameters. . . . . . . . . . . . . . 52
Advanced Menu – Setting Device
Feature Controls. . . . . . . . . . . . . . . 59
Security Menu – Setting the
Security Features . . . . . . . . . . . . . . 71
T able of Contents
LifeBook C Series from Fujitsu
Power Menu – Setting Power
Management Feature Controls . . . . . . 75
Boot Menu – Selecting the
Operating System Source . . . . . . . . . . 83
Info Menu – Displaying Basic
System Information. . . . . . . . . . . . . 87
Exit Menu – Leaving the Setup Utility . . . . 89
Setting Up Your Save-To-Disk
File Allocation . . . . . . . . . . . . . . . . 92
SECTION FIVE
USER INSTALLABLE FEATURES
User Installable Features . . . . . . . . . . . 96
Lithium ion Battery . . . . . . . . . . . . . . 97
PC Cards . . . . . . . . . . . . . . . . . . . . 98
Parallel Port Devices . . . . . . . . . . . . . 100
Serial Port Devices . . . . . . . . . . . . . . 100
USB Devices . . . . . . . . . . . . . . . . . 100
Microphone . . . . . . . . . . . . . . . . . 100
Stereo Line In Devices . . . . . . . . . . . . 100
Headphones . . . . . . . . . . . . . . . . . 100
Telephone Lines . . . . . . . . . . . . . . . 101
Mouse or Keyboard . . . . . . . . . . . . . 101
External Monitor. . . . . . . . . . . . . . . 101
Theft Prevention Lock . . . . . . . . . . . . 102
Memory Upgrade Module. . . . . . . . . . 102
SECTION SIX
TROUBLESHOOTING
Identifying the Problem . . . . . . . . . . . 108
Specific Problems . . . . . . . . . . . . . . 109
Power On Self Test Messages . . . . . . . . 128

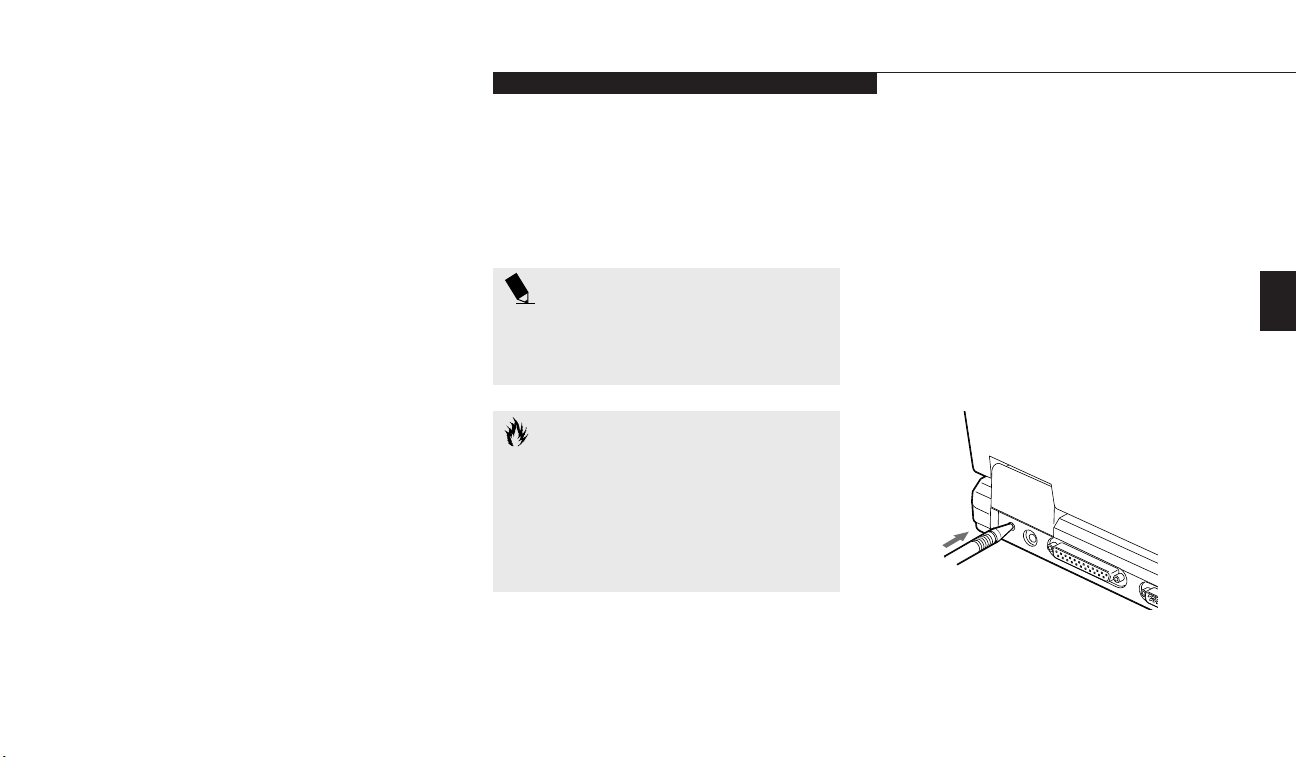

Emergency CD-ROM
Tray Release . . . . . . . . . . . . . . . . 131
Modem Setup and Commands . . . . . . . 131
Recovery CD-ROM . . . . . . . . . . . . . 132
SECTION SEVEN
CARE AND MAINTENANCE
Caring for Your Notebook . . . . . . . . . . 136
Increasing Battery Life . . . . . . . . . . . . 137
Caring for Your Batteries . . . . . . . . . . 137
APPENDIX A SPECIFICATIONS
Warranty . . . . . . . . . . . . . . . . . . . 140
LifeBook C Series Specifications . . . . . . 140
Approvals . . . . . . . . . . . . . . . . . . . 143
Popular Accessories . . . . . . . . . . . . . 143
APPENDIX B GLOSSARY
Glossary. . . . . . . . . . . . . . . . . . . . 144
INDEX
Index . . . . . . . . . . . . . . . . . . . . . 151
iii
T able of Contents
iv
LifeBook C Series from Fujitsu
Preface
Preface
PREFACE
The LifeBook C Series from Fujitsu PC
Corporation is a powerful notebook computer.
It is powered by an Intel Pentium
processor, has a built-in HPA DSTN color display, a CD-ROM drive, an internal 56K modem
with v.90 support, and brings the computing
power of desktop personal computers (PCs) to
a portable environment.
This manual explains how to operate your
LifeBook C Series’ hardware and built-in
system software. The LifeBook C Series is
compatible with the IBM
with Windows 98 pre-installed.
A LifeBook C Series notebook is a completely
self-contained unit with a dual-scan (DSTN)
color LCD display. It has a powerful interface
that enables it to support a variety of optional
features and software. (Figure P-1.)
vi
®
II micro-
®
PC AT. It comes
CONVENTIONS USED IN THE GUIDE
Screen examples in this manual are intended as
examples only, and screen and file names may
differ in actual use.
Messages displayed by the LifeBook C Series
appear in Courier type.
Example: Shutdown the computer?
Keyboard keys are shown in boldface
Helvetica type.
Example: Fn, F1, Esc, and Ctrl.
Pages with additional information about a specific topic are cross-referenced within the text.
Example: (See page xx.)
POINT
The point icon highlights information
that will enhance your understanding
of the subject material.
CAUTION
The caution icon highlights information
that is important to your safety, to the
safe operation of your computer, or to
the integrity of your files. Please read all
caution information carefully.
LifeBook C Series from Fujitsu
LifeBook C Series from Fujitsu
Figure P-1 LifeBook C Series
with Both Fujitsu and
Third Party Options
vii
Preface
viii
Setting Up Your LifeBook C Series
Unpacking . . . . . . . . . . . . . . . . . . . 2
Overview of LifeBook C Series Features . . . . 3
Component Identification . . . . . . . . . . . 5
Top and Front Components . . . . . . . . . . 6
Left-side Panel Components . . . . . . . . . . 7
Right-side Panel Components . . . . . . . . . 7
Rear Panel Components . . . . . . . . . . . . 8
Bottom Components . . . . . . . . . . . . . . 9
Section One
Section One
Section One
SETTING UP YOUR LIFEBOOK
C SERIES FROM FUJITSU
This section describes how to set up your
LifeBook C Series from Fujitsu. We strongly
recommend that you read it before using your
notebook – even if you are already familiar with
notebook computers.
UNPACKING
When you receive your notebook, unpack it
carefully, and compare the parts you have
received with the items listed below.
For a standard configuration you should have:
■
LifeBook C Series notebook from Fujitsu.
(Figure 1-1.)
■
AC adapter with AC power cord (located in
the Accessories box). (Figure 1-2.)
■
Lithium ion battery. (Already installed
in the battery bay of your notebook.)
■
RJ-11 telephone cable (located in the
Accessories box).
■
Getting Started Guide.
■
User’s Guide.
■
Microsoft Windows 98 Manual.
■
Registration card and customer
information pack.
■
Recovery CD-ROM
(located in the Accessories box).
■
Additional equipment and/
or documentation.
Once you have checked and confirmed that
your notebook system is complete, read through
the following pages to learn about all of your
LifeBook’s components.
Figure 1-1 LifeBook C Series Notebook
Figure 1-2 AC Adapter Unit
2
OVERVIEW OF LIFEBOOK
C SERIES FEATURES
The LifeBook C Series is a compact, yet
powerful notebook computer available with
standard features including: (See Appendix A,
pages 140–143, for detailed information on
individual models.)
■
233MHz or 266MHz Intel
Pentium II processor.
■
32MB SDRAM standard,
expandable to 96MB.
■
12.1" HPA dual-scan
with 800 x 600 resolution (C340) or 13
DSTN color display with 1024 x 768
resolution (C350)
■
2MB video RAM.
■
Built-in 3.2GB (C340) or 4.0GB (C350)
hard drive.
■
Lithium ion battery.
■
Internal 56K fax/data/voice modem with
v.90 support.
(DSTN) color display
" HPA
Setting Up Your LifeBook C Series
CAUTION
■
Your internal modem is designed to allow
faster downloads from v.90 compliant
digital sources. Maximum achievable
download transmission rates may not reach
56kbps and will vary with line conditions.
CAUTION
The internal modem is not intended for
use with Digital PBX systems. Do not
connect the internal modem to a digital
PBX as it may cause serious damage to
■
■
the internal modem or your entire notebook. Consult your PBX manufacturer’s
documentation for details. Some hotels
have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
■
■
■
■
LifeBook C Series from Fujitsu
Full audio and video features:
■
16-bit SoundBlaster Pro-compatible
sound chip.
■
Zoomed Video support for full motion
video acceleration.
■
Built-in stereo speakers.
■
Built-in mono microphone.
■
Stereo line in jack.
■
Stereo headphone jack.
■
Microphone jack.
Two Type II/one Type III PC Card slots.
Integrated ErgoTrac™ pointing device for
superb cursor control and comfort.
External monitor support with simultaneous
display capabilities.
Full-size keyboard with three dedicated
Windows keys.
Hot swappable PS/2 port for external
components.
USB device support.
One
3
Section One
■
Standard pre-installed software:
■
Microsoft Windows 98 operating system.
■
LapLink for file transfers via modem
or LapLink cable. (Not provided.)
■
Microsoft Works for business applications
including word processing, spreadsheets
and databases.
■
Quicken Basic 98 for money management.
■
PC-Doctor for system diagnostics.
■
PMSet 98 for system power management.
■
McAfee VirusScan for virus protection.
■
SoftPEG for MPEG video.
4
■
Standard user install software:
■
AOL Free Trial.
■
AT&T WorldNet™.
■
Netscape®Communicator.
POINT
Windows 98 comes pre-installed with
Internet Explorer 4.01.
POINT
This unit does not come pre-installed
with the Windows 95 or Windows NT
operating systems. Windows 98 is the
only operating system supported on
your notebook.
COMPONENT IDENTIFICATION
For detailed specifications on each model
refer to Appendix A on pages 140–143.
Closed Cover Switch
Display Panel
Setting Up Your LifeBook C Series
LifeBook C Series from Fujitsu
Display Panel Latch
One
Status Indicator Panel
ErgoTrac Pointing Device
CD-ROM Drive
Left Speaker
Keyboard
Contrast Control
Brightness Control
Power and Suspend/Resume Button
Right Speaker
Floppy Disk Drive
Built-in Microphone
Figure 1-3 LifeBook C Series with Display Open
5
Section One
TOP AND FRONT COMPONENTS
Display Panel Latch
This latch locks and releases the display panel.
When the display panel is released it pops up
slightly to make it easier to open. (Figure 1-3.)
Display Panel
This is a color LCD panel with back lighting for
the display of text and graphics. (Figure 1-3.)
Brightness Control
The brightness control adjusts the overall
intensity of the display panel back lighting.
(Figure 1-3.)
Contrast Control
The contrast control (located to the left of the
brightness control) sets the ratio of the intensity of the light to dark areas of the display.
(Figure 1-3.)
Built-in Microphone
The built-in microphone allows mono audio
input to your notebook. (Figure 1-3.)
6
Status Indicator Panel
An LCD display of the status of the power state
and source, Suspend mode, battery charge (battery in either Multi-function Bay), floppy disk
drive activity, hard drive or Zip drive activity,
CD-ROM drive activity, PC Card activity,
CapsLock, NumLk and Scr Lk. (Figure 1-3.)
Power and Suspend/Resume Button
The Power button allows you to power on your
notebook, suspend notebook activity without
powering off, resume your notebook from
suspend mode, and power off your notebook.
This multi-function button acts as both the
suspend/resume control and the power switch.
(See page 20 for more information on the
power button.) (Figure 1-3.)
Left and Right Speakers
The built-in dual speakers output
stereo sound from the notebook.
(Figure 1-3.)
CAUTION
Holding down the Power Button for
more than four seconds will power off
your notebook without first shutting
down Windows 98. (See Power Off,
page 20, for more information.)
Closed Cover Switch
The closed cover switch turns off the LCD
back lighting when the display panel is closed,
thus saving power. This switch also behaves
as a Suspend/Resume button. To change the
functionality of this switch, adjust the settings
in the Advanced Features submenu of the
Power menu in the BIOS Setup Utility.
(See pages 93-100.) (Figure 1-3.)
Keyboard
A full-size keyboard with dedicated Windows
keys for input into the notebook.
(Figure 1-3.)
Setting Up Your LifeBook C Series
LifeBook C Series from Fujitsu
ErgoTrac Pointing Device
The integrated ErgoTrac pointing device is
composed of a short, comfortable, dish-shaped
finger mouse and two buttons. Its button-like
shape is both responsive and comfortable for
your finger when rocked gently. (Figure 1-3.)
CD-ROM drive
A 20x speed maximum CD-ROM drive.
(Figure 1-3.)
PC Card Eject Buttons
PC Card SlotsPC Card Lock
Figure 1-4 LifeBook C Series Left-side Panel
LEFT-SIDE PANEL COMPONENTS
PC Card Slots
The PC Card Slots allow you to install two Type
I or Type II PC Cards or one Type III PC Card.
(See pages 98-100 for more information on PC
Cards.) The button to the left of the card slots
locks the card(s) in place, and the buttons
to the right of the slots eject the card(s) from
the slots. (Figure 1-4.)
RIGHT-SIDE PANEL COMPONENTS
PS/2 Port
The port allows you to connect an external PS/2
keyboard, mouse, or numeric keypad.
(Figure 1-5.)
Microphone Jack
The microphone jack allows you to connect an
external mono microphone. (Figure 1-5.)
Stereo Line In Jack
The stereo line in jack allows you to connect an
external audio source to your notebook, like an
audio cassette player. This jack will not support
an external microphone. (Figure 1-5.)
Stereo Line
In Jack
Headphone Jack
Volume Control
Microphone
Jack
Figure 1-5 LifeBook C Series Right-side Panel
Floppy
Disk Drive
One
PS/2
Port
7
Section One
Headphone Jack
You can connect headphones or powered
external speakers to the headphone jack.
(Figure 1-5.)
Volume Control
The volume control is a knob which provides
manual control of the sound level of all audio
output from your notebook. (Figure 1-5.)
CAUTION
There are also software volume controls.
The knob setting and the software settings
will interact. Be sure to check both the
software volume control and the knob on
your notebook if you are experiencing
problems. (See Volume Control on page
33 for more information.)
8
REAR PANEL COMPONENTS
RJ-11 Telephone Jack
This is the jack for attaching a telephone line to
the internal modem. (Figure 1-6.)
Reset Button
The Reset button is for restarting your notebook in the event that your operating system
has halted and cannot be restarted by the
CTRL+ALT+DEL keys. (Figure 1-6.)
CAUTION
The internal modem is not intended for
use with Digital PBX systems. Do not
connect the internal modem to a digital
PBX as it may cause serious damage to
the internal modem or your entire notebook. Consult your PBX manufacturer’s
documentation for details. Some hotels
have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
DC Power Jack
The DC power jack allows you to plug in the
AC adapter or the optional auto/airline adapter
to power the notebook and charge the internal
Lithium ion Battery. (Figure 1-6.)
Parallel Port
The parallel port allows you to connect
parallel devices, such as a parallel printer to
your notebook. (This is also sometimes
referred to as an LPT port.) (Figure 1-6.)
Serial Port
The serial port allows you to connect serial
RS-232C devices, such as serial printers or
serial scanners. (This is also sometimes
referred to as a COM port.) (Figure 1-6.)
External Monitor Port
This port allows you to connect an external
VGA or SVGA CRT monitor. (Figure 1-6.)
Setting Up Your LifeBook C Series
LifeBook C Series from Fujitsu
USB Port
The USB port allows you to connect Universal
Serial Bus devices, such as external game pads,
pointing devices, keyboards and speakers.
(Figure 1-6.)
Anti-theft Lock Slot
This is a slot that allows you to attach a physical
lock down device. (Figure 1-6.)
Reset Button
Parallel Port
Serial Port
Cooling Fan
External
Monitor Port
DC Power Jack
RJ-11 Telephone Jack
USB Port
Figure 1-6 LifeBook C Series Rear Panel
Anti-theft
Lock Slot
BOTTOM COMPONENTS
Main Unit and Configuration Label
This label shows the model number and other
information about your notebook. In addition
the configuration portion of the label has the
serial number and manufacturer information
that you will need to give your support representative so that he or she can help you. It identifies the exact version of various components
of your notebook. (Figure 1-7.)
Lithium ion Battery Bay
The Battery Bay contains the internal Lituium
ion Battery. It can be opened for the removal of
the Battery when stored over a long period of
time or for swapping a discharged battery with
a charged Lithium ion Battery. (Figure 1-7.)
Main Unit and
Configuration Label
Lithium ion
Battery Bay
Figure 1-7 LifeBook C Series Bottom View
One
9
Section One
10
Starting Your LifeBook C Series from Fujitsu
Power Sources . . . . . . . . . . . . . . . . 12
Display Panel . . . . . . . . . . . . . . . . . 13
Starting your LifeBook for the First Time . . . 13
Registering your LifeBook . . . . . . . . . . 16
Learning About Your Operating System
and Application Software. . . . . . . . . . 17
Section Two
Section Two
SECTION TWO
STARTING YOUR LIFEBOOK C SERIES
FROM FUJITSU
This section describes the initial power on and
setup of your notebook. It provides information on power sources, powering on, shutting
down, initial software setup and the registration
of your LifeBook C Series.
POWER SOURCES
Your notebook has three possible power
sources: the internal Lithium ion battery; the
AC adapter; or an optional auto/airline adapter.
Connecting the Power Adapters
The AC adapter or an optional auto/airline
adapter provides power for operating your
notebook and charging the battery.
(Figure 1-2.)
To Connect the AC Adapter
1. Plug the DC Output cable of the AC
adapter into the DC Power jack on the
rear panel of your notebook. (Figure 2-1.)
12
Figure 2-1 Connecting the AC Adapter
2. Plug the AC adapter into an AC
electrical outlet.
To Connect the Optional Auto/airline Adapter
1. Plug the DC Output cable into the DC
Power jack on the rear panel of
your notebook.
2. Plug the auto/airline adapter plug into the
cigarette lighter or accessory plug of a car
or other vehicle with the ignition key in the
On or the Accessories position or into the
DC Power jack on an airplane seat.
To Switch From AC Adapter Power
To Battery Power
1. Be sure that you have a charged or partially
charged battery installed.
2. Remove the AC or auto/airline adapter
from the DC Power jack.
CAUTION
The internal Lithium ion battery is not
charged when you purchase your notebook. Initially you will need to connect the
AC adapter or the auto/airline adapter to
use it. If you purchase a second Lithium ion
battery it will not be charged when you get
it. You will need to charge it prior to use. It
can take up to three (3) hours to charge
the battery if your notebook is turned off
or is in Suspend mode. If your notebook is
in use it can take up to nine (9) hours or
more to charge a battery.
Starting Your LifeBook C Series
LifeBook C Series from Fujitsu
DISPLAY PANEL
Opening the Display Panel
Lifting the latch releases the top of the display
panel from the front of the notebook body.
When the display panel is released it pops up
slightly to make it easier to open. Lift the display panel backward until the screen is at a
comfortable viewing angle. (Figure 2-2.)
Figure 2-2 Opening the Display Panel
Adjusting the Display Panel
Before you turn on your notebook, you may
want to check the brightness and contrast level
of the screen. Start with both the brightness
and contrast sliders in the middle position.
(Figure 2-3.)
Figure 2-3 Adjusting the Display
You may need to adjust the brightness
and contrast levels after you start your
notebook and periodically for different
operating environments.
POINT
The higher the brightness level, the more
power the notebook will consume and
the faster your batteries will discharge.
For maximum battery life, make sure that
the brightness is set as low as possible.
STARTING YOUR LIFEBOOK
FOR THE FIRST TIME
Power On
The Power Button is located above your keyboard to the right of the Status Indicator Panel.
This button is always used to Power On your
notebook from its Off state. Once you have
connected your AC adapter or have charged
your internal Lithium ion Battery, you can press
this button to Power On your notebook.
CAUTION
When you turn on your notebook be
sure you have a power source. This
means that the internal Lithium ion
Battery is installed and charged, or that
the AC adapter or the auto/airline
adapter is connected and has power.
Two
13
Section Two
CAUTION
Do not carry your notebook around
with the power on or subject it to shocks
or vibration, as you risk damaging
your notebook.
When powered On, your notebook carries out a
Power On Self Test (POST) to check the internal parts and configuration. If a fault is found a
short series of beeps will sound and/or an error
message will be displayed. (See Troubleshooting
on pages 128-130) Depending on the nature of
the problem you may be able to continue by
starting the operating system or by entering
the setup utility and revising the settings.
After satisfactory completion of the Power On
Self Test (POST) your notebook will load your
operating system. (See Boot Menu on pages 83-
84 to see which kind of disk will be the source.)
14
Figure 2-4 Power On
Booting the System
We strongly recommend that you not attach
any other external devices and do not put any
CD or floppy disk in your drives until you have
gone through the initial power on sequence.
When you turn on your notebook for the first
time it will display a Fujitsu logo on the screen.
If you do nothing the system will read the hard
drive for the operating system software, flash
the notebook configuration information on the
screen, and then the Windows 98 Setup Wizard
Screen will appear. You will then be stepped
through the condition of use process. You must
complete this initial process before you will be
able to use your notebook. (If you wish to
access the BIOS setup utility before you go
through the condition of use process you must
press the F2 key while the Fujitsu logo is still
visible. If you press the Esc key while the
Fujitsu logo is still present you will get a dialog
box which will allow you to select which drive
is to be used for finding the operating system.)
If you turn off the power without using the on
screen Cancel button you will get an error
message when you start your notebook again.
Condition of Use Process
The first time you start your notebook you
must confirm your acceptance of the copyright
limitations for your pre-installed software.
After you complete the Condition of Use
process these screens will not appear again.
There are 6 screens to read carefully and
respond to.
Starting Your LifeBook C Series
LifeBook C Series from Fujitsu
You cannot use your notebook until this
Condition of Use process is completed. The
bottom of each screen has a <Back button, a
Next> Button and a Cancel button which
are activated by the integrated ErgoTrac cursor
control and button click. The <Back button
will return you to the previous screen. The
Next> button activates any choices or
information you have entered and takes you on
to the next screen. The Cancel button
allows you to stop the setup process.
If you stop the process your notebook will
start up at the beginning of the Windows 98
Setup Wizard.
The screens you will be required to respond to
are described with the required action.
User Information
Fill in your name and your company name as
you want the software licensed. To step from the
name blank to the company blank press the Tab
key. When the information has been entered click
on the Next> button. You will not be allowed
to continue until you make an entry.
License Agreement
Read the agreement carefully. You can scroll
through the text using the integrated ErgoTrac
or TouchPad pointing device to activate the
scroll bar or use the up arrow Õ and down
arrow Ô keys to move up and down the text
one line at a time, or use the Page Up and Page
Down keys to move the text one screen at a
time. When you finish reading you must
point and click to accept or reject the terms
of the agreement and then click on the
Next> button.
POINT
If you reject the terms of the license
agreement you will be asked to review
the license agreement for information on
returning Windows 98 or to shut down
your notebook.
Product Key
Look in the box that your notebook came in
and you will find a Windows 98 Certificate of
Authenticity shrink wrapped with the Windows
98 Users manual. On the certificate you will
find a bar-code with a number above it. This is
your product key and the number you should
enter on the Product Key screen. When you
have entered the number exactly as shown then
click on the Next> button.
Start Wizard
The Start Wizard screen will appear if you have
entered a valid product key. When you click on
the Finish button the display will flash various
screens as the system identifies what hardware
is installed.
Time Zone
When your notebook has completely identified
all of the installed hardware it will display a
dialog box for entering which time zone you
wish to set the clock to.
Two
15
Section Two
Printer Setup
When the time zone setup is complete a dialog
box will appear for selecting which printer is to
be attached to your notebook. You do not have
to select a printer at this time. If you do not
wish to select a printer, click on the Cancel
button. If you do wish to select a printer click
on the Next button and answer the questions.
Welcome to Windows 98
When you boot into Windows 98 for the first
time you will see a Welcome to Windows 98
dialog box with several options. Select the first
option, Register Now, to register your LifeBook
C Series notebook.
16
POINT
You will find a Recovery CD-ROM packet
in your accessories box. Please store the
packet in a safe place in case there is a
loss of data and it becomes necessary to
re-install your operating system and/
or application programs. (See Restoring
Your Pre-installed Software from the
Recovery CD-ROM on page 132.)
REGISTERING YOUR LIFEBOOK
What are the benefits of registering?
You will receive an identification label for your
LifeBook, which, if your LifeBook is ever lost,
may help in getting it returned to you. You also
receive priority Personal Identification Number
(PIN) technical support access and useful product mailings. Proof of purchase is not required
if you register within 30 days of your purchase.
How do I register?
By modem, fax, mail or telephone. With
Windows 98, you can access the Softbank
E-Registration program by selecting the Register
Now option in the Welcome to Windows 98
wizard menu. This menu appears the first time
you start Windows 98 after completing the
Condition of Use process. To access the
Welcome to Windows 98 wizard anytime,
double-click on the Welcome to Windows 98
icon on your desktop.
You may also print your completed registration
form and fax it to 1-949-450-9140 or mail it to:
Fujitsu PC Corporation
15355 Barranca Pkwy
Irvine, CA 92618-9520
Alternately you may call:
1-800-8fujitsu (1-800-838-5487)
E-mail address:
8fujitsu@fpc.fujitsu.com
Starting Your LifeBook C Series
LifeBook C Series from Fujitsu
LEARNING ABOUT YOUR OPERATING
SYSTEM AND APPLICATION SOFTWARE
Tutorials
All operating systems and most application
software have tutorials built-in. We highly
recommend that you step through your
tutorial before you use an application even if
you are familiar with the same application on
a different machine, an earlier version of the
application, or a similar product.
Manuals
In the accessories box you will find manuals for
Windows 98 and other pre-installed software.
Software manuals of pre-installed software
that are not in the accessories box are available
online. See the help screens of your preinstalled software. We recommend that you
review these manuals for general information
on the use of these applications and to get
a basic understanding of what is covered in
the manual, and how it is organized, should
questions arise as you use the applications.
Links to Fujitsu On-line
You can go directly to the Fujitsu Accessories
catalog for your notebook by clicking on the
LifeBook Accessories Website option from the
Windows Start menu. This will take you to the
Web site for Fujitsu Lifebook accessories.
You can also reach the Fujitsu Service and
Support Web site on-line for your LifeBook by
choosing the Service & Support option from
the Windows Start menu. Alternately, you may
call: 1-800-8fujitsu (1-800-838-5487)
Two
17
Section Two
18
Using Your LifeBook C Series from Fujitsu
Power Button . . . . . . . . . . . . . . . . . 20
Power Off . . . . . . . . . . . . . . . . . . 20
Restarting the System . . . . . . . . . . . . 21
Status Indicator Panel. . . . . . . . . . . . . 22
Batteries . . . . . . . . . . . . . . . . . . . 26
Integrated ErgoTrac Pointing Device . . . . . 29
Using the Keyboard. . . . . . . . . . . . . . 31
Volume Control. . . . . . . . . . . . . . . . 33
Floppy Disk Drive. . . . . . . . . . . . . . . 33
CD-ROM Drive . . . . . . . . . . . . . . . . 35
Hard Drive . . . . . . . . . . . . . . . . . . 37
Internal Modem . . . . . . . . . . . . . . . 37
Power Management . . . . . . . . . . . . . 38
Data Security . . . . . . . . . . . . . . . . . 43
Pre-installed Software . . . . . . . . . . . . 44
Section Three
Section Three
SECTION THREE
USING YOUR LIFEBOOK C SERIES
FROM FUJITSU
This section describes the indicators, buttons,
connections, operating modes, and software of
your LifeBook C Series and their uses.
POWER BUTTON
The power button is located above the keyboard to the right of the Status Indicator Panel.
It is used like a switch to turn your notebook
on and off. It also can suspend and resume
your notebook. (For more information on
suspend and resume features see Power
Management pages 38-42.)
You can use the power button to turn on your
notebook, to resume from Standby or Save-toDisk mode, to place you notebook in Standby
or Save-to-Disk mode or to shut down and
power off. You can also turn off your notebook by choosing Shut Down from the
Windows 98 Start menu. (For the Power On
procedure see Section Two, page 13.)
20
Figure 3-1 The Power Button
Power Off
Before turning off the power by choosing Shut
Down from the Windows 98 Start menu or
pressing the power button, check that the Hard
Drive, CD-ROM, PC Card and the Floppy Disk
Drive Access indicators are all Off. (See Figure
3-3, page 22.) If you turn off the power while
accessing a disk or PC Card there is a risk of
loss of data. To assure that your notebook shuts
down without error, use the Windows 98 shut
down procedure. You can also power Off your
notebook by holding the Power Button down
for four seconds. This is similar to turning a
power switch to Off. This method is only recommended if you cannot restart your computer with the CTRL + ALT + DEL keys.
CAUTION
Never turn your notebook off while an
application is running. Be sure to close all
files, exit all applications and shut down
your operating system prior to turning off
the power with the Power Button. If files
are open when you power off, you will
lose any changes that have not been
saved, and may cause disk errors.
Shutting down your notebook from Windows
98 lets your notebook shut down operations,
and turn off the power in the proper sequence
to prevent errors. The sequence is:
1. Go to the Start button menu.
2. Click on Shut down.
3. Verify that Shut down
is selected and click on Yes.
If you are going to store your notebook for a
month or more, take the following precautions:
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
1. Remove any CD and/or floppy disk.
2. Shut down with Windows 98 to power Off
your notebook.
3. Close your notebook display panel.
4. Disconnect the AC adapter.
5. Remove the battery and store it separately
in a cool dry place.
RESTARTING THE SYSTEM
When you wish to restart your system be sure
that you follow the proper procedure. The
procedure is as follows:
1. Go to the Start button menu.
2. Click on Shut Down.
3. Click on Restart.
4. Verify that Restart is selected and click
on Yes.
Windows 98 will shutdown and restart
your notebook.
NOTE: You may also select Shut Down from
the Start menu and once the power is off for 10
seconds or more you can restart your notebook
with the Power Button. This alternative
method is not recommended, however.
POINT
In Windows 98 pressing the Ctrl+Alt+Del
keys simultaneously triggers the Shut
Down submenu of the Start menu.
CAUTION
Turning off the power without exiting
Windows 98 may cause an error when
you start the next time. Turning the
power to On when it has been Off for
less than 10 seconds may also cause an
error when you start the next time.
Reset Button
The Reset button is located on the rear panel to
the left of the DC Power jack. This hardware
reset button should only be used when your
notebook has locked up and you are unable to
restart the system using the standard procedure.
To use this reset button, take the tip of a pen or
a straightened paper clip, depress the button
and release it immediately. This will perform a
hard reset which is similar to powering off your
notebook and then powering it back on.
Figure 3-2 using the reset button
Three
21
Section Three
STATUS INDICATOR PANEL
The Status Indicator panel is located in the
recess just above the keyboard. (Figure 3-3.)
The appropriate indicators become visible as
you use your notebook.
Power Indicator
The Power indicator tells you when the system
is operational. It is on steady when there is
power to your notebook, and blinks when the
system is in Suspend mode. It goes off when
the system has entered Save-to-Disk mode or
has been powered down by the Windows 98
or the Power Button.
Power CD-ROM
22
Battery
Charging
Level
Drive Access
Hard Drive AccessAC Adapter Battery
Floppy Disk
Drive Access
PC Card
Slot Identifier
PC Card Access
NumLk
Figure 3-3 Status Indicator Panel
Scr Lk
CapsLock
AC Adapter Indicator
The AC Adapter indicator tells you whether the
system is operating on an AC or auto/airline
adapter, or the battery alone. The indicator is
On when either of the adapters is active and Off
when power comes from the battery alone.
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
If a battery is charging, the Power Adapter indicator is active regardless of whether your notebook is On or Off. If there is no battery charging, and the your notebook is powered Off,
then the AC Adapter indicator and the Battery
indicators will all be Off.
Battery Indicator
The battery indicator shows whether or not the
Lithium ion battery is installed, and indicates
the condition. (Figure 3-3.)
A small arrow icon (Battery Charging indicator) appears to the left of the Battery Level indicator and above the number (Battery identifier)
if the battery is charging. The Battery Charging
indicator flashes if the battery is too hot or too
cold to charge. (Figure 3-3.) The Battery
Charging indicators operate whether the
notebook is Off or On.
The symbols inside the battery outline of the
Battery Level indicator show the operating level
available in that battery. (Figure 3-4.)
CAUTION
A shorted battery is damaged and must
be replaced. (See Figure 3-4.)
CAUTION
Turning off the power or using the
Suspend/Resume button when any of
the Access indicators are On may cause
loss of data and/or system errors.
CAUTION
Batteries subjected to shocks, vibration
temperatures or extreme temperatures
can be permanently damaged.
76%–100%
51%–75%
26%–50%
11%–25%
Low Warning <11%
Critical Low or
Dead Battery
76%–100% Charging
Shorted Battery
Figure 3-4 Battery Level Indicator
Three
23
Section Three
CD-ROM Drive Access Indicator
The CD-ROM Access indicator tells you
the CD-ROM drive is being accessed. The
CD-ROM Access indicator will flash when
the software tries to access a CD or CD-ROM
even if no CD or CD-ROM is inserted.
POINT
The Windows 98 CD automatic insertion
function will periodically check for a
CD inserted in the drive, causing the
CD-ROM Access indicator to flash. The
CD automatic insertion function allows
your system to automatically start a CD
as soon as it is inserted in the drive and
the tray is closed. It will begin playing
an audio CD or will start an application
if the CD has an auto run file on it.
24
POINT
If you do not wish to have the CD
automatic insertion function on you
can disable it.
To disable the CD automatic insertion function
do as follows:
1. Save all data and close all applications.
2. Click on the Start button.
3. Point to Settings.
4. Click on the Control Panel. The control
panel window will be displayed.
5. Double click on the System icon. The system
properties dialogue box will be displayed.
6. Click on the Device Manager tab. The device
list will be displayed.
7. Click on the + to the left of the CD-ROM
icon. The CD-ROM drive manufacturer’s
name and model will be displayed.
8. Click on the CD-ROM drive manufacturer’s
name and model.
9. Click on Properties. The CD-ROM drive
manufacturer’s name and model properties
dialogue box will be displayed.
10. Click on the Settings tab.
11. Click on the automatic insertion
notification box to toggle it off.
12. Click on OK.
13. Click on OK in the system properties
dialogue box.
14. Restart your notebook according to the
message displayed.
You can re-enable the function by repeating the
process except in step 11 change the setting to on.
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
Hard Drive Access Indicator
The Hard Drive Access indicator tells you when
the internal hard drive is being accessed.
Floppy Disk Drive Access Indicator
The Floppy Disk Drive Access indicator tells
you a floppy disk drive is being accessed. The
Floppy Disk Drive Access indicator will flash
when your software tries to access a floppy disk
even if no floppy disk drive is installed.
PC Card Access Indicators
The PC Card Access indicators tell you when
an installed PC Card is being accessed. Card 1
is the bottom connector inside the slot and
Card 2 is the upper connector inside the card
slot. Type III cards are always Card 1 only.
The PC Card Access indicator will flash if
your software tries to access a PC Card even
if none are installed.
NumLk Indicator
The NumLk indicator tells you the internal keyboard is set in ten-key numeric keypad mode.
(See page 31 for more information on the numeric
keypad.) You can activate the NumLk mode by
pressing the NumLk/Scr Lk key while holding
down the Shift key. Deactivate the mode the
same way that you activated it.
CapsLock Indicator
The CapsLock indicator tells you when the keyboard is set for all capital letters. Activate the all
capital letters setting by pressing the CapsLock
key on the keyboard. Deactivate the mode the
same way that you activated it.
Scr Lk Indicator
The Scr Lk indicator tells you when scroll lock
is active. You can activate or deactivate the
scroll lock by pressing the NumLk/Scr Lk key.
Deactivate the mode the same way that you
activated it.
Three
25
Section Three
BATTERIES
The Lithium ion battery is rechargeable with an
operating time of up to three (3) hours depending on active power management features and
user activity levels. Your notebook can be operated on one internal Lithium ion battery at a
time. If the internal Lithium ion Battery goes
dead, you must install the AC adapter or shut
down and install a charged battery. (See page 97
for replacing the battery.)
The Lithium ion battery operating time may
become shorter than the reference value if it is
used under the following conditions:
■
When used at temperatures that exceed a low
of 5°C or a high of 35°C. High temperatures
not only reduce charging efficiency, but can
also cause battery deterioration. (The Charging icon on the Status Indicator panel will
flash when you try to charge a battery that is
outside its operating temperature range.)
■
The battery charging capacity is reduced as the
battery ages. If your battery is running low
quickly, you should replace it with a new one.
■
When using a high current device such as a
modem, a LAN card, the CD-ROM drive, or
the hard drive frequently.
Using the AC adapter will conserve your battery
when using a high current device such as a
modem, a LAN card, the CD-ROM drive, or the
hard drive frequently.
CAUTION
Actual battery life will vary based
on screen brightness, applications,
features, power management settings,
battery condition, and other customer
preferences. CD-ROM drive, hard drive,
and modem usage may also have a
significant impact on battery life.
CAUTION
Do not leave a faulty battery in your
notebook. It might damage your AC
adapter, optional auto/airline adapter,
another battery, or your notebook itself.
It may also prevent operation of your
notebook by draining all available current
into the bad battery.
CAUTION
Under federal, state or local law it
may be illegal to dispose of batteries by
putting them in the trash. Please take
care of our environment and dispose
of batteries properly. Check with your
local government authority for details
regarding recycling or disposing of
old batteries. If you cannot find this
information elsewhere, contact your
support representative at 1-800-8FUJITSU
(1-800-838-5487).
26
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
Shorted Batteries
If your Status Indicator panel shows a shorted
battery, check the installation for that battery by
removing and re-installing it. If it still shows
that it is shorted, replace it with a new battery.
CAUTION
A shorted battery is damaged and must
be replaced so that it does not damage
anything else.
Recharging the Batteries
If you want to check the condition of the
Lithium ion battery check the Battery Level
indicator located on the Status Indicator panel.
This indicator changes as the battery level
changes. Battery 1 is the Lithium ion battery
which is installed in battery bay. (Figure 3-3 on
page 20.) You can also check the PMSet 98
toolbar to see battery condition.
The Lithium ion battery is recharged internally
using the AC adapter or auto/airline adapter. To
recharge a battery:
■
Make sure the battery to be charged is
installed in the battery bay of
your notebook and connect the AC or
auto/airline adapter.
■
Make sure that the Battery Charging indicator to the left of the Battery Level indicator
of the battery to be charged is visible on the
Status Indicator panel.
■
Make sure the percentage charge is shown
inside the Battery Level icon.
(Figure 3-4 on page 23.)
There is no memory effect on the Lithium ion
batteries, which means that you do not need to
discharge them completely before recharging. A
single fully discharged Lithium ion battery will
charge in approximately three (3) hours when
your notebook is Off or in Suspend mode. The
charging time will be significantly longer if your
notebook is in use when the battery is charging,
(approximately nine (9) hours.)
CAUTION
Using heavy current devices such as LAN
cards or frequent CD-ROM accesses may
prevent charging completely.
Three
27
Section Three
Low Battery State
When the battery is running low, your notebook beeps about every 15 seconds and the
Battery Level indicator flashes. If you do not
respond to the low battery alarm, the battery
will continue to discharge until it is too low to
operate. When this happens there will be a multiple beep alarm, the Battery Level indicator will
show dead battery, and your notebook will go
into Suspend mode to try and protect your data
as long as possible. Your power management
settings do not affect what happens at the dead
battery alarm level. Your notebook will go to
Suspend mode. (Figure 3-4 on page 23.)
CAUTION
You may not be able to hear the audio
alarms if the volume control is set too
low or is turned off by either hardware or
software but you will still be able to see
the Battery Level indicator flash.
28
When the low battery alarm occurs you need to
save all your active data and put your notebook
into Suspend mode until you can provide a new
power source. You should provide this power as
soon as possible. The new power source can be
a charged battery or a power adapter, either AC
or auto/airline.
CAUTION
When you are in Suspend mode there
must always be at least one power source
active. If you turn off the power with
the power switch, or remove all power
sources, battery, AC adapter or auto/
airline adapter, while your notebook is in
Suspend mode any data which has not
been saved to the hard drive will be lost.
Once your notebook goes into Dead Battery
Suspend mode you will be unable to resume
operation until you provide a source of power
either from an AC adapter, an optional auto/
airline adapter, or a charged battery. Dead
Battery Suspend mode shows on the Status
indicator just like the normal Suspend mode.
Once you have provided power, you will need
to press the Suspend/Resume button to resume
operation. In the Suspend mode, your data can
be maintained for sometime. If a power source
is not provided promptly, the Power indicator
will stop flashing and go out, and you will have
lost the data that was not stored.
Once you provide power you can continue to use
your notebook while an adapter is charging the
battery, but the battery trickle charges under
these conditions. If you want to charge the
battery more quickly, put your notebook into
Suspend mode, or turn off your notebook while
the adapter is charging the battery. (See Power
Off on pages 20-21 for shutdown procedures.)
CAUTION
There is no guarantee that data will not
be lost once your notebook enters the
Dead Battery Suspend mode.
INTEGRATED ERGOTRAC
POINTING DEVICE
The ErgoTrac pointing device is composed of
a short, comfortable, dish-shaped pointing
device and two buttons located in front of the
keyboard. The ErgoTrac pointing device has
the function of a mouse, and moves the cursor
around on the screen – up, down, left and right.
A light pressure with the tip of your finger is all
that is required to operate the ErgoTrac. The
more pressure you use the faster the cursor will
move. The second part of the ErgoTrac pointing device – the buttons – function as mouse
buttons, and the functions they perform
depend on the application you are running.
Figure 3-5 shows the position of the ErgoTrac
pointing device and buttons.
POINT
An external mouse can be connected to
the PS/2 port on the right side of the
notebook, and used simultaneously with
the ErgoTrac pointing device.
Using Your LifeBook C Series
Cursor Control
Left Button
Right Button
LifeBook C Series from Fujitsu
Cursor
Three
Figure 3-5 ErgoTrac pointing device
29
Section Three
Clicking
Clicking means pushing and releasing a button.
To left-click move the screen cursor to the item
you wish to select, press the left pointing device
button once, and then immediately release it. To
right-click, move the mouse cursor to the item
you wish to select, press the right pointing
device button once, and then immediately
release it. (Figure 3-6.)
Double-Clicking
Double-clicking means following the preceding
Clicking procedure, but pressing the pointing
device button twice in rapid succession.
Double-clicking works with both the left
and right buttons.
CAUTION
If the interval between clicks is too long,
double-clicking will not be executed.
30
Figure 3-6 Clicking
POINT
The interval between presses for double
clicking, and other parameters of pointing
and selecting, can be adjusted with the
selections in the dialog box of the mouse
icon in your Windows Control panel.
Dragging
Dragging means selecting an item with the
pointing cursor, and while keeping the left
pointing device button depressed, moving
the cursor to the desired new location, then
releasing the button. (Figure 3-7.)
Figure 3-7 Dragging
ErgoTrac Pointing Device
Control Adjustment
The Windows Control Panel provides customization of your ErgoTrac pointing device
from the mouse icon. There are four (4) aspects
of the ErgoTrac pointing device operation
which you can adjust.
■
Buttons – This lets you set up the buttons for
right or left handed operation and set the
time interval for double clicking.
■
Pointers – This lets you set up the size and
shape of the cursor for different functions.
■
Motion – This lets you set up the relation of
the speed of motion of your finger to the
motion of the cursor and to enable a trailing
tail for the cursor arrow.
■
General – This allows you to choose the type
of mouse being used. It is already set for your
integrated ErgoTrac. You may need to change
it for an external mouse.
You may want to try practicing with different
adjustments until you find a combination that
is comfortable for you.
Using Your LifeBook C Series
USING THE KEYBOARD
Your notebook has an integral 86-key keyboard. (Figure 3-8.) The keys perform all the
standard functions of a 101-key keyboard and
also include Windows keys and other special
function keys. This section describes only those
items specific to your notebook. They are the
numeric keypad, the cursor keys, the function
keys, the function extension key (Fn) and the
Windows keys.
Numeric Keypad
Certain keys on the keyboard perform dual
functions as both standard character keys and
numeric keypad keys. Figure 3-8 highlights
these keys. To switch into numeric keypad
mode, press the NumLk/Scr Lk while holding
down the Shift key. You can now enter numerals 0 through 9, perform addition ( + ), subtraction ( – ), multiplication ( * ), or division
( / ), and enter decimal points ( . ) using the
keys designated as ten-key function keys. The
keys in the numeric keypad are marked on
the front edge of the key to indicate their
secondary functions.
LifeBook C Series from Fujitsu
To return these keys to their normal character
function, press the NumLk/Scr Lk while holding
down the Shift key again.
POINT
When an external numeric keypad is connected to the notebook the NumLk mode
enables the external keypad and disables
the built-in keyboard numeric keypad.
Cursor Keys
The cursor keys are the four arrow keys on the
keyboard which allow you to move the cursor
up Õ, down Ô, left Ó and right È as your
application allows.
POINT
The integrated ErgoTrac pointing device
and/or external mouse are also used for
moving the cursor around the screen.
Three
31
Section Three
Function Keys
Your notebook has 12 function keys, F1 through
F12. The functions assigned to these keys differ
for each application. You should refer to your
software documentation to find out how these
keys are used. (Figure 3-8.)
Fn Key
The Fn key provides extended functions for the
notebook and is always used in conjunction
with another key. (Figure 3-8.)
Pressing F5 while holding down the Fn key
allows you to toggle between video compensation and no compensation. (Video compensation controls spacing on the display. When it is
enabled, displays with less than 800 x 600 pixel
resolution will still cover the entire screen.)
Pressing F10 while holding down the Fn key
allows you to change your selection of where to
send your display video. Each time you press the
combination of keys you will step to the next
choice. The choices, in order, are: built-in display panel only, external monitor only, or both
built-in display panel and external monitor.
32
Function Keys Numeric Keypad
Fn Key Start Key Start Key Application Key Cursor Keys
Figure 3-8 Keyboard
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
Windows Keys
Your notebook has three Windows keys, two
Start keys and an Application key. The Start key
displays the Start menu. This is the same as the
button on the toolbar which is typically at the
bottom of your Windows 98 desktop. The
Application key has the same function in
Windows 98 as the right mouse button, it displays the Shortcut menu for whatever item is
selected. See your Windows 98 documentation
for additional information. (Figure 3-8.)
VOLUME CONTROL
All system and application functions have multiple volume controls which interact with each
other. There is the hardware volume control on
the right side panel of your notebook. There is
also a volume control in the your operating
system Sound Control panel and any other
application with sound.
Each setting source puts an upper limit on the
volume which can be set by the other sources.
For example if the hardware volume control is
turned all the way down, your software volume
control settings have no effect. By the same
token, if the operating system has the sound
turned off, adjusting the hardware or other
application software volume settings will not
produce sound. One easy operating method is
to use the hardware and operating system
volume controls to set an upper limit on
sound level and then make fine adjustments
with other application software.
CAUTION
The operating system volume setting
sets the maximum volume level of the
hardware volume control knob.
FLOPPY DISK DRIVE
The floppy disk drive is a 3.5" drive which can
read and write on 1.44MB and 720KB floppy
disks. Floppy disk format is controlled from
your operating system. (See your software
documentation for more information.)
Loading a Floppy Disk
To load, insert a floppy disk into the floppy disk
drive, shutter side first and label up, until the
Eject button, above the floppy disk drive
opening, pops out. (Figure 3-9)
POINT
When there is no floppy disk in the drive,
the Eject button is flush with the front of
your notebook.
Three
33
Section Three
Ejecting a Floppy Disk
To eject a disk, check that the Floppy Disk
Drive Access indicator is Off, (see pages 22
and 25) and press the Eject button.
(Figure 3-9.)
CAUTION
If you eject the disk while the Floppy
Disk Drive Access indicator is On, there is
a risk of damaging the data on the disk
or the disk drive.
Figure 3-9 Ejecting a Floppy Disk
34
Preparing a Floppy Disk for Use
Before you can use a new floppy disk, you need
to prepare it so your notebook knows where to
store information. This preparation is called
formatting or initializing a disk. You need to
format new 3.5" floppy disks, unless you purchase preformatted disks. You will use your
notebook’s operating system software to format
a floppy disk. Please refer to the operating
system manual for step-by-step instructions.
To prevent data stored on a floppy disk from
being erased, slide the write protect tab on the
floppy disk to open up the small hole. This
makes the disk write protected. When you want
to write data to that disk, slide the write protect
tab the other way to close the small hole.
CAUTION
Formatting a previously used floppy
disk is an effective method of clearing a
disk as long as you realize that ALL the
information on the disk will be erased.
Write Enabled
Write Protected
Figure 3-10 Floppy Disk Write Protect
Care of Floppy Disk Drives and Disks
■
Avoid storing the floppy disk drive and
disks in extremely hot and cold locations,
or in locations subject to severe
temperature changes.
■
Keep the floppy disk drive and disks
out of direct sunlight and away from
heating equipment.
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
■
Avoid storing the floppy disk drive in
locations subject to shock and vibration.
■
Avoid using the floppy disk drive and disks
in damp and dusty locations.
■
Never use the floppy disk drive with any
liquid, metal, or other foreign matter inside
the floppy disk drive or disk.
■
Never store a floppy disk near a magnet or
magnetic field.
■
To clean, wipe the floppy disk drive clean
with a dry soft cloth or with a soft cloth
dampened with water or a solution of neutral
detergent. Never use benzene, paint thinner,
or other volatile material.
■
Never disassemble or dismantle your floppy
disk drive.
CD-ROM DRIVE
The CD-ROM drive is a 20-speed maximum
CD-ROM reader.
CAUTION
Do not operate your CD-ROM drive
unless your notebook is sitting on a
flat surface and the adjustment feet
are folded against the bottom of the
notebook. Using a CD when the drive
is not level may damage the drive or
prevent proper operation.
Loading a CD
■
Make sure there is power to your notebook.
■
Push, gently but firmly, and release the eject
button on the front of the CD-ROM drive to
open the CD-ROM holder tray, the tray will
come out a short distance.
■
Gently pull the tray out until a CD-ROM can
be easily placed in the tray.
Three

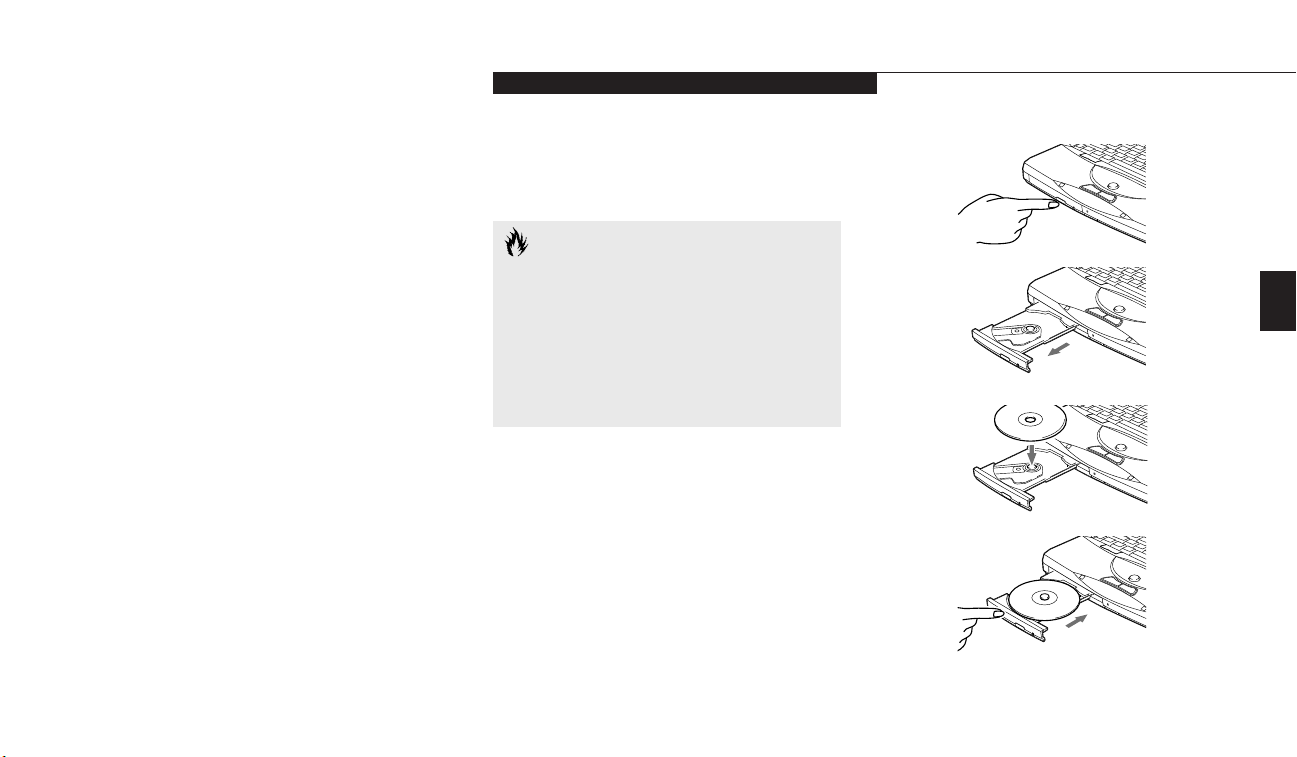

Figure 3-11 Loading the CD-ROM Tray
35
Section Three
■
If there was a protective sheet in the tray
when it was shipped, make sure it
has been removed.
■
Place the CD into the tray, label side up, with
the hole in the center of the CD snapped
onto the raised circle in the center of the tray.
■
Close the tray.
■
After the CD is loaded, it will take a short
time for your notebook to recognize it.
POINT
If you have disabled your CD automatic
insertion function you will have to start
the CD from your desktop, as your
notebook will not automatically
recognize that the CD has been loaded.
Care of CD-ROMs
CD-ROMs are precision devices and will
function reliably if given reasonable care.
■
Always store your CD-ROM in its case when
it is not in use.
■
When removing the CD-ROM from its case,
press down on the holder’s center while
lifting out the CD-ROM by its edges.
■
Always handle a CD-ROM by the edges and
avoid touching the surface.

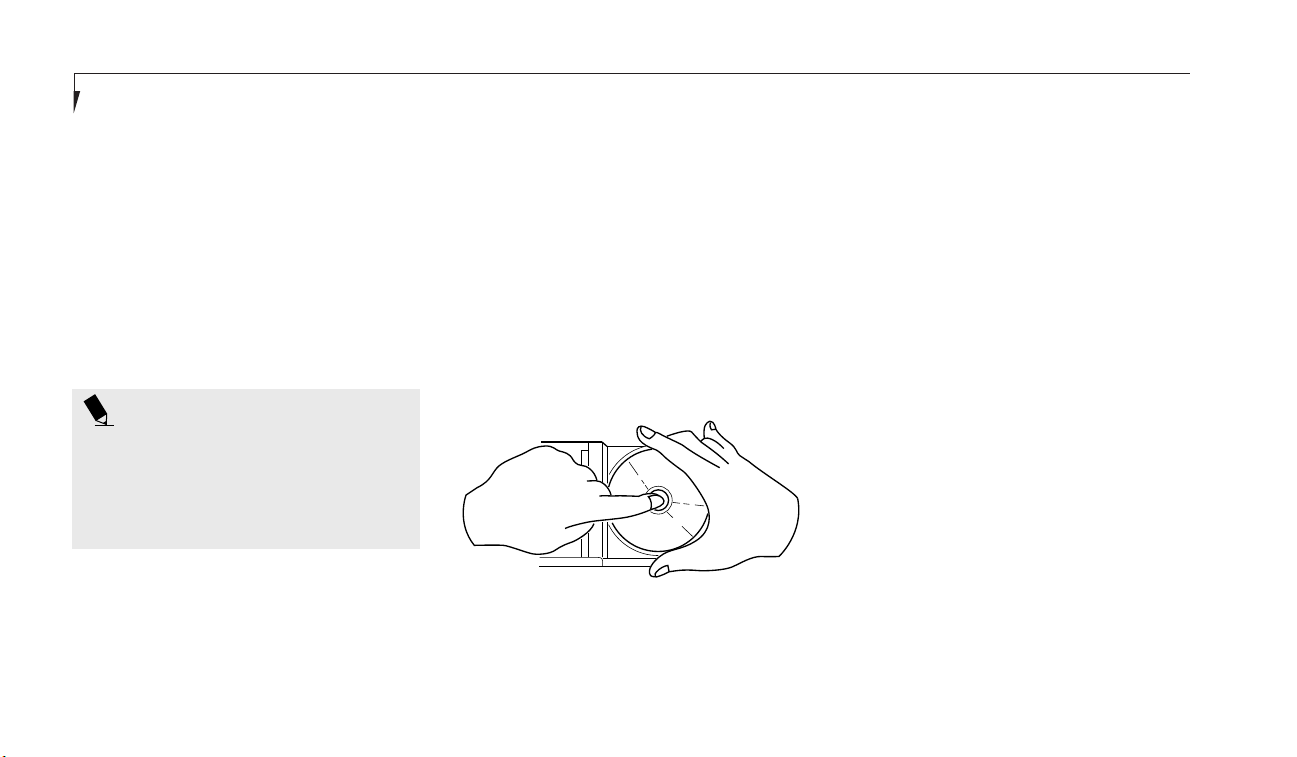

Figure 3-12 CD-ROM Handling
■
Avoid storing any CD-ROM in extreme
temperatures.
■
Do not bend CD-ROMs or set heavy objects
on them.
■
Never write on the label surface with a ball
point pen, pencil or similar device.
■
If a CD-ROM is subjected to a sudden
change in temperature, cold to warm condensation may form on the surface. Wipe the
moisture off with a clean, soft, lint free cloth
and let it dry at room temperature. DO NOT
use a hair dryer or heater to dry a CD-ROM.
■
If a CD-ROM is dirty, use only a CD-ROM
cleaner or wipe it with a clean, soft, lint free
cloth starting from the inner edge and wiping
to the outer edge.
36
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
HARD DRIVE
The internal hard drive capacity is dependent
on which model you are using. See Appendix A
(pages 140–143) for model information.
Formatting the Hard Drive
The hard drive inside your notebook is formatted (initialized) at the factory. You do not need
to format it under normal circumstances. Check
your operating system documentation for information on initializing a hard drive. If you need
to reformat your internal hard drive.
CAUTION
If you reformat the internal hard drive
ALL data including the operating system,
applications software and data will be
erased. Unless data is copied to floppy
disks or other data storage media it will
be permanently lost. All software will be
need to be re-installed and data files
restored from your back-up disks. See
the operating system manual for more
information on backing-up your data
files. The factory installed software,
including the operating system, can be
restored from the Recovery CD-ROM
which came in the accessories box when
you purchased your notebook. (See
Recovery CD-ROM on page 132 for
more information.) Any application soft-
ware which you have purchased and
installed will have to be re-installed from
the original source. When doing a recovery remember that you must allocate
space for the Save-to-Disk function if
you have it enabled. (See Setting Up
Your Save-to-Disk File Allocation on
pages 92-93 for more information.)
INTERNAL MODEM
Your internal modem is a 56K fax/data/voice
modem with v.90 support that is controlled by
Windows 98, LapLink, or other software. The
voice functions of the modem include speakerphone and answering machine capabilities. The
answering machine capabilities require the use
of third party software not included with your
notebook. The other features are accessible via
Windows 98, LapLink or other software.
CAUTION
Your internal modem is designed to
the V.90 ITU-T standard. Its maximum
speed is 56,000bps at download theoretically and its actual connection rate
depends on the line conditions. The
maximum speed is 33,600bps at upload.
Three
37
Section Three
POWER MANAGEMENT
Your LifeBook C Series has many features for
conserving power. Some power savings features
are automatic and have no user control, such
as those for the internal modem, while others
depend on the parameters you set to best suit
your operating conditions. Other power saving
features turn the display brightness down, limit
the use of high power devices, activate an
appropriate power savings profile, and put your
notebook in Suspend mode when not actually
performing an operation. As with all mobile,
battery-powered computers, there is a trade-off
between performance and power savings.
Internal power management for your notebook
may be controlled from settings made in the
BIOS setup utility, or from settings made in
your operating system.
38
Using the Suspend/Resume Features
When your notebook is active, the Power button, (Figure 1-3 on page 5), can be used to manually put your notebook into Suspend mode.
The Power button is located next to the Status
Indicator panel above the keyboard of your
notebook. (Figure 3-13.) Push the Power button, when your notebook is active but no
Access indicators are on and release the button
(immediately). You will hear two short beeps
and then your system will enter Suspend mode.
If your notebook is suspended, pushing the
Power button will return your notebook to
active operation at the point where it went into
suspension. You can tell whether or not your
system is in Suspend mode by looking at the
Power indicator. (See pages 22-25.) If it is visible and not flashing, your notebook is fully
operational. If it is visible and flashing, your
notebook is in Suspend mode. If it is not visible, the power is Off or your notebook is in
Save-to-Disk mode. (See page 40.) When you
receive your LifeBook C Series it will be set to
the default, which is Suspend mode.
Figure 3-13 The Power Button
CAUTION
If you hold the Power button down for
four (4) seconds or more it will power
Off your notebook without putting it
into Standby mode or Save-to-Disk mode.
POINT
Disabling the Suspend/Resume function
prevents it from being used to put your
notebook in Standby or Save-to-Disk
mode. The resume function of the button
cannot be disabled. (See the Power
Menu of the BIOS setup utility, pages
75-80, for more information.)
CAUTION
The Standby or Save-to-Disk mode
should not be used with certain PC Cards.
Check your PC Card documentation for
more information.
POINT
If your notebook is active when you
enter the Standby or Save-to-Disk mode,
changes to open files are not lost. The
files are left open and memory is kept
active during Standby mode or the
memory is transferred to the internal
hard drive during Save-to-Disk mode.
Using Your LifeBook C Series
CAUTION
If you are running your notebook on
battery power, be aware that the battery
continues to discharge while your notebook is in Suspend mode, though not as
fast as when fully operational. With a
fully charged internal Lithium ion battery
the suspend mode will maintain your
status for 24 hours or more.
Standby Mode
Standby mode, in Windows 98, saves the contents of your notebook’s system memory during periods of inactivity by maintaining power
to critical parts while turning off the CPU, the
display, the hard drive and all of the other
internal components except those necessary to
maintain system memory, recognize the Power
button and restart. Your notebook can be put in
Suspend mode by:
■
Pressing the Power button when your system
is in the On state.
LifeBook C Series from Fujitsu
■
Selecting Standby from the Windows Shut
Down menu.
■
Timing out from lack of activity.
■
Battery level reaching the Dead Battery
Warning condition.
Your notebook’s system memory typically
stores the file(s) on which you are working,
the open application(s) and any other data
required to support the operation(s) in
progress. When you resume operation from
Standby mode, it returns to the point in the
operation where it left off. You must use the
Power button to resume operation, and there
must be an adequate power source available,
or your notebook will not resume.
Three
39
Section Three
CAUTION
Loss of all power sources, including
batteries, while in the Standby mode will
cause lost data and inability to return
to operation with the Power button.
Using the Power Button
to Perform Save-to-Disk
When your notebook is active, the Power button, (Figure 3-13), can be used to manually put
your notebook into Save-To-Disk mode.
However, you must first enable Save-to-Disk
mode by enabling Save-to-Disk mode in the
BIOS Setup utility Power menu. (See pages 75-
80 for more information on the Power menu of
the BIOS Setup utility.)
Push the Power button, when your notebook
is active but no Access indicators are on and
release the button (immediately). You will
hear two short beeps and then your system
will flash the Save-to-Disk screen, and enter
Save-to-Disk mode.
40
If CMOS setting is suspended you can get into
Save-to-Disk mode by pressing the Fn key and
Power Button together.
If your notebook is in Save-to-Disk mode,
pushing the Power button will return your
notebook to active operation at the point where
it went into Save-to-Disk mode. You can tell
whether or not your system is in Save-to-Disk
mode by looking at the Power indicator. (See
pages 22-25.) If it is visible and not flashing,
your notebook is fully operational. If it is visible and flashing, your notebook is in Suspend
mode. If it is not visible, the power is Off or
your notebook is in Save-to-Disk mode.
POINT
If power is lost during Save-to-Disk mode
the data will be retrieved automatically as
soon as power is returned.
POINT
When PC Cards or external devices are
in use, Save-to-Disk mode cannot return
to the exact state prior to suspension,
because all of the peripheral devices will
be re-initialized when the system restarts.
POINT
The main advantage of using the
Save-to-Disk function is that power is
not required to maintain your data. This
is particularly important if you will be
leaving your notebook in a suspended
state for a prolonged period of time. The
drawback of using Save-to-disk mode
is that it lengthens the power down and
power up sequences and resets
peripheral devices.
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
CAUTION
Be sure you know which settings are
active for the Power Button before you
use it; misuse can result in data loss. (See
the Power Menu of the BIOS setup utility,
pages 75-80, for more information.)
POINT
Save-to-disk mode requires allocating a
significant amount of hard drive capacity
for saving all system memory, which
reduces your usable disk space. When
you purchase your notebook it will have
space allocated for the memory installed.
If you upgrade the original system by
adding a memory upgrade module without changing the size of your Save-toDisk allocation you will get an error message when you try to activate Save-toDisk mode and it will not work. Use the
PHDISK Utility to increase the size of the
Save-to-Disk file, SAVE2DSK.BIN. (Refer
to Setting Up Your Save-to-Disk File
Allocation on pages 92-93 for more
information.) If you need help contact
your support representative
for recommendations.
Save-to-Disk Mode
The Save-to-Disk function, saves the contents
of your notebook’s system memory to the hard
drive and shuts down whenever you:
■
Press the Power Button until acknowledged
with Save-to-Disk mode enabled from the
Power menu of the BIOS setup utility.
■
Select Standby from the Windows Shut
Down menu with Save-to-Disk enabled by
the BIOS Setup Utility.
■
Time out from lack of activity with Save-ToDisk mode enabled from the Power Savings
menu of the BIOS setup utility.
Your notebook’s system memory typically stores
the file(s) on which you are working, the open
application(s) and any other data required to
support the operation(s) in progress. When the
Save-to-Disk function is activated your notebook
saves the contents of the system memory to a file
on the internal hard drive, and then automatically shuts off power to your notebook. When you
resume operation by pressing the Power button,
you return to the point in the operation
where you left off, before going into
Save-to-Disk mode.
POINT
It is possible to enter Save-to-Disk mode
without having enabled it in the BIOS
Setup utility. To do this, hold down the
Fn key while pressing the Power Button.
Three
41
Section Three
Idle Mode
Idle mode is one of the power management parameters. When Idle mode is enabled the CPU is
put into low-speed operation when there is no
activity (keystroke, pointer action, sound generation, video display change, modem transmission
or reception, etc.) on your notebook for 16 seconds. Any activity will cause the normal operation to restart automatically. This feature is independent of the Suspend/Resume modes. This
parameter is enabled and disabled in the BIOS
setup utility. (See page 76.)
Standby Timeout
Standby mode is one of the power management
parameters. When Standby mode is activated,
your notebook puts the CPU in low-speed operation, shuts off the display and turns off the hard
drive when there is no activity (keystroke, pointer
action, sound generation, video display change,
modem transmission or reception, etc.) on your
notebook for the user selected time-out period.
(See page 76.) Any activity will cause your notebook to return to normal operation automatical-
42
ly. This feature is independent of the Power button. This parameter is enabled and disabled in
the BIOS setup utility.
Video Timeout
The Video Timeout is one of the power management parameters which saves power by turning
off the display if there is no keyboard or pointer
activity for the user selected timeout period. Any
keyboard or pointer activity will cause the display
to restart automatically. This feature is independent of the Power button. This parameter is
enabled and disabled in the BIOS setup utility.
(See page 76.)
Hard Disk Timeout
The Hard Disk Timeout is one of the power
management parameters which saves power
by turning off the hard drive if there is no hard
drive access for the timeout period which has
been set in the BIOS setup utility. (See page 76.)
Any attempt to access the hard drive will cause
the hard drive to restart automatically. This
feature is independent of the Suspend/
Resume button. This parameter is enabled and
disabled in the BIOS setup utility.
Windows Power Management
Control Panels
The Power Management icon in the Windows 98
Control Panel allows you to configure some of
the power management settings that are
normally controlled by the BIOS. For instance,
you can set timeout values in the Power
Management Control Panel for turning off the
display and for turning off hard disks. You can
specify these timeout values based on whether
you are running on batteries or AC.
ACPI and Windows 98
Short for Advanced Configuration & Power
Interface, a power management specification
developed by Intel, Microsoft, and Toshiba. ACPI,
which is part of the Windows 98
operating system, enables the operating system to
control the amount of power given to each device
attached to the computer. With ACPI, the operating system can turn off peripheral devices, such
as CD-ROM players, when they are not in use.
Using Your LifeBook C Series
LifeBook C Series from Fujitsu
Your LifeBook C Series notebook is configured
to APM (Advanced Power Management) mode.
Due to ongoing industry development of ACPI
technology, it is not recommended that you reconfigure your notebook for ACPI mode.
DATA SECURITY
Your LifeBook C Series has a built-in hardware
control password security feature that allows
you to protect the data stored in the notebook
from unauthorized access. Your operating
system and some applications have
control password security features that allow you
to protect all or portions of the data stored in the
notebook from unauthorized access.
Hardware Data Security Features
When you are using your notebook built-in
hardware control password to gain access to the
notebook the actual password will not appear
on the screen. This is a safety precaution. The
hardware control security parameters are set
from the BIOS setup utility. (See Security Menu
on pages 71-74 for more information on setting
and clearing passwords and enabling and
disabling built-in security features.)
software
Software Data Security Features
The operating system and some applications
have security features that are independent of
the built-in hardware protection features that
are controlled from the BIOS. See your software
documentation for more information about
these features.
CAUTION
Make sure you memorize your passwords,
both hardware and software. If you
forget, you may not be able to use the
notebook, and you will have to contact
your service provider and arrange to
have them reset the hardware system
password. See your software documentation for what to do if you forget your
software security password(s).
CAUTION
Software security feature passwords may
not be the same as the hardware security
passwords. Be sure you know which
features are controlled from software
and which from hardware or you may
lock yourself out of your own data or
lock up your hardware and not be able
to operate your notebook.
Three
43
Section Three
PRE-INSTALLED SOFTWARE
Your LifeBook C Series comes with preinstalled software for playing audio and video
files of various formats. In addition there is file
transfer software, telephony software and virus
protection software. Some models come with
additional application software.
All of the pre-installed software can be accessed
from the Program folder of the Windows 98
Start menu or the following folders above the
Program folder in the Start menu: Business
Software, Communications Software, Multimedia Software, Service and Support Software,
and System Management Software.
SoftPEG MPEG File Player
The MPEG file player displays a screen to find
the file which you wish to play. You can setup
the list to select from limited to particular types
of files or display all files. Opening the desired
file will play it. Online help screens are available
for more information. (Located in the
Multimedia Software folder.)
44
SoftPEG Video CD Player
This control resembles a VCR player front panel
and is operated in the same way. When you
point to a button, a small explanation of the use
of the button will appear. When you left-click
on the button it will activate. Online help
screens are available for more information.
(Located in the Multimedia Software folder.)
LapLink
LapLink by Traveling Software provides direct
file transfers to other computers; data transfers
via internal modem, a PC Card modem, the
infrared port, a serial cable, or a parallel cable
(cables are not included). See the LapLink online
help screens for operating instructions. (Located
in the Communications Software folder.)
McAfee VirusScan
Running your McAfee VirusScan program after
loading data or programs from a floppy disk,
CD-ROM, modem data transfer, or infrared
data transfer is a precaution that will protect
the data on your hard drive from contamination or destruction. See your VirusScan online
help screens for information on how and when
to run this program. (Located in the Service
and Support Software folder.)
PC Doctor
PC Doctor by Watergate Software is primarily
for use by your support representative when
helping you with trouble shooting. (See pages
108–109 for more information.) (Located in the
Service and Support Software folder.)
Quicken 98 Basic
Quicken 98 Basic by Intuit is a personal money
management program. It has features such as
portfolio management, account registries, online banking, and bill paying features. (Located
in the Business Software folder.)
LifeBook C Series from Fujitsu
Using Your LifeBook C Series
Microsoft Works
Microsoft Works is a suite of software containing
the basic tools to write letters and reports, track
family and friends with the address book, manage home finances, and create a home inventory.
(Located in the Business Software folder.)
PMSet 98
PMSet 98 is a power management application
which allows you to monitor battery status and
configure your display panel to conserve battery
life. See your online help screens for information on how to use the program.
Three
45
Section Three
46
Configuring Your LifeBook C Series
Boot Sequence . . . . . . . . . . . . . . . . 48
Identifying the Drives. . . . . . . . . . . . . 48
BIOS Setup Utility . . . . . . . . . . . . . . 49
Navigating Through the Setup Utility. . . . . 51
Main Menu – Setting Standard
System Parameters . . . . . . . . . . . . . 52
Advanced Menu – Setting Device
Feature Controls . . . . . . . . . . . . . . 59
Security Menu – Setting the
Security Features . . . . . . . . . . . . . . 71
Power Menu – Setting Power
Management Feature Controls . . . . . . 75
Boot Menu – Selecting the
Operating System Source. . . . . . . . . . 83
Info Menu – Displaying Basic
System Information . . . . . . . . . . . . 87
Exit Menu – Leaving the Setup Utility . . . . 89
Setting Up Your Save-To-Disk
File Allocation . . . . . . . . . . . . . . . 92
Section Four
Section Four
SECTION FOUR
CONFIGURING YOUR LIFEBOOK
C SERIES FROM FUJITSU
This section explains the BIOS setup utility.
The BIOS setup utility is used to set the date,
time, power management modes, data security
passwords and other operating parameters of
your notebook.
BOOT SEQUENCE
Each time you power up or restart your LifeBook
C Series, it goes through a quiet boot sequence
that displays a Fujitsu logo until your operating
system is loaded. During quiet boot, your notebook is performing a standard boot sequence
including a Power On Self Test (POST). To view
this diagnostic screen press the Esc key anytime
while the Fujitsu logo is displayed. To enter the
BIOS setup utility press the F2 key anytime while
the Fujitsu logo is displayed. When the boot
sequence is completed without a failure and
without a request for the setup utility, the system
displays the Windows 98 opening screen. The
boot sequence is executed when:
■
You turn on power to the system using the
power button on your notebook.
(Figure 3-1 on page 20.)
■
You restart your computer from the
Windows 98 Shut down dialog box of
the Start Menu.
■
The software initiates a system restart.
Example: When you install a new application.
■
You reset the system by pressing the three
keys Ctrl+Alt+Del at the same time and then
restart your computer from the Windows 98
Shut down dialog box.
■
You depress the reset button on the rear
panel of your notebook.
POINT
The BIOS setup utility is entered by
pressing the F2 key during the boot
process while the Fujitsu logo is on
the screen.
POINT
When error messages occur see
Section Six, pages 128-130, for help
in understanding the meaning and
required actions to be taken.
IDENTIFYING THE DRIVES
Your notebook uses drive letters (Example A:,
B:, C:, D:, E:) to identify internal and external
devices such as hard drives, floppy disk drives,
CD-ROM drives and PC Cards. The most commonly assigned drive designators are listed
below. If you add other devices, the drive
designators may be different. See your operating
system manual for setting drive designations.
Drive Designators
A: Floppy disk drive.
Installed inside your notebook.
B: Not used with your notebook.
48
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
C: Hard drive.
Installed inside your notebook.
D: CD-ROM drive.
Installed inside your notebook.
BIOS SETUP UTILITY
The BIOS setup utility is a program that sets
the operating environment for your notebook.
It is referred to in this publication as the setup
utility. There is no need to set or change the
environment to operate as it is set at the factory
for normal operating conditions.
The setup utility configures:
■
Standard system parameters, such as date
and time.
■
Device control feature parameters, such as
I/O addresses and boot devices.
■
Power Management parameters that help to
conserve your notebook’s batteries.
■
System Data Security feature parameters,
such as passwords.
You will only have to change the utility settings
if you want to:
■
Change the date or time. (You can also
do this without entering the setup utility,
through your operating system. See your
operating system manual.)
■
Change the primary boot device.
■
Change the power management
parameter settings.
■
Change a port address or other parameter.
■
Change an audio parameter setting.
■
Change the selection of whether to use the
built-in display, an external monitor or both.
■
Change the system data security settings.
Routinely Entering the Setup Utility
You can enter the setup utility whenever you
turn on or reset the system. To do this:
1. Allow the system to start booting.
2. As soon as the Fujitsu logo appears on the
screen, press the F2 key.
3. The Main menu of the setup utility then
appears with the current settings of the
parameters displayed.
4. If you wish to go to one of the other setup
menus, press the Ó or the È key to find the
menu you require.
Four
49
Section Four
POINT
If your data security settings require it,
you may be asked for a password before
the Main menu will appear.
Entering the Setup Utility After a
Configuration Change or System Failure
If there has been a change in the system configuration that does not agree with the parameter
settings stored in your BIOS memory, or there
is a failure in the system, the system beeps
and/or displays an error message after the
Power On Self Test (POST). If the failure is not
too severe, it will give you the opportunity to
modify the settings of the setup utility, as
described in the following steps:
1. When you turn on or restart the computer
there is a beep and/or the following message
appears on the screen:
50
Error message - please run
SETUP program
Press <F1> key to continue,
<F2> to run SETUP
2. If an error message is displayed on the
screen, and you want to continue with the
boot process and start the operating system
anyway, press the F1 key.
CAUTION
If your notebook beeps a series of
beeps that sounds like a code and the
display is blank, please refer to the
Troubleshooting Section. (See page 128.)
The Troubleshooting Section includes
a list of error messages and their
meanings. (See pages 128-130.)
POINT
If your data security settings require it,
you may be asked for a password before
the operating system will be opened.
3. If an error message is displayed on the
screen, and you want to enter the setup
utility, press the F2 key.
4. When the setup utility starts with a fault present, the system displays the following message:
Warning!
Error message
[Continue]
5. Press any key to enter the setup utility. The
system will then display the Main Menu with
current parameters values.
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
NAVIGATING THROUGH
THE SETUP UTILITY
The BIOS setup utility consists of seven menus;
MAIN, ADVANCED, SECURITY, POWER,
BOOT, INFO and EXIT. The remainder of
Section Three explains each menu in turn
including all submenus and setup items.
The following procedures allow you to navigate
the setup utility menus:
1. To select a menu, use the cursor keys: Ó , È.
2. To select a field within a menu or a sub-
menu, use the cursor keys: Õ, Ô.
3. To select the different values for each field,
press the Spacebar or + to change to the next
higher selection and F5 or - to go to the next
lower selection.
4. To activate a submenu press the Enter key.
5. To return to a menu from a submenu, press
the Esc key.
6. To go to the Exit menu from any other
menu, press the Esc key.
POINT
Selecting a field causes a help message
about that field to be displayed on the
right-hand side of the screen.
POINT
Pressing the Enter key with the highlight
on a selection that is not a submenu or
auto selection will cause a list of all
options for that item to be displayed.
Pressing the Enter key or Esc key will
select the highlighted choice and
remove the list.
7.Pressing the F9 key resets all items in the
current menu to the default values.
8. Pressing the F10 key saves the current
configuration and exits the BIOS Setup
Utility.You will be asked to verify this
selection before it is executed.
9. Pressing the F1 key gives you a general
help screen.
POINT
The BIOS Setup screens depicted in this
manual are only representations of the
actual setup screens. The BIOS Setup
screens on your notebook may vary.
Four
51
Section Four
MAIN MENU – SETTING
STANDARD SYSTEM PARAMETERS
The Main Menu allows you to set or view the
current system parameters. Follow the instructions for Navigating Through The Setup Utility
to make any changes. (See page 51.)
Table 4-1 shows the names of the menu fields
for the Main menu, all of the options for each
field, the default settings and a description of
the field’s function and any special information
needed to help understand the field’s use.
POINT
System Time and System Date can
also be set from your operating system
without using the setup utility. Use the
calendar and time icon on your Control
panel for Windows 98 or type time or
date from the MS-DOS prompt.
52
Main Advanced Security Power Boot Info Exit
System Time: [02:34:56]
System Date: [08/28/1998]
Legacy Diskette A: 1.44/1.25 MB, 31/2"
▲
Primary Master [FUJITSU MHD2032AT]
Secondary Master CD-ROM
System Memory: 640 KB
Extended Memory: 31 MB
Language: [English (US)]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space Change Values
Enter Select Sub-Menu
▲
<Tab>, <Shift-Tab>, or
<Enter> selects field.
Item Specific Help
F9 Setup Defaults
F10 Save and Exit
Figure 4-1 Main Menu
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Table 4-1 Fields, Options and Defaults for the Main Menu
Menu Field Options Default Description
System Time: — — Sets and displays the current time. Time is in a 24 hour format
of hours:minutes:seconds with 2 digits for each. (HH:MM:SS).
Example: 16:45:57. You may change each segment of the time
separately. Move between the segments with the Tab key and/or
Shift + Tab keys.
System Date: — — Sets and displays the current date. Date is in a month/day/year
numeric format with 2 digits each for month and day and 4 digits
for year. (MM/DD/YYYY) for example: 03/20/1998. You may
change each segment of the date separately. Move between the
segments with the Tab key and/or Shift + Tab keys.
Legacy Diskette A: 1.44/1.25MB, 3.5"
Primary Master: Selects Primary Display the type of device on this ATA/ATAPI interface, if there is
Master submenu. one. Pressing the Enter key selects the Primary Master submenu
allowing additional device configuration options for this interface.
Secondary Master: CD-ROM
Four
53
Section Four
Table 4-1 Fields, Options and Defaults for the Main Menu
Menu Field Options Default Description
System Memory: 640 KB Displays the size of system memory, which is detected
automatically and cannot be changed by the setup utility.
Extended Memory: 31 MB Displays the size of extended memory which is detected
automatically and cannot be changed by the setup utility.
Language: English (US); Japanese (JP). [English (US)] The default setting differs between the US/European
and the Japanese model. Selects the display language for the BIOS.
54
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
Primary Master – Submenu
The Primary Master submenu is for the internal hard drive. Is has the capacity displayed at
the top of the screen as well as on Main menu.
Follow the instructions for Navigating Through
the Setup Utility to make any changes.
(See page 51.)
Table 4-2 shows the names of the menu fields
for the Primary Master submenu, all of the
options for each field, the default settings and
a description of the field’s function and any
special information needed to help understand
the field’s use.
Main
Primary Master [FUJITSU MHD2032AT]
Type: [Auto]
Cylinders: [6304]
Heads: [16]
Sectors: [63]
Maximum Capacity: 3253 MB
Multi-Sector Transfers: [16 Sectors]
LBA Mode Control: [Enabled]
Transfer Mode: [Fast PIO 4]
Ultra DMA Mode: [Mode 2]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Enter
Item Specific Help
User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
ATA/ATAPI drive
installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
Change Values
▲
Select Sub-Menu
Figure 4-2 Primary Master Submenu
F9 Setup Defaults
F10 Save and Exit
Four
55
Section Four
Table 4-2 Fields, Options and Defaults for the Primary Master Submenu
Menu Field Options Default Description
Type: Auto; None; [Auto] Selects the ATA/ATAPI device type. Select Auto to have the type
CD-ROM; User. automatically identified by the BIOS at POST. If None is selected,
all of the following Set-up items do not appear. Select CD-ROM
if a CD-ROM drive is installed at this connection. If User is
selected, you must specify the number of Cylinders, Heads,
and Sectors for the drive.
Cylinders: A number between 0 This item appears only when Auto is selected and the type is
and 65,535. identified as hard disk, or User is selected. When User is selected,
you can change the value. This field is changed by incrementing
(pressing the Spacebar) or by typing in the number.
Heads: A number between 1 and 16. This item appears only when Auto is selected and the type is
identified as hard disk, or User is selected. When User is selected,
you can change the value. This field is changed by incrementing
(pressing the Spacebar) or by typing in the number.
56
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Table 4-2 Fields, Options and Defaults for the Primary Master Submenu
Menu Field Options Default Description
Sectors: A number between 0 and 63. This item appears only when Auto is selected and the type is
identified as hard disk, or User is selected. When User is selected,
you can change the value. This field is changed by incrementing
(pressing the Spacebar) or by typing in the number.
Maximum Capacity: Display only. — Displays the maximum capacity of the drive calculated from the
parameters of the hard disk when Auto is selected and the type
is identified as hard disk, or User is selected.
Multi-Sector Transfers: Disabled; 2; 4; 8; 16. — This option cannot be changed when Auto is selected. Specify the
MAX 32; MAX 64; MAX 128. number of sectors per block for multiple sector transfer. MAX
refers to the size the disk returns when required.
LBA Mode Control: Enabled; Disabled. — Enables or disables logical Block Addressing in place of Cylinder,
Head, Sector addressing. This option cannot be changed when
Auto is selected.
Four
57
Section Four
Table 4-2 Fields, Options and Defaults for the Primary Master Submenu
Menu Field Options Default Description
Transfer Mode:
Standard, Fast PIO 1; Fast PIO 2;
— Selects the method for moving data to/from the drive. Autotype
Fast PIO 3; Fast PIO 4; the drive to select the optimum transfer mode. This option
Fast PIO 3 / DMA; cannot be changed when Auto is selected. Multi-word DMA
Fast PIO 4 / DMA. is automatically set to mode 1 for Fast PIO 1, Fast PIO 2,
Fast PIO 3, and set to mode 2 for Fast PIO 4 / DMA.
Ultra DMA Mode: Disabled; Mode 0; — Selects the method for moving data to/from the drive. Autotype
Mode 1; Mode 2. the drive to select the optimum transfer mode. This option
cannot be changed when Auto is selected.
58
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
ADVANCED MENU – SETTING
DEVICE FEATURE CONTROLS
The Advanced Menu allows you to:
■
Set the I/O addresses for the serial and
parallel ports.
■
Set the communication mode for the
parallel port.
■
Set the features of the keyboard.
■
Set an audio function I/O address, interrupt
level and DMA channel.
■
Select between the display panel and an
external CRT display.
■
Enable or disable compensation for
your display.
Follow the instructions for Navigating
Through the Setup Utility to make any changes.
(See page 51.)
Main Advanced Security Power Boot Info Exit
▲ ▲ ▲ ▲
I/O Device Configuration:
Keyboard Features:
Multimedia device Configuration:
Video Features:
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Table 4-3 shows the names of the menu fields
for the Advanced Menu, all of the options for
each field, the default settings and a description
Item Specific Help
Four
F9 Setup Defaults
F10 Save and Exit
Figure 4-3 Advanced Menu
of the field’s function and any special information needed to help understand the field’s use.
59
Section Four
Section Four
Table 4-3 Field Names, Options and Defaults for the Advanced Menu
Menu Field Description
I/O Device Configuration: When selected, opens the I/O Device Configuration submenu
which allows the user to modify settings for parallel and serial
ports, the floppy disk controller, and the local bus IDE adapter.
Keyboard Features: When selected, opens the Keyboard Features submenu, with
Numlock parameters.
Multimedia Device Configuration: When selected, opens the Multimedia Device Configuration
submenu, which allows setting the hardware address and
interrupt levels of audio functions.
Video Features: When selected, opens the Video Features submenu, which allows
setting of the display parameters, including routing of video
signals to different displays.
60
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
CAUTION
I/O addresses, DMA channels and
Interrupt levels can be entered in various
ways, including via the BIOS setup utility,
the control software for the I/O device, or
the hardware. If any two ports or devices,
serial or parallel, have the same I/O
address assigned your notebook will not
function normally. Please keep a record
of original settings before making any
changes in the event that a restoration is
required. See your hardware and software
documentation as well as the setup utility
to determine settings, limitations, etc.
I/O Device Configuration
Submenu of the Advanced Menu
The I/O Device Configuration submenu
provides the ability to set the I/O addresses and
interrupt levels for the parallel and serial ports,
and disk drive controllers of your notebook.
Advanced
I/O Device Configuration
Serial port A: [Enabled]
Base I/O address: [3F8h, IRQ4]
Parallel port: [Enabled]
Mode: [Bi-directional]
Base I/O address: [378h]
Interrupt: [IRQ 7]
Floppy disk controller: [Enabled]
IDE controller: [Both]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Figure 4-4 I/O Device Configuration Submenu
Follow the instructions for Navigating
Through the Setup Utility to make any changes.
(See page 51.)
Item Specific Help
Configure serial port A
using options:
[Disabled]
No configuration
[Enabled]
User configuration
[Auto]
BIOS or OS chooses
F9 Setup Defaults
F10 Save and Exit
Four
61
Section Four
CAUTION
The BIOS will warn you if there is a
resource conflict by placing a yellow
asterisk next to the device(s) reporting
(a) conflict.
Table 4-4 shows the names of the menu fields
for the I/O Device Configuration submenu, all
of the options for each field, the default settings
and a description of the field’s function and any
special information needed to help understand
the field’s use.
62
POINT
To prevent IRQ and address conflicts,
avoid changing the default settings.
If you must change the settings, you
can call 1-800-8FUJITSU for
technical assistance.
POINT
All I/O addresses in Table 4-4 are
in hexadecimal.
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Table 4-4 Fields, Options and Defaults for the I/O Device Configuration Submenu of the Advanced Menu
Menu Field Options Default Description
Serial Port A: Disabled; Enabled; Auto. [Enabled] Configures the serial port A using either no configuration
(Disabled), a user defined configuration (Enabled), or by
allowing the BIOS or OS to choose the configuration (Auto).
Base I/O address: 3F8h, IRQ4; 2F8h, IRQ3; [3F8h, IRQ4] Allows user to set the serial port base I/O address when port A
3E8h, IRQ4; 2E8h, IRQ3. is Enabled.
Parallel port: Disabled; Enabled; Auto. [Enabled] Configures the parallel port using either no configuration
(Disabled), a user defined configuration (Enabled), or by
allowing the BIOS or OS to choose the configuration (Auto).
Mode: Output Only; [Bi-directiona1] When the parallel port is enabled this option is available allowing
Bi-directional; ECP. the user to set the mode for the parallel port. Bi-directional allows
two-way transfer of information between your notebook and a
connected parallel device. Output Only (Half Duplex) allows
information to be transferred in only one direction, from your
notebook to the printer or similar device. ECP Mode allows
communication with the ECP class of parallel I/O devices.
Four
63
Section Four
Table 4-4 Fields, Options and Defaults for the I/O Device Configuration Submenu of the Advanced Menu
Menu Field Options Default Description
Base I/O address: 378h; 278h; 3BCh. [378h] Allows user to set the parallel port base I/O address when the
parallel port is Enabled.
Interrupt: IRQ 5; IRQ 7. [IRQ 7] Allows user to set the parallel port interrupt when the parallel
port is Enabled.
Floppy disk controller: Disabled; Enabled. [Enabled] Enables and disables the floppy disk drive controller for fixed
floppy disk drive port.
IDE controller Both; Disabled; [Both] Enables and disables the integrated IDE controller.
Primary; Secondary.
64
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
Keyboard Features Submenu
The Keyboard Features submenu is for setting
the parameters of the integrated keyboard.
Follow the instructions for Navigating
Through the Setup Utility to make
any changes. (See page 51.)
Table 4-5 shows the names of the menu fields
for the Keyboard Feature submenu, the default
settings and a description of the field’s function
and any special information needed to help
understand the field’s use.
Main Advanced Security Power Savings Exit
Keyboard Features
Numlock: [Auto]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Figure 4-5 Keyboard Features Submenu
Item Specific Help
Selects Power-on state
for Numlock.
Four
F9 Setup Defaults
F10 Save and Exit
65
Section Four
Section Four
Table 4-5 Fields, Options and Defaults of the Keyboard Submenu of the Advanced Menu
Menu Field Options Default Description
Numlock: Off; On; Auto. [Auto] Sets the NumLock function state when the computer
completes booting.
66
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
Multimedia Device Configuration Submenu
The Multimedia Device Configuration submenu is for setting the features of the built-in
audio functions. Follow the instructions for
Navigating Through the Setup Utility to make
any changes. (See page 51.)
Table 4-6 shows the names of the menu fields
for the Multimedia Device Configuration submenu, all of the options for each field, the
default settings and a description of the field’s
function and any special information needed
to help understand the field’s use.
POINT
All I/O addresses in Table 4-6 are
in hexadecimal.
Main Advanced Security Power Savings Exit
Multimedia Device Configuration
Sound: [Enabled]
Base I/O address: [220-22Fh]
WSS I/O address: [530h-53Fh]
FM I/O address: [388h-38Bh]
Interrupt: [IRQ 5]
1st DMA channel: [DMA 1]
2nd DMA channel: [DMA 0]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
Figure 4-6 Multimedia Device Configuration Submenu
▲
Select Sub-Menu
Item Specific Help
Configure sound device
using options:
[Disabled]
No configuration
[Enabled]
User configuration
[Auto]
BIOS or OS chooses
configuration
F9 Setup Defaults
F10 Save and Exit
Four
67
Section Four
Section Four
Table 4-6 Fields, Options and Defaults of the Multimedia Device Configuration Submenu of the Advanced Menu
Menu Field Options Default Description
Sound: Disabled; Enabled; Auto. [Enabled] Allows BIOS support for sound to be enabled or disabled. When
set to Auto, the BIOS or OS will choose the proper sound configuration settings and some of the following items will not appear.
Base I/O address: 220-22Fh; 240-24Fh; [220-22Fh] When Sound is Enabled, this option is available allowing the user
260-26Fh; 280-28Fh. to set the base I/O address for the sound device.
WSS-I/O address: 530h-53Fh; 540h-54Fh; [530h-53Fh] When Sound is Enabled, this option is available allowing the user
550h-55Fh; 560h-56Fh. to set the I/O address for the WSS.
FM I/O address: 388h-38Bh; 390h-393h; [388h-38Bh] When Sound is Enabled, this option is available allowing the user
398h-39Bh; 3A0h-3A3h. to set the base I/O address for the FM device.
Interrupt: IRQ 5; IRQ 7; IRQ 9; [IRQ 5] When Sound is Enabled, this option is available allowing the user
IRQ 11. to set the interrupt for the sound device.
1st DMA channel: DMA 0; DMA 1; [DMA 1] When Sound is Enabled, this option is available allowing the user
DMA 3. to set the DMA channel for the sound device.
2nd DMA channel: DMA 0; DMA 1; [DMA 0] When Sound is Enabled, this option is available allowing the user
DMA 3. to set the DMA channel for the sound device.
68
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
Video Features Submenu
The Video Features Submenu is for setting the
display parameters. Follow the instructions for
Navigating Through the Setup Utility to make
any changes. (See page 51.)
Table 4-7 shows the names of the menu fields
for the Video Features submenu, all of the
options for each field, the default settings and
a description of the field’s function and any
special information needed to help understand
the field’s use.
Main Advanced Security Power Savings Exit
Video Features
Display [Flat-Panel]
Compensation: [Disabled]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Item Specific Help
Select display
terminal.
Four
F9 Setup Defaults
F10 Save and Exit
Figure 4-7 Video Features Submenu
69
Section Four
Section Four
Table 4-7 Fields, Options and Defaults for the Video Features Submenu of the Advanced Menu
Menu Field Options Default Description
Display: Flat-Panel; CRT; [Flat-Panel] Selects where the video signal will be routed.
Simultaneous.
Compensation: Enabled; Disabled. [Disabled] Enables or disables compensation which controls spacing on the
display. For C340 model when enabled displays with less then
800 x 600 pixel resolution will still cover the entire screen. For
C350 model when enabled displays with less then 1024 x 768 pixel
resolution will still cover the entire screen.
Exiting from the Advanced Menu
When you have finished setting the parameters
on the Advanced Menu, you can either exit
from setup utility or move to another menu.
If you wish to exit from setup utility, press the
Esc key to go to the Exit menu. If you wish to
move to another menu, use the cursor keys.
70
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
SECURITY MENU – SETTING THE
SECURITY FEATURES
The Security menu allows you to set up the data
security features of your notebook to fit your
operating needs and to view the current data
security configuration. Follow the instructions
for Navigating Through the Setup Utility to
make any changes. (See page 51.)
Table 4-8 shows the names of the menu fields
for the Security menu, all of the options for
each field, the default settings and a description
of the field's function and any special information needed to help understand the field's use.
The default condition is no passwords required
and no write protection.
Main Advanced Security Power Boot Info Exit
Supervisor Password Is: Clear
User Password Is: Clear
Set Supervisor Password [Enter]
Set User Password [Enter]
Diskette access: [All]
Password on boot: [Disabled]
Power Management Security [Disabled]
Fixed disk boot sector: [Normal]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Item Specific Help
Supervisor Password
controls access to the
setup utility.
Four
F9 Setup Defaults
F10 Save and Exit
Figure 4-8 Security Menu
71
Section Four
POINT
If you set a password, write it down and
keep it in a safe place. If you forget the
password you will have to contact your
support representative to regain access to
your secured functions and data.
CAUTION
Entering a password incorrectly 3 times
in a row will cause the keyboard and
mouse to be locked out and the warning
[System Disabled] to be displayed.
If this happens restart the computer by
turning off and on the power with the
power switch and use the correct
password on reboot.
72
POINT
If you make an error when re-entering
the password a [Warning] will be
displayed on the screen. To try again
press the Enter key and then retype the
password. Press the Esc key to abort
the password setting process.
LifeBook C Series from Fujitsu
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Configuring Your LifeBook C Series
Table 4-8 Fields, Options and Defaults for the Security Menu
Menu Field Options Default Description
Supervisor Password is: — Clear. A display-only field. Set is displayed when the system
supervisor password is set and Clear when it is not.
User Password is: — Clear. A display-only field. Set is displayed when the general user
password is set, and Clear when it is not.
Set Supervisor Password: [Enter] — Sets, changes or cancels the Supervisor Password. The Supervisor
Password may be up to eight characters long and must include
only lower-case letters or numbers. To cancel a password press the
Enter key instead of entering characters in the Enter New
Password field and in the Re-enter New Password field. When a
Supervisor Password is set it must be used to access the BIOS
setup utility.
Set User Password: [Enter] — (This field can only be accessed if the Supervisor Password is set.)
Sets, changes or cancels the User Password. The User Password
may be up to eight characters long and must include only lower
case letters or numbers. To cancel a password press the Enter key
instead of entering characters in the Enter New Password field and
in the Re-enter New Password field. When a User Password is set
it must be used to access the BIOS setup utility.
Four
73
Section Four
Section Four
Table 4-8 Fields, Options and Defaults for the Security Menu
Menu Field Options Default Description
Diskette access: All; Supervisor Only. All. Sets the floppy disk access to be secured for access only with
Supervisor's password or by all users with a password. The default
is all users with a password.
Password on boot: Enabled; Disabled. Disabled. When set to Enabled, a password (User or Supervisor) is required
after the Power On Self Test (POST) before the operating system
will be read from a disk. When set to Disabled no password is
required. If no Supervisor Password is set this feature is not
available and no password is required.
Power Management
Security: Enabled; Disabled. Disabled. When set to Enabled, a password, is required upon Resume from Suspend
or Save-to-Disk Mode. This password is identical to power of password.
Fixed disk boot sector: Normal; Write Protect. [Normal]
Exiting from the Security Menu
When you have finished setting the parameters
on the Security Menu, you can either exit from
setup utility or move to another menu. If you
wish to exit from setup utility, press the Esc key
to go to the Exit Menu. If you wish to move to
another menu, use the cursor keys.
74
Sets write protection for the sector of the boot disk which contains
the operating system. When set to Write Protect, the BIOS will
prevent any application from writing into the sector of the internal
hard drive containing the operating system. When set to Normal
there is no BIOS protection of the operating system.
POINT
Boot sector protection must be set to [Normal] to install or
upgrade an operating system.
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
POWER MENU –
SETTING POWER MANAGEMENT
FEATURE CONTROLS
The Power menu allows you to set and change
the power management parameters. Follow the
instructions for Navigating Through the Setup
Utility to make any changes. (See page 51.)
Table 4-9 shows the names of the menu fields
for the Power menu, all of the options for each
field, the default settings and a description of
the field's function and any special information
needed to help understand the field's use.
POINT
Most power management parameters
which are BIOS related can be set from
PMSet 98 and the Power Management
control panel. Changing PMSet's own
options and settings does not change
what is stored in the CMOS memory.
Main Advanced Security Power Boot Info Exit
Power Savings: [Customized]
Hard Disk Timeout: [Off]
Video Timeout: [Off]
Idle Mode: [On]
Standby Timeout: [4 Minutes]
Auto Suspend Timeout: [15 Minutes]
Suspend Mode: [Suspend]
Auto Save To Disk: [Off]
Resume On Modem Ring: [Off]
Resume On Time: [Off]
Resume Time: [00:00:00]
▲
Advanced Features
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Item Specific Help
Select Power Management
Mode. Choosing modes
changes system power
management settings.
Maximum Power Savings
conserves the greatest
amount of system power
while Maximum
Performance conserves
power but allows
greatest system
performance. To alter
these setting, choose
Customize. To turn off
power management,
choose Disable.
F9 Setup Defaults
F10 Save and Exit
Figure 4-9 Power Menu
Four
75
Section Four
Section Four
Table 4-9 Fields, Options and Defaults for the Power Menu.
Menu Field Options Default Description
Power Savings: Customized; Maximum [Customized] Sets the power savings parameters to a factory installed
Power Savings; Maximum combination of parameters, a custom set of parameters set by
Performance, Disabled. you or no power saving features.
Hard Disk Timeout: 30 seconds to [Off] Sets the length of time that the hard drive can be inactive before
20 minutes; Off. your notebook automatically turns off the power to the hard drive
controller and drive motor. If you choose a factory installed
combination of parameters this field will display the setting. If
you choose to customize the parameters you will be able to set
this yourself. The options available vary from Off, which has no
inactivity shutoff, to 20 minutes.
Video Timeout: 2 minutes to [Off ]
Sets the length of time without any user input device activity
20 minutes; Off. before the display is turned off. If you choose a factory combination
of parameters, this field will display the setting. If you choose to
customize the parameters, you will
be able to set this yourself. Off
has no inactivity shutoff.
Idle Mode: On; Off. [On] Turns on and off the slow down of the CPU during periods of
inactivity. When this is turned on the CPU clock slows by the
amount set in the Advanced submenu when there is no activity
for 16 seconds or more. Normal speed resumes automatically as
soon as there is any activity.
76
LifeBook C Series from Fujitsu
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Configuring Your LifeBook C Series
Table 4-9 Fields, Options and Defaults for the Power Menu.
Menu Field Options Default Description
Standby Timeout: 1 minute to [4 Minutes] Sets the length of time without any user input device activity
16 minutes; Off. before the CPU is set to half speed and the display and the hard
drive are turned off. If you choose a factory combination of
parameters this field will display the setting. If you choose to
customize the parameters you will be able to set this yourself.
Auto Suspend Timeout: 5 to 60 minutes; Off. [15 Minutes]
Sets the length of time without any I/O activity before your not
book goes into Suspend mode. If you choose a factory combination
of parameters this field will display that setting. If you choose to
customize the parameters you will be able to set this yourself. Off
has no inactivity suspension.
Suspend Mode: Suspend; Save-to-Disk. [Suspend] Sets the form of suspension state. If you choose Suspend, you will
suspend operation with power to system memory, and everything
else powered down or in a very low power state. If you choose
Save-to-Disk your notebook will save all of system memory and
the operating parameters to the hard drive before turning your
notebook to the pseudo-off condition.
Four
77
Section Four
POINT
When resuming from a Save-to-Disk
suspension there will be a delay while
the contents of system memory and
operating parameters are loaded from
the hard drive.
CAUTION
In Save-to-Disk mode there is no
indication on the Status Indicator to let
you know you are suspended rather than
shut off from the power switch.
78
LifeBook C Series from Fujitsu
LifeBook C Series from Fujitsu
Configuring Your LifeBook C Series
Configuring Your LifeBook C Series
Table 4-9 Fields, Options and Defaults for the Power Menu.
Menu Field Options Default Description
Auto Save to Disk: Off; After 1 Hour. [Off] When set to After 1 Hour your notebook will automatically
save all of system memory and the operating parameters to the
hard drive and go to the pseudo-off if you leave your notebook in
Suspend mode for a peroid of time.
Resume On On; Off. [Off] Sets whether or not to Resume from a suspension state when a
Modem Ring: message is received by telephone line. This feature is not available
if the Save-to-Disk mode is enabled. This feature applies to
internal, external.
Resume On Time: On; Off. [Off ] Sets whether or not to resume from a suspension state at a
designated time. This feature is available from either the Suspend
mode or the Save-to-Disk mode.
Resume Time: – – Sets the designated time, on a 24-hour clock, when the notebook
is to automatically resume operation from the Suspend state.
The format of the clock setting is hours:minutes:seconds. Each
segment of the time is set separately, either by incrementing or by
typing in the numbers. You move between the segments with the
Tab key or the Shift+Tab keys. This only applies when Resume on
Time is set to On.
Four
Advanced Features: – – When selected, opens the Advanced Features submenu which
allows setting additional power saving parameters.
79
Section Four
Section Four
Table 4-9 Fields, Options and Defaults for the Power Menu.
Factory Installed Values for Power Saving Profiles
Hard Disk Timeout Video Timeout Idle Mode Standby Timeout Auto Suspend Timeout
Customized: Off. Off. On. 4 Minutes. 15 Minutes.
Maximum 30 Seconds. 2 Minutes. On. 1 Minute. 5 Minutes.
Power Savings:
Maximum Off. Off. Off. Off. 15 Minutes.
Performance:
Disabled: Off. Off. Off. Off. Off.
Sample Customized 2 Minutes. 1 Minute. On. 1 Minute. 5 Minutes.
Profile: (To get even
better battery life keep
the display and volume
settings as low as
possible and use the
custom setting to set
the parameters as shown.)
80
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
Advanced Features Submenu
of the Power Menu
The Advanced Features submenu is for setting
some non-time related power saving parameters. Follow the instructions for Navigating
Through the Setup Utility to make any changes.
(See page 51.)
Table 4-10 shows the names of the menu fields
for the Video Features submenu, all of the
options for each field, the default settings and
a description of the field's function and any
special information needed to help understand
the field's use.
Exiting from the Power Menu
When you have finished setting the parameters
on the Power menu, you can either exit from the
Setup utility or move to another menu. If you
wish to exit from Setup utility press the Esc key
to go to the Exit menu. If you wish to move to
another menu, use the cursor keys.
Power
Advanced Features
SUS/RES Switch: [Enabled]
Lid Closure Suspend: [On]
Lid Open Resume: [On]
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Enter
Item Specific Help
Set the SUS/RES Switch.
Change Values
▲
Select Sub-Menu
Figure 4-10 Advanced Features Submenu
F9 Setup Defaults
F10 Save and Exit
Four
81
Section Four
Section Four
Table 4-10 Fields, Options and Defaults for the Advanced Features Submenu of the Power Menu
Menu Field Options Default Description
SUS/RES Switch: Enabled; Disabled. [Enabled] Sets the function of the Power button when your notebook
is in an active state. The resume function can not be
disabled as it works regardless of any other settings.
Lid Closure Suspend: On; Off. [On] Enables and disables having closure of the Display panel put your
notebook in Suspend mode.
Lid Open Resume: On; Off. [On] Enables and disables having opening the Display panel acting as
an automatic resume.
82
Configuring Your LifeBook C Series
LifeBook C Series from Fujitsu
BOOT MENU – SELECTING THE
OPERATING SYSTEM SOURCE
The Boot Menu is used to select the order
in which the BIOS searches sources for the
operating system.
Table 4-11 shows the names of the menu fields
for the Boot menu, all of the options for each
field, the default settings and a description of
the field's function and any special information
needed to help understand the field's use.
Main Advanced Security Power Boot Info Exit
QuickBoot Mode: [Enabled]
Boot-time Diagnostic Screen: [Disabled]
▲
Boot Device Priority
F1 Help
ESC Exit
Select Item
Select Menu
PhoenixBIOS Setup Utility
-/Space
Change Values
Enter
▲
Select Sub-Menu
Allows the system to
skip certain tests
while booting. This
will decrease the
time needed to boot
the system.
Item Specific Help
F9 Setup Defaults
F10 Save and Exit
Figure 4-11 Boot Menu
Four
83
Section Four
Section Four
Table 4-11 Fields, Options and Defaults for the Boot Menu
Menu Field Options Default Description
QuickBoot Mode: Enabled; Disabled. [Enabled] Turns on and off booting with a truncated set of Power On Self
Test. (Fewer tests mean faster turn on.)
Boot-time Diagnostic Screen: Enabled; Disabled. [Disabled] Turns on and off display of test results instead of Fujitsu logo
screen during Power On Self Test.
Boot Device Priority: Selects the Boot Device — This menu allows setting up the source for the operating system.
Priority submenu.
84
