Fujitsu FTP-644MCL002, FTP-624DCL, FTP-624DSL Overview

1

FTP-644MCL001/002/FTP-624DCL/DSL

■ OVERVIEW

FTP-644MCL/FTP-624DCL/DSL Series is a high speed line
thermal printer driven by battery, printing on 4-inch wide paper
(112 mm/ 114 mm).

The printer is compact and lightweight, and the design allows
easy head maintenance, head cleaning and head replacement.

This printer is suitable for a variety of applications, such as hand
held terminals, POS terminals, ticket machines, coupon
machines, label printers, etc.

■ HIGHLIGHTS

• High speed printing

It can print at 50 mm/s (400 dotlines/s) maximum by using
Fujitsu

Components' unique head drive control.

• Compact and lightweight

The printer has a low profile of only 20 mm, and a light weight
of approximately 125 g.

• Low power consumption

The peak current for head drive is only 3.5 A (8.5VDC, 128
dots on).

• Easy head access

It is designed for easy head cleaning and head replacement.

• Paper auto loading function

Thermal paper can be loaded without head-up lever
operation.

• UL recognized

File No. E171434

BATTERY DRIVE, FTP-604 Series
4” TYPE MECHANISM AND INTERFACE BOARD

FTP-644MCL001

FTP-624DCL/DSL002

FTP-624CU102

FTP-644MCL001/002/FTP-624DCL/DSL002

2

■ DESIGNATION

*1: 001 is for front paper insertion (curl path) and 002 is for rear paper insertion (straight path).
*2: 002 supports ANK, 102 support ANK and Kanji.
*3: 002 supports ANK, 103 support ANK and Kanji.

Part number FTP-644MCL001/002
Printing method Thermal-sensitive line dot method
Dot structure 832 dots/line
Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density
Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch
Effective printing area 104 mm
Paper width (MCL001) 112 mm
Paper width (MCL002) 114 mm
Paper thickness 60 to 100 µ m*

1

Number of columns 104 columns/line (16 × 8 dot font)

400 dotlines/s (50 mm/s)
[Condition] 1 ply, printing on high sensitive thermal paper,
8 columns of “H” /line, double density 16 × 8 dot font,
room temperature, 8.5 VDC drive

JIS ANK : 128 International : 195

Character types ASCII : 31

24 × 12 dots, (3.0 × 1.5 mm), 69 columns
16 × 8 dots, (2.0 × 1.0 mm), 104 columns
16 × 16 dots, (4.0 × 2.0 mm), 52 columns
24 × 24 dots, (6.0 × 3.0 mm), 34 columns

Interface Centronics / RS-232C

■ GENERAL SPECIFICATIONS

SpecificationsItem

Maximum printing speed

Character composition, dimensions (H×W),
Number of characters

(Continued)

Printer mechanism FTP-644MCL001/002*

1

RS-232C

LSI Micro Controller Unit FTP-624CU102

Thermal head cables FTP-624Y002, FTP-624Y003
Parallel interface cable FTP-441Y201

Cables

Serial interface cable FTP-624Y301
Power cable (logic, head and motor) FTP-621Y401, FTP-621Y601

Part numberItem

FTP-624DCL002*

2

FTP-624DSL002*

3

Centronics

Interface Board

FTP-644MCL001/002/FTP-624DCL/DSL002

3

For head

Voltage: 4.2 to 8.5 VDC (equivalent to 2 Lithium lon batteries)
Peak current: approx. 3.5 A (conditions: room temp., 7.2VDC, 128 dots on)

For motor

Voltage: 4.2 to 8.5 VDC (equivalent to 2 Lithium lon batteries)
Peak current: approx. 0.8 A (conditions: room temp., 7.2 VDC)

For logic

Voltage: 5 VDC ± 5%
Current: 0.2 A maximum

Mechanism 138 (W) × 46 (D) × 20 (H) mm (excluding lever and knob diameter)

Dimensions

Interface board 131 (W) × 89(D) × 24 (H) mm
Weight (Mechanism) approximately 125 g
Expected life Mechanism Pulse durability: 1 × 108 pulse/dot (using Fujitsu Takamisawa's standard

driving method)

Wear resistance: 50 km (at 12.5% print ratio)

Operating temperature 0 to +50°C*

2

Operating humidity 20 to 85% RH (no condensation)

Storage temperature –20 to +60°C

Storage humidity 5 to 95% RH (no condensation)

Head temperature By thermistor (applied energy control, abnormal temperature detection)
Detection Paper out/Mark detect By photointerrupter

Head-up By microswitch

For front insertion use (112 mm width) : FTP-040PU001, FTP-040PG021
For rear insertion use (114 mm width) : FTP-040P0020, FTP-040PG106

Recommended thermal sensitive paper

In Europe (112 mm width) :FTP-041P0060-45

· Oji Paper : PD160R, PD170R, PD150R

· NIPPON Paper : TF50KS-E4, TF60KS-E,TF50KS-E

· MITSUBISHI Paper Mills : P220VBB-1, AFP-235

SpecificationsItem

(Continued)

Power
supply

Environmental
conditions

*1: There may be exceptions.
*2: Guarantee +5°C to +40°C.

FTP-644MCL001/002/FTP-624DCL/DSL002

4

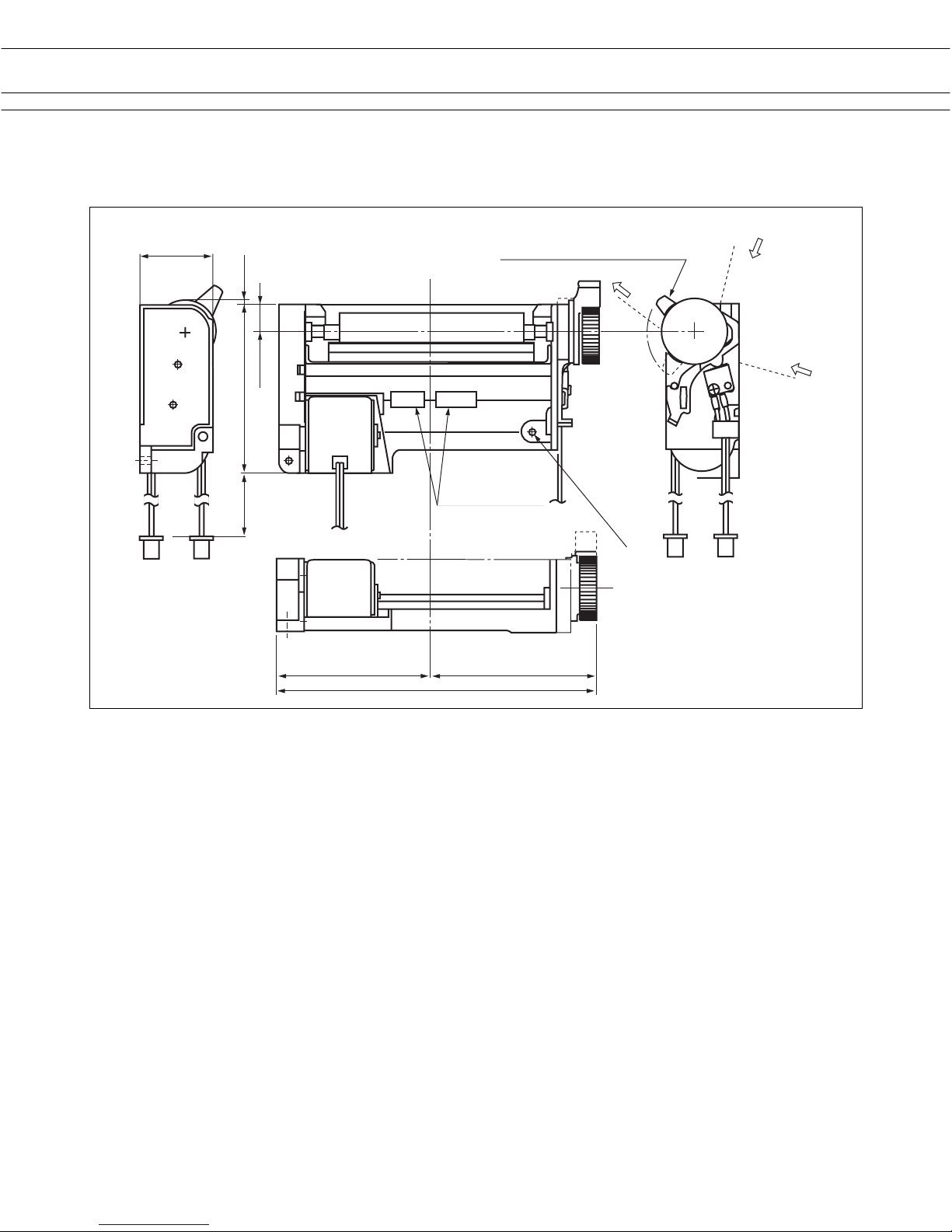

■ DIMENSIONS

Unit: mm

20.1

(150)

(7.5)

45.5

1.5

65.771.8

±1

(137.5)

HEAD CONNECTOR

2-MOUNTING HOLE

CENTER OF PAPER

HEAD UP LEVER (AT HEAD DOWN)

PAPER INSERTION
(MCLOO1)

PAPER INSERTION
(MCLOO2)

Printer mechanism

FTP-644MCL001/002/FTP-624DCL/DSL002

5

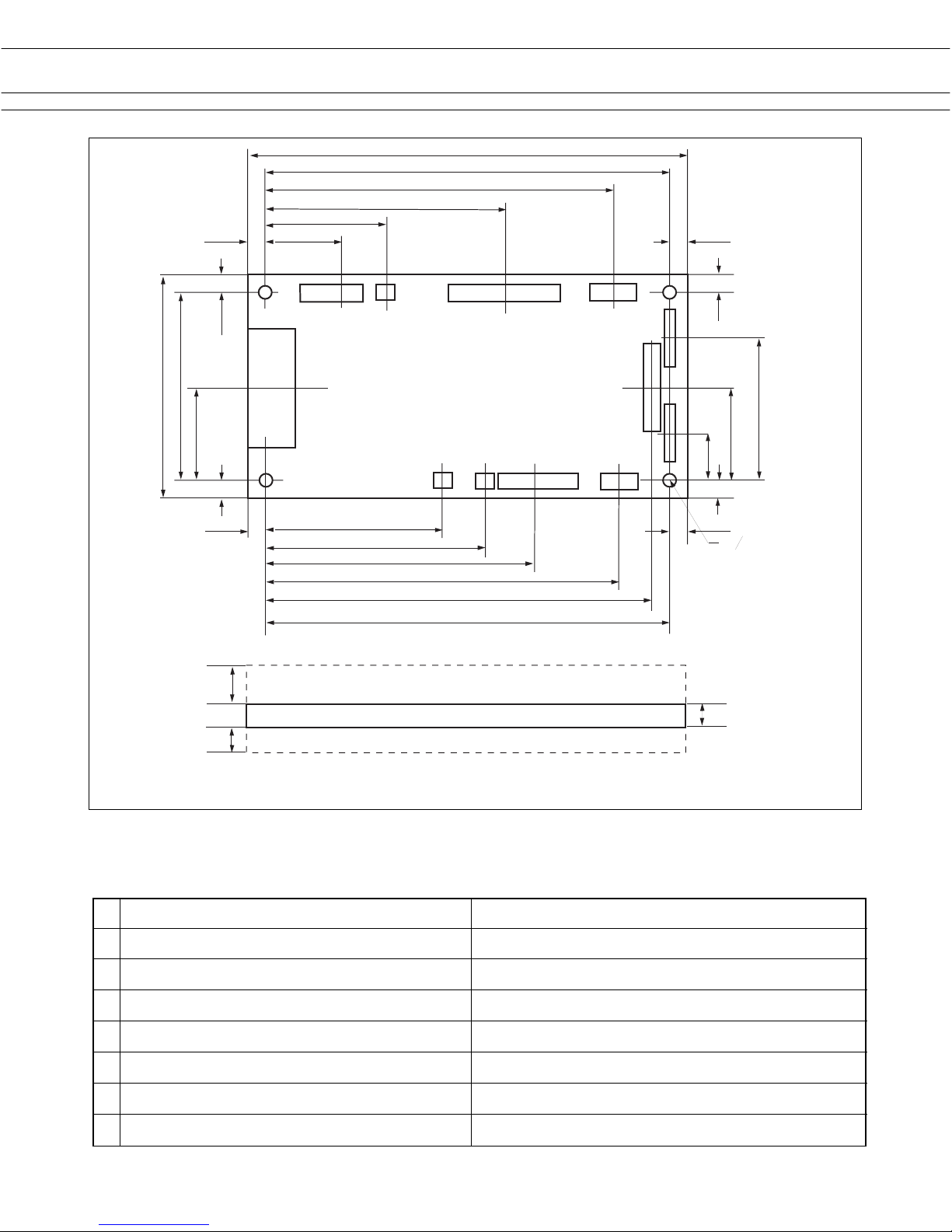

Interface board

Unit: mm

88.9

78.7

39.4

39.4

5.1

15.2

5.15.1

5.1

5.1

5.1

5.1

5.1

120.7

105.4

120.7

105.4

130.8

73.7

CN1

CN11

CN5

CN3

CN8

CN4

26.7

CN6

CN7

52.1

CN2

86.4

59.7

CN12

CN10

71.1

33.0

CN9

Mounting Height

Mounting Height

17.0

5.0

.6

4-03.6

114.2

* CN9 on FTP-624DSL only
** CN8, CN11, CN12 not used

■ FUNCTION

ITEM ITEM

1. Test printing 8. Motor power save

2. Paper-out detection 9. Mark detection

3. Paper near end detection 10. MCU trouble detection

4. Head-up detection 11. Power on/off sequence protection

5. Abnormal temp. of thermal head detection 12. Motor protection

6. Blown fuse detection 13. Hardware timer

7. Abnormal voltage detection of head

FTP-644MCL001/002/FTP-624DCL/DSL002

6

■ CONNECTOR PIN ASSIGNMENT FOR PRINTER MECHANISM

1. Thermal Head

Head side 1 : B11B-PH-K-S-2.2 (J.S.T.) or equivalent
2: B10B-PH-K-S-2.2 (J.S.T.) or equivalent
Board side 1: PHR-11 (J.S.T.) or equivalent
2: PHR-12 (J.S.T.) or equivalent

*1: Symbol: " " means a negative logic signal

Motor

Thermal head heat sink

Head up level

Connector Pin No.

3. Sensor connectors

Sensor : PHR-5 (J.S.T.) or equivalent
Board side : B5B-PH-K-S (J.S.T.) or equivalent

.oNlangiStnemmoC

1NESVrosnesrepaprofrewoP
2EHProttimeretpurretniotohP
3KHPedohtacretpurretniotohP
41WS1hctiwstcetedpudaeH
52WS2hctiwstcetedpudaeH

.oNlangiStnemmoC

1B noitaticxeliocrotomgnippetS
2B noitaticxeliocrotomgnippetS
3A noitaticxeliocrotomgnippetS
4A noitaticxeliocrotomgnippetS

.oNlangiStnemmoC

1HVdaehrofrewoP
2HVdaehrofrewoP
3DNGdnuorgdaeH
4DNGdnuorgdaeH
5*HT

1

noitcetederutarepmeT
61BTS1langiselbanetnirP
72BTS2langiselbanetnirP
83BTS3langiselbanetnirP
94BTS4langiselbanetnirP

01DDVcigolrofrewoP

.oNlangiStnemmoC

15BTS5langiselbanetnirP
26BTS6langiselbanetnirP
37BTS7langiselbanetnirP
48BTS8langiselbanetnirP
5KLCkcolcnoissimsnartataD
6TALlangisgnihctalatadtnirP
7NIDlangistuptuoatadtnirP
8DNGdnuorgdaeH
9DNGdnuorgdaeH

01HVdaehrofrewoP
11HVdaehrofrewoP

Connector Thermal Head 1

Connector Thermal Head 2

1, 2, 3, ...............9, 10 1, 2, 3, ...............10, 11

FTP-644MCL001/002/FTP-624DCL/DSL002

7

© 2004 Fujitsu Components America, Inc. All company and product names are trademarks or registered
trademarks of their respective owners. Rev. 11/15/2004.
