20” LCD Color Monitor FSC P20W-3
-1-
Service
Service
Service
Horizontal Frequency
30kHz – 82kHz
TABLE OF CONTENTS
Description Page Description Page
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
Table Of Contents.......…….................……...........…........1
Revision List.…........................………................……......2
Important Safety Notice.………….…..................……......3
1.Monitor Specification..............................………........4
2.LCD Monitor Description…………………………….......5
3.Operation Instruction…………...............……...........6
3.1.General Instructions...........................…...........6
3.2.Control Button…………….…..............……...............6
3.3 Adjusting the Picture...........................…............7
4.Input/Output Specification............……………............10
4.1.Input Signal Connector............………….................10
4.2.Factory Preset Display Modes.........................12
4.3.Power Supply Requirements.........................12
4.4.Panel Specification.....………………..................13
5.Block Diagram…….…...................…………................15
5.1.Software Flow Chart……………………….............15
5.2.Electrical Block Diagram…………..…..….......17

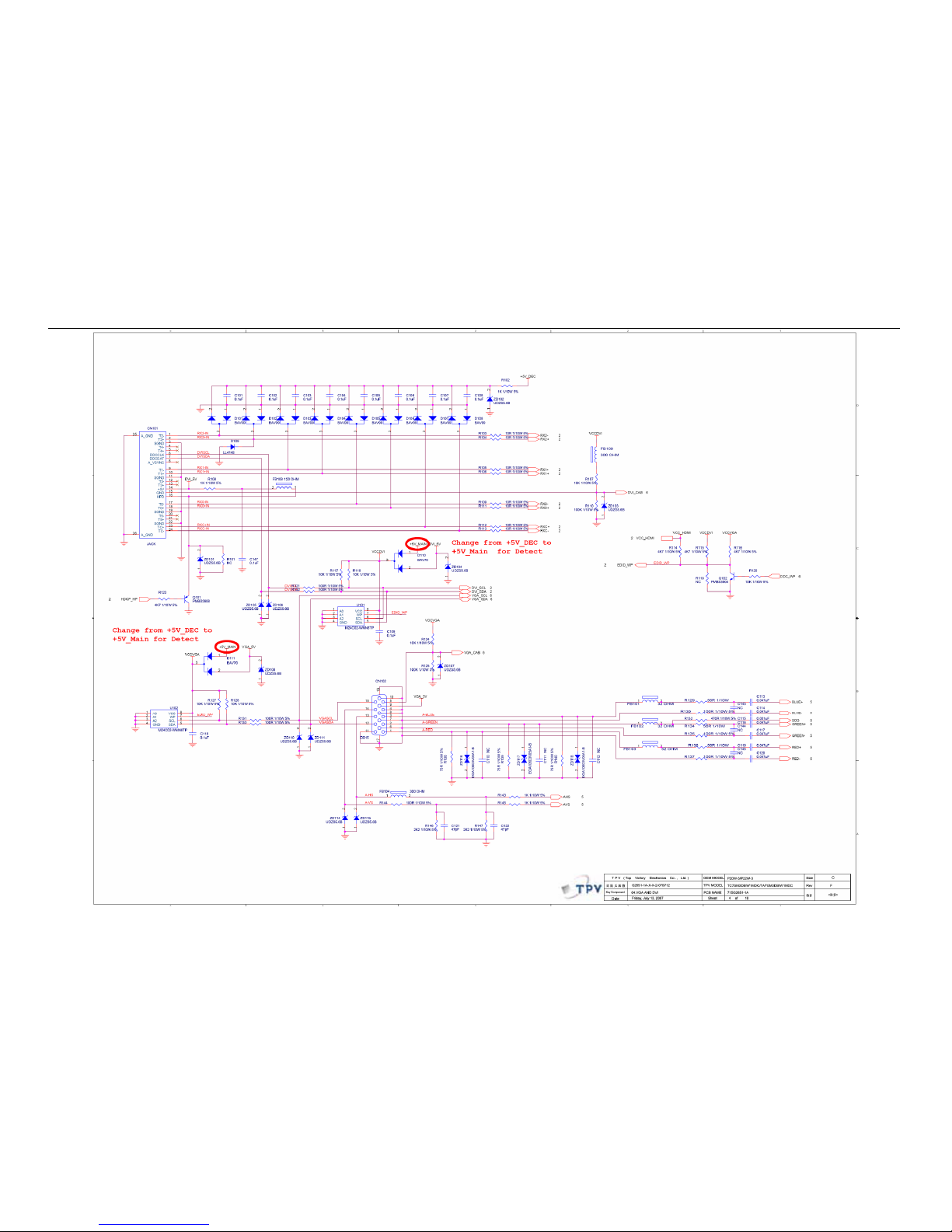

6.Schematic……………...............................….....18

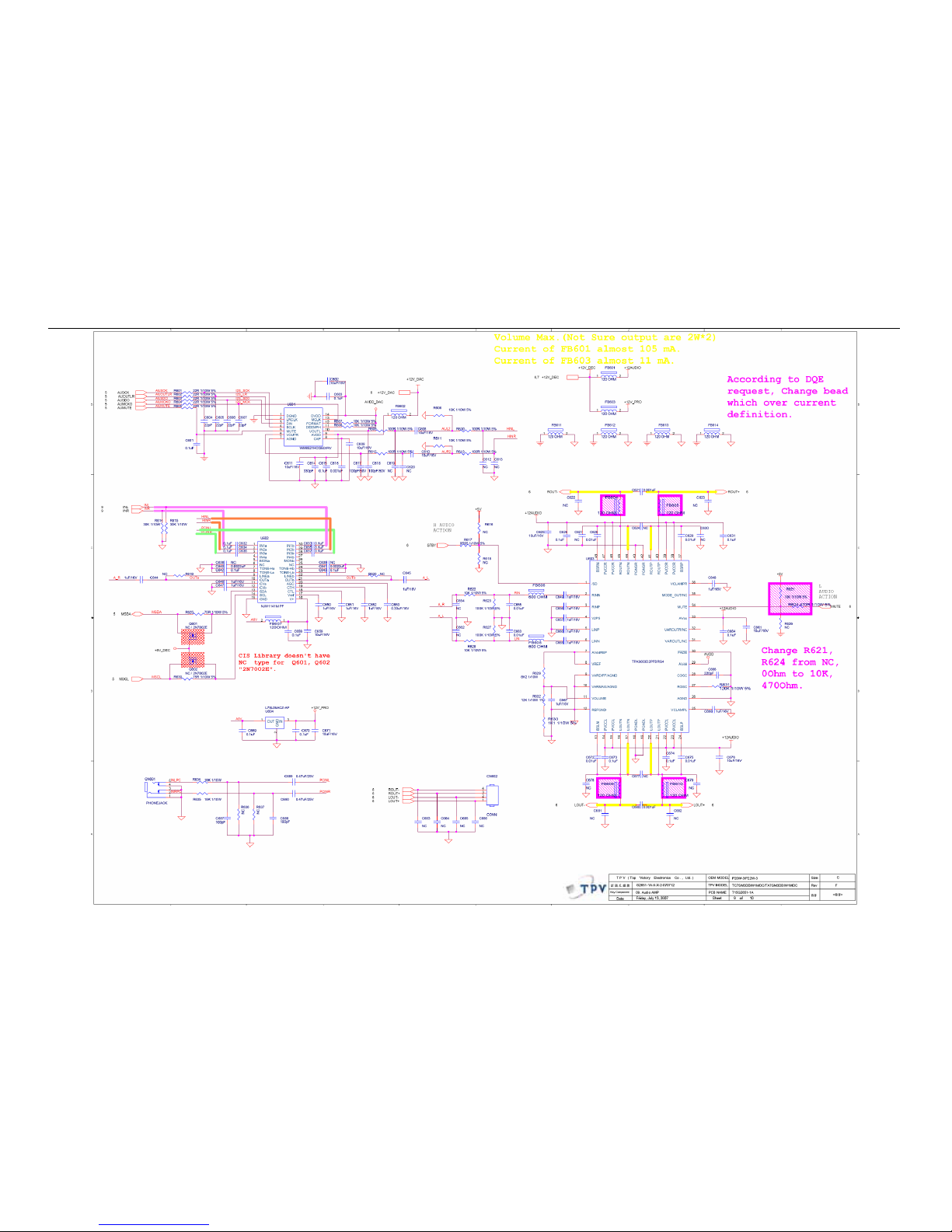

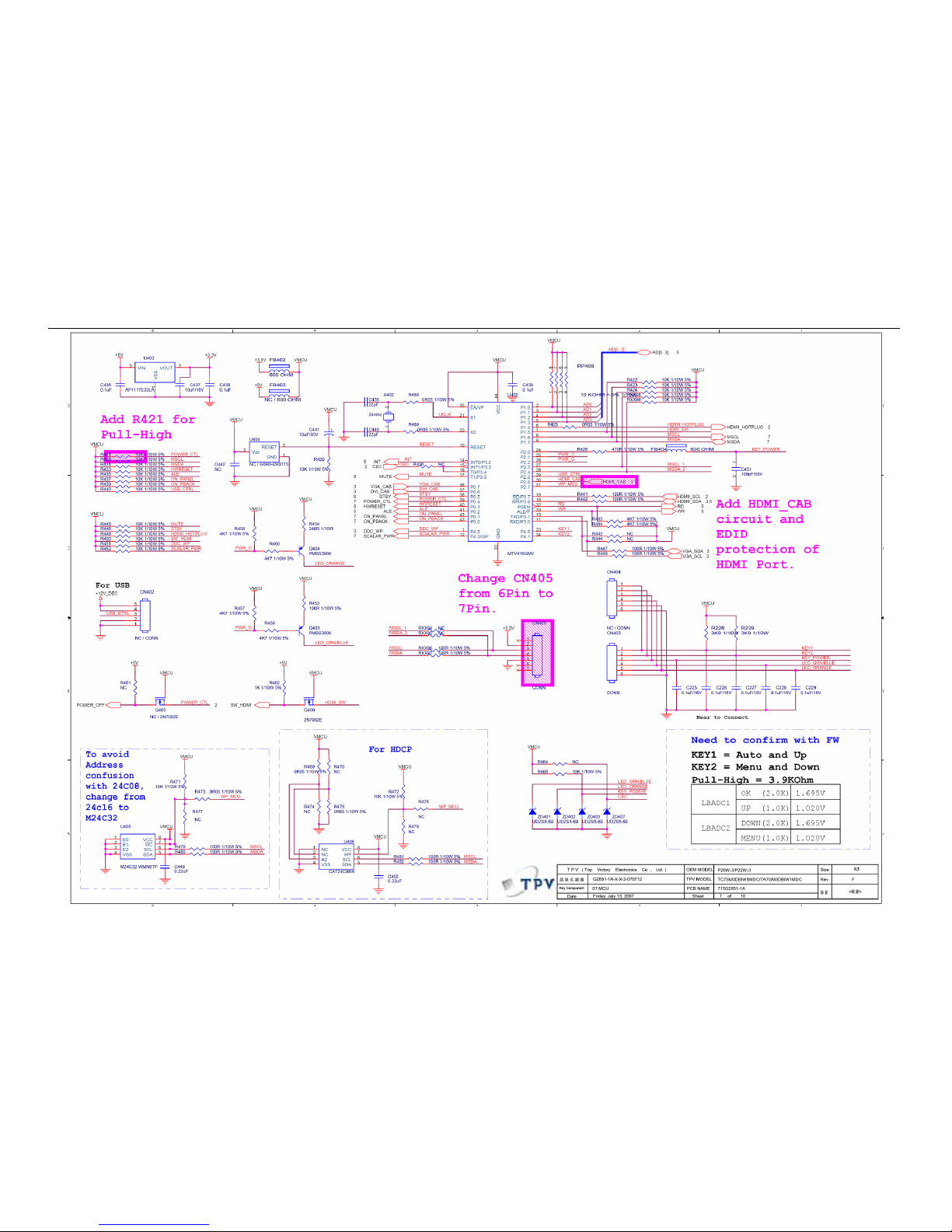

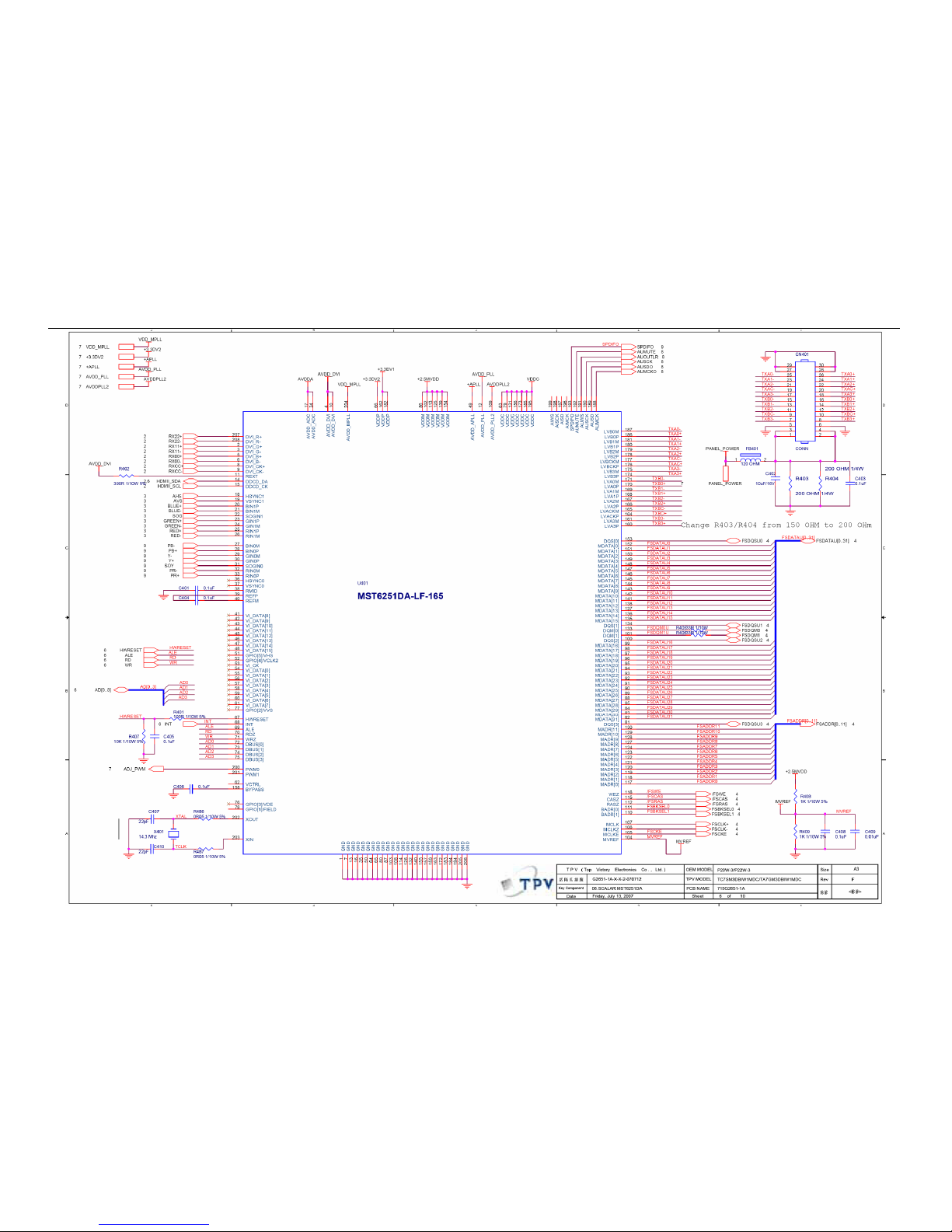

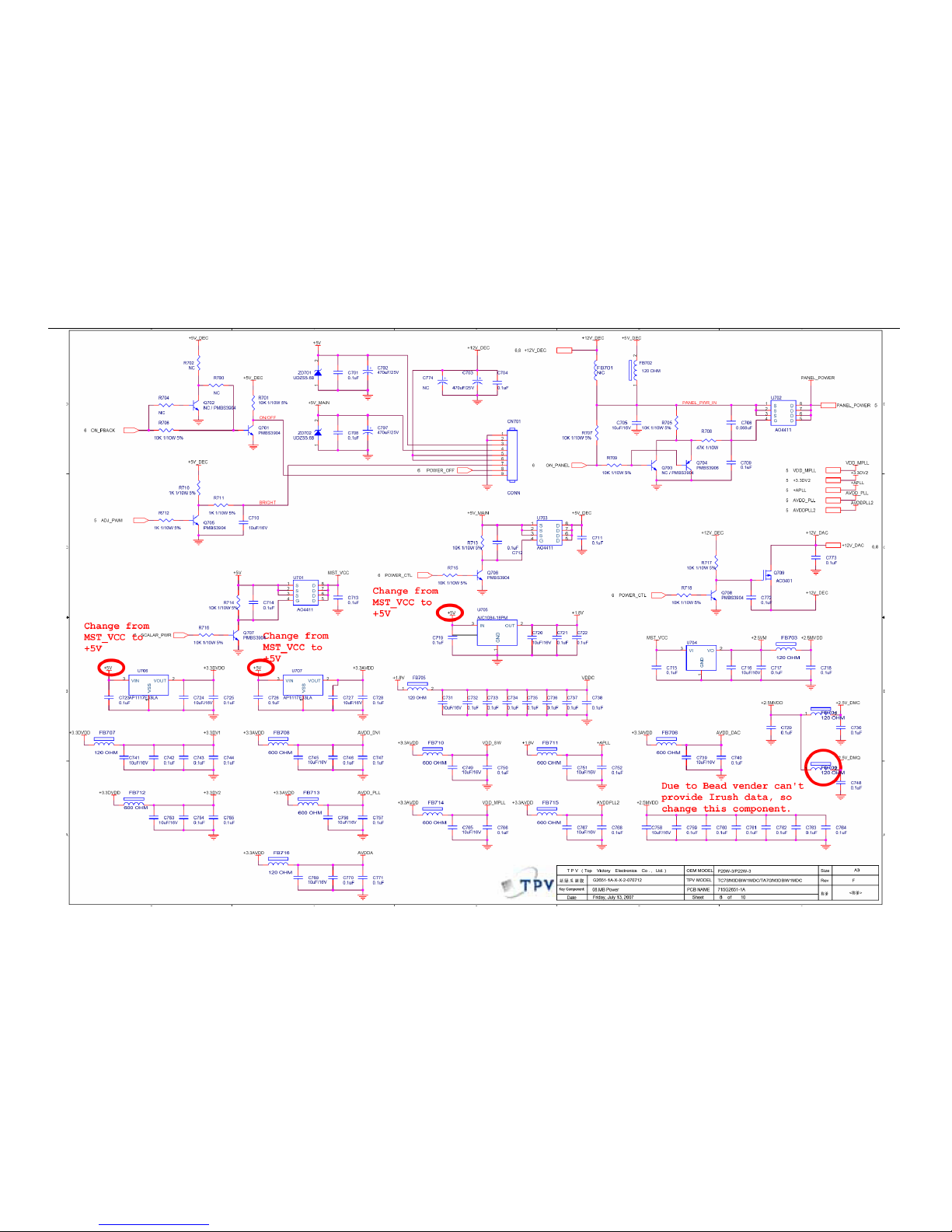

6.1.Main Board.............................…................18

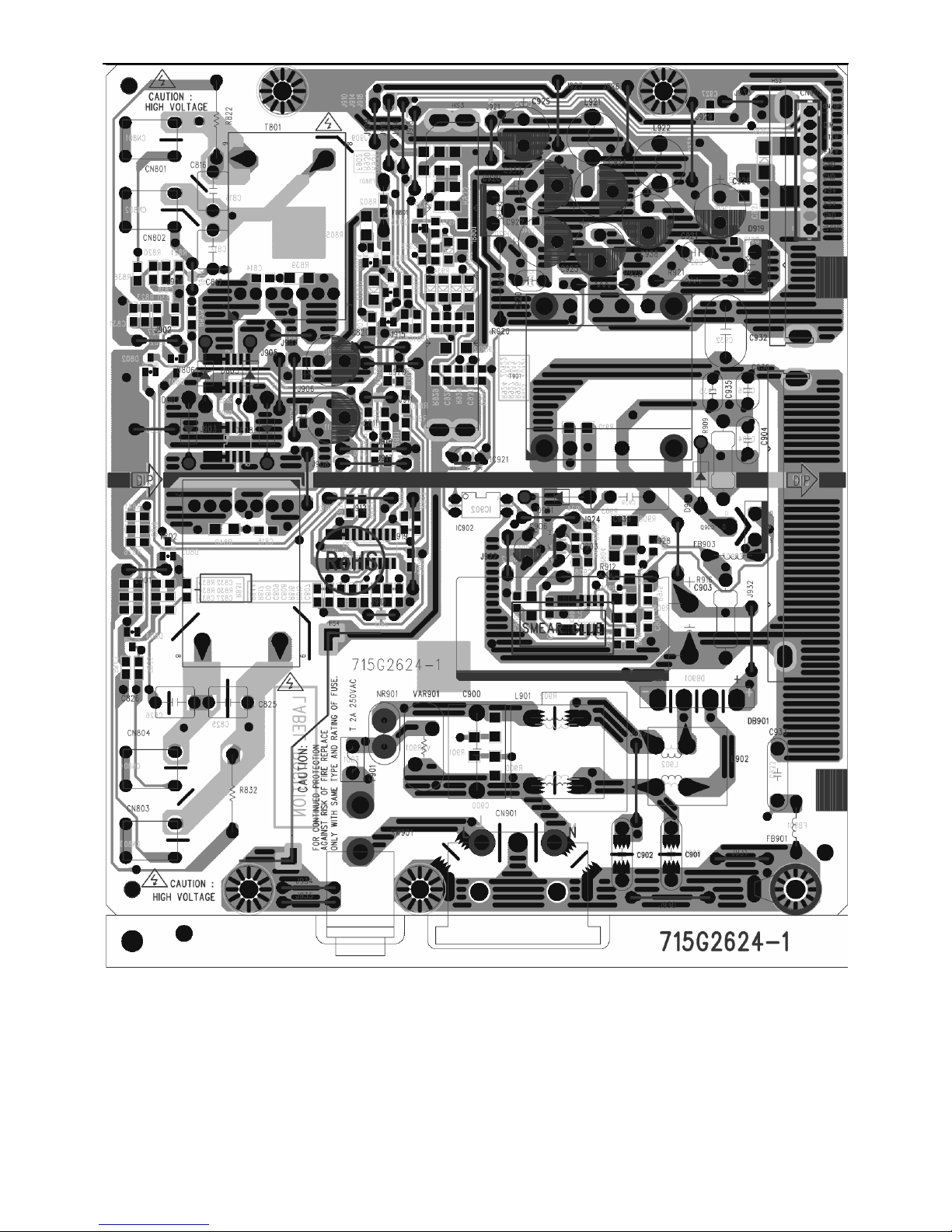

6.2.Power Board....……....................................27
7.PCB Layout..…………..........................................29
7.1.Main Board………........................................29
7.2.Power Board....……....................................32
7.3.Key Board……………………………………………35
8.Maintainability……….......................................36
8.1.Equipments and Tools Requirement...............36
8.2.Trouble Shooting…………..............................36
9. White-Balance, Luminance adjustment.............42
10.Exploded View.....….......….....................44
11.BOM List….....................................................46
12.Different Parts List….............................................61
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
20” LCD Color Monitor FSC P20W-3
-2-
Revision List
Revision Date Revision History TPV Model Name
A00 Jul-31-2007 Initial Release TA7GM3DBIWM7DC
A01 Nov-02-2007 The Second Release
TA7 GM3DBIW M78C
TA7AM3DBIW1MDC
20” LCD Color Monitor FSC P20W-3
-3-
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
20” LCD Color Monitor FSC P20W-3
-4-
1. Monitor Specifications
Item Specification
System 51cm (20") color LCD
Active Area 433.44 x 270.90mm
Pixel Pitch 0.258mm (H) /0.258 mm (V)
Resolution 1680 x 1050
Display Colors 16.7M (8-bit)
Contrast 1000:1(type)
Luminance 300cd/m²(type)
Panel
Response time (type) 5ms
Analog: 0. 7Vp-p(standard), 75 OHM, Positive
Video
DIGITAL INPUTS / DVI-D &
HDMI ,SYNC-SIGNALS
H-Frequency 30 kHz (15kHz interlaced modes) to 82 kHz
Input
V-Frequency 50 Hz to 75 Hz
Monitor: 475.4mm x 359.5mm x 218.0 (incl. Stand)mm
Main Dimensions(W x H x D)
Packed Monitor: 561.0mm x 265.0mm x438.0mm
Monitor: 7.0 kg(incl. Stand)
Weight
Packed Monitor: 9.57 kg
Power consumption (typical):
(without audio)
42 W
Operating temperature: +5°C - +40°C; Operating Humidity: 20% - 85%
Storage Temperature: +5°C - +40°C; Storage Humidity: 5% - 85%
Environmental Condition
Transport Temperature: -20°C - +60°C; Storage Humidity: 15% - 98%
Safety compliance: CE (EN60950), cUL, CSA, CCC
EMC compliance: CE, FCC, C-tick, MPRII and TCO03
Environmental compliance: RoHS, EPA, Blue Angel, RESY
Ergonomics compatibility: TCO03, ISO 13406 –2
VESA DPMS compliant
DDC 2B and DDC CI compliant. Incorporated with FSC Displayview command
interface SW.
Windows XP and Windows Vista compliant
Compliant
RESY compliant components
20” LCD Color Monitor FSC P20W-3
-5-
2. LCD Monitor Description
The LCD MONITOR will contain a main board, a power board, a sensor board and a key board which house the flat
panel control logic, brightness control logic and DDC.
The power board will provide the AC to DC voltage to drive backlight and the main board chips each voltage.
Video signal, DDC
Power board
Include：Inverter and Adapter
Flat Panel and
CCFL backlight
Main Board
Key board
RS232 Connector
For white balance
adjustment in factory
mode
HOST Computer
CCFL Drive.
AC-IN
100V-240V
Monitor Block Diagram
20” LCD Color Monitor FSC P20W-3
-6-
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located in the front of the monitor.
By changing these settings, the picture can be adjusted to your personal preferences.
-
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
3.2 Controls and Buttons
External Controls:
20” LCD Color Monitor FSC P20W-3
-7-

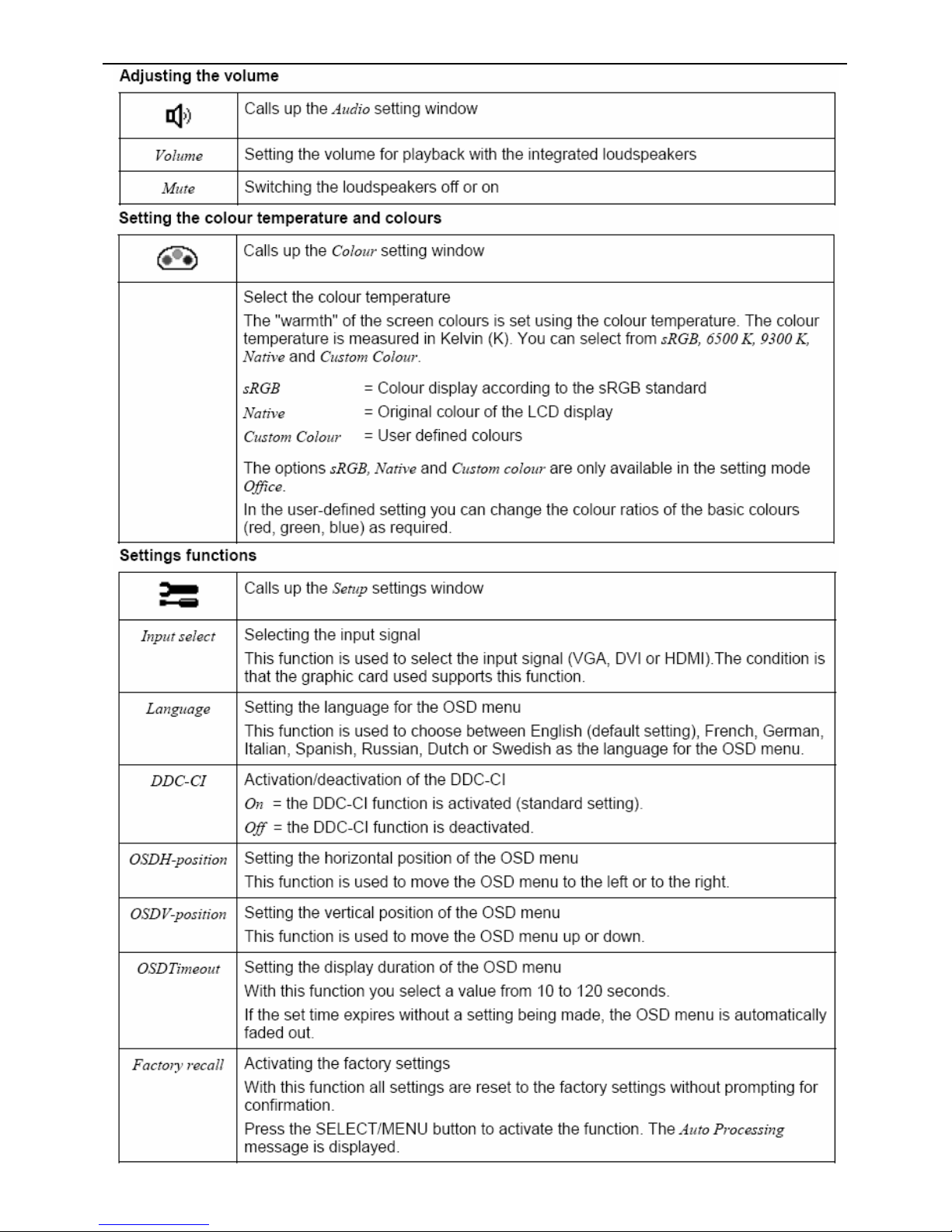

3.3 Adjusting the Picture
To set the OSD menu, perform the following steps:
20” LCD Color Monitor FSC P20W-3
-8-
20” LCD Color Monitor FSC P20W-3
-9-
20” LCD Color Monitor FSC P20W-3
-10-
4. Input/Output Specification
4.1 Input Signal Connector
D-Sub Input
DVI Input
20” LCD Color Monitor FSC P20W-3
-11-
HDMI monitor connections
20” LCD Color Monitor FSC P20W-3
-12-
4.2 Factory Preset Display Modes
The picture position and size have been set to optimum values at the factory for the operating modes listed above.
Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case,
you can change and save the settings
The following are the most frequently used of the preset operating modes:
For ergonomic reasons, a screen resolution of 1680 x 1050 pixels is recommended. Due to the technology used
(active matrix), an LCD monitor provides a totally flicker-free picture even with a refresh rate of 60 Hz.
4.3 Power Supply Requirements
A/C Line voltage range
90 VAC - 264 VAC ± 10 %
A/C Line frequency range
50 ± 3Hz, 60 ± 3Hz
Current
1.5 A max. at 100V; 0.5 A max. at 240V
Peak surge current < 60 A peak at 240 V AC and cold starting
Leakage current < 2.5 mA for power from Wall-outlet
Power line surge
No advance effects (no loss of information or defect)
with a maximum of 1 half-wave missing per second
Power factor correction:
According to EN 61000-3-2 or power consumption is
< 75W
20” LCD Color Monitor FSC P20W-3
-13-
4.4 Panel Specification
4.4.1 LCD DEFINITION
Item First source
Manufacturer: LPL
Size: 20-inch
Type: LM201WE3-TLH2
Features: Advanced TN, Hi-FRC
Active display area 433.44 x 270.90mm
Display colors 16.7 (Hi-FRC)
Resolution 1680 x 1050 dots
Dot pitch 0.086 mm (H) / 0.258 mm (V)
Pixel pitch 0.258 mm x 0.258 mm
Pixels-per-inch 98.5
Max. luminance (typ )
(min)
300 cd/m²
250 cd/m²
Contrast ratio (typ.)
(min)
1000:1
600:1
VA at CR >10:1 (typ.) H: 160°; V: 160°
VA at CR >10:1 (min.) H: 140°; V: 130°
VA at CR >5:1 (typ.) Not defined
VA at CR >5:1 (min.) Not defined
Response time G-toG (typ.)* Not defined
Response time On/Off 5ms (rise: 1.1ms/ fall: 3.9ms)
Native color temp. 6500K
Colour Gamut 72%
Gamma 2.2
Surface treatment Anti-glare & Hard coating (3H)
Dimensions (typ) 459.4(H) x 296.4(V) x 16.5(D)Max
S/N range
YE2J000001-YE2J100000
4.4.2 LCD FAULTS
LCD PIXEL FAULTS
Defect Type Accept Reject
Bright dot
Random
N ≤ 2
N > 2
Two adjacent
N ≤ 1
N > 1
Dark dot
Random
N ≤ 5
N > 5
Two adjacent
N ≤ 2
N > 2
Three adjacent
N ≤ 1
N > 1
Four or more adjacent Not Allowed
Maximum allowable number of dot defect
N ≤ 5
N > 5
Maximum distance between defects
bright dot – to – bright dot
L ≥ 15 mm
L < 15 mm
dark dot – to – dark dot
L ≥ 5 mm
L < 5 mm
Dot defect rate
Dot defect rate within each panel shipment. The number of panels with any bright or dark dot defect shall not
exceed 20% out of the total delivered qty within a production and/or shipment lot.
20” LCD Color Monitor FSC P20W-3
-14-
MECHANICAL FAULTS
ITEM INSPECTION CRITERIA NOTE
Accept Reject
Polarizer scratch
0.01 < W ≤ 0.1
0.3 < L ≤ 4.0
N ≤ 3
W > 0.1
L > 4.0
N > 3
Bright line or dark line
0.08 < W ≤ 0.1
0.3 < L ≤ 4.0
N ≤ 4
W > 0.1
L > 4.0
N > 4
Polarizer dent / bubble
D ≤ 1.0
N ≤ 5
D > 1.0
N > 5
Semitransparent smudge, smear, dirt or stain
other than pixel defect.
D < 0.5mm
N < 5
D > 0.5mm
N > 5
Dust, Grains or other blemish Not visible with human eye
Bezel scratch, dirt, wrap, sunken Does not cause harm or danger
1
Maximum allowable number of defects
N ≤ 5
N > 5
1. Viewing distance 35 cm perpendicularly in front of the LCD module
Picture Size and Centering
Centering:
|A – B| and |C - D| ≤ 1.0 mm
|E – F| and |G - H| ≤ 1.0 mm
Tilt:
|A - C| ≤ 1.0 mm
All pixels of the active are have to be visible.
MAX. BRIGHTNESS
> 300 cd/m2 (Typ) Test conditions:
> 250 cd/m² ( Min)
• total display area
• video input = 0.700V
• brightness control is set to max.
• contrast control is set to max.
• native colour
MIN. BRIGHTNESS
< 33% of max. brightness
Test conditions:
• center of screen
• Native colour
• standard settings, but back light dimmed to a minimum
value (Video level: 0-700mV); CR might be lower than
defined under item “character contrast”
20” LCD Color Monitor FSC P20W-3
-15-
5. Block Diagram
5.1 Software Flow Chart
1
2
N
Y
5
Y
N
10
Y
N
12
Y
N
7
Y
N
6
4
3
8
9
14
11
13
Y
N
15
Y
N
16
17
19
Y
N
18
20” LCD Color Monitor FSC P20W-3
-16-
1) MCU initialize.
2) Is the EEPROM blank?
3) Program the EEPROM by default values.
4) Get the PWM value of brightness from EEPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EEPROM.
Turn on the LED and set it to green color.
Scalar initialize.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are they’re any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappears.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
20” LCD Color Monitor FSC P20W-3
-17-
5.2 Electrical Block Diagram
5.2.1 Scalar Board Block Diagram
MCU
MTV416GMV
(U402)
Scalar MST6251DA-LF-165
(Include ADC, OSD)
(U401)
EEPROM
M24C32
(U405)
D-Sub
Connector
(CN102)
EEPROM
M24C02
(
U102
)
H sync
V sync
RGB
VGA_SDA,
VGA_SCL
MSDA
MSCL
LCD Interface
(CN401)
Key Board Control
CN403
Crystal
24MHz
(X402)
Crystal
14.318MHz
(X401)
EEPROM
M24C02
(U101)
DVI_SCL
DVI_SDA
DVI Connector
(CN101)
Digital
Video
Data
CLOCK
HDMI
Connector
(CN501)
EEPROM
M24C02
(
U503
)
HDMI_SDA,
HDMI_SCL
20” LCD Color Monitor FSC P20W-3
- 18 -
5.2.2 Power Board Block Diagram
EMI filter
Bridge Rectifier
and Filter
Start Circuit
R903, R904, R905
PWM
Control IC
Transformer
Over Voltage
Protect
Rectifier
Diodes
AC input
5V
12V
ON/OFF
Control
PWM
Control IC
Feedback
Circuit
Output
Circuit
DC Convert
Circuit
MOSFET Q805, Q806,
Over Voltage
Lamp
ON/OFF
DIM
CN902
20” LCD Color Monitor FSC P20W-3
- 19 -
6. Schematic
6.1 Main Board
20” LCD Color Monitor FSC P20W-3
- 20 -
20” LCD Color Monitor FSC P20W-3
- 21 -
20” LCD Color Monitor FSC P20W-3
- 22 -
20” LCD Color Monitor FSC P20W-3
- 23 -
20” LCD Color Monitor FSC P20W-3
- 24 -
20” LCD Color Monitor FSC P20W-3
- 25 -
20” LCD Color Monitor FSC P20W-3
- 26 -
20” LCD Color Monitor FSC P20W-3
- 27 -
6.2 Power Board
20” LCD Color Monitor FSC P20W-3
- 28 -
20” LCD Color Monitor FSC P20W-3
- 29 -
7. PCB Layout
7.1 Main Board
20” LCD Color Monitor FSC P20W-3
- 30 -
20” LCD Color Monitor FSC P20W-3
- 31 -
20” LCD Color Monitor FSC P20W-3
- 32 -
7.2 Power Board
20” LCD Color Monitor FSC P20W-3
- 33 -
20” LCD Color Monitor FSC P20W-3
- 34 -
20” LCD Color Monitor FSC P20W-3
- 35 -
7.3 Key Board
20” LCD Color Monitor FSC P20W-3
- 36 -
8. Maintainability
8.1 Equipment and Tools Requirement
1、Voltmeter.
2.、Oscilloscope.
3、Pattern Generator.
4、DDC Tool with Compatible Computer.
5、Alignment Tool
6、LCD Color Analyzer.
7、Service Manual.
8、User Manual.
8.2 Trouble Shooting
8.2.1 Main Board
No power
No power
Press power key and look
if the picture is normal
Please reinsert and make sure
the AC of 100-240 is normal
Measure U707 PIN2=3.3V
U705 PIN 2=1.8V; U704 PIN 2=2.5V
Reinsert or check the
Adapter/Inverter
section
X401，X402 oscillate
waveforms are normal
Check CN701 or replace
U707, U705,U704
Check U402
Replace X401, X402
OK
OK
OK
NG
OK
NG
NG
Replace U402
Replace U401
OK
NG
20” LCD Color Monitor FSC P20W-3
- 37 -
No picture (LED orange)
No picture
The button if under
control
Measure U707 PIN2=3.3V
U705 PIN 2=1.8V; U704 PIN 2=2.5V
Check U402
X401，X402 oscillate
waveforms are normal
Check CN701 or replace U707, U705, U704
OK
OK
OK
OK
Check HS/VS from
CN102 is normal
Replace X401，X402
Check Correspondent
component
NG
NG
Replace U401
Replace U402
20” LCD Color Monitor FSC P20W-3
- 38 -
White screen
White Screen
Measure Q704 base
is low level?
X401,X402 oscillate
waveform is normal
Check Correspondent
component.
Replace Panel
Check Correspondent
com
p
onent.
Replace U401
OK
OK
Replace X401,X402
OK
NG
NG
NG
NG
Check reset circuit of
U401 is normal
OK
Check Q704, U702 is broken
or CN401 solder?
Check U402
OK
Replace U402
NG
20” LCD Color Monitor FSC P20W-3
- 39 -
8.2.2 Power/Inverter Board
No power
Check CN902 pin3, 4 = 12V
pin7,8＝5V
NG
Check AC line volt 110V or 220V
Check AC input
Check the voltage of C903 (+)
Check bridge rectified circuit and F901 circut
Check start voltage for the pin3 of IC901
Check R903, R904, R905, IC901
NG
Check the auxiliary voltage is larger than 10V and
smaller than 20V
OK
OK
OK
NG
NG
NG
Check Q903,T901,D919,D920,IC902,ZD921,ZD922
OK
Check IC901 pin8 PWM wave
OK
Check IC901
NG
1) Check IC901
2) Check R910,D901,C906…OVP circuit
20” LCD Color Monitor FSC P20W-3
- 40 -
No Backlight
Check F801=12V
NG
OK
Check adapter and F801
Check ON/OFF signal
Check Interface board or main board
NG
OK
Check U801 PIN2=5V
NG
OK
Change on/off circuit
Check U801 PIN13 have triangle wave
NG
OK
Change U801
Check U801 PIN1/PIN15 PWM wave
NG
OK
Check U801
Check Q805,Q806 Drain wave
NG
Check the output of T801, T802
Replace Q805, Q806
Check connecter & lamp, feedback and protect circuit
OK
NG
Change T801, T802
OK
20” LCD Color Monitor FSC P20W-3
- 41 -
8.2.3 Key Board
OSD is unstable or not working
Is Key Pad Board connecting normally?
Connect Key Pad Board
Is Button Switch normally?
Replace Button Switch
Y
N
N
Is Key Pad Board normally?
Replace Key Pad Board
Y
N
Y
Check Main Board
20” LCD Color Monitor FSC P20W-3
- 42 -
9. White-Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM. Channel setting
A. Reference to chroma 7120 user guide
B. Use “SC” key and “NEXT” key to modify x, y, Y value and use “ID” key to modify the TEXT description Following
is the procedure to do white-balance adjust
2. Setting the color temp. you want
A. MEM.CHANNEL 3 (9300 color):
9300 color temp. parameter is x = 283±15, y = 297 ±15.
B. MEM.CHANNEL 4 (7500 color):
7500 color temp. parameter is x = 300±15, y = 315 ±15.
C. MEM.CHANNEL 9 (6500 color):
6500 color temp. parameter is x = 315±15, y = 325 ±15
D. MEM.CHANNEL 10 (sRGB color):
sRGB color temp. parameter is x = 315±15, y = 325 ±15
3. Into factory mode of P20W-3
For factory menu, press ▼/ - and EXIT/AUTO-keys for 4 seconds to activate access to factory menu.
4. Bias adjustment:
Set the Contrast
to 50; adjust the Brightness to100.
5. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust 9300 color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 3 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283±15, y = 297 ±15, Y > 220 cd/m2
4. Adjust the RED of color1 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color1 on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE of color1 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust 7500 color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 4(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 300±15, y = 315 ±15, Y > 230 cd/m2
4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
20” LCD Color Monitor FSC P20W-3
- 43 -
C. Adjust 6500 color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 9(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 315±15, y = 325 ±15, Y > 240 cd/m2
4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
D.Adjust sRGB color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 10(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 315±15, y = 325 ±15, Y =(125~175)±20 cd/m2
4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
E. Turn the Power-button off to quit from factory mode.
20” LCD Color Monitor FSC P20W-3
- 44 -
10. Exploded View
20” LCD Color Monitor FSC P20W-3
- 45 -
20” LCD Color Monitor FSC P20W-3
- 46 -
11. BOM List
TA7GM3DBIWM7DC
Location TPV Part No. Description
001G6017 1 GP THUMB-SCREW
007G 1 L 1 WOODEN PALLET
019G6034 1 GP STOPPER PIN
044G9003220 CORNER PAPER
050G 600 1 W WHITE STRAP
052G 1185 MIDDLE TAPE
052G 1186 SMALL TAPE
052G 1207 A ALUMINIUM TAPE
052G 1208 A ALUMINIUM TAPE
078G 311506 GL SPEAKER 8 OHM 2W L:400MM 57.5X22.8MM NEO
078G 311506 GR SPEAKER 8 OHM 2W L:400MM 57.5X22.8MM NEO
089G 17356G553 AUDIO CABLE 1800MM
089G 184GAA500 HDMI CABLE
089G 728GAA DB D-SUB
089G1748GAA AC SIGNAL CABLE DVI GREATLAND
089G404A18N IS POWER CORD
095G8014 4Q534 WIRE HARNESS 4P-3P+2P 150MM
095G8014 7Q518 HARNESS 7P-4P 200MM
095G801410Q560 WIRE HARNESS 10P-6P 350MM
095G8018 3D677 LVDS CABLE 30P-30P 160MM
0M1G 130 6120 SCREW M3X6
0M1G1040 6120 SCREW
0M1G1730 6120 SCREW
0M1G2940 10225 CR3 SCREW
0M1G3030 5225 CR3 SCREW
0M1G3030 5225 CR3 SCREW
705GQ734354 STAND-BASE ASS'Y 20
0M1G 130 6 47 CR3 SCREW
0M1G 140 8120 SCREW
0M1G1030 6 47 CR3 SCREW
0Q1G 130 8 47 CR3 SCREW
0Q1G 130 8 47 CR3 SCREW
0Q1G 130 8 47 CR3 SCREW
A15G0231 1 BASE BRACKET
A34G0392 EF 1B 30 STAND VESA COVER
A34G0393 EF 1B 19 HINGE COVER
A34G0394 EFA1B ARM REAR COVER
A34G0395 EF 1B ARM FRONT COVER
A34G0396 EF 1B ARM CENTER COVER
A34G0397 EF 1B 19 ARM CENTER BOTTOM COVER
A34G0398 BT 1B BASE TOP COVER
A34G0399 EF 1B BASE BOTTOM COVER
A34G0400 EF 1X 30 BASE SWIVEL
A37G0039 1 HINGE ASS'Y
750GLGA1W3H21N000S PANEL LM201WE3-TLH2 KR FSC LPL
A15G0233 1 MAIN FRAME
A33G0229 1 ABC LENS
A33G0230 1 LENS
A33G0231 EFA1L 30 BUTTON FUNCTION
A34G0388 EF 1B DECORATION COVER
A34G0390 BT 1B SHIELDING COVER
A34G0391 BT 1B CABLE COVER
A34G0401 BTA1B BEZEL L20W-7SNI
20” LCD Color Monitor FSC P20W-3
- 47 -
A34G0402 EF 1B RING COVER
A34G0403 BT 1B 30 REAR COVER(20)
CBPC7GM31MQ1 MAIN BOARD
CN701 033G3802 9 WAFER 9P RIGHT ANELE PITCH
CN602 033G3802 4H WAFER 4P RIGHT ANGLE
CN403 033G3802 6H WAFER 6P RIGHT ANGLE PITCH 2.0
CN405 033G3802 7H WAFER
CN401 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
040G 457624 1B LABEL-CPU
040G 45762412B CBPC LABEL
U604 056G 133 22 ST IC L78L09ACZ-AP TO-92 ST
C441 067G215V100 7N KY50VB10-M-CC3 5*11.5MM
C702 067G215V471 4R LOW E.S.R 470UF +/-20% 25V
C707 067G215V471 4R LOW E.S.R 470UF +/-20% 25V
C703 067G215V471 4R LOW E.S.R 470UF +/-20% 25V
CN601 088G 30214K PHONE JACK 5PIN
CN102 088G 35315F H D-SUB 15PIN
CN101 088G 35424F N DVI 24PIN CONN F
X402 093G 22 45 H 24MHZ/30PF/49US
X401 093G 2253B J 14.31818MHZ/85C
U401 056G 562158 IC MST6251DA-LF-165 PQFP-208
U705 056G 563 34 IC AIC1084-18PMTR-R AIC
U707 056G 585 4A AP1117E33LA
U706 056G 585 4A AP1117E33LA
U403 056G 585 4A AP1117E33LA
U704 056G 585 5A AP1117E25A
U407 056G 615907 IC HY5DU283222BFP-33 FBGA-144
U603 056G 616 6 TPA3003D2PFBRG4 TQFP-48
U502 056G 623 21 IC FSAV330QSC QSOP-16
U602 056G 628 5 IC NJW1141M PF SDMP30
U501 056G 634 10 IC FSHDMI04MTDX TSSOP-48 FAIRCHILD
U601 056G 647 18 IC WM8521HCGED/RV SOIC-14
U504 056G 662 10 IC RCLAMP0524P.TCT
U505 056G 662 10 IC RCLAMP0524P.TCT
U402
056G1125175（WFSM3MAGAQ1）
MTV416GMV
U101 056G1133 34 M24C02-WMN6TP
U102 056G1133 34 M24C02-WMN6TP
U503 056G1133 34 M24C02-WMN6TP
U406 056G1133 87 1 IC CAT24C08W SOIC-8
U405 056G113353A IC M24C32-WMN6T SO-8 ST
Q102 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q701 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q501 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q101 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q406 057G 758 1 2N7002ESOT23 SILICONIX
Q709 057G 763 1 A03401 SOT23 BY AOS(A1)
U701 057G 763 3 AO4411 SO-8
U702 057G 763 3 AO4411 SO-8
U703 057G 763 3 AO4411 SO-8
20” LCD Color Monitor FSC P20W-3
- 48 -
RP401 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP408 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP407 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP406 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP405 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP404 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP403 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP402 061G 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP409 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
R514 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R617 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R509 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R508 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R489 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R488 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R487 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R486 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R475 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R473 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R469 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R425 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R112 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R111 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R109 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R106 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R105 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R104 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R103 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R113 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R479 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R480 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R481 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R482 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R506 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R507 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R609 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R610 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R612 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R613 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R130 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R135 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R137 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
RXX96 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
RXX97 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R121 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R122 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R144 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R401 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R447 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R449 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R453 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R712 061G0603102 RST CHIP 1K 1/10W 5%
20” LCD Color Monitor FSC P20W-3
- 49 -
R711 061G0603102 RST CHIP 1K 1/10W 5%
R710 061G0603102 RST CHIP 1K 1/10W 5%
R501 061G0603102 RST CHIP 1K 1/10W 5%
R462 061G0603102 RST CHIP 1K 1/10W 5%
R409 061G0603102 RST CHIP 1K 1/10W 5%
R408 061G0603102 RST CHIP 1K 1/10W 5%
R145 061G0603102 RST CHIP 1K 1/10W 5%
R143 061G0603102 RST CHIP 1K 1/10W 5%
R108 061G0603102 RST CHIP 1K 1/10W 5%
R102 061G0603102 RST CHIP 1K 1/10W 5%
R505 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R429 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R431 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R433 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R435 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R437 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R439 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R440 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R445 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R446 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R448 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R450 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R451 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R504 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R706 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R705 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R701 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R628 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R622 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R611 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R608 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R607 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R606 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R472 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R471 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R468 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R707 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R621 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R516 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
RXX99 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
RXX98 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R718 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R716 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R715 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R713 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R428 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R107 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R117 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R118 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R120 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R124 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
20” LCD Color Monitor FSC P20W-3
- 50 -
R127 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R128 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R407 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R423 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R110 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R125 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R623 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R517 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R633 061G0603112 RST CHIPR 1.1 KOHM +-5% 1/10W
R632 061G0603120 2F RST CHIPR 12 KOHM +-1% 1/10W
R631 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W
R410 061G0603151 RST CHIPR 150 OHM +-5% 1/10W
R634 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W
R635 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W
R601 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R602 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R603 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R604 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R605 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R146 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R147 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R454 061G0603241 RST CHIPR 240 OHM +-5% 1/10W
R614 061G0603303 RST CHIPR 30 KOHM +-5% 1/10W
R615 061G0603303 RST CHIPR 30 KOHM +-5% 1/10W
R417 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R418 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R405 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R406 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R415 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R416 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R402 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R229 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W
R228 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W
R132 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R426 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R624 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R503 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R484 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R483 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R460 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R459 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R458 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R457 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R123 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R116 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R115 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R114 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R708 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R136 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R134 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R129 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
20” LCD Color Monitor FSC P20W-3
- 51 -
R414 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R413 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R412 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R411 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R138 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R139 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R140 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R625 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R630 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R629 061G0603822 RST CHIPR 8.2 KOHM +-5% 1/10W
R404 061G1206201 RST CHIPR 200 OHM +-5% 1/4W
R403 061G1206201 RST CHIPR 200 OHM +-5% 1/4W
C687 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R
C688 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R
C451 065G0603101 32 100PF +-10% 50V X7R
C617 065G0603101 32 100PF +-10% 50V X7R
C618 065G0603101 32 100PF +-10% 50V X7R
C115 065G0603102 32 1000PF +-10% 50V X7R
C686 065G0603102 32 1000PF +-10% 50V X7R
C685 065G0603102 32 1000PF +-10% 50V X7R
C684 065G0603102 32 1000PF +-10% 50V X7R
C683 065G0603102 32 1000PF +-10% 50V X7R
C680 065G0603102 32 1000PF +-10% 50V X7R
C621 065G0603102 32 1000PF +-10% 50V X7R
C616 065G0603102 32 1000PF +-10% 50V X7R
C409 065G0603103 32 0.01UF +-10% 50V X7R
C628 065G0603103 32 0.01UF +-10% 50V X7R
C629 065G0603103 32 0.01UF +-10% 50V X7R
C655 065G0603103 32 0.01UF +-10% 50V X7R
C663 065G0603103 32 0.01UF +-10% 50V X7R
C672 065G0603103 32 0.01UF +-10% 50V X7R
C675 065G0603103 32 0.01UF +-10% 50V X7R
C225 065G0603104 12 CER2 0603 X7R 16V 100N P
C226 065G0603104 12 CER2 0603 X7R 16V 100N P
C227 065G0603104 12 CER2 0603 X7R 16V 100N P
C228 065G0603104 12 CER2 0603 X7R 16V 100N P
C229 065G0603104 12 CER2 0603 X7R 16V 100N P
C708 065G0603104 32 CHIP 0.1UF 50V X7R
C711 065G0603104 32 CHIP 0.1UF 50V X7R
C712 065G0603104 32 CHIP 0.1UF 50V X7R
C713 065G0603104 32 CHIP 0.1UF 50V X7R
C714 065G0603104 32 CHIP 0.1UF 50V X7R
C715 065G0603104 32 CHIP 0.1UF 50V X7R
C728 065G0603104 32 CHIP 0.1UF 50V X7R
C726 065G0603104 32 CHIP 0.1UF 50V X7R
C725 065G0603104 32 CHIP 0.1UF 50V X7R
C723 065G0603104 32 CHIP 0.1UF 50V X7R
C722 065G0603104 32 CHIP 0.1UF 50V X7R
C717 065G0603104 32 CHIP 0.1UF 50V X7R
C718 065G0603104 32 CHIP 0.1UF 50V X7R
C719 065G0603104 32 CHIP 0.1UF 50V X7R
C721 065G0603104 32 CHIP 0.1UF 50V X7R
C704 065G0603104 32 CHIP 0.1UF 50V X7R
C601 065G0603104 32 CHIP 0.1UF 50V X7R
C603 065G0603104 32 CHIP 0.1UF 50V X7R
C615 065G0603104 32 CHIP 0.1UF 50V X7R
20” LCD Color Monitor FSC P20W-3
- 52 -
C626 065G0603104 32 CHIP 0.1UF 50V X7R
C631 065G0603104 32 CHIP 0.1UF 50V X7R
C632 065G0603104 32 CHIP 0.1UF 50V X7R
C633 065G0603104 32 CHIP 0.1UF 50V X7R
C634 065G0603104 32 CHIP 0.1UF 50V X7R
C635 065G0603104 32 CHIP 0.1UF 50V X7R
C636 065G0603104 32 CHIP 0.1UF 50V X7R
C637 065G0603104 32 CHIP 0.1UF 50V X7R
C642 065G0603104 32 CHIP 0.1UF 50V X7R
C643 065G0603104 32 CHIP 0.1UF 50V X7R
C658 065G0603104 32 CHIP 0.1UF 50V X7R
C664 065G0603104 32 CHIP 0.1UF 50V X7R
C669 065G0603104 32 CHIP 0.1UF 50V X7R
C670 065G0603104 32 CHIP 0.1UF 50V X7R
C673 065G0603104 32 CHIP 0.1UF 50V X7R
C674 065G0603104 32 CHIP 0.1UF 50V X7R
C701 065G0603104 32 CHIP 0.1UF 50V X7R
C754 065G0603104 32 CHIP 0.1UF 50V X7R
C755 065G0603104 32 CHIP 0.1UF 50V X7R
C757 065G0603104 32 CHIP 0.1UF 50V X7R
C759 065G0603104 32 CHIP 0.1UF 50V X7R
C760 065G0603104 32 CHIP 0.1UF 50V X7R
C761 065G0603104 32 CHIP 0.1UF 50V X7R
C762 065G0603104 32 CHIP 0.1UF 50V X7R
C763 065G0603104 32 CHIP 0.1UF 50V X7R
C764 065G0603104 32 CHIP 0.1UF 50V X7R
C766 065G0603104 32 CHIP 0.1UF 50V X7R
C768 065G0603104 32 CHIP 0.1UF 50V X7R
C770 065G0603104 32 CHIP 0.1UF 50V X7R
C771 065G0603104 32 CHIP 0.1UF 50V X7R
C772 065G0603104 32 CHIP 0.1UF 50V X7R
C773 065G0603104 32 CHIP 0.1UF 50V X7R
C517 065G0603104 32 CHIP 0.1UF 50V X7R
C709 065G0603104 32 CHIP 0.1UF 50V X7R
C147 065G0603104 32 CHIP 0.1UF 50V X7R
C729 065G0603104 32 CHIP 0.1UF 50V X7R
C730 065G0603104 32 CHIP 0.1UF 50V X7R
C732 065G0603104 32 CHIP 0.1UF 50V X7R
C733 065G0603104 32 CHIP 0.1UF 50V X7R
C734 065G0603104 32 CHIP 0.1UF 50V X7R
C735 065G0603104 32 CHIP 0.1UF 50V X7R
C736 065G0603104 32 CHIP 0.1UF 50V X7R
C737 065G0603104 32 CHIP 0.1UF 50V X7R
C738 065G0603104 32 CHIP 0.1UF 50V X7R
C740 065G0603104 32 CHIP 0.1UF 50V X7R
C742 065G0603104 32 CHIP 0.1UF 50V X7R
C743 065G0603104 32 CHIP 0.1UF 50V X7R
C744 065G0603104 32 CHIP 0.1UF 50V X7R
C746 065G0603104 32 CHIP 0.1UF 50V X7R
C747 065G0603104 32 CHIP 0.1UF 50V X7R
C748 065G0603104 32 CHIP 0.1UF 50V X7R
C750 065G0603104 32 CHIP 0.1UF 50V X7R
C752 065G0603104 32 CHIP 0.1UF 50V X7R
C515 065G0603104 32 CHIP 0.1UF 50V X7R
C417 065G0603104 32 CHIP 0.1UF 50V X7R
C416 065G0603104 32 CHIP 0.1UF 50V X7R
20” LCD Color Monitor FSC P20W-3
- 53 -
C415 065G0603104 32 CHIP 0.1UF 50V X7R
C414 065G0603104 32 CHIP 0.1UF 50V X7R
C413 065G0603104 32 CHIP 0.1UF 50V X7R
C412 065G0603104 32 CHIP 0.1UF 50V X7R
C408 065G0603104 32 CHIP 0.1UF 50V X7R
C406 065G0603104 32 CHIP 0.1UF 50V X7R
C405 065G0603104 32 CHIP 0.1UF 50V X7R
C404 065G0603104 32 CHIP 0.1UF 50V X7R
C403 065G0603104 32 CHIP 0.1UF 50V X7R
C401 065G0603104 32 CHIP 0.1UF 50V X7R
C118 065G0603104 32 CHIP 0.1UF 50V X7R
C109 065G0603104 32 CHIP 0.1UF 50V X7R
C108 065G0603104 32 CHIP 0.1UF 50V X7R
C107 065G0603104 32 CHIP 0.1UF 50V X7R
C106 065G0603104 32 CHIP 0.1UF 50V X7R
C105 065G0603104 32 CHIP 0.1UF 50V X7R
C104 065G0603104 32 CHIP 0.1UF 50V X7R
C103 065G0603104 32 CHIP 0.1UF 50V X7R
C102 065G0603104 32 CHIP 0.1UF 50V X7R
C101 065G0603104 32 CHIP 0.1UF 50V X7R
C418 065G0603104 32 CHIP 0.1UF 50V X7R
C514 065G0603104 32 CHIP 0.1UF 50V X7R
C513 065G0603104 32 CHIP 0.1UF 50V X7R
C512 065G0603104 32 CHIP 0.1UF 50V X7R
C510 065G0603104 32 CHIP 0.1UF 50V X7R
C501 065G0603104 32 CHIP 0.1UF 50V X7R
C439 065G0603104 32 CHIP 0.1UF 50V X7R
C438 065G0603104 32 CHIP 0.1UF 50V X7R
C436 065G0603104 32 CHIP 0.1UF 50V X7R
C433 065G0603104 32 CHIP 0.1UF 50V X7R
C432 065G0603104 32 CHIP 0.1UF 50V X7R
C431 065G0603104 32 CHIP 0.1UF 50V X7R
C419 065G0603104 32 CHIP 0.1UF 50V X7R
C420 065G0603104 32 CHIP 0.1UF 50V X7R
C421 065G0603104 32 CHIP 0.1UF 50V X7R
C422 065G0603104 32 CHIP 0.1UF 50V X7R
C423 065G0603104 32 CHIP 0.1UF 50V X7R
C424 065G0603104 32 CHIP 0.1UF 50V X7R
C426 065G0603104 32 CHIP 0.1UF 50V X7R
C427 065G0603104 32 CHIP 0.1UF 50V X7R
C428 065G0603104 32 CHIP 0.1UF 50V X7R
C429 065G0603104 32 CHIP 0.1UF 50V X7R
C430 065G0603104 32 CHIP 0.1UF 50V X7R
C667 065G0603105 12 CHIP 1UF 16VX7R 0603
C668 065G0603105 12 CHIP 1UF 16VX7R 0603
C644 065G0603105 12 CHIP 1UF 16VX7R 0603
C645 065G0603105 12 CHIP 1UF 16VX7R 0603
C646 065G0603105 12 CHIP 1UF 16VX7R 0603
C647 065G0603105 12 CHIP 1UF 16VX7R 0603
C648 065G0603105 12 CHIP 1UF 16VX7R 0603
C665 065G0603105 12 CHIP 1UF 16VX7R 0603
C660 065G0603105 12 CHIP 1UF 16VX7R 0603
C657 065G0603105 12 CHIP 1UF 16VX7R 0603
C656 065G0603105 12 CHIP 1UF 16VX7R 0603
C652 065G0603105 12 CHIP 1UF 16VX7R 0603
C651 065G0603105 12 CHIP 1UF 16VX7R 0603
20” LCD Color Monitor FSC P20W-3
- 54 -
C650 065G0603105 12 CHIP 1UF 16VX7R 0603
C649 065G0603105 12 CHIP 1UF 16VX7R 0603
C407 065G0603220 31 CER1 0603 NP0 50V 22P PM
C410 065G0603220 31 CER1 0603 NP0 50V 22P PM
C435 065G0603220 31 CER1 0603 NP0 50V 22P PM
C440 065G0603220 31 CER1 0603 NP0 50V 22P PM
C607 065G0603220 32 CHIP 22PF 50V X7R
C606 065G0603220 32 CHIP 22PF 50V X7R
C605 065G0603220 32 CHIP 22PF 50V X7R
C604 065G0603220 32 CHIP 22PF 50V X7R
C666 065G0603221 32 CHIP 220PF 50V X7R
C641 065G0603222 32 CHIP 2200PF 50V X7R
C640 065G0603222 32 CHIP 2200PF 50V X7R
C450 065G0603224 32 CHIP 0.22UF 50V X7R
C449 065G0603224 32 CHIP 0.22UF 50V X7R
C614 065G0603331 32 CHIP 330PF 50V X7R
C653 065G0603334 17 CHIP 0.33UF 16V Y5V
C122 065G0603470 31 CHIP 47PF 50V NPO
C121 065G0603470 31 CHIP 47PF 50V NPO
C120 065G0603473 32 CHIP 0.047UF 50V X7R
C119 065G0603473 32 CHIP 0.047UF 50V X7R
C117 065G0603473 32 CHIP 0.047UF 50V X7R
C116 065G0603473 32 CHIP 0.047UF 50V X7R
C114 065G0603473 32 CHIP 0.047UF 50V X7R
C113 065G0603473 32 CHIP 0.047UF 50V X7R
C690 065G0603474 27 CHIP 0.47UF 25V Y5V
C689 065G0603474 27 CHIP 0.47UF 25V Y5V
C706 065G0603683 32 CHIP 0.068UF 50L X7R
C676 065G1206106 17 CHIP 1UF Z 16V Y5V
C671 065G1206106 17 CHIP 1UF Z 16V Y5V
C661 065G1206106 17 CHIP 1UF Z 16V Y5V
C659 065G1206106 17 CHIP 1UF Z 16V Y5V
C625 065G1206106 17 CHIP 1UF Z 16V Y5V
C611 065G1206106 17 CHIP 1UF Z 16V Y5V
C610 065G1206106 17 CHIP 1UF Z 16V Y5V
C609 065G1206106 17 CHIP 1UF Z 16V Y5V
C608 065G1206106 17 CHIP 1UF Z 16V Y5V
C602 065G1206106 17 CHIP 1UF Z 16V Y5V
C516 065G1206106 17 CHIP 1UF Z 16V Y5V
C511 065G1206106 17 CHIP 1UF Z 16V Y5V
C437 065G1206106 17 CHIP 1UF Z 16V Y5V
C425 065G1206106 17 CHIP 1UF Z 16V Y5V
C758 065G1206106 17 CHIP 1UF Z 16V Y5V
C756 065G1206106 17 CHIP 1UF Z 16V Y5V
C753 065G1206106 17 CHIP 1UF Z 16V Y5V
C751 065G1206106 17 CHIP 1UF Z 16V Y5V
C749 065G1206106 17 CHIP 1UF Z 16V Y5V
C745 065G1206106 17 CHIP 1UF Z 16V Y5V
C741 065G1206106 17 CHIP 1UF Z 16V Y5V
C739 065G1206106 17 CHIP 1UF Z 16V Y5V
C731 065G1206106 17 CHIP 1UF Z 16V Y5V
C727 065G1206106 17 CHIP 1UF Z 16V Y5V
C724 065G1206106 17 CHIP 1UF Z 16V Y5V
C720 065G1206106 17 CHIP 1UF Z 16V Y5V
C716 065G1206106 17 CHIP 1UF Z 16V Y5V
C710 065G1206106 17 CHIP 1UF Z 16V Y5V
20” LCD Color Monitor FSC P20W-3
- 55 -
C705 065G1206106 17 CHIP 1UF Z 16V Y5V
C411 065G1206106 17 CHIP 1UF Z 16V Y5V
C402 065G1206106 17 CHIP 1UF Z 16V Y5V
C769 065G1206106 17 CHIP 1UF Z 16V Y5V
C767 065G1206106 17 CHIP 1UF Z 16V Y5V
C765 065G1206106 17 CHIP 1UF Z 16V Y5V
FB103 071G 56F320 K CHIP BEAD 32 OHM 0805
FB102 071G 56F320 K CHIP BEAD 32 OHM 0805
FB101 071G 56F320 K CHIP BEAD 32 OHM 0805
FB604 071G 56K121 CHIP BEAD
FB705 071G 56K121 CHIP BEAD
FB702 071G 56K121 CHIP BEAD
FB614 071G 56K121 CHIP BEAD
FB613 071G 56K121 CHIP BEAD
FB612 071G 56K121 CHIP BEAD
FB611 071G 56K121 CHIP BEAD
FB603 071G 56K121 CHIP BEAD
FB602 071G 56K121 CHIP BEAD
FB601 071G 56K121 CHIP BEAD
FB505 071G 56K121 CHIP BEAD
FB401 071G 56K121 CHIP BEAD
FB108 071G 56K121 CHIP BEAD
FB709 071G 56K121 CHIP BEAD
FB716 071G 56K121 CHIP BEAD
FB707 071G 56K121 CHIP BEAD
FB704 071G 56K121 CHIP BEAD
FB703 071G 56K121 CHIP BEAD
FB610 071G 56K121 CHIP BEAD
FB605 071G 56K121 CHIP BEAD
FB609 071G 56K121 CHIP BEAD
FB607 071G 56K121 M CHIP BEAD
FB606 071G 56Z601 CHIP BEAD 600 OHM 0805
FB608 071G 56Z601 CHIP BEAD 600 OHM 0805
FB402 071G 59B601 EA CHIP BEAD 600 OHM
FB404 071G 59B601 EA CHIP BEAD 600 OHM
FB706 071G 59B601 EA CHIP BEAD 600 OHM
FB708 071G 59B601 EA CHIP BEAD 600 OHM
FB710 071G 59B601 EA CHIP BEAD 600 OHM
FB711 071G 59B601 EA CHIP BEAD 600 OHM
FB712 071G 59B601 EA CHIP BEAD 600 OHM
FB713 071G 59B601 EA CHIP BEAD 600 OHM
FB714 071G 59B601 EA CHIP BEAD 600 OHM
FB715 071G 59B601 EA CHIP BEAD 600 OHM
FB506 071G 59B601 EA CHIP BEAD 600 OHM
FB104 071G 59G301 CHIP BEAD 300OHM
FB507 071G 59G301 CHIP BEAD 300OHM
FB109 071G 59G301 CHIP BEAD 300OHM
FB501 073G253S 6 T IND SMD CHOKE 90 OHM TDK
FB502 073G253S 6 T IND SMD CHOKE 90 OHM TDK
FB503 073G253S 6 T IND SMD CHOKE 90 OHM TDK
FB504 073G253S 6 T IND SMD CHOKE 90 OHM TDK
CN501 088G 340 19 HA HDMI HEADER 19P 500254-1931
D111 093G 64 42 P BAV70 SOT23 BY PAN JIT
D110 093G 64 42 P BAV70 SOT23 BY PAN JIT
D509 093G 64 42 P BAV70 SOT23 BY PAN JIT
ZD118 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ
20” LCD Color Monitor FSC P20W-3
- 56 -
ZD117 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ
ZD116 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ
D109 093G 6432P LL4148
D108 093G 6433S DIODE BAV99 SEMTECH
D107 093G 6433S DIODE BAV99 SEMTECH
D106 093G 6433S DIODE BAV99 SEMTECH
D105 093G 6433S DIODE BAV99 SEMTECH
D104 093G 6433S DIODE BAV99 SEMTECH
D103 093G 6433S DIODE BAV99 SEMTECH
D102 093G 6433S DIODE BAV99 SEMTECH
D101 093G 6433S DIODE BAV99 SEMTECH
ZD115 093G 39S 34 T UDZS5.6B
ZD114 093G 39S 34 T UDZS5.6B
ZD111 093G 39S 34 T UDZS5.6B
ZD110 093G 39S 34 T UDZS5.6B
ZD108 093G 39S 34 T UDZS5.6B
ZD107 093G 39S 34 T UDZS5.6B
ZD106 093G 39S 34 T UDZS5.6B
ZD105 093G 39S 34 T UDZS5.6B
ZD104 093G 39S 34 T UDZS5.6B
ZD101 093G 39S 34 T UDZS5.6B
ZD102 093G 39S 34 T UDZS5.6B
ZD103 093G 39S 34 T UDZS5.6B
ZD702 093G 39S 34 T UDZS5.6B
ZD504 093G 39S 34 T UDZS5.6B
ZD503 093G 39S 34 T UDZS5.6B
ZD701 093G 39S 34 T UDZS5.6B
ZD502 093G 39S 34 T UDZS5.6B
ZD501 093G 39S 34 T UDZS5.6B
ZD407 093G 39S 34 T UDZS5.6B
ZD403 093G 39S 34 T UDZS5.6B
ZD402 093G 39S 34 T UDZS5.6B
ZD401 093G 39S 34 T UDZS5.6B
715G2651 1 MAIN BOARD PCB
KEPC7QM8 KEY BOARD
CN001 033G803410A WAFER
R002 061G0402100 1F RST CHIPR 1KOHM +-1% 1/16W
R004 061G0402100 1F RST CHIPR 1KOHM +-1% 1/16W
C003 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C004 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C001 065G0603104 32 CHIP 0.1UF 50V X7R
C002 065G0603104 32 CHIP 0.1UF 50V X7R
SW001 077G 604 2 TO TACT 5W BY TOUKE TS-9-TMG-553
SW002 077G 604 2 TO TACT 5W BY TOUKE TS-9-TMG-553
SW005 077G 604 2 TO TACT 5W BY TOUKE TS-9-TMG-553
SW004 077G 604 2 TO TACT 5W BY TOUKE TS-9-TMG-553
SW003 077G 604 2 TO TACT 5W BY TOUKE TS-9-TMG-553
LED001 081G 14 12 KT CHIP LED
D101 093G 39S 45 T DIODE ZENER RLZ36B ROHM
D102 093G 39S 45 T DIODE ZENER RLZ36B ROHM
D103 093G 39S 45 T DIODE ZENER RLZ36B ROHM
D104 093G 39S 45 T DIODE ZENER RLZ36B ROHM
715G2623 1 KEY BOARD PCB
LSPC7QM1 SENSOR BOARD
CN702 033G8034 4A CONNECTOR
U708 056G 627 8 TSL2550T
20” LCD Color Monitor FSC P20W-3
- 57 -
ZD703 093G 39S 34 T UDZS5.6B
ZD704 093G 39S 34 T UDZS5.6B
ZD705 093G 39S 34 T UDZS5.6B
715G2485 1 SENSOR BOARD PCB
PWPCA42SF1 POWER BOARD
CN801 033G8021 2E AC WAFER
CN802 033G8021 2E AC WAFER
CN803 033G8021 2E AC WAFER
CN804 033G8021 2E AC WAFER
040G 45762412B CBPC LABEL
040G 45762412B CBPC LABEL
044G3231 15571 EVA WASHER
IC902 056G 139 3A IC PC123Y22FZ0F
NR901 061G 58080 WT 8 OHM NCT
R909 061G152M104 64 100KOHM 5% 2W
R916 061G152M338 64 0.33 OHM 5% 2W
C900 063G 10747410V 0.47UF 275VAC ARCO
C939 065G 1K103 2E6213 CAP CER 10NF K 1KV
C816 065G 3J1806ET 18PF 5% SL3KV TDK
C825 065G 3J1806ET 18PF 5% SL3KV TDK
C817 065G 6J5096ET CAP CER 5PF J 6KV
C826 065G 6J5096ET CAP CER 5PF J 6KV
C902 065G305M1022BP Y2 1000PF M 250VAC Y5P
C901 065G305M1022BP Y2 1000PF M 250VAC Y5P
C933 065G306K4712BP 470PF Y1-CAP
C932 065G306M4722BP 4700PF +-20% 400VAC
C924 067G 215681 4N GP
105℃ 680UF +-20% 25V GP
C922 067G 215681 4N GP
105℃ 680UF +-20% 25V GP
C820 067G 215681 4N GP
105℃ 680UF +-20% 25V GP
C811 067G 215681 4N GP
105℃ 680UF +-20% 25V GP
C937 067G 215681 4N GP
105℃ 680UF +-20% 25V GP
C923 067G215V102 3R LOW E.S.R 1000UF +/-20% 16V
C938 067G215V102 3R LOW E.S.R 1000UF +/-20% 16V
C926 067G215V471 3R LOW E.S.R 470UF +/-20% 16V
C925 067G215V471 4R LOW E.S.R 470UF +/-20% 25V
C903 067G315Z12115K
CAP 105℃ 120UF M 450V
L922 073G 253 91 L CHOKE BY LI TA
L921 073G 253 91 L CHOKE BY LI TA
SW901 077G 30625A S ROCKER SWITCH
T801 080GL20T 36 YS X'FMR 380MH YS04170187
T802 080GL20T 36 YS X'FMR 380MH YS04170187
CN901 087G 501 32 S AC SOCKET
DB901 093G 50460900 BRIDEGE DIODE GBU408 LITEON
CN902 095G801410D566 WIRE HARNESS
HS1 705G 980 57 26 Q900 ASS'Y
Q900 057G 667 21 STP10NK70ZFP
090G6264 2 HEAT SINK
0M1G1730 8120 SCREW
705GQ793028 D919 ASS'Y
D919 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB
0M1G1730 8120 SCREW
Q90G6263 3 HEAT SINK
705GQ793031 D920 ASS'Y
D920 093G 60252 SP20150
0M1G1730 8120 SCREW
HS3 Q90G0008 1 HEAT SINK
20” LCD Color Monitor FSC P20W-3
- 58 -
HS4 A15G0114 1 EMI-BKT
IC901 056G 379 76 IC LD7552BPS SOP-8
U801 056G 608 10 IC OZ9938GN-B SOIC-16
Q903 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q801 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q806 057G 763 14 AM9945N
Q805 057G 763 14 AM9945N
R842 061G0805100 10 OHM 1/10W
R837 061G0805100 10 OHM 1/10W
R825 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W
R835 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W
R836 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W
R843 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W
R801 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W
R803 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W
R812 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W
R810 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R815 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R911 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R913 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R925 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R927 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R934 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R804 061G0805103 10 KOHM 1/10W
R914 061G0805103 10 KOHM 1/10W
R915 061G0805103 10 KOHM 1/10W
R919 061G0805104 RST CHIP 100K 1/8W 5%
R816 061G0805105 1MOHM 1/10W
R813 061G0805105 1MOHM 1/10W
R830 061G0805123 RST CHIPR 12 KOHM +-5% 1/8W
R820 061G0805150 2F RST CHIPR 15 KOHM +-1% 1/8W
R808 061G0805150 3F RST CHIP 150K 1/8W 1%
R821 061G0805154 RST CHIPR 150KOHM +-5% 1/8W
R831 061G0805154 RST CHIPR 150KOHM +-5% 1/8W
R841 061G0805182 RST CHIPR 1.8 KOHM +-5% 1/8W
R826 061G0805201 RST CHIPR 200 OHM +-5% 1/8W
R809 061G0805204 RST CHIPR 200 KOHM +-5% 1/8W
R807 061G0805220 22&8 1/10W
R929 061G0805240 1F RST CHIPR 2.4KOHM +-1% 1/8W
R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W
R926 061G0805330 2F RST CHIPR 33 KOHM +-1% 1/8W
R924 061G0805360 1F RST CHIPR 3.6KOHM +-1% 1/8W
R811 061G0805360 2F RST CHIPR 36 KOHM +-1% 1/8W
R827 061G0805362 RST CHIPR 3.6 KOHM +-5% 1/8W
R833 061G0805362 RST CHIPR 3.6 KOHM +-5% 1/8W
R817 061G0805390 2F RST CHIPR 39 KOHM +-1% 1/8W
R928 061G0805392 3.9 KOHM 1/10W
R918 061G0805753 CHIP 75KOHM 1/10W
R814 061G0805823 RST CHIPR 82 KOHM +-5% 1/8W
JR902 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR901 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
F902 061G1206000 4 RST CHIPR 0 OHM +-5% 1/4W
F903 061G1206000 4 RST CHIPR 0 OHM +-5% 1/4W
R917 061G1206101 100 1206
20” LCD Color Monitor FSC P20W-3
- 59 -
R931 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R932 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R933 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R930 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R910 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W
R840 061G1206330 RST CHIPR 33 OHM +-5% 1/4W
R839 061G1206330 RST CHIPR 33 OHM +-5% 1/4W
R902 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R901 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R900 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R905 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R904 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R903 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R805 061G1206471 470 1206
C928 065G0805102 32 CHIP 1000P 50VX7R 0805
C815 065G0805102 32 CHIP 1000P 50VX7R 0805
C814 065G0805102 32 CHIP 1000P 50VX7R 0805
C805 065G0805102 32 CHIP 1000P 50VX7R 0805
C803 065G0805103 22 CHIP 0.01UF 25V X7R 0805
C807 065G0805103 22 CHIP 0.01UF 25V X7R 0805
C941 065G0805103 32 10NF/50V/0805/X7R
C940 065G0805103 32 10NF/50V/0805/X7R
C931 065G0805104 22 0.1UF +-10% 25V X7R 080
C930 065G0805104 22 0.1UF +-10% 25V X7R 080
C927 065G0805104 22 0.1UF +-10% 25V X7R 080
C908 065G0805104 22 0.1UF +-10% 25V X7R 080
C905 065G0805104 32 CHIP 0.1U 50V X7R
C806 065G0805105 22 CHIP 1UF 25V X7R 0805
C808 065G0805123 22 CHIP 12NF 25V X7R 0805
C907 065G080522131G 220PF 50V NPO 2%
C934 065G0805223 22 CHIP 0.022UF 25V X7R 080
C804 065G0805225 22 CHIP 2.2UF 25V X7R 0805
C818 065G0805271 31 MLCC 0805 270PF J 50V NP0
C827 065G0805271 31 MLCC 0805 270PF J 50V NP0
C810 065G080547121G 470PF, G, 25V,NPO
C819 065G0805473 22 SMD 47NF +-10%25V XTR
C809 065G0805473 32 CHIP 0.047UF 50V X7R
D802 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D804 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D801 093G 64 42 PP BAV70 SOT-23
D803 093G 64 42 PP BAV70 SOT-23
D923 093G 64 44 S LL4148WP
D922 093G 64 44 S LL4148WP
ZD801 093G 39S 24 T RLZ 5.6B LLDS
ZD922 093G 39S 25 T RLZ5.1B LLDS
ZD921 093G 39S 40 T RLZ 13B LLDS
ZD923 093G 39S 40 T RLZ 13B LLDS
SW901 006G 31 4 1.7MM RIVET
CN901 006G 31500 EYELET
NR901 006G 31502 1.5MM RIVET
T901 006G 31502 1.5MM RIVET
IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC
IC921 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC
R912 061G 17210052T 100HM 5% 1/4W
R922 061G 17222152T 220 OHM 5% 1/4W
R920 061G 20747052T 47 OHM 1/2W
20” LCD Color Monitor FSC P20W-3
- 60 -
R921 061G 20747052T 47 OHM 1/2W
R822 061G212Y305 KT MGFR 3M OHM +-5% 1/2W
R832 061G212Y305 KT MGFR 3M OHM +-5% 1/2W
C936 065G 1K101 5T6921 100PF /1KV
C935 065G 1K102 5T 1000PF/1KV
C904 065G 1K152 1T 1.5NF/1KV Z5F+-10%
C920 065G517K102 5T 1000PF 10% Y5P 500V
C921 065G517K102 5T 1000PF 10% Y5P 500V
C906 067G 2152207NT KY50VB22M-TP5 5*11
FB801 071G 55 9 T FERRITE BEAD
FB901 071G 55 29 FERRITE BEAD
FB903 071G 55 29 FERRITE BEAD
F901 084G 56 1 FUSE 2A 250V WICKMANN
D901 093G 6038T52T FR103
D900 093G1100 1052T BA159GPT DO-41 CHENMKO
715G2624 1 POWER BOARD PCB
Q52G6025 13130 MYLAR
L902 S73G17476V LINE FILTER
L901 S73L17426VG LINE FILTER
Q07G 1 55 WOODEN PALLET
Q07G 7 T182 COMPOUND PALLET
Q07G 7 T183 COMPOUND PALLET
Q40G 20N622 6B RATING LABEL
Q40G0001622 1B CARTON LABEL
Q44G6002112 87 PAPER BOARD
Q44G6002CP191A PAPER CAP
Q44G6002CP192A PAPER CAP
Q44GA036 1 EPS
Q44GA036 2 EPS
Q44GA036622 1A 20 LCD FSC CARTON
Q45G 88607 55 PE BAG FOR BASE
Q45G 88607 59 PE BAG
Q52G6020 47 PROTECT FILM
Q52G6025 13115 INSULATE SHEET
Q85G 583622 GASKET£¨ÂÁ²ÅÝÃÞ£©
040G 58162435A LABEL
Q41G6800622 6H WARRANTY CARD
Q41G780062232A SAFTY MANUAL
Q41G780062234A QSG
Q45G 76 28A38 PE BAG FOR MANUAL/BASE
Q70G2201622 1A CD MANUAL
20” LCD Color Monitor FSC P20W-3
- 61 -
12. Different Parts List
Diversity of TA7GM3DBIWM78C Compared with TA7GM3DBIWM7DC
Location Part No. Description
041G 68508 A CONTROL CARD
Q40G 582813 3A S/N LABEL
Q44G9003 96 CORNER PAPER
Q44GA036622 2A 20 LCD FSC CARTON
Q50G 500518 CABLE TIE
040G 581654 3A CARTON LABEL
E08901 089G 17356G553 AUDIO CABLE 1800MM
Q40G581C62435A LABEL
Q44G600020F 2A CARTON
Q45G 76 28NV2 R PE BAG FOR CLAMP
Q70G2201622 1B CD MANUAL
044G6000 1 1A CARTON
E08904 089G1748GAAAC1 DVI CABLE
705GQ7SK014 FSC20 SKD ASS'Y
E07801 078G 311506 YL SPK 8 OHM 2W 57.5X22.8MM 90MM SUNLINK
E07802 078G 311506 YR SPK 8 OHM 2W 57.5X22.8MM 400MM SUNLINK
0M1G 140 8225 CR3 SCREW
0Q1G 130 6120 SCREW (T3X6)
A34G0400 EF 1X 33 BASE SWIVEL
U402 056G1125175 MTV416GMV
715G2651 2 MAIN BOARD PCB
R845 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R846 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R839 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R840 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
D923 093G 6432S IN4148W
D922 093G 6432S IN4148W
D802 093G 6433P BAV99
D804 093G 6433P BAV99
715G2624 2 POWER BOARD PCB
Q07G 1 L 1 X WOODEN PALLET
Q07G 1 55 X WOODEN PALLET
Q07G 7 T149 PALLET
Q07G 8 1 11 COMPOUND PALLET
Q07G 8 3 33 COMPOUND PALLET
Q07G 8 3 34 COMPOUND PALLET
Q40G 20N622 9B RATING LABEL
Diversity of TA7AM3DBIW1MDC Compared with TA7GM3DBIWM7DC
Location Part No. Description
052G 1207 A ALUMINIUM TAPE
E07801 078G 311506 GL SPK 8 OHM 2W 57.5X22.8MM 90MM NEOSONICA
E07802 078G 311506 GR SPK 8 OHM 2W 57.5X22.8MM 400MM NEOSONICA
E08901 089G 17356G553 AUDIO CABLE 1800MM
E08902 089G 184GAA500 HDMI CABLE
E08903 089G 728GAA DB D-SUB
E08905 089G404A18N IS
POWER CORD 插墙/32E1818018
E09501 095G8014 4Q534 WIRE HARNESS 4P-3P+2P 150MM
E09502 095G8014 7Q518 HARNESS 7P-4P 200MM
20” LCD Color Monitor FSC P20W-3
- 62 -
E09503 095G801410Q560 WIRE HARNESS 10P-6P 350MM
E09504 095G8018 3D677 LVDS CABLE 30P-30P 160MM
750GLUA1W2832N000S PANEL M201EW02 V80B SZ AUO
A15G0233 2 MAIN FRAME
CBPC7AM31MQ2 MAIN BOARD G2651-2A-X-X-3-071027
R136 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R134 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R129 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R126 061G0603102 RST CHIP 1K 1/10W 5%
R491 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R490 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
C110 065G0603104 32 CHIP 0.1UF 50V X7R
C111 065G0603104 32 CHIP 0.1UF 50V X7R
C112 065G0603104 32 CHIP 0.1UF 50V X7R
D114 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D113 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D112 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D119 093G 6432P LL4148
ZD109 093G 39S 34 T UDZSNP5.6B ROHM
715G2651 2A MAIN BOARD PCB
Loading...
