Fujitsu Stylistic ST5020, Stylistic ST5030, Stylistic ST5111, Stylistic ST5112, Stylistic ST Series User Manual

Fujitsu Stylistic

®

ST Series Tablet PC

TABLET DOCK

USER’S GUIDE

Warning

Handling the cord on this product will expose you to lead, a chemical known to the State of
California to cause birth defects or other reproductive harm.

Wash hands after handling.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu Computer Systems Corporation

Address: 1250 E. Arques Avenue, M/S 122

Sunnyvale, CA 94085

Telephone: [phone]

Declares that products: Tablet Dock (w/DVD/CD-RW Combo) FPCPR43AP

Tablet Dock (w/CD-ROM) FPCPR44AP
Comply with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device must not be allowed to cause harmful interference, (2) This device must accept any

interference received, including interference that may cause undesired operation.

Stylistic Tablet PC Tablet Dock

Tab let Do ck User ’s Guid e

This guide contains information on using your Tablet
Dock. You should read this guide before using the dock,
even if you are familiar with other computer docking
devices.

Your Tablet Dock may be configured in one of two ways:

■

Tablet Dock with CD-ROM drive

■

Tablet Dock with DVD/CD-RW Combo drive

Your Fujitsu Stylistic Tablet PC Tablet Dock has the
following interfaces:

Port/Jack Purpose

LAN (RJ-45)
Jack

VGA Port

Line Out
Jack

DC In

USB Ports
(Quantity 3)

IEEE 1394
Jack

Allows you to connect a Local Area
Network (LAN) device or broadband
device such as a cable modem.

Allows you to connect an external
monitor.

Allows you to connect headphones or
external speakers.

Allows you to connect power to the
system.

Allows you to connect up to three
Universal Serial Bus (USB) Revision 2.0
devices or hubs.

Allows you to connect a peripheral
such as a digital video camera.

UNPACKING

When removing your Tablet Dock from the packaging
materials, check for these items:

■

Tab l et Do ck

■

AC Adapter

■

Warranty statement

■

User’s Guide (this document)

■

CD containing additional applications (included with
Tablet Dock with Combo Drive only)

Contact your dealer if you do not have all of the items

.

■

Always use your Tablet Dock on a solid,
flat, level, clean, and dry surface. Nearby
should be electric power, and a tele­phone jack for a modem or a LAN port.

■

Save packing material in order to safely
ship or store the Tablet Dock in the
future.

■

Do not expose the dock to rain, mois­ture, excessive dirt or temperatures
outside the Environmental Specifica­tions as it may cause fire and shock
hazards.

■

High voltage is present inside the Tablet
Dock. Do not remove the cover under
any circumstances. There is a serious
shock hazard.

■

Turn the unit off, unplug the power cord
and contact a qualified service techni­cian or Fujitsu Services and Support if:

- Liquid has been spilled on the Tablet
Dock.

- The Tablet Dock has been dropped.

- Small metal objects went inside your
Tablet Dock which may cause a short
circuit and/or create a hazard of
shock.

- Fuses continue to blow out.

- A distinct change in the operation and
performance of the Tablet Dock
occurs.

- The power cord or plug is damaged or
frayed.

■

The unit should be operated only from
the type of power indicated on the
marked label.

■

The socket outlet must be installed near
the equipment to be accessible using the
system’s AC power cord.

■

For additional environmental specifica­tions, see “Tablet Dock Specifications”
on page 7.

1

Stylistic ST Series Tablet Dock

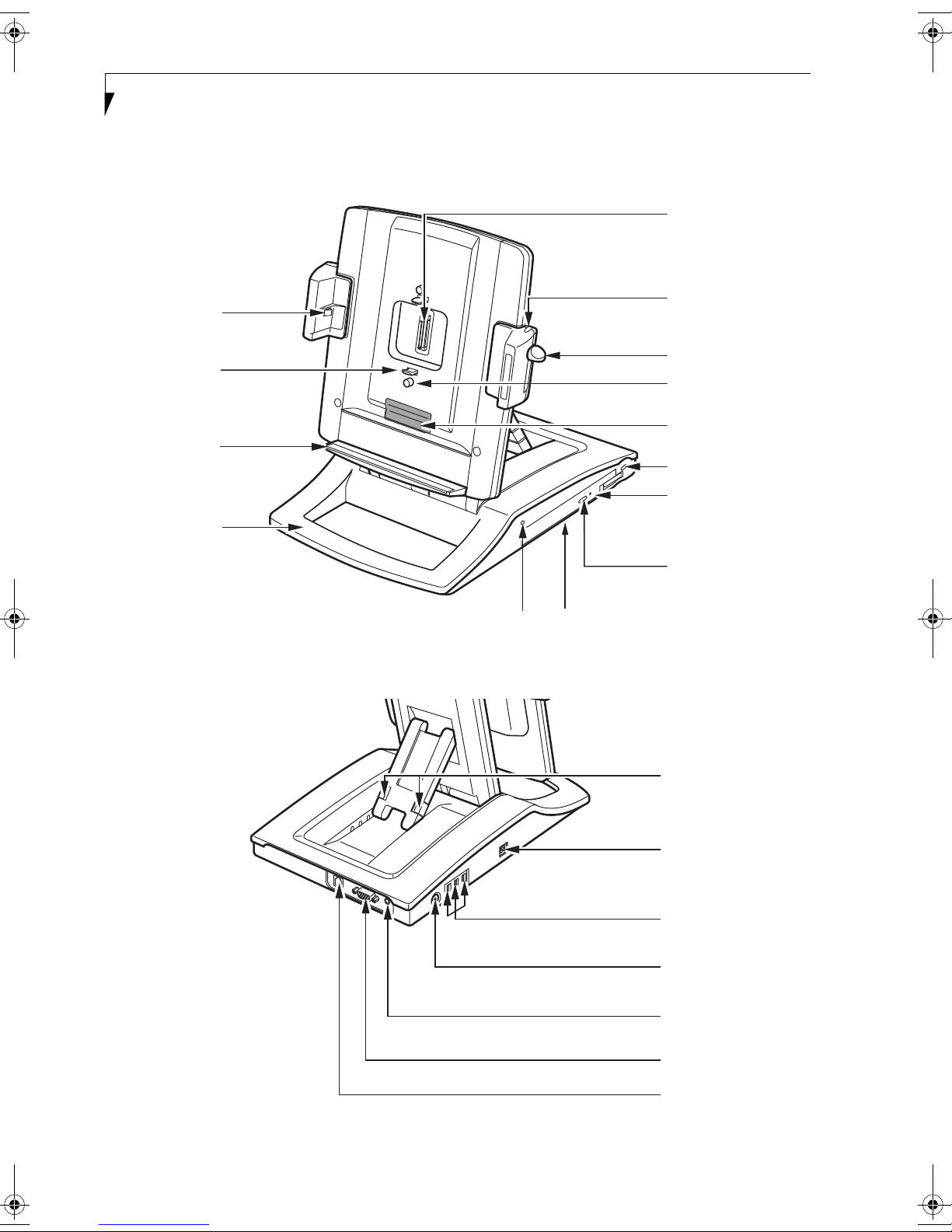

IDENTIFYING THE COMPONENTS

Before using your Tablet Dock, you should familiarize yourself with its various features.

Interface
Connector

Side Latch

(both sides)

Back Latch

(upper and

lower)

Platform

Ledge

Front of base

(Do not use
as a carrying

handle).

Power LED

Figure 1. Front View

Lock Release
Button

Lock Handle

Positioning Guide
(upper and lower)

Air Flow Vents

Kensington®
Lock Slot

Emergency
Tray Release

Tray Release
Button

DVD/CD-RW Combo
or CD-ROM Drive

2

Easel Release
Buttons

IEEE 1394 Jack

USB 2.0 Ports
(Qty. 3)

DC In Jack

Line Out Jack

External Monitor
(VGA) Port

LAN (RJ-45) Jack

Figure 2. Back View

Tab let Do ck User ’s Guid e

PRIOR TO DOCKING YOUR SYSTEM

The Tablet Dock is designed to accommodate a tablet
with either a standard battery pack or a larger high­capacity battery pack. When a high-capacity battery pack
is installed in your tablet, you must adjust the Tablet
Dock platform to ensure that the connector on the back
of the tablet aligns properly with the interface connector
on the dock.

If you have a high-capacity battery pack installed in your
system, perform the following procedure before
attempting to install the system.

1

2

3

DOCKING YOUR SYSTEM

Microsoft® Windows® uses “plug- and-play” technology
to automatically load the files necessary to operate your
Tablet Dock and any attached devices.

The following instructions assume the
Tablet Dock is positioned in portrait mode,
with the Lock Handle on the right of the
dock.

1. Plug either the system’s AC Adapter or the AC
Adapter that came with your Tablet Dock into a wall
outlet, then into the Tablet Dock’s DC Input jack.

2. Set the Tablet PC on the Tablet Dock, with the system
oriented in the same direction as the dock. (See
Figure 4 for location). The connector in the back of
the system should be aligned with the interface
connector on the Tablet Dock.

Figure 3. Dropping the Platform

Using the dock with a high-capacity battery

1. Holding the platform ledge, pull it away from the
Tablet Dock (reference Figure 3).

2. With the ledge pulled out, lower it as far as it will go.

3. Press the ledge back so that it is flush with the Tablet
Dock. The tablet with a high-capacity battery can
now be docked.

Using the dock with a standard battery pack

1. To change the dock back to accommodate a standard
battery, pull the platform ledge away from the Tablet
Dock.

2. Lift the platform until it stops.

3. Press the platform ledge back so that it is flush with
the Tablet Dock.

Figure 4. Docking the system

3. Press the system against the docking port until you
hear a click. The click indicates that the side latches
are in place. Note that the system is not locked into
place until the following step is performed.

4. Firmly pull the lock handle down as far as it will go.
This engages the back latches and side latches, and
locks the system in place.

5. Your Tablet Dock is now ready for use. You may now
attach devices to it

The front portion of the base should not
be used as a handle. It is designed to
support the system when it is installed in
the Tablet Dock.

.

3

Stylistic ST Series Tablet Dock

UNDOCKING YOUR SYSTEM

Use these instructions when you want to remove your
system from the Tablet Dock.

The system can be removed from the
Tablet Dock whether the system is operat­ing or not.

1. If you are running a CD or DVD in the Tablet Dock
drive, be sure to stop the drive before undocking the
system.

2. Press the lock release button on the top of the right
side (above the lock handle). While holding it down,
pull the lock handle upwards to unlatch the back
latches from the system. (See Figure 5 for location)

3. Pull the system out, then upwards, away from the
platform as shown in Figure 5. The system is now
undocked.

Figure 6. Changing Display from Portrait to Landscape Mode

Figure 5. Undocking the system

CHANGING SYSTEM ORIENTATION

With the Tablet Dock, you have the option of viewing
the display either in Portrait (vertical) or Landscape
(horizontal) mode.

To change the position of the display, simply grasp the
edge of the system and turn it in the direction shown in
Figures 5 and 6.

■

If the display is in portrait position, turn the display
to the right, as shown in Figure 6.

■

If the display is in landscape position, turn the
display to the left, as shown in Figure 7.

4

Figure 7. Changing Display from Landscape to Portrait Mode

Depending upon the configuration of your
Tablet PC, the display image may or may
not change orientation automatically
when the display is rotated. To manually
change the orientation of the display
image, use the Orientation application
button. (See your system User’s Guide for
more information).

Tab let Do ck User ’s Guid e

CONNECTING DEVICES

This section contains instructions on attaching external
peripherals to your Tablet Dock.

To Attach an External VGA Monitor

This option allows you to use an external monitor with
your system. The only requirement is that the external
device (monitor, projector) is a VGA device. Consult the
instructions that come with the device.

1. Securely insert the external monitor plug into the
display port on the back of the Tablet Dock
(Figure 2). Always check the icon by the port before
inserting. Tighten screws if available.

2. You may switch between the internal monitor and
external monitor using the Display Configuration
utility located in the system tray at the bottom right
of the screen, or through the Control Panel settings.

To Attach a USB device

If your Tablet PC supports USB 2.0
devices, the Tablet Dock will also support
USB 2.0 devices.

To attach a USB device, securely insert the connector
into one of the three USB ports on the left side of the
Tablet Dock (Figure 2). It may be necessary to wait a
short time while the appropriate drivers are located and
installed by the system.

To Attach an IEEE 1394 device

The IEEE 1394 interface (also known as “firewire”)
allows you to attach IEEE 1394-compliant devices (e.g.,
digital cameras, digital video cameras) to the docked
system.

To attach an IEEE 1394 device, securely insert the
connector into the IEEE 1394 jack on the left side of the
Tablet Dock (Figure 2).

Refer to the device manufacturer’s installation and usage
instructions for configuration instructions.

To Attach External Audio Equipment

The Tablet Dock provides a Line Out jack for head­phones or external speakers.

To Attach a LAN Device

The LAN (RJ-45) jack allows you to connect the system’s
internal Fast Ethernet to a LAN, or broadband devices
such as a cable modem, DSL, or satellite internet.

Some models of the Stylistic ST Series
Tablet PCs support Gigabit Ethernet. If
your Tablet PC supports Gigabit Ethernet,
the Tablet Dock will also support it.

To attach a LAN device, insert the plug into the LAN
(RJ-45) jack on the back of the Tablet Dock.

Refer to the device manufacturer’s installation and usage
instructions for configuration instructions.

USING THE INTERNAL MEDIA DRIVE

The Tablet Dock is outfitted with either a CD-ROM
drive or a DVD/CD-RW Combo drive, depending upon
your dock configuration. A CD-ROM drive allows you
to access software, data, or audio CDs. A DVD/CD-RW
combo drive allows you to access movies, audio, soft­ware, data, or audio DVD/CDs, and to write data onto
recordable CDs.

■

CD-ROM drive

All of the software you need to run the CD-ROM drive
is installed in the Tablet PC. The drive will work as
soon as the system is docked and powered up.

■

Combo DVD/CD-RW drive

Packaged with the Tablet Dock is a CD containing the
applications required to run the DVD and CD/RW
features. The combo drive will only act as a CD-ROM
drive until you install the additional software. To
install the software, refer to instructions on the CD.

The instructions for installing and removing disks is the
same for both drives. For information about the soft­ware’s features and capabilities, refer to the help files
associated with the related applications.

Do not operate your media drive unless
your system is sitting on a relatively flat
surface. Using the drive when the system
is not level may damage the drive or
prevent proper operation.

Connecting external speaker, headphones,
or microphone disables the system’s
internal speaker or internal microphone.

To attach an external audio device, insert the plug into
the Line Out jack on the back of the Tablet Dock
(Figure 2).

5

Stylistic ST Series Tablet Dock

■

Prolonged use of the media drive, such
as watching a DVD movie, will signifi­cantly reduce your battery life if no other
power source is attached. Be sure to
attach a power adapter when using the
Tablet Dock for prolonged tasks.

■

You should periodically check the Fujitsu
Web site at us.fujitsu.com/computers for
updated drivers.

■

All Fujitsu DVD players are set to play
DVD titles with region code number 1
(North American market). The region
number is a regional restriction code
defined by the DVD Forum acting on
requirements of Hollywood. Different
region codes are recorded on video DVD
titles for publication in different areas of
the world. If the regional code of the
DVD player does not match the codes on
the titles, then playback is impossible.
You can change the region code on the
DVD player using the Properties menu of
the DVD software, but you can only
change the region code up to four times.
After the 4th change, the last region
code entered becomes permanent, and
cannot be changed.

holder tray will come out of the system a short
distance.

2. Gently pull the tray out until the disc can easily be
removed from the tray.

3. Remove the media disc from the holder tray.

4. Push the holder tray back in until you hear a click.

LOADING MEDIA

(Refer to Figure 8 for the following steps)

To load a disc into your media player drive, follow these
steps:

1. Push and release the eject button on the front of the
drive to open the holder tray. The tray will come out
of the system a short distance.

2. Gently pull the tray out until a media disc can easily
be placed in the tray

There may be a protective sheet in the tray
from when it was shipped; make sure it is
removed before operating the drive.

.

3. Place the media into the tray, label side up, with the
hole in the center of the disc. Snap the disc onto the
raised circle in the center of the tray.

4. Push the holder tray back in until you hear a click.

REMOVING MEDIA

(Refer to Figure 8 for the following steps)

1. Push and release the eject button on the front of the
media player drive. This will stop the drive and the

Figure 8. Loading/Ejecting Media

6

REMOVING THE DRIVE

To remove the media drive from your Tablet Dock:

1. If the Tablet PC and media drive are running, click
on the “Safely Remove Hardware” icon in the system
tray at the bottom right of your screen and disable
the media drive.

Tab let Do ck User ’s Guid e

■

Product serial number for both the Tablet Dock and
your system.

■

Purchase date for both the Tablet Dock and your
Stylistic ST Series Tablet PC.

With the exception of the purchase dates, the informa­tion you need is on the unit label on the back of your
system and on the bottom of your dock.

It is recommended that you always have
the media drive installed while you are
using your Tablet PC in the Tablet Dock.

2. Pull the drive latch away from the Tablet Dock to
unlatch the drive from the dock. (See Figure 9.)

1

2

Figure 9. Removing the Media Drive

3. Pull the module out of the Tablet Dock.

SAFETY PRECAUTIONS

■

Never move the Tablet Dock with the system docked
unless it is fully locked. If the system were to undock
accidentally, it could drop and be damaged.

■

Never power-off or remove the computer from the
Tablet Dock while the system is reading or writing to a
floppy or hard drive. This could result in data loss.

FUJITSU CONTACT INFORMATION

If you have problems you are unable to resolve, consult
your support representative, toll free at

■

Phone: 1-800-8Fujitsu (1-800-838-5487)

■

FAX: [phone]

■

E-mail: [e-mail]

■

Web Site: us.fujitsu.com/computers

TABLET DOCK SPECIFICATIONS

Features/Details

■

Ports

Power

Dimensions

Weight

Environmental

Table 1. Tablet Dock Specifications

100-pin docking connector

■

VGA, D-sub 15-pin female
connector, DDC compliant

■

Line Out Jack (3.5mm) for head­phones or external speakers

■

DC input, 16VDC

■

IEEE 1394, 4-pin standard
connector

■

USB (Universal Serial Bus) 2.0
Ports (quantity: 3)

■

LAN connector: 1000Base-T/
100Base-TX/10Base-T; RJ-45

■

System Bay: Accommodates CD­ROM or DVD/CD-RW drive

■

16 VDC, with current of 3.75 A

■

Height: 12.95” (329 mm)

■

Width: 8.66” (220 mm)

■

Depth: 10.35” (263 mm)

■

5.95 lbs. (2.7 Kg)

■

Operating Temperature:

o

41

- 95o F (5o- 35o C)

■

Storage Temperature:

o

-4

- 140o F (-20o - 60o C)

■

Relative Humidity: 20 - 80%

Before you place the call have the following information
ready so the customer support representative can
provide you with the fastest possible assistance:

■

Product name and model number for both the Tablet
Dock and your system.

■

Product configuration number for both the Tablet
Dock and your system.

7

Stylistic ST Series Tablet Dock

Fujitsu Computer Systems Corporation

1250 E. Arques Avenue, M/S 122,
Sunnyvale, California 94085

For more information, call: 1-877-372-3473
or visit our Web site at: us.fujitsu.com/computers
For technical support call 1-800-8fujitsu (1-800-838-5487)

or e-mail us at: [e-mail]

Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited, and Stylistic is a registered trademark of Fujitsu
Computer Systems Corporation. Microsoft and Windows are either registered trademarks or trademarks of the Microsoft
Corporation in the United States and/or other countries. All other trademarks mentioned herein are the property of their
respective owners.

Product description data reflects Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a

variety of factors. Specifications are subject to change without notice.

© 2004 Fujitsu Computer Systems Corporation. All rights reserved.

B6FY-0011-02EN-00

8
