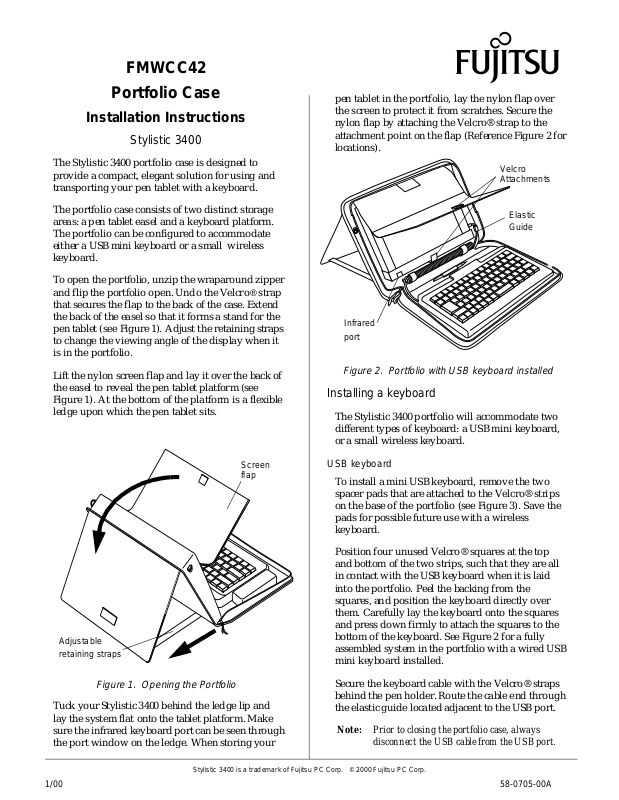

FMWCC42

Portfolio Case

Installation Instructions

Stylistic 3400

The Stylistic 3400 portfolio case is designed to provide a compact, elegant so lution for using and transporting your pen tablet with a keyboard.

The portfolio case consists of two distinct storage areas: a pen tablet easel and a keyboard platform. The portfolio can be configured to accommodate either a USB mini keyboard or a s mall wireless keyboard.

To o pen the portfolio, unzip the wraparound zipper and flip the portfolio open. Undo the Velcro that secures the flap to the back of the case. Extend the back of t he easel so that it form s a stand for the pen tablet (s e e Figure 1). Adjust the retaining straps to change the viewing angle of the display when it is in the p ortfolio.

Lift the nylon screen flap and lay it over the back of the easel to reveal the pen tablet platform (see Figure 1). At the bottom of the pla tform is a flexible ledge upon which the pen tablet sits.

strap

pen tablet in the portfolio, lay the nylon flap over the screen to protect it from scratches. Secure the nylon flap by attaching the Velcro® strap to the attachment point on the flap (Reference Figure 2 for locations).

Velcro Attachments

Elastic Guide

Infrared port

Figure 2. Portfolio with USB keyboard install ed

Installing a keyboard 0

The Stylistic 3400 portfolio will accommodate two different types of keyboard: a U SB m in i keyboard, or a small wireless keyboard.

Screen flap

Adjustable retaining straps

Figure 1. Opening the Portfolio

Tuck your Stylistic 34 00 behind the ledge lip and lay the system flat onto the tablet platform. Make sure the infrared keyboard port can be seen through the port window on the ledge. When storing your

USB keyboard 0

To install a mini USB keyboard, remove the two spacer pads that are attached to the Velcro® strips on the base of the portfolio (see Figure 3). Save the pads for possible future use w ith a wireless keyboard.

Position four unused Velcro® squar es at the top and bottom of the two strips, such that they are all in contact with the USB keyboard when it is laid into the portfolio. Peel the backing from the squares, and position the keyboard directly over them. Carefully lay the keyboard onto the squares and press down firmly to attach the squares to the bottomofthekeyboard.SeeFigure2forafully assembledsystem in the portfolio with a wiredUSB mini keyboard ins talle d.

Secure the keyboard c able with the Velcro® straps behind the p e n holder. Route the cable end through the elastic guide located adjacent to the USB port.

Note: Prior to closing the portfolio case, always

disconnect the USB cable from the USB port.

1/00 58-0705-00A

Page 2

Wireless keyboard 0

To install a wireless keyboard, position the spacer pads at either end of the portfolio base such that the wireless keyboard fits snugly between them when installed (see Figure 3).

Position four unused Velcro® squares at the top and bottom of the exposed portion of the two strips, such that they are all in contact with the w ireless keyboard when it is la id into the portfolio. Peel the backing from the squares, and po sition the keyboard directly over them. Carefully lay the keyboard onto the squares and press down firmly to attach the squares to the bottom of the keyboard.

Additional Information 0

• To attach the shoulder strap, open the spring-loaded clips on the end of the strap, and attach them to the shoulder strap D-rings on either side of the portfolio case (see Figure 3 for location of D-rings).

• The portfolio case is made of rugged materials, and is designed to withstand daily us e. Treat the case as you would a briefcase or purse.

• Occasionally, the p ortfolio may become soiled. To clean it, brush it with ashort-bristled brush. If necessary, use a clean cloth and warm soapy

water to wash the soiled area. Do not su bmerge the case in water, as it may become warped.

D-rings

Spacer pads

Figure 3. Por tfolio with wireless keyboard installed

• When inserting the pen into the elastic pen holder on th e portfolio, insert it back-end first (i.e., the en d with the tether ho le). Inserting it front-end first causes it to snag onthe finge r grip.
