Fujitsu PC Corporation
External Battery Charger
User’s Guide
FMW51BC1 / FMW51BC2
PenCentra 130 / PenCentra 200 / Stylistic LT
Stylistic LT C-500 / Stylistic LT P-600
INSTRUCTIONS
This external battery charger allows you to charge two
battery packs. When two battery packs are installed, the
pack installed first is charged first.
Caution
FMW51BC1 / FMW51BC2 External Battery Charger
This battery charger is compatible with the following
battery packs:
■
FMW51BP1 battery pack
■
FMW29BP2 battery pack
■
FMW29BP1 battery pack
■
FMW43BP2 battery pack
■
FPCBP48 battery pack
UL Notice:
58-0581-01.fm Page 2 Tuesday, August 21, 2001 9:28 AM
Using the Battery Charger
To charge your battery pack(s) in the external battery
charger:
1. Connect an FPC DC power source such as AC Adapter
FMWAC4, FPCAC14, FPCAC23, or Auto/Airline
Adapter FPCAA02 to the DC input on the battery
charger. The Power status indicator on the charger turns
on indicating that external power is supplied to the
charger.
2. Insert the battery pack into one of the slots in the battery
charger as shown in the following figure until the
battery pack is firmly seated in the charger.
3. There are two status indicators on the battery charger,
one for each slot. The status indicators change colors to
represent different battery conditions, as noted in
Table 1 .
When the battery charger is not in use, remove all batteries
and disconnect the DC power source.
2
58-0581-01.fm Page 3 Tuesday, August 21, 2001 9:28 AM
Table 1: Status Indicator States
Indicator Condition Status
Power OFF AC Adapter not
connected
Green/ON AC Adapter connected
Battery 1/
Battery 2
OFF No battery installed
Green/ON Charge complete
Amber ON Charging
Blink Standby (Waiting to
charge)
Blink
1
Battery pack alarm
1
Battery charger alarm
Red ON
1
If the battery charger indicates a fault condition with the battery
pack, remove the battery pack, disconnect power to the
charger, and contact your local help desk or your reseller for
further assistance.
3
58-0581-01.fm Page 4 Tuesday, August 21, 2001 9:28 AM
Slide
Connector pins
Battery slot 2
Battery slot 1
Status
Indicators
1
2
Rechargeable
battery pack

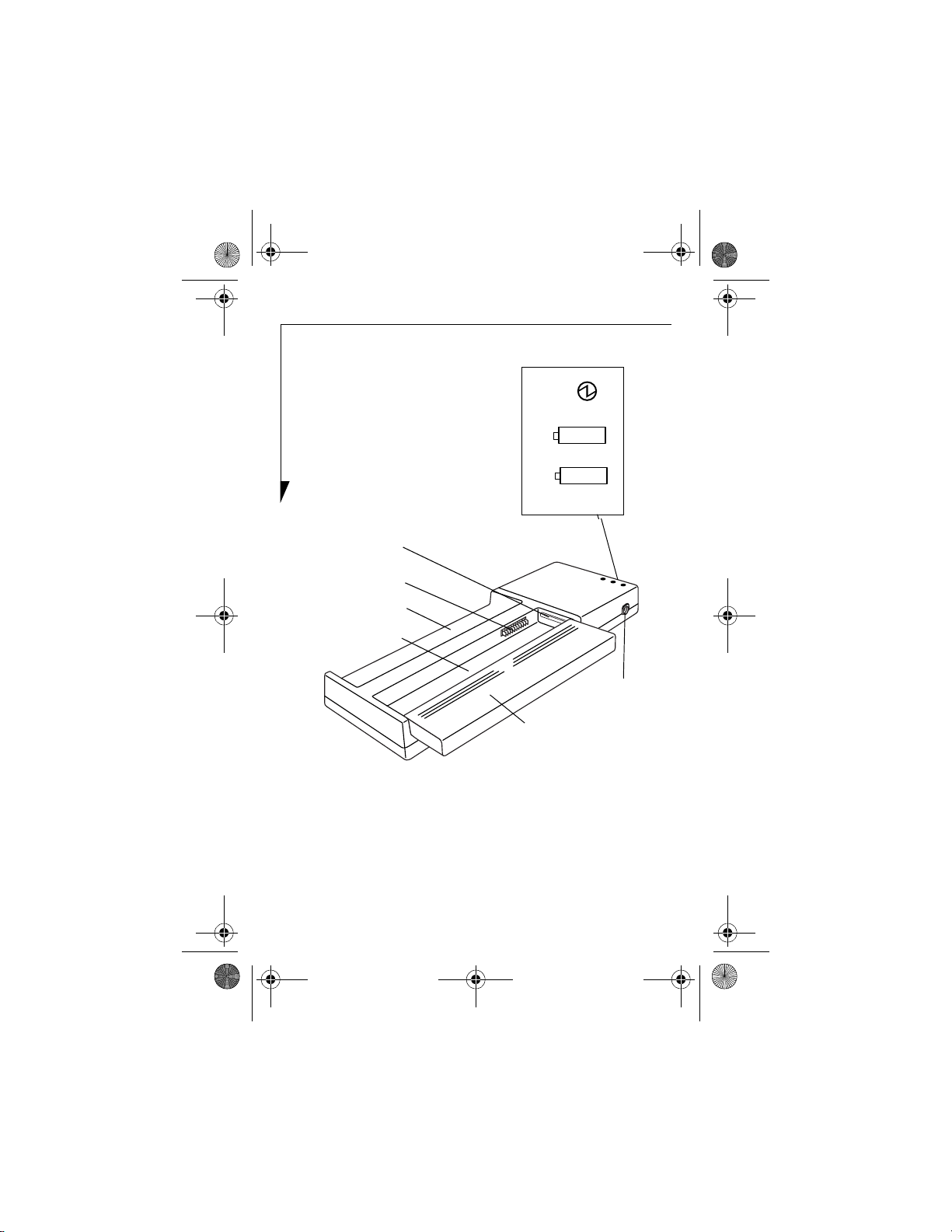

Figure 1. External battery charger
Power
Battery 1
Battery 2
DC
input
4
58-0581-01.fm Page 5 Tuesday, August 21, 2001 9:28 AM
Operational Considerations
Issues to consider when you use the FMW51BC1 or
FMW51BC2 battery charger are discussed as follows:
■
You can insert up to two battery packs at a time in the
battery charger. When charging two battery packs, you can
insert or remove either battery pack independently.
■
The battery charger only charges one battery pack at a
time. When two battery packs are inserted in the charger,
the battery pack installed first is charged first.
■
The battery charger will indicate a full charge level and
will not begin charging the battery pack if the battery pack
charge level is 90% or higher when the battery pack is
initially inserted in the charger. This prevents the battery
pack from being overcharged.
■
When you remove the battery pack from your pen tablet,
always insert a charged battery pack in the pen tablet to
replace the one that you removed, or apply DC power.
■
The FMW51BP1, FMW29BP1, FMW29BP2, FMW43BP2
and FPCBP48 battery packs use lithium ion battery cells
which have no “memory effect.” You do not need to completely discharge or “condition” the battery pack before
charging.
Battery Pack Charge Time
The approximate maximum amount of time needed to
charge a fully discharged battery pack to the 90% level is
shown in the following table. Note that when two battery
packs are installed in the charger, they are charged sequentially (starting with the battery pack that is installed first).
5
58-0581-01.fm Page 6 Tuesday, August 21, 2001 9:28 AM
Battery Pack Approximate Charge Time
3-cell FMW51BP1 <2 hours
FMW29BP2 <2 hours
6-cell FMW29BP1 <3.5 hours
6-cell FMW43BP2 <3.5 hours
6-cell FPCBP48 <2.5 hours
FCC Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by Fujitsu PC
Corporation could void the user’s authority to operate the
equipment.
6
58-0581-01.fm Page 7 Tuesday, August 21, 2001 9:28 AM
7
58-0581-01.fm Page 8 Tuesday, August 21, 2001 9:28 AM
5200 Patrick Henry Drive
Santa Clara, CA 95054
For more information, visit our Web site
at: www.fujitsupc.com
For technical support call:
1-800-8Fujitsu (1-800-838-5487)
or e-mail us at: 8fujitsu@fujitsupc.com
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu, Ltd. Stylistic is a
trademark of Fuji tsu PC Corporation. All other t rademarks mentioned herein are th e
property of their respective owners. We cannot guarantee the accuracy of the contents of
this document. We disclaim liability for errors, omissions or future changes.
© 2001 Fujitsu PC Corporation. All rights reserved. FPC58-0581-01
