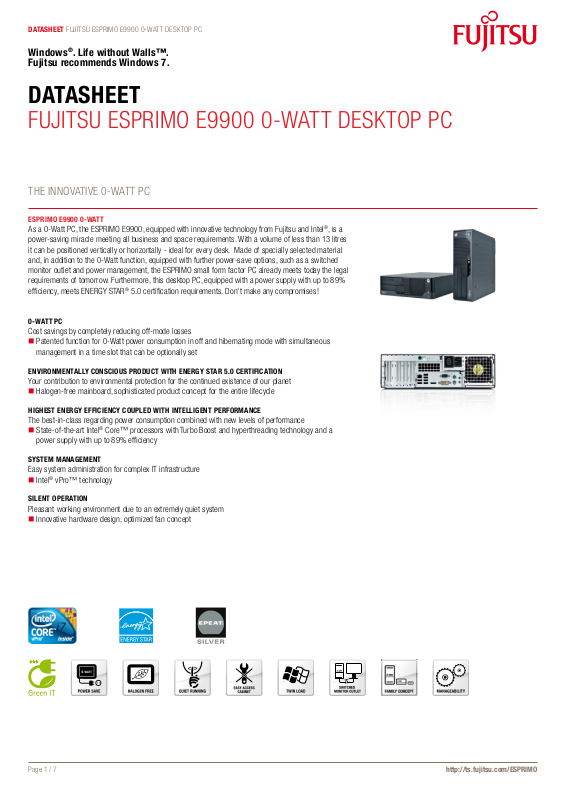

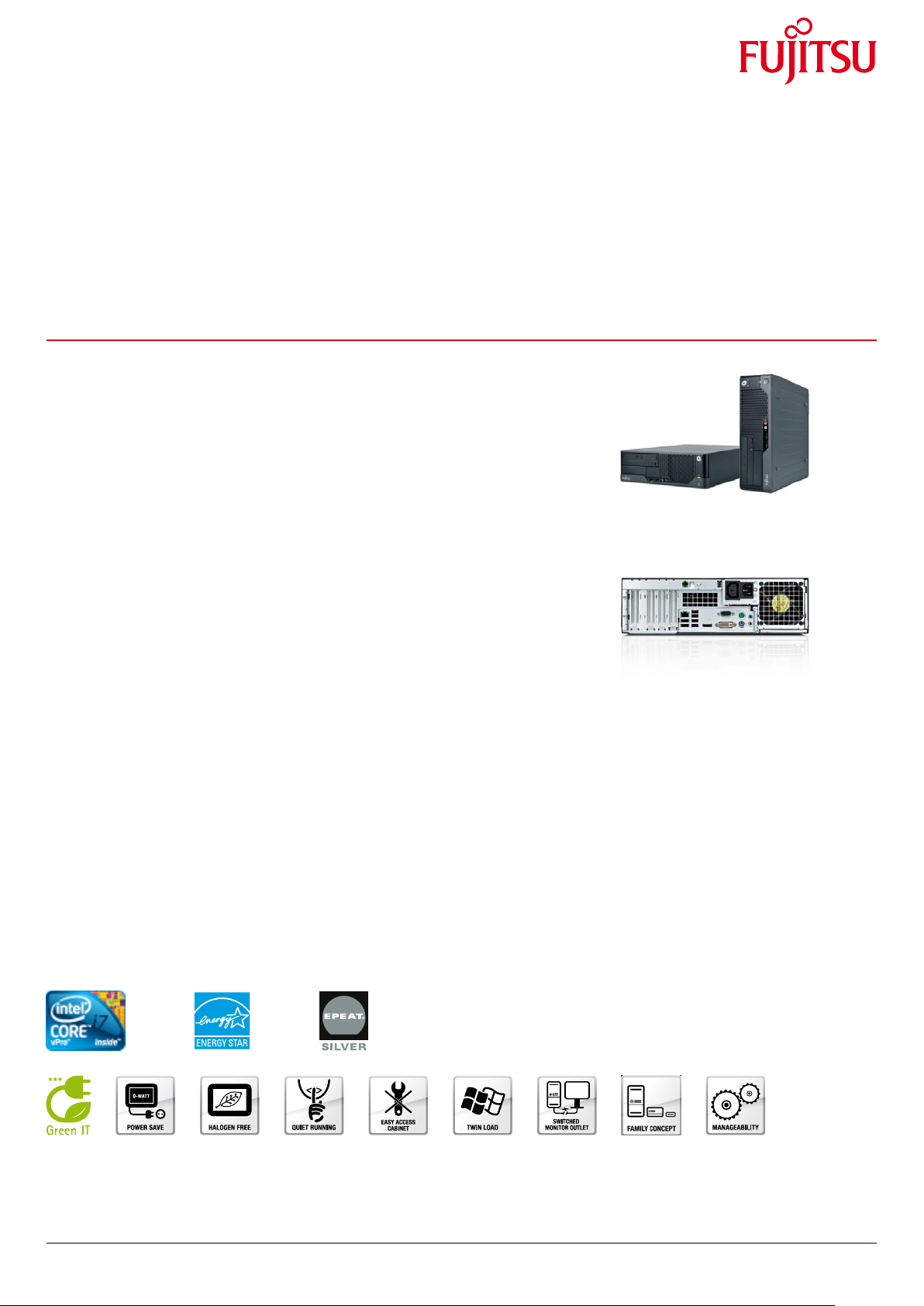

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

DATASHEET

FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

THE INNOVATIVE 0-WATT PC

ESPRIMO E9900 0-WATT

As a 0-Watt PC, the ESPRIMO E9900, equipped with innovative technology from Fujitsu and Intel®, is a power-saving miracle meeting all business and space requirements. With a volume of less than 13 litres it can be positioned vertically or horizontally - ideal for every desk. Made of specially selected material and, in addition to the 0-Watt function, equipped with further power-save options, such as a switched monitor outlet and power management, the ESPRIMO small form factor PC already meets today the legal requirements of tomorrow. Furthermore, this desktop PC, equipped with a power supply with up to 89%

efciency, meets ENERGY STAR

5.0 certication requirements. Don’t make any compromises!

0-WATT PC

Cost savings by completely reducing off-mode losses

Patented function for 0-Watt power consumption in off and hibernating mode with simultaneous  management in a time slot that can be optionally set

ENVIRONMENTALLY CONSCIOUS PRODUCT WITH ENERGY STAR 5.0 CERTIFICATION

Your contribution to environmental protection for the continued existence of our planet

Halogen-free mainboard, sophisticated product concept for the entire lifecycle 

HIGHEST ENERGY EFFICIENCY COUPLED WITH INTELLIGENT PERFORMANCE

The best-in-class regarding power consumption combined with new levels of performance

State-of-the-art Intel 

power supply with up to 89% efciency

SYSTEM MANAGEMENT

Easy system administration for complex IT infrastructure

Intel 

vPro™ technology

SILENT OPERATION

Pleasant working environment due to an extremely quiet system

Innovative hardware design, optimized fan concept 

Core™ processors with Turbo Boost and hyperthreading technology and a

Page 1 / 7 http://ts.fujitsu.com/ESPRIMO

Page 2

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

COMPONENTS

PROCESSOR Intel® Core™ i7 processor i7-860 (4 Cores / 8 Threads, 2.80 GHz, 8 MB)

Core™ i5 processor i5-750 (4 Cores / 4 Threads, 2.66 GHz, 8 MB)

Intel

Core™ i5 processor i5-670 (2 Cores / 4 Threads, 3.46 GHz, 4 MB, Intel® HD Graphics)

Intel

Core™ i5 processor i5-660 (2 Cores / 4 Threads, 3.33 GHz, 4 MB, Intel® HD Graphics)

Intel

Core™ i5 processor i5-650 (2 Cores / 4 Threads, 3.20 GHz, 4 MB, Intel® HD Graphics)

Intel

Core™ i3 processor i3-540 (2 Cores / 4 Threads, 3.06 GHz, 4 MB, Intel® HD Graphics)

Intel

Core™ i3 processor i3-530 (2 Cores / 4 Threads, 2.93 GHz, 4 MB, Intel® HD Graphics)

Intel

Pentium® processor G6950 (2 Cores / 2 Threads, 2.80 GHz, 3 MB, Intel® HD Graphics)

Intel

OPERATING SYSTEM

Operating system optional preinstalled Microsoft

Microsoft TwinLoad Microsoft

Operating system compatible Linux

Microsoft Microsoft

Operating system notes All Windows

Please be aware that your Microsoft support for Windows XP is limited due to the fact that the end of the Extended Support

Phase has been reached. Additionally, please be aware that Fujitsu Technology Solutions may only provide limited support for Windows XP due to the limited Windows XP support offered by Microsoft because of the discontinued Windows XP

certication on system level.

Windows® 7 Home Premium

Windows® 7 Professional

Windows® XP Professional (DVD)

Windows® XP Professional x64 Edition

Windows® Vista®

7 versions are Ofce 2007 ready.

MEMORY MODULES 2 GB (1 module(s) 2 GB) DDR3, unbuffered, non-ECC, 1333 MHz, PC3-10600, DIMM

4 GB (1 module(s) 4 GB) DDR3, unbuffered, non-ECC, 1333 MHz, PC3-10600, DIMM

HARD DISK DRIVES (INTERNAL) SSD SATA, 128 GB, 2.5-inch

SATA II, 7200 rpm, 1000 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 500 GB, 3.5-inch, S.M.A.R.T. business critical

SATA II, 7200 rpm, 500 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 320 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 250 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 160 GB, 2.5-inch, S.M.A.R.T.

Hard disk notes Supporting NCQ and 3 GBit

GRAPHICS ADD ON CARDS (OPTIONAL) DP to DVI-D (single link) Adapter Cable

GeForce® 9300GE display port low prole, 512 MB

NVIDIA

GeForce® 9300GE low prole, 256 MB

NVIDIA

GeForce® 9500GS low prole, 512 MB

NVIDIA

Quadro® NVS 290 low prole, 256 MB

NVIDIA

DRIVES (OPTIONAL) Blu-ray Disc™ Triple Writer

DVD-ROM

DVD Super Multi

MultiCard Reader 20in1, 3.5-Inch

INTERFACE ADD ON CARDS/COMPONENTS (OPTIONAL)

WLAN III, 802.11g/Draft-n (Windows only)

Parallel Interface

Modem adapter kit (EU)

Modem 56k incl. RJ11 modem cable

Gigabit Ethernet PCIe x1

FireWire PCI-Card IEEE1394

eSATA Interface

Dual serial card PCI LP

Page 2 / 7 http://ts.fujitsu.com/ESPRIMO

Page 3

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Base unit ESPRIMO E9900 0-Watt

MAINBOARD

Mainboard type D2924

Formfactor proprietary

Chipset Intel

Q57

Processor socket LGA 1156

Processor quantity maximum 1

Memory slots 4 DIMM (DDR3)

Supported capacity RAM (max.) 16 GB

Memory frequency 1333 MHz

Memory notes Dual channel support.

For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same.

LAN 10/100/1000 MBit/s Intel

82578 DM

BIOS version Phoenix 6.0

BIOS features BIOS Flash EPROM update by software

Recovery BIOS

Audio codec Realtek ALC663

Audio features Internal speaker supports audio playback, High Denition audio

I/O CONTROLLER ON BOARD

Serial ATA total 4

thereof eSATA 2 (optional)

Controller functions Serial ATA II

NCQ and 3 GBit

AHCI Raid 1/0

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

INTERFACES

Audio: line-in 1

Audio: line-out 1

Front audio: microphone 1

Front audio: headphone 1

USB 2.0 total 12

USB front 2

USB rear 6

USB internal 4

VGA 1 (via DVI to VGA adaptor; included for onboard graphics only)

DisplayPort 1 (for onboard graphics only)

DVI 1 (for onboard graphics only)

Serial (RS-232) 1 (9pin, 16 byte FIFO, 16550 compatible)

Mouse / Keyboard (PS/2) 2

Ethernet (RJ-45) 1

Parallel 1 (optional) (25pin with EPP and ECP)

Interface Module notes Anytime USB charge functionality

INPUT DEVICE / COMPONENTS

Optical USB tilt wheel mouse

Input devices (optional) Optical USB/PS2 tilt wheel mouse

DRIVE BAYS

Drive bays total 3

3.5-inch internal bays 1

3.5-inch external bays 1

5.25-inch external bays 1

Drive bay notes optional external bay as internal 3,5”

SLOTS

PCI-Express 2.0 x16 1 x (210 mm) low prole

Page 3 / 7 http://ts.fujitsu.com/ESPRIMO

Page 4

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

SLOTS

PCI-Express 2.0 x4 (mech. x16) 1 x (210) low prole

PCI (32-bit / 33 MHz) 2 x (190 mm) low prole

Slots optional conguration or 1x PCI Express x16 low prole (190mm) and via Riser 2 x PCI full heigh (174 / 210 mm)

GRAPHICS ON BOARD

Graphics brand name Intel

Shared video memory up to 1759 MB

Refresh rate 1024 x 768 (recommended / max.)

Refresh rate 1280 x 1024 (recommended / max.)

Refresh rate 1600 x 1200 (recommended / max.)

TFT resolution (VGA) 1360 x 768 pixel

TFT resolution (DVI) 1360 x 768 pixel

TFT resolution (DisplayPort) 1360 x 768 pixel

Graphics features DirectX 10

Graphics notes Graphics controller integrated in dual-core processors. For quad-core processors graphics card is mandatory.

HD Graphics (integrated in dual-core processors only)

85 Hz / -

1440 x 900 pixel 1600 x 900 pixel 1680 x 1050 pixel 1920 x 1080 pixel 1920 x 1200 pixel

1440 x 900 pixel 1600 x 900 pixel 1680 x 1050 pixel 1920 x 1080 pixel 1920 x 1200 pixel 2560 x 1440 pixel 2560 x 1600 pixel

HDCP support

2.1

OpenGL

Tested resolutions, depending on display type additional resolutions and frequencies possible Shared memory depending on main memory size and operating system

Resolution (color depth up to 32 Bit/pixel)

For TFT we recommend using 60Hz

ELECTRICAL VALUES

Power efciency note power supply efciency (at 230V; 20% / 50% / 100% load) : 86% / 89% / 87%

0-Watt mode automatically

Rated voltage range 100 - 240 V

Rated frequency range 50 - 60 Hz

Operating voltage range 90 - 264 V

Operating line frequency range 47 - 63 Hz

Max. output of single power supply 250 W

Power factor correction/active power active

Monitor outlet Switched

POWER CONSUMPTION

Power consumption note See white paper Energy Consumption

0-Watt mode automatically

Link to Energy White Paper http://docs.ts.fujitsu.com/dl.aspx?id=73db6c1e-bf45-47be-9563-8f7633c0767f

HEAT DISSIPATION

Heat dissipation notes See white paper Energy Consumption

Page 4 / 7 http://ts.fujitsu.com/ESPRIMO

Page 5

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

NOISE FOR STANDARD CONFIGURATION (HDD, ODD, FDD)

Noise emission According to ISO9296

Related Processors for noise Intel

Noise Operation mode 1: ODD load (Blue angel requirement)

Noise Operation mode 2: HDD load (Blue angel requirement)

Noise Operation mode 3: CPU 90% load (Blue angel requirement)

Noise Operation mode 4: High load 3.6 B / 20 dB(A) ; 4.1 B / 26 dB(A)

Noise Operation mode 5: Ofce

applications

Idle mode (Blue Angel requirement) 3.5 B / 19 dB(A) ; 3.4 B / 17 dB(A)

Noise notes / description A weighted sound power level Lwad (in B) / workplace related A-weighted sound pressure level LpAm (in dB(A)), Bystander

DIMENSIONS / WEIGHT / ENVIRONMENTAL

Dimensions (W x D x H) 340 x 380 x 100 mm

Operating position Vertical / horizontal (no feet needed)

Weight approx. 10 kg

Weight notes Actual weight may vary depending on conguration

Operating ambient temperature 10 - 35°C

Core™ i5-670 ; Intel® Core™ i7-860 including NVIDIA® Geforce® 9500GS

4.7 B / 32 dB(A) ; 4.5 B / 30 dB(A)

3.6 B / 20 dB(A) ; 3.4 B / 18 dB(A)

3.5 B / 19 dB(A) ; 4.1 B / 27 dB(A)

3.6 B / 20 dB(A) ; 3.7 B / 21 dB(A)

position

COMPLIANCE

Product ESPRIMO E9900

Model DT7-2924

Germany Blauer Engel / Blue Angel in progress

GS optional

Europe CE

Nordic Swan in progress

USA/Canada FCC Class B

cCSAus

Global RoHS (Restriction of hazardous substances)

WEEE (Waste electrical and electronical equipment) Microsoft Operating Systems (HCT / HCL entry / WHQL) ENERGY STAR

EPEAT

Silver

5.0

Compliance link https://sp.ts.fujitsu.com/sites/certicates/default.aspx

ADDITIONAL SOFTWARE

Additional software (preinstalled) Nero Essentials S (burning software)

Additional software (optional) Recovery DVD for Windows

Drivers & Utilities DVD (DUDVD) CyberLink PowerDVD BD (playback software for Blu-ray Disc™, only with Blu-ray Disc™ drive)

MISCELLANEOUS

Thermal management

COMPATIBILITY (REFERENCES)

DMI 2.0 PC 2001 WMI 1.5 USB 2.0

MANAGEABILITY

Manageability features ASF 2.0 (Alert Standard Format)

DeskUpdate Driver management PXE 2.1 Boot code

BootP Boot Code including Bootmanage Administrator Software (tested) Wake up from S5 (off mode) Intrusion switch (optional)

iAMT 6.0

Manageability type DeskView 10.x client management including:

Page 5 / 7 http://ts.fujitsu.com/ESPRIMO

Page 6

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

MANAGEABILITY

DeskView features On/Ofine remote client management

Detailed system inventory management and reports BIOS Management Remote power management

System notications Advanced alerts (ASF implementation)

Security Remote Control DeskView Helpdesk Integration

WoL (Wake on LAN)

Manageability link http://ts.fujitsu.com/manageability

http://www.altiris.com/fujitsu

SECURITY

Physical security Kensington Lock support

Eye for padlock

Optional: Integrated cabinet lock

System security Boot sector virus protection

Write protect option for the Flash EPROM

Embedded security (TPM 1.2)

Control of all USB interfaces

External USB ports can be disabled separately Control of external interfaces

User security User and supervisor BIOS password

SystemLock 2 BIOS SmartCard Security Hard disk password

Optional: Access protection via external SmartCard reader Optional: Access protection via internal SmartCard reader

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

SERVICEABILITY

FlexySlot EasyFix

EasyChange for HDD EasyChange for optical drives

PACKAGING INFORMATION

Packaging dimension 500x290x540 mm

Max. quantity / pallet 24

Material - Weight (g) Carton 1270 g

Material - Weight (g) EPS / PS 230 g

Material - Weight (g) PE appr. 60 g

Packaging notes printed user documentation is bleached in chlorine free process

WARRANTY

Standard Warranty 3 years

Service level Bring-In / On-Site Service (depending on country)

MAINTENANCE AND SUPPORT SERVICES - THE PERFECT EXTENSION

Recommended Service 5x9, Response Time: Next Business Day

Spare Parts availability 5 years

Service Weblink http://ts.fujitsu.com/Supportservice

Page 6 / 7 http://ts.fujitsu.com/ESPRIMO

Page 7

DATASHEET FUJITSU ESPRIMO E9900 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

FUJITSU PLATFORM SOLUTIONS

In addition to Fujitsu ESPRIMO E9900 0-Watt, Fujitsu provides a range of platform solutions. They combine reliable Fujitsu products with the best in services, know-how and worldwide partnerships.

Dynamic Infrastructures

With the Fujitsu Dynamic Infrastructures approach, Fujitsu offers a full portfolio of IT products, solutions and services, ranging from clients to datacenter solutions, Managed Infrastructure and Infrastructure as-a-Service.

How much you benet from Fujitsu technologies

and services depends on the level of cooperation

you choose. This takes IT exibility and efciency to the next level.

Computing Products

www.fujitsu.com/global/services/computing/

Software

www.fujitsu.com/software/

MORE INFORMATION

Learn more about Fujitsu ESPRIMO E9900 0-Watt, please contact your Fujitsu sales representative or Fujitsu Business partner, or visit our website.

http://ts.fujitsu.com/ESPRIMO

FUJITSU GREEN POLICY INNOVATION

Fujitsu Green Policy Innovation is our worldwide

project for reducing burdens on the environment. Using our global know-how, we aim to resolve

issues of environmental energy efciency through IT. Please nd further information at http://www.fujitsu.com/global/about/

environment/

COPYRIGHTS

correct is excluded.

Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.

For further information see http://ts.fujitsu.com/

DISCLAIMER

Technical data are subject to modication and

delivery subject to availability. Any liability that the data and illustrations are complete, actual

or correct is excluded. Designations may be

trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner

CONTACT

FUJITSU Technology Solutions

Website: http://ts.fujitsu.com

2010-05-05 CE-EN

Page 7 / 7 http://ts.fujitsu.com/ESPRIMO
