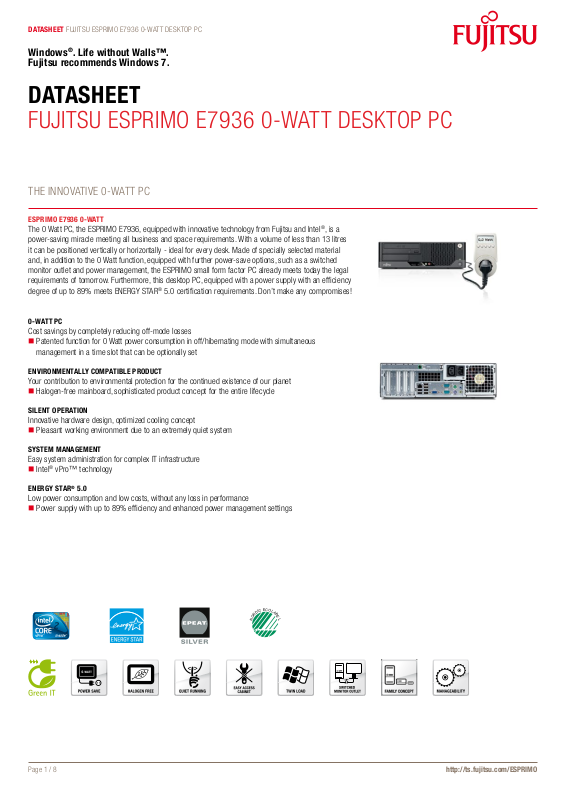

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

DATASHEET

FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

THE INNOVATIVE 0-WATT PC

ESPRIMO E7936 0-WATT

The 0 Watt PC, the ESPRIMO E7936, equipped with innovative technology from Fujitsu and Intel®, is a power-saving miracle meeting all business and space requirements. With a volume of less than 13 litres it can be positioned vertically or horizontally - ideal for every desk. Made of specially selected material and, in addition to the 0 Watt function, equipped with further power-save options, such as a switched monitor outlet and power management, the ESPRIMO small form factor PC already meets today the legal

requirements of tomorrow. Furthermore, this desktop PC, equipped with a power supply with an efciency

degree of up to 89% meets ENERGY STAR

5.0 certication requirements. Don’t make any compromises!

0-WATT PC

Cost savings by completely reducing off-mode losses

Patented function for 0 Watt power consumption in off/hibernating mode with simultaneous  management in a time slot that can be optionally set

ENVIRONMENTALLY COMPATIBLE PRODUCT

Your contribution to environmental protection for the continued existence of our planet

Halogen-free mainboard, sophisticated product concept for the entire lifecycle 

SILENT OPERATION

Innovative hardware design, optimized cooling concept

Pleasant working environment due to an extremely quiet system 

SYSTEM MANAGEMENT

Easy system administration for complex IT infrastructure

Intel 

vPro™ technology

ENERGY STAR® 5.0

Low power consumption and low costs, without any loss in performance

Power supply with up to 89% efciency and enhanced power management settings 

Page 1 / 8 http://ts.fujitsu.com/ESPRIMO

Page 2

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

COMPONENTS

PROCESSOR Intel® Core™2 Quad processor Q9650 (4 Cores / 4 Threads, 3.0 GHz, 12 MB, 1333 MHz)

Core™2 Quad processor Q9550 (4 Cores / 4 Threads, 2.83 GHz, 12 MB, 1333 MHz)

Intel

Core™2 Quad processor Q9505 (4 Cores / 4 Threads, 2.83 GHz, 6 MB, 1333 MHz)

Intel

Core™2 Quad processor Q9400 (4 Cores / 4 Threads, 2.66 GHz, 6 MB, 1333 MHz)

Intel

Core™2 Quad processor Q8300 (4 Cores / 4 Threads, 2.5 GHz, 4 MB, 1333 MHz)

Intel

Core™2 Duo processor E8600 (2 Cores / 2 Threads, 3.33 GHz, 6 MB, 1333 MHz)

Intel

Core™2 Duo processor E8500 (2 Cores / 2 Threads, 3.16 GHz, 6 MB, 1333 MHz)

Intel

Core™2 Duo processor E8400 (2 Cores / 2 Threads, 3.0 GHz, 6 MB, 1333 MHz)

Intel

Core™2 Duo processor E7600 (2 Cores / 2 Threads, 3.06 GHz, 3 MB, 1066 MHz)

Intel

Core™2 Duo processor E7500 (2 Cores / 2 Threads, 2.93 GHz, 3 MB, 1066 MHz)

Intel

Pentium® processor E6300 (2 Cores / 2 Threads, 2.8 GHz, 2 MB, 1066 MHz)

Intel

Pentium® processor E5500 (2 Cores / 2 Threads, 2.8 GHz, 2 MB, 1066 MHz)

Intel

Pentium® processor E5400 (2 Cores / 2 Threads, 2.7 GHz, 2 MB, 800 MHz)

Intel

Celeron® processor E3200 (2 Cores / 2 Threads, 2.4 GHz, 1 MB, 800 MHz)

Intel

OPERATING SYSTEM

Operating system optional preinstalled Microsoft

Microsoft TwinLoad Microsoft

Operating system compatible Linux

Microsoft Microsoft

Operating system notes All Windows

Please be aware that your Microsoft support for Windows XP is limited due to the fact that the end of the Extended Support Phase has been reached. Additionally, please be aware that Fujitsu Technology Solutions may only provide limited support for Windows XP due to the limited Windows XP support offered by Microsoft because of the discontinued Windows XP

certication on system level.

Windows® 7 Home Premium

Windows® 7 Professional

Windows® XP Professional (DVD)

Windows® XP Professional x64 Edition

Windows® Vista®

7 versions are Ofce 2007 ready.

MEMORY MODULES 1 GB (1 module(s) 1 GB) DDR3, unbuffered, non-ECC, 1066 MHz, PC3-8500, DIMM

2 GB (1 module(s) 2 GB) DDR3, unbuffered, non-ECC, 1066 MHz, PC3-8500, DIMM

4 GB (1 module(s) 4 GB) DDR3, unbuffered, non-ECC, 1066 MHz, PC3-8500, DIMM

HARD DISK DRIVES (INTERNAL) SSD SATA, 128 GB, 2.5-inch

SATA II, 7200 rpm, 1000 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 500 GB, 3.5-inch, S.M.A.R.T. business critical

SATA II, 7200 rpm, 500 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 320 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 250 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 160 GB, 3.5-inch, S.M.A.R.T.

SATA II, 7200 rpm, 160 GB, 2.5-inch, S.M.A.R.T.

Hard disk notes Supporting NCQ and 3 GBit

GRAPHICS ADD ON CARDS (OPTIONAL) DP to DVI-D (single link) Adapter Cable

DVI-D + DisplayPort Extension Adapter

DVI Extension Adapter

GeForce® 9300GE display port low prole, 512 MB

NVIDIA

GeForce® 9300GE low prole, 256 MB

NVIDIA

GeForce® 9300GE low prole, 512 MB

NVIDIA

GeForce® 9500GS low prole, 512 MB

NVIDIA

Quadro® NVS 290 low prole, 256 MB

NVIDIA

Page 2 / 8 http://ts.fujitsu.com/ESPRIMO

Page 3

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

DRIVES (OPTIONAL) 1.44 MB Floppy

Blu-ray Disc™ Triple Writer

DVD-ROM

DVD Super Multi

MultiCard Reader 20in1, 3.5-Inch

INTERFACE ADD ON CARDS/COMPONENTS (OPTIONAL)

Parallel Interface

FireWire PCI-Card IEEE1394

eSATA Interface

Dual serial card PCI LP

Base unit ESPRIMO E7936 0-Watt

MAINBOARD

Mainboard type D3028

Formfactor proprietary

Chipset Intel

Q45

Processor socket LGA 775

Processor quantity maximum 1

System bus (FSB / HT / QPI) up to 1333 MHz

Memory slots 4 DIMM (DDR3)

Supported capacity RAM (max.) 16 GB

Memory frequency 1066 MHz

Memory notes Dual channel support.

For dual channel performance, identical memory modules in each channel are necessary (minimum 2 modules).

LAN 10/100/1000 MBit/s Intel

82567 LM

BIOS version Phoenix 6.0

BIOS features BIOS Flash EPROM update by software

Recovery BIOS

Audio codec Realtek ALC663

Audio features Internal speaker supports audio playback, High Denition audio

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

I/O CONTROLLER ON BOARD

Serial ATA total 4

thereof eSATA 2 (optional)

Controller functions Serial ATA II

NCQ and 3 GBit AHCI Raid 1/0

INTERFACES

Audio: line-in 1

Audio: line-out 1

Front audio: microphone 1

Front audio: headphone 1

USB 2.0 total 12

USB front 2

USB rear 6

USB internal 4

VGA 1

DisplayPort 1 (optional)

DVI 1 (optional)

Serial (RS-232) 2 (9pin, 16 byte FIFO, 16550 compatible)

Mouse / Keyboard (PS/2) 2

Ethernet (RJ-45) 1

Parallel 1 (optional) (25pin with EPP and ECP)

Page 3 / 8 http://ts.fujitsu.com/ESPRIMO

Page 4

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

INTERFACES

Interface Module notes Anytime USB charge functionality

INPUT DEVICE / COMPONENTS

Optical USB tilt wheel mouse

Input devices (optional) Optical USB/PS2 tilt wheel mouse

DRIVE BAYS

Drive bays total 3

3.5-inch internal bays 1

3.5-inch external bays 1

5.25-inch external bays 1

Drive bay notes optional external bay as internal 3,5”

SLOTS

PCI-Express 2.0 x16 1 x (210 mm) low prole

PCI-Express x4 (mech. x8) 1 x (210 mm) low prole

PCI (32-bit / 33 MHz) 2 x (190 mm) low prole

Slots optional conguration or 1x PCI Express x16 low prole (190mm) and via Riser 2 x PCI full heigh (174 / 210 mm)

GRAPHICS ON BOARD

Graphics brand name Intel

Shared video memory up to 1759 MB

Refresh rate 1024 x 768 (recommended / max.)

Refresh rate 1280 x 1024 (recommended / max.)

Refresh rate 1600 x 1200 (recommended / max.)

TFT resolution (VGA) 1360 x 768 pixel

TFT resolution (DVI) 1360 x 768 pixel

TFT resolution (DisplayPort) 1360 x 768 pixel

Graphics features DirectX 10

Graphics notes Tested resolutions, depending on display type additional resolutions and frequencies possible

GMA 4500

85 Hz / -

1440 x 900 pixel 1600 x 900 pixel 1680 x 1050 pixel 1920 x 1080 pixel 1920 x 1200 pixel

1440 x 900 pixel 1600 x 900 pixel 1680 x 1050 pixel 1920 x 1080 pixel 1920 x 1200 pixel 2560 x 1440 pixel 2560 x 1600 pixel

HDCP support

2.0

OpenGL

Shared memory depending on main memory size and operating system Resolution (color depth up to 32 Bit/pixel) For TFT we recommend using 60Hz

ELECTRICAL VALUES

Power efciency note power supply efciency (at 230V; 20% / 50% / 100% load) : 86% / 89% / 87%)

Rated voltage range 100 - 240 V

Rated frequency range 50 - 60 Hz

Operating voltage range 90 - 264 V

Page 4 / 8 http://ts.fujitsu.com/ESPRIMO

Page 5

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

ELECTRICAL VALUES

Operating line frequency range 47 - 63 Hz

Max. output of single power supply 250 W

Power factor correction/active power active

Monitor outlet Switched

POWER CONSUMPTION

Power consumption note See white paper Energy Consumption

0-Watt mode automatically

Link to Energy White Paper http://docs.ts.fujitsu.com/dl.aspx?id=0d9f7cd5-eec9-4491-98b5-00d60db1104f

HEAT DISSIPATION

Heat dissipation notes See white paper Energy Consumption

NOISE FOR STANDARD CONFIGURATION (HDD, ODD, FDD)

Noise emission According to ISO9296

Related Processors for noise Intel

Noise Operation mode 1: ODD load (Blue angel requirement)

Noise Operation mode 2: HDD load (Blue angel requirement)

Noise Operation mode 3: CPU 90% load (Blue angel requirement)

Noise Operation mode 4: High load 3.8 B / 20 dB(A)

Noise Operation mode 5: Ofce

applications

Idle mode (Blue Angel requirement) 3.4 B / 20 dB(A)

Noise notes / description A weighted sound power level Lwad (in B) / workplace related A-weighted sound pressure level LpAm (in dB(A)), Bystander

Core™2 Duo E8600

4.5 B / 30 dB(A)

3.5 B / 20 dB(A)

3.6 B / 20 dB(A)

position

DIMENSIONS / WEIGHT / ENVIRONMENTAL

Dimensions (W x D x H) 340 x 380 x 100 mm

Operating position Vertical / horizontal (no feet needed)

Weight approx. 10 kg

Weight notes Actual weight may vary depending on conguration

Operating ambient temperature 10 - 35°C

COMPLIANCE

Product ESPRIMO E7936

Model DT7-3028

Germany Blauer Engel / Blue Angel

GS optional

Europe CE

Nordic Swan

USA/Canada FCC Class B

cCSAus

Global RoHS (Restriction of hazardous substances)

WEEE (Waste electrical and electronical equipment) Microsoft Operating Systems (HCT / HCL entry / WHQL) ENERGY STAR EPEAT

Silver

5.0

Compliance link https://sp.ts.fujitsu.com/sites/certicates/default.aspx

ADDITIONAL SOFTWARE

Additional software (preinstalled) Nero Essentials S (burning software)

Additional software (optional) Recovery DVD for Windows

Drivers & Utilities DVD (DUDVD) CyberLink PowerDVD BD (playback software for Blu-ray Disc™, only with Blu-ray Disc™ drive)

MISCELLANEOUS

Thermal management

Page 5 / 8 http://ts.fujitsu.com/ESPRIMO

Page 6

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

COMPATIBILITY (REFERENCES)

DMI 2.0 PC 2001 WMI 1.5 USB 2.0

MANAGEABILITY

Manageability features ASF 2.0 (Alert Standard Format)

DeskUpdate Driver management PXE 2.1 Boot code BootP Boot Code including Bootmanage Administrator Software (tested) Wake up from S5 (off mode) Intrusion switch (optional) iAMT 5.0

Manageability type DeskView 10.x client management including:

DeskView features On/Ofine remote client management

Detailed system inventory management and reports BIOS Management Remote power management

System notications

Advanced alerts (ASF implementation) Security Remote Control DeskView Helpdesk Integration WoL (Wake on LAN)

Manageability link http://ts.fujitsu.com/manageability

http://www.altiris.com/fujitsu

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

SECURITY

Physical security Kensington Lock support

Eye for padlock

Optional: Integrated cabinet lock

System security Boot sector virus protection

Write protect option for the Flash EPROM Embedded security (TPM 1.2) Control of all USB interfaces External USB ports can be disabled separately

Boot protection for oppy disk / CD drive and write protection for oppy disk drive

Control of external interfaces

User security User and supervisor BIOS password

SystemLock 2 BIOS SmartCard Security Hard disk password

Optional: Access protection via external SmartCard reader Optional: Access protection via internal SmartCard reader

SERVICEABILITY

FlexySlot EasyFix EasyChange for HDD EasyChange for optical drives

PACKAGING INFORMATION

Packaging dimension 500x290x540 mm

Max. quantity / pallet 24

Material - Weight (g) Carton 1270 g

Material - Weight (g) EPS / PS 230 g

Material - Weight (g) PE appr. 60 g

Packaging notes printed user documentation is bleached in chlorine free process

WARRANTY

Standard Warranty 3 years

Service level Bring-In / On-Site Service (depending on country)

MAINTENANCE AND SUPPORT SERVICES - THE PERFECT EXTENSION

Recommended Service 5x9, Response Time: Next Business Day

Page 6 / 8 http://ts.fujitsu.com/ESPRIMO

Page 7

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

WARRANTY

Spare Parts availability 5 years

Service Weblink http://ts.fujitsu.com/Supportservice

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

Page 7 / 8 http://ts.fujitsu.com/ESPRIMO

Page 8

DATASHEET FUJITSU ESPRIMO E7936 0-WATT DESKTOP PC

Windows®. Life without Walls™. Fujitsu recommends Windows 7.

FUJITSU PLATFORM SOLUTIONS

In addition to Fujitsu ESPRIMO E7936 0-Watt, Fujitsu provides a range of platform solutions. They combine reliable Fujitsu products with the best in services, know-how and worldwide partnerships.

Dynamic Infrastructures

With the Fujitsu Dynamic Infrastructures approach, Fujitsu offers a full portfolio of IT products, solutions and services, ranging from clients to datacenter solutions, Managed Infrastructure and Infrastructure as-a-Service.

How much you benet from Fujitsu technologies

and services depends on the level of cooperation

you choose. This takes IT exibility and efciency

to the next level.

Computing Products

www.fujitsu.com/global/services/computing/

Software

www.fujitsu.com/software/

MORE INFORMATION

Learn more about Fujitsu ESPRIMO E7936 0-Watt, please contact your Fujitsu sales representative or Fujitsu Business partner, or visit our website.

http://ts.fujitsu.com/ESPRIMO

FUJITSU GREEN POLICY INNOVATION

Fujitsu Green Policy Innovation is our worldwide project for reducing burdens on the environment. Using our global know-how, we aim to resolve

issues of environmental energy efciency through IT. Please nd further information at http://www.fujitsu.com/global/about/

environment/

COPYRIGHTS

All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.

For further information see http://ts.fujitsu.com/

DISCLAIMER

Technical data are subject to modication and

delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner

CONTACT

FUJITSU Technology Solutions

Website: http://ts.fujitsu.com

2010-05-05 CE-EN

Page 8 / 8 http://ts.fujitsu.com/ESPRIMO
