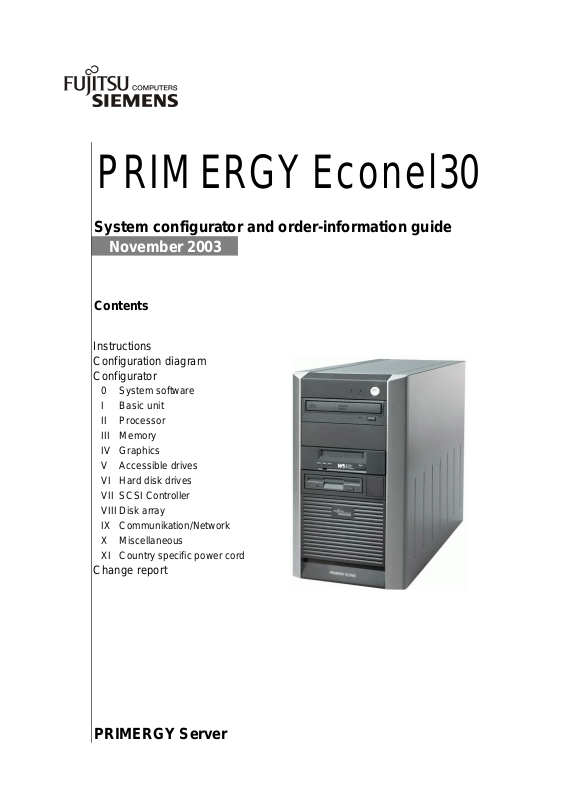

PRIMERGY Econel30
System configurator and order-information guide
November 2003
Contents
Instructions
Configuration diagram
Configurator
0 System software
I Basic unit
II Processor
III Memory
IV Graphics
V Accessible drives
VI Hard disk drives
VII SCSI Controller
VIII Disk array
IX Communikation/Network
X Miscellaneous
XI Country specific power cord
Change report
PRIMERGY Server
System configurator and order-information guide
PRIMERGY Econel30 Status 2003-10-28
Instructions
This document contains basic product and configuration information that will enable you to configure your system via
PC-/ System-Architect.
Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete
PRIMERGY Rack system.
You can configure your individual PRIMERGY server in order to adjust your specific requirements.
The System configurator is divided into several chapters that are identical to the current price list and PC-/ System-Architect.
Please follow the lines. If there is a junction, you can choose which way or component you would like to take. Go through
the configurator by following the lines from the top to the bottom.
In one chapter you can only select as many components (here 4x) as the arrow indicates.
Please note that there are information symbols which indicate necessary information.
Further information in the internet see:
http://www.primergy.com
(internet)
http://extranet.fujitsu-siemens.com/primergy
(extranet)
Prices and availability see price list and PC-/ System-Architect.
Subject to change and errors excepted.
Section
X times
III
S26361-XXX-XXX S26361-XXX-XXX
Memory XXX MB Memory XXX MB
max. X times per system max. X times per system
Memory, example
There are X memory slots which can be equipped with XXX MB.
It is permissible to make up to X passes through the memory upgrade options.
4x
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
2 of 11
System configurator and order-information guide
PRIMERGY Econel30 Status 2003-10-28
SIDE VIEW
FRONT VIEW
System unit ( I )
Pentium 4 / Celeron
Standard
Extension slots
Graphics ( IV )
SCSI Controller ( VII )
Disk array
Communication/Network ( IX )
5.25"x1.6"
Miscellaneous ( X )
Accessible drives (V)
PCI 32-Bit / 33MHz, long
IDE/SCSI - 3.5"x1"
Recommendation of HD extension
Number of HDs
4
Processor ( II ) Memory ( III ) 5.25"x1.6" DVD
AGP short
PCI-Bus
1
PCI 32-Bit / 33MHz, long Hard disks ( VI )
Configuration diagram for "PRIMERGY Econel30" system unit
Bank 1
Bank 2
Power supply
5.25"x1.6"
3.5"x1" Floppy disk
2
3
5
6
HD-Bays
PCI 32-Bit / 33MHz, long IDE/SCSI - 3.5"x1"
PCI 32-Bit / 33MHz, long IDE/SCSI - 3.5"x1"
PCI 32-Bit / 33MHz, long IDE/SCSI - 3.5"x1"
PCI 32-Bit / 33MHz, long
1 2 1-43
Standard
IDE
No 1
onb. MA onb. MA RAID MA Ch1
No 2
No 3 1)*
No 4 1)*
- onb. SL RAID MA Ch2 - onb. SL
-
- - -
Standard
IDE or
- -
RAID
IDE
MIXED
IDE
onb. MA
RAID MA Ch1 RAID MA Ch1
RAID MA Ch2 RAID MA Ch2 2.RAID MA Ch2 ID 3 (opt.)
4
MIXED
IDE
onb. MA
onb. = onboard MA = Master
Ch = Channel SL = Slave
All needed cables are enclosed.
4
3
2
1
RAID
or
IDE SCSI
1.RAID MA Ch1 ID 0 (std.)
1.RAID MA Ch2 ID 1 (opt.)
2.RAID MA Ch1 ID 2 (opt.)
Depending on the number and type of HDs, the chart above shows the connection of HDs
to the on-board IDE Controller, to the IDE RAID cards and to the SCSI controller card respectively.
1) * A second RAID Controller can only later be ordered as -L part number.
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
3 of 11
System configurator and order-information guide
Start "PRIMERGY Econel30"
PRIMERGY Econel30 Status 2003-10-28
http://www.primecluster.com
http://vil.mch.fsc.net/vil/pc/vil/primergy/overview/prince/index_en.htm
for internal users:
http://vil.mch.fsc.net/vil/oec/special/primergy/index_en.htm
for partners:
http://vilpart.fujitsu-siemens.de/vil/oec/special/primergy/index_en.htm
SW Configurator
mit OEM-Software ohne OEM-Software
für PRIMERGY-Server für PRIMERGY-Server
Bis auf OEM-SW von Vmware und F5 ist die Verwendung
von OEM-Betriebssystem- Software später nicht mehr erlaubt.
For all SW products listed below please refer to the corresponding software configurator accessible
via the Extranet under "PC Configurations, Configurator for PRIMERGY SW", URL see below.
MS - Software: W **) PRIMECLUSTER *)
- NT 4.0 Server - Clustering
- Small Business Server 2000 - Load Balancing
- Windows 2000 Server
- Windows Server 2003,
Web Edition (only English) Linux - Software: **)
Standard Edition - SuSE Linux Enterprise Server: S
CITRIX-Software for NT: W1
- Multiuser SW MetaFrame
LoadBalancing
Additional User Licences
- SuSE Professional Linux
- Red Hat Enterprise Linux
- Red Hat Professional Linux
easyMirror for Linux
NT 4, WIN 2000 ****)
Backup-Software: U
- ARCserve for NT
You'll find single software configurators and release lists (OS-matrix / system management / security) under following addresses:
Continue with PRIMERGY
HW configurator
*) Pay attention to release information on datasheet under
**) Pay attention to release and order information in PRINCE -> Operating System
Enterprise Products - PRIMERGY Server
Fujitsu Siemens Computers
4 of 11
System configurator and order-information guide
Start "Econel30"
PRIMERGY Econel30 Status 2003-10-28
Section
S26361-K831-V360
IDE Grundeinheit V360
- Celeron Prozessor 2.6GHz
128KB SLC, inkl. Kühlkörper
- 256MB DDR-RAM PC2100
- 1x 40 GB IDE HD
I
S26361-K831-V310 S26361-K831-V320 S26361-K831-V340 S26361-K831-V350
IDE Basic unit V310 IDE Basic unit V320 IDE Basic unit V340 IDE Basic unit V350
- Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz
512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink
- 256MB DDR-RAM PC2100 - 256MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100
- 1x 40 GB IDE HD - 1x 80 GB IDE HD - 1x 80 GB IDE HD - 1x 120 GB IDE HD
Basic unit
System unit consisting of:
* Housing including power supply
* Systemboard with
- Ultra DMA-100 Controller on-board (for 2x 2 drives)
- 7 slots:1x AGP, 6x PCI
* 1 drive bay 3.5" (occupied by 1 floppy disk 3.5"/ 1.44MB)
* 3 bays 5.25" for accessible drives (one is occupied by 1 DVD)
* 4 bays for IDE/SCSI HDs (internal)
* Audio on-board
* AGP-graphics card ATI Rage128 (16MB) in AGP slot
* LAN (Intel) on-board
* all cables included
* PS/2 wheelmouse
S26361-K831-V311 S26361-K831-V321 S26361-K831-V331 S26361-K831-V341
SCSI Basic unit V311 SCSI Basic unit V321 SCSI Basic unit V331 SCSI Basic unit V341
- Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz
512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink
- SCSI Controller (D1305) - SCSI Controller (D1305) - SCSI Controller (D1305) - SCSI Controller (D1305)
- 256MB DDR-RAM PC2100 - 256MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100
- 1x 36GB SCSI HD - 1x 73GB SCSI HD - 1x 36GB SCSI HD - 1x 73GB SCSI HD
A
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
5 of 11
System configurator and order-information guide
A
PRIMERGY Econel30 Status 2003-10-28
Section
Section
Section
II
III
S26361-F2580-E256 S26361-F2580-E512 S26361-F2580-E513
Memory 256MB DDR-RAM PC2100 Memory 512MB DDR-RAM PC2100 Memory 1GB DDR-RAM PC2100
ECC unbuffered ECC unbuffered ECC unbuffered
consisting of one module consisting of one module consisting of one module
occupies one slot occupies one slot occupies one slot
max. 1x per system max. 1x per system max. 1x per system
IV
Processor
Included in the basic unit!
Memory
There are 2 memory slots. They can be equiped with 256MB, 512MB, 1GB.
Mix and match is possible. One memory slot is occupied!
Graphics
Graphics Controller ATI Rage128 16MB is included in
the basic unit (occupies AGP slot). Other graphic
cards only possible by PCI bus in Customizing.
B
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
6 of 11
System configurator and order-information guide
B
PRIMERGY Econel30 Status 2003-10-28
1x
1x
Section
V
S26361-F3008-E1
CD-RW / DVD drive
48/24/48/16 IDE
only W2K and Linux
1.6 * 5.25", anthracite bezel
max. 1x per system
S26361-F2238-E3
Tape drive SLR 100
50GB, 5MB/s, U2W SCSI
Connector: HD68
without cable
incl. description (Ger/US)
data and cleaning cartridge
1.6 * 5.25", anthracite bezel
max. 1x per system
S26361-F2233-E3 S26361-F2848-E3 S26361-F2849-E3
Tape drive DAT DDS4 Tape drive DDS Gen5 Tape drive VXA-2
S26361-F2233-E31 (only for OBDR)
DDS4 for One buttom dis. Recovery
20GB, 2.8MB/s, U2W SCSI without cable without cable
Connector: HD68 incl. description (Ger/US) incl. description (Ger/US)
without cable data and cleaning cartridge data and cleaning cartridge
incl. description (Ger/US)
1.6 * 5.25", anthracite bezel max. 1x per system max. 1x per system
max. 1x per system
Removable Media Drives
There is 1 drive bay 3.5" occupied by 1 floppy disk 3.5"/ 1.44MB and
3x 5.25" bays for accessible drives.
36GB, 3MB/s, U2W SCSI 80GB, 6MB/s, U2W SCSI
Connector: HD68
1.6 * 5.25", anthracite bezel 1.6 * 5.25", anthracite bezel
Connector: HD68
SCSI Basic Unit or
SCSI Controller are
needed for Backup
Drives.
3x
3x
Section
VI
A. Hard Disks for IDE Basic Units
S26361-F2263-E40 S26361-F2263-E80 S26361-F2263-E120
Hard disk 40GB DMA 100 Hard disk 80GB DMA 100 Hard disk 120GB DMA 100
fitting height 1" fitting height 1" fitting height 1"
occupies 3.5" drive bay occupies 3.5" drive bay occupies 3.5" drive bay
max. 3x per system max. 3x per system max. 3x per system
B. Hard Disks for SCSI Basic Units
S26361-F2824-E136 S26361-F2824-E173
Hard disk 36GB U 160 SCSI Hard disk 73GB U 160 SCSI
fitting height 1" fitting height 1"
occupies 3.5" drive bay occupies 3.5" drive bay
max. 3x per system max. 3x per system
C
Hard disk drives
One hard disk drive is in the basic unit included
If you install more than 2 IDE Hard Disks, an IDE-RAID Controller (S26361-F2567-E2) is needed.
At a RAID controller only drive assemblies with same capacity may be attached.
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
7 of 11
System configurator and order-information guide
C
PRIMERGY Econel30 Status 2003-10-28
Section
VII
A. SCSI Controller for backup drives
S26361-F2644-E3
SCSI Controller UW
with LSI Chip 53C1000R In SCSI Basic Units not necessary
1 channel LVD,
for internal backup drive
max. 160MB/s; with cable
64/66 PCI, min 166mm,
PCI standard profile
int: HD68 LVD, ext:
SW:
max. 1x per system
B. SCSI Controller for external peripheral devices
S26361-F2399-E1
SCSI 160 Controller
Adaptec SCSI Card 29160
1 channel: LVD + Fast/ Ultra (decoupl.)
LVD connect. for HD, without cable
Fast/Ultra connect. for acc. drives
64/66 (32/33) PCI, min 180 mm, hp
int: Fast 50 pins or Ultra HD68
+ LVD HD68; ext: HD68(LVD)
SW:
max. 1 per system
SCSI Controller
There are 7 slots (max. 340 mm): 1x AGP (ocuppied by AGP graphics card), 6x PCI long
SCSI Controllers only for backup drives
Section
VIII
S26361-F2567-E2 In RAID-modus you need 2 IDE RAID Controller for the connection
IDE RAID Controller of 4 hard disk drives!
Promise Fasttrak 100 LP
2-channel IDE RAID Controller
max. 100MB/s, with cable
1 HD per channel max. It may be mounted only after installation of the operating system.
32/66 PCI, min. 180mm
int.: 2 x ATA 100 UDMA
ext.:
SW:
max. 1x per system
D
Disk array
A second IDE RAID Controller can only later be ordered as -L part number.
IDE RAID Controller are only released for
IDE Basic Units!
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
8 of 11
System configurator and order-information guide
D
PRIMERGY Econel30 Status 2003-10-28
2x
Section
IX
S26361-F2643-E1
Fast Ether. Contr. 10/100TX
Intel Pro 100 Server Adapter
AFT under NT, W2k also with
on-board LAN, WOL, load bal.
32/33 Bit PCI, min 120 mm
ext: for RJ45-connector
SW: VLAN, Fast Etherchannel
max. 1x per system
S26361-F2730-E1 S26361-F2732-E1 S26361-F2839-E1
Gigabit Ethernet Contr. 1000TX Gigabit Ethernet Contr. 1000SX Gigabit Ethernet Contr. 1000TX
Intel Pro/1000 XT Server Adapter Intel Pro/1000 XF Server Adapter Intel Pro/1000 MT Adapter
Adapter Teaming Support Adapter Teaming Support
PCI-X (PCI64/66), min 163 mm PCI-X (PCI64/66), min 163 mm ext: for RJ45-plug, Cat 5
ext: for RJ45-connector, Cat 5 ext: for Duplex SC-connector
connection with Cat 5 cabling SW: VLAN, Fast Etherchannel
SW: VLAN, Fast Etherchannel SW: VLAN, Fast Etherchannel
max. 2x per system max. 2x per system
E
Communication / Network
freigegeben.
PCI 32 (33/66MHz), min 122 mm
connection with Cat 5 cabling
max. 2x per system
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
9 of 11
System configurator and order-information guide
E
PRIMERGY Econel30 Status 2003-10-28
Section
Section
Power cord for floorstand versions for following countries:
1,8 m, grey
T26139-Y1740-E10 D, A, B, F, NL, FIN, N, S, E, P, RUS, TR
T26139-Y1742-E10 USA, Canada
T26139-Y1743-E10 Switzerland
T26139-Y1744-E10 UK, IR
T26139-Y1745-E10 Italy
T26139-Y1746-E10 Denmark
T26139-Y3850-E10 Option "no powercord"
X
XI
Miscellaneous
Country pack
Keyboards for following countries:
S26381-K397-E110 USA / international
S26381-K397-E120 Germany
S26381-K397-E140 France
S26381-K397-E155 Sweden / Finland
S26381-K397-E165 United Kingdom
S26381-K397-E180 Spain
S26381-K397-E185 Italy
End PRIMERGY Econel30
Other options and Peripherals
For other options refer to the section "Product-specific options
These options are supplied loose with the shipment.
For suitable peripherals for this product refer to the section "Peripherals/communication"
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
10 of 11
Change Report
Date
Order number
Changes
System configurator and order-information guide
PRIMERGY Econel30 Status 2003-10-28
2003-10-28
2003-10-28
2003-10-28
2003-10-10
2003-10-10
2003-09-30
2003-09-18
2003-08-11 S26361-F2849-E3
2003-08-11 S26361-F2848-E3
2003-06-25
2003-04-25
2003-04-25
2003-03-12
2003-03-12
2003-03-12
2003-03-12
2003-02-20
2003-01-22 S26361-F2567-E2 IDE RAID Controller - from now on only 1x released (A second IDE RAID Controller can only later be ordered
2002-05-15
S26361-K831-V330 IDE Basic unit Celeron 2.0 , 256MB DDR-RAM PC2100 , 1x 40 GB IDE HD - no longer available
S26361-F2572-E3 Tape drive SLR 60 - no longer available
S26361-F2236-E3 Tape drive SLR 7 - no longer available
S26381-K297-..... Order numbers of all keyboards from S26381-K297-E... to S26381-K397-E... changed
S26381-K397-E155 Country specific keyboard Sweden / Finland - now available
S26361-F2755-E1 CD-RW drive 48/16/48 - no longer available
S26361-K831-V360 IDE Basic unit 2.6GHz Celeron with 256MB DDR-RAM PC2100 and 1x 40 GB IDE HD - now available
S26361-F3008-E1
S26361-F2839-E1
S26361-F2233-E13 Tape drive DAT DDS4 Autoloader - no longer available
S26361-K831-V341 SCSI Basic unit with 512MB DDR-RAM PC2100 and 1x 73 GB SCSI HD - now available
S26361-K831-V331 SCSI Basic unit with 512MB DDR-RAM PC2100 and 1x 36 GB SCSI HD - now available
S26361-K831-V350 IDE Basic unit with 512MB DDR-RAM PC2100 and 1x 120 GB IDE HD - now available
S26361-K831-V340 IDE Basic unit with 512MB DDR-RAM PC2100 and 1x 80 GB IDE HD - now available
S26381-K297-E180 Keyboard for Spain - now available
Tape drive VXA-2 - now available
Tape drive DDS Gen5 - now available
CD-RW / DVD drive - now available
Gigabit Ethernet Contr. 1000TX - now available
as -L part number).
First release
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
11 of 11
Loading...
