Introduction
Depending on the configuration chosen, some of the hardware components described
may not be available on your system board.
i
You will find further information e. g. in the complete system board Technical Manual and in the
"BIOS Setup" description.
Further information regarding drivers is provided on the supplied drivers diskettes or on the "Drivers
& Utilities" or "ServerStart" CD. For detailed information please read the "Installing drivers" chapter.
The latest BIOS version and drivers can be found on the internet under http://www.fujitsu-
siemens.com/en/service.
Computer system boards and components contain very delicate IC chips. To protect them
against damage caused by static electricity, you must follow these precautions:
!
• Use a grounded wrist strap.
• Unplug your computer before you remove any part of the casing.
• Place the system board and the components on a grounded antistatic pad whenever
you remove them from the computer.
Hold components by the edge, do not touch any pins or connectors on them.
Once you have installed the system board, you should remove the battery protection (i.e.
the thin plastic plate between battery and contact spring).
A26361-D1322-Z180-1-7619 English - 1
Page 10
Features
Features
The table shows assembly versions of this system board as an example.
Features D1320-B D1321-A D1322-A
Chipset Intel 845
Board Size µ-ATX µ-ATX µ-ATX
VGA onboard - - Audio onboard (AC '97) üüü
LAN onboard / with Alert-on-LAN - / - ü / - ü / ü
Thermal Management onboard - - ü
System Monitoring onboard - - ü
Fujitsu Siemens Keyboard Power Button Support --ü
Buzzer onboard / int. Speaker Support ü / - ü / - - / ü
Internal Connectors
DIMM Sockets (SDRAM) 3 3 3
AGP Slot (1/2/4x, 32Bit, 66 MHz, 1.5 V) 1 1 1
PCI Slots (32Bit, 33 MHz, 5 V and 3.3 V) 3 3 3
ISA Slot - - ACR Slot - - CNR Slot 1 - AMR Slot - - IDE Interfaces (Ultra DMA/100) 2 2 2
Floppy Interface (up to 2.88 MB) 1 1 1
CD / AUX Audio Input 1 / 1 1 / 1 1 / 1
Front Panel Audio Output 1 - Wake-on-LAN 1 1 1
Int. Serial Port / with SmartCard Support - / - - / - - / Int. USB Connectors with SmartCard Support - 1 1
Int. USB Connectors* / shared with CNR 2 / 1 2 / - 2 / -
External Connectors
VGA - - Audio Mic. / in / out (2 x 0.5 W / 8 Ω) 1 / 1 / 1 1 / 1 / 1 1 / 1 / 1
Game/MIDI 1 1 1
LAN (RJ-45) - 1 1
PS/2 Mouse/Keyboard 1 / 1 1 / 1 1 / 1
Ext. Serial Port (FIFO, 16550 compatible) 2 2 2
Parallel Port (EPP/ECP) 1 1 1
USB Connectors external 2 2 2
2 - English A26361-D1322-Z180-1-7619
Page 11
Mechanics
Mechanics
Layout System board D1320 / D1321 / D1322
µ-ATX 9.6" x 9.6'' (243.84 mm x 243.84 mm)
Some of the following connectors are optional and may therefore not be included on your system
board.

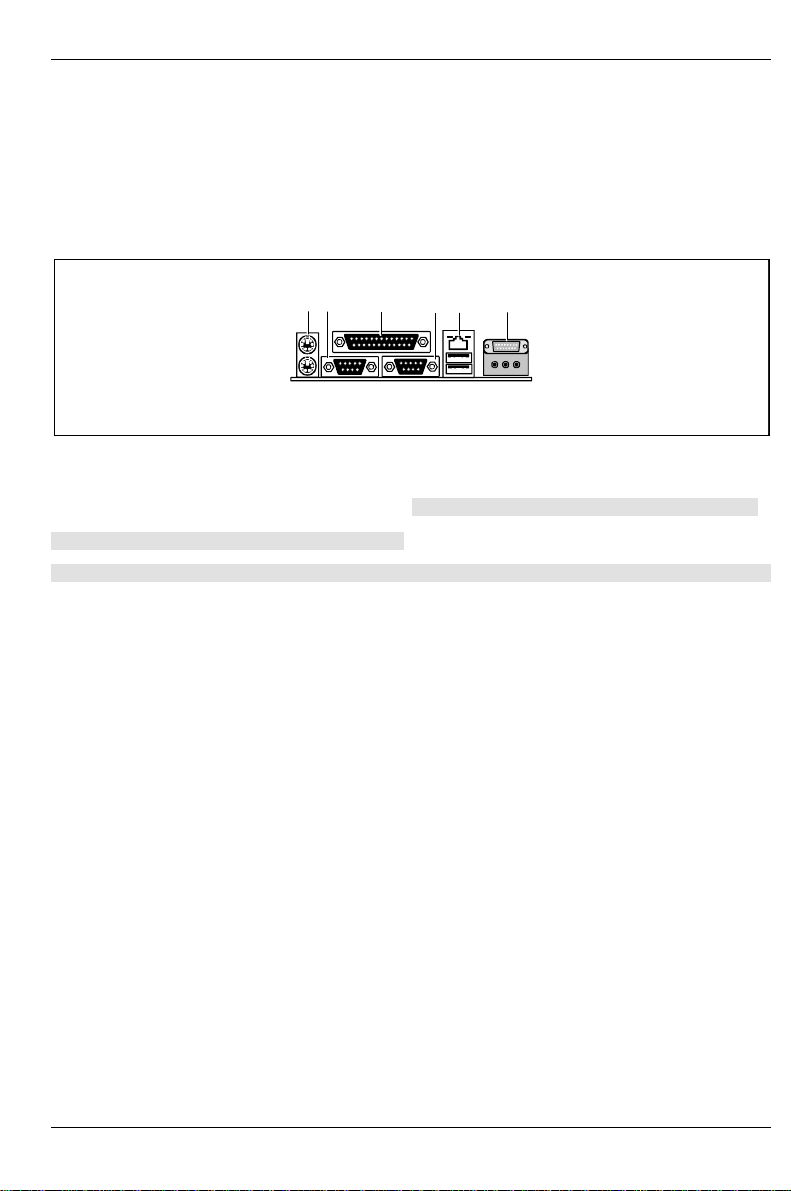

31 4 5
2
1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = Serial port 1
4 = Parallel port
5 = Serial port 2
6 = LAN port
The components and connectors marked are not necessarily present on the system board.
6
8
7
9a 9c9b
7 = USB ports A and B
8 = Game/Midi port
8a = Audio Line-Out
Headphones
8b = Audio Line-In
8c = Audio Micro-In
A26361-D1322-Z180-1-7619 English - 3
Page 12
Mechanics
1234 5 798
DIMM 3
DIMM 2
DIMM 1
19
6
10
11
12
13
AGP

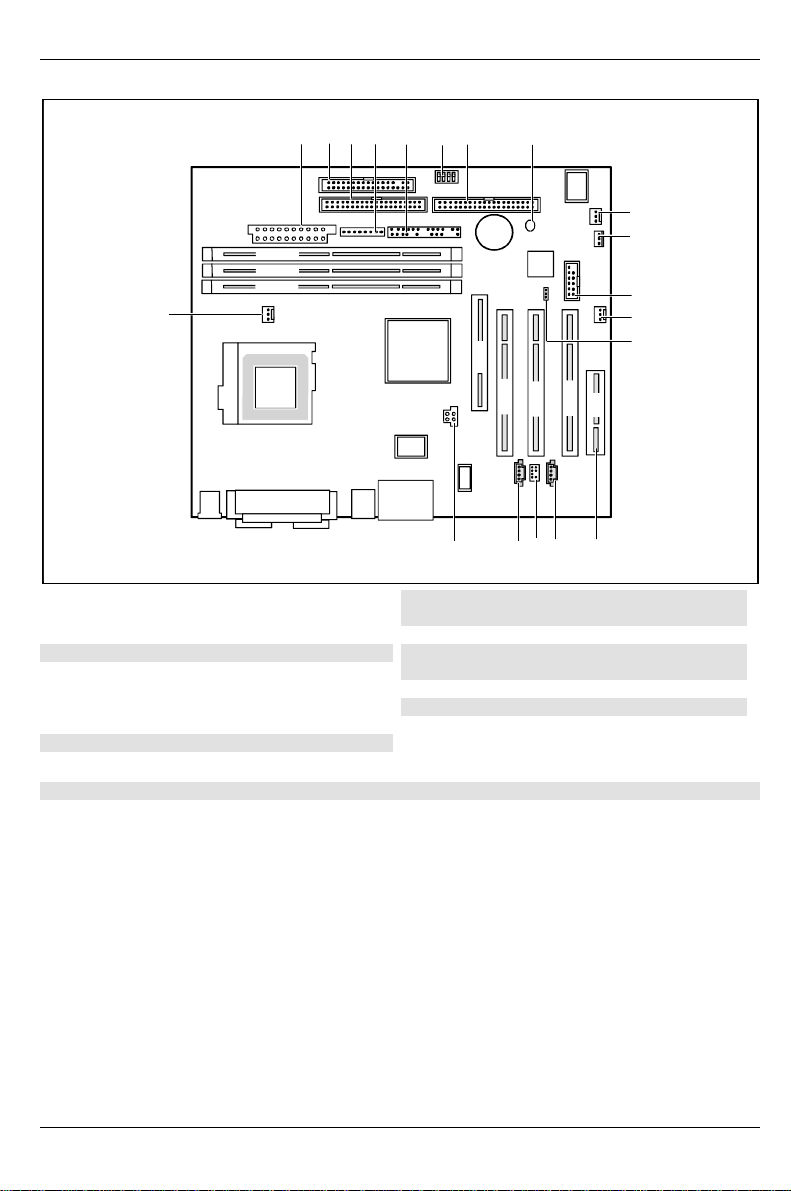

1 = Power supply ATX
2 = Floppy disk drive
3 = IDE drives 3 and 4 (secondary)
4 = Power supply monitoring
5 = Connector for control panel and
loudspeaker
6 = Configuration switch
7 = IDE drives 1 and 2 (primary)
8 = Voltage indicator LED
9 = Fan 2
PCI 1
10 = Cover monitoring
11 = USB port C / D 1
12 = Wake On LAN
13 = Jumper USB
14 = CNR slot type A
15 = CD audio input
16 = Audio front panel
17 = AUX audio input
18 = Power supply +12 V
19 = Fan 1 (e. g. for the processor)
16
PCI 3
PCI 2
CNR
14
151718
The components and connectors marked are not necessarily present on the system board.
4 - English A26361-D1322-Z180-1-7619
Page 13
Connectors
Connectors
Some of the following connectors are optional!
!

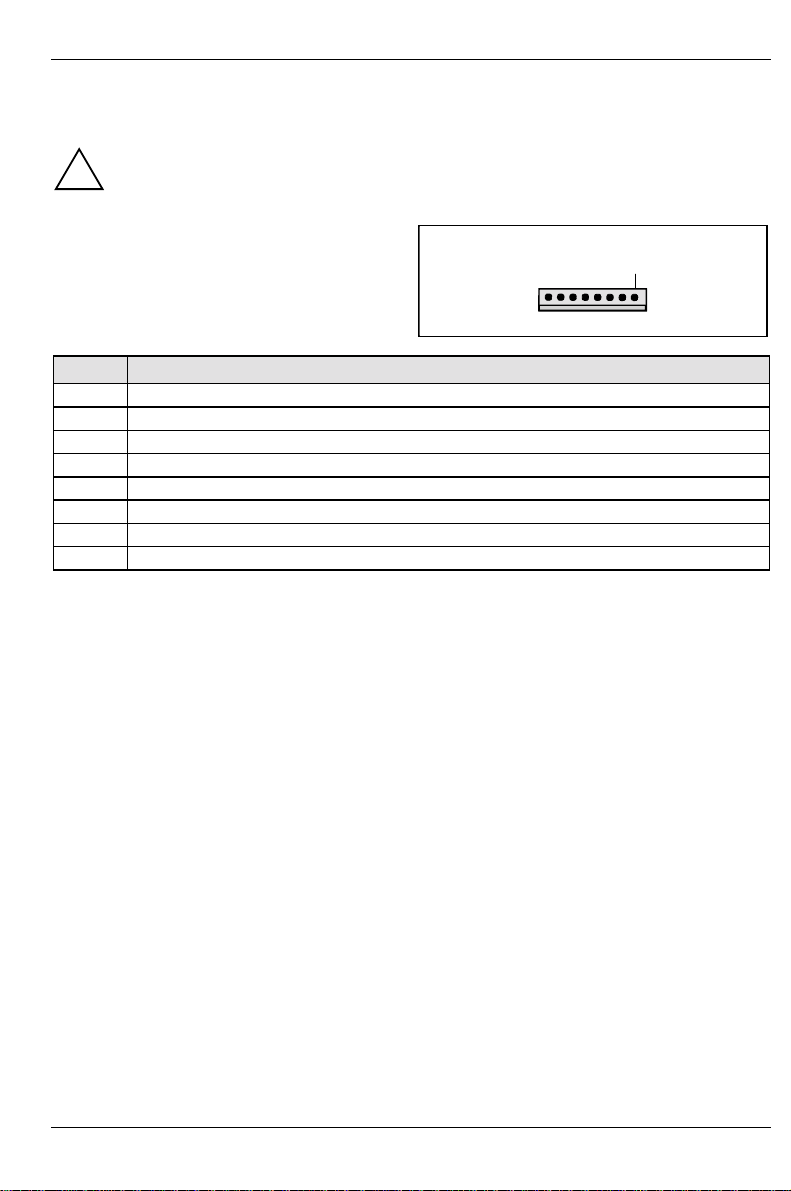

Power supply monitoring
Pin Signal
1 Monitor on
2 PS FAN off request (low asserted)
3 PS FAN full on (low asserted)
4 PS FAN pulse
5 SMB CLK
6 SMB DATA
7 VCC EEPROM
8 GND
1
A26361-D1322-Z180-1-7619 English - 5
Page 14
Connectors

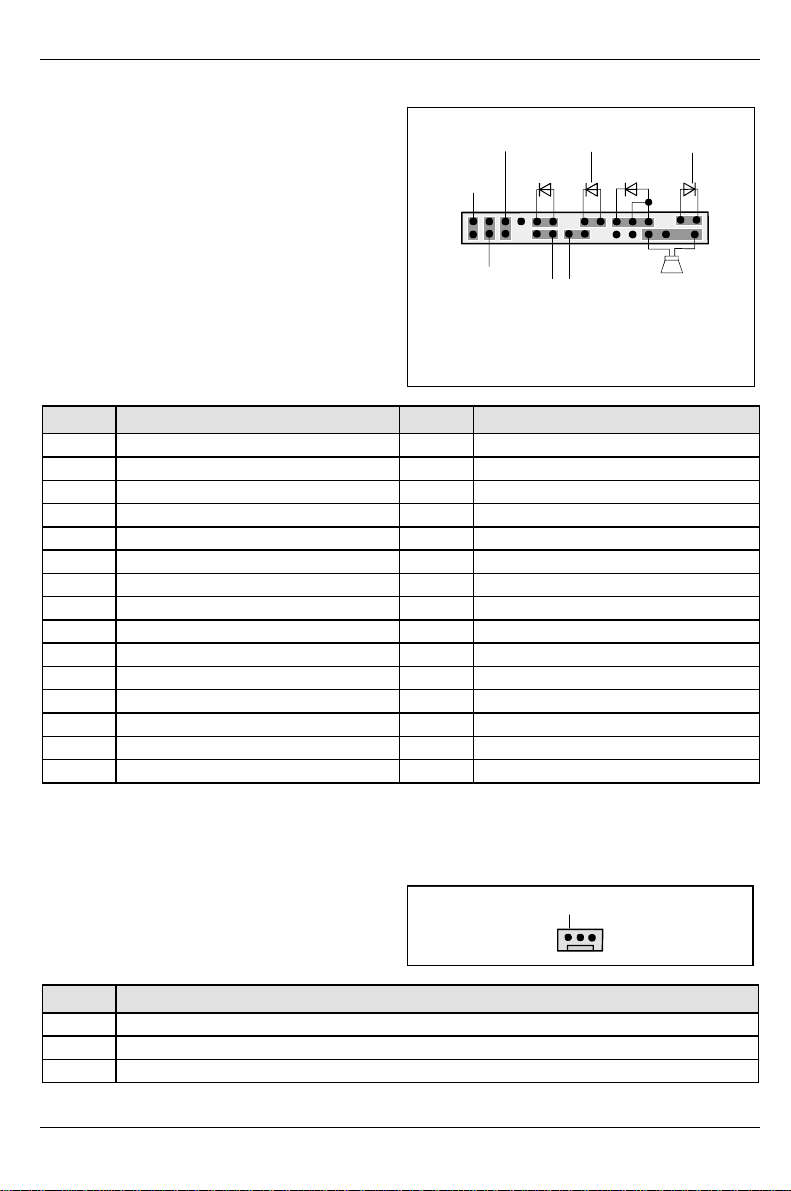

Front panel connector
Power On/Off
1)
Reset
1)
Sleep
1) Cable is not included in the delivery scope.
2) The same interface
3) 2pin or 3pin connector possible
Message LED
1)
HD-LED
SCSI LED Input
1)
Power On
1) 3)
LED
2)1)
Sleep LED
Speaker
Pin Signal Pin Signal
1 Sleep LED (Cathode) 2 Speaker
3 Sleep LED (Anode) 4 Key
5 Key 6 GND
7 PowerON_LED (Anode) 8
1)
VCC or GND
9 PowerON_LED (Anode) 10 Key pin
11 PowerON_LED (Cathode) 12 Key pin
13 Message LED (Anode) 14 Key
15 Message LED (Cathode) 16 Not connected
17 Key 18 SCSI LED input (low asserted)
19 HD_LED (Anode) 20 SCSI LED input (low asserted)
21 HD_LED (Cathode) 22 Not connected
23 GND 24 Key
25 Power button (low asserted) 26 GND
2)
27
reserved 28 GND
29 Reset button (low asserted) 30 GND
1) Pin 8 is connected to VCC if audio is not onboard.
Pin 8 is connected to GND if audio is onboard.
2) The sleep button (optional) functions only for operating systems with APM (not with ACPI).
1
2
2)

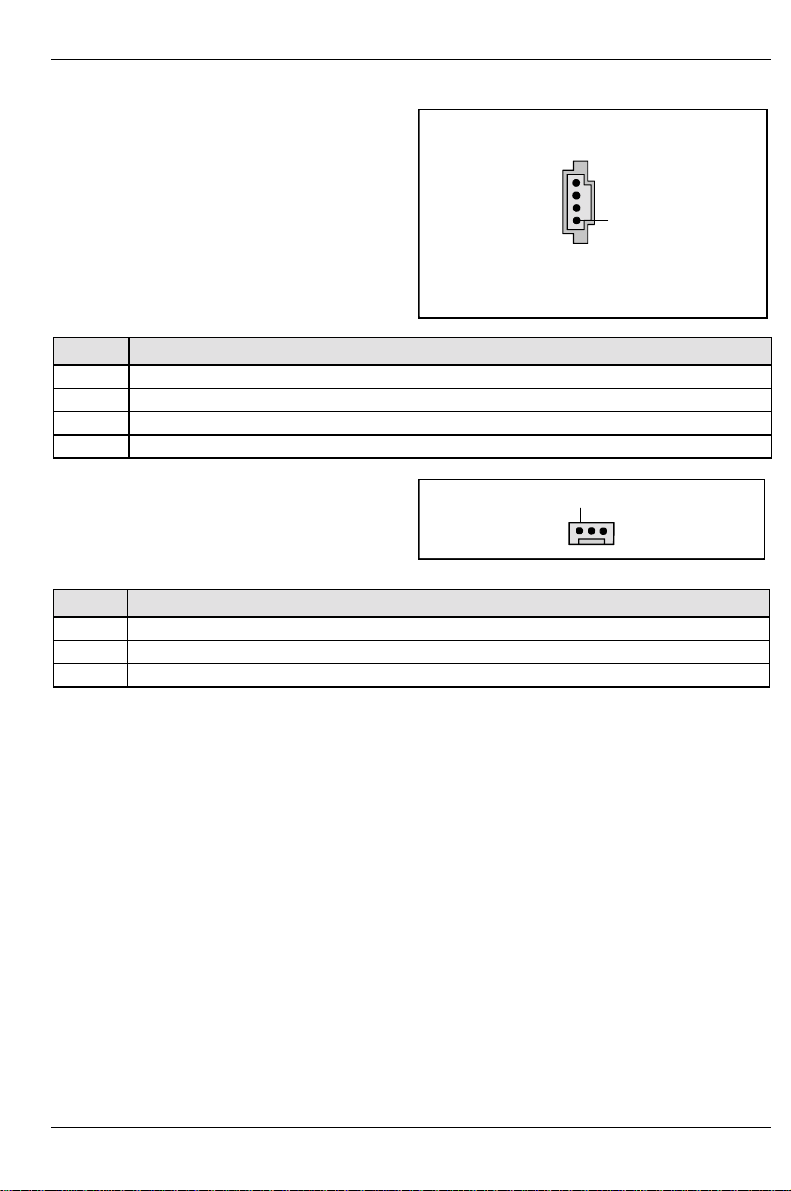

Fan 2 connector
1
(system fan - supervised)
Pin Signal
1 GND
2 +12 V
3 Fan sense
6 - English A26361-D1322-Z180-1-7619
Page 15
Connectors

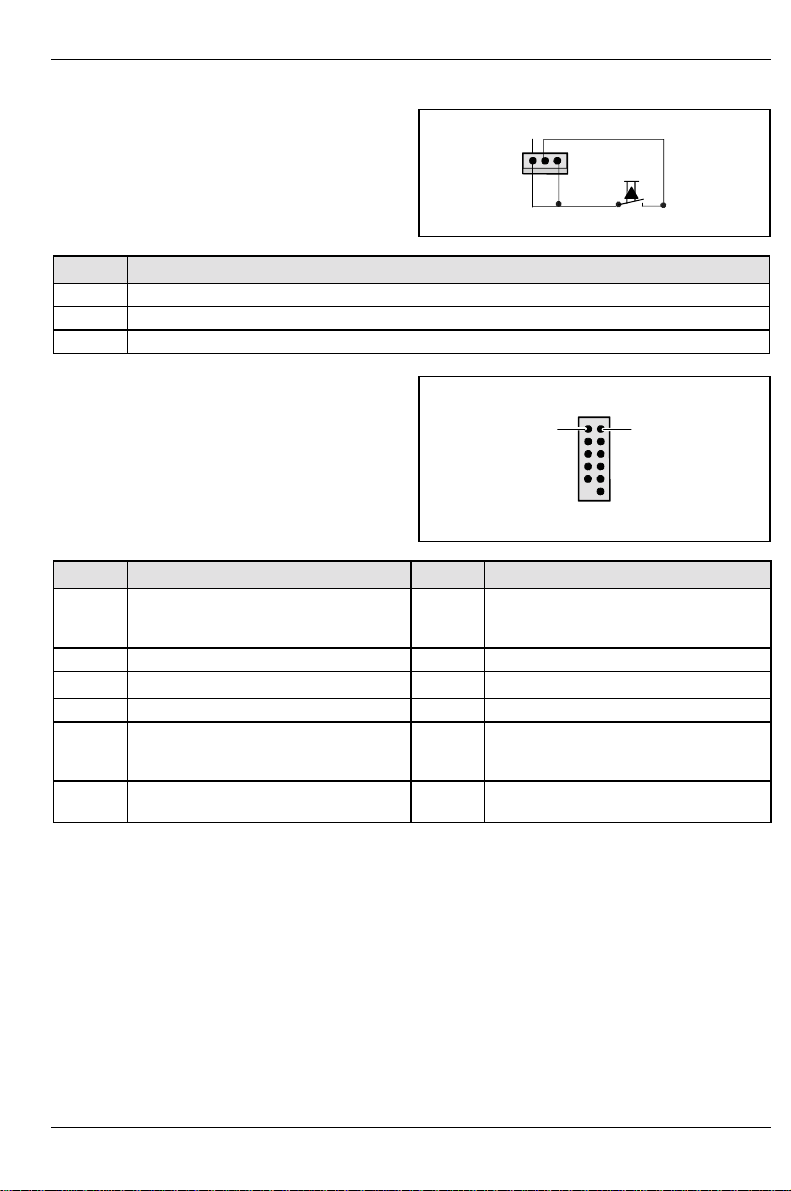

Intrusion connector for case open
1
detect for optional push-button
(opener)
Pin Signal
1 GND
2 Case open (low asserted)
3 Intrusion switch present (low asserted)
USB port C / D 1 - Dual channel
(internal or external via special wire)
Pin Signal Pin Signal
1 VCC Dual (fused max. 500mA and
power supervision with over current
3 Data negative 4 GND
5
7 GND 8 Data negative
9 Shield GND 10 VCC Dual (fused max. 500mA and
11 Key 12 Power supply on (CCR on)
detection)
Data positive
2 Shield GND
6 Data positive
12
power supervision with over current
detection)
(max. 1 second low pulse)
A26361-D1322-Z180-1-7619 English - 7
Page 16
Connectors

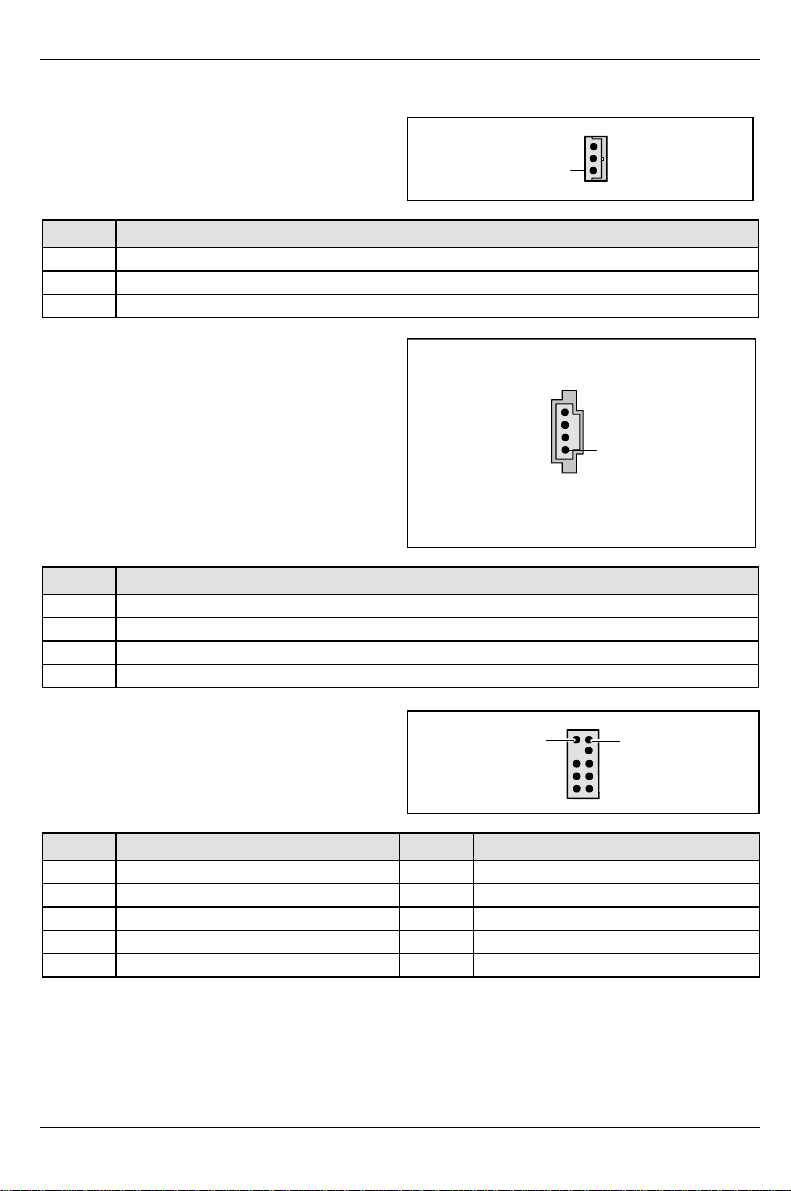

Wake On LAN (WOL) connector
Pin Signal
1 VCC Auxiliary
2 GND
3 Wake pulse (high asserted)
CD-ROM audio connector (internal)
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
1
1
Audio front panel (internal)
Pin Signal Pin Signal
1 Analog GND 2 Micro Input
3 Key 4 12 V
5 Analog GND 6 Analog GND
7 Analog GND 8 Analog GND
9 Left line output* 10 Right line output*
* as stuffing option this can be configured as Headphone Out, but the rear out will in this case be
a Line Out only otherwise the rear out is a Headphone Out.
8 - English A26361-D1322-Z180-1-7619
12
Page 17
Connectors
Auxiliary (MPEG, TV) audio connector (internal)
1
Pin Signal
1 Left AUX audio input
2 Analog GND
3 Analog GND
4 Right AUX audio input
Fan 1 connector
(processor fan - controlled and supervised, only
for 3 pin fans)
Pin Signal
1 GND
2 Controlled fan voltage (0 V / 6...12 V)
3 Fan sense
1
A26361-D1322-Z180-1-7619 English - 9
Page 18
Connectors

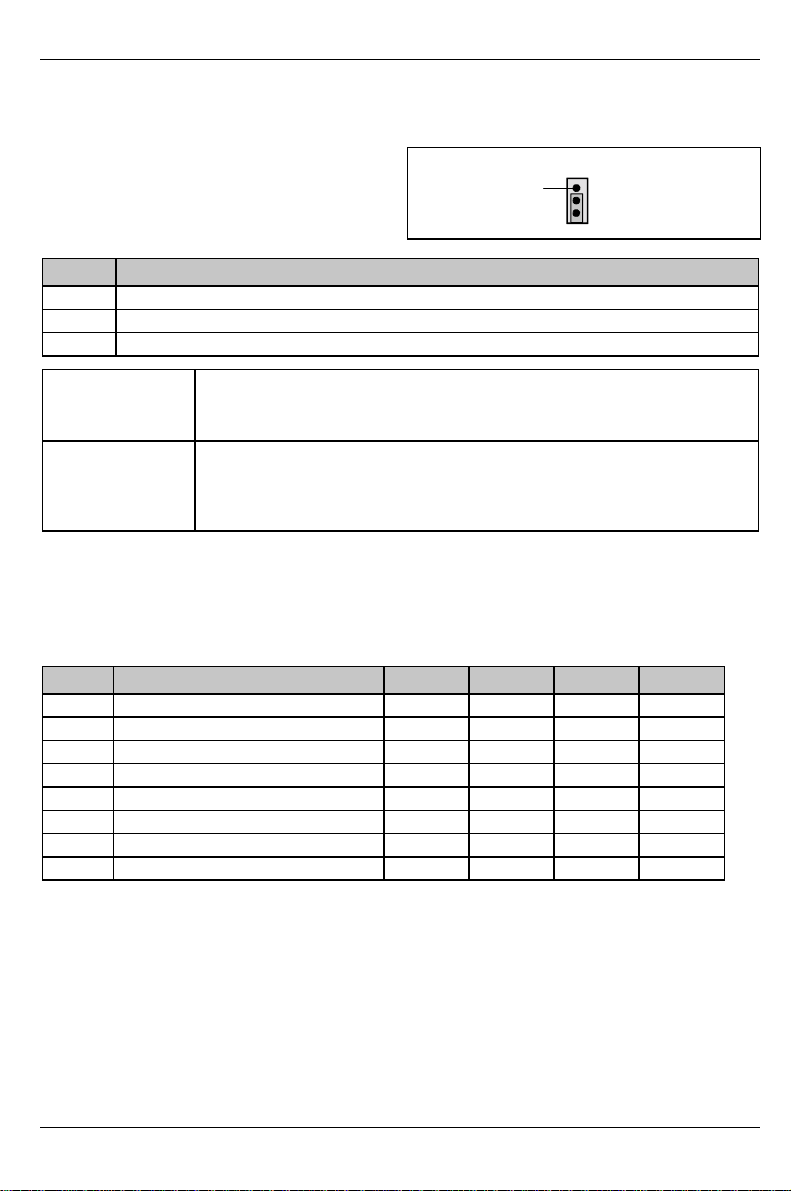

USB power
USB power jumper
Pin Signal
1 VCC_DUAL
2 USB power connection
3 VCC
Jumper 2-3 Default setting:
The USB interface is only powered in state S0 and S1. Wake up from ACPI
S1 state is possible.
Jumper 1-2 If the power supply supports auxiliary voltage the USB interface is
permanently powered except when the main supply is plugged off. Wake up
from ACPI S1-S4 state is possible.
Requirement: Configuration switch USB must be turned On.
1
Configuration
Functions controlled by the configuration switch
Switch Function SKP RCV FWP PSS
1 Password skip on X X X
1 Off off X X X
2 Recovery BIOS X on X X
2 Off X off X X
3 USB wakeup support for port C / D X X on X
3 Off X X off X
4 Low auxiliary power supply (<2 A) X X X on
4 High auxiliary power supply X X X off
PSS must be switched on for systems with not enough 5 V auxiliary power for all its self powered
wake devices (Wake On LAN, USB, PCI) in S3-S4.
10 - English A26361-D1322-Z180-1-7619
Page 19
Documentation
Power
Power requirement for onboard components (worst case)
Source Voltage Maximum variation Maximum current Comment
Main power supply -12 V ±5 % 0.04 A
Main power supply +12 V ±10 % 12 A
Main power supply +5.0 V ±5 % 5.2 A
Main power supply +3.3 V ±5 % 5.2 A
Auxiliary power supply +5.0 V ±5 % 2 A
Power loadability
Fuse
number
Maximum fuse
current
1 750 mA Keyboard port Not specified
2 500 mA Universal serial bus (USB) Port A 500 mA
3 500 mA Universal serial bus (USB) Port B 500 mA
4 1250 mA Universal serial bus (USB) Port C 500 mA
Universal serial bus (USB) Port D 500 mA
Function Maximum function current
Mouse port Not specified
Game port Not specified
VGA connector Minimum 50 mA
Documentation
Ê Insert the "Drivers & Utilities" CD.
Ê If the CD does not start automatically, run the START.EXE file in the main directory of the CD.
Ê Select your system board or your device.
Ê Select Documentation.
Ê Select - Technical Manuals
Ê Select - Technical Manuals (BIOS)
You may have to install the Acrobat Reader - Software on the CD-ROM (path:
utls/acrobat) before reading!
i
For more details please read the according readme.txt files.
A26361-D1322-Z180-1-7619 English - 11
Page 20
Installing drivers
Installing drivers
Ê Insert the "Drivers & Utilities" CD.
Ê If the CD doesn't start automatically call the START.EXE file in the main directory of the CD.
Ê If the system board list is displayed select the system board or select under Driver the
operating system used and the audio and video drivers.
Upgrading main memory
Support: The system needs at least one module.
Size: From 32 Mbytes up to 3 GB SDRAM
Technology: PC133 unbuffered DIMM modules.
Granularity: For one socket 32, 64, 128, 256, 512 MB or 1GB
168 pin, 3.3 V, 64 bit, 72 bit (with ECC), SDRAM
8 M, 16 M, 32 M, 64M and 128M x 64 bit
8 M, 16 M, 32 M, 64M and 128M x 72 bit
Up to 3 double sided PC133 DIMM modules
Troubleshooting
Message BIOS update
The System BIOS provides optimum support for the processor you have chosen. If the message
BIOS update for installed CPU failed
appears the microcode required for the processor inserted must still be loaded. Further information
on this is available in the "BIOS Setup" manual on the "Drivers & Utilities" CD provided.
The screen stays blank
If your screen stays blank this may have the following cause:
The wrong RAM memory module has been inserted
Ê See the chapter "Main Memory" for information which memory modules can be used.
ACPI S3 (Save-to-RAM) and/or ACPI S4 (Save-to-Disk) doesn't work
This system board is fully compliant for ACPI S3 and S4. Therefore it is PC99 certified by Microsoft.
If you have any problems with ACPI please ensure that all of your components are supporting ACPI
S3 and S4.
− Operating system
− Hardware and drivers of controllers (e. g. VGA, audio, LAN, SCSI controllers).
For further information please refer to http://developer.intel.com/technology/iapc/involve.htm .
12 - English A26361-D1322-Z180-1-7619
Loading...
