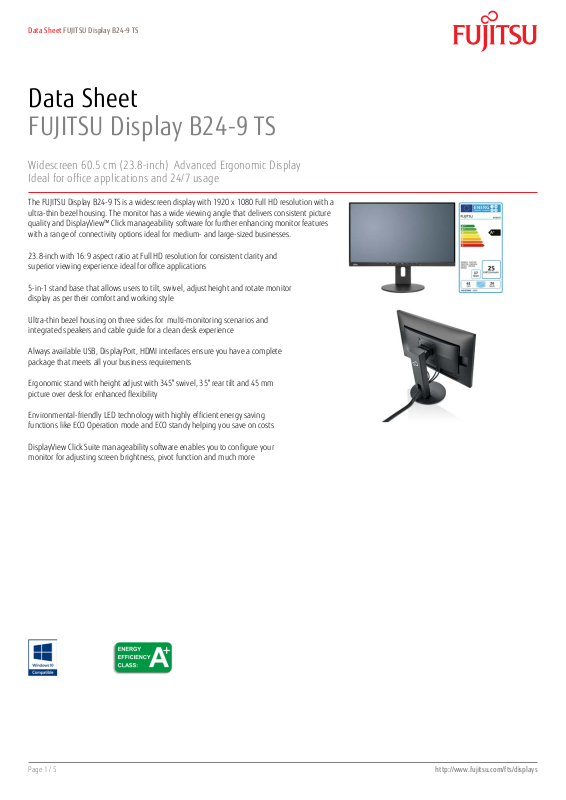

Data Sheet FUJITSU Display B24-9 TS
Data Sheet
FUJITSU Display B24-9 TS
Widescreen 60.5 cm (23.8-inch) Advanced Ergonomic Display
Ideal for office applications and 24/7 usage
The FUJITSU Display B24-9 TS is a widescreen display with 1920 x 1080 Full HD resolution with a
ultra-thin bezel housing. The monitor has a wide viewing angle that delivers consistent picture
quality and DisplayView™ Click manageability software for further enhancing monitor features
with a range of connectivity options ideal for medium- and large-sized businesses.
23.8-inch with 16:9 aspect ratio at Full HD resolution for consistent clarity and
superior viewing experience ideal for ofce applications
5-in-1 stand base that allows users to tilt, swivel, adjust height and rotate monitor
display as per their comfort and working style
Ultra-thin bezel housing on three sides for multi-monitoring scenarios and
integrated speakers and cable guide for a clean desk experience
Always available USB, DisplayPort, HDMI interfaces ensure you have a complete
package that meets all your business requirements
Ergonomic stand with height adjust with 345° swivel, 35° rear tilt and 45 mm
picture over desk for enhanced exibility
Environmental-friendly LED technology with highly efcient energy saving
functions like ECO Operation mode and ECO standy helping you save on costs
DisplayView Click Suite manageability software enables you to congure your
monitor for adjusting screen brightness, pivot function and much more
Page 1 / 5 http://www.fujitsu.com/fts/displays
Data Sheet FUJITSU Display B24-9 TS
Technical details
Special features
In-Plane Switching (IPS) technology, Low blue light mode, 5-in-1 Stand, Cable guide, Eco button for Eco mode and
3-coloured Eco status LED, Always available USB (in operating and standby mode), DisplayView™ IT Suite, 24/7 usage,
Integrated speakers
Ergonomic stand
Stand 5-in-1 Stand
Height adjust range 150 mm
Picture height over desk (min) 45 mm
Rotation to portrait 90°
Tilt angle -5° / +35°
Swivel angle 345°
Picture performance
Panel and backlit In-Plane Switching (IPS) technology/LED
Screen Surface Treatment Anti-glare, 3H hard coating
Contrast - typical 1,000:1
Contrast - advanced 20,000,000:1
Response time gray to gray typical 5 ms (in video mode)
Viewing angle (h/v) - typical 178°/178° CR10:1
Color performance 16.7 million colors (Hi-FRC)
Brightness - typical 250 cd/m2
Size and resolution
Aspect ratio 16:9
Diagonal Size 60.5 cm (23.8-inch)
Resolution (native) 1,920 x 1,080 pixel
Resolution (interpolated) 1,680 x 1,050 pixel, 1,440 x 900 pixel, 1,280 x 1,024 pixel, 1,280 x 720 pixel, 1,024 x 768 pixel, 800 x 600 pixel, 640
x 480 pixel
Picture size 527 x 296 mm
Pixel Pitch 0.2745 mm
Frequencies
Horizontal 30 - 82 kHz
Vertical 48 - 76 Hz
Connectivity
DisplayPort 1 x DisplayPort
HDMI 1 x HDMI
VGA/D-SUB 1 x D-SUB
Audio signal output 3.5 mm stereo phone jack for head phone
Audio signal input 3.5 mm stereo phone jack
Audio sound output 2 x 2 W
USB downstream 2x USB 3.1 (Gen1)
USB upstream 1 x USB 3.1 (Gen1)
Ease-of-use menu
Direct Access Keys Brightness, ECO, Input, Mode, Audio, Menu
Languages Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Turkish, Japanese, Chinese simply, Chinese traditional
Brightness / Contrast Brightness, Contrast, Black level, Auto level, ACR
Mode sRGB, Ofce, Photo, Video, Low Blue Light
Color sRGB, 5000K, 6500K, 7500K, Native, Custom Color (R,G,B)
OSD Language, OSD-Timeout, OSD rotation
Image adjust Clock, Phase, H-Position, V-Position, Expansion, Sharpness
Page 2 / 5 http://www.fujitsu.com/fts/displays
Data Sheet FUJITSU Display B24-9 TS
Audio Mute, Volume, Input for HDMI and DP interface
Information Model name, Serial number, Signal input, Resolution/mode, Display mode , Color Temperature, ACR Status
Advanced settings Overdrive, DDC/CI, Factory Recall
Power consumption (typical, w/o sound)
Soft switch off 0.21 W
Power save mode 0.32 W
Operating with EPA settings 17.06 W
Total Energy Consumption (ETEC) 54.12 kWh/year
Operating maximum brightness 22 W
Power supply integrated
Power notes Speakers off, USB not connected
ETEC and EPA refer to ENERGY STAR® 7.0
Electrical values
Rated voltage range 100 V - 240 V
Rated frequency range 50 Hz - 60 Hz
Protection class 1
Compliance
Europe Energy Efciency Class: A+, CE certication according to EC Directive 2004/108/EEC, EN 60950, RoHS, WEEE, IT-Eco-
Declaration
Model DY24-9T
Germany TÜV GS
Russia EAC
USA/Canada FCC Class B, cTUVus
Australia/New Zealand (on customer request)
South Korea KC
Singapore S-Mark
Taiwan BSMI
China CCC
Saudi Arabia SASO
Global TCO Certied Displays 7.0, ENERGY STAR® 7.0, EPEAT® Gold (dedicated regions) in progress, TÜV Low Blue Light
Certied, TÜV Flicker Free Certied, Zero bright and dark pixel faults, Subpixel faults according to ISO9241-307 (Pixel
fault class I)
Compliance link https://sp.ts.fujitsu.com/sites/certicates
Dimensions / Weight / Environmental
Dimension without stand (W x D x H) 540.3 x 64 x 325.6 mm
21.27 x 2.52 x 12.82 inch
Dimension with stand (W x D x H) 540.3 x 229.4 x 346.2 mm
21.27 inch x 9.03 x 13.63 inch
Weight (packed) 7.1 kg
15.65 lbs
Weight (unpacked) 5.25 kg
11.57 lbs
Weight (Monitor only) 3.21 kg
7.08 lbs
Operating ambient temperature 5 - 35 °C (41 - 95 °F)
Operating relative humidity 10 - 85 % (non condensing)
Miscellaneous
Miscellaneous VESA DDC/ CI, Flat Display Mounting Interface VESA MIS-D 100 C, Kensington lock prepared
Color Matt black
Page 3 / 5 http://www.fujitsu.com/fts/displays
Data Sheet FUJITSU Display B24-9 TS
Package content
Display delivered accessories DisplayPort data cable 1.8 m
USB-cable 1.8 m (USB-A to USB-B)
Power cable for wall socket (Euro-Schuko-Type CEE7) 1.8 m
Quickstart yer
Safety notes
Display delivered accessories notes Data cables and USB cable detachable on display
User manual and DisplayView Software is available via download
Order information
Order Code S26361-K1643-V160
EAN Code 4059595551776
Country specic order code BDL:K1643V160-UK - with UK power cable, mandatory for
Arabian countries
BDL:K1643V160-CHN - with China power cable and CEL,
mandatory for China
BDL:K1643V160-ID - with Import label, mandatory for
Indonesia (on demand)
BDL:K1643V160-INT - W/o power cable, mandatory for
countries where import with EU cable is not allowed
(country specic order codes will be created on demand)
Accessories information Further helpful options:
Stands and Mounting kits: http://www.fujitsu.com/fts/
products/computing/peripheral/accessories/desktop/ums/
index.html
Available Privacy Filters: http://globalsp.ts.fujitsu.com/
dmsp/Publications/public/ds-Privacy-Filter.pdf
Available Adapters: http://globalsp.ts.fujitsu.com/dmsp/
Publications/public/pos-connectivity.pdf
Warranty
Warranty period 3 years (depending on country)
Warranty type Collect & Return Service (depending on country specic requirements)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Spare Parts availability 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services/support
