Display
Operating Manual
B22W-7 LED
Congratulations on your pu
rchase of an innovative
product from Fujitsu.
Latest information about our products, tips, updates etc. can be found on
the Internet at: "
http://www.fujitsu.com/fts/"
You c a n find driver updates at: "http://support.ts.fujitsu.com/download"
Should you have any technical questions, please contact:
• our Hotline/Service Desk (see the Service Desk list or visit:
"
http://support.ts.fujitsu.com/c ontact/servicedesk")
• Your sales partner
• Your sales office
We hope you enjoy working with y our new Fujitsu system!
Published by / Contact address in the EU
Fujitsu Te
chnology Solutions GmbH
Mies-van-der-Rohe-Straße 8
80807 Munich, Germany
"
http://
www.fujitsu.com/fts/"
Copyright
©Fujits
u Technology Solutions GmbH 2013. All rights reserved.
Publication Date
05/2013
Order No.: A26361-K1472-Z320-1-7619, edition 1
B22W-7 LED
Operating Manual
Your LCD screen... 5
Important notes 7
Getting started 11
Operation 19
Notes on ergonomic colour adjustment 29
Troubleshooting 30
Explanatory information about
standard ISO 9241-307 32
Technical specification 33
Remarks
Notes on the product description meet the design requirements of Fujitsu and are
provided for the purposes of comparison. The actu al re sults may differ due to several
factors. Subject to technical changes without prior notification. Fujitsu accepts no
responsibility for technical or editorial mistakes or omissions.
Trademarks
Fujitsu and the Fujitsu logo are registered trade marks of F ujitsu Limited or its
subsidiaries in the United States and other countries.
Microsoft and Windows are trademarks or registered trademarks of the Microsoft
Corporation in the United States and/or other countries.
VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.
All other trademarks specified here are the property of their respective owners.
Copyright
No part of this publication may be copied, reproduced or translated without
the prior written consent of Fujitsu.
No part of this publication may be saved or transmitted by any electronic means
without the written consent of Fujitsu.
Contents
Contents
YourLCD screen... ..................................................................... 5
Target group ............................................................................ 5
Furtherinformation ...................................................................... 6
Notational conventions .................................................................. 6
Important notes ........................................................................ 7
Safetyinstructions ...................................................................... 7
Powercable ............................................................................ 8
Transporting the devic
e ..................................................................
8
Cleaning the device ..................................................................... 9
CEmarking ............................................................................ 9
Disposal and recyclin
g ..................................................................
10
Getting started ......................................................................... 11
Unpacking and checking the delivery . . ................................................... 11
Setting up thedevice .................................................................... 12
Setting up an ergonomic video workstation ............................................ 12
Mounting the mo nitor base . . . ....................................................... 14
Adjustingheight ..................................................................... 15
Adjustingthe inclination .............................................................. 15
Removing monitorbase .............................................................. 16
Connecting the device . .............................................................. 17
Connecting cables to the c omputer ................................................... 18
Operation .............................................................................. 19
Switching the
deviceon andoff ..........................................................
19
Notes on powe
rmanagement ............................................................
20
Changing the
monitorsettings ............................................................
21
Changing the
monitor s ettings with the butto ns of the control pane l . .....................
21
Changing th
emonitor settingsusing the OSD menu ....................................
24
Noteson ergonomic colouradjustment ................................................ 29
Troubles
hooting .......................................................................
30
Explanatory information about standard ISO 9241-307 . . . . . ............................. 32
Technic
al specification .................................................................
33
VESA-DD
C-compatible VGAinterface ....................................................
34
Preset o
perating modes . . . . . . ...........................................................
34
Most fr
equent operating modes .......................................................
34
SUB D po
rt .............................................................................
35

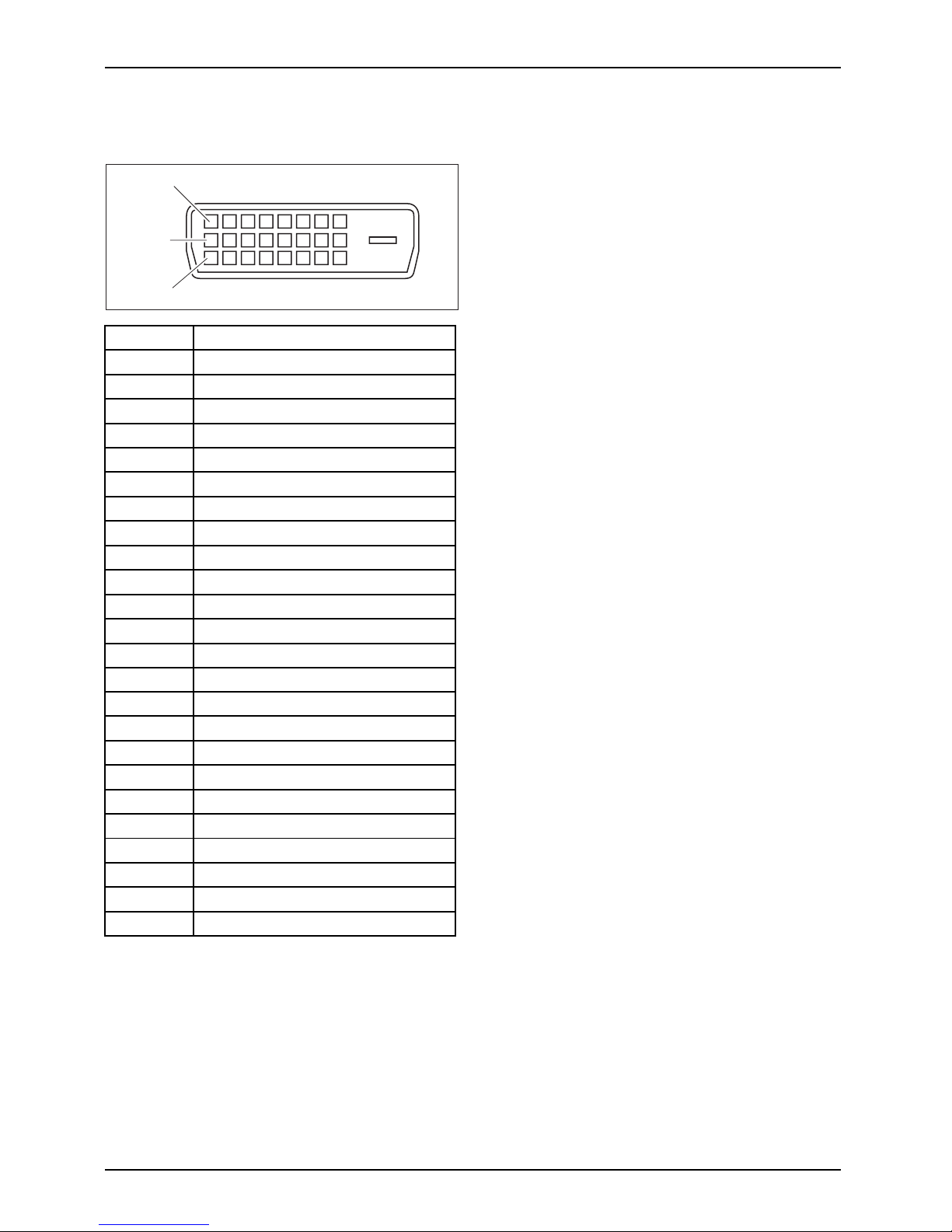

DVI-D
port ..............................................................................
36
Displ
ayPortsocket ......................................................................
37
Fujitsu 3
Contents
4 Fujitsu
Your LCD screen...
Your LCD screen...
has a whole range of useful features and functions, e.g.:
• TFT d isplay (Thin Film Transistor; active matrix)
• minimal space requirement
s thanks to slim casing
• optimum ergonomic characteristics (totally distortion-free, exce llent picture
definition and colour purity right into the corners)
• high degree of brightne
ss and good contrast
• high resolution (1680 x 1050)
• presentation of up to 1
6.7 million colours (in conjunction with an ap propriate display adapter)
• automatic scanning of horizontal frequencies from 30 to 82 kHz and refresh rates
(vertical frequencies) from 56 to 76 Hz (absolutely flicker-free)
• Digital screen contr
oller with microprocessor for storing 40 different display modes
• freely adjustable colour alignment for matching the screen colours to the
colours of various input and output devices
• convenient opera
tion via integrated OSD (On-Screen-display) menu
• VESA-DDC compatibility
• VESA-FPMPMI com
patibility (Flat Panel Monitor Physical Mounting Interface) –
Mounting device
for swivel arm or a similar accessory
• Plug&Play capability
• digital video
inputs (DVI and D isplayPort) with HDCP
• power management for reducing power consumption when the computer is not in use
• Compliance w
ith the recommendations according to TCO 6.0
• the monitor fulfills all GS ("Geprüfte Sicherheit", Certified Security) requirements.
This operat
ing manual contains important information you require to start up and run your LCD monitor.
A graphics c
ard (display adapter) with a VGA interface or a digital graphics card with a DVI
or Display
Port interface is required to control the LCD monitor. The monitor processes the
data suppl
ied to it by the graphics card. The graphics card or the associated driver software
is respon
sible for setting the modes (resolution and refresh rate).
When putt
ing the monitor into operation for the first time, the screen display should be
optimal
ly adapted to the display adapter used and adjusted in accordance with your
needs (s
ee chapter "
Changing t he monitor settings", Page 21).
Target group
You don’t need to be an "expert" to perform the operations de scribed here.
Nonetheless, it is important to always observe the safety notes given in the operating
instructions for the computer and in this manual.
In the event of any problems, please contact your sales office or our Service Desk.
Fujitsu 5
Your LCD screen...
Further information
Details of how you set the resolution and refresh rate are provided in the documentation
for your display adapter and the associated driver software.
For ergonomic reasons, we recommend a screen resolution of 1680 x 1050 pixels.
Because of the technology used (active matrix) an LCD monitor provides a totally
flicker-free picture even with a refresh rate of 60 Hz.
Notational conventions
Pay particular attention to text marked with this symbol. Fa ilure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device .
►
Indicates an activity that must be performed
Indicates a result
This font
indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123) or a command used to
start a program (start.exe)
This font
indicates information tha t is displayed on the screen by a program, e.g.:
Installation is complete.
This fon t
indicates
• terms and texts used in a so ftware interface, e.g.: Click on Save
• names of programs or files, e.g. Windows or setup.exe.
"This fon
t"
indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source , e.g. a web address: For more
information, go to "
http://www.fujitsu.com/fts/"
• Names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety" Manual
Key
indicates a button on the monitor, e.g:
MENU
This
font
indicates terms and texts that are emphasised or highlighted, e.g.: Do
not s witch off the device
6 Fujitsu
Important notes
Important notes
ImportantnotesNotes
In this chapter you will find information regarding safety which it is essential to
take note of when working with y our device.
Safety instructions
This device co mplies wit
h the relevant safety regulations for data processing equipment,
including electronic of
fice machines for use in an office environment. If you have
any questions about whe
ther the device can be used in the intended environment,
please contact your sal
es office or our Service Desk.
• The display surface of
the device is sensitive to pressure and scratches. You should therefore
be careful with the dis
play surface in order to avoid lasting damage (scratches).
• If the device is brought into the installation site from a cold environment, condensation
can form. Before operating the device, wait until it is absolutely dry and has reached
approximately the same temperature as the installation site.
• When installing an
d operating the device, please observe the notes on environmental
conditions in Chap
ter "
Technical specification", Page 33 as well as the instructions in
Chapter "
Setting
up an ergonomic video workstation", Page 12.
• To ensure sufficient ventilation, the air inlet and outlet openings of the device must be kept clear.
• The device autom
atically sets itself to the correct voltage within th e range from 10 0 V to 240 V.
Make sure that t
he local mains voltage is neither higher nor lower than this range.
• Ensure that the power socket o n the device and the mains outlet are freely accessible.
• The ON/OFF swi
tch does not disconnect the monitor from the mains voltage. To disconnect
fully from the
mains supply, disconnect the power plug from the socket.
• The de vice is equipped with a power cable that complies with safety standards.
• Use the suppl
ied power cable only.
• Lay the cables in such a way that they do not create a hazard (danger of tripping)
and cannot be damaged. When connecting the device, observe the relevant
notes in chapter "
Connecting the device", Page 17.
• No data tra
nsfer cables should be connected or disconnected during a thunderstorm.
• Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get
inside the device (danger of electric shock, short circuit).
• The devic
e is not waterproof! Never immerse the device in water an d protect
it from s
pray water (rain, sea water).
• In an emergency (e.g. damaged casing, operation controls or cables, penetration
of liquids or foreign matter), switch off the device, disconnect the power plug
and contact your sales outlet or our Service Desk.
• Repai
rs to the device must only be perfo rmed by qualified technicians. Unauthorised opening
and in
correct repair may greatly end anger the user (electric shock, fire risk).
• Only use the screen resolution settings and re fresh rates specified in chapter
"
Technical specifica tion", Page 33. Otherwise you may damage the device. If you
are in any doubt, contact your sales outlet or our Help Desk.
•Usea
screen saver with moving images and activate the power management for
you
r monitor to prevent still images from "burning in".
• If you operate the device with the swivel arm or a similar accessory, it must not be turned by 180°.
Fujitsu 7
Important notes
• The device must only be operated in landscape mode (0°) and portrait mode (90°). The
control buttons are located in the middle of the bottom of the monitor in landscape mode
(0°) and at the left-hand side of the monitor in portrait mode (90°).
• Store this manual close to the device. If you pass the device on to third
parties, you should pass this manual on with it.
• We recommend that you place your device on a durable, non-slip surface. In view
of the many different finishes and varnishes used on furniture, it is possible that the
feet of the device m ay mark the surface they stand on.
• To ensure sufficient ventilation, the air supply and air outlet openin gs of
the monitor must never be blocked.
• The device must be connected to protective earth.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Warning for excessive sound pressure from earphones and headphones:
Excessive sound pressure from earphones and headphones can cause hearing loss.
Adjustment of the equalizer to maximum increases the earphones and headphones
output voltage and therefore the sound pressure level.
Power cable
Use the supplied power cable only.
Use the following guidelines if it is necessary to replace the original cable set.
• The female/male receptacles of the cord set must meet IEC60320/CEE-22 requirements.
• The cable has to be HAR-certified or VDE-ce rti fied . The ma rk HAR or
VDE will appear on the outer sheath.
• For devices which are mounted on a desk or table, type SVT or SJT cable sets may be
used. For devices which sit on the floor, only S JT type cable sets may be used.
• The cable set must be selected according to the rated c urrent for your device.
• If necessary, replace the original power cable with a regular grounded 3-core mains lead.
Transporting the device
Device,TransportationRetransportation
Transport all parts separately in their original packaging or in a packaging w hich
protects them from knocks and jolts, to the new site.
Do not unpack them until all transportation manoeuvres are completed.
If the device is brought from a co ld environment into th e room where it will be used,
condensation may occur. Before operating the device, wait until it is absolutely dry
and has reached approximately the same temperature as the installation site.
8 Fujitsu
Important notes
Cleaning the device
Switch off the device and unplug the pow er plug.
Do not clean any interior parts yourself, leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may corrode plastic.
Ensure that no liquid enters the device.
The display surface of th
e device is sensitive to pressure and scratches. Clean
it only using a soft, sli
ghtly moistened cloth.
The surface of the casin
g can be cleaned with a dry cloth. If particularly dirty, use a cloth that
has been moistened in m
ild domestic detergent and then carefully wrung out.
CE marking
The shipped version of this device complies with the requirements of European Union
directives 2004/108/EC "Electromagnetic c ompat ibility", 2006/95/EC "Low voltage directive" and
2009/125/EC "Ecodesign Directive".
Fujitsu 9
Important notes
Disposal and recycling
This device has been manufactured as far as possible from materials which can be recycled or
disposed of in such a way that the environment is not damaged. T he device may be taken back after
use to be reused or recycled, provided th at it is re turned in a condition that befits its intended use.
Any components not reclaimed will be disposed of in an environmentally acceptable manner.
The device must be disposed of in accordance with the local regulations for disposal of special waste.
If you have any questions on disposal, please contact your local sales office or our
Service Desk, or contact one of the following directly:
Germany
Belgium
Switzerland
Fujitsu Technology Solu
tions
GmbH
Remarketing and Recycl
ing
D-33106 Paderborn
Tel.: +49 5251 / 81 80 1
0
Fax: +49 5251 / 81 80 1
5
"
http://fujitsu.c
om/fts/remarketing"
RECUPEL
Boulevard Reyers, 80
B-1030 Brussels
Tel.: +32 2 / 706 86 16
Fax: +32 2 / 706 86 13
E-Mail: info@recup
el.be
"
http://www.recu
pel.be"
SWICO
Schweizerischer
Wirtschaftsverband
der Informations-,
Kommunikations- und
Organisationstechn
ik
AlistoftheSWICOac
ceptance
locations can be fou
nd at:
"
http://www.swic
o.ch"
Asia
USA
Taiwan:
Environmental Protection
Administration
Executive Yuan R.O.C.
"
http://recycle.epa.gov.tw"
Fujitsu America, Inc.
1250E. Arques Avenue
Sunnyvale, CA 94085 U.S.A.
Phone No.: (408) 746-6000
You can al so find more information on this at "http://www.fujitsu.com/fts/about/fts/environment-care/".
10 Fujitsu
Getting started
Getting started
Unpacking and checking the delivery
The display surface of the device is sensitive to pressure and scratches.
Always hold the device by the casing!
The complete de vice package includes:
• one monitor
• one data cable (DVI)
• one data cable (VGA)
• one USB cable
• one audio cable
• one power cable
• one CD with software and documentation
• one Warranty Booklet
• one "Quick Start Guide" brochure
• one "Safety/Regulations" manual
► Unpack all the individual parts.
► Check the contents of the package for any visible damage caused during transport.
► Check whether the delivery conforms to the details in the delivery note.
► Should you discover that the delivery does not correspond to the delivery
note, notify your local sales outlet immediate ly.
Do not discard the original packing material of the devices. You may need the
packaging in the future if you need to transport your device.
Fujitsu 11
Getting started
Setting up the device
To ensure sufficient ventilation, the air inlet and outlet openings of
the device must be kept clear.
Setting up an ergonomic video workstation
1
► Do not position the video workstation
opposite a window (1).
1
► Position the monitor outside the reach
of a light source (1).
12 Fujitsu
Getting started
1
► Position the k eyboard where it is
easiest to reach (1).
1
50 cm
► Position the monitor so that the eye distance
to the screen (1) is around 50 cm.
► Position the monitor for optimum viewing
(1). The monitor should under no
circumstances fall outside the perm issible
viewing space (2).
Depending on the situation, it may be advisable to use a swive l arm or similar
accessory (VESA FPMPMI), which are available from specialist dealers. For
this purpose the monitor base must be removed beforehand as described
in Chapter "
Removing monitor base", Page 16.
Fujitsu 13
Getting started
Mounting the monitor base
Do not remove the retaining splint before you have secured the base plate on
the monitor and have brought it into operating position.
2
1
3
► Insert the base plate on the foot (1).
► Guide the screw through the opening (2).
► Secure the base plate with the screw (3).
► Place the monitor in operating position.
14 Fujitsu
Getting started
Adjusting height
The height adjustment is fixed in the transport position.
1
2
► To free the fixing, remove the locking
pinontheflange (1).
The height of the monitor can be adjusted
by approximately 130 mm.
► Grasp the monitor with both hands on
the right and left edge of the casing
and move it up or down (2).
Adjusting the i
nclination
The inclination of the monitor can be adjusted by -3° (forwards) and +35°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the casing
and move it to the desired angle.
Fujitsu 15
Getting started
Removing mon itor base
Before you can use a swivel arm or a similar accessory, you must remove the monitor base.
The display surface is susceptible to scratching!
1
2
3
► Switch off the monitor and pull the power
plug out of the power socket.
► Lay the monitor on its face on a soft surface.
► Remove the cover and disconnect all cables.
► Release the base stand by pressing the
slider down (1). Move it in the direction of the
arrow (2) and lift the base stand upwards (3).
You can now mount a swivel arm or a
similar accessory in accordance with VESA
FPMPMI using a hole spacing of 100 mm.
For instructi
ons on how to mount the swivel arm or a similar accessory, please
see the docume
ntation for the swivel arm or similar accessory.
16 Fujitsu
Getting started
Connecting the device
Please observe the safety information in "Important notes", Page 7.
CE conformance and optimum picture quality are guaranteed only if
you use th e data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug
from the computer.
Connecting cables to the monitor
The data cables supplie
d have two 15-pin D-SUB connectors or two 24-pin DVI
connectors for connect
ion to the monitor and to the computer.
Informationonthecom
puter connections and interfaces is contained in the
operating manual for
the computer.
2
5
67
9
4
8
3
1
9
1=Securi
ty slot for Security Lock
2 = Power con nect or
3=AUDIO
-IN socket
4 = DisplayPort socket
5=DVI-D
socket (DVI)
6=D-SUBs
ocket (VGA)
7 = AUDIO-OUT socket
8=USBIN
(Downstream)
9 = USB OUT (Upstream)
► Select the appropriate data cable for your computer.
Fujitsu 17
Getting started
► Connect one of the connectors of the data cable to the D-SUB, DVI-D or DisplayPort socket
of the monitor and secure the plug-in connection by tightening the safety screws.
The monitor automatically detects the input when only one signal source is connected.
► Insert one plug of the audio line in the AUDIO IN socket on the monitor
and make sure it is properly engaged.
► Plug the power cable supplied into the power connector of the monitor.
► Plug the supplied USB cable into the USB IN socket and the other end of
the cable into a USB socket of the computer.
Connect the USB keyboard and USB mouse directly to the PC, as the USB c onn ecto r
socket of the monitor is switched off in energy-saving mode.
A lock (Security Lock) can be mounted in the security slot to protect the monitor
against theft. A Security Lock is not included with the monitor at delivery.
Connecting cables to the computer
Information on the computer connections and interfaces is contained in the
operating manual for your computer.
► Connect the data cable to the (active) monitor port on the computer and secure
the plug-in connection by tightening the safety scre ws.
► Insert the other p lug of the audio cable in the audio output of the computer.
► Plug the power connecto r of the monitor into a properly grounded mains outlet.
► Plug the power connector of the computer into a properly grounded mains outlet.
If your computer has two monitor ports ("onboard" screen controller and separate
graphics card), the monitor port for the separate graphics card is active as standard.
18 Fujitsu
Operation
Operation

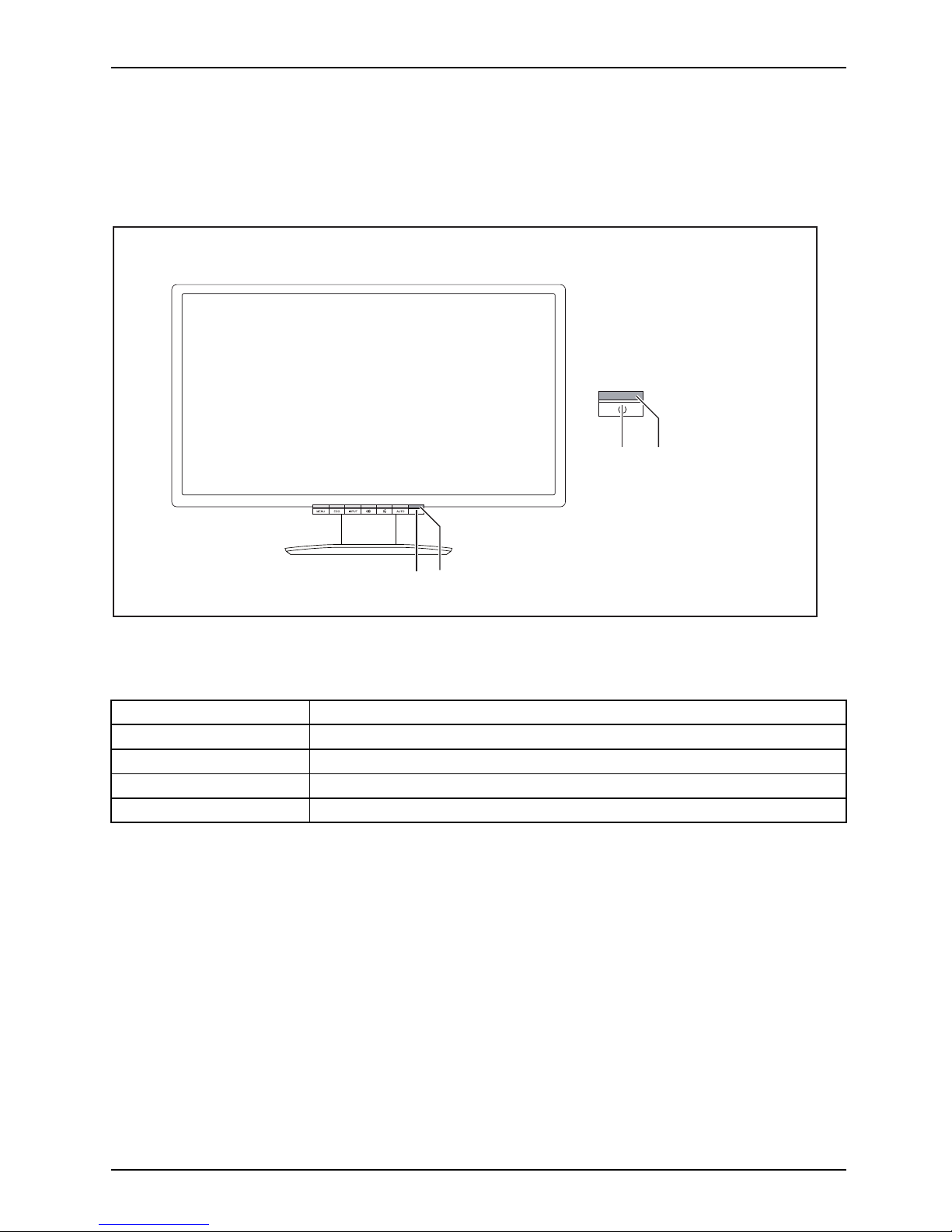

Switching the device on and off
1 2
12
1 = Switch On/Off 2 = Power supply indicator
The c
olour of the LED indicator changes as follows:
LED indicator Status
blue
Monitor and computer are switched on (normal mode).
green
Mon
itor and computer are switched on (ECO mode).
orange
Mo
nitor is not receiving a video signal or is in power saving mode.
d
oes not light up
Monitor is switched off.
► Switch the device on again with the ON/OFF switch (1).
Fujitsu 19
Operation
Notes on power management
If your computer is equipped with power management (power-saving mode), the monitor can fully
support this function. Here the monitor does not distinguish between the individual energy-saving
modes of the computer (standby mode, suspend mode and OFF mode), as it is capable of
immediately switching into the mode with the highest energy-saving effect.
Stage Operation
Power saving mode
Normal
ECO
Power supply indicator Lights up blue Lit green illuminated orange
Display Max. brightness
typ. 175 cd/m
2
unlit
Typical power
consumption (without
USB and audio)
20 W 16 W < 0.35 W
If the computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce
the power consumption (power saving mode). The power indicator of the mon itor changes
colour to show the change in status. ECO mode is the preset factory default.
Once an input is made at the computer the screen contents are restored.
For detailed information on how energy-saving mode operates, please refer to
the operating manual or technical manual of the computer.
20 Fujitsu
Operation
Changing the monitor settings
When putting the m onitor into operation for the first time, the screen display should
be optimally adapted to the display adapter used.

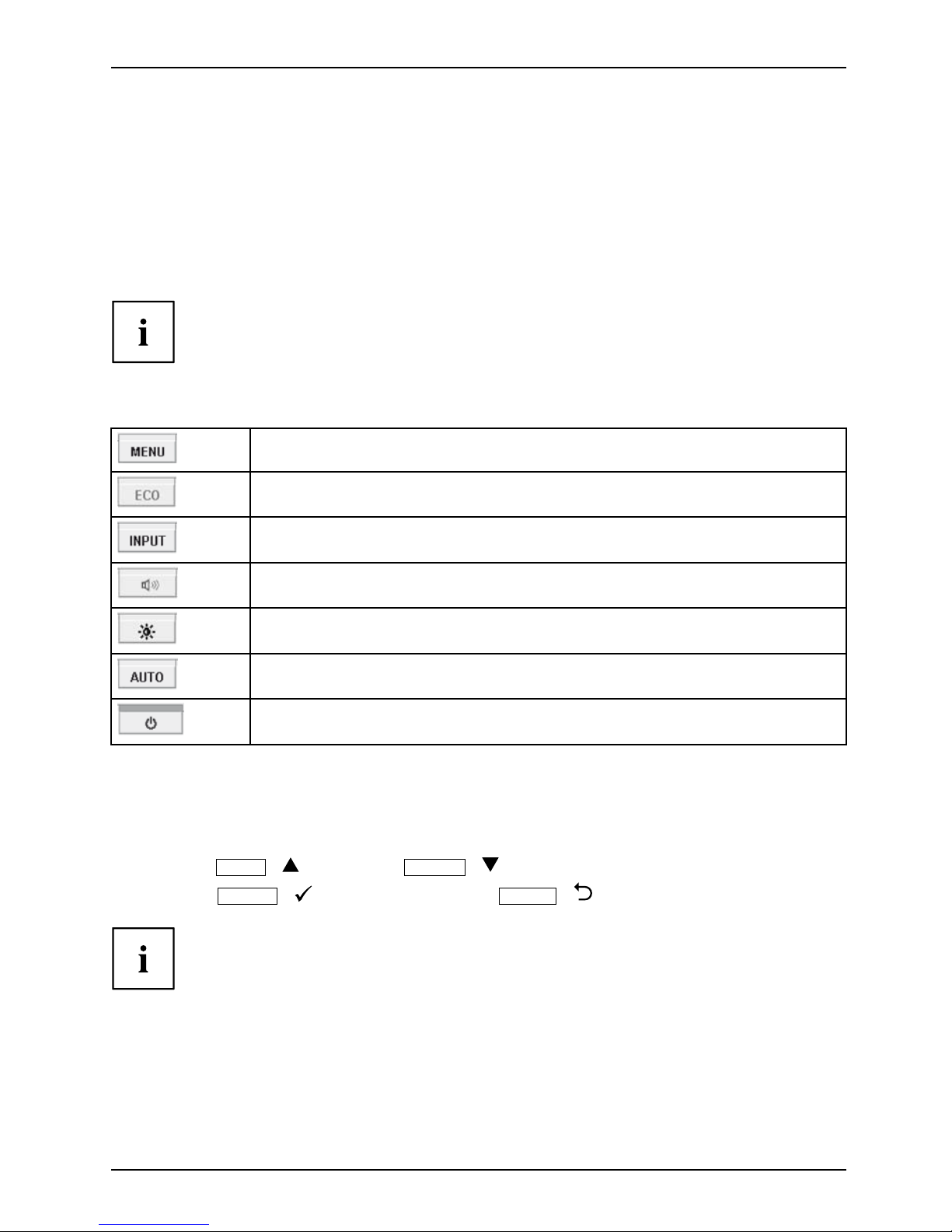

Changing the monitor setti
ngs with the buttons
of the control pa nel
The buttons of the control panel have two functions. When the OSD
menu is active, th e current meaning of the buttons is shown directly
over the buttons on the edge of the screen.
The display over the buttons varies depending on the sub-menu chosen.
With the O SD menu not activated, you can make the following settings directly.
Call up OSD menu
Activate/deactivate ECO operating mode
Select input signal (digital/analog)
Adjust volume
Adjust brightness
Perform auto-adjustment of the monitor with analog input
ON/OFF switch with power indicator
Select OSD language
After the first switch on and after the monitor has been reset to the factory settings,
the selection screen for the language appears:
► Press the
ECO
/ button or the
INPUT
/ button to select the desired language.
► Press the
MENU
/ buttontoconfirm or the
AUTO
/ button t o cancel.
After selecting the OSD language for the first time, you can change
it at any time in the OSD.
Fujitsu 21
Operation
Activate/deactivate ECO operating mode
The power consumption of the device can be decreased by reducing
the brightness of the picture.
► Press the
ECO
button to switch the ECO operating mode on or off.
The message ECO Mode on or ECO mode off appears.
If the ECO operat ing mode is activated, th e following OS D settings are changed:
Colour
6,500 K
Brightness
reduced
After the ECO operating mode is switched off, the brightness previously set by the user is restored.
Selecting the input signal (D-SUB/DVI-D/DisplayPort)
► Press the
INPUT
buttontocalluptheInput select setting window.
► Press the
/ button or the / button to select the desired monitor
connection (VGA, DVI or DisplayPort).
► Press the
MENU
/ button to confirm or the
AUTO
/ button to cancel.
This setting window can also be called up when the OSD menu is locked.
Performing auto-adjustment of the monitor
This setting
is only possible with an analog VGA input.
► Press the
AUTO
button for about 1 second.
The Auto Processing message appears.
Picture quality and position are set to optimum values for your system.
22 Fujitsu
Operation
Locking the ON/OFF button
The ON/OFF switch can be locked to prevent accidental or unauthorised
changes to the monitor settings.
► Press the
ECO
button and the
INPUT
button at the same time and
keep them pr es sed for a few seconds.
The message Power button locked / unlocke d is displayed.
Proceed in the same way to release the locked O N/O FF switch again.
Locking the OSD menu
The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor settings.
► Press and hold the
MENU
button and the ON/OFF switch simultaneously for several seconds.
The message OSD locked and a progress bar appear.
► To activate the lock function, keep both buttons pressed until the progress bar is fully loaded.
The OSD menu is locked.
Please proceed in the same manner to release the locked OSD menu again.
Fujitsu 23
Operation
Changing the monitor settings using the OSD menu
With the buttons on the control p anel, you can call up and use the integrated
OSD (On-Screen Display) m enu.
The English menu names are used in the following description (default setting).
1234
1 = Buttons for the OSD menu (On-Screen
Display)
2=ON/OFFs
witch
3 = Power supply indicato r
4 = Softkeys
Enable OSD menu
► Pre
ss the
MENU
button to activate the OSD menu.
The main menu appears with icons for the sub-menus.
Th
e first symbol, (Brightness/Contrast), is highlighted and the associated functions
ar
e visible in the right-hand menu field.
► T
o exit the OSD menu, press the
AUTO
/ button.
24 Fujitsu
Operation
Selecting sub-menus of the the OSD menu
► Press the
ECO
/ button or the
INPUT
/ button to highlight another
sub-menu (e. g. Image adjust).
► Press the
MENU
/ button to select t
he highlighted sub-menu.
The adjustment window will be displayed (e.g. Image adjust ). Further settings can be made here.
► To return to the main menu
, press the
AUTO
/ button.
Changing settings
► Press the
ECO
/ button or the
INPUT
/ button to highlight a function.
► Press the
/ button or the / button to change the setting.
► Press the
MENU
/ button to save the change or the
AUTO
/
button to quit the function without change.
If you want to change other settings, select the corresponding function from the OSD
main menu. All possible adjustments of the main menu are described in the following.
OSD menu functions
The
OSD menu for analogue monitor operation is described below. During
di
gital operation some functions are not available, as they are not required
du
e to the digital transmission technology used.
Fujitsu 25
Operation
Adjusting the brightness and contrast
Call up the Brightness/Contrast setting window
Brightness
Set the brightness of the display
With this function you change the brightness of the background lighting.
Contrast
Set the contrast of the display
With this function you modify the contrast of bright colour t ones.
Black level
Set the brightness of the display
With this function you modify the contrast of dark colour tone s.
Auto level
Adjust the signal level
With this function you can automatically set the contrast.
The function is executed with the
button.
If the contrast is set too high, brigh t surfaces can no longer be distinguished from very
bright surfaces. If the contrast is set too low, the maximum brightness will not be achieved.
Adjusting the picture size and position
These settings
are only possible if the PC is connected analog via VGA.
Call the Image adjust setting window
Phase
Eliminate pic
ture disturbance
With this fu
nction you fine-tune your monitor to eliminate picture disturbance.
Clock
Set synchronisation
With this function you adjust the picture width to eliminate vertical picture
disturbances.
H-Position
Adjust the horizontal position
With this function you move the picture to the left or to the righ t.
V-Position
Adjust the vertical position
With this function you move the picture up or down.
Expansion
Adjust the picture size
Full screen = selection of full screen mode
Keep aspect = maximum picture size w ithout distortion
26 Fujitsu
Operation
Adjusting the volume
Call the Audio setting window
Vol u m e
Set the volume for playback with the integrated loudspeakers
Mute
Switch the loudspeakers off or on
Setting colour temperature and colours
Call the Colour setting window
Select the colour temperature
The "warmth" of the screen colours is set using the colour temperature. The
colour temperature is measured in Kelvin (K). You can choose between
sRGB, 6500 K, 7500 K, 9300 K, Native and Custom Colour (user-defined setting).
In the user-defined setting you can change the colour ratios of the basic
colours (red, green, blue) as required.
Adjusting the displ
ay of the OSD menu
Calling the OSD Setup adjustment window
Language
Selecting the language for the OSD menu
With this function you select the language for the O S D menu.
The defa ult setting is English.
OSD Timeout
Setting the display duration of the OSD menu
With this function you can select a value from 10 to 120 seconds.
If the set time expires without a setting being made, the OSD menu is
automatically hidden.
OSD Rotation
With this function you switch the OSD menu from portrait mode to landscape
mode and vice versa.
On = The O S D menu is displayed in portrait mode.
Off = The OSD menu is displayed in landscape mode.
Fujitsu 27
Operation
Setting functions in the Advanced menu
Call up the Advanced setting window
Input select
Selecting the input signal
This function allows you to switch the monitor from analogue to digital mode
and vice versa, when several signal sources are connected.
This requires that the graphic card used supports this function.
DDC-CI
Activation/deactivation of the DDC-CI
On = The DDC-CI function is enabled (standard setting)
Off = The DDC-CI function is disabled
ACR
Enable/disable ACR function
On = The ACR function is enabled
Off = The ACR function is disabled (default setting)
Factory Recall
Activating the factory settings
With this function all settings are reset to the factory settings without
prompting for confirmation.
Press the
button to activate the function. The message Auto
Processing is displayed.
Displaying in
formation
Call the Information setting window
This function displays the model designation, serial number, resolution, H/V
frequency and ECO mode.
28 Fujitsu
Notes on ergonomic colour adjust men
t
Notes on ergonomic colour adju
stment
If you select colours for the monitor in your application programmes,
take note of the information below.
The primary colours blue and red on a dark background do not produce the minimum
required contrast of 3:1 and are therefore not suitable for continuous text and data entry.
When using several colours for characters and background and giving the primary colours full
modulation, you can obtain very suitable colour combinations (see the following table):
Characters
Background
black white purple blue
cyan green
yellow red
black
++
-
+++
-
white
+++
---
+
purple
++
-----
blue
-
+
-
+
-
+
-
cyan
+
--
+
---
green
+
--
+
---
yellow
+
-
++
--
+
red
-
+
----
+
+ Colour combination very suitable
- Colour combination not suitable because colour hues a re too close together, thin characters
are not identifiable or rigorous focusing is demanded of the human eye.
Fujitsu 29
Troubleshooting
Troubleshooting
Should an error occur, first check the following points. If the distortion is still not eliminated,
the monitor should, if po ssible, be checked on another compute r.
If you cannot solve the problem, please contact our Service Desk.
Having th is problem? Check the following points:
No screen display
Power indicator does not light up
► Check whether the power cable on the
monitor is connected correctly.
► Check wheth er the comput
er is switched on.
No screen display
Power indicator is lit
► Check wheth er the computer is switched on.
► Check whether the data cable for the
monitor is correctly attached to the mon itor
port on the computer.
► Press any key on the computer keyboard.
The computer may be in power saving
mode.
► Alter the brightness and/or co ntrast until you
get a picture.
Message: No Signal
► Check whether the data cable for the
monitor is correctly attached to the mon itor
port on the computer.
► Check wheth er the computer is switched on.
Message:
Frequency out of range:
##kHz/##Hz
Please change the display mode
to 1680 x 1050 with 60 Hz
The input sign
al (horizontal frequency and
refresh rate
) at the displayed input does not
correspond t
o the technical data for the m onitor.
► Adjust the v
ideo frequency range using the
computer so
ftware (see documentation for
the compute
r or display adapter).
► Set a different screen resolution using the
computer software (see documentation for
the computer or display adapter).
Picture position not correct
The monitor recognises an undefined mode (see
chapter "
Technical specific ation", Page 33).
► Press the
AUTO
button to conduct the
auto-adjustment of the screen.
Picture is shaking
► Check whether the data cable for the
monitor is correctly attached to the mon itor
port on the computer.
► Press the
AUTO
button to conduct the
auto-adjustment of the screen.
Picture is wrongly adjusted
► Run
the Factory Recall function in the OSD
men
u.
The Auto Processing message appears.
30 Fujitsu
Troubleshooting
Having this problem? Check the following points:
Picture disturbances (vertica
l lines)
► Press the
AUTO
button to conduct the
auto-adjustment of the screen.
Picture disturbances (horizo
ntal lines, picture
noise)
► Press the
AUTO
button to conduct the
auto-adjustment of the screen.
The screen becomes darker
The background lighting has a limited lifetime.
If your monitor display should become too dark,
the background lighting will have to be replaced.
► Contact our Service Desk.
Fujitsu 31
Explanatory information about stan
dard ISO 9241-307
Explanatory information abou
t
standard ISO 9241-307
Permanently unlit or lit pixels
Today’s production techniques cann ot guarantee an absolutely fault-free screen display. Dep ending
on the to tal number of pixels (resolution), there may be a few constantly lit or unlit pixels or subpixels.
Pixel
A pixel consists of 3 subpixels, normally red, green and blue. A pixel is
the smallest element that can be generated by complete functionality of
the display.
Subpixel
A subpixel is a separately addressable int ernal structure within a pixel that
enhances the pixel function.
The maximum permitted number of faulty pixels is stipulated in the international standard
ISO 9241-307. In accordance with standard ISO 9241-3, LCD monitors by Fujitsu comply with Class
II for low resolutions and Class I for resolutions of 1680 x 1050 (1764000 pixel) and higher.
Examples:
A fl at-screen monitor with a r esolution of 1280 x 1024 has 1280 x 1024 = 1310720 pixels. Each pixel
consists of three subpixels (red, green and blue), so there are almost 3.9 million subpixels in total.
According to ISO 9 241-3 (Class II), a maximum of 3 lit and 3 unlit pixels plus 7 lit or 13 unlit subpixels,
or a correspon ding combination, may be faulty (1 lit subpixel counts as two unlit subpixels).
A fl at-screen monitor with a r esolution of 1920 x 1080 has 1920 x 1080 = 2073600 pixels. Each pixel
consists of three subpixels (red, green and blue), so there are almost 6.2 million subpixels in total.
According to ISO 9241-3 ( Class I), a maximum of 2 lit and 2 unlit pixels plus 5 lit or 10 unlit subpixels,
or a correspon ding combination, may be faulty (1 lit subpixel counts as two unlit subpixels).
32 Fujitsu
Technical specification
Technical specification
Condensation is not permitted, neither in the rated range of operation
nor in the limit range of operation.
Product name B22W-7 LED
Model B22W-7
Dimensions and weight
Visible diagonals 55.86 cm
Dot pitch 0.282 mm
Width 473.7 mmImage size
Height 296.1 mm
Maximum resolution 1680 x 1050
Width 513.50 mm
Height 366.93 mm
Dimensions incl. monitor base
Depth 199.07 mm
Weight (without packaging)
approx. 5.75 kg
Storable d
isplay modes
40
Pixel err
or classes accord ing
to ISO 924
1-307
Class
I
Electri
cal data
Analog
Positive, 0.7 V
pp
,75Ω
Video
Digital
DVI-D/DP (DisplayPort) with
HDCP
Sync
hronisation
Sepa
rateSync.TTL,positiveor
nega
tive
Horizontal frequency
30 k
Hz .... 82 kHz
(mu
lti-scanning)
Refresh rate
56
Hz .... 76 Hz
Maximum pixel rate 165 MHz,
DP (DisplayPort): 225 MHz
Power supply
Switches automatically
100 V – 2 40 V, 50/60 Hz
Normal operation 20 W
ECO operating mode
16 W
Typical power consumption
(without audio, USB)
Power saving m od e < 0. 35 W
Sound output 1.5 W left; 1.5 W right
Fujitsu 33
Technical specification
Environmental conditions
Environment class 3K2, D IN IEC 721
Rated range of operation
Humidity
15 ° C .... 35 °C
20 % .... 85 %
Limit range of operation
Humidity
5 ° C .... 35 °C
15 % .... 85 %
VESA-DDC-compatible VGA interface
Your mo nitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video
Electronics Standard Association, Display Dat a Channel) is used as the communications
interface between the monitor and the computer. If the computer is equipped with a
VESA-DDC-compatible VGA interface, it can automatically read the data for ensuring
optimum operation from the monitor and select the appropriate settings.
Preset operating modes
The picture posit
ion and size have been set to optimum values at the factory for the
operating m od es l
isted above. Depending on the display adapter used, it may be
necessary to adj
ust the picture position and size. In this case, you can change and
save the settin
gs (see chapter "
Changing the m onitor settings", Page 21).
For ergonomic r
easons, a screen resolution of 1680 x 1050 pixels is recommended.
Because of the
technology used (active matrix), an LCD monitor provides a
totally flicke
r-free picture, even with a refresh rate of 60 Hz.
Most frequent operating modes
Horizontal frequency Refresh rate Screen resolution
31,5 kHz 70 Hz 720 x 400
31,5 kHz 60 Hz 640 x 480
37,5 kHz 75 Hz 640 x 480
37,9 kHz 60 Hz 800 x 600
46,9 kHz 75 Hz 800 x 600
48,4 kHz 60 Hz 1024 x 768
55,4 kHz 60 Hz 1440 x 900
60,0 kHz 75 Hz 1024 x 768
64,0 kHz 60 Hz 1280 x 1024
65,0 kHz 60 Hz 1680 x 1050
80,0 kHz 75 Hz 1280 x 1024
34 Fujitsu
Technical specification
SUB D port
610
1115
51
Pin Meaning
1 Video input red
2 Video input green
3 Video input blue
4
Ground
5
Ground
6 Video ground red
7
Video ground g reen
8 Video ground blue
9
+5 V (DDC)
10
Sync. ground
11
Ground
12
DDC Data
13 H. sync
14 V. sync
15
DDC Clock
Fujitsu 35
Technical specification
DVI-D port
9
1
17
Pin Meaning
1
TMDS Data2–
2
TMDS Data2+
3
TMDS Data 2/4 Shield
4 not connected
5
not connected
6
DDC Clock
7
DDC Data
8
Analog Vertica
lSync
9
TMDS Data1–
10
TMDS Data1+
11
TMDS Data 1/
3 Shield
12 not connec
ted
13 not connec
ted
14 +5V Power
15 Earth
16 Hot Plu
g Detect
17
TMDS Data0–
18
TMDS Data0+
19
TMDS
Data 0/5 Shield
20 not
connected
21 no
t connected
2
2
TMDS Clock Shield
23
TMDS Clock+
24
TMDS Clock–
36 Fujitsu
Technical specification
DisplayPort socket
1319 17 15 13 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (negative)
2Earth
3
Lane 3 (positive)
4
Lane 2 (negative)
5
Earth
6
Lane 2 (positive
)
7
Lane 1 (negative)
8Earth
9
Lane 1 (positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 (positive)
13
Connected to earth
14
Connect
ed to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug Detect
19
Ret
urn for Power
20
Power for connector (3.3 V 500 mA)
Fujitsu 37
Loading...
