Display
B17-5 ECO/B19-5 ECO
Operating Manual
English
Do you have ...
... any technical questions or problems?
Please contact:
• our Hotline/Help Desk (please refer to the enclosed Help Desk list or look up the
contact details on our website at: "
• your sales partner
• your sales office
The latest information about our produ cts, useful tips, updates etc. is available
on our website: "
http://ts.fujitsu.com/support/"
http://ts.fujitsu.com/support/" )
Copyright
© Fujitsu Technology Solutions 2009
2009/05
Published by
Fujitsu Technology Solutions GmbH
Mies-van-der-Rohe-Straße 8
80807 München, Germany
Contact
http://ts.fujitsu.com/support
All rights reserved, including intellectual property rights.
Technical data subject to modifi cations and delivery subject
to availability. Any liability that the data and illustrations are
complete, actual or correct is excluded. Designations may be
trademarks and/or copyrights of the respective manufacturer,
the use of which by third parties for their own purposes may
infringe the rights of such owner. For further information see
http://ts.fujitsu.com/terms_of_use.html
FUJITSU B17-5 ECO / B19-5 ECO
Operating Manual
Your LCD screen... 1
Important notes
Getting started 7
Operation 14
Troubleshooting
Notes regardi
13406-2 standard
Technical specification
ng the DIN EN ISO
23
25
26
3
VESA, DDC and DPMS are registered trademarks of the Video Electronics Standards Association.
Copyright © Fujitsu Technology Solutions GmbH 2009
All rights reserved, including rights of translation, reproduction by printing, copying
or similar methods, in part or in whole.
Offenders will be liable for damages.
All rights reserved, including rights created by p atent grant or registration of a utility model or design.
Subject to availability and technical modifications.
No liability for content or printing errors.
Contents
Contents
YourLCD screen... ..................................................................... 1
Target group ............................................................................ 1
Further information ...................................................................... 2
Notational conventions .................................................................. 2
Importantnotes ........................................................................ 3
Safety instructions ...................................................................... 3
Powercable ............................................................................ 4
Transporting the devic
Cleaning the device ..................................................................... 4
CE marking ............................................................................ 5
Energy Star ............................................................................ 5
Disposal and recycli
Getting started ......................................................................... 7
Unpacking and checking the delivery . . ................................................... 7
Setting upthe device .................................................................... 7
Setting up an ergonomic video workstation ............................................ 8
Adjustingthe height ................................................................. 10
Adjustingthe inclination .............................................................. 10
Adjustingthe rotation ................................................................ 10
Adjustingportrait format ............................................................. 10
Removing monitor base .............................................................. 11
Connecting the device ................................................................... 12
Connecting cables to the monitor . . ................................................... 12
Connecting cables to the computer ................................................... 13
Operation .............................................................................. 14
Switching th
Notes on pow
Changing th
Troubleshooting ....................................................................... 23
Notes re
Technical specification ................................................................. 26
VESA-DDC-compatible VGA interface . ................................................... 27
Preset operating modes . . . . . . ........................................................... 27
SUB Dport ............................................................................. 28
DVI-Dport .............................................................................. 29
edeviceon andoff ..........................................................
emonitor settings ............................................................
Changing t
Changing t
garding the DIN E N ISO 13406-2 standard . . ....................................
Most frequent operating modes ....................................................... 27
e ..................................................................
ng ..................................................................
er management ............................................................
he monitor settings with the buttons of the control panel . .....................
he monitorsettings using the OSDmenu ....................................
14
15
16
16
17
25
4
6
A26361-K1317-Z220-1-7619, edition 2
Contents
A26361-K1317-Z220-1-7619, edition 2
Your LCD screen ...
Your LCD screen...
has a whole range of useful f eature s and functions, e.g.:
• TFT display (Thin Film Transistor; active matrix)
• minimal space requirements tha
• optimum ergonomic characteristics (totally distortion-free, excellent picture
definition and colour purity right into the corners)
• high degree of brightness and g
• high resolution (1280 x 1024)
• presentation of up to 16.7 milli
• automatic scanning of horizontal frequencies from 30 to 83 kHz and refresh rates
(vertical frequencies) from 55 to 76 Hz (absolutely flicker-free)
• digital screen controller with m
• freely adjustable colour alignment for matching the screen colours to the
colours of various input and output devices
• convenient operation via integ
• VESA-DDC compatibility
• VESA-FPMPMI compatibility (Fla
Mounting device for swivel arm an
• Plug&Play capability
• power management for reducing p
• Compliance with the reco mmendations according to TCO
• the monitor fulfills all GS ("Gepr
This operating manual contains important information you require to start up and run your LCD monitor.
A graphics card (display adapter) with VGA interface or a digital display adapter with
DVI interface is required to control the LCD monitor. The monitor processes the da ta
supplied to it by the display adapter. The display adapter or the associated driver software
is responsible for setting the modes (resolution and refresh rat e).
When putting the monitor into operation for the first time, the screen display should be
optimally adapted to the display adapter used and adjusted in accordance with your
needs (see chapter "
Changing the monitor settings", Page 16.
nks to slim casing
ood contrast
on colours (in conjunction with an appropriate display adapter)
icroprocessor for sto ring 28 different display modes
rated OSD (On-Screen-display) menu
t Panel Monitor Physical Mounting Interface) –
d wall bracket
ower consumption when the computer is not in use
üfte Sicherheit", Certified Security) requirements.
Target group
You don’t need to be an "expert
the safety information given
In the event of any problems oc
A26361-K1317-Z220-1-7619, edition 2 1
" to perform the operations described here. However, please observe
in the operating instructions for the computer and in this manual.
curring, please contact your sales outlet or our Help Desk.
Your LCD screen...
Further information
Details of how you set the resolution and refresh rate are provided in the documentation
for your display adapter and the associated driver software.
For ergonomic reasons, a screen resolution of 1280 x 1024 pixels is recommended.
Because of the technology used (active matrix) an LCD monitor p rovides a totally
flicker-free picture even with a refresh rate of 60 Hz.
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device.
►
This font
This font
This font
"This font"
Abc
This font
Indicates an activity that must be performed
Indicates a result
indicates data entered using the keyboard in a program dialogue or
command line, e.g. your password ((Name123) or a command used to
start a program (start.exe)
indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
indicates
• terms and texts used in a software interface, e.g.: Click on Save
• names of programs or files, e.g. Windows or setup.exe.
indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to"
• Names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety" Manual
indicates a key on the keyboard, e.g:
indicates terms and texts that are emphasised or highlighted, e.g.: Do
not switch off the device
http://ts.fujitsu.com"
F10
2 A26361-K1317-Z220-1-7619, edition 2
Important notes
Important notes
ImportantnotesNotes
In this chapter you will fi nd information regarding safety which it is essential to
take note of when working with your device.
Safety instructions
This device complies with the re
including electronic office ma
questions, contact your sales
• The display surface of the devi
be careful with the display sur
• If the device is brought into the installation site from a cold environment, condensation
can form. Before operating the device, wait until it is absolutely dry and has reached
approximately the same temperature as the installation site.
• When installing and operatin
conditions in Chapter "
Chapter "
• To ensure sufficient ventilation, the air inlet and outlet openings of the device must be kept clear.
• The device automatically set
Make sure that the local mains
• Ensure that the power socket on the device and the mains outlet are freely accessible.
• The ON/OFF switch does not di
fully from the mains supply,
• The device is equipped with a power cable that complies with safety standards.
• Use the supplied power cable o
• Lay the cables in such a way that they do not create a hazard (danger of tripping)
and cannot be damaged. When connecting the device, observe the relevant
notes in chapter "
• No data transfer cables shou
• Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get
inside the device (danger of electric shock, short circuit).
• The device is not waterproof !
it from spray water (rain, se
• In emergencies (e.g. damaged casing, elements or cables, penetration of
liquids or foreign matter), switch off the device, disconnect the power plug and
contact your sales outlet or our Help Desk.
• Repairs to the device must o
and incorrect repair may gr
• Only use the screen resolution settings and refresh rates specified in Chapter
"
Technical specificati on", Page 26. O therwise you may damage the device. If you
are in any doubt, contact your sales outlet or our Help Desk.
• Use a screen saver with movi
your monitor to prevent sti
• If you operate the device with the swivel arm or wall bracket, it must not be turned by 180°.
Setting up an ergon
Connecting the device", Page 12.
levant safety regulations for data processing equipment,
chines for use in an office environment. If you have any
outlet or our Help Desk.
ce is sensitive to pressure and scratches. You should therefore
face in order to avoid lasting damage (scratches).
g the device, please observe the notes on environmental
nical specification", Page 26 as well as the instructions in
Tech
omic video workstation", Page 8.
s itself to the correct voltage within the range from 100 V to 240 V.
voltage is neither higher nor lower than this range.
sconnect the monitor from the mains voltage. To disconnect
disconnect the power plug from the socket.
nly.
ld be connected or disconnected during a thunderstorm.
Never immerse the device in water and protect
a water).
nly be performed by qualified technicians. Unauthorised opening
eatly endanger the user (electric shock, fire risk).
ng images and activate the power management for
ll images from "burning in".
A26361-K1317-Z220-1-7619, edition 2 3
Important notes
• The device must only be operated in landscape mode (0°) and portrait mode (90°). The
control buttons are located in the middle of the bottom of the monitor in landscape mode
(0°) and at the left-hand side of the monitor in portrait mode (90°).
• Store this manual close to the device. If you pass the device on to third
parties, you should pass this manual on with it.
• We recommend that you place your device on a durable, non-slip surface. In view
of the many different finishes and varnishes used on furniture, it is possible that the
feet of the device may mark the surface they stand on.
• To ensure sufficient ventilation, the air supply and air outlet openings of
the monitor must never be blocked.
Power cable
Use the supplied power cable only.
Use the following guidelines if it is necessary to replace the original cable set.
• The female/male receptacles of the cord set must meet I EC 60320/CEE-22 requirements.
• The cable has to be HAR-certified or VDE-certified. The mark HAR or
VDE will appear on the outer sheath.
• For devices which are mounted on a desk or table, type SVT or SJT cab le sets may be
used. For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the rated current for your device.
• If necessary, replace the original power cable with a regular grounded 3-core mains lead.
Transporting the device
Device,TransportationRetransportation
Transport all parts separately in their original packaging or in a packaging which
protects them from knocks and jo lts, to the new site.
Do not unpack them until all transportation manoeuvres are completed.
If the device is brought from a cold environment into the room where it will be used,
condensation may occur. Before operating the device, wait until it is absolutely dry
and has reached approximately the same temperature as the installation site.
Cleaning the device
Switch off the device and unplug the power plug.
Do not clean any interior parts yourself, leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may co rrod e plastic.
Ensure that no liquid enters the device.
The display surface of the device is sensitive to pressure and scratches. Clean
it only using a soft, slightly moistened cloth.
The surface of the casing can be cleaned with a dry cloth. If particularly dirty, use a cloth that
has been moistened in mild domestic detergent and then carefully wrung out.
4 A26361-K1317-Z220-1-7619, edition 2
Important notes
CE marking
The shipped version of this device complies with the requirements of EEC
directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC
"Low voltage directive".
Energy Star
EnergyStar
The EPA estimates that computer equipment uses approximately 5 % of all business
electricity and that this is growing rapidly. If all desktop PCs and peripherals were to enter
a low-power mode when not in use, the overall electricity saving could amount to $ 2 billion
annually. These savings could also prevent the emission of 20 million tons of carbon dioxide
into the atmosphere - equivalent to the discharge from 5 million cars.
As an Energy Star Partner, Fujitsu Technology Solutions GmbH has determined that this
product meets the Energy Star guidelines for energy efficiency.
The Fujitsu LCD colour monitor is equipped with a power
management system which reduces the power draw in OFF
mode to less than 1 W. As a result, the LCD monitor satisfies
the requirements of the U.S. Environmental Protection Agency
(EPA).
A26361-K1317-Z220-1-7619, edition 2 5
Important notes
Disposal and recycling
This device has been manufactured as far as possible from materials w hich can be recycled or
disposed of in such a way that the environment is not damaged. The device may be taken back after
use to be reused or recycled, provided that it is returned in a condition that befits its intended use.
Any components not reclaimed will be disposed of in an environmentally acceptable manner.
The device must be disposed of in accordance with local regulations for disposal of special
waste. The screen background lighting contains mercury. You must observe the applicable
handling and disposal safety regulations for flu orescent tubes.
If you have any questions regarding disposal, please contact your local sales office, our Help Desk, or:
Germany
Fujitsu Technology
Solutions GmbH
Remarketing and Recycling
D-33106 Paderborn
Germany
Tel.: +49 5251 / 81 80 10
Fax: +49 5251 / 81 80 15
http://ts.fujitsu.com/wvm"
"
Asia
Taiwan:
Environmental
Protection Administration
Executive, Yuan, R.O.C.
http://recycle.epa. gov.tw"
"
Belgium
RECUPEL
Boulevard Reyers, 80
B-1030 Brussels
Tel.: +32 2 / 706 86 16
Fax: +322/7068613
E-mail: info@recupel.be
http://www.recupel.b
"
USA
Fujitsu America Inc.
1250E. Arques Avenue
Sunnyvale, CA 94085
U.S.A.
Contact: Bernd Henning
Phone No.: (408) 329-6737
Fax No.: (408) 746-8299
e"
Switzerland
SWICOSchweizerischer
Wirtschaftsverband der
Informations-, Kommunikat
und Organisationstechni
(Swiss Trade Association
Information, Communicat
and Organisational
Technolo gy). For a list o
SWICO disposal sites, se
"
http://www.swico.ch
"
ions-
k
for
ions
f
e:
Information on this subject is also available on the Inte rnet at "http://ts.fujitsu.com/recycling".
6 A26361-K1317-Z220-1-7619, edition 2
Getting started
Unpacking and checking the delivery
The display surface of the device is sensitive to pressure and scratches.
Always hold the device by the casing!
The complete device package includes:
• one monitor
• one data cable (D-SUB)
• one data cable (DVI-D)
• one audio cable
• one power cab le
• one CD with software and docum
• one Warranty Booklet
• one "Safety" manual
► Unpack all the individual parts.
► Check the contents of the packa
► Check whether the delivery conforms to the details in the delivery note.
► Should you discover that the del
note, notify your local sales ou
entation
ge for any visible damage caused during transport.
ivery does not correspond to the delivery
tlet immediately.
Getting started
Do not discard the original pac
packaging in the future if you n
king material of the devices. Yo u may need the
eed to transport your device.
Settingupthedevice
To ensure sufficient ventila
the device must be kept clear
A26361-K1317-Z220-1-7619, edition 2 7
tion, the air inlet and outlet openings of
.
Getting started
Setting up an ergonomic video workstation
► Do not position the video workstation
opposite a window (1).
1
► Position the monitor outside the reach
1
of a light source (1).
► Position the keyboard where it is
easiest to reach (1).
1
8 A26361-K1317-Z220-1-7619, edition 2
Getting started
► Position the monitor so that the eye distance
to the screen (1) is around 50 cm.
1
50 cm
1
0
65
► Position the monitor for optimum viewing
(1). The monitor should under n o
circumstances fall outside the permissible
viewing space (2).
30
60
30
65
22
Depending on the situation, it may be advisable to use a swivel arm or wall
bracket (VESA FPMPMI), which are available from specialist dealers. For
this purpose the monitor base must be removed b eforehand as described
in Chapter "
Removing monitor base", Page 11.
A26361-K1317-Z220-1-7619, edition 2 9
Getting started
Adjusting the height
The height of the monitor can be adjusted by approximately 120 mm.
► Grasp the monitor with both hands on the right and left edge of the casing
and move it upward or downward.
Adjusting the inclination
► Hold the monitor with b oth hand
and move it to the desired angle
s on the left and right sides of the casing
.
Adjusting the rotation
The monitor can be horizontally rotated by ± 45° from its centre position.
► Grasp the monitor with both hands on the right and left edge of the casing
and turn it to the desired position.
Adjusting portrait format
The monitor can be rotated from horizontal format (landscape mode) into
vertical format (portrait mode).
► Grasp the monitor with both hands on the right and left edge of the casing, move it into
the highest position and turn it clockwise until it is in the portrait position.
For you to be able to display the screen contents in portrait mode, your graphics card
will also need to support this function or yo u will need to use special software.
In the OSD menu you have the option of switching the OSD manually
from landscape mode to portrait mode (see "
settings using the OSD menu", Page 17).
To reset the monitor to landscape mode, the monitor should be turned anti-clockwise.
The OSD display can be reset again in the OSD menu.
Changing the monitor
10 A26361-K1317-Z220-1-7619, edition 2
Getting started
Removing monitor base
Before you can use a swivel arm or a wall bracket, you m ust remove the monitor base.
The display surface is susceptible to scratching!
► Switch off the monitor and pull the power
plug out of the power socket.
► Lay the monitor on its face on a soft surface.
► Remove all cables.
► To remove the monitor base, undo the
screws on the monitor base.
You can now mount a swivel arm or a wall
bracket in accordance with VESA FPMPMI
using a hole spacing of 100 mm.
For instructions on how to mount the
swivel arm or wall bracket, please
see the documentation for the swivel
arm or wall bracket.
For instructions on how to mount the swivel arm or wall bracket, please see
the documentation for the swivel arm or wall bracket.
A26361-K1317-Z220-1-7619, edition 2 11
Getting started
Connecting the device
Please observe the safety information in "Important notes", Page 3.
CE conformance and optimum picture quality are guaranteed only if
you use the data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug from the computer.
Connecting cables to the mon
The data cables supplied have two 15-pin D-SUB connectors or two 24-pin DVI
connectors for connection to the monitor and to the co m puter.
Information on the computer connections and interfaces is contained in the
operating manual for the computer.

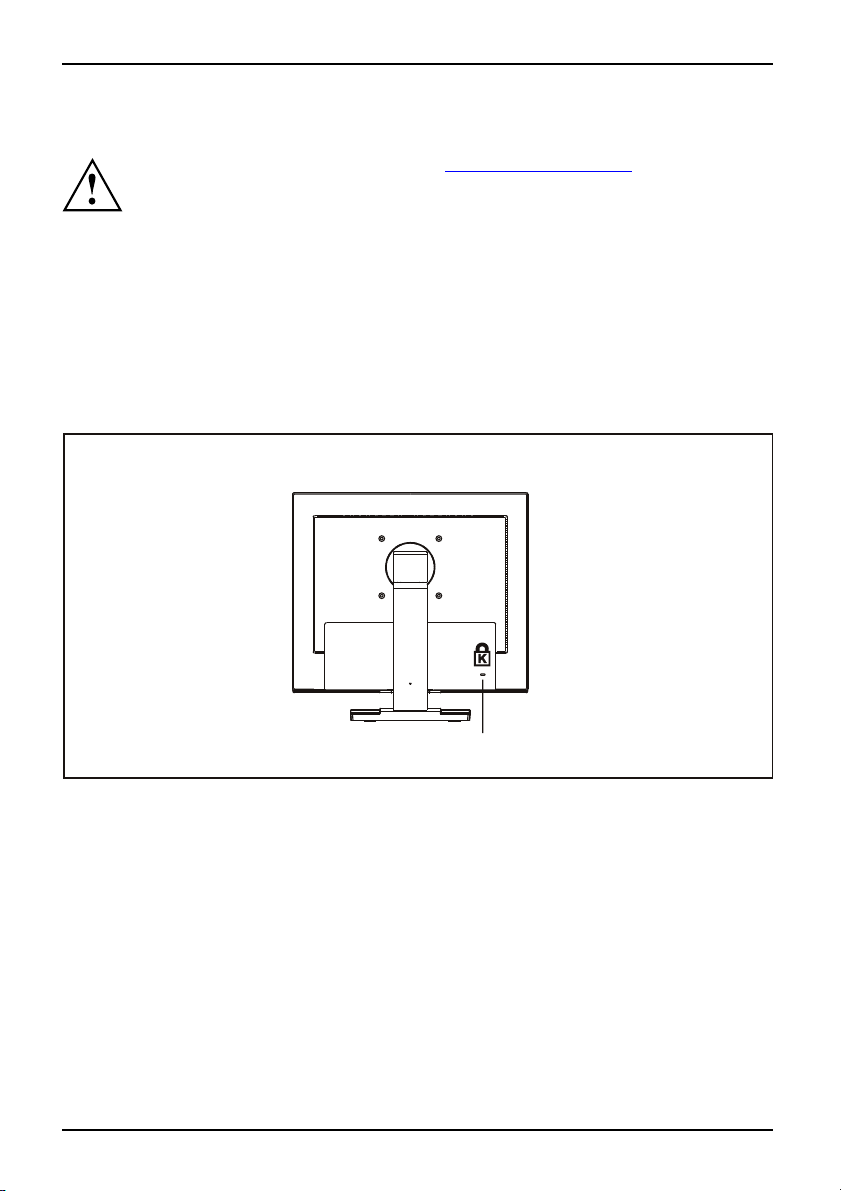

1 = Security slot for "Kensington Lock"
► Select the data cable which is suitable for your computer.
itor
1
12 A26361-K1317-Z220-1-7619, edition 2
0 -
ECO / BASIC
1 2 3 4 5
Getting started

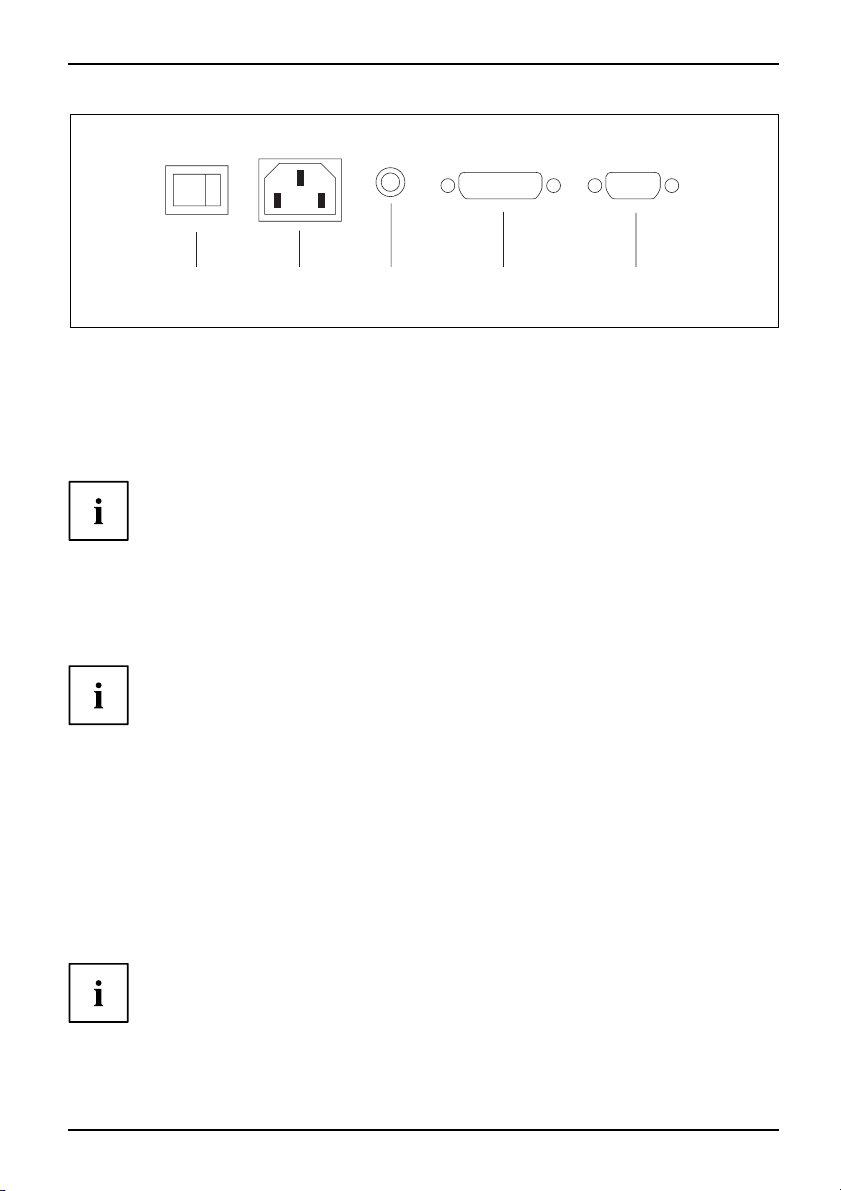

1 = Green standby mode switch
2 = Power connector
3 = AUDIO-IN socket
► Connect one of the connectors of the data cable to the D-SUB socket or DVI-D socket of
the monitor and secure the plug-in connection by tightening the safety screws.
The m onitor automatically detects the input when only on e signal source is connected .
► Insert one p
and make sur
► Plug the power cable supplied into the power connector of the monitor.
► Secure the co
lug of the audio line in the AUDIO IN socket on the monitor
e it is properly engaged.
ver over the connections.
A lock (Kens
from theft.
ington Lock) can be mounted in the security slot to protect the m onito r
A Kensington Lock is not included with the monitor at delivery.
4 = DVI-D socket (DVI)
5 = D-SUB socket (VGA)
Connecting cables to the computer
Information on the computer connections and interfaces is contained in the
operating manual for your computer.
► Connect the data ca ble to the (active) monitor port on the computer and secure
the plug-in connection by tightening the safety screws.
► Insert the other plug of the audio cable in the audio output of the computer.
► Plug the power connector of the monitor into a properly grounded mains outlet.
► Plug the po w er connector of the computer into a properly grounded mains outlet.
If your computer has two monitor ports ("onboard" screen controller and separate
graphics card), the monitor port for the separate graph ics card is active as standard.
A26361-K1317-Z220-1-7619, edition 2 13
Operation
Operation
Switching the device on and off
2
1
1 = Power supply indicator 2 = ON/OFF switch
Press t he buttons from the bottom up.
The colour of the LED indicator changes as follows:
LED indicator Status
blue
green
orange
does not light up
ront
F
1 = power indicator 3 = green standby mode switch
2=ON/OFFswitch
14 A26361-K1317-Z220-1-7619, edition 2
Monitor and computer are switched on (normal mode).
Monitor and computer are switched on (ECO mode).
The monitor is not receiving a video signal or is in energy-saving mode.
The monitor is switched off (or is in green standby mode - power
consumption in standby and off mode ≤ 0.1W )
ear
R
12
3
Operation
In switch position "0" (ECO), green standby mode is activated, in which the monitor
consumes ≤ 0.1 W. If the monitor cannot be switched on and remains dark, the switch
must be set to "-" (BASIC). The monitor then consumes < 1 W in standby mode.
► Switch the device on using the ON/OF F switch.
Only switch on the comput er after you have switched on the monitor.
Notes on power management
If your computer is equipped with power management (power-saving mode), the monitor can fully
support this function. Here the monitor does not distinguish between the individual energy-saving
modes of the computer (standby mode, suspend mode and OFF mode), as it is capable of
immediately switching into the mode with the highest energy-saving effect.
Stage Operation
Normal
Power supply
indicator
Monitor Max. brightness
Power consumption
(typical)
Lights up blue Lights up green unlit Lights u p orange
B17-5:<24W
B19-5:<28W
ECO Green Standby
typ. 200 cd/m
B17-5:<17W
B19-5:<19W
Power saving mode
Mode
2
Unlit Unlit
reduced to
≤ 0.1 W
Compatible
reduced to
<1W
If your computer detects
the power consumption (e
indicate the status chan
Once an input is made at t
For detailed informat
the operating manual o
A26361-K1317-Z220-1-7619, edition 2 15
inactivity (no input), it sends an appropriate signal to the monitor to reduce
nergy-saving mode). The power indicator of the monitor changes colour to
ge. ECO and Green Standby Mode are the preset factory defaults.
he computer the screen contents are restored.
ion on how energy-saving mode operates, please refer to
r technical manual of the computer.
Operation
Changing the monitor settings
When putting the monitor into operation fo r the first time, the screen display should
be optimally adapted to the display adapter used.
Changing the monitor settings
with the buttons
of the control panel
The buttons of the control panel have two functions. With the OSD menu not
activated, you can make the following settings directly:
SELECT/ MENU
ECO
INPUT
EXIT / AUTO
123
1 = Buttons for the OSD menu (On-Screen
Display)
2 = Power supply indicator
Performing auto-adjustment of the monitor
► Press the
The Auto Processing message appears
Picture quality and position are set to optimum values for your system.
EXIT / AUTO
button for about 1 second.
Selecting input signal (D-SUB/DVI-D)
► Press the Back /
► Press the Forwards / ECO button or the Back /
desired monitor connection (VGA or DVI).
INPUT
buttontoopentheInput select setting window.
3 = ON/OF F switch
INPUT
button to select the
This setting window can also be called when the OSD menu is locked.
16 A26361-K1317-Z220-1-7619, edition 2
Operation
Activate/deactivate ECO operating mode
The power consumption of the device can be decreased by reducing
the brightness of the picture.
► Press the Forwards / ECO button to switch the ECO operating mode on or off.
The message ECO on / off is displayed.
If the ECO operating mode is activated, the following OSD settings are changed:
Colour
temperature
Brightness
After the ECO operating mode is switched off, the b rightness previously set by the user is restored.
6500K
reduced
Locking the OSD menu
The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor settings.
► Press and keep the
switch on the monitor with the ON/OFF switch.
The message OSD locked / unlo
Proceed in the same way to r
SELECT/ME
NU
button pressed for a few seconds while you
cked is displayed.
elease the locked OSD menu again.
Locking the ON/OFF button
The ON/OFF switch can be locked to prevent accidental or unauthorised
changes to the monitor settings.
► Press the Forwards / ECO button and the Back /
time and keep them pressed for a few seconds.
The message Power button l
Proceed in the same way to
ocked / unlocked is displayed.
release the locked ON/O FF switch again.
INPUT
button at the same
Changing the m onitor settings using the OSD menu
With the buttons on the control panel, you can call up and use the integrated
OSD (On-Screen Display) menu.
A26361-K1317-Z220-1-7619, edition 2 17
Operation
The OSD menu is available in various languages. The English menu names are
used in the following description (default setting). You c an select another language
using the OSD Language function in the OSD Setup menu.
► Press the
SELECT/MENU
button to
activate the OSD menu.
The main menu appears, with icons
for the setting function s.
The first icon, (Brightness/Contrast), is
highlighted and the associated functions are
visible in the right-hand menu field.
► Press the Forwards / ECO button or
INPUT
the Back /
button to highlight
another icon (e.g. Image adjust).
► Press the
SELECT/MENU
button to
select the highlighted icon.
The Image adjust setup window will
be displayed.
► Press the Forwards / ECO button or
INPUT
the Back /
button to highlight
another function.
► Press the
SELECT/MENU
button to
select the highlighted function.
► Press the Forwards / ECO button or
INPUT
the Back /
button to highlight
another function.
► Press the
EXIT / AUTO
button to
exit the function.
► Press the Forwards / ECO button or the
INPUT
Back /
function or press the
button to highlight another
EXIT / AUTO
button
to return to the main menu.
All changes are stored automatically.
18 A26361-K1317-Z220-1-7619, edition 2
If you wish to change other settings, select the corresponding function from the OSD
main menu. All possible adjustments of the main menu are described below.
OSD menu functions
The OSD menu for analog monitor operation is described below. During
digital operation some functions are not available, as they are not required
due to the digital transmission technolog y used.
Adjusting the brightness and contrast
Call up the Brightness/Contrast setting window
Operation
Brightness
Contrast
Black level
Auto level
Set the brightness of the dis
With this function you change
You can see whether the ECO ope
displaying the brightness se
Set the contrast of the display
With this function you modify the contrast of bright colour tones.
Set the brightness of the display
With this function you modify the contrast of dark colour tones.
Adjust the signal level
With this function you can automatically set the contrast.
The function is executed with the
If the contrast is set too high, bright su rfaces can no longer be distinguished from very
bright surfaces. If the contrast is set too low, the maximum brightness will not be achieved.
play
the brightness of the background lighting.
rating mode is active under the bar for
tting.
SELECT / MENU
button.
A26361-K1317-Z220-1-7619, edition 2 19
Operation
Adjusting the picture size and position
Open the Image adjust window
H-position
V-position
Clock
Phase
Sharpness
Adjusting the horizontal position
With this function you can move the picture to the left or to the right.
Adjusting the vertical position
With this function you can move the picture up o r down.
Adjusting the synchronisation
With this function you can adjust the picture width in order to eliminate
vertical picture faults.
Eliminating picture faults
With this function you fine-tune your monitor to eliminate picture faults.
Adjusting the picture sharpness
This function is used to adjust the picture sharpness.
Adjusting the volume
Call the Audio setting window
Vol u m e
Mute
Set the volume for playback with the integrated loudspeakers
Switch the loudspeakers off or on
Setting the colour temperature and colours
Call the Colour setting window
Select the colour tem perature
The "warmth" of the screen colours is set using the colour temperature. The
colour temperature is measured in Kelvin (K). You can choose between
sRGB, 6500 K, 7500 K, 9300 K, Native and Custom Colour.
In the user-de fin ed setting you can change the colour ratios of the basic
colours (red, green, blue) as required.
20 A26361-K1317-Z220-1-7619, edition 2
Adjusting the display of the OSD menu
Calling the OSD Setup adjustment window
Operation
Language
OSDH position
OSDV position
OSDTimeout
OSD Rotation
Selecting the language for the OSD menu
With this function you choose between English (default setting), French,
German, Italian and Spanish as the language for the OSD menu.
Setting the horizontal position of the OSD menu
With this funct ion you can move the OSD menu to the left or to the right.
Setting the vertical position of the OSD menu
With this function you can move the OSD menu up or down.
Setting the display duration of the OSD menu
With this function you can select a value from 10 to 120 seconds.
If the set time expires without a setting being made, the OSD menu is
automatically hidden.
With this function you switch the OSD menu from portrait mode to landscape
mode and vice versa.
Off = The OSD menu is displayed in portrait mode.
On = The OSD menu is displayed in landscape mode.
Setting functions in the Advanced menu
Call up the Advanced setting window
Input select
DDC-CI
Factory Recall
Selecting the input signal
This fun ction allows you to switch the monitor from analogue to digital mode
and vice versa, when two signal sources are connected.
This is on condition that the graphic card supports this function.
Activation/deactivation of the DDC-CI
On = The DDC-CI function is enabled (standard setting)
Off = T he DDC-CI function is disabled
Activating the factory settings
With this function all s ettings are reset to the factory settings without
prompting for confirmation.
Press the
Processing message is displayed.
SELECT/MENU
button to activate the function. The Auto
A26361-K1317-Z220-1-7619, edition 2 21
Operation
Displaying information
Call the Information setting window
With this function the model designation, serial number, resolution, H/V
frequency, input signal and polarity of the synchronisation signal are
displayed.
22 A26361-K1317-Z220-1-7619, edition 2
Troubleshooting
Troubleshooting
Should an error occur, first check the following points. If the distortion is still not eliminated,
the monitor should, if possible, be checked on another computer.
If you are unable to solve the problem, please inform our help desk.
Having this problem? Check the foll owing points:
No screen display
Power indicator does not light up
No screen display
Powerindicatorislit
Message: No Signal
Message: Frequency out of range:## kHz
/ ## Hz Please change the display mode
to 1280 x 1024 with 60 Hz
Picture position not cor
Picture is shaking
Picture is wrongly adjusted ► Press the
rect
► Check whether the main switch at the rear
of the monitor is switched on.
► Check whether the power cable
monitor is connected correct
► Check whether the computer is switched on.
► Check whether the computer is switched on.
► Check whether the data cable for the
monitor is correctly attached to the monitor
port on the computer.
► Press any key on the computer keyboard.
The computer may be in power saving
mode.
► Alter the brightness and/or contrast until you
get a picture.
► Check whether the data cable for the
monitor is correctly attached to the monitor
port on the computer.
► Check whether the computer is switched on.
The input signal (horizontal frequency and
refresh rate) at the displayed input does not
correspond to the technical data for the monitor.
► Adjust the video frequency range using the
computer software (see documentation for
the computer or display adapter).
► Set a different screen re
computer software (see d
the computer or display
The monitor recognises an undefined mode (see
chapter "
► Press the
► Check whether the data cable for the
► Press the
The A uto Processing message appears.
Technical specification", Page 26).
EXIT / AUTO
auto-adjustment of the screen.
monitor is correctly attached to the monitor
port on the computer.
EXIT / AUTO
auto-adjustment of the screen.
SELECT / MENU
activate the Factory Recall function.
solution using the
adapter).
button to perform
button to perform
on the
ly.
ocumentation for
button to
A26361-K1317-Z220-1-7619, edition 2 23
Troubleshooting
Having this problem? Check the f ollowing points:
Picture disturbances (vertical
lines)
► Press the
EXIT / AUTO
auto-adjustment of the screen.
Picture disturbances (horizontal lines, picture
noise)
The screen becomes darker
► Press the
auto-adjustment of the screen.
The background lighting has a limited lifetime.
EXIT / AUTO
If your monitor display should become too dark,
the background lighting will have to be replaced.
► Please contact our help desk.
button to perform
button to perform
24 A26361-K1317-Z220-1-7619, edition 2
Notes regarding the DIN EN ISO 13406 -
2standard
Notes regarding the DIN EN ISO 13406-2 standard
Permanently unlit or lit pixels
The standard of production techniques today cannot guarantee an absolutely fault-free screen
display. A few isolated constant lit or unlit pixels (picture elements) may be present. The maximum
permitted number of pixels faults is stipulated in the international standard ISO 13406-2 (Class II).
Examples:
Example: A 17"/19” flat-screen monitor with a resolution of 1280 x 1024 has 1280 x 1024 =
1310720 pixels. Each pixel consists of three subpixels (red, green and blue), so there
are almost 4 million subpixels (dots) in total. In accordance with ISO 13406-2 (Class II),
a maximum of 6 pixels and also 7 subpixels may be faulty.
A26361-K1317-Z220-1-7619, edition 2 25
Technical specification
Technical specification
Condensation is not permitted, neither in the rated range of operation
nor in the limit range of operation.
B17-5 ECO B19-5 ECO
Dimensions and weight
Visible diagonals 43 cm 48 cm
Dot pitch 0.264 mm 0.294 mm
Width 337.9 mm 376.3 mmImage size
Height 270.3 mm 301 mm
Maximum resolution 1280 x 1024 1280 x 1024
Dimensions incl.
monitor base
Dimensions of box
Weight (without packaging)
Storable display modes
Pixel error classes
according to
ISO 13406-2
Accessories
Electrical data
Video
Synchronisation Separate Sync. TTL, positive or negative
Horizontal frequency 30 kHz .... 83 kHz (multi-scanning)
Refresh rate
Max. pixel rate 165 MHz
Power supply switches automatically
Total power
consumption
Max. sound output
Width 373 mm 412 mm
Height 405 mm 409 mm
Depth 209 mm 209 mm
Width 453 mm 453 mm
Height 436 mm 464 mm
Depth 212 mm 212 mm
approx. 5.2 kg approx. 5.9 kg
28 28
Class
Analogue
Digital DVI-D
Normal operation
Energy saving mode
II II
Power cable (1.8 m)
D-SUB data cable (1.8 m)
DVI-D data cable (1.8 m)
Audio cable (1.8 m)
positive, 0.7 V
55 Hz .... 76 Hz
100 V – 240 V, 50 Hz – 60 Hz
< 24 W in normal operation (17")
< 28 W in normal operation (19")
≤ 0.1 W in Green Standby Mode
1.0 W left; 1.0 W right
,75Ω
ss
26 A26361-K1317-Z220-1-7619, edition 2
Technical specification
Environmental conditions
Environment class 3K2, DIN IEC 721
Rated range of operation
Humidity
Limit range of operation
Humidity
15 °C .... 35 °C
20 % .... 85 %
5 °C .... 35 °C
20 % .... 85 %
VESA-DDC-compatible VGA interface
Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video
Electronics Standard Association, Display Data Channel) is used as the communications
interface between the monitor and the computer. If the computer is equipped with a
VESA-DDC-compatible VGA interface, it can a utomatically read the data for ensuring
optimum operation from the monitor and select the appropriate settings.
Preset operating modes
The picture position and s
modes listed above. Depen
to adjust the display posi
settings (see chapter "
ize have been optimised at the factory for the operating
ding on the graphics card used, it may be necessary
tion or size. In this case you can change and save the
Changing the monitor settings", Page 16).
Most frequent operating modes
Horizontal frequency Refresh rate Screen resolution
31.5 kHz 70 Hz 720 x 400
31.5 kHz 60 Hz 640 x 480
37.5 kHz 75 Hz 640 x 480
37.9 kHz 60 Hz 800 x 600
46.9 kHz 75 Hz 800 x 600
48.4 kHz 60 Hz 1024 x 768
60.0 kHz 75 Hz 1024 x 768
64.0 kHz 60 Hz 1280 x 1024
79.9 kHz 75 Hz 1280 x 1024
For ergonomic reasons, a screen resolution of 1280 x 1024 pixels is recommended.
Because of the technology used (active matrix), an LCD monitor provides a totally
flicker-free picture, even with a refresh rate of 60 Hz.
A26361-K1317-Z220-1-7619, edition 2 27
Technical specification
SUBDport
51
Pin Meaning
1 Video input red
2 Video input green
3 Video input blue
4
5
6 Video ground red
7
8 Video ground blue
9
10
11
12
13 H. sync
14 V. sync
15
Ground
Ground
Video ground green
+5 V (DDC)
Sync. ground
Ground
DDC Data
DDC Clock
610
1115
28 A26361-K1317-Z220-1-7619, edition 2
DVI-D port
1
9
17
Pin Meaning
1
2
3
4 not connected
5
6
7
8
9
10
11
12 not connected
13 not connected
14 +5V Power
15 Earth
16 Hot Plug Detect
17
18
19
20 not connected
21 not connected
22
23
24
TMDS Data2–
TMDS Data2+
TMDS Data 2/4 Shield
not connected
DDC Clock
DDC Data
Analog Vertical Sync
TMDS Data1–
TMDS Data1+
TMDS Data 1/3 Shield
TMDS Data0–
TMDS Data0+
TMDS Data 0/5 Shield
TMDS Clock Shield
TMDS Clock+
TMDS Clock–
Technical specification
A26361-K1317-Z220-1-7619, edition 2 29
Loading...
