Fujitsu B19-3, P19-3, B17-3 User Manual

Monitor

Operating Manual

English

SCENICVIEW B17-3/B19-3/P19-3

Are there…

... any technical problems or other questions which you would like to be clarified?

Please contact our help desk (see Warranty Booklet).

The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com

This manual was produced by Xerox Global Services

Published by

Fujitsu Siemens Computers GmbH

Order No.: A26361-K1143-Z120-1-7619 Edition 3

AG 08/07

SCENICVIEW B17-3/B19-3/P19-3 LCD monitor

Operating Manual

august 2007 edition

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.

All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved.

Delivery subject to availability. Right of technical modification reserved.

No liability for content and printing error.

Introduction........................................................................................................................................... 1

Notational conventions ................................................................................................................. 2

Important notes..................................................................................................................................... 2

Safety notes.................................................................................................................................. 2

Power cable.................................................................................................................................. 4

Transport ...................................................................................................................................... 4

Cleaning ....................................................................................................................................... 4

CE marking................................................................................................................................... 4

FCC Class B Compliance Statement ........................................................................................... 5

Declaration of Conformity............................................................................................................. 5

Energy Star Guidelines................................................................................................................. 6

Disposal and recycling ................................................................................................................. 6

Checking the contents of the consignment........................................................................................... 7

Installing an ergonomic video workstation............................................................................................ 8

Mounting and removing the monitor base ............................................................................................ 9

Folding out monitor base.............................................................................................................. 9

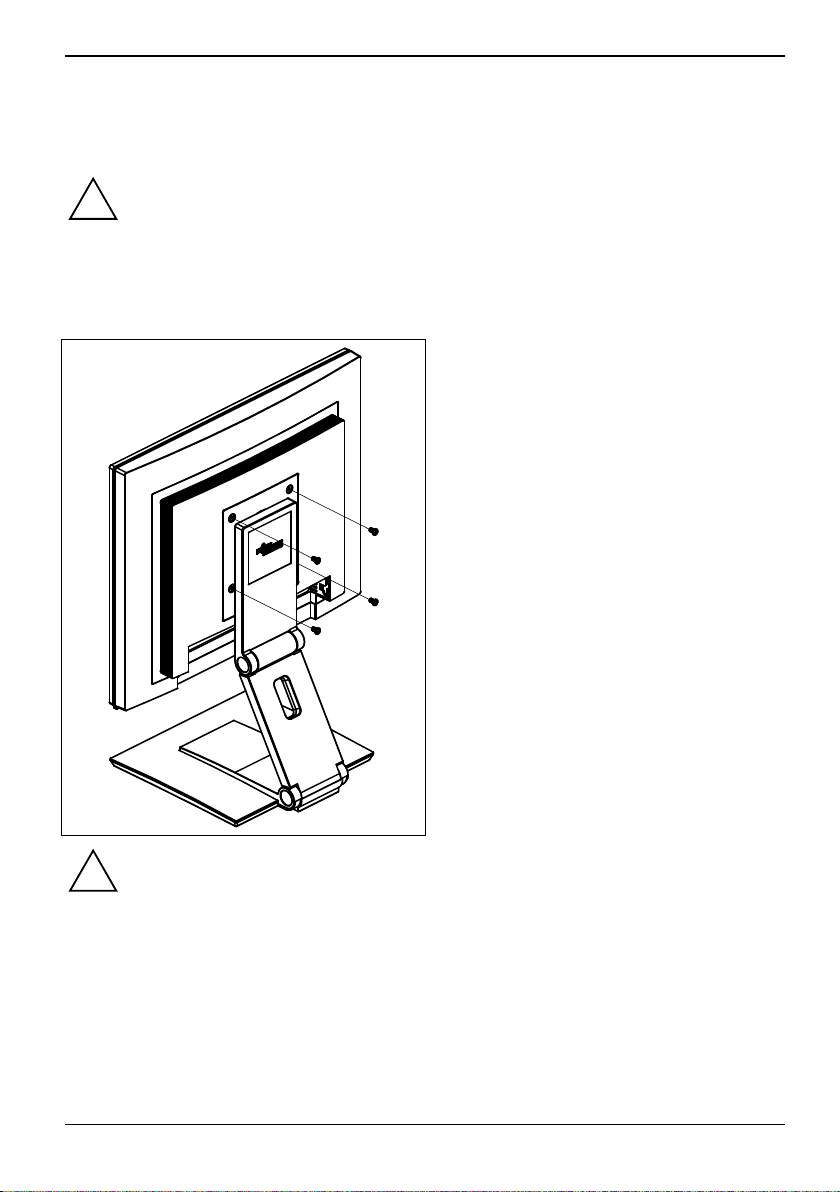

Removing monitor base ............................................................................................................. 11

Connecting the monitor .............................................................................................................. 12

Connecting cables to the monitor............................................................................................... 13

Connecting cables to the computer............................................................................................ 14

Operation of the monitor..................................................................................................................... 14

Adjusting height, rake and rotation.............................................................................................14

Adjusting portrait format ............................................................................................................. 15

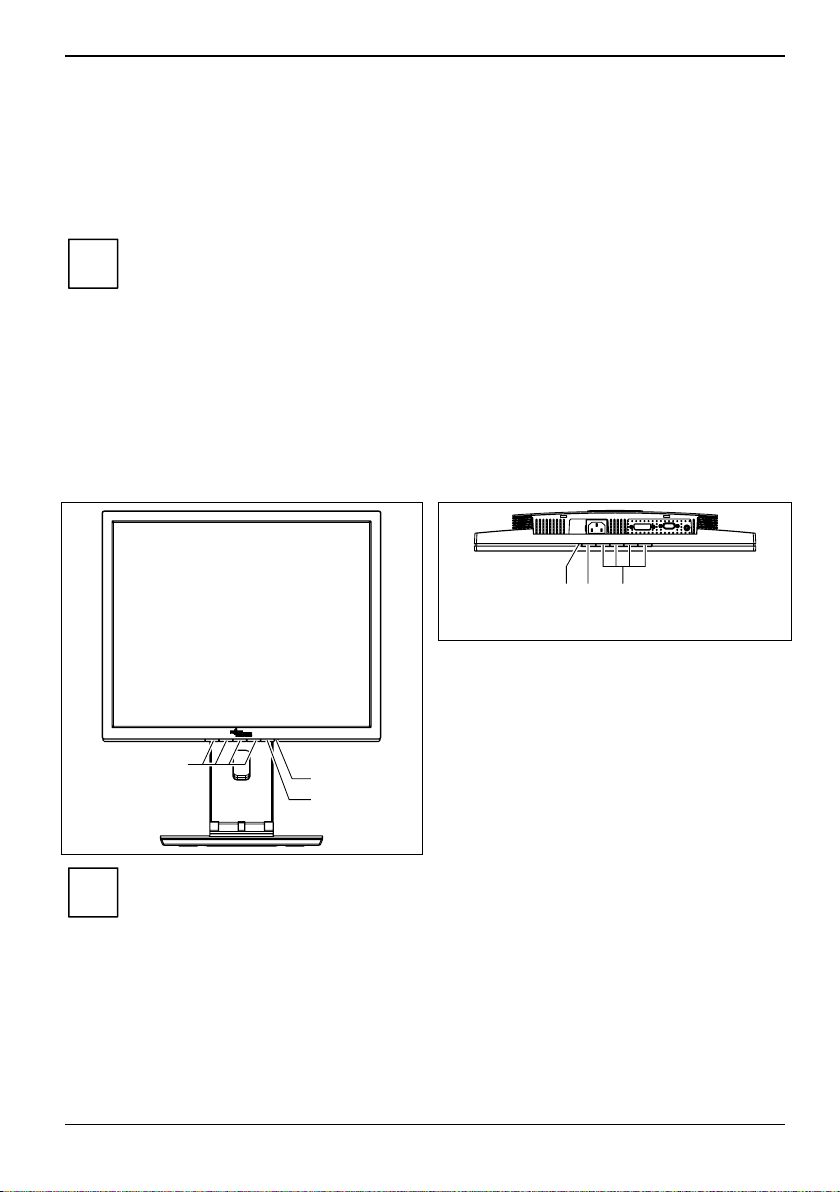

Switching the monitor on and off (B17-3 / B19-3)....................................................................... 15

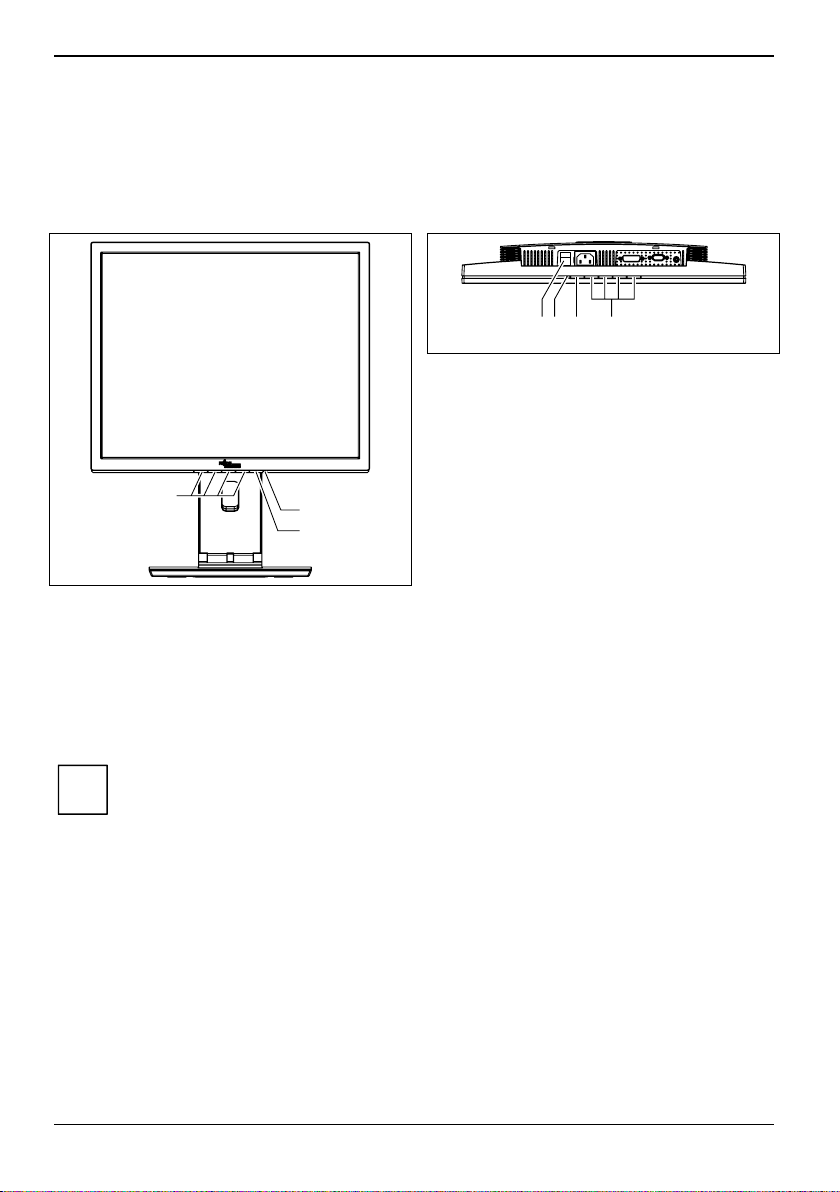

Switching the monitor on and off (P19-3) ................................................................................... 16

Notes on power management .................................................................................................... 17

Changing the monitor settings.................................................................................................... 18

Notes on ergonomic colour adjustment.............................................................................................. 23

Troubleshooting.................................................................................................................................. 24

Notes regarding the DIN EN ISO 13406-2 standard .......................................................................... 26

Technical data .................................................................................................................................... 27

VESA-DDC-compatible VGA interface....................................................................................... 28

Preset operating modes ............................................................................................................. 28

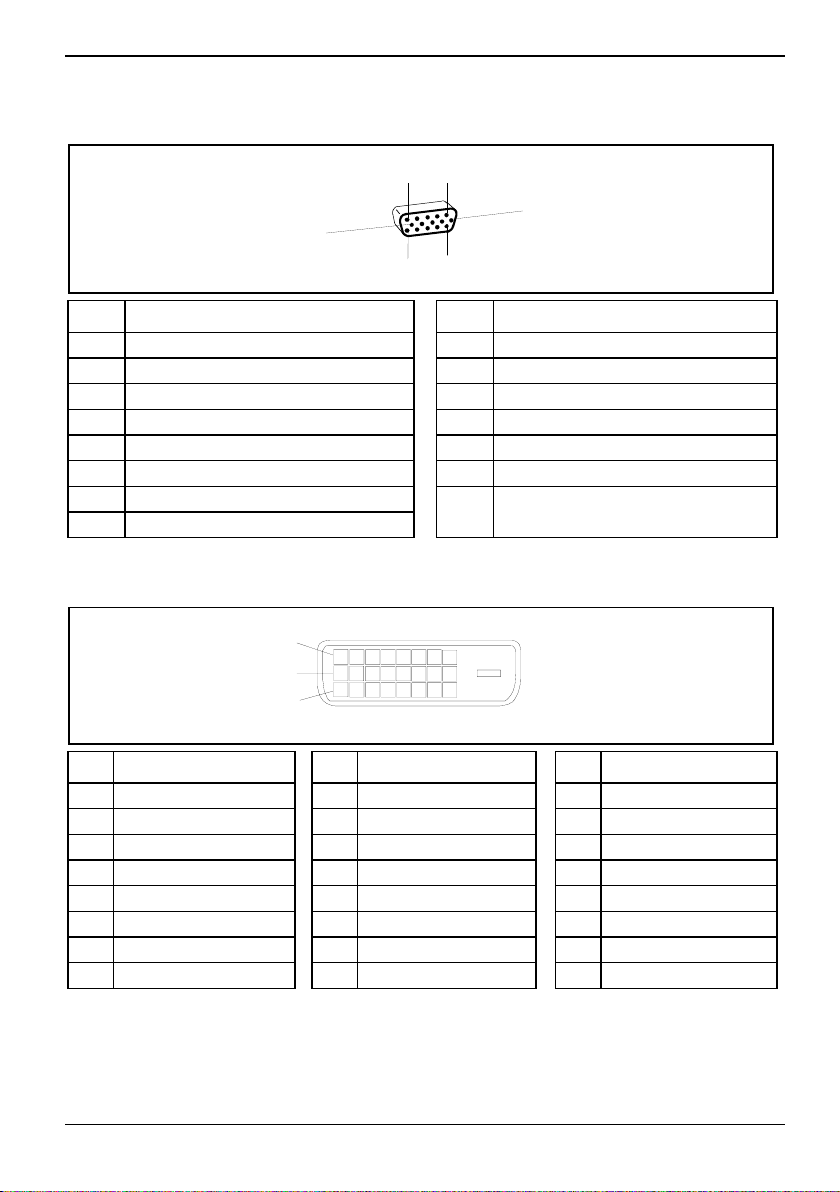

Pin assignment D-SUB............................................................................................................... 29

Monitor port DVI-D...................................................................................................................... 29

A26361-K1143-Z120-1-7619, edition 3

Contents

A26361-K1143-Z120-1-7619, edition 3

Introduction

Your new LCD (Liquid Crystal Display) monitor SCENICVIEW B17-3/B19-3/P19-3 offers numerous features and functions, for example:

● TFT display (Thin Film Transistor; active matrix)

● minimal space requirements thanks to slim casing

● optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour

purity right into the corners)

● high degree of brightness and good contrast

● high resolution (1280 x 1024)

● presentation of up to 16.7 million colours (in conjunction with an appropriate graphics card)

● automatic scanning of horizontal frequencies from 30 to 82 kHz and refresh rates (vertical

frequencies) from 56 to 76 Hz (absolutely flicker-free)

● digital screen controller with microprocessor for storing 26 different display modes

● freely adjustable colour alignment for matching the screen colours to the colours of various

input and output devices

● convenient operation via integrated OSD (On-Screen-display) menu

● VESA-DDC compatibility

● VESA-FPMPMI compatibility (Flat Panel Monitor Physical Mounting Interface) – Mounting

device for swivel arm and wall bracket

● plug&play capability

● power management for reducing power consumption when the computer is not in use

● compliance with the recommendations in accordance with TCO’03

● The monitor fulfils all GS (“Geprüfte Sicherheit”, Certified Security) requirements.

This operating manual contains important information you require to start up and run your LCD monitor.

A graphics card (screen controller) with VGA interface or a digital graphics card with DVI interface is required to control the SCENICVIEW B17-3/B19-3/P19-3 LCD monitor. The monitor processes the data supplied to it by the screen controller. The screen controller or the associated driver software is responsible for setting the modes (resolution and refresh rate).

When putting the monitor into operation for the first time, the screen display should be optimally adapted to the screen controller used and adjusted in accordance with your needs (see the

Changing the monitor settings" section in the "Operation of the monitor" chapter).

Target group

You don't need to be an "expert" to perform the operations described here. However, please observe the safety information given in the operating instructions of the computer and in this manual.

In the event of any problems occurring, please contact your sales outlet or our help desk.

Additional information

Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

For ergonomic reasons we recommend a screen resolution of 1280 x 1024 pixels for the monitors SCENICVIEW B17-3, B19-3 and P19-3.

Because of the technology used (active matrix) an LCD monitor provides a totally flicker-free picture even with a refresh rate of 60 Hz.

A26361-K1143-Z120-1-7619, edition 3 1

SCENICVIEW B17-3/B19-3/P19-3

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

► Text which follows this symbol describes activities that must be performed in the order shown.

"Quotation marks" indicate names of chapters or terms.

This font indicates filenames and menu items.

This font indicates screen outputs.

Pay particular attention to text marked with this symbol. Failure to observe this warning endangers your life, destroys the device, or may lead to loss of data.

Supplementary information, remarks, and tips follow this symbol.

Important notes

In this chapter you will find information regarding safety which is essential to take note of with your monitor.

Safety notes

This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our help desk.

● The display surface of the LCD monitor is sensitive to pressure and scratches. You should therefore be careful with the display surface so as to avoid lasting damage (scratches).

● If the device is brought into the installation site from a cold environment, condensation can form. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site.

● During installing and operating the device, please observe the instructions on environmental conditions in the " ergonomic video workstation

Technical data" chapter as well as the instructions in the "Installing an

" chapter.

2 A26361-K1143-Z120-1-7619, edition 3

SCENICVIEW B17-3/B19-3/P19-3

● To ensure sufficient ventilation, the intake and exhaust air openings of the monitor must never be blocked.

● The monitor automatically sets itself to a mains voltage in the range of 100 V to 240 V. Ensure that the local mains voltage lies within these limits.

● Ensure that the power socket on the device or the grounded mains outlet is freely accessible.

● The ON/OFF switch does not disconnect the device from the mains voltage. To completely

disconnect the mains voltage, remove the power plug from the socket.

● The monitor is equipped with a power cable that complies with safety standards.

● Lay all cables so that nobody can stand on them or trip over them. When attaching the device,

observe the relevant notes in the "

● No data transfer cables should be connected or disconnected during a thunderstorm.

● Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get inside the

device (danger of electric shock, short circuit).

● The device is not waterproof! Never immerse the device in water and protect it from spray water (rain, sea water).

● In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign matter), switch off the unit, disconnect the power plug and contact your sales outlet or our help desk.

● The monitor must be disposed of in accordance with the local regulations for disposal of special waste. The screen background lighting contains mercury. You must observe the applicable handling and disposal safety regulations for fluorescent tubes.

● Only qualified technicians should repair the device. Unauthorised opening and incorrect repair may greatly endanger the user (electric shock, fire risk).

● You may set only those resolutions and refresh rates specified in the " Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or our help desk.

● Use a screen saver with moving images and activate the power management for your monitor to prevent still images from "burning in".

● If you operate the monitor with the swivel arm or wall bracket, it may not be turned by 180°.

● The SCENICVIEW B17-3/B19-3/P19-3 monitor may only be operated in landscape mode (0°)

and portrait mode (90°). The control buttons are located at the bottom of the monitor in landscape mode (0°) and at the left-hand side of the monitor in portrait mode (90°).

● Store this manual close to the device. If you pass the device on to third parties, you should pass this manual on with it.

Connecting the monitor" chapter.

Technical data" chapter.

A26361-K1143-Z120-1-7619, edition 3 3

SCENICVIEW B17-3/B19-3/P19-3

Power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set.

● The female/male receptacles of the cord set must meet IEC60320/CEE-22 requirements.

● The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the

outer sheath.

● For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used. For devices which sit on the floor, only SJT type cable sets may be used.

● The cable set must be selected according to the rated current for your device.

● If necessary, replace the original power cable with a regular grounded 3-core mains lead.

Transport

● Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts.

● Never drop the LCD monitor (danger of glass breakage).

Cleaning

● Always pull out the power plug before you clean the monitor.

● Do not clean any interior parts yourself, leave this job to a service technician.

● Do not use any cleaning agents that contain abrasives or may corrode plastic.

● Ensure that no liquid will run into the system.

● Ensure that the ventilation areas of the monitor are free.

● The display surface of the LCD monitor is sensitive to pressure and scratches. Clean it only

using a soft, slightly moistened cloth.

Wipe the monitor casing with a dry cloth. If the monitor is particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

CE marking

The shipped version of this device complies with the requirements of the following EC Directives: 2004/108/EC "Electromagnetic Compatibility" and 2006/95/EC "Low Voltage Directive".

4 A26361-K1143-Z120-1-7619, edition 3
