2003.05.14
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 8
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED
type
Models Indoor unit Outdoor unit
ASY18TBA-W AOY18TNAL
ASY24TBA-W AOY24TMAL
ASY30TBA-W AOY30TMAL
ASG18TBA-W AOG18TNAL
ASG24TBA-W AOG24TMAL
ASG30TBA-W AOG30TMAL
ASY24EBA3W AOY24EPA3L
ASG24EBA3W AOG24EPA3L
– 1 –
SPECIFICATIONS
TYPE COOL & HEAT COOL COOL & HEAT COOL & HEAT
INDOOR UNIT
ASY18TBA-W ASY24EBA3W ASY24TBA-W ASY30TBA-W
ASG18TBA-W ASG24EBA3W ASG24TBA-W ASG30TBA-W
OUTDOOR UNIT
AOY18TNAL AOY24EPA3L AOY24TMAL AOY30TMAL
AOG18TNAL AOG24EPA3L AOG24TMAL AOG30TMAL
COOLING CAPACITY
(kW)
5.35 6.70 - 6.90 6.80 7.70
HEATING CAPACITY 5.55 ----- 7.70 8.60
POWER SOURCE (V) 1 , 230 3 , 380 - 415 1 , 230 1 , 230
FREQUENCY (Hz) 50
RUNNING
(A)
COOLING 8.5 4.6 - 4.6 12.1 14.5
CURRENT
HEATING 8.1 ----- 12.8 15.4
INPUT
(kW)
COOLING 1.90 2.68 - 2.76 2.75 3.15
WATTS
HEATING 1.82 ----- 2.82 3.30
E.E.R. (kW/kW)
COOLING 2.82 2.50 - 2.50 2.47 2.44
HEATING 3.05 ----- 2.75 2.61
MOISTURE REMOVAL ( /hr) 2.0 2.5 3.5
AIR CIRCULATION-Hi (m3/hr) 900 1,000 1,100
ELECTRICAL DATA
COMPRESSOR
FAN MOTOR
DIMENSIONS
TYPE Hermetic type, Deposit electrode condenser, 2 poles, Single phase, Induction motor
CODE 4JS330DAA 8R32KE-TFD-501 NE44VNDMT NE52VNHMT
REFRIGERANT R407C (g) 1,700 1,600 2,300 2,500
POWER SOURCE (V) 1 , 230 1 , 220 - 240 1 , 230 1 , 230
TYPE MFA-30HTT
INDOOR
HI-SPEED ( r.p.m. ) 1,080 1,190 1,320
UNIT
MED-SPEED ( r.p.m. ) 940 1,030 1,220
LO-SPEED ( r.p.m. ) 810 900 1,030
OUTDOOR
TYPE MFB-30DFT
UNIT
( r.p.m. ) , 730
INDOOR UNIT H x W x D 320 x 1,120 x 220
OUTDOOR UNIT (mm) 700 x 900 x 350 900 x 900 x 350
WEIGHT
INDOOR UNIT GROSS / NET 22 / 16
OUTDOOR UNIT (kg) 76 / 68 73 / 65 77 / 69 92 / 80
REFRIGERANT CHARGE
PIPE LENGTH 7.5 m 10 m 15 m 20 m 25 m Additional
MODELS (25 ft) (33 ft) (49 ft) (66 ft) (82 ft) refrigerant
ASY18TBA-W 1,700 g 1,800 g 2,000 g 2,200 g
-----
40 g (1.41 oz) / 3.3 ft (1 m)
ASG18TBA-W (60.0 oz) (63.5 oz) (70.5 oz) (77.6 oz) (over 7.5 m)
ASY24EBA3W 1,600 g 1,650 g 1,750 g 1,850 g
-----
20 g (0.71 oz) / 3.3 ft (1 m)
FULL CHARGE ASG24EBA3W (56.4 oz) (58.2 oz) (61.7 oz) (65.3 oz) (over 7.5 m)
AMOUNT ASY24TBA-W 2,300 g 2,400 g 2,600 g 2,800 g
-----
40 g (1.41 oz) / 3.3 ft (1 m)
ASG24TBA-W (81.1 oz) (84.7 oz) (91.7 oz) (98.8 oz) (over 7.5 m)
ASY30TBA-W 2,500 g 2,600 g 2,800 g 3,000 g 3,200 g 40 g (1.41 oz) / 3.3 ft (1 m)
ASG30TBA-W (88.2 oz) (91.7 oz) (98.8 oz) (105.8 oz) (112.9 oz) (over 7.5 m)
2003.05.14
– 2 –
2003.05.14
OUTLINE AND DIMENSIONS
Unit : mm
Models : ASY18TBA-W, ASG18TBA-W, ASY24EBA3W
ASY24TBA-W, ASG24TBA-W, ASG24EBA3W
ASY30TBA-W, ASG30TBA-W
1,120
626
224
711
626
711
321
Models : AOY18TNAL, AOY24TMAL, AOY24EPA3L
AOG18TNAL, AOG24TMAL, AOG24EPA3L
Models : AOY30TMAL
AOG30TMAL
900
804
900
333
350
19
930
350
900
930
19
804
700
333
– 3 –
2003.05.14
REFRIGERANT SYSTEM DIAGRAM
Models : ASY18TBA-W / AOY18TNAL
ASG18TBA-W / AOG18TNAL
Models : ASY24TBA-W / AOY24TMAL
ASG24TBA-W / AOG24TMAL
Evaporator
Distributor
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Cooling
Heating
: Flare coupling
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
Evaporator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
INDOOR UNIT
Strainer
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
– 4 –
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Strainer
Strainer
Charging valve
Compressor
4-Way valve
Accumulator
OUTDOOR UNIT
Condenser
Distributor
Check joint
INDOOR UNIT
Evaporator
Cooling
Heating
: Flare coupling
Strainer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Charging valve
Compressor
OUTDOOR UNIT
Condenser
INDOOR UNIT
Evaporator
Models : ASY30TBA-W / AOY30TMAL
ASG30TBA-W / AOG30TMAL
Models : ASY24EBA3W / AOY24EPA3L
ASG24EBA3W / AOG24EPA3L
2003.05.14
– 5 –
CIRCUIT DIAGRAM
(PIPE TEMP.)
GRAY
GRAY
WHITE
GREEN
GRAY
GRAY
GRAY
FM
(ROOM TEMP.)
(RIGHT/ LEFT)
(UP/DOWN)
BLACK
BLACK
WHITE
WHITE
WHITE
BLACK
BLUE
RED
RED
RED
BLACK
GRAY
GRAY
GRAY
GRAY
YELLOW
PINK
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
PURPLE
PURPLE
PURPLE
GRAY
GRAY
GRAY
GRAY
GRAY
(DIFFUSER)
GRAY
GRAY
GRAY
GRAY
RED
PINK
M
M
M
GREEN/
YELLOW
L
N
FAN
MOTOR
THERMAL
PROTECTOR
CONNECTOR
FAN MOTOR
CAPACITOR
COMPRESSOR
INTERNAL
OVERLOAD
PROTECTOR
FUSE 5A
TERMINAL
TO POWER
SUPPLY
MAGNETIC
RELAY
CR COMPOSITE
GREEN / YELLOW
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK BLACK
BLACK
BLACK
BLACK
BLACK BLACK
WHITE
RED
RED
BLACK
WHITE
WHITE
RED
BLACK
T
3
T
1
T
2
13
24
5
31
A1/A
A2/B
32
6
BLUE
BLUE
RED
BLUE
SR (L) T N 32 (N)1 (L)
H
OUTDOOR
THERMOSTAT
L
C
CRANKCASE HEATER
CR COMPOSITE
OUTDOOR UNIT
INDOOR UNIT
FAN MOTOR
CAPACITOR
THERMISTOR
FAN
MOTOR
TERMINAL
THERMISTOR
STEP
MOTOR
STEP
MOTOR
STEP
MOTOR
TRANSFORMER
CONTROL BOARD
DISPLAY BOARD
CN4
CN5
CN11CN10CN7CN6
CN3
CN9CN2 CN1
CN201
THERMAL
FUSE 102
2
2
1
1
21
3
3
4
4
5
5
6
6
7
7
2
2
1
1
3
3
22113
3
221
1
776
6
221133445
5
7
7
8
8
8
8
6
6
221133445
5
22113
3
221133445
5
221
1
889910
10
776
6
221133445
5
221
1
221133445
5
221133445
5
221133445
5
(N)
123
FUSE T 3. 15A 250V
Models : ASY24EBA3W / AOY24EPA3L
ASG24EBA3W / AOG24EPA3L
2003.05.14
– 6 –
2003.05.14
C
R
S
WHITE
BLACK
WHITE
WHITE
BLACK
BLACK
BLACK
SV
BLACK
RED
BLUE
BLACK
BROWN
BROWN
RED
RED
BLUE
(PIPE TEMP.)
GRAY
GRAY
WHITE
BROWN
GREEN
GRAY
GRAY
GRAY
FM
(ROOM TEMP.)
(RIGHT/ LEFT)
(UP/DOWN)
BLACK
BLACK
WHITE
WHITE
WHITE
BLACK
BLUE
RED
BLUE
RED
RED
BLACK
GRAY
GRAY
GRAY
GRAY
YELLOW
PINK
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
PURPLE
PURPLE
PURPLE
GRAY
GRAY
GRAY
GRAY
GRAY
(DIFFUSER)
GRAY
GRAY
GRAY
GRAY
RED
PINK
4 5 6
M
M
M
GREEN/
YELLOW
L
N
6
5
4
1
FUSE
5A
TERMINAL
COMPRESSOR
CAPACITOR
COMPRESSOR
FAN MOTOR
CAPACITOR
THERMISTOR
FAN
MOTOR
TERMINAL
THERMISTOR
STEP
MOTOR
STEP
MOTOR
STEP
MOTOR
TRANSFORMER
CONTROL BOARD
DISPLAY BOARD
CN4
CN5
CN11CN10CN7CN6
CN3
CN9CN2 CN1
CN201
THERMAL
FUSE 102
(L) (N)
LN 312
INTERNAL
OVERLOAD
PROTECTOR
2
2
1
1
21
3
3
4
4
5
5
6
6
7
7
2
2
1
1
3
3
22113
3
221
1
776
6
221133445
5
7
7
8
8
8
8
6
6
221133445
5
22113
3
221133445
5
221
1
889910
10
776
6
221133445
5
221
1
221133445
5
221133445
5
221133445
5
(N)
123
TO POWER SOURCE
FUSE T 3. 15A 250V
4-WAY
VALVE COIL
456
OUTDOOR UNIT
INDOOR UNIT
MAIN RELAY
FAN
MOTOR
THERMAL
PROTECTOR
CONNECTOR
FAN MOTOR
CAPACITOR
WHITE
WHITE
WHITE
BLACK
BLACK
Models :
ASY18TBA-W / AOY18TNAL, ASG18TBA-W / AOG18TNAL
ASY24TBA-W / AOY24TMAL, ASG24TBA-W / AOG24TMAL
– 7 –
2003.05.14
(PIPE TEMP.)
GRAY
GRAY
WHITE
BROWN
GREEN
GRAY
GRAY
GRAY
FM
(ROOM TEMP.)
(RIGHT/ LEFT)
(UP/DOWN)
BLACK
BLACK
WHITE
WHITE
WHITE
BLACK
BLUE
RED
BLUE
RED
RED
BLACK
GRAY
GRAY
GRAY
GRAY
YELLOW
PINK
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
PURPLE
PURPLE
PURPLE
GRAY
GRAY
GRAY
GRAY
GRAY
(DIFFUSER)
GRAY
GRAY
GRAY
GRAY
RED
PINK
M
M
M
GREEN/
YELLOW
L
N
C
RS
BLACK
BLACK
BLACK
BLUE
RED
SV
BLACK BLACK
RED
BLACK
BLACK
BROWN
BROWN
WHITE
WHITE
WHITE
WHITE
WHITE
6
5
4
1
FAN
MOTOR
FUSE
5A
TERMINAL
FAN MOTOR
CAPACITOR
COMPRESSOR
CAPACITOR
COMPRESSOR
MAIN
RELAY
FAN MOTOR
CAPACITOR
THERMISTOR
FAN
MOTOR
TERMINAL
THERMISTOR
STEP
MOTOR
STEP
MOTOR
STEP
MOTOR
TRANSFORMER
CONTROL BOARD
DISPLAY BOARD
CN4
CN5
CN11CN10CN7CN6
CN3
CN9CN2 CN1
CN201
THERMAL
FUSE 102
(L) (N)
LN 312
THERMAL
PROTECTOR
INTERNAL
OVERLOAD
PROTECTOR
2
2
1
1
21
3
3
4
4
5
5
6
6
7
7
2
2
1
1
3
3
22113
3
221
1
776
6
221133445
5
7
7
8
8
8
8
6
6
221133445
5
22113
3
221133445
5
221
1
889910
10
776
6
221133445
5
221
1
221133445
5
221133445
5
221133445
5
(N)
123
FUSE T 3. 15A 250V
4-WAY
VALVE COIL
456
456
CONNECTOR
OUTDOOR UNIT
INDOOR UNIT
TO POWER SOURCE
Models : ASY30TBA-W / AOY30TMAL
ASG30TBA-W / AOG30TMAL
– 10 –

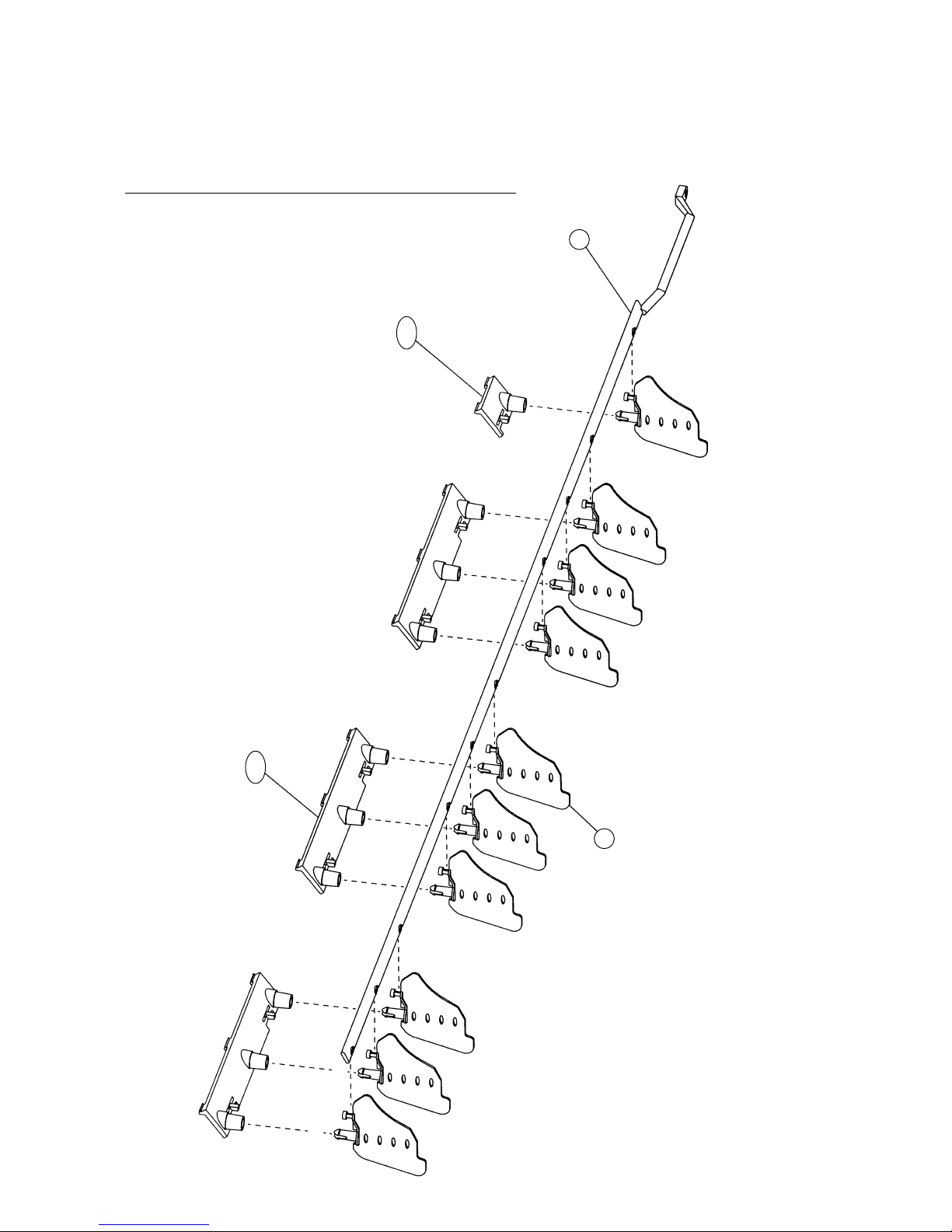

DISASSEMBLY ILLUSTRATION
743
199
164
40
855
385
61
759
815
942
233
514
425
34
846
236
938
127
199
574-1
338-1
564-2
178-1
108
338
473
401
506
963
158
74
428
45
169
707
63
69
240
160
321
960
557
574-2
329
146
764
999
998
735
160-1
855-2
178-1
855-1
338-2
473-1
163-2
122
963-1
69-1
69-2
Models : ASY18TBA-W, ASG18TBA-W, ASY24EBA3W
ASY24TBA-W, ASG24TBA-W, ASG24EBA3W
2003.05.14
– 11 –
2003.05.14
743
199
164
61
759
127
199
574-1
338-1
69-2
178-1
108
338
473
401
506
963
158
74
428
588
45
169
63
69
240
160
321
960
557
574-2
146-2
329
764
735
160-1
178-1
338-2
163-2
855-1
855-2
122
963-1
69-1
Models : ASY30TBA-W
ASG30TBA-W
815
233
514
425
34
846
236
938
220
942
855
999
564
707
385
40
473-1
146-1
69
506
69-2
69-1
x 3
x 10
Models : ASY18TBA-W, ASG18TBA-W, ASY24EBA3W
ASY24TBA-W, ASG24TBA-W, ASG24EBA3W
ASY30TBA-W, ASG30TBA-W
– 12 –
2003.05.14
– 13 –
2003.05.14
199
684
522-3
522-2
522-1
Models : ASY18TBA-W, ASG18TBA-W, ASY24EBA3W
ASY24TBA-W, ASG24TBA-W, ASG24EBA3W
ASY30TBA-W, ASG30TBA-W
– 14 –
2003.05.14
199
408
435
92
Models : ASY18TBA-W, ASG18TBA-W, ASY24EBA3W
ASY24TBA-W, ASG24TBA-W, ASG24EBA3W
ASY30TBA-W, ASG30TBA-W
– 15 –
2003.05.14
Models : AOY18TNAL, AOY24TMAL, AOY24EPA3L
AOG18TNAL, AOG24TMAL, AOG24EPA3L
84
527
7
734
64
477
4
5
2
9
16
41
26
39
328
12
45-3
45-5
45-6
45-4
653-1
69-3
85
– 16 –
Models : AOY18TNAL
AOG18TNAL
29
8
412
51
754
109
55
55
46
117-3
117-3
107
2003.05.14
– 17 –
20
13
620
17
867
14
829
333
46
16
18-3
18-4
18-2
18-1
344
Models : AOY18TNAL
AOG18TNAL
272
519
335
272
2003.05.14
– 18 –
2003.05.14
Models : AOY24EPA3L
AOG24EPA3L
55
108
46
16
744
29
41
26
39
790
646
109
111
12
107
8
653-1
85
45-3
45-5
45-6
45-4
– 19 –
2003.05.14
Models : AOY24TMAL
AOG24TMAL
69-3
117-3
41
39
653-1
45-3
45-5
45-6
45-4
16
29
26
46
12
328
85
– 20 –
81
46
55
139
109
412
107
Models : AOY24TMAL
AOG24TMAL
2003.05.14
– 21 –
Models : AOY24TMAL
AOG24TMAL
18
20
13
330
910
867
14
333
46
16
334-4
334-5
334-3
829-2
829-1
178-1
348-1
344
259
840
348
910
702
2003.05.14
– 22 –
2003.05.14
Models : AOY24EPA3L
AOG24EPA3L
18
20
13
14
353
46
348-1
178-1
910
– 23 –
2003.05.14
Models : AOY18TNAL
AOG18TNAL
AOY24TMAL
AOG24TMAL
815
218-3
187
38
37
32
989-1
343
34
989-2
823-2
824-4
– 24 –
Models : AOY24EPA3L
AOG24EPA3L
815-2
32
187
355
817
792
549
983
791
989-1
187
34
989-2
880-2
880-1
823-2
824-4
2003.05.14
– 25 –
Models : AOY30TMAL
AOG30TMAL
117-3
744
16
29
85
39
46
26
32
12
328
653-1
41
45-3
45-5
45-6
45-4
2003.05.14
– 26 –
2003.05.14
Models : AOY30TMAL
AOG30TMAL
527
407
84
812
9
734
64
477
4
5
2
– 27 –
2003.05.14
Models : AOY30TMAL
AOG30TMAL
263
344
808
735
58
343
910
867
330-2
772-3
772-4
46
910
107
20
83
772
420
16
18
54-1
82-1
13-3
13-2
– 28 –
Models : AOY30TMAL
AOG30TMAL
81
46
55
139
109
412
107
2003.05.14
– 29 –
37
38
34
187
218-3
815-3
989-2
989-1
823-2
824-4
824-4
Models : AOY30TMAL
AOG30TMAL
2003.05.14
– 30 –
2003.05.14
PAR TS LIST
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
INDOOR UNIT
34 Capacitor (Fan Motor) 9704305060 9704305060 9704305060 9704305060
40 Water Seal Plate 9369684005 9369684005 9369684005 9369684005
45 Bracket (Evaporator) 9369372001 9369372001 9369372001 9369372001
61 Decoration Plate-F 9368757014 9368757014 9368757014 9368757014
61 Decoration Plate-G 9368756017 9368756017 9368756017 9368756017
63 Front Panel (ASY) 9368540012 9368540012 9368540012 9368540012
63 Front Panel (ASG) 9368756017 9368756017 9368756017 9368756017
69 Louver 9368560010 9368560010 9368560010 9368560010
69-1 Louver Base-A 9368558017 9368558017 9368558017 9368558017
69-2 Louver Base-B 9368559014 9368559014 9368559014 9368559014
74 Air Filter 9368552008 9368552008 9368552008 9368552008
92 Link Holder 9368563004 9368563004 9368563004 9368563004
108 Base 9368539016 9368539016 9368539016 9368539016
122 Bearing Assy 9368574000 9368574000 9368574000 9368574000
127 Drain Hose 9367695003 9367695003 9367695003 9367695003
146 Evaporator Assy 9370869002 9370869002 9370869002 ———
146-1 Evaporator-A Assy ——— ——— ——— 9371347011
146-2 Evaporator-B Assy ——— ——— ——— 9371348018
158 Joint Pipe Assy 9369242007 9369242007 9369242007 9371341019
160 Front Drain Pan 9368546007 9368546007 9368546007 9368546007
160-1 Rear Drain Pan 9368547004 9368547004 9368547004 9368547004
163-2 Thermistor Spring-A 313728262708 313728262708 313728262708 313728262708
164 Fan Motor Assy-IN 9601388012 9601388012 9601388012 9601388012
169 Cross Flow Fan Assy 9368586003 9368586003 9368586003 9368586003
178-1 Rubber (Motor) 9368575007 9368575007 9368575007 9368575007
199 Step Motor 9900020019 9900020019 9900020019 9900020019
220 Water Plate ——— ——— ——— 9368569007
233 Power Transformer 9900069018 9900069018 9900069018 9900069018
236 Controller PCB Assy 9703335228 9703335020 9703335013 9703335099
240 Remote Control Unit 9371190013 9371190020 9371190013 9371190013
321 Flap 9368544010 9368544010 9368544010 9368544010
329 Coupling Pipe Assy 9369241000 9369241000 9369241000 9371333014
338 Motor Holder-A 9368550004 9368550004 9368550004 9368550004
338-1 Motor Holder-B 9368551001 9368551001 9368551001 9368551001
338-2 Motor Holder-C 9368769000 9368769000 9368769000 9368769000
385 Indicator PCB Assy 9702307011 9702307011 9702307011 9702307011
401 Wall Hook Bracket 9368579005 9368579005 9368579005 9368579005
408 Louver Link 9368562007 9368562007 9368562007 9368562007
425 Earth Plate 9368580001 9368580001 9368580001 9368580001
428 Screw Cover 9368576011 9368576011 9368576011 9368576011
435 Louver Spring 9368613006 9368613006 9368613006 9368613006
473 Pipe Holder 9368565008 9368565008 9368565008 9368565008
473-1 Cord Holder 9368566005 9368566005 9368566005 9368566005
506 Louver Rod 9368561017 9368561017 9368561017 9368561017
514 Control Box 9368543006 9368543006 9368543006 9368543006
522-1 Sector Gear 9368556006 9368556006 9368556006 9368556006
522-2 Pinion Gear 9368557003 9368557003 9368557003 9368557003
522-3 Flap Spring 9368612009 9368612009 9368612009 9368612009
557 Diffuser Spring 9368587000 9368587000 9368587000 9368587000
564 Bypass Pipe-A Assy ——— ——— ——— 9369551000
564-2 Bypass Pipe-C Assy 9369479007 9369479007 9369479007 ———
574-1 Evaporator Support-R 9368549008 9368549008 9368549008 9368549008
574-2 Evaporator Support-L 9368548001 9368548001 9368548001 9368548001
588 Evaporator Holder ——— ——— ——— 9368775001
684 Motor Base 9368555009 9368555009 9368555009 9368555009
707 Display Cover 9368564001 9368564001 9368564001 9368564001
735 Distributor 9369240003 9369240003 9369240003 9371325019
743 Remote Control Unit Holder Case 9305642014 9305642014 9305642014 9305642014
759 Intake Grill-F 9368541019 9368541019 9368541019 9368541019
759 Intake Grill-G 9368542016 9368542016 9368542016 9368542016
Ref.
No.
Description
ASY18TBA-W
ASG18TBA-W
ASY24EBA3W
ASG24EBA3W
Ord.
Q'ty
Part No.
ASY24TBA-W
ASG24TBA-W
ASY30TBA-W
ASG30TBA-W
ASY18TBA-W, ASG18TBA-W
ASY24EBA3W, ASG24EBA3W
ASY24TBA-W, ASG24TBA-W
ASY30TBA-W, ASG30TBA-W
– 31 –
2003.05.14
INDOOR UNIT (Continued)
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
764 Drain Cap 9367677009 9367677009 9367677009 9367677009
815 Terminal 9900016029 9306489106 9900016029 9900016029
846 Relay G5NB-1A 9900007010 9900007010 9900007010 9900007010
855 Cover Display 9369264016 9369264016 9369264016 9369264016
855-1 Cover Display-B 9369594014 9369594014 9369594014 9369594014
855-2 Cover Display-C 9369683015 9369683015 9369683015 9369683015
938 Control Box Cover-R 9368570002 9368570002 9368570002 9368570002
942 Control Box Cover 9368611002 9368611002 9368611002 9368611002
960 Diffuser 9368545017 9368545017 9368545017 9368545017
963 Fan Guard 9368588007 9368588007 9368588007 9368588007
963-1 Fan Guard Holder 9368554002 9368554002 9368554002 9368554002
998 Bypass Pipe-A 9369238000 9369238000 9369238000 9371324012
999 Bypass Pipe-B 9369239007 9369239007 9369239007 9371346014
Ref.
No.
Description
ASY18TBA-W
ASG18TBA-W
ASY24EBA3W
ASG24EBA3W
Ord.
Q'ty
Part No.
ASY24TBA-W
ASG24TBA-W
ASY30TBA-W
ASG30TBA-W
ASY18TBA-W, ASG18TBA-W
ASY24EBA3W, ASG24EBA3W
ASY24TBA-W, ASG24TBA-W
ASY30TBA-W, ASG30TBA-W
AOY18TNAL
AOG18TNAL
Part No.
AOY18TNAL
AOG18TNAL
– 32 –
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
AOY18TNAL
AOG18TNAL
620 Inlet Pipe (Cond.) Assy 9371299051
653-1 Cup Screw 9385089020
734 Cabinet Top Plate, Painted 9359799023
754 Terminal Gasket Washer 9351053017
815 Terminal-8P 9358660119
823-2 Fuse Holder 0500063024
823-4 Fuse 0600222529
829 Joint Pipe (Strainer) 9372071014
867 Accumulator Hold. Rubber 9354022027
989-1 Cord Clamp-A 9359822011
34 Capacitor (Fan Motor) 9357965024
37 Running Capacitor 9703107122
38 Capacitor Clamp Metal 9351770013
39 Propeller Fan 9359837015
41 Fan Motor Assy-OUT 9600832011
45-3 Motor Bracket-A 9369627002
45-4 Motor Bracket-B 9371439013
45-5 Motor Bracket-C 9369629006
45-6 Motor Bracket-D 9369630002
46 Compressor Assy 9371975016
51 Special Nut M5 9300301015
55 Special Nut M8 (For Comp.) 9355091008
989-2 Cord Clamp-B 9359823018
2 Fan Cover (Guard) 9359808015
4 Emblem-Rear "FUJITSU" 9359836018
4 Emblem-Rear "GENERAL" 313791088308
5 Cabinet-A, Painted 9359797043
7 Connector Cover (Panel, Top) 9358011010
8 Wire Assy (Shield)-D 9371562025
9 Cabinet-B, Painted 9361323025
12 Base Assy, Painted 9359813019
13 3-Way Valve (1/2) (R407C) 9362378000
14 2-Way Valve (1/4) (R407C) 9362380003
16 Condenser Assy 9371970011
17 U pipe-Y 313728127102
18-1 Suction Pipe-B 9371297040
18-2 Suction Pipe-C 9371297057
18-3 Suction Pipe-D 9371297064
18-4 Suction Pipe-E 9371297071
20 Discharge Pipe Assy 9371590028
26 Compressor Cover-A 9365154007
29 Separate Wall 9359805014
32 Control Box Assy-A 9361409026
64 Cabinet-Left, Painted 9359840046
69-3 Bolt, Hex. Socket 301210060360
84 Valve Cover 9361325012
85 Valve Fixing Plate 9361324015
107 Rubber Mount (For Comp.) 9351049010
109 Terminal Cover (For Comp.) 9371511016
117-3 Hexagon Nut 301721180114
(Spring Lock Washer)
187 Clamp No. 1219 313361271706
218-3 Power Relay 9900074012
272 Strainer 9369287008
328 Compressor Plate Assy 9362273060
333 Accumulator 9364284002
335 Condensing Pipe 9371860022
343 Solenoid Coil 9704061010
344 4-Way Valve 9307556012
412 Terminal Gasket (For Comp.) 9371512013
477 Bellmouth 9359809012
519 Capillary Assy 9371287072
527 Protection net (Condenser Net) 9359845010
Ref.
No.
Description
Ord.
Q'ty
Part No.
Ref.
No.
Description
Ord.
Q'ty
2003.05.14
AOY24TMAL
AOG24TMAL
AOY24EPA3L
AOG24EPA3L
AOY24TMAL
AOG24TMAL
AOY24EPA3L
AOG24EPA3L
– 33 –
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
AOY24TMAL
AOG24TMAL
AOY24EPA3L
AOG24EPA3L
2 Fan Cover (Guard) 9371187013 9371187013
4 Emblem-Rear “FUJITSU” 9359836018 9359836018
4 Emblem-Rear “GENERAL” 313791088308 313791088308
5 Cabinet-A, Painted 9359797043 9359797043
7 Connector Cover (Panel, Top) 9358011010 9358011010
8 Wire Assy (Shield)-D 9368405007 9365539002
9 Cabinet-B, Painted 9361323025 9361323025
12 Base Assy, Painted 9359813019 9359812029
13 3-Way Valve (5/8) 9362378000 9362378000
14 2-Way Valve (3/8) 9362380003 9362380003
16 Condenser Assy 9368385002 9362384001
18 Suction Pipe Assy 9368024000 9370628005
20 Discharge Pipe Assy 9368023003 9370625004
26 Compressor Cover-A 9368395001 9365270004
29 Separate Wall 9359805014 9359805014
32 Control Box Assy 9361409026 9361409026
34 Capacitor (Fan Motor) 9357965024 9357965024
37 Running Capacitor 9703107122 ———
38 Capacitor Clamp 9351770013 ———
39 Propeller Fan 9359837015 9359837015
41 Fan Motor Assy-Out 9600832011 9600832011
45-3 Motor Bracket-A 9369627002 ———
45-4 Motor Bracket-B 9371439013 ———
45-5 Motor Bracket-C 9369629006 ———
45-6 Motor Bracket-D 9369630002 ———
46 Compressor Assy 9365380000 9367372003
55 Special Nut M8 (For Comp.) 9355091008 9355091005
64 Cabinet Left 9359840046 9359840046
69-3 Bolt, Hexagon Socket 301210060360 301210060360
81 Strap (For Comp.) 9362371001 ———
84 Valve Cover 9361325012 9361325012
85 Valve Fixing Plate Metal 9361324015 9361324015
107 Rubber Mount (For Comp.) 9362368001 9364084008
108 Sleeve-A (For Comp.) ——— 9364085005
109 Terminal Cover (For Comp.) 9362369008 9364087009
111 Terminal Packing (For Comp.) ——— 9364086002
117-3 Hexagon Nut 301721180114 ———
(Spring Lock Washer)
178-1 Rubber (Discharge Pipe) 313194159807 313194159807
187 Clamp No.1219 313361271706 313361271706
218-3 Power Relay 9900074012 ———
259 Muffler 313755083903 ———
328 Compressor Plate Assy 9362273046 ———
330 Inlet Pipe-A Assy 9368394004 ———
333 Accumulator 9368391003 ———
334-3 Suction Pipe-C 9368047009 ———
334-4 Suction Pipe-D 9368048006 ———
334-5 Suction Pipe-E 9368046002 ———
343 Solenoid Coil 9900165017 ———
344 4-way Valve 9900163013 ———
348 Outlet Pipe (Cond.) Assy 9371866017 ———
348-1 Outlet Pipe 9371860015 9371860015
353 Valve-A Assy ——— 9371858012
355 Switch Bracket ——— 313986353607
412 Terminal Gasket (For Comp.) 9362370004 ———
477 Bellmouth 9359809012 9359809012
527 Protection Net (Condenser) 9359845010 9359845010
549 Thermostat-Outdoor ——— 9352553004
646 Compressor Cover-B ——— 9365271001
653-1 Cup Screw 9385089020 9385089020
702 Restrictor Valve Assy 9371865010 ———
734 Cabinet Top Plate 9359799023 9359799023
744 Clamp (Condenser) ——— 313166374106
790 Belt Heater ——— 9361140066
791 Magnetic Relay ——— 9900078010
792 Magnetic Relay Supporter ——— 9352481000
815 Terminal-8P 9358660119 ———
815-2 Terminal-8P ——— 9363276022
817 Thermostat Fixture ——— 9352164019
823-2 Fuse Holder 0500063024 0500063024
824-4 Fuse 0600222529 0600222529
829-1 Joint Pipe (Strainer) 9368049003 ———
829-2 Joint Pipe (Muffler) 9368044008 ———
840 Inlet Pipe-B Assy 9368384005 ———
867 Accumulator Holder Rubber 9354022010 ———
880-1 Network ——— 9700987017
880-2 Network ——— 9701020010
910 Strainer-B 9365099018 9365099018
983 Thermostat Cover ——— 9358274002
989-1 Cord Clamp-A 9359822011 9359822011
989-2 Cord Clamp-B 9359823018 9359823018
Ref.
No.
Description
Ord.
Q'ty
Part No.
Ref.
No.
Description
Ord.
Q'ty
Part No.
2003.05.14
– 34 –
2003.05.14
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
ASY30TBA-W
ASG30TBA-W
Part No.
ASY30TBA-W
ASG30TBA-W
772 Joint Pipe-A 9369084003
772-3 Joint Pipe (Valve) 9369082009
772-4 Joint Pipe (Valve)-B 9369083006
808 Inlet Pipe (Accumulator) 9369081002
812 Grip 9352157004
815-3 Terminal-8P 9358660119
823-2 Fuse Holder 0500063024
824-4 Fuse 0600222529
867 Accumulator Holder Rubber 9354022010
910 Strainer 9369287008
45-4 Motor Bracket-B 9369628009
45-5 Motor Bracket-C 9369629006
45-6 Motor Bracket-D 9369630002
46 Compressor Assy 9372023013
54-1 Condensing Pipe-A 9372024010
55 Special Nut M8 9355091008
58 Suction Pipe Assy 9369064005
64 Cabinet Left, Painted 9359840022
81 Strap 9362371001
82-1 Check Joint 9369980008
83 Check Joint Bracket 9359807018
84 Valve Cover 9359817017
85 Valve Fixing Plate 9359806011
989-1 Cord Clamp-A 9359822011
989-2 Cord Clamp-B 9359823018
2 Fan Cover (Guard) 9371187013
4 Emblem-Rear "FUJITSU" 9359836018
4 Emblem-Rear "GENERAL" 313791088308
5 Cabinet-A, Painted 9359797029
9 Cabinet-B, Painted 9359798026
12 Base Assy, Painted 9359813019
13-3 3-Way Valve (5/8) 9366193005
14 Packed Valve (3/8) 9362380003
16 Condenser Assy 9369981005
18 Inlet Pipe (Condenser) 9369068003
20 Discharge Pipe 9369067006
26 Comp. Cover 9369093005
29 Separate Wall 9359804017
32 Control Box Metal 9359839019
34 Capacitor (Fan Motor) 9357965024
37 Running Capacitor 9703107023
38 Capacitor Clamp 9360610010
39 Propeller Fan Assy 9359837015
41 Fan Motor Assy-Out 9600832011
45-3 Motor Bracket-A 9369627002
107 Rubber Mount 9362368001
109 Terminal Cover 9362369008
117-3 Hex. Nut w/Sp. Washer 301721180114
139 Wire Assy (Compressor) 9370945058
187 Clamp No. 1219 313361271706
218-3 Power Relay 9900074012
263 Accumulator 9370703009
328 Comp Plate Assy 9362273046
330-2 Inlet Pipe (Condenser)-B Assy 9369074004
343 Solenoid 9900003029
344 4-Way Valve 9307556012
407 Clamp (Cable) No. 1259 313739340109
412 Terminal Gasket 9362370004
420 Capillary Assy 9371287089
477 Bell-Mouth 9359809012
527 Protection Net 9359844013
653-1 Cup Screw 9385089020
734 Cabinet Top Panel 9359799023
735 Distributor Assy 9369076008
744 Clamp (Condenser) 313166374106
Ref.
No.
Description
Ord.
Q'ty
Part No.
Ref.
No.
Description
Ord.
Q'ty
ASY30TBA-W
ASG30TBA-W
– 35 –
2003.05.14
9303029015
[Heat & cool model
(Reverse cycle) only]
Drain pipe
Name and Shape Part No.
9368579005
24E model
9371190020
(AR-JW2)
18T, 24T, 30T model
9371190013
(AR-JW1)
9305642014
0600185534
301141164200
301141533125
Remote control unit
Remote control unit holder
Battery (penlight)
Tapping screw (big)
(ø4 x 20)
Tapping screw (small)
(ø3 x 12)
Wall hook bracket
STANDARD ACCESSORIES
INDOOR UNIT ACCESSORIES
Name and Shape Part No.
OUTDOOR UNIT ACCESSORIES
(18,000 • 24,000BTU model)
9351228019
313728031005
[Heat & cool model
(Reverse cycle) only]
313013042915
[Heat & cool model
(Reverse cycle) only]
313166024302
[Heat & cool model
(Reverse cycle) only]
Hexagon wrench
Drain pipe
Flexible tube
Drain cap
Name and Shape Part No.
301463040100
OUTDOOR UNIT ACCESSORIES (30,000 BTU model)
313739340109
9351228019
313166024302
[Heat & cool model
(Reverse cycle) only]
Tapping screw
Cable clip
Hexagon wrench
Drain cap
2003.05.14
April 2003 Printed in Japan0304J2244
Loading...
