2003.06.11
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 6
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 7

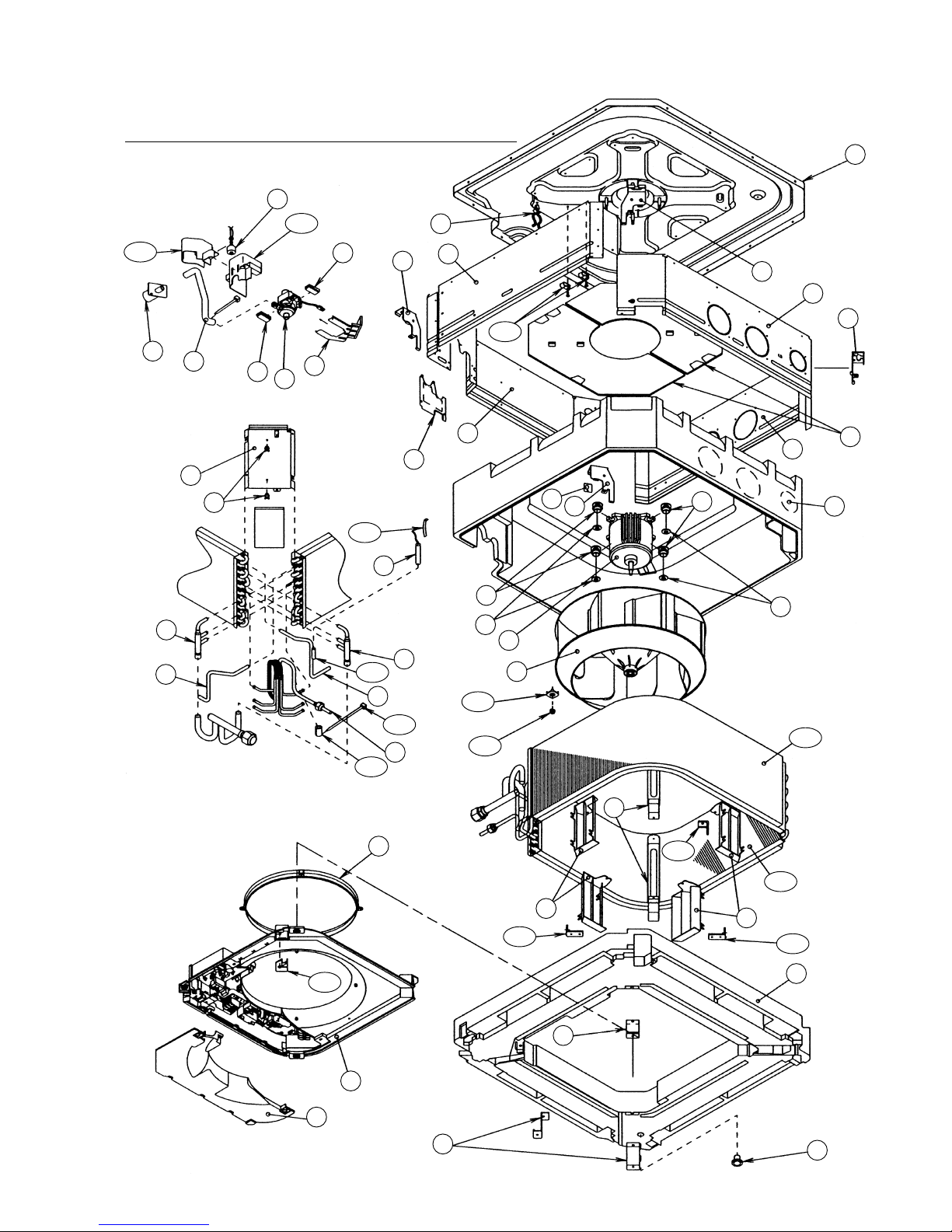

DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SPLIT TYPE
AIR CONDITIONER
CASSETTE
type (50Hz)
Models Indoor unit Outdoor unit
AUG54AGB3W AOG54APA3L
AUG54ALB3W
AUG54RLB3W AOG54RPA3L
AUY54AGB3W AOY54APA3L
AUY54ALB3W
AUY54RLB3W AOY54RPA3L
AUT54ALB3W AOT54APA3L
AUT54RLB3W AOT54RPA3L
2003.06.11
- 1 -
SPECIFICATIONS
TYPE COOLING COOLING & HEATING
AUG54AGB3W AUG54ALB3W AUG54RLB3W
IN AUY54AGB3W AUY54ALB3W AUY54RLB3W
MODEL
AUT54ALB3W AUT54RLB3W
AOG54APA3L AOG54APA3L AOG54RPA3L
OUT AOY54APA3L AOY54APA3L AOY54RPA3L
AOT54APA3L AOT54RPA3L
COOLING CAPACITY kW 13.9 - 14.1 13.9 - 14.1 13.9 - 14.1
HEATING CAPACITY
kW ------ ------ 15.4 - 15.8
CURRENT (A)
COOL 9.0 - 8.9 9.0 - 8.9 9.0 - 8.9
HEAT
------ ------
9.1 - 9.0
INPUT
(kW)
COOL 5.20 - 5.25 5.20 - 5.25 5.20 - 5.25
WATTS
HEAT
------ ------
5.30 - 5.30
E.E.R. (kW/kW)
COOL 2.67 - 2.69 2.67 - 2.69 2.67 - 2.69
HEAT
------ ------
2.91 - 2.93
STARTING CURRENT A 74 74 74
MOISTURE REMOVAL /h 5.5 5.5 5.5
HIGH 680
FAN SPEED INDOOR MED 580
(r.p.m.)
LOW 500
OUTDOOR 770
AIR FLOW
INDOOR
m3/h
1,780
OUTDOOR 5,600
DIMENSIONS
IN 1,296 x 830 x 830
NET GRILLE 1,130 x 940 x 940
H x W x D (mm)
OUT 1,152 x 940 x 370
WEIGHT [NET/GROSS] (kg)
IN 40 / 53
OUT 112 / 126 112 / 126 120 / 134
MAX PIPE LENGTH/HEIGHT m 50 / 30
REMOTE CONTROLLER TYPE WIRELESS WIRED WIRED
FULL CHARGE AMOUNT
PIPE LENGTH AU_54AGB3W AU_54ALB3W AU_54RLB3W
7.5 m (25 ft) 3,600 g (127.0 oz)
3,600 g (127.0 oz) 3,700 g (130.5 oz)
10 m (33 ft)
3,600 g (127.0 oz) 3,600 g (127.0 oz) 3,700 g (130.5 oz)
20 m (66 ft) 3,600 g (127.0 oz) 3,600 g (127.0 oz) 3,700 g (130.5 oz)
25 m (82 ft) 3,800 g (134.0 oz) 3,800 g (134.0 oz) 3,950 g (139.3 oz)
30 m (99 ft) 4,000 g (141.1 oz) 4,000 g (141.1 oz) 4,200 g (148.2 oz)
40 m (132 ft) 4,400 g (155.2 oz) 4,400 g (155.2 oz)
4,700 g (165.8 oz)
50 m (164 ft) 4,800 g (169.3 oz)
4,800 g (169.3 oz) 5,200 g (183.4 oz)
ADDITIONAL CHARGE 40 g/m
(4.6 oz/ft)
40 g/m
(4.6 oz/ft)
50 g/m
(5.8 oz/ft)
2003.06.11
- 2 -
OUTLINE AND DIMENSIONS
1,152
23
940
370
Unit : mm
30
296
750
940
60
(Drain pipe)
120
285
(Small pipe)
150
(Large pipe)
940
298.5
305.5 248.5
60
(Drain pipe)
120
250
(Small pipe)
150
(Large pipe)
298.5
305.5 248.5
Drain Inside Dia. 32
Outside Dia. 37
750
2003.06.11
- 3 -
Models : AUG54AGB3W, AUY54AGB3W
Models : AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
CIRCUIT DIAGRAM
FLOAT
SWITCH
DISPLAY BOARD
CN 15
BLACK
BLACK
BLACK
BLACK
GRAY
PURPLE
BLUE
WHITE
YELLOW
ORANGE
RED
BROWN
CN 13
CN 201
7
6
8
4
3
2
1
5
7
6
8
4
3
2
1
5
7
6
8
4
3
2
1
5
121
2
3 3
121
2
3 3
CN 10CN 4
STEP
MOTOR
DRAIN PUMP
MOTOR
FAN MOTOR
CAPACITOR
CONTROL BOARD
THERMISTOR
(PIPE TEMP.)
THERMISTOR
(ROOM TEMP.)
FILTER BOARD
Use T 3A–250V
Fuse on F101
BROWN
RED
121
2
WHITE
WHITE
CN 7
GRAY
GRAY
GREEN
BLACK
WHITE
GRAY
GRAY
GRAY
THERMAL
FUSE 102 C
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
M
CN 8
BLACK
BLACK
CN 1
WHITE
BLACK
CN 3
3
L
N
12
(N)
TO OUTDOOR UNIT
TERMINAL
CN 6
BLACK
BLACK
YELLOW
YELLOW
FAN
MOTOR
CN 5
BLACK
WHITE
RED
1 2
1 2
212
1
212
1
1 2
1 2
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1 1
2 2
1 1
2 2
M
1 1
3 3
2 2
1 1
5 5 3 3
FM
CN 19
313
1
FLOAT
SWITCH
CN 15
BLACK
BLACK
BLACK
BLACK
123
TO REMOTE
CONTROL UNIT
TERMINAL
CN 17
WHITE
BLACK
RED
212
33
1
121
2
3 3
121
2
3 3
CN 10CN 4
STEP
MOTOR
DRAIN PUMP
MOTOR
FAN MOTOR
CAPACITOR
CONTROL BOARD
THERMISTOR
(PIPE TEMP.)
THERMISTOR
(ROOM TEMP.)
FILTER BOARD
Use T 3A–250V
Fuse on F101
BROWN
RED
121
2
WHITE
WHITE
CN 7
GRAY
GRAY
GREEN
BLACK
WHITE
GRAY
GRAY
GRAY
THERMAL
FUSE 102 C
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
M
CN 8
BLACK
BLACK
CN 1
WHITE
BLACK
CN 3
3
L
N
12
(N)
TO OUTDOOR UNIT
TERMINAL
CN 6
BLACK
BLACK
YELLOW
YELLOW
FAN
MOTOR
CN 5
BLACK
WHITE
RED
1 2
1 2
212
1
212
1
1 2
1 2
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1 1
2 2
1 1
2 2
M
1 1
3 3
2 2
1 1
5 5 3 3
FM
CN 19
313
1
2003.06.11
Models : AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
FLOAT
SWITCH
CN 15
BLACK
BLACK
BLACK
BLACK
121
2
3 3
121
2
3 3
THERMAL
FUSE 102 C
CN 10 CN 4
STEP
MOTOR
DRAIN PUMP
MOTOR
FAN MOTOR
CAPACITOR
CONTROL BOARD
THERMISTOR
(PIPE TEMP.)
123
THERMISTOR
(ROOM TEMP.)
TO REMOTE
CONTROL UNIT
TERMINAL
FILTER BOARD
Use T 3A–250V
Fuse on F101
BROWN
RED
121
2
WHITE
WHITE
CN 7
GRAY
GRAY
CN 17
WHITE
BLACK
RED
GREEN
BLACK
WHITE
RED
GRAY
GRAY
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
M
CN 8
BLACK
BLACK
CN 1
WHITE
BLACK
CN 3
3
L
N
12
(N)
TO OUTDOOR UNIT
TERMINAL
CN 6
BLACK
BLACK
YELLOW
YELLOW
FAN
MOTOR
CN 5
BLACK
WHITE
RED
1 2
1 2
212
33
1
212
33
1
212
1
1 2
1 2
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1 1
2 2
1 1
2 2
M
1 1
3 3
2 2
1 1
5 5 3 3
FM
Models : AOG54APA3L, AOY54APA3L, AOT54APA3L
LCN
TO POWER SUPPLY TO INDOOR UNIT
BLACK
BLACK
WHITE
RED
RED
T1 T3
T2
24632 A1/A
INTERNAL
OVERLOAD
PROTECTOR
THERMAL
PROTECTOR
13531 A2/B
WHITEWHITE
FAN MOTOR
(LOWER)
FAN
CAPACITOR
TERMINAL
FUSE
5A
COMPRESSOR
MAGNETIC RELAY
CR COMPOSITE
CRANKCASE HEATER
THERMOSTAT
(DISCHARGE PIPE)
CONNECTOR
BLACK
WHITE
RED
WHITE
RED
BLACK
BLACK
BLACK
GRAY
BLUE
BLUE
GREEN/YELLOW
BLUE
BLUE
BLUE
FAN MOTOR
(UPPER)
FAN
CAPACITOR
OUTDOOR
THERMOSTAT
TERMINAL
CONNECTOR
WHITE
BROWN
WHITE
WHITE
BLACK
BLACK
13NTSR
2
(N)
- 4 -
2003.06.11
Models : AOG54RPA3L, AOY54RPA3L, AOT54RPA3L
TO POWER SUPPLY TO INDOOR UNIT
BLACK
WHITE
RED
T1 T3
T2
246 A1/A
INTERNAL
OVERLOAD
PROTECTOR
135 A2/B
TERMINAL
COMPRESSOR
MAGNETIC RELAY
BELT HEATER
HIGH
PRESSURE SWITCH
GREEN/YELLOW
THERMISTOR
EXPANSION
VALVE COIL
SOLENOID COIL
BROWN
BROWN
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
(DISCHARGE TEMP.)
(OUTDOOR TEMP.)
(PIPE TEMP.)
CN 9
WHITE
YELLOW
ORANGE
BLUE
BROWN
RED
CN 11CN 4
FAN MOTOR (UPPER)
BLUE
RED
WHITE
BLACK
CN 16
FAN MOTOR (LOWER)
FAN MOTOR
CAPACITOR (UPPER)
BLUE
RED
WHITE
BLACK
CN 3
YELLOW
YELLOW
CN 15
BLACK
BLACK
CN 6
BLUE
BLUE
CN 13
FAN MOTOR
CAPACITOR (LOWER)
YELLOW
BLACK
YELLOW
CN 2
WHITE
FUSE
T 6.3A 250V
WHITE
GRAY
RED
WHITE
BLACK
BLACK
RED
WHITE
BLUE
GREEN
CN 22
W1E
PINK
CN 7
CONTROL BOARD
13NTSR
2
(N)
1 2 3 4 5 61 21 21 2 1 2 3 4 5 6
EV
1 2 3 4
FM
1 2 3 41 21 21 21 2 3
FM
4WV
- 5 -
2003.06.11
- 6 -
REFRIGERANT SYSTEM DIAGRAM
Models : AUG54AGB3W / AOG54APA3L
AUY54AGB3W / AOY54APA3L
AUG54ALB3W / AOG54APA3L
AUY54ALB3W / AOY54APA3L
AUT54ALB3W / AOT54APA3L
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
CAPILLARY TUBE
Charging valve
MUFFLER
COMPRESSOR
ACCUMULATOR
Charging valve
DRYER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
Models : AUG54RLB3W / AOG54RPA3L
AUY54RLB3W / AOY54RPA3L
AUT54RLB3W / AOT54RPA3L
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
: COOL
: HEAT
Charging
valve
MUFFLER
HIGH
PRESSURE
SWITCH
COMPRESSOR
4-Way
Valve
ACCUMULATOR
Charging valve
DRYER
EXPANSION
VALVE
STRAINER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
2003.06.11
IC5 (1/7)
uPA2003GR
IC4 (7/7)
uPA2003GR
14V
C40
0.01
<F>
5V
R53 10K
<1/10W>
R52 10K
<1/10W>
R51 1.0K
<1/10W>
R54 47
<1/10W>
5V
C42
0.01
<F>
14V
14V
IC6 (7/7)
uPA2003GR
CR5
1000P
<R>
R56 1.0K
<1/10W>
R57 1.0K
<1/10W>
B Z
5V
K 8
BZ1
PKM13EPY-4000-TF01
SW4
DSS803
10K <1/10W> x 3
R70
R69 R80
JM11
14V
7
5
3
1
2
4
6
10
12
14
16 8
9
11
13
15
7
5
3
1
16
14
12
10
116
6
4
2
9
8
15
13
11
4
3
2
1
8
7
6
5
D0
D1
CK
CS
VCC
NC
NC
GND
IC7
BR93LC46RF
C39
0.1
<F>
5V
R77-R79
10K <1/10W> x 4
R50 10K <1/10W>
C35
1000P
<R>
C32
1000P
<R>
14V
CN10
B5B-XASK-1-A
CN13
B8B-XASK-1-A
CN13-1
CN13-2
CN13-6
CN13-7
CN13-5
CN13-8
CN13-4
CN13-3
BROWN
RED
ORANGE
YELLOW
GRAY
WHITE
PURPLE
BLUE
BROWN
RED
ORANGE
YELLOW
GRAY
WHITE
PURPLE
BLUE
1
6
7
5
8
4
3
2
PHA201
SBX1810
-22
OUT
OPERATE
TIMER
LOUVER
INDICATOR PCB
EZ-0000THSE-D
5V
MANUAL AUTO
SWITCH
EVQ PAG 04K
SW201
CN201
08 / 08 JC / XMR
C202
10/25V
+
C201
0.1 <F>
UL1430 AWG28
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
CN10-1
CN10-5
CN10-4
CN10-3
CN10-2
M
LOUVER
( UP / DOWN )
D201 SLR-325 <RED>
D203 SLR-325 <ORG>
D202 SLR-325 <GRN>
R201 330 <1/4W>
R203 330 <1/4W>
R202 330 <1/4W>
FLOAT SWITCH
CN15
B3B-XARK-1-A
RED
CN15-1
CN15-2
CN15-3
UL1430 AWG22
UL1430 AWG22
BLACK
BLACK
5V
5V
C45
0.1
<F>
5V
RJ2
10K
<1/10W>
C44
0.1
<F>
C49
0.01
<F>
R55 10K
<1/10W>
IC8
PST600C
RJ1 1.0K
<1/10W>
X1 CSTS0500MG03-T
3
2
1
2
1
3
70 69
X1 X2
RESET
60
73
XT1
22
23
24
P43
P44
P45
P65
4
P3246
45
44
43
P31
P30
P67
0.01 <F> x 3
C31
C16
C43
C22-C25
0.01 x 4
<F>
R81 1.0K <1/10W>
R72 1.0K <1/10W>
R71 1.0K <1/10W>
CR1-CR4
10K <1/10W> x4
NO.3
NO.2
NO.1
C1
0.1
<F>
5V
5V
Q4
DTC124EKA
5V
R47 390
<1/10W>
CN14
B4B-XH-AM
R48
10K
<1/10W>
R49 1.0K
<1/10W>
C38
0.01
<F>
R68
10K
<1/10W>
CR7
0.01
<F>
R67 1.0K
<1/10W>
5V
HA
JEM-A
CN14-4
CN14-1
CN14-2
CN14-3
5V
ROOM TEMPERATURE THERMISTOR
PIPE TEMPERATURE THERMISTOR
CN8
B2B-XASK-1-A
CN7
B2B-XAKK-1-A
BLACK
CN8-1
CN8-2
CN7-1
CN7-2
GRAY
GRAY
BLACK
BLACK
10K <1/10W> x 4
R58
R75 R76
R100
C37
0.1
<F>
C34
0.1
<F>
R43
10K (1%)
<1/10W>
R45
49.9K (1%)
<1/10W>
R44 1.0K
<1/10W>
R46 1.0K
<1/10W>
42
80
79
78
61
47
48
49
P00
P12
P13
P14
P66
P35
P34
P33
P60
P61
P62
P63
P64
36
37
38
39
40
21
20
19
P40
P41
P42
P01
51
52
50
53
62
32
P55
63 P01
59
58 P126
P127
31
30
29
28
P51
P52
P53
P54
57
56
72
71
33
67
4
7
75
5
11
12
13
16
17
18
27
64
34
35
26
14
15
25
74
68
65
66
55
54
52
6
10
9
8
77
76
3
2
1
P03
P50
P27
P26
P25
P22
P21
P20
P130
P56
P57
P47
P23
P24
P46
AVSS
VSS0
VSS1
I C
XT2
P124
P125
VDD0
VDD1
AVRF0
AVRF1
P131
P72
P71
P70
P120
P122
P123
P05
P04
P11
P10
P17
P16
P15
NC
K 4
5V
14V
IC5 (5/7)
uPA2003GR
IC5 (1/7)
uPA2003GR
R25-R28
1.0K <1/10W> x 4
R21-R24
10K <1/10W> x 4
TEST
10
7
CN9-1
8
15
14
13
12
2
3
4
5
11 6
9
14V
5V
R93-R96
10K <1/10W> x 4
0.01 <F> x 3
C10 C12
C30
CR6
0.01
<F>
R9 390
<1/10W>
R10
10K
<1/10W>
5V
5V
Q3
DTC124EKA
C17
0.01
<F>
C18
0.01
<F>
R12 1.0K
<1/10W>
R40 1.0K <1/10W>
R42 1.0K <1/10W>
R41 1.0K <1/10W>
ROOM TEMPERATURE CORRECYION
( HEATING OPERATION )
ROOM TEMPERATURE CORRECYION
( HEATING OPERATION )
AUTO RESTART SWITCHING
P121
P36
P120
P37
NO.1
NO.3
NO.2
SW1
DSS803
JM5 JM8
VA2
470
<TNR>
SSR1
G3MC-202PL-VD-2
+
-
5V
10K <1/10W> x 3
R39
R38 R37
R13 10K
<1/10W>
IC9
TLP621
(D4)-GB
D8
D1F60
R11
56K
<1W>
SW2
DRS4016-5
5V
C26-C29
0.01 x 4
<F>
R29-R32
10K <1/10W> x 4
JM10
NC
R33-R36
1.0K <1/10W> x 4
C
1
2
4
8
I
O
G
IC3
7805
C13
0.1
<F>
C14
100
/6.3V
+
C47
0.1
<F>
C15
0.1
<F>
5V
14V
C19-C21
0.01 x 3
<F>
10K <1/10W> x 4
R99R98
R97R59
uPD780058GC
-057-8BT
I C 1
5V
R18 1.0K <1/10W>
R19 1.0K <1/10W>
R20 1.0K <1/10W>
R15-R17
10K <1/10W> x 3
JM1
JM3
JM2
C54
0.01
<F>
PRIMARY
SECONDARY
D6
D2FL20U
T1
SWITCHING TRANSFORMER
ZFT29B01
C9
1000
/25V
R8 10K
<1/10W>
+
C8
100/
6.3V
+
R7
330
<1/4W>
R6 100
<1/2W>
C7 0.047
<ECQB>
Q1
2SC4236
D2
D1FL20U
D3
MTZJ5.1B
D4
D1FL20U
R5 62K
<RSP2-2W>
C6
4700P
<ECQM>
D5
1SR139-600
D10
1SR139-600
R4 330K
<SPRH-2W>
Q2
2SC1815
R3 100
<1/10W>
R2 1.5
<RSP2-2W>
+
C5
100/
450V
D1
D3SB60
R1 3.3
<RGGS-5W>
THERMAL FUSE
CN3
53406-9910
CN3-2
CN3-1
GRAY
GRAY
YELLOW
YELLOW
M
DRAIN PUMP
L
N
TM101
TM102
E101 W103 W104
POWER SOURCE
240 / 220V
50Hz
F101
3.15A
<BET>
FH101 FH102
VA102
470
<TNR>
SA101
RA-362M
VA101
470
<TNR>
LF101
ELF20N018A
C104
0.01
<F>
C103
0.01
<F>
C105
0.022
<YE>
C106
0.022
<YE>
C101
0.22
<RE-C>
POWER SUPPLY PCB
UL1015 AWG16
GREEN
BLACK
WHITE
UL1015 AWG18
UL1015 AWG18
CN1-1
CN1-2
CN1
B2P3-VH-B-C BLACK
CN4
B2P3-VH-B-Y YELLOW
UL1015 AWG20
WHITE
UL1015 AWG20
WHITE
CN4-2
CN4-1
CN5-1
CN5-2
CN5-3
UL1015 AWG20
BLACK
UL1015 AWG20
UL1015 AWG20
WHITE
RED
FAN CAPACITOR
440V
6uF
FAN MOTOR
CN5
B3P5-VH-B
WHITE
F M
TERMINAL BOARD
1
2
3
OUTDOOR UNIT
E
CR8
TA120033
CN19
B2P3-VH-B-R
RED
K8
G5NB-1A
DC12V
CN19-1
CN9-2
CN9-3
CN9-5
CN9-4
CN9
B5P-SHF-1AA
UL1015 AWG18 GRAY
UL1015 AWG18 WHITE
UL1015 AWG18 BLACK
BLACK
UL1015 AWG22
UL1015 AWG22
BLACK
CN6-2
CN6-1
G5NB-1A DC12V
K4
CN6 B2P3-VH-B-E
BLUE
C3 0.22 <RE>
R88 120 <1/2W>
NOT USED
REMOTE CONTROL CUSTOM CODE
SWITCHING (R1)
REMOTE CONTROL CUSTOM CODE
SWITCHING (R2)
NO.3 INDOOR FAN SWITCHING
NO.2 INDOOR FAN SWITCHING
NO.1 ROOM TEMPERATURE CORRECTION
( COOLING OPERATION )
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-0030WSE-C
- 7 -
INDOOR PRINTED CIRCUIT BOARD
CIRCUIT DIAGRAM
Models : AUG54AGB3W, AUY54AGB3W
12V14V
PRIMARY
SECONDARY
C54 0.01 <F>
+
+
SWITCHING TRANSFORMER
T1
ZFT29B01
D6
D2FL20U
IC2
7812
7805
IC3
C8
100/6.3V
C9
1000
/25V
R8 10K
<1/10W>
+
R6 100
<1/2W>
C7 0.047
<ECQB>
D2
D1FL20U
D4
D1FL20U
D3
MTZJ5.1B
R7 330
<1/4W>
5V
R15-R17
10K <1/10W> x 3
JM1
JM2
JM3
REMOTE CONTROL
CUSTOM CODE SWITCHING (R1)
REMOTE CONTROL
CUSTOM CODE SWITCHING (R2)
NOT USED
I
G
O
I
O
G
C11
10/
25V
C13
0.1
<F>
C14
100/
6.3V
+
C15
0.1
<F>
C47
0.1
<F>
5V
1
2
3
52
54
55
66
65
74
68
75
7
4
67
33
71
72
56
57
58
59
63
19
20
21
40
39
38
37
36
43
44
45
46
41
50
1
70
69
3
2
60
73
22
23
24
42
80
79
78
62
53
61
32
47
48
49
51
52
5
11
12
13
16
17
18
27
64
34
35
26
14
15
25
6
10
9
8
31
30
29
28
77
76
P15
P16
P17
P120
P122
P123
P05
P04
VDD0
VDD1
AVRF0
AVRF1
AVSS
VSS0
VSS1
I C
XT2
P124
P125
P126
P127
P02
P40
P41
P42
P64
P63
P62
P61
P60
P67
P30
P31
P32
P65
P36
X1
X2
XT1
RESET
P45
P44
P43
P66
P14
P13
P12
P01
P121
P00
P55
P33
P34
P35
P37
P120
P130
P20
P21
P22
P25
P26
P27
P50
P03
P56
P57
P47
P23
P24
P46
P131
P72
P71
P70
P54
P53
P52
P51
P11
P10
I C 1
uPD780058BGC
-057-8BT
NC
NC
NC
NC
NC
NC
JM10
5V
CR6
0.01
<F>
C17
0.01
<F>
Q3
DTC124EKA
R10 10K
<1/10W>
R9 390
<1/10W>
C26-C29
0.01 x 4
<F>
C18
0.01
<F>
5V
5V
R12 1.0K
<1/10W>
R13 10K
<1/10W>
R11
56K
<1W>
D8
D1F60
IC9
TLP621
(D4)-GB
JM5 JM8
SSR1
G3MC-202PL-VD DC12V
VA2
470
<TNR>
14V
+
-
14V
K 4
5V
R21-R24
10K <1/10W> x 4
IC5 (1/7)
uPA2003GR
IC6 (1/7)
uPA2003GR
CR8
TA120C33
K8
G5N-1A
CN19
B2P3-VH-B-R
RED
CN19-1
UL1015 AWG18
GRAY
OUTDOOR UNIT
E
3
2
1
TERMINAL BOARD
FAN MOTOR
UL1015 AWG18 BLACK
UL1015 AWG18 WHITE
UL1015 AWG22
BLACK
UL1015 AWG22
WHITE
UL1015 AWG22
RED
F M
CN5
B3P5-VH-B
WHITE
CN5-3
CN4-2
CN5-1
CN5-2
CN4-1
UL1015 AWG20
WHITE
UL1015 AWG20 WHITE
UL1015 AWG16
GREEN
CN4
B2P3-VH-B-Y YELLOW
UL1015 AWG18 WHITE
UL1015 AWG18
BLACK
FAN CAPACITOR
440V 6uF
CN1-1
CN1-2
CN1
B2P3-VH-B-C BLACK
W103
W104
POWER SUPLLY PCB
SW1
DSS803
NO.1
NO.2
NO.3
E101
TM102
SA101
RA-362M
LF101
ELF20N018A
VA101
470
<TNR>
VA102
470
<TNR>
TM101
FH101
FH102
F101
3.15A
<BET>
N
L
5V
5V
5V
R51 1.0K
<1/10W>
R52
10K
<1/10W>
R60
10K
<1/10W>
R61
10K
<1/10W>
12V
R62 4.7K
<1/10W>
Q5
2SC2712
Q6
2SC2712
12V
IC6 (1/7)
uPA2003GR
12V
D7
DA226U
5V
IC11-1
BA10358
IC11-2
BA10358
R66 10K
<1/10W>
R65 390
<1/10W>
CR1-CR5
10K <1/10W> x 5
7
10
+
-
-
+
R63
15.4K (1%)
<1/10W>
R64
28.0K (1%)
<1/10W>
12V
L2
L4
L3
CN17-1
CN17-3
CN17-2
5
3
1
12
14
16
4
2
8
9
15
13
14V
14V
K 8
IC6 (5/7)
uPA2003GR
14V
CN10
B5B-XASK-1-A
UL1430 AWG28
CN10-1
CN10-5
CN10-4
CN10-3
CN10-2
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
M
LOUVER
( UP / DOWN )
CN17
B3B-XAKK-1-A
BLACK
REMOTE
CONTROL UNIT
EZ-099CWSE-R
TERMINAL BOARD
321
UL1430 AWG22 RED
UL1430 AWG22 WHITE
UL1430 AWG22
BLACK
BLACKUL1430 AWG22
BLACK
UL1430 AWG22
FLOAT SWITCH
5V
C45
0.1
<F>
IC8
PST600C
5V
C49
0.01
<F>
2
3
1
C44
0.1
<F>
R55 10K
<1/10W>
X1 CSTS0500MG03-T
CN9
B5P-SHF-1AA
TEST
CN9-1
CN9-5
CN9-4
CN9-3
CN9-2
6711
10
9
11 6
12
5
4
13
3
21415
8
IC5 (5/7)
uPA2003GR
R25-R28
1.0K <1/10W> x 4
C22-C25
0.01 x 4
<F>
5V
R93-R96
10K <1/10W> x 4
C30
0.01
<F>
C10
0.01
<F>
C12
0.01
<F>
R41 1.0K <1/10W>
R40 1.0K <1/10W>
R42 1.0K <1/10W>
R39 10K
<1/10W>
R37 10K
<1/10W>
R38 10K
<1/10W>
C101
0.22
<RE-C>
C106
0.022
<YE>
C105
0.022
<YE>
C104
0.01
<F>
C103
0.01
<F>
DRAIN PUMP
M
YELLOW
YELLOW
BLACK
BLACK
UL1015 AWG22
UL1015 AWG22
CN6-1
CN6-2
K4 G5NB-1A DC12V
C3 0.22 <RE>
R88 120 <1/2W>
CN6
B2P3-VH-B-E BLUE
R2 1.2
<RSP2-2W>
+
C5
100/
450V
D1
D3SB60
Q2
2SC1815
R3 100
<1/10W>
Q1
2SC4236
R1 3.3
<RGGS-5W>
R4 330K
<SPRH-2W>
R5 62K
<RSP2-2W>
C6
4700P
<ECQM>
D5
1SR139-600
D10
1SR139-600
CN3
53406-9910
CN3-1
CN3-2
GRAY
GRAY
THERMAL FUSE
8
4
2
1C
SW2
DRS4016-5
R29-R32
10K <1/10W> x 4
R33-R36
1.0K <1/10W> x 4
5V
R59
R97 R98 R99
10K <1/10W> x 4
C19-C21
0.01 x 3 <F>
R20 1.0K <1/10W>
R19 1.0K <1/10W>
R18 1.0K <1/10W>
5V
4
3
2
1
8
7
6
5
D0
D1
CK
CS
VCC
NC
NC
GND
R77-R79
10K <1/10W> x 4
IC7
BR93LC46RF
R50 10K <1/10W>
C39
0.1
<F>
C37
0.1
<F>
C34
0.1
<F>
R43
10K (1%)
<1/10W>
R45
49.9K (1%)
<1/10W>
R44 1.0K
<1/10W>
R46 1.0K
<1/10W>
C32
1000P
<R>
C35
1000P
<R>
5V
5V
R58
R75 R76
R100
10K <1/10W> x 4
ROOM TEMPERATURE THERMISTOR
PIPE TEMPERATURE THERMISTOR
CN8
B2B-XASK-1-A
CN8
B2B-XAKK-1-A
BLACK
CN8-1 BLACK
BLACK
CN8-2
CN7-2
CN7-1
GRAY
GRAY
5V
5V
C38
0.01
<F>
R48
10K
<1/10W>
R49 1.0K
<1/10W>
C1
0.1
<F>
R68 10K
<1/10W>
CR7
0.01
<F>
R67 1.0K
<1/10W>
Q4
DTC124EKA
5V
R47 390
<1/10W>
CN14
B4B-XH-AM
CN14-3
CN14-2
CN14-1
CN14-4
HA
JEM-A
ROOM TEMPERATURE CORRECTION
( HEATING OPERATION )
ROOM TEMPERATURE CORRECTION
( HEATING OPERATION )
ZONE CONTROL
SWITCHING
IC5 (1/7)
uPA2003GR
IC4 (7/7)
uPA2003GR
14V
1
3
5
7
116
10
12
14
16
2
4
6
11
13
15
9
8
CN15-1
CN15-3
CN15-2
CN15
B3B-XARK-1-A
RED
5V
NO.3
NO.2
NO.1
ROOM TEMPERATURE CORRECTION
( COOLING OPERATION )
INDOOR ROOM FAN SWITCHING
NO.3
NO.1
NO.2 INDOOR ROOM FAN SWITCHING
RJ1 1.0K
<1/10W>
RJ2 1.0K
<1/10W>
0.01 <F> x 3
C31
C16
C43
R81 1.0K <1/10W>
R71 1.0K <1/10W>
R72 1.0K <1/10W>
SW4
DSS803
10K <1/10W> x 3
R70
R69
R80
POWER SOURCE
220 / 240V
50Hz
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-0034WSE-C
2003.06.11
Models : AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
- 8 -
THERMAL FUSE
CN3
53406-9910
R1 3.3
<RGGS-5W>
D1
D3SB60
CN3-2
CN3-1
GRAY
GRAY
C5
100/450V
+
Q1
2SC4236
R2 1.5
<RSP2-2W>
Q2
2SC1815
R3 100
<1/10W>
R7
330
<1/4W>
+
C8
100/6.3V
D3
MTZJ5.1B
D2
D1FL20U
D4
D1FL20U
R6 100
<1/2W>
C7 0.047
<ECQB>
R4 330K
<SPRH-2W>
C6
4700P
<ECQM>
D5
1SR139-600
D10
1SR139-600
R5 62K
<RSP2-2W>
5V
R15-R17
10K <1/10W> x 3
JM1
JM2
JM3
14V
12V
+
IC2
7812
T1
SWITCHING TRANSFORMER
ZFT29B01
D6
D2FL20U
C9
1000
/25V
R8 10K
<1/10W>
+
C11
10/
25V
IO
G
PRIMARY
SECONDARY
I
O
G
IC3
7805
5V
C54
0.01
<F>
5V
C13
0.1
<F>
C14
100/
6.3V
+
C47
0.1
<F>
C15
0.1
<F>
JM10
R20 1.0K <1/10W>
R18 1.0K <1/10W>
R19 1.0K <1/10W>
C19-C21
0.01 x 3
<F>
NC
R59
R97 R98 R99
10K <1/10W> x 4
74
68
75
7
65
66
55
54
52
3
2
1
C
8
4
2
1
4
67
33
71
72
56
57
58
59
R29-R36
1.0K <1/10W> x 4
R33-R36
1.0K <1/10W> x 4
NC
5V
C26-C29
0.01 x 4
<F>
IC5 (1/7)
uPA2003GR
R14 10K
<1/10W>
SW2
DRS4016-5
VA1
470 <TNR>
5V
CR1
0.01
<F>
R10
10K
<1/10W>
R9 390
<1/10W>
CR6
0.01
<F>
Q3
DTC124EKA
C17
0.01
<F>
R93-R96
10K <1/10W> x 4
IC10 HI2002
4
3
2
5
1
10
14
18
63
40
39
38
37
14V
14V
NC
NC
NC
K 4
IC5 (5/7)
uPA2003GR
5V
R21-R24
10K <1/10W> x 4
R25-R28
1.0K <1/10W> x 4
C22-C25
0.01 x 4
<F>
NC
NC
SSR1
G3MC-202PL-VD
+
-
VA2
470
<TNR>
5V
8
215
14
3
413
12
1156
9
36
43
44
45
46
50
51
19
20
21
1
70 69
3
2
X1 X2
X1 CSTS0500MG03-T
LF101
ELF20N018A
VA101
470 <TNR>
VA102
470 <TNR>
SA101
RA-362M
TM102
E101
W103
W104
FAN CAPACITOR
440V
6uF
POWER SUPPLY PCB
CN1
B3P5-VH-B-C
BLACK
CN4
B2P3-VH-B-Y
YELLOW
CN4-1
CN5-2
CN4-2
CN5-3
CN5-1
F M
JM5 JM8
CN5
B3P5-VH-B
DRAIN PUMP
YELLOW
YELLOW
M
CN6-2
CN6-1
UL1015 AWG22
BLACK
UL1015 AWG22
BLACK
TEST
CN6
B2P3-VH-B-E
BLUE
C3 0.22 <RE>
R88 120 <1/2W>
K4
G5NB-1A DC12V
CN9-1
CN9-5
CN9-4
CN9-3
CN9-2
CN9
B5P-SHF-1AA
R40 1.0K <1/10W>
R41 1.0K <1/10W>
R42 1.0K <1/10W>
0.01 <F> x 3
C10
C12
C30
42
41
P15
P16
P17
P120
P122
P123
P05
P04
VDD0
VDD1
AVRF0
AVRF1
AVSS
VSS0
VSS1
I C
XT2
P124
P125
P126
P127
P65
P66
P02
P64
P63
P62
P61
P60
P67
P30
P31
P32
P36
P37
P40
P41
P42
RESET
60
73
XT1
22P43
23
P44
24
49
48
47
P45
P35
P34
P33
80
79
78
P14
P13
P12
C104
0.01
<F>
C103
0.01
<F>
C105
0.022
<YE>
C106
0.022
<YE>
C101
0.22 <RE-C>
CN1-1
CN1-2
CN1-3
UL1015 AWG18
BLACK
UL1015 AWG18 WHITE
UL1015 AWG18 RED
UL1015 AWG16
GREEN
UL1015 AWG20 WHITE
UL1015 AWG20 WHITE
UL1015 AWG20 RED
UL1015 AWG20 WHITE
UL1015 AWG20 BLACK
UL1015 AWG20 BLACK
UL1015 AWG20 WHITE
UL1015 AWG20 RED
TERMINAL BOARD
1
2
3
E
OUTDOOR UNIT
SW1
DSS803
NO.1
NO.3
NO.2
ZONE CONTROL SWITCHING
ROOM TEMPERATURE CORRECTION
( HEATING OPERATION )
ROOM TEMPERATURE CORRECTION
( HEATING OPERATION )
10K <1/10W> x 3
R39
R38
R37
POWER SOURCE
220 / 240V
50Hz
TM101
F101
3.15A
<BET>
FH101
FH102
NOT USED
REMOTE CONTROL
CUSTOM CODE SWITCHING (R1)
REMOTE CONTROL
CUSTOM CODE SWITCHING (R2)
I C 1
uPD780058BGC
-057-8BT
76
77
8
9
10
6
25
15
14
26
35
34
28
29
30
31
27
18
17
16
13
12
11
32
5
61
53
64
62P01
P03
P121
P00
P55
P130
P20
P21
P22
P25
P26
P27
P50
P54
P53
P52
P51
P56
P57
P47
P23
P24
P46
P131
P72
P71
P70
P11
P10
4
3
216
7
85D0
D1
CK
CS
VCC
NC
NC
GND
5V
IC7
BR93LC46RF
C39
0.1
<F>
R50 10K <1/10W>
C32
1000P
<R>
C35
1000P
<R>
R44 1.0K
<1/10W>
R46 1.0K
<1/10W>
5V
5V
R43
10K (1%)
<1/10W>
R45
49.9K (1%)
<1/10W>
C34
0.1
<F>
C37
0.1
<F>
10K <1/10W> x 4
R58
R75 R76
R100
R77- R79
10K <1/10W> x 3
NC
NC
NC
NC
IC5 (1/7)
uPA2003GR
IC4 (7/7)
uPA2003GR
NC
NC
NC
NC
5V
5V 5V
12V
12V
R52
10K
<1/10W>
R51 1.0K
<1/10W>
14V
R60 10K
<1/10W>
R61 10K
<1/10W>
Q5
2SC2712
Q6
2SC2712
R62 4.7K
<1/10W>
12V
12V
R63
15.4K (1%)
<1/10W>
R64
28K (1%)
<1/10W>
R66
10K
<1/10W>
C1
0.1
<F>
D7
DA226U
IC11-2
BA10358
Q7
2SC982
R91 10K
<1/10W>
R92 10K
<1/10W>
R67 1.0K
<1/10W>
R68 10K
<1/10W>
R65
390
<1/10W>
5V
5V
CR7
0.01
<F>
CR2-CR5
10K <1/10W> x 4
NC
NC
NC
R81 1.0K <1/10W>
R72 1.0K <1/10W>
R71 1.0K <1/10W>
10K <1/10W> x 3
R70
R69 R80
SW4
DSS803
NO.3
NO.2
NO.1
2
3
1
5V
5V
5V
C44
0.1
<F>
R55 10K
<1/10W>
C49
0.01
<F>
C45
0.1
<F>
IC8
PST
600C
C31 C16
C43
0.01 <F> x 3
RJ1 1.0K
<1/10W>
RJ2
10K
<1/10W>
CN15
B3B-XARK-1-A
RED
FLOAT SWITCH
BLACK
BLACK
UL1430 AWG22
UL1430 AWG22
CN15-1
CN15-3
CN15-2
REMOTE CONTROL UNIT
EZ-000DHSE-R
TERMINAL
BOARD
321
L3
0.022
<DSS306>
L2
0.022
<DSS306>
L4
0.022
<DSS306>
CN17-1
CN17-3
CN17-2
CN17
B3B-XAKK-1-A
UL1430 AWG22
BLACK
WHITE
RED
UL1430 AWG22
UL1430 AWG22
+
-
IC11-1
BA10358
14V
C38
0.01
<F>
116
611
7
10
125
4
9
13
152
8
1
314
16
BROWN
RED
ORANGE
YELLOW
WHITE
BROWN
RED
ORANGE
YELLOW
WHITE
UL1430 AWG28
CN10-1
CN10-5
CN10-4
CN10-3
CN10-2
CN10
B5B-XASK-1-A
M
LOUVER
( UP / DOWN )
HA
JEM-A
5V
CN14
B4B-XH-AM
R47 390
<1/10W>
Q4
DTC124EKA
R48
10K
<1/10W>
5V
R49 1.0K
<1/10W>
CN14-4
CN14-1
CN14-2
CN14-3
ROOM TEMPERATURE THERMISTOR
PIPE TEMPERATURE THERMISTOR
CN7-1 GRAY
CN7-2 GRAY
CN7 B2B-XAKK-1-A BLACK
CN8 B2B-XASK-1-A
CN8-2 BLACK
CN8-1 BLACK
NO.2 INDOOR FAN SWITCHING
NO.3 INDOOR FAN SWITCHING
NO.1 ROOM TEMPERATURE CORRECTION
( COOLING OPERATIONE )
CONTROLLERPCB ASSEMBLY ( MAIN PCB )
EZ-00224HSE-C
2003.06.11
Models : AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
- 9 -
2003.06.11
692
385
710
61
468
469
858
487
71
858
71
743
93
545
544
705
847
542
705
544
847
692
690
692
847
543
543
544
544
122
543
122
847
692
690
692
847
543
847
122
690
847
692
226
338
522
122
122
834-2
472-4
472-2
472-5
472-5
472-3
777-2
472-1
777-1
472-5
472-5
876-2
868
240
481-1
481
481
481
- 10 -
DISASSEMBLY ILLUSTRATION
Models : AUG54AGB3W
AUY54AGB3W
2003.06.11
Models : AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
692
544
710
61
245
468
469
858
487
481
481
481
71
858
71
240
93
545
544
705
847
542
705
847
692
690
692
847
543
543
544
544
122
543
122
847
692
690
692
847
543
847
122
690
847
692
226
338
522
122
122
834-2
472-4
472-2
472-5
481-1
472-5
472-3
777-2
472-1
777-1
472-5
472-5
876-2
- 11 -
2003.06.11
138
187
168
484
67
235
898
540
897
564
735
477
223
514
457
457
488
160
197
197
565
474
164
155
67
155
563
814
568
244
465
484
464
484
462
803
187
484
798
482
835
127
467
835
479
652-1
47-1
834-1
146-2
337-2
337-1
337-1
117-3
196-2
476-2
184-1
146-1
143-3
460-2
460-1
- 12 -
Models : AUG54AGB3W, AUY54AGB3W
AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
2003.06.11
- 13 -
236
628
195
381
541
234
34
875
982-1
815-1
Models : AUG54AGB3W
AUY54AGB3W
2003.06.11
Models : AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
236
628
195
381
541
234
34
875
982-1
143-1
815-2
815-1
- 14 -
2003.06.11
527
373
9
734
6
30
4
5
813
805
822
2
803
46-3
- 15 -
Models : AOG54APA3L
AOY54APA3L
AOG54RPA3L
AOY54RPA3L
2003.06.11
527
373
9
734
6
30
4
5
373
2
2
803
46-3
- 16 -
Models : AOT54APA3L
AOT54RPA3L
2003.06.11
- 17 -
735
334
788
819
29
817
45
41
39
48
185
810
809
111
109
18
620
808
821
863
15
19
826
259
20
450
107
55
12
646
26
47-2
790-1
333-2
16-2
16-1
653-1
Models : AOG54APA3L
AOY54APA3L
AOT54APA3L
2003.06.11
334
111
109
29
55
45
41
39
48
810
809
405
18
808
862
857
620
15
819
343
272
21
816
185
354
330
919
825
821
333
575
450
826
735
107
108
12
646
26
16-1
16-2
333-2
344-2
790-1
653-1
- 18 -
Models : AOG54RPA3L
AOY54RPA3L
AOT54RPA3L
2003.06.11
Models : AOG54APA3L
AOY54APA3L
AOT54APA3L
407
401
549
815
36
34
32
880-1
791
824-4
823-2
- 19 -
2003.06.11
- 20 -
407
381
628
236
918
678
36
64
32
880-1
791
815-2
184-1
182
Models : AOG54RPA3L
AOY54RPA3L
AOT54RPA3L
2003.06.11
- 21 -
PA RTS LIST
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
INDOOR UNIT
AUT54RLB3WAUG54RLB3W AUY54ALB3W AUY54RLB3W AUT54ALB3W
34 Capacitor (Fan Motor) 9703306068 9703306068 9703306068 9703306068 9703306068 9703306068
47-1 Rubber (Discha. Pipe) 313194159807 313194159807 313194159807 313194159807 313194159807 313194159807
61 Decoration Plate 9363131000 9363131000 9362787000 9362787000 9362787000 9362787000
67 Rubber (Vibration Proof) 9362783002 9362783002 9362783002 9362783002 9362783002 9362783002
71 Grille Hook Holder 9362782005 9362782005 9362782005 9362782005 9362782005 9362782005
93 Filter 9362766005 9362766005 9362766005 9362766005 9362766005 9362766005
117-3 Hex. Nut w / Spring Washer 301721180114 301721180114 301721180114 301721180114 301721180114 301721180114
122 Louver Support Holder 9362799003 9362799003 9362799003 9362799003 9362799003 9362799003
127 Drain Hose 9362784009 9362784009 9362784009 9362784009 9362784009 9362784009
138 Separate Wall 9362737005 9362737005 9362737005 9362737005 9362737005 9362737005
143-1 Clamp NK-3N 313361274700 313361274700 313361274700 313361274700 313361274700 313361274700
143-3 Clamp NK-6N 9305657001 9305657001 9305657001 9305657001 9305657001 9305657001
146-1 Evaporator-A Assy 9363149005 9364804002 9363149005 9364804002 9363149005 9364804002
146-2 Evaporator-B Assy 9363150001 9364805009 9363150001 9364805009 9363150001 9364805009
155 Special Nut M6 9307615016 9307615016 9307615016 9307615016 9307615016 9307615016
160 Drain Pan Assy 9362804004 9362804004 9362804004 9362804004 9362804004 9362804004
164 Fan Motor Assy-IN 9600878019 9600878019 9600878019 9600878019 9600878019 9600878019
168 Cabinet-E 9362735001 9362735001 9362735001 9362735001 9362735001 9362735001
184-1 Thermo. Spring-A 313728262708 313728262708 313728262708 313728262708 313728262708 313728262708
187 Clamp No. 1219 313361271706 313361271706 313361271706 313361271706 313361271706 313361271706
195 Clamp SKB-100 313361275805 313361275805 313361275805 313361275805 313361275805 313361275805
196-2 Clamp SKB-150 313035356905 313035356905 313035356905 313035356905 313035356905 313035356905
197 Wind Guide Board 9363117004 9363117004 9363117004 9363117004 9363117004 9363117004
223 Control Box 9362762007 9362762007 9362762007 9362762007 9362762007 9362762007
226 Motor Gear 9362764001 9362764001 9362764001 9362764001 9362764001 9362764001
234 Thermistor Assy-Room 9703299025 9703299025 9703299025 9703299025 9703299025 9703299025
235 Thermistor Assy-Pipe 9703297014 9703297014 9703297014 9703297014 9703297014 9703297014
236 Controller PCB Assy 9704557346 9704557346 9704557346 -------- -------- -------236 Controller PCB Assy -------- -------- -------- 9704557179 9704557179 9704557179
240 Remote Control Unit -------- 9371438016 -------- 9371438016 -------- 9703173035
240 Remote Control Unit 9703173028 -------- 9703173028 -------- 9703173042 -------244 Pipe Cover 9362748001 9362748001 9362748001 9362748001 9362748001 9362748001
245 Cable Clamp 313714181904 313714181904 313714181904 313714181904 313714181904 313714181904
337-1 Reinforcement (Eva.)-A 9362749008 9362749008 9362749008 9362749008 9362749008 9362749008
337-2 Reinforcement (Eva.)-B 9362750004 9362750004 9362750004 9362750004 9362750004 9362750004
338 Motor Holder 9362765008 9362765008 9362765008 9362765008 9362765008 9362765008
381 Locking Spacer 313209391506 313209391506 313209391506 313209391506 313209391506 313209391506
457 Reinforcement (Drain Pan) 9362757003 9362757003 9362757003 9362757003 9362757003 9362757003
460-1 Pump Cover-A 9362775007 9362775007 9362775007 9362775007 9362775007 9362775007
460-2 Pump Cover-B 9362776004 9362776004 9362776004 9362776004 9362776004 9362776004
462 Top Cover Plate 9362806015 9362806015 9362806015 9362806015 9362806015 9362806015
464 Cabinet-A 9362800013 9362800013 9362800013 9362800013 9362800013 9362800013
465 Cabinet-B 9362801010 9362801010 9362801010 9362801010 9362801010 9362801010
467 Drain Port 9362786003 9362786003 9362786003 9362786003 9362786003 9362786003
468 Special Nut-A (Large) 313005446653 313005446653 313005446653 313005446653 313005446653 313005446653
469 Special Nut-B (Small) 313005446759 313005446759 313005446759 313005446759 313005446759 313005446759
472-1 Grille Reinforcement-T-A 9362738002 9362738002 9362738002 9362738002 9362738002 9362738002
472-2 Grille Reinforcement-T-B 9362739009 9362739009 9362739009 9362739009 9362739009 9362739009
472-3 Grille Reinforcement-T-C 9362740005 9362740005 9362740005 9362740005 9362740005 9362740005
472-4 Grille Reinforcement-T-D 9362741002 9362741002 9362741002 9362741002 9362741002 9362741002
472-5 Grille Reinforcement-T-E 9362742009 9362742009 9362742009 9362742009 9362742009 9362742009
474 Turbo Fan Assy 9362803014 9362803014 9362803014 9362803014 9362803014 9362803014
476-2 Special Washer 9362756006 9362756006 9362756006 9362756006 9362756006 9362756006
477 Bellmouth (B) 9362774000 9362774000 9362774000 9362774000 9362774000 9362774000
479 Float Switch 9703285004 9703285004 9703285004 9703285004 9703285004 9703285004
481 Insulation (Grille)-A 9362780001 9362780001 9362780001 9362780001 9362780001 9362780001
481-1 Insulation (Grille)-B 9362781008 9362781008 9362781008 9362781008 9362781008 9362781008
482 Pump Unit 9703125010 9703125010 9703125010 9703125010 9703125010 9703125010
484 Hook 9362736008 9362736008 9362736008 9362736008 9362736008 9362736008
487 Grille Hinge Wire 9362754002 9362754002 9362754002 9362754002 9362754002 9362754002
Ref.
No.
Description
Ord.
Q'ty
Part No.
AUG54ALB3W
AUG54ALB3W
AUG54RLB3W
AUY54ALB3W
AUY54RLB3W
AUT54ALB3W
AUT54RLB3W
2003.06.11
- 22 -
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
INDOOR UNIT (Continued)
AUT54RLB3WAUG54RLB3W AUY54ALB3W AUY54RLB3W AUT54ALB3W
488 Drain Pan Plug 313005174654 313005174654 313005174654 313005174654 313005174654 313005174654
514 Control Box Cover 9362763004 9362763004 9362763004 9362763004 9362763004 9362763004
522 Joint Gear 9362772006 9362772006 9362772006 9362772006 9362772006 9362772006
540 By-pass Pipe-B 9363152005 9363152005 9363152005 9363152005 9363152005 9363152005
541 Terminal Plate 9363642001 9363642001 9363642001 9363642001 9363642001 9363642001
542 Panel Base 9362759014 9362759014 9362759014 9362759014 9362759014 9362759014
543 Panel Frame Holder 9362761017 9362761017 9362761017 9362761017 9362761017 9362761017
544 Panel Base Holder 9362760010 9362760010 9362760010 9362760010 9362760010 9362760010
545 Panel Frame 9362758017 9362758017 9362758017 9362758017 9362758017 9362758017
563 Insulation (Inner Box) 9362768009 9362768009 9362768009 9362768009 9362768009 9362768009
564 By-pass Pipe-A Assy 9363151008 9363151008 9363151008 9363151008 9363151008 9363151008
565 Evaporator Holder Assy 9362802017 9362802017 9362802017 9362802017 9362802017 9362802017
568 Noise Insulation 9363143003 9363143003 9363143003 9363143003 9363143003 9363143003
628 Locking Spacer-B 313005446558 313005446558 313005446558 313005446558 313005446558 313005446558
652-1 Thermistor Holder Pipe 313806262805 313806262805 313806262805 313806262805 313806262805 313806262805
690 Joint-A 9362773003 9362773003 9362773003 9362773003 9362773003 9362773003
692 Joint Shaft 9362771009 9362771009 9362771009 9362771009 9362771009 9362771009
705 Louver 9362769013 9362769013 9362769013 9362769013 9362769013 9362769013
710 Intake Grille 9362767019 9362767019 9362767019 9362767019 9362767019 9362767019
735 Distributor Assy 9363154009 9364795003 9363154009 9364795003 9363154009 9364795003
777-1 Grille Hook-A 9362779012 9362779012 9362779012 9362779012 9362779012 9362779012
777-2 Grille Hook-B 9362778015 9362778015 9362778015 9362778015 9362778015 9362778015
798 Pump Hook Bracket 9362753005 9362753005 9362753005 9362753005 9362753005 9362753005
803 Cabinet-D 9362734004 9362734004 9362734004 9362734004 9362734004 9362734004
814 Cabinet-C 9362733007 9362733007 9362733007 9362733007 9362733007 9362733007
815-1 Terminal 3P 9306489069 9306489069 9306489069 9306489069 9306489069 9306489069
815-2 Terminal 3P 9703345012 9703345012 9703345012 9703345012 9703345012 9703345012
834-1 Wire Cover-A 9362789004 9362789004 9362789004 9362789004 9362789004 9362789004
834-2 Wire Cover-B 9362788007 9362788007 9362788007 9362788007 9362788007 9362788007
835 Cushion Rubber (Pump) 9362777001 9362777001 9362777001 9362777001 9362777001 9362777001
847 Louver Supporter 9362770019 9362770019 9362770019 9362770019 9362770019 9362770019
858 Grille Spring 9362755009 9362755009 9362755009 9362755009 9362755009 9362755009
875 Filter PCB Assy -------- 9704561091 -------- 9704561091 -------- 9704561091
875 Filter PCB Assy 9704561107 -------- 9704561107 -------- 9704561107 -------876-2 Step Motor 9360307019 9360307019 9360307019 9360307019 9360307019 9360307019
897 Coupling Pipe-A Assy 9363153002 9363153002 9363153002 9363153002 9363153002 9363153002
898 Coupling Pipe-B Assy 9363155006 9364806006 9363155006 9364806006 9363155006 9364806006
982-1 Cord Clamp 9356857009 9356857009 9356857009 9356857009 9356857009 9356857009
Ref.
No.
Description
Ord.
Q'ty
Part No.
AUG54ALB3W
AUG54ALB3W
AUG54RLB3W
AUY54ALB3W
AUY54RLB3W
AUT54ALB3W
AUT54RLB3W
2003.06.11
34 Capacitor (Fan Motor) 9703306068 9703306068
47-1 Rubber (Discha. Pipe) 313194159807 313194159807
61 Decoration Plate "GENERAL" 9365276013 9365652008
67 Rubber (Vibration Proof) 9362783002 9362783002
71 Grille Hook Holder 9362782005 9362782005
93 Filter 9362766005 9362766005
117-3 Hex. Nut w / Spring Washer 301721180114 301721180114
122 Louver Support Holder 9362799003 9362799003
127 Drain Hose 9362784009 9362784009
138 Separate Wall 9362737005 9362737005
143-3 Clamp NK-6N 9305657001 9305657001
146-1 Evaporator-A Assy 9363149005 9363149005
146-2 Evaporator-B Assy 9363150001 9363150001
155 Special Nut M6 9307615016 9307615016
160 Drain Pan Assy 9362804004 9362804004
164 Fan Motor Assy-IN 9600878019 9600878019
168 Cabinet-E 9362735001 9362735001
184-1 Thermo. Spring-A 313728262708 313728262708
187 Clamp No. 1219 313361271706 313361271706
195 Clamp SKB-100 313361275805 313361275805
196-2 Clamp SKB-150 313035356905 313035356905
197 Wind Guide Board 9363117004 9363117004
223 Control Box 9362762007 9362762007
226 Motor Gear 9362764001 9362764001
234 Thermistor Assy-Room 9703299025 9703299025
235 Thermistor Assy-Pipe 9703297014 9703297014
236 Controller PCB Assy 9704557308 9704557308
240 Remote Control Unit 9359913047 9359913047
244 Pipe Cover 9362748001 9362748001
337-1 Reinforcement (Eva.)-A 9362749008 9362749008
337-2 Reinforcement (Eva.)-B 9362750004 9362750004
338 Motor Holder 9362765008 9362765008
381 Locking Spacer 313209391506 313209391506
385 Indicator PCB Assy 9704017017 9704017017
457 Reinforcement (Drain Pan) 9362757003 9362757003
460-1 Pump Cover-A 9362775007 9362775007
460-2 Pump Cover-B 9362776004 9362776004
462 Top Cover Plate 9362806015 9362806015
464 Cabinet-A 9362800013 9362800013
465 Cabinet-B 9362801010 9362801010
467 Drain Port 9362786003 9362786003
468 Special Nut-A (Large) 313005446653 313005446653
469 Special Nut-B (Small) 313005446759 313005446759
472-1 Grille Reinforcement-A 9362738002 9362738002
472-2 Grille Reinforcement-B 9362739009 9362739009
472-3 Grille Reinforcement-C 9362740005 9362740005
472-4 Grille Reinforcement-D 9362741002 9362741002
472-5 Grille Reinforcement-E 9362742009 9362742009
474 Turbo Fan Assy 9362803014 9362803014
476-2 Special Washer 9362756006 9362756006
477 Bellmouth (B) 9362774000 9362774000
479 Float Switch 9703285004 9703285004
481 Insulation (Grille)-A 9362780001 9362780001
481-1 Insulation (Grille)-B 9362781008 9362781008
482 Pump Unit 9703125010 9703125010
484 Hook 9362736008 9362736008
487 Grille Hinge Wire 9362754002 9362754002
488 Drain Pan Plug 313005174654 313005174654
514 Control Box Cover 9362763004 9362763004
522 Joint Gear 9362772006 9362772006
540 By-pass Pipe-B 9363152005 9363152005
541 Terminal Plate 9363642001 9363642001
542 Panel Base 9362759014 9362759014
543 Panel Frame Holder 9362761017 9362761017
544 Panel Base Holder 9362760010 9362760010
545 Panel Frame 9362758017 9362758017
563 Insulation (Inner Box) 9362768009 9362768009
564 By-pass Pipe-A Assy 9363151008 9363151008
565 Evaporator Holder Assy 9362802017 9362802017
568 Noise Insulation 9363143003 9363143003
628 Locking Spacer-B 313005446558 313005446558
652-1 Thermistor Holder Pipe 313806262805 313806262805
690 Joint-A 9362773003 9362773003
692 Joint Shaft 9362771009 9362771009
705 Louver 9362769013 9362769013
710 Intake Grille 9362767019 9362767019
735 Distributor Assy 9363154009 9363154009
743 Remote Control Unit Holder Case 9359955016 9359955016
777-1 Grille Hook-A 9362779012 9362779012
777-2 Grille Hook-B 9362778015 9362778015
798 Pump Hook Bracket 9362753005 9362753005
803 Cabinet-D 9362734004 9362734004
814 Cabinet-C 9362733007 9362733007
815-1 Terminal 3P 9306489069 9306489069
834-1 Wire Cover-A 9362789004 9362789004
834-2 Wire Cover-B 9362788007 9362788007
835 Cushion Rubber (Pump) 9362777001 9362777001
847 Louver Supporter 9362770019 9362770019
858 Grille Spring 9362755009 9362755009
868 Holder (PCB) 9364855004 9364855004
875 Filter PCB Assy 9704561107 9704561107
876-2 Step Motor 9360307019 9360307019
897 Coupling Pipe-A Assy 9363153002 9363153002
898 Coupling Pipe-B Assy 9363155006 9363155006
982-1 Cord Clamp 9356857009 9356857009
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
INDOOR UNIT
Ref.
No.
Description
Ord.
Q'ty
Part No.
Ref.
No.
Description
Ord.
Q'ty
Part No.
AUY54AGB3WAUG54AGB3W AUY54AGB3WAUG54AGB3W
AUG54AGB3W
AUY54AGB3W
- 23 -
2003.06.11
- 24 -
AOG54APA3L AOY54APA3L AOT54APA3L
2 Fan Cover 9352159015 9352159015 9365905012
4 Emblem-Rear 313791088308 9351355005 9351355005
5 Cabinet-A, Painted 9352146015 9352146015 9352146015
6 Cabinet-C, Painted 9352149016 9352149016 9352149016
9 Cabinet-B, Painted 9352147012 9352147012 9352147012
12 Base Assy, Painted 9352136016 9352136016 9352136016
15 Dryer 9368111014 9368111014 9368111014
16-1 Condenser-A Assy 9369544002 9369544002 9369544002
16-2 Condenser-B Assy 9369545009 9369545009 9369545009
18 Suction Pipe Assy 9364514000 9364514000 9364514000
19 Capillary Tube 9370740011 9370740011 9370740011
20 Discharge Pipe Assy 9370950038 9370950038 9370950038
26 Compressor Cover-A 9370774030 9370774030 9370774030
29 Separate Wall 9355277013 9355277013 9355277013
30 Blower Cover, Painted 9352151019 9352151019 9352151019
32 Control Box Metal 9352134012 9352134012 9352134012
34 Capacitor (Fan Motor) 9357965024 9357965024 9357965024
36 Cord Holder Metal 9356934007 9356934007 9356934007
39 Propeller Fan Assy 9366378013 9366378013 9366378013
41 Fan Motor Assy-Out 9600832028 9600832028 9600832028
45 Bracket (Motor) Assy 9368108007 9368108007 9368108007
46-3 Compressor-C Assy 9370067002 9370067002 9370067002
47-2 Rubber (Discharge Pipe) 313185159802 313185159802 313185159802
48 Bracket (Coupler) Assy 9355281010 9355281010 9355281010
55 Special Nut M8 (For Comp.) 9355091008 9355091008 9355091008
107 Rubber Seat-A (For Comp.) 9364084008 9364084008 9364084008
108 Sleeve-A (For Comp.) 9364085005 9364085005 9364085005
109 Terminal Cover (For Comp.) 9364087009 9364087009 9364087009
111 Terminal Packing 9364086002 9364086002 9364086002
185 Rubber Bushing 313005066051 313005066051 313005066051
259 Muffler 9368082000 9368082000 9368082000
320 Wire Clamp Metal 313483219905 313483219905 313483219905
333-2 Accumulator (B) 9362425001 9362425001 9362425001
334 Suction Pipe-B 9352287008 9352287008 9352287008
373 Grip 9352157004 9352157004 9352157004
401 Terminal-2P 9701971015 9701971015 9701971015
405 Clamp No.1763 313816345304 313816345304 313816345304
407 Clamp (Cable) No.1259 313739340109 313739340109 313739340109
450 Discharge Pipe-A 9370951059 9370951059 9370951059
527 Protection Net 9352163012 9352163012 9352163012
549 Thermistor-Outdoor 9352426001 9352426001 9352426001
620 Inlet Pipe (Cond.) Assy 9353183002 9353183002 9353183002
646 Compressor Cover-B 9370774047 9370774047 9370774047
653-1 Bolt (Fan Motor Fixing) 9385089020 9385089020 9385089020
734 Cabinet Top Plate 9352161018 9352161018 9352161018
735 Distributor Assy 9353187000 9353187000 9353187000
788 Thermistor-Overheat 9354061002 9354061002 9354061002
790-1 Belt Heater-A 9361140042 9361140042 9361140042
791 Magnetic Relay 9363277005 9363277005 9363277005
803 Cabinet-D, Painted 9352150012 9352150012 9352150012
805 Blower Cover Corner 9352160011 9352160011 ---------
808 Inlet Pipe (Accumulator) 9352285004 9352285004 9352285004
809 Ball Valve-A 9357976006 9357976006 9357976006
810 Ball Valve-B 9357982007 9357982007 9357982007
813 Cabinet Hook 9352148002 9352148002 9352148002
815 Terminal-8P 9363276022 9363276022 9363276022
816 Wire Clamp Metal 313584219902 313584219902 313584219902
817 Thermostat Fixture 9352164019 9352164019 9352164019
819 Valve-A Coupl. Pipe 9370739022 9370739022 9370739022
821 Joint Pipe Assy 9352284007 9352284007 9352284007
822 Fan Cover Fixture-A 9352158018 9352158018 ---------
823-2 Fuse Holder 0500063024 0500063024 0500063024
824-4 Fuse 0600222529 0600222529 0600222529
826 Condensing Pipe-B 9353215000 9353215000 9353215000
863 Joint Pipe (Capillary)-B 9353206008 9353206008 9353206008
880-1 Network 9700987017 9700987017 9700987017
Ref.
No.
Description
Ord.
Q'ty
Part No.
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
AOG54APA3L
AOY54APA3L
AOT54APA3L
AOG54RPA3L AOY54RPA3L AOT54RPA3L
2003.06.11
- 25 -
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
AOG54RPA3L
AOY54RPA3L
AOT54RPA3L
2 Fan Cover 9352159015 9352159015 9365905012
4 Emblem-Rear 313791088308 9351355005 9351355005
5 Cabinet-A, Painted 9352146015 9352146015 9352146015
6 Cabinet-C, Painted 9352149016 9352149016 9352149016
9 Cabinet-B, Painted 9352147012 9352147012 9352147012
12 Base Assy, Painted 9352136016 9352136016 9352136016
15 Dryer 9368111014 9368111014 9368111014
16-1 Condenser-A Assy 9355338011 9355338011 9355338011
16-2 Condenser-B Assy 9353363008 9353363008 9353363008
18 Suction Pipe Assy 9364514000 9364514000 9364514000
21 Discharge Pipe-B 9368331009 9368331009 9368331009
26 Compressor Cover-A 9370774030 9370774030 9370774030
29 Separate Wall Assy 9355277013 9355277013 9355277013
30 Blower Cover, Painted 9352151019 9352151019 9352151019
32 Control Box Metal 9352134012 9352134012 9352134012
36 Cord Holder Metal 9356934007 9356934007 9356934007
39 Propeller Fan Assy 9366378013 9366378013 9366378013
41 Fan Motor Assy-Out 9600832028 9600832028 9600832028
45 Bracket (Motor) Assy 9368108007 9368108007 9368108007
46-3 Compressor-C Assy 9370067002 9370067002 9370067002
48 Bracket (Coupler) Assy 9355281010 9355281010 9355281010
55 Special Nut M8 (For Comp.) 9355091008 9355091008 9355091008
64 Capacitor (Fan Motor) 9357965024 9357965024 9357965024
107 Rubber Seat-A (For Comp.) 9364084008 9364084008 9364084008
108 Sleeve-A (For Comp.) 9364085005 9364085005 9364085005
109 Terminal Cover (For Comp.) 9364087009 9364087009 9364087009
111 Terminal Packing 9364086002 9364086002 9364086002
182 Clamp No.249 313361271505 313361271505 313361271505
184-1 Thermo. Spring-A 313728262708 313728262708 313728262708
185 Rubber Bushing 313005066051 313005066051 313005066051
236 Controller PCB Assy 9704764089 9704764089 9704764089
272 Strainer Assy 9354139008 9354139008 9354139008
330 Inlet Pipe (Cond.)-A 9353310002 9353310002 9353310002
333 Accumulator 9350363018 9350363018 9350363018
333-2 Accumulator Assy (B) 9362425001 9362425001 9362425001
334 Suction Pipe-B 9352287008 9352287008 9352287008
343 Solenoid Coil 9359616108 9359616108 9359616108
344-2 4-Way Valve 9353532008 9353532008 9353532008
354 Pressure Switch 9704045003 9704045003 9704045003
373 Grip 9352157004 9352157004 9352157004
381 Locking Spacer 313209391506 313209391506 313209391506
405 Clamp No.1763 313816345304 313816345304 313816345304
407 Clamp (Cable) No.1259 313739340109 313739340109 313739340109
450 Discharge Pipe-A 9368338008 9368338008 9368338008
527 Protection Net 9352163012 9352163012 9352163012
575 Condensing Pipe-C 9363460001 9363460001 9363460001
620 Inlet Pipe (Cond.) Assy 9353183002 9353183002 9353183002
628 Locking Spacer 313005446558 313005446558 313005446558
646 Compressor Cover-B 9370774047 9370774047 9370774047
653-1 Bolt (Fan Motor Fixing) 9385089020 9385089020 9385089020
678 Bracket (Thermistor) 313557406106 313557406106 313557406106
734 Cabinet Top Plate 9352161018 9352161018 9352161018
735 Distributor Assy 9353187000 9353187000 9353187000
790-1 Belt Heater-A 9361140042 9361140042 9361140042
791 Magnetic Relay 9363277005 9363277005 9363277005
803 Cabinet-D, Painted 9352150012 9352150012 9352150012
805 Blower Cover Corner 9352160011 9352160011 -------808 Inlet Pipe (Accumulator)-A 9363458008 9363458008 9363458008
809 Ball Valve-A 9357976006 9357976006 9357976006
810 Ball Valve-B 9357982006 9357982006 9357982006
Ord.
Q'ty
Description
Ord.
Q'ty
Part No.
AOG54RPA3L AOY54RPA3L AOT54RPA3L
2003.06.11
- 26 -
AOG54RPA3L
AOY54RPA3L
AOT54RPA3L
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT (Continued)
813 Cabinet Hook 9352148002 9352148002 9352148002
815-2 Terminal 8P 9363276022 9363276022 9363276022
816 Wire Clamp Metal 313584219902 313584219902 313584219902
819 Valve-A Coupl. Pipe 9363457001 9363457001 9363457001
821 Joint Pipe (Valve-B) 9353307002 9353307002 9353307002
822 Fan Cover Fixture-A 9352158018 9352158018 -------825 Expansion Valve Assy 9370947021 9370947021 9370947021
826 Condensing Pipe-B 9353215000 9353215000 9353215000
857 Inlet Pipe (Accumulator)-B 9363459005 9363459005 9363459005
862 Valve-B Coupl. Pipe 9353309006 9353309006 9353309006
880-1 Network 9700987017 9700987017 9700987017
918 Thermistor Assy 9900129019 9900129019 9900129019
919 Expansion Valve Coil 9363467017 9363467017 9363467017
Ord.
Q'ty
Description
Ord.
Q'ty
Part No.
2003.06.11
- 27 -
Name and Shape
Part No.
AUG54AGB3W, AUY54AGB3W
9359913047
9352766015
9359955016
313005446653
9350716029
INDOOR UNIT ACCESSORIES (AUG54AGB3W, AUY54AGB3W)
313005446759
0600185534
9363173000
301141533125
9363265002
9363168006
Remote control unit
Battery (penlight)
Special nut A
(large flange)
Special nut B
(small flange)
Template
Blower cover insulation
Hook wire
STANDARD ACCESSORIES
Remote control unit holder
Coupler heat insulation
Tapping screw
(3 x 12)
2003.06.11

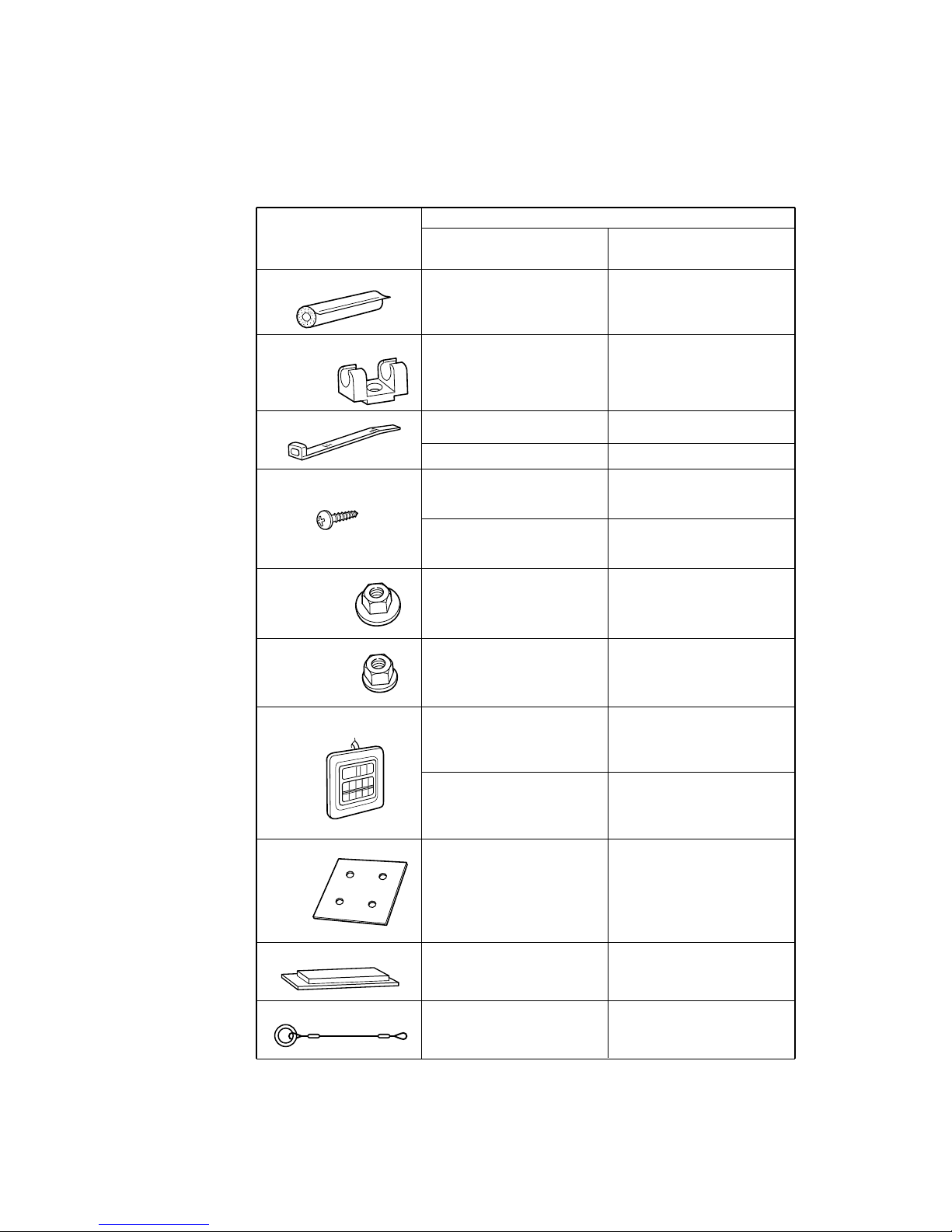

Name and Shape
Part No.
AUG54ALB3W, AUY54ALB3W AUT54ALB3W
AUG54RLB3W, AUY54RLB3W AUT54RLB3W
Screw
(A) 301141134166
For installing the
mounting bracket
(B) 301141153027
For installing the cord
clamp
9350716029
9352766015
313714181904
313035356905 (Large)
313361275805 (Small)
313005446653
313005446759
(Cooling model)
9703173028
(Cooling & Heating model)
9371438016
(Cooling model)
9703173042
(Cooling & Heating model)
9703173035
9363173000
1 each
}
INDOOR UNIT ACCESSORIES
Binder
Coupler heat insulation
Remote control unit
cord clamp
Special nut A
(large flange)
Special nut B
(small flange)
Remote control unit
Template
9363265002
Blower cover insulation
9363168006
(A) 301141134166
For installing the
mounting bracket
(B) 301141153027
For installing the cord
clamp
9350716029
9352766015
313714181904
313035356905 (Large)
313361275805 (Small)
313005446653
313005446759
9363173000
1 each
}
9363265002
9363168006
Hook wire
AUG54ALB3W, AUY54ALB3W, AUT54ALB3W
AUG54RLB3W, AUY54RLB3W, AUT54RLB3W
()
- 28 -
2003.06.11
Part No.
AOG54APA3L AOG54RPA3L AOT54RPA3L
AOY54APA3L AOY54RPA3L
AOT54APA3L
-------
-------
-------
313013042915
313166024302
313728031005
-------
-------
-------
Cap (drain)
Pipe (drain)
Flexible tube
- 29 -
Name and Shape
9352173011
9355292016
9352436000
301463040100
313035356905
303020200114
313005074759
OUTDOOR UNIT ACCESSORIES
9352173011
9355292016
9352436000
301463040100
313035356905
303020200114
313005074759
9352173011
9355292016
9352436000
301463040100
313035356905
303020200114
313005074759
Power cap
Auxiliary pipe assembly
Edge cover
Tapping screw
Binder
Putty
Coupler heat insulation
AOG54APA3L, AOY54APA3L, AOT54APA3L
AOG54RPA3L, AOY54RPA3L, AOT54RPA3L
()
2003.06.11
March 2003 Printed in Japan0303J2198
Loading...
