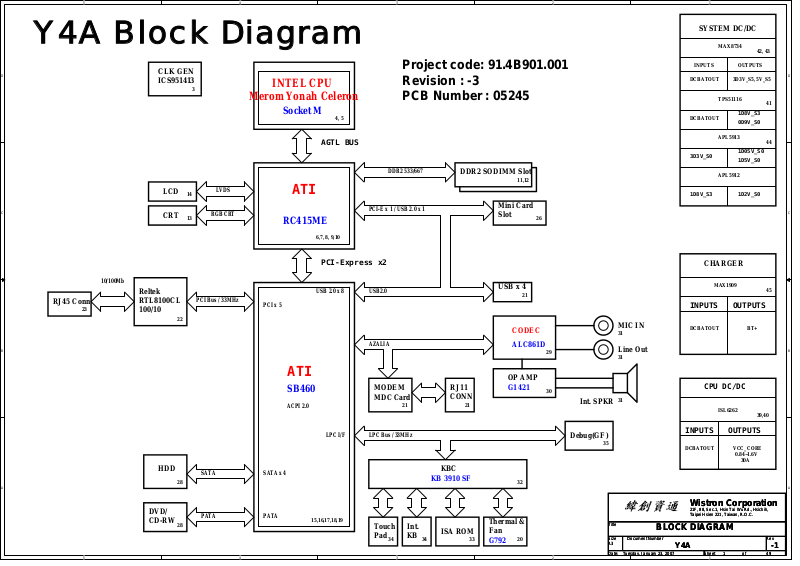

SYSTEM DC/DC
Y4A Block Diagram
D D
CLK GEN
ICS951413
3
INTEL CPU
Merom Yonah Celeron
Socket M
LCD
14
C C
CRT
13
LVDS
RGB CRT
ATI
RC415ME
4, 5
AGTL BUS
PCI-E x 1 / USB 2.0 x 1
6,7, 8, 9,10
Project code: 91.4B901.001
Revision : -3
PCB Number : 05245
DDR2 533/667
DDR2 SODIMM Slot
11,12
Mini Card
Slot
DCBATOUT 3D3V_S5, 5V_S5
DCBATOUT
3D3V_S0
1D8V_S3 1D2V_S0
26
MAX8734
INPUTS OUTPUTS
TPS51116
1D8V_S3
0D9V_S0
APL5913
1D05V_S0
1D5V_S0
APL5912
42, 43
41
44
PCI-Express x2
10/100Mb
Reltek
22
PCI Bus / 33MHz
PCI x 5
RJ45 Conn
B B
23
RTL8100CL
100/10
USB 2.0 x 8
USB2.0
AZALIA
ATI
SB460
ACPI 2.0
HDD
A A
DVD/
CD-RW
5
SATA
28
PATA
28
SATA x 4
PATA
4
15,16,17,18,19
MDC Card
LPC Bus / 33MHzLPC I/F
Touch
Pad
34
21 21
Int.
KB
3
RJ11
CONN
KBC
KB 3910 SF
ISA ROM
3334
USB x 4
CODEC
ALC861D
OP AMP
G1421MODEM
Thermal &
Fan
G792
21
MIC IN
31
29
30
Int. SPKR
Debug(GF)
32
20
2
Line Out
31
31
35
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
Y4A -1
Y4A -1
Y4A -1
CHARGER
MAX1909
OUTPUTSINPUTS
DCBATOUT
BT+
CPU DC/DC
ISL6262
1
OUTPUTS
149Tuesday, January 23, 2007
149Tuesday, January 23, 2007
149Tuesday, January 23, 2007
INPUTS
DCBATOUT
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
VCC_CORE
0.84~1.6V
30A
of
of
of
39,40
45
Page 2
5
4
3
2
1
HISTORY
PCB STACK
TOP
Y4A PCI Routing
D D
RTL8100CL
R5C832
IRQ
INT_PIRQH#
INT_PIRQE#
INT_PIRQG#
REQ/GNTIDSEL
PCI_AD23
PCI_AD17 1
PCI_GNT#2/REQ#2
PCI_GNT#0/REQ#0
Device No.
7
REMARK
INTA# CARD READER
INTB# IEEE1394
VCC
IN1
IN2
GND
INT_SERIRQ
BOTTOM
POWER PLANE
CPU
C C
VCC_CORE__S0,
1D5V_S0,
1D05V_S0
NB
1D2V_S0,
1D8V_S0,
1D05_S0
SB
1D8V_S0,
3D3V_SB_S0,
3D3V_SB_S5,
5V_S0
B B
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
Taipei Hsien 221, Taiwan, R.O.C.
HISTORY
HISTORY
HISTORY
Y4A -1
Y4A -1
Y4A -1
249Tuesday, January 23, 2007
249Tuesday, January 23, 2007
249Tuesday, January 23, 2007
1
Page 3
A
EXTERNAL CLOCK GENERATOR
-1
3D3V_S0
R366
R366
4 4
3 3
2 2
1 1
1 2
3D3R3J-L-GP
3D3R3J-L-GP
3D3V_S0
R346
R346
1 2
0R0603-PAD
0R0603-PAD
C438
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
SBLINK_CLKP_R
SBLINK_CLKN_R
NBSRC_CLKP_R
NBSRC_CLKN_R
SBSRC_CLKN_R
SBSRC_CLKP_R SBSRC_CLKP
GPP_CLK0N_R
GPP_CLK0P_R
C438
RN16
RN16
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
RN14
RN14
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
RN23
RN23
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
RN24
RN24
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
12
12
A
CLK_VDD48
C444
C444
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
CLK_VDDREF
MINI CARD CLK
SBLINK_CLKP
4
SBLINK_CLKN
NBSRC_CLKP
4
NBSRC_CLKN
SBSRC_CLKN
4
SBSRC_CLKP
GPP_CLK0N
4
GPP_CLK0P
3D3V_S0
SC4D7U10V6KX-1GP
SC4D7U10V6KX-1GP
GPP_CLK0N_R
GPP_CLK0P_R
SBSRC_CLKN_R
SBSRC_CLKP_R
SBLINK_CLKN_R
SBLINK_CLKP_R
NBSRC_CLKP_R
NBSRC_CLKN_R
SBLINK_CLKP 8
SBLINK_CLKN 8
NBSRC_CLKP 8
NBSRC_CLKN 8
SBSRC_CLKN 15
SBSRC_CLKP 15
GPP_CLK0N 26
GPP_CLK0P 26
R333
R333
1 2
0R0603-PAD
0R0603-PAD
CLK_VDDA
C427
C427
NB CLK
NB CLK
SB CLK
MINI CARD CLK
12
B
12
U39
U39
39
VDDA
3
VDD48
32
VDDATI
45
VDDCPU
51
VDDPCI
56
VDDREF
35
VDDSRC
21
VDDSRC
14
VDDSRC
13
SRCCLKC7
12
SRCCLKT7
17
SRCCLKC6
16
SRCCLKT6
19
SRCCLKC5
18
SRCCLKT5
23
SRCCLKC4
22
SRCCLKT4
25
SRCCLKC3
24
SRCCLKT3
33
SRCCLKC0
34
SRCCLKT0
27
ATIGCLKT1
28
ATIGCLKC1
30
ATIGCLKT0
29
ATIGCLKC0
ICS951413CGLF
ICS951413CGLF
B
C434
C434
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
TEST_SEL/REF2
CK410#/PCICLK0
VTT_PWRGD#/PD
SBLINK_CLKP
SBLINK_CLKN
NBSRC_CLKP
NBSRC_CLKN
SBSRC_CLKN
GPP_CLK0N
GPP_CLK0P
IREF
SCLK
SDATA
FS_C
CLKREQA#
CLKREQB#
USB_48MHZ
FS_B/REF1
FS_A/REF0
CPU_STOP#
CPUCLKT2_ITP
CPUCLKC2_ITP
CPUCLKT1
CPUCLKC1
CPUCLKT0
CPUCLKC0
GNDSRC
GNDSRC
GNDSRC
GNDSRC
GNDPCI
GNDCPU
GNDATI
GNDA
GND
GND
1
2 3
1
2 3
1
2 3
1
2 3
IREF
2
X2
1
X1
37
7
8
9
10
11
4
53
54
52
50
6
48
41
40
43
42
47
46
36
26
20
15
49
44
31
38
55
5
RN17
RN17
SRN49D9F-GP
SRN49D9F-GP
RN15
RN15
SRN49D9F-GP
SRN49D9F-GP
RN26
RN26
SRN49D9F-GP
SRN49D9F-GP
RN27
RN27
SRN49D9F-GP
SRN49D9F-GP
R341
R341
1 2
475R2F-L1-GP
475R2F-L1-GP
CLKGEN_XOUT
CLKGEN_XIN
IREF
SMBCLK_SB
SMBDAT_SB
FS2
CLK_48M_USB_R
FS1
FS0
TEST_SEL
CKGEN_CPU_STP#
NBCLK_EXT_R
NBCLK#_EXT_R
CPUCLK_EXT_R
CPUCLK#_EXT_R
4
4
4
4
C
12
R367
R367
1MR3J-L-GP
1MR3J-L-GP
DY
DY
SMBCLK_SB 11,18,26
SMBDAT_SB 11,18,26
R365 33R2F-3-GPR365 33R2F-3-GP
1 2
R344 33R2F-3-GPR344 33R2F-3-GP
1 2
R347 33R2F-3-GPR347 33R2F-3-GP
1 2
R364
R364
1 2
0R0402-PAD
0R0402-PAD
1 2
R342 4K7R2J-2-GPR342 4K7R2J-2-GP
12
C436
C436
SC33P50V2JN-3GP
SC33P50V2JN-3GP
R343
TEST_SEL
BSEL19
BSEL09
C
R343
1 2
0R2J-2-GP
0R2J-2-GP
DY
DY
4K7R2J-2-GP
4K7R2J-2-GP
4K7R2J-2-GP
4K7R2J-2-GP
BSEL0 FSA
SB
X4
X4
X-14D31818M-30GP
X-14D31818M-30GP
1 2
CLK_48M_USB
NB_OSCIN
SB_OSCIN
CLK_EN#CKGENCLK_EN#
CPU_STP# 15
3D3V_S0 1D05V_S0
12
R334
R334
CH3904PT-GP
CH3904PT-GP
3D3V_S0 1D05V_S0
12
R357
R357
CH3904PT-GP
CH3904PT-GP
C439
C439
12
SC27P50V2JN-2-GP
SC27P50V2JN-2-GP
C445
C445
12
SC27P50V2JN-2-GP
SC27P50V2JN-2-GP
CLK_48M_USB 18
NB_OSCIN 9
SB_OSCIN 18
CLK_EN# 39
12
R355
R355
4K7R2J-2-GP
4K7R2J-2-GP
CBE
Q21
Q21
12
R356
R356
4K7R2J-2-GP
4K7R2J-2-GP
CBE
Q22
Q22
D
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C435
C443
C443
C435
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
Place close to clock generator
C437
C437
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
Y4B
1D05V_S0
1 2
R354 1KR2J-1-GP
R354 1KR2J-1-GP
12
R353 0R2J-2-GP
R353 0R2J-2-GP
1 2
R348 1KR2J-1-GP
R348 1KR2J-1-GP
R351
R351
0R2J-2-GP
0R2J-2-GP
R376
R376
1 2
1KR2J-1-GP
1KR2J-1-GP
R377
R377
12
0R2J-2-GP
0R2J-2-GP
SB
FSBBSEL1
FSC FSB FSA CPU SRC PCI
1 0 1 100 100 33
0 0 1 133 100 33
0 1 1 166 100 33
D
E
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C433
C433
C442
C442
12
12
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
C432
C432
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C440
C440
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
C446
C446
C441
C441
12
12
DY
DY
SB
RN21
CPUCLK_EXT_R
CPUCLK#_EXT_R
NBCLK_EXT_R
NBCLK#_EXT_R
Y4B_DY
Y4B_DY
DY
DY
DY
DY
Y4B_DY
Y4B_DY
12
DY
DY
Y4B_DY
Y4B_DY
RN21
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
RN19
RN19
1
2 3
SRN33J-5-GP-U
SRN33J-5-GP-U
R352
R352
FSA
0R2J-2-GP
0R2J-2-GP
R349
R349
0R2J-2-GP
0R2J-2-GP
R374
R374
1 2
4K7R2J-2-GP
4K7R2J-2-GP
Y4B_DY
Y4B_DY
4
1
23
RN20
RN20
SRN49D9F-GP
SRN49D9F-GP
4
4
1
23
RN18
RN18
SRN49D9F-GP
SRN49D9F-GP
4
R350
R350
FS0
1 2
12
12
FS1FSB
FS2FSC
4K7R2J-2-GP
4K7R2J-2-GP
R345
R345
1 2
4K7R2J-2-GP
4K7R2J-2-GP
R375
R375
1 2
4K7R2J-2-GP
4K7R2J-2-GP
YONAH FREQUENCY SELECT TABLE(Mhz)
BSEL0
BSEL1
BSEL2
0 0 1
0 1 1
0 1 0
0 0 0
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet of
CLK GENERATOR_ICS951461
CLK GENERATOR_ICS951461
CLK GENERATOR_ICS951461
Y4A
Y4A
Y4A
349Tuesday, January 23, 2007
349Tuesday, January 23, 2007
349Tuesday, January 23, 2007
E
3D3V_S0
CLK_CPU_BCLK 4
CLK_CPU_BCLK# 4
NB_CLK 9
NB_CLK# 9
CPU_SEL0 4
CPU_SEL1 4
CPU_SEL2 4
CPU FREQ
133
166
Reserved
-----
-1
-1
of
of
-1
Page 4
A
H_A#[31..3]6
H_REQ#[4..0]6
U36A
H_A#3
4 4
H_ADSTB#06
3 3
H_ADSTB#16
H_A20M#15
H_FERR#15
H_IGNNE#15
H_STPCLK#15
H_INTR15
H_NMI15
H_SMI#15
2 2
XDP_DBRESET#37
XDP_DBRESET#
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
TP37TPAD30 TP37TPAD30
TP20TPAD30 TP20TPAD30
TP21TPAD30 TP21TPAD30
TP24TPAD30 TP24TPAD30
TP23TPAD30 TP23TPAD30
TP41TPAD30 TP41TPAD30
TP22TPAD30 TP22TPAD30
TP29TPAD30 TP29TPAD30
TP28TPAD30 TP28TPAD30
TP12TPAD30 TP12TPAD30
U36A
J4
A[3]#
L4
A[4]#
M3
A[5]#
K5
A[6]#
M1
A[7]#
N2
A[8]#
J1
A[9]#
N3
A[10]#
P5
A[11]#
P2
A[12]#
L1
A[13]#
P4
A[14]#
P1
A[15]#
R1
A[16]#
L2
ADSTB[0]#
K3
REQ[0]#
H2
REQ[1]#
K2
REQ[2]#
J3
REQ[3]#
L5
REQ[4]#
Y2
A[17]#
U5
A[18]#
R3
A[19]#
W6
A[20]#
U4
A[21]#
Y5
A[22]#
U2
A[23]#
R4
A[24]#
T5
A[25]#
T3
A[26]#
W3
A[27]#
W5
A[28]#
Y4
A[29]#
W2
A[30]#
Y1
A[31]#
V4
ADSTB[1]#
A6
A20M#
A5
FERR#
C4
IGNNE#
D5
STPCLK#
C6
LINT0
B4
LINT1
A3
SMI#
AA1
RSVD[01]
AA4
RSVD[02]
AB2
RSVD[03]
AA3
RSVD[04]
M4
RSVD[05]
N5
RSVD[06]
T2
RSVD[07]
V3
RSVD[08]
B2
RSVD[09]
C3
RSVD[10]
B25
RSVD[11]
BGA479-SKT6-GPU2
BGA479-SKT6-GPU2
62.10079.001
62.10079.001
ADDR GROUP 0
ADDR GROUP 0
ADDR GROUP 1
ADDR GROUP 1
XDP/ITP SIGNALSH CLK
XDP/ITP SIGNALSH CLK
PROCHOT#
THERMDA
THERMDC
THERM
THERM
THERMTRIP#
RESERVED
RESERVED
2nd source: 62.10053.401
1D05V_S0
XDP_TDI
XDP_TMS
XDP_TDO
H_CPURST#
1 1
XDP_DBRESET#
XDP_TCK
XDP_TRST#
R167 150R2F-1-GPR167 150R2F-1-GP
1 2
R165 39D2R2F-L-GPR165 39D2R2F-L-GP
1 2
R166 54D9R2F-L1-GP
R166 54D9R2F-L1-GP
1 2
DY
DY
R134 220R2F-GPR134 220R2F-GP
1 2
220
R148 150R2F-1-GPR148 150R2F-1-GP
1 2
R163 27D4R2F-L1-GPR163 27D4R2F-L1-GP
1 2
R164 680R2F-GPR164 680R2F-GP
1 2
All place within 2" to CPU
A
3D3V_S0
56R2J-4-GP
56R2J-4-GP
PM_THRMTRIP-A#
ADS#
BNR#
BPRI#
DEFER#
DRDY#
DBSY#
BR0#
IERR#
INIT#
LOCK#
CONTROL
CONTROL
RESET#
RS[0]#
RS[1]#
RS[2]#
TRDY#
HIT#
HITM#
BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#
PRDY#
PREQ#
TCK
TDO
TMS
TRST#
DBR#
BCLK[0]
BCLK[1]
RSVD[12]
RSVD[13]
RSVD[14]
RSVD[15]
RSVD[16]
RSVD[17]
RSVD[18]
RSVD[19]
RSVD[20]
TDI
PROCHOT#
R150
R150
B
H1
E2
G5
H5
F21
E1
F1
D20
B3
H4
B1
F3
F4
G3
G2
G6
E4
AD4
AD3
AD1
AC4
AC2
AC1
AC5
AA6
AB3
AB5
AB6
C20
D21
A24
A25
C7
A22
A21
T22
D2
F6
D3
C1
AF1
D22
C23
C24
1KR2F-3-GP
1KR2F-3-GP
12
B
H_RS#0
H_RS#1
H_RS#2
XDP_BPM#0
XDP_BPM#1
XDP_BPM#2
XDP_BPM#3
XDP_BPM#4
XDP_BPM#5
XDP_TCK
XDP_TDI
XDP_TDO
XDP_TMS
XDP_TRST#
XDP_DBRESET#
PROCHOT#
PM_THRMTRIP-A#
TP14 TPAD30TP14 TPAD30
TP26 TPAD30TP26 TPAD30
TP25 TPAD30TP25 TPAD30
TP27 TPAD30TP27 TPAD30
TP43 TPAD30TP43 TPAD30
TP30 TPAD30TP30 TPAD30
TP16 TPAD30TP16 TPAD30
TP10 TPAD30TP10 TPAD30
TP11 TPAD30TP11 TPAD30
1D05V_S0
R131
R131
E
CH3904PT-GP
CH3904PT-GP
E
CH3904PT-GP
CH3904PT-GP
TP42 TPAD30TP42 TPAD30
H_ADS# 6
H_BNR# 6
H_BPRI# 6
H_DEFER# 6
H_DRDY# 6
H_DBSY# 6
H_BREQ#0 6
H_IERR#
H_HIT# 6
H_HITM# 6
H_THERMDA 20
H_THERMDC 20
12
B
C
Q11
Q11
12
R152
R152
1KR2F-3-GP
1KR2F-3-GP
B
C
Q13
Q13
H_INIT# 15,35
H_LOCK# 6
H_CPURST# 6
H_RS#0 6
H_RS#1 6
H_RS#2 6
H_TRDY# 6
TP18 TPAD30TP18 TPAD30
TP31 TPAD30TP31 TPAD30
TP32 TPAD30TP32 TPAD30
TP19 TPAD30TP19 TPAD30
TP33 TPAD30TP33 TPAD30
TP34 TPAD30TP34 TPAD30
TP35 TPAD30TP35 TPAD30
TP40 TPAD30TP40 TPAD30
TP39 TPAD30TP39 TPAD30
TP38 TPAD30TP38 TPAD30
TP36 TPAD30TP36 TPAD30
TP15 TPAD30TP15 TPAD30
R153
R153
12
0R0402-PAD
0R0402-PAD
CLK_CPU_BCLK 3
CLK_CPU_BCLK# 3
Layout Note:
0.5" max length.
3D3V_S0
12
R130
R130
330R2J-3-GP
330R2J-3-GP
3D3V_S01D05V_S01D05V_S0
12
R151
R151
10KR2J-3-GP
10KR2J-3-GP
1D05V_S0
12
R149
R149
56R2J-4-GP
56R2J-4-GP
Place testpoint on
H_IERR# with a GND
0.1" away
1D05V_S0
12
R129
R129
56R2J-4-GP
56R2J-4-GP
R128
R128
DY
DY
TP17 TPAD30TP17 TPAD30
1D05V_S0
12
12
H_PROCHOT# 18
CPU_THERMTRIP# 18,20
C
H_THERMDA
H_THERMDC
12
0R2J-2-GP
0R2J-2-GP
R123
R123
1KR2F-3-GP
1KR2F-3-GP
R125
R125
2KR2F-3-GP
2KR2F-3-GP
C147
C147
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
H_DPRSTP#
C
12
C188
C188
SC2200P50V2KX-2GP
SC2200P50V2KX-2GP
H_DSTBN#06
H_DSTBP#06
H_DINV#06
CPU_PROCHOT# 39
PM_THRMTRIP#
should connect to
ICH7 and Calistoga
without T-ing
( No stub)
H_DSTBN#16
H_DSTBP#16
H_DINV#16
1 2
CPU_SEL03
CPU_SEL13
CPU_SEL23
1D05V_S0
1 2
C
E
CH3904PT-GP
CH3904PT-GP
CPU_GTLREF0
1KR2F-3-GP
1KR2F-3-GP
R325 51R2F-2-GPR325 51R2F-2-GP
R122
R122
470R2J-2-GP
470R2J-2-GP
Q10
Q10
B
R326
R326
1 2
R124
R124
1 2
470R2J-2-GP
470R2J-2-GP
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
TEST1
12
TEST2
DY
DY
U36B
U36B
E22
D[0]#
F24
D[1]#
E26
D[2]#
H22
D[3]#
F23
D[4]#
G25
D[5]#
E25
D[6]#
E23
D[7]#
K24
D[8]#
G24
D[9]#
J24
D[10]#
J23
D[11]#
H26
D[12]#
F26
D[13]#
K22
D[14]#
H25
D[15]#
H23
DSTBN[0]#
G22
DSTBP[0]#
J26
DINV[0]#
N22
D[16]#
K25
D[17]#
P26
D[18]#
R23
D[19]#
L25
D[20]#
L22
D[21]#
L23
D[22]#
M23
D[23]#
P25
D[24]#
P22
D[25]#
P23
D[26]#
T24
D[27]#
R24
D[28]#
L26
D[29]#
T25
D[30]#
N24
D[31]#
M24
DSTBN[1]#
N25
DSTBP[1]#
M26
DINV[1]#
AD26
GTLREF
C26
TEST1
D25
TEST2
B22
BSEL[0]
B23
BSEL[1]
C21
BSEL[2]
BGA479-SKT6-GPU2
BGA479-SKT6-GPU2
CPU_DPRSLPVRCPU_DPRSLPVRCPU_DPRSLPVRCPU_DPRSLPVRCPU_DPRSLPVRCPU_DPRSLPVR
D
H_D#[63..0] 6
D[32]#
D[33]#
D[34]#
D[35]#
DATA GRP 0 DATA GRP 1
DATA GRP 0 DATA GRP 1
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
DATA GRP 2
DATA GRP 2
D[43]#
D[44]#
D[45]#
D[46]#
D[47]#
DSTBN[2]#
DSTBP[2]#
DINV[2]#
D[48]#
D[49]#
D[50]#
D[51]#
D[52]#
D[53]#
D[54]#
D[55]#
D[56]#
D[57]#
D[58]#
D[59]#
DATA GRP 3
DATA GRP 3
D[60]#
D[61]#
D[62]#
D[63]#
DSTBN[3]#
DSTBP[3]#
DINV[3]#
COMP[0]
MISC
MISC
COMP[1]
COMP[2]
COMP[3]
DPRSTP#
DPSLP#
DPWR#
PWRGOOD
SLP#
PSI#
CPU_DPRSLPVR 15,39
D
E
H_FERR#
H_INIT#
H_A20M#
H_CPUSLP#
H_INTR
H_NMI
H_SMI#
H_STPCLK#
H_IGNNE#
H_PWRGD
H_DPSLP#
H_D#32
AA23
H_D#33
AB24
H_D#34
V24
H_D#35
V26
H_D#36
W25
H_D#37
U23
H_D#38
U25
H_D#39
U22
H_D#40
AB25
H_D#41
W22
H_D#42
Y23
H_D#43
AA26
H_D#44
Y26
H_D#45
Y22
H_D#46
AC26
H_D#47
AA24
W24
Y25
V23
H_D#48
AC22
H_D#49
AC23
H_D#50
AB22
H_D#51
AA21
H_D#52
AB21
H_D#53
AC25
H_D#54
AD20
H_D#55
AE22
H_D#56
AF23
H_D#57
AD24
H_D#58
AE21
H_D#59
AD21
H_D#60
AE25
H_D#61
AF25
H_D#62
AF22
H_D#63
AF26
AD23
AE24
AC20
COMP0
R26
U26
U1
V1
E5
B5
D24
D6
D7
AE6
Layout Note:
Comp0, 2 connect with Zo=27.4 ohm, make trace length
shorter than 0.5" .
Comp1, 3 connect with Zo=55 ohm, make trace length
shorter than 0.5" .
R127 27D4R2F-L1-GPR127 27D4R2F-L1-GP
COMP1
R126 54D9R2F-L1-GPR126 54D9R2F-L1-GP
COMP2
R169 27D4R2F-L1-GPR169 27D4R2F-L1-GP
COMP3
R168 54D9R2F-L1-GPR168 54D9R2F-L1-GP
H_DPRSTP#
<Variant Name>
<Variant Name>
<Variant Name>
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
H_DSTBN#2 6
H_DSTBP#2 6
H_DINV#2 6
H_DSTBN#3 6
H_DSTBP#3 6
H_DINV#3 6
1 2
1 2
1 2
1 2
H_DPRSTP# 39
H_DPSLP# 15
H_DPWR# 6
H_PWRGD 15
H_CPUSLP# 18
PSI# 39
CPU (1 of 2) AGTL
CPU (1 of 2) AGTL
CPU (1 of 2) AGTL
Y4A -1
Y4A -1
Y4A -1
1 2
R180 56R2J-4-GPR180 56R2J-4-GP
1 2
R174 390R2F-2GPR174 390R2F-2GP
1 2
R181 390R2F-2GPR181 390R2F-2GP
1 2
R170 200R2J-L1-GPR170 200R2J-L1-GP
1 2
R179 390R2F-2GPR179 390R2F-2GP
1 2
R176 390R2F-2GPR176 390R2F-2GP
1 2
R177 390R2F-2GPR177 390R2F-2GP
1 2
R173 390R2F-2GPR173 390R2F-2GP
1 2
R175 390R2F-2GPR175 390R2F-2GP
1 2
R171 330R2J-3-GPR171 330R2J-3-GP
1 2
R178 200R2J-L1-GPR178 200R2J-L1-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
449Tuesday, January 23, 2007
449Tuesday, January 23, 2007
449Tuesday, January 23, 2007
E
1D05V_S0
Page 5
A
VCC_CORE_S0
U36C
U36C
A7
VCC[001]
A9
VCC[002]
A10
VCC[003]
A12
VCC[004]
A13
VCC[005]
A15
VCC[006]
A17
VCC[007]
4 4
3 3
2 2
A18
VCC[008]
A20
VCC[009]
B7
VCC[010]
B9
VCC[011]
B10
VCC[012]
B12
VCC[013]
B14
VCC[014]
B15
VCC[015]
B17
VCC[016]
B18
VCC[017]
B20
VCC[018]
C9
VCC[019]
C10
VCC[020]
C12
VCC[021]
C13
VCC[022]
C15
VCC[023]
C17
VCC[024]
C18
VCC[025]
D9
VCC[026]
D10
VCC[027]
D12
VCC[028]
D14
VCC[029]
D15
VCC[030]
D17
VCC[031]
D18
VCC[032]
E7
VCC[033]
E9
VCC[034]
E10
VCC[035]
E12
VCC[036]
E13
VCC[037]
E15
VCC[038]
E17
VCC[039]
E18
VCC[040]
E20
VCC[041]
F7
VCC[042]
F9
VCC[043]
F10
VCC[044]
F12
VCC[045]
F14
VCC[046]
F15
VCC[047]
F17
VCC[048]
F18
VCC[049]
F20
VCC[050]
AA7
VCC[051]
AA9
VCC[052]
AA10
VCC[053]
AA12
VCC[054]
AA13
VCC[055]
AA15
VCC[056]
AA17
VCC[057]
AA18
VCC[058]
AA20
VCC[059]
AB9
VCC[060]
AC10
VCC[061]
AB10
VCC[062]
AB12
VCC[063]
AB14
VCC[064]
AB15
VCC[065]
AB17
VCC[066]
AB18
VCC[067]
BGA479-SKT6-GPU2
BGA479-SKT6-GPU2
VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]
VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]
VCCA
VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]
VCCSENSE
VSSSENSE
AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18
AF20
V6
G21
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21
B26
AD6
AF5
AE5
AF4
AE3
AF2
AE2
AF7
AE7
VCC_CORE_S0
CPU_V6
Layout Note
12
C215
C215
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
H_VID0 39
H_VID1 39
H_VID2 39
H_VID3 39
H_VID4 39
H_VID5 39
H_VID6 39
12
R158
R158
100R2F-L1-GP-U
100R2F-L1-GP-U
R159
R159
0R0402-PAD
0R0402-PAD
Y4B
VCC_CORE_S0
SC10U10V5KX-2GP
C342
C342
SC10U10V5KX-2GP
12
C270
C270
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
12
C343
C343
12
C318
C318
SC10U10V5KX-2GP
SC10U10V5KX-2GP
DY
DY
C344
C344
12
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C213
C213
1 1
SC10U10V5KX-2GP
SC10U10V5KX-2GP
VCC_CORE_S0
C192
C192
SB
A
B
1D05V_S0
12
H_VID[0..6]39
C416
C416
SCD01U16V2KX-3GP
SCD01U16V2KX-3GP
VCC_CORE_S0
12
R157
R157
100R2F-L1-GP-U
100R2F-L1-GP-U
Layout Note:
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
12
C197
C197
SC10U10V5KX-2GP
SC10U10V5KX-2GP
Y4B
B
1D5V_VCCA_S0
1 2
BLM18PG121SN-1GP
12
VCCSENSE and VSSSENSE lines
should be of equal length.
Layout Note:
Provide a test point (with
no stub) to connect a
differential probe
between VCCSENSE and
VSSSENSE at the location
where the two 54.9ohm
resistors terminate the
55 ohm transmission line.
12
C186
C186
SC10U10V5KX-2GP
SC10U10V5KX-2GP
BLM18PG121SN-1GP
C417
C417
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
VCC_SENSE 39
VSS_SENSE 39
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C216
C216
C195
C195
68.00084.A41
68.00084.A41
12
SC10U10V5KX-2GP
SC10U10V5KX-2GP
1D5V_S0
L13
L13
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C196
C196
C221
C221
1D05V_S0
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
VCC_CORE_S0
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
SB
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
12
C193
C193
C187
C187
SC10U10V5KX-2GP
SC10U10V5KX-2GP
DY
DY
C
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
12
C218
C218
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
12
C222
C222
DY
DY
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C214
C214
SC10U10V5KX-2GP
SC10U10V5KX-2GP
DY
DY
C
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
C217
C217
C181
C181
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
C201
C201
C200
C200
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
12
C198
C198
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C219
C219
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
C199
C199
DY
DY
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C220
C220
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
12
C184
C184
Y4B
12
C183
C183
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C191
C191
C178
C178
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C182
C182
C179
C179
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
12
12
C180
C180
C194
C194
SC10U10V5KX-2GP
SC10U10V5KX-2GP
D
C202
C202
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
D
E
U36D
U36D
A4
VSS[001]
A8
VSS[002]
A11
VSS[003]
A14
VSS[004]
A16
VSS[005]
A19
VSS[006]
A23
VSS[007]
A26
VSS[008]
B6
VSS[009]
B8
VSS[010]
B11
VSS[011]
B13
VSS[012]
B16
VSS[013]
B19
VSS[014]
B21
VSS[015]
B24
VSS[016]
C5
VSS[017]
C8
VSS[018]
C11
VSS[019]
C14
VSS[020]
C16
VSS[021]
C19
VSS[022]
C2
VSS[023]
C22
VSS[024]
C25
VSS[025]
D1
VSS[026]
D4
VSS[027]
D8
VSS[028]
D11
VSS[029]
D13
VSS[030]
D16
VSS[031]
D19
VSS[032]
D23
VSS[033]
D26
VSS[034]
E3
VSS[035]
E6
VSS[036]
E8
VSS[037]
E11
VSS[038]
E14
VSS[039]
E16
VSS[040]
E19
VSS[041]
E21
VSS[042]
E24
VSS[043]
F5
VSS[044]
F8
VSS[045]
F11
VSS[046]
F13
VSS[047]
F16
VSS[048]
F19
VSS[049]
F2
VSS[050]
F22
VSS[051]
F25
VSS[052]
G4
VSS[053]
G1
VSS[054]
G23
VSS[055]
G26
VSS[056]
H3
VSS[057]
H6
VSS[058]
H21
VSS[059]
H24
VSS[060]
J2
VSS[061]
J5
VSS[062]
J22
VSS[063]
J25
VSS[064]
K1
VSS[065]
K4
VSS[066]
K23
VSS[067]
K26
VSS[068]
L3
VSS[069]
L6
VSS[070]
L21
VSS[071]
L24
VSS[072]
M2
VSS[073]
M5
VSS[074]
M22
VSS[075]
M25
VSS[076]
N1
VSS[077]
N4
VSS[078]
N23
VSS[079]
N26
VSS[080]
VSS[081]P3VSS[162]
BGA479-SKT6-GPU2
BGA479-SKT6-GPU2
<Variant Name>
<Variant Name>
<Variant Name>
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet
CPU (2 of 2) POWER
CPU (2 of 2) POWER
CPU (2 of 2) POWER
Y4A -1
Y4A -1
Y4A -1
P6
VSS[082]
P21
VSS[083]
P24
VSS[084]
R2
VSS[085]
R5
VSS[086]
R22
VSS[087]
R25
VSS[088]
T1
VSS[089]
T4
VSS[090]
T23
VSS[091]
T26
VSS[092]
U3
VSS[093]
U6
VSS[094]
U21
VSS[095]
U24
VSS[096]
V2
VSS[097]
V5
VSS[098]
V22
VSS[099]
V25
VSS[100]
W1
VSS[101]
W4
VSS[102]
W23
VSS[103]
W26
VSS[104]
Y3
VSS[105]
Y6
VSS[106]
Y21
VSS[107]
Y24
VSS[108]
AA2
VSS[109]
AA5
VSS[110]
AA8
VSS[111]
AA11
VSS[112]
AA14
VSS[113]
AA16
VSS[114]
AA19
VSS[115]
AA22
VSS[116]
AA25
VSS[117]
AB1
VSS[118]
AB4
VSS[119]
AB8
VSS[120]
AB11
VSS[121]
AB13
VSS[122]
AB16
VSS[123]
AB19
VSS[124]
AB23
VSS[125]
AB26
VSS[126]
AC3
VSS[127]
AC6
VSS[128]
AC8
VSS[129]
AC11
VSS[130]
AC14
VSS[131]
AC16
VSS[132]
AC19
VSS[133]
AC21
VSS[134]
AC24
VSS[135]
AD2
VSS[136]
AD5
VSS[137]
AD8
VSS[138]
AD11
VSS[139]
AD13
VSS[140]
AD16
VSS[141]
AD19
VSS[142]
AD22
VSS[143]
AD25
VSS[144]
AE1
VSS[145]
AE4
VSS[146]
AE8
VSS[147]
AE11
VSS[148]
AE14
VSS[149]
AE16
VSS[150]
AE19
VSS[151]
AE23
VSS[152]
AE26
VSS[153]
AF3
VSS[154]
AF6
VSS[155]
AF8
VSS[156]
AF11
VSS[157]
AF13
VSS[158]
AF16
VSS[159]
AF19
VSS[160]
AF21
VSS[161]
AF24
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
549Tuesday, January 23, 2007
549Tuesday, January 23, 2007
549Tuesday, January 23, 2007
E
of
Page 6
A
4 4
3 3
PM_SUS_STAT#18,32
A_RST#
R311
R311
NB_PWRGD9,37
2 2
1 2
0R0402-PAD
0R0402-PAD
49D9R2F-GP
49D9R2F-GP
100R2F-L1-GP-U
100R2F-L1-GP-U
B
D11
D11
2 1
RB751V-40-1-GP
RB751V-40-1-GP
D10
D10
2 1
RB751V-40-1-GP
RB751V-40-1-GP
RC415_NBPWRGD
1D05V_S0
12
R133
R133
12
R135
R135
Y4B : U28 change to RC415ME
P/N : 71.RC415.M01
H_ADS#4
H_BNR#4
H_BPRI#4
H_DEFER#4
H_DRDY#4
H_DBSY#4
H_LOCK#4
H_CPURST#4
H_RS#24
H_RS#14
H_RS#04
H_BREQ#04
H_TRDY#4
H_HIT#4
H_HITM#4
H_DPWR#4
A_RST#15,28
1 2
1D05V_S0
3D3V_S0
240KR2J-1-GP
240KR2J-1-GP
1D8V_S0
12
C151
C151
SC1U10V3KX-3GP
SC1U10V3KX-3GP
1D8V_S3
R99
R99
12
R154
R154
1 2
0R3-0-U-GP
0R3-0-U-GP
R136
R136
1 2
0R0603-PAD
0R0603-PAD
CPVDD BEAD : 68.00143.081
C
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_ADSTB#04
H_ADSTB#14
R96
R96
0R0402-PAD
0R0402-PAD
R330 49D9R2F-GPR330 49D9R2F-GP
1 2
R329 24D9R2F-L-GPR329 24D9R2F-L-GP
1 2
R320
R320
1 2
0R2J-2-GP
0R2J-2-GP
DY
DY
H_ADSTB#0
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
RC415_SUS_STAT#
NB_451M_RST#
C156
C156
12
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C157
C157
12
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C152
C152
12
SC220P50V2KX-3GP
SC220P50V2KX-3GP
TESTMODE
1 2
L29
M25
M29
N26
N25
R26
R29
R28
N29
N28
U24
U25
R27
U27
R24
M26
M28
M24
L28
R25
W25
W29
U29
W27
AA28
AA29
U28
AA25
AB27
AA26
AB29
AC27
AC29
AC26
AB26
AB24
AC25
AB28
V31
R33
L26
N31
T30
R32
P30
D16
P32
V32
P33
W32
T33
N32
T32
W33
A23
AB32
AH9
K13
H9
A24
B24
N23
R23
W23
U23
D24
AN7
AM7
B11
R323
R323
4K7R2J-2-GP
4K7R2J-2-GP
U28A
U28A
CPU_A3#
CPU_A4#
CPU_A5#
CPU_A6#
CPU_A7#
CPU_A8#
CPU_A9#
CPU_A10#
CPU_A11#
CPU_A12#
CPU_A13#
CPU_A14#
CPU_A15#
CPU_A16#
CPU_REQ0#
CPU_REQ1#
CPU_REQ2#
CPU_REQ3#
CPU_REQ4#
CPU_ADSTB0#
CPU_A17#
CPU_A18#
CPU_A19#
CPU_A20#
CPU_A21#
CPU_A22#
CPU_A23#
CPU_A24#
CPU_A25#
CPU_A26#
CPU_A27#
CPU_A28#
CPU_A29#
CPU_A30#
CPU_A31#
NC#AB24
NC#AC25
CPU_ADSTB1#
CPU_ADS#
CPU_BNR#
CPU_BPRI#
CPU_DEFER#
CPU_DRDY#
CPU_DBSY#
CPU_LOCK#
CPU_CPURST#
CPU_RS2#
CPU_RS1#
CPU_RS0#
CPU_BR0#
CPU_TRDY#
CPU_HIT#
CPU_HITM#
RESERVED2
RESERVED1
RESERVED0
SUS_STAT#
SYSRESET#
POWERGOOD
CPU_COMP_P
CPU_COMP_N
CPVDD
CPVSS
MPVDD
MPVSS
CPU_VREF
THERMALDIODE_P
THERMALDIODE_N
TESTMODE
RC415MD-GP
RC415MD-GP
PART 1 OF 6
PART 1 OF 6
ADDR. GROUP 0
ADDR. GROUP 0
ADDR. GROUP 1
ADDR. GROUP 1
P-4 AGTL+ I/F
P-4 AGTL+ I/F
CONTROL
CONTROL
MISC.
MISC.
CPU_DSTB0N#
CPU_DSTB0P#
DATA GROUP 0DATA GROUP 1
DATA GROUP 0DATA GROUP 1
CPU_DSTB1N#
CPU_DSTB1P#
CPU_DSTB2N#
CPU_DSTB2P#
DATA GROUP 2
DATA GROUP 2
CPU_DSTB3N#
CPU_DSTB3P#
DATA GROUP 3
DATA GROUP 3
D
CPU_D0#
CPU_D1#
CPU_D2#
CPU_D3#
CPU_D4#
CPU_D5#
CPU_D6#
CPU_D7#
CPU_D8#
CPU_D9#
CPU_D10#
CPU_D11#
CPU_D12#
CPU_D13#
CPU_D14#
CPU_D15#
CPU_DBI0#
CPU_D16#
CPU_D17#
CPU_D18#
CPU_D19#
CPU_D20#
CPU_D21#
CPU_D22#
CPU_D23#
CPU_D24#
CPU_D25#
CPU_D26#
CPU_D27#
CPU_D28#
CPU_D29#
CPU_D30#
CPU_D31#
CPU_DBI1#
CPU_D32#
CPU_D33#
CPU_D34#
CPU_D35#
CPU_D36#
CPU_D37#
CPU_D38#
CPU_D39#
CPU_D40#
CPU_D41#
CPU_D42#
CPU_D43#
CPU_D44#
CPU_D45#
CPU_D46#
CPU_D47#
CPU_DBI2#
CPU_D48#
CPU_D49#
CPU_D50#
CPU_D51#
CPU_D52#
CPU_D53#
CPU_D54#
CPU_D55#
CPU_D56#
CPU_D57#
CPU_D58#
CPU_D59#
CPU_D60#
CPU_D61#
CPU_D62#
CPU_D63#
CPU_DBI3#
M32
L33
M33
K32
M30
L32
K30
K33
G32
F33
H30
F32
H33
F30
E32
G33
J32
J31
H32
J29
H29
J27
L24
L25
H28
J26
D30
J25
E26
H27
F26
E25
G26
H25
G25
F29
E28
F28
K22
H22
J21
G21
J22
E23
E22
F22
D19
J19
H19
K19
H17
H15
J17
G19
E19
E21
D21
B28
A30
D33
D32
E31
C33
A29
C32
C30
B29
D27
B27
A28
D29
B26
C26
A27
B31
B30
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_D#[63..0]
H_A#[31..3]
H_REQ#[4..0]
H_DINV#0 4
H_DSTBN#0 4
H_DSTBP#0 4
H_DINV#1 4
H_DSTBN#1 4
H_DSTBP#1 4
H_DINV#2 4
H_DSTBN#2 4
H_DSTBP#2 4
H_DINV#3 4
H_DSTBN#3 4
H_DSTBP#3 4
E
H_D#[63..0] 4
H_A#[31..3] 4
H_REQ#[4..0] 4
NB MODETESTMODE
1 1
LOW
HIGH
A
B
NORMAL MODE
TEST MODE
C
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
D
Date: Sheet of
ATI-RC415MD (1 of 5) AGTL
ATI-RC415MD (1 of 5) AGTL
ATI-RC415MD (1 of 5) AGTL
Y4A
Y4A
Y4A
649Tuesday, January 23, 2007
649Tuesday, January 23, 2007
649Tuesday, January 23, 2007
of
E
of
-1
-1
-1
Page 7
A
B
C
D
E
MB_ADDR[14..0]11,12
MB_BA[2..0]11,12
MB_DM[7..0]11
4 4
3 3
2 2
MB_DQS[7..0]11
MB_DQS#[7..0]11
MB_DAT[63..0]11
MB_ADDR[14..0]
MB_BA[2..0]
MB_DM[7..0]
MB_DQS[7..0]
MB_DQS#[7..0]
MB_DAT[63..0]
SB
U28C
MB_ADDR0
MB_ADDR1
MB_ADDR2
MB_ADDR3
MB_ADDR4
MB_ADDR5
MB_ADDR6
MB_ADDR7
MB_ADDR8
MB_ADDR9
MB_ADDR10
MB_ADDR11
MB_ADDR12
MB_ADDR13
MB_ADDR14
MB_BA0
MB_BA1
MB_BA2
MB_DM0
MB_DM1
MB_DM2
MB_DM3
MB_DM4
MB_DM5
MB_DM6
MB_DM7
MB_RAS#11,12
MB_CAS#11,12
MB_WE#11,12
MB_CLKOUT#011
MB_CLKOUT011
MB_CLKOUT#111
MB_CLKOUT111
MB_CLKOUT#211
MB_CLKOUT211
MB_CLKOUT#311
MB_CLKOUT311
MB_CKE011,12
MB_CKE111,12
MB_CKE211,12
MB_CKE311,12
MB_CS#011,12
MB_CS#111,12
MB_CS#211,12
MB_CS#311,12
MB_RAS#
MB_CAS#
MB_WE#
MB_DQS0
MB_DQS1
MB_DQS2
MB_DQS3
MB_DQS4
MB_DQS5
MB_DQS6
MB_DQS7
MB_DQS#0
MB_DQS#1
MB_DQS#2
MB_DQS#3
MB_DQS#4
MB_DQS#5
MB_DQS#6
MB_DQS#7
U28C
AN20
MEM_A0
AJ19
MEM_A1
AM19
MEM_A2
AN19
MEM_A3
AK18
MEM_A4
AM18
MEM_A5
AN18
MEM_A6
AM16
MEM_A7
AL16
MEM_A8
AH15
MEM_A9
AM20
MEM_A10
AJ15
MEM_A11
AN15
MEM_A12
AM24
MEM_A13
AK15
MEM_A14
AM21
MEM_A15
AK20
MEM_A16
AM15
MEM_A17
AJ13
MEM_DM0
AM10
MEM_DM1
AH17
MEM_DM2
AF23
MEM_DM3
AH28
MEM_DM4
AM29
MEM_DM5
AK33
MEM_DM6
AE32
MEM_DM7
AL21
MEM_RAS#
AN23
MEM_CAS#
AM23
MEM_WE#
AE12
MEM_DQS0P
AN11
MEM_DQS1P
AF19
MEM_DQS2P
AJ23
MEM_DQS3P
AF27
MEM_DQS4P
AN30
MEM_DQS5P
AJ33
MEM_DQS6P
AD33
MEM_DQS7P
AD12
MEM_DQS0N
AM11
MEM_DQS1N
AF17
MEM_DQS2N
AH23
MEM_DQS3N
AF26
MEM_DQS4N
AM30
MEM_DQS5N
AJ32
MEM_DQS6N
AD32
MEM_DQS7N
AC24
MEM_CK0N
AE25
MEM_CK0P
AE15
MEM_CK1N
AF15
MEM_CK1P
AE29
MEM_CK2N
AE30
MEM_CK2P
AE23
MEM_CK3N
AD23
MEM_CK3P
AD15
MEM_CK4N
AD17
MEM_CK4P
AE27
MEM_CK5N
AE26
MEM_CK5P
AN14
MEM_CKE0
AM14
MEM_CKE1
AN13
MEM_CKE2
AK13
MEM_CKE3
AM22
MEM_CS0#
AN24
MEM_CS1#
AN22
MEM_CS2#
AM25
MEM_CS3#
AK24
MEM_ODT0
AK26
MEM_ODT1
AL25
MEM_ODT2
AN26
MEM_ODT3
RC415MD-GP
RC415MD-GP
PART 3 OF 6
PART 3 OF 6
MEM_B I/F
MEM_B I/F
MEM_COMPN
MEM_COMPP
MEM_VMODE
MEM_DQ0
MEM_DQ1
MEM_DQ2
MEM_DQ3
MEM_DQ4
MEM_DQ5
MEM_DQ6
MEM_DQ7
MEM_DQ8
MEM_DQ9
MEM_DQ10
MEM_DQ11
MEM_DQ12
MEM_DQ13
MEM_DQ14
MEM_DQ15
MEM_DQ16
MEM_DQ17
MEM_DQ18
MEM_DQ19
MEM_DQ20
MEM_DQ21
MEM_DQ22
MEM_DQ23
MEM_DQ24
MEM_DQ25
MEM_DQ26
MEM_DQ27
MEM_DQ28
MEM_DQ29
MEM_DQ30
MEM_DQ31
MEM_DQ32
MEM_DQ33
MEM_DQ34
MEM_DQ35
MEM_DQ36
MEM_DQ37
MEM_DQ38
MEM_DQ39
MEM_DQ40
MEM_DQ41
MEM_DQ42
MEM_DQ43
MEM_DQ44
MEM_DQ45
MEM_DQ46
MEM_DQ47
MEM_DQ48
MEM_DQ49
MEM_DQ50
MEM_DQ51
MEM_DQ52
MEM_DQ53
MEM_DQ54
MEM_DQ55
MEM_DQ56
MEM_DQ57
MEM_DQ58
MEM_DQ59
MEM_DQ60
MEM_DQ61
MEM_DQ62
MEM_DQ63
MEM_VREF
MB_DAT0
AH11
MB_DAT1
AG12
MB_DAT2
AE13
MB_DAT3
AF13
MB_DAT4
AJ11
MB_DAT5
AJ12
MB_DAT6
AH12
MB_DAT7
AG13
MB_DAT8
AM9
MB_DAT9
AN10
MB_DAT10
AM12
MB_DAT11
AM13
MB_DAT12
AN9
MB_DAT13
AK9
MB_DAT14
AK11
MB_DAT15
AL12
MB_DAT16
AE19
MB_DAT17
AH19
MB_DAT18
AJ21
MB_DAT19
AK22
MB_DAT20
AE17
MB_DAT21
AJ17
MB_DAT22
AF21
MB_DAT23
AE21
MB_DAT24
AF22
MB_DAT25
AJ22
MB_DAT26
AG25
MB_DAT27
AH25
MB_DAT28
AH21
MB_DAT29
AG22
MB_DAT30
AG23
MB_DAT31
AJ25
MB_DAT32
AG26
MB_DAT33
AJ29
MB_DAT34
AH29
MB_DAT35
AJ30
MB_DAT36
AH26
MB_DAT37
AJ28
MB_DAT38
AF28
MB_DAT39
AF29
MB_DAT40
AM28
MB_DAT41
AL29
MB_DAT42
AL31
MB_DAT43
AM31
MB_DAT44
AK28
MB_DAT45
AN28
MB_DAT46
AK30
MB_DAT47
AN31
MB_DAT48
AL32
MB_DAT49
AK32
MB_DAT50
AH33
MB_DAT51
AH32
MB_DAT52
AM32
MB_DAT53
AL33
MB_DAT54
AG33
MB_DAT55
AG32
MB_DAT56
AF32
MB_DAT57
AE33
MB_DAT58
AC32
MB_DAT59
AB33
MB_DAT60
AG30
MB_DAT61
AF31
MB_DAT62
AC30
MB_DAT63
AB31
R140 61D9R2F-GPR140 61D9R2F-GP
AM26
R138 61D9R2F-GPR138 61D9R2F-GP
AM27
R137 4K7R2F-GPR137 4K7R2F-GP
AJ26
AN27
C91
C91
SC1U10V3KX-3GP
SC1U10V3KX-3GP
1 2
1 2
1 2
NB_MEM_VREF
1D8V_S3
1D8V_S3
MEM_VREF = 20MIL TRACE
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
C92
C92
12
R139
R139
1KR2F-3-GP
1KR2F-3-GP
R141
R141
1KR2F-3-GP
1KR2F-3-GP
1D8V_S3
12
12
12
C160
C160
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C163
C163
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 1
A
B
Y4B-1
C
D
<Variant Name>
<Variant Name>
<Variant Name>
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
ATI-RC415MD (2 of 5) DDR2
ATI-RC415MD (2 of 5) DDR2
ATI-RC415MD (2 of 5) DDR2
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet
Y4A -1
Y4A -1
Y4A -1
749Tuesday, January 23, 2007
749Tuesday, January 23, 2007
749Tuesday, January 23, 2007
E
of
Page 8
A
4 4
3 3
PCI-E ( NEW CARD )
PCIE_RX0P_GPP26
PCIE_RX0N_GPP26
PCIE_RX1P_SB15
PCIE_RX1N_SB15
PCIE_RX0P_SB15
PCIE_RX0N_SB15
NBSRC_CLKP3
NBSRC_CLKN3
SBLINK_CLKP3
2 2
SBLINK_CLKN3
BMREQ#9,15
B
PCIE_RX0P_GPP
PCIE_RX0N_GPP
PCIE_RX1P_SB
PCIE_RX1N_SB
PCIE_RX0P_SB
PCIE_RX0N_SB
1 2
AA5
AB5
AA6
AB6
AB8
AB9
AC5
AE5
AF6
AF7
AH4
AH5
AE9
AE8
AG2
AG1
AK4
AL4
AM3
AH8
AF8
AF9
R312
R312
K11
0R0402-PAD
0R0402-PAD
U28B
U28B
F4
GFX_RX0P
E2
GFX_RX0N
G4
GFX_RX1P
H5
GFX_RX1N
J5
GFX_RX2P
J4
GFX_RX2N
M6
GFX_RX3P
L6
GFX_RX3N
M8
GFX_RX4P
M9
GFX_RX4N
N9
GFX_RX5P
N8
GFX_RX5N
N5
GFX_RX6P
R5
GFX_RX6N
N6
GFX_RX7P
R6
GFX_RX7N
U9
GFX_RX8P
R9
GFX_RX8N
U5
GFX_RX9P
W5
GFX_RX9N
U6
GFX_RX10P
W6
GFX_RX10N
W8
GFX_RX11P
W9
GFX_RX11N
GFX_RX12P
GFX_RX12N
GFX_RX13P
GFX_RX13N
GFX_RX14P
GFX_RX14N
GFX_RX15P
GFX_RX15N
GPP_RX3P
GPP_RX3N
GPP_RX2P
GPP_RX2N
GPP_RX1P/SB_RX3P
GPP_RX1N/SB_RX3N
GPP_RX0P/SB_RX2P
GPP_RX0N/SB_RX2N
AJ3
NC#AJ3
NC#AK4
NC#AL4
NC#AM3
SB_RX1P
AJ8
SB_RX1N
SB_RX0P
SB_RX0N
F2
GFX_CLKP
F1
GFX_CLKN
D2
SB_CLKP
E1
SB_CLKN
BMREQ#
RC415MD-GP
RC415MD-GP
PART 2 OF 6
PART 2 OF 6
PCIE I/F
PCIE I/F
GPP_TX1P/SB_TX3P
GPP_TX1N/SB_TX3N
GPP_TX0P/SB_TX2P
GPP_TX0N/SB_TX2N
PCIE CLK
PCIE CLK
GFX_TX0P
GFX_TX0N
GFX_TX1P
GFX_TX1N
GFX_TX2P
GFX_TX2N
GFX_TX3P
GFX_TX3N
GFX_TX4P
GFX_TX4N
GFX_TX5P
GFX_TX5N
GFX_TX6P
GFX_TX6N
GFX_TX7P
GFX_TX7N
GFX_TX8P
GFX_TX8N
GFX_TX9P
GFX_TX9N
GFX_TX10P
GFX_TX10N
GFX_TX11P
GFX_TX11N
GFX_TX12P
GFX_TX12N
GFX_TX13P
GFX_TX13N
GFX_TX14P
GFX_TX14N
GFX_TX15P
GFX_TX15N
GPP_TX3P
GPP_TX3N
GPP_TX2P
GPP_TX2N
NC#AK2
NC#AK1
NC#AL2
NC#AL1
SB_TX1P
SB_TX1N
SB_TX0P
SB_TX0N
PCE_ISET
PCE_NCAL
PCE_PCAL
PCE_TXISET
C
E5
F5
E4
D3
J6
J7
G2
G1
H2
J1
K2
K1
L2
L1
M2
N1
P2
P1
R2
R1
T2
V1
W2
W1
Y2
Y1
AA2
AB1
AC2
AC1
AD1
AD2
AJ2
AJ1
AH2
AH1
AC6
AE6
GPP_TX0P
AE2
GPP_TX0N
AF1
AK2
AK1
AL2
AL1
SB_TX1P
AN3
SB_TX1N
AN4
SB_TX0P
AM4
SB_TX0N
AM5
R315 10KR2F-2-GPR315 10KR2F-2-GP
AN6
AM6
AK5
AK7
1 2
R314 100R2F-L1-GP-UR314 100R2F-L1-GP-U
1 2
R79 150R2F-1-GPR79 150R2F-1-GP
1 2
R98 8K25R2F-1-GPR98 8K25R2F-1-GP
1 2
C403 SCD1U16V2ZY-2GPC403 SCD1U16V2ZY-2GP
1 2
C404 SCD1U16V2ZY-2GPC404 SCD1U16V2ZY-2GP
1 2
C405 SCD1U16V2ZY-2GPC405 SCD1U16V2ZY-2GP
1 2
C406 SCD1U16V2ZY-2GPC406 SCD1U16V2ZY-2GP
1 2
C408 SCD1U16V2ZY-2GPC408 SCD1U16V2ZY-2GP
1 2
C407 SCD1U16V2ZY-2GPC407 SCD1U16V2ZY-2GP
1 2
1D2V_S0
D
PCIE_TX0P_GPP
PCIE_TX0N_GPP
PCIE_TX1P_SB 15
PCIE_TX1N_SB 15
PCIE_TX0P_SB 15
PCIE_TX0N_SB 15
PCIE_TX0P_GPP 26
PCIE_TX0N_GPP 26
E
PCI-E ( MINI-CARD )PCI-E ( MINI-CARD )
1 1
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
ATI-RC415MD (3 of 5) PCIE
ATI-RC415MD (3 of 5) PCIE
ATI-RC415MD (3 of 5) PCIE
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet of
Y4A
Y4A
Y4A
849Tuesday, January 23, 2007
849Tuesday, January 23, 2007
849Tuesday, January 23, 2007
of
E
of
-1
-1
-1
Page 9
A
R305
R305
I2C_CLK13
1 2
0R0603-PAD
0R0603-PAD
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
R95
R95
1 2
0R3-0-U-GP
0R3-0-U-GP
R319
R319
1 2
R322
R322
1 2
0R0603-PAD
0R0603-PAD
R75
R75
1 2
0R0603-PAD
0R0603-PAD
1 2
DY
DY
R327 0R3-0-U-GP
R327 0R3-0-U-GP
TP13TPAD30 TP13TPAD30
TP8TPAD30 TP8TPAD30
NB_OSCIN3
NB_CLK#3
EDID_CLK14
EDID_DAT14
GMCH_VSYNC13
GMCH_HSYNC13
CRT_RED13
CRT_GREEN13
CRT_BLUE13
NB_CLK3
C402
C402
0R0603-PAD
0R0603-PAD
TMDS_HPD
DDC_DATA
R321
R321
1 2
715R3-GP
715R3-GP
TP63TPAD30 TP63TPAD30
TP64TPAD30 TP64TPAD30
R307
R307
0R2J-2-GP
0R2J-2-GP
DY
DY
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
12
4K7R2J-2-GP
4K7R2J-2-GP
3D3V_S0
4 4
R318
R318
1D8V_S0
3 3
1 2
0R0603-PAD
0R0603-PAD
R72
R72
1 2
150R2F-1-GP
150R2F-1-GP
R71
R71
1 2
150R2F-1-GP
150R2F-1-GP
R73
R73
1 2
150R2F-1-GP
150R2F-1-GP
1 2
CRT_RED
CRT_GREEN
CRT_BLUE
3D3V_S0
1D8V_S0
1D8V_S0
1D8V_S0
NB_PLLVDD18
1D2V_S0
C409
C409
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
Layout Note : Close to NB
2 2
-1 Reserve for VBIOS setting
SB
R69
GMCH_HSYNC
1 1
GMCH_VSYNC
BMREQ#8,15
R69
1 2
4K7R2J-2-GP
4K7R2J-2-GP
R70
R70
1 2
4K7R2J-2-GP
4K7R2J-2-GP
R313
R313
1 2
4K7R2J-2-GP
4K7R2J-2-GP
A
BSEL1 3
BSEL0 3
RC415 STRAPS
B
NB_VDDR3
12
12
12
12
12
R308
R308
R593
R593
0R2J-2-GP
0R2J-2-GP
NB_AVDD
NB_AVDDQ
NB_AVDDDI
NB_PCIE_PLL
NB_PLLVDD12
C116
C116
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C410
C410
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C411
C411
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C65
C65
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C418
C418
DY
DY
1 2
GMCH_VSYNC
GMCH_HSYNC
NB_RSET
CRT_REDCRT_REDCRT_REDCRT_REDCRT_REDCRT_RED
CRT_GREENCRT_GREENCRT_GREENCRT_GREENCRT_GREENCRT_GREEN
CRT_BLUECRT_BLUECRT_BLUECRT_BLUECRT_BLUECRT_BLUE
SB_OSC
TV_CLKIN
1 2
1 2
DAC_SCLI2C_CLK
12
A4
B4
D8
C9
L15
K15
A13
A12
A8
A7
B1
B2
A14
B14
D14
A16
J11
G11
F11
A11
F8
E9
G9
D4
B9
B7
C2
C1
B6
A6
R309
R309
4K7R2J-2-GP
4K7R2J-2-GP
3D3V_S0
U28D
U28D
VDDR3
VDDR3
AVDD
AVDD
AVSSN
AVSSN
AVDDQ
AVSSQ
AVDDDI
AVSSDI
VDDA_12
VSSA
PLLVDD
NC#B14
PLLVSS
TMDS_HPD
DDC_DATA
DACVSYNC
DACHSYNC
RSET
RED
GREEN
BLUE
OSCIN
OSCOUT
TVCLKIN
CPU_CLKP
CPU_CLKN
12C_CLK
12C_DATA
RC415MD-GP
RC415MD-GP
BMREQ#&HSYNC&VSYNC: FSB CLK SPEED
BMREQ#&HSYNC&VSYNC: FSB CLK SPEED
BMREQ#&HSYNC&VSYNC: FSB CLK SPEED
B
PART 4 OF 6
PART 4 OF 6
DACCLK.
DACCLK.
CRT
CRT
SVID
SVID
DAC_SCL
STRP_DATA
TXOUT_U0N
TXOUT_U0P
TXOUT_U1N
TXOUT_U1P
TXOUT_U2N
TXOUT_U2P
TXOUT_U3N
TXOUT_U3P
TXOUT_L0N
TXOUT_L0P
TXOUT_L1N
TXOUT_L1P
TXOUT_L2N
TXOUT_L2P
TXOUT_L3N
TXOUT_L3P
LVDDR18A
LVDDR18A
LVDDR18A
LVDDR18D
LVDS_DIGON
LVDS_BLON
LVDS_BLEN
TXCLK_UN
TXCLK_UP
TXCLK_LN
STRP_DATA
D
D
2 3
S
S
C
LVSSR
LVSSR
LVSSR
LVSSR
LPVDD
LPVSS
TXCLK_LP
C
Y
COMP
DACSCL
DACSDA
1 2
Q6
Q6
2N7002-9-GP
2N7002-9-GP
1
G
G
R97
R97
1 2
C
E13
F13
G13
H13
K12
J12
E12
F12
B22
B21
A21
B20
A20
A19
B19
B18
A15
D15
B15
E15
E17
F19
F17
B12
B13
C13
A3
C3
B3
G12
H12
B16
C18
F9
E8
G8
B8
H11
J13
R306
R306
4K7R2J-2-GP
4K7R2J-2-GP
R49
R49
1 2
4K7R2J-2-GP
4K7R2J-2-GP
4K7R2J-2-GP
4K7R2J-2-GP
GMCH_TXUOUT0GMCH_TXUOUT0+
GMCH_TXUOUT1GMCH_TXUOUT1+
GMCH_TXUOUT2GMCH_TXUOUT2+
TXAOUT3-_TP
TXAOUT3+_TP
GMCH_TXLOUT0GMCH_TXLOUT0+
GMCH_TXLOUT1GMCH_TXLOUT1+
GMCH_TXLOUT2GMCH_TXLOUT2+
TXBOUT3-_TP
TXBOUT3+_TP
NB_LTPVDD18
NB_LCDVDD_ON
LVDS_BLON
GMCH_TXUCLKGMCH_TXUCLK+
GMCH_TXLCLKGMCH_TXLCLK+
C_R
Y_G
DAC_SCL
DAC_SDA_R
STRP_DATA
3D3V_S0
3D3V_S0
TP6 TPAD30TP6 TPAD30
TP7 TPAD30TP7 TPAD30
TP4 TPAD30TP4 TPAD30
TP5 TPAD30TP5 TPAD30
NB_VDDLT33
NB_VDDLT18
NB_LCDVDD_ON 14
TP62 TPAD30TP62 TPAD30
GMCH_TXUCLK- 14
GMCH_TXUCLK+ 14
GMCH_TXLCLK- 14
GMCH_TXLCLK+ 14
C_R 13
Y_G 13
TP9 TPAD30TP9 TPAD30
SB_PWRGD# 37
D
GMCH_TXUOUT0- 14
GMCH_TXUOUT0+ 14
GMCH_TXUOUT1- 14
GMCH_TXUOUT1+ 14
GMCH_TXUOUT2- 14
GMCH_TXUOUT2+ 14
GMCH_TXLOUT0- 14
GMCH_TXLOUT0+ 14
GMCH_TXLOUT1- 14
GMCH_TXLOUT1+ 14
GMCH_TXLOUT2- 14
GMCH_TXLOUT2+ 14
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R310
R310
12
0R0402-PAD
0R0402-PAD
-1
NB_PWRGD6,37
DAC_SCL: CPU VCC
DEFAULT:1
1: DESKTOP
0: MOBILE
STRP_DATA:Debug strap
DEFAULT: 1
1: E2PROM STRAPING
0: MEMORY CHANNEL STRAPING
D
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C149
C149
DAC_SDAT 13
2K2R2J-2-GP
2K2R2J-2-GP
E
R328
R328
R94
R94
0R0603-PAD
0R0603-PAD
3D3V_S0
5
4
E
949Tuesday, January 23, 2007
949Tuesday, January 23, 2007
949Tuesday, January 23, 2007
1D8V_S0
NB_BLON_IN 32
of
of
of
NB_VDDLT33
1 2
0R0603-PAD
0R0603-PAD
C421
C421
1 2
NB_VDDLT18
12
C121
C121
R132
R132
1 2
0R0603-PAD
12
NB_PWRGD
LVDS_BLON
R592
R592
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
0R0603-PAD
12
C148
C148
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
12
ATI-RC415MD (4 of 5) LVDS
ATI-RC415MD (4 of 5) LVDS
ATI-RC415MD (4 of 5) LVDS
C420
C420
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
1 2
1 2
12
C117
C117
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
1D8V_S0
U60
U60
1
A
VCC
2
B
GND3Y
NC7S08M5X-NL-GP
NC7S08M5X-NL-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
-1
-1
-1
Page 10
A
1D2V_S0
4 4
12
R76
R76
0R5J-5-GP
0R5J-5-GP
SC1U10V3KX-3GP
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
12
C89
C89
SC1U10V3KX-3GP
SC1U10V3KX-3GP
3 3
1D8V_S0
2 2
SC1U10V3KX-3GP
12
C133
C133
R74
R74
1 2
0R5J-5-GP
0R5J-5-GP
C83
C83
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
SC10U10V5KX-2GP
12
C115
C115
C204
C204
C134
C134
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C128
C128
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
12
C84
C84
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
12
12
C122
C122
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C88
C88
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C155
C155
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C131
C131
12
R77
R77
0R5J-5-GP
0R5J-5-GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C126
C126
12
C85
C85
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C119
C119
12
C125
C125
1D2V_NBPCIE_S0
12
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C90
C90
C123
C123
SC1U10V3KX-3GP
SC1U10V3KX-3GP
1D8V_NB_VDDA
12
C86
C86
12
C118
C118
12
C159
C159
B
AA10
AB10
AC7
AC9
AC10
AD4
AD11
AE11
AF11
AG11
AJ9
AM8
AN8
AL8
J8
J9
L9
L10
M1
M3
M10
N10
N11
R10
R11
U10
U11
W10
W11
A5
B5
C5
H8
D6
D7
E6
H7
F6
H6
B10
A10
D10
M21
M22
N22
AA22
AB21
AB22
L12
M12
M13
N12
AA12
AB12
AB13
U28E
U28E
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_12
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDDA_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
VDD_18
RC415MD-GP
RC415MD-GP
PART 5 OF 6
PART 5 OF 6
PCIE PWRT- PWR
PCIE PWRT- PWR
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
VDD_CORE
CORE POWERCPU I/F PWR MEM I/F PWR
CORE POWERCPU I/F PWR MEM I/F PWR
POWER
POWER
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_MEM
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
VDD_CPU
AA15
AA18
AA21
D11
D12
L13
N13
N16
N19
R15
R18
R21
T13
T16
T19
V15
V18
V21
W13
W16
W19
AA24
AC12
AC17
AC19
AC22
AC23
AC21
AE22
AN16
AN21
AN25
W24
AA11
AB11
AC11
AC13
AC15
AB23
AA23
A25
B25
D25
F23
F25
G23
H23
J23
K23
L23
M23
N24
W26
W28
Y30
Y32
Y33
L22
L21
C
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C124
C124
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C158
C158
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C154
C154
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C129
C129
12
C130
C130
12
C189
C189
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C127
C127
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C135
C135
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C153
C153
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
12
C120
C120
12
C161
C161
12
C150
C150
1D2V_S0
12
C87
C87
1D8V_S3
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
12
C132
C132
1D05V_S0
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
12
C419
C419
D
U28F
U28F
A2
VSS
PART 6 OF 6
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
PART 6 OF 6
GND
GND
A9
A18
A22
A26
A31
A32
AA13
AA16
AA19
AA27
AA30
AA32
AA33
AB25
AD13
AC28
AC33
AD19
AD21
AD22
AD30
AE28
AF12
AF25
AF33
AG15
AG17
AG19
AG21
AK27
AH13
AH22
AH30
AK10
AK14
AK19
AK23
AK31
AM33
AN12
AN29
AN32
B23
B32
B33
C22
C31
D20
D23
D28
E29
E33
E11
F15
F21
G15
G17
G22
G30
H21
H26
J15
J28
J33
K17
K21
L11
L17
L19
L27
L30
M11
M27
RC415MD-GP
RC415MD-GP
E
N15
VSS
N18
VSS
N21
VSS
N27
VSS
N33
VSS
R13
VSS
R16
VSS
R19
VSS
R30
VSS
T15
VSS
T18
VSS
T21
VSS
U26
VSS
V13
VSS
V16
VSS
V19
VSS
V33
VSS
W15
VSS
W18
VSS
W21
VSS
W30
VSS
AA1
VSSA
AA3
VSSA
AB7
VSSA
AA7
VSSA
AA9
VSSA
AB2
VSSA
AB4
VSSA
AC4
VSSA
AC8
VSSA
AE1
VSSA
AE3
VSSA
AE7
VSSA
AF2
VSSA
AF4
VSSA
AF5
VSSA
AG4
VSSA
AG8
VSSA
AG9
VSSA
AJ6
VSSA
AJ5
VSSA
AH6
VSSA
AK6
VSSA
AL3
VSSA
AM1
VSSA
AM2
VSSA
AN2
VSSA
AN5
VSSA
D1
VSSA
H1
VSSA
H3
VSSA
J2
VSSA
K4
VSSA
L8
VSSA
L7
VSSA
L5
VSSA
L4
VSSA
M5
VSSA
M7
VSSA
N2
VSSA
N4
VSSA
R8
VSSA
P4
VSSA
R4
VSSA
R7
VSSA
T1
VSSA
T3
VSSA
U7
VSSA
U8
VSSA
V2
VSSA
V4
VSSA
W4
VSSA
W7
VSSA
Y4
VSSA
AA8
VSSA
N7
VSSA
3D3V_S0
1 1
3
D13
D13
BAV99-4-GP
BAV99-4-GP
DY
1
DY
2
A
3
D12
D12
BAV99-4-GP
BAV99-4-GP
DY
1
DY
2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
B
C
D
Date: Sheet of
ATI-RC415MD (5 of 5) POWER
ATI-RC415MD (5 of 5) POWER
ATI-RC415MD (5 of 5) POWER
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
10 49Tuesday, January 23, 2007
10 49Tuesday, January 23, 2007
10 49Tuesday, January 23, 2007
of
E
of
-1
-1
-1
Page 11
A
MB_ADDR[14..0]7,12
MB_DQS[7..0]7
MB_DQS#[7..0]7
MB_DAT[63..0]7
4 4
3 3
2 2
MB_ADDR[14..0]
MB_BA[2..0]
MB_BA[2..0]7,12
MB_DM[7..0]
MB_DM[7..0]7
MB_DQS[7..0]
MB_DQS#[7..0]
MB_DAT[63..0]
DDR_VREF_S3
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
MB_ADDR0
MB_ADDR1
MB_ADDR2
MB_ADDR3
MB_ADDR4
MB_ADDR5
MB_ADDR6
MB_ADDR7
MB_ADDR8
MB_ADDR9
MB_ADDR10
MB_ADDR11
MB_ADDR12
MB_ADDR13
MB_ADDR14
MB_BA2
MB_BA0
MB_BA1
MB_DAT0
MB_DAT1
MB_DAT2
MB_DAT3
MB_DAT4
MB_DAT5
MB_DAT6
MB_DAT7
MB_DAT8
MB_DAT9
MB_DAT10
MB_DAT11
MB_DAT12
MB_DAT13
MB_DAT14
MB_DAT15
MB_DAT16
MB_DAT17
MB_DAT18
MB_DAT19
MB_DAT20
MB_DAT21
MB_DAT22
MB_DAT23
MB_DAT24
MB_DAT25
MB_DAT26
MB_DAT27
MB_DAT28
MB_DAT29
MB_DAT30
MB_DAT31
MB_DAT32
MB_DAT33
MB_DAT34
MB_DAT35
MB_DAT36
MB_DAT37
MB_DAT38
MB_DAT39
MB_DAT40
MB_DAT41
MB_DAT42
MB_DAT43
MB_DAT44
MB_DAT45
MB_DAT46
MB_DAT47
MB_DAT48
MB_DAT49
MB_DAT50
MB_DAT51
MB_DAT52
MB_DAT53
MB_DAT54
MB_DAT55
MB_DAT56
MB_DAT57
MB_DAT58
MB_DAT59
MB_DAT60
MB_DAT61
MB_DAT62
MB_DAT63
MB_DQS#0
MB_DQS#1
MB_DQS#2
MB_DQS#3
MB_DQS#4
MB_DQS#5
MB_DQS#6
MB_DQS#7
MB_DQS0
MB_DQS1
MB_DQS2
MB_DQS3
MB_DQS4
MB_DQS5
MB_DQS6
MB_DQS7
12
12
C49
C49
C48
C48
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
U30
U30
102
A0
101
A1
100
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
105
A10/AP
90
A11
89
A12
116
A13
86
A14
84
A15
85
A16/BA2
107
BA0
106
BA1
5
DQ0
7
DQ1
17
DQ2
19
DQ3
4
DQ4
6
DQ5
14
DQ6
16
DQ7
23
DQ8
25
DQ9
35
DQ10
37
DQ11
20
DQ12
22
DQ13
36
DQ14
38
DQ15
43
DQ16
45
DQ17
55
DQ18
57
DQ19
44
DQ20
46
DQ21
56
DQ22
58
DQ23
61
DQ24
63
DQ25
73
DQ26
75
DQ27
62
DQ28
64
DQ29
74
DQ30
76
DQ31
123
DQ32
125
DQ33
135
DQ34
137
DQ35
124
DQ36
126
DQ37
134
DQ38
136
DQ39
141
DQ40
143
DQ41
151
DQ42
153
DQ43
140
DQ44
142
DQ45
152
DQ46
154
DQ47
157
DQ48
159
DQ49
173
DQ50
175
DQ51
158
DQ52
160
DQ53
174
DQ54
176
DQ55
179
DQ56
181
DQ57
189
DQ58
191
DQ59
180
DQ60
182
DQ61
192
DQ62
194
DQ63
11
DQS0#
29
DQS1#
49
DQS2#
68
DQS3#
129
DQS4#
146
DQS5#
167
DQS6#
186
DQS7#
13
DQS0
31
DQS1
51
DQS2
70
DQS3
131
DQS4
148
DQS5
169
DQS6
188
DQS7
114
OTD0
119
OTD1
1
VREF
2
VSS
202
GND
MH1
MH1
DDR2-200P-21-GP-U
DDR2-200P-21-GP-U
Height = 9.2mm
NC#163/TEST
VDDSPD
NC#50
NC#69
NC#83
NC#120
RAS#
CAS#
CS0#
CS1#
CKE0
CKE1
CK0#
CK1#
B
108
109
WE#
113
110
115
79
80
30
CK0
32
164
CK1
166
MB_DM0
10
DM0
MB_DM1
26
DM1
MB_DM2
52
DM2
MB_DM3
67
DM3
MB_DM4
130
DM4
MB_DM5
147
DM5
MB_DM6
170
DM6
MB_DM7
185
DM7
SMBDAT_SB
195
SDA
SMBCLK_SB
197
SCL
199
DIMM0_SA0
198
SA0
DIMM0_SA1
200
SA1
50
69
83
120
163
81
VDD
82
VDD
87
VDD
88
VDD
95
VDD
96
VDD
103
VDD
104
VDD
111
VDD
112
VDD
117
VDD
118
VDD
3
VSS
8
VSS
9
VSS
12
VSS
15
VSS
18
VSS
21
VSS
24
VSS
27
VSS
28
VSS
33
VSS
34
VSS
39
VSS
40
VSS
41
VSS
42
VSS
47
VSS
48
VSS
53
VSS
54
VSS
59
VSS
60
VSS
65
VSS
66
VSS
71
VSS
72
VSS
77
VSS
78
VSS
121
VSS
122
VSS
127
VSS
128
VSS
132
VSS
133
VSS
138
VSS
139
VSS
144
VSS
145
VSS
149
VSS
150
VSS
155
VSS
156
VSS
161
VSS
162
VSS
165
VSS
168
VSS
171
VSS
172
VSS
177
VSS
178
VSS
183
VSS
184
VSS
187
VSS
190
VSS
193
VSS
196
VSS
201
GND
MH2
MH2
1D8V_S3
MB_RAS# 7,12
MB_WE# 7,12
MB_CAS# 7,12
MB_CS#0 7,12
MB_CS#1 7,12
MB_CKE0 7,12
MB_CLKOUT1 7
MB_CLKOUT#1 7
MB_CLKOUT0 7
MB_CLKOUT#0 7
SMBDAT_SB 3,18,26
SMBCLK_SB 3,18,26
C205
C205
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SB
3D3V_S0 3D3V_S0
R160
R160
4K7R2J-2-GP
4K7R2J-2-GP
DY
DY
DIMM0_SA0
DIMM0_SA1
R580
R580
0R2J-2-GP
0R2J-2-GP
SPD Address : A0
12
1 2
12
12
DY
DY
SB
4K7R2J-2-GP
4K7R2J-2-GP
R581
R581
0R2J-2-GP
0R2J-2-GP
3D3V_S0
C223
C223
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
R578
R578
DY
DY
1 2
12
C
DDR_VREF_S3
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
D
DIMM1DIMM0
U29
U29
MH1
MB_ADDR0
MB_ADDR1
MB_ADDR2
MB_ADDR3
MB_ADDR4
MB_ADDR5
MB_ADDR6
MB_ADDR7
MB_ADDR8
MB_ADDR9
MB_ADDR10
MB_ADDR11
MB_ADDR12
MB_ADDR13
MB_ADDR14
MB_BA2
MB_BA0
MB_BA1
MB_DAT0
MB_DAT1
MB_DAT2
MB_DAT3
MB_DAT4
MB_DAT5
MB_DAT6
MB_DAT7
MB_DAT8
MB_DAT9
MB_DAT10
MB_DAT11
MB_DAT12
MB_DAT13
MB_DAT14
MB_DAT15
MB_DAT16
MB_DAT17
MB_DAT18
MB_DAT19
MB_DAT20
MB_DAT21
MB_DAT22
MB_DAT23
MB_DAT24
MB_DAT25
MB_DAT26
MB_DAT27
MB_DAT28
MB_DAT29
MB_DAT30
MB_DAT31
MB_DAT32
MB_DAT33
MB_DAT34
MB_DAT35
MB_DAT36
MB_DAT37
MB_DAT38
MB_DAT39
MB_DAT40
MB_DAT41
MB_DAT42
MB_DAT43
MB_DAT44
MB_DAT45
MB_DAT46
MB_DAT47
MB_DAT48
MB_DAT49
MB_DAT50
MB_DAT51
MB_DAT52
MB_DAT53
MB_DAT54
MB_DAT55
MB_DAT56
MB_DAT57
MB_DAT58
MB_DAT59
MB_DAT60
MB_DAT61
MB_DAT62
MB_DAT63
MB_CS#27,12
MB_CS#37,12
MB_CKE17,12
MB_RAS#7,12
MB_CAS#7,12
MB_WE#7,12
SMBCLK_SB
SMBDAT_SB
MB_CKE37,12MB_CKE27,12
12
12
C51
C51
C50
C50
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
MH1
102
A0
101
A1
100
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
105
A10/AP
90
A11
89
A12
116
A13
86
A14
84
A15
85
A16_BA2
107
BA0
106
BA1
5
DQ0
7
DQ1
17
DQ2
19
DQ3
4
DQ4
6
DQ5
14
DQ6
16
DQ7
23
DQ8
25
DQ9
35
DQ10
37
DQ11
20
DQ12
22
DQ13
36
DQ14
38
DQ15
43
DQ16
45
DQ17
55
DQ18
57
DQ19
44
DQ20
46
DQ21
56
DQ22
58
DQ23
61
DQ24
63
DQ25
73
DQ26
75
DQ27
62
DQ28
64
DQ29
74
DQ30
76
DQ31
123
DQ32
125
DQ33
135
DQ34
137
DQ35
124
DQ36
126
DQ37
134
DQ38
136
DQ39
141
DQ40
143
DQ41
151
DQ42
153
DQ43
140
DQ44
142
DQ45
152
DQ46
154
DQ47
157
DQ48
159
DQ49
173
DQ50
175
DQ51
158
DQ52
160
DQ53
174
DQ54
176
DQ55
179
DQ56
181
DQ57
189
DQ58
191
DQ59
180
DQ60
182
DQ61
192
DQ62
194
DQ63
50
NC#50
69
NC#69
83
NC#83
120
NC#120
163
NC#163/TEST
110
CS0#
115
CS1#
79
CKE0
80
CKE1
108
RAS#
113
CAS#
109
WE#
197
SCL
195
SDA
114
ODT0
119
ODT1
1
VREF
201
GND
SKT-SODIMM20020U2GP
SKT-SODIMM20020U2GP
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS0#
DQS1#
DQS2#
DQS3#
DQS4#
DQS5#
DQS6#
DQS7#
VDD_SPD
MH2
MH2
MB_DQS0
13
MB_DQS1
31
MB_DQS2
51
MB_DQS3
70
MB_DQS4
131
MB_DQS5
148
MB_DQS6
169
MB_DQS7
188
MB_DQS#0
11
MB_DQS#1
29
MB_DQS#2
49
MB_DQS#3
68
MB_DQS#4
129
MB_DQS#5
146
MB_DQS#6
167
MB_DQS#7
186
MB_DM0
10
DM0
MB_DM1
26
DM1
MB_DM2
52
DM2
MB_DM3
67
DM3
MB_DM4
130
DM4
MB_DM5
147
DM5
MB_DM6
170
DM6
MB_DM7
185
DM7
30
CK0
32
CK0#
164
CK1
166
CK1#
DIMM1_SA0
198
SA0
DIMM1_SA1
200
SA1
199
81
VDD
82
VDD
87
VDD
88
VDD
95
VDD
96
VDD
103
VDD
104
VDD
111
VDD
112
VDD
117
VDD
118
VDD
2
VSS
3
VSS
8
VSS
9
VSS
12
VSS
15
VSS
18
VSS
21
VSS
24
VSS
27
VSS
28
VSS
33
VSS
34
VSS
39
VSS
40
VSS
41
VSS
42
VSS
47
VSS
48
VSS
53
VSS
54
VSS
59
VSS
60
VSS
65
VSS
66
VSS
71
VSS
72
VSS
77
VSS
78
VSS
121
VSS
122
VSS
127
VSS
128
VSS
132
VSS
133
VSS
138
VSS
139
VSS
144
VSS
145
VSS
149
VSS
150
VSS
155
VSS
156
VSS
161
VSS
162
VSS
165
VSS
168
VSS
171
VSS
172
VSS
177
VSS
178
VSS
183
VSS
184
VSS
187
VSS
190
VSS
193
VSS
196
VSS
202
GND
1D8V_S3
MB_CLKOUT3 7
MB_CLKOUT#3 7
MB_CLKOUT2 7
MB_CLKOUT#2 7
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C206
C206
SB
Reverse Connector
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
200
181
183
185
187
189
191
193
195
197
199
Height = 5.2mm Height = 9.2mm
3D3V_S0
12
12
C224
C224
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
DY
DY
SB
SPD Address : A2
DDR_VREF
1D8V_S3
12
1KR2F-3-GP
1KR2F-3-GP
1KR2F-3-GP
1KR2F-3-GP
R41
R41
R40
R40
12
12
12
1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
CON_SODIMM200_RVS_V1
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
199
192
194
196
198
200
4K7R2J-2-GP
4K7R2J-2-GP
DIMM1_SA0
DIMM1_SA1
0R2J-2-GP
0R2J-2-GP
C46
C46
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C47
C47
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
E
DIMM0DIMM1
Reverse Connector
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
200
181
183
185
187
189
191
193
195
197
199
3D3V_S0 3D3V_S0
R577
R577
4K7R2J-2-GP
4K7R2J-2-GP
1 2
R565
R565
0R2J-2-GP
0R2J-2-GP
DY
DY
1 2
DDR_VREF_S3
1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
CON_SODIMM200_RVS_V1
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
199
192
194
196
198
200
R579
R579
DY
DY
1 2
12
R582
R582
Height = 5.2mm
Part Number change to 62.10017.A41
1 1
LAYOUT: Locate close to DIMM
<Variant Name>
<Variant Name>
<Variant Name>
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A2
A2
A2
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
Taipei Hsien 221, Taiwan, R.O.C.
DDR2-SOCKET
DDR2-SOCKET
DDR2-SOCKET
Y4A -1
Y4A -1
Y4A -1
E
11 49Tuesday, January 23, 2007
11 49Tuesday, January 23, 2007
11 49Tuesday, January 23, 2007
of
of
of
Page 12
A
B
PARALLEL TERMINATION AND Decoupling Capacitor
C
D
E
R599
R599
MB_ADDR[14..0]
MB_BA[2..0]
12
12
R598
R598
180R2F-1-GP
180R2F-1-GP
0D9V_S0
C395
C395
1 2
SCD1U16V2ZY-2GP
MB_BA0
R147 56R2J-4-GPR147 56R2J-4-GP
1 2
R143 56R2J-4-GPR143 56R2J-4-GP
MB_CS#27,11
MB_ADDR2
MB_ADDR0
MB_ADDR6
MB_ADDR4
MB_BA2
MB_ADDR12
MB_ADDR9
MB_ADDR8
MB_ADDR5
MB_ADDR3
MB_ADDR1
MB_ADDR10
MB_ADDR7
MB_ADDR11
MB_ADDR14
MB_CKE17,11
MB_CKE07,11
1 2
RN1
RN1
1
8
2
7
3
6
4 5
SRN56J-5-GP
SRN56J-5-GP
RN3
RN3
1
8
2
7
3
6
4 5
SRN56J-5-GP
SRN56J-5-GP
RN6
RN6
1
8
2
7
3
6
4 5
SRN56J-5-GP
SRN56J-5-GP
RN2
RN2
1
8
2
7
3
6
4 5
SRN56J-5-GP
SRN56J-5-GP
R142 56R2J-4-GPR142 56R2J-4-GP
1 2
R102 56R2J-4-GPR102 56R2J-4-GP
1 2
R101 56R2J-4-GPR101 56R2J-4-GP
1 2
R100 56R2J-4-GPR100 56R2J-4-GP
1 2
SB LAYOUT MODIFY
R145 56R2J-4-GPR145 56R2J-4-GP
MB_CS#37,11
MB_WE#7,11
MB_CAS#7,11
MB_CS#17,11
MB_CS#07,11
MB_RAS#7,11
MB_ADDR13
MB_BA1
1 2
RN5
RN5
1
2
3
4 5
SRN56J-5-GP
SRN56J-5-GP
RN4
RN4
1
2
3
4 5
SRN56J-5-GP
SRN56J-5-GP
8
7
6
8
7
6
C396
C396
C171
C171
C190
C190
C23
C23
C95
C95
C96
C96
C74
C74
C141
C141
C172
C172
C145
C145
C143
C143
C144
C144
C173
C173
C170
C170
C174
C174
C142
C142
C169
C169
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
-1
SB
1D8V_S3
DE-COUPLING FOR SODIMM 1 (ONE CAP PER POWER PIN)
1D8V_S3
-1
DE-COUPLING FOR SODIMM 1 (ONE CAP PER POWER PIN)
-1
12
C140
C140
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C167
C167
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C422
C422
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C162
C162
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C136
C136
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C137
C137
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C448
C448
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C94
C94
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C164
C164
12
C165
C165
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C412
C412
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C138
C138
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C168
C168
12
C166
C166
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
12
C423
C423
12
C414
C414
12
C139
C139
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
C413
C413
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
4 4
3 3
2 2
MB_ADDR[14..0]7,11
MB_BA[2..0]7,11
MB_CKE27,11
MB_CKE37,11
180R2F-1-GP
180R2F-1-GP
<Variant Name>
<Variant Name>
1 1
A
B
C
D
<Variant Name>
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
DDR2-RESISTOR
DDR2-RESISTOR
DDR2-RESISTOR
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
Y4A -1
Y4A -1
Y4A -1
12 49Tuesday, January 23, 2007
12 49Tuesday, January 23, 2007
12 49Tuesday, January 23, 2007
E
Page 13
A
B
C
D
E
-1
CRT
CRT_RED9
4 4
3 3
2 2
1 1
CRT_GREEN9
CRT_BLUE9
R276
R276
150R2F-1-GP
150R2F-1-GP
LAYOUT NOTE :
CLOSE TO CRT CONNECTOR, THE
TRACE IMPEDANCE BETWEEN NB AND 150OHM
RESISTOR SHOULD BE 37.5OHM+/-15%, BETWEEN
TWO 150OHM RESISTORS SHOULD BE 50OHM,
BETWEEN 150OHM RESISTOR AND CONNECTOR
SHOULD BE 75OHM+/-15%
1 2
150R2F-1-GP
150R2F-1-GP
R277
R277
1 2
Hsync & Vsync level shift
GMCH_HSYNC
GMCH_VSYNC9
GMCH_VSYNC
DDC_CLK & DATA level shift
-1
DAC_SDAT9
-1
I2C_CLK9
A
R278
R278
1 2
150R2F-1-GP
150R2F-1-GP
R269
R269
4K7R2J-2-GP
4K7R2J-2-GP
DAC_SDAT
2K2R2J-2-GP
2K2R2J-2-GP
I2C_CLK
SC5P50V2CN-2GP
SC5P50V2CN-2GP
14
4
U18B
U18B
5 6
TSAHCT125PW-GP
TSAHCT125PW-GP
7
3D3V_S0
1 2
3D3V_S0
12
R268
R268
12
C349
C349
SC5P50V2CN-2GP
SC5P50V2CN-2GP
5V_S0
2 3
S
S
DY
DY
S
S
14
7
G
G
2 3
2N7002-9-GP
2N7002-9-GP
G
G
2 3
2N7002-9-GP
2N7002-9-GP
Y4B-1
12
C351
C351
1
U18A
U18A
TSAHCT125PW-GP
TSAHCT125PW-GP
6K8R2F-2-GP
6K8R2F-2-GP
1
D
D
Q18
Q18
1
D
D
Q17
Q17
12
C353
C353
SC5P50V2CN-2GP
SC5P50V2CN-2GP
12
HSYNC_5
VSYNC_5
5V_S0
12
R275
R275
DY
DY
5V_S0
12
DY
DY
B
L8
L8
1 2
BLM18BB470SN1-GP
BLM18BB470SN1-GP
L9
L9
1 2
BLM18BB470SN1-GP
BLM18BB470SN1-GP
L10
L10
1 2
BLM18BB470SN1-GP
BLM18BB470SN1-GP
C355
C355
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R279
R279
1 2
39R2J-L-GP
39R2J-L-GP
R280
R280
1 2
39R2J-L-GP
39R2J-L-GP
DAT_DDC1_5
R270
R270
6K8R2F-2-GP
6K8R2F-2-GP
CLK_DDC1_5
12
C350
C350
SC5P50V2CN-2GP
SC5P50V2CN-2GP
JVGA_HS
JVGA_VS
12
C352
C352
SC5P50V2CN-2GP
SC5P50V2CN-2GP
CRT_R
CRT_G
CRT_B
HSYNC_5
VSYNC_5
CRT_R
CRT_G
CRT_B
12
C354
C354
SC5P50V2CN-2GP
SC5P50V2CN-2GP
D19 BAV99PT-GP-UD19 BAV99PT-GP-U
3
D20 BAV99PT-GP-UD20 BAV99PT-GP-U
3
D21 BAV99PT-GP-UD21 BAV99PT-GP-U
3
D24 BAV99PT-GP-UD24 BAV99PT-GP-U
3
D22 BAV99PT-GP-UD22 BAV99PT-GP-U
3
C
-1
6K8R2F-2-GP
6K8R2F-2-GP
DAT_DDC1_5
JVGA_HS
JVGA_VS
CLK_DDC1_5
2
5V_S0
S-Video
1
2
1
2
1
2
1
2
1
5V_S0
Y_G9GMCH_HSYNC9
C_R9
R271
R271
R281
R281
75R2F-2-GP
75R2F-2-GP
R282
R282
75R2F-2-GP
75R2F-2-GP
5V_S0
21
CH751H-40PT
CH751H-40PT
D23
D23
C338
C338
SC100P50V3JN-2GP
SC100P50V3JN-2GP
12
R272
R272
6K8R2F-2-GP
6K8R2F-2-GP
12
C348
C348
SC10P50V2JN-4GP
SC10P50V2JN-4GP
12
C340
C340
12
SC100P50V3JN-2GP
SC100P50V3JN-2GP
12
Y4B delete component for ME
12
12
D
5V_CRT_S0
12
C341
CRT1
CRT1
17
11
12
13
14
15
16
VIDEO-15-42-GP-U
VIDEO-15-42-GP-U
C341
6
1
7
2
8
3
9
4
10
5
CRT_R
CRT_G
CRT_B
SCD01U16V2KX-3GP
SCD01U16V2KX-3GP
SC10P50V2JN-4GP
SC10P50V2JN-4GP
12
C339
C339
-1
R911-R913 EITHER CLOSE TO NB OR
TV CONNECTOR, THE TRACE IMPEDANCE
BETWEEN NB AND 75OHM RESISTOR SHOULD BE
37.5OHM+/-15%, THE TRACE IMPEDANCE BETWEEN
75OHM RESISTOR AND CONNECTOR SHOULD BE
75OHM+/-15%
<Variant Name>
<Variant Name>
<Variant Name>
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
CRT/TV Connector
CRT/TV Connector
CRT/TV Connector
Y4A
Y4A
Y4A
E
13 49Tuesday, January 23, 2007
13 49Tuesday, January 23, 2007
13 49Tuesday, January 23, 2007
-1
-1
-1
Page 14
A
B
C
D
E
C5
C5
39
40
LCDVDD_S0
TOP VIEW
12
C6
C6
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
DY
DY
EDID_CLK 9
EDID_DAT 9
1
2
BRIGHTNESS 32
BLON_OUT 32
12
R2
R2
100KR2J-1-GP
100KR2J-1-GP
LED
3D3V_S0
LED2
LED2
4 4
3 3
1 2
LED-G-138-GP
LED-G-138-GP
LED6
LED6
1 2
LED-G-138-GP
LED-G-138-GP
LED7
LED7
1 2
LED-G-138-GP
LED-G-138-GP
LED4
LED4
1 2
LED-G-138-GP
LED-G-138-GP
Left side Right side
MEDIA_LED#
-1
R557
R557
1 2
330R2J-3-GP
330R2J-3-GP
R561
R561
1 2
330R2J-3-GP
330R2J-3-GP
R562
R562
1 2
330R2J-3-GP
330R2J-3-GP
R559
R559
1 2
150R2J-L1-GP-U
150R2J-L1-GP-U
PWR_LED# 32
CAP_LED# 32
NUM_LED# 32
MEDIA_LED#
LED's Location and Sequence
WLAN
PWR ON
3
D27
D27
BAW56PT-U
BAW56PT-U
MEDIA
STDBY
The edge of PCB,Top view
2
1
CHARGER
1 2
SATA_ACT#
PIDE_DSAP#
CAP.
R382
R382
10KR2J-3-GP
10KR2J-3-GP
NUM.
DY
DY
3D3V_S0
SATA_ACT# 16
PIDE_DSAP# 28
LCD/INVERTER/CCD CONN
SC1U10V3KX-3GP
SC1U10V3KX-3GP
C357
SC10U35V0ZY-GP
SC10U35V0ZY-GP
C357
3D3V_S0
12
C9
C9
DCBATOUT
12
GMCH_TXUOUT0-9
GMCH_TXUOUT0+9
GMCH_TXUOUT1-9
GMCH_TXUOUT1+9
GMCH_TXUOUT2-9
GMCH_TXUOUT2+9
GMCH_TXUCLK-9
GMCH_TXUCLK+9
Layout 60 mil
12
C356
C356
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
TP2TPAD30 TP2TPAD30
TP1TPAD30 TP1TPAD30
CN3
CN3
41
MH1
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
43
MH2
AMP-CONN40-2-UGP
AMP-CONN40-2-UGP
42
45
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
44
46
Layout 60 mil
GMCH_TXLCLK- 9
GMCH_TXLCLK+ 9
GMCH_TXLOUT2- 9
GMCH_TXLOUT2+ 9
GMCH_TXLOUT1- 9
GMCH_TXLOUT1+ 9
GMCH_TXLOUT0- 9
GMCH_TXLOUT0+ 9
12
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
2 2
3D3V_S5
3D3V_S5
-1
1 2
1KR2J-1-GP
1KR2J-1-GP
1 2
330R2J-3-GP
330R2J-3-GP
R560
R560
R558
R558
LED5
LED5
A K
LED-O-16-GP
LED-O-16-GP
LED3
LED3
1 2
LED-G-138-GP
LED-G-138-GP
CHG_LED#
STBY_LED#
CHG_LED# 32
STBY_LED# 32
LCDVDD_S0
12
C4
C4
SC1U10V3KX-3GP
SC1U10V3KX-3GP
LCDVDD_ON_1
R1
NB_LCDVDD_ON9
1 2
R1
1KR3F-GP
1KR3F-GP
LCD POWER
Layout 40 mil
12
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1
2
C3
C3
U1
U1
OUT
GND
GND
ON/OFF#3IN
AAT4280IGU-3-T1GP
AAT4280IGU-3-T1GP
6
IN
5
4
Layout 40 mil
3D3V_S0
12
C10
C10
SC1U10V3KX-3GP
SC1U10V3KX-3GP
-1
1 1
3D3V_S0
1 2
330R2J-3-GP
330R2J-3-GP
A
R556
R556
LED1
LED1
1 2
LED-G-138-GP
LED-G-138-GP
WIFI_TEST
WIFI_TEST 32
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
B
C
D
Date: Sheet
INVERTER / LCD
INVERTER / LCD
INVERTER / LCD
Y4A
Y4A
Y4A
-1
-1
14 49Tuesday, January 23, 2007
14 49Tuesday, January 23, 2007
14 49Tuesday, January 23, 2007
E
-1
of
of
of
Page 15
A
B
C
D
E
1D8V_S0
R222
R222
1 2
0R3-0-U-GP
0R3-0-U-GP
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
4 4
1D8V_S0 PCIE_VDDR
R223
R223
1 2
0R0603-PAD
0R0603-PAD
C290
C290
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
R384
R384
10KR2J-3-GP
10KR2J-3-GP
1 2
3D3V_S0
1
2
9
10
4
5
3 3
A_RST#
PCIRST#
2 2
H_DPSLP#4
1 1
CPU_DPRSLPVR4,39
C266
C266
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S5
147
3D3V_S5
147
3D3V_S5
147
DY
DY
D
D
Q24
Q24
2N7002-9-GP
2N7002-9-GP
12
12
R379
R379
1 2
0R2J-2-GP
0R2J-2-GP
1 2
0R2J-2-GP
0R2J-2-GP
A
PCIE_PVDD
12
C265
C265
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C288
C288
C287
C287
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
U45A
U45A
PLT_RST#_R
3
TSLCX08MTCX-GP
TSLCX08MTCX-GP
U45C
U45C
PCI_RST#
8
TSLCX08MTCX-GP
TSLCX08MTCX-GP
U45B
U45B
TSLCX08MTCX-GP
TSLCX08MTCX-GP
6
PCI_RST#_R
SB460_DPSLP#
S
S
23
1
G
G
5
VCC
4
Y
NC7SZ00P5X-NL-GP
NC7SZ00P5X-NL-GP
R121
R121
DPRSLPVR_SB
12
C264
C264
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C285
C285
R381
R381
1 2
33R2F-3-GP
33R2F-3-GP
R383
R383
1 2
33R2F-3-GP
33R2F-3-GP
R368
R368
1 2
33R2F-3-GP
33R2F-3-GP
U44
U44
1
A
2
B
3
GND
SBSRC_CLKP3
SBSRC_CLKN3
PCIE_RX0P_SB8
PCIE_RX0N_SB8
PCIE_RX1P_SB8
PCIE_RX1N_SB8
12
12
C263
C263
C284
C284
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
PCIE_VDDR
LPC_RST# 35
PCIRST_BUF# 26,32
Y4B-1 SB
SB460_DPSLP# 18
12
SC330P50V3JN-GP
SC330P50V3JN-GP
C299
C299
1 2
SC15P50V2JN-2-GP
SC15P50V2JN-2-GP
X-32D768KHZ-38GPU
X-32D768KHZ-38GPU
5M1R3-1-GP
5M1R3-1-GP
C300
C300
1 2
SC15P50V2JN-2-GP
SC15P50V2JN-2-GP
PCIRST_BUF#_LAN 22
H_INIT#4,35
R378
R378
1 2
200KR2J-L1-GP
200KR2J-L1-GP
D26
D26
21
RB751V-40-1-GP
RB751V-40-1-GP
C455
C455
R78
R78
1 2
10KR2J-3-GP
10KR2J-3-GP
A_RST#
A_RST#6,28
PCIE_TX0P_SB8
PCIE_TX0N_SB8
PCIE_TX1P_SB8
PCIE_TX1N_SB8
R453 150R2F-1-GPR453 150R2F-1-GP
1 2
R452 150R2F-1-GPR452 150R2F-1-GP
1 2
R451 4K12R2F-GPR451 4K12R2F-GP
1 2
12
X3
X3
R251
R251
CPU_STP#
B
SBSRC_CLKP
SBSRC_CLKN
1 2
1 2
2 3
H_PWRGD4
H_INTR4
H_NMI4
H_SMI#4
H_IGNNE#4
H_A20M#4
H_FERR#4
H_STPCLK#4
CPU_STP#3
1 2
C484SCD01U16V2KX-3GP C484SCD01U16V2KX-3GP
C486SCD01U16V2KX-3GP C486SCD01U16V2KX-3GP
C485SCD01U16V2KX-3GP C485SCD01U16V2KX-3GP
C496SCD01U16V2KX-3GP C496SCD01U16V2KX-3GP
PCIE_TX0P_SB
PCIE_TX0N_SB
PCIE_TX1P_SB
PCIE_TX1N_SB
PCIE_VDDR
4
1
TP51TPAD30 TP51TPAD30
TP82TPAD30 TP82TPAD30
TP52TPAD30 TP52TPAD30
R397
R397
33R3J-2-GP
33R3J-2-GP
1 2
1 2
PCIE_PVDD
TP67TPAD30 TP67TPAD30
SB_A_RST#
TX0P
TX0N
TX1P
TX1NTX1N
PCIE_CALRP
PCIE_CALRN
PCIE_CALI
SB_TP16
12
32K_X1
H_PWRGD
H_INTR
H_NMI
H_SMI#
SB_TP24
H_IGNNE#
H_A20M#
H_FERR#
H_STPCLK#
CPU_STP#
SB_TP27
DPRSLPVR_SB
LDT_RST#
32K_X2
AG10
P29
P28
M29
M28
K29
K28
H29
H28
T25
T26
T22
T23
M25
M26
M22
M23
E29
E28
E27
U29
U28
F27
F28
F29
G26
G27
G28
G29
L25
L26
L29
N29
R232
R232
20MR3-GP
20MR3-GP
AC26
W26
W24
W25
AA24
AA23
AA22
AA26
Y27
AA25
AH9
B24
W23
AC25
J24
J25
J27
J29
D2
C1
SB460 change to A12 version
U49A
U49A
1 of 4
A_RST#
PCIE_RCLKP
PCIE_RCLKN
PCIE_TX0P
PCIE_TX0N
PCIE_TX1P
PCIE_TX1N
PCIE_TX2P
PCIE_TX2N
PCIE_TX3P
PCIE_TX3N
PCIE_RX0P
PCIE_RX0N
PCIE_RX1P
PCIE_RX1N
PCIE_RX2P
PCIE_RX2N
PCIE_RX3P
PCIE_RX3N
PCIE_CALRP
PCIE_CALRN
PCIE_CALI
PCIE_PVDD
NC49
PCIE_VDDR_1
PCIE_VDDR_2
PCIE_VDDR_3
PCIE_VDDR_4
PCIE_VDDR_5
PCIE_VDDR_6
PCIE_VDDR_7
PCIE_VDDR_8
PCIE_VDDR_9
PCIE_VDDR_10
PCIE_VDDR_11
PCIE_VDDR_12
PCIE_VDDR_13
X1
X2
CPU_PG
INTR/LINT0
NMI/LINT1
INIT#
SMI#
NC55
IGNNE#
A20M#
FERR#
STPCLK#/ALLOW_LDTSTP
CPU_STP#/DPSLP_3V#
NC13
DPRSLPVR
LDT_RST#
SB460-GP
SB460-GP
1 of 4
REQ4#/PLL_BP33/PDMA_REQ1#
GNT3#/PLL_BP66/PDMA_GNT0#
GNT4#/PLL_BP50/PDMA_GNT1#
RTC_IRQ#/ACPWR_STRAP
C
REQ3#/PDMA_REQ0#
PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5
PCICLK6
SPDIF_OUT/GPIO41
PCIRST#
AD0/ROMA18
AD1/ROMA17
AD2/ROMA16
AD3/ROMA15
AD4/ROMA14
AD5/ROMA13
AD6/ROMA12
AD7/ROMA11
AD8/ROMA9
AD9/ROMA8
AD10/ROMA7
AD11/ROMA6
AD12/ROMA5
AD13/ROMA4
AD14/ROMA3
AD15/ROMA2
AD16/ROMD0
AD17/ROMD1
AD18/ROMD2
AD19/ROMD3
AD20/ROMD4
AD21/ROMD5
AD22/ROMD6
AD23/ROMD7
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
CBE0#/ROMA10
CBE1#/ROMA1
CBE2#/ROMWE#
CBE3#
FRAME#
DEVSEL#/ROMA0
IRDY#
TRDY#/ROMOE#
PAR/ROMA19
STOP#
PERR#
SERR#
REQ0#
REQ1#
REQ2#
GNT0#
GNT1#
GNT2#
CLKRUN#
LOCK#
INTE#/GPIO33
INTF#/GPIO34
INTG#/GPIO35
INTH#/GPIO36
LAD0
LAD1
LAD2
LAD3
LFRAME#
LDRQ0#
LDRQ1#
BMREQ#
SERIRQ
RTCCLK
VBAT
RTC_GND
U2
T2
U1
V2
W3
U3
V1
T1
AJ9
W7
Y1
W8
W5
AA5
Y3
AA6
AC5
AA7
AC3
AC7
AJ7
AD4
AB11
AE6
AC9
AA3
AJ4
AB1
AH4
AB2
AJ3
AB3
AH3
AC1
AH2
AC2
AH1
AD2
AG2
AD1
AG1
AB9
AF9
AJ5
AG3
AA2
AH6
AG5
AA1
AF7
Y2
AG8
AC11
AJ8
AE2
AG9
AH8
AH5
AD11
AF2
AH7
AB12
AG4
AG7
AF6
AD3
AF1
AF4
AF3
AG24
AG25
AH24
AH25
AF24
AJ24
AH26
W22
AF23
D3
F5
E1
D1
PCI_CLK0_R
PCI_CLK1_R
PCI_CLK2_R
PCI_CLK3_R
PCI_CLK4_R
PCI_CLK5_R
PCI_CLK6_R
PCI_CLK7_R
PCIRST#
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_C/BE#0
PCI_C/BE#1
PCI_C/BE#2
PCI_C/BE#3
PCI_FRAME#
PCI_DEVSEL#
PCI_IRDY#
PCI_TRDY#
PCI_PAR
PCI_STOP#
PCI_PERR#
PCI_SERR#
PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
PCI_REQ#3
PCI_REQ#4
PCI_GNT#1
PCI_GNT#2
PCI_GNT#3
PCI_GNT#4
PM_CLKRUN#
PCI_LOCK#
INT_PIRQE#
INT_PIRQF#
INT_PIRQG#
INT_PIRQH#
LPC_LAD0
LPC_LAD1
LPC_LAD2
LPC_LAD3
LPC_LFRAME#H_INIT#
LPC_LDRQ0#
LPC_LDRQ1#
BMREQ#
P_SERIRQ
RTC_CLK
RTC_IRQ#
RTC_VBATIN
R417 22R2F-1-GPR417 22R2F-1-GP
1 2
R447 22R2F-1-GPR447 22R2F-1-GP
1 2
R421 22R2F-1-GPR421 22R2F-1-GP
1 2
R418 22R2F-1-GPR418 22R2F-1-GP
1 2
R420 22R2F-1-GPR420 22R2F-1-GP
1 2
R422 22R2F-1-GPR422 22R2F-1-GP
1 2
R419 22R2F-1-GPR419 22R2F-1-GP
1 2
R449
R449
1 2
0R0402-PAD
0R0402-PAD
PCI_C/BE#[0..3]22
PCI_C/BE#0 22
PCI_C/BE#1 22
PCI_C/BE#2 22
PCI_C/BE#3 22
PCI_FRAME# 22
PCI_DEVSEL# 22
PCI_IRDY# 22
PCI_TRDY# 22
PCI_PAR 22
PCI_STOP# 22
PCI_PERR# 22
PCI_SERR# 22
PCI_REQ#2 22
TP65 TPAD30TP65 TPAD30
PCI_GNT#2 22
TP48 TPAD30TP48 TPAD30
TP66 TPAD30TP66 TPAD30
PM_CLKRUN# 22,32
INT_PIRQH# 22
LPC_LFRAME# 19,32,35
BMREQ# 8,9
P_SERIRQ 32,35
RTC_CLK 19,20
RTC_IRQ# 19
R446
R446
1 2
1KR2J-1-GP
1KR2J-1-GP
12
C495
C495
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
D
SB_PCI_CLK0
SB_CLK33_1394
SB_CLK33_LAN
SB_CLK33_MINI
SB_CLK33_KBC
SB_PCLK_FWH
SB_PCI_CLK6
SPDIF_OUT_STRAP
3D3V_AUX_S5
RB751V-40-1-GP
RB751V-40-1-GP
D33
D33
2 1
RTCBATIN
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet of
SB460 PCI/CPU/LPC/RTC (1 of 5)
SB460 PCI/CPU/LPC/RTC (1 of 5)
SB460 PCI/CPU/LPC/RTC (1 of 5)
LPC_LAD[0..3] 32,35
PCI_AD[0..31] 19,22
SB_PCI_CLK0 19
SB_CLK33_1394 19
SB_CLK33_LAN 19,22
SB_CLK33_MINI 19
SB_CLK33_KBC 19,32
SB_PCLK_FWH 19,35
SB_PCI_CLK6 19
SPDIF_OUT_STRAP 19
PCI PULL UP
PCI_FRAME#
PCI_TRDY#
PCI_IRDY#
PCI_REQ#1
PCI_REQ#2
PCI_PERR#
PM_CLKRUN#
PCI_LOCK#
PCI_REQ#4
PCI_DEVSEL#
PCI_REQ#0
PCI_REQ#3
PCI_SERR#
PCI_STOP#
INT_PIRQG#
INT_PIRQH#
INT_PIRQE#
INT_PIRQF#
LPC PULL UP
LPC_LAD0
P_SERIRQPCIRST#
LPC_LAD1
LPC_LAD2
LPC_LDRQ0#
LPC_LAD3
LPC_LDRQ1#
D32
D32
2 1
RB751V-40-1-GP
RB751V-40-1-GP
Y4A
Y4A
Y4A
3D3V_S0
RN33
RN33
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
RN8
RN8
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
RN30
RN30
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
RN29
RN29
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
RN7
RN7
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
3D3V_S0
RN31
RN31
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
RN32
RN32
4 5
3
6
2
7
1
8
SRN10KJ-7GP
SRN10KJ-7GP
CN11
CN11
RTCBAT
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
BAT-CON2-U2-GP
BAT-CON2-U2-GP
15 49Tuesday, January 23, 2007
15 49Tuesday, January 23, 2007
15 49Tuesday, January 23, 2007
E
MH1
MH2
1
PWR
2
GND
MH1
MH2
of
of
-1
-1
-1

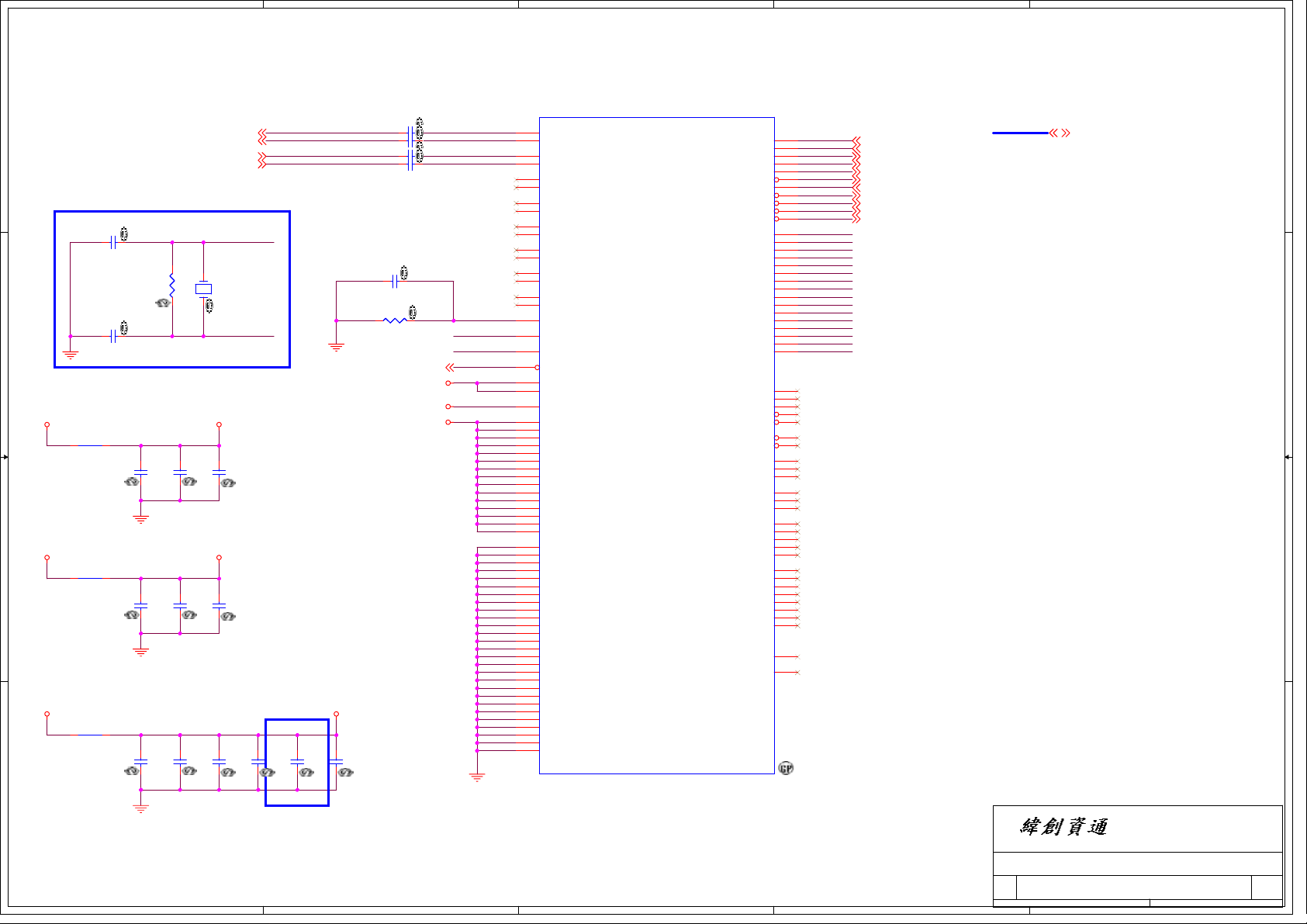

Page 16
A
4 4
SATA_TXP028
SATA_TXN028
SATA_RXN028
SATA_RXP028
SATA_TXP0
SATA_TXN0
SATA_RXN0
SB
C241
C241
1 2
SC10P50V2JN-4GP
SC10P50V2JN-4GP
10MR3J-L1-GP
10MR3J-L1-GP
C242
C242
3 3
1D8V_S0 PLLVDD_SATA
2 2
1D8V_S0 AVDD_SATA
1 1
1 2
SC10P50V2JN-4GP
SC10P50V2JN-4GP
R380
R380
1 2
0R0603-PAD
0R0603-PAD
C456
C456
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
R187
R187
1 2
0R0603-PAD
0R0603-PAD
C232
C232
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
R198
R198
1 2
0R0603-PAD
0R0603-PAD
SC22U6D3V6KX-1GP
SC22U6D3V6KX-1GP
C245
C245
R196
R196
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
A
12
12
12
12
SATA_X1
X2
X2
12
XTAL-25MHZ-67GP
XTAL-25MHZ-67GP
SATA_X2
C467
C467
12
C468
C468
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
XTLVDD_SATA1D8V_S0
C239
C239
12
C261
C261
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C244
C244
12
C260
C260
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
12
C240
C240
SB
12
C243
C243
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
B
C469
C469
DY
DY
1 2
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
R398
R398
1 2
1KR2F-3-GP
1KR2F-3-GP
SATA_ACT#14
PLLVDD_SATA
XTLVDD_SATA
C246
C246
B
1 2
1 2
1 2
1 2
AVDD_SATA
C471SCD01U16V2KX-3GP C471SCD01U16V2KX-3GP
C470SCD01U16V2KX-3GP C470SCD01U16V2KX-3GP
C323SCD01U16V2KX-3GP C323SCD01U16V2KX-3GP
C324SCD01U16V2KX-3GP C324SCD01U16V2KX-3GP
SB_SATA_TXP0
SB_SATA_TXN0
SB_SATA_RXN0
SB_SATA_RXP0SATA_RXP0
SATA_X1
SATA_X2
SATA_ACT#
AH21
AJ21
AH20
AJ20
AH18
AJ18
AH17
AJ17
AH13
AH14
AH16
AJ16
AJ11
AH11
AH12
AJ13
AF12
AD16
AD18
AC12
AD14
AJ10
AC16
AE14
AE16
AE18
AE19
AF19
AF21
AG22
AG23
AH22
AH23
AJ12
AJ14
AJ19
AJ22
AJ23
AB14
AB16
AB18
AC14
AC18
AC19
AD12
AD19
AD21
AE12
AE21
AF11
AF14
AF16
AF18
AG11
AG12
AG13
AG14
AG16
AG17
AG18
AG19
AG20
AG21
AH10
AH19
U49B
U49B
SATA_TX0+
SATA_TX0-
SATA_RX0SATA_RX0+
SATA_TX1+
SATA_TX1-
SATA_RX1SATA_RX1+
SATA_TX2+
SATA_TX2-
SATA_RX2SATA_RX2+
SATA_TX3+
SATA_TX3-
SATA_RX3SATA_RX3+
SATA_CAL
SATA_X1
SATA_X2
SATA_ACT#
PLLVDD_SATA_1
PLLVDD_SATA_2
XTLVDD_SATA
AVDD_SATA_1
AVDD_SATA_2
AVDD_SATA_3
AVDD_SATA_4
AVDD_SATA_5
AVDD_SATA_6
AVDD_SATA_7
AVDD_SATA_8
AVDD_SATA_9
AVDD_SATA_10
AVDD_SATA_11
AVDD_SATA_12
AVDD_SATA_13
AVDD_SATA_14
AVDD_SATA_15
AVSS_SATA_1
AVSS_SATA_2
AVSS_SATA_3
AVSS_SATA_4
AVSS_SATA_5
AVSS_SATA_6
AVSS_SATA_7
AVSS_SATA_8
AVSS_SATA_9
AVSS_SATA_10
AVSS_SATA_11
AVSS_SATA_12
AVSS_SATA_13
AVSS_SATA_14
AVSS_SATA_15
AVSS_SATA_16
AVSS_SATA_17
AVSS_SATA_18
AVSS_SATA_19
AVSS_SATA_20
AVSS_SATA_21
AVSS_SATA_22
AVSS_SATA_23
AVSS_SATA_24
AVSS_SATA_25
AVSS_SATA_26
AVSS_SATA_27
SB460-GP
SB460-GP
2 of 4
2 of 4
C
PIDE_IRQ
PIDE_A0
PIDE_A1
PIDE_A2
PIDE_DRQ
PIDE_D0
PIDE_D1
PIDE_D2
PIDE_D3
PIDE_D4
PIDE_D5
PIDE_D6
PIDE_D7
PIDE_D8
PIDE_D9
PIDE_D10
PIDE_D11
PIDE_D12
PIDE_D13
PIDE_D14
PIDE_D15
NC29
NC30
NC24
NC23
NC26
NC17
NC25
NC35
NC46
NC50
NC40
NC41
NC54
NC43
NC44
NC45
NC48
NC47
NC51
NC33
NC38
NC52
NC36
NC42
NC37
NC53
NC39
NC34
AB29
AA28
AA29
AB27
Y28
AB28
AC27
AC29
AC28
W28
W27
AD28
AD26
AE29
AF27
AG29
AH28
AJ28
AJ27
AH27
AG27
AG28
AF28
AF29
AE28
AD25
AD29
J3
J6
G3
G2
G6
C23
G5
M4
T3
V4
N3
P2
W4
P5
P7
P8
T8
T7
V5
L7
M8
V6
M6
P4
M7
V7
N1
M1
PIDE_D0
PIDE_D1
PIDE_D2
PIDE_D3
PIDE_D4
PIDE_D5
PIDE_D6
PIDE_D7
PIDE_D8
PIDE_D9
PIDE_D10
PIDE_D11
PIDE_D12
PIDE_D13
PIDE_D14
PIDE_D15
PIDE_IORDY
PIDE_DACK#
PIDE_IOR#
PIDE_IOW#
PIDE_CS1#
PIDE_CS3#
C
D
PIDE_IORDY 28
PIDE_IRQ14 28
PIDE_A0 28
PIDE_A1 28
PIDE_A2 28
PIDE_DACK# 19,28
PIDE_DREQ 28
PIDE_IOR# 28
PIDE_IOW# 28
PIDE_CS#0 28
PIDE_CS#1 28
D
E
PIDE_D[0..15] 28
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
SB460 ACPI/GPIO/SATA/IDE (2 of 5)
SB460 ACPI/GPIO/SATA/IDE (2 of 5)
SB460 ACPI/GPIO/SATA/IDE (2 of 5)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
Y4A
Y4A
Y4A
16 49Tuesday, January 23, 2007
16 49Tuesday, January 23, 2007
16 49Tuesday, January 23, 2007
of
of
E
of
-1
-1
-1

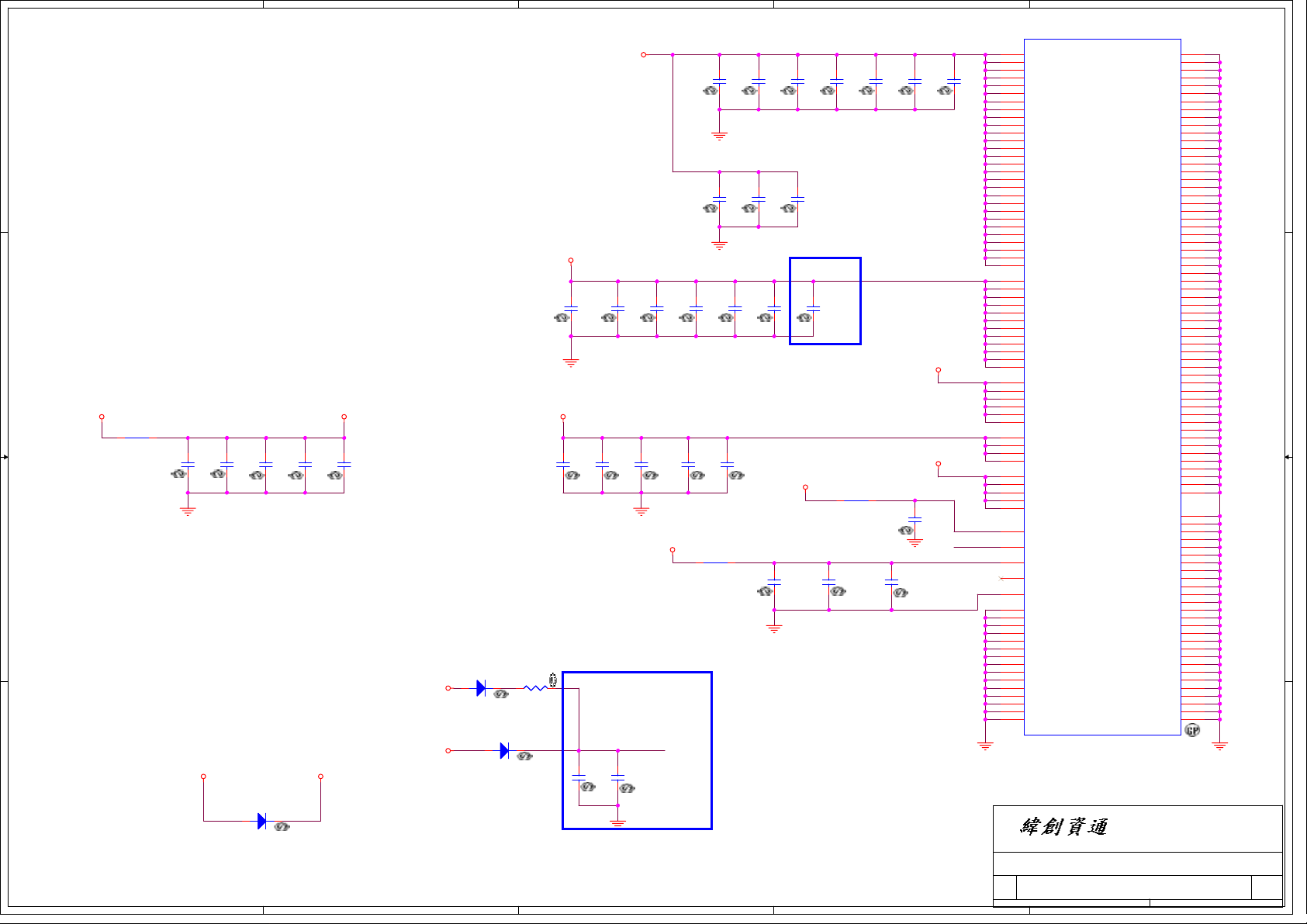

Page 17
A
4 4
ATI FAE Note :
Please refer to ATI reference design to
3 3
2 2
1 1
change the high frequency decoupling caps
on VDDQ and VDD from 0.1uF to 1uF
3D3V_S5
SC1U10V3KX-3GP
R252
R252
1 2
0R0603-PAD
0R0603-PAD
A
SC1U10V3KX-3GP
12
C302
C302
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
1D8V_S5
C272
C272
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
12
C274
C274
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
D17
D17
RB751V-40-1-GP
RB751V-40-1-GP
3D3V_SB_S5 1D8V_S5
12
12
C303
C303
C301
C301
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S5
21
B
1D8V_S0
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
C458
C457
C457
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R194
D14
5V_S0
3D3V_S0
B
D14
RB751V-40-1-GP
RB751V-40-1-GP
R194
1 2
21
1KR3J-L1-GP
1KR3J-L1-GP
D15
D15
21
RB751V-40-1-GP
RB751V-40-1-GP
C458
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C494
C494
SB LAYOUT MODIFY
TRACE WIDTH = 20 mils
12
C237
C237
SC1U10V3KX-3GP
SC1U10V3KX-3GP
C
3D3V_S0
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C262
C262
12
12
C273
C273
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
V5_VREF
12
C238
C238
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
C258
C258
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C493
C493
1D8V_S0
12
C275
C275
C253
C253
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C289
C289
C247
C247
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
12
C257
C257
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C282
C282
C280
C280
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R248
R248
1 2
0R0603-PAD
0R0603-PAD
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
C314
C314
C279
C279
12
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C283
C283
C286
C286
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C256
C256
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
12
C259
C259
1D05V_S0
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C497
C497
DY
DY
SB
R202
R202
1 2
0R0603-PAD
0R0603-PAD
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C313
C313
D
12
12
C255
C255
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C248
C248
12
C312
C312
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
D
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
C236
C236
3D3V_SB_S5
1D8V_S5
V5_VREF
1D8VAVDDCK_S0
E
U49C
U49C
3 of 4
A25
VDDQ_1
A28
VDDQ_2
C29
VDDQ_3
D24
VDDQ_4
L9
VDDQ_5
L21
VDDQ_6
M5
VDDQ_7
P3
VDDQ_8
P9
VDDQ_9
T5
VDDQ_10
V9
VDDQ_11
W2
VDDQ_12
W6
VDDQ_13
W21
VDDQ_14
W29
VDDQ_15
AA12
VDDQ_16
AA16
VDDQ_17
AA19
VDDQ_18
AC4
VDDQ_19
AC23
VDDQ_20
AD27
VDDQ_21
AE1
VDDQ_22
AE9
VDDQ_23
AE23
VDDQ_24
AH29
VDDQ_25
AJ2
VDDQ_26
AJ6
VDDQ_27
AJ26
VDDQ_28
M13
VDD_1
M17
VDD_2
N12
VDD_3
N15
VDD_4
N18
VDD_5
R13
VDD_6
R17
VDD_7
U12
VDD_8
U15
VDD_9
U18
VDD_10
V13
VDD_11
V17
VDD_12
A2
S5_3.3V_1
A7
S5_3.3V_2
F1
S5_3.3V_3
J5
S5_3.3V_4
J7
S5_3.3V_5
K1
S5_3.3V_6
G4
S5_1.8V_1
H1
S5_1.8V_2
H2
S5_1.8V_3
H3
S5_1.8V_4
A18
USB_PHY_1.8V_1
A19
USB_PHY_1.8V_2
B19
USB_PHY_1.8V_3
B20
USB_PHY_1.8V_4
B21
USB_PHY_1.8V_5
AA27
CPU_PWR
AE11
V5_VREF
A24
AVDDCK
A22
NC12
B22
AVSSCK
V29
PCIE_VSS_42
V28
PCIE_VSS_41
V27
PCIE_VSS_40
V26
PCIE_VSS_39
V25
PCIE_VSS_38
V24
PCIE_VSS_37
V23
PCIE_VSS_36
V22
PCIE_VSS_35
U27
PCIE_VSS_34
T29
PCIE_VSS_33
T28
PCIE_VSS_32
T27
PCIE_VSS_31
T24
PCIE_VSS_30
T21
PCIE_VSS_29
P27
PCIE_VSS_28
SB460-GP
SB460-GP
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
SB460 POWER/DECOUPLING
SB460 POWER/DECOUPLING
SB460 POWER/DECOUPLING
3 of 4
Y4A
Y4A
Y4A
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
PCIE_VSS_1
PCIE_VSS_2
PCIE_VSS_3
PCIE_VSS_4
PCIE_VSS_5
PCIE_VSS_6
PCIE_VSS_7
PCIE_VSS_8
PCIE_VSS_9
PCIE_VSS_10
PCIE_VSS_11
PCIE_VSS_12
PCIE_VSS_13
PCIE_VSS_14
PCIE_VSS_15
PCIE_VSS_16
PCIE_VSS_17
PCIE_VSS_18
PCIE_VSS_19
PCIE_VSS_20
PCIE_VSS_21
PCIE_VSS_22
PCIE_VSS_23
PCIE_VSS_24
PCIE_VSS_25
PCIE_VSS_26
PCIE_VSS_27
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
E
A1
A20
A21
A29
B1
B7
B25
C21
C22
C24
D6
E24
F2
F23
G1
J1
J8
L6
L8
M9
M12
M15
M18
N13
N17
P1
P6
P21
R12
R15
R18
T6
T9
U13
U17
V3
V8
V12
V15
V18
V21
W1
W9
Y29
AA11
AA14
AA18
AC6
AC24
AD9
AD23
AE3
AE27
AG6
AJ1
AJ25
AJ29
D27
D28
D29
F26
G23
G24
G25
H27
J23
J26
J28
K27
L22
L23
L24
L27
L28
M21
M24
M27
N27
N28
P22
P23
P24
P25
P26
17 49Tuesday, January 23, 2007
17 49Tuesday, January 23, 2007
17 49Tuesday, January 23, 2007
of
of
of
-1
-1
-1
Page 18

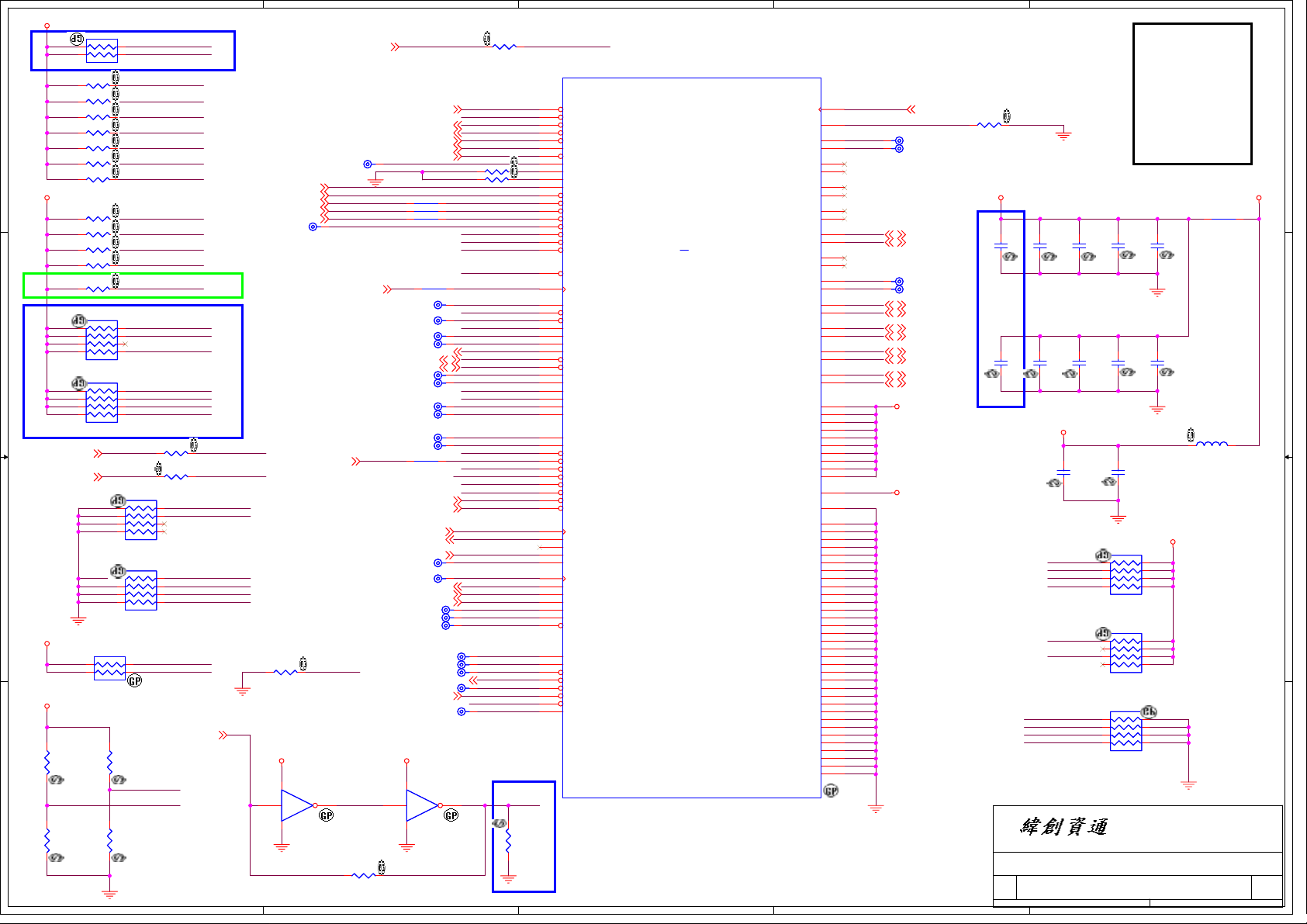

23
1
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
10KR2J-3-GP
SB460_ACZ_RST
10KR2J-3-GP
10KR2J-3-GP
1KR2J-1-GP
1KR2J-1-GP
45
3
2
1
45
3
2
1
RN9
RN9
6
7
8
SRN10KJ-6-GP
SRN10KJ-6-GP
RN35
RN35
6
7
8
SRN10KJ-6-GP
SRN10KJ-6-GP
RN42
RN42
4
SRN4K7J-8-GP
SRN4K7J-8-GP
12
R245
R245
10KR2J-3-GP
10KR2J-3-GP
DDC1_SCL
DDC1_SDA
12
R244
R244
10KR2J-3-GP
10KR2J-3-GP
DY
DY
A
ECSMI#_KBC
GPIO1
GPIO13
GPIO31
SB_TALERT#
SB460_VGATE
GPIO5
KA20GATE
KBRCIN#
SYS_RST#
AC97_RST#
PM_PWRBTN#
PCIE_WAKE#
ECSCI#_KBC
ECSWI#
PM_SLP_S3#
PM_SLP_S5#
PME#_SB
RI#
GPM6#
R475
R475
1 2
R234
R234
0R2J-2-GP
0R2J-2-GP
45
3
2
1
45
3
2
1
SMBDAT_SB
SMBCLK_SB
A
SB_RSMRST#32
SB
SB460_ACZ_RSTACZ_RST#
33R2F-3-GP
33R2F-3-GP
SB460_H_SLP#H_CPUSLP#
12
ACZ_BITCLK
ACZ_SDOUT
GPIO3
GPIO14
GPIO6
GPIO4
CPU_THERMTRIP#4,20
TP57TPAD30 TP57TPAD30
KA20GATE32
KBRCIN#32
ECSCI#_KBC32
ECSMI#_KBC32
H_PROCHOT#4
TP54TPAD30 TP54TPAD30
-1
SB_OSCIN3
SB
ECSWI#32
R482
R482
1 2
10KR2J-3-GP
10KR2J-3-GP
3D3V_S5 3D3V_S5
147
5 6
GPIO0
U16C
U16C
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
1 2
DY
DY
3D3V_S0
RN43
RN43
4
SRN10KJ-5-GP
SRN10KJ-5-GP
R195
R195
1 2
R197
R197
1 2
R203
R203
3D3V_S5
3D3V_S0
3D3V_S0
12
12
DY
DY
ACZ_RST#21,29
H_CPUSLP#4
R246
R246
10KR2J-3-GP
10KR2J-3-GP
R247
R247
10KR2J-3-GP
10KR2J-3-GP
1 2
R478
R478
1 2
R212
R212
1 2
R199
R199
1 2
R564
R564
1 2
R218
R218
1 2
R221
R221
1 2
R445
R445
1 2
R204
R204
1 2
DY
DY
R587
R587
1 2
RN44
RN44
6
7
8
SRN10KJ-6-GP
SRN10KJ-6-GP
RN40
RN40
6
7
8
SRN10KJ-6-GP
SRN10KJ-6-GP
1
2 3
4 4
3 3
2 2
1 1
SYS_RST#
R227
R227
0R2J-2-GP
0R2J-2-GP
B
R233
CPU_THERMTRIP# SB460_THERMTRIP#
PM_SLP_S3#20,32,36,41,42,44
PM_SLP_S5#32,41
PM_PWRBTN#32
SB_PWRGD37
PM_SUS_STAT#6,32
R242
R242
1 2
0R0402-PAD
0R0402-PAD
R479
R479
1 2
0R0402-PAD
0R0402-PAD
R253
R253
1 2
0R0402-PAD
0R0402-PAD
R477
R477
1 2
0R0402-PAD
0R0402-PAD
TP72TPAD30 TP72TPAD30
TP71TPAD30 TP71TPAD30
TP83TPAD30 TP83TPAD30
TP61TPAD30 TP61TPAD30
SPKR_SB29
SMBCLK_SB3,11,26
SMBDAT_SB3,11,26
TP75TPAD30 TP75TPAD30
TP55TPAD30 TP55TPAD30
TP84TPAD30 TP84TPAD30
TP77TPAD30 TP77TPAD30
TP78TPAD30 TP78TPAD30
TP76TPAD30 TP76TPAD30
R240
R240
12
0R0402-PAD
0R0402-PAD
USB_OC#121
USB_OC#021
ACZ_BITCLK21,29
ACZ_SDOUT21,29
ACZ_SYNC21,29
TP68TPAD30 TP68TPAD30
TP70TPAD30 TP70TPAD30
AC97_DOUT19
ACZ_SDIN029
ACZ_SDIN121
TP56
TP56
TPAD30
TPAD30
TP69TPAD30 TP69TPAD30
TP53TPAD30 TP53TPAD30
TP60TPAD30 TP60TPAD30
TP50TPAD30 TP50TPAD30
TP44TPAD30 TP44TPAD30
SB460_DPSLP#15
TP47TPAD30TP47TPAD30
SB_TALERT#20
TP49
TP49
TPAD30
TPAD30
U16D
U16D
147
9 8
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
B
R233
12
0R2J-2-GP
0R2J-2-GP
PME#_SB
RI#
PM_SLP_S3#
PM_SLP_S5#
PM_PWRBTN#
SB_PWRGD
PM_SUS_STAT#
SB_NC22
1 2
1 2
SB460_THERMTRIP#
SB600_ACZ_RST
R25410KR2J-3-GP R25410KR2J-3-GP
R21910KR2J-3-GP R21910KR2J-3-GP
KA20GATE
KBRCIN#
ECSCI#
ECSMI#
S3_STATE
PCIE_WAKE#
GPM6#
SB460_RSMRST#
X1_CLK_SB14_1
SB_NC18
GPIO1
GPIO6
SB460_VGATE
GPIO4
GPIO5
SPKR_SB
SMBCLK_SB
SMBDAT_SB
SB_NC14
SB_NC21
DDC1_SCL
DDC1_SDA
GPIO0
SB_NC11
SB_NC16
SB_NC15
USB_OC#7
USB_OC#6ECSWI#
SB460_ACZ_RST
USB_OC#4
USB_OC#3
USB_OC#2
USB_OC#1
USB_OC#0
ACZ_BITCLK
ACZ_SDOUT
ACZ_SYNC
AC_BITCLK USB_OC#0
AC97_DOUT
ACZ_SDIN0
ACZ_SDIN1
ACZ_SDIN2
AC97_SYNC
AC97_RST#
GPIO3
GPIO31
GPIO13
SB460_DPSLP#
GPIO14
SB_TALERT#
SB460_H_SLP#
SB_NC56
AF26
AG26
C25
B23
C28
A26
B29
A23
B27
D23
B26
C27
B28
D26
C26
A27
E23
AC21
AD7
AE7
AA4
AB19
SB
SB460_RSMRST#
R569
R569
10KR2J-3-GP
10KR2J-3-GP
1 2
U49D
U49D
A3
PCI_PME#/GEVENT4#
B2
RI#/EXTEVNT0#
F7
SLP_S3#
A5
SLP_S5#
E3
PWR_BTN#
B5
PWR_GOOD
B3
SUS_STAT#
F9
NC22
E9
TEST1
G9
TEST0
GA20IN
KBRST#
D7
LPC_PME#/GEVENT3#
LPC_SMI#/EXTEVNT1#
D9
S3_STATE/GEVENT5#
F4
SYS_RESET#/GPM7#
E7
WAKE#/GEVENT8#
C2
BLINK/GPM6#
G7
SMBALERT#/THRMTRIP#/GEVENT2#
E2
RSMRST#
14M_OSC
NC18
ROM_CS#/GPIO1
GHI#/GPIO6
VGATE/GPIO7
GPIO4
GPIO5
SPKR/GPIO2
SCL0/GPOC0#
SDA0/GPOC1#
C3
NC14
F3
NC21
DDC1_SCL/GPIO9
DDC1_SDA/GPIO8
LDT_PG/SSMUXSEL/GPIO0
A4
NC11
C6
NC16
C5
NC15
C4
USB_OC7#/GEVENT7#
B4
USB_OC6#/GEVENT6#
B6
USB_OC5#/AZ_RST#/GPM5#
A6
USB_OC4#/GPM4#
C8
USB_OC3#/GPM3#
C7
USB_OC2#/FANOUT1/LLB#/GPM2#
B8
USB_OC1#/GPM1#
A8
USB_OC0#/GPM0#
N2
AZ_BITCLK
M2
AZ_SDOUT
K2
NC31
L3
AZ_SYNC
K3
NC32
L1
AC_BITCLK/GPIO38
L2
AC_SDOUT/GPIO39
L4
ACZ_SDIN0/GPIO42
J2
ACZ_SDIN1/GPIO43
J4
ACZ_SDIN2/GPIO44
M3
AC_SYNC/GPIO40
L5
AC_RST#/GPIO45
FANOUT0/GPIO3
GPIO31
REQ5#/GPIO13
DPSLP_OD#/GPIO37
GNT5#/GPIO14
T4
TALERT#/GPIO10
D4
SLP#/LDT_STP#
NC56
SB460-GP
SB460-GP
C
D
E
USB TO DEVICE
PAIR DEVICE
0 USB DEVICE1
1 USB DEVICE2
4 of 4
4 of 4
USBCLK
USB_RCOMP
USB_ATEST1
USB_ATEST0
NC28
NC27
NC20
NC19
USB_HSDP7+
USB_HSDM7-
USB_HSDP6+
USB_HSDM6-
USB_HSDP5+
USB_HSDM5-
USB_HSDP4+
USB_HSDM4-
USB_HSDP3+
USB_HSDM3-
USB_HSDP2+
USB_HSDM2-
USB_HSDP1+
USB_HSDM1-
USB_HSDP0+
USB_HSDM0-
AVDDTX_0
AVDDTX_1
AVDDTX_2
AVDDTX_3
AVDDTX_4
AVDDRX_0
AVDDRX_1
AVDDRX_2
AVDDRX_3
AVDDRX_4
AVDDC
AVSSC
AVSS_USB_1
AVSS_USB_2
AVSS_USB_3
AVSS_USB_4
AVSS_USB_5
AVSS_USB_6
AVSS_USB_7
AVSS_USB_8
AVSS_USB_9
AVSS_USB_10
AVSS_USB_11
AVSS_USB_12
AVSS_USB_13
AVSS_USB_14
AVSS_USB_15
AVSS_USB_16
AVSS_USB_17
AVSS_USB_18
AVSS_USB_19
AVSS_USB_20
AVSS_USB_21
AVSS_USB_22
AVSS_USB_23
AVSS_USB_24
AVSS_USB_25
AVSS_USB_26
AVSS_USB_27
AVSS_USB_28
AVSS_USB_29
AVSS_USB_30
AVSS_USB_31
AVSS_USB_32
AVSS_USB_33
C
A17
A14
A11
A10
H12
G12
E12
D12
E14
D14
G14
H14
D16
E16
D18
E18
G16
H16
G18
H18
D19
E19
G19
H19
B9
B11
B13
B16
B18
A9
B10
B12
B14
B17
A12
A13
A16
C9
C10
C11
C12
C13
C14
C16
C17
C18
C19
C20
D11
D21
E11
E21
F11
F12
F14
F16
F18
F19
F21
G11
G21
H11
H21
J11
J12
J14
J16
J18
J19
CLK_48M_USB
USB_PCOMP
USB_TE1
USB_TE0
USB_PP4
USB_PN4
CLK_48M_USB 3PME#_SB22,32
TP81 TPAD30TP81 TPAD30
TP80 TPAD30TP80 TPAD30
USB_PP6 26
USB_PN6 26
TP58 TPAD30TP58 TPAD30
TP59 TPAD30TP59 TPAD30
USB_PP3 21
USB_PN3 21
USB_PP2 21
USB_PN2 21
USB_PP1 21
USB_PN1 21
USB_PP0 21
USB_PN0 21
AVDD_USB
3D3V_AVDDC
D
R476
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R476
11K8R3F-GP
11K8R3F-GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
12
C278
C278
DY
DY
12
C305
C305
C304
C304
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SB
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet of
12
C281
C281
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
12
C276
C276
3D3V_AVDDC
12
C310
C310
USB_OC#4
USB_OC#1
USB_OC#3
USB_OC#2
USB_OC#7
ACZ_SDIN0
ACZ_SYNC
ACZ_SDIN2
ACZ_SDIN1
SB460 ACZ/USB
SB460 ACZ/USB
SB460 ACZ/USB
C277
C277
SC1U10V3KX-3GP
SC1U10V3KX-3GP
C311
C311
SRN10KJ-6-GP
SRN10KJ-6-GP
Y4A
Y4A
Y4A
2 USB DEVICE3
3 USB DEVICE4
4 Bluetooth
5 New Card
6 Mini Card
7 New Card
SC1U10V3KX-3GP
SC1U10V3KX-3GP
0R0603-PAD
C309
C309
C308
C308
3D3V_S5
0R0603-PAD
DY
DY
MLB-201209-9-GP
MLB-201209-9-GP
18 49Tuesday, January 23, 2007
18 49Tuesday, January 23, 2007
18 49Tuesday, January 23, 2007
12
12
C307
C307
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
12
C306
C306
DY
DY
SC1U10V3KX-3GP
SC1U10V3KX-3GP
12
RN34
RN34
45
6
7
8
6
7
8
4 5
3
2
1
3
2
1
SRN10KJ-6-GP
SRN10KJ-6-GP
RN11
RN11
45
3
2
1
SRN10KJ-6-GP
SRN10KJ-6-GP
RN10
RN10
6
7
8
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
E
L3
L3
R255
R255
of
of
3D3V_S5AVDD_USB
12
12
-1
-1
-1
Page 19

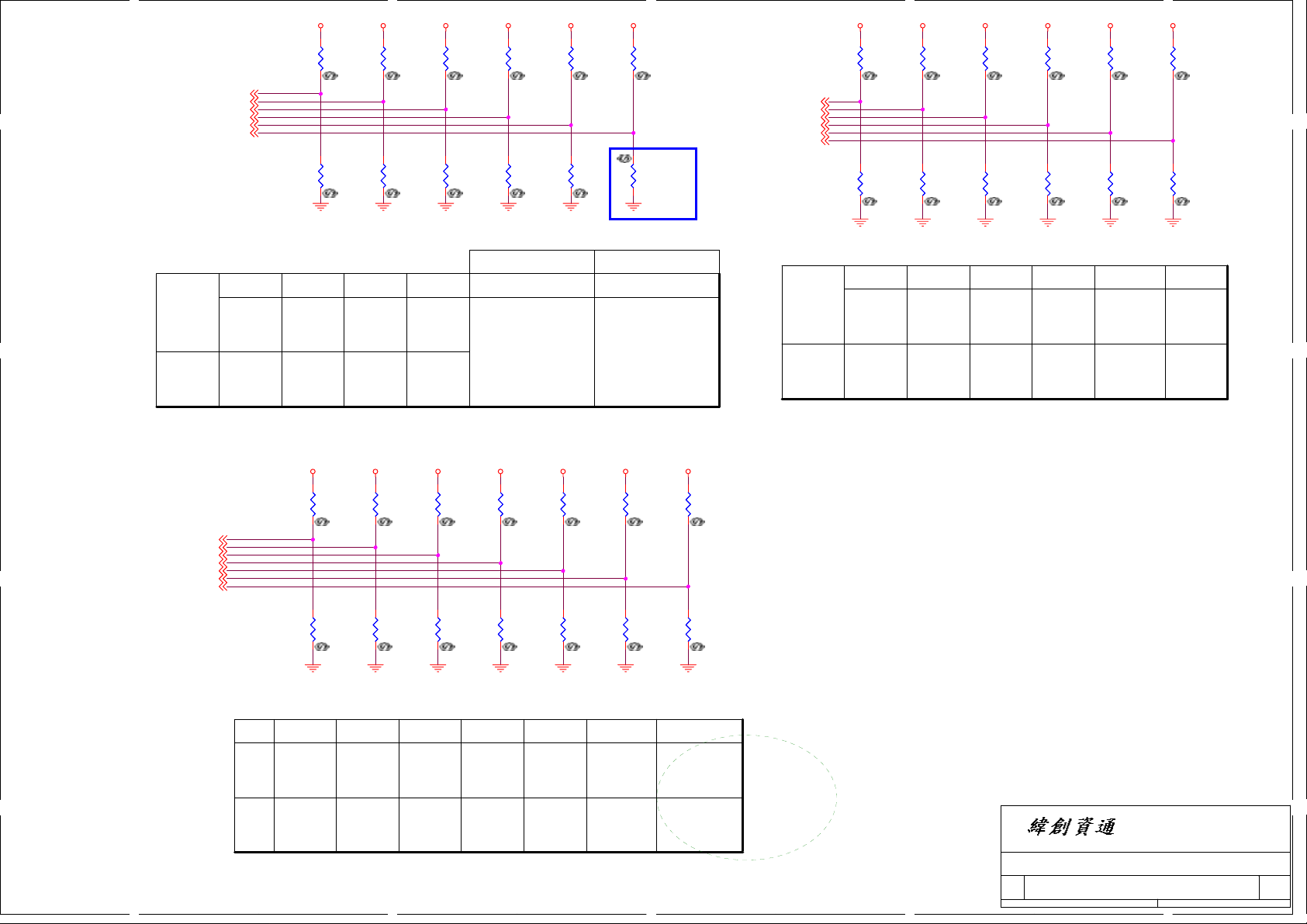

A
REQUIRED STRAPS
AC97_DOUT18
RTC_CLK15,20
SB_CLK33_KBC15,32
4 4
SB_PCI_CLK615
SB_PCI_CLK015
SB_CLK33_139415
3D3V_S0 3D3V_S5 3D3V_S03D3V_S0 3D3V_S03D3V_S0
12
R450
R450
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R448
R448
10KR2J-3-GP
10KR2J-3-GP
B
12
R236
R236
10KR2J-3-GP
10KR2J-3-GP
12
R235
R235
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R408
R408
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R390
R390
10KR2J-3-GP
10KR2J-3-GP
12
R415
R415
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R413
R413
10KR2J-3-GP
10KR2J-3-GP
12
R412
R412
10KR2J-3-GP
10KR2J-3-GP
12
R440
R440
10KR2J-3-GP
10KR2J-3-GP
DY
DY
C
12
R444
R444
10KR2J-3-GP
10KR2J-3-GP
DY
DY
R442
R442
2K2R2J-2-GP
2K2R2J-2-GP
1 2
SB
D
3D3V_S0 3D3V_S03D3V_S0 3D3V_S03D3V_S53D3V_S0
12
R220
R220
10KR2J-3-GP
10KR2J-3-GP
RTC_IRQ#15
SPDIF_OUT_STRAP15
SB_CLK33_LAN15,22
SB_CLK33_MINI15
SB_PCLK_FWH15,35
LPC_LFRAME#15,32,35
12
R217
R217
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R441
R441
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R443
R443
10KR2J-3-GP
10KR2J-3-GP
12
R409
R409
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R407
R407
10KR2J-3-GP
10KR2J-3-GP
12
R416
R416
10KR2J-3-GP
10KR2J-3-GP
12
R411
R411
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
12
R414
R414
10KR2J-3-GP
10KR2J-3-GP
R410
R410
10KR2J-3-GP
10KR2J-3-GP
DY
DY
E
12
12
R200
R200
10KR2J-3-GP
10KR2J-3-GP
R201
R201
10KR2J-3-GP
10KR2J-3-GP
DY
DY
steven said
SB600 SB460
PCI_CLK0 NONE
PCI_CLK1 IEEE1394
PCI_CLK2 LAN
PCI_CLK3 MINI
PCI_CLK4 KBC
3 3
PCI_CLK5 FWH
PCI_CLK6 NONE
PCI_CLK7 SPDIFOUT
PULL
HIGH
PULL
LOW
AC_SDOUT
USE
DEBUG
STRAPS
IGNORE
DEBUG
STRAPS
DEFAULT
RTC_CLK
INTERNAL
RTC
DEFAULT
EXTERNAL
RTC
PCI_CLK4 PCI_CLK6
USE INT.
PLL48
USE EXT.
48MHZ
DEFAULT
CPU IF=K8
CPU IF=P4
DEFAULT
ROM TYPE:
H, H = PCI ROM
H, L = SPI ROM
L, H = LPC ROM
L, L = FWH ROM
PCI_CLK1PCI_CLK0
DEFAULT
PCI_CLK1PCI_CLK0
ROM TYPE:
H, H = PCI ROM
H, L = LPC I ROM
DEFAULT
L, H = LPC II ROM
L, L = FWH ROM
NOTE: FOR SB460, PCICLK[8:7] ARE
CONNECTED TO SUBSTRATE
BALLS PCICLK[1:0]
PULL
HIGH
PULL
LOW
ACPWRON
MANUAL
PWR ON
DEFAULT
AUTO
PWR
ON
SPDIF_OUT
SIO 24MHz
SIO 48MHz
DEFAULT
PCI_CLK2
XTAL MODE
NOT
SUPPORTED
48MHZ OSC
MODE
DEFAULT
PCI_CLK3
USB PHY
POWERDOWN
DISABLE
DEFAULT
USB PHY
POWERDOWN
ENABLE
PCI_CLK5
PCIE_CM_SET
LOW
DEFAULT
PCIE_CM_SET
HIGH
LFRAME#
ENABLE
THERMTRIP#
DEFAULT
DISABLE
THERMTRIP#
DEBUG STRAPS
PIDE_DACK#16,28
PCI_AD2815,22
PCI_AD2715,22
PCI_AD2615,22
PCI_AD2515,22
2 2
1 1
PCI_AD2415,22
PCI_AD2315,22
PULL
HIGH
PULL
LOW
3D3V_S0 3D3V_S03D3V_S03D3V_S03D3V_S0 3D3V_S0 3D3V_S0
12
R210
R210
10KR2J-3-GP
10KR2J-3-GP
12
R209
R209
10KR2J-3-GP
10KR2J-3-GP
DY
DY
IDE_DACK#
USE
LONG
RESET
DEFAULT
USE
SHORT
RESET
12
12
PCI_AD28
USE
LONG
RESET
DEFAULT
USE
SHORT
RESET
R193
R193
10KR2J-3-GP
10KR2J-3-GP
DY
DY
R192
R192
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R393
R393
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R394
R394
10KR2J-3-GP
10KR2J-3-GP
PCI_AD27 PCI_AD26
USE PCI
PLL
DEFAULT
BYPASS
PCI PLL
SB600 ONLYSB460 ONLY
USE ACPI
BCLK
DEFAULT
BYPASS
ACPI
BCLK
12
R206
R206
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R205
R205
10KR2J-3-GP
10KR2J-3-GP
12
12
USE IDE
PLL
DEFAULT
BYPASS IDE
PLL
R392
R392
10KR2J-3-GP
10KR2J-3-GP
DY
DY
R395
R395
10KR2J-3-GP
10KR2J-3-GP
USE DEFAULT
PCIE STRAPS
DEFAULT
USE EEPROM
PCIE STRAPS
12
R207
R207
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R208
R208
10KR2J-3-GP
10KR2J-3-GP
12
R391
R391
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R396
R396
10KR2J-3-GP
10KR2J-3-GP
DY
DY
PCI_AD23PCI_AD25 PCI_AD24
BOOTFAILTIMER
DISABLED
DEFAULT
BOOTFAILTIMER
ENABLED
SB600 ONLY
NOTE: FOR
SB460,
PCI_AD23 IS
RESERVED
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet of
SB460 STRAPPING PIN
SB460 STRAPPING PIN
SB460 STRAPPING PIN
A3
A3
A3
Y4A
Y4A
Y4A
19 49Tuesday, January 23, 2007
19 49Tuesday, January 23, 2007
19 49Tuesday, January 23, 2007
of
of
-1
-1
-1

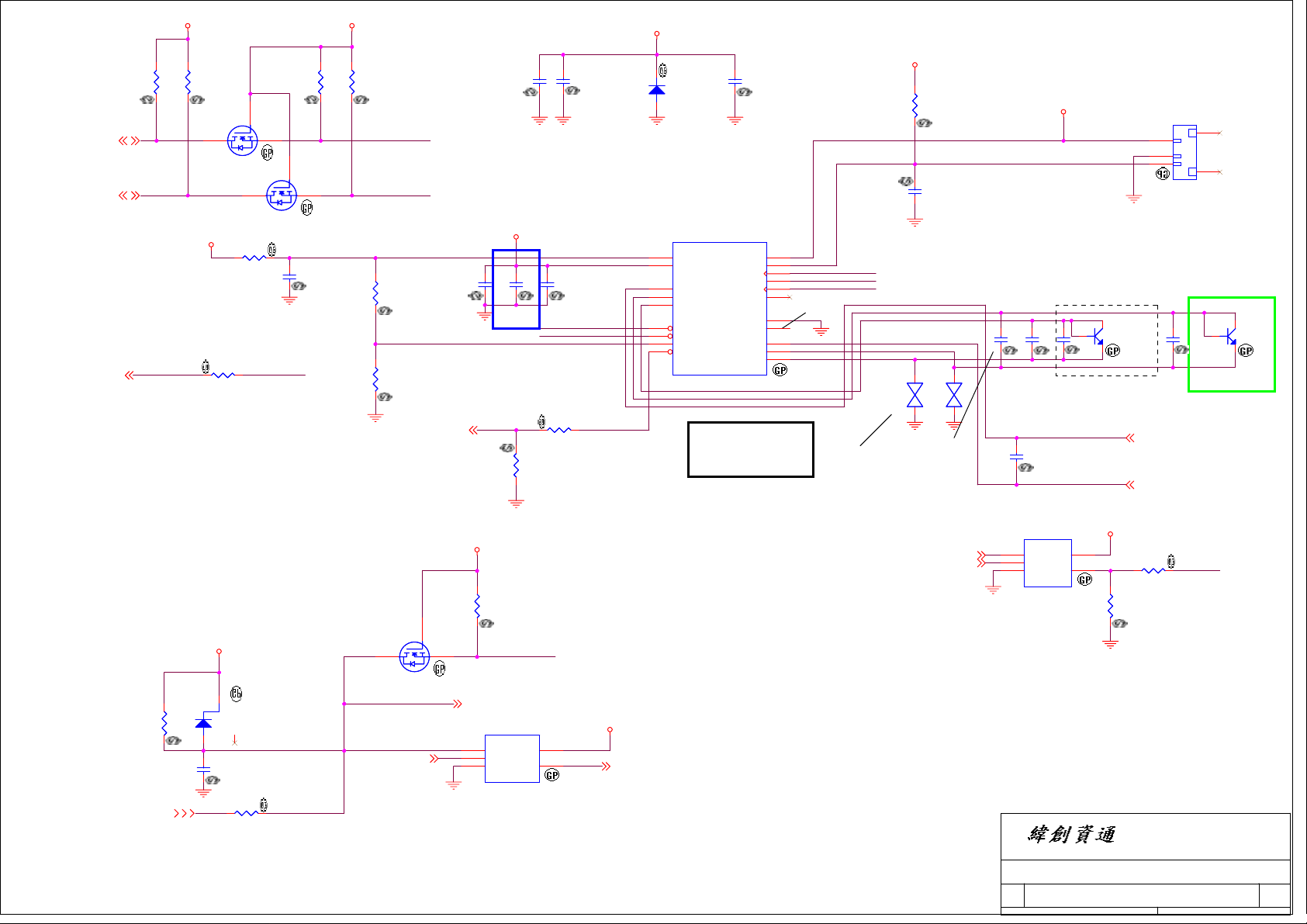

Page 20
10KR2J-3-GP
10KR2J-3-GP
SMBC_KBC32
SMBD_KBC32
PULL UP ??
SB_TALERT#18
CPU_THERMTRIP#4,18
3D3V_S0 5V_S0
12
12
R19
R18
R18
R19
10KR2J-3-GP
10KR2J-3-GP
Q4
Q4
D
D
2N7002-9-GP
2N7002-9-GP
5V_S0
0R2J-2-GP
0R2J-2-GP
Q3
Q3
2N7002-9-GP
2N7002-9-GP
R28
R28
1 2
100R3J-4-GP
100R3J-4-GP
R23
R23
12
1
D
D
DY
DY
10KR2J-3-GP
10KR2J-3-GP
G
G
23
ALERT#SB_TALERT#
Address??
3D3V_AUX_S5
12
10KR2J-3-GP
10KR2J-3-GP
R8
R8
3
BAT54PT-GP
BAT54PT-GP
D6
D6
1
2
12
C18
C18
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R9
R9
1 2
0R2J-2-GP
0R2J-2-GP
DY
DY
R25
R25
S
S
G
G
1
23
12
C42
C42
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
12
12
R24
R24
10KR2J-3-GP
10KR2J-3-GP
SMB_CLK_W
S
S
SMB_DATA_W
*Layout* 30 mil
12
12
D
D
2N7002-9-GP
2N7002-9-GP
S5_ENABLE32
R27
R27
4K99R2F-L-GP
4K99R2F-L-GP
SC2D2U6D3V5KX-1GP
SC2D2U6D3V5KX-1GP
R45
R45
49K9R2F-L-GP
49K9R2F-L-GP
RUNPWROK37
G
G
Q2
Q2
1
23
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SB
12
C59
C59
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S0
12
R22
R22
10KR2J-3-GP
10KR2J-3-GP
S
S
ECRST# 32
U3
U3
1
A
2
B
GND3Y
NC7S08M5X-NL-GP
NC7S08M5X-NL-GP
*Layout* 15 mil
12
12
C62
12
C60
C60
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
ALERT#
THER_SHUT#
V_DEGREE
R46
R46
12
0R2J-2-GP
0R2J-2-GP
5
4
C62
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
G792_RST#
3D3V_AUX_S5
C37
C37
5V_S0
12
C61
C61
DY
DY
R47
R47
10KR2J-3-GP
10KR2J-3-GP
1 2
THER_SHUT#
VCC
FAN1_VCC
21
D9
D9
1N4148W-7-F-GP
1N4148W-7-F-GP
U4
U4
5V_G792_S0
6
VCC
20
DVCC
7
DXP1
9
DXP2
11
DXP3
15
ALERT#
13
THERM#
3
THERM_SET
2
RESET#
G792SFUF-GP
G792SFUF-GP
DXP1:108 Degree
DXP2:H/W Setting
DXP3:88 Degree
HW Thermal Throttling
S5PWR_ENABLE 42
12
C63
C63
SC2200P50V2KX-2GP
SC2200P50V2KX-2GP
1
FAN1
4
FG1
14
CLK
16
SDA
18
SCL
19
NC#19
5
DGND
17
DGND
8
SGND1
10
SGND2
12
SGND3
G792_32K
SMB_DATA_W
SMB_CLK_W
No Connection
5V_S0
12
R26
R26
10KR2J-3-GP
10KR2J-3-GP
C38
C38
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
1 2
G792_DXP2
G792_DXP3
G792_DXN2
G792_DXN3
G9
G9
GAP-CLOSE
GAP-CLOSE
1 2
1 2
Place near chip as close
as possible
32K suspend clock output
PM_SLP_S3#18,32,36,41,42,44
RTC_CLK15,19
FAN1_VCC
CN9
CN9
1
FAN1_FB
*Layout* 15 mil
SC2200P50V2KX-2GP
SC2200P50V2KX-2GP
12
12
C39
C39
C36
C36
SC2200P50V2KX-2GP
G3
G3
SC2200P50V2KX-2GP
GAP-CLOSE
GAP-CLOSE
12
C40
C40
SC2200P50V2KX-2GP
SC2200P50V2KX-2GP
U13
U13
1
A
VCC
2
B
GND3Y
NC7SZ08-2-GP
NC7SZ08-2-GP
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
C
12
B
C203
C203
SC470P50V3JN-2GP
SC470P50V3JN-2GP
E
5V_S5
5
4
Y4A
Y4A
Y4A
CH3904PT-GP
CH3904PT-GP
Q12
Q12
12
2
3
ACES-CON3-GP
ACES-CON3-GP
12
SC470P50V3JN-2GP
SC470P50V3JN-2GP
H_THERMDA 4
CPU TEMP
H_THERMDC 4
R21
R21
1 2
10R3F-GP
10R3F-GP
R20
R20
100KR2J-1-GP
100KR2J-1-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
G792
G792
G792
4
5
NB TEMP
-1
B
C41
C41
G792_32K
20 49Tuesday, January 23, 2007
20 49Tuesday, January 23, 2007
20 49Tuesday, January 23, 2007
C
CH3904PT-GP
CH3904PT-GP
Q33
Q33
E
-1
-1
-1

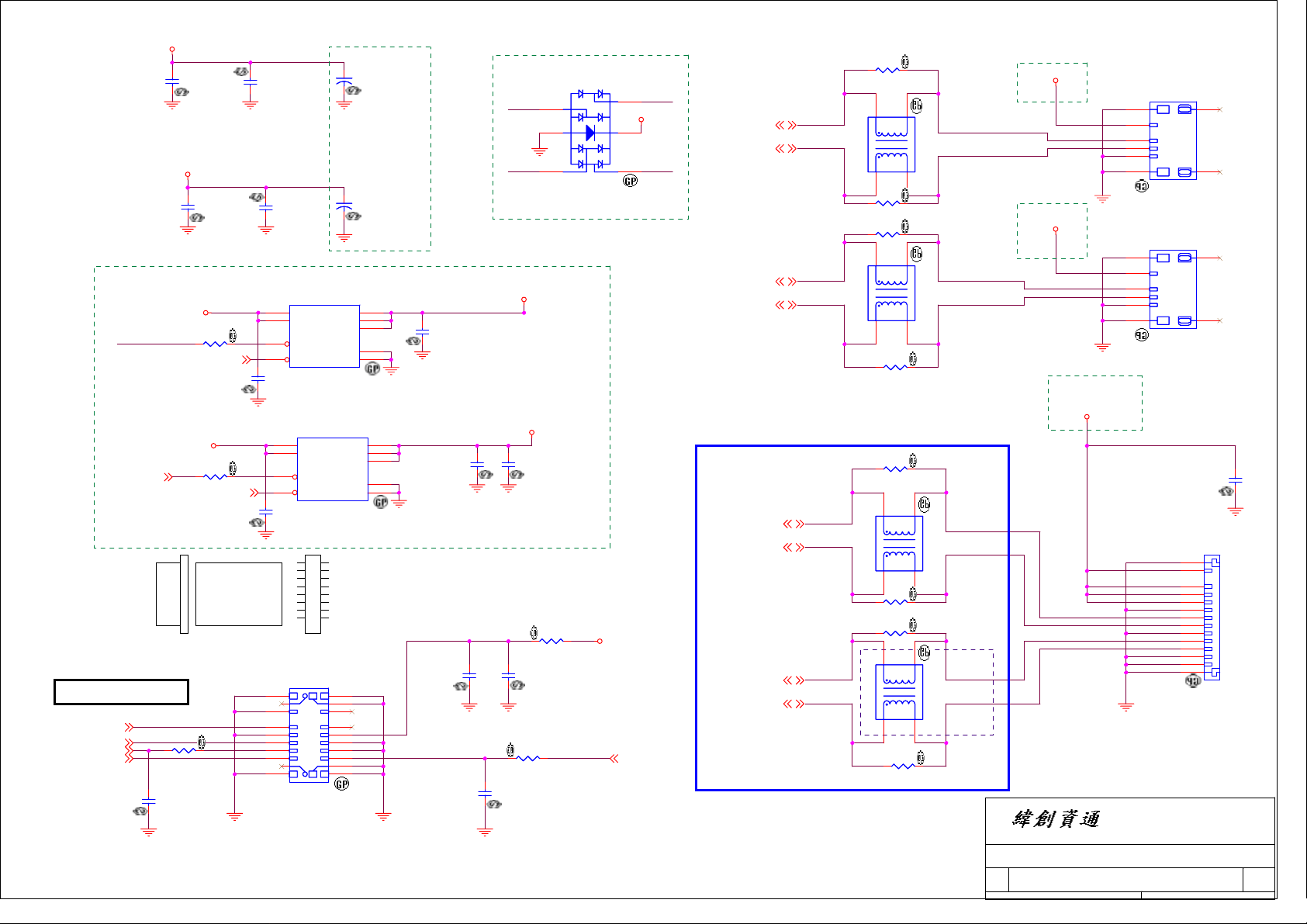

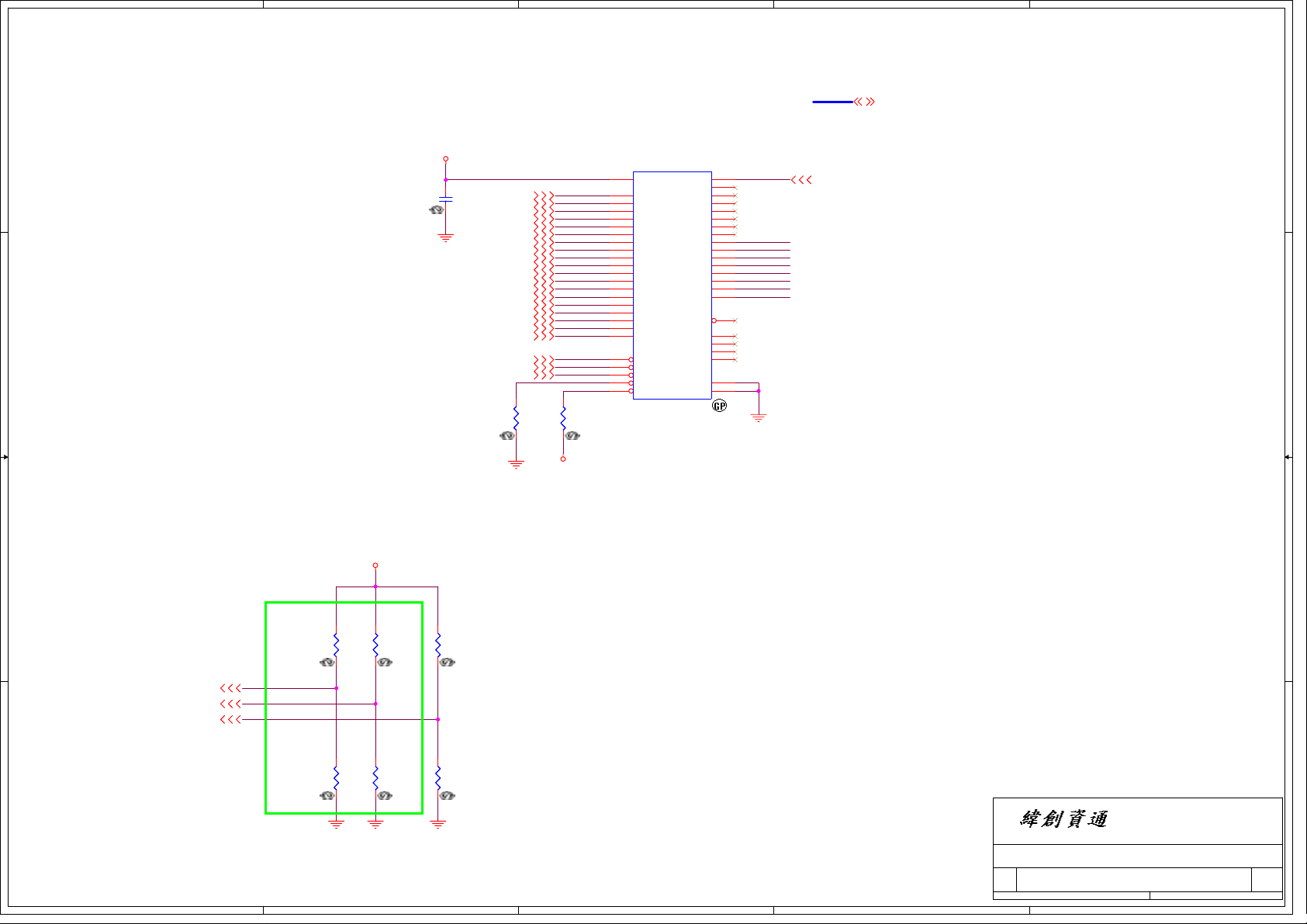

Page 21
5V_USB0_S3
USB_PWR_EN#
USB_PWR_EN#32
112
MB SIDE
MDC CONN
ACZ_SDOUT18,29
ACZ_SYNC18,29
ACZ_SDIN118
ACZ_RST#18,29
SC22P50V3JN-GP
SC22P50V3JN-GP
C466
C466
12
1 2
R389 22R2J-2-GPR389 22R2J-2-GP
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C175
C175
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C212
C212
5V_S5
R471
R471
1 2
0R2J-2-GP
0R2J-2-GP
USB_OC#018
DUMMY = DY
DUMMY = DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
5V_S5
R472
R472
1 2
0R2J-2-GP
0R2J-2-GP
USB_OC#118
DUMMY = DY
DUMMY = DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
AC97_MDIN1A
100 mil
C176
C176
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
1 2
100 mil
12
C588
C588
C591
C591
FPC
TYCO-CONN12A-2-GP
TYCO-CONN12A-2-GP
C211
C211
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
1 2
U61
U61
2
IN#2
3
IN#3
4
EN/EN#
5
OC#
G545B2RD1U-GP
G545B2RD1U-GP
U62
U62
2
IN#2
3
IN#3
4
EN/EN#
5
OC#
12
G545B2RD1U-GP
G545B2RD1U-GP
1
11
USB Board
CN6
CN6
13
NP1
1 2
3 4
5 6
7 8
9 10
11 12
NP2
16
2
12
12
12
OUT#6
OUT#7
OUT#8
GND
GND
OUT#6
OUT#7
OUT#8
15
14
17
18
GND
GND
TC16
TC16
ST100U6D3VBM-9GP
ST100U6D3VBM-9GP
TC17
TC17
ST100U6D3VBM-9GP
ST100U6D3VBM-9GP
Y4B
6
7
8
1
9
6
7
8
1
9
3D3V_MDC
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
Y4B-1
D37
D37
USB_0-
1
2
USB_0+
3 4
DY
DY
SRV05-2-GP
SRV05-2-GP
100 mil
12
C589
C589
SC4D7U10V5ZY-3GP
DUMMY = DY
SC4D7U10V5ZY-3GP
DUMMY = DY
5V_USB0_S3
6
5V_USB0_S3
5
USB_1+5V_USB0_S3
USB_1-
Y4B
12
TC22
TC22
SC47U6D3V6MX-1GP
SC47U6D3V6MX-1GP
12
C233
C233
SC10P50V2JN-4GP
SC10P50V2JN-4GP
5V_USB1_S3
12
R190
R190
0R2J-2-GP
0R2J-2-GP
12
C235
C235
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
R191
R191
12
0R2J-2-GP
0R2J-2-GP
12
3D3V_S5
ACZ_BITCLKAC97MBITCLK
ACZ_BITCLK 18,29
C234
C234
C590
C590
100 mil
SC47U6D3V6MX-1GP
SC47U6D3V6MX-1GP
12
USB PORT
USB_PN018
USB_PP018
USB_PN118
USB_PP118
SB
USB_PN218
USB_PP218
USB_PN318
USB_PP318
R337
R337
1 2
0R2J-2-GP
0R2J-2-GP
1
4
R338
R338
1 2
0R2J-2-GP
0R2J-2-GP
R331
R331
1 2
0R2J-2-GP
0R2J-2-GP
1
4
R332
R332
1 2
0R2J-2-GP
0R2J-2-GP
R583
R583
1 2
0R2J-2-GP
0R2J-2-GP
1
4
R584
R584
1 2
0R2J-2-GP
0R2J-2-GP
R585
R585
1 2
0R2J-2-GP
0R2J-2-GP
1
4
R586
R586
1 2
0R2J-2-GP
0R2J-2-GP
DY
DY
2
TR2
TR2
DLW21HN900SQ2LGP
DLW21HN900SQ2LGP
3
DY
DY
DY
DY
2
TR1
TR1
DLW21HN900SQ2LGP
DLW21HN900SQ2LGP
3
DY
DY
DY
DY
2
TR3
TR3
DLW21HN900SQ2LGP
DLW21HN900SQ2LGP
3
DY
DY
DY
DY
2
TR4
TR4
DLW21HN121SQ2L-1GP
DLW21HN121SQ2L-1GP
3
DY
DY
USB_1USB_1+
USB_0USB_0+
Y4B
USB3
USB3
5
1
2
3
4
6
SKT-USB-139-GP
SKT-USB-139-GP
USB2
USB2
5
1
2
3
4
6
SKT-USB-139-GP
SKT-USB-139-GP
5V_USB0_S3
Y4B
5V_USB0_S3
Y4B
5V_USB1_S3
100 mil
C397
C397
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
ACES-CON12-GP
ACES-CON12-GP
13
1
2
3
4
USB_2-
Y4B-1
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet
USB_2+
USB_3-
USB_3+
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
USB/MDC/BT and TV TURNER I/F
USB/MDC/BT and TV TURNER I/F
USB/MDC/BT and TV TURNER I/F
Y4A
Y4A
Y4A
5
6
7
8
9
10
11
12
14
21 49Tuesday, January 23, 2007
21 49Tuesday, January 23, 2007
21 49Tuesday, January 23, 2007
7
8
7
8
USB1
USB1
of
12
-1
-1
-1

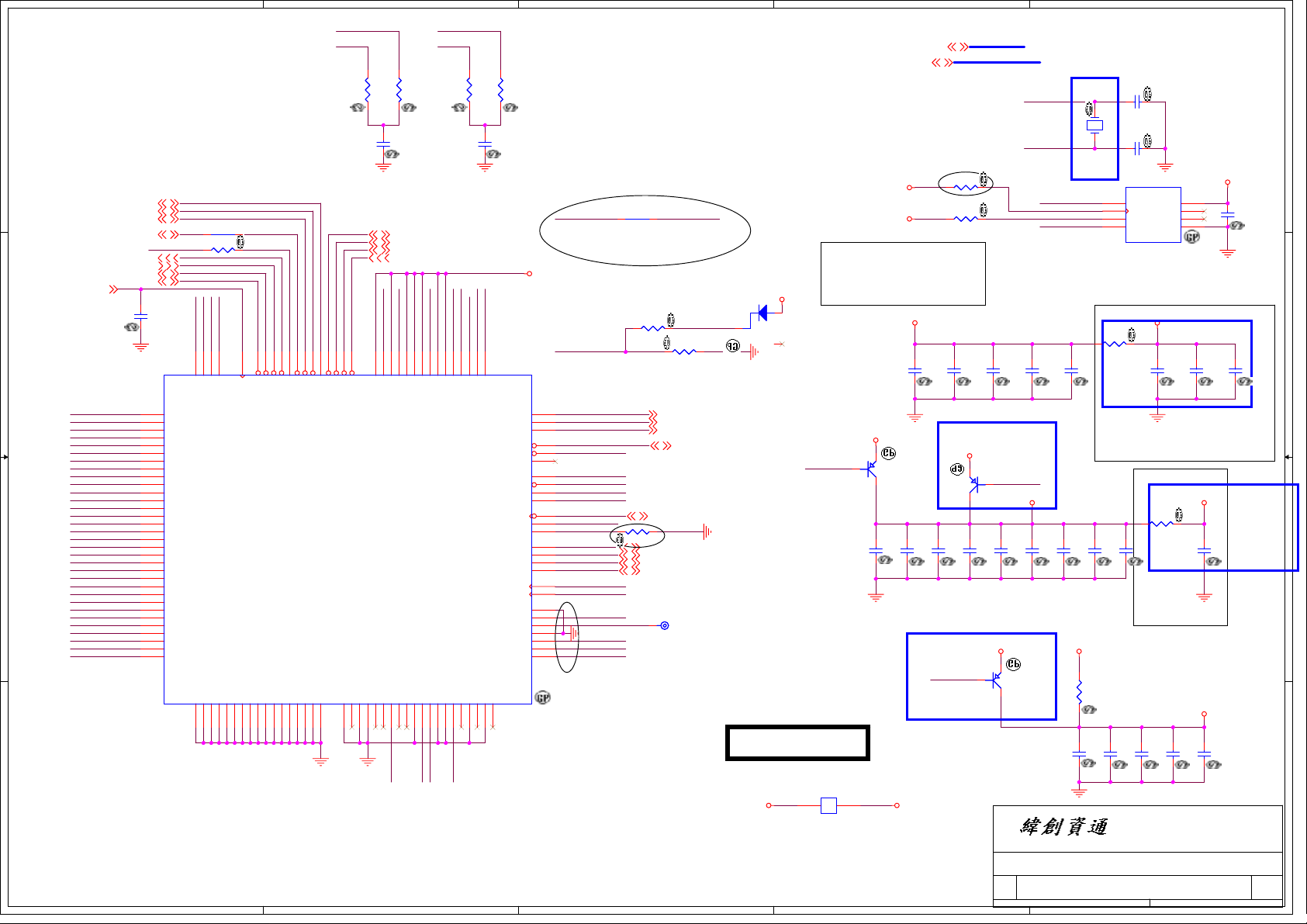

Page 22
A
4 4
PCI_PAR15
PCI_TRDY#15
PCI_IRDY#15
INT_PIRQH#15
PCI_AD23
PCI_REQ#215
PCI_GNT#215
PCI_FRAME#15
SB_CLK33_LAN15,19
3 3
2 2
1 1
PCI_DEVSEL#15
C53
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
C53
SC10P50V2JN-4GP
SC10P50V2JN-4GP
12
104
103
102
98
97
96
95
93
90
89
87
86
85
83
82
79
59
58
57
55
53
50
49
47
43
42
40
39
37
36
34
33
A
R44
R44
1 2
0R0402-PAD
0R0402-PAD
R61 100R2F-L1-GP-UR61 100R2F-L1-GP-U
1 2
PCI_REQ#2
PCI_GNT#2
PCI_C/BE#0
PCI_C/BE#1
PCI_C/BE#2
PCI_C/BE#3
28
60
44
CBEB092CBEB177CBEB2
CBEB3
GND66GND80GND81GND91GND
100
PCICLK
GND
GND21GND
101
119
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
PCI_FRAME#
PCI_DEVSEL#
LAN_IDSEL
46
68
30
29
61
GNT#
REQ#
FRAME#
DEVSEL#
GND
GND
GND
GND4GND17GND35GND38GND51GND
123
124
128
LAN_INTA#
PCI_IRDY#
63
25
INTA#
IDSEL
PCI_TRDY#
67
IRDY#
TRDY#
PCI_SERR#
PCI_PERR#
PCI_PAR
75
76
PAR
PERR#70SERR#
52
PCI_STOP#
69
B
R13
R13
49D9R2F-GP
49D9R2F-GP
LDVDD
107
VDD3371VDD2578VDD3384VDD3394VDD25
LDVDD
LDVDD
TGP1
LDVDD
LDVDD
LAVDDL
99
12
R12
R12
49D9R2F-GP
49D9R2F-GP
12
LAVDDL
LAVDDL
LV_12P
3
AVDD337AVDD2512AVDD3320AVDD33
ISOLATE#
LANWAKE
AUX#EEDI
CLKRUN#
NC#8888NC#74
NC#7272NC#73
74
73
120
12
C24
C24
SCD01U50V3KX-4GP
SCD01U50V3KX-4GP
PME#
EECS
EEDO
EESK
CTRL25
RSET
XTAL2
XTAL1
NC#118
NC#116
NC#113
NC#112
NC#110
NC#126
NC#125
TGP0
TGN0 TGN1
12
12
R14
R14
49D9R2F-GP
49D9R2F-GP
MID0X MID1X
12
C25
C25
SCD01U50V3KX-4GP
SCD01U50V3KX-4GP
PCI_PERR# 15
PCI_SERR# 15
PCI_STOP# 15
PCIRST_BUF#_LAN 15
LDVDD
LDVDD
27
RST#
VDD3356VDD2554VDD3341VDD2532VDD3326VDD33
STOP#
NC#99NC#1010NC#1111NC#1313NC#1414NC#1515NC#1616NC#1818NC#1919NC#2222NC#2424NC#4545NC#4848NC#6262NC#6464NC#120
LAVDDL
B
CLOSE TO
LAN CHIP
R15
R15
49D9R2F-GP
49D9R2F-GP
3D3V_LAN_S5
U6
U6
117
LED0
115
LED1
114
LED2
31
23
105
106
109
108
111
65
8
127
2
TX-
1
TX+
6
RX-
5
RX+
122
121
118
116
113
112
110
126
125
RTL8100CL-LF-GP
RTL8100CL-LF-GP
ISOLATE#
ACTIVE_LED#
100M_LED#
10M_LED#
ISOLATE#
LAN_EECS_3
LAN_EEDI
LAN_EEDO
LAN_EESK
PM_CLKRUN#
CTRL25
RTL8100C_RST
R16 5K6R2F-2-GPR16 5K6R2F-2-GP
TGN0
TGP0
TGN1
TGP1
LAN_X2
LAN_X1
LDVDD
RTL_LED1G#
LDVDD
LDVDD_A
CTRL18
For Giga
C
For 100/1000
R11
R11
1 2
0R0402-PAD
0R0402-PAD
R42
R42
1 2
ACTIVE_LED# 23
100M_LED# 23
10M_LED# 23
PM_CLKRUN# 15,32
12
TGN0 23
TGP0 23
TGN1 23
TGP1 23
C
LDVDDLV_12P
1KR2F-3-GP
1KR2F-3-GP
ISOLATE#_1
12
R4315KR2F-GP R4315KR2F-GP
PME#_SB 18,32
TP3 TPAD30TP3 TPAD30
D
PCI_AD[0..31]15,19
PCI_C/BE#[0..3]15
10K is used only at
RTL8110S(B) application and
only at 93C56 is used
3D3V_LAN_S5
3D3V_LAN_S5
EEPROM LED OPTION USE '00'
(DEFINED IN SPEC)
=> LED0 : ACT
3D3V_S0
D8
D8
BAT54PT-GP
BAT54PT-GP
3
For 100/1000
100:5.6K
1G:2.49K
=> LED1 : LINK 100
=> LED2 : LINK 10
1
2
CTRL25
3D3V_LAN_S5
1
10/100
10/100
3D3V_LAN_S5
3
BCP69T1-1-GP
BCP69T1-1-GP
Q9
Q9
2
12
C97
C97
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
SB
LAN ONLY FOR 10/100
G1
G1
3D3V_S5 3D3V_LAN_S5
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
D
DY
DY
R6 10KR2J-3-GP
R6 10KR2J-3-GP
1 2
1 2
R7 3K6R3-GPR7 3K6R3-GP
12
12
C54
C54
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_LAN_S5
BCP69T1-1-GP
BCP69T1-1-GP
12
C76
C76
C35
C35
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3
CTRL18
1
Q8
Q8
DY
DY
2
SB
C79
C79
12
C78
C78
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
CTRL25
12
12
C77
C77
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_LAN_S5
3
1
DY
DY
2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
LAN_X2
XTAL-25MHZ-67GP
XTAL-25MHZ-67GP
LAN_X1
12
C58
C58
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
LDVDD
12
C57
C57
C34
C34
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
BCP69T1-1-GP
BCP69T1-1-GP
Q1
Q1
E
SB
C14
C14
1 2
SC12P50V2JN-3GP
SC12P50V2JN-3GP
X1
X1
LAN_EECS_3
LAN_EESK
LAN_EEDI
LAN_EEDO
45 Ohm,
600mA
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
1 2
C56
C56
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
R10
R10
0R3-0-U-GP
0R3-0-U-GP
DY
DY
1 2
U2
U2
1
CS
2
SK
3
DI
DO4GND
AT93C46-10SU-1GP
AT93C46-10SU-1GP
LAVDDH
C15
C15
SC12P50V2JN-3GP
SC12P50V2JN-3GP
VCC
DC
ORG
DY
DY
12
C26
C26
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SB
45 Ohm,
600mA
DY
DY
R17
R17
1 2
12
12
C33
C33
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
0R3-0-U-GP
C16
C16
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
0R3-0-U-GP
C75
C75
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SB
3D3V_LAN_S5
12
10/100
10/100
R5
R5
0R3-0-U-GP
0R3-0-U-GP
12
12
12
12
C55
C55
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C30
C30
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
RTL8100CL
RTL8100CL
RTL8100CL
Y4A -1
Y4A -1
Y4A -1
C52
C52
C28
C28
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
22 49Tuesday, January 23, 2007
22 49Tuesday, January 23, 2007
22 49Tuesday, January 23, 2007
E
8
7
6
5
12
LDVDD_A
LAVDDL
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_LAN_S5
12
C17
C17
DY
DY
12
C32
C32
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
12
C31
C31
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C29
C29
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
of
of
of
DY
DY
C27
C27
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP

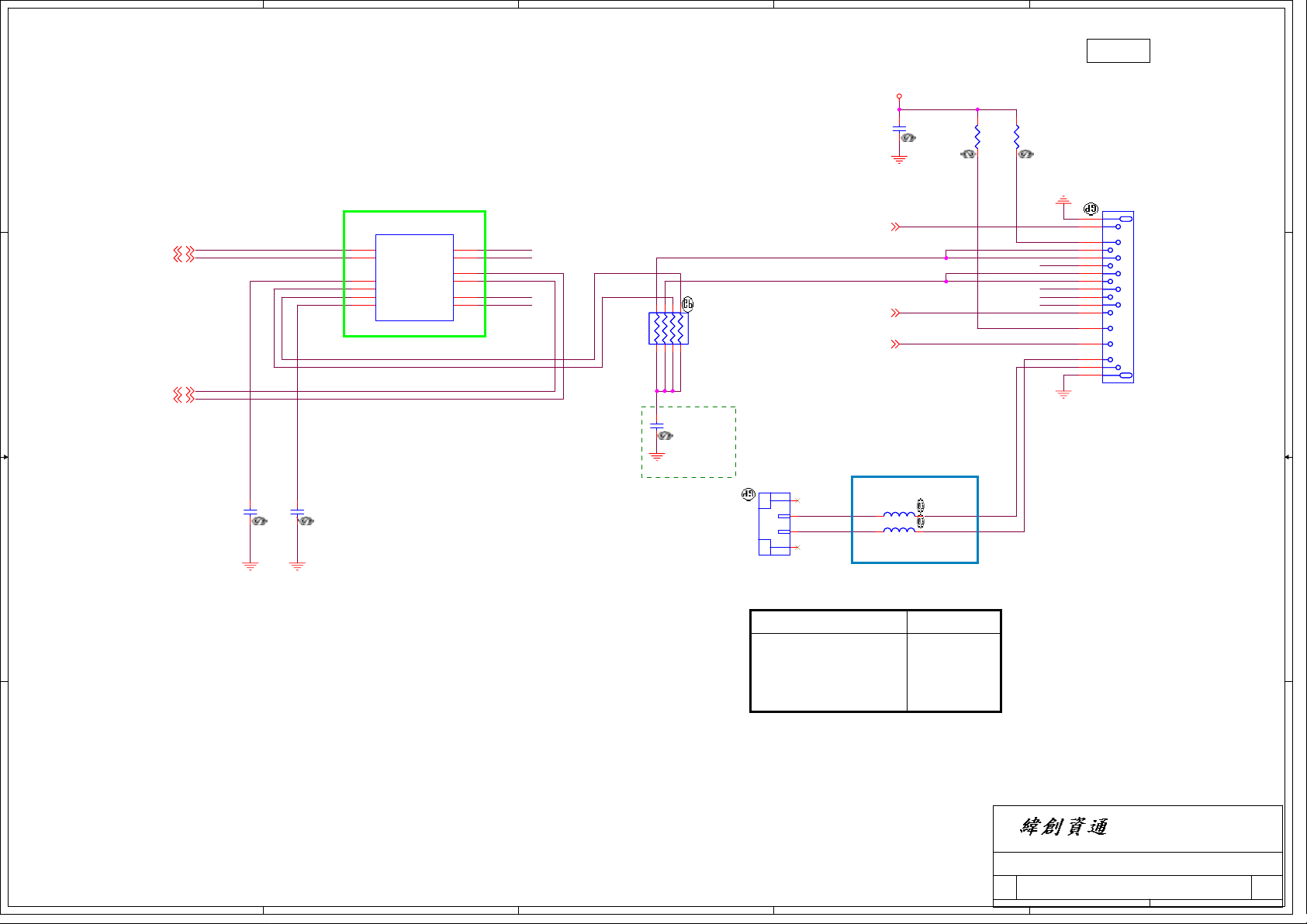

Page 23
A
B
C
D
E
LAN Connector
1.route on bottom as differential pairs.
2.Tx+/Tx- are pairs. Rx+/Rx- are pairs.
3.No vias, No 90 degree bends.
4 4
4.pairs must be equal lengths.
5.6mil trace width,6mil separation.
6.36mil between pairs and any other signal trace.
7.12 mil between other paires.
8.Must not cross ground moat .
3D3V_LAN_S5
12
C347
C347
R274
R274
SCD1U50V3KX-GP
SCD1U50V3KX-GP
470R2J-2-GP
470R2J-2-GP
12
12
R273
R273
470R2J-2-GP
470R2J-2-GP
10/100
Green - 100M
Yellow - Active
Orange - 10M
Change to 68.0H80P.30A
-1
XF1
XF1
TGP022
TGN022
LAN_CT1
LAN_CT2
LAN_CT3
LAN_CT4
3 3
TGN122
TGP122
7
8
6
14
11
3
TD+
TD-
CT
CT
CT
CT
XFORM-112
XFORM-112
TX+
RD+
RDRX+
TX-
RX-
RJ45-1
10
RJ45-2
9
1
2
RJ45-3
16
RJ45-6
15
Y4B
678
123
4 5
12
C346
C346
SC1KP2KV8KX-GP
SC1KP2KV8KX-GP
RN12
RN12
SRN75J-1-GP
SRN75J-1-GP
ACTIVE_LED#22
10M_LED#22
100M_LED#22
CHECK PIN DEFINE
CN1
CN1
12
DY
DY
2 2
12
C360
C360
SCD1U50V3KX-GP
SCD1U50V3KX-GP
C363
C363
SCD1U50V3KX-GP
SCD1U50V3KX-GP
3
1
2
4
ETY-CON2-6-GP
ETY-CON2-6-GP
L7
L7
ACTIVE_LED#
10M_LED#
100M_LED#
Y4A-1
BLM18HG102SN-1GP
BLM18HG102SN-1GP
L6
L6
1 2
1 2
BLM18HG102SN-1GP
BLM18HG102SN-1GP
RJ45-6
RJ45-3
RJ45-2
RJ45-1
TIPTIP_MDC
RINGRING_MDC
10
B2
B1
RJ45_8
RJ45_7
RJ45_6
RJ45_5
RJ45_4
RJ45_3
RJ45_2
RJ45_1
A3
A2
A1
RJ11_2
RJ11_1
9
RJ1
RJ1
SKT-RJ45+RJ11-2GPU
SKT-RJ45+RJ11-2GPU
10/100 LAN Transformer RJ45 PIN
D
RJ45-1
RJ45-2
RJ45-3
RJ45-6
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
LAN Connector
LAN Connector
LAN Connector
Y4A -1
Y4A -1
Y4A -1
23 49Tuesday, January 23, 2007
23 49Tuesday, January 23, 2007
23 49Tuesday, January 23, 2007
of
of
E
of
TD+ --> TX+
TD- --> TX-
RD+ --> RX+
RD- --> RX-
1 1
A
B
C
Page 24
A
4 4
3 3
B
C
D
E
2 2
1 1
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet
Date: Sheet
A
B
C
D
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
R5C832_PCI(1/2)
R5C832_PCI(1/2)
R5C832_PCI(1/2)
Y4A -1
Y4A -1
Y4A -1
of
of
24 49Tuesday, January 23, 2007
24 49Tuesday, January 23, 2007
24 49Tuesday, January 23, 2007
E
Page 25
5
D D
C C
4
3
2
1
B B
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
R5C832_1394_7IN1(2/2)
R5C832_1394_7IN1(2/2)
R5C832_1394_7IN1(2/2)
Y4A -1
Y4A -1
Y4A -1
25 49Tuesday, January 23, 2007
25 49Tuesday, January 23, 2007
25 49Tuesday, January 23, 2007
of
of
1
of

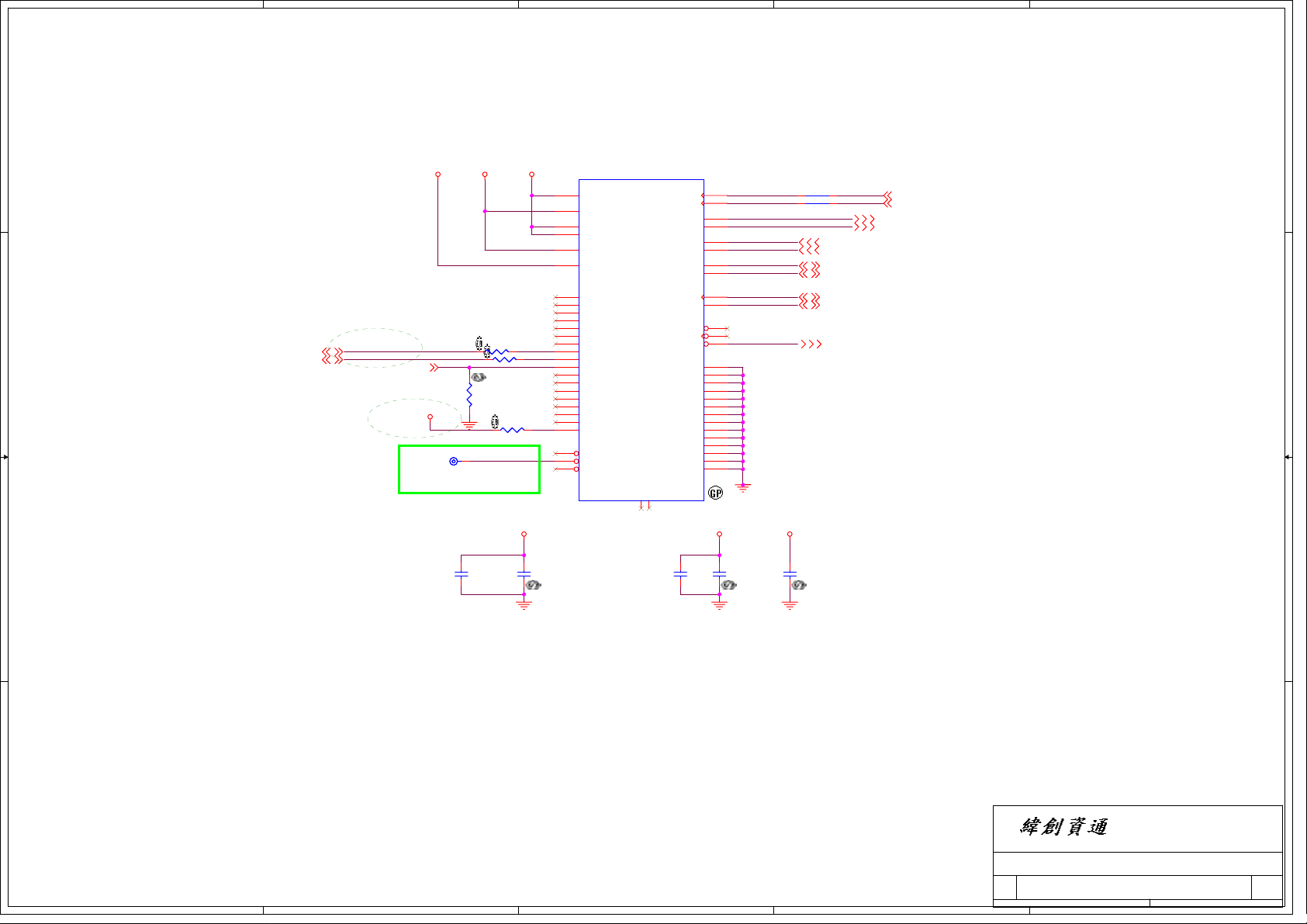

Page 26
A
B
C
D
E
Mini Card Connector
4 4
3D3V_S5
3D3V_S0
R237 0R2J-2-GP
RF_ON/OFF#
R211
R211
10KR2J-3-GP
10KR2J-3-GP
5V_S5
TP100
TP100
TPAD28
TPAD28
C291
C291
R237 0R2J-2-GP
R238
R238
1 2
R239 0R2J-2-GP
R239 0R2J-2-GP
1
12
3 3
E51RXD32
E51TXD32
Y4B
for dubug board
E51RXD
E51TXD
RF_ON/OFF#32
-1
2 2
SC1U10V2ZY-N1
SC1U10V2ZY-N1
0R2J-2-GP
0R2J-2-GP
WLAN_LED#
1D5V_S0
12
DY
DY
12
DY
DY
12
DY
DY
12
C249
C249
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
MINIC1
6
1.5V
2
3.3V
28
+1.5V
48
+1.5V
52
+3.3V
24
+3.3VAUX
3
RESERVED#3
5
RESERVED#5
8
RESERVED#8
10
RESERVED#10
12
RESERVED#12
14
RESERVED#14
16
RESERVED#16
17
RESERVED#17
19
RESERVED#19
20
RESERVED#20
37
RESERVED#37
39
RESERVED#39
41
RESERVED#41
43
RESERVED#43
45
RESERVED#45
47
RESERVED#47
49
RESERVED#49
51
RESERVED#51
42
LED_WWAN#
44
LED_WLAN#
46
LED_WPAN#
SKT-MINI52P-3-GP
SKT-MINI52P-3-GP
NP1
NP1
NP2
SC1U10V2ZY-N1
SC1U10V2ZY-N1
62.10043.231MINIC1
62.10043.231
REFCLK+
REFCLK-
PERN0
PERP0
PETN0
PETP0
USB_D-
USB_D+
SMB_CLK
SMB_DATA
WAKE#
CLKREQ#
PERST#
NP2
C250
C250
MINICARD_CLKP
13
MINICARD_CLKN
11
23
25
31
33
36
38
SMBCLK_SB
30
SMBDAT_SB
32
1
7
22
4
GND
9
GND
15
GND
18
GND
21
GND
26
GND
27
GND
29
GND
34
GND
35
GND
40
GND
50
GND
53
GND
54
GND
12
12
C292
C292
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S53D3V_S0 1D5V_S0
12
R423
R423
1 2
0R0402-PAD
0R0402-PAD
R399
R399
1 2
0R0402-PAD
0R0402-PAD
USB_PN6 18
USB_PP6 18
SMBCLK_SB 3,11,18
SMBDAT_SB 3,11,18
PCIRST_BUF# 15,32
C267
C267
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
GPP_CLK0P 3
GPP_CLK0N 3
PCIE_RX0N_GPP 8
PCIE_RX0P_GPP 8
PCIE_TX0N_GPP 8
PCIE_TX0P_GPP 8
Change to 62.10043.261
1 1
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
MINI-PCI / MINI CARD
MINI-PCI / MINI CARD
MINI-PCI / MINI CARD
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
Y4A
Y4A
Y4A
26 49Tuesday, January 23, 2007
26 49Tuesday, January 23, 2007
26 49Tuesday, January 23, 2007
of
of
E
of
-1
-1
-1
Page 27
5
D D
C C
4
3
2
1
B B
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
NEWCARD Connector
NEWCARD Connector
NEWCARD Connector
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
Y4A
Y4A
Y4A
27 49Tuesday, January 23, 2007
27 49Tuesday, January 23, 2007
27 49Tuesday, January 23, 2007
1
-1
-1
-1

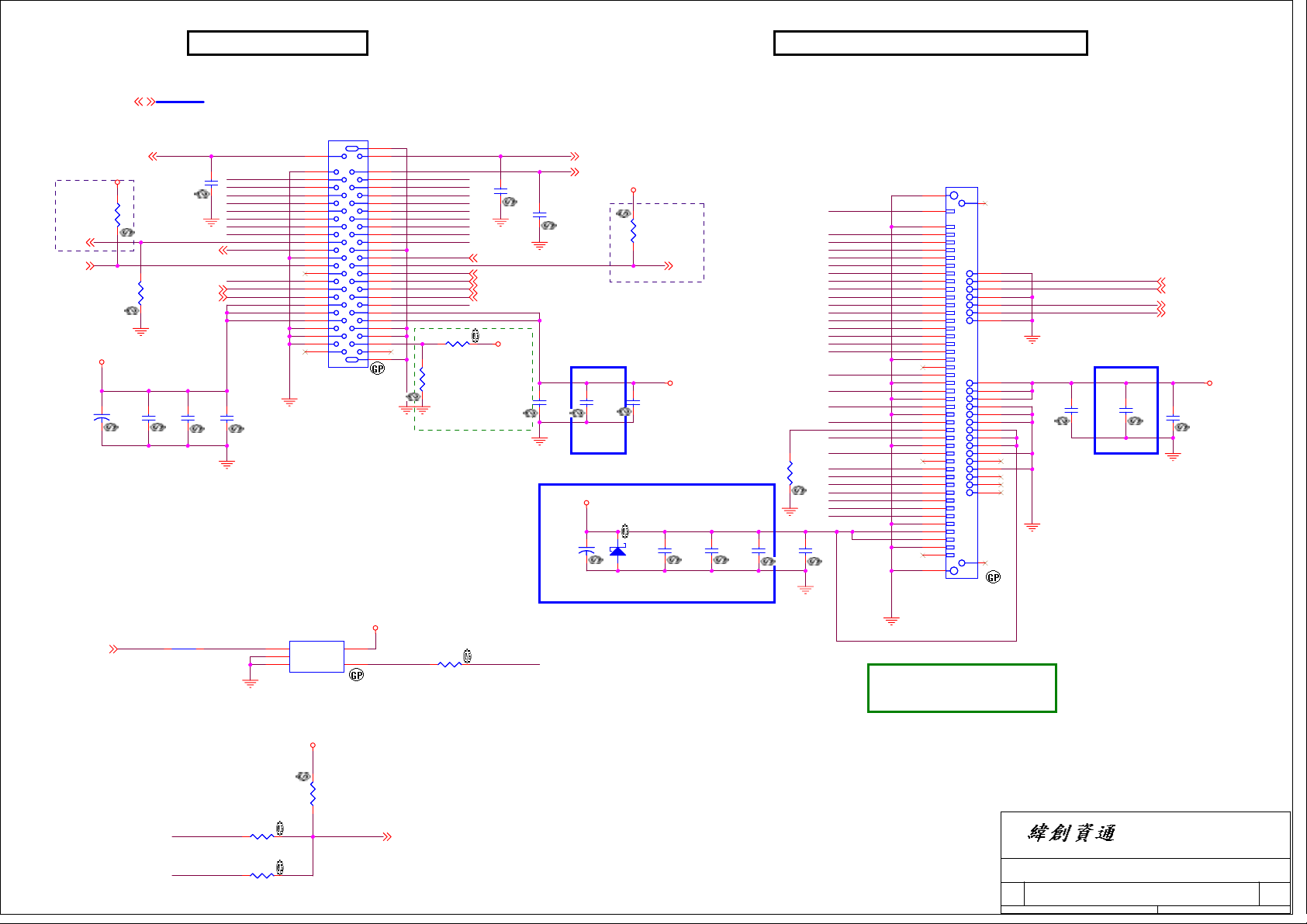

Page 28
Y4B-1
PIDE_DREQ16
PIDE_DACK#16,19
ST150U6VDM-GP
ST150U6VDM-GP
PIDE_D[0..15]16
R359
R359
4K7R2F-GP
4K7R2F-GP
5K1R2F-2-GP
5K1R2F-2-GP
5V_S0
TC20
TC20
A_RST#6,15
CD_AUDR29
5V_S0
12
DY
DY
R361
R361
DY
DY
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
DY
DY
CD_AUDR
12
PIDE_D8
C450
C450
SC100P50V2JN-3GP
SC100P50V2JN-3GP
PIDE_IOR#16
12
PIDE_A216 PIDE_A0 16
12
12
C449
C449
C207
C207
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
PIDE_D9
PIDE_D10
PIDE_D11
PIDE_D12
PIDE_D13
PIDE_D14
PIDE_D15
PIDE_DREQ
PIDE_IOR#
PIDE_DIAG#
PIDE_A2
PIDE_CS#1
12
C225 SCD1U16V2ZY-2GP
C225 SCD1U16V2ZY-2GP
DY
DY
PCIRST# 3V to 5V level shift for HDD & CDROM
R188
R188
A_RST# IDE_RST#
1 2
0R0402-PAD
0R0402-PAD
1
2
Change to 20.80361.050
CN10
CN10
51
CD_AUDL
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
U11
U11
A
VCC
B
GND3Y
NC7SZ32-2-GP
NC7SZ32-2-GP
1
CD_AGND
3
RSTDRV#_5
5
PIDE_D7
7
PIDE_D6
9
PIDE_D5
11
PIDE_D4
13
PIDE_D3
15
PIDE_D2
17
PIDE_D1
19
PIDE_D0
21
23
PIDE_IOW#
25
PIDE_IORDYPIDE_DACK#
27
PIDE_IRQ14
29
PIDE_A1
31
PIDE_A0
33
PIDE_CS#0
35
CDROM_LED#
37
39
41
43
45
47
49
52
SPD-CONN50-4R-14GPU
SPD-CONN50-4R-14GPU
12
SET TO MASTER
5V_S0
5
IDE_RST#_OUT RSTDRV#_5
4
(Y4B)
R336
R336
1 2
10KR2J-3-GP
10KR2J-3-GP
0R2J-2-GP
0R2J-2-GP
R335
R335
R189
R189
1 2
33R2F-3-GP
33R2F-3-GP
SC100P50V2JN-3GP
SC100P50V2JN-3GP
C452
C452
12
PIDE_IOW# 16
PIDE_IRQ14 16
PIDE_A1 16
PIDE_CS#0 16PIDE_CS#116
5V_S0
Y4B DY
Y4B DY
ST150U6VDM-GP
ST150U6VDM-GP
HD Connector ( IDE / SATA )ODD Connector
CD_AUDL 29
CD_AGND 29
5V_S0
12
C451
C451
SC100P50V2JN-3GP
SC100P50V2JN-3GP
12
12
C208
C208
C209SCD1U16V2ZY-2GP C209SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SB SB
5V_S0
SSM24PT-GP
SSM24PT-GP
12
TC10
TC10
DY
DY
Y4B-1
R360
R360
4K7R2F-GP
4K7R2F-GP
DY
DY
1 2
12
C210
C210
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
KA
D36
D36
C293
C293
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
PIDE_IORDY 16
5V_S0
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
12
C269
C269
Y4B_DY
Y4B_DY
R454
R454
0R2J-2-GP
0R2J-2-GP
12
C295
C295
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
RSTDRV#_5
PIDE_D7
PIDE_D8
PIDE_D6
PIDE_D9
PIDE_D5
PIDE_D10
PIDE_D4
PIDE_D11
PIDE_D3
PIDE_D12
PIDE_D2
PIDE_D13
PIDE_D1
PIDE_D14
PIDE_D0
PIDE_D15
PIDE_DREQ
PIDE_IOW#
PIDE_IOR#
PIDE_IORDY
HDD_CSEL
PIDE_DACK#
12
12
PIDE_IRQ14
PIDE_A1
PIDE_DIAG#
PIDE_A0
PIDE_A2
PIDE_CS#0
PIDE_CS#1
HDD_LED#
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
C268
C268
SB LAYOUT MODIFY
SATA : 20.F0885.001(Y4B)
PATA : 20.F0834.001(Y4A)
CN12
CN12
45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
46
CON44+15P+S7-2GP
CON44+15P+S7-2GP
NP1
S1
S2
S3
S4
S5
S6
S7
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
11A
12A
13A
14A
15A
NP2
SATA_TXP0
SATA_TXN0
SATA_RXN0
SATA_RXP0
12
C316
C316
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C294
C294
12
DY
DY
SATA_TXP0 16
SATA_TXN0 16
SATA_RXN0 16
SATA_RXP0 16
3D3V_S0
C315
C315
12
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
HDD_LED#
CDROM_LED#
R362
R362
1 2
0R2J-2-GP
0R2J-2-GP
R363
R363
1 2
0R2J-2-GP
0R2J-2-GP
5V_S0
1 2
R358
R358
4K7R2F-GP
4K7R2F-GP
PIDE_DSAP#
PIDE_DSAP# 14
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
HDD/CDROM CONN
HDD/CDROM CONN
HDD/CDROM CONN
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
Y4A
Y4A
Y4A
28 49Tuesday, January 23, 2007
28 49Tuesday, January 23, 2007
28 49Tuesday, January 23, 2007
-1
-1
-1

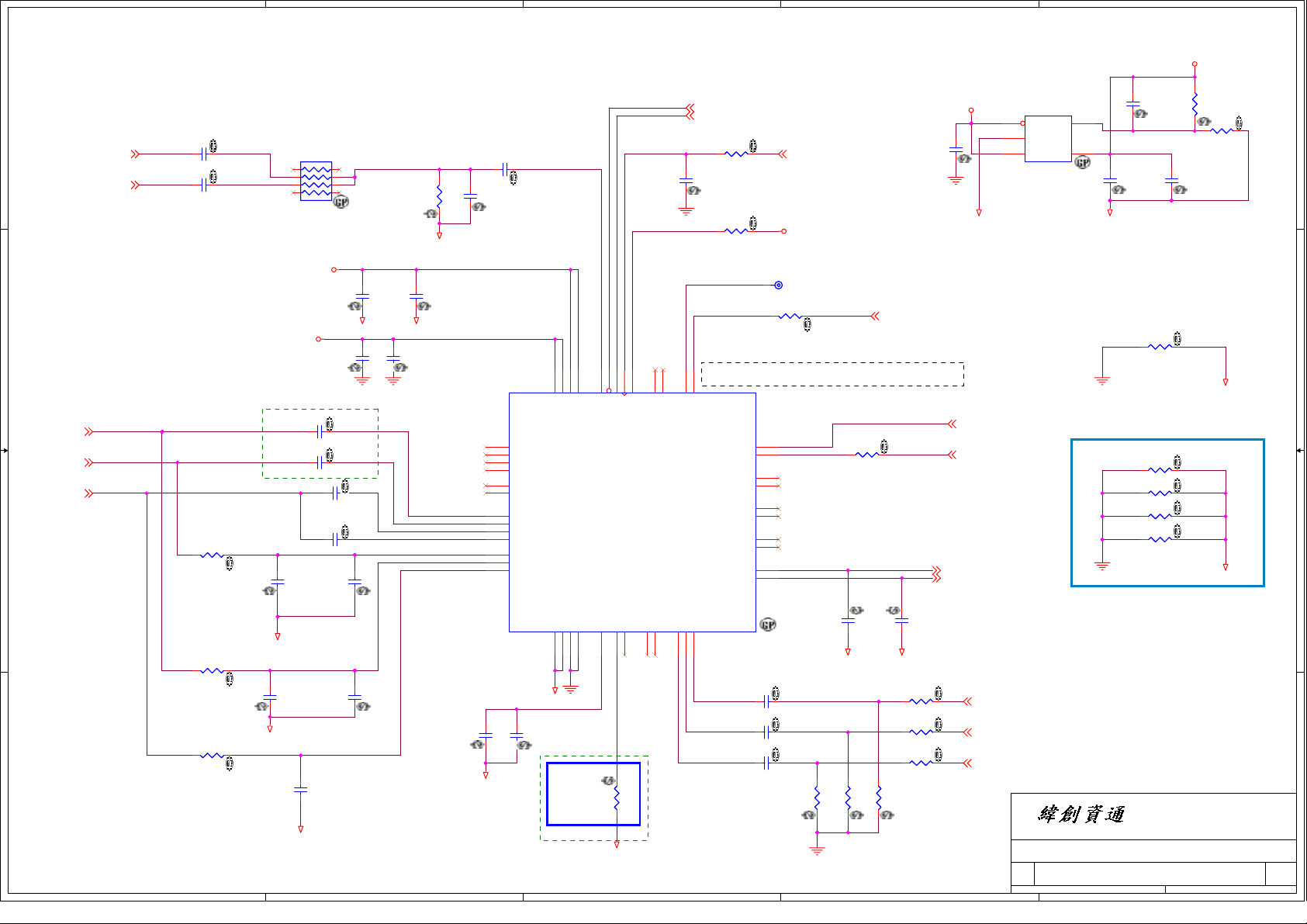

Page 29
5
4
3
2
1
5V_AUDIO_S0
ACZ_RST#
AC97_CBITCLK
10
6
11
12
SYNC
RESET#
PCBEEP
JDREF
27
37
40
JDREF
1 2
AUD_AGND
ACZ_SYNC
33
VAUX
BIT-CLK
PIN37_VREFO
GPIO02GPIO1
3
D D
SPKR_SB
SPKR_SB18
KBC_BEEP32
C C
1 2
C555 SCD47U10V3ZY-GPC555 SCD47U10V3ZY-GP
KBC_BEEP
1 2
C554 SCD47U10V3ZY-GPC554 SCD47U10V3ZY-GP
RN38
RN38
1
2
3
4 5
SRN47KJ-1-GP
SRN47KJ-1-GP
5V_AUDIO_S0
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
3D3V_S0
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
AUD_SYS_BEEPAUD_SYS_BEEP
8
7
6
1KR2J-1-GP
1KR2J-1-GP
12
C578
C578
AUD_AGND AUD_AGND
12
12
C549
C549
12
R523
R523
AUD_AGND
12
C562
C562
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
C551
C551
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
C552
C552
1 2
12
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
C553
C553
SC100P50V2JN-3GP
SC100P50V2JN-3GP
U57
U57
AUD_PC_BEEP
25
1
9
38
Y4B
AVDD1
AVDD2
DVDD1
C565 SC2D2U16V3KX-GP
DY
DY
AUD_AGND
DY
DY
AUD_AGND
12
C565 SC2D2U16V3KX-GP
1 2
78.22521.5BL
78.22521.5BL
C566 SC2D2U16V3KX-GP
C566 SC2D2U16V3KX-GP
1 2
78.22521.5BL
78.22521.5BL
C334
C334
1 2
DY
DY
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
DY
DY
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
12
SC4D7U6D3V3KX-GP
SC4D7U6D3V3KX-GP
SC4D7U6D3V3KX-GP
SC4D7U6D3V3KX-GP
12
AUD_AGND
C333
C333
1 2
12
C574
C574
12
C576
C576
C575
C575
SC4D7U6D3V3KX
SC4D7U6D3V3KX
DY
DY
MIC1L
MIC1R
MIC2L
MIC2R
MIC1VREFO_R
MIC1VREFO_L
MIC2VREFO
C337
SC10U6D3V5KX-1GP
SC10U6D3V5KX-1GP
C337
12
AUD_AGND
23
LINE1-L
24
LINE1-R
14
LINE2-L
15
LINE2-R
29
LINE1-VREFO
31
LINE2-VREFO
21
MIC1-L
22
MIC1-R
16
MIC2-L
17
MIC2-R
32
MIC1-VREFO-R
28
MIC1-VREFO-L
30
MIC2-VREFO
CODECVREF
12
MIC1_L31
MIC1_R31
INT_MIC31
B B
A A
MIC1_L
MIC1_R
INT_MIC
R550
R550
1 2
4K7R2J-2-GP
4K7R2J-2-GP
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
R555
R555
1 2
4K7R2J-2-GP
4K7R2J-2-GP
C336
R249
R249
1 2
4K7R2J-2-GP
4K7R2J-2-GP
DY
DY
C336
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
C335
C335
DVDD2
DVSS1
DVSS2
AVSS126VREF
AVSS2
4
7
42
AUD_AGND
C577
C577
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
20KR2F-L-GP
20KR2F-L-GP
SB
R541
R541
Y4B
5
4
43
44
LFE-OUT
3
ACZ_RST# 18,21
ACZ_SYNC 18,21
R521
R521
1 2
12
33R2J-2-GP
33R2J-2-GP
C550
C550
SC22P50V3JN-GP
SC22P50V3JN-GP
DY
DY
R563
R563
1 2
10KR2J-3-GP
10KR2J-3-GP
SENSE_B
JD_SENSE MIC_JD
Y4B : U57 change to 861D (71.AL861.A0G)
13
34
CEN-OUT
SENSE_A
SENSE_B
SDATA-OUT
SDATA-IN
SPDIFO
SPDIFI/EAPD
SIDESURR-OUT-L
SIDESURR-OUT-R
SURR-OUT-L
SURR-OUT-R
FRONT-OUT-L
FRONT-OUT-R
CD-L18CD-GND
CD-R
ALC883-1-GP
ALC883-1-GP
19
20
C563
CDAUD_GND
CDAUD_R
CDAUD_L
C563
1 2
C564
C564
1 2
C567
C567
1 2
ACZ_BITCLK 18,21
5V_AUDIO_S0
TP99 TPAD28TP99 TPAD28
1
R542
R542
1 2
20KR2F-L-GP
20KR2F-L-GP
R522
5
AC97_DATIN ACZ_SDIN0
8
48
47
SB change to ALC861
45
46
Part Number : 71.AL861.00G
39
41
35
36
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
CD_AGND_R
SC1U16V3KX-2GP
SC1U16V3KX-2GP
CD_AUDR_R
SC1U16V3KX-2GP
SC1U16V3KX-2GP
CD_AUDL_R
SC1U16V3KX-2GP
SC1U16V3KX-2GP
R547
R547
47KR2J-2-GP
47KR2J-2-GP
R522
1 2
39R2J-L-GP
39R2J-L-GP
DY
DY
C573
C573
1 2
AUD_AGND AUD_AGND
12
12
R545
R545
47KR2J-2-GP
47KR2J-2-GP
SC1U10V2KX-GP
SC1U10V2KX-GP
MIC_JD 31
ACZ_SDOUT
AUD_LOL
AUD_LOR
C572
C572
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
1 2
R544
R544
1 2
47KR2J-2-GP
47KR2J-2-GP
R549
R549
1 2
47KR2J-2-GP
47KR2J-2-GP
R548
R548
1 2
47KR2J-2-GP
47KR2J-2-GP
12
R546
R546
47KR2J-2-GP
47KR2J-2-GP
2
DY
DY
5V_S0
12
C328
C328
AUD_LOL 30
AUD_LOR 30
U17
U17
1
SHDN#
2
GND
IN3OUT
G923-330T1UF-GP
G923-330T1UF-GP
74.00923.A3F
74.00923.A3F
ACZ_SDOUT 18,21
ACZ_SDIN0 18
CD_AGND 28
CD_AUDR 28
CD_AUDL 28
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
5
SET
4
SC1U10V2KX-GP
SC1U10V2KX-GP
AUDIO(1/2)
AUDIO(1/2)
AUDIO(1/2)
12
C326
C326
SC22P50V2JN-4GP
SC22P50V2JN-4GP
5VA_SETPIN
12
C325
C325
AUD_AGNDAUD_AGND
R259
R259
1 2
0R5J-5-GP
0R5J-5-GP
Y4A-1
EMR1 0R5J-5-GPEMR1 0R5J-5-GP
1 2
EMR2 0R5J-5-GPEMR2 0R5J-5-GP
1 2
EMR3 0R5J-5-GPEMR3 0R5J-5-GP
1 2
EMR4 0R5J-5-GPEMR4 0R5J-5-GP
1 2
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
12
1 2
10KR2F-2-GP
10KR2F-2-GP
12
C327
C327
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
29 49Tuesday, January 23, 2007
29 49Tuesday, January 23, 2007
29 49Tuesday, January 23, 2007
1
R266
R266
28K7R3F-GP
28K7R3F-GP
R267
R267
AUD_AGND
AUD_AGND
of
of
of
-1
-1
-1

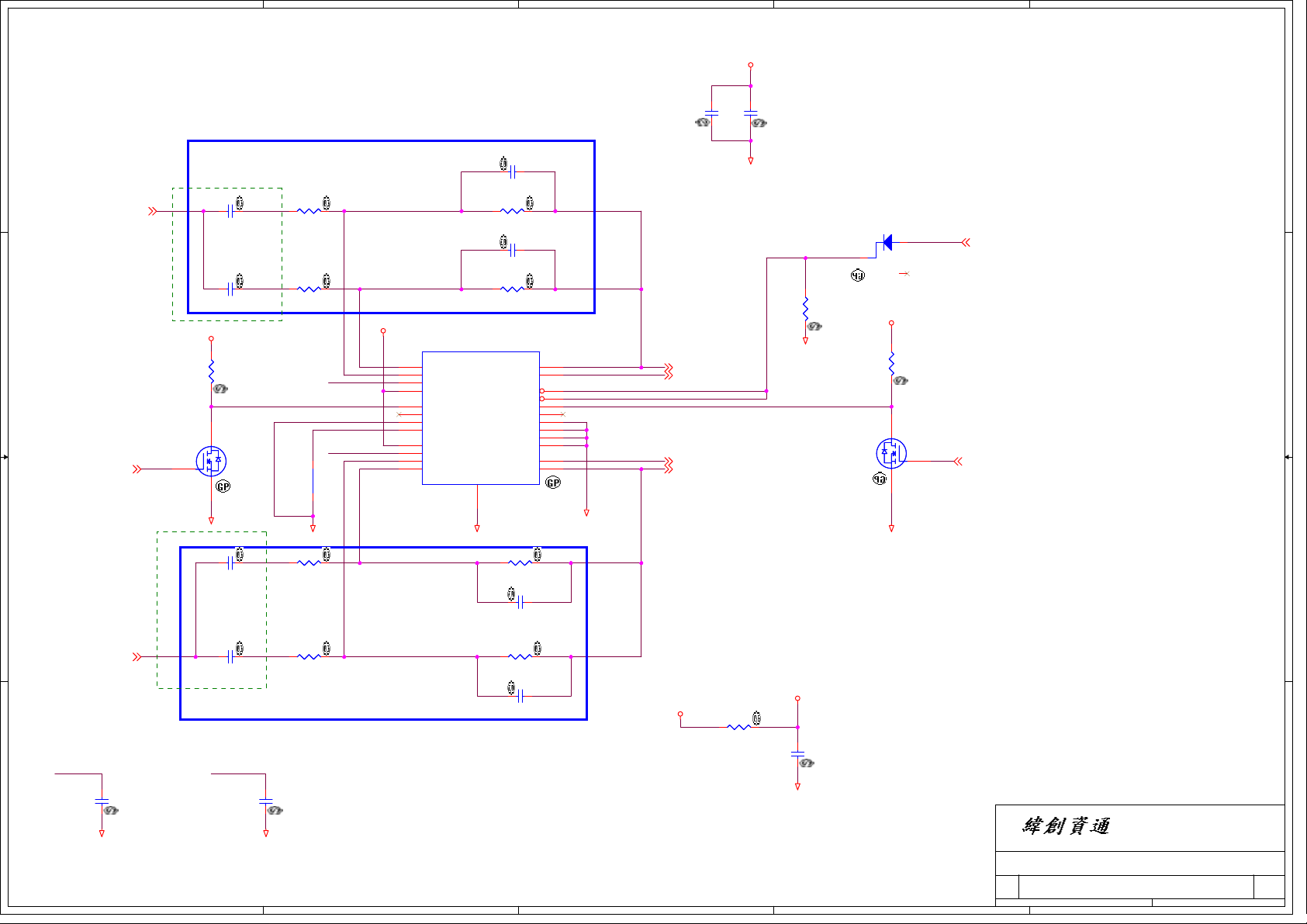

Page 30
5
4
3
5VA_OP_S0
2
1
Y4B
D D
Y4B
AUD_LOL29
C C
AMP_SHOUTDOWN#32
Y4B
B B
AUD_LOR29
A A
12
C331
C331
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
5
G
G
SB
SB
5VA_OP_S0
1
AUD_AGND
78.47521.51L
C570
C570
1 2
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C571
C571
1 2
SC2D2U16V5ZY-2GP
SC2D2U16V5ZY-2GP
12
R261
R261
10KR2J-3-GP
10KR2J-3-GP
D
D
Q15
Q15
2N7002-9-GP
2N7002-9-GP
2 3
S
S
C532
C532
1 2
SC2D2U16V5ZY-2GP
SC2D2U16V5ZY-2GP
C529
C529
1 2
SC2D2U16V5ZY-2GP
SC2D2U16V5ZY-2GP
R_BYPASSL_BYPASS
AUD_AGNDAUD_AGND
R524
R524
1 2
10KR2J-3-GP
10KR2J-3-GP
R527
R527
1 2
10KR2J-3-GP
10KR2J-3-GP
12
AUD_AGND AUD_AGND
R504
R504
1 2
10KR2J-3-GP
10KR2J-3-GP
R501
R501
1 2
10KR2J-3-GP
10KR2J-3-GP
12
C330
C330
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
L_BYPASS
AMP_STDN
R_BYPASS
R257
R257
0R0402-PAD
0R0402-PAD
HP_LCSOUTL1
L_LINE_INCSOUTL2
5VA_OP_S0
HP_RCSOUTR2
4
5
6
7
8
2
17
23
18
19
20
21
R_LINE_INCSOUTR1
4
U55
U55
LLINEIN
LHPIN
LBYPASS
LVDD
SHUTDOWN
TJ
HP-IN
VOL
RVDD
RBYPASS
RHPIN
RLINEIN
G1421BF3UF-GP
G1421BF3UF-GP
C557
C557
12
SC220P50V2KX-3GP
SC220P50V2KX-3GP
R525
R525
1 2
10KR2J-3-GP
10KR2J-3-GP
C558
C558
12
SC220P50V2KX-3GP
SC220P50V2KX-3GP
R526
R526
1 2
10KR2J-3-GP
10KR2J-3-GP
LOUT+
LOUT-
SE/BTL#
HP/LINE#
MUTEIN
MUTEOUT
GND/HS
GND/HS
GND/HS
GND/HS
ROUT-
ROUT+
GND
25
R503
R503
1 2
10KR2J-3-GP
10KR2J-3-GP
SC220P50V2KX-3GP
SC220P50V2KX-3GP
R502
R502
1 2
10KR2J-3-GP
10KR2J-3-GP
SC220P50V2KX-3GP
SC220P50V2KX-3GP
C531
C531
12
C530
C530
12
3
10
14
16
11
9
1
12
13
24
15
22
AUD_AGND
C570, C571,C529, C532
SPKR_L+
SPKR_L-
ENAUDIO#1
SPKR_RSPKR_R+
SC10U10V6ZY-5GP
SC10U10V6ZY-5GP
3
12
C329
C329
SPKR_L+ 31
SPKR_L- 31
SPKR_R- 31
SPKR_R+ 31
5V_S0
AUD_AGND
R256
R256
1 2
0R3-0-U-GP
0R3-0-U-GP
SCD1U25V3ZY-3GP
SCD1U25V3ZY-3GP
12
C321
C321
AUD_AGND
5VA_OP_S0
AUD_AGND
HP_JKIN
12
R262
R262
4K7R2J-2-GP
4K7R2J-2-GP
2N7002-9-GP
2N7002-9-GP
12
C320
C320
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
3
BAT54PT-GP
BAT54PT-GP
5VA_OP_S0
Q16
Q16
D18
D18
12
D
D
2 3
S
S
AUD_AGND
2
1
2
R260
R260
10KR2J-3-GP
10KR2J-3-GP
1
G
G
SE#/BTL 31
KBC_MUTE# 32
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
AUDIO(2/2)
AUDIO(2/2)
AUDIO(2/2)
Y4A
Y4A
Y4A
30 49Tuesday, January 23, 2007
30 49Tuesday, January 23, 2007
30 49Tuesday, January 23, 2007
1
-1
-1
-1
of
of
of

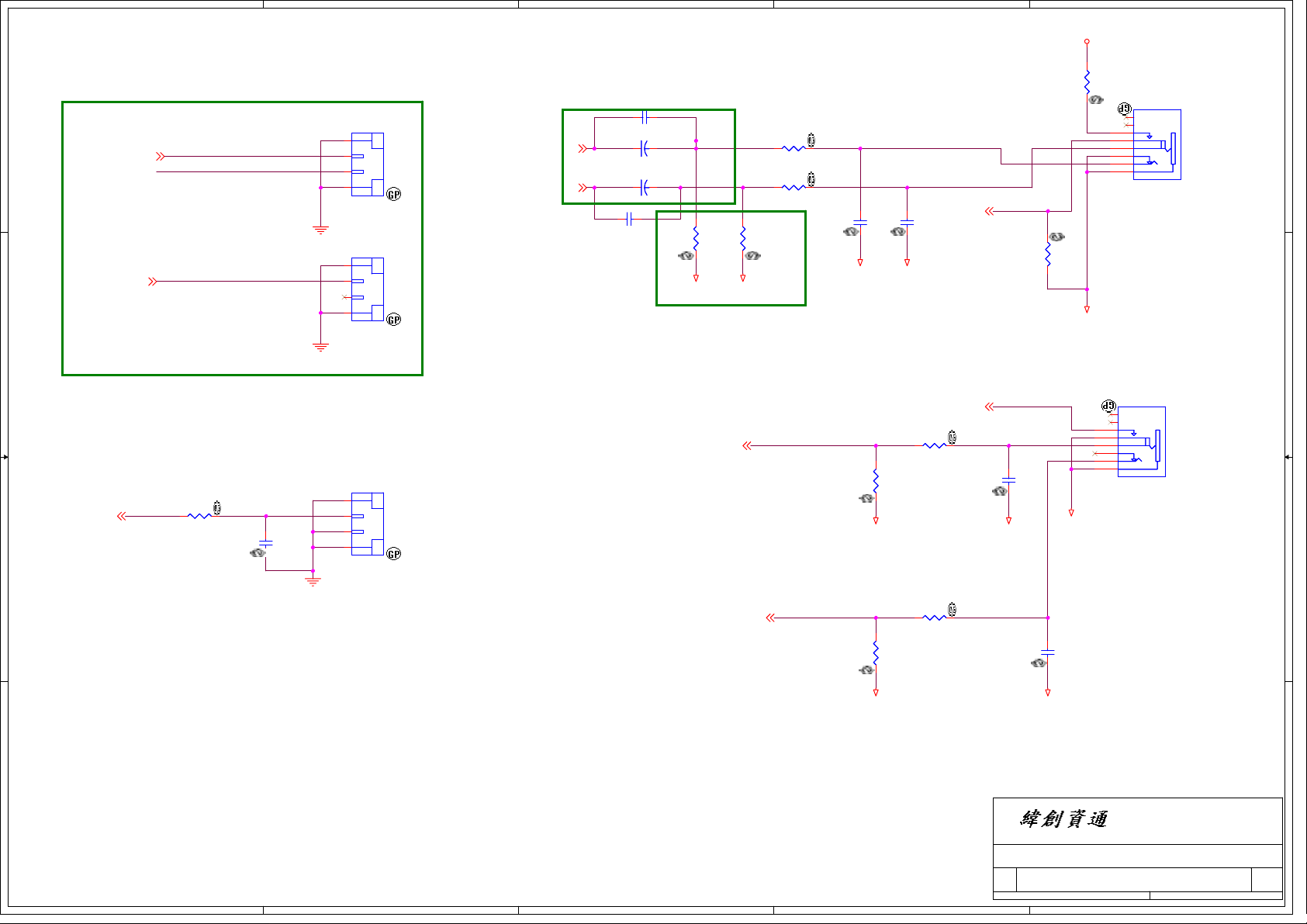

Page 31
5
Y4B
D D
SPKR_L-
SPKR_L-30
SPKR_R+
SPKR_R-
SPKR_R-30
C C
4
2
1
3
4
2
1
3
4
SPK1
SPK1
ETY-CON2-6-GP
ETY-CON2-6-GP
SPK2
SPK2
ETY-CON2-6-GP
ETY-CON2-6-GP
Y4B_DY
Y4B_DY
3
Y4B-3
1 2
TC14 SC22UTC14 SC22U
TC12
TC12
DY
1 2
TC11
TC11
1 2
22KR2J-GP
22KR2J-GP
DY
SPKR_L+2 SPKR_L_A1
DY
DY
12
R265
R265
AUD_AGND AUD_AGND
SPKR_L+
SPKR_L+30
SPKR_R+30
SPKR_L+
ST100U6D3VDM-5
ST100U6D3VDM-5
SPKR_R+ SPKR_R+2
SPKR_R+
ST100U6D3VDM-5
ST100U6D3VDM-5
1 2
TC18
TC18
SC22U
SC22U
12
1 2
1 2
R258
R258
22KR2J-GP
22KR2J-GP
R263
R263
22R2J-2-GP
22R2J-2-GP
R264
R264
22R2J-2-GP
22R2J-2-GP
C332
C332
SC680P-GP
SC680P-GP
AUD_AGND AUD_AGND
SPKR_R_A1
12
SC680P-GP
SC680P-GP
C322
C322
2
5V_AUDIO_S0
12
R543
R543
1KR2F-3-GP
1KR2F-3-GP
SE#/BTL30
12
SE#/BTL
10KR2J-3-GP
10KR2J-3-GP
R576
R576
1 2
1
JK2
JK2
NP2
NP1
5
4
3
6
2
1
PHONE-JK241-GP
PHONE-JK241-GP
LINE OUT
Y4B
AUD_AGND
LINE IN / MIC IN
MIC_JD29
R552
DY
DY
DY
DY
1 2
0R2J-2-GP
0R2J-2-GP
1 2
0R2J-2-GP
0R2J-2-GP
2
R552
SC100P50V2JN-3GP
SC100P50V2JN-3GP
R553
R553
MIC1_R
MIC1_R29
12
R551
R551
10KR2J-3-GP
MIC1_L
10KR2J-3-GP
AUD_AGND AUD_AGND
12
R554
R554
10KR2J-3-GP
10KR2J-3-GP
AUD_AGND AUD_AGND
IN1
R250
R250
DY
DY
C317
C317
IN_MIC_JACKINT_MIC
12
DY
DY
INT_MIC29
B B
A A
1 2
0R2J-2-GP
0R2J-2-GP
SC680P50V2KX-2GP
SC680P50V2KX-2GP
5
IN1
4
2
1
3
ETY-CON2-6-GP
ETY-CON2-6-GP
DY
DY
MIC1_L29
4
3
MIC_JD
MIC_R
12
C568
C568
AUD_AGND
MIC_L
12
C569
C569
SC100P50V2JN-3GP
SC100P50V2JN-3GP
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet
AUDIO JACK
AUDIO JACK
AUDIO JACK
JK1
JK1
NP2
NP1
5
4
3
6
2
1
PHONE-JK241-GP
PHONE-JK241-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
1
-1
-1
of
31 49Tuesday, January 23, 2007
31 49Tuesday, January 23, 2007
31 49Tuesday, January 23, 2007
-1

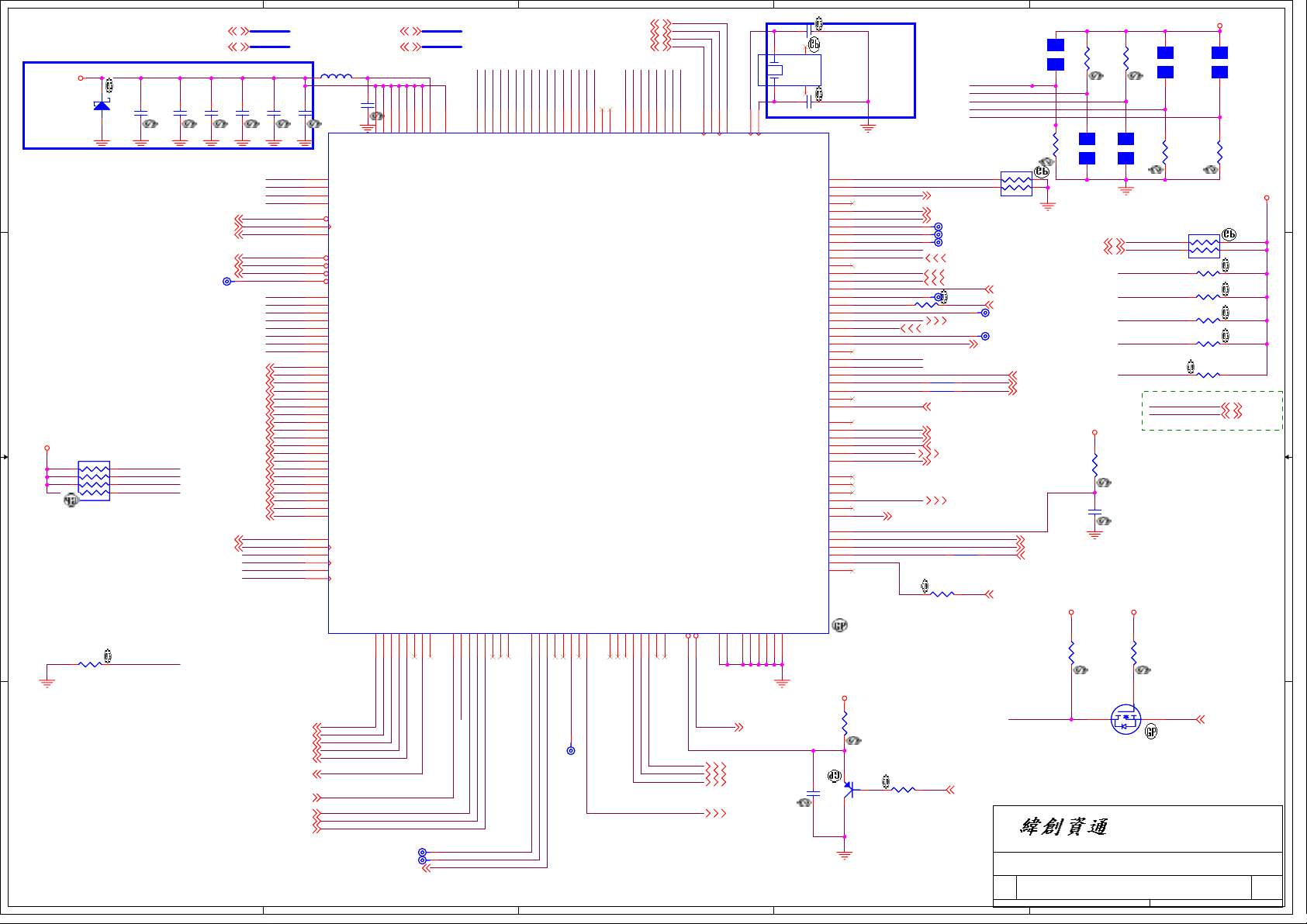

Page 32
5
LPC_LAD[0..3]15,35
KBC_D[0..7]33
L19
L19
12
C511
C511
LPC_LAD0
LPC_LAD1
LPC_LAD2
LPC_LAD3
KBC_D0
KBC_D1
KBC_D2
KBC_D3
KBC_D4
KBC_D5
KBC_D6
KBC_D7
TDATA
TCLK
PS2_DAT2
PS2_CLK2
PS2_DAT1
PS2_CLK1
1 2
12
C513
C513
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
15
14
13
10
18
150
151
173
152
138
139
140
141
144
145
146
147
124
125
126
127
128
131
132
133
143
142
135
134
130
129
121
120
113
112
104
103
117
116
115
114
111
110
BLM11P600S
BLM11P600S
C561
C561
LAD0
LAD1
LAD2
LAD3
9
LFRAME#
LCLK
7
SERIRQ
RD#
WR#
MEMCS#
IOCS#
D0
D1
D2
D3
D4
D5
D6
D7
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
PSDAT3
PSCLK3
PSDAT2
PSCLK2
PSDAT1
PSCLK1
3D3V_AUX_S5
SSM5819SPT-GP
SSM5819SPT-GP
D D
SB LAYOUT MODIFY
C C
5V_S0
B B
A A
D31
D31
RN39
RN39
8
7
6
SRN10KJ-6-GP
SRN10KJ-6-GP
R469
R469
1 2
KA
1
2
3
45
10KR2J-3-GP
10KR2J-3-GP
12
C560
C560
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
PS2_DAT2
PS2_CLK2
PS2_DAT1
PS2_CLK1
S5_ENABLE
5
12
12
C548
C548
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
LPC_LFRAME#15,19,35
SB_CLK33_KBC15,19
P_SERIRQ15,35
KBCBIOS_RD#33
KBCBIOS_WE#33
KBCBIOS_CS#33
12
C526
C526
C528
C528
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
TP88TPAD28 TP88TPAD28
TDATA34
TCLK34
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
LPC_LFRAME#
SB_CLK33_KBC
P_SERIRQ
KBCBIOS_RD#
KBCBIOS_WE#
KBCBIOS_CS#
A033
A133
A233
A333
A433
A533,35
A633
A733
A833
A933
A1033
A1133
A1233
A1333
A1433
A1533
A1633
A1733
A1833
A1933
KBC_BEEP29
ECSWI#18
PM_PWRBTN#18
SB_RSMRST#18
S5_ENABLE20
BRIGHTNESS14
PM_SLP_S3#18,20,36,41,42,44
KBC_PWRBTN#34
AC_IN#45
KBC_LID#34
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
KCOL[1..16]34
KROW[1..8]34
KB3910_VCCA
12
VCC16VCC34VCC45VCC
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
PWM743PWM640PWM539PWM438PWM337PWM236PWM133PWM0
KBC_BEEP
USB_PWR_EN#21
4
123
ECSWI#
PM_PWRBTN#
TP94
TP94
TPAD28
TPAD28
4
95
136
157
166
VCC
VCC
VCC
32
S5_ENABLE
BRIGHTNESS
161
VCCA
VCCBAT
GPWU02GPWU126GPWU229GPWU330GPWU444GPWU576GPWU6
KBC_PME#
PRE_CHG
TP93 TPAD28TP93 TPAD28
KCOL1
KCOL2
50
KSO049KSO1
KCOL3
KCOL4
KSO251KSO352KSO4
172
KCOL5
KCOL6
53
GPWU7
176
KCOL7
KCOL8
KCOL9
KSO556KSO657KSO758KSO859KSO9
DA099DA1
100
GMODULE_RST#
KCOL10
KCOL11
KCOL12
KCOL13
60
KSO1061KSO1164KSO1265KSO1366KSO1467KSO1568KSO16
DA2
DA3
DA41DA542DA647DA7
101
102
TP69
TP74
TP74
TPAD28
TPAD28
KCOL14
KCOL15
174
SMBD_KBC20
SMBC_KBC20
BAT_SDA46
BAT_SCL46
KCOL16
153
154
KSO17
AD081AD182AD283AD384AD487AD588AD689AD7
3
KROW1
KROW2
KROW3
KROW4
KROW5
KROW6
KROW7
KSI071KSI172KSI273KSI374KSI477KSI578KSI679KSI7
90
3
KROW8
80
ECRST#19ECSCI#
EC_RST#
BAT_SCL
BAT_SDA
SMBC_KBC
164
163
169
SCL1
SCL2
SDA1
AGND96BATGND
31
ECSCI#_KBC
SB
SMBD_KBC
158
160
170
SDA2
XCLKI
XCLKO
GND17GND35GND46GND
159
122
ECSCI#_KBC 18
PlANARID2 33
PlANARID1 33
PlANARID0 33
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
PRE_CHG 45
1 2
C546 SC15P50V2JN-2-GPC546 SC15P50V2JN-2-GP
4
1
GND
137
2 3
1 2
C547
C547
GPIO29
GPIO28
GPIO27
GPIO26
GPIO25
GPIO24
GPIO23
GPIO22
GPIO21
GPIO20
GPIO19
GPIO18
GPIO17
GPIO16
GPIO15
GPIO14
GPIO13
GPIO12
GPIO11
GPIO10
GPIO09
GPIO08
GPIO07
GPIO06
GPIO05
GPIO04
GPIO03
GPIO02
GPIO01
GPIO00
GPIO0F
GPIO0E
GPIO0D
GPIO0C
GPIO0B
GPIO0A
GPIO1F
GPIO1E
GPIO1D
GPIO1C
GPIO1B
GPIO1A
GPIOI2D
GPIO2F
GPIO2E
GPIO2C
GPIO2B
GPIO2A
GND
KB3910SF-2-GP
KB3910SF-2-GP
167
C512
C512
X6
X6
X-32D768KHZ-38GPU
X-32D768KHZ-38GPU
SC15P50V2JN-2-GP
SC15P50V2JN-2-GP
U54
U54
SB
KBC Change to C1 Version
KB_MARTIX0
155
KB_MARTIX1
149
3CELL_CHG
148
119
CHG_ON#
118
AD_OFF
109
A20
108
E51TXD
107
E51RXD
106
E51CS#
105
86
85
INTERNET#
75
70
69
TP89 TPAD28TP89 TPAD28
63
62
FnLock#FnLock#FnLock#
55
CAP_LED#
54
48
TP68
22
KBC_MUTE#
21
20
FAN3FB
12
FAN3PWM
11
WLAN_BUTTON#
8
KBCRST#
6
KBCA20G
5
4
BAT_IN#
3
41
ECSMI#_KBC
28
RF_ON/OFF#
27
PM_CLKRUN#
25
BLON_OUT
24
NUM_LED#
23
98
97
94
WIFI_TEST
93
92
91
VCC3VSB
168
ADP_SEL
175
AMP_SHOUTDOWN#
171
KBC_PCIRST#
165
162
156
3D3V_AUX_S5
12
R465
R465
10KR2J-3-GP
10KR2J-3-GP
E
Q29
12
Q29
CH3906PT-GP
CH3906PT-GP
C
BL_ON
B
2
3CELL_CHG 45
CHG_ON# 45
AD_OFF 46
R518
R518
1 2
0R2J-2-GP
0R2J-2-GP
PWR_LED# 14
R460
R460
1 2
R459
R459
1 2
BAT_IN# 45,46
ECSMI#_KBC 18
RF_ON/OFF# 26
PM_CLKRUN# 15,22
NUM_LED# 14
CHG_LED# 14
R498
R498
0R2J-2-GP
0R2J-2-GP
R466
R466
12
10KR2J-3-GP
10KR2J-3-GP
2
A1A1
A4
A5
FAN3PWM
FAN3FB
TP90 TPAD28TP90 TPAD28
TP91 TPAD28TP91 TPAD28
TP92 TPAD28TP92 TPAD28
STBY_LED# 14
INTERNET# 34
MAIL# 34
DY
DY
CAP_LED# 14
0R0402-PAD
0R0402-PAD
0R0402-PAD
0R0402-PAD
BLON_OUT 14
WIFI_TEST 14
R497
R497
1 2
0R0402-PAD
0R0402-PAD
12
ECRST# 20
1
12
12
R534
R534
DUMMY-R2
DUMMY-R2
DY
DY
12
R532
R532
R535
R535
10KR2J-3-GP
10KR2J-3-GP
RN37
RN37
2 3
1
SRN4K7J-8-GP
SRN4K7J-8-GP
PM_SLP_S5# 18,41
PM_SUS_STAT# 6,18
TP85 TPAD28TP85 TPAD28
TP73 TPAD28TP73 TPAD28
KBC_MUTE# 30
SB
R459, R460 change to 0 ohm
NB_BLON_IN 9
KBC_PME#
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
DUMMY-R2
DUMMY-R2
4
BAT_SCL46
BAT_SDA46
WLAN_BUTTON# 34
KBRCIN# 18
KA20GATE 18
ADP_SEL 45
AMP_SHOUTDOWN# 30
PCIRST_BUF# 15,26
3D3V_AUX_S5
12
DY
DY
R457
R457
10KR2J-3-GP
10KR2J-3-GP
12
R533
R533
R531
100KR2D-1-GP
100KR2D-1-GP
12
3D3V_S5
R531
100KR2D-1-GP
100KR2D-1-GP
12
R530
R530
R462
R462
10KR2J-3-GP
10KR2J-3-GP
DUMMY-R2
DUMMY-R2
DY
DY
KBC_PWRBTN#
AC_IN#
BAT_IN#
KBC_LID#
E51CS#
12
R499
R499
100KR2D-1-GP
100KR2D-1-GP
12
C527
C527
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
3D3V_S5
12
R500
R500
10KR2J-3-GP
10KR2J-3-GP
G
G
1
D
D
23
2N7002-9-GP
2N7002-9-GP
Q28
Q28
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
KBC 3910
KBC 3910
KBC 3910
Y4A
Y4A
Y4A
12
DUMMY-R2
DUMMY-R2
12
10KR2J-3-GP
10KR2J-3-GP
DY
DY
10KR2J-3-GP
10KR2J-3-GP
DY
DY
10KR2J-3-GP
10KR2J-3-GP
DY
DY
10KR2J-3-GP
10KR2J-3-GP
100KR2D-1-GP
100KR2D-1-GP
E51TXD
E51RXD
S
S
1
3D3V_AUX_S5
R461
R461
DY
DY
R464
R464
RN36
RN36
2 3
1
SRN4K7J-8-GP
SRN4K7J-8-GP
1 2
1 2
1 2
1 2
10KR2J-3-GP
10KR2J-3-GP
Y4B
PME#_SB 18,22
32 49Tuesday, January 23, 2007
32 49Tuesday, January 23, 2007
32 49Tuesday, January 23, 2007
of
of
of
12
12
3D3V_AUX_S5
4
12
R463
R463
DUMMY-R2
DUMMY-R2
DY
DY
R467
R467
R468
R468
R458
R458
R470
R470
R536
R536
E51TXD 26
E51RXD 26
-1
-1
-1
Page 33
5
D D
C C
4
3D3V_AUX_S5
C559
C559
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
KBCBIOS_CS#32
KBCBIOS_RD#32
KBCBIOS_WE#32
10KR2J-3-GP
10KR2J-3-GP
R528
R528
3
U56
U56
37
VCC
R529
R529
10KR2J-3-GP
10KR2J-3-GP
16
A18
17
A17
48
A16
1
A15
2
A14
3
A13
4
A12
5
A11
6
A10
7
A9
8
A8
18
A7
19
A6
20
A5
21
A4
22
A3
23
A2
24
A1
25
A0
26
CE#
28
OE#
11
WE#
47
BYTE#
12
RESET#
MX29LV800CBTC-GP
MX29LV800CBTC-GP
A1932
A1832
A1732
A1632
A1532
A1432
A1332
A1232
A1132
A1032
A932
A832
A732
A632
A532,35
A432
A332
A232
A132
12
12
Q15/A-1
Q14
Q13
Q12
Q11
Q10
RY/BY#
NC#14
NC#13
NC#10
NC#9
GND
GND
45
43
41
39
36
34
32
Q9
30
Q8
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
KBC_D7
44
KBC_D6
42
KBC_D5
40
KBC_D4
38
KBC_D3
35
KBC_D2
33
KBC_D1
31
KBC_D0
29
15
14
13
10
9
46
27
A0 32
2
KBC_D[0..7] 32
1
3D3V_AUX_S5
B B
3D3V_AUX_S5
Y4B-1
Planar
ID(Resv,1,0)=
Y4A,LAB: Resv,0,0
Y4A,ENG: Resv,0,1
12
R520
R520
10KR2J-3-GP
10KR2J-3-GP
PlANARID032
PlANARID132
PlANARID232
A A
5
PlANARID0
PlANARID1
PlANARID2
R519
R519
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R538
R538
10KR2J-3-GP
10KR2J-3-GP
12
12
R537
R537
10KR2J-3-GP
10KR2J-3-GP
DY
DY
4
12
R539
R539
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
R540
R540
10KR2J-3-GP
10KR2J-3-GP
DY
DY
Y4A,PD : Resv,1,0
Y4B,PD : Resv,1,1
3
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet of
2
Date: Sheet of
BIOS ROM
BIOS ROM
BIOS ROM
Y4A
Y4A
Y4A
-1
-1
of
33 49Tuesday, January 23, 2007
33 49Tuesday, January 23, 2007
33 49Tuesday, January 23, 2007
1
-1
Page 34
A
B
C
D
E
MB SIDE
678
4 5
KROW[1..8]32
KCOL[1..16]32
CN5
CN5
KCOL16
KCOL11
KCOL12
KCOL15
KCOL14
KCOL13
KCOL4
KCOL7
KCOL9
KCOL8
KCOL5
KCOL3
KROW8
KCOL2
KCOL6
KROW5
KROW6
KCOL1
KROW3
KROW4
KCOL10
KROW2
KROW1
KROW7
ACES-CON24-1-GP
ACES-CON24-1-GP
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
124
ACES-CON12-GP
ACES-CON12-GP
13
1
2
3
4
5
6
7
8
9
10
11
12
14
TPAD1
TPAD1
123
121
Touch Pad MB SIDE
3D3V_S5
COVER SWITCH
CN2
CN2
3
4 4
4
COVER_SW
1
2
ETY-CON2-5-GP-U
ETY-CON2-5-GP-U
12
R3
R3
100R2J-2-GP
100R2J-2-GP
C8
C8
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
12
12
R4
R4
10KR2J-3-GP
10KR2J-3-GP
DY
DY
12
C7
C7
SCD22U16V3ZY-GP
SCD22U16V3ZY-GP
KBC_LID# 32
TOUCHPAD BUTTON SWITCH
5V_S0 5V_S0
12
R156
R156
10KR2J-3-GP
3 3
2 2
10KR2J-3-GP
56
4 3
KBC_PWRBTN#32
DY
DY
SW1
SW1
SW-TACT-68-GP-U
SW-TACT-68-GP-U
12
C380
C380
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
LEFT# RIGHT#
3D3V_AUX_S5
12
R295
R295
10KR2J-3-GP
10KR2J-3-GP
100R2J-2-GP
100R2J-2-GP
1 2
DY
DY
4 3
R293
R293
INTERNET#32
WLAN_BUTTON#32
MAIL#32
12
10KR2J-3-GP
10KR2J-3-GP
56
12
R155
R155
DY
DY
SW2
SW2
SW-TACT-68-GP-U
SW-TACT-68-GP-U
12
10KR2J-3-GP
10KR2J-3-GP
INTERNET#
MAIL#
R290
R290
3D3V_S0
12
12
R292
R292
10KR2J-3-GP
10KR2J-3-GP
3D3V_S0
12
R291
R291
10KR2J-3-GP
10KR2J-3-GP
Internal KeyBoard Connector
EMC49
EMC49
1
2
3
4 5
SRC100P50V-2-GP
SRC100P50V-2-GP
EMC48
EMC48
1
2
3
4 5
SRC100P50V-2-GP
SRC100P50V-2-GP
EMC53
EMC53
1
2
3
4 5
SRC100P50V-2-GP
SRC100P50V-2-GP
EMC52
EMC52
1
2
3
4 5
SRC100P50V-2-GP
SRC100P50V-2-GP
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
RN13
RN13
4
8
7
6
8
7
6
8
7
6
8
7
6
EC1
EC1
TP_DATA
TP_CLK
12
TDATA32
TCLK32
CN4
CN4
6
1
2
3
4
5
7
ACES-CON5-GP
ACES-CON5-GP
KROW6
KCOL1
KROW3
KROW4
KCOL10
KROW2
KROW7 KROW8
KCOL16
KCOL11
KCOL12
KCOL15
KCOL14
KCOL13
KCOL4
KCOL7
SB
5V_S0
1
23
RN22
RN22
SRN10KJ-5-GP
SRN10KJ-5-GP
4
2 3
1
SRN33J-5-GP-U
SRN33J-5-GP-U
LAUNCH BOARD SIDE
1(GND) 5
FFC
EMC51
EMC51
6
7
8
SRC100P50V-2-GP
SRC100P50V-2-GP
EMC50
EMC50
6
7
8
SRC100P50V-2-GP
SRC100P50V-2-GP
MB PIN DEFINE 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
KB PIN DEFINE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
5V_S0
KCOL3
45
KCOL5
3
KCOL8
2
KCOL9
1
KROW5
45
KCOL6
3
KCOL2KROW1
2
1
TOUCH PAD
12
EC2
EC2
SCD1U10V2KX-4GP
SCD1U10V2KX-4GP
RIGHT#
LEFT#
RC1
SRC100P50V-2-GP
SRC100P50V-2-GP
RC1
1 1
12
B
12
C379
C379
SC100P50V3JN-2GP
SC100P50V3JN-2GP
C377
SC100P50V3JN-2GP
SC100P50V3JN-2GP
A
C377
12
C378
C378
SC100P50V3JN-2GP
SC100P50V3JN-2GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
15(GND)
Title
Title
MB SIDE
C
D
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet of
LAUNCH / TOUCHPAD / KB CONN
LAUNCH / TOUCHPAD / KB CONN
LAUNCH / TOUCHPAD / KB CONN
A3
A3
A3
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
E
-1
-1
34 49Tuesday, January 23, 2007
34 49Tuesday, January 23, 2007
34 49Tuesday, January 23, 2007
of
of
-1
Page 35
A
B
C
D
E
4 4
TOP VIEW
(B1)
A15
(B2)
3 3
A14
....
....
SB_PCLK_FWH15,19
A2 (B14)
A1
(B15)
SB_PCLK_FWH
(BOTTOM VIEW)
SB
1 2
B
C
Q32
Q32
CH3904PT-GP
CH3904PT-GP
3D3V_S01D05V_S0
12
R568
R568
10KR2J-3-GP
10KR2J-3-GP
LPC_INIT#H_INIT#
2 2
R567
R567
1KR2J-1-GP
1KR2J-1-GP
E
GOLDEN FINGER FOR DEBUG BOARD
LPC_LAD[0..3] 15,32
5V_S0
U12
U12
A1
LPC_RST#15
R424
R424
1 2
0R0402-PAD
0R0402-PAD
3D3V_S0
Boot Device must have ID[3:0] = 0000
Has internal pull-down resistors
All may be left floated
FPET7 Elec. P3-46
SC10U6D3V5MX-3GP
SC10U6D3V5MX-3GP
LPC_RST#
LPC_LFRAME#
PCLK_FWH_2
LPC_INIT#
LPC_LAD3
LPC_LAD2
LPC_LAD1
LPC_LAD0
EXT_FWH#
C499
C499
DY
DY
12
A1
A2
A2
A3
A3
A4
A4
A5
A5
A6
A6
A7
A7
A8
A8
A9
A9
A10
A10
A11
A11
A12
A12
A13
A13
A14
A14
A15
A15
FOX-GF30
FOX-GF30
12
C487
C487
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
B1
B1
B2
B2
B3
B3
B4
B4
B5
B5
B6
B6
B7
B7
B8
B8
B9
B9
B10
B10
B11
B11
B12
B12
B13
B13
B14
B14
B15
B15
3D3V_S0
12
C498
C498
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
LPC_RST#
LPC_LFRAME#
PCLK_FWH_2
LPC_INIT#
LPC_LAD3
LPC_LAD2
LPC_LAD1
LPC_LAD0
EXT_FWH#
5V_S0
H_INIT#4,15
EXT_FWH#
H_INIT#
LPC_INIT#
P_SERIRQ15,32
LPC_LFRAME# 15,19,32
3D3V_S0
R455
R455
1 2
1KR2J-1-GP
1KR2J-1-GP
R425
R425
1 2
0R2J-2-GP
0R2J-2-GP
DY
DY
A5 32,33
DY
DY
U51
U51
1
A
VCC
2
B
GND3OE#
NC7SZ384P5X-2-GP
NC7SZ384P5X-2-GP
DY
DY
U50
U50
1
A
VCC
2
B
GND3SE
NC7SZ66P5X
NC7SZ66P5X
3D3V_S0
5
4
EXT_FWH#
5
EXT_FWH#
4
1 1
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
Debug (Gold Finger)
Debug (Gold Finger)
Debug (Gold Finger)
Y4A
Y4A
Y4A
35 49Tuesday, January 23, 2007
35 49Tuesday, January 23, 2007
35 49Tuesday, January 23, 2007
E
-1
-1
of
of
of
-1
Page 36
A
B
C
D
E
Run Power
Q23
S
S
2 3
G
G
R371
R371
D
D
1
1
12
2 3
S
S
Q23
D
D
Q25
Q25
2N7002-9-GP
2N7002-9-GP
R386
C453
C453
R386
330KR3F-GP
330KR3F-GP
12
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
5V_S0_EN
R373
R373
1 2
0R0402-PAD
12
KA
D28
D28
MMGZ5242BPT-GP
MMGZ5242BPT-GP
SB
0R0402-PAD
C454
R162
R162
1 2
2K2R2J-2-GP
2K2R2J-2-GP
R369
R369
C454
C447
C447
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
4K7R2J-2-GP
4K7R2J-2-GP
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
12
3D3V_S0_EN
12
1D8V_S0_EN
12
DCBATOUT
4 4
PM_SLP_S3#18,20,32,41,42,44
3 3
R372
R372
1 2
10KR3F-L-GP
10KR3F-L-GP
R370
R370
1 2
330KR3F-GP
330KR3F-GP
1 2
SC1U10V3KX-3GP
SC1U10V3KX-3GP
PM_RUNCTL DDEN
PM_RUNCTL_G
R385
R385
1K5R3-GP
1K5R3-GP
C459
C459
TP0610T-T1-E3-GP
TP0610T-T1-E3-GP
1KR3F-GP
1KR3F-GP
G
G
12
Y4B-1
12
DY
DY
3D3V_S0
12
C226
C226
DY
DY
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1D8V_S0
12
DY
DY
U38
U38
S
S
1
S
S
2
S
S
C592
C592
3
GD
GD
SCD1U25V3KX-GP
SCD1U25V3KX-GP
4 5
AO4468-GP
AO4468-GP
U9
U9
S
S
1
S
S
2
S
S
C593
C593
3
GD
GD
SCD1U25V3KX-GP
SCD1U25V3KX-GP
4 5
AO4468-GP
AO4468-GP
U46
U46
S
S
1
S
S
2
S
S
C594
C594
3
GD
GD
SCD1U25V3KX-GP
SCD1U25V3KX-GP
4 5
AO4468-GP
AO4468-GP
5V_S55V_S0
D
D
8
D
D
7
D
D
6
3D3V_S5
D
D
8
D
D
7
D
D
6
1D8V_S3
D
D
8
D
D
7
D
D
6
2 2
1 1
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet of
PWR CTL LOGIC / PWR PLANE
PWR CTL LOGIC / PWR PLANE
PWR CTL LOGIC / PWR PLANE
A3
A3
A3
Power On Logic
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
36 49Tuesday, January 23, 2007
36 49Tuesday, January 23, 2007
36 49Tuesday, January 23, 2007
of
E
of
-1
-1
-1
Page 37
A
B
C
D
E
NB_SB POWERGOOD CIRCUIT
4 4
D16
D16
DY
DY
XDP_DBRESET#4
RUNPWROK20
1D8V_S3_PG41
22R2J-2-GP
22R2J-2-GP
SB
3 3
R215
VGATE_PWRGD39
VGATE_PWRGD
R215
1 2
RUNPWROK SYS_PWOK
1D8V_S3_PG
3D3V_S5 3D3V_S5
U16E
U16E
147
11 10
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
2 1
RB751V-40-1-GP
RB751V-40-1-GP
R213
R213
1 2
R214
R214
1 2
147
13 12
22R2J-2-GP
22R2J-2-GP
22R2J-2-GP
22R2J-2-GP
3D3V_S5
12
R216
R216
10KR2J-3-GP
10KR2J-3-GP
U16F
U16F
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
3D3V_S5 3D3V_S5
12
R230
R230
10KR2J-3-GP
10KR2J-3-GP
1
G
G
D
D
Q14
Q14
2N7002-9-GP
2N7002-9-GP
2 3
S
S
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
C296
C296
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
R229
R229
100KR3J-L-GP
100KR3J-L-GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
ALL_PWROK_SB
12
C298
C298
DY
DY
C297
C297
12
3D3V_S5
12
R226
R226
1 2
0R0402-PAD
0R0402-PAD
147
1 2
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
147
3 4
TSLCX14MTCX-1-GP
TSLCX14MTCX-1-GP
SB_PWRGD#
U16A
U16A
U16B
U16B
SB_PWRGD_R
SB_PWRGD# 9
1 2
1 2
R231
R231
0R0402-PAD
0R0402-PAD
R228
R228
0R0402-PAD
0R0402-PAD
SB
NB_PWRGDALL_PWROK_NB NB_PWRGD_R
SB_PWRGD
R570
R570
10KR2J-3-GP
10KR2J-3-GP
1 2
NB_PWRGD 6,9
SB_PWRGD 18
For RC415, SB_PWRGD need to be 50ms after WD_PWRGD
ALBACORE POWER UP SEQUENCE
3V, 5V AUX_S5
SB
2 2
1 1
RSMRST#
PS_ON, SLP_S3#, SLP_S5#
5V,3.3V
VDRM_PWRGD
VCC_NB_PWRGD
VRM_PWRGD
NB_PWRGD
SB_PWRGD
CPU_PWRGD
PCI_RST#
CPU_RST#
A
T1>= 70 ms
T2
T3T1
1ms < T2 < 10ms
1ms < T3 < 5ms
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
B
C
D
Date: Sheet
POWERGOOD&ENABLES(1/2)
POWERGOOD&ENABLES(1/2)
POWERGOOD&ENABLES(1/2)
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
-1
-1
37 49Tuesday, January 23, 2007
37 49Tuesday, January 23, 2007
37 49Tuesday, January 23, 2007
E
-1
of
of
of
Page 38
5
D D
C C
4
3
2
1
B B
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
Power Block Diagram
Power Block Diagram
Power Block Diagram
Y4A -1
Y4A -1
Y4A -1
1
38 49Tuesday, January 23, 2007
38 49Tuesday, January 23, 2007
38 49Tuesday, January 23, 2007
of
of
of
Page 39
5
D D
PSI#4
Place close to phase 1 chocke
CPU_PROCHOT#4
C C
R93 4K02R3F-GPR93 4K02R3F-GP
6262_AGND
1 2
C108
C108
1 2
8/15
SCD01U16V2KX-3GP
SCD01U16V2KX-3GP
470K /0402 size
If NTC=330Kohm, R10=8.66K
H_VID[0..6]5
CPUCORE_ON44
CPU_DPRSLPVR4,15
H_DPRSTP#4
CLK_EN#3
B B
6262_AGND
R340
R340
1 2
NTC-470K-1-GP
NTC-470K-1-GP
8/24
6262_AGND
H_VID0
H_VID1
H_VID2
H_VID3 6262_VID3
R113
R113
R114
R114
1 2
R91 1K4R3F-1-GPR91 1K4R3F-1-GP
1 2
R89 61K9R2F-GPR89 61K9R2F-GP
C114
C114
1 2
SC390P50V3JN-GP
SC390P50V3JN-GP
Switching Frequency=300KHz
PL
VSS_SENSE5
VCC_SENSE5
A A
5
PH
4
SC1U10V3KX-3GP
SC1U10V3KX-3GP
R117
R117
12
0R0402-PAD
0R0402-PAD
R118
R118
12
0R0402-PAD
0R0402-PAD
1 2
R116 147KR2F-GPR116 147KR2F-GP
C109
C109
Y4B-1
1 2
SCD015U25V3KX-GP
SCD015U25V3KX-GP
R105
R105
12
0R0402-PAD
0R0402-PAD
R106
R106
12
0R0402-PAD
0R0402-PAD
R107
R107
12
0R0402-PAD
0R0402-PAD
R108
R108
12
0R0402-PAD
0R0402-PAD
R109
R109
12
0R0402-PAD
0R0402-PAD
R110
R110
12
0R0402-PAD
0R0402-PAD
R111
R111
12
0R0402-PAD
0R0402-PAD
R112
R112
12
0R0402-PAD
0R0402-PAD
1 2
499R2F-2-GP
499R2F-2-GP
12
0R2J-2-GP
0R2J-2-GP
R115
R115
12
0R0402-PAD
0R0402-PAD
R68 1K82R3F-GPR68 1K82R3F-GP
1 2
1 2
C111 SC470P50V2KX-3GPC111 SC470P50V2KX-3GP
R90
R90
1 2
2KR2-GP
2KR2-GP
C112
C112
1 2
SCD033U16V3KX-GP
SCD033U16V3KX-GP
R92
R92
1 2
4K42R3F-GP
4K42R3F-GP
1 2
C113
C113
SC47P50V3JN-GP
SC47P50V3JN-GP
R66
R66
12
0R0402-PAD
0R0402-PAD
R67
R67
12
0R0402-PAD
0R0402-PAD
4
R86
R86
10R3J-3-GP
10R3J-3-GP
SCD01U25V2KX-3GP
SCD01U25V2KX-3GP
C102
C102
6262_PSI#
6262_PGD_INCPUCORE_ON
6262_RBIAS
6262_NTC
6262_VID0
6262_VID1
6262_VID2
6262_VID4H_VID4
6262_VID5H_VID5
6262_VID6H_VID6
6262_CORE_ON
6262_DPRSLP
6262_DPRSTP#
6262_CLKEN#
6262_VDIFF
DY
DY
6262_FB
6262_COMP
12
C105
C105
6262_AGND6262_AGND
SCD01U16V2KX-3GP
SCD01U16V2KX-3GP
DCBATOUT_6262 3D3V_S0
5V_S0
R324
R324
12
10R3J-3-GP
10R3J-3-GP
C103
C103
12
21
GND
49
GND_T
6262_AGND
2
PSI#
3
PGD_IN
4
RBIAS
5
VR_TT#
6
6262_SOFT
6262_FB2
6262_VW
12
12
C107
C107
NTC
7
SOFT
37
VID0
38
VID1
39
VID2
40
VID3
41
VID4
42
VID5
43
VID6
44
VR_ON
45
DPRSLPVR
46
DPRSTP#
47
CLK_EN#
13
VDIFF
12
FB2
11
FB
10
COMP
9
VW
74.06262.073 U8
74.06262.073 U8
6262_RTN
C106
C106
SCD01U50V3KX-4GP
SCD01U50V3KX-4GP
6262_VSEN
SCD01U16V2KX-3GP
SCD01U16V2KX-3GP
12
10R3J-3-GP
10R3J-3-GP
12
6262_AGND
20
22
VIN
VCC
ISL6262CRZ-T-GPU
ISL6262CRZ-T-GPU
RTN
15
C583
C583
VSEN
14
Y4B
R597
R597
12
6262_AGND
DROOP
16
6262_DROOP
3
12
12
R120
R120
1K91R3F-GP
1K91R3F-GP
SCD01U25V2KX-3GP
SCD01U25V2KX-3GP
PWRGD for NB and SB
1
48
3V3
PGOOD
35
UGATE1
PHASE1
LGATE1
UGATE2
PHASE2
LGATE2
1 2
36
BOOT1
34
32
33
PGND1
24
ISEN1
31
PVCC
27
26
BOOT2
28
30
29
PGND2
23
ISEN2
25
NC
8
OCSET
19
VSUM
18
VO
DFB
17
6262_DFB
R316
R316
3K09R2F-1-GP
3K09R2F-1-GP
C82
C82
1 2
SC180P50V2JN-1GP
SC180P50V2JN-1GP
6262_BOOT1
6262_BOOT2
6262_ISEN2
6262_VO
Y4B
3
PGOOD
Power good open-drain output.
Will be pulled up externally by
a 680. resistor to VCCP or 1.9k. to 3.3V.
R119
R119
12
0R0402-PAD
0R0402-PAD
6262_ISEN1
6262_AGND
6262_OCSET
6262_VSUM
SCD22U16V3KX-2-GP
SCD22U16V3KX-2-GP
12
R104
R104
1 2
2R3F-GP
2R3F-GP
1 2
C100 SC4D7U6D3V3KX-GPC100 SC4D7U6D3V3KX-GP
R85
R85
1 2
2R3F-GP
2R3F-GP
C110 SC1000P50V3JN-GPC110 SC1000P50V3JN-GP
C80
C80
SCD022U16V2KX-3GP
SCD022U16V2KX-3GP
12
R103
R103
12
0R0402-PAD
0R0402-PAD
12
1 2
R317
R317
1 2
12K4R2F-GP
12K4R2F-GP
12
C81
C81
VGATE_PWRGD 37
C146
C146
SCD22U25V3ZY-GP
SCD22U25V3ZY-GP
5V_S0
C99
C99
SCD22U25V3ZY-GP
SCD22U25V3ZY-GP
-1
12
R88
R88
1KR3F-GP
1KR3F-GP
6262_AGND
6262_VO
6262_UGATE1 40
6262_PHASE1 40
6262_LGATE1 40
6262_UGATE2 40
6262_PHASE2 40
6262_LGATE2 40
OCP>=88A
Y4B
12
R87
R87
11KR2F-L-GP
11KR2F-L-GP
12
Place close to phase 1 chocke
C104
C104
SCD22U10V2KX-1GP
SCD22U10V2KX-1GP
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
R65
R65
2K61R3F-GP
2K61R3F-GP
12
R339
R339
NTC-10K-9-GP
NTC-10K-9-GP
G52
G52
2
6262_AGND
2
DCBATOUT
SCD22U10V3KX-2GP
SCD22U10V3KX-2GP
SCD22U10V3KX-2GP
SCD22U10V3KX-2GP
C98
C98
C101
C101
1
G19
G19
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G17
G17
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G23
G23
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G20
G20
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G18
G18
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G21
G21
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G16
G16
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G22
G22
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
6262_VSUM
12
12
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet
R64 3K65R3F-GPR64 3K65R3F-GP
1 2
1 2
12
R84
R84
R82 10KR3F-L-GPR82 10KR3F-L-GP
0R2J-2-GP
0R2J-2-GP
DY
DY
1 2
R83 1R3F-GPR83 1R3F-GP
6262_VSUM
1 2
1 2
12
R80
R80
0R2J-2-GP
0R2J-2-GP
DY
DY
1 2
R81 1R3F-GPR81 1R3F-GP
3K65R3F-GP
3K65R3F-GP
R63
R63
R62
R62
10KR3F-L-GP
10KR3F-L-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
CPU CORE(1/2) ISL6262
CPU CORE(1/2) ISL6262
CPU CORE(1/2) ISL6262
Y4A -1
Y4A -1
Y4A -1
DCBATOUT_6262
6262_ISENP1 40
6262_ISENN1 40
6262_ISENP2 40
6262_ISENN2 40
39 49Tuesday, January 23, 2007
39 49Tuesday, January 23, 2007
39 49Tuesday, January 23, 2007
1
of
Page 40
A
DCBATOUT_6262
SC10U25V0KX-3GP
SC10U25V0KX-3GP
12
C425
4 5
678
DDD
DDD
C425
SSGD
S
SSGD
S
123
SC10U25V0KX-3GP
SC10U25V0KX-3GP
678
DDD
DDD
U37
POWERPAK-8P-GP
POWERPAK-8P-GP
6262_UGATE139
6262_PHASE139
6262_LGATE139
POWERPAK-8P-GP
POWERPAK-8P-GP
U37
U35
U35
SSGD
S
SSGD
S
123
4 5
678
DDD
DDD
POWERPAK-8P-GP
POWERPAK-8P-GP
SSGD
S
SSGD
S
123
4 5
u37, 84.01426.037
Y4B
U34
U34
12
C415
C415
SC10U25V0KX-3GP
SC10U25V0KX-3GP
12
1 2
Y4B
DCBATOUT_6262
1 1
12
678
DDD
POWERPAK-8P-GP
POWERPAK-8P-GP
U31
U31
DDD
SSGD
S
SSGD
S
123
4 5
SC10U25V0KX-3GP
SC10U25V0KX-3GP
u31, 84.01426.037
Y4B
6262_UGATE239
6262_PHASE239
6262_LGATE239
POWERPAK-8P-GP
POWERPAK-8P-GP
U32
U32
678
DDD
DDD
POWERPAK-8P-GP
POWERPAK-8P-GP
SSGD
S
SSGD
S
123
4 5
U33
U33
678
DDD
DDD
SSGD
SSGD
123
4 5
12
C430
C430
SC10U25V0KX-3GP
SC10U25V0KX-3GP
S
S
Y4B
12
C424
C424
L15
L15
1 2
L-D36UH-1-GP
L-D36UH-1-GP
G26
G26
GAP-CLOSE-PWR
GAP-CLOSE-PWR
SC10U25V0KX-3GP
SC10U25V0KX-3GP
12
C428
C428
L14
L14
1 2
L-D36UH-1-GP
L-D36UH-1-GP
G24
G24
GAP-CLOSE-PWR
GAP-CLOSE-PWR
1 2
C426
C426
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
Panasonic ETQP4LR36WFC
10*11.5*4mm
0.34uH / 24A
DCR=1.1mohm
12
DY
DY
G27
G27
GAP-CLOSE-PWR
GAP-CLOSE-PWR
1 2
6262_ISENN1 39
6262_ISENP1 39
12
C429
C429
C431
C431
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
Panasonic ETQP4LR36WFC
10*11.5*4mm
0.34uH / 24A
DCR=1.1mohm
G25
G25
GAP-CLOSE-PWR
GAP-CLOSE-PWR
1 2
TC5
TC5
SE330U2VDM-L2GP
SE330U2VDM-L2GP
KEMET
330uF / 3V / V size
ESR=9mohm / Iripple=3.7A
12
TC19
TC19
12
SE330U2VDM-L2GP
SE330U2VDM-L2GP
TC3
TC3
SE330U2VDM-L2GP
SE330U2VDM-L2GP
VCC_CORE_S0
Iomax=44A
OCP>=88A
12
TC6
TC6
12
12
C185
C185
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
DY
DY
SE330U2VDM-L2GP
SE330U2VDM-L2GP
TC4
TC4
SE330U2VDM-L2GP
SE330U2VDM-L2GP
When test without cpu,
R581 & R582 change to 0 ohms
8/15
U32, U33, U34, U35 = 84.01412.037
6262_ISENP239
6262_ISENN239
If VCC_SENSE and VSS_SENSE pins have pulled
resistors to VCC_CORE_S0
==> Remove R581/R582
(Power Team)
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
CPU CORE(2/2) ISL6262
CPU CORE(2/2) ISL6262
CPU CORE(2/2) ISL6262
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet of
Date: Sheet of
Y4A -1
Y4A -1
Y4A -1
of
40 49Tuesday, January 23, 2007
40 49Tuesday, January 23, 2007
40 49Tuesday, January 23, 2007
Page 41
5
4
3
2
1
TI TPS51116 for 1D8V and 0D9V
5V_S5
3D3R3J-L-GP
3D3R3J-L-GP
R299
D D
1D8V_PWR_S3
12
C381
C381
SC10U6D3V5MX-3GP
SC10U6D3V5MX-3GP
DY
DY
U26
U26
1D8V_PWR_S3
0D9V_PWR_S0
1D8V_PWR_S3
12
DY
DY
C C
12
DY
DY
B B
TIS5116_V5IN
R589
R589
42K2R2F-L-GP
42K2R2F-L-GP
1D8V_VDDQSET
R590
R590
30K1R2F-L-GP
30K1R2F-L-GP
R588
R588
1 2
0R2J-2-GP
0R2J-2-GP
1D8V_PWR_S3
VTTREF
TPS51116_VDDQ
G43
G43
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
1
VLDOIN
2
VTT
3
VTTGND
4
VTTSNS
5
GND
6
MODE
7
VTTREF
8
COMP
9
VDDQSNS
10
VDDQSET
TPS51116PWPR-GP
TPS51116PWPR-GP
TPS51116_VDDQ
VTTREF
12
C394
C394
SCD033U50V3KX-1GP
SCD033U50V3KX-1GP
TPS51116_CS
20
VBST
19
DRVH
18
LL
17
DRVL
16
PGND
15
CS
14
V5IN
13
PGOOD
12
S5
11
S3
GND
21
R300
R300
1 2
20KR3F-GP
20KR3F-GP
1 2
C393 SC1KP50V2KX-1GPC393 SC1KP50V2KX-1GP
TIS5116_V5IN
TPS51116_VBST1 TPS51116_VBST
TPS51116_UGT
TPS51116_PHS
TPS51116_LGT
TPS51116_CS
Y4B-1
Y4B-1
State S3 S5 VDDR VTTREF VTT
S0
S3
S4/S5
Hi Hi
Lo Lo
On
HiLo
On
Off Off Off
On
On
On
Off(Hi-Z)
R299
1 2
12
C391
C391
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
R294
R294
1 2
0R0603-PAD
0R0603-PAD
R301
R301
DY
DY
12
100KR2J-1-GP
100KR2J-1-GP
PM_SLP_S5# 18,32
PM_SLP_S3# 18,20,32,36,42,44
3D3V_S5
1D8V_S3_PG 37
Y4B
DCBATOUT_TPS51116
678
DDD
DDD
U24
U24
AO4468-GP
AO4468-GP
GD
GD
1 2
C392
C392
U25
U25
4 5
4 5
TPS51116_UGT
TPS51116_VBST TPS51116_PHS
SCD1U25V3KX-GP
SCD1U25V3KX-GP
FDS8880-NL-GP
FDS8880-NL-GP
TPS51116_LGTTPS51116_LGTTPS51116_LGTTPS51116_LGT
GD
GD
678
DDD
DDD
SSS
SSS
123
AOS/30mOhm
@4.5V/Qg=13nQ
L12
L12
SSS
SSS
123
1 2
IND-2D2UH-46-GP
IND-2D2UH-46-GP
1D8V_PWR_S3
PANASONIC/2V/150uF
18mOhm/2.5A
C389
C389
1 2
SC10U25V6KX-1GP
SC10U25V6KX-1GP
C390
C390
1 2
SC10U25V6KX-1GP
SC10U25V6KX-1GP
C388
C388
1 2
SCD1U25V3KX-GP
SCD1U25V3KX-GP
0D9V_PWR_S0
C382
C382
1 2
SC10U6D3V5MX-3GP
SC10U6D3V5MX-3GP
C383
C383
1 2
SC10U6D3V5MX-3GP
SC10U6D3V5MX-3GP
C384
C384
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1D8V_PWR_S3
TC13
TC13
12
SE150U2D5VDM-2GP
SE150U2D5VDM-2GP
TC1
TC1
12
SE150U2D5VDM-2GP
SE150U2D5VDM-2GP
DY
DY
C387
C387
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
G45
G45
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G44
G44
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
0D9V/2A , OCP >3A
G46
G46
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G47
G47
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
1D8V/10A , OCP >12A
G5
G5
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G6
G6
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G7
G7
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G4
G4
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G8
G8
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G50
G50
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G48
G48
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G49
G49
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G51
G51
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
DCBATOUTDCBATOUT_TPS51116
0D9V_S0
1D8V_S3
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
TPS51116 1D8V/0D9V
TPS51116 1D8V/0D9V
TPS51116 1D8V/0D9V
Y4A -1
Y4A -1
Y4A -1
41 49Tuesday, January 23, 2007
41 49Tuesday, January 23, 2007
41 49Tuesday, January 23, 2007
1
of
Page 42
A
DCBATOUT
4 4
U43
U43
AO4468-GP
AO4468-GP
8734A_DH3
8734A_LX3
8734A_DL3
DY
DY
D30
D30
12
12
1 2
100KR2J-1-GP
100KR2J-1-GP
12
21
1SS400PT
1SS400PT
8734A_SKIP#
C464
C464
3D3V / 3.2A 5V_S0 / 5A
3D3V_S5
G29
G29
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G28
G28
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G36
G36
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G35
G35
5V_S5
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
3 3
2 2
1 1
3D3V_PWR_S5 5V_S5_PWR
12
TC8
TC8
ST150U6VDM-GP
ST150U6VDM-GP
S
S
8734A_SKIP#_D
10KR2J-3-GP
10KR2J-3-GP
100KR2J-1-GP
100KR2J-1-GP
G
G
A
1
R433
R433
PM_SLP_S3#18,20,32,36,41,44
1 2
R430
R430
1 2
Y4B
L17
L17
1 2
IND-3D8UH-2-GP
IND-3D8UH-2-GP
AO4712-GP
AO4712-GP
Y4B-1
1 2
Q26
Q26
TP0610K-T1-GP
TP0610K-T1-GP
2 3
1
G
G
8734A_SKIP#_G
D
D
2 3
S
S
12
C463
C463
SCD1U50V3KX-GP
SCD1U50V3KX-GP
678
DDD
DDD
SSS
GD
SSS
GD
123
4 5
678
U42
U42
DDD
DDD
SSS
GD
SSS
GD
123
4 5
8734A_VCC
R426 0R2J-2-GP
R426 0R2J-2-GP
R427
R427
0R0402-PAD
0R0402-PAD
D
D
Y4B
Q27
Q27
2N7002-9-GP
2N7002-9-GP
SKIP# > 2.4V : PWM mode
SKIP# = GND( ,0.8V) : SKIP MODE
SKIP# = REF (1.7V~2.3V)/FloatING
Ultrasonic MODE(25KHz min)
VTON = Vcc
3.3V = 300KHz
5V = 200KHz
R438
R438
SC4D7U25V5KX-GP
SC4D7U25V5KX-GP
300KR2J-GP
300KR2J-GP
R435
R435
DUMMY-R2
DUMMY-R2
S5PWR_ENABLE20
R436
R436
0R0402-PAD
0R0402-PAD
R437
R437
12
C488
C488
SCD22U16V3KX-2-GP
SCD22U16V3KX-2-GP
DCBATOUT_MAX8734_1
12
MAC8734_SHDN#
12
B
4D7R5J-1-GP
4D7R5J-1-GP
R401
R401
DY
DY
1 2
1 2
R400 4D7R5J-1-GPR400 4D7R5J-1-GP
12
C472
C472
SC1U50V5ZY-1-GP
SC1U50V5ZY-1-GP
BST3_1
R403
R403
0R0603-PAD
0R0603-PAD
BST3
1 2
12
3D3V_AUX_S5
B
C478
C478
SCD1U25V3KX-GP
SCD1U25V3KX-GP
8734A_FB3
8734A_TON
8734A_REF
28
26
27
24
22
7
3
4
6
13
8
12
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
C476
C476
SC4D7U25V5KX-GP
SC4D7U25V5KX-GP
1 2
BST3
DH3
LX3
DL3
OUT3
FB3
ON3
ON5
SHDN#
TON
REF
SKIP#
G57
G57
1 2
C477
C477
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
C479
C479
SC1U10V3KX-3GP
SC1U10V3KX-3GP
20
V+
25
MAX8734_LDO3
12
MAX8734_LDO5
10R3J-3-GP
10R3J-3-GP
1 2
3
D29
D29
1
BAW56-7-F-GP
BAW56-7-F-GP
LDO3
R404
R404
2
18
MAX8734_LDO5
12
PGOOD
LDO5
C475
C475
C
8734A_VCC
C474
C474
SC1U10V3KX-3GP
SC1U10V3KX-3GP
1 2
closed to IC
BST5_1
U47
U47
17
BST5
DH5
LX5
DL5
OUT5
FB5
PRO#
NC#1
ILIM5
ILIM3
GND
MAX8734AEEI-GP
MAX8734AEEI-GP
MAX8734_LDO5
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
1 2
VCC
14
16
15
19
21
9
10
1
8734A_ILIM5
11
8734A_ILIM3
5
2
23
C
R402
R402
0R0603-PAD
0R0603-PAD
BST5
12
C473
C473
SCD1U25V3KX-GP
SCD1U25V3KX-GP
8734A_DH5
8734A_LX5
8734A_DL5
8734A_FB5
PRO#
MAC8734_PGOOD
12
12
R432
R432
R431
R431
12
0R0402-PAD
0R0402-PAD
R439
R439
10KR2J-3-GP
10KR2J-3-GP
DY
DY
AO4468-GP
AO4468-GP
Y4B
AO4712-GP
AO4712-GP
DUMMY-R2
DUMMY-R2
R434
R434
0R0402-PAD
0R0402-PAD
MAX8734_LDO3
12
DCBATOUT
12
C460
C460
SCD1U50V3KX-GP
SCD1U50V3KX-GP
678
DDD
DDD
U40
U40
GD
GD
4 5
678
DDD
DDD
U41
U41
GD
GD
4 5
1 2
R429 20K5R2F-GPR429 20K5R2F-GP
12
R428
R428
100KR2F-L1-GP
100KR2F-L1-GP
C462
C462
SC4D7U25V5KX-GP
SC4D7U25V5KX-GP
SSS
SSS
123
SSS
SSS
123
Y4B-1
D
12
L16
L16
1 2
IND-3D8UH-2-GP
IND-3D8UH-2-GP
D
8734A_REF
E
12
C461
C461
SC4D7U25V5KX-GP
SC4D7U25V5KX-GP
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
GAP-CLOSE-PWR
GAP-CLOSE-PWR
TC7
TC7
ST150U6VDM-GP
ST150U6VDM-GP
SANYO/6.3V/220uF
25mOhm/ 2.4A
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
MAC8734 3D3V/5V
MAC8734 3D3V/5V
MAC8734 3D3V/5V
5V_S5
G56
G56
1 2
G53
G53
1 2
G54
G54
1 2
G55
G55
1 2
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A -1
Y4A -1
Y4A -1
42 49Saturday, December 23, 2006
42 49Saturday, December 23, 2006
42 49Saturday, December 23, 2006
E
Page 43
5
4
3
2
1
NB CORE 1.2V
1D8V to 1D5V
SB
1 2
5V_S0
12
C385
C385
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
U27
U27
7
POK
8
EN
APL5912-KAC-GP
APL5912-KAC-GP
6
VCNTL
GND
1
VIN
VIN
VOUT
VOUT
FB
SO-8-P
1D5V_LDO_1D2V
D D
R296
R296
10KR2J-3-GP
10KR2J-3-GP
1D5V_ON
R297
PM_SLP_S3#_BUF44
PM_SLP_S3#_BUF
R297
1 2
0R2J-2-GP
0R2J-2-GP
SB
C C
1D5V to 1D2V
SB
5V_S0
12
C72
C72
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
B B
R60
1D5V_ON
R60
47KR2J-2-GP
47KR2J-2-GP
C73
C73
SC1U10V3KX-3GP
SC1U10V3KX-3GP
DY
DY
12
12
APL5912-KAC-GP
APL5912-KAC-GP
-1
6
U7
U7
7
8
POK
EN
VCNTL
GND
1
VIN
VIN
VOUT
VOUT
FB
SO-8-P
1D8V_S3
12
C400
C400
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
5
9
3
4
2
12
R303
R303
1K78R3F-GP
1K78R3F-GP
12
R304
R304
2KR2F-3-GP
2KR2F-3-GP
Vo=0.8*(1+(R1/R2))
1D5V_LDO_1D2V
12
C69
C69
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
5
9
3
4
2
SB
12
12
R56
R56
1KR3F-GP
1KR3F-GP
R57
R57
2KR3F-L-GP
2KR3F-L-GP
SCD022U16V2KX-3GP
SCD022U16V2KX-3GP
12
C401
C401
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
Vo(cal.)=1.512V
12
12
C398
C398
C399
C399
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
SCD01U50V2ZY-1GP
SCD01U50V2ZY-1GP
12
C70
C70
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
Vo(cal.)=1.512V
DY
DY
12
12
C71
C71
C93
C93
DY
DY
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
1D5V_LDO_1D2V
12
TC15
TC15
ST100U4VBM-U
ST100U4VBM-U
DY
DY
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
TC2
TC2
ST100U4VBM-U
ST100U4VBM-U
G14
G14
1 2
G15
G15
1 2
G11
G11
1 2
G12
G12
1 2
G13
G13
1 2
1D5V_LDO_1D2V
Iomax=5A
1D25V_S0
Iomax=5A
OCP=6.8A
1D2V_S01D2V_LDO
Vo=0.8*(1+(R1/R2))
A A
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
39.DC/DC 5V/3D3V/1D2V-2
39.DC/DC 5V/3D3V/1D2V-2
39.DC/DC 5V/3D3V/1D2V-2
A3
A3
A3
Y4A
Y4A
Y4A
-1
-1
43 49Tuesday, January 23, 2007
43 49Tuesday, January 23, 2007
43 49Tuesday, January 23, 2007
1
-1
Page 44
A
B
C
D
E
1D5V_LDO FOR NEW CARD
5V_S0
4 4
R571
R571
47KR2J-2-GP
47KR2J-2-GP
CPUCORE_ON39
CPUCORE_ON
PM_SLP_S3#_BUF
R387
R387
47KR2J-2-GP
47KR2J-2-GP
1 2
1 2
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
R405
R405
0R0402-PAD
0R0402-PAD
C580
C580
SB
VCC
3D3V_S5
C582
C582
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
5
4
PM_SLP_S3#_BUF
PM_SLP_S3#_BUF 43
3 3
U58
R572
PM_SLP_S3#18,20,32,36,41,42
2 2
PM_SLP_S3#
R572
1 2
0R2J-2-GP
0R2J-2-GP
U58
1
A
2
B
GND3Y
NC7S08M5X-NL-GP
NC7S08M5X-NL-GP
R573
R573
DY
DY
1 2
0R2J-2-GP
0R2J-2-GP
-1
R185
PM_SLP_S3#_BUF
3
2
1
MAX. = 300mA
12
C271
C271
SC2D2U16V3KX-GP
SC2D2U16V3KX-GP
1D8V_S5
12
C254
C254
SC4D7U10V5ZY-3GP
SC4D7U10V5ZY-3GP
3D3V_S5
1D8V_S5
U15
U15
VIN
VOUT
GND
APL5308-18AC-GP
APL5308-18AC-GP
74.05308.G31
1 1
74.05308.G31
R185
1 2
47KR2J-2-GP
47KR2J-2-GP
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
C581
C581
12
C480
12
12
C480
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
6
U48
U48
7
POK
VCNTL
8
EN
GND
APL5913-KAC-1-GP
APL5913-KAC-1-GP
1
VIN
VIN
VOUT
VOUT
FB
SO-8-P
-1
1D05V FOR CPU VCCP
5V_S0
12
C231
C231
SC1U10V3ZY-6GP
SC1U10V3ZY-6GP
6
U10
U10
12
7
8
APL5913-KAC-1-GP
APL5913-KAC-1-GP
POK
EN
1
VCNTL
GND
VOUT
VOUT
VIN
VIN
FB
SO-8-P
Y4B-1
A
B
C
3D3V_S0
12
C482
C482
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
5
9
3
4
2
12
R406
R406
1K78R3F-GP
1K78R3F-GP
12
R388
R388
2KR2F-3-GP
2KR2F-3-GP
Vo=0.8*(1+(R1/R2))
3D3V_S0
12
C228
C228
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
5
9
3
4
2
12
12
R172
R172
43K2R3-GP
43K2R3-GP
R186
R186
137KR3-GP
137KR3-GP
Vo=0.8*(1+(R1/R2))
D
12
C481
C481
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
Vo(cal.)=1.512V
12
12
C483
C483
C465
C465
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
SCD01U50V2ZY-1GP
SCD01U50V2ZY-1GP
12
C227
C227
SC10U10V5ZY-1GP
SC10U10V5ZY-1GP
Vo(cal.)=1.512V
12
C230
C230
SC47P50V3JN-GP
SC47P50V3JN-GP
SC22U10V6ZY-2GP
SC22U10V6ZY-2GP
<Variant Name>
<Variant Name>
<Variant Name>
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet of
G62
G62
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G59
G59
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G58
G58
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G60
G60
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G61
G61
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
TC21
TC21
ST100U4VBM-U
ST100U4VBM-U
DY
DY
G30
G30
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G34
G34
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G33
G33
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G32
G32
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
G31
G31
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
12
2D5V/3D3V_AUX/5V_AUX/1D5V
2D5V/3D3V_AUX/5V_AUX/1D5V
2D5V/3D3V_AUX/5V_AUX/1D5V
C229
C229
TC9
TC9
ST100U4VBM-U
ST100U4VBM-U
DY
DY
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
1D5V_S0
Iomax=1.3A
OCP=2.6A
1D5V_S01D5V_LDO
1D05V_S0
Iomax=1.3A
OCP=2.6A
1D05V_S01D05V_LDO
44 49Tuesday, January 23, 2007
44 49Tuesday, January 23, 2007
44 49Tuesday, January 23, 2007
of
E
of
-1
-1
-1
Page 45
AD+
C361
C361
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
AC_IN Threshold 2.089V Max.
AC_IN > 2.089V --> AC DETECT
1 2
C362
C362
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
1 2
ACOK is 17.8V
MAX1909_LDO
12
R51
R51
100KR2J-1-GP
100KR2J-1-GP
DY
DY
R35
R35
49K9R2F-L-GP
49K9R2F-L-GP
3D3V_AUX_S5
12
R53
R53
100KR2J-1-GP
100KR2J-1-GP
CHG_ON#32
From KBC
Charger Cells setting
3 cells battery: setting "H"
6 cells battery: setting "L'
3CELL_CHG32 PRE_CHG 32
12
12
DY
DY
1 2
10KR2F-2-GP
10KR2F-2-GP
D
D
Q7
Q7
2N7002-9-GP
2N7002-9-GP
1
G
G
2 3
S
S
AD+
R37
R37
0R0402-PAD
0R0402-PAD
R55
R55
41K2R3F-GP
41K2R3F-GP
DY
DY
R36
R36
12
SCD1U16V3KX-3GP
SCD1U16V3KX-3GP
1
G
G
8
7
MAX1909_ACIN
C19
C19
SCD1U25V3KX-GP
SCD1U25V3KX-GP
6
12
R285
R285
100KR3F-GP
100KR3F-GP
12
R286
R286
13K3R3F-GP
13K3R3F-GP
D7
D7
21
CH521S-30-GP-U1
CH521S-30-GP-U1
12
CELL is 3 Cell
Icharge=3.0A
R34
R34
BAT_IN#32,46
From Battery Connector
12
C64
C64
12
R594
R594
24K9R2F-L-GP
24K9R2F-L-GP
D
D
Q34
Q34
2N7002-9-GP
2N7002-9-GP
2 3
S
S
1 2
1KR2J-1-GP
1KR2J-1-GP
12
R38
R38
10KR2F-2-GP
10KR2F-2-GP
12
C67
C67
SCD1U16V3KX-3GP
SCD1U16V3KX-3GP
2K67R2F-2-GP
2K67R2F-2-GP
MAX8725
MAX8725
MAX8725
MAX8725
U20
U20
D
D
D
D
D
D
AO4433-GP
AO4433-GP
MAX1909_LDO
12
C66
C66
SCD01U50V3KX-4GP
SCD01U50V3KX-4GP
46K4R3F-1-GP
46K4R3F-1-GP
R595
R595
Q35
Q35
2N7002-9-GP
2N7002-9-GP
S
S
1
S
S
2
S
S
3
GD
GD
45
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
12
R33
R33
100KR3J-L-GP
100KR3J-L-GP
MAX1909_CCV
MAX1909_CCI
MAX1909_CCS
12
C68
C68
SCD01U50V3KX-4GP
SCD01U50V3KX-4GP
MAX1909_REF
R52
R52
12
D
D
1
2 3
S
S
GAP-CLOSE-PWR
GAP-CLOSE-PWR
Close to
MAX1909 pin 24
C20
C20
MAX1909_PDS
AD+_TO_SYS
MAX1909_DC_IN
MAX1909_VCTL
MAX1909_ICTL
MAX1909_MODE
MAX1909_IINP
MAX1909_CLS
MAX1909_ACOK
12
SC1U10V3KX-3GP
SC1U10V3KX-3GP
MAX1909_ICTL
12
R54
R54
49K9R2F-L-GP
49K9R2F-L-GP
G
G
Y4B
AD+_TO_SYS
12
C364
C364
SC1U50V5ZY-1-GP
SC1U50V5ZY-1-GP
12
U5
U5
27
PDS
24
SRC
1
DCIN
11
VCTL
10
ICTL
7
MODE
3
ACIN
8
IINP
9
CLS
6
ACOK
5
PKPRES
13
CCV
12
CCI
14
CCS
MAX1909ET-GP
MAX1909ET-GP
C43
C43
G39
G39
1 2
26
MAX1909_REF
12
RX
R287
R287
1 2
D01R2512F-4-GP
D01R2512F-4-GP
G40
G40
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
C21
C21
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
C22
25
CSSN
DLOV
PGND
PGND
BATT
DHIV
PDL
LDO
DLO
CSIP
CSIN
GND
C22
22
28
2
21
23
DHI
20
19
29
18
17
16
15
CSSP
SCD1U25V3KX-GP
SCD1U25V3KX-GP
REF
4
V_REF :4.2235V (<500uA)
12
R32
R32
49K9R2F-L-GP
49K9R2F-L-GP
MAX1909_CLS
12
R31
R31
31K6R2F-GP
31K6R2F-GP
Q36
Q36
2N7002-9-GP
2N7002-9-GP
Y4B
AD+_TO_SYS
12
MAX1909_DHIV
MAX1909_DLOV
MAX1909_DHI
MAX1909_DLO
12
R596
R596
82KR2F-1-GP
82KR2F-1-GP
D
D
2 3
S
S
1
G
G
DCBATOUT
MAX1909_LDO
Near MAX1909
Pin 2
1 2
12
R39
R39
33R3J-2-GP
33R3J-2-GP
Near MAX1909
Pin 21
12
C45
C45
SC1U10V3KX-3GP
SC1U10V3KX-3GP
G10
G10
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
NEAR PIN19
12
For EMI
C386
C386
SCD1U25V3KX-GP
SCD1U25V3KX-GP
C44
C44
SC1U10V3KX-3GP
SC1U10V3KX-3GP
BAT+SENSE 46
R288 DUMMY-R3
R288 DUMMY-R3
1 2
12
R298
R298
DUMMY-R3
DUMMY-R3
DY
DY
DY
DY
SB
123
45
SSS
GD
SSS
GD
U21
U21
AO4411-1-GP
AO4411-1-GP
DDD
DDD
678
CHG_PWR-2CHG_PWR-2
678
DDD
DDD
U23
U23
AO4422-1-GP
AO4422-1-GP
SSS
GD
SSS
GD
123
4 5
From Battery Connector
ISOURCE_MAX = (0.075/RX)*(VCLS/VREF)
TOTAL_POWER :
Adapter=65W, Total_Power=58W
20V * 2.908A = 58.16W
65W_ADP is "H" :
Adapter=65W, Total Power=58W
90W_ADP is "L" :
Adapter=90W, Total Power =81W
ADP_SEL
ADP_SEL 32
YONAH CELERON = 65W ADP
The others = 90W ADP
Y4B
12
C372
C372
SCD1U25V3KX-GP
SCD1U25V3KX-GP
Y4B
L11
L11
1 2
IND-10UH-110-GP
IND-10UH-110-GP
Id=4.0A
DCR=40mohm
12.8*12.8*4.0
U22
U22
S
D
S
1
2
3
4 5
GAP-CLOSE-PWR
GAP-CLOSE-PWR
D
S
D
S
D
S
D
S
D
GD
GD
AO4433-GP
AO4433-GP
12
C370
C370
SC10U25V0KX-3GP
SC10U25V0KX-3GP
CHG_PWR-3
G41
G41
BT+
8
7
6
DCBATOUT
R289
R289
1 2
D015R2512F-5-GP
D015R2512F-5-GP
1 2
12
C371
C371
SC10U25V0KX-3GP
SC10U25V0KX-3GP
DY
DY
G42
G42
1 2
GAP-CLOSE-PWR
GAP-CLOSE-PWR
12
C373
C373
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
12
C374
C374
SC10U25V0KX-3GP
SC10U25V0KX-3GP
12
C375
C375
SC10U25V0KX-3GP
SC10U25V0KX-3GP
BT+
12
C376
C376
SC10U25V0KX-3GP
SC10U25V0KX-3GP
DY
DY
CHECK LIB
3D3V_AUX_S5
MAX1909_LDO
R50
R50
100KR2J-1-GP
100KR2J-1-GP
MAX1909_ACOK
Title
Title
Title
CHARGER MAX1909
CHARGER MAX1909
CHARGER MAX1909
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
12
R48
R48
100KR2J-1-GP
100KR2J-1-GP
12
D
D
Q5
Q5
2N7002-9-GP
2N7002-9-GP
1
G
G
2 3
S
S
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Y4A
Y4A
Y4A
AC_IN# 32
45 49Tuesday, January 23, 2007
45 49Tuesday, January 23, 2007
45 49Tuesday, January 23, 2007
-1
-1
-1
of
of
of
Page 46
A
B
C
D
E
Adaptor in to generate DCBATOUT
AD+
JK3
4 4
JK3
AD+
GND
GND
NC#4
NC#5
DC-JACK98-GP
DC-JACK98-GP
1
2
3
4
5
12
C365
C365
SCD1U50V3ZY-GP
SCD1U50V3ZY-GP
Layout 200mil
AD_JK
U19
U19
S
D
S
1
2
3
AD+_2
12
DY
DY
C366
C366
200KR2J-L1-GP
200KR2J-L1-GP
R284
R284
12
12
C367
C367
4 5
D
S
S
S
S
GD
GD
AO4433-GP
AO4433-GP
8
D
D
7
D
D
6
12
C368
C368
SCD1U50V3ZY-GP
SCD1U50V3ZY-GP
SC10U35V0ZY-GP
SC10U35V0ZY-GP
SC10U35V0ZY-GP
R2
R2
AD_OFF#
Q19
Q19
R1
R1
AD_OFF32
3 3
2
IN
IN
DTC114EUA-1-GP
DTC114EUA-1-GP
OUT
OUT
3
GND
GND
1
R2
R2
B
E
R1
R1
C
Q20
Q20
PDTA124EU-1-GP
PDTA124EU-1-GP
SC10U35V0ZY-GP
12
R283
R283
100KR2J-1-GP
100KR2J-1-GP
1 2
C369
C369
SCD1U50V3ZY-GP
SCD1U50V3ZY-GP
BATTERY CONNECTOR
3D3V_AUX_S53D3V_AUX_S5
D4
D3
D3
2
1
BT+
12
C13
C13
SCD1U50V3ZY-GP
SCD1U50V3ZY-GP
BAT_SDABAT_SCL
3
BAV99-4-GP
BAV99-4-GP
2 2
G2
G2
BAT+SENSE45
1 2
GAP-CLOSE
GAP-CLOSE
D4
3
BAV99-4-GP
BAV99-4-GP
2
BAT_IN#
1
BAT_SCL32
BAT_SDA32
BAT_IN#32,45
SC1000P50V3JN-GP
SC1000P50V3JN-GP
C11
C11
D5
D5
3
BAV99-4-GP
BAV99-4-GP
3D3V_AUX_S5
12
2
1
CN8
CN8
8
1
2
3
4
5
6
7
9
TYCO-CON7-11-GP
12
C12
C12
SC1000P50V3JN-GP
SC1000P50V3JN-GP
TYCO-CON7-11-GP
1 1
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
A3
A3
A3
AD/BAT CONN
AD/BAT CONN
AD/BAT CONN
Y4A
Y4A
Y4A
-1
-1
46 49Tuesday, January 23, 2007
46 49Tuesday, January 23, 2007
46 49Tuesday, January 23, 2007
of
of
E
of
-1
Page 47
A
H28
H28
HOLE
HOLE
H16
H16
HOLE
HOLE
5
H22
H26
H26
HOLE
HOLE
H22
HOLE
HOLE
H9
HOLEH9HOLE
H25
H25
HOLE
HOLE
4
H6
HOLEH6HOLE
3
2
1
SB
1
1
1
1
1
1
1
D D
H19
H29
H29
HOLE
HOLE
1
H13
H13
HOLE
HOLE
H30
H30
HOLE
HOLE
1
H17
H17
HOLE
HOLE
H31
H31
HOLE
HOLE
1
H18
H18
HOLE
HOLE
H32
H32
HOLE
HOLE
1
H21
H21
HOLE
HOLE
H23
H23
HOLE
HOLE
1
H5
HOLEH5HOLE
H20
H20
HOLE
HOLE
1
H4
HOLEH4HOLE
H24
H24
HOLE
HOLE
1
H27
H27
HOLE
HOLE
H19
HOLE
HOLE
1
H2
HOLEH2HOLE
H10
H10
HOLE
HOLE
1
H1
HOLEH1HOLE
H11
H11
HOLE
HOLE
1
H15
H15
HOLE
HOLE
1D8V_S0
EMC17
EMC17
EMC9
EMC9
EMC15
EMC15
EMC31
EMC31
EMC4
EMC4
EMC8
EMC8
EMC11
EMC11
EMC10
EMC10
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
C C
H3
HOLEH3HOLE
1
1
H14
H14
HOLE
HOLE
1
1
Y4B-1
SPR9
SPR8
SPR8
SPR9
B B
1
SPRING-33
SPRING-33
1
SPRING-33
SPRING-33
H12
H12
HOLE
HOLE
Y4B
1
1
1D8V_S3
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
EMC78
EMC78
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1
12
DY
DY
1
SC2D2U6D3V3KX-GP
SC2D2U6D3V3KX-GP
12
EMC76
EMC76
DY
DY
EMC79
EMC79
1
12
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
EMC77
EMC77
Y4A-1
SPR7 CHANGE TO 34.42T14.002
SPR6
SPR6
1
SPRING-33
SPRING-33
SPR7
SPR7
1
SPRING-29-GP
SPRING-29-GP
Y4B SPR3,SPR5 CHANGE TO 34.41P25.001
SPR3
SPR3
1
SPRING-32
SPRING-32
SPR5
SPR5
1
SPRING-32
SPRING-32
1
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
12
EMC80
EMC80
DY
DY
1
1
Y4B
1D8V_S3
EMC55
EMC55
1 2
EMC56
EMC56
1 2
EMC57
EMC57
1 2
EMC58
EMC58
1 2
EMC59
EMC59
1 2
EMC60
EMC60
1 2
EMC61
EMC61
1 2
EMC62
EMC62
1 2
EMC63
EMC63
1 2
EMC64
EMC64
1 2
EMC65
EMC65
1 2
EMC66
EMC66
1 2
EMC67
EMC67
1 2
1
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S0
SB
EMC34
EMC34
EMC16
EMC16
EMC29
EMC29
EMC12
EMC12
EMC6
EMC6
EMC1
EMC1
EMC18
EMC18
EMC33
EMC33
EMC32
EMC32
EMC35
EMC35
EMC2
EMC2
EMC5
EMC5
3D3V_S5
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC44
EMC44
1 2
EMC45
EMC45
1 2
EMC46
EMC46
1 2
EMC47
EMC47
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1D05V_S0
AD+
BT+
DCBATOUT
EMC28
EMC28
EMC26
EMC26
EMC27
EMC27
EMC14
EMC14
EMC25
EMC25
EMC13
EMC13
EMC23
EMC23
EMC22
EMC22
EMC20
EMC20
EMC19
EMC19
EMC21
EMC21
EMC3
EMC3
EMC30
EMC30
EMC7
EMC7
EMC24
EMC24
1D8V_S3
EMC36
EMC36
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
0D9V_S0
EMC37
EMC37
EMC38
EMC38
EMC39
EMC39
EMC40
EMC40
EMC41
EMC41
EMC42
EMC42
EMC43
EMC43
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
Y4B
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
Title
Title
Title
EMI SOLUTION(1/2)
EMI SOLUTION(1/2)
EMI SOLUTION(1/2)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Y4A
Y4A
Date: Sheet
Date: Sheet
Date: Sheet
Y4A
0D9V_S0
EMC68
EMC68
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC69
EMC69
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC70
EMC70
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC71
EMC71
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC72
EMC72
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC73
EMC73
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC74
EMC74
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC75
EMC75
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
SC1KP50V2KX-1GP
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
of
of
of
47 49Tuesday, January 23, 2007
47 49Tuesday, January 23, 2007
47 49Tuesday, January 23, 2007
-1
-1
-1
A
Page 48
EMI
5V_S0
EMC81
EMC81
EMC82
EMC82
EMC83
EMC83
EMC84
EMC84
EMC85
EMC85
EMC86
EMC86
EMC87
EMC87
EMC88
EMC88
EMC89
EMC89
EMC90
EMC90
EMC91
EMC91
EMC92
EMC92
EMC93
EMC93
EMC94
EMC94
EMC95
EMC95
EMC96
EMC96
EMC97
EMC97
EMC98
EMC98
EMC99
EMC99
EMC100
EMC100
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
3D3V_S0 1D2V_S0
EMC101
EMC101
EMC102
EMC102
EMC103
EMC103
EMC104
EMC104
EMC105
EMC105
EMC106
EMC106
EMC107
EMC107
EMC108
EMC108
EMC109
EMC109
EMC110
EMC110
EMC112
EMC112
EMC111
EMC111
EMC114
EMC114
EMC113
EMC113
EMC115
EMC115
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DCBATOUT
EMC116
EMC116
EMC117
EMC117
EMC118
EMC118
EMC121
EMC121
EMC120
EMC120
EMC123
EMC123
EMC122
EMC122
EMC124
EMC124
EMC125
EMC125
EMC127
EMC127
EMC126
EMC126
EMC130
EMC130
EMC128
EMC128
EMC129
EMC129
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
EMC131
EMC131
EMC132
EMC132
EMC133
EMC133
EMC134
EMC134
EMC135
EMC135
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DCBATOUT_6262
EMC141
EMC141
EMC140
EMC140
EMC54
EMC54
EMC137
EMC137
EMC139
EMC139
EMC138
EMC138
EMC136
EMC136
EMC144
EMC144
EMC143
EMC143
EMC142
EMC142
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
1 2
SCD1U25V3ZY-1GP
SCD1U25V3ZY-1GP
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
DY
5V_USB0_S3
EMC145
EMC145
1 2
EMC147
EMC147
1 2
EMC146
EMC146
1 2
EMC148
EMC148
1 2
EMC149
EMC149
1 2
EMC150
EMC150
1 2
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
5V_S5 1D8V_S0
EMC171
EMC151
EMC151
1 2
EMC152
EMC152
1 2
EMC153
EMC153
1 2
EMC154
EMC154
1 2
EMC156
EMC156
1 2
EMC155
EMC155
1 2
EMC158
EMC158
1 2
EMC157
EMC157
1 2
EMC159
EMC159
1 2
EMC160
EMC160
1 2
EMC162
EMC162
1 2
EMC161
EMC161
1 2
EMC165
EMC165
1 2
EMC163
EMC163
1 2
EMC164
EMC164
1 2
EMC168
EMC168
1 2
EMC166
EMC166
1 2
EMC170
EMC170
1 2
EMC167
EMC167
1 2
EMC169
EMC169
1 2
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
EMC171
EMC173
EMC173
EMC172
EMC172
EMC174
EMC174
EMC175
EMC175
EMC176
EMC176
EMC178
EMC178
EMC177
EMC177
EMC179
EMC179
EMC180
EMC180
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
DY
DY
1 2
SCD1U16V2ZY-2GP
SCD1U16V2ZY-2GP
MISC
12
13
3D3V_S5
147
U45D
U45D
11
TSLCX08MTCX-GP
TSLCX08MTCX-GP
U18D
U18D
14
13
TSAHCT125PW-GP
TSAHCT125PW-GP
12 11
7
5V_S05V_S0
14
10
9 8
7
U18C
U18C
TSAHCT125PW-GP
TSAHCT125PW-GP
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
EMI SOLUTION(2/2) / MISC
EMI SOLUTION(2/2) / MISC
EMI SOLUTION(2/2) / MISC
Y4A
Y4A
Y4A
48 49Tuesday, January 23, 2007
48 49Tuesday, January 23, 2007
48 49Tuesday, January 23, 2007
-1
-1
-1
Page 49
PRT modification list for Layout:
CN10, SPD-CONN50-4R-14GP-U , K211-CB02A50R
U29, SKT-SODIMM20020U3GP, 1717254-4
U36, BGA479-SKT6-GPU3, BGA479-SKT-6H209U3
PRT modification list for Y4A BOM:
銅柱
U28, 71.RC415.M01(version A11)
C570,C571,C532,C529, 78.47521.51L(second source: 78.47522.51L)
U57, 71.AL861.A0G(version D)
U31,U37, 84.01426.037
U32,U33,U34,U35, 84.01412.037
U49, 71.SB460.M04(version A12)
SPR7, 34.42T14.002
U29, 62.10017.A41
XF1, 68.0H80P.30A
MINIC1, 62.10043.261
SPR3,SPR5, 34.41P25.001
CN10, 20.80361.050
If U5 is P/N:74.01909.A74, DY R595(P/N:64.26715.6DL) and Q35(P/N:84.27002.J11)
If U5 is P/N:74.08725.A73, Add R595(P/N:64.26715.6DL) and Q35(P/N:84.27002.J11)
:
H1,H12,H20,H23,H29,H30, 34.46I14.001
H4,H5, 34.4B604.001
H31,H32, 34.4B601.001
<Variant Name>
<Variant Name>
<Variant Name>
Wistron Corporation
Wistron Corporation
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Taipei Hsien 221, Taiwan, R.O.C.
Title
Title
Title
Remark
Remark
Remark
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet of
Date: Sheet
Date: Sheet
Y4A
Y4A
Y4A
of
of
49 49Tuesday, January 23, 2007
49 49Tuesday, January 23, 2007
49 49Tuesday, January 23, 2007
-2
-2
-2
Loading...
