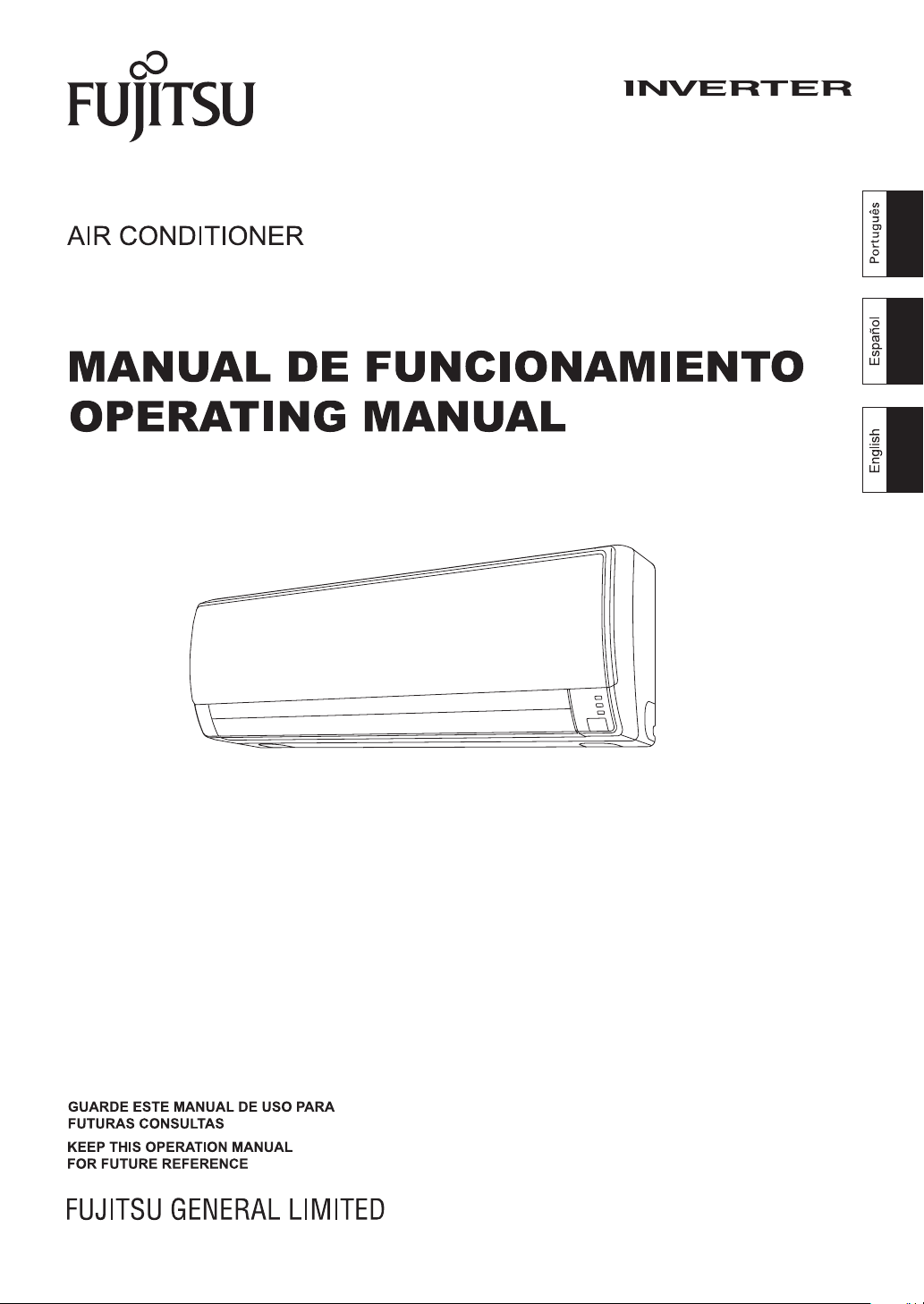

Compact Wall Mounted Type
MANUAL DE INSTRUÇÕES
GUARDE ESTE MMANUAL DE FUNCIONANENTO
PARA REFERÊNCIA FUTURA
PART NO.9332280029-04
CONTENTS
SAFETY PRECAUTIONS ......................................En-1
FEATURES AND FUNCTIONS .............................En-2
NAME OF PARTS .................................................En-3
PREPARATION .....................................................En-5
OPERATION ..........................................................En-6
TIMER OPERATION .............................................En-8
SLEEP TIMER OPERATION .................................En-9

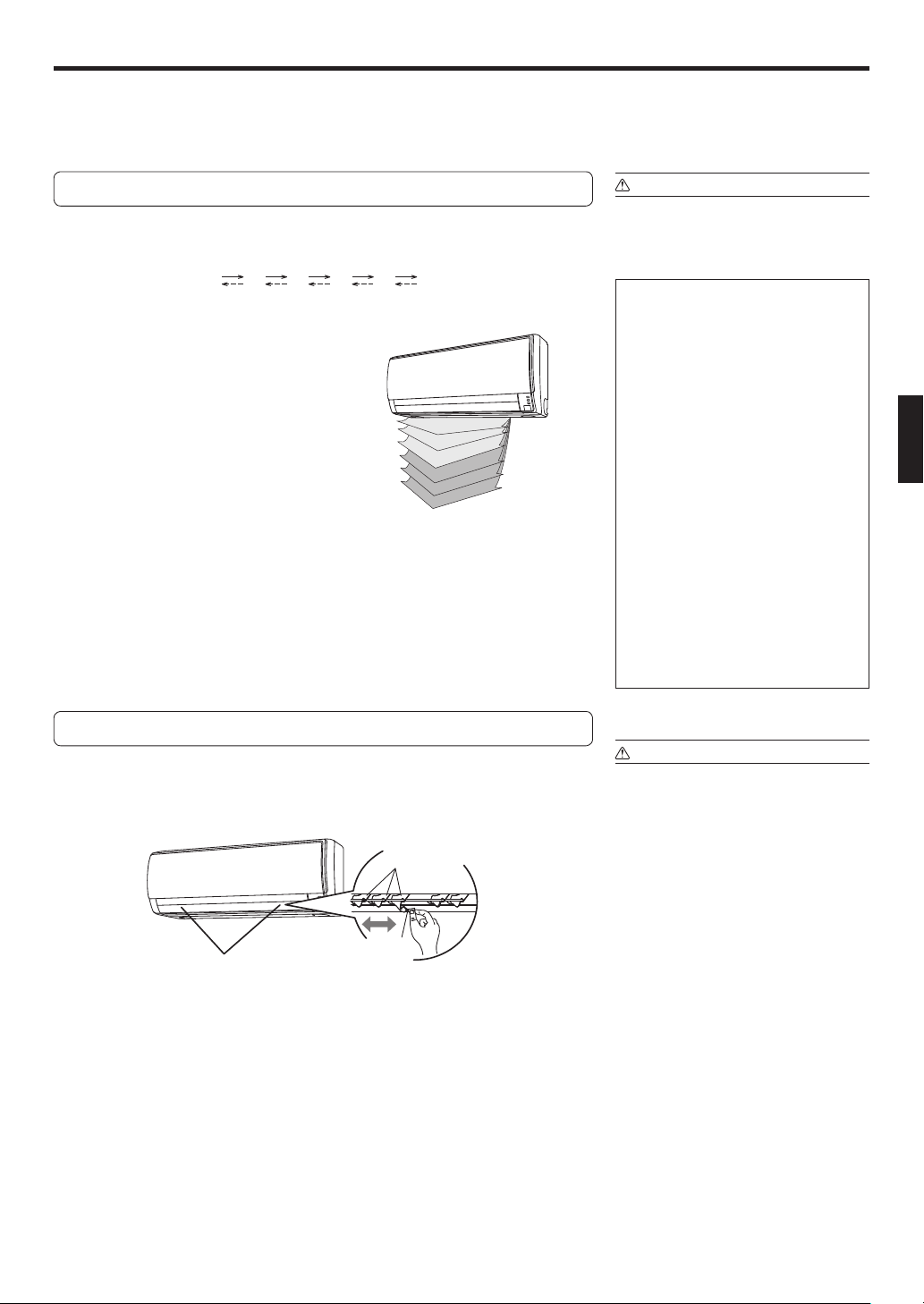

ADJUSTING THE DIRECTION OF AIR
ECONOMY OPERATION ....................................En-11
10°C HEAT OPERATION ....................................En-12
MANUAL AUTO OPERATION .............................En-12

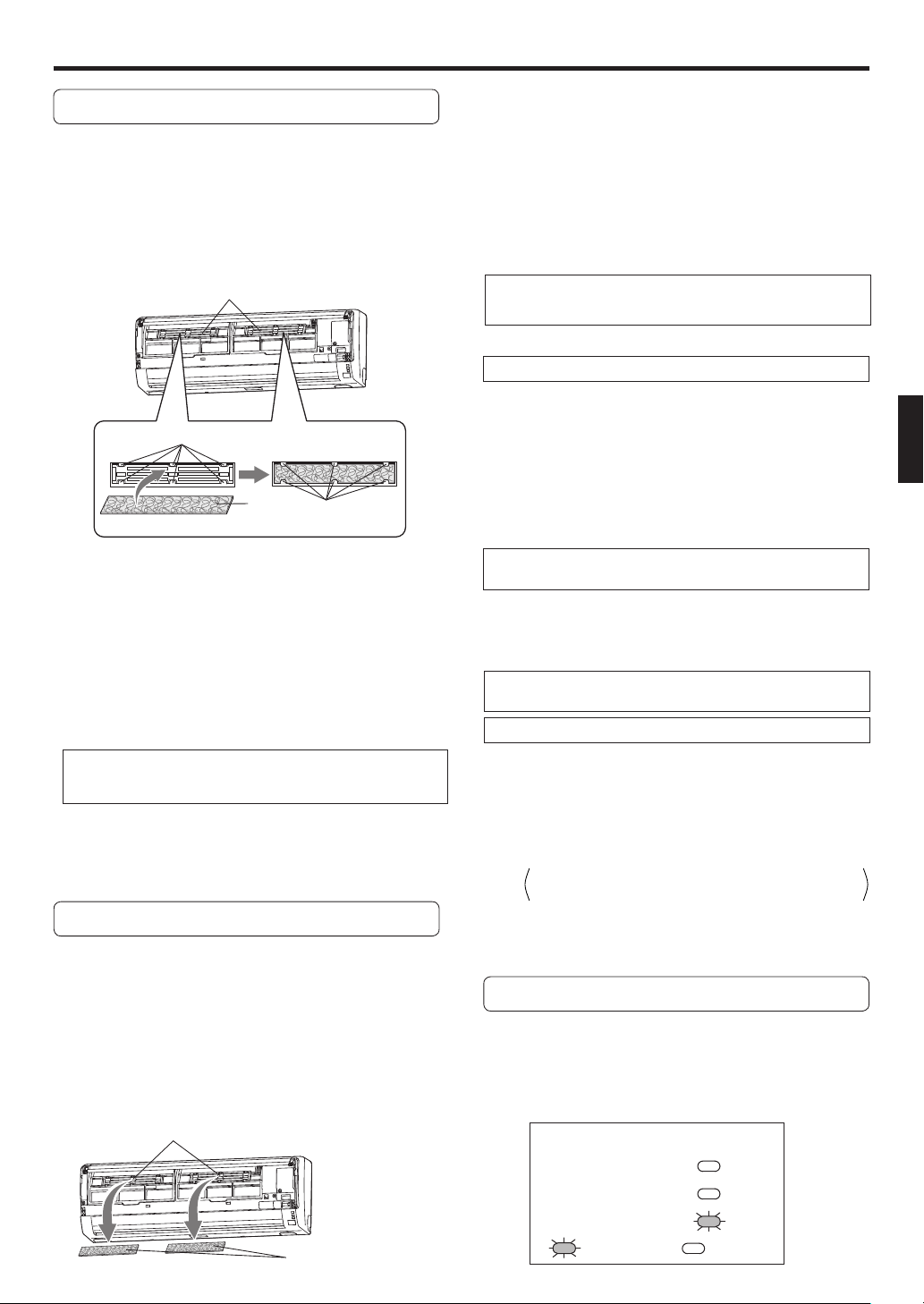

CLEANING AND CARE .......................................En-12

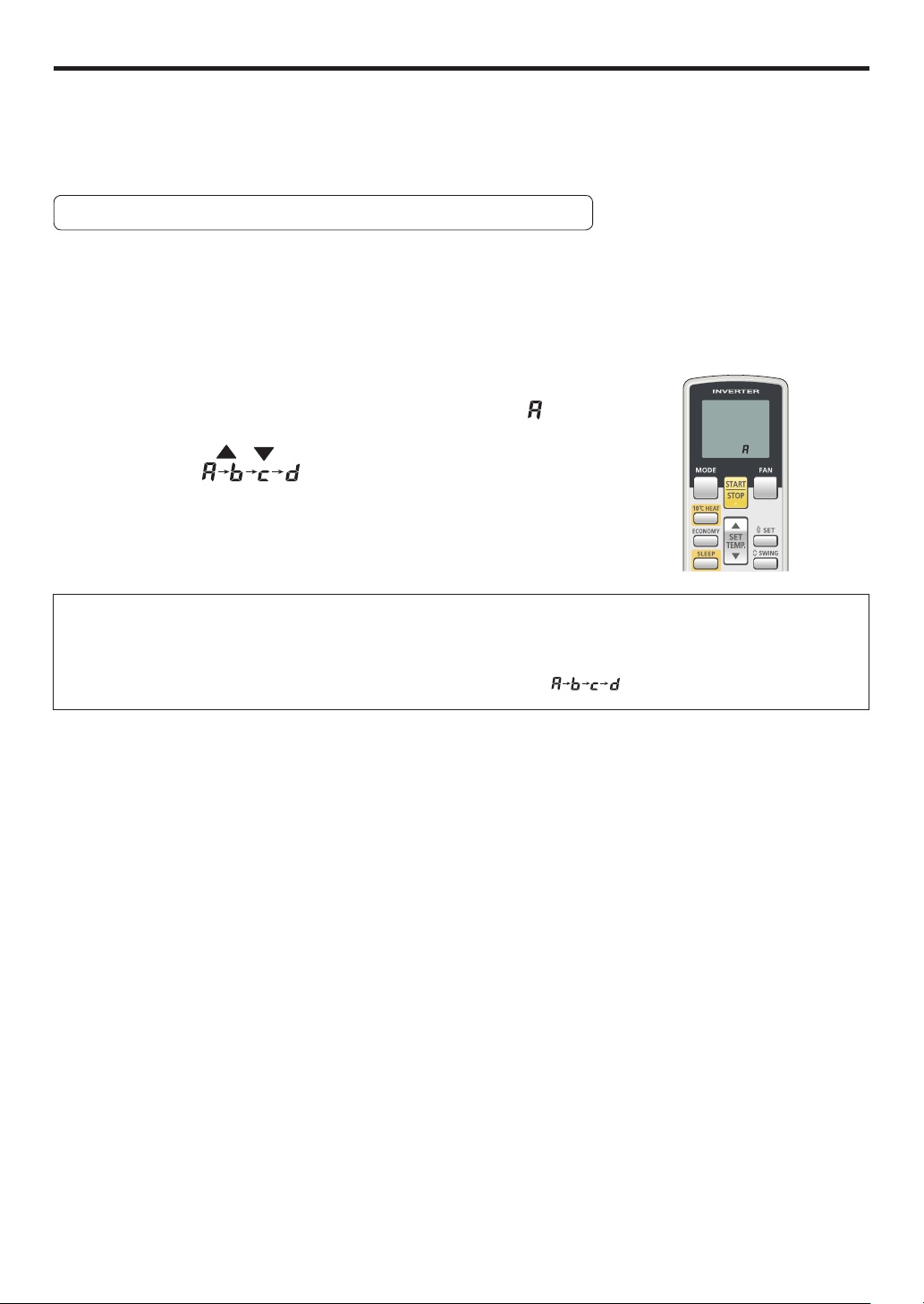

SELECTING THE REMOTE CONTROLLER
SIGNAL CODE ....................................................En-15
TROUBLESHOOTING ........................................En-16
OPERATING TIPS ...............................................En-17
CIRCULATION ....................................................En-10
SWING OPERATION ..........................................En-11
SAFETY PRECAUTIONS
Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
●
The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
●
“DANGER”, “WARNING” and “CAUTION” have the following meanings in these instructions:
●
DANGER!
WARNING!
CAUTION!
DANGER!
This mark indicates procedures which, if improperly performed, are most likely to result in
the death or serious injury to the user or service personnel.
This mark indicates procedures which, if improperly performed, might lead to the death or
serious injury of the user or service personnel.
This mark indicates procedures which, if improperly performed, might possibly result in
personal harm to the user, or damage to property.
Do not attempt to install this air conditioner by yourself.
●
This air conditioner contains no user-serviceable parts. Always consult authorized service personnel for repairs.
●
When moving, consult authorized service personnel for disconnection and installation of the air conditioner.
●
Do not become excessively chilled by staying for many hours in the direct cooling airfl ow.
●
Do not insert fi ngers or objects into the outlet port or intake grille.
●
Do not start and stop air conditioner operation by disconnecting the power supply cord.
●
Take care not to damage the power supply cord.
●
If the power supply cord of this appliance is damaged, it should only be replaced by the authorized service personal, since
●
special purpose tools and specifi ed cord are required.
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the breaker, and consult author-
●
ized service personnel.
In the event of refrigerant leakage, be sure to keep away from fi re or any fl ammables. (consult an authorized service per-
●
sonnel)
En-1
CAUTION!
Provide occasional ventilation during use.
●
Do not direct airfl ow at fi replaces or heating apparatus.
●
Do not climb on, or place objects on, the air conditioner.
●
Do not hang objects from the indoor unit.
●
Do not set fl ower vases or water containers on top of air conditioners.
●
Do not expose the air conditioner directly to water.
●
Do not operate the air conditioner with wet hands.
●
Do not pull power supply cord.
●
Turn off power supply when not using the indoor unit for extended periods.
●
Check the condition of the installation stand for damage.
●
Do not place animals or plants in the direct path of the airfl ow.
●
Do not drink the water drained from the air conditioner.
●
Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art works.
●
Connection valves become hot during Heating; handle with care.
●
Do not apply any heavy pressure to radiator fi ns.
●
Operate only with air fi lters installed.
●
Do not block or cover the intake grille and outlet port.
●
Ensure that any electronic equipment is at least 3.3ft (1m) away from either the indoor or outdoor units.
●
Avoid installing the air conditioner near a fi replace or other heating apparatus.
●
When installing the indoor and outdoor unit, take precautions to prevent access to infants.
●
Do not use infl ammable gases near the air conditioner.
●
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabili-
●
ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with
the appliance.
FEATURES AND FUNCTIONSFEATURES AND FUNCTIONS
■ Energy saving and Comfortable function
INVERTER
At the start of operation, large amount of power is used to
bring the room quickly to the desired temperature. Afterwards,
the unit automatically switches to a low power setting for economic and comfortable operation.
ECONOMY OPERATION
When ECONOMY operation mode is operated, the room temperature will be little higher than the set-temp under cooling
mode and lower than set-temp under heating mode. Therefore,
the ECONOMY mode is able to save more energy than other
normal mode.
SWING OPERATION
The Airflow Direction Louvers swings automatically up and
down so that the air speeds to every nook and corner of your
room.
SUPER QUIET OPERATION
When the FAN button is used to select QUIET, the indoor unit
begins super quiet operation; the indoor unit’s airflow is reduced to produce quieter operation.
AUTO CHANGEOVER
■ Clean function
REMOVABLE INTAKE GRILLE
The indoor unit’s intake grille can be removed for easy clean-
ing and maintenance.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.
POLYPHENOL CATECHIN AIR CLEANING FILTER
The polyphenol catechin air cleaning fi lter uses static electric-
ity to clean fi ne particles and dust in the air such as tobacco
smoke and plant pollen that are too small to see. The filter
contains catechin, which is highly effective against various
bacteria by suppressing the growth of the bacteria adsorbed to
the fi lter. Note that when the air cleaning fi lter is installed, the
amount of air produced decreases, causing a slight decrease
in the indoor unit’s performance.
NEGATIVE AIR IONS DEODORIZING FILTER
It comprises pottery super micro particles which can produce
negative air ions having the effect of deodorizing and can ab-
sorb and remit the peculiar smell at home.
■ Remote controller
The operation mode (cooling, dry, heating) is switched automatically to maintain the set temperature, and the temperature
is kept constant at all times.
10°C HEAT OPERATION
The room temperature can be maintained at 10°C so as to
prevent the room temperature from falling too far.
■ Convenient function
PROGRAM TIMER
The program timer allows you to integrate OFF timer and ON timer
operations in a single sequence. The sequence can involve 1 transition from OFF timer to ON timer, or from ON timer to OFF timer,
within a 24 hour period.
SLEEP TIMER
When the SLEEP timer button is pressed during heating mode,
the air conditioner’s thermostat setting is gradually lowered during the period of operation; during cooling or dry mode, the thermostat setting is gradually raised during the period of operation.
When the set time is reached, the unit automatically turns off.
WIRELESS REMOTE CONTROLLER
The wireless remote controller allows convenient control of air
conditioner operation.
WIRED REMOTE CONTROLLER (OPTION)
The optional wired remote controller can be used. When you
use remote controller, there are following different points as
compared with using wireless remote controller.
[The additional functions for wired ones]
• Weekly timer
• Temperature set back timer
And you can use both wired and wireless remote controller si-
multaneously. (But function is limited)
When the restricted functions on the remote controller are
used, beeping sound will be heard, OPERATION, TIMER and
the 3rd lamp of the indoor unit will fl ash.
[The restricted functions for wireless ones]
• 10°C HEAT OPERATION
• PROGRAM TIMER
• SLEEP TIMER
En-2

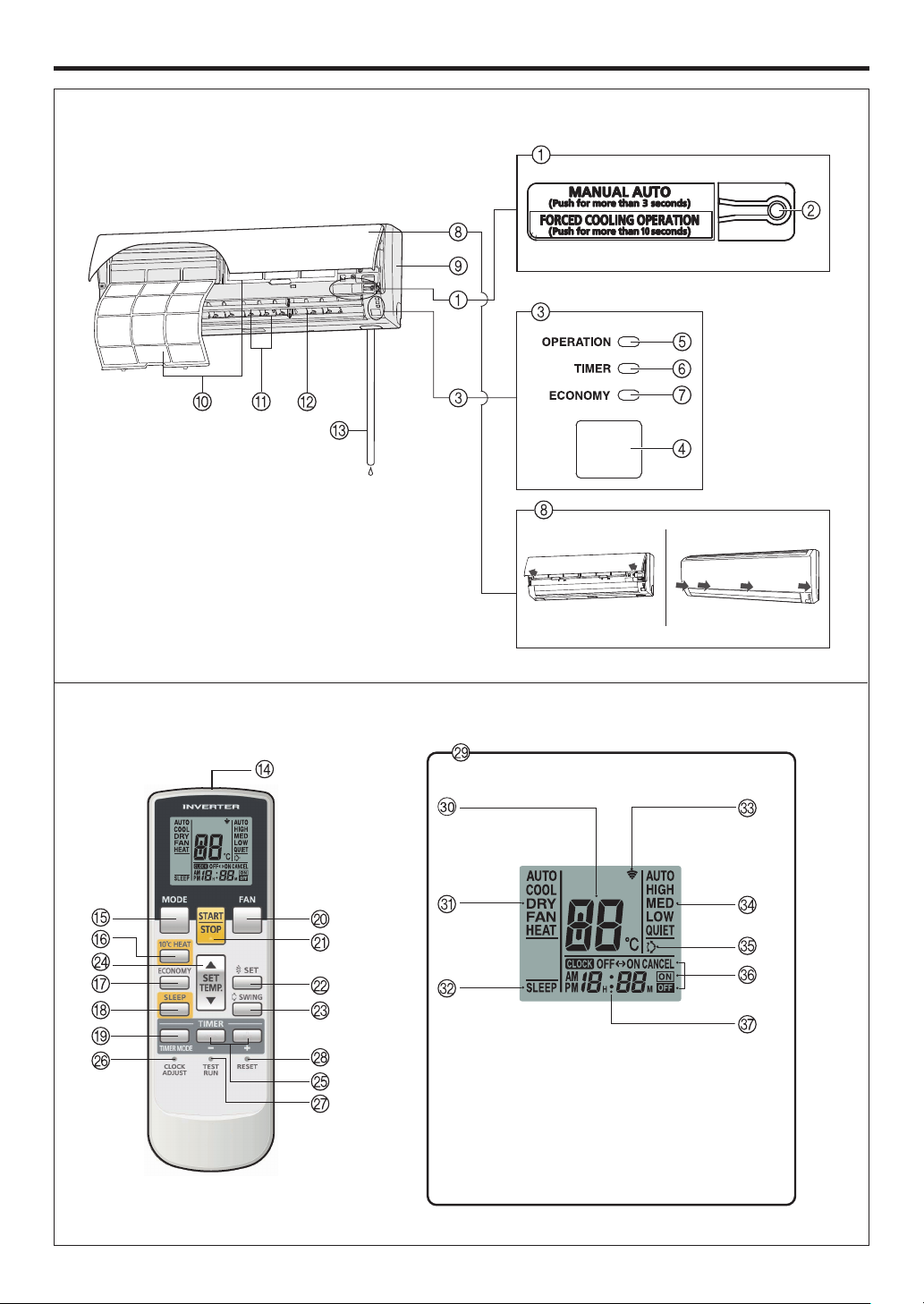

NAME OF PARTS
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
En-3
Fig. 6
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in
actual operation, however, the display will only show
those indicators appropriate to the current operation.
Fig. 1 Indoor Unit
Operating Control Panel (Fig. 2)
1
MANUAL AUTO button
2
3
4
5
6
7
8
9
0
A
B
When the MANUAL AUTO button is
●
pressed in for more than 10 seconds, the
forced cooling operation will start.
The forced cooling operation is used at
●
the time of installation.
Only for authorized service personnel's
use.
When the forced cooling operation starts
●
by any chance, press the START/STOP
button to stop the operation.
Please press the button at
●
DICATOR RESET
FILTER IN-
Indicator (Fig. 3)
Remote Control Signal Receiver
OPERATION Indicator Lamp (green)
TIMER Indicator Lamp (orange)
If the TIMER indicator lamp fl ashes when
●
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See Page 17 Auto Restart).
ECONOMY Indicator Lamp (green)
ECONOMY indicator lamp lights when
●
ECONOMY OPERATION and MINIMUM
HEAT OPERATION is operating.
Intake Grille (Fig. 4)
Front Panel
Air Filter
Airfl ow Direction Louver
Right-Left Louver
(behind Airfl ow Direction Louver)
Drain Hose
C
Fig. 5 Remote Controller
Signal Transmitter
D
MODE button
E
10˚C HEAT button
F
ECONOMY button
G
SLEEP button
H
TIMER MODE button
I
FAN button
J
START/STOP button
K
SET button (Vertical)
L
SWING button
M
SET TEMP. button (
N
TIMER SET ( / ) button
O
CLOCK ADJUST button
P
TEST RUN button
Q
This button is used when installing the air
●
conditioner, and should not be used under normal conditions, as it will cause the
indoor unit’s thermostat function to operate incorrectly.
If this button is pressed during normal op-
●
eration, the indoor unit will switch to test
operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER
Indicator Lamp will begin to fl ash simulta-
neously.
To stop the test operation mode, press
●
the START/STOP button to stop the air
conditioner.
RESET button
R
Remote Controller Display(Fig.6)
S
Temperature SET Display
T
Operation Mode Display
U
SLEEP TIMER Display
V
Transmit Indicator
W
Fan Speed Display
X
SWING Display
Y
Timer Mode Display
Z
Clock Display
[
/ )
En-4

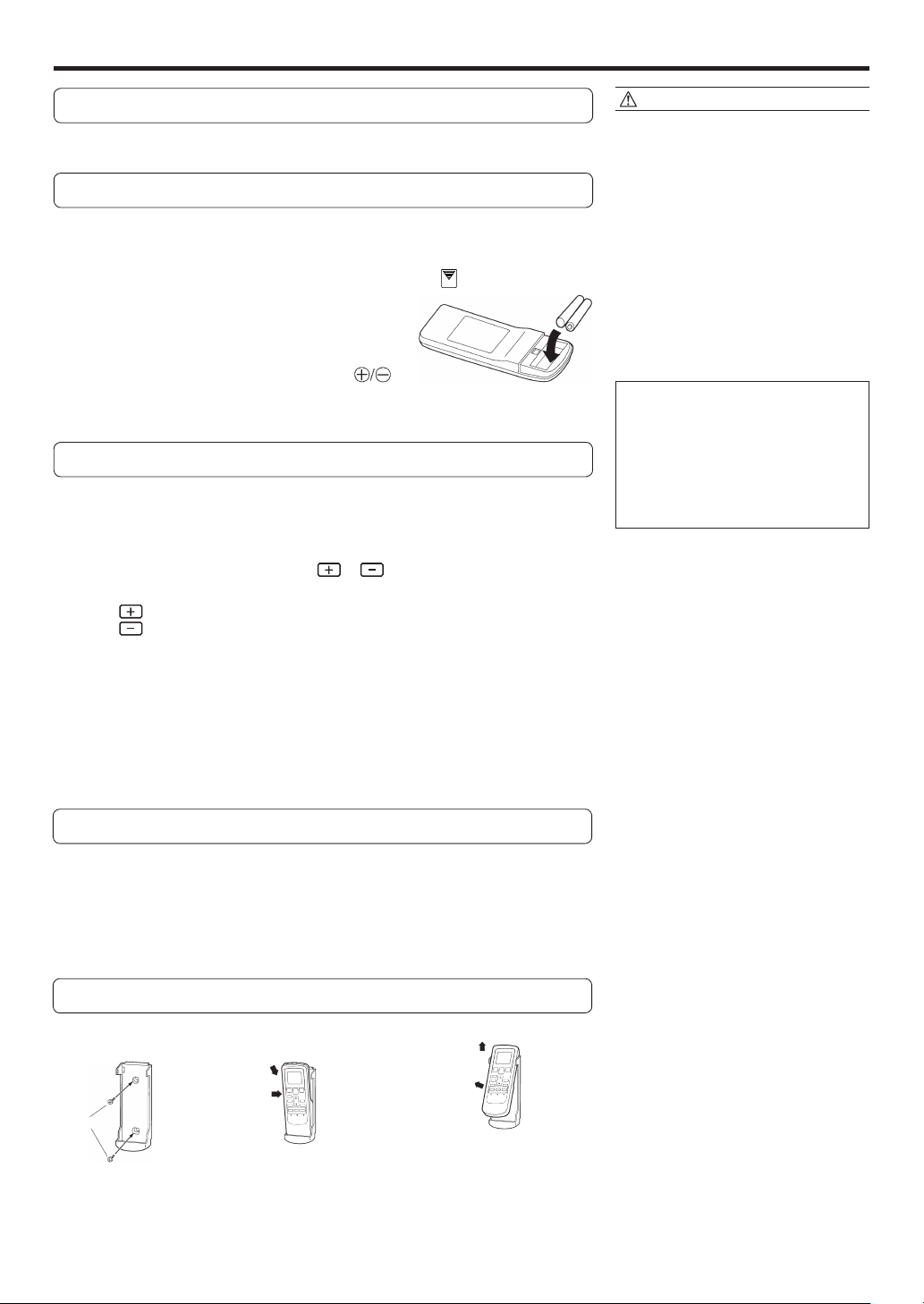

PREPARATION
Turn on the Power
Turn on the circuit breaker
1
Load Batteries (Size AAA R03/LR03 2) *
Press and slide the battery compartment lid on the
1
reverse side to open it.
Slide in the direction of the arrow while pressing the mark.
* Batteries are not included with this product.
Insert batteries.
2
Be sure to align the battery polarities ( ) correctly.
Close the battery compartment lid.
3
Set the Current time
Press the CLOCK ADJUST button (Fig. 5 P).
1
Use the tip of a ball-point pen or other small object to press the button.
Use the TIMER SET ( / ) buttons (Fig. 5 O) to
2
adjust the clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
CAUTION!
Take care to prevent infants from acciden-
●
tally swallowing batteries.
When not using the Remote Controller for
●
an extended period, remove the batteries to
avoid possible leakage and damage to the
unit.
If leaking battery fluid comes in contact
●
with your skin, eyes, or mouth, immediately
wash with copious amounts of water, and
consult your physician.
Dead batteries should be removed imme-
●
diately and disposed of properly, either in a
battery collection receptacle or to the appropriate authority.
Do not attem pt to recharge dry batteries.
●
Never mix new and used batteries, or
batteries of different types.
Batteries should last about 1 year under
normal use. If the Remote Controller's
operating range becomes appreciably
reduced, replace the batteries and press
the RESET button with the tip of a ballpoint pen or other small object.
(Each time the buttons are pressed, the time will be advanced/reversed in 1
minute increments; hold the buttons depressed to change the time quickly in
10 minute increments.)
Press the CLOCK ADJUST button (Fig. 5 P) again.
3
This completes the time setting and starts the clock.
To Use the Remote Controller
The Remote Controller must be pointed at signal receiver (Fig. 3 4) to operate cor-
●
rectly.
Operating Range: About 7 meters.
●
When a signal is properly received by the indoor unit, a beeping sound will be heard.
●
If no beep is heard, press the Remote Controller button again.
●
Remote Controller Holder
Insert
Press in
Screws
1 Mount the Holder. 2 Set the Remote Controller.
Slide up
Pull out
3
To remove the Remote
Controller (when use at hand).
En-5

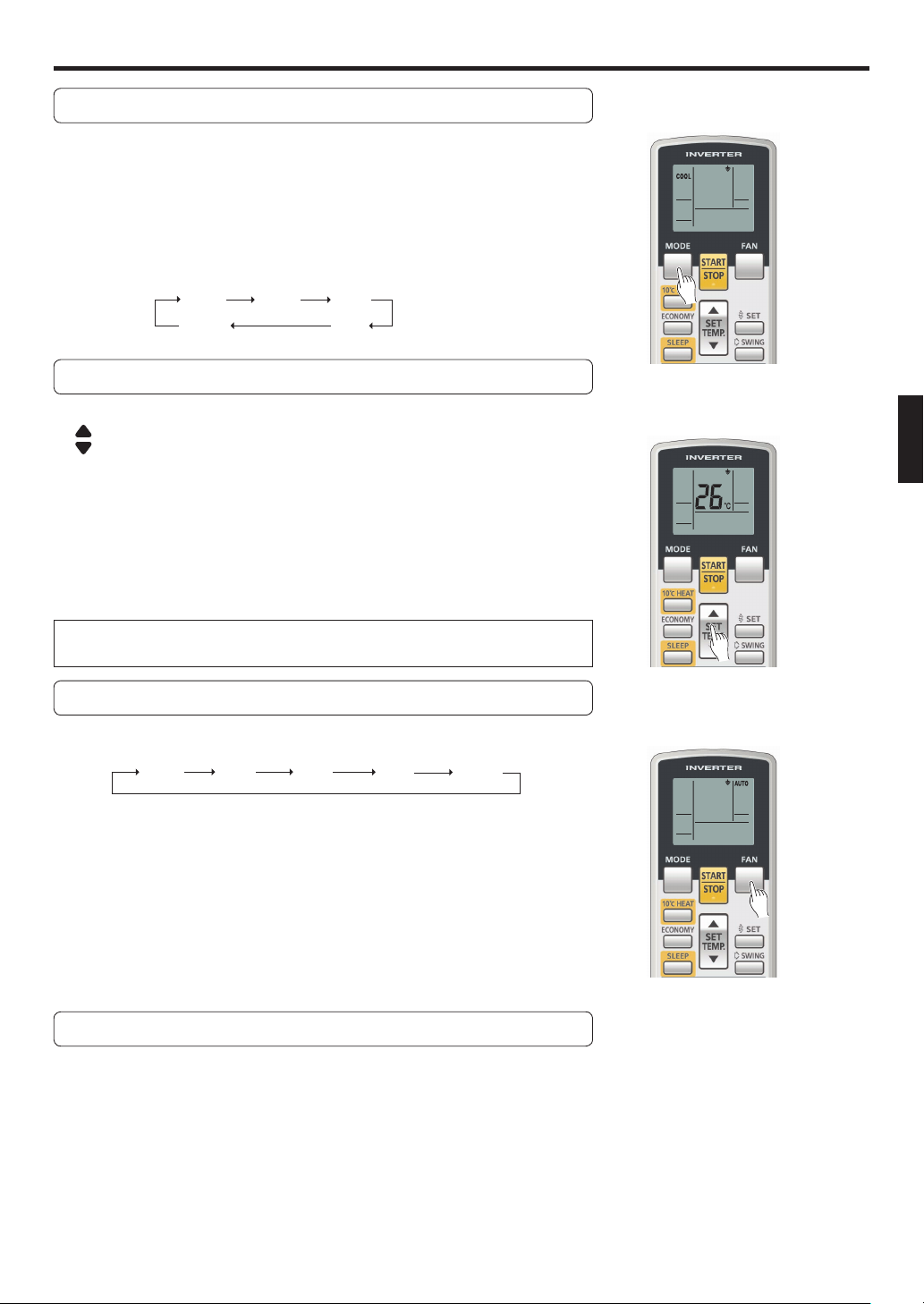

OPERATION
To Select Mode Operation
Press the START/STOP button (Fig.5 K).
1
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
The air conditioner will start operating.
Press the MODE button (Fig.5 E) to select the de-
2
sired mode.
Each time the button is pressed, the mode will change in the following order.
AUTO COOL DRY
HEAT FAN
About 3 seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. button (Fig. 5 N).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
Thermostat setting range:
●
AUTO ....................................18-30°C
Cooling/Dry ...........................18-30°C
Heating ..................................16-30°C
The thermostat cannot be used to set room temperature during the FAN mode (the temperature will not appear on the Remote Controller's Display).
About 3 seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN button (Fig. 5 J).
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW QUIET
About 3 seconds later, the entire display will reappear.
When set to AUTO:
Heating
However, the fan will operate at very low speed when the temperature of
Cooling
Fan : The fan runs at the low fan speed.
: Fan operates so as to optimally circulate warmed air.
the air issued from the indoor unit is low.
: As the room temperature approaches that of the thermostat setting, the
fan speed becomes slower.
Example: When set to COOL.
Example: When set to 26°C.
The fan will operate at a very low setting during Monitor operation and at the
start of the Heating mode.
SUPER QUIET Operation
SUPER QUIET operation begins. The indoor unit’s airfl ow will be reduced for quieter
operation.
SUPER QUIET operation cannot be used during Dry mode. (The same is true when
●
dry mode is selected during AUTO mode operation.)
During Super Quiet operation, Heating and Cooling performance will be reduced
●
somewhat. If the room does not warm up/ cool down when using SUPER QUIET Operation, please adjust the indoor unit’s Fan Speed.
Example: When set to AUTO.
En-6
OPERATION
To Stop Operation
Press the START/STOP button (Fig. 5 K).
The OPERATION Indicator Lamp (green) (Fig. 3 5) will go out.
About AUTO CHANGEOVER Operation
AUTO: ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate
If the difference between thermostat setting and actual room temperature
If the difference between thermostat setting and actual room temperature
If the difference between thermostat setting and actual room temperature
●
at very low speed for about a few minutes, during which time the indoor
unit detects the room conditions and selects the proper operation mode.
is more than +2°C Cooling or dry operation
is within ±2°C Determined by outdoor temperature
is more than –2°C Heating operation
When the indoor unit has adjusted your room’s temperature to near
●
the thermostat setting, it will begin monitor operation. In the monitor
operation mode, the fan will operate at low speed. If the room temperature
subsequently changes, the indoor unit will once again select the
appropriate operation (Heating, Cooling) to adjust the temperature to the
value set in the thermostat.
If the mode automatically selected by the indoor unit is not what you wish,
select one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ● Use to warm your room.
Cooling: ● Use to cool your room.
Dry:
Fan:
When Heating mode is selected, the indoor unit will operate at very low
●
fan speed for about 3 to 5 minutes, after which it will switch to the selected
fan setting. This period of time is provided to allow the indoor unit to warm
up before begin full operation.
When the outdoor temperature is very low, frost may form on the outdoor
●
unit, and its performance may be reduced. In order to remove such frost,
the air conditioner will automatically enter the defrost cycle from time to
time. During Automatic Defrosting operation, the OPERATION Indicator
Lamp (Fig. 3 5) will fl ash, and the heat operation will be interrupted.
After the start of heating operation, it takes some time before the room
●
gets warmer.
Use for gently cooling while dehumidifying your room.
●
You cannot heat the room during Dry mode.
●
During Dry mode, the indoor unit will operate at low speed; in order to
●
adjust room humidity, the indoor unit’s fan may stop from time to time.
Also, the fan may operate at very low speed when adjusting room
humidity.
The fan speed cannot be changed manually when Dry mode has been
●
selected.
Use to circulate the air throughout your room.
●
During Heating mode:
Set the thermostat to a temperature setting
that is higher than the present room
temperature. The Heating mode will not
operate if the thermostat is set lower than
the actual room temperature.
During Cooling/Dry mode:
Set the thermostat to a temperature
setting that is lower than the present room
temperature. The Cooling and Dry modes
will not operate if the thermostat is set
higher than the actual room temperature (in
Cooling mode, the fan alone will operate).
During Fan mode:
You can not use the indoor unit to heat and
cool your room.
En-7
TIMER OPERATION
Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P. 5).
To Use the ON timer or OFF timer
Press the START/STOP button (Fig. 5 K)
1
(if the indoor unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
Press the TIMER MODE button (Fig. 5 I) to select the
2
OFF timer or ON timer operation.
Each time the button is pressed the timer function changes in the following
order:
CANCEL OFF ON
PROGRAM(OFF
The indoor unit’s TIMER Indicator Lamp (orange) (Fig. 3 6) will light.
Use the TIMER SET buttons (Fig. 5 O) to set the de-
3
sired OFF time or ON time.
Set the time while the time display is fl ashing (the fl ashing will continue for
about 5 seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
ON, OFF ON)
To Use the Program timer
To Cancel the Timer
Use the TIMER button to select “CANCEL”..
The indoor unit will return to normal operation.
To Change the Timer Settings
Perform steps 2 and 3.
To Stop Air Conditioner Operation while
the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting, SUPER QUIET mode), after making the timer
setting and waiting until the entire display reappears, then press the appropriate buttons to
change the operating condition desired.
Press the START/STOP button (Fig. 5 K)
1
(if the indoor unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
Set the desired times for OFF timer and ON timer.
2
See the section “To Use the ON timer or OFF timer” to set the desired mode
and times.
About 3 seconds later, the entire display will reappear.
The indoor unit’s TIMER Indicator Lamp (orange) (Fig. 3 6) will light.
Press the TIMER MODE button (Fig. 5 I) to select the
3
PROGRAM timer operation (OFF ON or OFF ON
will display).
The display will alternately show “OFF timer” and “ON timer”, then change to
show the time setting for the operation to occur fi rst.
●
The program timer will begin operation. (If the ON timer has been selected
to operate fi rst, the indoor unit will stop operating at this point.)
About 5 seconds later, the entire display will reappear.
About the Program timer
●
The program timer allows you to integrate OFF timer and ON timer operations in a
single sequence. The sequence can involve 1 transition from OFF timer to ON timer,
or from ON timer to OFF timer, within a 24 hour period.
●
The fi rst timer function to operate will be the 1 set nearest to the current time. The
order of operation is indicated by the arrow in the Remote Controller's Display (OFF
ON, or OFF ON).
●
One example of Program timer use might be to have the air conditioner automati-
cally stop (OFF timer) the operation after you go to sleep, then start (ON timer) the
operation automatically in the morning before you arise.
To Cancel the Timer
Use the TIMER MODE button to select “CANCEL”.
The air conditioner will return to normal operation.
To Change the Timer Settings
Follow the instructions given in the section “To
1.
Use the ON Timer or OFF Timer” to select
the timer setting you wish to change.
2. Press the TIMER MODE button to select
either OFF ON or OFF ON.
To Stop Air Conditioner Operation while
the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting, SUPER
QUIET mode), after making the timer setting
and waiting until the entire display reappears,
then press the appropriate buttons to change
the operating condition desired.
En-8
SLEEP TIMER OPERATION
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operation is stopped.
To Use the SLEEP Timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 5 H).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) lights and the TIMER
Indicator Lamp (orange) (Fig. 3 6) light.
To Change the Timer Settings
Press the SLEEP button (Fig. 5 H) once again and set the
time using the TIMER SET ( / ) buttons (Fig. 5 O).
Set the time while the Timer Mode Display is fl ashing (the fl ashing will continue about 5
seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
About the SLEEP Timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifi es the thermostat setting in
accordance with the set time setting. When the set time has elapsed, the air conditioner completely stops.
To Cancel the Timer:
Use the TIMER MODE button to select
“CANCEL”..
The air conditioner will return to normal
operation.
To Stop the Air Conditioner During
Timer Operation:
Press the START/STOP button.
During Heating operation:
When the SLEEP timer is set, the thermostat setting is
automatically lowered 1°C every 30 minutes. When the
thermostat setting is lowered a total of 4°C, the thermostat
setting at that time is maintained until the set time elapses, at
which time the air conditioner automatically turns off.
SLEEP timer setting
30
minutes
1 hour
1°C
1 hour
30 minutes
2°C
Set time
3°C
4°C
During Cooling/Dry operation:
When the SLEEP timer is set, the thermostat setting is
automatically raised 1°C every 1 hour. When the thermostat
setting is raised a total of 2°C the thermostat setting at that time
is maintained until the set time elapses, at which time the air
conditioner automatically turns off.
SLEEP timer setting
Set time
1 hour
1°C
2°C
En-9
ADJUSTING THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction of airfl ow is adjusted by pressing the Remote Controller's SET button. Horizontal (right-left) airfl ow direc-
tion is adjusted manually, by moving the Airfl ow Direction Louvers.
Whenever making horizontal airfl ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are
stopped.
Vertical Air Direction Adjustment
Press the SET button (Fig. 5 L).
Each time the button is pressed, the air direction range will change as follows:
1
Types of Airfl ow Direction Setting:
1, 2, 3, 4, 5, 6 : During Heating/Cooling/Dry modes
The Remote Controller's display does not change.
Use the air direction adjustments within the ranges shown above.
●
The vertical airfl ow direction is set automatically as shown, in accordance with the
●
type of operation selected.
During Cooling/Dry mode
During Heating mode : Downward fl ow 6
During AUTO mode operation, for the fi rst a few minutes after beginning operation,
●
airfl ow will be horizontal 1; the air direction cannot be adjusted during this period.
The airfl ow direction setting will temporarily become 1 when the temperature of the
airfl ow is low at the start of the Heating mode.
2 3 4 5 6
: Horizontal fl ow 1
1
2
3
4
5
6
DANGER!
Never place fingers or foreign objects in-
●
side the outlet ports, since the internal fan
operates at high speed, and personal injury
could be caused.
Always use the Remote Controller's SET
●
button to adjust the vertical airfl ow lou-
vers. Attempting to move them manually
could result in improper operation; in this
case, stop operation and restart. The
louvers should begin to operate properly
again.
During use of the Cooling and Dry
●
modes, do not set the Airfl ow Direction
Louvers in the Heating range (4 - 6)
for many hours, since water vapor may
condense near the outlet louvers and
drops of water may drip from the indoor
unit. During the Cooling and Dry modes,
if the Airflow Direction Louvers are left
in the heating range for more than 30
minutes, they will automatically return to
position 3.
When used in a room with infants, chil-
●
dren, elderly or sick persons, the airfl ow
direction and room temperature should
be considered carefully when making
settings.
Right-Left Adjustment
Adjust the Right-Left louvers.
Move the Right-Left louvers to adjust airfl ow in the direction you prefer.
●
Right-Left Louvers
knob
knob(two places)
CAUTION!
When adjusting the Right-Left Louvers, it
●
is necessary to stop the Vertical (up-down)
louvers first and make sure that it stops
completely before adjusting the direction.
En-10
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To select SWING Operation
Press the SWING button (Fig. 5 M).
The SWING Display (Fig. 6 Y) will light.
In this mode, the Airfl ow Direction Louvers will swing automatically to direct the Airfl ow
both up and down.
To stop SWING Operation
Press the SWING button (Fig. 5 M) once again.
The SWING Display (Fig. 6 Y) will go out.
Airfl ow direction will return to the setting before swing was begun.
About Swing Operation
During cooling/Dry mode : Swings between 1 and 4.
During heating mode : Swings between 4 and 6.
The SWING operation may stop temporarily when the air conditioner’s fan is not op-
●
erating, or when operating at very low speeds.
ECONOMY OPERATION
Begin Air Conditioner operation before performing this procedure.
To Use the ECONOMY Operation
Press the ECONOMY button (Fig.5 G).
The ECONOMY indicator Lamp (green) will light.
ECONOMY operation begins.
To Stop the ECONOMY Operation
● Indicator Lamp
OPERATION
TIMER
ECONOMY
: Lighting : OFF
Press the ECONOMY button (Fig.5 G) again.
The ECONOMY Indicator Lamp (green) (Fig. 3 7) will go out.
Normal operation begins.
About ECONOMY Operation
When ECONOMY operation mode is operated, the room temperature will be little higher than the set-temp under cooling mode
●
and lower than set-temp under heating mode. Therefore, the ECONOMY mode is able to save more energy than other normal
mode.
In case of single-type air conditioner, at the maximum output, ECONOMY operation is approximately 70% of normal air condi-
●
tioner operation for cooling and heating.
In case of multi-type air conditioner, the ECONOMY operation mode is only available for the set indoor unit.
●
If the room is not cooled (or heated) well during ECONOMY operation, select normal operation.
●
During the monitor period in the AUTO mode, the air conditioner operation will not change to ECONOMY operation even if
●
ECONOMY operation is selected by pressing the ECONOMY operation button.
En-11
10°C HEAT OPERATION
To use 10°C HEAT OPERATION
Press the 10°C HEAT button (Fig.5 F)
The OPERATION indicator lamp (green) (Fig. 3 5) will go out, and the ECONOMY indicator lamp (green) (Fig. 3 7) will light.
While 10°C HEAT OPERATION is in
progress, only the following operation
can be used.
• SET
To stop 10°C HEAT OPERATION
Press the START/STOP button (Fig.5 K)
Then the operation stops.
About the 10°C HEAT Operation
The Heating mode will not operate if the room temperature is high enough.
•
The room temperature can be maintained at 10°C by pressing the 10°C HEAT button
•
(Fig.5 F) so as to prevent the room temperature from falling too far.
In case of multi-type air conditioner, if other indoor unit is used for heating, the
•
temperature of the room where the “10°C HEAT” function is applied will rise. When
using the “10°C HEAT” function, we recommend all indoor units should be run under
the“10°C HEAT” mode.
● Indicator Lamp
: Lighting : OFF
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the Remote Controller is lost or otherwise unavailable.
How To Use the Main Unit Controls
Press the MANUAL AUTO button (Fig. 2 2) more than 3 seconds and less than 10 seconds on the main unit control panel.
To stop operation, press the MANUAL AUTO button (Fig. 2 2) for 3 seconds.
When the air conditioner is operated
●
by the controls on the MANUAL AUTO
button, it will operate under the same
mode as the AUTO mode selected on
the Remote Controller (see page 7).
The fan speed selected will be “AUTO”
●
and the thermostat setting will be standard (24
OPERATION
ECONOMY
).
°C
TIMER
CLEANING AND CARE
Before cleaning the indoor unit, be sure to turn it off and disconnect the Power Supply Cord.
CAUTION!
To avoid excessive wear of the part and components or malfunctioning of the air conditioning, the user/consumer shall perform
●
preventive maintenance through an accredited technical assistance, periodically. To know the preventive maintenance periodicity, the consumer shall check with the accredited installer or an accredited technical assistance.
When used for extended periods, the indoor unit may accumulate dust inside, reducing its performance. We recommend that
●
the indoor unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service personnel.
It is recommended for the user/consumer to demand a copy of the Work Order every time there is a visit of a technical assist-
●
ance for verifi cation, maintenance, test or repair of the product.
When cleaning the indoor unit’s body, do not use water hotter than 40°C, harsh abrasive cleansers, or volatile agents like ben-
●
zene or thinner.
Do not expose the indoor unit’s body to liquid insecticides or hairsprays.
●
When shutting down the indoor unit for 1 month or more, fi rst allow the fan mode to operate continuously for half a day to allow
●
internal parts to dry thoroughly.
●
Be sure the Intake Grille (Fig. 1 8) is installed securely.
●
When removing or replacing the air fi lters, be sure not to touch the heat exchanger, as personal injury
●
may result.
En-12
CLEANING AND CARE
Cleaning the Intake Grille
1. Remove the Intake Grille.
1 Place your fi ngers at both lower ends of the grille panel,
and lift forward; if the grille seems to catch partway
through its movement, continue lifting upward to remove.
2 Pull past the intermediate catch and open the Intake
Grille wide so that it become horizontal.
Intake Grille
Mounting
shaft
Knob
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the indoor unit
with warm water, then dry with a clean, soft cloth.
3. Replace the Intake Grille.
1 Pull the knobs all the way.
2 Hold the grille horizontal and set the left and right
mounting shafts into the bearings at the top of the panel.
3 Press the place where the arrow on the diagram indi-
cates and close the Intake Grille.
2
Mounting
1
3
shaft
Bearing
2
1
3
Cleaning the Air Filter
1. Open the Intake Grille, and remove the
air fi lter.
Lift up the air fi lter’s handle, disconnect the 2 lower tabs,
and pull out.
Air fi lter handle
Air fi lter (Right & Left)
Hooks(2 places)
2. Remove dust with a vacuum cleaner or
by washing.
After washing, allow to dry thoroughly in a shaded place.
3. Replace the Air Filter and close the Intake Grille.
1 Align the sides of the air fi lter with the panel, and push
in fully, making sure the 2 lower tabs are returned properly to their holes in the panel.
2 Close the Intake Grille.
(For purposes of example, the illustration shows the indoor
unit without Intake Grille installed.)
Dust can be cleaned from the air fi lter either with a vacuum
●
cleaner, or by washing the fi lter in a solution of neutral de-
tergent and warm water. If you wash the fi lter, be sure to al-
low it to dry thoroughly in a shady place before reinstalling.
If dust is allowed to accumulate on the air fi lter, airfl ow will be re-
●
duced, lowering operating effi ciency and increasing noise.
During periods of normal use, the Air Filters should be
●
cleaned every 2 weeks.
Don't operate the air conditioner with being opened the in-
●
take grille.
Hooks(2 places)
En-13
Knob
CLEANING AND CARE
Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
fi lters.
2. Attach the air cleaning fi lter to the frame
of the front panel.
Attach the fi lter on the inside of the tabs (6 places) so as
●
not to stick out.
Air cleaning fi lter frame
Tabs (6 places)
Air Clean-
(In the above fi gure, the intake grille is omitted for the
explanation)
ing Filter
Tabs
(6 places)
3. Install the 2 Air filters and close the Intake Grille.
Don't operate the air conditioner with being opened the
●
intake grille.
When air cleaning fi lters are used, the effect will increased
●
by setting the fan speed to “High”.
Replacing dirty Air cleaning fi lters
Replace fi lters with the following components (purchased sep-
arately).
POLYPHENOL CATECHIN AIR CLEANING FILTER
●
Negative air ions deodorizing fi lter: UTR-FA16-2
●
: UTR-FA16
1. Open the Intake Grille and remove the Air
fi lters.
2. Remove the air cleaning fi lters attached
to the frames of the front panel.
Air cleaning fi lter frame
Air Cleaning Filter
3. Replace them by 2 new Air cleaning fi l-
ters.
Remove the old air cleaning fi lters in reverse order of
1
their installation.
Install in the same way as for installation of the air
2
cleaning fi lter set.
4. Install the 2 Air filters and close the Intake Grille.
Don't operate the air conditioner with being opened the
●
intake grille.
About the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER
The Air Cleaning Filters are disposable fi lters. (They can not
●
be washed and reused.)
For storage of the Air Cleaning Filters, use the filters as
●
soon as possible after opening the package.
(The air cleaning effect decreases when the fi lters are left in
the opened package)
Generally, the filters should be exchanged about every 3
●
months.
Please buy dedicated air cleaning fi lters (UTR-FA16) (Sold
separately) to exchange the used dirty air cleaning fi lter.
[Negative air ions deodorizing fi lter (1 sheet) — light blue]
The fi lter should be exchanged about every 3 years so as
●
to maintain the deodorizing effect.
Filter frame is not a one-off product.
●
Please buy dedicated deodorizing fi lter (UTR-FA16-2) (Sold
separately) when exchanging the fi lter.
(1 sheet)
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the
fi lter in the follow way once 3 months.
Remove the deodorizing fi lter.
1
Clean with water and dry in the air.
2
1) Flush the fi lter with high-pressure hot water until the
surface of the filter is covered with water. Please
fl ush with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it
will damage the deodorizing effect.
2) Rinse with water fl ow.
3) Dry in shade.
Reinstall the deodorizing fi lter.
3
Filter Indicator Reset (The special setting)
Can be used if set correctly during installation.
Please consult authorized serviceman when using this function.
• It lights on when it is time to clean the air fi lters.
Clean the fi lter referring to “CLEANING AND CARE”.
After cleaning, press the MANUAL AUTO button(Fig.2
2 ) for 2 seconds or less on the indoor unit.
● Indicator Lamp
OPERATION
TIMER
ECONOMY
: Flashing : OFF
En-14
SELECTING THE REMOTE CONTROLLER SIGNAL CODE
When two or more air conditioners are installed in a room and the Remote Controller is operating an air conditioner other than the
one you wish to set, change the signal code of the Remote Controller to operate only the air conditioner you wish to set (4 selections
possible).
When two or more air conditioners are installed in a room, please contact your retailer to set the individual air conditioner signal
codes.
Selecting the Remote Controller Signal Code
Use the following steps to select the signal code of the Remote Controller. (Note that
the air conditioner cannot receive a signal code if the air conditioner has not been set
for the signal code.)
Press the START/STOP button until only the clock is
1
displayed on the Remote Controller display.
Press the MODE button for at least five seconds to
2
display the current signal code (initially set to
Press the ( / ) buttons to change the signal code
3
between
to the air conditioner signal code.
Press the MODE button again to return to the clock
4
display. The signal code will be changed.
. Match the code on the display
).
● If no buttons are pressed within 30 seconds after the signal code is displayed, the system returns to the original clock display. In this case,
start again from step 1.
● The air conditioner signal code is set to A prior to shipment. Contact your retailer to change the signal code.
● The Remote Controller resets to signal code A when the batteries in the Remote Controller are replaced. If you use a signal code other than
signal code A, reset the signal code after replacing the batteries.
If you do not know the air conditioner signal code setting, try each of the signal codes ( ) until you fi nd the code which operates the
air conditioner.
En-15
TROUBLESHOOTING
WARNING!
Before requesting service, perform the following checks:
NORMAL
FUNCTION
Doesn’t operate immediately:
Noise is heard:
Smells:
Mist or steam is emitted:
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical
breaker and consult authorized service personnel.
Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.
Always be sure to turn off the electrical breaker to ensure that power is completely off.
Symptom
If the indoor unit is stopped and then immediately started again, the
●
compressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
Whenever the electrical breaker is turned off then on again the pro-
●
tection circuit will operate for about 3 minutes, preventing unit operation during that period.
During operation or immediately after stopping the unit, the
●
sound of water flowing in the air conditioner’s piping may be
heard. Also, noise may be particularly noticeable for about 2 to
3 minutes after starting operation (sound of refrigerant fl owing).
During operation, a slight squeaking sound may be heard. This is
●
the result of minute expansion and contraction of the front panel due
to temperature changes.
During Heating operation, a sizzling sound may be heard occasional.
●
This sound is produced by the Automatic Defrosting operation.
Some smell may be emitted from the indoor unit. This smell is the
●
result of room smells (furniture, tobacco, etc.) which have been
taken into the indoor unit.
During Cooling or Dry operation, a thin mist may be seen emitted
●
from the indoor unit. This results from the sudden Cooling of room
air by the cool air emitted from the indoor unit, resulting in condensation and misting.
Problem
See Page
—
—
17
—
—
Airfl ow is weak or stops:
Water is produced from the
outdoor unit:
During Heating operation, the outdoor unit’s fan may stop, and
●
steam may be seen rising from the unit. This is due to Automatic
Defrosting operation.
When Heating operation is started, fan speed is temporarily very
●
low, to allow internal parts to warm up.
During Heating operation, if the room temperature rises above the
●
thermostat setting, the outdoor unit will stop, and the indoor unit will
operate at very low fan speed. If you wish to warm the room further,
set the thermostat for a higher setting.
During Heating operation, the indoor unit will temporarily stop opera-
●
tion (between 7 and 15 minutes) as the Automatic Defrosting mode
operates. During Automatic Defrosting operation, the OPERATION
Indicator Lamp will fl ash.
During Dry mode, the indoor unit will operate at low speed; in order
●
to adjust room humidity, the indoor unit’s fan may stop from time to
time. Also, the fan may operate at very low speed when adjusting
room humidity.
During SUPER QUIET operation, the fan will operate at very low speed.
●
In the monitor of AUTO operation, the fan will operate at very low
●
speed.
In case of Multi-type unit, if multiple units are operated in different op-
●
eration modes as shown below, the units operated afterward will stop
and the OPERATION indicator lamp (green) will fl ash.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
During Heating operation, water may be produced from the outdoor
●
unit due to Automatic Defrosting operation.
17
—
17
7
6
7
18
17
En-16
TROUBLESHOOTING
Symptom
Has the circuit breaker been turn off?
CHECK ONCE
MORE
If the problem persists after performing these checks, or if you notice burning smells, or the OPERATION Indicator Lamp (Fig. 3 5)
and the TIMER Indicator Lamp (Fig. 3 6) fl ashes, and ECONOMY Indicator Lamp(Fig.3 7) fl ashes fast. immediately stop operation,
turn off the electrical breaker and consult authorized service personnel.
Doesn’t operate at all:
Poor Cooling (or Heating)
performance:
The unit operates differently
from the Remote Controller’s
setting:
●
Has there been a power failure?
●
Has a fuse blown out, or a circuit breaker been tripped?
●
Is the timer operating?
●
Is the Air Filter dirty?
●
Are the air conditioner’s intake grille or outlet port blocked?
●
Did you adjust the room temperature settings (thermostat) correctly?
●
Is there a window or door open?
●
In the case of Cooling operation, is a window allowing bright sunlight
●
to enter? (Close the curtains.)
In the case of Cooling operation, are there heating apparatus and
●
computers inside the room, or are there too many people in the
room?
Is the unit set for SUPER QUIET operation?
●
Are the Remote Controller’s batteries dead?
●
Are the Remote Controller’s batteries loaded properly?
●
Items to check
See Page
—
8 - 9
—
6
5
OPERATING TIPS
Operation and Performance
Heating Performance
This air conditioner operates on the heat-pump principle,
●
absorbing heat from outdoor air and transferring that heat
to indoor unit. As a result, the operating performance is
reduced as outdoor air temperature drops. If you feel that
insufficient heating performance is being produced, we
recommend you use this air conditioner in conjunction with
another kind of heating appliance.
Heat-pump air conditioners heat your entire room by recir-
●
culating air throughout the room, with the result that some
time may be required after fi rst starting the air conditioner
until the room is heated.
Microcomputer-controlled Automatic Defrosting
When using the Heating mode under conditions of low out-
●
door temperature and high humidity, frost may form on the
outdoor unit, resulting in reduced operating performance.
In order to prevent this kind of reduced performance, this
air conditioner is equipped with a Microcomputer-controlled
Automatic Defrosting function. If frost forms, the air conditioner will temporarily stop, and the defrosting circuit will
operate briefl y (for about 7-15 minutes).
During Automatic Defrosting operation, the OPERATION
Indicator Lamp (green) will fl ash.
After heating operation stops, if frost forms on the outdoor
●
unit, the unit will start Automatic Defrosting operation. At
this time, the outdoor unit will automatically stop after operating for a few minutes.
En-17
OPERATING TIPS
AUTO Restart
In Event of Power Interruption
The power supply to the air conditioner is stopped by a
●
power interruption. The air conditioner will then restart automatically in its previous mode when the power is restored.
Multi-type Air conditioner
This indoor unit can be connected to a multi-type outdoor unit depending on model. The multi-type air conditioner allows multiple indoor units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective
output.
Simultaneous Use of Multiple Units
When using a multi-type air conditioner, the multiple indoor
●
units can be operated simultaneously, but when two or
more indoor units of the same group are operated simultaneously, the heating and cooling effi ciency will be less
than when a single indoor unit is used alone. Accordingly,
when you wish to use more than 1 indoor unit for cooling
at the same time, the use should be concentrated at night
and other times when less output is required. In the same
way, when multiple units are used simultaneously for heating, it is recommended that they be used in conjunction
with other auxiliary space heaters, as required.
Seasonal and outdoor temperature conditions, the struc-
●
ture of the rooms and the number of persons present may
also result in differences of operating effi ciency. We rec-
ommend that you try various operating patterns in order to
confi rm the level of heating and cooling output provided by
your units, and use the units in the way that best matches
your family’s lifestyle.
If you discover that one or more units delivers a low level
●
of cooling or heating during simultaneous operation, we
recommend that you stop simultaneous operation of the
multiple units.
Operation cannot be done in the following different operat-
●
ing modes.
If the indoor unit is instructed to do an operating mode that
it cannot perform, the OPERATION indicator lamp (green)
on the indoor unit will fl ash (1 second on, 1 second off)
and the unit will go into the standby mode.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
If a power interruption occurs during TIMER operation, the tim-
●
er will be reset and the indoor unit will begin (or stop) operation
at the new time setting. In the event that this kind of timer fault
occurs, the TIMER Indicator Lamp will fl ash (see Page. 3).
Use of other electrical appliances (electric shaver, etc.) or
●
nearby use of a wireless radio transmitter may cause the air
conditioner to malfunction. In this event, temporarily turn off
the circuit breaker, turn it on and then use the Remote Controller to resume operation.
Operation can be done in the following different operating
●
modes.
Cooling mode and dry mode
Cooling mode and fan mode
Dry mode and fan mode
The operating mode (heating mode or cooling (dry) mode)
●
of the outdoor unit will be determined by the operating
mode of the indoor unit that was operated fi rst. If the in-
door unit was started in fan mode, the operating mode of
the outdoor unit will not be determined.
For example, if indoor unit (A) was started in fan mode
and then indoor unit (B) was then operated in heating
mode, indoor unit (A) would temporarily start operation
in fan mode but when indoor unit (B) started operating in
heating mode, the OPERATION indicator lamp (green) for
indoor unit (A) would begin to fl ash (1 second on, 1 sec-
ond off) and it would go into standby mode. Indoor unit (B)
would continue to operate in heating mode.
Notice
During use of the heating mode, the outdoor unit will occa-
●
sionally commence the defrost operation for brief periods.
During the defrosting operation, if the user sets the indoor
unit for heating again, the defrosting mode will continue,
and the heating operation will begin after completion of
defrosting, with the result that some time may be required
before warm air is emitted.
During use of the heating mode, the top of the indoor unit
●
may become warm, but this is due to the fact that cool-
ant is circulated through the indoor unit even when it is
stopped; it is not a malfunction.
En-18
Loading...
