FUJITSU 620C User Manual

ScanPartner 620C Image Scanner
User's Manual
(Doc. No. 250-0062-0 Ver. 1.0)
ii
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes or modifications not expressly approved by the manufacture of this device could void the user's authority to operate the equipment.
iii
Table of Contents
1. INTRODUCTION...........................................................................................1-1
2. INSTALLATION ............................................................................................2-1
2.1 SHIPPING BRACKET...................................................................................................2-1
2.1.1 REMOVING THE SHIPPING BRACKET.............................................................2-1
2.1.2 REFITTING THE SHIPPING BRACKET.............................................................2-3
2.2 SCSI INTERFACE DEVICE ID......................................................................................2-3

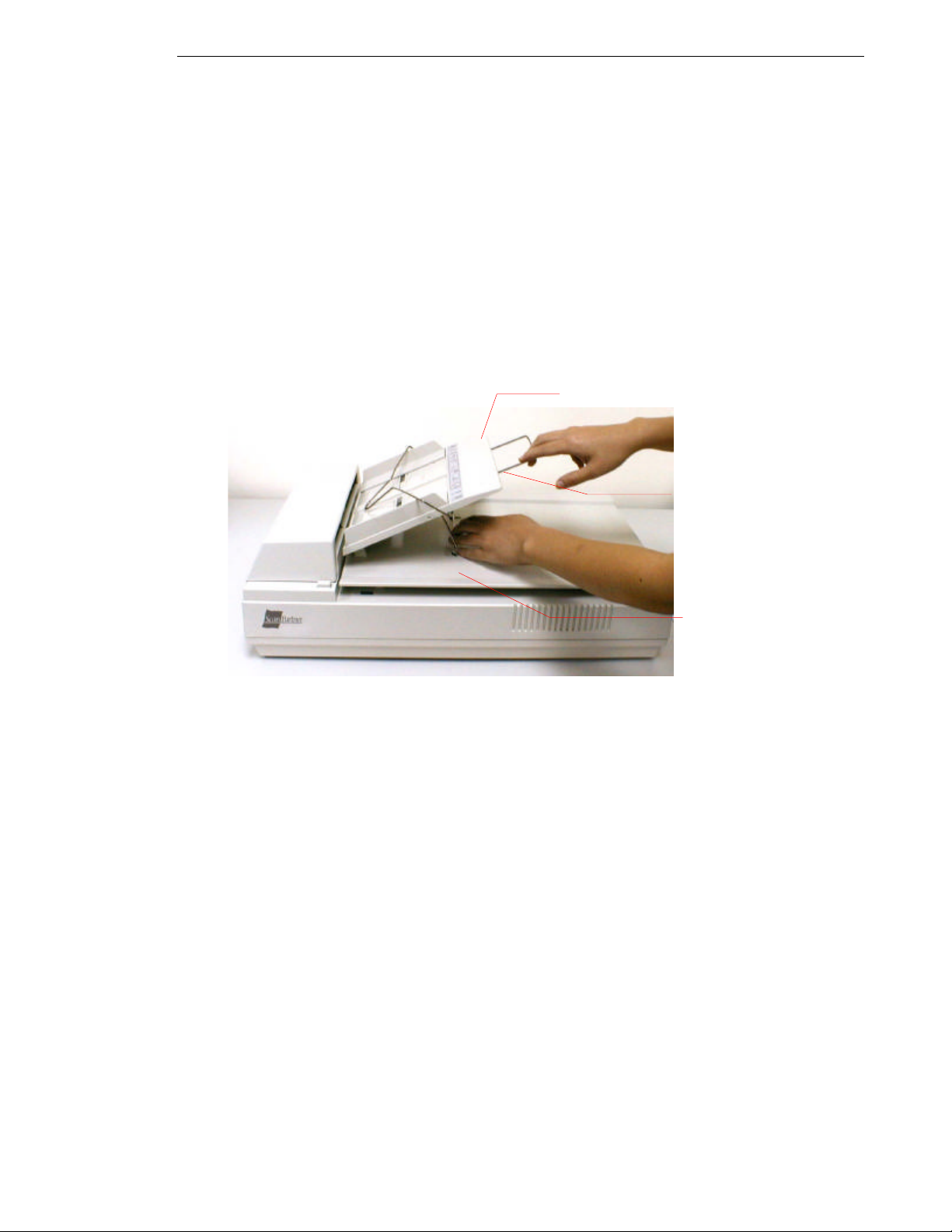

2.3 ADF PAPER CHUTE.....................................................................................................2-5
2.4 ADF OUTPUT TRAY.....................................................................................................2-6
2.5 DOCUMENT LOADING................................................................................................. 2-7

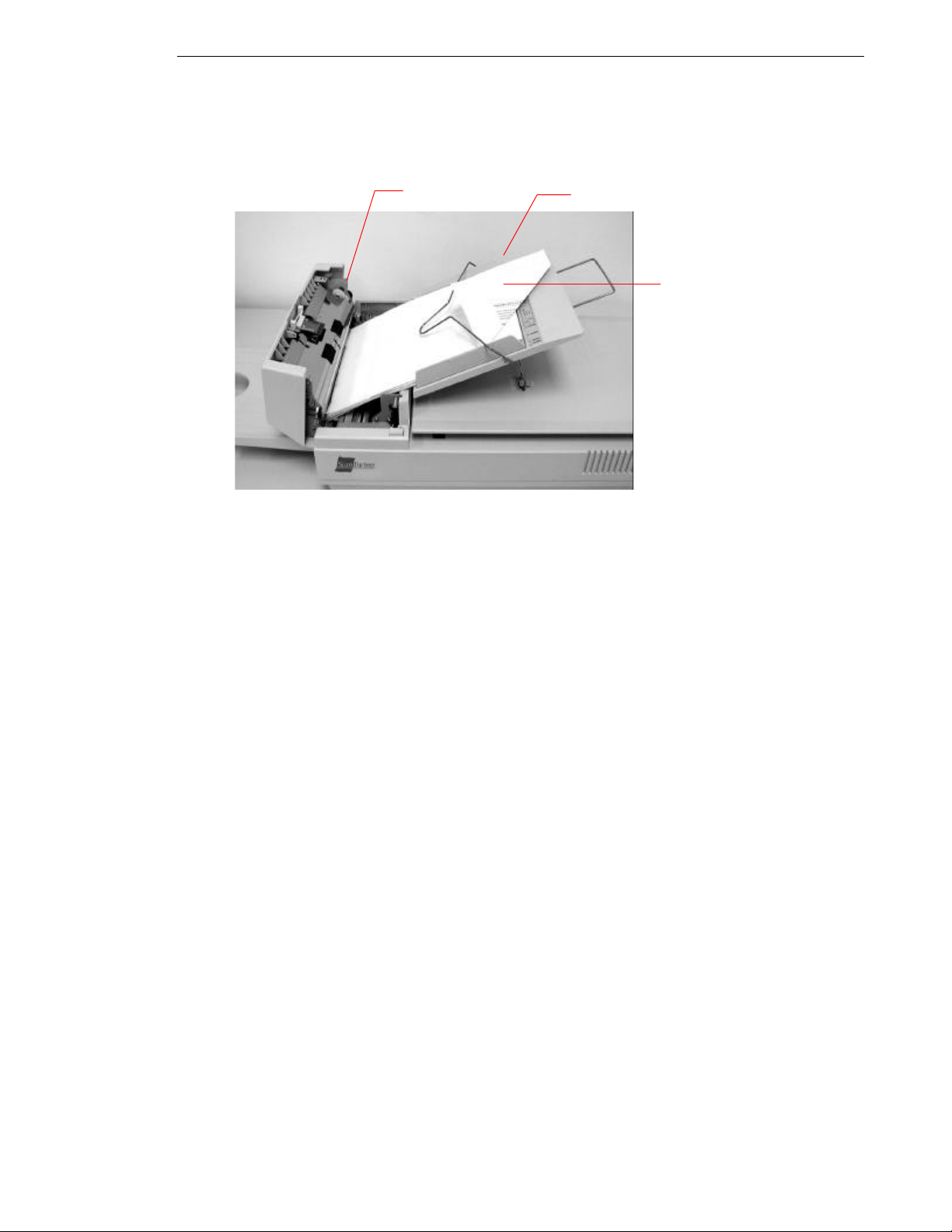

2.6 ADF SCANNING...........................................................................................................2-8
2.7 CONNECTING THE CABLE.......................................................................................... 2-9
3. MAINTENANCE ............................................................................................3-1

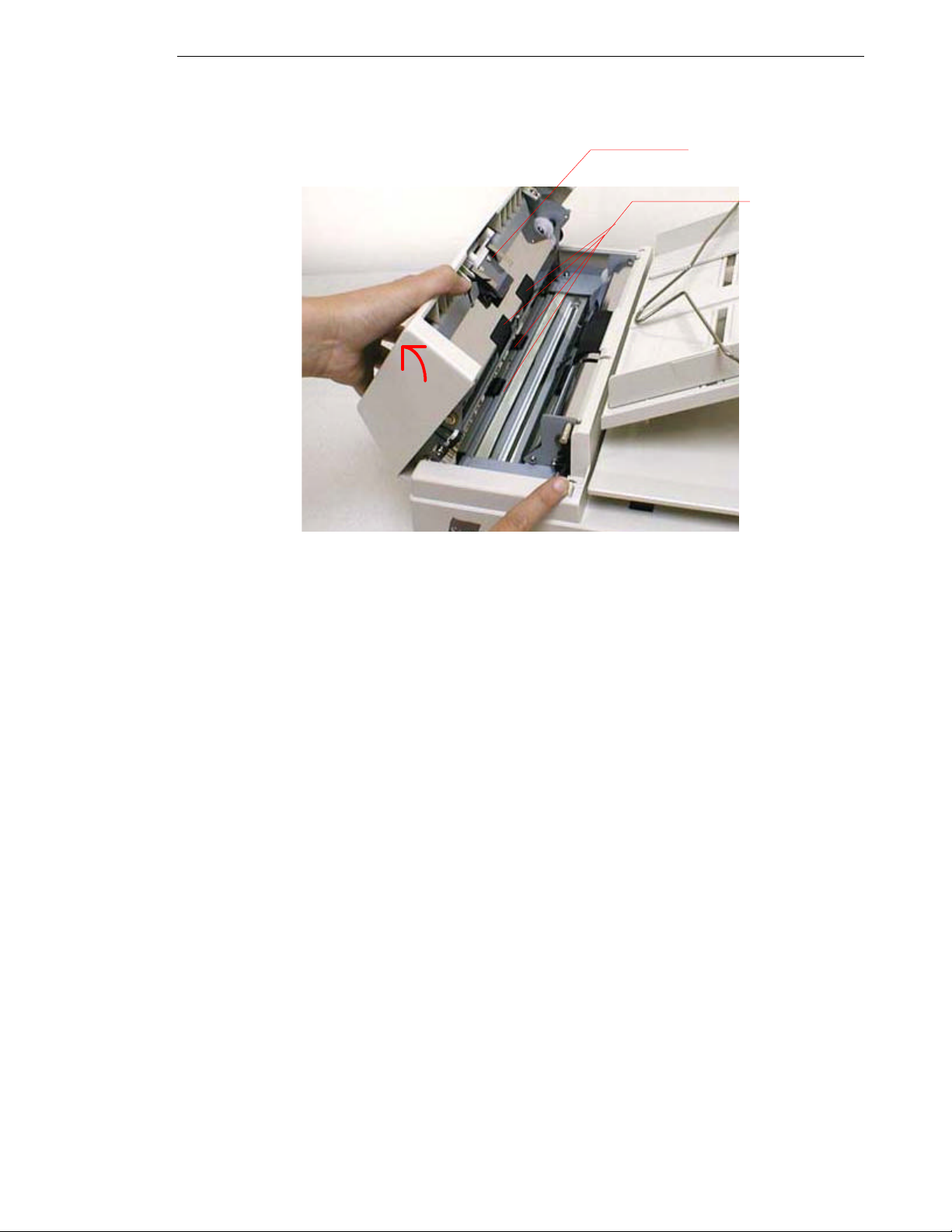

3.1 CLEANING THE ADF....................................................................................................3-1
3.2 CLEANING THE GLASS...............................................................................................3-3

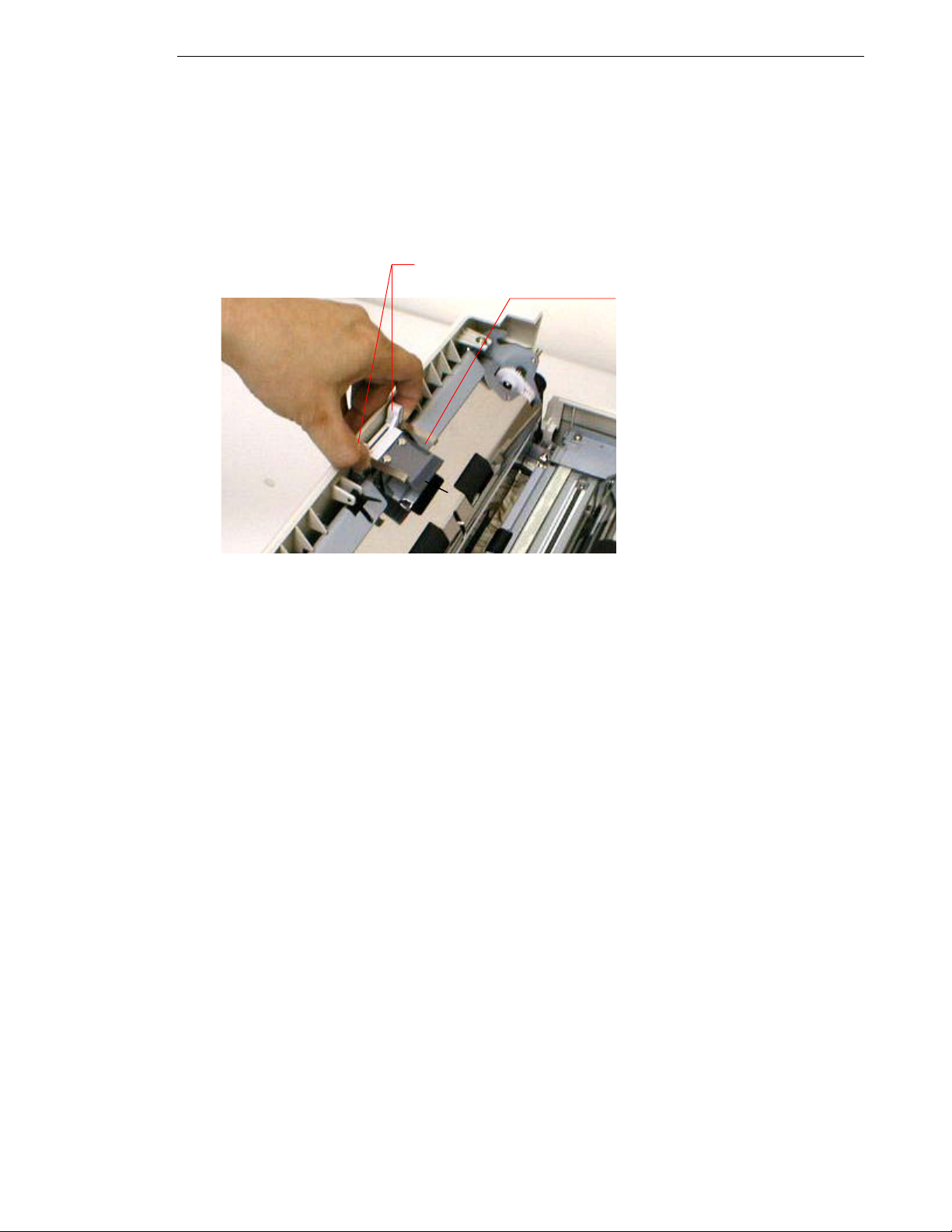

3.3 REPLACING THE ADF SNAP-IN PAD MODULE..........................................................3-4
4. TROUBLESHOOTING..................................................................................4-1
4.1 QUESTION AND ANSWER ..........................................................................................4-1

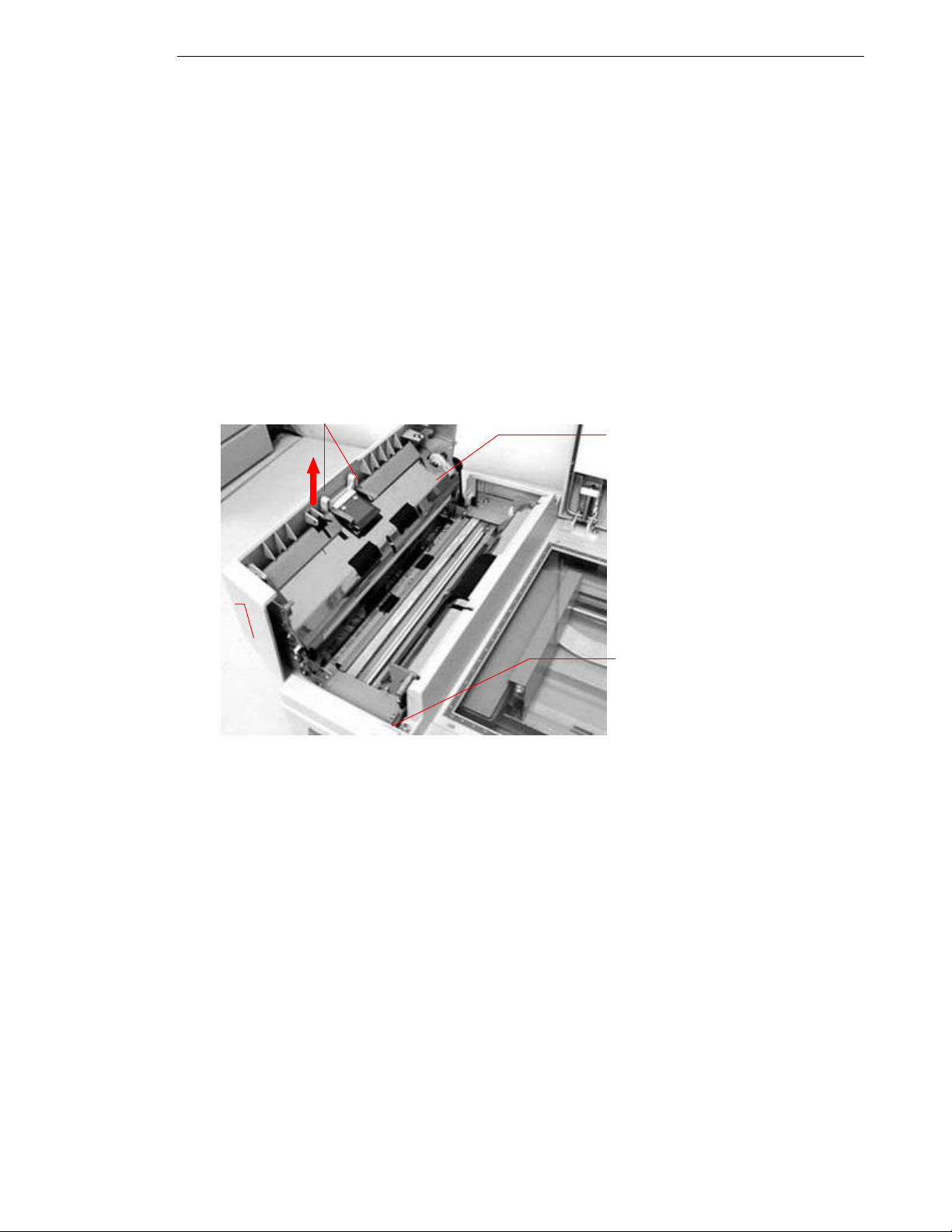

4.2 PAPER JAM IN THE ADF............................................................................................. 4-3
5. SPECIFICATIONS.........................................................................................5-1
5.1 SCANPARTNER 620C SPECIFICATIONS....................................................................5-2
INDEX
1-1
1. INTRODUCTION
Power Cable
Optional Package
Congratulations on your purchase of Fujitsu ScanPartner 620C Scanner.
Before you install and operate the new Scanner, please take a few minutes to read through this manual. It provides you with the proper instructions on how to unpack, install, operate and maintain the Scanner.
Figure 1-1 shows how the Scanner is packed. You can check all items against your “checklist”, included with your Scanner.
Signal Cable
Driver Kit
Output Paper Rack
Scanner Body
Interface Card
Foam(Left)
Form(Right)
Carton
Figure 1-1 Scanner packing
2-1
2. INSTALLATION
Please unpack the Scanner carefully, and check the contents against the checklist. If any items are missing or damaged, please contact your authorized local dealer immediately.
Precautions
Keep the Scanner out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit.
Do not install the Scanner in a humid or dusty place.
Be sure to use the proper AC power source.
Place the Scanner securely on an even, flat surface. Tilted or uneven surfaces may cause
mechanical or paper-feeding problems.
Retain the Scanner box and packing materials for shipping purposes.
2.1 SHIPPING BRACKET
The Scanner has a bracket that locks the carrier mechanism for transportation purposes. This bracket must be put into the use position before using the Scanner.
If the power is turned on before the bracket has been removed the PAPER JAM light will turn on. Before proceeding, turn the power off, disconnect all cables and follow the instructions below to remove the shipping bracket.
2.1.1 REMOVING THE SHIPPING BRACKET
i). Carefully place the Scanner in an upright position on its front. ii). Using a suitable screwdriver, remove the screw and pull out the shipping bracket.(See
Figure 2-1)
iii). Put the shipping bracket into the use position with the short side extending into the Scanner
base and secure it with the screw.(See Figure 2-2)
iv). Carefully place the Scanner back into its normal position.
2-2
Figure 2-1 Removing the Shipping Bracket
“Shipping Position”
“Use Position”
Figure 2-2 Securing the Shipping Bracket
2-3
2.1.2 REFITTING THE SHIPPING BRACKET
Whenever you need to move the Scanner to a new location it is advisable to refit the shipping bracket to avoid causing damage to the Scanners’ internal mechanism. Please follow the instructions below to refit the shipping bracket.
i). Turn off the Scanner power at the power on/off switch. ii). Open the document cover. iii). Turn off the Scanner.
Note: For steps (iv) to (vi) please refer to Figure 2-1 and 2-2.
iv). Carefully place the Scanner in an upright position on its front side. v). Use a suitable screwdriver to remove the screw holding the shipping bracket in the use
position.
vi). Put the shipping bracket into the shipping position, with the long side extending into the
Scanner base. Secure it with the screw.
vii). Carefully place the Scanner back into its normal position.
2.2 SCSI INTERFACE DEVICE ID
When you have several devices on a SCSI chain, you may need to adjust the SCSI ID selector setting located on the back of the Scanner. This setting assigns a specific "device ID" to the Scanner. If the assignment conflicts with an existing SCSI device, please select a new ID. (See Figure 2-3)
Note: The factory setting for Scanner is ID 6. Usually, ID 0 is assigned to an internal hard disk drive, and ID 7, to SCSI adapter or host. ID 8 and 9 are not in actual use.
Using a suitable tool, turn the selector switch until the arrow points to the desired ID number.
2-4
SCSI ID Selector
On Off
SCSI Termination Switch
Figure 2-3 Adjusting the SCSI ID setting.
