Fujitsu 6000 User Manual

DESKPOWER 6000/SS Series User’s Manual

Fujitsu endeavours to ensure that the information in this document is correct, but accepts no liability for any error or omission in the same. Any procedures described in this document for operating Fujitsu products should be read and understood by the operator before such products are used. To ensure that Fujitsu products function without risk to safety and health, such procedures should be strictly observed by the operator. The development of Fujitsu products and services is continuous and published information may not be up to date. Any particular issue of a product may contain facilities not described herein. It is important to check the current position with Fujitsu. Specifications and statements as to performance in this document are Fujitsu estimates intended for general guidance. They may require adjustment in particular circumstances and should therefore not be taken as formal offers or commitments.

DESKPOWER is a trademark of Fujitsu Limited. The following are registered trademarks of Miscrosoft Corporation: MS, MS-DOS, Windows® NT, Windows® for Workgroups, Windows® 95, Windows® 98. Celeron,Pentium II and III are the registered trade mark of Intel Corporation. Phoenix and the Phoenix logo are registered trademarks of Phoenix Technologies, Ltd. Intel Pentiumw and MMX™ technology are trademarks of Intel Corporation. ATI Graphic Chip: RAGE PRO TURBO and RAGE XL are the registered trademarks of ATI Technologies, Inc. Award is the registered trademark of Award Software International Inc.

All Rights Reserved. Copyright© Fujitsu Limited, 1999 The use of screens is permitted by Microsoft Corporation in the United States. All other products are trademarks or registered trademarks of their respective companies.

© Copyright 1999 Fujitsu Limited. All rights reserved. No part of this publication may be copied, reproduced, or translated without the prior written consent of Fujitsu Limited. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu Limited.

Fujitsu PC (Asia) Pte Ltd 200 Pandan Loop #05-03 Pantech 21 The Computer Centre Singapore 128388

Tel : 65-776 0688 Fax : 65-776 0788

Greetings

○○○○○○○○

We thank you for purchasing the Fujitsu DESKPOWER 6000/SS personal computer. The DESKPOWER 6000/SS is a desktop-type personal computer with a space-saving design. This manual explains how to use the hardware of the DESKPOWER 6000/SS. Please read this manual carefully to ensure correct use of the PC.

This unit may malfunction if the power source is interrupted suddenly, for example, due to lightning. Fujitsu recommends the use of an AC non-interruptible power supply unit.

(Based on guidelines for the prevention of sudden voltage interruptions by Japan Electronic Industry Development Association (JEIDA).

This unit is class B information technology equipment based on the Voluntary Control Council for Interference (VCCI) standard by Information Technology Equipment and may create interference if used near radio or television receivers. Use the unit in accordance with information provided in the manual.

This unit conforms to the Personal Computer Industry Standard (PC-11-1988) of the Japan Electronic Industry Development Association (JEIDA).

This unit conforms to the harmonic guideline.

Because this product includes cargo based on the “Foreign Exchange and Foreign Trade Control Act,” the export of this product may require permission in accordance with said act.

Fujitsu, who is a participant of the International Energy Star Program, determines that this product conforms to the International Energy Star Program Standard. The International Energy Star Program is an international program for promoting energy conservation of office equipment such as computers and strives to develop and promote products capable of efficient energy use. This program is open to all manufacturers, and the products to be developed include computers, displays, printers, facsimiles, and copy machines. The same standard and markings ( ) are used among participating countries. The energy-saving function of this product, however, may not be applicable because of limitations with the operating system (such as Windows NT).

June 1999

Conventions used in this manual

○○○○○○○○

● Warning icons

Various icons and icon/word combinations are used in this manual to encourage users to use the equipment so as to minimize personal risk and prevent property damage. The icons are explained as follows. The user should be familiar with the icons before responding to the corresponding instructions.

WARNING CAUTION

The following icons are also used with the above icon/word combinations to prevent personal injury and/or property damage.

Indicates a hazardous situation that could result in fatal or serious wound if the correct procedure is not applied.

Indicates a hazardous situation that could result in personal injury and/or property damage if the correct procedure is not applied.

The icon that indicates the corresponding instruction is a warning. The illustration displayed inside or beside the icon shows what the warning actually means.

The icon that indicates the corresponding instruction is a banned action. The illustration displayed inside or beside the icon shows what is actually banned.

The icon ● that indicates the corresponding instruction is a command to proceed. The illustration displayed inside or beside the icon shows what to proceed.

● Representing keys and use thereof

In the text of the manual, keyboard keys are represented using only necessary characters as shown below.

Example: [Ctrl] key, [Enter] key, and [→] key

When more than one key is to be pressed simultaneously, the keys are represented using “+” between keys as shown below:

Example: [Ctrl] + [F3] and [Shift] + [↑]

● Representing buttons

Buttons displayed on the screen are enclosed in square brackets, [and], as shown below:

Example: [OK]

● Command entries

In the text of the manual, a command is represented as shown below:

diskcopy a: a:

↑ ↑

iii

A blank (shown with [↑]) between characters indicates that the [Space] key (long bar on the front of the keyboard) is to be pressed once. Command names are represented in lowercase but may be entered using uppercase letters.

● Conventions used in the text of the manual

The symbols used in the text of the manual have meanings as explained below:

Point Help

Point indicates information necessary to run hardware or software.

Help indicates information explaining how to terminate an incorrect operation or troubleshoot.

● Screen display examples

Screen displays provided in this manual are examples and may be different from those (including file names) actually appearing on the display screen.

● Illustrations

Illustrations in this manual are an example using (mainly) the DESKPOWER 6000/SS (CD-ROM drive-equipped model) and may be different from those actually appearing on your PC screen depending on the model type and options installed.

● Referencing products

In this manual, products are described using abbreviations as listed below:

Windows 95 refers to Microsoft® Windows® 95 operating system. Windows 98 refers to Microsoft® Windows® 98 operating system. Windows NT refers to Microsoft® Windows NT® Workstation operating system Version 4.0. The terms “your PC,” “the PC,” “your PC main unit,” and “the PC main unit” refer to the

DESKPOWER.

Warning and caution labels

○○○○○○○○○○○

The PC bears warning and caution labels as shown below. The warning and caution labels must not be removed or damaged.

WARNING

Electric shock

Before disassembling the unit and installing a built-in option, switch off the PC and all connected peripherals and unplug all power cords from respective outlets to prevent electric shock.

● Before mounting or dismounting an optional unit in/from your PC, switch off the PC and all connected units and unplug all power cords from respective outlets to prevent electric shock.

Man

Manual configuration

Chapter 1 Installation and Connection

This chapter outlines precautions that should be noted when installing the PC and explains how to connect various cables. Consult this chapter before assembling the PC.

Chapter 2 Basic Operations

This chapter explains basic operations required to use the PC, such as how to switch the power on and off and how to proceed with storage media. Consult this chapter.

Chapter 3 Installing Internal Options

This chapter explains how to install internal options such as hard disk and expansion cards. Consult this chapter as required.

Chapter 4 BIOS Setup

This chapter explains the BIOS Setup program required for installing an internal option in your PC or setting it in the power saving mode. Consult this chapter as required.

Chapter 5 Troubleshooting

Appendix

This chapter explains how to proceed if your PC does not operate correctly or if an error message appears. Consult this chapter as required.

This appendix provides the name of each component of your PC, information relevant to PC maintenance, the specification of the PC main unit, and a list of precautions. Consult this appendix.

Appendix

Greetings ..................................................................................................... ii

Conventions used in this manual.................................................................iii

Warning and caution labels ......................................................................... v

Manual configuration .................................................................................. vi

Chapter 1 Installation and Connection

1 Installation .................................................................................... 2

Installation location ...................................................................................... 2

Example of installing the PC ........................................................................ 2

Preventing electromagnetic interference with a TV or radio........................ 3

2 Connection ................................................................................... 4

Attaching display, keyboard, mouse, and LAN cables ................................ 5

Connecting the power cord.......................................................................... 6

Upon completion of all connections............................................................. 7

Chapter 2 Basic Operations

1 Switching on............................................................................... 10

2 Switching off............................................................................... 11

Turning off the power via Windows 95/98.................................................. 11

Turning off the power via Windows NT ......................................................12

3 Reset ........................................................................................... 13

Resetting the PC via Windows 95/98......................................................... 13

Resetting the PC via Windows NT............................................................. 13

4 Floppy Disk................................................................................. 14

Handling precautions................................................................................. 14

Mounting and dismounting a floppy disk.................................................... 14

vii

5 CD-ROM ...................................................................................... 16

Handling precautions................................................................................. 16

Mounting and dismounting a CD-ROM disk .............................................. 17

6 Hard Disk..................................................................................... 18

What is a hard disk?................................................................................... 18

Handling precautions................................................................................. 18

Chapter 3 Installing Internal Options

1 Introduction ................................................................................ 20

Handling precautions................................................................................. 20

Installing positions of internal options........................................................ 21

Removing the upper cover......................................................................... 22

2 Installing Memory Modules ....................................................... 23

Memory combination table ........................................................................ 24

Installing an additional memory ................................................................. 24

Removing the memory............................................................................... 25

3 Installing Expansion Cards ....................................................... 26

Installing an expansion card ...................................................................... 27

Chapter 4 BIOS Setup

1 Preface ........................................................................................ 30

What is BIOS setup?.................................................................................. 30

Starting BIOS setup ...................................................................................30

Key functions .............................................................................................31

Exiting BIOS setup..................................................................................... 31

Menus ........................................................................................................32

2 Main Menu................................................................................... 33

Details on setup items................................................................................ 33

3 Detail Menu ................................................................................. 37

Details on setup items................................................................................ 37

viii

4 Security Menu............................................................................. 47

Details on setup items................................................................................ 47

Setting a password ....................................................................................50

Changing passwords ................................................................................. 53

Deleting passwords ...................................................................................53

5 Power Menu ................................................................................ 54

Details on setup items................................................................................ 54

6 Boot Menu................................................................................... 60

Details on setup items................................................................................ 60

7 Info Menu .................................................................................... 63

Details on setup items................................................................................ 63

8 Exit............................................................................................... 65

Details on setup items................................................................................ 65

Chapter 5 Troubleshooting

1 Error Messages .......................................................................... 68

Error messages displayed by the PC......................................................... 68

Correcting errors........................................................................................ 71

2 Troubleshooting......................................................................... 72

Troubleshooting information on the computer main unit

and peripheral units ...................................................................................72

Troubleshooting information on Windows 95/98 ....................................... 73

If an error recurs ........................................................................................ 74

Appendix

1 Name and Function of Each Component ................................. 76

Front of the PC main unit ........................................................................... 76

Rear of the PC main unit ............................................................................ 77

Inside the PC main unit .............................................................................. 78

Motherboard ..............................................................................................79

Keyboard ................................................................................................... 80

2 Standard Specifications ............................................................ 81

PC main unit specifications........................................................................ 81

LAN adapter specifications........................................................................ 82

Sound specifications ................................................................................. 82

Resources ................................................................................................. 84

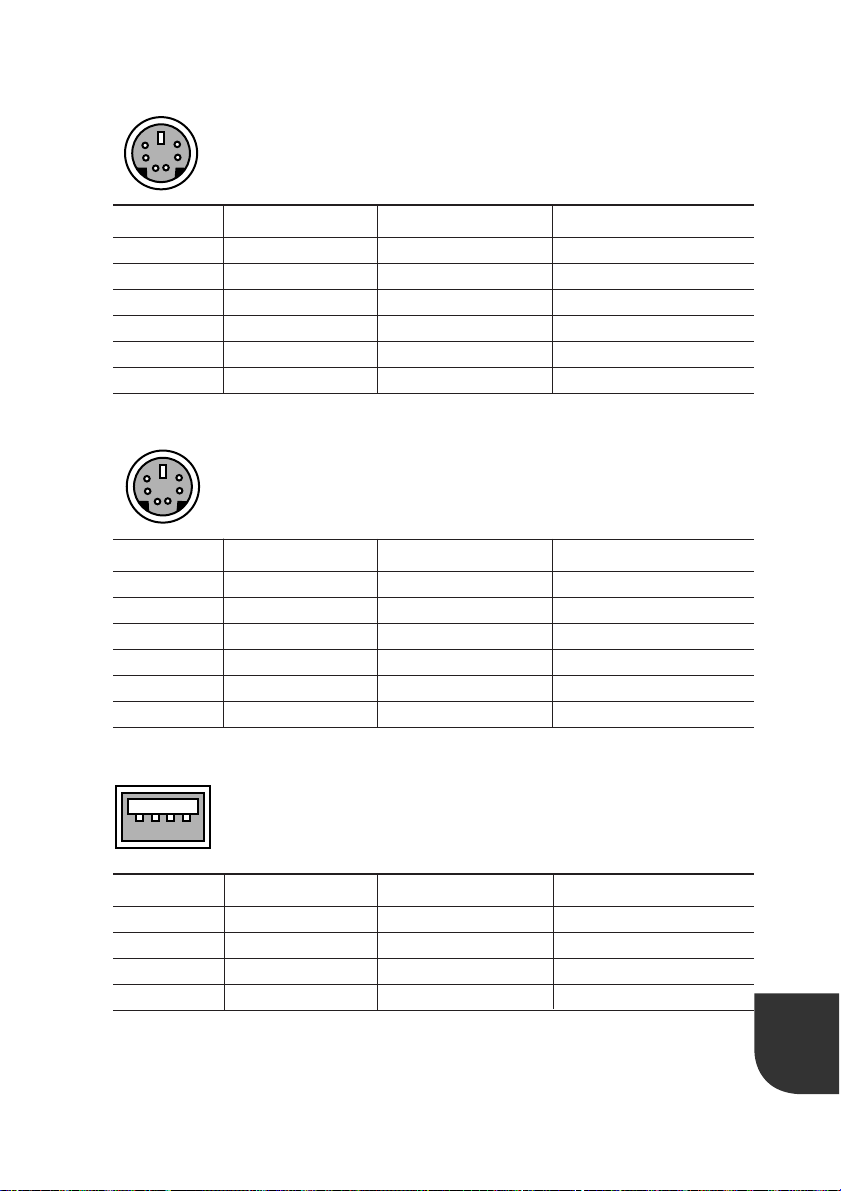

Connector specifications ...........................................................................85

3 Cleaning Method ........................................................................ 88

Cleaning the PC main unit .........................................................................88

Cleaning the keyboard............................................................................... 88

Cleaning a CD-ROM.................................................................................. 88

Cleaning the mouse................................................................................... 88

Cleaning a floppy disk drive ....................................................................... 89

Cleaning a CD-ROM drive ......................................................................... 90

4 Cabinet Security......................................................................... 91

5 Supplement................................................................................. 92

USB............................................................................................................ 92

Peripherals and cables ..............................................................................92

Notes on using the CRT display ................................................................ 92

Notes on using the liquid-crystal display ................................................... 92

Supporting power saving on a display ....................................................... 93

Suspend functions (Windows 95 models) ................................................. 93

Power saving function................................................................................ 93

Replacing a display.................................................................................... 93

Multi-monitor.............................................................................................. 94

LAN cable .................................................................................................. 94

USB keyboard (Windows 98 models) ........................................................ 94

Erratic mouse behavior when resume from suspend ................................94

Chapter 1 Installation and

Connection

This chapter outlines precautions that should be noted when installing the PC and explains how to connect various cables.

1 Installation .............................................................................................2

2 Connection ............................................................................................4

Installation

This section provides notes on installing and using the PC.

Installation location

○○○○○○

Do not install the PC in the following areas:

- Areas exposed to moisture, dust, or smoke.

- Areas poorly ventilated.

- Areas having open flames.

- Areas that may expose the PC to water.

- Areas exposed to direct sunlight or high temperatures.

- Areas having temperatures below 10°C.

- Areas that are unusually small or crowded.

- Areas having a strong magnetic field (close to a TV or speaker).

- Areas exposed to strong vibration and areas that are unstable such as an inclined surface.

Example of installing the PC

○○○○○○

Install the PC as follows. The PC main unit can be positioned vertically or horizontally as shown below. Ensure that

ventilation holes are unblocked when installing the PC. When positioning the PC vertically, install the foot under the PC main unit.

● Vertical installation

Keyboard

Mouse

The unit is intended for desktop use only.

Display

Ventilation holes

PC main unit

Foot

● Horizontal installation

Only a 17 inches or smaller-size display can be installed on the top of the PC main unit. Do not install a 19-kg or greater-weight display on the top of the PC unit.

Ventilation holes

PC main unit

Display

Keyboard

Mouse

Point

This instruction will proceed for the PC main unit to be positioned vertically. When posititioning it horizontally, replace the description “vertically” as “horizontally”.

Preventing electromagnetic interference with a TV or radio

○○○○○○

Your PC complies with the VCCI Standard restricting electromagnetic interference with a TV or radio. However, the computer may interfere with a TV or radio depending on the installation location. To prevent the PC from interfering with TV or radio reception, note the following:

● Precautions to be taken by the PC user

- Do not use the PC with the cover removed.

- Use the specified cable to connect the PC with a peripheral. Do not use an unauthorized cable.

- After installing a cable, ensure that the connector is firmly attached and the screws (if any) are tight.

- Do not plug the PC in the same outlet as a TV or radio.

● Precautions to be taken by the TV or radio

- Do not place a TV or radio near the PC.

- Position TV or radio antennas in such a way that interference is minimized.

- Stay away the antenna line of a TV or radio near from the PC.

- Use coaxial cables as antenna feeders.

If interference with TV or radio reception continues after switching off the PC and peripherals, check the above items again.

If interference continues, contact Fujitsu or the shop from which your PC or peripheral was purchased.

Connection

Connect the display, keyboard, and power cord to your PC main unit.

WARNING

● To prevent electric shock, ground the device (if required) before providing power to the equipment. To prevent fire, do not connect the ground wire to a gas pipe.

● To prevent electric shock, unplug the PC main unit and connected equipment before attaching and detaching a display, keyboard, mouse, LAN cables, and power cords.

● To prevent electric shock, fire, and/or malfunction, ensure that the display, keyboard, and mouse are all Fujitsu brand products.

CAUTION

● Ensure that cables are connected correctly. Using the PC and peripherals when connected incorrectly may result in a malfunction.

● To prevent a fire and/or malfunction, connect only the specified device to the AC service outlet (if provided).

● To prevent injury and/or malfunction, do not touch PC board components that are not specified.

Point

To connect a LAN cable, use a twisted pair cable, which must be purchased separately as it is not included with your PC package.

Connect the LAN cable.

Attach one end of the twisted pair cable to the network connector, such as a hub.

Connect the mouse.

Attach the mouse cable connector to the mouse connector (ensuring that the colors of mouse connector and mouse label on the rear of the PC main unit match and that the arrow on the mouse cable connector housing is pointing to the right).

Connect the keyboard.

Attach the keyboard cable connector to the keyboard connector (ensuring that the colors of the keyboard connector and keyboard label on the rear of the PC main unit match and that the arrow on the keyboard cable connector housing is pointing to the right).

Attaching display, keyboard, mouse, and LAN cables

○○○○○○○○

Point

This section explains how to connect a liquid-crystal display. To connect a CRT display, use the power cord included with your PC package. The power cord included with the CRT display is not used.

Connect the LAN cable

Attach the other end of the twisted pair cable (purchased separately) to the LAN connector on the rear of the PC main unit.

Connect the power cord to the outlet.

Attach one end of the plug of outlet conversion cable included with the liquid-crystal display to the outlet of the PC main unit.

Connect the power cord to the liquid-crystal display

Attach the other end of the outlet conversion cable included with the liquid-crystal display to the inlet on the rear of the PC main unit.

Connect the liquid-crystal display cable to the PC main unit.

Attach the liquid-crystal display cable connector to the connector on the rear of the PC main unit and tighten the cable connector screws.

Connecting the power cord

○○○○○○

After connecting the display and other peripherals to the PC main unit, note the following when connecting the power cord of the PC main unit.

- Do not plug or unplug the power cord with wet hands.

- Do not damage or remodel the power cord.

- Do not bend, stretch, or place heavy objects on the power cord.

- Do not use the PC if the power cord or plug is damaged.

- If the electrodes of the power cord plug or the corresponding outlet is dusty, wipe with a dry cloth.

- Connect the power cord to a household power source.

Point

Do not plug the power cord of your PC in a multiple plug box. Do not entangle the keyboard and mouse cables.

- Unplug all power cords during an electrical storm.

- If only a two-pin outlet is available, use the adapter plug provided and connect the ground wire.

- When unplugging a power cord, secure the plug housing.

- Ensure that the power plug is fully inserted into the outlet.

- Unplug the PC when not being used for a period of time.

Connect the power plug to a power source.

Attach the power plug to the inlet on the rear of the PC.

Insert the other end of the power plug into the outlet.

Upon completion of all connections

○○○○○○

Upon completion of all connections, fill out all user registration cards included with your PC package and mail.

The registration cards are used by manufacturers to obtain user information.

Chapter 2 Basic Operations

This chapter explains basic operation methods of the PC such as how to turn the power on and off and handle storage media.

1 Switching on ........................................................................................10

2 Switching off ........................................................................................11

3 Reset ...................................................................................................13

4 Floppy Disk ..........................................................................................14

5 CD-ROM ..............................................................................................16

6 Hard Disk .............................................................................................18

Switching on

This section explains how to switch on the PC.

CAUTION

● To prevent malfunction after turning on the PC, do not move equipment or subject equipment to shock and/or vibration.

Press the power switch of the display.

There is no display.

Press the power switch of the PC main unit.

The green power lamps of the PC main unit and display go on. When the power is turned on, “Fujitsu” appears on the screen and the

system starts shortly thereafter.

Power switch

Point

- The orange power lamp goes on if the system is placed in suspended status.

- If there is no display on the screen, check that the display cable has been connected correctly. Adjust if the display area is not centered on the screen.

- While “Fujitsu” is displayed on the screen after power-on, the Power On Self Test (POST) is activated to check devices inside the PC. The power cannot be turned off while the POST is operating. If abnormal conditions are detected by the POST, an error message is displayed. For details on error messages, see Section 1, “Error Messages,” in Chapter 5, “Troubleshooting.”

- If the display power cord is connected to the PC main unit, the display is turned on with the PC main unit, in which case the power switch of the display can be left in the on position after it is turned on. Press the power switch of the PC main unit only to use the PC again, as described in step 2, at which time the display is automatically turned on.

After turning on the power, set up the PC.

Switching off

This section explains how to turn off the PC.

Point

- Before turning off the power, terminate all jobs and save all necessary data.

- Before turning off the power, confirm that the access indicator lamps ( see Appendix 1, “Name and Function of Each Component”) of the floppy and hard disk drives are off. If the power is turned off while the access indicator lamps are on, data may be lost or data in the floppy disk or hard disk may be destroyed.

- If the power cord is unplugged from the outlet or the power is disconnected due to a power failure while the PC is on, re-connect the power cord or wait until AC power recovers. Pressing the power switch is not required. When the power recovers, the PC is automatically turned on and started.

- If the Power Management Mode of the BIOS setup is set to “Disabled,” the power is not switched off automatically ( see Section 11, “Power Management,” in Chapter 4, “BIOS Setup”).

- The power cannot be switched off while the POST is in operation. Switch off the PC, as described in the following, after the operating system has completely started.

- If “Suspend” is set for Power Switch<4 sec. of the BIOS setup, pressing the power switch for four or more seconds may not turn off the power and the orange power lamp may remain on, in which case the power switch must be detached and then re-pressed.

Turning off the power via Windows 95/98

○○○○○○○

Click [Start].

The “Start” menu appears.

For Windows 95

2 Click [Shut Down].

The following dialog box appears.

For Windows 95

For Windows 98

Turning off the power via Windows NT

○○○○○○○

Click [Start].

The “Start” menu appears.

Click [Shut Down].

The following dialog box appears.

Check that “Shut down the computer?” has been selected and then click [Yes].

Turn off the power switch.

Help

If the message “you can safely switch off power” appears and the power is not turned off automatically, press the power switch.

Point

The following procedure can also be used to turn off the power: 1 Press [Ctrl] + [Alt] + [Delete].

The “Windows NT Security” dialog box appears.

2 Click [Shut Down].

The “Shut Down Computer” dialog box appears.

3 Select “Switch off power after shut down?” and then click [OK].

Turn off the power switch.

Resets

The PC is reset after software is installed or if software fails to run normally. This section explains how to reset the PC.

Point

Resetting the PC results in memory data being lost. Before resetting, save all necessary data.

Resetting the PC via Windows 95/98

○○○○○○○

This section explains how to reset the PC via Windows 95/98.

Click [Start] and “Shut Down.”

The “Shut Down Windows” dialog box appears.

Select “Restart the computer?” and then click [OK].

The PC is reset.

Point

If Windows 95/98 does not respond to the keyboard or mouse, reset the PC as follows: 1 Press [Ctrl] + [Alt] + [Delete].

The “Close Program” dialog box appears. Follow the instructions in this dialog box.

Resetting the PC via Windows NT

○○○○○○○

This section explains how to reset the PC via Windows NT.

Click [Start] and “Shut Down.”

The “Shut Down Windows” dialog box appears.

Select “Restart the computer?” and click [Yes].

The PC is reset.

Point

The following procedure can also be used to reset the PC: 1 Press [Ctrl] + [Alt] + [Delete].

The “Windows NT Security” dialog box appears.

2 Click [Shut Down].

The “Shut Down Computer” dialog box appears.

3 Select “Switch off power after shut down?” and click [OK].

The PC is reset.

Floppy Disk

A floppy disk is a storage medium used to save programs and other information. This section explains how to mount and dismount floppy disks.

Handling precautions

○○○○○○○

To prevent malfunctions, note the following precautions regarding floppy disks:

- Do not get wet.

- Do not open the disk shutter.

- Do not bend or place heavy objects thereon.

- Do not expose to magnetic force.

- Do not drop.

- Do not store in areas exposed to high or low temperatures.

- Do not store in a damp or dusty area.

- Do not overlay labels.

- Do not get wet.

Mounting and dismounting a floppy disk

○○○○○○○

● Mounting a floppy disk

With the label facing left, insert the floppy disk into the drive shutter-end-first.

The floppy disk eject button clicks and is pushed out.

Floppy disk eject button

● Dismounting a floppy disk

Confirm that the floppy disk access indicator lamp is off.

Floppy disk access indicator lamp

Point

To prevent data from being destroyed, do not dismount a floppy disk from the drive when the floppy disk access indicator lamp is on.

Press the floppy disk eject button.

The floppy disk is ejected.

CD-ROM

Your PC incorporates a CD-ROM drive (if a CD-ROM drive-equipped model). This section explains how to handle, mount, and dismount CD-ROM disks.

Handling precautions

○○○○○○○○

To prevent malfunctions, note the following precautions regarding CD-ROM disks:

- Do not write on the label side (printed side) using a ball-point pen or pencil and do not affix extra labels.

- Do not touch or scratch the data side.

- Do not bend or place heavy objects thereon.

- Clean (moisture or dust), using a dry soft cloth (do not use a cleaning solution).

- Do not get wet.

- Do not store in areas exposed to high or low temperatures.

- Do not store in damp or dusty areas.

Point

CD-ROMs (developed from music compact disks (CD)) are used to save PC information (such as characters). The term “ROM” stands for “Read Only Memory,” which means that the user can only read data in the disk. The PC can read data from a CD-ROM disk but cannot write data onto a disk. The PC can read CD-ROM disks having the following markings:

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

Mounting and dismounting a CD-ROM disk

○○○○○○○○

● Mounting a CD-ROM

BUSY lamp

Press the EJECT button.

Pressing the EJECT button ejects the CD-ROM tray from the drive.

Pull out the tray.

Pull out the tray as shown on the right.

With the label of the CD-ROM disk facing up, place the CD-ROM disk in the center of the projection tray until it clicks.

Hold the tray so that the unit may not be overturned.

Push the tray into the PC main unit until it clicks.

The tray retracts into the PC main unit and the CD-ROM is set.

EJECT button

Label side

Tray

Projection

Point

- When the CD-ROM is set, the BUSY lamp goes on. When the BUSY lamp goes off, proceed to the next step.

- Pressing the EJECT button when inserting the tray does not set the tray correctly.

● Dismounting a CD-ROM

To dismount a CD-ROM disk, confirm that the BUSY lamp is off, then press the EJECT button as shown above.

Hard Disk

Your PC incorporates a built-in hard disk. This section outlines precautions to take when handling a hard disk.

What is a hard disk?

○○○○○○○○

A hard disk is used to save software and other data and consists of a magnetic disk packed in a box as shown on the right. A hard disk can save more data and can read and write data faster than is possible with floppy disks.

Handling precautions

○○○○○○○○

To prevent malfunctions, note the following precautions regarding hard disks:

- Do not move or subject the PC to shock and/or vibration with its power on.

- Do not expose to extreme temperature changes.

- Do not place in areas exposed to direct sunlight or near heating units.

- Do not store in areas subjected to shock or vibration.

- Do not store in damp or dusty areas.

- Do not expose to a strong magnetic field.

- Do not disassemble or remodel.

- Do not get wet.

Point

- Because incorrect handling may destroy data in a hard disk, back up all necessary data.

- Because there is a difference in the storage capacity of same-type hard disks, back up data for each file or segment, not for each hard disk.

Chapter 3 Installing Internal

Options

This chapter explains how to install internal options in your PC.

1 Introduction..........................................................................................20

2 Installing Memory Modules..................................................................23

3 Installing Expansion Cards ..................................................................26

Introduction

The features and performance of your PC can be upgraded by installing options. This section explains the types of internal options that can be installed in the PC and how to remove the upper cover in preparation for installing the internal options.

Handling precautions

○○○○○○

Note the following when installing internal options:

- Before starting operation, switch off the PC and all connected peripherals and unplug power cords from respective outlets.

- Immediately after the PC is turned off, internal components and units of the PC are hot. When installing and removing internal options, turn off the power and allow the PC to cool down for about 10 minutes before starting operation.

- Do not disassemble the power supply unit (a box-shaped device inside the PC).

- Do not damage or remodel internal cables or units.

- Because internal options are PC boards with exposed soldered sections that may be damaged by a static electrical charge, discharge any accumulated static electricity before handling.

- Secure the board by the metal bracket portions or an edge of the PC board such that the surface of the PC board and the soldered sections are not handled.

- Installation and disassembly of options other than Fujitsu brand products void the warranty.

Installing positions of internal options

○○○○○○

Extension card slot

Expansion cards extend the range of the features of the PC. For example, installing a SCSI card enables the use of a SCSI-standard hard disk and a magneto-optical disk drive.

Memory slot

Memory expansion increases the amount of data to be read and enhances the throughput of the PC.

Removing the upper cover

○○○○○○

When installing internal options, remove the upper cover so as to reveal the inside of the main unit.

Remove two screws at the rear of the PC main unit.

Remove the upper cover.

Slide the upper cover to the front of the PC main unit, then lift and remove the cover.

Point

To replace the cover, reverse the above procedure.

Installing Memory Modules

This section explains how to install and remove additional memory modules. Memory expansion in your PC increases the amount of data to be read and enhances the throughput of the PC.

DIMM1

DIMM2

Point

To install a memory module, set up the PC, turn off the power, and install the memory module.

WARNING

● To prevent electric shock, before installing and removing memory modules, turn off the PC and connected units and unplug power cords from respective outlets.

● To prevent electric shock, fire, and/or malfunction, install only Fujitsu brand memory modules in the PC.

CAUTION

● To prevent personal injury and/or malfunction, when installing and removing memory modules, only remove screws from specified locations.

● To prevent injury and/or malfunction, do not touch PC board components not specified.

Memory combination table

○○○○○○○

Install a memory module to DIMM1 and DIMM2. A memory module has been installed in DIMM1 as standard. Check the combination of memory capacity and slot using the following table to install the memory module. Using a combination other than below may result in faulty operation of the PC.

Point

Use a genuine Fujitsu part called “168-pin SDRAM DIMM (100 MHZ) memory” for this PC. The PC may not work correctly if the recommended Fujitsu memory module is not used.

Installing an additional memory

○○○○○○

Remove the upper cover.

Push down the hooks at both ends of the slot.

Insert the memory card into the slot.

- Insert the memory card into the slot such that the notches of the memory card face the rear of the PC main unit. The hooks at both ends of the slot are raised. Confirm that the memory card is securely locked in place.

- Insert the memory card into the slot such that the notches of the memory card face the front of the PC main unit. The hooks at both ends of the slot are raised. Confirm that the memory card is securely locked in place.

Attach the upper cover.

Removing the memory

○○○○○○

Remove the upper cover.

Notch

Open thehooks out at both ends of the slot and remove the memory module.

Point

Note that opening the hooks out forcefully causes the memory card to pop out of the slot and may cause a malfunction.

Attach the upper cover.

Installing Expansion Cards

This section explains how to install expansion cards, which extend the range of the features of your PC.

PCI1

PCI2

Point

- To install an expansion card, set up the PC, turn off the power, and install the expansion card.

- An expansion card up to 176-mm (half size) in size can be installed in the upper PCI slot, and an expansion card up to 150-mm in size can be installed in the lower PCI slot.

WARNING

● To prevent electric shock, before installing and removing expansion cards, turn off the PC and connected units and unplug power cords from respective outlets.

● To prevent electric shock, fire, and/or malfunction, install only Fujitsu brand expansion cards in the PC.

CAUTION

● To prevent injury, when installing and removing expansion cards, remove screws only from specified locations.

● To prevent injury and/or malfunction, do not touch PC board components not specified.

To operate expansion cards, “resources” required for operation must be reserved. The floppy disk drive or hard disk drive inside the PC uses predetermined paths specific to those devices when transferring data with the CPU and memory. These paths include I/O port addresses, DMA channels, and interrupt levels (IRQ), which are generally called “resources.”

Expansion cards for PCI bus can be installed in the PC. Because expansion cards for PCI bus are “Plug & Play supporting cards”, the resources are set automatically when installing the card.

Installing an expansion card

○○○○○○

Remove the upper cover.

Remove the retaining metal bracket at the side.

Remove the screw and then remove the retaining metal bracket in the direction of the arrow.

Remove the slot cover.

Remove the screw and then remove slot cover.

Insert an extension card into the connector.

Insert an expansion card into the connector.

Secure the expansion card with the screw.

Secure the expansion card with the screw removed in step 2.

Install the retaining metal bracket at the side.

Insert the pawls of the retaining metal bracket into the groove on the front of the PC main unit, then install the metal bracket. Secure the metal bracket with the screw removed in step 2.

Attach the upper cover.

Point

- Store the removed slot cover.

- To remove the expansion card, reverse the above steps.

- For display cards (For Windows 95/98 models) To install a display card, delete the “ATI mach64 display driver” as follows before installing display cards.

Switch on the PC.

- For Windows 95/98 models: The device driver and resources are set automatically, and the extension card can be used.

Point

- The device driver selected automatically with the Plug & Play function has been pre-registered in Windows 95/98 but may not have been registered depending on the expansion card or peripheral, in which case prepare the floppy disk containing the device driver included with the expansion card and set up the device driver in accordance with the message.

- Check whether the device driver has been correctly registered by the device manager before using the expansion card. If the driver has not been registered, delete the device driver, then restart Windows 95/98.

- For Windows NT model: Set up the device driver of an expansion card. See the manual included with the expansion card. The expansion card is rendered usable when the device driver has been set up.

Chapter 4 BIOS Setup

This chapter describes how to perform BIOS setup when installing an optional product or setting power savings mode.

1 Preface ................................................................................................30

2 Main Menu ...........................................................................................33

3 Detail Menu..........................................................................................37

4 Security Menu......................................................................................47

5 Power Menu.........................................................................................54

6 Boot Menu............................................................................................60

7 Info Menu .............................................................................................63

8 Exit.......................................................................................................65

Preface

What is BIOS setup?

○○○○○○○

BIOS setup is a program that helps the user set up a hardware environment, including memory, hard disks, and floppy disk drives. Minimum setup has already been installed on this personal computer when you purchase it. BIOS must be set up under the following circumstances:

- When a storage unit, such as a floppy disk drive or a built-in hard disk (IDE), is mounted or removed.

- When a password permitting specific users to access the PC is set.

- When memory or serial ports are set up.

- When the power savings mode is released or changed (to put in standby mode when power is on but PC is not used).

- When a message requesting BIOS setup is displayed.

- When another Operating System (OS) is used.

Point

Contents selected in BIOS setup are stored in the PC internal memory called CMOS RAM, which stores recorded contents using batteries. If an error message indicating BIOS setup is displayed when the PC is turned on or rebooted even if BIOS setup is completed correctly, the

setup contents will not be stored in this CMOS RAM if the batteries are dead.

CAUTION

When replacing the battery, be sure to install it with the polarities in the correct position. Danger of explosion if battery is replaced with incorrect type or is mistreated. Do not recharge, disassemble or dispose of in fire. Replace only with the same or equivalent type recommended

by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Starting BIOS setup

○○○○○○○

Exit all applications and save data.

- For Windows 95/98

Click on Start, then on Exit Windows.

- For Windows NT

Click on Start, then on Shutdown.

- For Windows 95/98

Select Reboot and click on OK.

- For Windows NT

Select Reboot the Computer and click on Yes. The computer is rebooted.

A message “Press <F2 to enter SETUP” is displayed on the screen.

Press the F2 key to display the BIOS Setup screen.

Main Advanced Security Power Boot Info Exit

System Time: [12:34:56] System Date: [20/06/1999]

Legacy Diskette A: [1.44/1.25 MB 3.5”]

:Primary Master: [6449 MB] :Primary Slave: [None] :Secondary Master: [CD-ROM] :Secondary Slave: [None]

Language: [English (US)]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Adjust calendar clock.

<Tab>, <Shift-Tab>, or <Enter> selects field.

Key functions

○○○○○○○○

The table below lists the functions of the keys used for BIOS setup. F1 key

← and → keys ↑ and ↓ keys

- and Space keys F9 key Esc key

Enter key

F10 key Tab key

Used to display the overall explanation of BIOS setup. To proceed to the next page, press the PageDown key. To return to the setup screen, press the Esc key. Used to switch between menus. Used to move the cursor to an item to be set up. Used to select a desired setup value. Used to return all setup values to the PC standard values. Used to display the Exit menu. If the screen displays a submenu, the previous screen is returned. Used to display submenus of items marked :. When the Esc key is pressed while a submenu is displayed, the screen returns to its menu. Used to return to setup values currently set up. Used to move the cursor between hours, minutes, and seconds while the time is set up.

Menu bar

Lists seven menu items: Main, Advanced, Security, Power, Boot, Info, and Exit.

Setup field

Lists items and their setup values for each menu.

Help field

Displays an explanation of items selected by the cursor.

Key list

Lists keys available during setup.

Exiting BIOS setup

○○○○○○

1 Press ← or → to select the Exit menu.

2 For existing BIOS setup by saving setup values

→ Move the cursor to “Save Change & Exit” and press the Enter key.

For exiting BIOS setup without savings setup values

→ Move the cursor to “Exit Without Saving Changes” and press the Enter key.

The BIOS setup utility exits and the computer is rebooted.

Menus

○○○○○○

The BIOS setup utility screen includes the following menus, under which setup items are listed. For details on menus and setup items, see the following sections.

● Main menu

Used to set up the date and time and drives.

● Advanced menu

Used to set up port addresses.

● Security menu

Used to set up the computer so as to be accessible to specific users.

● Power menu

Used to set up power savings mode.

● Boot menu

Used to set up the priority of boot drives.

● Info menu

Used to display the hardware configuration of the computer. This menu is information only.

● Exit menu

Used to exit the BIOS setup utility.

Main Menu

The Main Menu is used to setup the date and time and drives. Select the ← or → key to select [Main] and display the Main menu.

Main Advanced Security Power Boot Info Exit

System Time: [12:34:56] System Date: [20/06/1999]

Legacy Diskette A: [1.44/1.25 MB 3.5”]

:Primary Master: [6449 MB] :Primary Slave: [None] :Secondary Master: [CD-ROM] :Secondary Slave: [None]

Language: [English (US)]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Adjust calendar clock.

<Tab>, <Shift-Tab>, or <Enter> selects field.

Details on setup items

○○○○○○

● System Time

Set the time. Enter a numeric value in the order of “hours : minutes : seconds” in the 24-hour system.

- 00:00:00 to 23:59:59

● System Date

Set the date. Enter a numeric value. When the Enter key is pressed, the cursor moves in the order of “month/days/year.”

- 01/01/1981 to 12/31/2099

Point

System Time and System Date do not have to be entered each time the PC is turned on. To modify an entered value, press the Backspace key and enter the value.

● Floppy Disk A

Set the recording density and size of the floppy disk drive used.

- 360 KB 5.25”, 1.2 MB 5.25”, 720 KB 3.5”, and 1.44/1.2 MB 3.5”

● Primary Master/Save, Secondary Master/Slave Menu

Using submenus, set the type of hard disk (master or slave) mounted on the primary IDE connector (Adapter 0) and secondary IDE connector (Adapter 1) as well as the size and the number of cylinders). Move the cursor to a desired item and press the Enter key to display the selected submenu.

Main Advanced Security Power Boot Info Exit

Primary Master [FUJITSU MHA2032AT]

PhoenixBIOS Setup Utility

Item Specific Help

Type: [AUTO] Cylinders: [13328] Heads: [ 15 ] Sectors: [ 63 ] Maximum Capacity: [6449 MB]

Multi-Sector Transfers: [16 sectors] LBA Mode Control: [Enabled] Transfer Mode: [Fast PIO 4] DMA Mode: [Ultra DMA 2]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Select ATA/ATAPI drive installed here.

[Auto] The BIOS auto-types the drive on boot time.

Except [Auto] You enter parameters of the drive.

[None] The drive is disabled.

– Type

Set the type of IDE device. A value other than [Auto] requests the user to enter [Cylinders], [Heads], and [Sectors].

- Auto (Initial value) The computer automatically sets the type of IDE device. Select this item when the user-skip IDE device is setup.

- None Select when no IDE device is used.

- Hard Disk Select for setting details on the hard disk drive.

- CD-ROM Select when a CD-ROM drive is connected.

- LS-120 Select when a super disk is connected.

- Other ATAPI Select when any other ATAPI device is connected.

Point

- To change the type, select with the space key.

- Usually, select [Auto]. If any other value is selected, set a correct value supported by the connected device, otherwise the computer may not access the device correctly.

For details, consult the manual included with the device. – Maximum Capacity

This item displays the maximum capacity of the hard disk drive only when Type is [Auto] and [Hard Disk] is selected (if a hard disk unit is mounted).

– Multi-Sector Transfers

This item displays the contents detected by the PC when ‘Type’ is [Auto]. If ‘Type’ is a value other than [Auto] and [None], set the number of sectors that can be transferred in a single operation. A larger number of sectors specified will allow greater disk access.

- Disabled The computer transfers data sector by sector. Select this item when the connected disk does not support multi-sector transfer.

- 2, 4, 8, 16 Sectors (Initial value: 16 Sectors) Select the number of sectors to transfer in a single operation.

– LBA MODE Control

This item sets whether LBA (Logical Block Addressing allowing access using logical serial numbers) is enabled. The best mode is selected and displayed automatically when ‘Type’ is [Auto] or [Hard Disk] (only when a hard disk unit is mounted).

- Disabled LBA mode is disabled

- Enabled (Initial value) LBA mode is enabled.

Point

- When LBA mode is enabled, the connected hard disk must support LBA.

- If LBA MODE Control is changed after the hard disk is formatted, the computer may not access the hard disk correctly. Do not change this item after the hard disk is formatted.

– Transfer Mode

This item sets data transfer mode (fast PIO) between device hosts. The best mode is selected and displayed when ‘Type’ is [Auto]. When something other than [Auto] or [None] as ‘Type,’ is selected, the user can select a desired transfer mode.

- Standard (Initial value) The most basic data transfer mode is elected.

- Fast PIO 1/2/3/4, Fast PIO 3/DMA 1, Fast PIO 4/DMA 2 Select a desired data transfer mode. A larger number indicates a higher transfer rate.

Point

When a PIO transfer mode other than Standard is selected, the connected hard disk must support the mode selected.

– Ultra DMA Mode

This item sets the data transfer mode between device hosts, such as multiword DMA, ultra DMA/33. The best mode is selected and displayed automatically when ‘Type’ is [Auto]. If ‘Type’ is other than [Auto] and [None], the user can select a desired transfer mode.

- Disabled (Initial value) DMA transfer is disabled.

- Multiword DMA 0/1/2, Ultra DMA 0/1/2 Select a desired multiword DMA or ultra DMA/33 transfer mode. A larger number indicates a higher transfer rate.

● Language

Select the language used for BIOS setup. – English (US)

The BIOS setup utility is displayed in English.

– Japanese (JP)

The BIOS setup utility is displayed in Japanese.

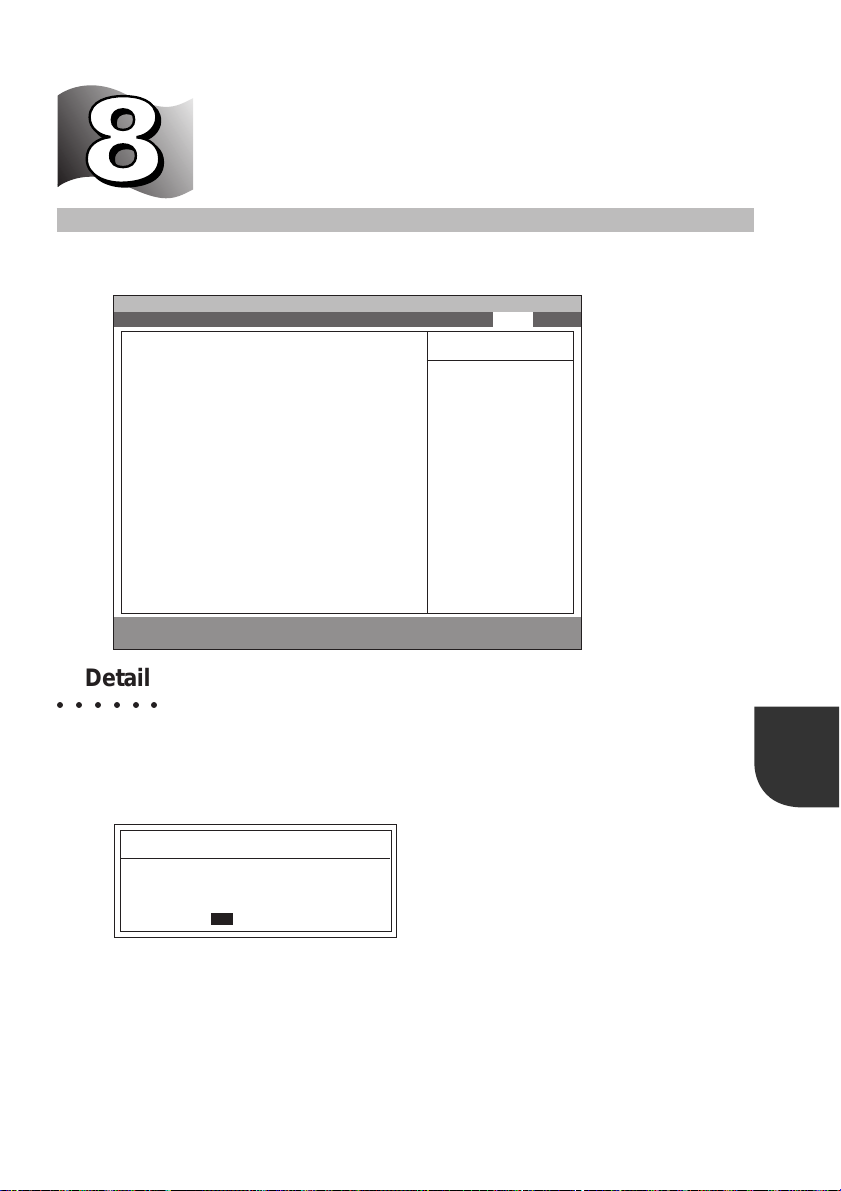

Detail Menu

The Detail menu is used to set up devices. Select Detail with the ← or → key to display the Detail menu.

Main Advanced Security Power Boot Info Exit

Plug & Play O/S: [Yes] Secured Setup Configuration: [No]

:Serial/Parallel Port Configurations :Keyboard/Mouse Features :Internal Devices Configurations :Video Features :CPU Features

:Event Logging

Extended CHS Translation: [Enabled]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○

● Plug & Play OS

This item sets whether the OS used supports Plug & Play, such as Windows 95/98. – Yes (Initial value for Windows NT model)

Select when using an OS not supporting Plug & Play.

– No (Initial value for windows 95/98 model)

Select when using an OS supporting Plug & Play.

PhoenixBIOS Setup Utility

Item Specific Help

[Yes] The BIOS configures only boot devices.

[No] The BIOS configures also non-boot devices. Select if you are using a non-Plug & Play OS or a nonACPI OS.

Point

When using an OS other than Windows95/98 or when multi-booting both Window 95/98 and Windows NT, select [No].

● Protected Device Configurations

This item sets whether to protect the device configurations from the OS Plug & Play function. – No (Initial value)

The device configurations are not protected from the Plug & Play function.

– Yes

The device configurations are protected from the Plug & Play function.

● Serial/Parallel Port Configurations

This item sets the I/O address of the serial and parallel ports and has submenus. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Serial/Parallel Port Configurations

PhoenixBIOS Setup Utility

Item Specific Help

Serial port 1: [Enable]

I/O address: [3F8-3FF] Interrupt: [IRQ 4]

Serial port 2: [Enabled]

Mode: [Serial Connector] I/O address: [2E8-2EF] Interrupt: [IRQ 3]

Parallel port: [Enabled]

Mode: [Bi-directional] I/O address: [378-37F] Interrupt: [IRQ 7]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

[Enabled] The port is enabled with user configuration.

[Auto] A Plug & Play OS an ACPI OS will configure the port.

[Disabled] The port is disabled.

– Serial Port 1

This item sets the I/O port address and interrupt number of serial port 1.

- Disabled The serial port is disabled and resources are freed.

- Enabled (Initial value) Set the I/O port address and the interrupt number of the serial port.

- Auto The personal computer automatically assigns an I/O port address and an interrupt number.

Point

- When ‘Serial Port 1’ is [Disabled], the port is not transparent to devices controlled by the Windows 95/98 APM device manager.

- To disable the serial port on Windows 98 ACPI, use the Windows 98 ACPI device manager.

I/O Address

This item appears when ‘Serial Port 1’ is [Enabled]. Set the I/O address of serial port 1.

- 3F8 to 3FF, 2F8 to 2FF,3E8 to 3EF, and 2E8 to 2EF (Initial value: 3F8 to 3FF)

Interrupt

This item appears when ‘Serial Port 1’ is [Enabled]. Set the interrupt number of serial port 1.

- IRQ3, IRQ4, IRQ10, IRQ11 (Initial value: IRQ4)

– Serial Port 2

This item sets the I/O port address and interrupt number of serial port 2.

- Disabled Serial port 2 is disabled and resources are freed.

- Enabled (Initial value) Set the I/O port address and interrupt number of serial port 2.

- Auto The personal computer automatically assigns an I/O port address and an interrupt number.

Point

- When ‘Serial Port 1’ is [Disabled], the port is not transparent to devices controlled by the Windows 95/98 APM device manager.

- To disable the serial port on Windows 98 ACPI, use the Windows 98ACPI device manager.

Mode

This item appears when ‘Serial Port 2’ is [Enabled]. Set the operating mode of serial port 2.

- Serial connector (Initial value) Serial port 2 is used as serial connector 2.

- IrDA Serial port 2 is used as an infrared ray port.

I/O Address

This item appears when ‘Serial Port 2’ is [Enabled]. Set the I/O address of serial port 1.

- 3F8 to 3FF, 2F8 to 2FF, 3E8 to 3EF, and 2E8 to 2EF (Initial value: 3F8 to 3FF)

Interrupt

This item appears when ‘Serial Port 2’ is [Enabled]. Set the interrupt number of serial port 1.

- IRQ3, IRQ4, IRQ10, IRQ11 (Initial value: IRQ3)

– Parallel Port

This item sets the I/O port address and interrupt number of a parallel port.

- Disabled The parallel port is disabled and resources are freed.

- Enabled (Initial value) Set the I/O port address and interrupt number of the parallel port.

- Auto The computer automatically assigns an I/O port address and an interrupt number.

Point

- When ‘Parallel Port’ is [Disabled], the port is not transparent to devices controlled by the Windows 95/98 device manager.

- When ‘Parallel Port’ is [Auto], connected printers may not operate correctly, in which case set [Enabled].

Mode

This item appears when ‘Parallel Port’ is [Enabled]. Set the operating mode of the parallel port.

- Output only Select when connecting a peripheral unit using output mode only.

- Bi-directional (Initial value) Select when connecting a peripheral unit using bi-directional mode.

- EPP Select when connecting an EPP standard peripheral unit.

- ECP Select when connecting an ECP standard peripheral unit.

I/O Address

This item appears when ‘Parallel Port’ is [Enabled]. Set the I/O address of the parallel port.

- 378 to 37F, 278 to 27F, 3BC to 3BF (Initial value: 378 to 37F)

Interrupt

This item appears when ‘Parallel Port’ is [Enabled]. Set the interrupt number of the parallel port.

- IRQ5, IRQ7 (Initial value: IRQ7)

DMA Channel

This item appears when ‘Mode’ is [ECP]. Set a DMA channel used to connect an ECP standard peripheral unit.

- DMA 1, DMA 3 (Initial value: DMA 1)

● Keyboard/Mouse Features

This submenu is used to set up the keyboard and mouse. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Keyboard/Mouse Features

PhoenixBIOS Setup Utility

Item Specific Help

Numlock: [ON] PS/2 Mouse: [Enabled] USB Legacy Emulation: [Auto]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Selects power-on state for Numlock.

– Numlock

This item sets whether the keyboard tenkey pad is set to Numlock mode at boot or reboot. In Numlock mode, the user can enter numeric values from the tenkey pad.

- Auto (Initial value) The keyboard tenkey pad is set to Numlock mode when the keyboard has a Numlock key.

-On The keyboard is set to Numlock mode.

-Off The keyboard is not set to Numlock mode.

Point

In some Oss, this has to be set on the OS side.

– PS/2 Mouse

This item enables the PS/2 mouse controller.

- Disabled The PS/2 mouse controller is disabled and resources are freed.

- Enabled The PS/2 mouse controller is enabled.

Point

- When ‘PS/2 Mouse’ is [Disabled], the PS/2 mouse is not transparent to devices controlled by the Windows 95/98 device manager. On Windows 98 (ACPI mode), An exclamation mark (!) is added to [PS/2 Compatible Mouse Port].

– USB Legacy Emulation

This item set whether the USB keyboard and mouse are usable on OSs not supporting USB, such as Windows NT.

- Disabled The USB keyboard and mouse cannot be used on OSs not supporting USB.

- Auto The USB keyboard and mouse can be used on OSs which does not support USB, when the OS boot while no PS/2 keyboard is connected.

- Enabled The USB keyboard and mouse can be used on OSs not supporting USB.

Point

When ‘USB Legacy emulation’ is [Enabled], operation of the PS/2 keyboard or mouse may be slow if the OS is not Windows95/98.

● Internal Devices Configurations

This submenu is used to set up built-in devices. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Internal Devices Configurations

Floppy Disc contrler: [Enabled] IDE Controller: [Both] Sound Controller: [Enabled] LAN Controller: [Enabled]

USB Peripherals [Enabled]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

– Floppy Disk Controller

This item sets whether the floppy disk controller is enabled.

- Disabled The floppy disk controller is disabled and resources are freed.

- Enabled (Initial value) The floppy disk controller is enabled.

- Auto This personal computer automatically enables or disables the floppy disk controller.

PhoenixBIOS Setup Utility

Item Specific Help

[Enables] Floppy Disk drives are enabled.

[Disabled] Floppy Disk drives are disabled. The IRQ6 may be released.

– IDE Controller

This item sets whether the IDE interface is enabled.

- Disabled The IDE interface is disabled and resources are freed. All devices connected to the IDE interface are disabled.

- Primary The primary IDE interface is enabled. The resources of the secondary ID interface are freed and all devices connected to the secondary IDE interface are disabled.

- Secondary The secondary IDE interface is enabled. The resource of the priory IDE interface are freed and all devices connected to the primary IDE interface are disabled.

- Both (Initial value) Both the primary/secondary IDE interfaces are enabled.

– Sound Controller

This item sets whether the built-in sound bus is enabled.

- Disabled The built-in sound bus is disabled.

- Enabled (Initial value) The built-in sound bus is enabled.

– LAN Controller

This item sets whether the LAN adapter on the mother board is enabled.

- Disabled The LAN adapter is disabled and resources are freed.

- Enabled (Initial value) The LAN adapter is enabled.

– USB Peripherals

This item sets whether the devices connected to the USB connector are enabled.

- Disabled The devices connected to the USB connector are disabled.

- Enabled (Initial value) The devices connected to the USB connector are enabled.

● Video Features

This submenu is used to set up the display. Move the cursor to this item and press the Enter key to display a submenu as shown below.

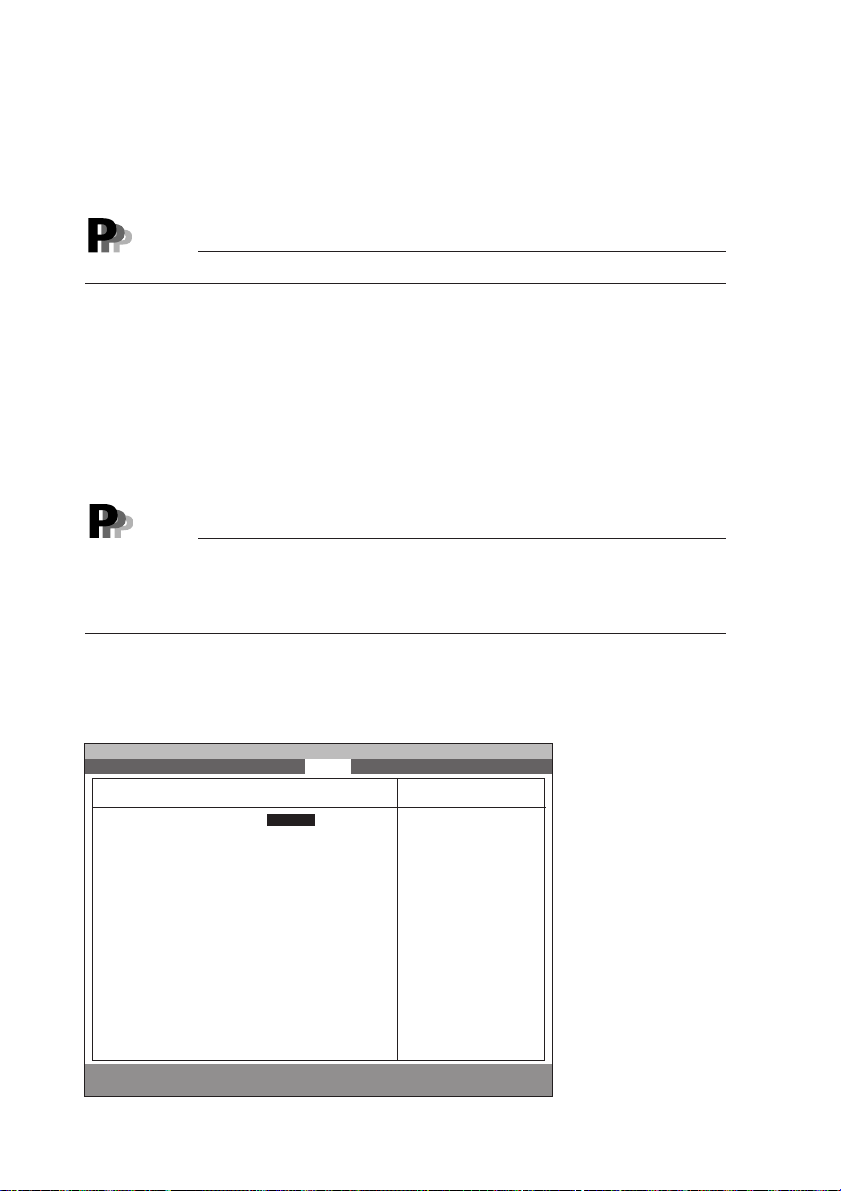

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

Video Features

Item Specific Help

Default Primary Video Adapter: [AGP] AGP Aperture: [64MB]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Select primary display. AGP is standard internal video device.

[AGP] AGP video device may be primary display.

[PCI] The BIOS searches video device from PCI slot 1-2-...to AGP.

– Default Primary Video Adapter

This item sets which AGP adapter is used, the adapter on the PCI card or the adapter on the mother board, when another PCI video card is mounted.

- PCI (Initial value) The PCI video adapter card is used when another PCI video card is mounted, otherwise the AGP adapter on the mother board is used.

- AGP The AGP adapter on the mother board is used.

– AGP Aperture Size

This item sets the aperture size used by the AGP video controller.

- 8MB, 16MB, 32MB, 64MB, 128MB (Initial value: 64MB)

● CPU Features

This submenu is used to set up the CPU. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

CPU Features

Item Specific Help

Processor Serial Number: [Disable]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

When your system has a Pentium III processor,select for using Procesor Serial Number.

[Enable] Processor Serial Number is Enabled.

[Disable] Processor Serial Number is disabled.

– Processor Serial Number

This item enables or disables the processor serial number function of the Intel Pentium III processor.

- Enabled The processor serial number function is enabled.

- Disabled (Initial value) The processor serial number function is disabled

Point

- To use the Intel processor serial number control utility, set ‘Processor Serial Number’ to [Enabled], otherwise this function cannot be enabled on utilities such as the Intel processor serial number control utility.

- The Intel processor serial number control utility is enabled on Windows 98 and Windows NT4.0 only. On other OSs, enable or disable the function in this item.

● Event Logging Configurations

This submenu is used to set up event logs. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Event Logging Configurations

PhoenixBIOS Setup Utility

Item Specific Help

Event log Capacity: Space Available Event log Validity: Valid

Clear all Event Logs: [No]

Event Logging: [Enabled]

System Boot Event: [Disabled] ECC Event: [Enabled]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

[Yes] All event logs are cleared at next boot. The value is reset to [No] after clearing.

[No] Event logs are not cleared.

– Event Log Capacity

This item sets whether event logs can be saved.

- Space Available Event logs can be saved (up to 255 logs).

- Full No more event logs can be saved. The area is full.

– Event Log Validity

This item displays whether the event log data is valid.

- Valid Event log data is valid.

- Invalid Event log data is invalid. Data may be destroyed.

– Clear all Event Logs

This item sets whether all event logs are cleared at reboot.

- No (Initial value) Event logs are not cleared.

-Yes Event logs are cleared. Clear all Event Logs’ is [No] at reboot.

– Event Logging

This item sets whether events are logged when they are generated.

- Disabled Event logging is disabled.

- Enabled (Initial value) Event logging is enabled.

System Boot Event

This item appears when ‘Event Logging’ is [Enabled] and sets whether system boot events are logged.

- Disabled (Initial value) System boot events are not logged.

- Enabled System boot events are logged.

ECC event

This item appears when the DRAM ECC function is enabled and ‘Event Logging’ is [Enabled] and sets whether ECC events are logged.

- Disabled ECC events are not logged.

- Enabled (Initial value) ECC events are logged.

Security Menu

The Security menu is used to set up the PC such that it is accessible to specific users only. Select Security with the ← or → key to display the Security menu.

Main Advanced Security Power Boot Info Exit

Supervisor Password Is: Clear User Password Is: Clear

Set Supervisor Password [Enter] Set User Password [Enter] Set User Password Length [16]

Password on Boot: [Disabled] Power on Wake up: [Disabled]

Boot from CD-ROM: [All] Floppy Disk Access: [All]

Hard Disk Boot Sector: [Normal]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Point

- Before setting passwords, set the password jumper on the mother board to Enabled, otherwise the Security menu items may not be concealed.

PhoenixBIOS Setup Utility

Item Specific Help

Press <Enter> Key to set Supervisor Pasword to enable any password features. Then password entry is required to enter BIOS Setup.

Details on setup items

○○○○○○

● Supervisor Password

This item displays the status of the supervisor password.

- Clear No password is set.

- Set A password is set.

- Disabled The password jumper is set to Disabled and passwords are disabled.

● User Password

This item displays the status of user passwords.

- Clear No password is set.

- Set A password is set.

- Disabled The password jumper is set to Disabled and passwords are disabled.

● Set Supervisor Password

Press the Enter key to set the entered supervisor password.

Point

- When ‘Set Supervisor Password’ is set, the supervisor can manage user access to the BIOS setup utility.

- If a password is set while ‘Password on Boot’ is [Disabled] and ‘Floppy Disk Access’ is [Supervisor Only], all users are considered general users and are not permitted to access floppy disk drives.

● Set User Password

This item appears when ‘Set Supervisor Password’ is set. Press the Enter key to set a user password.

Point

- When ‘Set User Password’ is set, the user is requested to enter a password when accessing the BIOS setup utility or booting the system. If the user enters a wrong password three times, the message “System stopped” is displayed and the PC does not respond to keyboard entry. In such a case, press the Power switch for at least four seconds to turn the PC off. After waiting at least ten seconds, turn the power on again and enter the correct password.

- When both ‘Set User Password’ and ‘Supervisor Password’ are set, BIOS setup items are restricted.

● Set User Password Length

This item appears when ‘Supervisor Password’ is set. Set the shortest possible password in ‘Set User Password.’

- 1 to 16 (Initial value: 16)

● Password on Boot

This item appears when ‘Supervisor Password’ is set. Set whether the computer requests the user to enter a password when it is booted.

- Disabled (Initial value) No password is requested at boot.

- First Boot The user is requested to enter a password at the initial OS boot.

- Every Boot The user is requested to enter a password at every OS boot.

Point

This item appears only when the computer is turned on with the Power switch.

● Password on Wake up

This item appears when ‘Supervisor Password’ is set.

- Disabled (Initial value) No password is requested at automatic wakeup.

- Enabled The user is requested to enter a password at automatic wakeup. The keyboard and mouse are disabled until the user enters a password.

Point

This function is not available when the USB keyboard/mouse is used.

● Boot from CD-ROM

This item appears when ‘Supervisor Password’ is set. Set the right to boot the OS from the CD-ROM.

- All (Initial value) All users can boot the OS from the CD-ROM.

- Supervisor Only Only the supervisor can boot the OS from the CD-ROM when ‘Password on Boot’ is set. If ‘Password on Boot’ is not set or automatic wakeup is set, users cannot boot the OS from the CD-ROM.

● Floppy Disk Access

This item appears when ‘Supervisor Password’ is set. Set the right to use floppy disk drives.

- All (Initial value) All users can use floppy disk drives.

- Supervisor Only the supervisor can use floppy disk drives when ‘Password on Boot’ is set. If ‘Password on Boot’ is not set or at automatic wakeup, all users cannot use floppy disk drives.

Point

This item may not operate properly on OSs not using BIOS to access floppy disk drives, such as Windows NT.

● Hard Disk Boot Sector

This item sets whether the boot sector on the hard disk is write-protected in order to protect the sector against virus .

- Normal (Initial value) The boot sector is not write-protected.

- Write protected The boot sector is write-protected.

Point

- When installing an OS, select [Normal].

- This item may not operate properly on OSs not using BIOS to access floppy disk drives, such as Windows NT.

Setting a password

○○○○○○○

Move the cursor to ‘Set Supervisor Password’ or ‘Set User Password’ and press the Enter key.

A password entry window appears.

Set Supervisor Password

Enter New Password [ ]

Confirm New Password [ ]

Set User Password

Enter New Password [ ]

Confirm New Password [ ]

Enter a password not exceeding seven digits.

The password can contain alphanumeric characters. The entered characters are not displayed and “ ” appears. The minimum length of user passwords can be set in ‘Set User Password Length.’

After entering a password, press the Enter key.

The cursor moves to the “Enter New Password” field and the utility requests that the password be entered again.

Enter the same password as in Step 2 again and press the Enter key.

The Notice window appears.

Press the Enter key to complete the password setup.

If the reentered password is incorrect, a Warning! window appears. Press the Enter key to retry from Step 2. To cancel password setup, press the Esc key.

Point

- If the user boots a setup with a user password when the supervisor and user passwords are set, the following items may not appear on the menu: Set Supervisor Password Diskette access Fixed disk boot sector

- If the user enters a wrong password three times, the message “System stopped” is displayed and the PC does not respond to keyboard entry. In such a case, press the Power switch for at least four seconds to turn the PC off. After waiting at least ten seconds, turn the power on again and enter the correct password.

Exit the BIOS setup utility and turn off the power.

Set the jumper switch of the personal computer.

Change jumper switch JP5 from 2-3 to 1-2 on the computer. (For the location of jumper switch JP5, see the following page.)

WARNING

● To prevent electric shock, before changing jumper switches, turn off

CAUTION

● The PC is very hot immediately after being turned off. Wait about ten

the computer main and peripheral units and unplug the power cable.

minutes and reboot.

JP5 jumper switch

1-2... Enables

a password.

2-3... Disables

a password.

1 2 3

Front

Even if passwords are set by the BIOS setup utility, they are not rendered effective until the jumper switches are changed.

Help

If the password necessary to setup BIOS or boot the system is not known, return JP5 to 2-3. The password check is disabled.

● Starting the computer after password setup

After ‘Set User Password’ is set, the personal computer displays a password entry window when turned on again or the user attempts to run the BIOS setup utility. Enter a password and press the Enter key.

Enter Password.

After ‘Set Supervisor Password’ is set, the computer displays a password entry window when the user attempts to run the BIOS setup utility. Enter a password and press the Enter key.

Enter Password.

Point

If the user enters an incorrect password three times, the system stops, in which case the Power switch must be pressed for at least four seconds to turn the system off. After waiting at least ten seconds, turn the system on again and enter the correct password.

Changing passwords

○○○○○○

To change a password, move the cursor to ‘Set Supervisor Password’ or ‘Set User Password’ and enter the new password.

Deleting passwords

○○○○○○

To delete a password, move the cursor to ‘Set Supervisor Password’ or ‘Set User Password’ and press the Enter key.

Power Menu

The Power menu is used to set up the power savings mode. The power savings mode is used to place the computer in standby mode and reduce power consumption if the system is on but not being used. Select Power using the ← or → key to display the Power menu.

Main Advanced Security Power Boot Info Exit

Power Savings: [Customized]

Hard Disk Timeout: [Disabled] Display Timeout: [Disabled] Standby Timeout: [30 Minutes]

Power Switch Mode: [Power Off]

:Automatic Wake up

APM Power Controls: [Enabled]

:ACPI Features

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○○

● Power Savings

This item sets the level of the power savings mode.

- Disabled (Initial value for Windows 98 model) The computer does not enter the power savings mode. ‘Hard Disk Timeout’ changes to [Disabled];, ‘Display Timeout’ to [Disabled]; and ‘Standby Timeout’ to [Disabled].

- Customized (Initial value for Windows 95 and Windows models) The user can set ‘Hard Disk Timeout,’ ‘Display Timeout,’ and ‘Standby Timeout’ separately.

- Maximum Power Savings This item minimizes power consumption. ‘Hard Disk Timeout’ is set to [1 minutes]; ‘Display Timeout’ to [2 minutes]; and ‘Standby Timeout’ to [1 minute], respectively.

PhoenixBIOS Setup Utility

Item Specific Help

[Customized] Alter each settings individually. [Maximum Power Savings] Minimize power consumption. [Maximum Performance] Maximize performance. [Disabled] The feature is disabled.

*APM OS override this setting. *ACPI OS ignores this setting.

- Maximum Performance Maximize This item reduces power consumption while degrading performance. ‘Hard Disk Timeout’ is set to [30 minutes]; ‘Display Timeout’ to [1 hour]; and ‘Standby Timeout’ to [1 hour], respectively.

Point

- If this item is set [Disabled] on Windows 95/98, the computer displays the message “Ready to Turn off power”, and its power is not automatically turned off. If this message is displayed, you have to turn off the power.

- If “Manage computer power on Windows” is not checked in “Power properties” on the Windows 95 control panel, the computer does not enter the power savings mode.

- Windows NT does not support power savings mode.

- This item is not available when Windows 98 runs in ACPI mode.

– Hard Disk Timeout

This item sets the time, from the time that access to the hard disk has been denied and then the hard disk is set to power savings mode, to the time that the motor stops.

- Disabled (Initial value) The hard disk does not enter the power savings mode.

- 30 seconds, 1 to 30 minutes Set the time for changing the hard disk to the power savings mode and for stopping the motor. (Initial value)

Point

- This function requires a hard disk unit supporting power savings. (The hard disk mounted on this personal computer supports power savings.)

- It requires several seconds for disk rotations to become stable when the hard disk returns from the power savings mode to normal operation mode.

- This item is not available when Windows 98 runs in ACPI mode.

– Display Timeout

This item sets the time from no keyboard or mouse entry to display disappearance.

- Disabled (Initial value) The display does not enter the power savings mode.

- 1 to 30 minutes, 1 hour

Point

- This function requests a display unit supporting the power savings mode.

- This item is not available for Windows 98 and Windows NT.

– Standby Timeout

This item appears when ‘Power Savings’ is [Enabled]. Set the time from no key entry or data input/output to the time the PC enters standby mode.

- Disabled The computer does not enter standby mode

- 1 to 30 minutes, 1 hour (Initial value: 30 minutes)

Point

This item is not available for Windows 98.

● Power Switch Mode

This item appears when ‘Power Savings’ is [Enabled]. Set whether to enter power savings mode or to turn off the power when the Power switch is pressed.

- Power Off The computer is turned off when the Power switch is pressed. (Initial value)

- Suspend The computer enters the power savings mode when the Power switch is pressed in normal state and returns to normal state when pressed in power savings mode.

Point

- On WindowsNT, do not select [Suspend].

- When Windows 98 runs in ACPI mode, the computer can be set to enter power savings mode when the Power switch is pressed through Windows 98 setup, regardless of ‘Power Switch Mode.’

● Automatic Wake up

This item sets automatic boot or return from Suspend mode using a submenu. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Wake up on LAN [Enabled] Wake up on Modem Ring [Disabled] Wake up om PCI PME: [Disabled] Wake up on Time: [Disabled]

Wake up Time: [00:00:00] Wake up Date: [Every Day]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Automatic Wake Up

Item Specific Help

[Enabled] The system will wake up when internal LAN Device receives a magic packet in Suspend mode or Power off.

[Disabled] The feature is disabled.

*ACPI OS ignores this setting

– Wake up LAN

This item sets whether to turn on the computer or to return from Suspend mode when a magic packet is received from the standard LAN port.

- Disabled (Initial value) The computer is not turned on or returned from Suspend mode after receiving a magic packet.

- Enabled The computer is turned on or returned from Suspend mode after receiving a magic packet.

Point

- This item is not available when Windows 98 runs in ACPI mode.

- For PME LAN cards (PCIs), use ‘Wake up on PCI PME.’

– Wake up on Modem Ring

This item sets whether to turn on the computer or to return it from Suspend mode when a call terminates on the modem (connected to a serial port).

- Disabled (Initial value) The computer is not turned on or returned from Suspend mode when a call terminates on the modem.

- Enabled The computer is turned on or returned from Suspend mode when a call terminates on the modem.

Point

- This item is not available when Windows 98 runs in ACPI mode.

- For PME LAN cards (PCIs), use ‘Wake up on PCI PME.’

– Wake up on PCI PME

This item sets whether to turn on the power or to return it from Suspend mode when a PCI extension card issues a PME signal.

- Disabled (Initial value) The computer is not turned on or returned from Suspend mode when a PME signal is issued.

- Enabled The computer is turned on or returned from Suspend mode when a PME signal is issued.

Point

This item is not available when Windows 98 runs in ACPI mode.

– Wake up on Time

This item sets whether to turn on the computer or to return from suspend mode at the time specified in ‘Wake up Date’ and ‘Wake up Time.’

- Disabled (Initial value) The computer is not turned on or returned from Suspend mode at a specified time.

- Enabled The computer is turned on or returned from Suspend mode at a specified time.

Wake up Date

This item appears when ‘Wake up on Time’ is set. Set the computer wake-up date.

- Every Day, 1 to 31 (Initial value: Every Day)

Point

This item is not available when Windows 98 runs in ACPI mode.

Wake up Time

This item appears when ‘Wake up on Time’ is set. Set the computer wake-up time.

- 00:00:00 to 23:59:59 (Initial value: 00:00:00)

● APM Power Controls

This item sets power controls by OSs supporting APM, such as Windows95/98.

- Disabled Disables suspend mode of power off by APM supporting OSs, at which time the values set by the BIOS setup utility are always used.

- Enabled Enables suspend mode or power off by APM supporting OSs.

● ACPI Features

This item sets ACPI features using a submenu. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

ACPI Sleep Mode: [S1]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

ACPI Features

Item Specific Help

[S1] CPU Stop is selected as sleep state for ACPI.

[S3] Suspend to RAM is Selected as Sleep state for ACPI.

[Disabled] ACPI function is disabled.

– Sleep mode

This item sets sleep mode for OSs supporting ACPI.

- S1 (Initial value) Sets S1 sleep mode (CPU stop).

-S3 Sets S3 sleep mode (power off other than RAM).

- Disabled ACPI is disabled.

Point

If an error occurs in an extension card or peripheral unit when [S3] is selected, set to [S1].

Boot Menu

The Boot menu is used to set the priority of boot drives. Select Boot using the ← or → key to display the Boot menu.

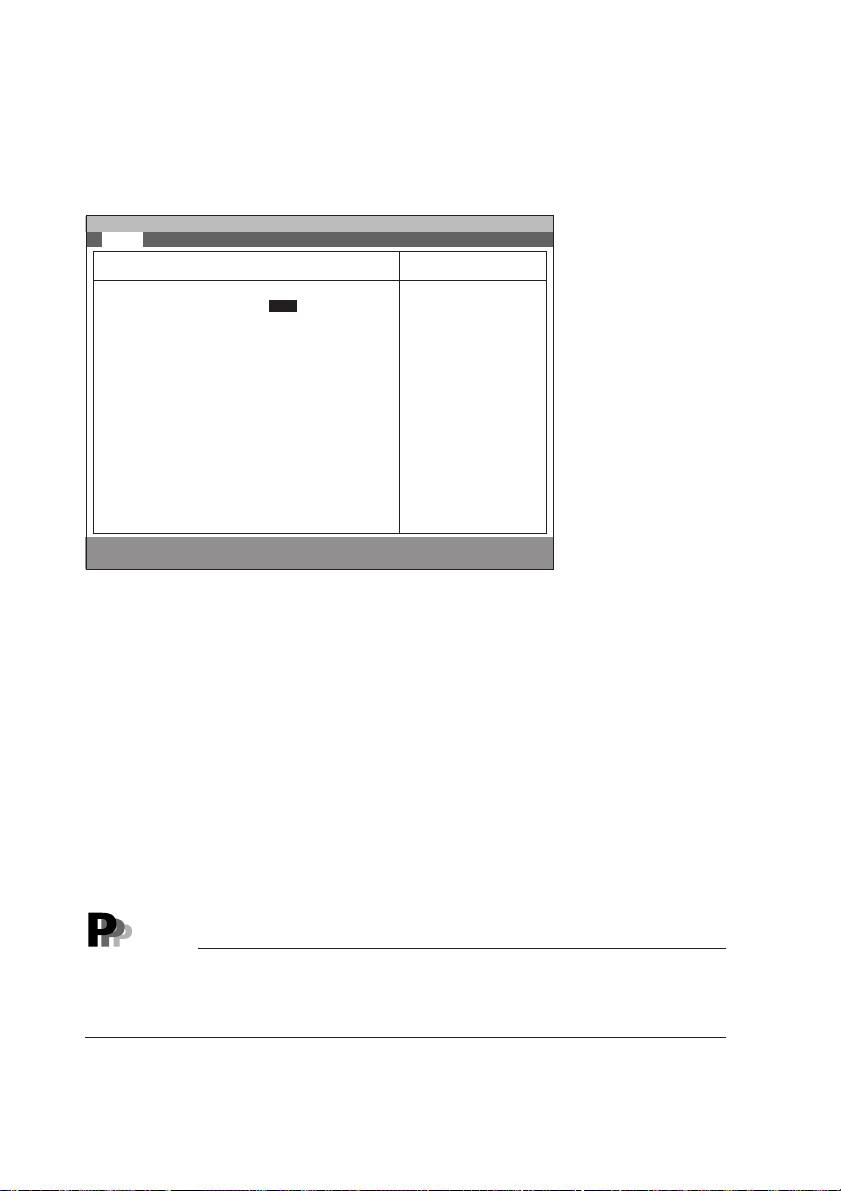

Main Advanced Security Power Boot Info Exit

QuickBoot: [Enabled] Boot-time Diagnostic Screen: [Disabled] Preboot Execution Environment: [Disabled] Delay Time for ATA/ATAPI Drive: [3 seconds]

:Boot Device Priority

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○

● Quick Boot

This item sets whether to reduce the time after the personal computer is turned on or rebooted until the OS is loaded.

- Disabled The time to load the OS is not reduced.

- Enabled (Initial value) The time to load the OS is reduced.

PhoenixBIOS Setup Utility

Item Specific Help

[Enabled] Some diagnostic tests may be skipped while booting to speed up.

[Disabled] All diagnostic tests will be done.

[Auto] Diagnostic tests will be automatically skipped or done according to the order of the ACPI OS.

Point

If an error occurs in POST at boot, quick boot is not performed at next boot.

● Boot Time Diagnostic Screen

This item sets whether to display the self diagnostic (POST) screen at boot or reboot.

- Disabled (Initial value) The FUJITSU logo is displayed at boot or reboot.

- Enabled The self diagnostic (POST) screen is displayed at boot or reboot.

Point

To confirm BIOS messages from an extension card, select [Enabled].

● Preboot Execution Environment

This item sets whether to preboot from the network server.

- Disabled (Initial value) Boots the computer from its hard disk drive, CD-ROM drive, or floppy disk drive.

- Enabled Starts the computer from a network server. If the computer is rebooted after this item is set to [Enabled], “PXE” is added to “Boot Device Priority.”

Point

To boot from the network server, an installation server system conforming to Network PC System Design Guidelines Version 1.0b is required.

● Delay Time for ATA/ATAPI Drive

This item sets the wait time until the computer automatically identifies the ATA/ATAPI drive.

- None The computer boots automatic identification as soon as it launches.

- 3, 5, 10, 15, 30 seconds (Initial value: 3 seconds) The computer boots automatic identification after a preset time.

Point

If the computer does not identify the connected ATA or ATAPI drive properly, extend the preset time.

● Boot Device Priority

This item sets the priority of devices to load the OS using a submenu. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

Boot Device Priority

Item Specific Help

1. [Floppy Disk Drive]

2. [Hard Disk Drive]

3. [ATAPI CD-ROM Drive]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Use <↑> or <↓> to select a device, then press <+> or <Space> to move it up the list, or <-> to move it down the list. Press <Esc> to exit this menu.

The priority is the order of each item. (The lowest number indicates the highest priority.) Select the device whose priority is to be changed using the ↑ or ↓ key. The selected item moves up to a higher priority when the space is pressed and moves down to a lower priority when the - key is pressed.

Point

For booting from a CD-ROM, a CD-ROM containing an OS capable of being booted is required. Before turning on or booting the power, set the CD-ROM on the CD-ROM drive.

Info Menu

The Info menu is used to provide the hardware configuration of the personal computer The setting of this menu cannot be changed. Select this item with the ← or → key to display the Info menu.

Main Advanced Security Power Boot Info Exit

BIOS Version: 1.XX BIOS Date: xx/xx/1999 BIOS Area: E800h - FFFFh

CPU Type: CPU Speed: 450MHz L1 Cache: 32KB L2 Cache: 512KB

Total Memory: 128MB Memory Slot 1: 64MB SDRM (ECC) Memory Slot 2: 64MB SDRM (ECC) ECC: Error Correction Enabled

Asset Number: None

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○

● BIOS Version

Displays the BIOS version.

PhoenixBIOS Setup Utility

Item Specific Help

Pentium(R) III processor

● BIOS Date

Displays the date of BIOS.

● BIOS Area

Displays the addresses of the area available for BIOS. This area cannot be used as UMB.

● CPU Type

Displays the type of CPU on this computer.

● CPU Speed

Displays CPU clocks.

● L1 Cache

Displays the size of the CPU primary cache memory.

● L2 Cache

Displays the size of the CPU secondary cache memory.

● Total Memory

Displays the total memory size (RAM) mounted on the computer. – Memory Slot 1/2

Detects and displays the type of memory mounted on each memory slot. A slot with no memory mounted is indicated as “Not used.”

● ECC

This item sets whether to perform memory error check (ECC mode).

- Disabled Memory check is disabled.

- Error correction enabled (Initial value) The system detects for a 2-bit error on memory and corrects a 1-bit error on memory in ECC mode.

- Error detection enabled The system checks for memory errors but does not correct errors.

● Asset Number

Displays an asset number. If no asset is set, “None” is displayed.

Point

The asset number is stored in a 64-byte data area but is displayed using only 30 characters. If more than 30 characters are used, the number is displayed with an angle (→) on the end indicating that it continues. The asset number can only be ASCII codes 20h to 7Eh. Other characters are displayed as “?”

Exit

The Exit menu is used to exit the BIOS setup utility and to reset to standard setup values. Select Exit with the ← or → key to display the Exit menu.

Main Advanced Security Power Boot Info Exit

Exit Saving Changes Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○

● Exit Saving Changes

This item exits the BIOS setup utility with saving changes to the CMOS RAM and reboots the computer. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

PhoenixBIOS Setup Utility

Item Specific Help

Exit System Setup and save your changes to CMOS.

Setup Confirmation

Save configuration changes and exit now?

[Yes] [No]

● Exit Discarding Changes

This item exits the BIOS setup utility without saving changes to the CMOS RAM and reboots the computer. All changes are discarded. If the Enter key is pressed while changing setup values, the message shown below is displayed. To discard changes, select [No] and press the Enter key.

Setup Confirmation

Configuration has not been saved!

Save before exiting?

[Yes] [No]

● Load Setup Defaults

This item loads default values to all setup items. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Load default configuration now?

[Yes] [No]

● Discard Changes

This item loads values before change from the CMOS RAM to all setup items and discards all changes. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Load previous configuration now?

[Yes] [No]

● Save Changes

This item saves changes to the CMOS RAM. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Save configuration changes now?

[Yes] [No]

Chapter 5 Troubleshooting

This chapter explains the procedure to follow if the computer does not operate as expected.

1 Error Messages ...................................................................................68

2 Troubleshooting...................................................................................72

Error Messages

This section provides a list of error messages and suitable responses thereto. Consult this section as required.

Error messages displayed by the PC

○○○○○○

Error Message

An error occurred at address xxxx during a system memory test.

An error occurred at address xxxx during an additional memory test.

An error occurred during a keyboard controller test.

An error occurred during a keyboard test.

An error occurred during a floppy disk drive test.

Description and necessary action

If an extended RAM module is used, remove the module and determine whether the error recurs. If this message is not displayed, an extended RAM module error is expected. Replace with another extended RAM module and determine whether the error recurs. If the error recurs, contact a dealer or the your local distributor.

Confirm that the extended RAM module is mounted properly and is a Fujitsu product. If the error recurs, contact a dealer or the your local distributor.

Set the MAIN switch to OFF, then wait ten seconds and set to ON again. If the messages is still played, contact a dealer or your local distributor.

If an external keyboard is connected, confirm that it is connected correctly and turn on the power again. If this message is still displayed, contact a dealer or the your local distributor.

Confirm that ‘Floppy Disk Drive A’ is set properly on the BIOS setup main menu and that the floppy disk drive is mounted correctly. If this message is still displayed, contact a dealer or the your local distributor.

Error Message

An invalid hard disk drive was set.

Turn the power off, then on again.

Confirm BIOS setup items, then save.

Because the computer was not booted correctly last time, some of the setup values are reset to defaults.

If an error occurs during POST, this message is displayed before the OS boots.

Security is set for the hard disk.

Return all BIOS setup values to defaults.

Description and necessary action

Confirm ‘Primary master’ or ‘Secondary master’ on the BIOS setup main menu. If the message is still displayed, contact a dealer or the your local distributor.

If the message is still displayed, contact a dealer or the your local distributor.

This message is displayed if an invalid BIOS setup value is defined to boot the system, the power is turned off during boot, or the computer is rebooted three or more times in the same operation. To continue booting, press the F1 key. To run the BIOS setup utility and check setup values, press the F2 key.

To boot booting the OS, press the F1 key. To run the BIOS setup utility and change setup values, press the F2 key.

Change the BIOS setup supervisor password or user password to the password set for hard disk security.

If this message is still displayed, contact a dealer or the your local distributor.

Error Message

Invalid system disk

Non-System disk or disk error

Operating system not found

Description and necessary action

Replace the disk, and the disk, and then press any key This message is displayed if the computer is turned on with a floppy disk other than a system disk set on the floppy disk drive. Remove the floppy disk and press any key. Replace and press any key when ready. This message is displayed if the computer is turned on with a floppy disk other than a system disk set on the floppy disk drive. Remove the floppy disk and press any key. The OS was not found. Confirm that the correct drive is set by the BIOS setup utility or that the OS is installed on the specified drive.

Correcting errors

○○○○○○

If an error message is displayed, respond as follows.

- Running the BIOS setup utility If a BIOS setup error message is displayed, retry the BIOS setup utility.

- Confirming that built-in options are mounted correctly If optional extension cards are mounted, confirm that the cards are mounted and set up correctly. Also conform that the card is properly set. If available, consult manuals or utility software with extension cards.

If the error message is still displayed, the PC may be faulty. Contact a dealer or the your local distributor.

Troubleshooting

This section provides troubleshooting information for each function. Consult this section as required. For troubleshooting information for Windows NT, refer to the Windows NT manual or the online help registered on the Start menu.

Troubleshooting information on the computer main unit and peripheral units

○○○○○○

● The access lamp does not light up.

The PC may be faulty. Contact a dealer or the your local distributor.

- No data is displayed on the screen. Confirm the following:

- Is the Power switch on the display turned on?

- Is the power savings mode selected? Move the mouse or press any key.

- Is the display cable connected correctly? See “2 Connection” in Chapter 1, “Installation” to connect the display cable correctly.

- Is the power cable of the display unit connected to the outlet? See “2 Connection” in Chapter 1, “Installation” to connect the power cable correctly.

WARNING

● Before connecting cables, turn off the power to prevent electric shock.

- Are the brightness and contact variable resistors on the display unit adjusted correctly? Adjust the screen image using the brightness and contact variable resistors.

● The screen flickers.

Is there any strong magnetic field in the vicinity of the computer, such as a TV set? If so, keep away from the PC.

● The screen sides are cut.

Adjust the horizontal screen size using the adjustment controls on the display unit.

● Data cannot be read from or written to floppy disks.

Check the following:

- Is the floppy disk drive head dirty? Clean the head using a cleaning disk. (See “Cleaning the floppy disk drive” in Appendix 4, “Maintenance.”)

- Is the floppy disk write-protected? Move the write-protect tab on the floppy disk to a the write-enabled position.

● The power is not turned on or the Power lamp on the front panel does not

light up.

Is the power cable plugged in?

● Data cannot be read from the CD-ROM drive.

Check the following:

- Is the CD-ROM centered on the tray? If not, readjust it, making sure that the label is facing up.

- Is the CD-ROM upside down? If so, turn it right side up so that the label is facing up.

- Is the CD-ROM dirty or wet? Clean the CD-ROM with a soft dry cloth (moving from the center to the periphery).

- Is the CD-ROM damaged? Replace the CD-ROM.

- Does the CD-ROM conform to the required standard? Use a correct CD-ROM.

● Characters entered using the keyboard are not displayed.

Is the keyboard connected correctly? See “2 Connection” in Chapter 1, “Installation” to connect the display cable correctly.

● The mouse cursor does not move.

Is the mouse connected correctly? See “2 Connection“ in Chapter 1, ”Installation“ to connect the display cable correctly.

Troubleshooting information on Windows 95/98

○○○○○○

● The entire Windows 95/98 programs are frozen during the execution of

an application.

First press the Ctrl + alt + Delete keys to end the application. If the application cannot be terminated, press the Ctrl + Alt + Delete key twice to reboot the computer. If the computer cannot be rebooted, press the Power switch to turn off the power, then reboot a few minutes later. After the computer is rebooted, from the Start menu, select Program Accessories - System tools, then click on Scan disk. If no error is detected by the scan disk utility, continue operation. If an error is detected, respond in accordance with the messages displayed. However, the error might happen again after it has been corrected. If the error recurs, attempt to reinstall Windows 95/98 or applications.

Point

The current operation data by an application is not saved if the application is terminated using the Ctrl + Alt + Delete keys or the computer is reset.

● The mouse is disabled and Windows 95/98 cannot end.

Use the keyboard to exit Windows 95/98 as follows: 1Press the key or the Ctrl + Esc keys.

The Start menu appears.

2Select “Exit Windows” with the ↑ or ↓ key and press the Enter key.

The Exit Windows dialog box is displayed.

3Select “Turn off power” and press the Enter key.

Windows 95/98 ends.

● A SCSI unit is connected using a SCSI card but cannot be identified by

Windows 95/98.

Check the following:

- Is the SCSI card driver installed correctly? Proceed as follows. 1 From the Start menu, select Setup and click on Control Panel.

The Control panel window is displayed. 2 Double click on the System icon. 3 Click on the Device manager tab and confirm that the SCSI controller is defined.

If not defined, click on the Hardware icon in the Control Panel window to detect a

SCSI card and install the driver.

- Is the SCSI unit turned on before the computer is turned on? If the computer is turned on before the SCSI unit is turned on, the SCSI unit cannot be identified.

If an error recurs

○○○○○○○

If the cause is still unknown or the system cannot be reset, contact a dealer or your local distributor. Then check and record the following:

- Model name and serial number of the computer (See the label at the rear of the computer.)

- OS and version used

- Types of extension cards and memory installed

- Circumstances (the particulars, including the messages displayed on the screen, etc.)

- Date and time an error occurred

Appendix

This appendix explains how to clean the PC and provides PC main unit specifications.

1 Name and Function of Each Component.............................................76

2 Standard Specifications.......................................................................81

3 Cleaning Method .................................................................................88

4 Cabinet Security ..................................................................................91

5 Supplement .........................................................................................92

Name and Function of Each Component

This section provides the name and explains the function of each component of the PC main unit, mother board, and keyboard.

Front of the PC main unit

○○○○○○

Hard disk access indicator lamp

The lamp is on while data is being written into or read from a hard disk.

Power switch

Press this switch to turn on the PC main unit or suspend the system.

Power lamp

The lamp is on while the PC main unit is on. The green lamp is on during operation, and the orange lamp is on while in suspension.

Busy lamp (CD-ROM drive-equipped model)

The lamp is on while reading data from a CD-ROM or playing a music CD.

Floppy disk eject button

Press this button to eject a floppy disk. Do not press the button while the floppy disk access indicator lamp is on.

Floppy disk drive

Mount a floppy disk in this drive to write data into or read data from a floppy disk.

Floppy disk access indicator lamp

The lamp is on while data is written into or read from a floppy disk.

CD-ROM drive (CD-ROM drive-equipped model)

Use the drive to read data or program from a CD-ROM disk or to play a music CD.

EJECT button (CD-ROM drive-equipped model)

This button is pressed to mount or dismount a CD-ROM or a music CD and can be used while the PC main unit is on. Do not press this button while the BUSY lamp is on.

Sound volume

The sound volume of speakers and headphones can be controlled. Turn to the right to increase sound volume and turn to the left to decrease sound volume.

Foot

Install the foot to prevent the PC main unit from overturning if the PC is located vertically.

Microphone terminal

Connect a capacitor microphone on the market.

USB connector

Slide the cover to the left to connect a USB device.

Headphone terminal

Connect a headphone to listen to the sources, such as music CDs, from the computer.

Rear of the PC main unit

○○○○○○

Ventilation holes

The heat within the PC main unit is ventilated through these holes.

Outlet

Connect the power cord of a display.

Inlet

Connect the power cord of the PC main unit.

SPK OUT terminal

Connect speakers.

Extension slot LINE OUT terminal

Connect the input terminal of audio equipment.

LINE IN terminal

Connect the output terminal of audio equipment.

LAN connector

Connect the LAN cable.

USB connector

Connect a USB device.

Mouse connector

Connect the mouse

Keyboard connector

Connect the keyboard.

Serial connector

Connect the cables of the device conforming to the RS-232C standard.

Parallel connector

Connect the cables such as printer or scanner.

Display connector

Connect the display cable.

Appendix

Inside the PC main unit

○○○○○○

Extension slot

Install various option cards for extending the features of the PC. The PCI card can be inserted.

Secondary IDE connector

A standard-type CD-ROM is connected.

Power supply unit

Built-in hard disk

IDE-standard hard disk

Primary IDE connector

A standard-type hard disk is connected.

Floppy disk connector

Motherboard

○○○○○○

DIMM slots

Insert a memory module. The slots are placed in the order of DIMM1 and DIMM2 from the left, as viewed from the front of the PC main unit.

CPU

SW1 dip switch

Set whether the password is valid or invalid. To prevent a malfunction, use the switch only to change the password setting.

Built-in battery

Use this battery to store individual values set with the clock function of the PC and the BIOS setup. The life span of the battery is about five years under normal conditions (8 hours per day).

Appendix

Keyboard

○○○○○○

Point

Unfolding the feet on the bottom of the keyboard permits keyboard inclination.

Tilt foot

Standard Specifications

PC main unit specifications

○○○○○○

Product name

CPU BIOS ROM System RAM

Floppy disk Hard disk CD-ROM Graphics Sound I/F Display

USB Keyboard Mouse Serial port Parallel port LAN

Audio

Error monitor function

Number of extension slot Housing Power supply/frequency Power consumption

DESKPOWER 6000/SS

Intel Pentium III 512KB (FLASH ROM) SDRAM with 168-pin parity (Supporting ECC) Up to 512 MB

3.5-inch disk drive x 1

6.4GB/8.4GB or higher capacity Up to 24-time speed slim type

ATI Rage XL AGP2X, 8 MB SGRAM

Crystal 4280+CS4297 (Integrated PCI) D-SUB 15pin (Analog RGB) 2-port (4-pin) Series A PS/2 type Mini DIN 6pin PS/2 type Mini DIN 6pin Asynchronous RS-232C x 1 D-sub 9pin Conforming to Centronics D-SUB 25pin Intel 82559 100BASE-TX/10BASE-T (WAKEUP ON LAN function provided) Front: Mic-in, Headphone Rear: Line-out, Line-in, Speaker-out CPU fan stop/voltage abnormality monitor within the mother board 2 PCI Space saving 100/230 VAC 50/60Hz Up to 75 W

Appendix

Product name

Weight Outer dimensions (When placed vertically) Operating environment

DESKPOWER 6000/SS

About 7.0 kg 88mm x 330mm x 310mm (W x D x H) (Excluding the foot and projection section)

Temperature: 10 to 35 °C, humidity: 20 to 80% (RH)

Point

Note that the specifications of the PC main unit may change without prior notice.

LAN adapter specifications

○○○○○○○

LAN controller

Send and receive buffer RAM External interface Transmission media

Transmission method Access method Data transfer speed Wiring mode Maximum segment length Maximum number of nodes/segment

To successfully operate the network at 100 Mbps, use an unshielded twisted pair cable (UTP) with a data grade of category 5 or higher. If a cable classified as category 3 is used, data is lost.

The hub unit is a concentrator of 100BASE-TX/10BASE-T.

Sound specifications

○○○○○○

Product name

MPU-401 Joystick Interrupt request level

Sound section

Sampling rate

Intel S82559

3 kB each for send and receive

ISO8802-3 100BASE-TX/10BASE-T Twisted pair cable*1 (100 Mbps: Category 5, 10 Mbps: Categories 3 to 5) Base band CSMA/CD 100Mbps, 10Mbps Star type 100m

Depends on the hub unit*

Manufactured by Crystal

300h-301h to <330h-331h> to 3FEh-3FFh <200h-207h>, 208-20Fhl) IRQ <5>, 7, 9, 11, 12, 15

5 to 48 kHz

- The factory-set IRQs and I/O port addresses of the PC have been set to the value in < > in the above table.

- Although “Joystick” is displayed in the device manager of Windows 95/98, it cannot be used with this PC because the joystick connector is not provided in your PC.

Appendix

Resources

○○○○○○

The following tables list the factory-set statuses of the interrupt request levels (IRQ), DMA channels, and I/O port addresses of the PC.

IRQ

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Because of PCI device, the allocated IRQ level may be changed.

Status

System timer Keyboard IRQ controller Free Serial port Sound Floppy disk Parallel port Real-time clock Free On-board LAN Free or assigned to USB Mouse Floating-point processor Primary IDE Secondary IDE

DMA

0 1 2 3 4 5 6 7

I/O

0200h to 0207h 0330h to 0331h 0378h to 037Fh 03F8h to 03FFh

Status

Free Free Floppy disk Free DMA controller Free Free Free

Status

Joystick MPU-401 Parallel port Serial port

Connector specifications

○○○○○○

The pin arrangement and signal names of each connector are as follows:

● Display connector

10 6

Pin no.

1 2 3 4 5 to 8 9 10 11 12 13

Signal name

RED GREEN BLUE NC GND +5V GND NC SDA HSYNC

VSYNC

SCL

Direction

Ouput Output Output

– – – – –

Input/output Output

Output

Input/output

● LAN connector (100BASE-TX/10BASE-T)

Pin no.

1 2 3 4 5 6 7 8

Signal name

TD+ TD– RD+ NC NC RD– NC NC

Direction

Ouput Output Input

– –

Input

– –

Description

Red output Green output Blue output Not connected Ground +5V Ground Not connected Data Horizontal synchronous signal Vertical synchronous signal Data clock

Description

Send data+ Send data– Receive data+ Not connected Not connected Receive data– Not connected Not connected

Appendix

● Parallel connector

13 1

25 14

Pin no.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 to 25

Signal name

STORE DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 ACK BUSY PE SELECT AUTOFD ERROR INIT SLCTIN GND

● Serial connector

Direction

Input/output Input/output Input/output Input/output Input/output Input/output Input/output Input/output Input/output Input Input Input Input Output Input Output Output

–

Description

Store Data0 Data1 Data2 Data3 Data4 Data5 Data6 Data7 Acknowledge Busy Out of paper Select Automatic feed Error Initialization Select Ground

Pin no.

1 2 3 4 5 6 7 8 9

Signal name

CD RD TD DTR GND DSR RTS CTS RI

Direction

Input Input Output Output

–

Input Output Input Output

Description

Carrier detection Receive data Send data Data terminal ready Ground Data set ready Send request Send enabled Ring indication

● Mouse connector

Pin no.

1 2 3 4 5 6

Signal name

DATA NC GND VCC CLK NK

● Keyboard connector

Pin no.

1 2 3 4 5 6

Signal name

DATA NC GND VCC CLK NK

Direction

Input/output

– – –

Input/output

–

Direction

Input/output

– – –

Input/output

–

Description

Data Not connected Ground Power supply Clock Not connected

Description

Data Not connected Ground Power supply Clock Not connected

● USB connector (SeriesA)

1234

Pin no.

1 2 3 4

Signal name

VCC –DATA +DATA GND

Direction

–

Input/output Input/output

–

Description

Cable, power supply –data signal +data signal Cable, ground

Appendix

Cleaning Method

How to clean the PC is explained as follows:

WARNING

● To prevent electric shock, before cleaning the PC, switch off the PC and all connected units and unplug all power cords.

Cleaning the PC main unit

○○○○○○

Wipe the PC main unit with a soft dry cloth. If necessary use a damp cloth but do not permit moisture to come into contact with the PC main unit.

Cleaning the keyboard

○○○○○○

Wipe the keyboard with a soft dry cloth.

Cleaning a CD-ROM

○○○○○○

Wipe the CD-ROM disk, proceeding from the center to the rim, with a soft dry cloth. If necessary use a damp cloth followed by a soft dry cloth.

Cleaning the mouse

○○○○○○

Use a soft dry cloth. If the ball does not roll smoothly, remove the ball and clean. To clean the ball proceed as follows:

Remove the back cover of the mouse.

Turn the back cover of the mouse in the direction of the arrow to remove.

Remove the ball and clean with water.

Reverse the mouse to remove the ball, then clean the ball with water.

Clean the inside of the mouse.

Wipe the inside of the mouse, the rollers, and the back cover with a damp cloth.

Attach the ball and the back cover.

After drying the ball and the inside of the mouse, attach the ball and back cover.

Cleaning a floppy disk drive

○○○○○○○○

The head (component for reading and writing data) of a floppy disk drive becomes dirty after extended periods of use, thereby preventing efficient data reading or writing operations. Use the cleaning disk to clean the head every three months.

● For Windows 9X/NT model:

Mount the cleaning disk in a disk drive Enter a disk-access command such as “dir” at the command prompt.

Example: Enter a command as follows and press the [Enter] key.

Roller

dir a:

Appendix

Cleaning a CD-ROM drive

○○○○○○○

The lens in a CD-ROM drive for reading data may become dirty after extended periods of use, thereby preventing efficient reading of data from the CD-ROM. Use the CD-ROM cleaning disk to clean the CD-ROM.

● Item to prepare

CD-ROM cleaning disk.

● Cleaning method

Before using the CD-ROM cleaning disk, remove the plastic ring fixed to the disk.

Switch on the PC.

Align the special cleaning brush on the rear of the CD-ROM cleaning disk using a small brush included in the CD-ROM cleaning disk case.

With the red triangle facing you, mount the CD-ROM cleaning disk on the tray until a click is heard.

Insert the tray.

Wait about 20 seconds.

Although unusual sounds may be heard or the disk may spin at high speed, the PC is not defective.

Check that the BUSY lamp is off, then press the EJECT button to dismount the CD-ROM cleaning disk.

Align the special cleaning brush of the cleaning disk to the hole on the surface of the storage case.

Restart the PC.

Fujitsu 6000 User Manual
