FUJITSU 5000 User Manual

DESKPOWER 5000 Series User’s Manual

Fujitsu endeavours to ensure that the information in this document is correct, but accepts no liability for any error or omission in the same. Any procedures described in this document for operating Fujitsu products should be read and understood by the operator before such products are used. To ensure that Fujitsu products function without risk to safety and health, such procedures should be strictly observed by the operator. The development of Fujitsu products and services is continuous and published information may not be up to date. Any particular issue of a product may contain facilities not described herein. It is important to check the current position with Fujitsu. Specifications and statements as to performance in this document are Fujitsu estimates intended for general guidance. They may require adjustment in particular circumstances and should therefore not be taken as formal offers or commitments.

DESKPOWER is a trademark of Fujitsu Limited. The following are registered trademarks of

Miscrosoft Corporation: MS, MS-DOS, Windows

NT, Windows® for Workgroups, Windows® 95, Windows® 98. Celeron,Pentium II and III are the registered trade mark of Intel Corporation. Phoenix and the Phoenix logo are registered trademarks of Phoenix Technologies, Ltd. Intel Pentium™ and MMX™ technology are trademarks of Intel Corporation. ATI Graphic Chip: RAGE PRO TURBO and RAGE XL are the registered trademarks of ATI Technologies, Inc. Award is the registered trademark of Award Software International Inc.

Fujitsu Limited, 2000 The use of screens is permitted by Microsoft Corporation in the United States. All other products are trademarks or registered trademarks of their respective companies.

© Copyright 2000 Fujitsu Limited. All rights reserved. No part of this publication may be copied, reproduced, or translated without the prior written consent of Fujitsu Limited. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu Limited.

Fujitsu PC (Asia) Pte Ltd 200 Pandan Loop #05-03 Pantech 21 The Computer Centre Singapore 128388

Tel : 65-776 0688 Fax : 65-776 0788

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully. Save these instructions for future reference.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

8. This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This will only plug into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

9. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

10. If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed 15 amperes.

11. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally when the operating instructions are followed. Adjust

only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified

technician to restore the product to normal condition. e. If the product has been dropped or the cabinet has been damaged. f. If the product exhibits a distinct change in performance, indicating a need for service.

14. CAUTION. When replacing the battery, be sure to install it with the polarities in the correct position. There is a danger of explosion if the battery is replaced with an incorrect type or is mistreated. Do not recharge, disassemble or dispose of in fire. Replace only with the same or equivalent type recommeded by the manufacturer. Dispose of the used battery according to the manufacturer’s instructions.

15. Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, BS1363,ASTA,SS145 certified, rated 10A 250V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Greetings

○○○○○○○

We thank you for purchasing the Fujitsu DESKPOWER 5000 personal computer. This manual explains how to use the hardware of the DESKPOWER 5000. Please read this manual carefully to ensure correct use of the DESKPOWER 5000.

This unit may malfunction if the power source is interrupted suddenly, for example, due to lightning. Fujitsu recommends the use of an AC non-interruptible power supply unit.

(Based on guidelines for the prevention of sudden voltage interruptions by Japan Electronic Industry Development Association (JEIDA).

This unit is class B information technology equipment based on the Voluntary Control Council for Interference (VCCI) standard by Information Technology Equipment and may create interference if used near radio or television receivers. Use the unit in accordance with information provided in the manual.

This unit conforms to the Personal Computer Industry Standard (PC-11-1988) of the Japan Electronic Industry Development Association (JEIDA).

This unit conforms to the harmonic guideline.

Because this product includes cargo based on the “Foreign Exchange and Foreign Trade Control Act,” the export of this product may require permission in accordance with said act.

Fujitsu, who is a participant of the International Energy Star Program, determines that this product conforms to the International Energy Star Program Standard. The International Energy Star Program is an international program for promoting energy conservation of office equipment such as computers and strives to develop and promote products capable of efficient energy use. This program is open to all manufacturers, and the products to be developed include computers, displays, printers, facsimiles, and copy machines. The same standard and markings ( ) are used among participating countries. The energy-saving function of this product, however, may not be applicable because of limitations with the operating system (such as Windows NT).

Conventions used in this manual

○○○○○○○

●Warning icons

Various icons and icon/word combinations are used in this manual to encourage users to use the equipment so as to minimize personal risk and prevent property damage. The icons are explained as follows. The user should be familiar with the icons before responding to the corresponding instructions.

WARNING

CAUTION

The following icons are also used with the above icon/word combinations to prevent personal injury and/or property damage.

● Representing keys and use thereof

In the text of the manual, keyboard keys are represented using only necessary characters as shown below.

Example: [Ctrl] key, [Enter] key, and [→] key

When more than one key is to be pressed simultaneously, the keys are represented using "+" between keys as shown below:

Example: [Ctrl] + [F3] and [Shift] + [↑]

Indicates a hazardous situation that could result in fatal or serious wound if the correct procedure is not applied.

Indicates a hazardous situation that could result in personal injury and/or property damage if the correct procedure is not applied.

The icon that indicates the corresponding instruction is a warning. The illustration displayed inside or beside the icon shows what the warning actually means.

The icon that indicates the corresponding instruction is a banned action.The illustration displayed inside or beside the icon shows what is actually banned.

The icon ● that indicates the corresponding instruction is a command to proceed. The illustration displayed inside or beside the icon shows what to proceed.

● Representing buttons

Buttons displayed on the screen are enclosed in square brackets, [and], as shown below:

Example: [OK]

● Command entries

In the text of the manual, a command is represented as shown below:

diskcopy a: a:

↑↑

A blank (shown with [↑]) between characters indicates that the [Space] key (long bar on the front of the keyboard) is to be pressed once. Command names are represented in lowercase but may be entered using uppercase letters.

● Conventions used in the text of the manual

The symbols used in the text of the manual have meanings as explained below:

Point

Help

???

Point indicates information necessary to run hardware or software.

Help indicates information explaining how to terminate an incorrect operation or troubleshoot.

● Screen display examples

Screen displays provided in this manual are examples and may be different from those (including file names) actually appearing on the display screen.

● Illustrations

Illustrations in this manual are an example using (mainly) the DESKPOWER 5000 (CD-ROM drive-equipped model) and may be different from those actually appearing on your PC screen depending on the model type and options installed.

● Custom-made options

Descriptions in this manual are based on the standard specifications. Note that when custom-made options are installed, memory capacity, hard disk capacity, and other specifications differ from the standard.

● Referencing products

In this manual, products are described using abbreviations as listed below:

Windows 95 refers to Microsoft Windows 98 refers to Microsoft Windows NT refers to Microsoft MS-DOS refers to Microsoft(R) MS-DOS(R) operating system Version 6.2/V. ICU refers to ISA Configuration Utility. The terms "your PC," "the PC," "your PC main unit," and "the PC main unit" refer to the

DESKPOWER 5000

Windows® 95 operating system.

Windows® 98 operating system.

Windows NT® Workstation operating system Version 4.0.

Warning and caution labels

○○○○○○○

The PC bears warning and caution labels as shown below. The warning and caution labels must not be removed or damaged.

● Rear of the PC main unit

● Inside the PC main unit

WARNING

Electric shock

To prevent electric shock and/or fire, do not remove the cover of this unit, which includes a high voltage section.

WARNING

Electric shock

To prevent electric shock, switch off the PC and connected peripherals and unplug power cords from respective outlets before disassembling the unit and installing a built-in option.

WARNING

Electric shock

● Before mounting or dismounting an optional unit in/from your PC, switch off the PC and all connected units and unplug all power cords from respective outlets to prevent electric shock.

Man

Manual configuration

Chapter 1 Installation and Connection

This chapter outlines precautions that should be noted when installing the PC and explains how to connect various cables. Consult this chapter before assembling the PC.

Chapter 2 Basic Operations

This chapter explains basic operations required to use the PC, such as how to switch the power on and off and how to proceed with storage media. Consult this chapter.

Chapter 3 Installing Internal Options

This chapter explains how to install internal options such as hard disk and expansion cards. Consult this chapter as required.

Chapter 4 BIOS Setup

This chapter explains the BIOS Setup program required for installing an internal option in your PC or setting it in the power saving mode. Consult this chapter as required.

Chapter 5 Troubleshooting

This chapter explains how to proceed if your PC does not operate correctly or if an error message appears. Consult this chapter as required.

Appendix

This appendix provides the name of each component of your PC,

Appendix

information relevant to PC maintenance, the specification of the PC main unit, and a list of precautions. Consult this appendix.

Con

Contents

Chapter 1 Installation and Connection ............................................ 1

1 Installation ............................................................................. 2

Installation location .................................................................................... 2

Example of installing the PC...................................................................... 2

Preventing electromagnetic interference with a TV or radio....................... 3

2 Connection ............................................................................ 4

Attaching CRT display, keyboard, mouse, and LAN cables....................... 5

Connecting the power cord........................................................................ 6

Upon completion of all connections ........................................................... 6

Chapter 2 Basic Operations .............................................................. 7

1 Switching on.......................................................................... 8

2 Switching off ....................................................................... 10

Turning off the power via Windows 95/98 ................................................ 10

Turning off the power via Windows NT .................................................... 11

3 Reset .................................................................................... 12

Resetting the PC via Windows 95/98....................................................... 12

Resetting the PC via Windows NT........................................................... 12

Resetting the PC via Windows 2000........................................................ 13

4 Floppy Disk.......................................................................... 14

Handling precautions ............................................................................... 14

Mounting and dismounting a floppy disk.................................................. 14

5 CD-ROM ............................................................................... 16

Handling precautions ............................................................................... 16

Mounting and dismounting a CD-ROM disk ............................................ 17

6 Hard Disk ............................................................................. 18

What is a hard disk? ................................................................................ 18

Handling precautions ............................................................................... 18

Chapter 3 Installing Internal Options ............................................. 19

1 Introduction ......................................................................... 20

Handling precautions ............................................................................... 20

Installing positions of internal options ...................................................... 21

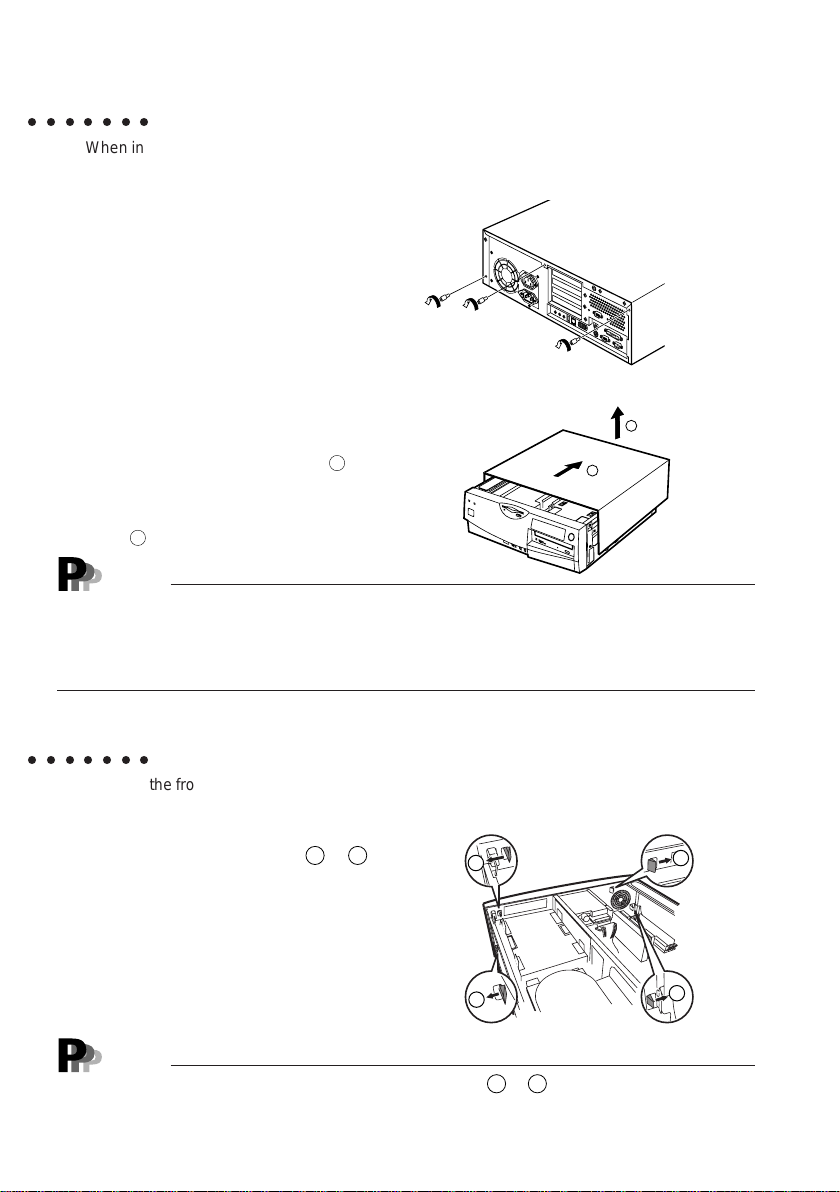

Removing the upper cover....................................................................... 22

Removing the front panel......................................................................... 22

2 Installing Memory Modules................................................ 23

Memory.................................................................................................... 24

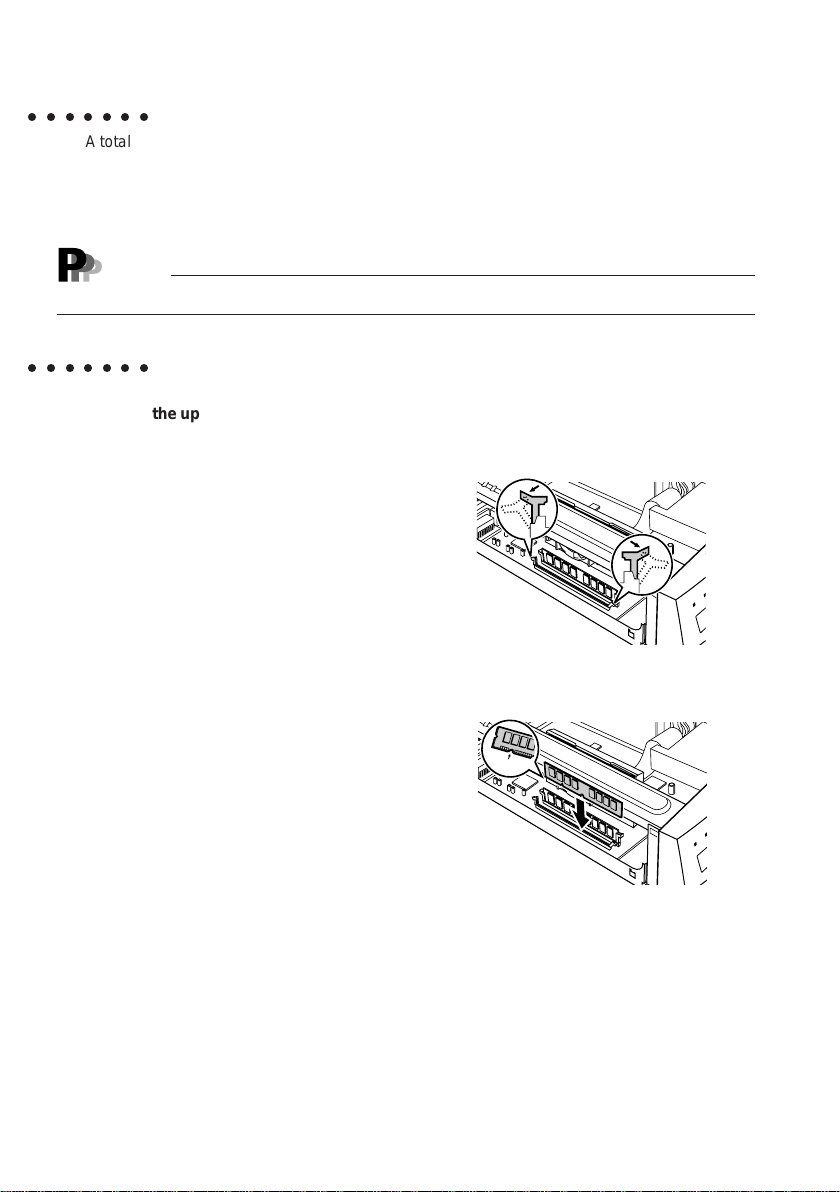

Installing an additional memory ............................................................... 24

Removing the memory............................................................................. 25

3 Installing Expansion Cards................................................ 26

Expansion cards for PCI bus (Plug & Play compatible cards) ................. 27

Expansion cards for ISA bus.................................................................... 27

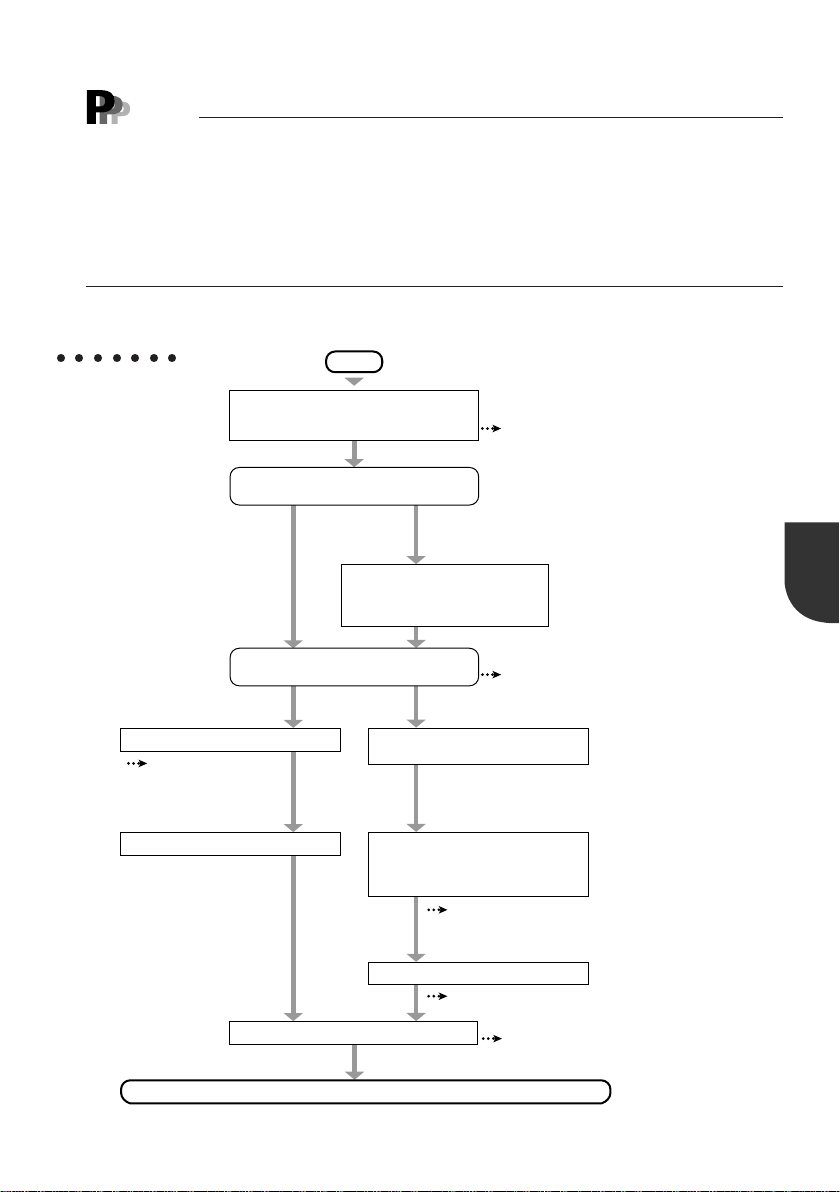

Expansion card installation procedure for a PC using Windows 95/98.... 28

Expansion card installation procedure for a PC using Windows NT ........ 29

Starting and terminating the ICU (For a PC using Windows NT)............. 30

Installing an expansion card .................................................................... 31

4 Installing Expansion Bay Options..................................... 34

Replacing a internal hard disk equipped as standard.............................. 36

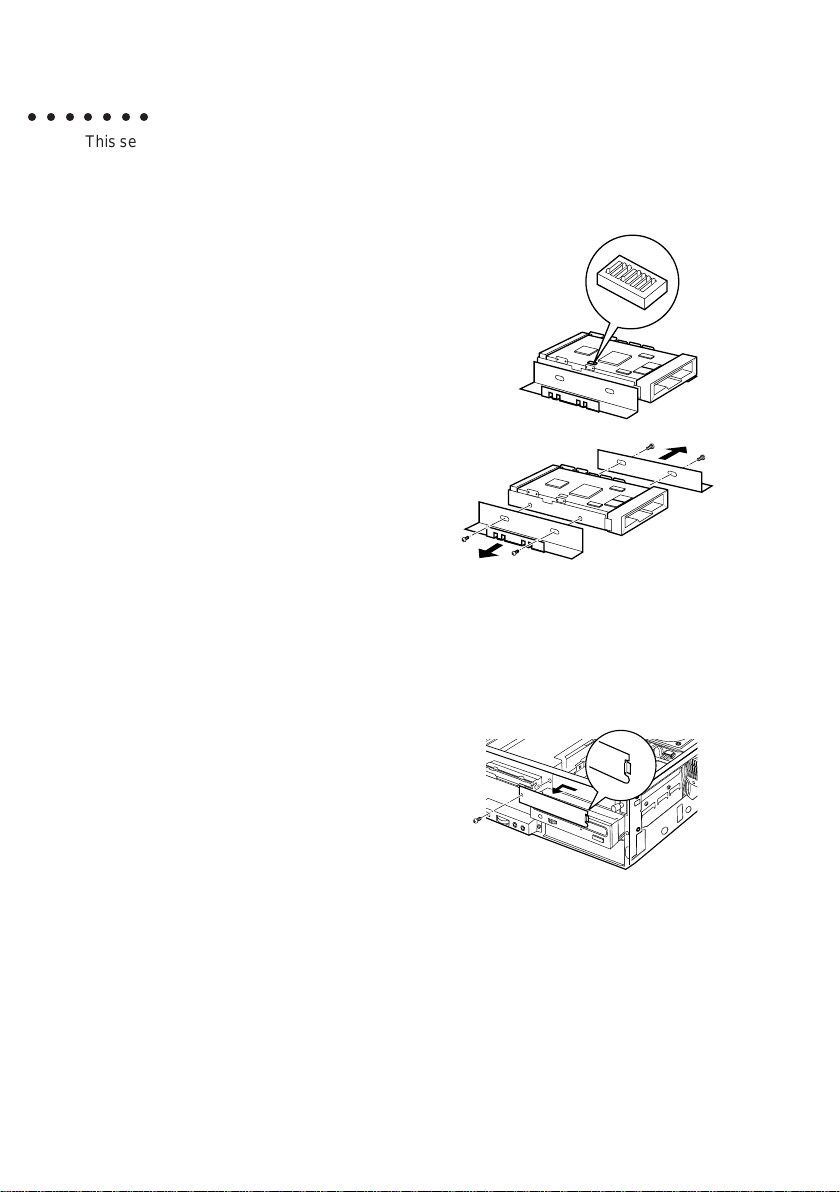

Installing internal options to 3.5-inch expansion bays.............................. 38

Installing internal options to 5-inch expansion bays ................................ 42

Chapter 4 BIOS Setup...................................................................... 45

1 Preface ................................................................................. 46

What is BIOS setup? ............................................................................... 46

Starting BIOS setup ................................................................................. 46

Key functions ........................................................................................... 47

Exiting BIOS setup................................................................................... 48

Menus ...................................................................................................... 48

2 Main Menu ........................................................................... 49

Details on setup items ............................................................................. 49

3 Detail Menu.......................................................................... 53

Details on setup items ............................................................................. 53

4 Security Menu ..................................................................... 63

Details on setup items ............................................................................. 63

Setting a password .................................................................................. 66

Changing passwords ............................................................................... 69

Deleting passwords.................................................................................. 69

5 Power Menu ......................................................................... 70

Details on setup items ............................................................................. 70

6 Boot Menu ........................................................................... 77

Details on setup items ............................................................................. 77

7 Info Menu ............................................................................. 79

Details on setup items ............................................................................. 79

8 Exit ....................................................................................... 81

Details on setup items ............................................................................. 81

Chapter 5 Troubleshooting.............................................................. 83

1 Error Messages ................................................................... 84

Error messages displayed by the PC....................................................... 84

Correcting errors...................................................................................... 87

2 Troubleshooting .................................................................. 88

Troubleshooting information on the computer main unit and peripheral

units ................................................................................................... 88

Troubleshooting information on Windows 95/98 ...................................... 89

If an error recurs ...................................................................................... 90

Appendix

1 Name and Function of Each Component.......................... 93

Front of the PC main unit......................................................................... 93

Rear of the PC main unit ......................................................................... 95

Inside the PC main unit............................................................................ 97

Motherboard/riser board .......................................................................... 97

2 Standard Specifications ..................................................... 99

PC main unit specifications...................................................................... 99

LAN adapter specifications .................................................................... 101

Sound specifications.............................................................................. 101

Resources.............................................................................................. 101

Connector specifications........................................................................ 103

3 Cleaning Method ............................................................... 105

Cleaning the PC main unit ..................................................................... 105

Cleaning the keyboard........................................................................... 105

Cleaning a CD-ROM.............................................................................. 105

Cleaning the mouse............................................................................... 105

Cleaning a floppy disk drive................................................................... 107

4 Supplement ....................................................................... 107

Peripheral devices and cables ............................................................... 107

Note on using the display ...................................................................... 107

Note on using an analog liquid crystal display....................................... 107

Digital display output.............................................................................. 107

Installing a display card (Windows 95 or 98 model)............................... 109

Replacing the display............................................................................. 109

Display and power save mode ............................................................... 109

About USB (Windows 95/98/2000) ........................................................ 109

Wake up On LAN................................................................................... 110

Power Saving Function .......................................................................... 110

LAN Cable ............................................................................................. 110

LAN Adapter .......................................................................................... 110

USB Keyboard (Windows 98 model) ..................................................... 110

CD-ROM drive ....................................................................................... 111

processor serial number ............................................................... 111

Intel

Mouse with scroll function(wheel).......................................................... 111

Restartup after installing LANDDesk

(Windows 95/98/NT model) ............................................................. 111

Client manager 6.0

Chapter 1 Installation and

Connection

This chapter outlines precautions that should be noted when installing the PC and explains how to connect various cables.

1 Installation ...................................................................................................2

2 Connection ..................................................................................................4

Installation

This section provides notes on installing and using the PC.

Installation location

○○○○○○○

Do not install the PC in the following areas:

- Area exposed to moisture, dust, or smoke

- Area poorly ventilated

- Area having open flames

- Area that may expose the PC to water

- Area exposed to direct sunlight or high temperatures.

- Area having temperatures below 10 ˚C.

- Area that are unusually small or crowded

- Area having a strong magnetic field (close to a TV or speaker)

- Area exposed to strong vibration and areas that are unstable such as an inclined surface

Example of installing the PC

○○○○○○○

Install the PC as follows.

CRT display

PC main unit

Keyboard

Mouse

Point

Confirm that the ventilation holes at the rear or on the bottom of the PC main unit are not blocked when installing the PC.

Preventing electromagnetic interference with a TV or radio

○○○○○○○○○

Your PC complies with the VCCI Standard restricting electromagnetic interference with a TV or radio. However, the computer may interfere with a TV or radio depending on the installation location.

To prevent the PC from interfering with TV or radio reception, note the following:

● Precautions to be taken by the PC user

- Do not use the PC with the cover removed.

- Use the specified cable to connect the PC with a peripheral. Do not use an unauthorized cable.

- After installing a cable, ensure that the connector is firmly attached and the screws (if any) are tight.

- Do not plug the PC in the same outlet as a TV or radio.

● Precautions to be taken by the TV or radio

- Do not place a TV or radio near the PC.

- Position TV or radio antennas in such a way that interference is minimized.

- Stay away the antenna line of a TV or radio near from the PC.

- Use coaxial cables as antenna feeders.

If interference with TV or radio reception continues after switching off the PC and peripherals, check the above items again.

Connection

Connect the LAN cable. Secure one end of the twisted pair cable (purchased separately) to the LAN connector at the rear of the PC main unit.

Connect the LAN cable. Secure the other end of the twisted pair cable (purchased separately) to the network connector.

Connect the display, keyboard, and power cord to your PC main unit

WARNING

Electric shock

CAUTION

Failure

Fire

Injury

Point

To connect a LAN cable, use a twisted pair cable, which must be purchased separately as it is not included with your PC package.

● To prevent electric shock, ground the device (if required) before providing power to the equipment. To prevent fire, do not connect the ground wire to a gas pipe.

● To prevent electric shock, unplug the PC main unit and connected equipment before attaching and detaching a CRT display, keyboard, mouse, LAN cables, and power cords.

● To prevent electric shock, fire, and/or malfunction, ensure that the display, keyboard, and mouse are all Fujitsu brand products.

● Ensure that cables are connected correctly. Using the PC and peripherals when connected incorrectly may result in a malfunction.

● To prevent a fire and/or malfunction, connect only the specified device to the AC service outlet (if provided).

● To prevent injury and/or malfunction, do not touch PC board components that are not specified.

Attaching CRT display, keyboard, mouse, and LAN cables

○○○○○○○

Point

This section explains how to connect the CRT display so as to supply power from the PC main unit. In this case, the power cord included with the CRT display is not used.

Connect the power cord to the CRT display. Secure one end of the power cord (for CRT) to the inlet at the rear of the CRT display.

Connect the power cord to the outlet. Secure the other end of the power cord (for CRT) to the outlet at the rear of the PC main unit.

Connect the keyboard. Secure the keyboard cable connector to the keyboard connector (ensuring that the colors of the keyboard connector and keyboard label at the rear of the PC main unit match and that the icon on the keyboard cable connector housing is facing

Connect the mouse. Secure the mouse cable connector to the mouse connector (ensuring that the colors of mouse connector and mouse label at the rear of the PC main unit match and that the arrow on the mouse cable connector housing is facing up).

Connect the CRT cable to the PC main unit. Secure the CRT cable connector to the CRT connector at the rear of the PC main unit and secure the connector screws.

Connecting the power cord

○○○○○○○○○

After connecting the display and other peripherals to the PC main unit, note the following when connecting the power cord of the PC main unit.

- Do not plug or unplug the power cord with wet hands.

- Do not damage or remodel the power cord.

- Do not bend, stretch, or place heavy objects on the power cord.

- Do not use the PC if the power cord or plug is damaged

- If the electrodes of the power cord plug or the corresponding outlet is dusty, wipe with a dry cloth.

- Connect the power cord to a household power source.

Point

Do not plug the power cord of your PC in a multiple plug box. Do not entangle the keyboard and mouse cables.

- Unplug all power cords during an electrical storm.

- If only a two-pin outlet is available, use the adapter plug provided and connect the ground wire.

- When unplugging a power cord, secure the plug housing.

- Ensure that the power plug is fully inserted into the outlet.

- Unplug the PC when not being used for a period of time.

Connect the power plug to a power source. Insert the other

end of the power plug into the Attach the power plug to the inlet on the rear of the PC.

outlet.

Upon completion of all connections

○○○○○○○

Upon completion of all connections, fill out all user registration cards included with your PC package. The registration cards are used by manufacturers to obtain user information.

Chapter 2 Basic Operations

This chapter explains basic operation methods of the PC such as how to turn the power on and off and handle storage media.

1 Switching on ................................................................................................ 8

2 Switching off ..............................................................................................10

3 Reset ......................................................................................................... 12

4 Floppy Disk ................................................................................................ 14

5 CD-ROM .................................................................................................... 16

6 Hard Disk ................................................................................................... 18

Switching on

This section explains how to switch on the PC.

CAUTION

Prohibited action

Press the power switch of the CRT display.

There is no display.

Press the power switch of the PC main unit.

The power lamps of the PC main unit and CRT display light up green.

When the power is switched on, the Power On Self Test (POST) used to check the devices inside the PC is performed.

● To prevent malfunction after turning on the PC, do not move equipment or subject equipment to shock and/or vibration.

Power switch

Point

- Before switching on the PC, make sure that display is connected. If the PC is switched on before the display is connected, the display adapter may not be recognized, and the screen may not be displayed normally. In this case, connect the display, terminate the OS, switch off the PC, and then switch on the PC again.

- If the display area is not centered on the screen, adjust the CRT display.

- The power lamp lights up orange when the PC is placed in standby status.

- If POST detects abnormal conditions, an error message is displayed. For error messages, see Section 1, " Error Messages," in Chapter 5, "Troubleshooting."

- If the CRT display power cord is connected to the PC main unit, the CRT display is switched on simultaneously with the PC main unit. In this case, the power switch of the CRT display may remain in the on position, thereby eliminating the need to set the switch at each operation. Press the power switch of the PC main unit only when using the PC again, as described in step 2, at which time the display is switched on automatically.

- Wait about 10 seconds before switching the PC on or off again.

- When starting the screen display or switching the display mode, the screen may become disordered or vertical lines may appear temporarily (at the start and end screens of Windows or when returning from the power savings mode). This is not an error.

- The refresh rate of the screen must be set according to the CRT display to be used. For extreme overflow or inclination, adjust the CRT display.

After turning on the power, set up the PC.

Switching off

This section explains how to turn off the PC.

Point

- Before turning off the power, terminate all jobs and save all necessary data.

- Before turning off the power, confirm that the access indicator lamps ( "Name and Function of Each Component") of the floppy and hard disk drives are off. If the power is turned off while the access indicator lamps are on, data may be lost or data in the floppy disk or hard disk may be destroyed.

- If the power cord is unplugged from the outlet or the power is disconnected due to a power failure while the PC is on, re-connect he power cord or wait until AC power recovers. When the power recovers, the PC is automatically turned on and started. "Press <F2> to enter SETUP" may be displayed at this time. In this case, press the [F2] key, check the Setup items from the menu, and restart the PC.

- If the "Power switch" of the BIOS setup is set to "Standby," pressing the power switch does not switch off the PC. ( Setup").

- Do not turn off the PC while the POST is operating. To switch off the PC while the POST is operating, press the power switch for at least four seconds and confirm that the power lamp goes off.

- If the power is turned off during the POST operation due to a power failure or some other reason, the message, [Press <F1> to resume, <F2> to setup], may be displayed at rebooting. In this case, press [F2] key, confirm the setup menu, and then reboot.

- If the power lamp is on in orange, repress the power switch for at least four seconds.

see Section 5, "Power-Saving Menu," in Chapter 4, "BIOS

see Appendix 1,

Turning off the power via Windows 95/98

○○○○○○○

Click [Start].

The "Start" menu appears.

For Windows 98For Windows 95

Click [Shut Down].

The following dialog box appears.

For Windows 95

Check that "Shut down the computer?" has been selected and then click [OK].

The power is turned off automatically.

For Windows 98

Point

If "APM Power Controls" on the BIOS setup menu is set to "Disabled," the message "The computer is ready for shut down" is displayed. Since power is not automatically turned off, press the Power button to turn off the power. ( 4, "BIOS Setup.")

See Section 5, "Power Menu," in Chapter

Turning off the power via Windows NT

○○○○○○○

Click [Start].

The "Start" menu appears.

Click [Shut Down].

The following dialog box appears.

Check that "Shut down the computer?" has been selected and then click [Yes].

Turned off the system unit.

Reset

The PC is reset after software is installed or if software fails to run normally. This section explains how to reset the PC.

Point

Resetting the PC results in memory data being lost. Before resetting, save all necessary data.

Resetting the PC via Windows 95/98

○○○○○○○

This section explains how to reset the PC via Windows 95/98.

Click [Start] and "Shut Down."

The "Shut Down Windows" dialog box appears.

Select "Restart the computer?" and then click [OK].

The PC is reset.

Point

If Windows 95/98 does not respond to the keyboard or mouse, reset the PC as follows: 1 Press [Ctrl] + [Alt] + [Delete].

The "Close Program" dialog box appears. Follow the instructions in this dialog box.

Resetting the PC via Windows NT

○○○○○○○

This section explains how to reset the PC via Windows NT.

Click [Start] and "Shut Down."

The "Shut Down Windows" dialog box appears.

Select "Restart the computer?" and click [Yes].

The PC is reset.

Point

The following procedure can also be used to reset the PC:

1 Press [Ctrl] + [Alt] + [Delete].

The "Windows NT Security" dialog box appears.

2 Click [Shut Down].

The "Shut Down Computer" dialog box appears.

3 Select "Switch off power after shut down?" and click [OK].

The PC is reset.

Resetting the PC via Windows 2000

○○○○○○○

This section explains how to reset the PC via Windows 2000.

Click [Start] and "Shut Down".

The "Shut Down Windows" dialog box appears.

Select [Restart] and click [OK].

The PC is reset.

Point

The following procedure can also be used to reset the PC:

1 Press [Ctrl] + [Alt] + [Delete].

The "Windows Security" dialog box appears.

2 Click [Shut Down].

The "Shut Down Windows" dialog box appears.

3 Select "Restart" and click [OK].

The PC is reset.

Floppy Disk

A floppy disk is a storage medium used to save programs and other information. This section explains how to mount and dismount floppy disks.

Point

Use a floppy disk formatted for DOS. If a disk other than DOS is used, the operation may not execute correctly.

Handling precautions

○○○○○○○

To prevent malfunctions, note the following precautions regarding floppy disks:

- Do not get wet.

- Do not open the disk shutter.

- Do not bend or place heavy objects thereon.

- Do not expose to magnetic force.

- Do not drop.

- Do not store in areas exposed to high or low temperatures.

- Do not store in a damp or dusty area.

- Do not overlay labels.

- Do not get wet.

Mounting and dismounting a floppy disk

○○○○○○○

● Mounting a floppy disk

With the label facing left, insert the floppy disk into the drive shutter-end-first.

The floppy disk eject button clicks and is pushed out.

Label

Shutter

Floppy disk eject button

● Dismounting a floppy disk

Confirm that the floppy disk access indicator lamp is off.

Floppy disk access indicator lamp

Point

To prevent data from being destroyed, do not dismount a floppy disk from the drive when the floppy disk access indicator lamp is on.

Press the floppy disk eject button.

The floppy disk is ejected.

CD-ROM

Your PC incorporates a CD-ROM drive.(depending on the model). This section explains how to handle, mount, and dismount CD-ROM disks.

Handling precautions

○○○○○○○

To prevent malfunctions, note the following precautions regarding CD-ROM disks:

- Do not write on the label side (printed side) using a ball-point pen or pencil and do not affix extra labels.

- Do not touch or scratch the data side.

- Do not bend or place heavy objects thereon.

- Clean using a dry soft cloth (do not use a cleaning solution).

- Do not get wet.

- Do not store in areas exposed to high or low temperatures.

- Do not store in damp or dusty areas.

Point

CD-ROMs (developed from music compact disks (CD)) are used to save PC information (such as characters). The term "ROM" stands for "Read Only Memory," which means that the user can only read data in the disk. The PC can read data from a CD-ROM disk but cannot write data onto a disk.

The PC can read CD-ROM disks having the following markings:

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

Mounting and dismounting a CD-ROM disk

○○○○○○○

●Mounting a CD-ROM

Press the EJECT button.

The CD-ROM tray is ejected.

BUSY lamp

With the label side of the CD-ROM disk facing up, place the CD-ROM disk in the center of the tray.

Press the EJECT button.

The tray retracts into the PC main unit and the CD-ROM is set.

EJECT button

Label side

Tray

Point

- When the CD-ROM is set, the BUSY lamp goes on. When the BUSY lamp goes off, proceed to the next step.

- Pressing the EJECT button when inserting the tray does not set the tray correctly.

● Dismounting a CD-ROM

To dismount a CD-ROM disk, confirm that the BUSY lamp is off, then press the EJECT button as shown above.

Hard Disk

Your PC incorporates a built-in hard disk. This section outlines precautions to take when handling a hard disk.

What is a hard disk?

○○○○○○○

A hard disk is used to save software and other data and consists of a magnetic disk packed in a box as shown on the right. A hard disk can save more data and can read and write data faster than is possible with floppy disks.

Handling precautions

○○○○○○○

To prevent malfunctions, note the following precautions regarding hard disks:

- Do not move or subject the PC to shock and/or vibration with its power on.

- Do not expose to extreme temperature changes.

- Do not place in areas exposed to direct sunlight or near heating units.

- Do not store in areas subjected to shock or vibration.

- Do not store in damp or dusty areas.

- Do not expose to a strong magnetic field.

- Do not disassemble or remodel.

- Do not get wet.

Point

- Because incorrect handling may destroy data in a hard disk, back up all necessary data.

- Because there is a difference in the storage capacity of same-type hard disks, back up data for each file or segment, not for each hard disk.

Chapter 3 Installing Internal

Options

This chapter explains how to install internal options in your PC.

1 Introduction ................................................................................................ 20

2 Installing Memory Modules ........................................................................ 23

3 Installing Expansion Cards ........................................................................ 26

4 Installing Expansion Bay Options .............................................................. 34

Introduction

The features and performance of your PC can be upgraded by installing options. This section describes the types of internal options that can be installed in the PC and explains how to remove the upper cover and front panel in preparation for installing the internal options.

Handling precautions

○○○○○○○

Note the following when installing internal options:

- Before starting operation, switch off the PC and all connected peripherals and unplug power cords from respective outlets.

- Immediately after the PC is turned off, internal components and units of the PC are hot. When installing and removing internal options, turn off the power and allow the PC to cool down for about 10 minutes before starting operation.

- Do not disassemble the power supply unit (a box-shaped device inside the PC).

- Do not damage or remodel internal cables or units.

- Because internal options are PC boards with exposed soldered sections that may be damaged by a static electrical charge, discharge any accumulated static electricity before handling.

- Secure the board by the metal bracket portions or an edge of the PC board such that the surface of the PC board and the soldered sections are not handled.

- Installation and disassembly of options other than Fujitsu brand products void the warranty.

Installing positions of internal options

○○○○○○○

Expansion card slot Expansion cards extend the range of the features of the PC. For example, installing a SCSI card enables the use of a SCSI-standard hard disk and a magneto-optical disk drive.

Built-in hard disk (standard) Replacing a hard disk with larger capacity increases the storage capacity of the PC.

3.5-inch file bay Install 3.5-inch file bay options. The usual devices installed are as follows.

- Hard disk (IDE standard, SCSI standard)

- Magneto-optic disk drive

- 3.5-inch floppy disk drive

Memory slot Install the memory. Memory expansion increases the amount of data to be stored at one time and enhances the throughput of the PC.

5-inch file bay Install 5-inch file bay options (upper/lower bays) The usual devices installed are as follows.

- CD-ROM drive

- 5-inch floppy disk drive

- Hard disk

Removing the upper cover

○○○○○○○

When installing internal options, remove the upper cover so as to reveal the inside of the main unit.

Remove three screws at the rear of the PC main unit.

Remove the upper cover.

Slide the upper cover to the rear of the PC main unit (in the direction of arrow figure)

Lift and remove the cover (in the direction of arrow 2 in the figure).

Point

- To replace the cover, reverse the above procedure.

- If the upper cover of the PC main unit is left removed, the internal battery life will shorten. Keep the duration when the upper cover is left removed at minimum requirement such as only for installing internal options.

in the

Removing the front panel

○○○○○○○

Remove the front panel when installing internal options in file bays. (Removal of the front panel is not required when installing a hard disk in a 3.5-inch file bay.)

Release hooks in order from 1 to 4 and pull out the front panel.

Point

To attach the front panel, secure the hooks in order from 1 to 4 in the figure.

Installing Memory Modules

This section explains how to install and remove additional memory modules. Memory expansion in your PC increases the amount of data to be read and enhances the throughput of the PC.

DIMM1

DIMM2

Point

To install a memory module, set up the PC, turn off the power, and install the memory module.

WARNING

Electric shock

● To prevent electric shock, before installing and removing memory modules, turn off the PC and connected units and unplug power cords from respective outlets.

● To prevent electric shock, fire, and/or malfunction, install only Fujitsu brand memory modules in the PC.

CAUTION

Injury

● To prevent personal injury and/or malfunction, when installing and removing memory modules, only remove screws from specified locations.

● To prevent injury and/or malfunction, do not touch PC board components not specified.

Memory

○○○○○○○

A total of up to 512 megabytes of memory modules can be installed. A memory module has been installed in DIMM1 as standard. Install a memory module to be added in DIMM2. To ensure a total of 512 megabytes of memory, replace the memory module in DIMM1 with a 256-megabyte memory module.

Point

Install a Fujitsu genuine memory module to ensure PC operation.

Installing an additional memory

○○○○○○○

Remove the upper cover.

Push down the hooks at both ends of the slot.

Insert the memory card into the slot.

Insert the memory module vertically while aligning the memory module notches and the socket keys. The hooks at both ends of the slot are raised. Confirm that the memory card is securely locked in place.

Attach the upper cover.

Notch

Removing the memory

○○○○○○○

Remove the upper cover.

Open thehooks out at both ends of the slot and remove the memory module.

Point

Note that opening the hooks out forcefully causes the memory card to pop out of the slot and may cause a malfunction.

Attach the upper cover.

Installing Expansion Cards

This section explains how to install expansion cards, which extend the range of the features of your PC.

ISA bus

PCI bus

Point

- To install an expansion card, set up the PC, turn off the power, and install the expansion card.

- The first and second black slots from the top are for ISA cards. The third and fourth white slots from the top are for PCI cards.

- Only a half-size expansion card can be installed in the first slot from the top.

- When an expansion card using a serial port such as a modem card is installed, change the duplicated serial port to "Not used" in the BIOS setup ( see "Setting the serial/parallel ports" in Section 3, "Detail Menu," in Chapter 4, "BIOS Setup").

WARNING

Electric shock

CAUTION

Injury

● To prevent electric shock, before installing and removing expansion cards, turn off the PC and connected units and unplug power cords from respective outlets.

● To prevent electric shock, fire, and/or malfunction, install only Fujitsu brand expansion cards in the PC.

● To prevent injury, when installing and removing expansion cards, remove screws only from specified locations.

Injury

To install expansion cards, "resources" must be set. The floppy disk drive or hard disk drive inside the PC uses predetermined paths specific to those devices when transferring data with the CPU and memory. These paths include I/O port addresses, DMA channels, and interrupt levels (IRQ), which are generally called "resources."

There are two types of expansion cards: one for PCI bus and one for ISA bus. Expansion cards for PCI bus are "Plug & Play compatible cards." Expansion cards for ISA bus may be either "Plug & Play compatible cards" or "Plug & Play incompatible cards." Before installing expansion cards, read the following descriptions.

● To prevent injury and/or malfunction, do not touch PC board components not specified.

● To prevent injury and/or device failure, do not touch the metal bracket on the motherboard at the rear of the PC main unit.

Expansion cards for PCI bus (Plug & Play compatible cards)

○○○○○○○

When PCI bus expansion cards are installed, resources are set automatically. Card installation procedures differ depending on the operating system. Card installation procedure: For PCs using Windows 95/98,

see "Expansion card installation procedure for a PC using Windows 95/98.")

( For PCs using Windows NT,

see "Expansion card installation procedure for a PC using Windows NT.")

(

Expansion cards for ISA bus

○○○○○○○

Plug & Play compatible cards and Plug & Play incompatible cards are described below.

● Plug & Play compatible cards

When Plug & Play compatible cards are installed, resources are set automatically. Card installation procedures differ depending on the operating system. Card installation procedure: For PCs using Windows 95/98/2000,

see "Expansion card installation procedure for a PC using Windows 95/98.")

( For PCs using Windows NT,

see "Expansion card installation procedure for a PC using Windows NT.")

(

● Plug & Play incompatible cards

Resources for Plug and Play incompatible cards must be set separately after installation. Card installation procedures differ depending on the operating system. For PCs using Windows 95/98/2000, allocate the resources required by the expansion card to unused resources of the PC before installing the card. For PCs using Windows NT, set the resources with the ICU before installing the card. For details on the card installation procedure: For PCs using Windows 95/98/2000, (

see "Expansion card installation procedure for a PC using Windows 95/98/2000.")

For PCs using Windows NT,

see "Expansion card installation procedure for a PC using Windows NT.")

(

Expansion card installation procedure for a PC using Windows 95/98

○○○○○○○

Before installing the expansion card, check resources that can be set for the expansion card to be installed.

Are the resources required by the expansion card unused resources of the PC?

Start

Yes No

Release the resources by disabling the expansion card or hardware that will not be used by the PC.

See the manual included with the expansion card.

Turning on the PC after installing the expansion card sets the device drive and resources automatically.

See "Installing an expansion card" subsequently described in this section.

Is the expansion card to be installed Plug & Play compatible?

Yes No

Allocate the resources required by the expansion card to idle resources of the PC (by pin setting for resource allocation).

Install the expansion card.

Set the device driver for the expansion card.

End. The expansion card is ready for use.

See the manual included with the expansion card.

For the allocation procedure, see the manual included with the expansion card.

See "Installing an expansion card" subsequently described in this section.

Point

- A device driver selected by the Plug & Play function has already been registered with Windows 95/98/2000. However, some device drivers have not been registered with Windows 95/98/2000, depending on the expansion card or peripheral device. In this case, use the floppy disk included with the expansion card containing the device drivers to set up the driver in accordance with the messages.

- Confirm that the device driver has been registered by the device manager before using the expansion card. If not registered, delete the device driver and restart Windows 95/98/2000.

Expansion card installation procedure for a PC using Windows NT

○○○○○○○

Before installing the expansion card, check the resources that can be set for the expansion card to be installed.

Are the resources required by the expansion card unused resources of the PC?

Start

Yes No

See the manual included with the expansion card.

Is the expansion card to be installed Plug & Play compatible?

Install the expansion card.

See "Installing an expansion card" subsequently described in this section.

Lock the resources.

Set the device driver for the expansion card.

End. The expansion card is ready for use.

Release the resources by disabling the expansion card or the hardware that will not be used by the PC.

Yes No

Allocate the resources required by the expansion card to idle resources of the PC (by pin setting for resource allocation).

Install the expansion card.

See the manual included with the expansion card.

For the allocation procedure, see the manual included with the expansion card.

See the manual included with the expansion card.

For the setup procedure, see the manual included with the expansion card.

Starting and terminating the ICU (For a PC using Windows NT)

○○○○○○○

This section explains how to start and terminate the ICU using Windows NT.

If the PC is turned on, turn it off.

Confirm that the "boot disk" is in write-enable status, insert in the floppy disk drive, then turn on the PC.

MS-DOS is started.

Confirm that the "Plug and Play kit for MS-DOS(R) ICU R1.21 disk 1" is in write-enable status, replace the disk with the "boot disk", then enter the following character string and press the [Enter] key:

icu

The ICU is started.

Point

- Do not remove the "Plug and Play kit for MS-DOS(R) ICU R1.21 disk 1" from the floppy disk drive when using the ICU.

- Use the keyboard for all ICU operations.

- Do not set the PCI devices to "Disabled" with the ICU. The devices may not be reset to "Enabled."

Set up the resources.

When resource setup is terminated, terminate the ICU.

Press [Alt]+[F].

The pull-down menu appears.

Select the "Exit" command and press the [Enter] key.

Turn off the PC main unit.

Installing an expansion card

○○○○○○○

To install a large expansion card, remove the motherboard as shown in step 3. To install a small expansion card, steps 2, 3, 7, and 8 are not required.

Remove the upper cover.

Remove the retaining metal bracket at the side (for installing a large expansion card).

Remove the screw, open the retaining metal

bracket in the direction of arrow remove the bracket in the direction of arrow

Slide the motherboard (for installing a small expansion card).

Raise the lever about 90 degrees and pull out the motherboard.

Remove the slot cover.

Remove the screw to remove the retaining metal bracket, then remove the slot cover to install the expansion card.

, and

Lever

Insert the expansion card into the connector.

Insert the expansion card firmly into the connector.

Expansion card terminal

Expansion slot

Secure the expansion card with the screw.

Secure the expansion card with the screw removed in step 4.

Install the motherboard (when a large expansion card has been installed).

Firmly insert the motherboard and hold it down with the lever.

Install the retaining metal bracket at the side (for installing a large expansion card).

Insert the hooks of the retaining metal bracket into the groove at the front of the PC main unit, then attach the metal bracket.

Label

Lever

Secure the metal bracket with the screw removed in step 2.

Attach the upper cover.

Point

- Store the removed slot cover.

- To remove the expansion card, reverse the above steps.

- To use the MS-DOS utility included with the option card by adding the option card and starting the utility from the floppy disk (when using the Plug and Play incompatible operating system), set the item in "Detail Menu"- "Plug & Play compatible operating system" to "No." Some option cards may not be recognized depending on the type of option card.

- For display cards (For Windows 95/98 models) When using with a video card installed into the PCI slot, delete the "ATI mach64 display

driver" before installation as follows.

1 Click [Start], [Setting], and [Control Panel]. 2 Double-click [Add and Remove the Application].

The " Add and Remove Programs Property" dialog box appears. 3 Click [ATI mach64 Display Driver]. 4 Click [Add and Remove] 5 Click [YES].

The PC is restarted. 6 Turn off the PC and install the display card.

Installing Expansion Bay Options

This section explains how to install expansion bay options such as internal hard disk, magnetooptic disk drive, CD-ROM drive, and floppy disk drive. The power can be supplied from the PC main unit to the expansion bay options, differing from external-type devices; therefore, an outlet is not required. This is also useful in saving space.

Point

- To install expansion bay options, set up the PC, turn off the power, and then install the options.

- The internal hard disk supporting Ultra DMA/33 can be used by setting it to Ultra DMA/33. To connect a hard disk not supported by Ultra DMA/33, be sure to set the DMA to OFF. If the PC is used while the DMA is set to ON by mistake, it may malfunction and data may be lost. Consult with the user's guide that comes with the hard disk, to check whether the additional hard disk supports Ultra DMA/33.

- On the secondary IDE side, Ultra DMA/33 is not supported.

- Use the CD-ROM drive, equipped as a standard feature, without modifying its connection to the secondary IDE. To add a hard disk or magneto-optic disk drive to the secondary IDE, reconnect the hard disk or magneto-optic disk drive to the master connector and reconnect the CD-ROM to the slave connector.

WARNING

Electric shock

CAUTION

Injury

● To prevent an electric shock, turn off the PC and connected units and unplug power cords from respective outlets before installing internal options in, or removing them from the expansion bay.

● To prevent an electric shock, fire, and/or malfunction, install only Fujitsu genuine internal options in the PC expansion bay.

● To prevent personal injury and/or malfunction, remove screws only from the locations specified when installing internal bay options in, or removing them from the expansion bay.

Injury

● To prevent injury and/or malfunction, do not touch any components in locations on the PC board that are not mentioned in any of the relevant documents.

Replacing a internal hard disk equipped as standard

○○○○○○○

This section explains how to replace a standard-equipped internal hard disk with a hard disk of larger capacity.

Set up the jumper switch.

See the manual accompanying the internal hard disk and make sure that the jumper switch has been set to master, or cable select.

If retaining metal brackets are mounted on both sides of the internal hard disk to be replaced, remove them.

Remove the screws (4) to remove the retaining metal brackets.

Remove the upper cover.

Disconnect the hard disk cables.

Disconnect the power cord and flat cables connected to the hard disk.

Remove the retaining metal bracket.

Remove the screw (one), then remove the retaining metal bracket by sliding it in the direction of arrow lift it in the direction of arrow

, then arrow 2, and then

Replace the internal hard disk.

Remove the four blue screws on the back of the retaining metal bracket, and then remove the standard-equipped hard disk. Then, use the blue screws to install the new hard disk.

Install the internal hard disk in the PC main unit.

Install the retaining metal bracket in the original position by lowering it in the direction

of arrow

, and then sliding it again in the direction of arrow bracket with the screw that was removed in step 5.

Connect the cables to the hard disk.

Reconnect the power cord and flat cables that were disconnected in step 4. Be sure to connect the flat cables to the connector with the MASTER marking. To prevent malfunction, be sure to place the cables back in their original positions.

Attach the upper cover.

Use BIOS setup to set the hard disk.

Set the type of the installed hard disk by BIOS setup ( see "Primary master/slave" in Section 2, "Main Menu," in Chapter 4, "BIOS Setup").

, sliding it in the direction of arrow

. Then, secure the retaining metal

Installing internal options to 3.5-inch expansion bays

○○○○○○○

This section explains how to install 3.5-inch expansion bay options such as a 3.5-inch internal hard disk, magneto-optic disk drive, and 3.5-inch floppy disk drive. A magneto-optic disk drive is used below in an installation example.

Set the internal option.

See the manual accompanying the internal

options to set the following items.

- To install an IDE-standard internal option: Set the master, slave, and cable selection.

- To install a SCSI interface internal option: Set the SCSI ID.

If retaining metal brackets are mounted on both sides of the internal hard disk to be installed, remove them.

Remove the screws (four) to remove the retaining metal brackets.

Remove the upper cover.

Remove the front panel.

The front panel does not need to be removed when installing a hard disk.

OFF

Remove the blank panel.

Remove the screw (one) to remove the blank panel.

The blank panel does not need to be removed when installing a hard disk.

Remove the retaining metal bracket from the PC main unit.

Slide the retaining metal bracket toward the rear side of the PC main unit, and then lift and remove the retaining metal bracket.

Install a internal option in the retaining metal bracket.

Secure the internal option with the four screws

that were removed in step 2.

- To install a magneto-optic disk drive: Install the magneto-optic disk drive in position

in the figure.

- To install a hard disk: Install the hard disk drive in position figure.Use the blue screws accompanying the internal options to secure the hard disk.

Install the internal option in the PC main unit.

Slide the internal option toward the front side and install it.

in the

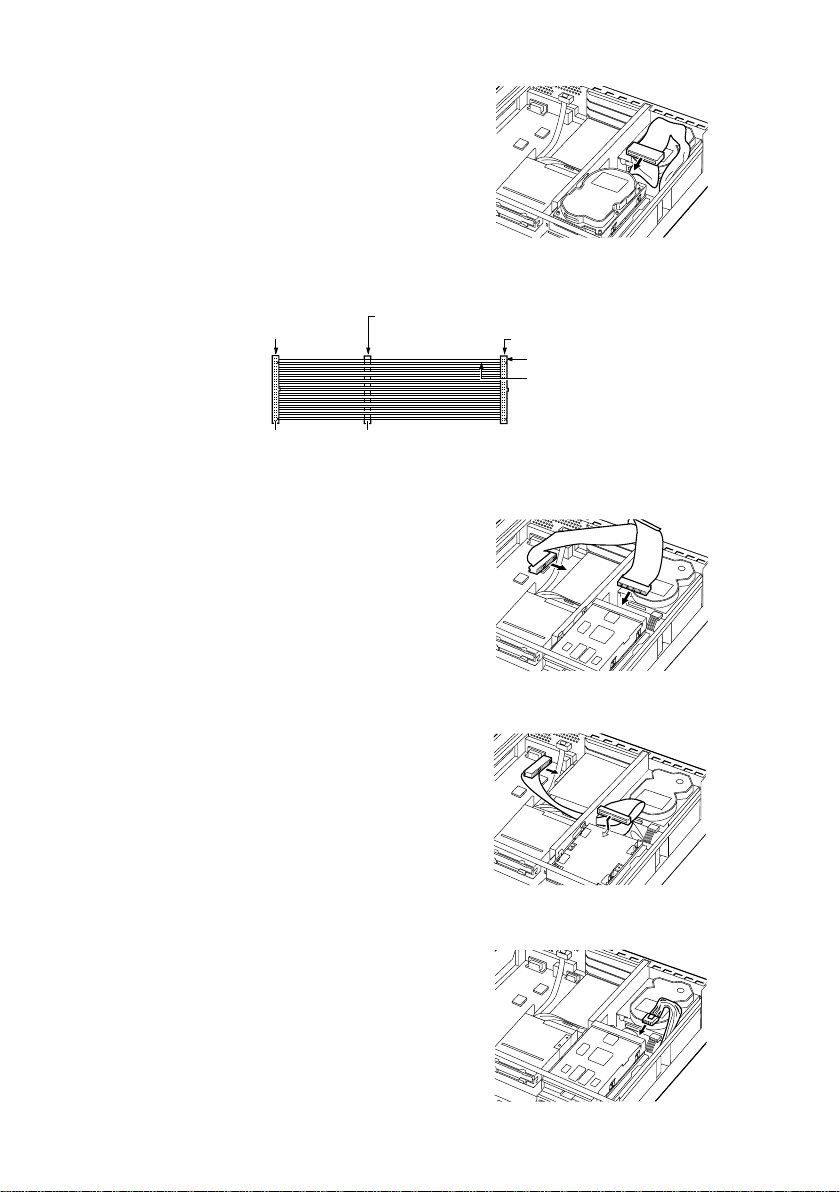

Connect the flat cable.

Connect the flat cable that is appropriate for the internal option to be installed.

- To install two IDE-standard internal options to the IDE secondary cable (if one of the options is a hard disk), install the hard disk at the master side.

Connected when set to the master

SLAVEMASTER

- To install a SCSI interface internal option: Connect the flat cable to the SCSI card in

the expansion slot.

- To install a floppy disk drive: Connect the flat cable to the expansion card

of the internal floppy disk drive in the expansion slot.

Connected when set to the slave

Connected to the riser board

Pin 1 Blue or red line

Connect the power cord.

Connect the unused power cord to the connector of the installed internal option.

Attach the front panel.

Remove the blank panel for a 3.5-inch expansion bay from the rear side of the front panel as required in the arrow direction shown in the figure.

Attach the upper cover.

Use BIOS setup to configure the internal option.

To configure the installed IDE-standard internal option, use the main menu of BIOS setup ( see Section 2, "Main Menu," in Chapter 4, "BIOS Setup").

Point

To remove the internal option, reverse the above-cited procedure.

3.5-inch blank panel

Rear of the panel

Hook Bend the hook inward.

Installing internal options to 5-inch expansion bays

○○○○○○○○

This section explains how to install 5-inch expansion bay options such as CD-ROM drive and 5-inch floppy disk drive. A CD-ROM drive is used below in an example of installation. Up to two 5-inch expansion bay options can be installed in your PC.

Point

The retaining metal bracket is required for installing a 3.5-inch hard disk or magneto-optic disk drive.

Retaining metal bracket

Configure the internal option.

See the manual accompanying the internal options to configure the following items.

- To install an IDE-standard internal option: Set the master, slave, and cable select.

- To install a SCSI interface internal option: Configure the SCSI ID.

Remove the upper cover.

Remove the front panel.

Remove the blank panel (for installing the internal option to the lower 5-inch expansion bay).

Remove a screw to remove the blank panel.

Insert the internal option from the front side of the PC main unit

Secure the internal option with two screws.

Connect the flat cable.

Connect the flat cable appropriate for the

internal option to be installed.

- To install an IDE-standard internal option, connect the flat cable to the master or slave connector according to the setting of the internal option. If a magneto-optic disk has been installed by a custom-made specification, connect the magneto-optic disk drive to the master connector and the other internal option to the slave connector. However, to install a hard disk, connect the hard disk to the master connector and connect the magnetooptic disk drive to the slave connector.

Connected when set to the master

Connected when set to the slave

Connected to the riser board

Pin 1 Blue or red line

SLAVEMASTER

- To install a SCSI interface internal option: Connect the flat cable to the SCSI card in the expansion slot.

- To install a floppy disk drive: Connect the flat cable to the expansion card of the internal floppy disk drive in the expansion slot.

Connect the power cord.

Connect the unused power cord to the connector of the installed internal option.

Install the blank panel (for an option that does not require a medium be mounted/ dismounted)

Install the blank panel with the screw that were removed in step 4.

Attach the front panel.

Install or remove the blank panel as required.

5-inch blank panel

Rear of the panel

Hook Bend the hook inward.

Point

To install a 3.5-inch floppy disk drive or magneto-optic disk drive, install the accessory expansion bay panel to the front panel by screws.

Attach the upper cover.

Use BIOS setup to configure the internal option.

To configure the IDE-standard installed internal option, use the main menu of BIOS setup (

see Section 2, "Main Menu," in Chapter 4, "BIOS Setup").

Chapter 4 BIOS Setup

This chapter describes how to perform BIOS setup when installing an optional product or setting power savings mode.

1 Preface ...................................................................................................... 46

2 Main Menu ................................................................................................. 49

3 Detail Menu................................................................................................ 53

4 Security Menu ............................................................................................ 63

5 Power Menu ............................................................................................... 70

6 Boot Menu.................................................................................................. 76

7 Info Menu ................................................................................................... 79

8 Exit ............................................................................................................. 81

Preface

What is BIOS setup?

○○○○○○○

BIOS setup is a program that helps the user set up a hardware environment, including memory, hard disks, and floppy disk drives. Minimum setup has already been installed on this personal computer when you purchase it. BIOS must be set up under the following circumstances:

- When a storage unit, such as a floppy disk drive or a built-in hard disk (IDE), is mounted or removed

- When a password permitting specific users to access the PC is set

- When memory or serial ports are set up

- When the power savings mode is released or changed (to put in standby mode when power is on but PC is not used)

- When a message requesting BIOS setup is displayed

- When another Operating System (OS) is used

Point

Contents selected in BIOS setup are stored in the PC internal memory called CMOS RAM, which stores recorded contents using batteries. If an error message indicating BIOS setup is displayed when the PC is turned on or rebooted even if BIOS setup is completed correctly, the setup contents will not be stored in this CMOS RAM if the batteries are dead.

Starting BIOS setup

○○○○○○○

Exit all applications and save data.

- For Windows 95/98

Click on Start, then on Shut down.

- For Windows NT

Click on Start, then on Shut down.

- For Windows 2000

Click on Start, then on Shut down.

- For Windows 95/98

Select Resart and click on OK.

- For Windows NT

Select Restart and click on Yes.

- For Windows 2000

Select Restart and click OK.

A message "Press <F2 to enter SETUP" is displayed on the screen.

Press the F2 key to display the BIOS Setup screen.

Main Advanced Security Power Boot Info Exit

System Time: [12:34:56] System Date: [02/02/2000]

Floppy Disk A: [1.44/1.25 MB 3.5”]

IDE Primary Master: [XXXX MB] IDE Primary Slave: [None] IDE Secondary Master: [CD-ROM] IDE Secondary Slave: [None]

Language: [English (US)]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Adjust calendar clock.

<Tab>, <Shift-Tab>, or <Enter> selects field.

Key functions

○○○○○○○

The table below lists the functions of the keys used for BIOS setup.

F1 key

← and → keys ↑ and ↓ keys

- and Space keys F9 key Esc key

Enter key

F10 key

Tab key

Used to display the overall explanation of BIOS setup. To proceed to the next page, press the PageDown key. To return to the setup screen, press the Esc key.

Used to switch between menus. Used to move the cursor to an item to be set up. Used to select a desired setup value. Used to return all setup values to the PC standard values. Used to display the Exit menu. If the screen displays a

submenu, the previous screen is returned. Used to display submenus of items marked

Esc key is pressed while a submenu is displayed, the screen returns to its menu.

Used to restore the current setup values and to end the setup operation.

Used to move the cursor between hours, minutes, and seconds while the system time is set up.

Menu bar

Lists seven menu items.

Setup field

Lists items and their setup values for each menu.

Help field

Displays an explanation of items selected by the cursor.

Key list

Lists keys available during setup.

. When the

Exiting BIOS setup

○○○○○○○

Press ← or → to select the Exit menu.

For existing BIOS setup by saving setup values → Move the cursor to "Save Change & Exit" and press the Enter key.

For exiting BIOS setup without savings setup values

→ Move the cursor to "Exit Without Saving Changes" and press the Enter key.

The BIOS setup utility exits and the computer is rebooted. Menus

The BIOS setup utility screen includes the following menus, under which setup items are listed. For details on menus and setup items, see the following sections.

Menus

○○○○○○○

●Main menu

Used to set up the date and time and drives.

● Advanced menu

Used to set up port addresses.

● Security menu

Used to set up the computer so as to be accessible to specific users.

● Power menu

Used to set up power savings mode.

● Boot menu

Used to set up the priority of boot drives.

● Info menu

Used to display the hardware configuration of the computer. This menu is information only.

● Exit menu

Used to exit the BIOS setup utility.

Main Menu

The Main Menu is used to setup the date and time and drives. Select the ← or → key to select [Main] and display the Main menu

Main Advanced Security Power Boot Info Exit

System Time: [12:34:56] System Date: [02/02/2000]

Floppy Disk A: [1.44/1.25 MB 3.5”] Floppy Disk B: [Disabled] IDE Primary Master: [XXXX MB] IDE Primary Slave: [None] IDE Secondary Master: [CD-ROM] IDE Secondary Slave: [None]

Language: [English (US)]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○

●System Time

Set the time. Enter a numeric value in the order of "hours : minutes : seconds" in the 24-hour system.

- 00:00:00 to 23:59:59

● System Date

Set the date. Enter a numeric value.

PhoenixBIOS Setup Utility

Item Specific Help

Adjust calendar clock.

<Tab>, <Shift-Tab>, or <Enter> selects field.

Point

System Time and System Date do not have to be entered each time the PC is turned on. To modify an entered value, press the Backspace key and enter the value.

● Floppy Disk A

Set the recording density and size of the floppy disk drive used.

- 360 KB 5.25", 1.2 MB 5.25", 720 KB 3.5", and 1.44/1.2 MB 3.5" (Initial value), Disabled

● IDE Primary Master/Save, IDE Secondary Master/Slave Menu

Using submenus, set the type of hard disk (master or slave) mounted on the primary IDE connector and secondary IDE connector as well as the size and the number of cylinders). Move the cursor to a desired item and press the Enter key to display the selected submenu.

Point

- IDE Primary Master: XXXX MB. The Hard Disk cpacity vary depending on model.

Main Advanced Security Power Boot Info Exit

IDE Primary Master [XXXX MB]

PhoenixBIOS Setup Utility

Item Specific Help

Type: [AUTO] Cylinders: [13328] Heads: [ 15 ] Sectors: [ 63 ] Maximum Capacity: 6449 MB

Multi-Sector Transfers: [16 sector] LBA Mode Control: [Enabled] Transfer Mode: [Fast PIO 4] DMA Mode: [Ultra DMA2]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Select ATA/ATAPI drive installed here.

[Auto] The BIOS auto-types the drive on boot time.

Except [Auto] You enter parameters of the drive.

[None] The drive is disabled.

–Type

Set the type of IDE device. A value other than [Auto] requests the user to enter [Cylinders], [Heads], and [Sectors].

- Auto (Initial value) The computer automatically sets the type of IDE device. Select this item when the

user-skip IDE device is setup.

- None Select when no IDE device is used.

- Hard Disk Select for setting details on the hard disk drive.

- CD-ROM Select when a CD-ROM drive is connected.

- LS-120 Select when a super disk is connected.

- Other ATAPI Select when any other ATAPI device is connected.

Point

- To change the type, select with the space key.

- Usually, select [Auto]. If any other value is selected, set a correct value supported by the connected device, otherwise the computer may not access the device correctly.

For details, consult the manual included with the device.

– Maximum Capacity

This item displays the maximum capacity of the hard disk drive only when Type is [Auto] and [Hard Disk] is selected (if a hard disk unit is mounted).

Point

The description of maximum capacity of hard disk in the item is based on 1MB=10242 byte conversion.

–Multi-Sector Transfers

This item displays the contents detected by the PC when 'Type' is [Auto]. If 'Type' is a value other than [Auto] and [None], set the number of sectors that can be transferred in a single operation. A larger number of sectors specified will allow greater disk access.

- Disabled (Initial value) The computer transfers data sector by sector. Select this item when the connected disk does not support multi-sector transfer.

- 2, 4, 8, 16 Sectors Select the number of sectors to transfer in a single operation.

–LBA MODE Control

This item sets whether LBA (Logical Block Addressing allowing access using logical serial numbers) is enabled. The best mode is selected and displayed automatically when 'Type' is [Auto] or [Hard Disk] (only when a hard disk unit is mounted).

- Disabled (Initial value) LBA mode is disabled

- Enabled LBA mode is enabled.

Point

- When LBA mode is enabled, the connected hard disk must support LBA.

- If LBA MODE Control is changed after the hard disk is formatted, the computer may not access the hard disk correctly. Do not change this item after the hard disk is formatted.

–Transfer Mode

This item sets data transfer mode (fast PIO) between device hosts. The best mode is selected and displayed when 'Type' is [Auto]. When something other than [Auto] or [None] as 'Type,' is selected, the user can select a desired transfer mode.

- Fast PIO 0/1/2/3/4 (Initial value: fast PIO 0) Select a desired data transfer mode. A larger number indicates a higher transfer rate.

Point

When a PIO transfer mode other than Fast PIO 0 is selected, the connected hard disk must support the mode selected.

– DMA Mode

This item sets the data transfer mode between device hosts, such as multiword DMA, ultra DMA/33). The best mode is selected and displayed automatically when 'Type' is [Auto]. If 'Type' is other than [Auto] and [None], the user can select a desired transfer mode.

- Disabled (Initial value) DMA transfer is disabled.

- Multiword DMA 1/2, Ultra DMA 0/1/2 Select a desired multiword DMA or ultra DMA/33 transfer mode. A larger number indicates a higher transfer rate.

● Language

Select the language used for BIOS setup. – English (US) (Initial value)

The BIOS setup utility is displayed in English.

– Japanese (JP)

The BIOS setup utility is displayed in Japanese.

Detail Menu

The Detail menu is used to set up devices. Select Detail with the ← or → key to display the Detail menu.

Main Advanced Security Power Boot Info Exit

Plug & Play O/S: [Yes]

Protected Device Configuration: [No]

Serial/Parallel Port Configurations Keyboard/Mouse Features Internal Devices Configurations Video Features CPU Features

Event Logging configurations

Extended CHS Translation: [Enabled]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○

● Plug & Play OS

This item sets whether the OS used supports Plug & Play, such as Windows 95/98. – Yes (Initial value for Windows NT/2000 model)

Select when using an OS not supporting Plug & Play.

– No (Initial value for windows 95/98 model)

Select when using an OS supporting Plug & Play.

PhoenixBIOS Setup Utility

Item Specific Help

[Yes] The BIOS configures only boot devices.

[No] The BIOS configures also non-boot devices. Select if you are using a non-Plug & Play OS or a nonACPI OS.

Point

When using an OS other than Windows95/98 or when multi-booting both Window s95/98 and Windows NT, select [No].

● Protected Device Configurations

This item sets whether to protect the device configurations from the OS Plug & Play function. – No (Initial value)

The device configurations are not protected from the Plug & Play function.

– Yes

The device configurations are protected from the Plug & Play function.

● Serial/Parallel Port Configurations

This item sets the I/O address of the serial and parallel ports and has submenus. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Serial/Parallel Port Configurations

PhoenixBIOS Setup Utility

Item Specific Help

Serial port 1: [Enabled]

I/O address: [3F8-3FF] Interrupt: [IRQ 4]

Serial port 2: [Disabled]

Mode: [Serial Connector]

Parallel port: [Enabled]

Mode: [Bi-directional] I/O address: [378-37F] Interrupt: [IRQ 7]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

[Enabled] The port is enabled with user configuration.

[Auto] A Plug & Play OS an ACPI OS will configure the port.

[Disabled] The port is disabled.

– Serial Port 1

This item sets the I/O port address and interrupt request of serial port 1.

- Disabled The serial port is disabled and resources are freed.

- Enabled (Initial value) Set the I/O port address and the interrupt request of the serial port.

- Auto The personal computer automatically assigns an I/O port address and an interrupt request.

Point

- When 'Serial Port 1' is [Disabled], the port is not transparent to devices controlled by the Windows 95/98 APM device manager.

- To disable the serial port on Windows 98 ACPI and Windows 2000, use the Windows 98 ACPI device manager.

I/O Address This item appears when 'Serial Port 1' is [Enabled]. Set the I/O address of serial port 1.

- 3F8 to 3FF, 2F8 to 2FF,3E8 to 3EF, and 2E8 to 2EF (Initial value: 3F8 to 3FF)

Interrupt This item appears when 'Serial Port 1' is [Enabled]. Set the interrupt request of serial port 1.

- IRQ3, IRQ4, IRQ10, IRQ11 (Initial value: IRQ4)

Point

Some combination of I/O address and interrupt requests are not available.

– Serial Port 2

This item sets the I/O port address and interrupt request of serial port 2.

- Disabled Serial port 2 is disabled and resources are freed.

- Enabled (Initial value) Set the I/O port address and interrupt request of serial port 2.

- Auto The personal computer automatically assigns an I/O port address and an interrupt request.

Point

- When 'Serial port 2' is set to Disabled, serial port 2 is transparent to devices controlled by the Windows 95/98 (APM mode) device manager.

- Use the device manage to disable serial port 2 on Windows 98 (ACPI mode) and Windows

2000.

I/O Address This item appears when 'Serial Port 2' is [Enabled]. Set the I/O address of serial port 1.

- 3F8 to 3FF, 2F8 to 2FF,3E8 to 3EF, and 2E8 to 2EF (Initial value: 3F8 to 3FF)

Interrupt This item appears when 'Serial Port 2' is [Enabled]. Set the interrupt request of serial port 1.

- IRQ3, IRQ4, IRQ10 (Initial value: IRQ3)

Point

Some combinations of I/O address and interrupt requests are not available.

– Parallel Port This item sets the I/O port address and interrupt request of a parallel port.

- Disabled

The parallel port is disabled and resources are freed.

- Enabled (Initial value)

Set the I/O port address and interrupt request of the parallel port.

- Auto

The computer automatically assigns an I/O port address and an interrupt request.

Point

- When 'Parallel Port' is [Disabled], the port is not transparent to devices controlled by the Windows 95/98 device manager.

- When 'Parallel Port' is [Auto], connected printers may not operate correctly, in which case set [Enabled].

Mode This item appears when 'Parallel Port' is [Enabled] or [Auto]. Set the operating mode of the parallel port.

- Output only Select when connecting a peripheral unit using output mode only.

- Bi-directional (Initial value) Select when connecting a peripheral unit using bi-directional mode.

- EPP Select when connecting an EPP standard peripheral unit.

- ECP Select when connecting an ECP standard peripheral unit.

I/O Address This item appears when 'Parallel Port' is [Enabled]. Set the I/O address of the parallel port.

- 378 to 37F, 278 to 27F, 3BC to 3BF (Initial value: 378 to 37F)

Interrupt

This item appears when 'Parallel Port' is [Enabled]. Set the interrupt request of the parallel port.

- IRQ5, IRQ7 (Initial value: IRQ7)

DMA Channel

This item appears when 'Mode' is [ECP]. Set a DMA channel used to connect an ECP standard peripheral unit.

- DMA 1, DMA 3 (Initial value: DMA 1)

● Keyboard/Mouse Features

This submenu is used to set up the keyboard and mouse. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Keyboard/Mouse Features

PhoenixBIOS Setup Utility

Item Specific Help

Numlock: [ON] PS/2 Mouse: [Enabled] USB Legacy Emulation: [Auto]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Selects power-on state for Numlock.

– Numlock

This item sets whether the keyboard tenkey pad is set to Numlock mode at boot or reboot. In Numlock mode, the user can enter numeric values from the tenkey pad.

- On (Initiail value) The keyboard is set to Numlock mode.

- Off The keyboard is not set to Numlock mode.

Point

In some OSs, this has to be set on the OS side.

– PS/2 Mouse

This item enables the PS/2 mouse controller.

- Disabled The PS/2 mouse controller is disabled and resources are freed.

- Enabled The PS/2 mouse controller is enabled.

Point

- When 'PS/2 Mouse' is [Disabled], the PS/2 mouse cannot be seen by the Device Manager of Windows 95/98 (APM mode) and Windows 2000. On Windows 98 (ACPI mode) and Windows 2000, An exclamation mark (!) is added to [PS/2 Compatible Mouse Port].

– USB Legacy Emulation

This item set whether the USB keyboard and mouse are usable on OSs not supporting USB, such as Windows NT.

- Disabled

The USB keyboard and mouse cannot be used on OSs not supporting USB.

- Auto (initial value)

If the PC is booted with either a USB keyboard or mouse connected, the USB keyboard and mouse can be used on operating systems that do not support USB.

- Enabled

The USB keyboard and mouse can be used on OSs not supporting USB.

Point

When USB keyboard and mouse are used with an OS that does not support USB, such as Windows NT 4.0, this PC may not operate at full performance. In this case, use PS/2 keyboard by specifying [Disabled] to “USB keyboard/mouse.

● Internal Devices Configurations Setting

This submenu is used to set up built-in devices. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Internal Devices Configurations

Floppy Disk controller: [Enabled] IDE Controller: [Both] Sound Controller: [Enabled] LAN Controller: [Enabled]

USB Peripherals: [Enabled]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

– Floppy Disk Controller

This item sets whether the floppy disk controller is enabled.

- Disabled The floppy disk controller is disabled and resources are freed.

- Enabled (Initial value) The floppy disk controller is enabled.

PhoenixBIOS Setup Utility

Item Specific Help

[Enables] Floppy Disk drives are enabled.

[Disabled] Floppy Disk drives are disabled. The IRQ6 may be released.

– IDE Controller

This item sets whether the IDE interface is enabled.

- Disabled The IDE interface is disabled and resources are freed. All devices connected to the IDE interface are disabled.

- Primary The primary IDE interface is enabled. The resources of the secondary ID interface are freed and all devices connected to the secondary IDE interface are disabled.

- Both (Initial value) Both the primary/secondary IDE interfaces are enabled.

– Sound Controller

This item sets whether the built-in sound bus is enabled.

- Disabled The built-in sound bus is disabled and resources are freed.

- Enabled (Initial value) The built-in sound bus is enabled.

– LAN Controller

This item sets whether the LAN adapter on the mother board is enabled.

- Disabled The LAN adapter is disabled and resources are freed.

- Enabled (Initial value) The LAN adapter is enabled.

● Video Features

This submenu is used to set up the display. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

Video Features

Item Specific Help

Default Primary Video Adapter: [AGP] AGP Aperture Size: [64MB]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Select primary display. AGP is standard internal video device.

[AGP] AGP video device may be primary display.

[PCI] The BIOS searches video device from PCI slot 1-2-...to AGP.

–Default Primary Video Adapter

This item sets which AGP adapter is used, the adapter on the PCI card or the adapter on the mother board, when another PCI video card is mounted.

- PCI The PCI video adapter card is used when another PCI video card is mounted, otherwise the AGP adapter on the mother board is used.

- AGP (Initial value) The AGP adapter on the mother board is used.

– AGP Aperture Size

This item sets the aperture size used by the AGP video controller.

- 8MB, 16MB, 32MB, 64MB, 128MB, 256MB (Initial value: 64MB)

● CPU Features

This submenu is used to set up the CPU. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

CPU Features

Item Specific Help

Processor Serial Number: [Disable]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

When your system has a Pentium III processor,select for using Procesor Serial Number.

[Enable] Processor Serial Number is Enabled.

[Disable] Processor Serial Number is disabled.

– Processor Serial Number

This item enables or disables the processor serial number function of the Intel Pentium III processor.

- Enabled The processor serial number function is enabled.

- Disabled (initial value) The processor serial number function is disabled

Point

- To use the Intel processor serial number control utility, set 'Processor Serial Number' to [Enabled], otherwise this function cannot be enabled on utilities such as the Intel processor serial number control utility.

- The Intel processor serial number control utility is enabled on Windows 98/NT/2000 only. On other OSs, enable or disable the function in this item.

● Event Logging Configurations

This submenu is used to set up event logs. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Event Logging Configurations

PhoenixBIOS Setup Utility

Item Specific Help

Event log Capacity: Space Available Event log Validity: Valid

Delete all Event Logs: [No]

Event Logging: [Enabled]

System Boot: [Disabled]

ECC Event: [Enabled] View DMI Event Log [Enter] Mark DMI Events as Read [Enter]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

– Event Log Capacity

This item sets whether event logs can be saved.

- Space Available Event logs can be saved (up to 255 logs).

- Full No more event logs can be saved. The area is full.

– Event Log Validity

This item displays whether the event log data is valid.

- Valid Event log data is valid.

- Invalid Event log data is invalid. Data may be destroyed.

[Yes] All event logs are cleared at next boot. The value is reset to [No] after clearing.

[No] Event logs are not cleared.

– Clear all Event Logs

This item sets whether all event logs are deleted at reboot.

- No (Initial value) Event logs are not deleted.

- Yes Event logs are deleted. Clear all Event Logs' is [No] at reboot.

– Event Logging

This item sets whether events are logged when they are generated.

- Disabled Event logging is disabled.

- Enabled (Initial value) Event logging is enabled.

–System Boot Event

This item sets whether system boot events are logged.

- Disabled (Initial value) System boot events are not logged.

- Enabled System boot events are logged.

–ECC Event Logging

This item sets whether ECC events are logged.

- Disabled ECC events are not logged.

- Enabled (Initial value) ECC events are logged.

–View DMI Event Log

Pressing the [Enter] key display the details of event log in the submenu.

– Mark DMI Events as Read

Pressing the [Enter] key makes all DMI event log already read. None of the events logged before pressing the [Enter] key is displayed.

– Mark DMI Events as Read

Pressing the [Enter] key make

● Extended CHS Translation

- Disabled Extended CHS translation is not used.

- Enabled Select this item when Windows 95/98/NT/200 is used.

Point

Make sure that this item is correctly set for the operating system that is used on the PC before formatting hard disk drives. Changing the setting after formatting is finished does not ensure correct access to the hard disk drive.

Security Menu

The Security menu is used to set up the PC such that it is accessible to specific users only. Select Security with the ← or → key to display the Security menu.

Main Advanced Security Power Boot Info Exit

Supervisor Password Is: Disabled User Password Is: Disabled

Set Supervisor Password [Enter] Set User Password [Enter] Set User Password Length [16]

Password on Boot: [Disabled] Power on Wake up: [Disabled]

Boot from Removable Media:[All] Floppy Disk Access: [All]

Hard Disk Boot Sector: [Normal]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Press <Enter> Key to set Supervisor Pasword to enable any password features. Then password entry is required to enter BIOS Setup.

Details on setup items

○○○○○○○

●Supervisor Password

This item displays the status of the supervisor password.

- Clear

No password is set.

- Set

A password is set.

- Disabled

The password jumper is set to Disabled and passwords are disabled.

● User Password

This item displays the status of user passwords.

- Clear

No password is set.

- Set

A password is set.

- Disabled

The password jumper is set to Disabled and passwords are disabled.

● Set Supervisor Password

Press the Enter key to set the entered supervisor password.

Point

- When 'Set Supervisor Password' is set, the supervisor can manage user access to the BIOS setup utility.

- After setting a password for the supervisor, if [Disabled] is specified for “Password on Booting” and [Supervisor Only] is specified for “Floppy Disk Access], all users are considered general users and are not permitted to access the floppy disk drive.

● Set User Password

This item appears when 'Set Supervisor Password' is set. Press the Enter key to set a user password.

Point

- When 'Set User Password' is set, the user is requested to enter a password when accessing the BIOS setup utility or booting the system.If the user enters a wrong password three times, the message "System is disabled" is displayed and the PC does not respond to keyboard entry. In such a case, press the Power switch to turn the PC off. After waiting at least ten seconds, turn the power on again and enter the correct password.

- If "Disabled" is selected for "Password on Boot" and "Supervisor" is selected for "Floppy Disk Access" after "Set Supervisor Password" is set, every user is regarded as a general user and the floppy disk cannot be accessed.

● Set User Password Length

This item appears when 'Supervisor Password' is set. Set the shortest possible password in 'Set User Password.'

- 1 to 16 (Initial value: 16)

Point

This setting is valid only when the user password is used to enter the setup. When the supervisor password is used, the user password can be set with fewer characters than the minimum requirement.

● Password on Boot

This item appears when 'Supervisor Password' is set. Set whether the computer requests the user to enter a password when it is booted.

- Disabled (Initial value) No password is requested at boot.

- First Boot The user is requested to enter a password at the initial OS boot.

- Every Boot The user is requested to enter a password at every OS boot.

● Password on Wake up

This item appears when 'Supervisor Password' is set.

- Disabled (Initial value) No password is requested at automatic wakeup.

- Enabled The user is requested to enter a password at automatic wakeup. The keyboard and mouse are disabled until the user enters a password.

Point

- This function is not available when the USB keyboard/mouse is used.

- When the indicators on the keyboard alternately turn on a light although the OS is active, enter the password.

● Boot from Removable Media

This item appears when 'Supervisor Password' has been set. Set the person who is entitled to boot the OS from a device other than a hard disk drive.

- All (Initial value) Any user can boot the OS from a device other than a hard disk drive.

- Supervisory Only If 'Password on Boot' has been set, only the supervisor can boot the OS from a device other than a hard disk drive. If 'Password on Boot' is not set or the PC is in automatic wakeup mode, users cannot boot the OS from a device other than a hard disk drive.

● Floppy Disk Access

This item appears when 'Supervisor Password' is set. Set the right to use floppy disk drives.

- All (Initial value) All users can use floppy disk drives.

- Supervisor Only the supervisor can use floppy disk drives when 'Password on Boot' is set. If 'Password on Boot' is not set or at automatic wakeup, all users cannot use floppy disk drives.

Point

This item will not operate properly on OSs not using BIOS to access floppy disk drives, such as Windows NT.

● Hard Disk Boot Sector

This item sets whether the boot sector on the hard disk is write-protected in order to protect the sector against virus .

- Normal (Initial value) The boot sector is not write-protected.

- Write protected The boot sector is write-protected.

Point

- When installing an OS, select [Normal].

- This item may not operate properly on OSs not using BIOS to access floppy disk drives, such as Windows NT.

Setting a password

○○○○○○○○○

Move the cursor to 'Set Supervisor Password' or 'Set User Password' and press the Enter key.

A password entry window appears.

Set Supervisor Password

Enter New Password [ ]

Confirm New Password [ ]

Set Supervisor Password

Enter Current Password [ ]

Enter New Password [ ]

Confirm New Password [ ]

Enter a password not exceeding 16 digits.

The password can contain alphanumeric characters. The entered characters are not displayed and " The minimum length of user passwords can be set in 'Set User Password Length.'

After entering a password, press the Enter key.

The cursor moves to the "Enter New Password" field and the utility requests that the password be entered again.

Enter the same password as in Step 2 again and press the Enter key.

The Notice window appears.

" appears.

Press the Enter key to complete the password setup.

If the reentered password is incorrect, a Warning! window appears. Press the Enter key to retry from Step 2. To cancel password setup, press the Esc key.

Point

If the user starts setup operation by entering only a user password for a PC that requires the input of both supervisor and user passwords, the setup items will be limited.

Select 'Exit Save Changes' on the Exit menu and press the Enter key.

The Setup Confirmation window then appears.

Select 'Yes' and press the Enter key.

The settings are saved.

Press the Power switch to turn off the power.

Point

Turn off the power while 'BIOS Setup' is displayed. If the power is turned off after BIOS Setup has ended, password settings are invalid.

Set the jumper switch of the personal computer.

Change jumper switch JP5 from 2-3 to 1-2 on the computer. (For the location of jumper switch JP5, see the following page.)

W ARNING

Electric shock

CAUTION

Injury

● To prevent electric shock, before changing jumper switches, turn off the computer main and peripheral units and unplug the power cable.

● The PC is very hot immediately after being turned off. Wait about ten minutes and reboot.

JP5 jumper switch

Front

Even if passwords are set by the BIOS setup utility, they are not rendered effective until the jumper switches are changed.

1-2........Enables a

2-3........Disables a

password. password.

Help

If the password necessary to boot the BIOS setup system is not known, return JP5 to 2-

3. The password check is disabled.

● Starting the computer after password setup

After 'Set User Password' is set, the personal computer displays a password entry window when turned on again or the user attempts to run the BIOS setup utility. Enter a password and press the Enter key.

Enter Password.

After 'Set Supervisor Password' is set, the computer displays a password entry window when the user attempts to run the BIOS setup utility. Enter a password and press the Enter key.

Enter Password.

Point

If the user enters an incorrect password three times, the system stops, in which case the Power switch must be pressed to turn the system off. After waiting at least ten seconds, turn the system on again and enter the correct password.

Changing passwords

○○○○○○○

To change a password, move the cursor to 'Set Supervisor Password' or 'Set User Password' and enter the new password.

Deleting passwords

○○○○○○○

To delete a password, move the cursor to 'Set Supervisor Password' or 'Set User Password' and press the Enter key. When the supervisor password is deleted, the user password is also deleted.

Point

A user can delete the password only when the length of the user password is set to 0. Otherwise, a message is displayed to indicate that the number of characters for the user password is insufficient.

Power Menu

The Power menu is used to set up the power savings mode. The power savings mode is used to place the computer in standby mode and reduce power consumption if the system is on but not being used. Select Power using the ← or → key to display the Power menu.

Main Advanced Security Power Boot Info Exit

Power Savings: [Enabled]

Hard Disk Timeout: [Disabled] Display Timeout: [Disabled]

Power Switch Mode: [Power Off] Automatic Wake up

APM Power Controls: [Enabled]

ACPI Features

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Details on setup items

○○○○○○○

●Power Savings

This item sets the level of the power savings mode.

- Disabled (Initial value for Windows 95/98/2000 models) The computer does not enter the power savings mode. 'Hard Disk Timeout' changes to [Disabled] and 'Display Timeout' to [Disabled].

- Customized (Initial value for Windows NT models) The user can set 'Hard Disk Timeout' and 'Display Timeout' separately.

- Maximum Power Savings This item minimizes power consumption.

- Maximum Performance Maximize This item reduces power consumption while degrading performance.

Item Specific Help

[Customized] Alter each settings individually. [Maximum Power Savings] Minimize power consumption. [Maximum Performance] Maximize performance. [Disabled] The feature is disabled.

*APM OS override this setting. *ACPI OS ignores this setting.

Point

- If this item is set [Disabled] on Windows 95/98, the computer displays the message "Ready to Turn off power", and its power is not automatically turned off. If this message is displayed, you have to turn off the power.

- If "Manage computer power on Windows" is not checked in "Power properties" on the Windows 95 control panel, the computer does not enter the power savings mode.

- Windows NT does not support power savings mode.

- This item is not available when on Windows 98(ACPI mode) and Windows 2000.

– Hard Disk Timeout

This item sets the time, from the time that access to the hard disk has been denied and then the hard disk is set to power savings mode, to the time that the motor stops.

- Disabled (Initial value; Windows 95/98/2000 models)

The hard disk does not enter the power savings mode.

- 30 seconds, 1 to 30 minutes (Initial value; Windows NT models)

Set the time for changing the hard disk to the power savings mode and for stopping the motor.

Point

- This function requires a hard disk unit supporting power savings. (The hard disk mounted on this personal computer supports power savings.)

- Regardless of this setting, it takes 10 minutes or more for some hard disks to be changed to the power savings mode. Set the time setting to more than 10 minutes when the user sets the disks to the power savings mode.

- It requires several seconds for disk rotations to become stable when the hard disk returns from the power savings mode to normal operation mode.

- This item is not available on Windows 98 (ACPI mode) and Windows 2000.

– Display Timeout

This item sets the time from no keyboard or mouse entry to display disappearance.

- Disabled (Initial value for Windows 98 and Windows 95 models)

The display does not enter the power savings mode.

- 1 to 30 minutes, 1 hour (Initial value: 30 minutes for Windows NT models)

Point

- This function requests a display unit supporting the power savings mode.

- This item is not available for Windows 98 (ACPI mode) and Windows 2000.

● Power Switch Mode

Set whether to enter power savings mode or to turn off the power when the Power switch is pressed.

- Power Off (Initial value) The computer is turned off when the Power switch is pressed.

- Standby The computer enters the power savings mode when the Power switch is pressed in normal state and returns to normal state when pressed in power savings mode.

Point

- On WindowsNT, do not select [Standby].

- On Windows 98(ACPI mode) and Windows 2000, the computer can be set to enter power savings mode when the Power switch is pressed through Windows 98/2000 setup, regardless of 'Power Switch Mode.'

● Automatic Wake up

This item sets automatic boot or return from Standby mode using a submenu. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

Wake up on LAN [Enabled] Wake up on Modem Ring [Disabled] Wake up om PCI PME: [Disabled] Wake up on Time: [Disabled]

Wake up Time: [00:00:00] Wake up Date: [Every Day]

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Automatic Wake Up

Item Specific Help

[Enabled] The system will wake up when internal LAN Device receives a magic packet in Suspend mode or Power off.

[Disabled] The feature is disabled.

*ACPI OS ignores this setting

– Wake up on LAN

This item sets whether to turn on the computer or to return from Standby mode when a magic packet is received from the standard LAN port.

- Disabled (Initial value)

The computer is not turned on or returned from Standby mode after receiving a magic packet.

- Enabled

The computer is turned on or returned from Standby mode after receiving a magic packet.

Point

- Set "Wake up on PCI PME" to "Enabled" in case of using the LAN card compliant with PME.

- Turn off the power from OS menu beforehand in case wake up on LAN is done.

– Wake up on Modem Ring This item sets whether to turn on the computer or to return it from Standby mode when a call

terminates on the modem connected to a serial port or on the modem card (PCI) connected to the RI cable.

- Disabled (Initial value) The computer is not turned on or returned from Standby mode when a call terminates on the modem.

- Enabled The computer is turned on or returned from Standby mode when a call terminates on the modem.

Point

- For PME LAN cards (PCIs), use 'Wake up on PCI PME.'

- When a modem connected to a serial port is switched on and off while [Enabled] is specified, some types of modem may affect the PC, such as the PC being switched on or switched from the standby mode.

- The setting of this item is not effective on Windows 95/98/2000.

– Wake up on PCI PME

This item sets whether to turn on the power or to return it from Standby mode when a PCI extension card issues a PME signal.

- Disabled (Initial value)

The computer is not turned on or returned from Standby mode when a PME signal is issued.

- Enabled

The computer is turned on or returned from Standby mode when a PME signal is issued.

– Wake up on Time

This item sets whether to turn on the computer or to return from Standby mode at the time specified in 'Wake up Date' and 'Wake up Time.'

- Disabled (Initial value)

The computer is not turned on or returned from Standby mode at a specified time.

- Enabled

The computer is turned on or returned from Standby mode at a specified time.

Wake up Time

This item appears when 'Wake up on Time' is set. Set the computer wake-up time.

- 00:00:00 to 23:59:59 (Initial value: 00:00:00)

Wake up Date

This item appears when 'Wake up on Time' is set. Set the computer wake-up date.

- Every Day (Initial value), 1 to 31

- Specify Date The prompt for entering a date appears.

● APM Power Controls

This item sets power controls by OSs supporting APM, such as Windows95/98.

- Disabled Disables suspend mode of power off by APM supporting OSs, at which time the values set by the BIOS setup utility are always used.

- Enabled (Initial value) Enables suspend mode or power off by APM supporting OSs.

Point

- If Windows 95 or Windows 98 is used and this item is set to Disabled, the automatic poweroff function does not work when you shut down the PC. The message "The computer is ready for shut down" appears at the same time. Turn the computer off manually when this message appears.

- This is not available on Windows 98(ACPI mode) and Windows 2000.

● ACPI Features

This item sets ACPI features using a submenu. Move the cursor to this item and press the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

ACPI Sleep Mode: [S1]

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

ACPI Features

Item Specific Help

[S1] CPU Stop is selected as sleep state for ACPI.

[S3] Suspend to RAM is Selected as Sleep state for ACPI.

[Disabled] ACPI function is disabled.

–Standby mode

This item sets the standby mode for operating systems supporting ACPI.

- S1 (Initial value) Sets the standby mode to S1 (CPU stop).

-S3 Sets the standby mode to S3. In this mode the system status is retained in the main strage but all other circuits are stopped.

Boot Menu

The Boot menu is used to set the priority of boot drives. Select Boot using the ← or → key to display the Boot menu.

Main Advanced Security Power Boot Info Exit

QuickBoot: [Enabled]

Boot-time Diagnostic Screen: [Disabled] Preboot Execution Environment: [Disabled] Delay Time for ATA/ATAPI Drive: [3 seconds]

Boot Device Priority

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○○○

●Quick Boot

This item sets whether to reduce the time after the personal computer is turned on or rebooted until the OS is loaded.

- Disabled The time to load the OS is not reduced.

- Enabled (Initial value) The time to load the OS is reduced.

- Auto The time to load the OS is decide automatically.

PhoenixBIOS Setup Utility

Item Specific Help

[Enabled] Some diagnostic tests may be skipped while booting to speed up.

[Disabled] All diagnostic tests will be done.

[Auto] Diagnostic tests will be automatically skipped or done according to the order of the ACPI OS.

Point

If an error occurs in POST at boot, quick boot is not performed at next boot.

● Boot Time Diagnostic Screen

This item sets whether to display the self diagnostic (POST) screen at boot or reboot.

- Disabled (Initial value) The FUJITSU logo is displayed at boot or reboot.

- Enabled The self diagnostic (POST) screen is displayed at boot or reboot.

Point

To confirm BIOS messages from an extension card, select [Enabled].

● Preboot Execution Environment

This item sets whether to preboot from the network server.

- Disabled Boots the computer from its hard disk drive, CD-ROM drive, or floppy disk drive.

- Enabled (Initial value) Starts the computer from a network server. If the computer is rebooted after this item is set to [Enabled], "PXE" is added to "Boot Device Priority."

Point

To boot from the network server, an installation server system conforming to Network PC System Design Guidelines Version 1.0b is required.

● Delay Time for ATA/ATAPI Drive

This item sets the wait time until the computer automatically identifies the ATA/ATAPI drive.

- None The computer boots automatic identification as soon as it launches.

- 3, 5, 10, 15, 30 seconds (Initial value: 3 seconds) The computer boots automatic identification after a preset time.

Point

If the computer does not identify the connected ATA or ATAPI drive properly, extend the preset time.

● Boot Device Priority

This item set the priority of devices to load the OS using a submenu. Move the cursor to this item and pres the Enter key to display a submenu as shown below.

Main Advanced Security Power Boot Info Exit

PhoenixBIOS Setup Utility

Boot Device Priority

Item Specific Help

1. [Floppy Disk Drive]

2. [Hard Disk Drive]

3. [ATAPI CD-ROM Drive]

4. [Intel UNDI PXE-20 (build 071)]

Hard Disk

F1 Help ↑↓ Select Item -/Space Change Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Use <↑> or <↓> to select a device, then press <+> or <Space> to move it up the list, or <-> to move it down the list. Press <Esc> to exit this menu.

The priority is the order of each item. (The lowest number indicates the highest priority.) Select the device whose priority is to be changed using the ↑ or ↓ key. The selected item moves up to a higher priority when the space is pressed and moves down to a lower priority when the - key is pressed.

Point

For booting from a CD-ROM, a CD-ROM containing an OS capable of being booted is required. Before booting the power, set the CD-ROM on the CD-ROM drive.

● Hard disk drive

This item uses submenus to set the sequence of assigning drives. Click the Enter button to display the submenus. The number to the left of each item indicates the sequence of assigning drive numbers. Select the device whose priority is to be changed using the ↑ or ↓ key. The selected item moves up to a higher priority when the space is pressed and moves down to a lower priority when the - key is pressed. Details of each item are explained below.

FUJITSU MPDXXXXAT-(PM)

This item displays the name of the hard disk drive that is connected. If the hard disk drive has been replaced, the displayed name changes.

Bootable Add-in Cards

This item indicates cards that can be connected to bootable devices, but do not support the BIOS boot specification (BBS).

Info Menu

The Info menu is used to provide the hardware configuration of the personal computer The setting of this menu cannot be changed. Select this item with the ← or → key to display the Info menu.

Main Advanced Security Power Boot Info Exit

BIOS Version: 1.XX BIOS Date: xx/xx/1999 BIOS Area: E800h - FFFFh

CPU Type CPU Speed: 550MHz L1 Cache: 32KB L2 Cache: 512KB

Total Memory: 64MB Memory Slot 1: 64MB SDRM (ECC) Memory Slot 2: None ECC: Error Correction Enabled

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

Details on setup items

○○○○○○○○

PhoenixBIOS Setup Utility

Item Specific Help

Pentium® III processor

●BIOS Version

Displays the BIOS version.

● BIOS Date

Displays the date of BIOS.

● BIOS Area

Displays the addresses of the area available for BIOS. This area cannot be used as UMB.

● CPU

Displays the type of CPU on this computer.

● CPU Speed

Displays CPU clocks.

● L1 Cache

Displays the size of the CPU primary cache memory.

● L2 Cache

Displays the size of the CPU secondary cache memory.

● Total Memory

Displays the total memory size (RAM) mounted on the computer.

– Memory Slot 1/2

Detects and displays the type of memory mounted on each memory slot. A slot with no memory mounted is indicated as "Not used."

● ECC

This item sets whether to perform memory error check (ECC mode).

- Disabled Memory check is disabled.

- Error correction enabled The system detects for a 2-bit error on memory and corrects a 1-bit error on memory in ECC mode.

Exit

The Exit menu is used to exit the BIOS setup utility and to reset to standard setup values. Select Exit with the ← or → key to display the Exit menu.

Main Advanced Security Power Boot Info Exit

Exit Saving Changes Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

F1 Help ↑↓ Select Item -/SpaceChange Value F9 Setup Defaults ESCExit ←→ Select Menu Enter Select :Sub-Menu F10Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Exit System Setup and save your changes to CMOS.

Details on setup items

○○○○○○○○○

●Exit Saving Changes

This item exits the BIOS setup utility with saving changes to the CMOS RAM and reboots the computer. Press the Enter key to display the message shown below. Select [Yes] and press

the Enter key.

Setup Confirmation

Save configuration changes and exit now?

[Yes] [No]

● Exit Discarding Changes

This item exits the BIOS setup utility without saving changes to the CMOS RAM and reboots the computer. All changes are discarded. If the Enter key is pressed while changing setup values, the message shown below is displayed. To discard changes, select [No] and press the Enter key.

Setup Confirmation

Configuration has not been saved!

Save before exiting?

[Yes] [No]

● Load Setup Defaults

This item loads default values to all setup items. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Load default configuration now?

[Yes] [No]

For Windows NT model, specify [No] for [Plug & Play OS] in the Detail Menu, and specify [Customized] for [Power Savings] in the Power Menu.

● Discard Changes

This item loads values before change from the CMOS RAM to all setup items and discards all changes. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Load previous configuration now?

[Yes] [No]

● Save Changes

This item saves changes to the CMOS RAM. Press the Enter key to display the message shown below. Select [Yes] and press the Enter key.

Setup Confirmation

Save configuration changes now?

[Yes] [No]

Chapter 5 Troubleshooting

This chapter explains the procedure to follow if the computer does not operate as expected.

1 Error Messages .........................................................................................84

2 Troubleshooting.........................................................................................88

Error Messages

This section provides a list of error messages and suitable responses thereto. Consult this section as required.

Error messages displayed by the PC

○○○○○○○

Error Message

An error occurred at address xxxx during a system memory test.

An error occurred at address xxxx during an additional memory test.

System cache error-Cache disabled

An error occurred during a keyboard controller test.

An error occurred during a keyboard test.

An error occurred during a floppy disk drive test.

Description and necessary action

If an extended RAM module is used, remove the module and determine whether the error recurs. If this message is not displayed, an extended RAM module error is expected. Replace with another extended RAM module and determine whether the error recurs. If the error recurs, contact a dealer or the Fujitsu service center. Confirm that the extended RAM module is mounted properly and is a Fujitsu product. If the error recurs, contact a dealer or the Fujitsu service center.

contact a dealer or the Fujitsu service center.

Set the MAIN switch to OFF, then wait ten seconds and set to ON again. If the message is still displayed, contact a dealer or the Fujitsu service center.

If an external keyboard is connected, confirm that it is connected correctly and turn on the power again. If this message is still displayed, contact a dealer or the Fujitsu service center.

Confirm that 'Floppy Disk Drive A' is set properly on the BIOS setup main menu and that the floppy disk drive is mounted correctly.

Error Message

An invalid hard disk drive was set.

Turn the power off, then on again.

Confirm BIOS setup items, then save.

Because the computer was not booted correctly last time, some of the setup values are reset to defaults.

If an error occurs during POST, this message is displayed before the OS boots.

Check date and time settings

Description and necessary action

Confirm ‘Primary master’ or ‘Secondary master’ on the BIOS setup main menu. If the message is still displayed, contact a dealer or the your local distributor.

If the message is still displayed, contact a dealer or the your local distributor.

This message is displayed if an invalid BIOS setup value is defined to boot the system, the power is turned off during boot, or the computer is rebooted three or more times in the same operation. To continue booting, press the F1 key. To run the BIOS setup utility and check setup values, press the F2 key.

To boot booting the OS, press the F1 key. To run the BIOS setup utility and change setup values, press the F2 key.

Confirm 'System Time' and 'System Date.'

Error Message

Invalid system disk

Non-System disk or disk error

Operating system not found

An error occurred during execution of the Execution Environment. An error occurred during execution of the Preboot Execution Environment.

An error occurred during execution of the Preboot Execution Environment.

Description and necessary action

Replace the disk, and then press any key This message is displayed when the PC is switched on while a floppy disk other then a system disk is set in the floppy disk drive. Remove the floppy disk and press any key. Replace and press any key when ready This message is displayed when the PC is switched on while a floppy disk other then a system disk is set in the floppy disk drive. Remove the floppy disk and press any key. OS cannot be found. Confirm that the drive is correctly set at BIOS setup or the OS is installed in the specified drive. The LAN cable is not correctly connected. Connect the LAN cable correctly.

The IP address required to boot the PC was not obtained. Set the boot server correctly, or set 'Boot from the network server' to Disabled on the BIOS setup menu. The boot filename was not obtained from the boot server. Set the boot server correctly, or set 'Boot from the network server' to Disabled on the BIOS setup menu. There is no boot server, or the boot server does not work correctly. Set the boot server correctly, or set 'Boot from the network server' to Disabled on the BIOS setup menu. The boot image file on the boot server was not obtained. Set the boot server correctly, or set 'Boot from the network server' to Disabled on the BIOS setup menu. Booting from a network failed. Set the boot server correctly, or set 'Boot from the network server' to Disabled on the BIOS setup menu.

Error Message

An error occurred when the memory speed was unclear.

An error occurred when a memory is inappropriate for the system bus clock.

Description and necessary action

When the system bus clock is 100MHz, a memory whose speed is unclear is mounted. Power off the system, and then replace the memory with one appropriate for the system bus clock. The mounted memory is 66MHz and inappropriate for the system bus clock. Power off the system, then replace the memory with one appropriate for the system bus clock.

Correcting errors

○○○○○○○○○

If an error message is displayed, respond as follows.

- Running the BIOS setup utility If a BIOS setup error message is displayed, retry the BIOS setup utility.

- Confirming that built-in options are mounted correctly If optional extension cards are mounted, confirm that the cards are mounted and set up correctly. Also conform that the card is properly set. If available, consult manuals or utility software with extension cards.

If the error message is still displayed, the PC may be faulty. Contact the Fujitsu service center or a dealer.

Troubleshooting

This section provides troubleshooting information for each function. Consult this section as required. For troubleshooting information for Windows NT, refer to the Windows NT manual or the online help registered on the Start menu.

Troubleshooting information on the computer main unit and peripheral units

○○○○○○○

●The access lamp does not light up.

The PC may be faulty. Contact a dealer or the Fujitsu service center.

● No data is displayed on the screen.

Confirm the following:

- Is the Power switch on the display turned on?

- Is the power savings mode selected? Move the mouse or press any key.

- Is the display cable connected correctly? See "2 Connection" in Chapter 1, "Installation" to connect the display cable correctly.

- Is the power cable of the display unit connected to the outlet? See "2 Connection" in Chapter 1, "Installation" to connect the power cable correctly.

WARNING

Electric shock

● Before connecting cables, turn off the power to prevent electric shock.

- Are the brightness and contact variable resistors on the CRT display unit adjusted correctly? Adjust the screen image using the brightness and contact variable resistors.

● The screen flickers.

Is there any strong magnetic field in the vicinity of the computer, such as a TV set? If so, keep away from the PC.

● The screen sides are cut.

Adjust the horizontal screen size using the adjustment controls on the CRT display unit.

● Data cannot be read from or written to floppy disks.

Check the following:

- Is the floppy disk drive head dirty? Clean the head using a cleaning disk. (See "Cleaning the floppy disk drive" in Appendix 4, "Maintenance.")

- Is the floppy disk write-protected? Move the write-protect tab on the floppy disk to a the write-enabled position.

● The power is not turned on or the Power lamp on the front panel

does not light up.

Is the power cable plugged in?

● Data cannot be read from the CD-ROM drive.

Check the following:

- Has the CD-ROM been placed properly at the center of the tray? Place the CD-ROM on the tray again with the label side facing upward.

- Has the CD-ROM been placed upside down on the tray? Place the CD-ROM on the tray in the proper manner with the label side facing upward.

- Is the CD-ROM dirty or wet? Clean the CD-ROM with a soft dry cloth (moving from the center to the periphery).

- Is the CD-ROM damaged? Replace the CD-ROM.

- Does the CD-ROM conform to the required standard? Use a correct CD-ROM.

● Characters entered using the keyboard are not displayed.

Is the keyboard connected correctly? See "2 Connection" in Chapter 1, "Installation" to connect the display cable correctly.

● The mouse cursor does not move.

Is the mouse connected correctly? See "2 Connection" in Chapter 1, "Installation" to connect the display cable correctly.

Troubleshooting information on Windows 95/98

○○○○○○○○○

●The entire Windows 95/98 programs are frozen during the execution of an

application.

First press the Ctrl + alt + Delete keys to end the application. If the application cannot be terminated, press the Ctrl + Alt + Delete key twice to reboot the computer. If the computer cannot be rebooted, press the Power switch to turn off the power, then reboot a few minutes later. After the computer is rebooted, from the Start menu, select Program - Accessories System tools, then click on Scan disk. If no error is detected by the scan disk utility, continue operation. If an error is detected, respond in accordance with the messages displayed.However, the error might happen again after it has been corrected. If the error recurs, attempt to reinstall Windows 95/98 or applications.

Point

The current operation data by an application is not saved if the application is terminated using the Ctrl + Alt + Delete keys or the computer is reset.

● The mouse is disabled and Windows 95/98 cannot end.

Use the keyboard to exit Windows 95/98 as follows: 1 Press the

The Start menu appears.

2 Select "Exit Windows" with the ↑" or ↓ key and press the Enter key.

The Exit Windows dialog box is displayed.

3 Select "Turn off power" and press the Enter key.

Windows 95/98 ends.

key or the Ctrl + Esc keys.

● A SCSI unit is connected using a SCSI card but cannot be identified by

Windows 95/98.

Check the following:

- Is the SCSI card driver installed correctly? Proceed as follows. 1 From the Start menu, select Setup and click on Control Panel.

The Control panel window is displayed. 2 Double click on the System icon. 3 Click on the Device manager tab and confirm that the SCSI controller is defined.

If not defined, click on the Hardware icon in the Control Panel window to detect a SCSI

card and install the driver.

- Is the SCSI unit turned on before the computer is turned on? If the computer is turned on before the SCSI unit is turned on, the SCSI unit cannot be identified.

If an error recurs

○○○○○○○

If the cause is still unknown or the system cannot be reset, contact a dealer or the Fujitsu service center. Then check and record the following:
