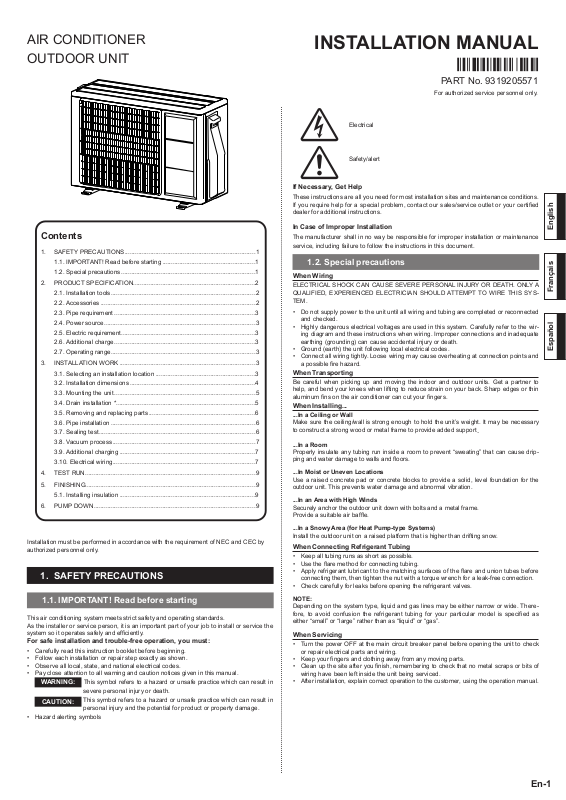

Fujitsu 24LPAS1, 30LPAS1 Manual

AIR CONDITIONER
OUTDOOR UNIT

INSTALLATION MANUAL

PART No. 9319205571

For authorized service personnel only.

Electrical

Contents

1. SAFETY PRECAUTIONS ............................................................................1

1.1. IMPORTANT! Read before starting ......................................................1

1.2. Special precautions ..............................................................................1

2. PRODUCT SPECIFICATION .......................................................................2

2.1. Installation tools ....................................................................................2

2.2. Accessories ..........................................................................................2

2.3. Pipe requirement ..................................................................................3

2.4. Power source ........................................................................................3

2.5. Electric requirement ..............................................................................3

2.6. Additional charge ..................................................................................3

2.7. Operating range ....................................................................................3

3. INSTALLATION WORK ...............................................................................3

3.1. Selecting an installation location ..........................................................3

3.2. Installation dimensions .........................................................................4

3.3. Mounting the unit ..................................................................................5

3.4. Drain installation * .................................................................................5

3.5. Removing and replacing parts ..............................................................6

3.6. Pipe installation ....................................................................................6

3.7. Sealing test ...........................................................................................6

3.8. Vacuum process ...................................................................................7

3.9. Additional charging ...............................................................................7

3.10. Electrical wiring ...................................................................................7

4. TEST RUN ...................................................................................................9

5. FINISHING...................................................................................................9

5.1. Installing insulation ...............................................................................9

6. PUMP DOWN ..............................................................................................9

Installation must be performed in accordance with the requirement of NEC and CEC by
authorized personnel only.

1. SAFETY PRECAUTIONS

1.1. IMPORTANT! Read before starting

This air conditioning system meets strict safety and operating standards.
As the installer or service person, it is an important part of your job to install or service the
system so it operates safely and effi ciently.

For safe installation and trouble-free operation, you must:

• Carefully read this instruction booklet before beginning.

• Follow each installation or repair step exactly as shown.

• Observe all local, state, and national electrical codes.

• Pay close attention to all warning and caution notices given in this manual.

WARNING:

CAUTION:

• Hazard alerting symbols

This symbol refers to a hazard or unsafe practice which can result in

severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result in

personal injury and the potential for product or property damage.

Safety/alert

If Necessary, Get Help

These instructions are all you need for most installation sites and maintenance conditions.
If you require help for a special problem, contact our sales/service outlet or your certifi ed
dealer for additional instructions.

In Case of Improper Installation

The manufacturer shall in no way be responsible for improper installation or maintenance
service, including failure to follow the instructions in this document.

1.2. Special precautions

When Wiring

ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYS­TEM.

• Do not supply power to the unit until all wiring and tubing are completed or reconnected
and checked.

• Highly dangerous electrical voltages are used in this system. Carefully refer to the wir­ing diagram and these instructions when wiring. Improper connections and inadequate
earthing (grounding) can cause accidental injury or death.

• Ground (earth) the unit following local electrical codes.

• Connect all wiring tightly. Loose wiring may cause overheating at connection points and
a possible fi re hazard.

When Transporting

Be careful when picking up and moving the indoor and outdoor units. Get a partner to
help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin
aluminum fi ns on the air conditioner can cut your fi ngers.

When Installing...

...In a Ceiling or Wall

Make sure the ceiling/wall is strong enough to hold the unit’s weight. It may be necessary
to construct a strong wood or metal frame to provide added support

...In a Room

Properly insulate any tubing run inside a room to prevent “sweating” that can cause drip­ping and water damage to walls and fl oors.

...In Moist or Uneven Locations

Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the
outdoor unit. This prevents water damage and abnormal vibration.

...In an Area with High Winds

Securely anchor the outdoor unit down with bolts and a metal frame.
Provide a suitable air baffl e.

...In a Snowy Area (for Heat Pump-type Systems)

Install the outdoor unit on a raised platform that is higher than drifting snow.

When Connecting Refrigerant Tubing

• Keep all tubing runs as short as possible.

• Use the fl are method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the fl are and union tubes before
connecting them, then tighten the nut with a torque wrench for a leak-free connection.

• Check carefully for leaks before opening the refrigerant valves.

NOTE:

Depending on the system type, liquid and gas lines may be either narrow or wide. There­fore, to avoid confusion the refrigerant tubing for your particular model is specifi ed as
either “small” or “large” rather than as “liquid” or “gas”.

When Servicing

• Turn the power OFF at the main circuit breaker panel before opening the unit to check
or repair electrical parts and wiring.

• Keep your fi ngers and clothing away from any moving parts.

• Clean up the site after you fi nish, remembering to check that no metal scraps or bits of
wiring have been left inside the unit being serviced.

• After installation, explain correct operation to the customer, using the operation manual.

.

EnglishFrançaisEspañol

En-1

WARNING

• To avoid getting an electric shock, never touch the electrical components soon after
the power supply has been turned off. After turning off the power, always wait 10
minutes or more before you touch the electrical components.

• Installation of this product must be done by experienced service technicians or
professional installers only in accordance with this manual. Installation by non­professional or improper installation of the product might cause serious accidents
such as injury, water leakage, electric shock, or fi re. If the product is installed in
disregard of the instructions in this manual, it will void the manufacturer’s warranty.

• Do not turn on the power until all work has been completed. Turning on the power
before the work is completed can cause serious accidents such as an electric shock
or a fi re.

• If refrigerant leaks when you are working, ventilate the area. If the leaking refrigerant
is exposed to a direct fl ame, it may produce a toxic gas.

• Installation must be performed in accordance with regulations, codes, or standards
for electrical wiring and equipment in each country, region, or the installation place.

• Do not use this equipment with air or any other unspecifi ed refrigerant in the
refrigerant lines. Excess pressure can cause a rupture.

• During installation, make sure that the refrigerant pipe is attached fi rmly before
you run the compressor. Do not operate the compressor under the condition of
refrigerant piping not attached properly with 2-way or 3-way valve open. This may
cause abnormal pressure in the refrigeration cycle that leads to rupture and even
injury.

• When installing or relocating the air conditioner, do not mix gases other than the
specifi ed refrigerant (R410A) to enter the refrigerant cycle.
If air or other gas enters the refrigerant cycle, the pressure inside the cycle will rise
to an abnormally high value and cause rupture, injury, etc.

• For appropriate working of the air conditioner, install it as written in this manual.

• To connect indoor unit and outdoor unit, or indoor unit and branch box, use air
conditioner piping and cables available through your local distributor. This manual
describes proper connections using such installation set.

• Do not modify power cable, use extension cable or branch wiring. Improper use may
cause electric shock or fi re by poor connection, insuffi cient insulation or over current.

• Do not purge the air with refrigerants but use a vacuum pump to vacuum the
installation.

• There is no extra refrigerant in the outdoor unit for air purging.

• Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition
sources (for example: open fl ames, an operating gas appliance or an operating
electric heater.

• Do not pierce or burn.

• Be aware that refrigerants may not contain an outdoor.

• Using the same vacuum pump for different refrigerants may damage the vacuum
pump or the unit.

• Use a clean gauge manifold, vacuum pump and charging hose for R410A
exclusively.

• Do not modify this unit, such as opening a hole in the cabinet.

• During the pump-down operation, make sure that the compressor is turned off
before you remove the refrigerant piping.
Do not remove the connection pipe while the compressor is in operation with 2 way
or 3 way valve open. This may cause abnormal pressure in the refrigeration cycle
that leads to rupture and even injury.

• Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

CAUTION

• This unit must be installed by qualifi ed personnel with a capacity certifi cation of
handling refrigerant fl uids. Refer to regulation and laws in use on installation place.

• Install the unit by following local codes and regulations in force at the place of
installation, and the instructions provided by the manufacturer.

• This unit is part of a set constituting an air conditioner. The unit must not be installed
alone or be installed with non-authorized device by the manufacturer.

• When installing pipes shorter than 3 m, sound of the outdoor unit will be transferred
to the indoor unit, which will cause large operating sound or some abnormal sound.

• To protect the persons, earth( ground) the unit correctly, and use the power cable
combined with an Earth Leakage Circuit Breaker (ELCB).

• The units are not explosion proof, and therefore should not be installed in explosive
atmosphere.

• This unit contains no user-serviceable parts. Always consult experienced service
technicians for repairing.

• When moving or relocating the air conditioner, consult experienced service
technicians for disconnection and reinstallation of the unit.

• Children should be monitored to ensure they do not play with the device.

• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.

• Do not touch the aluminum fi ns of heat exchanger built-in the indoor or outdoor unit
to avoid personal injury when you install or maintain the unit.

• Do not place any other electrical products or household belongings under indoor unit
or outdoor unit. Condensation dripping from the unit might get them wet, and may
cause damage or malfunction of your property.

2. PRODUCT SPECIFICATION

• All Fujitsu General products are manufactured to metric units and tolerances.
United States customary units are provided for reference only. In cases where exact
dimensions and tolerances are required, always refer to metric units.

2.1. Installation tools

WARNING

To install a unit that uses R410A refrigerant, use dedicated tools and piping materials
that have been manufactured specifi cally for R410A use. Because the pressure of
R410A refrigerant is approximately 1.6 times higher than R22, failure to use dedicated
piping material or improper installation can cause rupture or injury. Furthermore, it can
cause serious accidents such as water leakage, electric shock, or fi re.

Tool name Change from R22 to R410A

Pressure is high and cannot be measured with a conven­tional (R22) gauge. To prevent erroneous mixing of other

Gauge manifold

Charge hose

Vacuum pump

Gas leakage detector

■

Copper pipes

It is necessary to use seamless copper pipes and it is desirable that the amount of
residual oil is less than 0.0014 oz/33 ft (40 mg/10 m). Do not use copper pipes having a
collapsed, deformed or discolored portion (especially on the interior surface). Otherwise,
the expansion value or capillary tube may become blocked with contaminants.
As an air conditioner using R410A incurs pressure higher than when using R22, it is nec­essary to choose adequate materials.
Thicknesses of copper pipes used with R410A are as shown in table.
Never use copper pipes thinner than those indicated in the table even if they are available
on the market.

Thicknesses of Annealed Copper Pipes

Nominal diameter (in) Outer diameter (mm) Thickness [in(mm)]

1/4 6.35

1/2 12.70
5/8 15.88 0.039 (1.00)
3/4 19.05 0.047 (1.20)

2.2. Accessories

For installation purposes, be sure to use the parts supplied by the manufacturer or
other prescribed parts. The use of non-prescribed parts can cause serious accidents
such as the unit falling, water leakage, electric shock, or fi re.

• The following installation parts are supplied. Use them as required.

• Keep the Installation Manual in a safe place and do not discard any other accessories
until the installation work has been completed.

Name and Shape

Installation manual
(This manual)

Drain cap*

*1: It is not included in the cold region model.
The LP series does not come with a drain cap.

One set of following parts are necessary installation of this product.

1

Connection pipe assembly Decorative tape Saddle Tapping screws
Connection cable Vinyl tape Drain hose Sealant
Wall pipe Wall cap M10 bold, nut

refrigerants, the diameter of each port has been changed.
It is recommended to use gauge with seals -0.1 to 5.3 MPa
(-1 to 53 bar) for high pressure.

-0.1 to 3.8 MPa (-1 to 38 bar) for low pressure.

To increase pressure resistance, the hose material and base
size were changed.(R410A)

A conventional vacuum pump can be used by installing a
vacuum pump adapter.
(Use of a vacuum pump with a series motor is prohibited.)

Special gas leakage detector for HFC refrigerant R410A.

0.031 (0.80)3/8 9.52

WARNING

Q’ty

1

5

Additional materials

Name and Shape

Drain pipe*

Cable tie

1

Q’ty

1

2

En-2

2.3. Pipe requirement

2.3.1. Protection of pipes

• Protect the pipes to prevent the entry of moisture and dust.

• Especially, pay attention when passing the pipes through a hole or connecting the end
of a pipe to the outdoor unit.

Location Working period Protection method

Outdoor

Indoor - Pinch or tape pipes

1 month or more Pinch pipes

Less than 1 month Pinch or tape pipes

2.3.2. Refrigerant pipe size and allowable piping length

CAUTION

• Keep the piping length between the indoor unit and outdoor unit within the allowable
tolerance.

• The maximum lengths of this product are shown in the table. If the units are further
apart than this, correct operation cannot be guaranteed.

Series

Model

Pipe diameter

<Liquid / Gas>

[in (mm)]

Max. piping

length (L)

[ft (m)]

Max. height

difference (H)

<Indoor unit to

outdoor unit>

[ft (m)]

View

(Example)

LM

(includes

cold region

model)

1/4 (6.35) / 3/8 (9.52)

LZ

(includes cold region

model)

9, 12 15 9, 12 18, 24

1/4 (6.35) /
1/2 (12.70)

66 (20)

49 (15)

1/4 (6.35) /

3/8 (9.52)

LP

1/4 (6.35) /
1/2 (12.70)

L

H

2.4. Power source

WARNING

• Always use a special branch circuit and install a special receptacle to supply power
to the room air conditioner.

• Use a circuit breaker and receptacle matched to the capacity of the air conditioner.

• Install a leakage circuit breaker in accordance with the related laws and regulations
and electric company standards.

• The circuit breaker is installed in the permanent wiring. Always use a circuit that can
trip all the poles of the wiring and has an isolation distance of at least 3 mm between
the contacts of each pole.

CAUTION

• The power source capacity must be the sum of the air conditioner current and
the current of other electrical appliances. When the current contracted capacity is
insuffi cient, change the contracted capacity.

• When the voltage is low and the air conditioner is diffi cult to start, contact the power
company the voltage raised.

2.5. Electric requirement

CAUTION

• Be sure to install a breaker of the specifi ed capacity.

• Regulation of cables and breaker differs from each locality, refer in accordance with
local rules.

Voltage rating

Operating range

■

Cable specifi cation

Cable Type Remarks

Power supply cable 14AWG

* For the specifications of the connection cable, refer to the installation manual of the

indoor unit.

1 ø 208/230 V (60 Hz)

187-253 V

2 cable + Ground (Earth),

1 ø 208/230 V

Select the correct cable type and size according to the country or region’s regulations.
Max. wire length: Set a length so that the voltage drop is less than 2%. Increase the wire
diameter when the wire length is long.

Breaker specifi cation

■

CAUTION

Series

LM

LM

(Cold region)

LZ

LZ

(Cold region)

LP

• Before starting work check that power is not being supplied to all poles of the indoor
unit and outdoor unit.

• Install all electrical works in accordance to the national standard.

• Install the disconnect device with a contact gap of at least 3 mm in all poles nearby the
units. (Both indoor unit and outdoor unit)

• Install the circuit breaker nearby the units.

Outdoor unit

capacity

9 9.7 A 15 A

12 11.5 A 15 A

9, 12 12.5 A 15 A

9, 12 13.4 A 15 A

15 16.5 A 20 A

9, 12 14.4 A 15 A

15 17.5 A 20 A

9, 12 9.7 A 15 A

18 14.7 A 15 A

24 17.2 A 20 A

MINIMUM CIRCUIT

AMPACITY

MAX. CKT. BKR.

2.6. Additional charge

CAUTION

When adding refrigerant, add the refrigerant from the charging port at the completion
of work.

Refrigerant suitable for a piping length of 49ft (15m) is charged in the outdoor unit at the
factory.
When the piping is longer than 49ft (15m), additional charging is necessary.
For the additional amount, refer to the following table.

Pipe length

Additional refrigerant None

49 ft

(15 m)

66 ft

(20 m)

+3.5 oz

(+100 g)

Rate

0.2 oz/ft
(20 g/m)

2.7. Operating range

Outdoor temperature

Cooling/Dry Mode About 14 to 115 °F

LM series (9, 12) About 5 to 75 °F

LM (Cold region) series (9, 12) About -15 to 75 °F

Heating Mode

LZ series (9, 12, 15) About -5 to 75 °F

LZ (Cold region) series (9, 12, 15) About -15 to 75 °F

LP series (9, 12, 18, 24) About 5 to 75 °F

3. INSTALLATION WORK

Make sure to obtain the customer’s approval for selecting and installing the outdoor unit.

3.1. Selecting an installation location

WARNING

• Securely install the outdoor unit at a location that can withstand the weight of the
unit. Otherwise, the outdoor unit may fall and cause injury.

• Be sure to install the outdoor unit as prescribed, so that it can withstand earthquakes
and typhoons or other strong winds. Improper installation can cause the unit to
topple or fall, or other accidents.

• Do not install the outdoor unit near the edge of a balcony. Otherwise, children may
climb onto the outdoor unit and fall off of the balcony.

En-3

CAUTION

• Do not install the outdoor unit in the following areas:

- Area with high salt content, such as at the seaside. It will deteriorate metal parts,
causing the parts to fail or the unit to leak water.

- Area fi lled with mineral oil or containing a large amount of splashed oil or steam,
such as a kitchen. It will deteriorate plastic parts, causing the parts to fail or the unit
to leak water.

- Area that generates substances that adversely affect the equipment, such as
sulfuric gas, chlorine gas, acid, or alkali. It will cause the copper pipes and brazed
joints to corrode, which can cause refrigerant leakage.

- Area containing equipment that generates electromagnetic interference. It will
cause the control system to malfunction, preventing the unit from operating
normally.

- Area that can cause combustible gas to leak, contains suspended carbon fi bers or
fl ammable dust, or volatile infl ammables such as paint thinner or gasoline. If gas
leaks and settles around the unit, it can cause a fi re.

- Area that has heat sources, vapors, or the risk of the leakage of fl ammable gas in
the vicinity.

- Area where small animals may live. It may cause failure, smoke or fi re if small
animals enter and touch internal electrical parts.

- Area where animals may urinate on the unit or ammonia may be generated.

• Do not tilt the outdoor unit more than 5 degrees. However, do not install the unit with
it tilted towards the side containing the compressor.

• Install the outdoor unit in a well-ventilated location away from rain or direct sunlight.

• If the outdoor unit must be installed in an area within easy reach of the general
public, install as necessary a protective fence or the like to prevent their access.

• Install the outdoor unit in a location that would not inconvenience your neighbors, as
they could be affected by the airfl ow coming out from the outlet, noise, or vibration. If
it must be installed in proximity to your neighbors, be sure to obtain their approval.

• If the outdoor unit is installed in a cold region that is affected by snow accumulation,
snow fall, or freezing, take appropriate measures to protect it from those elements.
To ensure a stable operation, install inlet and outlet ducts.

• Install the outdoor unit in a location that is away from exhaust or the vent ports that
discharge vapor, soot, dust, or debris.

• Install the indoor unit, outdoor unit, power supply cable, connection cable, and
remote controller cable at least 40 in (1 m) away from a television or radio receivers.
The purpose of this is to prevent TV reception interference or radio noise. (Even if
they are installed more than 40 in (1 m) apart, you could still receive noise under
some signal conditions.)

• If children under 10 years old may approach the unit, take preventive measures so
that they cannot reach the unit.

• Keep the length of the piping of the indoor and outdoor units within the allowable
range.

• For maintenance purposes, do not bury the piping.

Decide the mounting position with the customer as follows:
(1) Install the outdoor unit in a location which can withstand the weight of the unit and

vibration, and which can install horizontally.
(2) Provide the indicated space to ensure good airfl ow.
(3) If possible, do not install the unit where it will be exposed to direct sunlight.

(If necessary, install a blind that does not interfere with the airfl ow.)
(4) Do not install the unit near a source of heat, steam, or fl ammable gas.
(5) During heating operation, drain water fl ows from the outdoor unit.
Therefore, install the outdoor unit in a place where the drain water fl ow will not be

obstructed.
(6) Do not install the unit where strong wind blows or where it is very dusty.
(7) Do not install the unit where people pass.
(8) Install the outdoor unit in a place where it will be free from being dirty or getting wet by

rain as much as possible.
(9) Install the unit where connection to the indoor unit is easy.

3.2. Installation dimensions

CAUTION

Keep the space shown in the installation examples.
If the installation is not performed accordingly, it could cause a short circuit and result
in a lack of operating performance.

3.2.1. Outdoor unit installation

When the upper space is open

(1) Obstacles at rear only

(3) Obstacles at front

24 (600) or more

When an obstruction in the upper space [ Unit: in (mm) ]

(1) Obstacles at rear and above

Max. 7 (200)

[ Unit: in (mm) ]

4 (100) or more

24 (600) or
more

4 (100) or
more

(2) Obstacles at rear and sides

4 (100) or
more

10 (250) or more

(4) Obstacles at front and rear

24 (600) or more

(2) Obstacles at rear, sides, and above

Max. 7 (200)

4 (100) or
more

10 (250) or more

4 (100) or
more

4 (100) or more

24 (600)
or more

4 (100) or
more

3.2.2. Multiple outdoor unit installation

• Provide at least 10 in (250 mm) of space between the outdoor units if multiple units are
installed.

• When routing the piping from the side of an outdoor unit, provide space for the piping.

• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the
following example when an obstruction in the upper space.

When the upper space is open [ Unit: in (mm) ]

(1) Obstacles at rear only

10 (250) or more

(3) Obstacles at front and rear

10 (250) or more

8 (200) or
more

(2) Obstacles at front only

10 (250) or more

40 (1,000) or more

En-4

8 (200) or more

40 (1,000) or more

When an obstruction in the upper space [ Unit: in (mm) ]

Obstacles at rear and above

Max. 11 (300)

60 (1,500) or more

10 (250) or more

60 (1,500) or more

10 (250) or more

8 (200) or more

3.2.3. Outdoor units installation multi-row [ Unit: in (mm) ]

(1) Single parallel unit arrangement

4 (100) or more

40 (1,000) or more

8 (200) or more

20 (500) or more

(2) Multiple parallel unit arrangement

[ Unit: in (mm) ]

A

Model A

LM series (including cold region), LZ series (includ-

ing cold region), LP (12, 18, 24 model) series

LP series (09 model) 17-11/16 (450)

13 (330)

1 (20)

Bolt

Nut

Washer

22-13/16 (580)

10 (250) or more

10 (250) or more

10 (250) or more

40 (1,000) or more

16 (400) or more

40 (1,000) or more

8 (200) or more

8 (200) or more

80 (2,000) or more

8 (200) or more

CAUTION

Do not install the outdoor unit in two-stage where the drain water could freeze.
Otherwise the drainage from the upper unit may form ice and cause a malfunction of
the lower unit.

NOTES:

• If the space is larger than stated above, the condition will be the same as when there is
no obstacle.

• When installing the outdoor unit, be sure to open the front and left side to obtain better
operation effi ciency.

3.3. Mounting the unit

• Install 4 anchor bolts at the locations indicated with arrows in the fi gure.

• To reduce vibration, do not install the unit directly on the ground. Install it on a secure
base (such as concrete blocks).

• Depending on the installation conditions, the outdoor unit may spread its vibration
during operation, which may cause noise and vibration. Therefore, attach damping
materials (such as damping pads) to the outdoor unit during installation.

• Install the foundation, making sure that there is enough space for installing the
connection pipes.

• Secure the unit to a solid block using foundation bolts. (Use 4 sets of commercially
available M10 bolts, nuts, and washers.)

• The bolts should protrude 1 in (20 mm). (Refer to the fi gure.)

• If overturning prevention is required, purchase the necessary commercially available
items.

• The foundation shall support the legs of the unit and have a width of 2 in (50 mm) or
more.

3.4. Drain installation *

* : Excluding the cold region model.

CAUTION

When the outdoor temperature is 32°F (0°C) or less, do not use the accessory drain
pipe and drain cap. If the drain pipe and drain cap are used, the drain water in the
pipe may freeze in extreme cold weather. (Reverse cycle model only)

Since the drain water fl ows out of the
outdoor unit during heating operation,
install the drain pipe and connect it to a
commercial 5/8 in (16 mm) hose.
When installing the drain pipe, plug all the
holes other than the drain pipe mounting
hole in the bottom of the outdoor unit with
putty so there is no water leakage.

[ Unit: in (mm) ]

■

LM series, LZ series

AIR

9-15/16 (252)

Drain pipe mounting hole

Base of the outdoor unit

Drain pipe

Drain cap × 5
(accessories)

15-11/16 (399)

■ LP series (09 model)

AIR

9-15/16 (252)

Drain pipe
(accessories)

2 in (50 mm)
or more

CAUTION

• Do not install the outdoor unit in two-stage where the drain water could freeze.
Otherwise the drainage from the upper unit may form ice and cause a malfunction of
the lower unit.

• In the area with heavy snowfall, if the intake and outlet of outdoor unit is blocked with
snow, it might become diffi cult to get warm and it is likely to cause of the breakdown.
Construct a canopy or baffl e board (local confi gured).

• If the unit is installed in a region that is exposed to high winds,
freezing conditions, freezing rain, snow fall or heavy snow
accumulation, take appropriate measures to protect it from those
elements.
To ensure stable operation, the outdoor unit must be installed on a
raised stand or rack, at or above the anticipated snow depth for the
region.
The installation of snow hoods and drift prevention fencing is
recommended when blowing and drifting snow is common to the
region.

13-1/16 (331)

■ LP series (12, 18, 24 model)

9-15/16 (252)

15-11/16 (399)

Drain pipe
(accessories)

AIR

Drain pipe
(accessories)

En-5

3.5. Removing and replacing parts

3.5.1. Switch cover removal

(1) Remove the tapping screws.
(2) Slide the switch cover downwards to release.

3.5.2. Installing the switch cover

(1) After inserting the hooks (2 places) on the switch cover into the hole on the outdoor

unit, slide the switch cover upwards.

(2) Replace the tapping screws.

(2) Centering the pipe against port on the outdoor unit, turn the fl are nut with your

hand.

(3) Tighten the fl are nut of the connection pipe at the outdoor unit valve connector.

To prevent gas leakage,
coat the flare surface with
alkylbenzene oil (HAB).
Do not use mineral oil.

Hook

Tapping screw

Always use the screws as shown above.

Hook

Switch cover

3.6. Pipe installation

CAUTION

• Do not use mineral oil on a fl ared part. Prevent mineral oil from getting into the
system as this would reduce the lifetime of the units.

• While welding the pipes, be sure to blow dry nitrogen gas through them.

■

Flaring

(1) Cut the connection pipe to the necessary length with a pipe cutter.
(2) Hold the pipe downward so that cuttings will not enter the pipe and remove the

burrs.

(3) Insert the fl are nut onto the pipe and fl are the pipe with a fl aring tool

Insert the fl are nut (always use the fl are nut attached to the indoor and outdoor

units respectively) onto the pipe and perform the fl are processing with a fl are tool.
Use the special R410A fl are tool, or the conventional (for R22) fl are tool.
When using the conventional fl are tool, always use an allowance adjustment gauge and
secure the A dimension shown in the following table.

Check if [L] is fl ared uniformly and
is not cracked or scratched.

Die

.

A

2-way valve
(liquid)

3-way valve
(gas)

(4) When the fl are nut is tightened properly by your hand, use a torque wrench to

fi nally tighten it.

Body side

Connection pipe
(liquid)
Connection pipe
(gas)

Flare nuts

Holding wrench

90°

Torque wrench

CAUTION

Hold the torque wrench at its grip, keeping it in the right angle with the pipe, in order to
tighten the fl are nut correctly.

Flare nut [in (mm)] Tightening torque [lbf·ft. (N·m)]

1/4 (6.35) dia. 11.8 to 13.3 (16 to 18)

3/8 (9.52) dia. 23.6 to 31.0 (32 to 42)
1/2 (12.70) dia. 36.1 to 45.0 (49 to 61)
5/8 (15.88) dia. 46.5 to 55.3 (63 to 75)
3/4 (19.05) dia. 66.4 to 81.1 (90 to 110)

CAUTION

• Fasten a fl are nut with a torque wrench as instructed in this manual. If fastened too
tight, the fl are nut may be broken after a long period of time and cause a leakage of
refrigerant.

• During installation, make sure that the refrigerant pipe is attached fi rmly before
you run the compressor. Do not operate the compressor under the condition of
refrigerant piping not attached properly with 3-way valves open. This may cause
abnormal pressure in the refrigeration cycle that leads to breakage and even injury.

3.7. Sealing test

Pipe

Pipe outside diameter [in (mm)]

1/4 (6.35)

3/8 (9.52)
1/2 (12.70)
5/8 (15.88)
3/4 (19.05)

■

Bending pipes

(1) When bending the pipe, be careful not to crush it.
(2) To prevent breaking of the pipe, avoid sharp bends.
Bend the pipe with a radius of curvature of 2-3/8 in (70 mm) or more.
(3) If the copper pipe is bend the pipe or pulled too often, it will become stiff. Do not

bend the pipes more than three times at one place.

■

Flare connection

(1) Detach the caps and plugs from the pipes.

Dimension A [in (mm)]

Flare tool for R410A, clutch type

0 to 0.020

(0 to 0.5)

CAUTION

• Be sure to apply the pipe against the port on the indoor unit and the outdoor unit
correctly. If the centering is improper, the fl are nut cannot be tightened smoothly. If
the fl are nut is forced to turn, the threads will be damaged.

• Do not remove the fl are nut from the indoor unit pipe until immediately before
connecting the connection pipe.

En-6

WARNING

• Before operating the compressor, install the pipes and securely connect them.
Otherwise, if the pipes are not installed and if the valves are open when the
compressor operates, air could enter the refrigeration cycle. If this happens, the
pressure in the refrigeration cycle will become abnormally high and cause damage
or injury.

• After the installation, make sure there is no refrigerant leakage. If the refrigerant
leaks into the room and becomes exposed to a source of fi re such as a fan heater,
stove, or burner, it produces a toxic gas.

• Do not subject the pipes to strong shocks during the sealing test. It can rupture the
pipes and cause serious injury.

CAUTION

• Do not block the walls and the ceiling until the sealing test and the charging of the
refrigerant gas have been completed.

• For maintenance purposes, do not bury the piping of the outdoor unit.

• After connecting the pipes, perform a sealing test.

• Make sure that the 3-way valves are closed before performing a sealing test.

• Pressurize nitrogen gas to 4.15 MPa to perform the sealing test.

• Add nitrogen gas to both the liquid pipes and the gas pipes.

• Check all fl are connections and welds. Then, check that the pressure has not
decreased.

• Compare the pressures after pressurizing and letting it stand for 24 hours, and check
that the pressure has not decreased.
* When the outdoor air temperature changes 41 °F (5 °C), the test pressure changes

0.05 MPa. If the pressure has dropped, the pipe joints may be leaking.

• If a leak is found, immediately repair it and perform the sealing test again.

• After completing the sealing test, release the nitrogen gas from both valves.

• Release the nitrogen gas slowly.

3.8. Vacuum process

CAUTION

• Perform a refrigerant leakage test (air tightness test) to check for leaks using
nitrogen gas while all valves in the outdoor unit are closed. (Use the test pressure
indicated on the nameplate.)

• Be sure to evacuate the refrigerant system using a vacuum pump.

• The refrigerant pressure may sometimes not rise when a closed valve is opened
after the system is evacuated using a vacuum pump. This is caused by the closure
of the refrigerant system of the outdoor unit by the electronic expansion valve. This
will not affect the operation of the unit.

• If the system is not evacuated suffi ciently, its performance will drop.

• Use a clean gauge manifold and charging hose that were designed specifi cally for
use with R410A. Using the same vacuum equipment for different refrigerants may
damage the vacuum pump or the unit.

• Do not purge the air with refrigerants, but use a vacuum pump to evacuate the
system.

Refrigerant for purging the air is not charged in the outdoor unit at the factory.

(1) Remove the cap, and connect the gauge manifold and the vacuum pump to the

charging valve by the service hoses.

(2) Vacuum the indoor unit and the connecting pipes until the pressure gauge indicates

–0.1 MPa (–76 cmHg).

(3) When –0.1 MPa (–76 cmHg) is reached, operate the vacuum pump for at least

60 minutes.

(4) Disconnect the service hoses and fi t the cap to the charging valve to the specifi ed

torque.

(5) Remove the blank caps, and fully open the spindles of the 3-way valves with a

hexagon wrench [Torque: 4 to 5 lbs·ft (6~7 N·m)].

(6) Tighten the blank caps of the 3-way valves to the specifi ed torque.

Tightening torque [lbs·ft (N·m)]

1/4 (6.35) 14.8 to 18.4 (20 to 25)

Blank cap

[in (mm)]

Charging port cap

Use a 3/16 in (4 mm) hexagon wrench

Service valve

(liquid)

Service valve

(gas)

Charging port

3/8 (9.52) 14.8 to 18.4 (20 to 25)

1/2 (12.70) 18.4 to 22.1 (25 to 30)

5/8 (15.88) 22.1 to 25.8 (30 to 35)

3/4 (19.05) 25.8 to 29.5 (35 to 40)

7 to 9 (10 to 12)

Gauge manifold

/R +L

Flare nuts

Blank caps

Charging port cap

Vacuum pump

CAUTION

• After vacuuming the system, add refrigerant.

• Do not reuse recovered refrigerant.

• When charging the refrigerant R410A, always use an electronic scales for refrigerant
charging (to measure the refrigerant by weight). Adding more refrigerant than the
specifi ed amount will cause a malfunction.

• When charging the refrigerant, take into account the slight change in the composition
of the gas and liquid phases, and always charge from the liquid phase side
whose composition is stable. Adding refrigerant through the gas pipe will cause a
malfunction.

• Check if the steel cylinder has a siphon installed or not before fi lling. (There is an
indication “with siphon for fi lling liquid” on the steel cylinder.)

Filling method for cylinder with siphon

R410A

Liquid

Filling method for other cylinders

R410A

Liquid

• Be sure to use the special tools for R410A for pressure resistance and to avoid
mixing of impure substances.

• If the units are further apart than the maximum pipe length, correct operation can not
be guaranteed.

• Make sure to back closing valve after refrigerant charging. Otherwise, the
compressor may fail.

• Minimize refrigerant release to the air. Excessive release is prohibited under the
Freon Collection and Destruction Law.

■

Gas leakage inspection

Set the cylinder vertical and fi ll with the liquid.

Gas

(Liquid can be fi lled without turning bottom up with the
siphon inside.)

Turn bottom up and fi ll with liquid.

Gas

(Be careful to avoid turning over the cylinder.)

CAUTION

After connecting the piping, check the all joints for gas leakage with gas leak detector.

3.10. Electrical wiring

3.10.1. Conduit installation

(1) Remove the tapping screw, then remove the conduit cover.
(2) Fasten the Inter-unit wire harness and power supply to the conduit holder using

the lock nut.
(3) Connect inter-unit wire harness and power supply to the terminal.
(4) Use the tapping screw to install the conduit cover.

NOTES:

• Connector trade size for this unit is 1/2 inch. The connector can be bought at a hard

ware store. Refer to “3.10.2. Notes for electrical wiring ■ How to connect wiring to the
terminal”.

• The fuse located in the outdoor unit provides power supply protection and may blow

when power is applied if the system has been incorrectly wired.

Power supply

Lock nut

Inter-unit wire harness

Conduit connector

Tapping screw

3.9. Additional charging

WARNING

When moving and installing the air conditioner, do not mix gas other than the specifi ed
refrigerant R410A inside the refrigerant cycle.
If air or other gas enters the refrigerant cycle, the pressure inside the cycle will rise to
an abnormally high value and cause breakage, injury, etc.

Conduit cover

En-7

3.10.2. Notes for electrical wiring

WARNING

• Wiring connections must be performed by a qualifi ed person in accordance with the
specifi cations. The voltage rating for this product is 208/230 V at 60 Hz. It should be
operated within the range of 187 to 253 V.

• Before connecting the wires, make sure the power supply is off.

• Never touch electrical components immediately after the power supply has been
turned off. Electrical shock may occur. After turning off the power, always wait
10 minutes or more before touching electrical components.

• Use a dedicated power supply circuit. Insuffi cient power capacity in the electrical
circuit or improper wiring may cause electric shock or fi re.

• Be sure to install an earth leakage breaker.
Otherwise, it will cause electric shock or fi re.

• A circuit breaker is installed in the permanent wiring. Always use a circuit that can
trip all the poles of the wiring and has an isolation distance of at least 1/8 in (3 mm)
between the contacts of each pole.

• Use designated cables and power cables. Improper use may cause electric shock or
fi re by poor connection, insuffi cient insulation, or over current.

• Do not modify power cable, use extension cable or branch wiring. Improper use may
cause electric shock or fi re by poor connection, insuffi cient insulation or over current.

• Connect the connector cable securely to the terminal. Check no mechanical force
bears on the cables connected to the terminals. Faulty installation can cause a fi re.

• Use ring terminals and tighten the terminal screws to the specifi ed torques,
otherwise, abnormal overheating may be produced and possibly cause serious
damage inside the unit.

• Make sure to secure the insulation portion of the connector cable with the cable
clamp. Damaged insulation can cause a short circuit.

• Fix cables so that cables do not make contact with the pipes (especially on high
pressure side). Do not make power supply cable and transmission cable come in
contact with valves (Gas).

• Never install a power factor improvement condenser. Instead of improving the power
factor, the condenser may overheat.

• Be sure to perform the grounding work.
Do not connect grounding wires to a gas pipe, water pipe, lightning rod or grounding
wire for a telephone.

- Connection to a gas pipe may cause a fi re or explosion if gas leaks.

- Connection to a water pipe is not an effective grounding method if PVC pipe is
used.

- Connection to the grounding wire of a telephone or to a lightning rod may cause a
dangerously abnormal rise in the electrical potential if lightning strikes.

- Improper grounding work can cause electric shocks.

• Securely install the electrical box cover on the unit. An improperly installed service
panel can cause serious accidents such as electric shock or fi re through exposure to
dust or water.

• Do not connect the AC power supply to the transmission line terminal board.
Improper wiring can damage the entire system.

■

How to connect wiring to the terminal

Caution when wiring cable

• When stripping off the coating of a lead wire, always use a special tool such as a wire
stripper. If there is no special tool available, carefully strip the coating with a knife etc.

(1) Use ring terminals with insulating sleeves as shown in the fi gure below to connect

to the terminal block.

(2) Securely clamp the ring terminals to the wires using an appropriate tool so that the

wires do not come loose.

Strip : 3/8 in (10 mm)

Ring terminal

Sleeve

(3) Use the specifi ed wires, connect them securely, and fasten them so that there is no

stress placed on the terminals.

(4) Use an appropriate screwdriver to tighten the terminal screws. Do not use a

screwdriver that is too small, otherwise, the screw heads may be damaged and
prevent the screws from being properly tightened.

(5) Do not tighten the terminal screws too much, otherwise, the screws may break.

Screw with special washer

Wire

Ring terminal

Screw with
special washer

Ring terminal

Terminal blocks

Wire

(6) Refer to the following table for the terminal screw tightening torques.

Tightening torque [lbs·in (N·m)]

M3.5 screw 7.0 to 8.8 (0.8 to 1.0)

M4 screw 10.6 to 15.9 (1.2 to 1.8)
M5 screw 17.7 to 26.5 (2.0 to 3.0)

(7) Fix the conduit with the supporters as shown below.

Conduit (Power supply cable)

Supporter

Outdoor unit

CAUTION

• The primary power supply capacity is for the air conditioner itself, and does not
include the concurrent use of other devices.

• If the electrical power is inadequate, contact your electric power company.

• Install a breaker in a location that is not exposed to high temperatures.
If the temperature surrounding the breaker is too high, the amperage at which the
breaker cuts out may decrease.

• When using an earth leakage breaker that has been designed solely for ground fault
protection, be sure to install a fuse-equipped switch or circuit breaker.

• This system uses an inverter, which means that it must be used an earth leakage
breaker that can handle harmonics in order to prevent malfunctioning of the earth
leakage breaker itself.

• Do not use crossover power supply wiring for the outdoor unit.

• If the temperature surrounding the breaker is too high, the amperage at which the
breaker cuts out may decrease.

• When the electrical switchboard is installed outdoors, place it under lock and key so
that it is not easily accessible.

• Start wiring work after closing branch switch and over current breaker.

• Connection cable between indoor unit and outdoor unit is 208/230 V.

• Be sure not to remove thermistor sensor etc. from power wiring and connection
wiring. Compressor may fail if operated while removed.

• Always keep to the maximum length of the connection cable. Exceeding the
maximum length may lead to erroneous operation.

• Do not start operation until the refrigerant is charged completely. The compressor
will fail if it is operated before the refrigerant piping charging is complete.

• The static electricity that is charged to the human body can damage the control PC
Board when handling the control PC Board for address setting, etc.
Keep caution to the following points.
Provide the grounding of Indoor unit, Outdoor unit and Option equipment.
Cut off the power supply (breaker).
Touch the metal section (such as the unpainted control box section) of the indoor or
outdoor unit for more than 10 seconds. Discharge the static electricity in your body.
Never touch the component terminal or pattern on the PC Board.

• Be careful not to generate a spark as follows for using a fl ammable refrigerant.

- Do not remove the fuse while power is on.

- Do not disconnect plug from the wall outlet and the wiring while the power is on.

- It is recommended to position the outlet connection in a high position. Place the
cords so that they do not get tangled.

• Confi rm the indoor unit model name before connecting.

30 in

(756 mm)

or less

54 in

(1,360 mm)

or less

54 in

(1,360 mm)

or less

54 in

(1,360 mm)

or less

3.10.3. Wiring method

■

Connection diagrams

CAUTION

When connecting the power supply cable, make sure that the phase of the power
supply matches with the phase of the terminal board. If the phases do not match, the
compressor will rotate in reverse and will not be able to compress.

Outdoor unit terminal blockIndoor unit terminal block

Outdoor unit

Terminal

L2

L1

3

2

1

L2L1321

Power supply cable

POWER SUPPLY

Single phase, 208/230 V

Ground (earth)
screw

Indoor unit

Terminal

Earthing
(grounding) line

Control line

3

2

1

Ground (earth)
screw

DISCONNECT

SWITCH (Locally procured)

12 34

(Inter Unit)
Power line

Connection cable

NOTE: Factory installed protective inline fuses for indoor units’ conductors are installed on

the Power Supply PCB.

En-8

■

Cable preparation

Keep the ground (earth) wire longer than the other wires.
NOTE: When using a sealed cable

2-1/8 in (60 mm)

Power supply cable

Earth wire

or more

2-15/16 in (75 mm)

■

Wiring procedure

(1) Remove the outdoor unit switch cover.(Refer to “3.5.1. Switch cover removal”.)
(2) Remove the outdoor unit conduit cover. (Refer to “3.10.1. Conduit installation”.)
(3) Connect the power supply cable and the connection cable to terminal.
(4) Fasten the power supply cable and connection cable with cable tie (accessories).
(5) Install the conduit cover.(Refer to “3.10.1. Conduit installation”.)

Thread the cable tie through
the hole and tighten securely

or connection cable

L2L1

Cut off the
excess

6. PUMP DOWN

■

Pump down operation (forced cooling operation)

To avoid discharging refrigerant into the atmosphere at the time of relocation or disposal,
recover refrigerant by doing the forced cooling operation according to the following proce­dure.
(1) Conduct preliminary operation for 5 to 10 minutes using the forced cooling opera-

tion. Start the forced cooling operation. Keep on pressing the [MANUAL AUTO] of the
indoor unit for more than 10 seconds. The operation indicator lamp and timer indicator
lamp will begin to flash simultaneously during test run. (The forced cooling operation

cannot start if the [MANUAL AUTO] is not kept on pressing for more than 10 seconds.)
(2) Close the valve stem of 2-way valve completely.
(3) Continue the forced cooling operation for 2 to 3 minutes, then close all the valve stems

on the 3-way valves
(4) Stop the operation.

• Press the [START/STOP] of the remote controller to stop the operation.

• Press the [MANUAL AUTO] when stopping the operation from the indoor unit side.
(It is not necessary to press down for more than 10 seconds.)

CAUTION

Check the refrigerant circuit for any leaks before starting the pump down operation.
Do not proceed with the pump down operation if there is no refrigerant left in the
circuit due to bent or broken piping.
During the pump down operation, be sure to turn off the compressor before removing
the refrigerant piping.

Cable tie (accessories)

4. TEST RUN

Make a test run in accordance with the installation manual for the indoor unit.

5. FINISHING

5.1. Installing insulation

• Install insulation material after conducting “3.7. Sealing test”.

• To prevent condensation and water droplets, install insulation material on the refrigerant
pipe.

• Use insulation with heat resistance above 248 °F (120 °C).

• Refer to the table to determine the thickness of the insulation material.

■ Selection of insulation

(Use an insulation material with equal heat transmission rate or below 0.040
W/(m·k))

Insulation material minimum thickness [in (mm)]

Relative humidity ≤ 70% ≤ 75% ≤ 80% ≤ 85%

1/4 (6.35) 5/16 (8) 3/8 (10) 1/2 (13) 11/16 (17)

Pipe diameter

[in (mm)]

* When the ambient temperature and relative humidity exceed 89.6 °F (32 °C) (DB) and

85% respectively, strengthen the heat insulation of refrigerant pipe.

3/8 (9.52) 3/8 (9) 7/16 (11) 9/16 (14) 11/16 (18)
1/2 (12.70) 3/8 (10) 1/2 (12) 9/16 (15) 3/4 (19)
5/8 (15.88) 3/8 (10) 1/2 (12) 5/8 (16) 13/16 (20)
3/4 (19.05) 3/8 (10) 1/2 (13) 5/8 (16) 13/16 (21)

En-9
