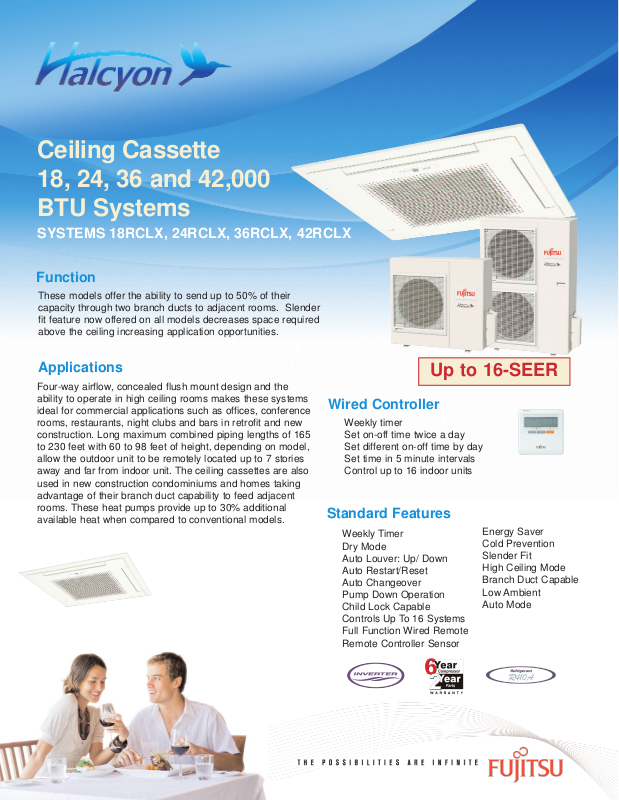

Ceiling Cassette
18, 24, 36 and 42,000 BTU Systems
SYSTEMS 18RCLX, 24RCLX, 36RCLX, 42RCLX
Function
These models offer the ability to send up to 50% of their capacity through two branch ducts to adjacent rooms. Slender fit feature now offered on all models decreases space required above the ceiling increasing application opportunities.
Applications
Four-way airflow, concealed flush mount design and the ability to operate in high ceiling rooms makes these systems ideal for commercial applications such as offices, conference rooms, restaurants, night clubs and bars in retrofit and new construction. Long maximum combined piping lengths of 165 to 230 feet with 60 to 98 feet of height, depending on model, allow the outdoor unit to be remotely located up to 7 stories away and far from indoor unit. The ceiling cassettes are also used in new construction condominiums and homes taking advantage of their branch duct capability to feed adjacent rooms. These heat pumps provide up to 30% additional available heat when compared to conventional models.
Up to 16-SEER
Wired Controller
pWeekly timer
pSet on-off time twice a day
pSet different on-off time by day
pSet time in 5 minute intervals
pControl up to 16 indoor units
Standard Features
l Weekly Timer |
l Energy Saver |
|
l Cold Prevention |
||
l Dry Mode |
||
l Slender Fit |
||
l Auto Louver: Up/ Down |
||
l Auto Restart/Reset |
l High Ceiling Mode |
|
l Branch Duct Capable |
||
l Auto Changeover |
||
l Low Ambient |
||
l Pump Down Operation |
||
l Auto Mode |
||
l Child Lock Capable |
||
|
lControls Up To 16 Systems
lFull Function Wired Remote
lRemote Controller Sensor
INDOOR UNIT AUU18RCLX, AUU24RCLX, AUU36RCLX, AUU42RCLX 3/16” -1
37”
37”
OUTDOOR UNIT AOU18RCLX,
AOU24RCLX, AOU36RCLX
|
|
|
|
|
|
|
|
3” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-1/4” |
|
|
|
|
|
|
1/2” |
|
|||
|
|
|
|
|
35-1/2” |
|
|
|
|
|
|
|
13” |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
32-3/4” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17-3/8” |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
7/8” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
3/8” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15-3/4” |
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
OUTDOOR UNIT AOU42RCLX |
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
3” |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
1-1/4” |
|
|
|
|
|
|
|
1/2” |
|
|||
|
|
|
|
|
35-1/2” |
|
|
|
|
|
|
|
|
13” |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
50-7/8” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1/2” |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
35- |
|
|
|
|
|
|
|
|
|
|
|
7/8” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3/8” |
|
|
|
|
|
|
|
|
|
|
15-3/4” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Please Note: Due to the use of inverter, system is now 208-230 single phase.
The Fujitsu logo is a registered trademark of Fujitsu Limited. The Halcyon logo and name is a trademark of Fujitsu General America, Inc. Copyright 2009 Fujitsu General America, Inc.
Fujitsu’s products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications and information in this brochure without notice and without incurring any obligations.
FOR MORE INFORMATION:
|
18RCLX |
24RCLX |
36RCLX |
42RCLX |
|||||
|
Heat Pump |
Heat Pump |
Heat Pump |
Heat Pump |
|||||
|
|
|
|
|
|
|
|
|
|
Nominal Cooling BTU/h |
17,800 |
22,200 |
34,100 |
42,700 |
|||||
Min.~Max. Cooling BTU/h |
5,000~21,500 |
5,000~27,300 |
8,500~36,000 |
13,700~45,000 |
|||||
|
|||||||||
Nominal Heating BTU/h |
21,000 |
24,200 |
36,000 |
45,200 |
|||||
Min.~Max. Heating BTU/h |
|
|
|
|
|
|
|
|
|
5,000~25,600 |
5,000~29,000 |
9,200~42,700 |
14,300~54,600 |
||||||
HSPF BTU/hW |
8.5 |
8.5 |
8.5 |
|
8.5 |
||||
SEER BTU/hW |
16.0 |
15.0 |
14.0 |
15.0 |
|||||
EER Clg/Htg |
11.1 / 10.2 |
10.6 / 10.2 |
8.1 / 9.7 |
9.2 / 10.5 |
|||||
Clg. Operating Range °F(°C) |
0~115 (-18~46) |
0~115 (-18~46) |
0~115 (-18~46) |
0~115 (-18~46) |
|||||
Htg. Operating Range °F(°C) |
14~75 (-10~24) |
14~75 (-10~24) |
14~75 (-10~24) |
0~75 (-18~24) |
|||||
Moisture Removal Pt./h(l/h) |
5.3 (2.5) |
6.4 (3.0) |
8.5 (4.0) |
11.6 (5.5) |
|||||
Voltage/Frequency/Phase |
|
|
|
|
|
|
|
|
|
208-230/60/1 |
208-230/60/1 |
208-230/60/1 |
208-230/60/1 |
||||||
Recommended Fuse Size (A) |
20 |
20 |
30 |
|
30 |
||||
Air Circ. C.F.M. (m3/h): Hi |
559 (950) |
618 (1,050) |
942 (1,600) |
1,000 (1,700) |
|||||
Medium |
477 (810) |
536 (910) |
824 (1,400) |
854 (1,450) |
|||||
Low |
394 (670) |
436 (740) |
677 (1,150) |
736 (1,250) |
|||||
Noise Level dB(A): Hi |
42/40 (Clg/Htg) |
45/43 (Clg/Htg) |
48/48 (Clg/Htg) |
50/50 (Clg/Htg) |
|||||
Medium |
39/38 (Clg/Htg) |
43/39 (Clg/Htg) |
45/45 (Clg/Htg) |
48/48 (Clg/Htg) |
|||||
Low |
36/36 (Clg/Htg) |
38/35 (Clg/Htg) |
41/41 (Clg/Htg) |
44/44 (Clg/Htg) |
|||||
Outdoor Fan Speed RPM |
780/780 |
850/900 |
850/900 |
850/750 |
|||||
Outdoor Noise Level dB(A) |
51/53 (Clg/Htg) |
53/55 (Clg/Htg) |
54/55 (Clg/Htg) |
55/56 (Clg/Htg) |
|||||
Current Rated/Max (A): Cooling |
7.0/12.5 |
9.2/12.5 |
18.3/18.8 |
20.3/21.7 |
|||||
Heating |
|
|
|
|
|
|
|
|
|
8.9/12.5 |
10.4/12.5 |
16.1/18.8 |
18.8/21.7 |
||||||
Power Use Rated/Max (kw): Clg |
1.61/2.88 |
2.10/2.88 |
4.22/4.35 |
4.66/4.99 |
|||||
Heating |
2.05/2.88 |
2.37/2.88 |
3.70/4.35 |
4.31/4.99 |
|||||
Fan Speeds Stage |
3 + Auto |
3 + Auto |
3 + Auto |
3 + Auto |
|||||
Air Direction: Horizontal |
|
- |
- |
|
- |
|
|
- |
|
Vertical |
Automatic |
Automatic |
Automatic |
Automatic |
|||||
Air Filter |
Washable |
Washable |
Washable |
Washable |
|||||
Front Grille |
Removable |
Removable |
Removable |
Removable |
|||||
Connection Method |
Flare |
Flare |
Flare |
Flare |
|||||
Combined Max. Lgth Ft (m) |
165 (50) Each |
165 (50) Each |
165 (50) Each |
230 (70) Each |
|||||
Max. Vertical Diff. Ft (m) |
65/20 |
65/20 |
98/30 |
98/30 |
|||||
Conn. Pipe Diameter Inch |
Suc. 1/2 |
Dis. 1/4 |
Suc. 5/8 |
Dis. 3/8 |
Suc. 5/8 |
Dis. 3/8 |
Suc. 5/8 |
Dis. 3/8 |
|
Net Weight lbs. (kg) |
75 (34) |
141 (64) |
75 (34) |
141 (64) |
82 (37) |
141 (64) |
88 (40) |
231 (105) |
|
Dimensions: Height Inch |
9-3/4 |
32-3/4 |
9-3/4 |
32-3/4 |
11-5/8 |
32-3/4 |
11-5/8 |
50-7/8 |
|
mm |
246 |
830 |
246 |
830 |
296 |
|
830 |
296 |
1290 |
Width Inch |
32-3/4 |
35-1/2 |
32-3/4 |
35-1/2 |
32-3/4 |
35-1/2 |
32-3/4 |
35-1/2 |
|
mm |
830 |
900 |
830 |
900 |
830 |
|
900 |
830 |
900 |
Depth Inch |
32-3/4 |
13 |
32-3/4 |
13 |
32-3/4 |
|
13 |
32-3/4 |
13 |
mm |
830 |
330 |
830 |
330 |
830 |
|
330 |
830 |
330 |
Refrigerant |
R410A |
R410A |
R410A |
R410A |
|||||
|
|
|
|
|
|
|
|
|
|
|
Indoor AUU18RCLX |
door AOU18RLX Out |
Indoor AUU24RCLX |
door AOU24RLX Out |
Indoor AUU36RCLX |
door AOU36RLX Out |
Indoor AUU42RCLX |
door AOU42RLX Out |
Note: Figures are based on 230 Volts.
