DMS A/B-F Series
Unit：mm

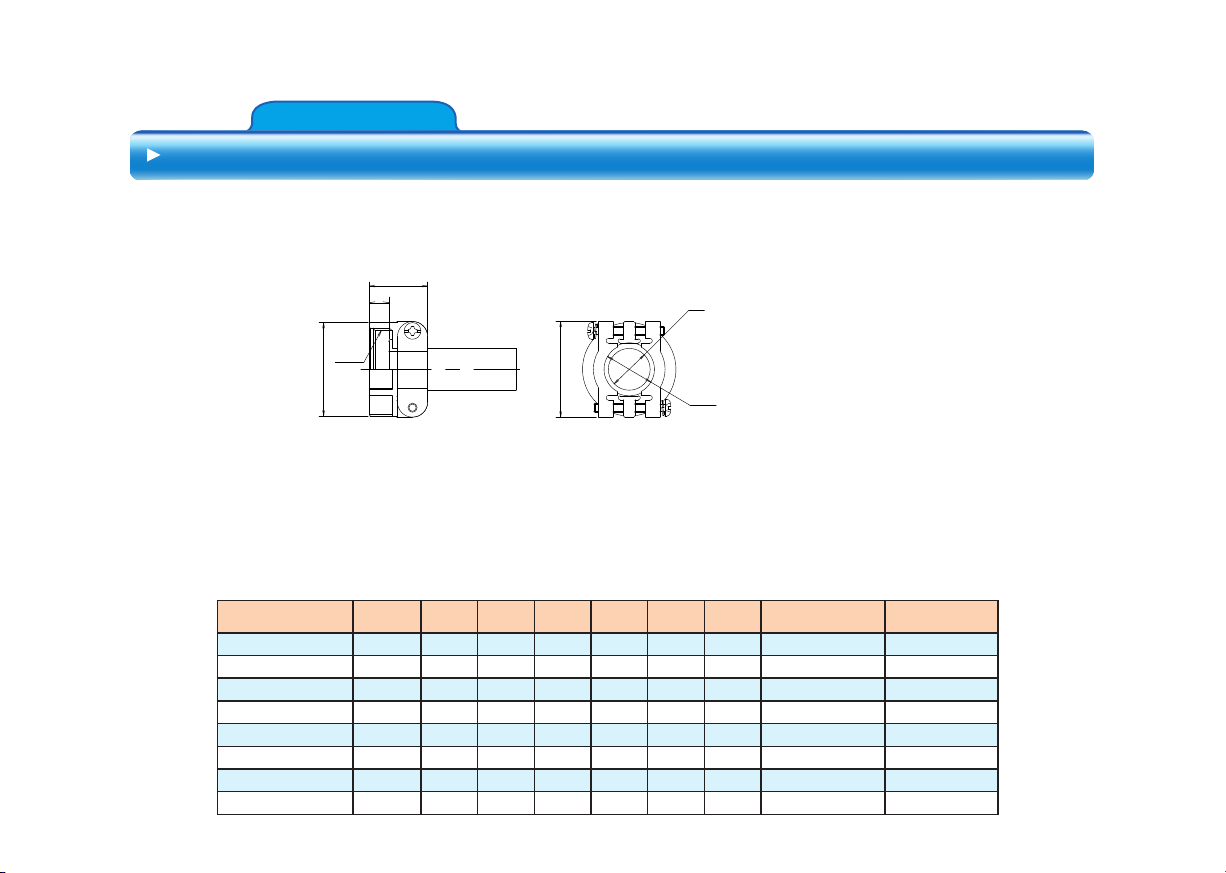

○Cable Clamp
DMS3057- □□ A-F
DMS3057- □□ A-F is an accessory which is used together with a backshell to fasten the cable.
The cable is xed in the center of the cable clamp for sure since the cable is xed from both directions
with two pieces of the metal clamps and the screws.
The jacketed cable can be used with this cable clamp as well because a rubber bushing shown on the table
below is inserted.
Part Number Shell Size A±0.7 B±0.7 C±0.4 D E G±0.7 V
DMS3057-4A-F 12S 20.6 20.6 9.0 7.9 5.6 22.2 5/8-24UNEF AN3420-4
DMS3057-6A-F 14S 22.2 24.6 9.0 11.2 7.9 27.0 3/4-20UNEF AN3420-6
DMS3057-8A-F 16S,16 23.8 27.8 9.0 14.3 11.1 29.4 7/8-20UNEF AN3420-8
DMS3057-10A-F 18 23.8 30.1 9.0 15.9 14.3 31.7 1-20UNEF AN3420-10
DMS3057-12A-F 20,22 23.8 35.0 9.0 19.0 15.9 37.3 1 3/16-18UNEF AN3420-12
DMS3057-16A-F 24,28 26.2 42.1 9.0 23.8 19.1 42.9 1 7/16-18UNEF AN3420-16
DMS3057-20A-F 32 27.8 51.6 11.0 31.7 23.8 51.6 1 3/4-18UNS AN3420-20
DMS3057-24A-F 36 29.4 56.4 10.5 34.9 31.8 58.0 2-18UNS AN3420-24
ＶThread
B
A
C
G
φE
φD
Bushing Part
Number
