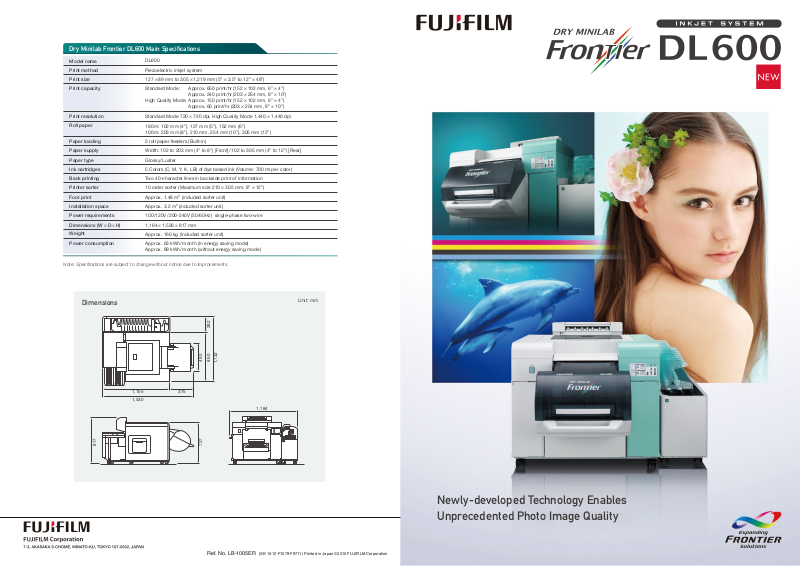

Dry Minilab Frontier DL600 Main Specifications
Model name
Print method
Print size 127
Print capacity
Print resolution
Roll paper
Paper loading
Paper supply
Paper type
Ink cartridges
Back printing
Printer sorter
Foot print
Installation space
Power requirements
Dimensions (W
Weight
Power consumption
✕ D ✕
H)
DL600
Piezoelectric inkjet system
Standard Mode: Approx. 650 print/hr (152
Approx. 240 print/hr (203
High Quality Mode: Approx. 150 print/hr (152
Approx. 60 print/hr (203
Standard Mode 720
180 m: 102 mm (4”), 127 mm (5”), 152 mm (6”)
100 m: 203 mm (8”), 210 mm, 254 mm (10”), 305 mm (12”)
2 roll paper feeders (Built-in)
Width: 102 to 203 mm (4” to 8”) [Front] /102 to 305 mm (4” to 12”) [Rear]
Glossy/Luster
5 Colors (C, M, Y, K, LB) of dye based ink (Volume: 700 ml per color)
Two 40-character lines in backside print of information
10 order sorter (Maximum size 210
Approx. 1.48 m
Approx. 3.2 m
100/120V/ 200-240V (50/60Hz) single-phase two-wire
1,184
Approx. 160 kg (included sorter unit)
Approx. 63 kWh/ month (in energy saving mode)
Approx. 89 kWh/ month (without energy saving mode)
✕ 89 mm to 305 ✕ 1,219 mm (5” ✕ 3.5” to 12” ✕ 48”)
✕ 102 mm, 6” ✕ 4”)
✕ 254 mm, 8” ✕ 10”)
✕ 102 mm, 6” ✕ 4”)
✕ 254 mm, 8” ✕ 10”)
✕ 720 dpi, High Quality Mode 1,440 ✕ 1,440 dpi
✕ 305 mm, 8” ✕ 12”)
2
(included sorter unit)
2
(included sorter unit)
✕ 1,530 ✕ 817 mm
Note: Specifications are subject to change without notice due to improvements.
Dimensions
282
492
850
1,132
1,155
1,530
817
375
727
Unit: mm
1,184
Ref. No. LB-1005ER (SK·10·12·F1079·F9711) Printed in Japan ©2010 FUJIFILM Corporation
Newly-developed Technology Enables
Unprecedented Photo Image Quality
Page 2
A New Stage in Inkjet Minilabs!
Leading edge technologies enable high quality images, stable image quality and user-friendly design
HIGH QUALITY IMAGE
01
Vivid medium density with five colored inks for beautiful reproductions
Cyan Magenta Yellow Black Light Blue
Advanced-MSDT
The newly-developed five color ink system
achieves enhanced granularity and gradation,
producing remarkable improvements in
medium density areas such as skin tones,
blue skies, gray backgrounds.
5 colored inks
4 colored inks
6 gradations
5 4
3
2 1 0
03
Exceptional space saving with wall positioning
Operation on two sides of the printer (front and
left side) enables the rear and right side to be
positioned against a wall to save valuable shop
space. Printer function is further enhanced with
front operation panel.
Minimum replacement of
consumables
180-meter paper rolls up to 6” (152 mm)
in width and 700 ml ink cartridges
minimize replacement of paper and inks.
USER-FRIENDLY DESIGN
Front operation panel
As no magazine
is required,
costs can be
saved and space
for storing spare
paper can be
reduced.
Elimination of paper magazine
saving cost & space
Enhanced image quality with
high-resolution mode
A 1,440 dpi mode is available for highquality prints, in addition to a 720 dpi
normal print mode. The 1,440 dpi mode
achieves further enhanced high image
quality even from the same resolution
image data.
720 dpi (print)
300 dpi digital data
1,440 dpi (print)
Outstanding image processing
technology ensures the best
possible image quality
The combination of DL600 exclusive paper
and five different colored inks, along with
Fujifilm’s proprietary image processing
technology Image Intelligence™ ensures
optimal reproduction of original images.
Original image
Optimized image after
image processing
02
Stable high-quality prints achieved by
automatic nozzle check function
Automatic nozzle check function verifies
the nozzle condition and automatically
cleans clogged up nozzles to avoid prints
with defective images being produced.
Besides, the function enables easy
maintenance.
Minimum banding with
highly accurate paper feeding
A newly-developed, highly accurate paper
feeding system minimizes banding.
STABLE IMAGE QUALITY
Enhanced roller cleaning capability
– easy operation for shop staff
Exclusive cleaning sheet enables easy
cleaning operations. No need to call in
specialists.
100 m 180 m 500 ml 700 ml
Easy maintenance of consumables
Replacement of ink cartridges
and back printer ribbons, and
waste paper disposal operations
are enhanced with simple
“Open & Remove”
maintenance capability.
Versatile features respond to a variety of customer needs
Ability to handle paper sizes up to 12 ✕ 48”
(305
✕ 1,219 mm), and side sorter (capacity
up to ten orders, print sizes up to 8
(203
✕ 305 mm) enables photo shops to
respond to customers’ sophisticated and
diversifying requirements.
”
12 ✕ 48
(305✕ 1,219mm)
✕ 12”
