Fuji Electric PXR4 Specifications

1. General specifications

Power supply voltage Power consumption

Insulation resistance Dielectric strength

Input impedance

Allowable signal source resistance Allowable wiring resistance Reference junction compensation accuracy Input value correction Set value correction Input filter

Noise reduction ratio

100 V (-15%) to 240 V (+10%) AC, 50/60 Hz or 24 V (±10%) AC 50/60 Hz, 24 V (±10%) DC When using 100 V AC:8 VA or less When using 220 V AC:10 VA or less When using 24 V AC/DC:10VA 20 MΩ or more (500 V DC) Power supply-ground ... 1500 V AC for 1 min Power supply-others ... 1500 V AC for 1 min Ground-relay output ... 1500 V AC for 1 min Ground-alarm output ... 1500 V AC for 1 min Others ... 500 V AC for 1 min Thermocouple: 1 MΩ or more Voltage: 450 kΩ or more Current: 250Ω (external resistor) Thermocouple: 100Ω or less Voltage: 1 kΩ or less Resistance bulb: 10Ω or less per wire

±1°C (at 23°C)

±10% of measuring range ±50% of measuring range

0 to 900.0 sec settable in 0.5 sec steps (first order lag filter) Normal mode noise (50/60 Hz): 50 dB or more Common mode noise (50/60 Hz): 140 dB or more

3. Input section

Input signal

Measuring range Burnout

Thermocouple : J, K, R, B, S, T, E, N, PLII Resistance bulb : Pt100 Voltage, current: 1 to 5 V DC, 4 to 20 mA DC (Apply current input after connecting the furnished 250Ω resistor to input terminal.) See measuring range table (Table1) For thermocouple or resistance bulb input Control output upper/lower are selectable

4. Output section of standard type (control output 1)

Control output 1 Select one as follows

Relay contact: SPDT contact:

220V AC/30V DC, 3A (resistive load) Mechanical life 10 million operations (no load) Electrical life 100,000 operations (rated load) Minimum switching current 100mA (24V DC) SSR / SSC drive (Voltage pulse): ON: 17 to 25 V DC OFF: 0.5V DC or less Max. current: 20mA or less 4 to 20mA DC: Allowable load resistance 600Ω or less

2. Control function of standard type

Control action

Proportional band (P)

Integral time (I) Differential time (D) On/off action if P = 0. Proportional action when I, D = 0. Proportional cycle

Hysteresis width

Anti-reset windup

Input sampling cycle Control cycle

PID control (with auto tuning, self-tuning) Fuzzy control (with auto tuning) Self tuning 0 to 999.9% of measuring range settable in

0.1% step 0 to 3200 sec settable in 1 sec step 0 to 999.9 sec settable in 0.1 sec step

1 to 150 sec settable in 1 sec step Only for relay contact output or SSR/SSC drive output 0 to 50% of measuring range For On/off action only 0 to 100% of measuring range Automatically validated at auto tuning

0.5 sec

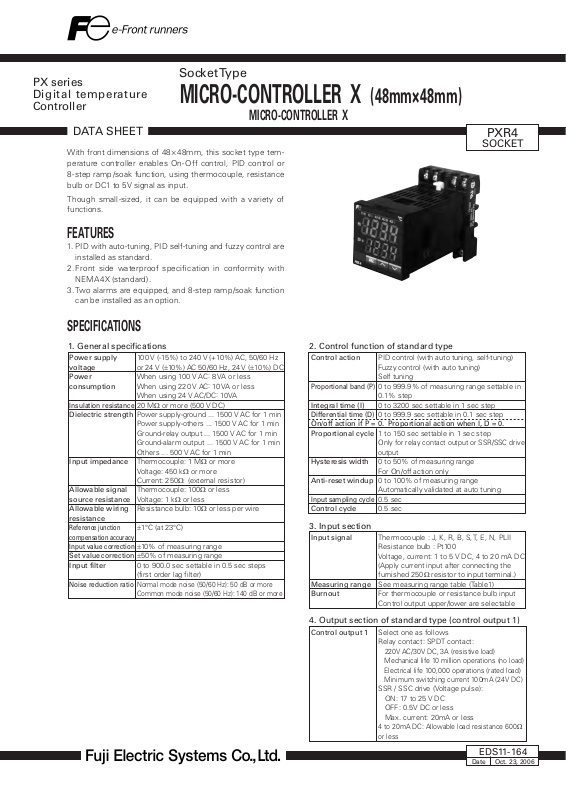

PX series Digital temperature

MICRO-CONTROLLER X (48mm×48mm)

Controller

DATA SHEET

With front dimensions of 48×48mm, this socket type tem perature controller enables On- Off control, PID control or 8-step ramp/soak function, using thermocouple, resistance bulb or DC1 to 5V signal as input.

Though small-sized, it can be equipped with a variet y of functions.

FEATURES

1. PID with auto-tuning, PID self-tuning and fuzzy control are installed as standard.

2. Front side waterproof speciﬁcation in conformity with NEMA4X (standard).

3. Two alarms are equipped, and 8-step ramp/soak function can be installed as an option.

SPECIFICATIONS

Socket Type

MICRO-CONTROLLER X

PXR4

SOCKET

EDS11-164

Oct. 23, 2006

Date

PXR4

SOCKET

6. Alarm (option)

Alarm kind

Alarm ON-delay

Process alarm output

Absolute alarm, deviation alarm, zone alarm with upper and lower limits for each Hold function available

(See the figure below.) Alarm latch, Excitation/non-excitation selecting function provided Delay setting 0 to 9999 sec settable in 1 sec steps Relay contact: SPST contact: 220 V AC/30 V DC,

1 A (resistive load) Mechanical life 10 million operations (no load) Electrical life 100,000 operations (rated load) Minimum switching current 100 mA (5 V DC) MAX 2 points output cycle 0.5 sec

Table 1 Measuring range table

input signal

Group measuring range(°C) measuring range(°F)

Resistance bulb Thermocouple

DC voltage DC current

Note 1: For current input connect the supplied 250Ω resister at

the input terminal.

Note 2:

Setting cannot be changed to a different group.

Note 3: When the measuring range exceeds 1000°C (1832°F),

decimal point cannot be used.

Pt100 J K R B S T E N PL2 1 to 5V 4 to 20mA

-150 to 850 0 to 800 0 to 1200 0 to 1600 0 to 1800 0 to 1600

-150 to 400

-150 to 800 0 to 1300 0 to 1300

scaling range

-238 to 1562 32 to 1472 32 to 2192 32 to 2912 32 to 3272 32 to 2912

-238 to 752

-238 to 1472 32 to 2372 32 to 2372

-1999 to 9999

11. Structure

Mounting method

External terminal

Case material

Dimensions Weight Protective structure

Outer casing

Panel flush mounting, DIN rail mounting. (

Mounting socket is required for mounting

DIN rail.

)

8 pins or 11 pins terminals (Socket is required for wiring separately.)

Plastic (non-combustible grade UL94V-0 equivalent) 48 × 48 × 84.7mm Approx. 200 g Front waterproof structure: NEMA4X (IEC standard IP66 equivalent) (when mounted on panel with our genuine packing. Waterproof feature unavailable in close mounting of multiple units) Rear case: IEC IP20 Black (front frame, case)

10. Operation and storage conditions

Ambient operating temperature

Ambient operating humidity Storage temperature

-10°C to 50°C (

In low-temperature environment, start-up

time may vary in power activation.)

Less than 90% RH (no condensation)

-20°C to 60°C

8. Power failure processing

Memory protection

Held by non-volatile memory

9. Self-check

Method

Program error supervision by watchdog timer

7. Other functions

Parameter mask function Ramp/soak function (option)

Parameter display is disabled by software.

2 program pattern of 4 steps each, or 1 program pattern

8 steps

Digital input allows to start/reset the action.

Lower limit alarm

(with hold)

Power OFFPower ON

Power ON

off

offoff

PV (process value)

Period where lower limit alarm is output

Lower limit alarm

What is alarm with hold? The alarm is not turned ON immediately even when the process value is in the alarm band. It turns ON when it goes out the alarm band and enters again.

5. Operation and display section

Parameter setting method Display

Status display LED Setting accuracy Indication accuracy (at 23°C)

Digital setting by 3 keys With key lock function Process value/set value Independent display 4 digits, 7-segment LED Control output, process alarm output

0.1% or less of measuring range Thermocouple: ±(0.5% of measuring range)

±1 digit ±1°C

For thermocouple R at 0 to 500°C ...

± (1% of measuring range) ±1 digit ±1°C

For thermocouple B at 0 to 400°C ...

± (5% of measuring range) ±1 digit ±1°C

Resistance bulb, voltage/current:

± (0.5% of measuring range) ±1 digit
