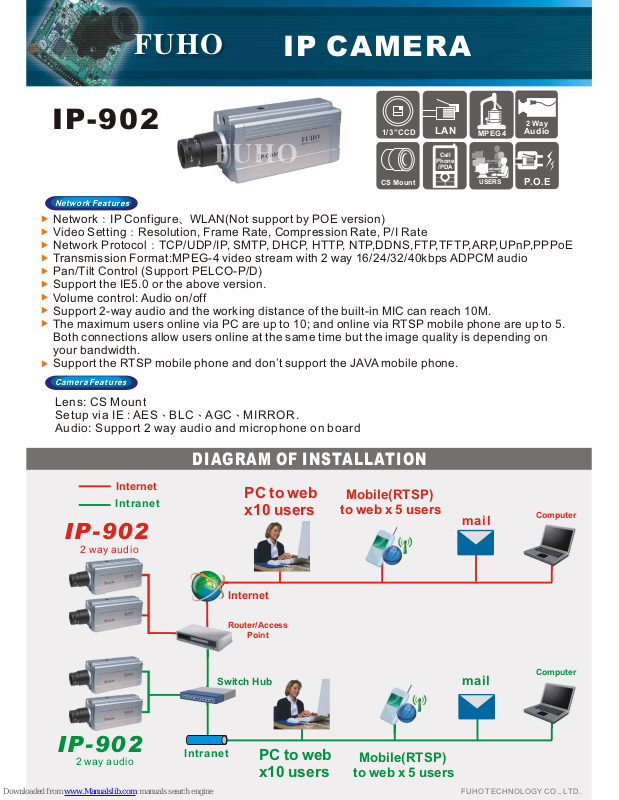

Fuho IP-902 User Manual
FUHO
IP-902
IP CAMERA
Network F ea tur es
Intranet
Internet
FUHO TEC HNOLO GY CO., LTD.
IP-902
IP-902
to web x 5 users
Mobile(RTSP)
DIA G R AM O F I N S TA L L AT I O N
2 way audio
2 way audio
Internet
Router/Access
Point
Switch Hub
Intranet
Computer
Computer
PC to web
x10 users
to web x 5 users
Mobile(RTSP)
PC to web
x10 users
Network：IP Configure、WLAN(Not support by POE version)
Video Setting：Resolution, Frame Rate, Compression Rate, P/I Rate
Network Protocol：TCP/UDP/IP, SMTP, DHCP, HTTP, NTP,DDNS,FTP,TFTP,ARP,UPnP,PPPoE
Transmission Format:MPEG-4 video stream with 2 way 16/24/32/40kbps ADPCM audio
Pan/Tilt Control (Support PELCO-P/D)
Support the IE5.0 or the above version.
Volume control: Audio on/off
Support 2-way audio and the working distance of the built-in MIC can reach 10M.
The maximum users online via PC are up to 10; and online via RTSP mobile phone are up to 5.
Both connections allow users online at the same time but the image quality is depending on
your bandwidth.
Support the RTSP mobile phone and don’t support the JAVA mobile phone.
mail
mail
LAN
Call
Phone
/PDA
MPEG 4
USERS
1/3” CCD
CS Mount
2 Way
Audio
P.O. E
Came ra Fe at u re s
Lens: CS Mount
Setup via IE : AES、BLC、AGC、MIRROR.
Audio: Support 2 way audio and microphone on board
FUHO
IP CAMERA
Pick up Elem en t
Cam era t yp e
LENS
Com press ion
Clien t View
(Res ol ut ion/Fram e Rat e)
Net work Prot ocol
Transm issi on Form at
Rec orde d form at
Mot ion D et ec tion
1/3” CCD Imag e Sen sor (Int er Li ne )
Com pa t ibl e with BT.65 6，28 .63 63 6M H z for NTS C、28 .375M Hz f or PAL
C/CS Mou nt
MPEG4 / JP EG
NTSC PAL
D1：72 0x4 80 / 30 D1：720x5 76 / 25
CIF：36 0x2 40 / 30 CIF：36 0x2 88 / 25
Hal f-D 1：72 0x2 40 / 30 Hal f-D1：72 0x2 88 / 25
QCIF：18 0x1 20 / 30 QCIF：18 0x1 44 / 25
TCP/UDP/IP, DHCP, SMTP, HTTP, NTP,DDNS ,FTP,TFTP,ARP,UPnP,PPPoE
MPEG-4 vide o st rea m with 2 way 16/24 /32 /40kbp s ADPCM au di o
MPEG-4 vide o st rea m with 2 way 16/24 /32 /40kbp s ADPCM au di o
Con trol ler Int erf ac e
Set up vi a IE
Mem ory
Net work
Aud io
I/O Port s
Dimen sion s
Wei ght
Pow er Sup pl y
Pow er Con su mpt ion
Ope rat ing Tempe rat ure
Storag e Tem pe rat ure
Ope rat ing Hum idi ty
CAMERA：AESHUT、BLC OFF、AGCMAX、MIRROR
Net work ：IP Con figu r e、PPPoE、WLA N(N ot su pport by POE ve rsi on )
Vide o：Res ol ut ion、Fram e Rare 、Com press ion Rat e、P/I Rat e
Pan /Tilt Con trol （Sup port PELC O-P / D）
Aud io on /off
5°C ~ 40°C
0°C ~ 70°C
10%~ 80 %
DC12V/AC24V
SPEAK
RESET
DEFAULT
RS-485
D-
D+
ALARM I/O
NC
COM
NO
GND
IN
ANT
LEVEL
IRIS
VIDEO OUT
LAN
MIC
L H
VIDEO
DC
A
B
1
2
3
4
5
6
7
8
9
10
11
12
A
B
1
2
3
4
5
6
7
8
9
10
11
12
Microphone
Lens set
IP return default button
RJ45 Jack
DC12Vin
Microphone input port
Speaker output port
System Reset button
IRIS control line connector
IRIS type switch and
LEVEL adjust
Video output(BNC)
Antenna set
ALARM I/O port
RS485 control port
REAR PANELFRONT PANEL
FRONT PANEL
REAR PANEL
Specification
Movement on image
Digital Sensor input
Internet Explo rer 5.0 or above
Mobile Monitor System
Update Firmware
2M Byte Flash ROM / 8M Byte SDR AM / 32M B yte DD R
10/100 Ethernet
Wireless LAN 802.11g (Option, not s uppo rt by PO E vers ion)
Support 2 way audio and microphone on board
Power input、RJ45 network port、Video Outp ut por t、Audi o I/O po rt、
System Reset、RS485 control po rt、ALA RM I/O p ort
160mm（L）× 70mm（W）× 80mm（H）(without lens)
About 550 g
POE / DC 12V or AC24 / DC12V
About 500mA(without WLAN ca rd)
FUHO TEC HNOLO GY CO., LTD.
