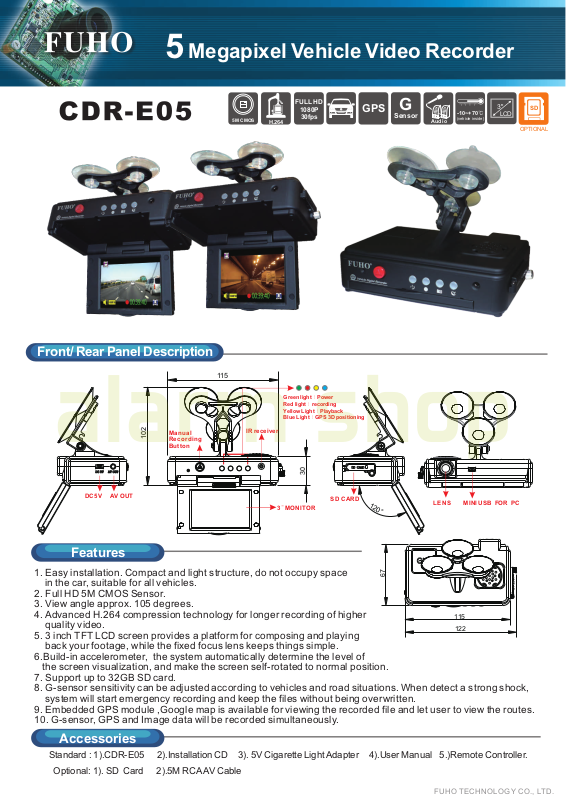

Fuho CDR-E05 User Manual

5 Megapixel Vehicle Video Recorder

alarm shop

Front/ Rear Panel Description

115

5M CMOS

H.264

FULL HD

1080P

30fps

GPS

G

Sensor

Aud io

-10~+70℃

(vehicle inside)

3"

LCD

SD

OPTIONAL

Green light：Power
Red light：recording
Yellow Light：Playback
Blue Light：GPS 3D positioning

IR receiver

30

3" MO NIT OR

SD CARD

120°

LENS

MINI US B FOR PC

DC5V

AV OUT

102

Manua l
Recor ding
Butto n

Features

1. Easy installation. Compact and light structure, do not occupy space
in the car, suitable for all vehicles.

2. Full HD 5M CMOS Sensor.

3. View angle approx. 105 degrees.

4. Advanced H.264 compression technology for longer recording of higher
quality video.

5. 3 inch TFT LCD screen provides a platform for composing and playing
back your footage, while the fixed focus lens keeps things simple.

6.Build-in accelerometer, the system automatically determine the level of
the screen visualization, and make the screen self-rotated to normal position.

7. Support up to 32GB SD card.

8. G-sensor sensitivity can be adjusted according to vehicles and road situations. When detect a strong shock,
system will start emergency recording and keep the files without being overwritten.

9. Embedded GPS module ,Google map is available for viewing the recorded file and let user to view the routes.

10. G-sensor, GPS and Image data will be recorded simultaneously.

67

115

122

Accessories

Standard : 1).CDR-E05 2).Installation CD 3). 5V Cigarette Light Adapter 4).User Manual 5.)

Optional: 1). SD Card 2).5M RCA AV Cable

Remote Controller.

FUHO TECHNOLOGY CO. , LTD.

G Sensor

alarm shop

Speed meter
Video Search

Play Speed

Volume

5 Megapixel Vehicle Video Recorder

GOOGLE MAP

Specifications

Chipset

Sensor Device

View Angel

Voltage

Operating Temp

Storage Device

Recording Frame

Recording Data

Recording Format

Microphone

Input Device

Others

Time Setup

G-Sensor

Important Notice

êVersion updating is not going to inform, please check the on-going updating information ----

Ambarella H.264 image compression chip
Full HD 5M CMOS Sensor
3mm Len View angle approx. 105 degrees. (Option for M12 Len model)
5V±5%; Start 600mA,
Remark: Please use 5V±5%, 1A Cigarette lighter adapter.
The machine needs 4.8v to start.

-10℃~ +70℃ (Inside vehicle)
Silicon Power or Transcend SD card Class 6 or above recommend.
(min capacity 4G or above, Max 32G)
Full HD 1080P (1920x1080) @30fps. HD 720P (1280x720) @60fps/ 30fps.
Auto record when power up system. 30fps/ 60fps only choose one; provides two kind
of system NTSC/ PAL.
Date / time / video / audio / G-Sensor data / GPS data
Specific format for player software
Build-in Dual High Sensitivity Microphone
Emergency recording button, Remote controller
(a) TV-Out （1 Vp-p composite video output, 75 ohms）Two kind of system: NTSC/PAL
(b) Red light: recording (c) Green light: Power (d) Yellow Light: Playback
(e) Blue Light: GPS 3D positioning (f) Mini USB for PC connection
(g) Build-in accelerometer, the system automatically determine the level of the screen
visualization, and make the screen self-rotated to normal position.

Auto-calibrating by GPS signals. If GPS is not available, the built-in clock will be used.

Build in Internal 3D G-Sensor
(a)Machine must be installed in the area that wipe can be reached.
(b)Machine provides both NTSC and PAL systems, please using OSD to change
the right system in order to connect system monitor properly.
(c)After SD card formatted, user needs to set up time zone data from Software player
in order to display the correct time on OSD video output。
(d)SD card must be formatted by special player first to be used properly. After formatting,
the remaining capacity will show 80MB.
(e)GPS positioning speed will be affected by weather, window films, etc.
Windows film may contain metal substances and have impact on GPS positioning.

FUHO TE CH NOLOG Y CO., LTD .
