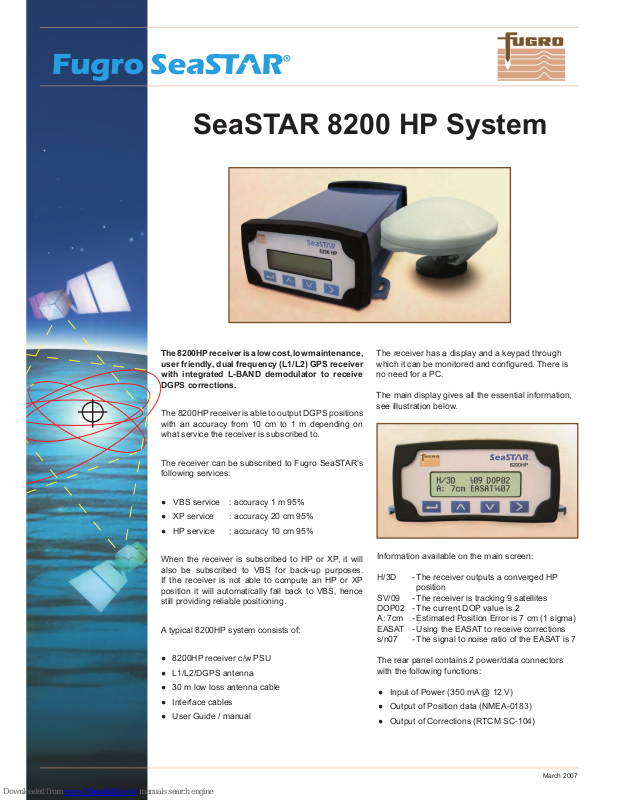

SeaSTAR 8200 HP System
The 8200HP receiver is a low cost, low maintenance,
user friendly, dual frequency (L1/L2) GPS receiver
with integrated L-BAND demodulator to receive
DGPS corrections.
The 8200HP receiver is able to output DGPS positions
with an accuracy from 10 cm to 1 m depending on
what service the receiver is subscribed to.
The receiver can be subscribed to Fugro SeaSTAR’s
following services:
● VBS service : accuracy 1 m 95%
● XP service : accuracy 20 cm 95%
● HP service : accuracy 10 cm 95%
When the receiver is subscribed to HP or XP, it will
also be subscribed to VBS for back-up purposes.
If the receiver is not able to compute an HP or XP
position it will automatically fall back to VBS, hence
still providing reliable positioning.
A typical 8200HP system consists of:
● 8200HP receiver c/w PSU
● L1/L2/DGPS antenna
● 30 m low loss antenna cable
● Interface cables
● User Guide / manual
Information available on the main screen:
H/3D - The receiver outputs a converged HP
position
SV/09 - The receiver is tracking 9 satellites
DOP02 - The current DOP value is 2
A: 7cm - Estimated Position Error is 7 cm (1 sigma)
EASAT
- Using the EASAT to receive corrections
s/n07 - The signal to noise ratio of the EASAT is 7
The rear panel contains 2 power/data connectors
with the following functions:
● Input of Power (350 mA @ 12 V)
● Output of Position data (NMEA-0183)
● Output of Corrections (RTCM SC-104)
March 2007
The receiver has a display and a keypad through
which it can be monitored and configured. There is
no need for a PC.
The main display gives all the essential information,

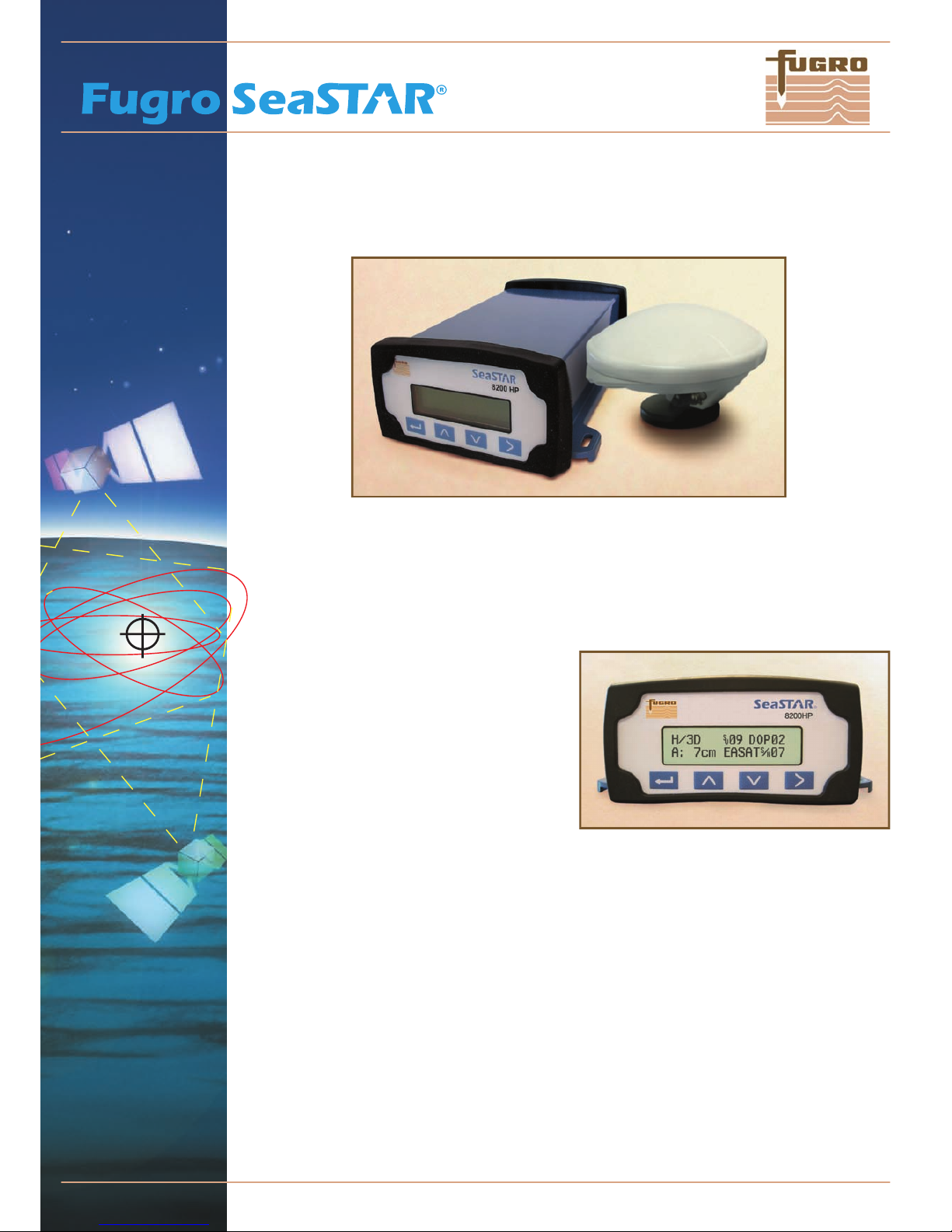

see illustration below.
Page 2
Features:
● Dual Frequency (L1/L2) Trimble GPS receiver
● Internal L-band receiver to receive corrections
● Display and Keypad to monitor and configure
● Outputs various NMEA sentences (GGA, VTG)
● Outputs RTCM SC-104 corrections
● Two serial RS232 Ports
March 2007
Subject to change without further notice

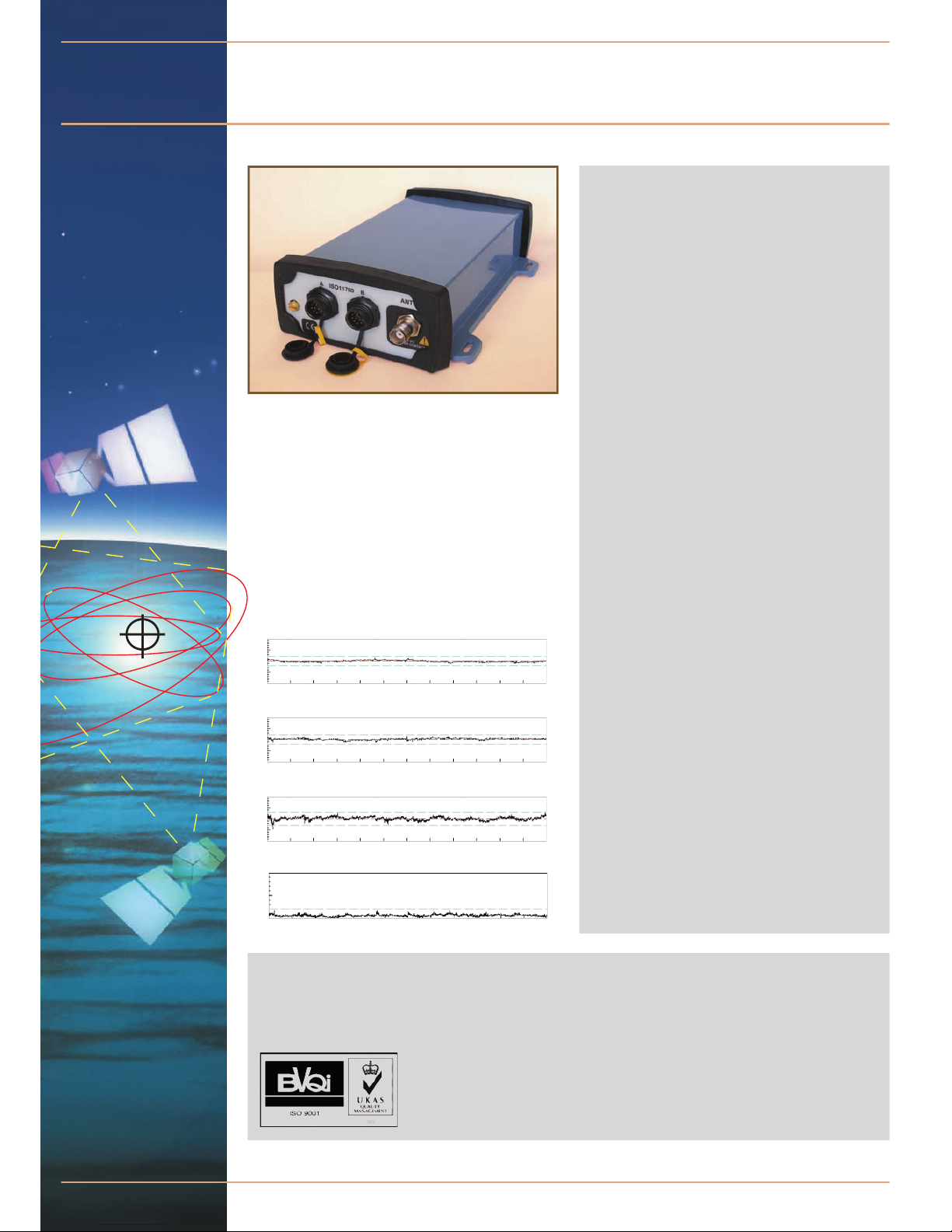

8200HP (59°55’24.4691”N 10°40’41.7208”E)
HPos: Min:0.00, Max:0.17, Mean:0.05, SD:0.02, 2SD:0.04, Count:86400
1.0
0.5
0.0
00:00:0002:00:0004:00:0006:00:0008:00:0010:00:0012:00:0014:00:0016:00:0018:00:0020:00:0022:00:0000:00:00
- HPos
Delta Northing (Ref Pos): dN: Min:-0.16, Max:0.15, Mean:0.02, SD:0.04, 2SD:0.07, Count:86400
00:00:0002:00:0004:00:0006:00:0008:00:0010:00:0012:00:0014:00:0016:00:0018:00:0020:00:0022:00:0000:00:00
1.0
0.5
0.0
-0.5
-1.0
(m)
Delta Height (Ref Pos): dH: Min:-0.50, Max:0.31, Mean:0.01, SD:0.07, 2SD:0.14, Count:86400
1.0
0.5
0.0
-0.5
-1.0
00:00:0002:00:0004:00:0006:00:0008:00:0010:00:0012:00:0014:00:0016:00:0018:00:0020:00:0022:00:0000:00:00
(m) (m)
Delta Easting (Ref Pos): dE: Min:-0.12, Max:0.13, Mean:-0.01, SD:0.04, 2SD:0.08, Count:86400
1.0
0.5
0.0
-0.5
-1.0
00:00:0002:00:0004:00:0006:00:0008:00:0010:00:0012:00:0014:00:0016:00:0018:00:0020:00:0022:00:0000:00:00
RECEIVER TECHNICAL SPECIFICATIONS
GPS Channels
Channels 12–channel parallel
tracking L1/L2
Update Rate 1, 5, 10 Hz
Position Accuracy
VBS 1 m (2 sigma - 95 %)
HP 10 cm (2 sigma - 95 %)
XP 20 cm (2 sigma - 95 %)
Velocity Accuracy
0.05 m/s RMS
Differential Corrections
SeaSTAR enabled
SBAS enabled
IALA optional
Input / Output data Interface
Electrical Format RS232
Baud Rates 4800, 9600, 19200,
38400, 57600,
115200 bps
NMEA messages GGA, GLL, GRS, GSA,
GST, GSV, MSS, RMC,
VTG, XTE, ZDA
Power Requirements
Voltage +10 to +32 VDC
Power consumption 4.2 W typical
Environmental
Operating temperature -30
° to + 70°C
-22
° to + 158°F
Storage temperature -40
° to + 85°C
-40
° to + 185°F
Physical Characteristics
Dimensions 216 x 148 x 56 mm
8.6 x 5.7 x 2.2 in
Further information
Complete technical information on
a specific model type or peripheral
hardware can be obtained from
Fugro Seastar AS:
Fugro Seastar AS
Hoffsveien 1C
P.O.Box 490, Skøyen
N-0213 Oslo, Norway
Phone: +47 21 50 14 00
Fax: +47 21 50 14 01
Email: seastar@fugro.no
Web: www.fugroseastar.no
